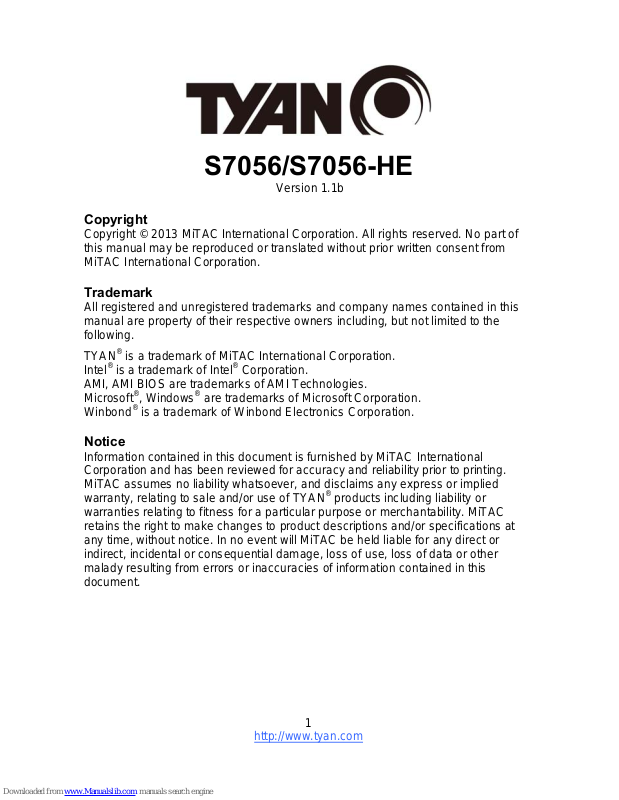

Page 1
http://www.tyan.com
1
S7056/S7056-HE
Version 1.1b
Copyright
Copyright © 2013 MiTAC International Corporation. All rights reserved. No part of
this manual may be reproduced or translated without prior written consent from
MiTAC International Corporation.
Trademark
All registered and unregistered trademarks and company names contained in this
manual are property of their respective owners including, but not limited to the
following.
TYAN® is a trademark of MiTAC International Corporation.
Intel
®
is a trademark of Intel® Corporation.
AMI, AMI BIOS are trademarks of AMI Technologies.
Microsoft®, Windows® are trademarks of Microsoft Corporation.
Winbond
®
is a trademark of Winbond Electronics Corporation.
Notice
Information contained in this document is furnished by MiTAC International
Corporation and has been reviewed for accuracy and reliability prior to printing.
MiTAC assumes no liability whatsoever, and disclaims any express or implied
warranty, relating to sale and/or use of TYAN
®
products including liability or
warranties relating to fitness for a particular purpose or merchantability. MiT A C
retains the right to make changes to product descriptions and/or specifications at
any time, without notice. In no event will MiTAC be held liable for any direc t or
indirect, incidental or consequential damage, loss of use, loss of data or other
malady resulting from errors or inaccuracies of information contained in this
document.
Page 2
http://www.tyan.com
2
Page 3
http://www.tyan.com
3
Contents
Before you begin…....................................................................................4
Chapter 1: Instruction ................................................................................5
1.1 Congratulations ................................................................................5
1.2 Hardware Specifications..................................................................5
1.3 Software Specifications..................................................................27
Chapter 2: Board Installation................................................................... 29
2.1 Board Image...................................................................................30
2.2 Block Diagram................................................................................32
2.3 Board Parts, Jumpers and Connectors..........................................33
2.4 Installing the Processor and Heatsink............................................46
2.5 Thermal Interface Material .............................................................49
2.6 Tips on Installing Motherboard in Chassis .....................................50
2.7 Installing the Memory .....................................................................52
2.8 Attaching Drive Cables...................................................................60
2.9 Installing Add-In Cards...................................................................61
2.10 Connecting External Devices.........................................................62
2.11 Installing the Power Supply............................................................63
2.12 Finishing Up....................................................................................64
Chapter 3: BIOS Setup ............................................................................. 65
3.1 About the BIOS...............................................................................65
3.2 Main Menu......................................................................................67
3.3 Advanced Menu..............................................................................68
3.4 Chipset Menu .................................................................................96
3.5 Boot ..............................................................................................106
3.6 Security.........................................................................................111
3.7 Server Management.....................................................................112
3.8 Event Logs....................................................................................115
3.9 Save & Exit...................................................................................116
Chapter 4: Diagnostics........................................................................... 119
4.1 Flash Utility...................................................................................119
4.2 AMIBIOS Post Code (Aptio).........................................................120
Appendix I: Fan and Temp Sensors .....................................................127
Appendix II: RAID OPROM Configuration ............................................131
Glossary................................................................................................... 133
Technical Support ..................................................................................139
Page 4
http://www.tyan.com
4
Before you begin…
Check the box contents!
The retail motherboard package should contain the following:
1 x S7056 Motherboard
2 x SATA Single Cable
1 x Mini-SAS Cable
1 x IO shielding
1 x S7056 Quick Installation Guide
1 x TYAN® Driver CD
IMPORTANT NOTE:
Sales samples may not come with any of the accessories listed above.
If you have ordered a sales sample and you are missing any of the above i tems,
please contact your sales representative to help order accessories.
NOTE: The SATA Single Cables, Mini-SAS Cable and IO Shielding are n ot included
in bulk packing.
Page 5
http://www.tyan.com
5
Chapter 1: Instruction
1.1 Congratulations
You have purchased the powerful TYAN® S7056 motherboard, based on the
Intel
®
Patsburg chipset. The S7056 is designed to support dual Intel® Xeon E5-
2600/E5-2600 v2 Series processors, and up to 512GB RDIMM, 128GB UDIMM
and 512GB LRDIMM DDR3 memory. Leveraging advanced technology from
Intel
®
, the S7056 is capable of offering scalable 32 and 64-bit computing, highbandwidth memory design, and lightning-fast PCI-E bus implementation.
The S7056 not only empowers you in today’s demand ing IT environment but also
offers a smooth path for future application upgradeability. All of these rich feature
sets provide the S7056 with the power and flexibility to meet demanding
requirements for today’s IT environments.
Remember to visit the TYAN® website at http://www.tyan.com. There you can
find all the information on all TYAN® products as well as all the supporting
documentation, FAQs, Drivers and BIOS upgrades.
1.2 Hardware Specifications
TYAN S7056 (S7056GM3NR)
Supported CPU
Series
Intel Xeon Processor E5-2600/E5-2600 v2 Series
Socket Type / Q’ty LGA2011 / (2)
Thermal Design
Power (TDP)
wattage
Max up to 95W
Processor
System Bus
Up to 8.0/ 7.2/ 6.4 GT/s with Intel QuickPath
Interconnect (QPI) support
Chipset PCH Intel C602
Supported DIMM
Qty
(8)+(8) DIMM slots
DIMM Type / Speed
UDIMM/RDIMM/LRDIMM ECC 1066 / 1333 / 1600 /
1866 *Speed 1866 only for 1 slot per channel 1.5V
(Blue color DIMM slot )
Capacity
up to 128GB UDIMM / 512GB RDIMM / 512GB
LRDIMM
Memory channel
4 Channels per CPU / Support 2 R/LR-DIMMs or 2
UDIMMs per channel
Memory
Memory voltage 1.5V or 1.35V
Page 6
http://www.tyan.com
6
PCI-E
(2) sets of the following expansion combination: (1)
PCI-E x16 slot in-lined with / (1) PCI-E x4 slot
(routed to PCI-E x8 bus) recommended to use
TYAN riser card
Expansion Slots
Recommended
TYAN Riser Card
M7056-L24-3F, PCI-E x16 2U riser card (left) /
M7056-R24-3F, PCI-E x16 2U riser card (right)
Recommended
Barebone /
Chassis
2U Barebone GN70-B7056
Port Q’ty (3) GbE ports
LAN
Controller Intel 82574L / Intel I350BT2
Connector (10) SATA
Controller Intel C602
Speed
(2) 6.0 Gb/s (blue color), (8) 3.0 Gb/s (2 x mini-SAS
connector)
Storage SATA
RAID RAID 0/1/10/5 (Intel RST)
Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Graphic
Chipset Aspeed AST2300
USB
(7) USB2.0 ports (2 at rear, 4 via cable, 1 type A
onboard)
COM (1) header / (1) port (rear)
VGA (1) D-Sub 15-pin VGA port
RJ-45 (3) GbE ports
Power
SSI 24-pin + 8-pin + 8-pin power connectors / SSI
EEB spec. 2008
Front Panel (1) 2x12-pin SSI front panel header
Input /Output
SATA
(2) SATA-III connectors + (2) Mini-SAS (4-in-1)
connectors
Chipset Nuvoton 83773G
Voltage
Monitors voltage for CPU, memory, chipset & power
supply
Fan Total (7) 4-pin headers
Temperature
Monitors temperature for CPU & system
environment
System
Monitoring
Others Watchdog timer support
Onboard Chipset Onboard Aspeed AST2300
AST2300 IPMI
Feature
IPMI 2.0 compliant baseboard management
controller (BMC) / Supports storage over IP and
remote platform-flash / USB 2.0 virtual hub
Server
Management
AST2300 iKVM
Feature
24-bit high quality video compression / 10/100 Mb/s
MAC interface
Brand / ROM size AMI / 8MB
BIOS
Feature Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
Page 7
http://www.tyan.com
7
/
PXE boot / ACPI 2.0 power management /Power on
mode after power recovery / User-configurable H/W
monitoring / Auto-configurable of hard disk types
Form Factor EATX
Physical
Dimension
Board Dimension 12”x13” (305x330mm)
Operating System OS supported list Please visit our Web site for the latest update.
FCC (DoC) Class A
Regulation
CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating
Temp.
- 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment
In/Non-operating
Humidity
90%, non-condensing at 35° C
RoHS
RoHS 6/6
Compliant
Yes
Motherboard (1) S7056 Motherboard
Manual (1) Quick Installation Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Package
Contains
Cable SATA
(2) SATA signal cables / (1) Mini-SAS cable to 4 x
SATA cables
Page 8
http://www.tyan.com
8
TYAN S7056 (S7056WGM3NR)
Supported CPU
Series
Intel Xeon Processor E5-2600/E5-2600 v2 Series
Socket Type / Q’ty LGA2011 / (2)
Thermal Design
Power (TDP)
wattage
Max up to 95W
Processor
System Bus
Up to 8.0/ 7.2/ 6.4 GT/s with Intel QuickPath
Interconnect (QPI) support
Chipset PCH Intel C602 with upgrade ROM module
Supported DIMM
Qty
(8)+(8) DIMM slots
DIMM Type / Speed
UDIMM/RDIMM/LRDIMM ECC 1066 / 1333 / 1600 /
1866 *Speed 1866 only for 1 slot per channel 1.5V
(Blue color DIMM slot )
Capacity
up to 128GB UDIMM / 512GB RDIMM / 512GB
LRDIMM
Memory channel
4 Channels per CPU / Support 2 R/LR-DIMMs or 2
UDIMMs per channel
Memory
Memory voltage 1.5V or 1.35V
PCI-E
(2) sets of the following expansion combination: (1)
PCI-E x16 slot in-lined with / (1) PCI-E x4 slot
(routed to PCI-E x8 bus) recommended to use
TYAN riser card
Expansion Slots
Recommended
TYAN Riser Card
M7056-L24-3F, PCI-E x16 2U riser card (left) /
M7056-R24-3F, PCI-E x16 2U riser card (right)
Recommended
Barebone /
Chassis
2U Barebone GN70-B7056
Port Q’ty (3) GbE ports
LAN
Controller Intel 82574L / Intel I350BT2
Connector (8) SAS
Controller Intel C602 with TRK-5 upgrade ROM module
Speed 3.0 Gb/s (mini-SAS connector)
SAS
RAID RAID 0/1/10 (Intel Integrated RAID upgrade ROM 5)
Connector (6) SATA
Controller Intel C602
Speed
(2) 6.0 Gb/s (blue color), (4) 3.0 Gb/s (mini-SAS
connector)
Storage
SATA
RAID RAID 0/1/10/5 (Intel RST)
Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Graphic
Chipset Aspeed AST2300
Page 9
http://www.tyan.com
9
USB
(7) USB2.0 ports (2 at rear, 4 via cable, 1 type A
onboard)
COM (1) header / (1) port (rear)
SAS (2) Mini-SAS (4-in-1) connectors
VGA (1) D-Sub 15-pin VGA port
RJ-45 (3) GbE ports
Power
SSI 24-pin + 8-pin + 8-pin power connectors / SSI
EEB spec. 2008
Front Panel (1) 2x12-pin SSI front panel header
Input /Output
SATA (1) Mini-SAS connector & (2) SATA-III connectors
Chipset Nuvoton 83773G
Voltage
Monitors voltage for CPU, memory, chipset & power
supply
Fan Total (7) 4-pin headers
Temperature
Monitors temperature for CPU & system
environment
System
Monitoring
Others Watchdog timer support
Onboard Chipset Onboard Aspeed AST2300
AST2300 IPMI
Feature
IPMI 2.0 compliant baseboard management
controller (BMC) / Supports storage over IP and
remote platform-flash / USB 2.0 virtual hub
Server
Management
AST2300 iKVM
Feature
24-bit high quality video compression / 10/100 Mb/s
MAC interface
Brand / ROM size AMI / 8MB
BIOS
Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/
PXE boot / ACPI 2.0 power management /Power on
mode after power recovery / User-configurable H/W
monitoring / Auto-configurable of hard disk types
Form Factor EATX
Physical
Dimension
Board Dimension 12”x13” (305 x33 0mm)
Operating System OS supported list Please visit our Web site for the latest update.
FCC (DoC) Class A
Regulation
CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating
Temp.
- 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment
In/Non-operating
Humidity
90%, non-condensing at 35° C
RoHS
RoHS 6/6
Compliant
Yes
Motherboard (1) S7056 Motherboard
Manual (1) Quick Installation Guide
Installation CD (1) TYAN installation CD
Package
Contains
I/O Shield (1) I/O Shield
Page 10
http://www.tyan.com
10
Cable SATA
(2) SATA signal cables / (1) Mini-SAS cable to 4 x
SATA cables
Page 11
http://www.tyan.com
11
TYAN S7056 (S7056WGM3NR-2T)
Supported CPU
Series
Intel Xeon Processor E5-2600/E5-2600 v2 Series
Socket Type / Q’ty LGA2011 / (2)
Thermal Design
Power (TDP)
wattage
Max up to 95W
Processor
System Bus
Up to 8.0/ 7.2/ 6.4 GT/s with Intel QuickPath
Interconnect (QPI) support
Chipset PCH Intel C602 with upgrade ROM module
Supported DIMM
Qty
(8)+(8) DIMM slots
DIMM Type / Speed
UDIMM/RDIMM/LRDIMM ECC 1066 / 1333 / 1600
/ 1866 *Speed 1866 only for 1 slot per channel
1.5V (Blue color DIMM slot )
Capacity
up to 128GB UDIMM / 512GB RDIMM / 512GB
LRDIMM
Memory channel
4 Channels per CPU / Support 2 R/LR-DIMMs or 2
UDIMMs per channel
Memory
Memory voltage 1.5V or 1.35V
PCI-E
(2) sets of the following expansion combination: (1)
PCI-E x16 slot in-lined with / (1) PCI-E x4 slot
(routed to PCI-E x8 bus) recommended to use
TYAN riser card
Expansion Slots
Recommended
TYAN Riser Card
M7056-L24-3F, PCI-E x16 2U riser card (left) /
M7056-R24-3F, PCI-E x16 2U riser card (right)
Recommended
Barebone /
Chassis
2U Barebone GN70-B7056
Port Q’ty (1) GbE port, (2) 10 GbE ports
LAN
Controller Intel 82574L / Intel X540-AT2
Connector (8) SAS
Controller Intel C602 with TRK-5 upgrade ROM module
Speed 3.0 Gb/s (mini-SAS connector)
SAS
RAID
RAID 0/1/10 (Intel Integrated RAID upgrade ROM
5)
Connector (6) SATA
Controller Intel C602
Speed
(2) 6.0 Gb/s (blue color), (4) 3.0 Gb/s (mini-SAS
connector)
Storage
SATA
RAID RAID 0/1/10/5 (Intel RST)
Connector type D-Sub 15-pin
Graphic
Resolution Up to 1920x1200
Page 12
http://www.tyan.com
12
Chipset Aspeed AST2300
USB
(7) USB2.0 ports (2 at rear, 4 via cable, 1 type A
onboard)
COM (1) header / (1) port (rear)
SAS (2) Mini-SAS (4-in-1) connectors
VGA (1) D-Sub 15-pin VGA port
RJ-45 (1) GbE port / (2) 10Gbe Ports
Power
SSI 24-pin + 8-pin + 8-pin power connectors / SSI
EEB spec. 2008
Front Panel (1) 2x12-pin SSI front panel header
Input /Output
SATA (1) Mini-SAS connector & (2) SATA-III connectors
Chipset Nuvoton 83773G
Voltage
Monitors voltage for CPU, memory, chipset &
power supply
Fan Total (7) 4-pin headers
Temperature
Monitors temperature for CPU & system
environment
System
Monitoring
Others Watchdog timer support
Onboard Chipset Onboard Aspeed AST2300
AST2300 IPMI
Feature
IPMI 2.0 compliant baseboard management
controller (BMC) / Supports storage over IP and
remote platform-flash / USB 2.0 virtual hub
Server
Management
AST2300 iKVM
Feature
24-bit high quality video compression / 10/100 Mb/s
MAC interface
Brand / ROM size AMI / 8MB
BIOS
Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power
on mode after power recovery / User-configurable
H/W monitoring / Auto-configurable of hard disk
types
Form Factor EATX
Physical
Dimension
Board Dimension 12”x13” (305x330mm)
Operating
System
OS supported list Please visit our Web site for the latest update.
FCC (DoC) Class A
Regulation
CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating
Temp.
- 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment
In/Non-operating
Humidity
90%, non-condensing at 35° C
RoHS
RoHS 6/6
Compliant
Yes
Package
Motherboard (1) S7056 Motherboard
Page 13
http://www.tyan.com
13
Manual (1) Quick Installation Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Contains
Cable SATA
(2) SATA signal cables / (1) Mini-SAS cable to 4 x
SATA cables
Page 14
http://www.tyan.com
14
TYAN S7056 (S7056WGM3NR5 [BTO])
Supported CPU
Series
Intel Xeon Processor E5-2600/E5-2600 v2 Series
Socket Type / Q’ty LGA2011 / (2)
Thermal Design
Power (TDP)
wattage
Max up to 95W
Processor
System Bus
Up to 8.0/ 7.2/ 6.4 GT/s with Intel QuickPath
Interconnect (QPI) support
Chipset PCH Intel C602 with upgrade ROM module
Supported DIMM
Qty
(8)+(8) DIMM slots
DIMM Type / Speed
UDIMM/RDIMM/LRDIMM ECC 1066 / 1333 / 1600 /
1866 *Speed 1866 only for 1 slot per channel 1.5V
(Blue color DIMM slot )
Capacity
up to 128GB UDIMM / 512GB RDIMM / 512GB
LRDIMM
Memory channel
4 Channels per CPU / Support 2 R/LR-DIMMs or 2
UDIMMs per channel
Memory
Memory voltage 1.5V or 1.35V
PCI-E
(2) sets of the following expansion combination: (1)
PCI-E x16 slot in-lined with / (1) PCI-E x4 slot
(routed to PCI-E x8 bus) recommended to use
TYAN riser card
Expansion Slots
Recommended
TYAN Riser Card
M7056-L24-3F, PCI-E x16 2U riser card (left) /
M7056-R24-3F, PCI-E x16 2U riser card (right)
Recommended
Barebone /
Chassis
2U Barebone GN70-B7056
Port Q’ty (3) GbE ports
LAN
Controller Intel 82574L / Intel I350BT2
Connector (8) SAS
Controller Intel C602 with TRK-6 upgrade ROM module
Speed 3.0 Gb/s (mini-SAS connector)
SAS
RAID
RAID 0/1/10/5 (Intel Integrated RAID upgrade ROM
6)
Connector (6) SATA
Controller Intel C602
Speed
(2) 6.0 Gb/s (blue color), (4) 3.0 Gb/s (mini-SAS
connector)
Storage
SATA
RAID RAID 0/1/10/5 (Intel RST)
Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Graphic
Chipset Aspeed AST2300
Page 15
http://www.tyan.com
15
USB
(7) USB2.0 ports (2 at rear, 4 via cable, 1 type A
onboard)
COM (1) header / (1) port (rear)
SAS (2) Mini-SAS (4-in-1) connectors
VGA (1) D-Sub 15-pin VGA port
RJ-45 (3) GbE ports
Power
SSI 24-pin + 8-pin + 8-pin power connectors / SSI
EEB spec. 2008
Front Panel (1) 2x12-pin SSI front panel header
Input /Output
SATA (1) Mini-SAS connector & (2) SATA-III connectors
Chipset Nuvoton 83773G
Voltage
Monitors voltage for CPU, memory, chipset & power
supply
Fan Total (7) 4-pin headers
Temperature
Monitors temperature for CPU & system
environment
System
Monitoring
Others Watchdog timer support
Onboard Chipset Onboard Aspeed AST2300
AST2300 IPMI
Feature
IPMI 2.0 compliant baseboard management
controller (BMC) / Supports storage over IP and
remote platform-flash / USB 2.0 virtual hub
Server
Management
AST2300 iKVM
Feature
24-bit high quality video compression / 10/100 Mb/s
MAC interface
Brand / ROM size AMI / 8MB
BIOS
Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/
PXE boot / ACPI 2.0 power management /Power on
mode after power recovery / User-configurable H/W
monitoring / Auto-configurable of hard disk types
Form Factor EATX
Physical
Dimension
Board Dimension 12”x13” (305 x33 0mm)
Operating System OS supported list Please visit our Web site for the latest update.
FCC (DoC) Class A
Regulation
CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating
Temp.
- 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment
In/Non-operating
Humidity
90%, non-condensing at 35° C
RoHS
RoHS 6/6
Compliant
Yes
Motherboard (1) S7056 Motherboard
Manual (1) Quick Installation Guide
Installation CD (1) TYAN installation CD
Package
Contains
I/O Shield (1) I/O Shield
Page 16
http://www.tyan.com
16
Cable SATA
(2) SATA signal cables / (1) Mini-SAS cable to 4 x
SATA cables
Page 17
http://www.tyan.com
17
TYAN S7056 (S7056GM3NR-HE)
Supported CPU
Series
Intel Xeon Processor E5-2600/E5-2600 v2 Series
Socket Type / Q’ty LGA2011 / (2)
Thermal Design
Power (TDP)
wattage
Max up to 150W
Processor
System Bus
Up to 8.0/ 7.2/ 6.4 GT/s with Intel QuickPath
Interconnect (QPI) support
Chipset PCH Intel C602
Supported DIMM
Qty
(8)+(8) DIMM slots
DIMM Type / Speed
UDIMM/RDIMM/LRDIMM ECC 1066 / 1333 / 1600 /
1866 *Speed 1866 only for 1 slot per channel 1.5V
(Blue color DIMM slot )
Capacity
up to 128GB UDIMM / 512GB RDIMM / 512GB
LRDIMM
Memory channel
4 Channels per CPU / Support 2 R/LR-DIMMs or 2
UDIMMs per channel
Memory
Memory voltage 1.5V or 1.35V
PCI-E
(2) sets of the following expansion combination: (1)
PCI-E x16 slot in-lined with / (1) PCI-E x4 slot
(routed to PCI-E x8 bus) recommended to use
TYAN riser card
Expansion Slots
Recommended
TYAN Riser Card
M7056-L24-3F, PCI-E x16 2U riser card (left) /
M7056-R24-3F, PCI-E x16 2U riser card (right)
Recommended
Barebone /
Chassis
2U Barebone GN70-B7056
Port Q’ty (3) GbE ports
LAN
Controller Intel 82574L / Intel I350BT2
Connector (10) SATA
Controller Intel C602
Speed
(2) 6.0 Gb/s (blue color), (8) 3.0 Gb/s (2 x mini-SAS
connector)
Storage SATA
RAID RAID 0/1/10/5 (Intel RST)
Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Graphic
Chipset Aspeed AST2300
USB
(7) USB2.0 ports (2 at rear, 4 via cable, 1 type A
onboard)
COM (1) header / (1) port (rear)
VGA (1) D-Sub 15-pin VGA port
Input /Output
RJ-45 (3) GbE ports
Page 18
http://www.tyan.com
18
Power
SSI 24-pin + 8-pin + 8-pin power connectors / SSI
EEB spec. 2008
Front Panel (1) 2x12-pin SSI front panel header
SATA
(2) SATA-III connectors + (2) Mini-SAS (4-in-1)
connectors
Chipset Nuvoton 83773G
Voltage
Monitors voltage for CPU, memory, chipset & power
supply
Fan Total (7) 4-pin headers
Temperature
Monitors temperature for CPU & system
environment
System
Monitoring
Others Watchdog timer support
Onboard Chipset Onboard Aspeed AST2300
AST2300 IPMI
Feature
IPMI 2.0 compliant baseboard management
controller (BMC) / Supports storage over IP and
remote platform-flash / USB 2.0 virtual hub
Server
Management
AST2300 iKVM
Feature
24-bit high quality video compression / 10/100 Mb/s
MAC interface
Brand / ROM size AMI / 8MB
BIOS
Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/
PXE boot / ACPI 2.0 power management /Power on
mode after power recovery / User-configurable H/W
monitoring / Auto-configurable of hard disk types
Form Factor EATX
Physical
Dimension
Board Dimension 12”x13” (305 x33 0mm)
Operating System OS supported list Please visit our Web site for the latest update.
FCC (DoC) Class A
Regulation
CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating
Temp.
- 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment
In/Non-operating
Humidity
90%, non-condensing at 35° C
RoHS
RoHS 6/6
Compliant
Yes
Motherboard (1) S7056 Motherboard
Manual (1) Quick Installation Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Package
Contains
Cable SATA
(2) SATA signal cables / (1) Mini-SAS cable to 4 x
SATA cables
Page 19
http://www.tyan.com
19
TYAN S7056 (S7056WGM3NR-HE)
Supported CPU
Series
Intel Xeon Processor E5-2600/E5-2600 v2 Series
Socket Type / Q’ty LGA2011 / (2)
Thermal Design
Power (TDP)
wattage
Max up to 150W
Processor
System Bus
Up to 8.0/ 7.2/ 6.4 GT/s with Intel QuickPath
Interconnect (QPI) support
Chipset PCH Intel C602 with upgrade ROM module
Supported DIMM
Qty
(8)+(8) DIMM slots
DIMM Type / Speed
UDIMM/RDIMM/LRDIMM ECC 1066 / 1333 / 1600 /
1866 *Speed 1866 only for 1 slot per channel 1.5V
(Blue color DIMM slot )
Capacity
up to 128GB UDIMM / 512GB RDIMM / 512GB
LRDIMM
Memory channel
4 Channels per CPU / Support 2 R/LR-DIMMs or 2
UDIMMs per channel
Memory
Memory voltage 1.5V or 1.35V
PCI-E
(2) sets of the following expansion combination: (1)
PCI-E x16 slot in-lined with / (1) PCI-E x4 slot
(routed to PCI-E x8 bus) recommended to use
TYAN riser card
Expansion Slots
Recommended
TYAN Riser Card
M7056-L24-3F, PCI-E x16 2U riser card (left) /
M7056-R24-3F, PCI-E x16 2U riser card (right)
Recommended
Barebone /
Chassis
2U Barebone GN70-B7056
Port Q’ty (3) GbE ports
LAN
Controller Intel 82574L / Intel I350BT2
Connector (8) SAS
Controller Intel C602 with TRK-5 upgrade ROM module
Speed 3.0 Gb/s (mini-SAS connector)
SAS
RAID RAID 0/1/10 (Intel Integrated RAID upgrade ROM 5)
Connector (6) SATA
Controller Intel C602
Speed
(2) 6.0 Gb/s (blue color), (4) 3.0 Gb/s (mini-SAS
connector)
Storage
SATA
RAID RAID 0/1/10/5 (Intel RST)
Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Graphic
Chipset Aspeed AST2300
Page 20
http://www.tyan.com
20
USB
(7) USB2.0 ports (2 at rear, 4 via cable, 1 type A
onboard)
COM (1) header / (1) port (rear)
SAS (2) Mini-SAS (4-in-1) connectors
VGA (1) D-Sub 15-pin VGA port
RJ-45 (3) GbE ports
Power
SSI 24-pin + 8-pin + 8-pin power connectors / SSI
EEB spec. 2008
Front Panel (1) 2x12-pin SSI front panel header
Input /Output
SATA (1) Mini-SAS connector & (2) SATA-III connectors
Chipset Nuvoton 83773G
Voltage
Monitors voltage for CPU, memory, chipset & power
supply
Fan Total (7) 4-pin headers
Temperature
Monitors temperature for CPU & system
environment
System
Monitoring
Others Watchdog timer support
Onboard Chipset Onboard Aspeed AST2300
AST2300 IPMI
Feature
IPMI 2.0 compliant baseboard management
controller (BMC) / Supports storage over IP and
remote platform-flash / USB 2.0 virtual hub
Server
Management
AST2300 iKVM
Feature
24-bit high quality video compression / 10/100 Mb/s
MAC interface
Brand / ROM size AMI / 8MB
BIOS
Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/
PXE boot / ACPI 2.0 power management /Power on
mode after power recovery / User-configurable H/W
monitoring / Auto-configurable of hard disk types
Form Factor EATX
Physical
Dimension
Board Dimension 12”x13” (305 x33 0mm)
Operating System OS supported list Please visit our Web site for the latest update.
FCC (DoC) Class A
Regulation
CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating
Temp.
- 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment
In/Non-operating
Humidity
90%, non-condensing at 35° C
RoHS
RoHS 6/6
Compliant
Yes
Motherboard (1) S7056 Motherboard
Manual (1) Quick Installation Guide
Installation CD (1) TYAN installation CD
Package
Contains
I/O Shield (1) I/O Shield
Page 21
http://www.tyan.com
21
Cable SATA
(2) SATA signal cables / (1) Mini-SAS cable to 4 x
SATA cables
Page 22
http://www.tyan.com
22
TYAN S7056 (S7056WGM3NR-2T-HE)
Supported CPU
Series
Intel Xeon Processor E5-2600/E5-2600 V2 Series
Socket Type / Q’ty LGA2011 / (2)
Thermal Design
Power (TDP)
wattage
Max up to 150W
Processor
System Bus
Up to 8.0/ 7.2/ 6.4 GT/s with Intel QuickPath
Interconnect (QPI) support
Chipset PCH Intel C602 with upgrade ROM module
Supported DIMM
Qty
(8)+(8) DIMM slots
DIMM Type / Speed
UDIMM/RDIMM/LRDIMM ECC 1066 / 1333 / 1600
/ 1866 *Speed 1866 only for 1 slot per channel
1.5V (Blue color DIMM slot )
Capacity
up to 128GB UDIMM / 512GB RDIMM / 512GB
LRDIMM
Memory channel
4 Channels per CPU / Support 2 R/LR-DIMMs or 2
UDIMMs per channel
Memory
Memory voltage 1.5V or 1.35V
PCI-E
(2) sets of the following expansion combination: (1)
PCI-E x16 slot in-lined with / (1) PCI-E x4 slot
(routed to PCI-E x8 bus) recommended to use
TYAN riser card
Expansion Slots
Recommended
TYAN Riser Card
M7056-L24-3F, PCI-E x16 2U riser card (left) /
M7056-R24-3F, PCI-E x16 2U riser card (right)
Recommended
Barebone /
Chassis
2U Barebone GN70-B7056
Port Q’ty (1) GbE port, (2) 10 GbE ports
LAN
Controller Intel 82574L / Intel X540-AT2
Connector (8) SAS
Controller Intel C602 with TRK-5 upgrade ROM module
Speed 3.0 Gb/s (mini-SAS connector)
SAS
RAID
RAID 0/1/10 (Intel Integrated RAID upgrade ROM
5)
Connector (6) SATA
Controller Intel C602
Speed
(2) 6.0 Gb/s (blue color), (4) 3.0 Gb/s (mini-SAS
connector)
Storage
SATA
RAID RAID 0/1/10/5 (Intel RST)
Connector type D-Sub 15-pin
Graphic
Resolution Up to 1920x1200
Page 23
http://www.tyan.com
23
Chipset Aspeed AST2300
USB
(7) USB2.0 ports (2 at rear, 4 via cable, 1 type A
onboard)
COM (1) header / (1) port (rear)
SAS (2) Mini-SAS (4-in-1) connectors
VGA (1) D-Sub 15-pin VGA port
RJ-45 (1) GbE port / (2) 10Gbe Ports
Power
SSI 24-pin + 8-pin + 8-pin power connectors / SSI
EEB spec. 2008
Front Panel (1) 2x12-pin SSI front panel header
Input /Output
SATA (1) Mini-SAS connector & (2) SATA-III connectors
Chipset Nuvoton 83773G
Voltage
Monitors voltage for CPU, memory, chipset &
power supply
Fan Total (7) 4-pin headers
Temperature
Monitors temperature for CPU & system
environment
System
Monitoring
Others Watchdog timer support
Onboard Chipset Onboard Aspeed AST2300
AST2300 IPMI
Feature
IPMI 2.0 compliant baseboard management
controller (BMC) / Supports storage over IP and
remote platform-flash / USB 2.0 virtual hub
Server
Management
AST2300 iKVM
Feature
24-bit high quality video compression / 10/100 Mb/s
MAC interface
Brand / ROM size AMI / 8MB
BIOS
Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power
on mode after power recovery / User-configurable
H/W monitoring / Auto-configurable of hard disk
types
Form Factor EATX
Physical
Dimension
Board Dimension 12”x13” (305x330mm)
Operating
System
OS supported list Please visit our Web site for the latest update.
FCC (DoC) Class A
Regulation
CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating
Temp.
- 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment
In/Non-operating
Humidity
90%, non-condensing at 35° C
RoHS
RoHS 6/6
Compliant
Yes
Page 24
http://www.tyan.com
24
Motherboard (1) S7056 Motherboard
Manual (1) Quick Installation Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Package
Contains
Cable SATA
(2) SATA signal cables / (1) Mini-SAS cable to 4 x
SATA cables
Page 25
http://www.tyan.com
25
TYAN S7056 (S7056WGM3NR5-HE [BTO])
Supported CPU
Series
Intel Xeon Processor E5-2600/E5-2600 V2 Series
Socket Type / Q’ty LGA2011 / (2)
Thermal Design
Power (TDP)
wattage
Max up to 150W
Processor
System Bus
Up to 8.0/ 7.2/ 6.4 GT/s with Intel QuickPath
Interconnect (QPI) support
Chipset PCH Intel C602 with upgrade ROM module
Supported DIMM
Qty
(8)+(8) DIMM slots
DIMM Type / Speed
UDIMM/RDIMM/LRDIMM ECC 1066 / 1333 / 1600 /
1866 *Speed 1866 only for 1 slot per channel 1.5V
(Blue color DIMM slot )
Capacity
up to 128GB UDIMM / 512GB RDIMM / 512GB
LRDIMM
Memory channel
4 Channels per CPU / Support 2 R/LR-DIMMs or 2
UDIMMs per channel
Memory
Memory voltage 1.5V or 1.35V
PCI-E
(2) sets of the following expansion combination: (1)
PCI-E x16 slot in-lined with / (1) PCI-E x4 slot
(routed to PCI-E x8 bus) recommended to use
TYAN riser card
Expansion Slots
Recommended
TYAN Riser Card
M7056-L24-3F, PCI-E x16 2U riser card (left) /
M7056-R24-3F, PCI-E x16 2U riser card (right)
Recommended
Barebone /
Chassis
2U Barebone GN70-B7056
Port Q’ty (3) GbE ports
LAN
Controller Intel 82574L / Intel I350BT2
Connector (8) SAS
Controller Intel C602 with TRK-6 upgrade ROM module
Speed 3.0 Gb/s (mini-SAS connector)
SAS
RAID
RAID 0/1/10/5 (Intel Integrated RAID upgrade ROM
6)
Connector (6) SATA
Controller Intel C602
Speed
(2) 6.0 Gb/s (blue color), (4) 3.0 Gb/s (mini-SAS
connector)
Storage
SATA
RAID RAID 0/1/10/5 (Intel RST)
Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Graphic
Chipset Aspeed AST2300
Page 26
http://www.tyan.com
26
USB
(7) USB2.0 ports (2 at rear, 4 via cable, 1 type A
onboard)
COM (1) header / (1) port (rear)
SAS (2) Mini-SAS (4-in-1) connectors
VGA (1) D-Sub 15-pin VGA port
RJ-45 (3) GbE ports
Power
SSI 24-pin + 8-pin + 8-pin power connectors / SSI
EEB spec. 2008
Front Panel (1) 2x12-pin SSI front panel header
Input /Output
SATA (1) Mini-SAS connector & (2) SATA-III connectors
Chipset Nuvoton 83773G
Voltage
Monitors voltage for CPU, memory, chipset & power
supply
Fan Total (7) 4-pin headers
Temperature
Monitors temperature for CPU & system
environment
System
Monitoring
Others Watchdog timer support
Onboard Chipset Onboard Aspeed AST2300
AST2300 IPMI
Feature
IPMI 2.0 compliant baseboard management
controller (BMC) / Supports storage over IP and
remote platform-flash / USB 2.0 virtual hub
Server
Management
AST2300 iKVM
Feature
24-bit high quality video compression / 10/100 Mb/s
MAC interface
Brand / ROM size AMI / 8MB
BIOS
Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/
PXE boot / ACPI 2.0 power management /Power on
mode after power recovery / User-configurable H/W
monitoring / Auto-configurable of hard disk types
Form Factor EATX
Physical
Dimension
Board Dimension 12”x13” (305 x33 0mm)
Operating System OS supported list Please visit our Web site for the latest update.
FCC (DoC) Class A
Regulation
CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating
Temp.
- 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment
In/Non-operating
Humidity
90%, non-condensing at 35° C
RoHS
RoHS 6/6
Compliant
Yes
Motherboard (1) S7056 Motherboard
Manual (1) Quick Installation Guide
Installation CD (1) TYAN installation CD
Package
Contains
I/O Shield (1) I/O Shield
Page 27
http://www.tyan.com
27
Cable SATA
(2) SATA signal cables / (1) Mini-SAS cable to 4 x
SATA cables
1.3 Software Specifications
For the latest OS (operation system) support, please visit the Tyan’s Web site for
information.
Page 28
http://www.tyan.com
28
NOTE
Page 29
http://www.tyan.com
29
Chapter 2: Board Installation
You are now ready to install your motherboard.
How to install our products right… the first time
The first thing you should do is read this user’s manual. It contains important
information that will make configuration and setup much easier. Here are some
precautions you should take when installing your motherboard:
(1) Ground yourself properly before removing your motherboard from the
antistatic bag. Unplug the power from your computer power supply and
then touch a safely grounded object to release static charge (i.e. power
supply case). For the safest conditions, MiTAC recommends wearing a
static safety wrist strap.
(2) Hold the motherboard by its edges and do not touch the bottom of the
board, or flex the board in any way.
(3) Avoid touching the motherboard components, IC chips, connectors,
memory modules, and leads.
(4) Place the motherboard on a grounded antistatic surface or on the antist ati c
bag that the board was shipped in.
(5) Inspect the board for damage.
The following pages include details on how to install your motherboard into your
chassis, as well as installing the processor, memory, disk drives and cables.
Caution!
1. To avoid damaging the motherboard and associated
components, do not use torque force greater than
7kgf/cm (6.09 lb/in) on each mounting screw for
motherboard installation.
2. Do not apply power to the board if it has been
damaged.
Page 30
http://www.tyan.com
30

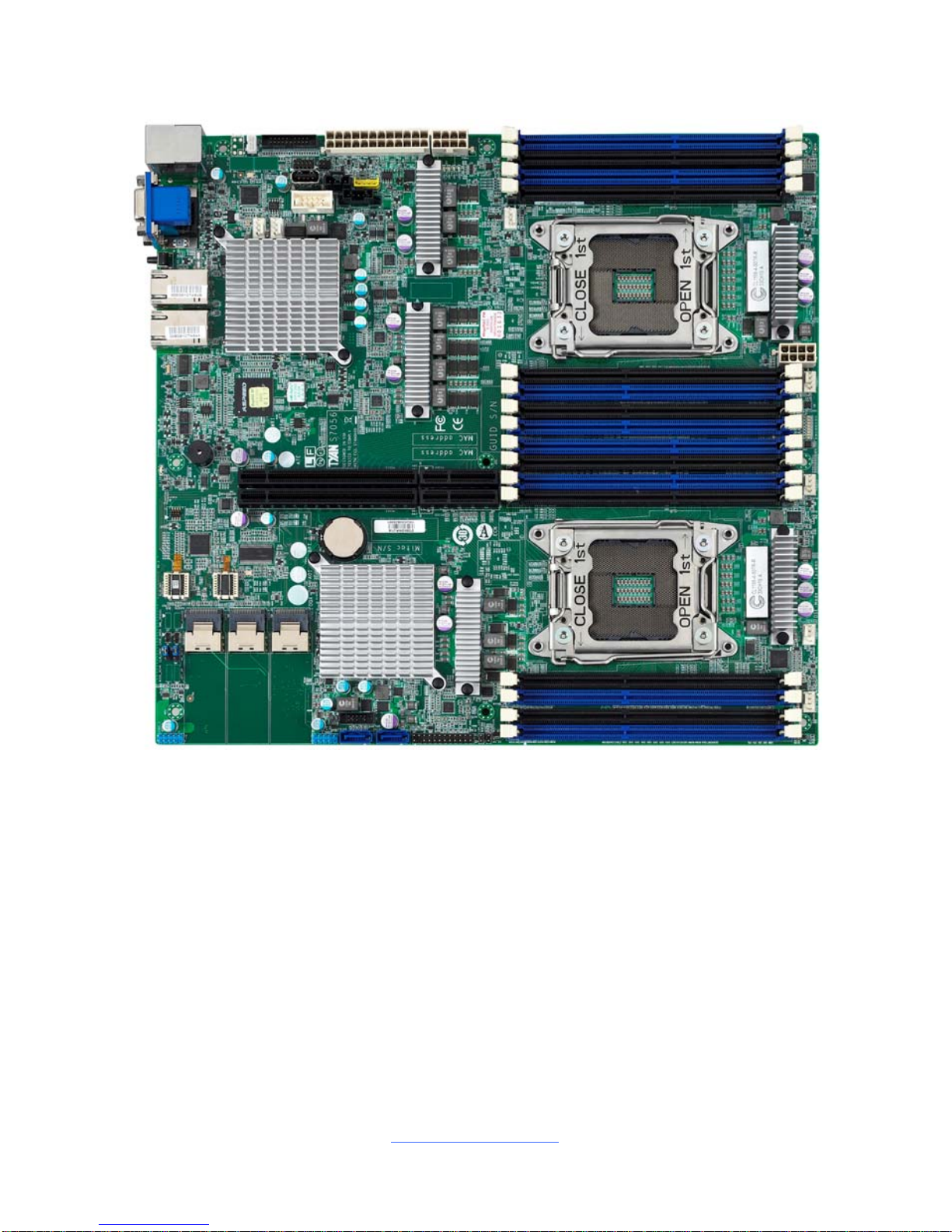

2.1 Board Image
S7056
This picture is representative of the latest board revision available at the time of
publishing. The board you receive may not look exactly like the above picture.
Page 31
http://www.tyan.com
31
S7056-2T
This picture is representative of the latest board revision available at the time of
publishing. The board you receive may not look exactly like the above picture.
Page 32
http://www.tyan.com
32
2.2 Block Diagram

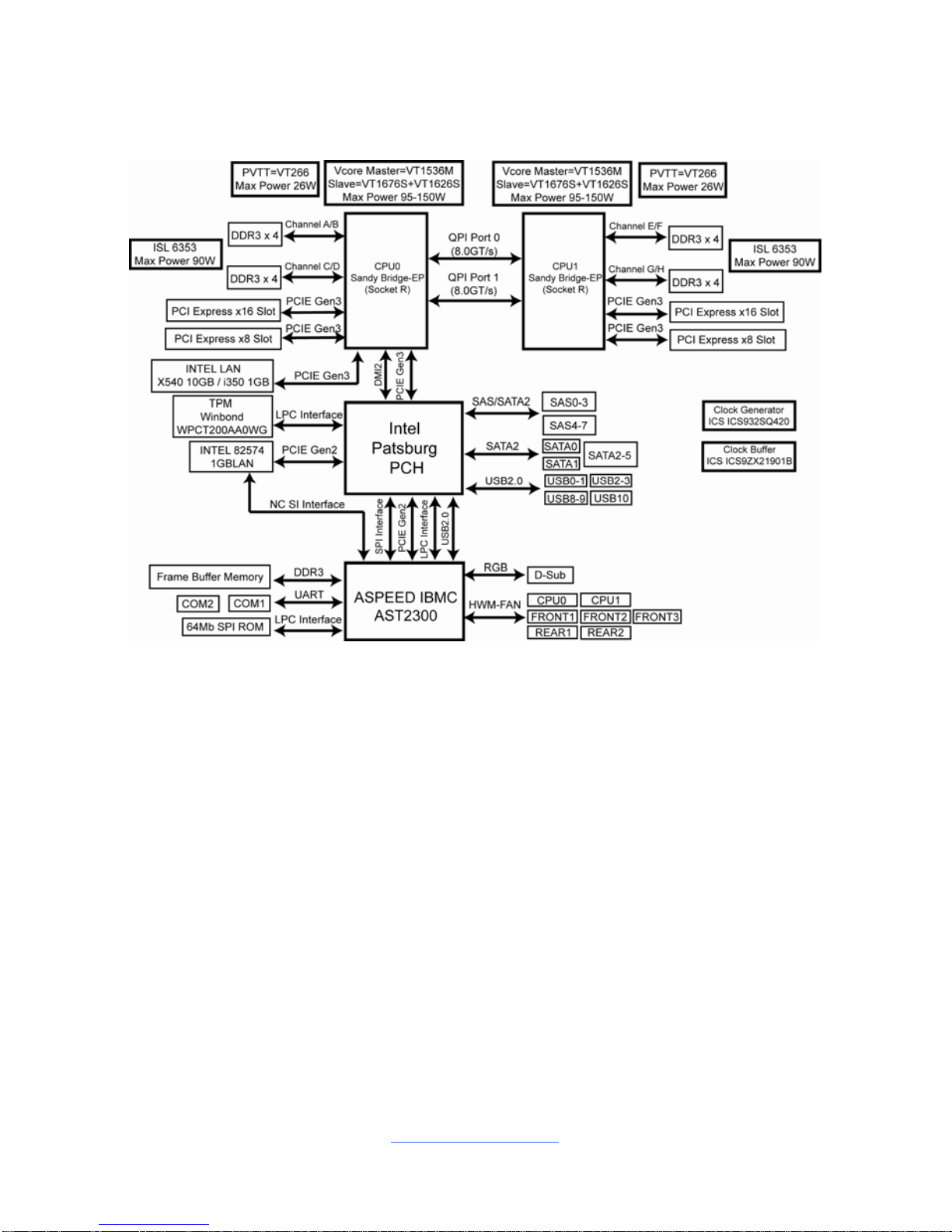

S7056 Block Diagram
Page 33
http://www.tyan.com
33

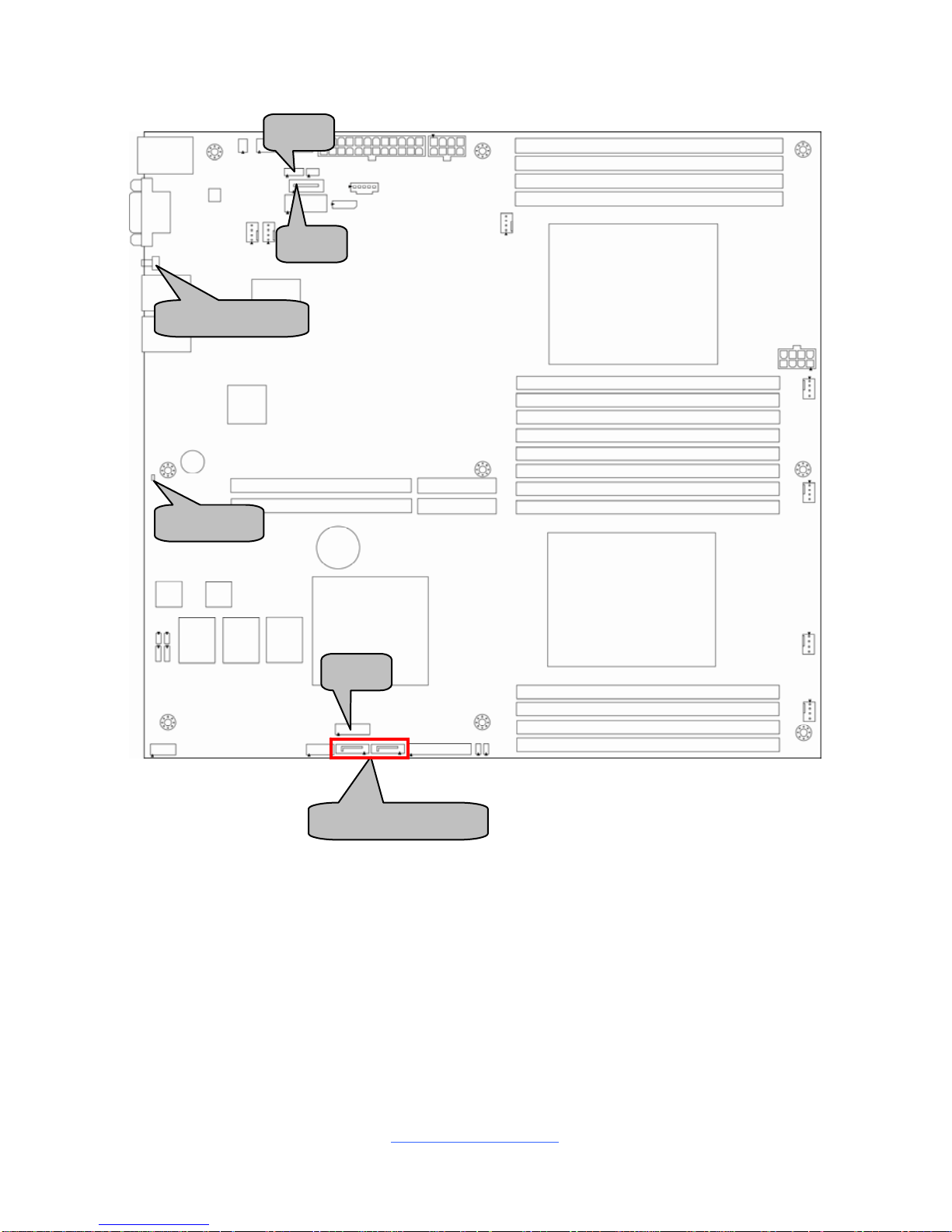

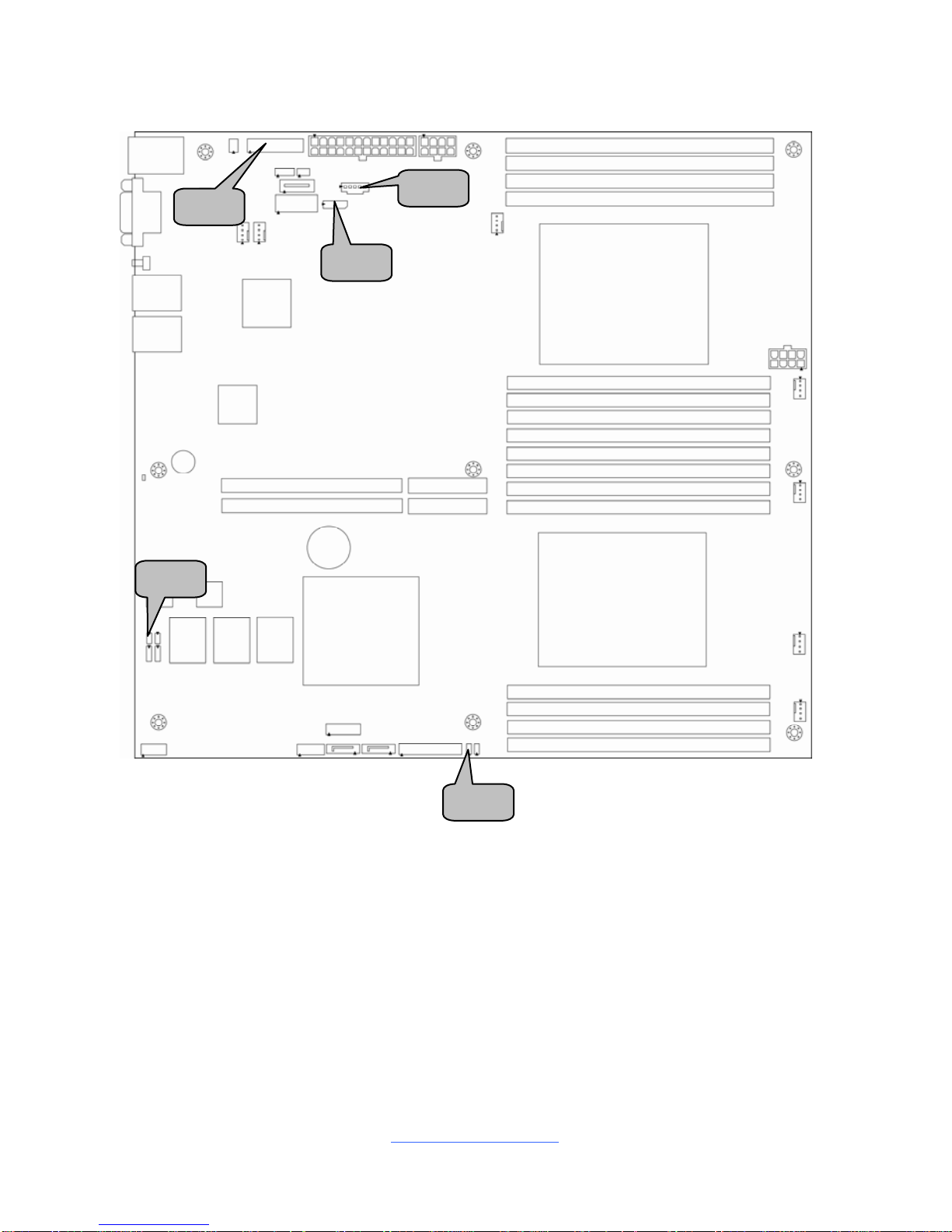

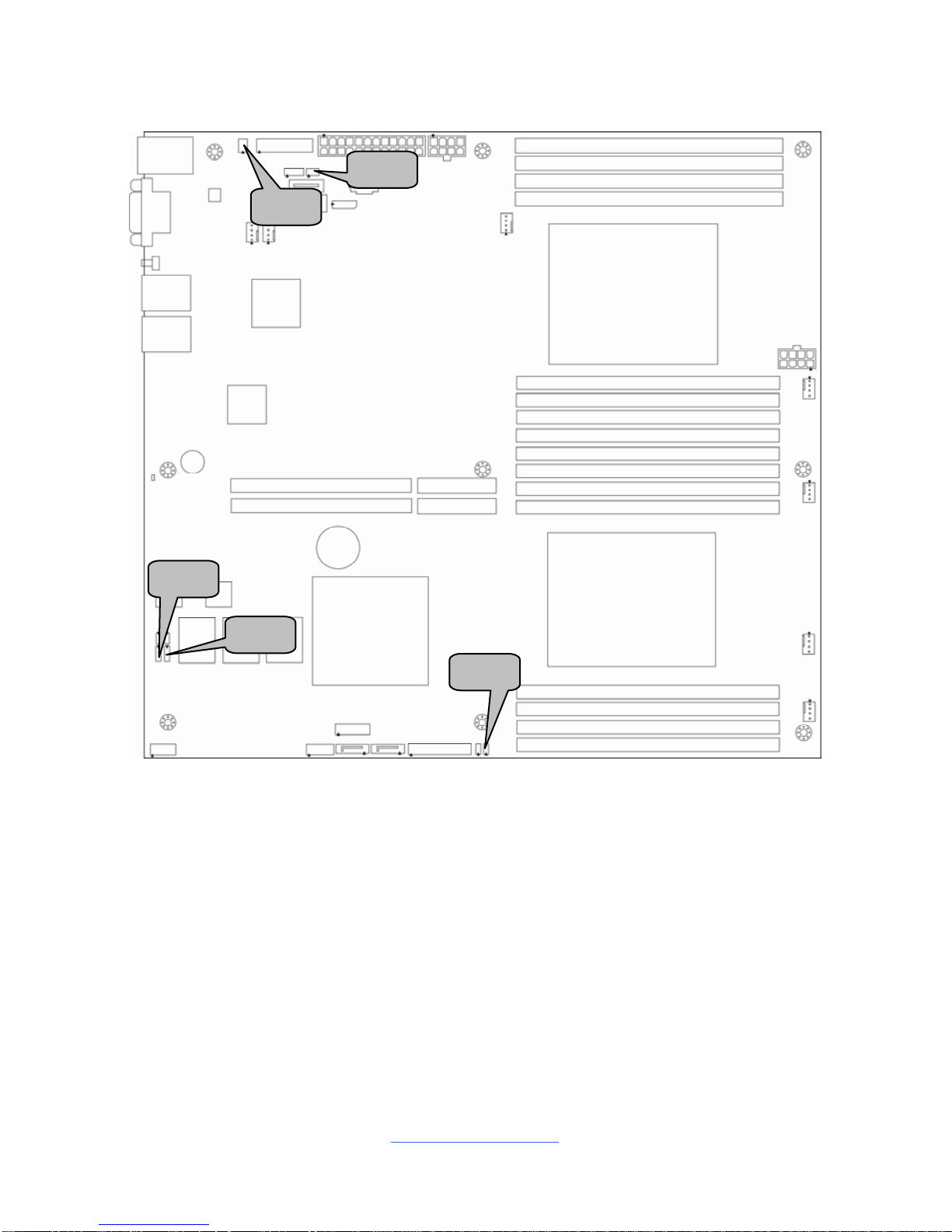

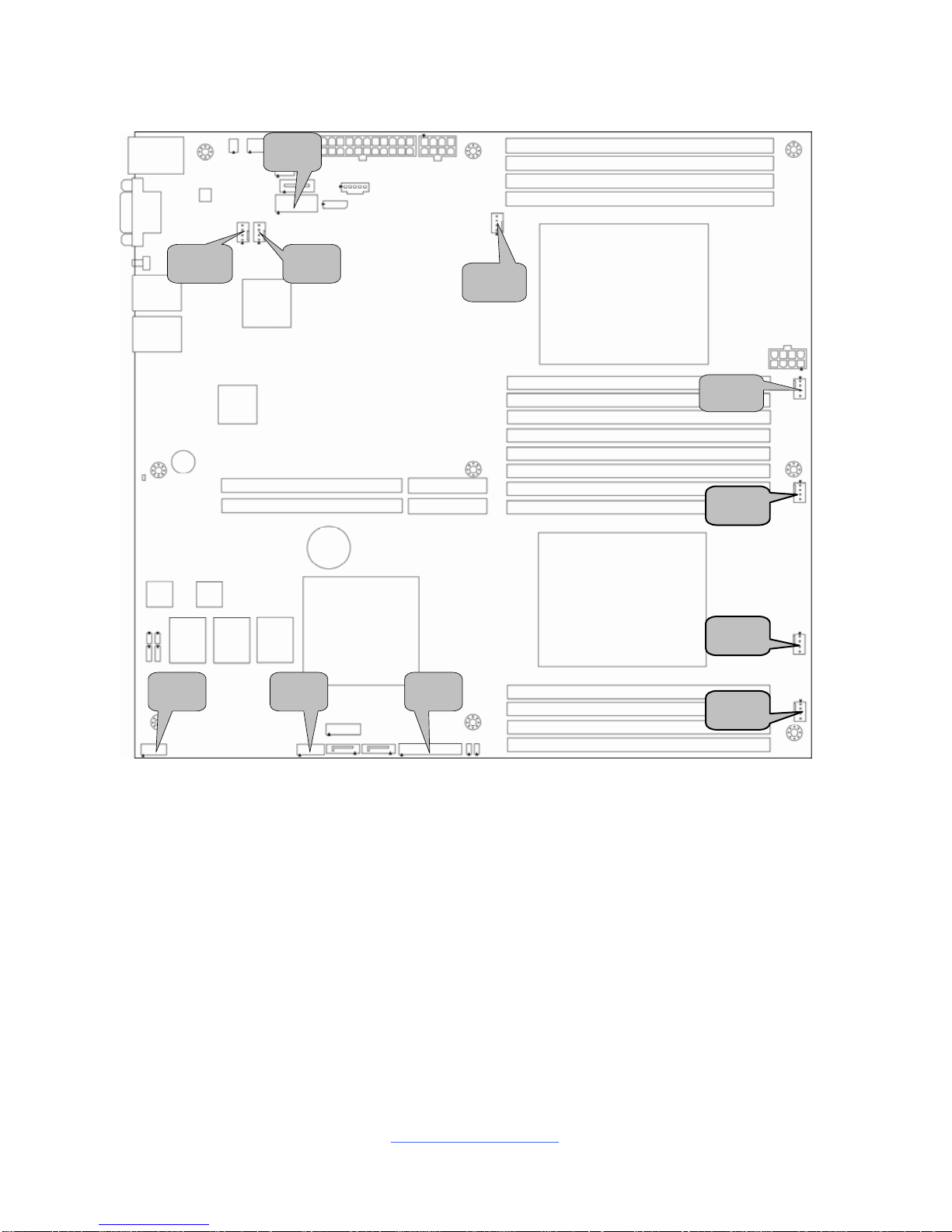

2.3 Board Parts, Jumpers and Connectors

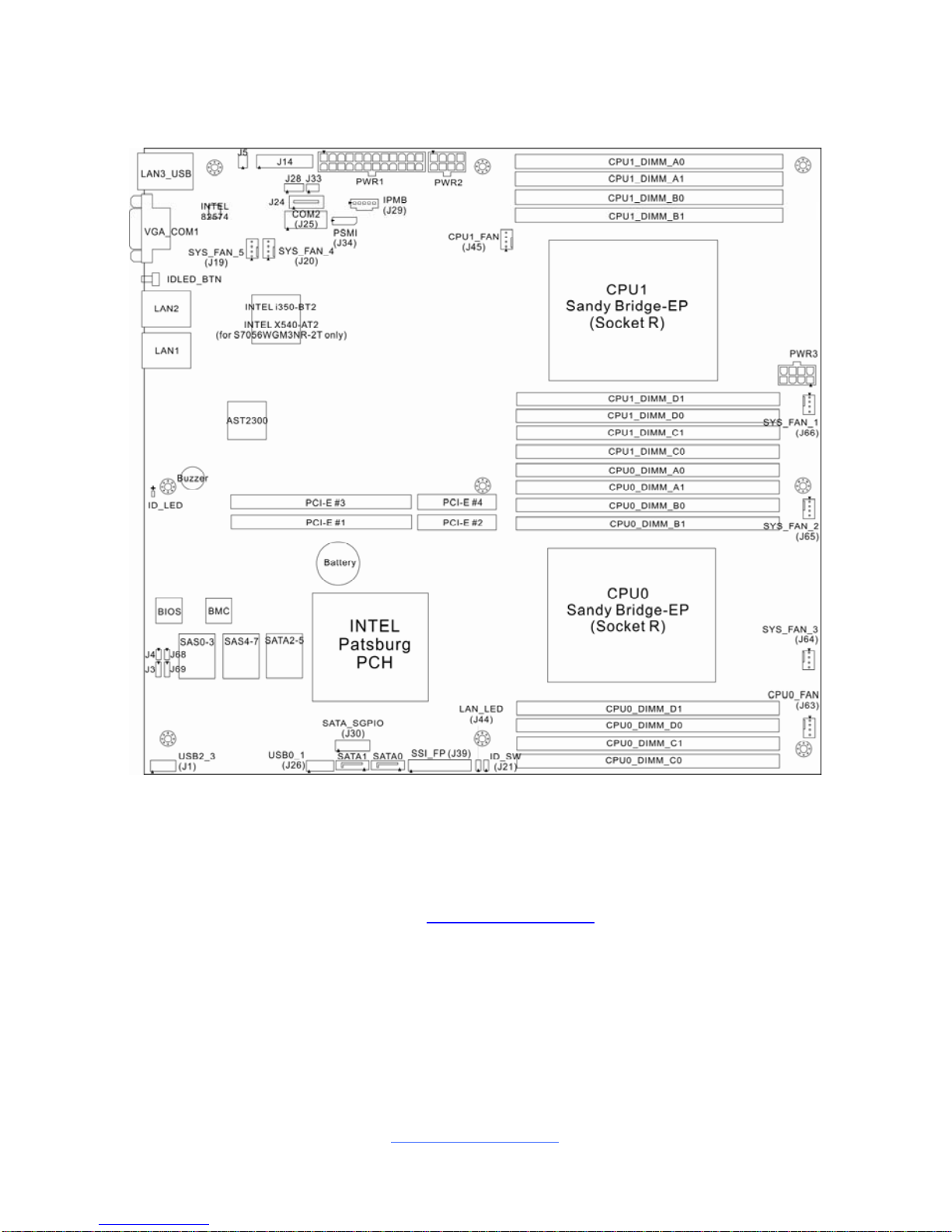

This diagram is representative of the latest board revision available at the time of
publishing. The board you receive may not look exactly like the above diagram. The
DIMM slot numbers shown above can be used as a reference when reviewing the
DIMM population guidelines shown later in the manual. For the latest board
revision, please visit our web site at http://www.tyan.com
.
Page 34
http://www.tyan.com
34
Jumpers & Connectors
Jumper/Connector Function
J1/J26 USB Front Panel Header (blue)
J3 Clear CMOS Jumper
J4 Chassis Intrusion Header
J5 PCH SKU Upgrade ROM Module Header
J14 Front Fan Connector
J21 (ID_SW) ID LED SW Connector
J24 Type-A USB Connector
J25 (COM2) COM2 Header
J27 (PWR1) ATX 24-pin Power Connector
J28 Port 80 Header
J29 IPMB Connector
J30 (SATA_SGPIO) SATA SGPIO Header
J33 SAS SMB Header
J34 PSMI Connector
J39 (SSI_FP) Front Panel Connector
J43 (PWR2) SSI 8-pin CPU Power Connector
J44 (LAN_LED) LAN3 LED Header
J62 (PWR3) SSI 8-pin DIMM Power Connector
J68 Flash Security Override Header
J69 ME Firmware Update Jumper
IDLED_BTN ID LED Button
ID_LED ID LED
SATA0/SATA1 Serial ATA Connector
J19/J20/J64/J65/J66 4-pin Fan Power Connector
J45/J63 4-pin CPU1/CPU0 Fan Power Connector
Jumper Legend
OPEN - Jumper OFF
Without jumper cover
CLOSED - Jumper ON
With jumper cover
Page 35
http://www.tyan.com
35
J64
J19
J66
J45
J25
J63
J65
J20
J26 J39J1
Page 36
http://www.tyan.com
36

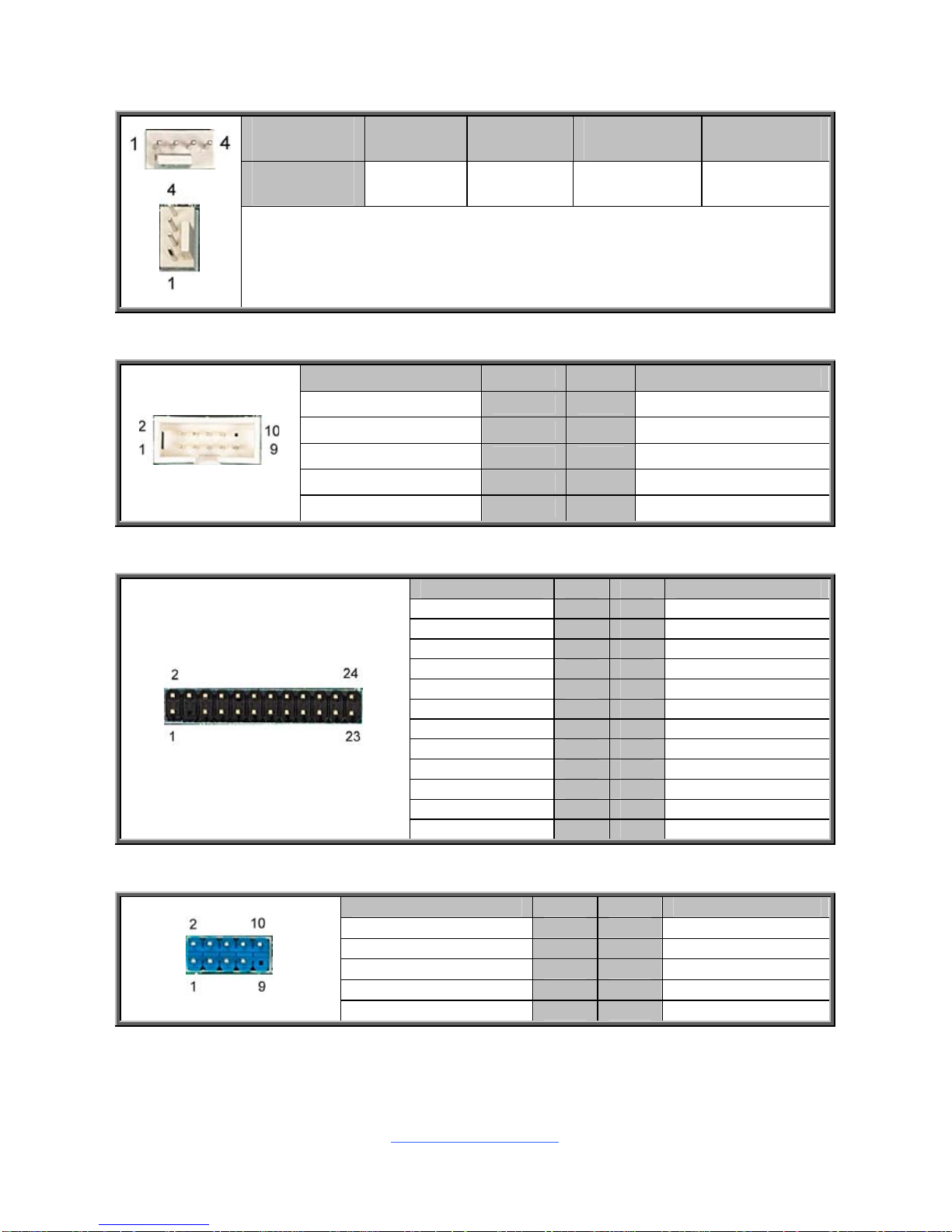

J19/J20//J45/J63/J64/J65/J66: 4-Pin FAN Connector
Pin 1 2 3 4
Signal GND +12V Sensor Control
Use this header to connect the cooling fan to your motherboard to keep the
system stable and reliable.
Note: A 4-pin fan is required for fan speed control.

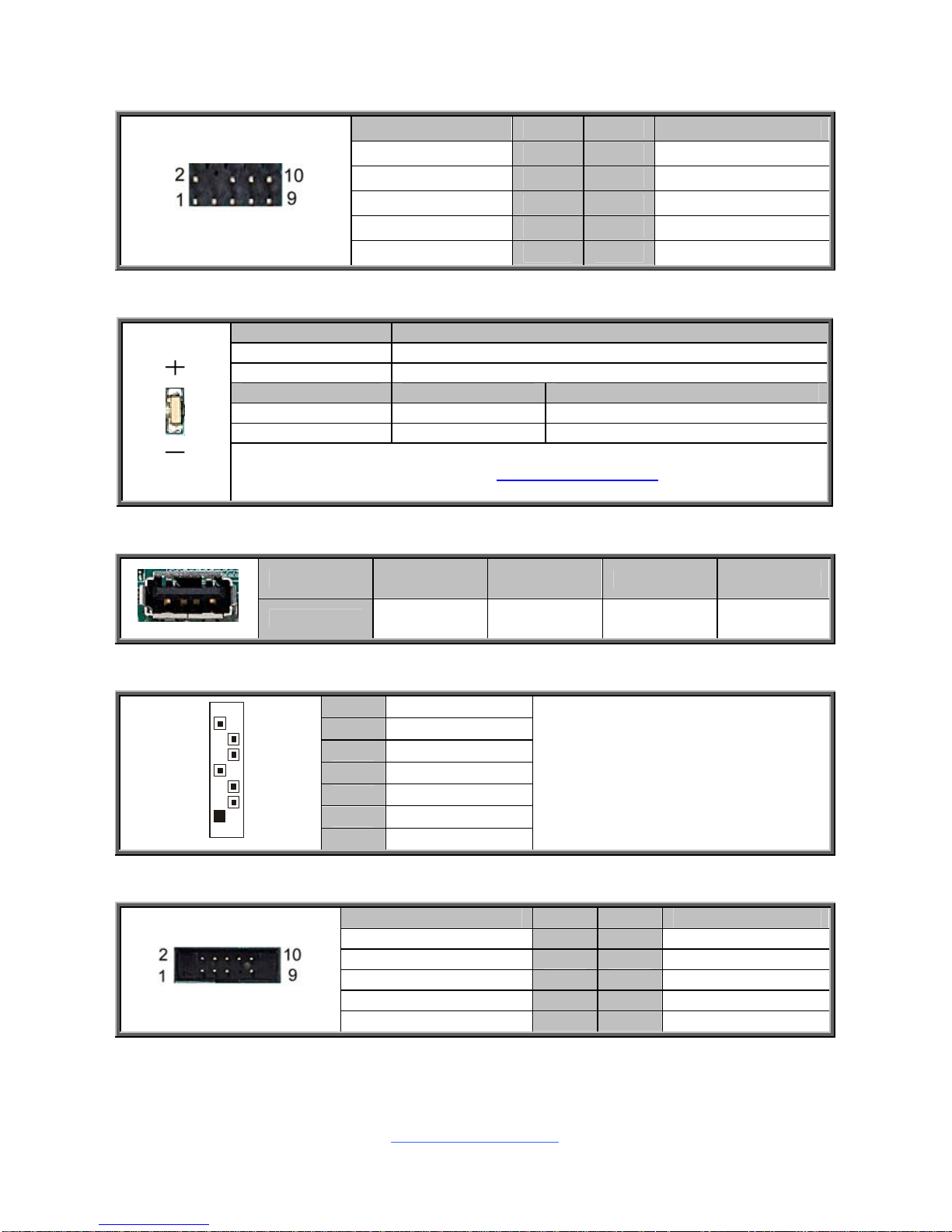

J25: COM2 Header
Signal Pin Pin Signal
DCD 1 2 DSR
SIN 3 4 RTS
SOUT 5 6 CTS
DTR 7 8 RI
GND 9 10 KEY
J39: Front Panel Connector
Signal Pin Pin Signal
PWRLED+ 1 2 V3P3_AUX
KEY 3 4 IDLED+
PWRLED- 5 6 IDLEDHDDLED+ 7 8 SYS_FAULT1HDDLED- 9 10 SYS_FAULT2PWR_SW# 11 12 LAN1LED+
GND 13 14 LAN1LEDRST_SW# 15 16 SMBDATA
GND 17 18 SMBCLK
IDLED_SW# 19 20 INTRUSION#
NC 21 22 LAN2LED+
NMI_SW# 23 24 LAN2LED-
J1/J26: USB Front Panel Header (blue)
Signal Pin Pin Signal
VCC 1 2 VCC
USBD- 3 4 USBDUSBD+ 5 6 USBD+
GND 7 8 GND
KEY 9 10 NC
Page 37
http://www.tyan.com
37
J14
J44
J4
J34
J29
Page 38
http://www.tyan.com
38

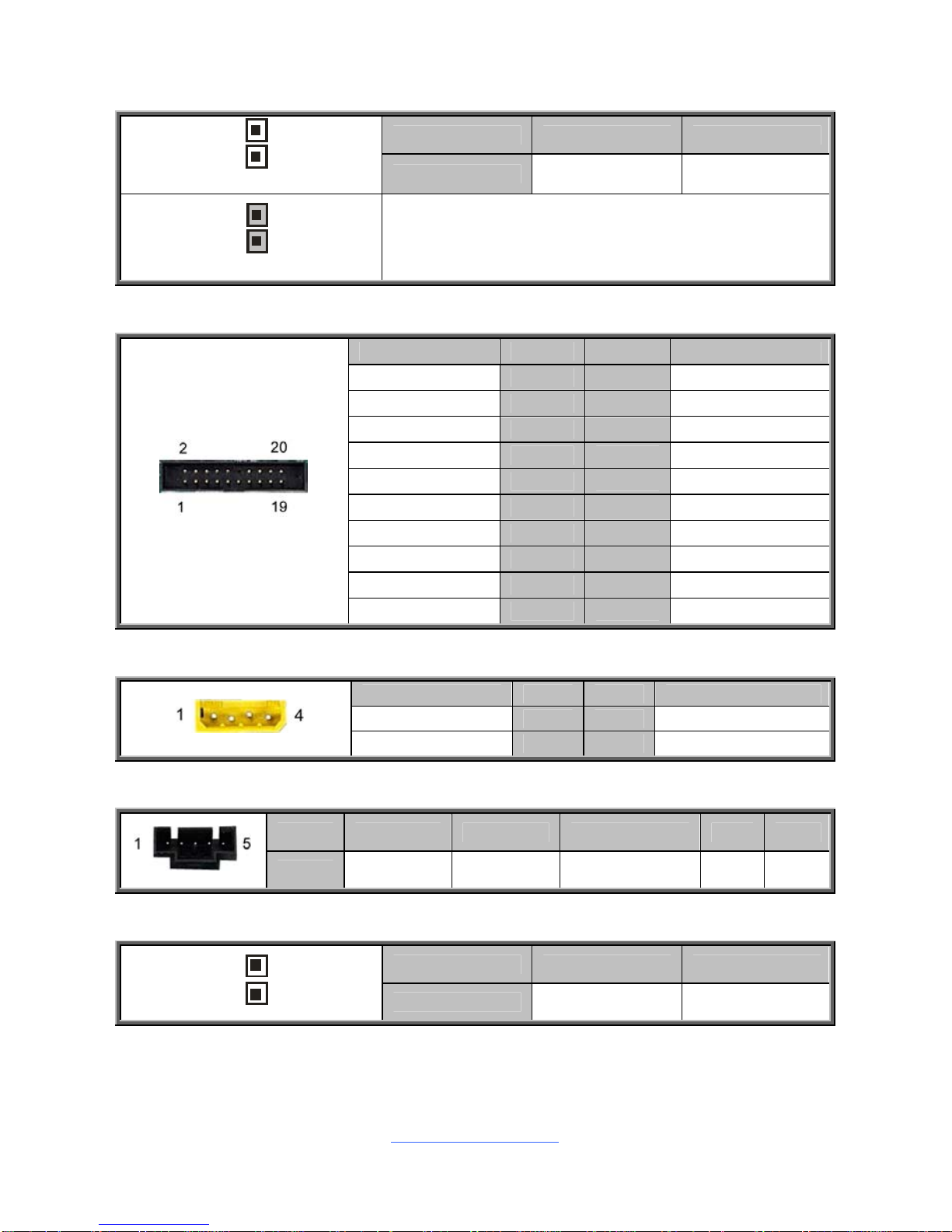

J4: Chassis Intrusion Header
Pin 1 2
1
Open
Signal INTRUSION# GND
1
Short (Default)
Open: Use this header to trigger the system
chassis intrusion alarm.
Short: Use this header to disable the system
chassis intrusion alarm.
J14: Front Fan Connector (Reserved for Barebone Fan Board)
Signal Pin Pin Signal
FAN1_TACH 1 2 FAN2_TACH
FAN3_TACH 3 4 FAN4_TACH
FAN5_TACH 5 6 FAN6_TACH
FAN7_TACH 7 8 FAN8_TACH
FAN9_TACH 9 10 FAN10_TACH
GND 11 12 KEY
PWM2 13 14 PWM1
FAN11_TACH 15 16 SMB_DATA
FAN12_TACH 17 18 SMB_CLK
3VAUX 19 20 PWM3
J29: IPMB Connector
Signal Pin Pin Signal
BMC_SMB_DATA 1 2 GND
BMC_SMB_CLK 3 4 NC
J34: PSMI Connector
Pin 1 2 3 4 5
Signal SMB_CLK SMB_DAT SMB_ALERT# GND V3P3
J44: LAN3 LED Header
Pin 1 2
1
Signal LAN3LED+ LAN3LED-
Page 39
http://www.tyan.com
39
J30
SATA1/SATA0
ID LED
J28
J24
IDLED BTN
Page 40
http://www.tyan.com
40
J28: Port 80 Header
Signal Pin Pin Signal
V3P3 1 2 FRAME
LAD0 3 4 KEY
LAD1 5 6 RESET#
LAD2 7 8 GND
LAD3 9 10 CLK
ID_LED / IDLED_BTN: ID LED and Button
Pin Signal
+ P3V3_AUX
- ID_SW_L
State Color Description
On Blue System identified
Off Off System not identified
NOTE: The ID LED can be activated remotely using IPMI.
Please visit the TYAN Web Site at http://www.tyan.com
to download the
latest IPMI Configuration Guide for more details.
J24: Vertical (Type A) USB Connectors
Pin 1 2 3 4
Signal VCC USBD- USBD+ GND
SATA0/SATA1: SATA2 Connector
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7
1
7 GND
Connects to the Serial ATA ready
drives via the Serial ATA cable.
J30: SATA SGPIO Header
Signal Pin Pin Signal
SMBCLK 1 2 SDATAOUT0
SMBDATA 3 4 SDATAOUT1
GND 5 6 SLOAD
KEY 7 8 SCLOCK
VCC3_AUX 8 10 HDD_FAULT
Page 41
http://www.tyan.com
41
J3
J69
J21
J5
J33
Page 42
http://www.tyan.com
42
J3: Clear CMOS Jumper
3
1
Normal (Default)
1
3
Clear CMOS
You can reset the CMOS settings by using this jumper. This
can be useful if you have forgotten your system/setup
password, or need to clear the system BIOS setting.
1. Power off system and disconnect power connectors from
the motherboard.
2. Remove the jumper from Pin_1 and Pin_2 (Default setting).
3. Move the jumper cap to close Pin_2 and Pin_3 for several
seconds to Clear CMOS.
4. Put jumper cap back to Pin_1 and Pin_2 (Default setting).
5. Reconnect power connectors to the motherboard and
power on system.

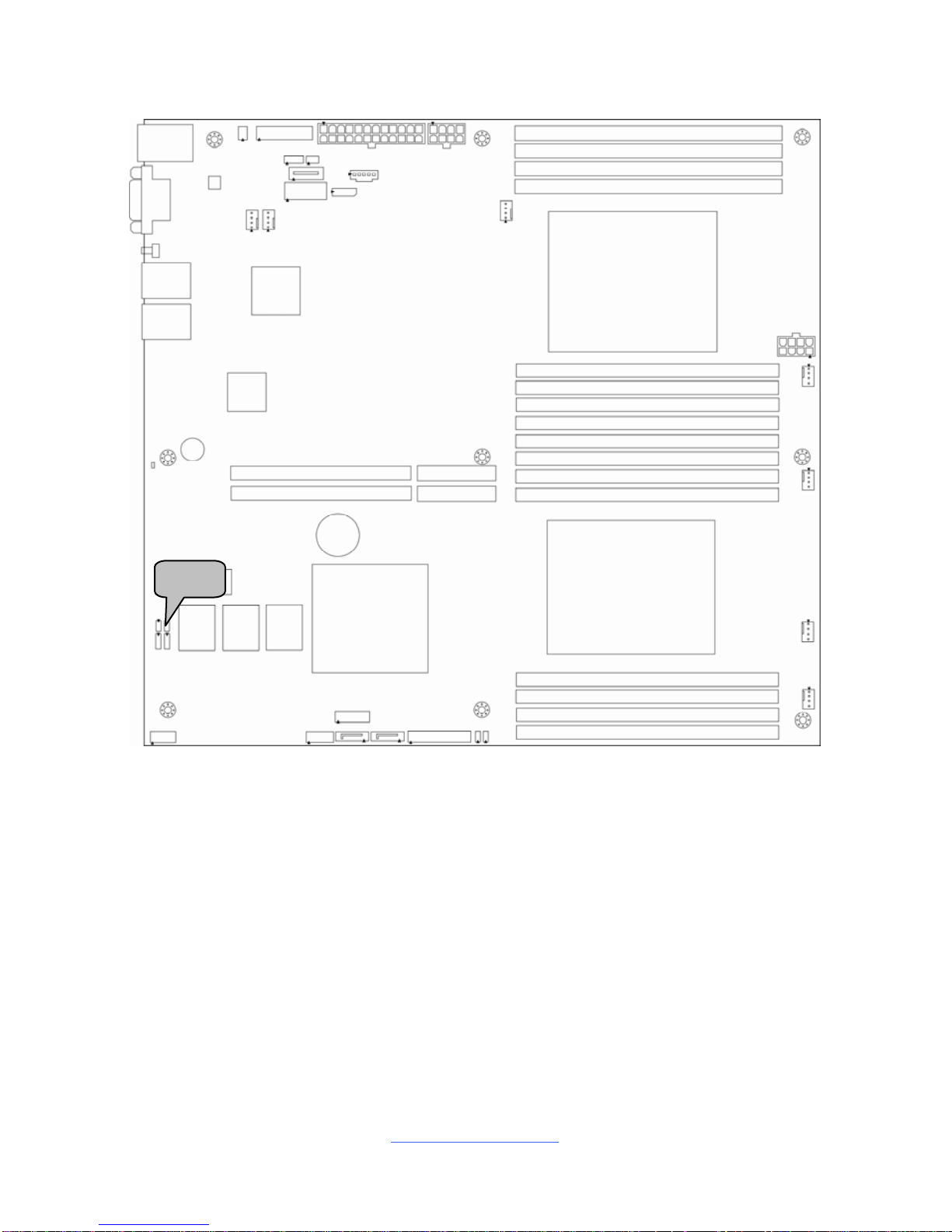

J69: ME Firmware Update Jumper
1
3
Pin 1-2 Closed: no function (Default)
1
3
Pin 2-3 Closed: clear ME to default setting
J5: PCH SKU Upgrade ROM Module Header
Pin 1 2 3
3
1
Signal GND PCH_SKU_KEY GND
J21: ID LED SW Connector
Pin 1 2
1
Signal IDLED_SW# GND
J33: SAS SMB Header
Signal Pin Pin Signal
Power 1 2 SMBus Clock
Ground 3 4 SMBus Data
1
5
2 6
NC 5 6 Fault
Page 43
http://www.tyan.com
43
J68
Page 44
http://www.tyan.com
44
J68: Flash Security Override Header
Pin 1 2
1
Signal V3P3_AUX AUD_AZA_SDO

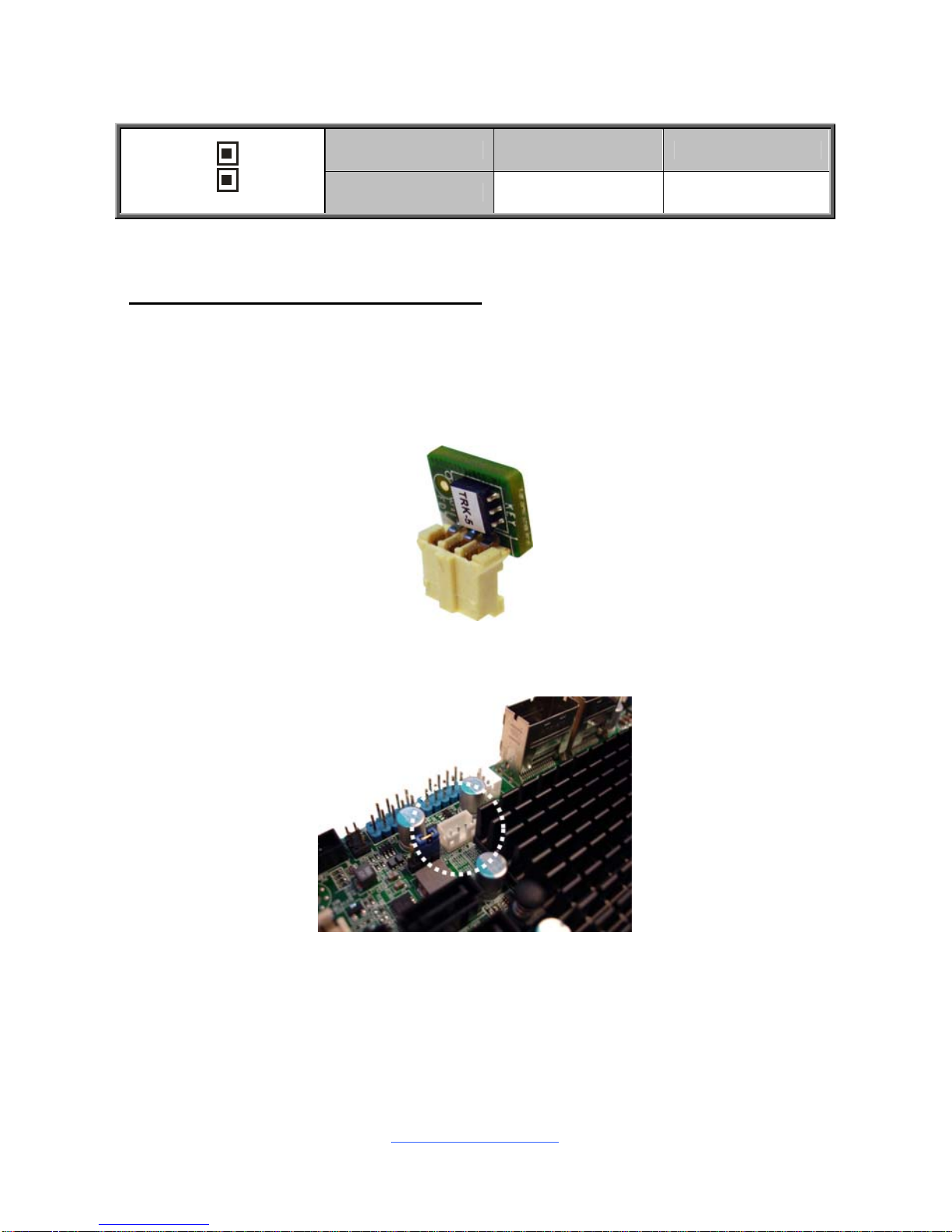

Patsburg Upgrade ROM Key Installation
The following procedures illustrate ho w to install the Patsburg Upgrade ROM Key
on the motherboard. Please note that the motherboard may not look like the board
you purchased. Therefore, the illustrations should b e held for your reference only.
1. Take out the Patsburg Upgrade ROM Key.
2. Locate the Patsburg Upgrade ROM Header on your motherboard. Please
note that the picture is only an example and may not exactly match your
particular motherboard.
Page 45
http://www.tyan.com
45

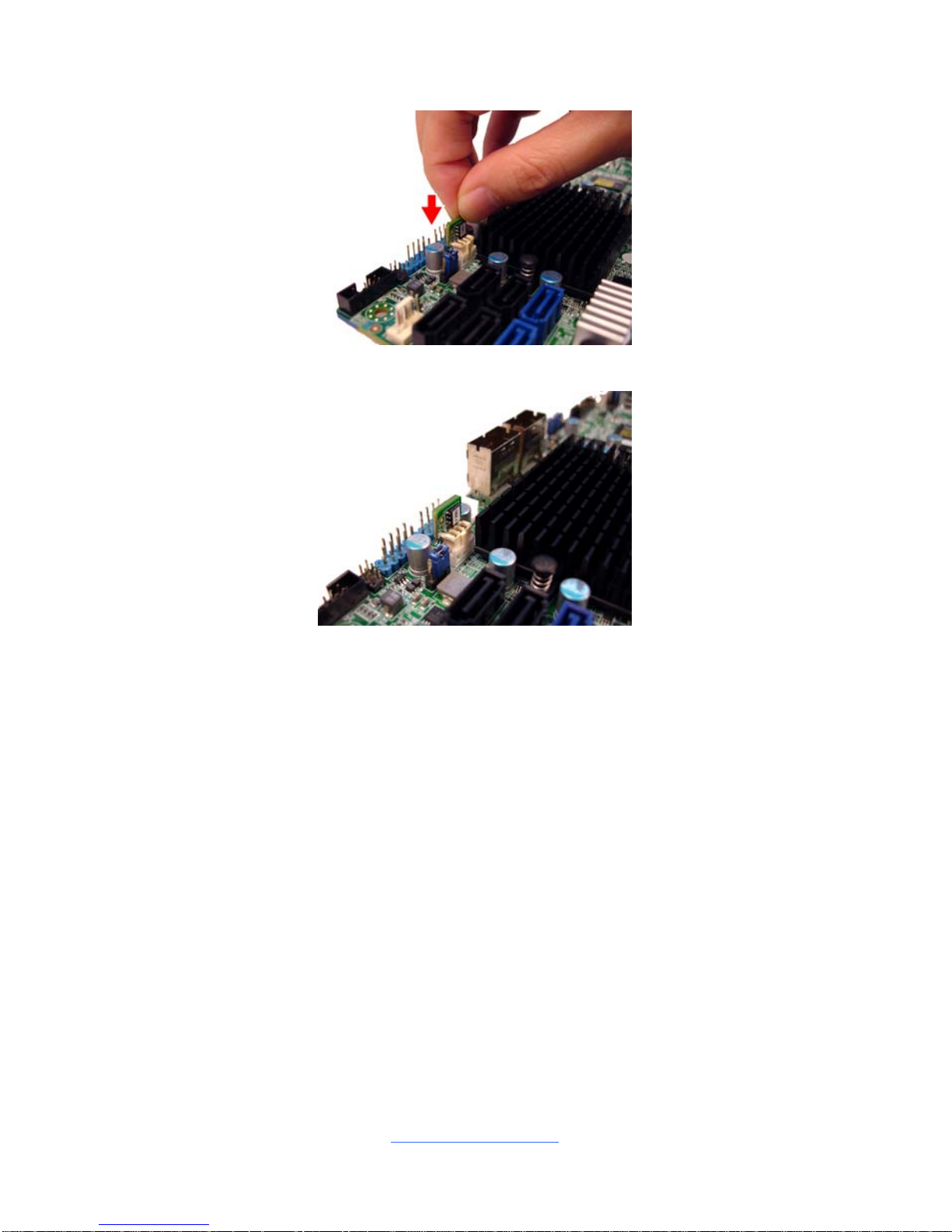

3. Insert the Upgrade ROM Key in the direction as the arrow shows.
4. You have completed the Patsburg Upgrade ROM Key installatio n.
Page 46
http://www.tyan.com
46
2.4 Installing the Processor and Heatsink
The types of processors supported by the S7056 are listed in the Hardware
Specifications section on page 5. Check our website at http://www.tyan.com
for
the latest list of validated Intel
®
processors for this specific motherboard.
NOTE: MiTAC is not liable for damage as a result of operating an
unsupported configuration.

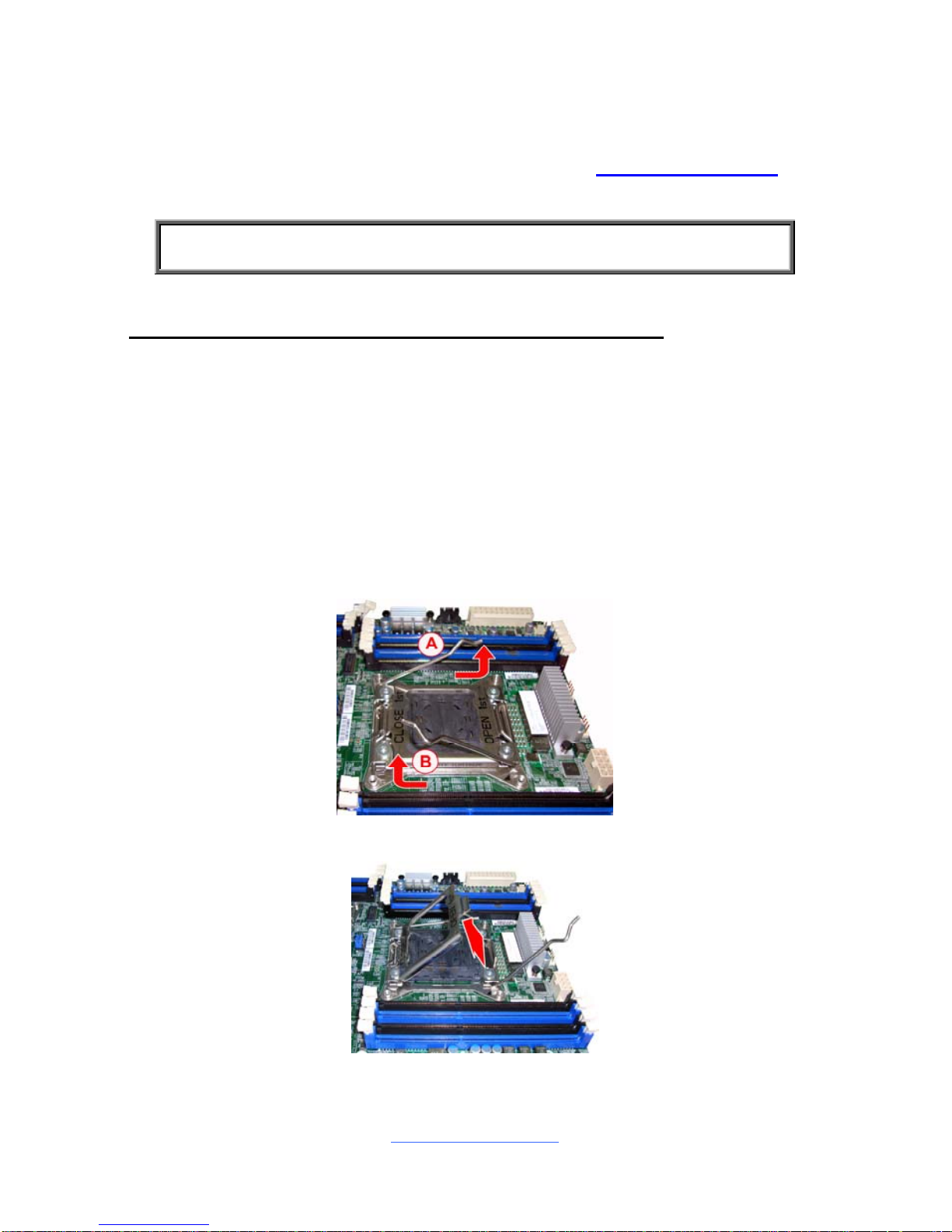

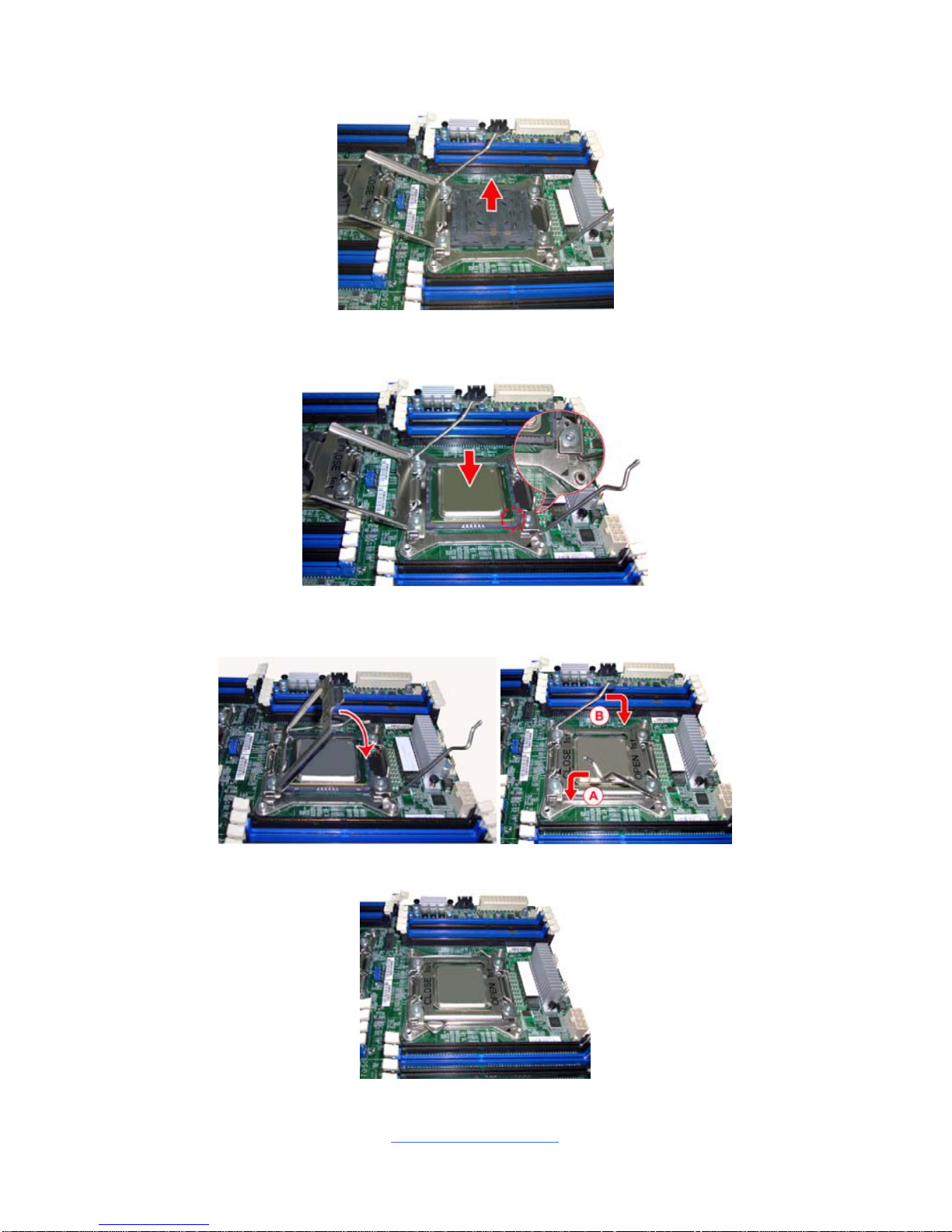

Processor Installation (Socket R for Intel Sandy Bridge CPU)
Follow the steps described later to install the processors and heat sinks.
The following pictures illustrate how to install the Intel
®
Sandy Bridge processor on
the Socket R. Please note that the motherboard may not look e xactly like the one
you purchased. Therefore, the illustrations should be held for your reference only.
NOTE: Please save and replace the CPU protection cap when returni ng for service.
1. Locate the CPU socket.
2. Pull the CPU lever slightly away from the socket and then push it to a fully open
position.
3. Lift the socket cover to a fully open position.
Page 47
http://www.tyan.com
47
4. Take off the CPU protection cap.
5. Place the CP U in the CPU socket and make sure that the gold arro w is located
in the right direction with two notches properly aligned.
6. Close the socket cover and press the CPU socket lever down to lock the CPU
in place.
7. The CPU installation is now complete.
Page 48
http://www.tyan.com
48

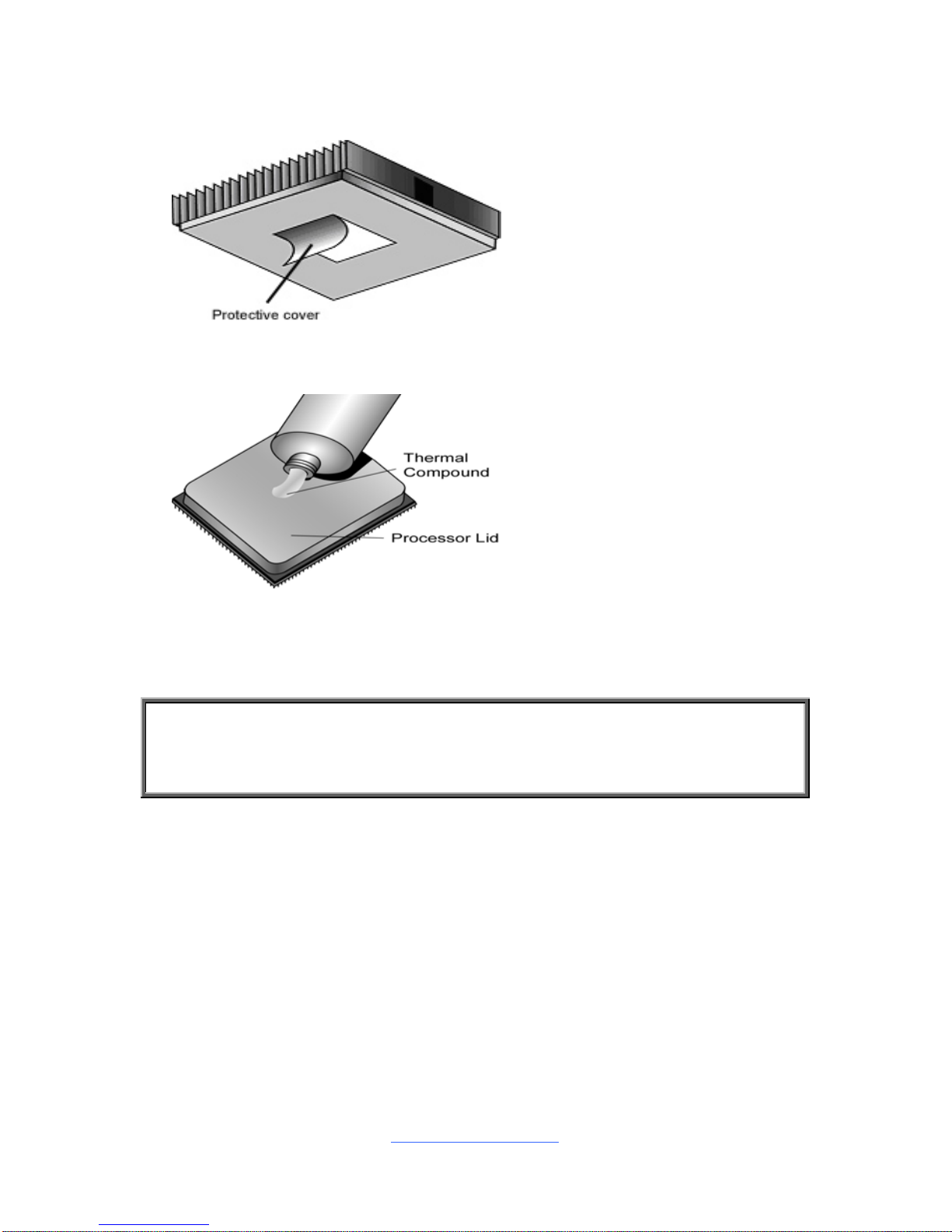

Heat sink Installation
After installing the processor, you will need to proceed to install the heat sink. The
CPU heat sink will ensure that the processor do not overheat and continue to
operate at maximum performance for as long as you own them. An overheated
processor is dangerous to the motherboard. The processors will overheat within
seconds, enter thermal protection, and shut down if heatsinks are not installed.
For the safest method of installation and information on choosing the appropriate
heat sink, using heat sinks validated by Intel®. Please refer to the Intel® website:
http://www.intel.com
The following diagram illustrates how to install the heatsink on the Intel
®
Sandy
Bridge Socket R:

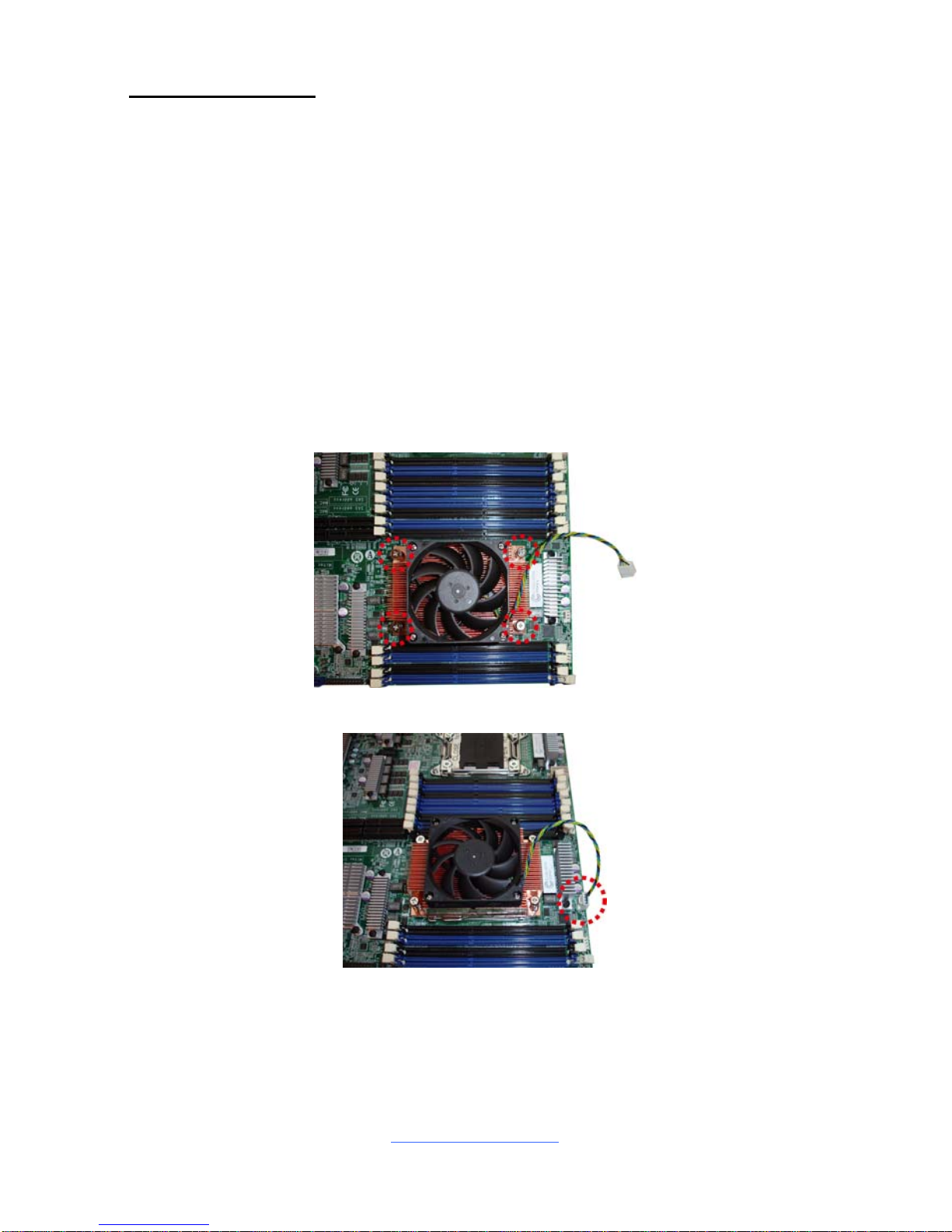

1. Place the heat sink on top of the CPU and secure it to the motherboard with 4
screws.
2. Connect the fan power cord.
Page 49
http://www.tyan.com
49
2.5 Thermal Interface Material
There are two types of
thermal interface materials
designed for use with the
processors.
The most common material
comes as a small pad
attached to the heat sink at
the time of purchase. There
should be a protective cover
over the material. Take care
not to touch this material.
Simply remove the protective
cover and place the heat
sink on the processor.
The second type of interface
material is usually packaged
separately. It is commonly
referred to as ‘thermal
compound’. Simply apply a
thin layer on to the CPU lid
(applying too much will
actually reduce the cooling).
NOTE: Always check with the manufacturer of the heat sink & processor to
ensure that the thermal interface material is compatible with the processor
and meets the manufacturer’s warranty requirements.
Page 50
http://www.tyan.com
50

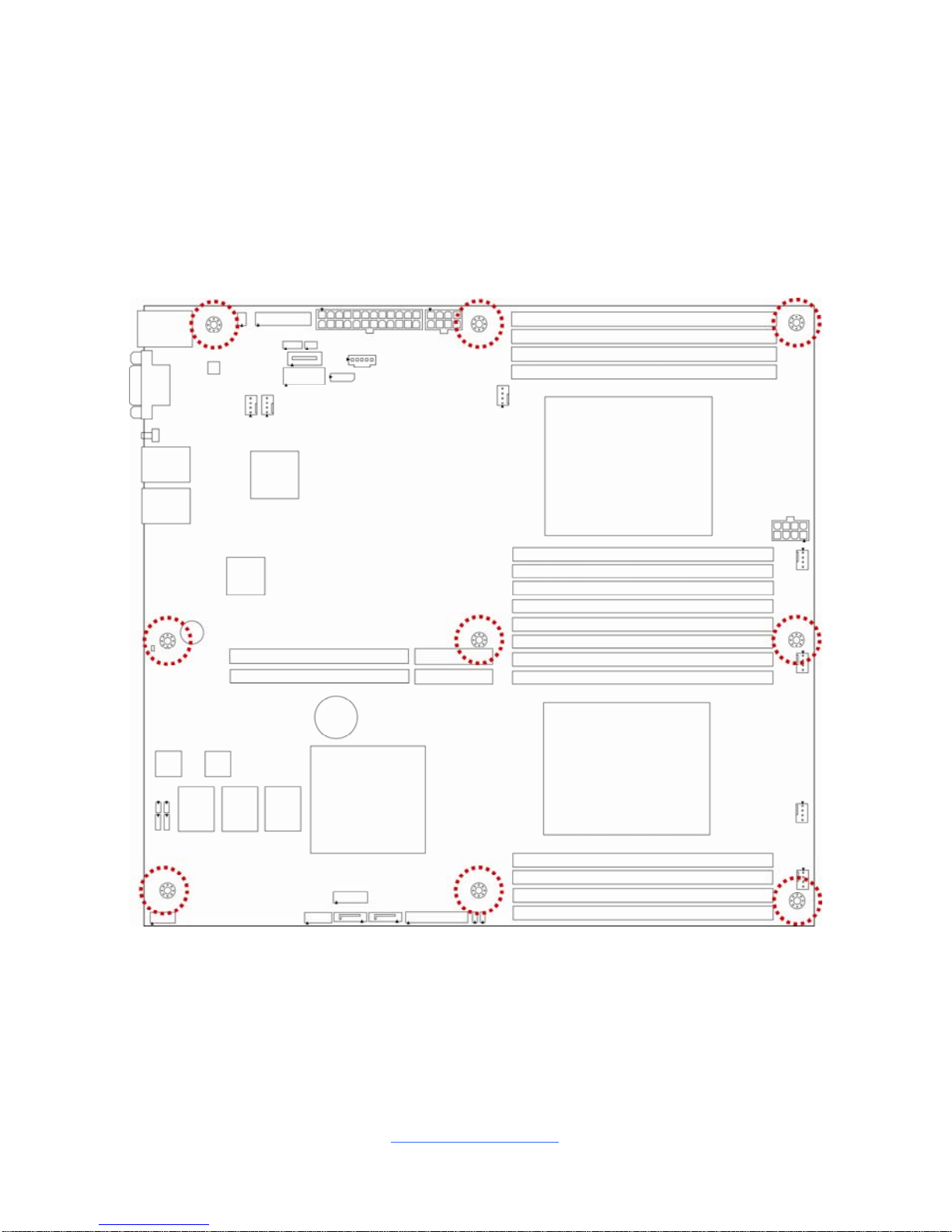

2.6 Tips on Installing Motherboard in Chassis
Before installing your motherboard, make sure your chassis has the necessary
motherboard support studs installed. These studs are usually metal and a re gold in
color. Usually, the chassis manufacturer will pre-install the support studs. If you ar e
unsure of stud placement, simply lay the motherb oard inside the chassis and align
the screw holes of the motherboard to the studs inside the case. If there are any
studs missing, you will know right away since the motherboard will not be able to b e
securely installed.
Note: Be especially careful to look for extra stand-offs. If there are any stand-offs
present that are not aligned with a mounting hole on the motherboard, it will likely
short components on the back of the motherboard when installed. This will cause
malfunction and/or damage to your motherboard.
Page 51
http://www.tyan.com
51
Some chassis include plastic studs instead of metal. Although the plastic studs are
usable, MiTAC recommends using metal studs with screws that will fasten the
motherboard more securely in place.

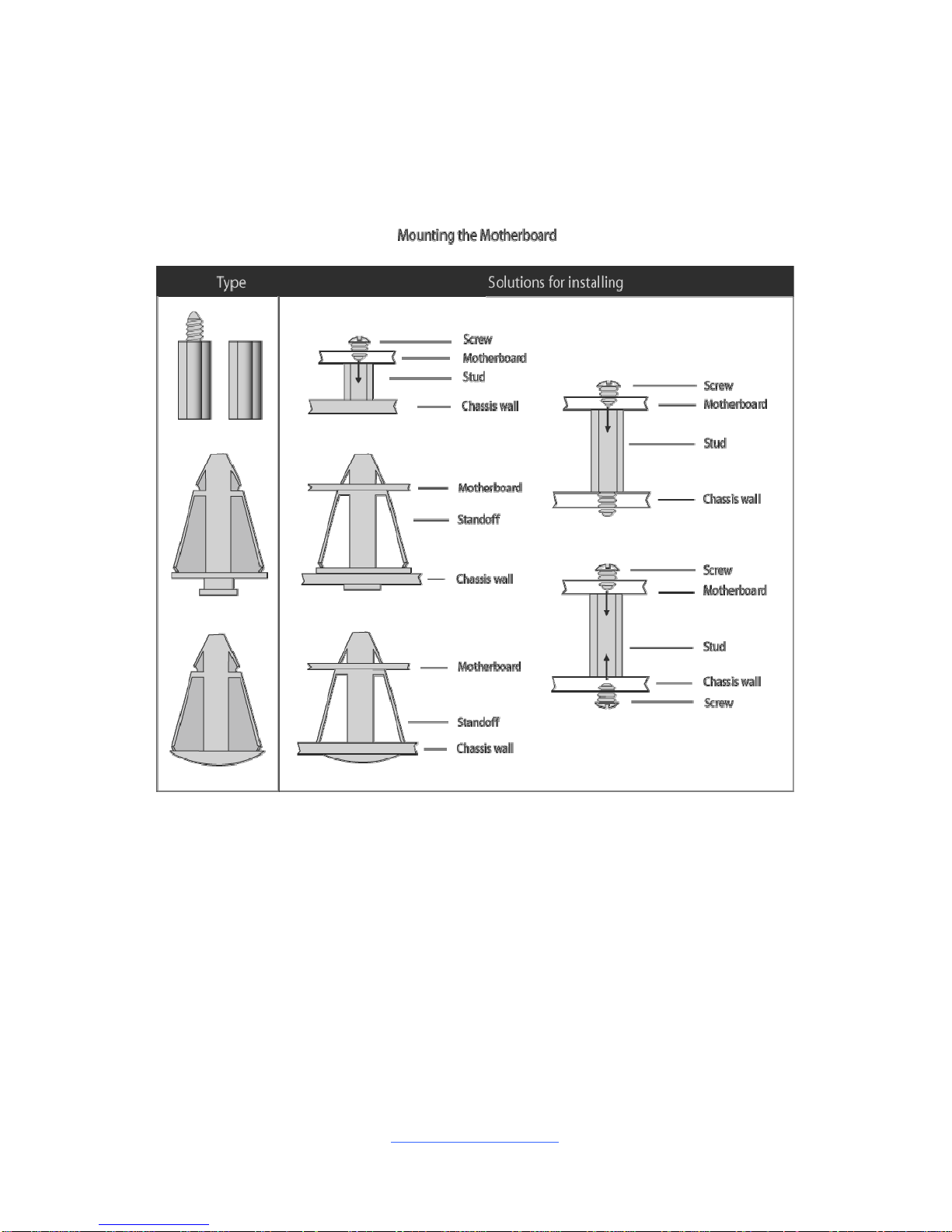

Below is a chart detailing what the most common motherboard studs look like an d
how they should be installed.
Page 52
http://www.tyan.com
52
2.7 Installing the Memory
Before installing memory, ensure that the memory you have is compatible
with the motherboard and processor. Check the TYAN Web site at
http://www.tyan.com for details of the type of memory recommended for
your motherboard.

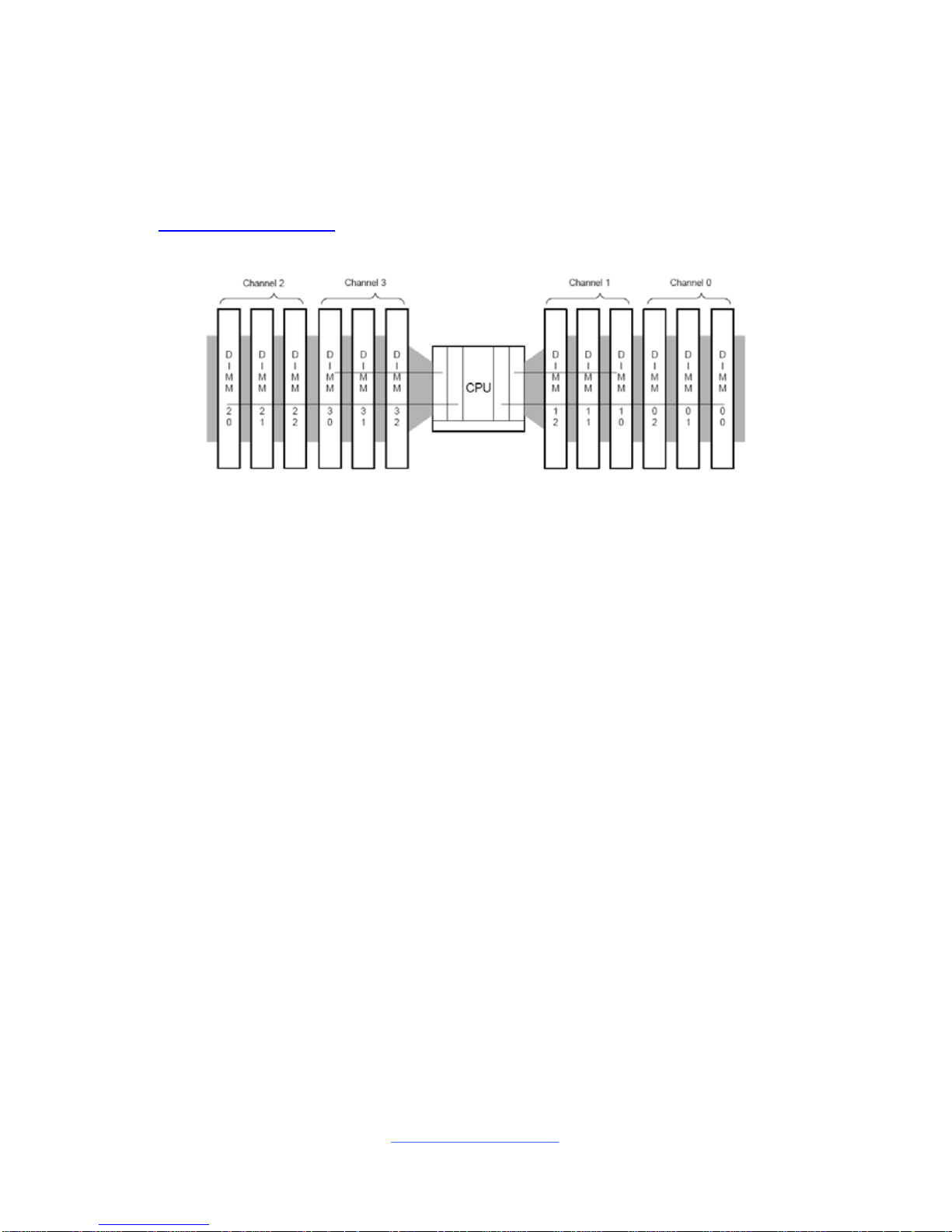

The Sandy Bridge-EP/EX processor is a quad-channe l design with a
total of 4 DDR3 channels
This platform supports Unbuffered DDR3, Registered DDR3, and LR
DIMM (Load Reduced DIMM) DDR3 for buffered memory solutions
demanding higher capacity memory subsystems.
DDR3 data transfer rates of 800, 1066, 1333, and 1600 MT/s are
supported
Each memory channel is 72 or 64 bits wide for ECC or Non-ECC
Both 1.5V and 1.35V DDR3 DIMMs are supported
Gb, 2-Gb, and 4-Gb DDR3 DRAM technologies are supported for
these devices:
— UDIMMs x8, x16
— RDIMMs x4, x8
— LRDIMM x4, x8
Up to 8 ranks are supported per memory channel. DIMMS may be 1,
2 or 4 ranks per module.
All installed memory will automatically be detected. No jumpers or
settings need to be changed for memory detection.
All memory must be of the same type and density. Registered,
Unbuffered, and LRDIMM memory types can NOT be mixed and
matched on the same motherboard.
Page 53
http://www.tyan.com
53
Recommended Memory Population Table
Single CPU Installed
(CPU0 only)
Quantity of
memory installed
1 2 3 4 5 6 7 8
CPU0_DIMM_A0 √ √ √ √ √ √ √ √
CPU0_DIMM_A1 √ √ √ √
CPU0_DIMM_B0 √ √ √ √ √ √ √
CPU0_DIMM_B1 √ √ √
CPU0_DIMM_C0 √ √ √ √ √ √
CPU0_DIMM_C1 √ √
CPU0_DIMM_D0 √ √ √ √ √
CPU0_DIMM_D1 √
NOTE:
1. √ indicates a populated DIMM slot.
2. Use paired memory installation for max performance.
3. Populate the same DIMM type in each channel, specifically
- Use the same DIMM size
- Use the same # of ranks per DIMM
4. Dual-rank DIMMs are recommended over single-rank DIMMs.
5. Un-buffered DIMM can offer slightly better performance than registerd DIMM if
populating only a single DIMM per channel.
6. Always install with DIMM_A0 Slot first, following the alphabetical order (starting with
DIMM_A0, DIMM_B0, DIMM_C0, DIMM_D0), and then the numerical order (starting
with DIMM_A1, DIMM_B1, DIMM_C1, DIMM_D1, DIMM_A2, DIMM_B2, DIMM_C2,
DIMM_D2).
Page 54
http://www.tyan.com
54
Dual CPU installed (CPU0 and CPU1)
Quantity of
memory
installed
2 3 4 5 6 7 8 10 12 14 16
CPU0_DIMM_A0 √ √ √ √ √ √ √ √ √ √ √
CPU0_DIMM_A1 √ √ √ √
CPU0_DIMM_B0 √ √ √ √ √ √ √ √ √ √
CPU0_DIMM_B1 √ √ √
CPU0_DIMM_C0 √ √ √ √ √ √ √ √
CPU0_DIMM_C1 √ √ √
CPU0_DIMM_D0 √ √ √ √ √ √
CPU0_DIMM_D1 √
CPU1_DIMM_A0 √ √ √ √ √ √ √ √ √ √ √
CPU1_DIMM_A1 √ √ √ √
CPU1_DIMM_B0 √ √ √ √ √ √ √ √ √
CPU1_DIMM_B1 √ √
CPU1_DIMM_C0 √ √ √ √ √ √ √
CPU1_DIMM_C1 √ √
CPU1_DIMM_D0 √ √ √ √ √
CPU1_DIMM_D1 √
NOTE:
1. √ indicates a populated DIMM slot.
2. Use paired memory installation for max performance.
3. Populate the same DIMM type in each channel, specifically
- Use the same DIMM size
- Use the same # of ranks per DIMM
4. Dual-rank DIMMs are recommended over single-rank DIMMs.
5. Un-buffered DIMM can offer slightly better performance than registerd DIMM if
populating only a single DIMM per channel.
6. Always install with CPU0 and DIMM_A0 Slot first, following the alphabetical order,
(for example: CPU0_DIMM_A0, CPU1_DIMM_A0, CPU0_DIMM_B0,
CPU1_DIMM_B0) and then the numerical order (for example: CPU0_DIMM_A1,
CPU1_DIMM_A1, CPU0_DIMM_A2, CPU1_DIMM_A2).
Page 55
http://www.tyan.com
55
Intel®Xeon®processor E5-2600 product families UDIMM Support
1.35V 1.50V Ranks Per DIMM &
Data Width
Memory Capacity per DIMM
1DPC 2DPC 1DPC 2DPC
SRx8 Non-ECC 1 GB 2GB 4GB N/A N/A
1066,
1333
1066,
1333
DRx8 Non-ECC 2GB 4GB 8GB N/A N/A
1066,
1333
1066,
1333
SRx16 Non-ECC 512 MB 1GB 2GB N/A N/A
1066,
1333
1066,
1333
SRx8 ECC 1GB 2GB 4GB
1066,
1333
1066
1066,
1333
1066,
1333
DRx8 ECC 2GB 4GB 8GB
1066,
1333
1066
1066,
1333
1066,
1333
Intel®Xeon®processor E5-1600/2600 product families v2 UDIMM Support
(Reduce Length)
1.35V 1.50V Ranks Per
DIMM & Data
Width
Memory Capacity per DIMM
1DPC 2DPC 1DPC 2DPC
SRx8 Non-ECC 1 GB 2GB 4GB N/A N/A
1066,
1333,
1600,
1866
1066,
1333,
1600
DRx8 Non-ECC 2GB 4GB 8GB N/A N/A
1066,
1333,
1600,
1866
1066,
1333,
1600
SRx16 NonECC
512 MB 1GB 2GB N/A N/A
1066,
1333,
1600,
1866
1066,
1333,
1600
SRx8 ECC 1GB 2GB 4GB
1066,
1333
1066,
1333
1066,
1333,
1600,
1866
1066,
1333,
1600
DRx8 ECC 2GB 4GB 8GB
1066,
1333
1066,
1333
1066,
1333,
1600,
1866
1066,
1333,
1600
NOTE 1: The blue blocks indicate that the DRAM Densities are supported but not
validated.
NOTE 2: The grey blocks indicate that the DRAM Densities are supported and validated.
NOTE 3: 1DPC => One dimm per channel
NOTE 4: 2DPC => Two dimm per channel
Supported DRAM Densities are 1Gb, 2Gb and 4Gb. Only 2Gb and 4Gb are validated
by Intel.
Command Address Timing is 1N for 1DPC and 2N for 2DPC.
Page 56
http://www.tyan.com
56
Intel®Xeon®processor E5-2600 product families LRDIMM Support
1.35V 1.50V Ranks Per DIMM
& Data Width
Memory Capacity per
DIMM
1DPC 2DPC 1DPC 2DPC
QRx4 (DDP) 16GB 32GB 1066 1066
1066,
1333
1066,
1333
QRx8 (P) 8GB 16GB 1066 1066
1066,
1333
1066,
1333
Intel®Xeon®processor E5-1600/2600 v2 product families LRDIMM Support
(Reduce Length)
1.35V 1.50V Ranks Per DIMM
& Data Width
Memory Capacity per
DIMM
1DPC 2DPC 1DPC 2DPC
QRx4 (DDP) 16GB 32GB
1066,
1333,
1600
1066,
1333,
1600
1066,
1333,
1600,
1866
1066,
1333,
1600
8Rx4 (QDP) 32GB 16GB 1066 1066 1066 1066
NOTE 1: The grey blocks indicate that the DRAM Densities are supported and validated.
NOTE 2: 1DPC => One dimm per channel
NOTE 3: 2DPC => Two dimm per channel
Physical Rank is used to calculate DIMM Capacity.
Supported and validated DRAM Densities are 2Gb and 4Gb.
Command Address Timing is 1N.
The speeds are estimated targets and will be verified through simulation.
DDP -Dual Die Package DRAM stacking. P –Planer monolithic DRAM Die.
Page 57
http://www.tyan.com
57
Intel®Xeon®processor E5-1600/2600 product families RDIMM Support
1.35V 1.50V
Ranks Per DIMM &
Data Width
Memory Capacity per
DIMM
1DPC 2DPC 1DPC 2DPC
SRx8 1GB 2GB 4GB
1066,
1333
1066,
1333
1066,
1333,
1600
1066,
1333,
1600
DRx8 2GB 4GB 8GB
1066,
1333
1066,
1333
1066,
1333,
1600
1066,
1333,
1600
SRx4 2GB 4GB 8GB
1066,
1333
1066,
1333
1066,
1333,
1600
1066,
1333,
1600
DRx4 4GB 8GB 16GB
1066,
1333
1066,
1333
1066,
1333,
1600
1066,
1333,
1600
QRx4 8GB 16GB 32GB 800 800 1066 800
QRx8 4GB 8GB 16GB 800 800 1066 800
Intel®Xeon®processor E5-2600 v2 product families RDIMM Support (Reduce
Length)
1.35V 1.50V
Ranks Per DIMM &
Data Width
Memory Capacity per
DIMM
1DPC 2DPC 1DPC 2DPC
SRx8 1GB 2GB 4GB
1066,
1333
1066,
1333
1066,
1333,
1600,
1866
1066,
1333,
1600
DRx8 2GB 4GB 8GB
1066,
1333
1066,
1333
1066,
1333,
1600,
1866
1066,
1333,
1600
SRx4 2GB 4GB 8GB
1066,
1333
1066,
1333
1066,
1333,
1600,
1866
1066,
1333,
1600
DRx4 4GB 8GB 16GB
1066,
1333
1066,
1333
1066,
1333,
1600,
1866
1066,
1333,
1600
QRx4 8GB 16GB 32GB 800 800
800,
1066
800
QRx8 4GB 8GB 16GB 800 800
800,
1066
800
NOTE 1: The blue blocks indicate that the DRAM Densities are supported but not
validated.
NOTE 2: The grey blocks indicate that the DRAM Densities are supported and validated.
Page 58
http://www.tyan.com
58
NOTE 3: The yellow blocks indicate that the DRAM Densities are supported with limited
validated.
NOTE 4: 1DPC => One dimm per channel
NOTE 5: 2DPC => Two dimm per channel
Supported DRAM Densities are 1Gb, 2Gb and 4Gb. Only 2Gb and 4Gb are validated
by Intel.
Command Address Timing is 1N.
QR RDIMM are supported but not validated by Intel/PMO in a homogenous
environment. The coverage will have limited system level testing, no signal integrity
testing, and no interoperability testing. The passing QR RDIMMs will be web posted.
Page 59
http://www.tyan.com
59

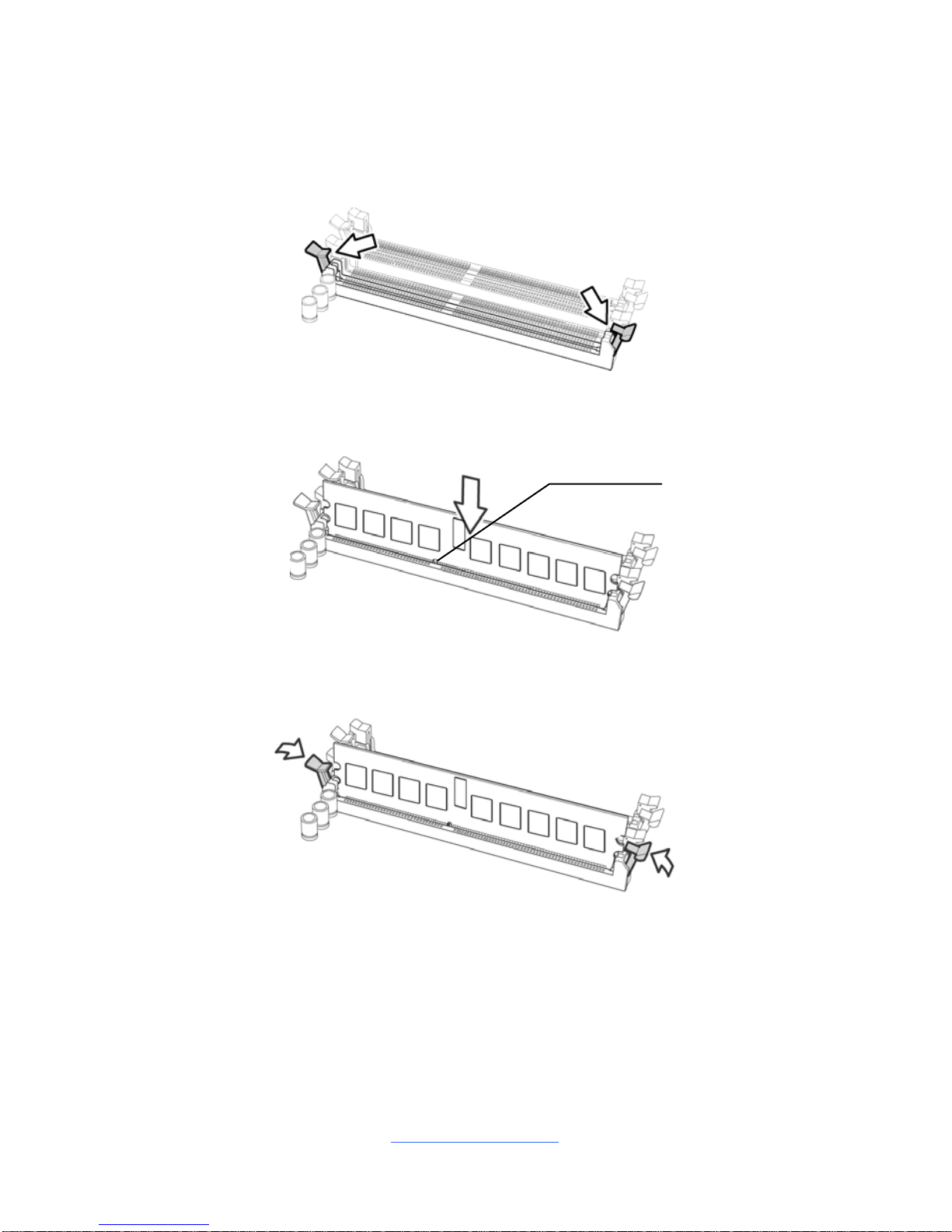

Memory Installation Procedure
Follow these instructions to install memory modules into the S7056.
1. Press the locking levers in the direction shown in the following illustration.
2. Align the memory module with the socket. The memory module is keyed to fit
only one way in the socket.
3. Seat the module firmly into the socket by gently pressing down until it sits
flush with the socket. The locking levers pop up into place.
KEY SLOT
Page 60
http://www.tyan.com
60

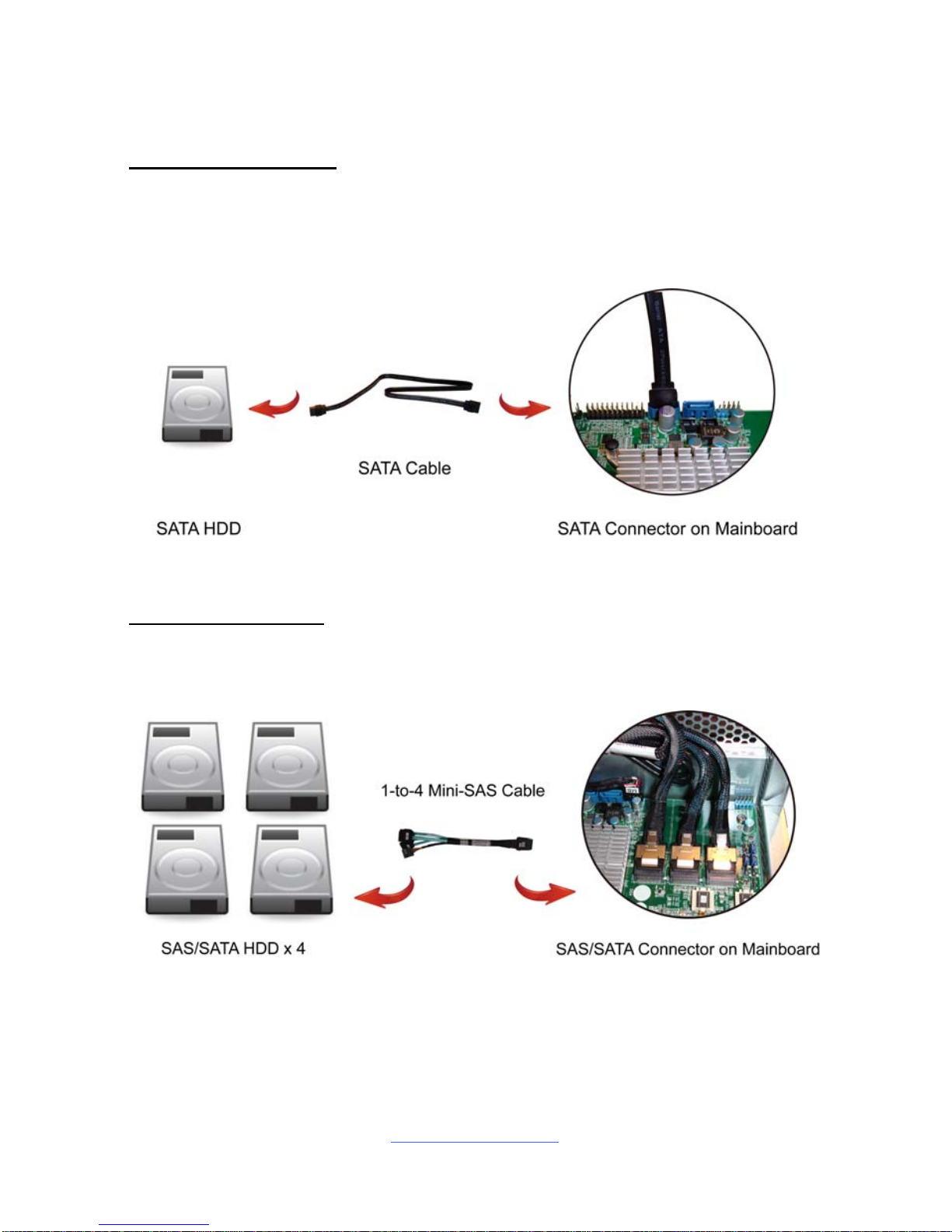

2.8 Attaching Drive Cables
Attaching SATA Cables
The following illustrates how to make a SATA Cable connection. If you are in ne ed
of SATA/SAS cables or power adapters please contact your local sales
representative.
Attaching SAS Cables
The following illustrates how to make a SAS Cable connection. If you are in need of
SATA/SAS cables or power adapters please contact your local sales representative.
Page 61
http://www.tyan.com
61
2.9 Installing Add-In Cards
Before installing add-in cards, it’s helpful to know if they are fully compatible with
your motherboard. For this reason, we’ve provided the diagrams below, showing
the slots that may appear on your motherboard.

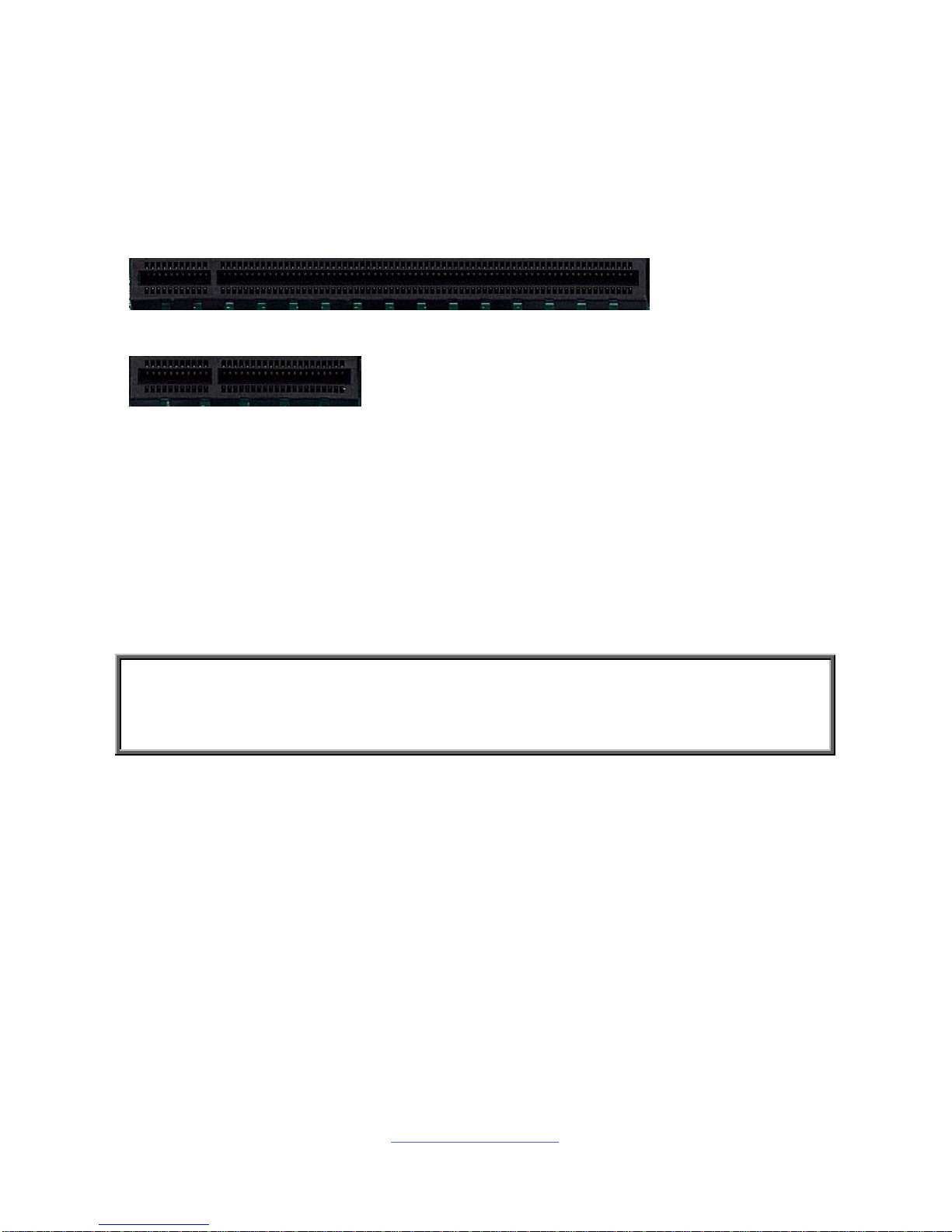

PCI-E Gen3 x16 slot
PCI-E Gen3 x4 slot
Simply find the appropriate slot for your add-in card and insert the card firmly. Do
not force any add-in cards into any slots if they do not seat in place. It is better to try
another slot or return the faulty card rather than damaging both the motherboard
and the add-in card.
TIP: It’s a good practice to install add-in cards in a staggered manner rather than
making them directly adjacent to each other. Doing so allows air to circulate within
the chassis more easily, thus improving cooling for all installed devices.
NOTE: You must always unplug the power connector from the motherb oard before
performing system hardware changes to avoid damaging the board or expansion
device.
Page 62
http://www.tyan.com
62

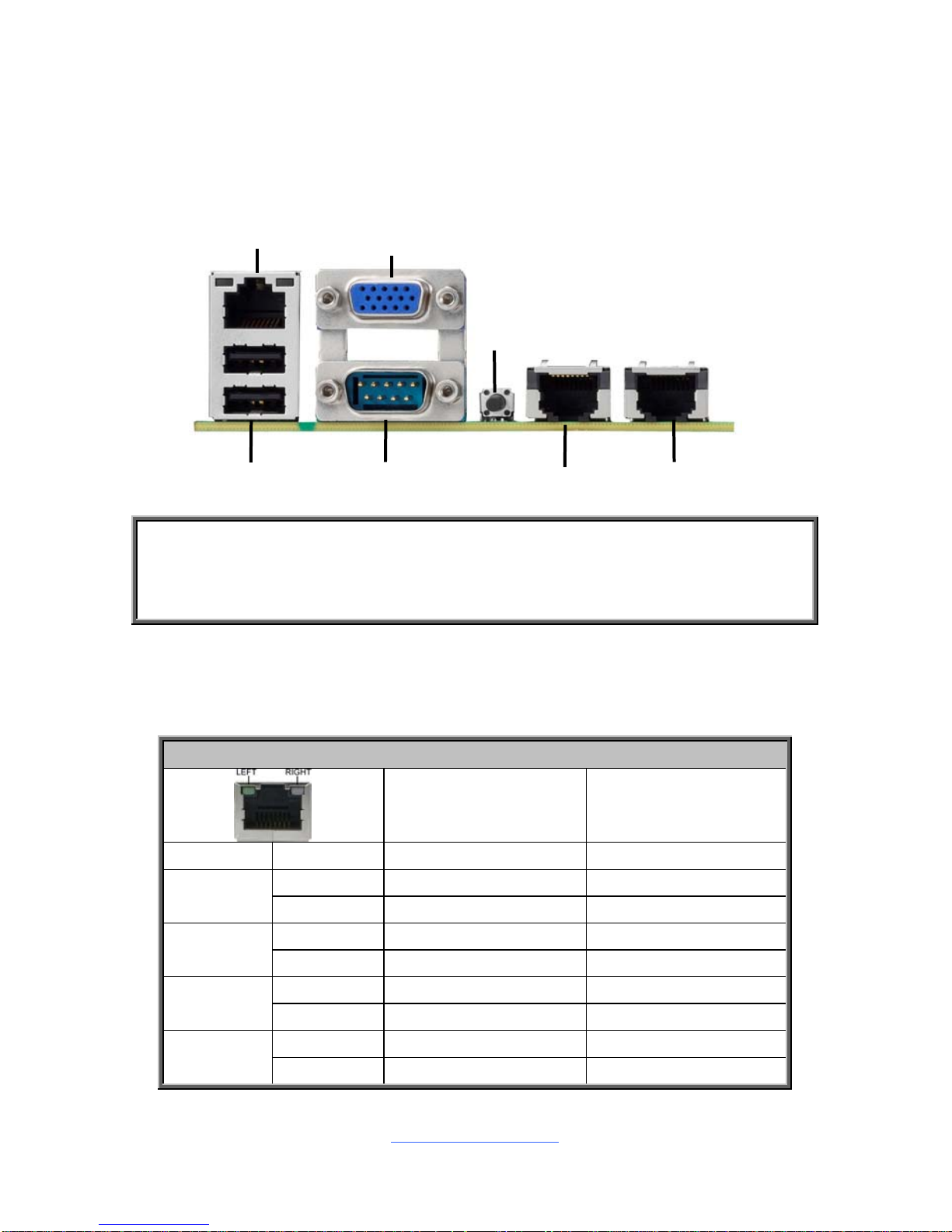

2.10 Connecting External Devices
Connecting external devices to the motherboard is an easy task. The motherboard
supports a number of different interfaces through connecting peripherals. See the
following diagrams for the details.
NOTE:
1. When i350 LAN chip is on, LAN1 and LAN2 can support 10Mbps~1Gbps.
2. When X540 LAN chip is on, LAN1 and LAN2 can support up to 100Mbps~10Gbps.
3. Peripheral devices can be plugged straight into any of these ports but software
may be required to complete the installation.
Onboard LAN LED Color Definition
The three onboard Ethernet ports have green and yellow LEDs to indicate LAN
status. The chart below illustrates the different LED states.
10/100/1000 Mbps LAN Link/Activity LED Scheme
Left LED
(Link/Activity)
Right LED
(Speed)
No Link OFF OFF
Link Green OFF
10 Mbps
Active Blinking Green OFF
Link Green Solid Green
100 Mbps
Active Blinking Green Solid Green
Link Green Solid Yellow
1000 Mbps
Active Blinking Green Solid Yellow
Link Yellow Solid Yellow
10 Gbps
Active Blinking Yellow Solid Yellow
LAN3 (Intel 82574)
shared with IPMI
LAN2
VGA
COM1
ID LED Button
LAN1
USB x2
Page 63
http://www.tyan.com
63

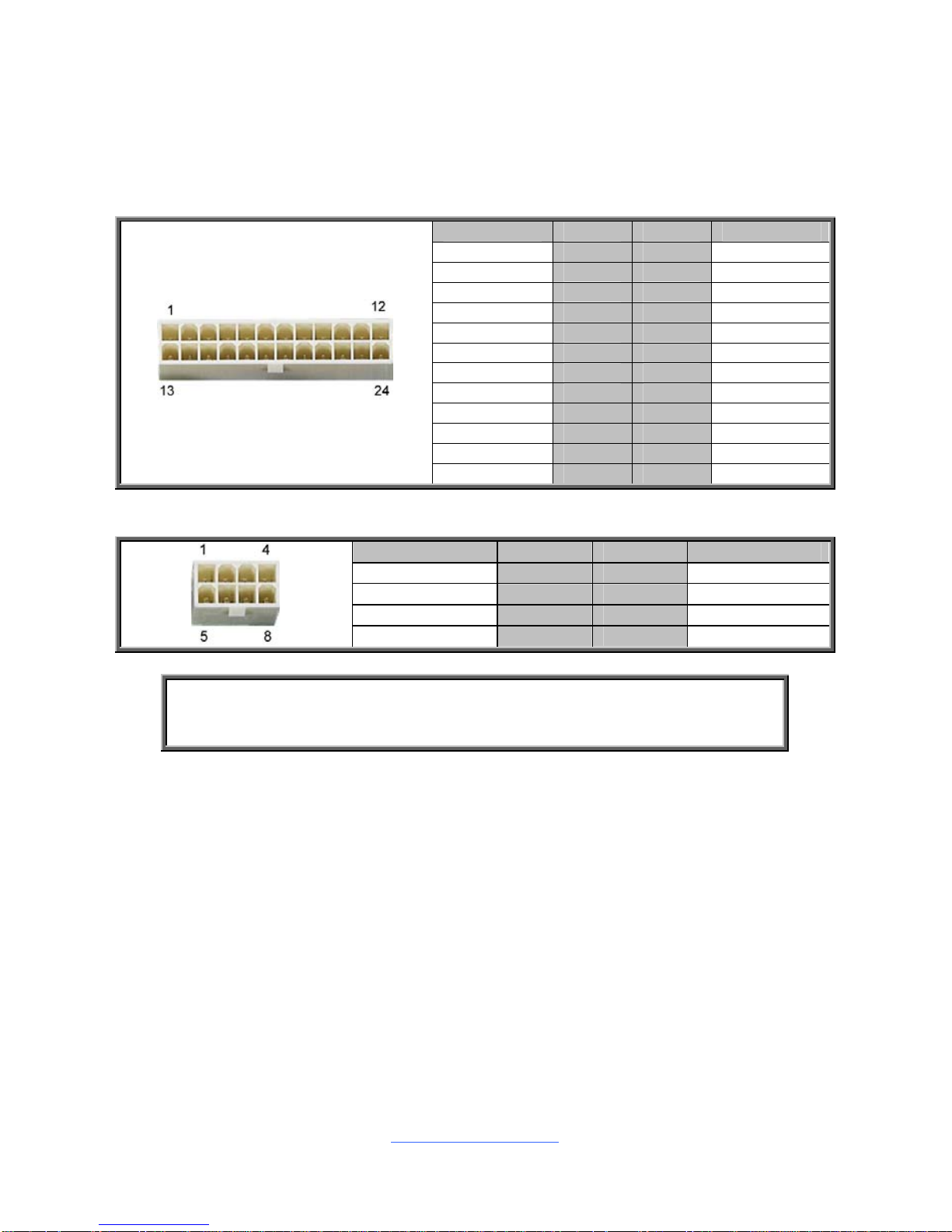

2.11 Installing the Power Supply
There are three (3) power connectors on your S7056 motherboard. The S7056
supports EPS 12V power supply.
PWR1 (J27): ATX 24-Pin Power Connector
Signal Pin Pin Signal
V3P3
1 13
V3P3
V3P3
2 14
-12V
GND
3 15
GND
+5V
4 16
PS_ON#
GND
5 17
GND
+5V
6 18
GND
GND
7 19
GND
PWROK
8 20
Reserved
5VSB
9 21
+5V
+12V
10 22
+5V
+12V
11 23
+5V
V3P3
12 24
GND
PWR2 (J43) / PWR3 (J62): SSI 8-Pin CPU/DIMM Power Connector
Signal Pin Pin Signal
GND 1 2 +12V
GND 3 4 +12V
GND 5 6 +12V
GND 7 8 +12V
NOTE: You must unplug the power supply before plugging the power
cables to motherboard connectors.
Page 64
http://www.tyan.com
64
2.12 Finishing Up
Congratulations on making it this far! You have finished setting up the hardware
aspect of your computer. Before closing up your chassis, make sure that all cables
and wires are connected properly, especial ly SATA cables and most importantly,
jumpers. You may have difficulty powering on your system if the motherboard
jumpers are not set correctly.
In the rare circumstance that you have experienced difficulty, you can find help by
asking your vendor for assistance. If they are not available for assistance, please
find setup information and documentation online at our website or by calling your
vendor’s support line.
Page 65
http://www.tyan.com
65
Chapter 3: BIOS Setup
3.1 About the BIOS
The BIOS is the basic input/output system, the firmware on the motherboard that
enables your hardware to interface with your software. The BIOS determines what a
computer can do without accessing programs from a disk. The BIOS contains all
the code required to control the keyboard, display screen, disk drives, serial
communications, and a number of miscellaneous functions. T his chapter d escribes
the various BIOS settings that can be used to configure your system.
The BIOS section of this manual is subject to change without notice and is provided
for reference purposes only. The settings and configuratio ns of the BIOS are
current at the time of print and are subject to change, and therefore may not match
exactly what is displayed on screen.
This section describes the BIOS setup program. The setup program lets you modify
basic configuration settings. The settings are then stored in a dedicated, batterybacked memory (called NVRAM) that retains the information even when the po wer
is turned off.
To start the BIOS setup utility:
1. Turn on or reboot your system.
2. Press <F2> or <Del> during POST (<Tab> on remote console) to start the
BIOS setup utility.
3.1.1 Setup Basics
The table below shows how to navigate in the setup program using the keyboard.
Key Function
<F1> General help window
<ESC> Exit current menu
arrow keys Select a different menu
↑or↓ arrow keys
Move cursor up/down
<Tab> / <Shift-Tab> Cycle cursor up/down
<Home> / <End> Move cursor to top/bottom of the window
<PgUp> / <PgDn> Move cursor to next/previous page
<-> Select the previous value/setting of the field
<+> Select the next value/setting of the field
<F8> Load Fail Safe default configuration values of the menu
<F3> Load the Optimal default configuration values of the
menu
<F4> Save and exit
<Enter> Execute command or select submenu
Page 66
http://www.tyan.com
66
3.1.2 Getting Help
Pressing [F1] will display a small help window that describes the appropriate
keys to use and the possible selections for the highlighted item. To exit the Help
Window, press [ESC] or the [Enter] key again.
3.1.3 In Case of Problems
If you have trouble booting your computer after making and saving the changes with
the BIOS setup program, you can restart the computer by holding the power button
down until the computer shuts off (usually within 4 seconds); resetting by pressing
CTRL-ALT-DEL; or clearing the CMOS.
The best advice is to only alter settings that you thoroughl y understan d. In particu lar,
do not change settings in the Chipset section unless you are absolute ly sure of
what you are doing. The Chipset defaults have bee n carefully chosen either by
MiTAC or your system manufacturer for best performance and reliability. Even a
seemingly small change to the Chipset setup options may cause the system to
become unstable or unusable.
3.1.4 Setup Variations
Not all systems have the same BIOS setup layout or options. While the basic look
and function of the BIOS setup remains more or less the same for most systems,
the appearance of your Setup screen may differ from the charts shown in this
section. Each system design and chipset combination requires a custom
configuration. In addition, the final appearance of the Setup program dep ends on
the system designer. Your system designer may decide that certain items should
not be available for user configuration, and remove them from the BIOS setup
program.
NOTE: The following pages provide the details of BIOS menu. Please be aware that
the BIOS menus are continually changing due to continual BIOS updates over the
product lifespan of the motherboard. The BIOS menus provided are current as of
the date when this manual was written. Please visit TYAN’s website at
http://www.tyan.com
for information on BIOS updates available for this specific
motherboard.
Page 67
http://www.tyan.com
67

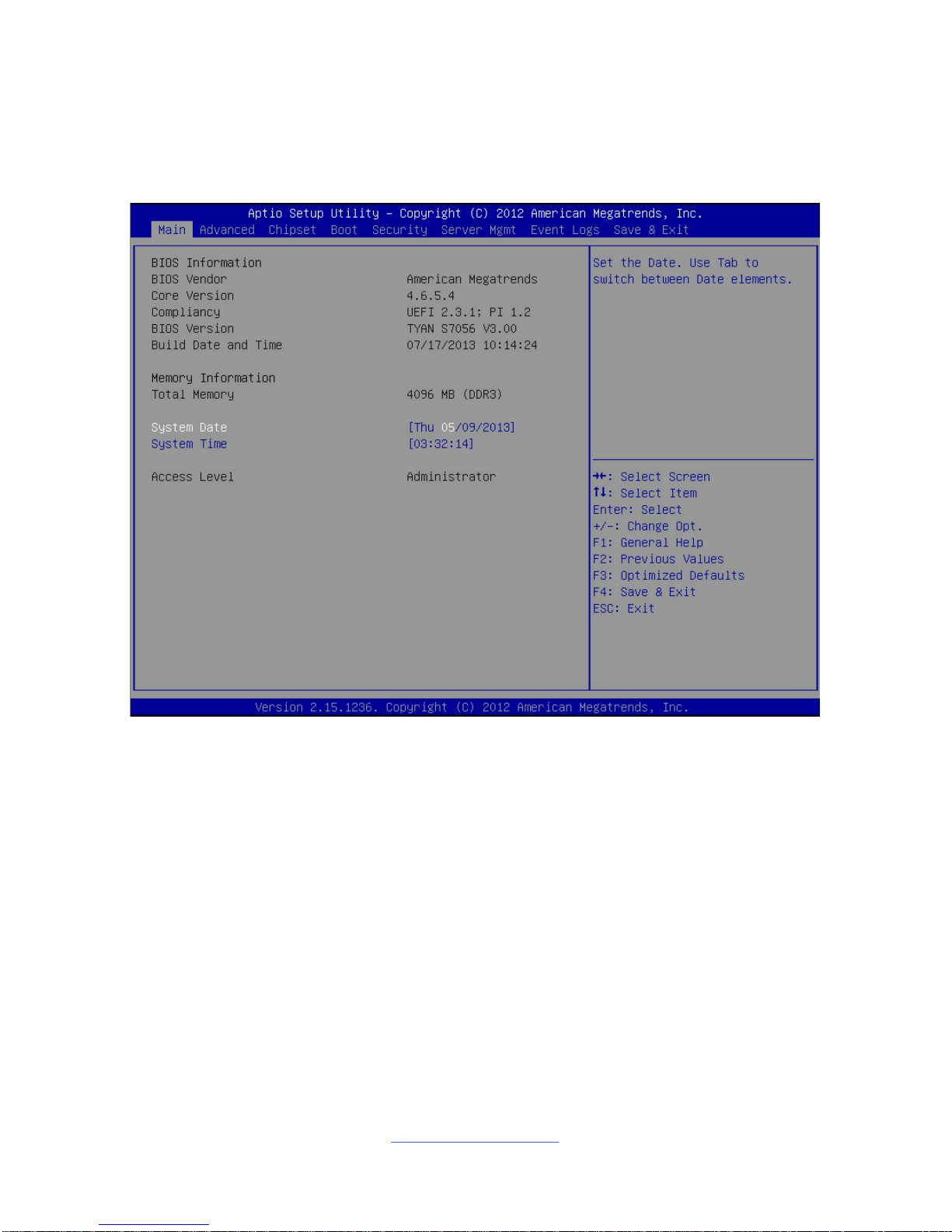

3.2 Main Menu
In this section, you can alter general features such as the date and time.
Note that the options listed below are for options that can directly be changed within
the Main Setup screen.
BIOS Information
It displays BIOS related information.
Memory Information
This displays the total memory size.
System Date
Adjust the system date.
MM (Months): DD (Days): YYYY (Years)
System Time
Adjust the system clock.
HH (24 hours format): MM (Minutes): SS (Seconds)
Access Level
Read only.
Page 68
http://www.tyan.com
68

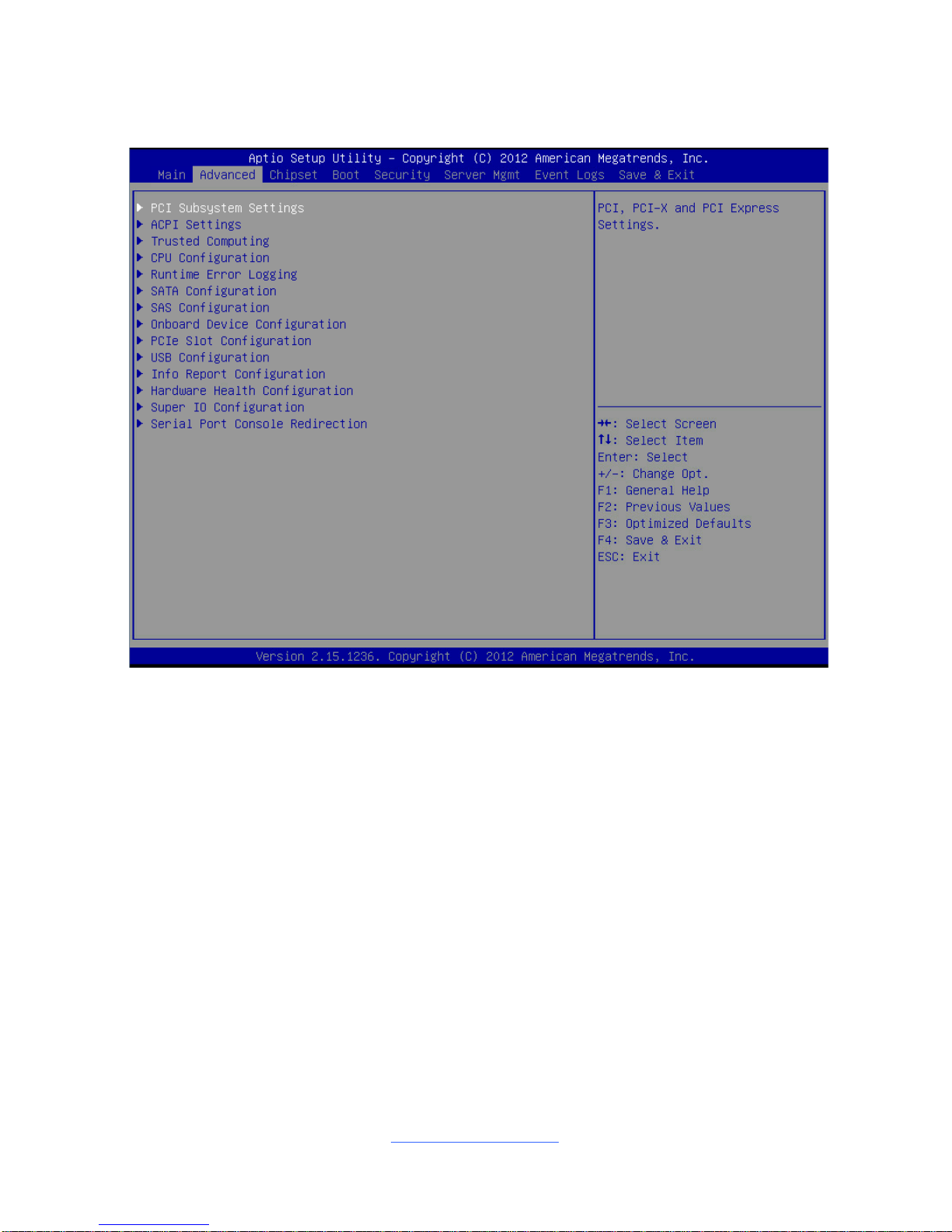

3.3 Advanced Menu
PCI Subsystem Settings
PCI, PCI-X and PCI Express Settings.
ACPI Settings
System ACPI Parameters.
Trusted Computing
Trusted Computing settings.
CPU Configuration
CPU Configuration Parameters.
Runtime Error Logging
Runtime Error Logging Support Setup Options
SATA Configuration
SATA Devices Configuration.
Page 69
http://www.tyan.com
69
SAS Configuration
SAS Devices Configuration.
Onboard Device Configuration
Onboard Device Configuration.
PCIe Slot Configuration
PCIe Slot Configuration.
USB Configuration
USB Configuration Parameters.
Info Report Configuration
Info Report Configuration.
Hardware Health Configuration
Hardware health Configuration Parameters.
Super IO Configuration
System Super IO Chip Parameters.
Serial Port Console Redirection
Serial Port Console Redirection.
Page 70
http://www.tyan.com
70

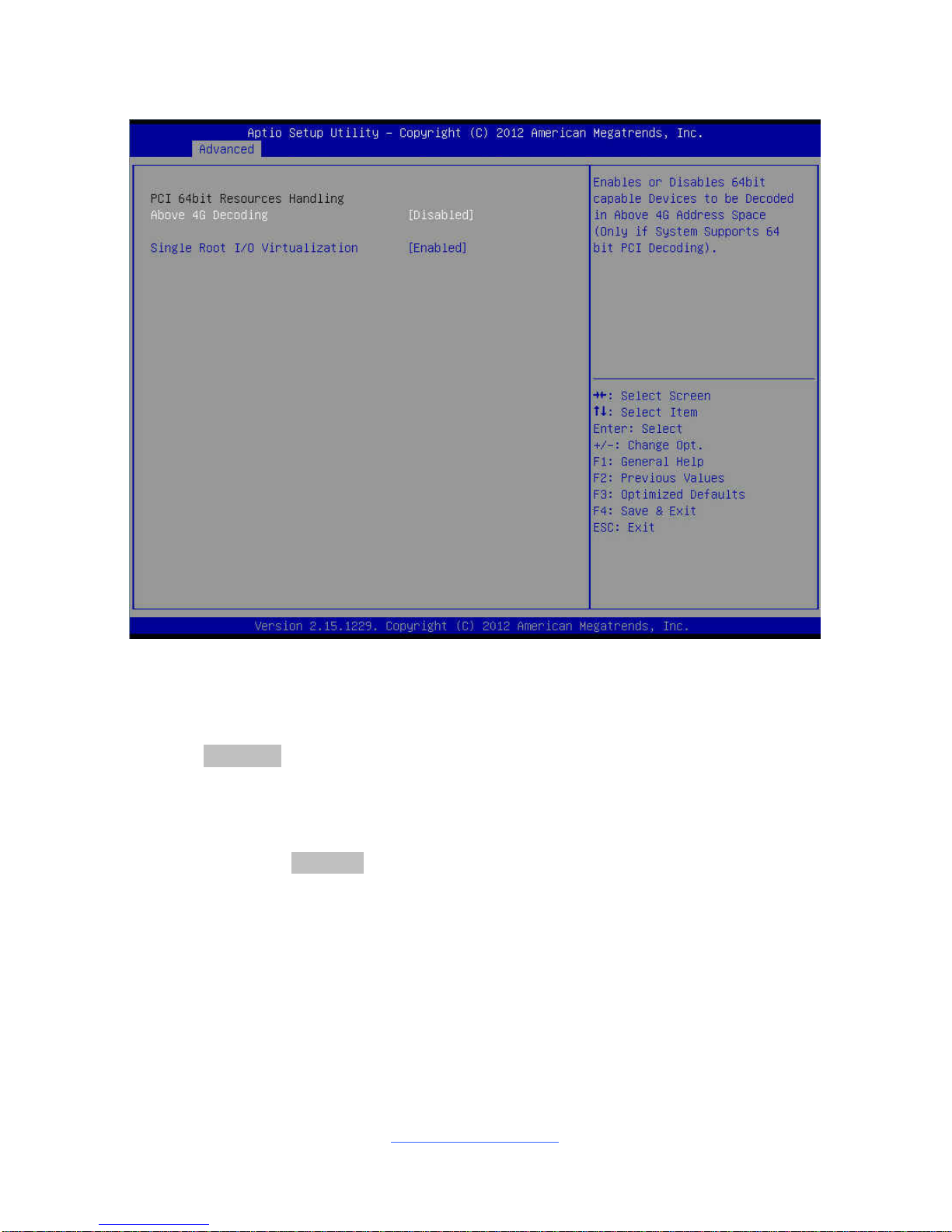

3.3.1 PCI Subsystem Settings
Above 4G Decoding
Enable or disable 64 bit capable devices to be decoded in Above 4G Address
Space (only if system supports 64 bit PCI Decoding).
Disabled / Enabled
Single Root I/O Virtualization
Single Root I/O Virtualization (SR-IOV). SR-IOV is a specification that allows a
PCIe device to enable/disable multiple separate physica l PCIe devices.
Disabled / Enabled
Page 71
http://www.tyan.com
71

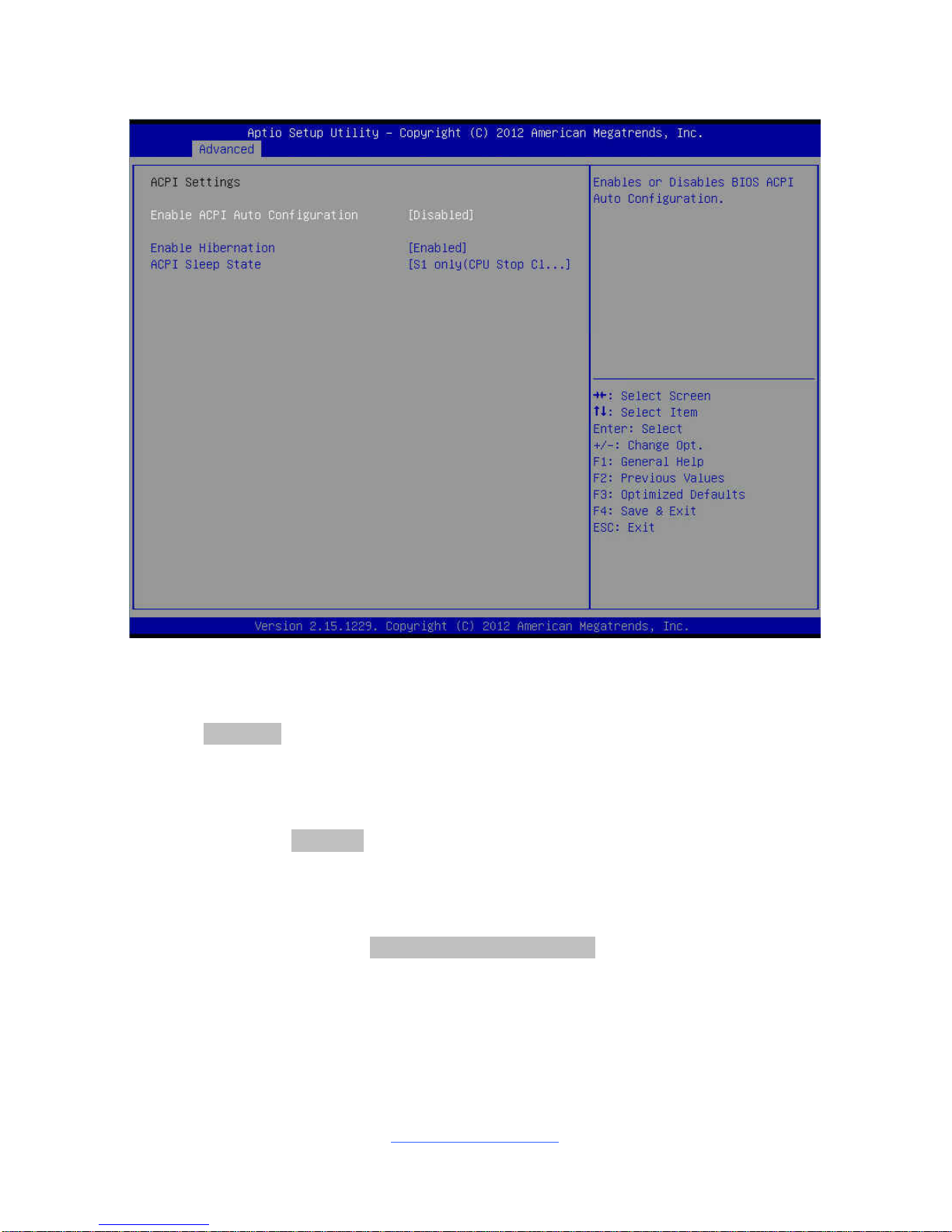

3.3.2 ACPI Settings
Enable ACPI Auto Configuration
Enable or disable ACPI Auto Configuration.
Disabled / Enabled
Enable Hibernation
Enable or disable System ability to Hibernate (OS/S4 Sleep State). This option may
not be effective with some OS.
Disabled / Enabled
ACPI Sleep State
Select the highest ACPI sleep state the system will enter when the SUSPEND
button is pressed.
Suspend Disabled / S1 only (CPU Stop Clock)
Page 72
http://www.tyan.com
72
3.3.3 Trusted Computing (optional)
Security Device Support
Enables or Disables BIOS support for security device. O.S. will not show Security
Device. TCG EFI protocol and INTIA interface will not be available.
Disabled / Enabled
TPM State
Turn TPM Enable/Disable. NOTE: Your Computer will reboot during restart in order
to change State of TPM.
Disabled / Enabled
Pending operation
Schedule an Operation for the Security Device. NOTE: Your Computer will reboot
during restart in order to change State of Security Device.
None / Enable Take Ownership / Disable Take Ownership / TPM Clear
Page 73
http://www.tyan.com
73

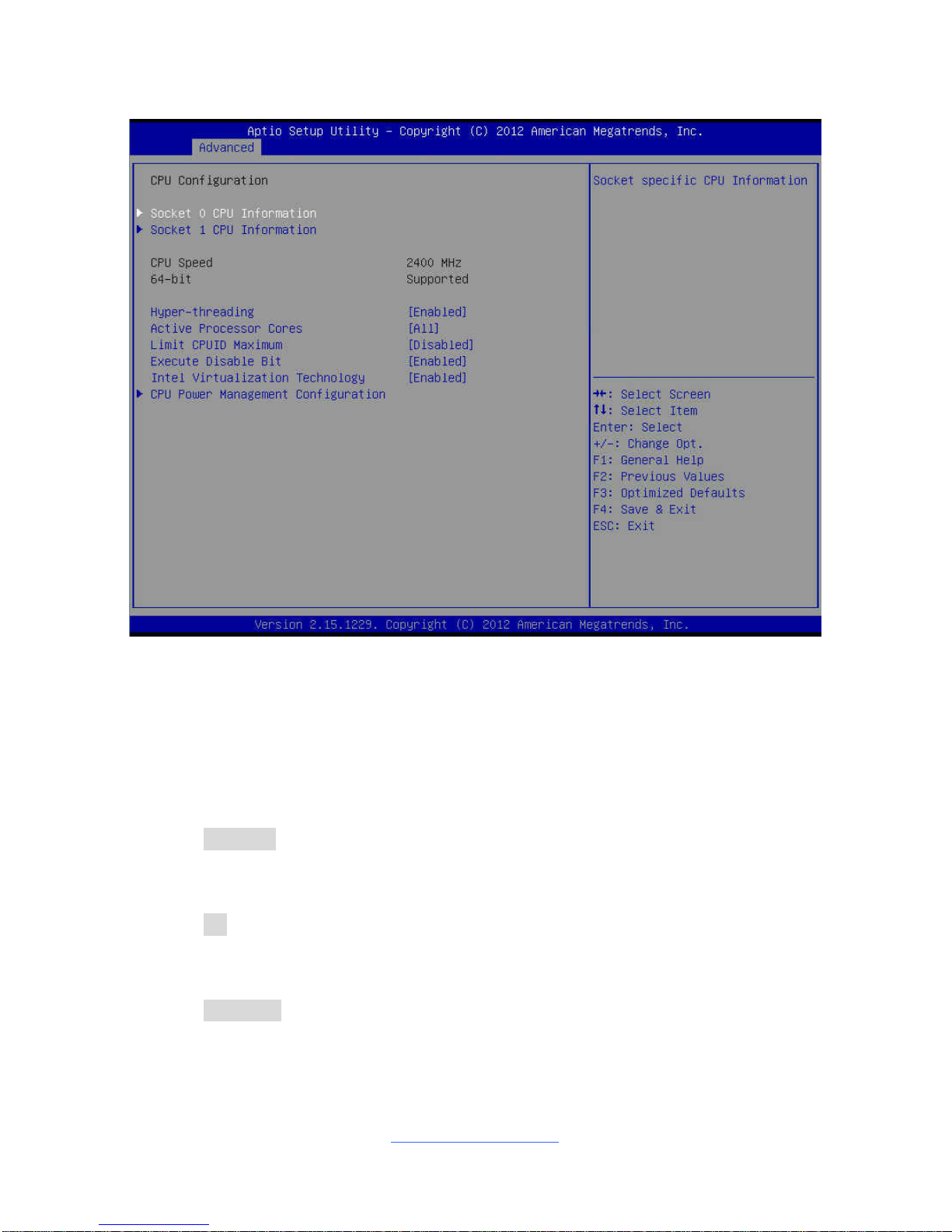

3.3.4 CPU Configuration
CPU Speed / 64-bit
Read only.
Hyper Threading
Enabled for Windows XP and Linux (OS optimized for Hyper Threading Technolog y)
and disabled for other OS (OS not optimized for Hyper Threading Technology).
When disabled only one thread per enabled core is enabled.
Enabled / Disabled
Active Processor Cores
Number of cores to enable in each processor package.
All / 1 / 2 / 3 / 4 / 5 / 6 / 7
Limit CPUID Maximum
Disabled for Windows XP.
Disabled / Enabled
Page 74
http://www.tyan.com
74
Execute Disable Bit
XD can prevent certain classes of malicious buffer overflow attacks when combined
with a supporting OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux
9.2, RedHat Enterprise 3 Update 3).
Enabled / Disabled
Intel Virtualization Technology
When enabled, a VMM can utilize the additional hard ware capabilities provided by
Vanderpool Technology.
NOTE: Once the lock bit is set, the contents of this register can not be modified until
S5 reset occurs.
Enabled / Disabled
Page 75
http://www.tyan.com
75

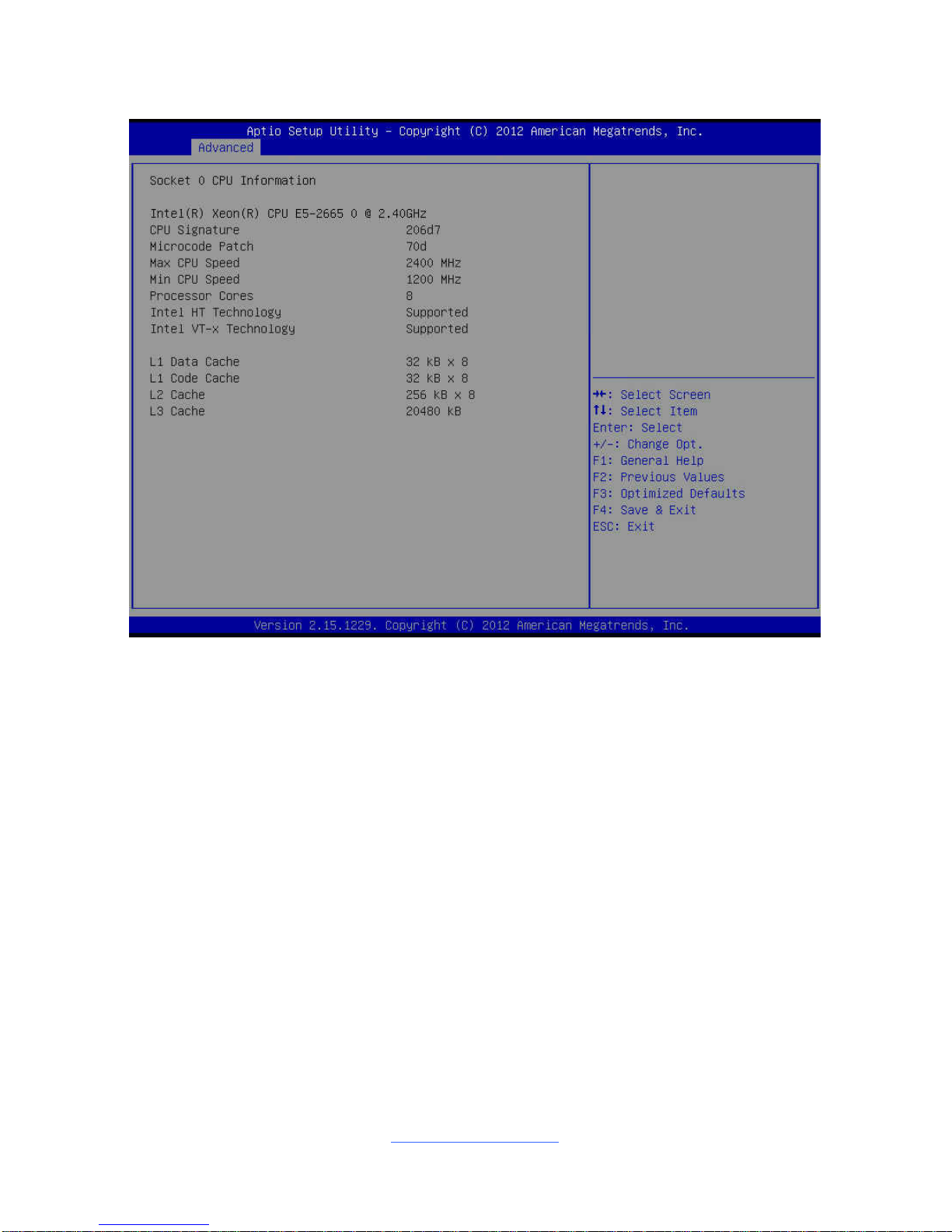

3.3.4.1 Socket 0/1 CPU Information
Read only.
Page 76
http://www.tyan.com
76

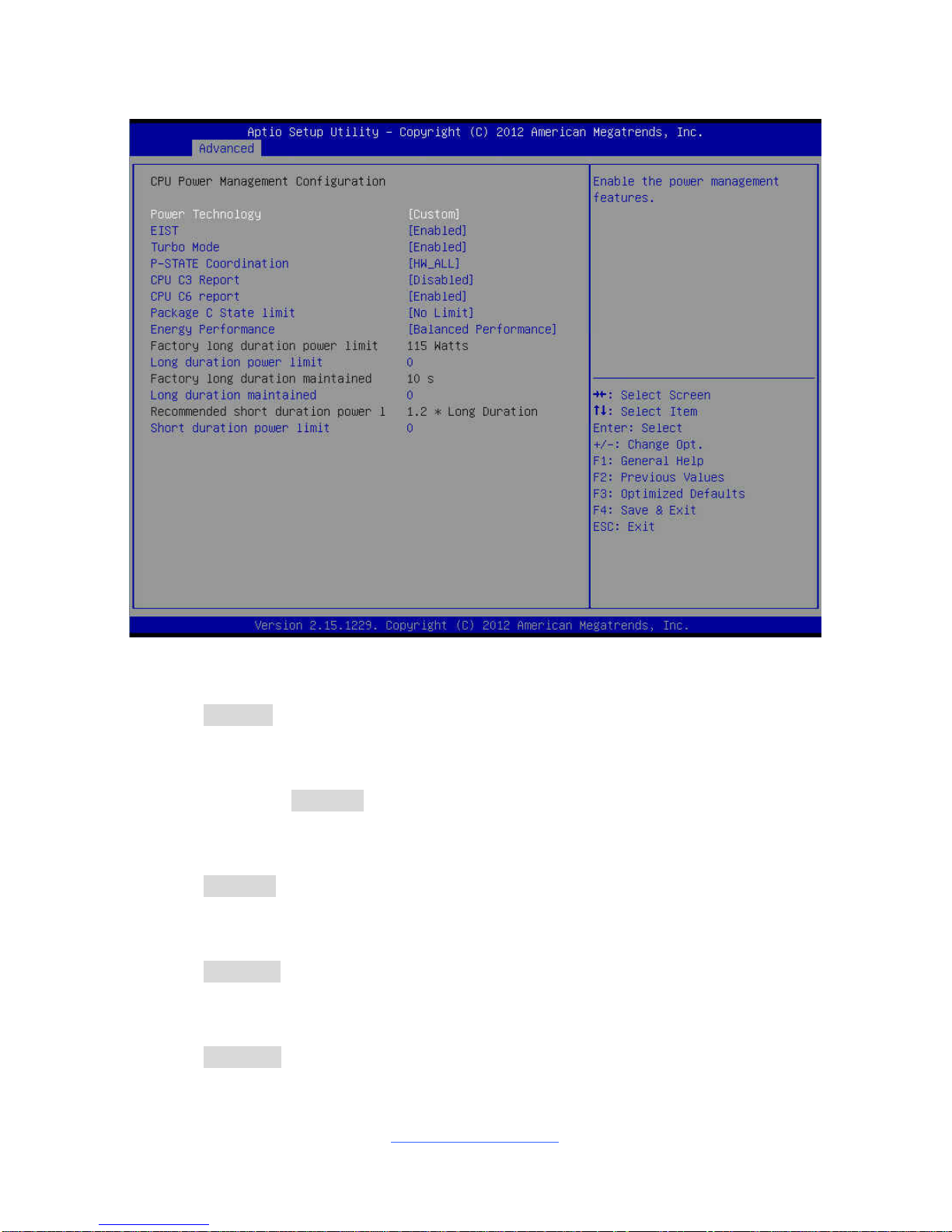

3.3.4.2 CPU Power Management Configuration
Power Technology
Enable the power management features.
Custom / Disabled / Energy Efficient
EIST
Enable/Disable Intel StepSpeed.
Disabled / Enabled
Turbo Mode
Enable/Disable Turbo Mode.
Enabled / Disabled
P-STATE Coordination
Change P-State coordination type.
HW_ALL / Disabled
CPU C3 Report
Enable/Disable CPU C3 (ACPI C2) report to OS.
Disabled / Enabled
Page 77
http://www.tyan.com
77
CPU C6 Report
Enable/Disable CPU C6 (ACPI C3) report to OS.
Enabled / Disabled
Package C State Limit
Select Package C State Limit.
No Limit / C0 / C2 / C6 / C7
Energy Performance
Optimize between performance and power savings. Windows 2008 and later OSes override
this value according to its power plan.
Performance / Balanced performance / Balanced Energy / Energy
Efficient
Factory Long Duration Power Limit
Read only.
Long Duration Power Limit
Long duration power limit in Watts.
Factory Long Duration Maintained
Read only.
Long Duration Maintained
Time window which the long duration power is maintained.
Recommended short duration power limit
Read only.
Short duration power limit
Short duration power limit in Watts.
Page 78
http://www.tyan.com
78

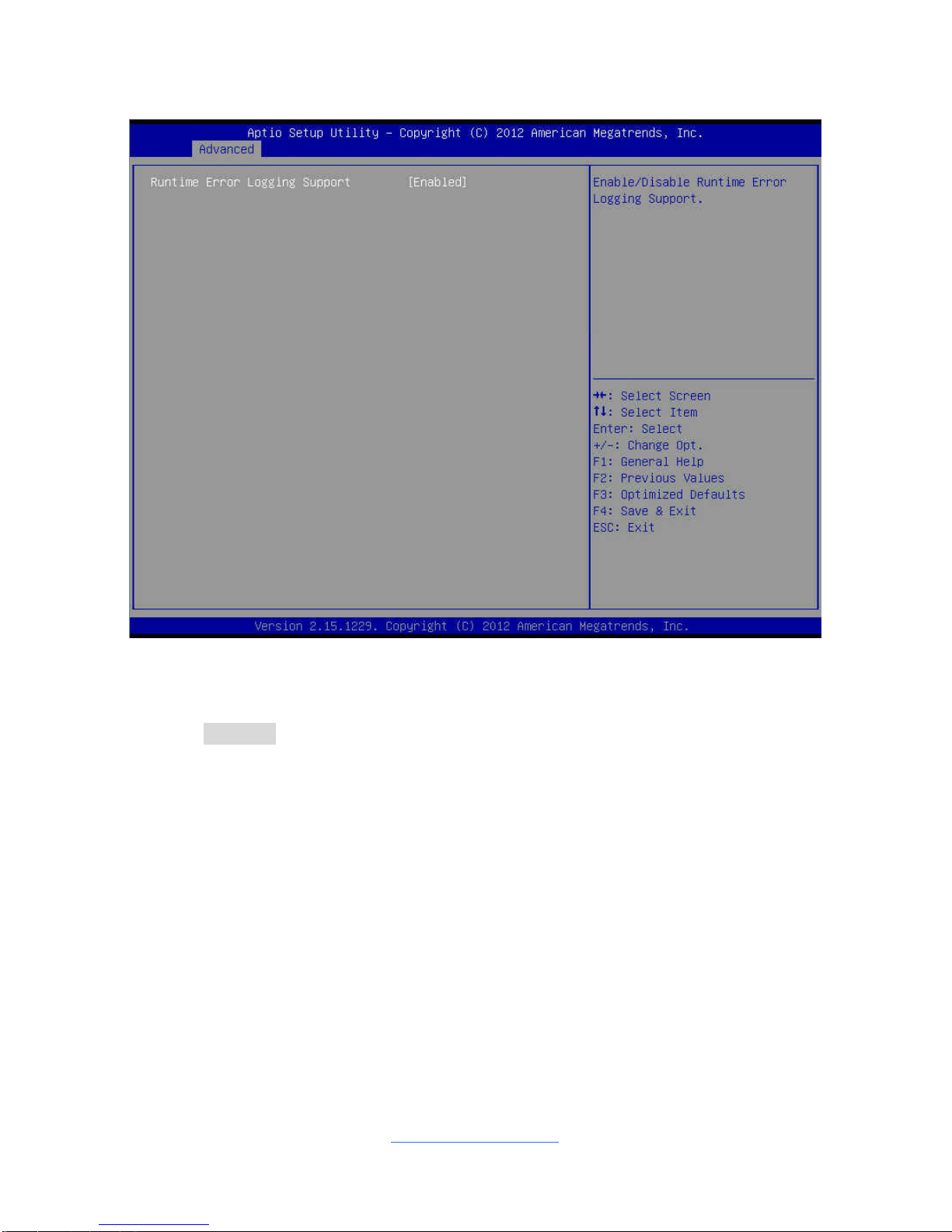

3.3.5 Runtime Error Logging Configuration
Runtime Error Logging Support
Enable or disable Runtime Error Logging Support.
Enabled / Disabled
Page 79
http://www.tyan.com
79

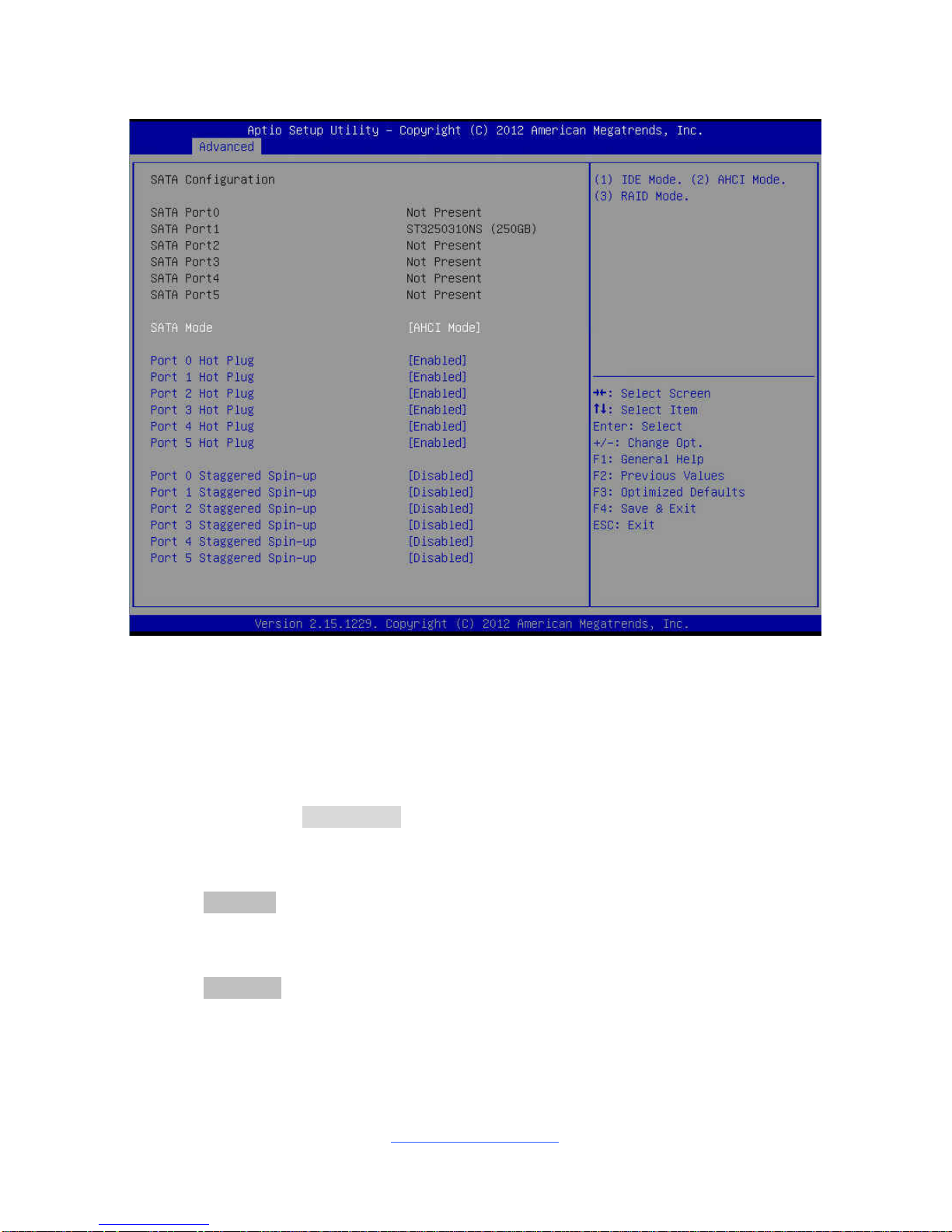

3.3.6 SATA Configuration
SATA Configuration
SATA Port 0 / 1 / 2 / 3 / 4 / 5
Read only.
SATA Mode
Select SATA Mode.
IDE Mode / AHCI Mode / RAID Mode / Disabled
Port 0 / 1 / 2 / 3 / 4 / 5 Hot Plug
Enable/Disable SATA Ports Hot Plug Support.
Enabled / Disabled
Port 0 / 1 / 2 / 3 / 4 / 5 Staggered Spin-up
AHCI Supports Staggered Spin-up.
Disabled / Enabled
Page 80
http://www.tyan.com
80

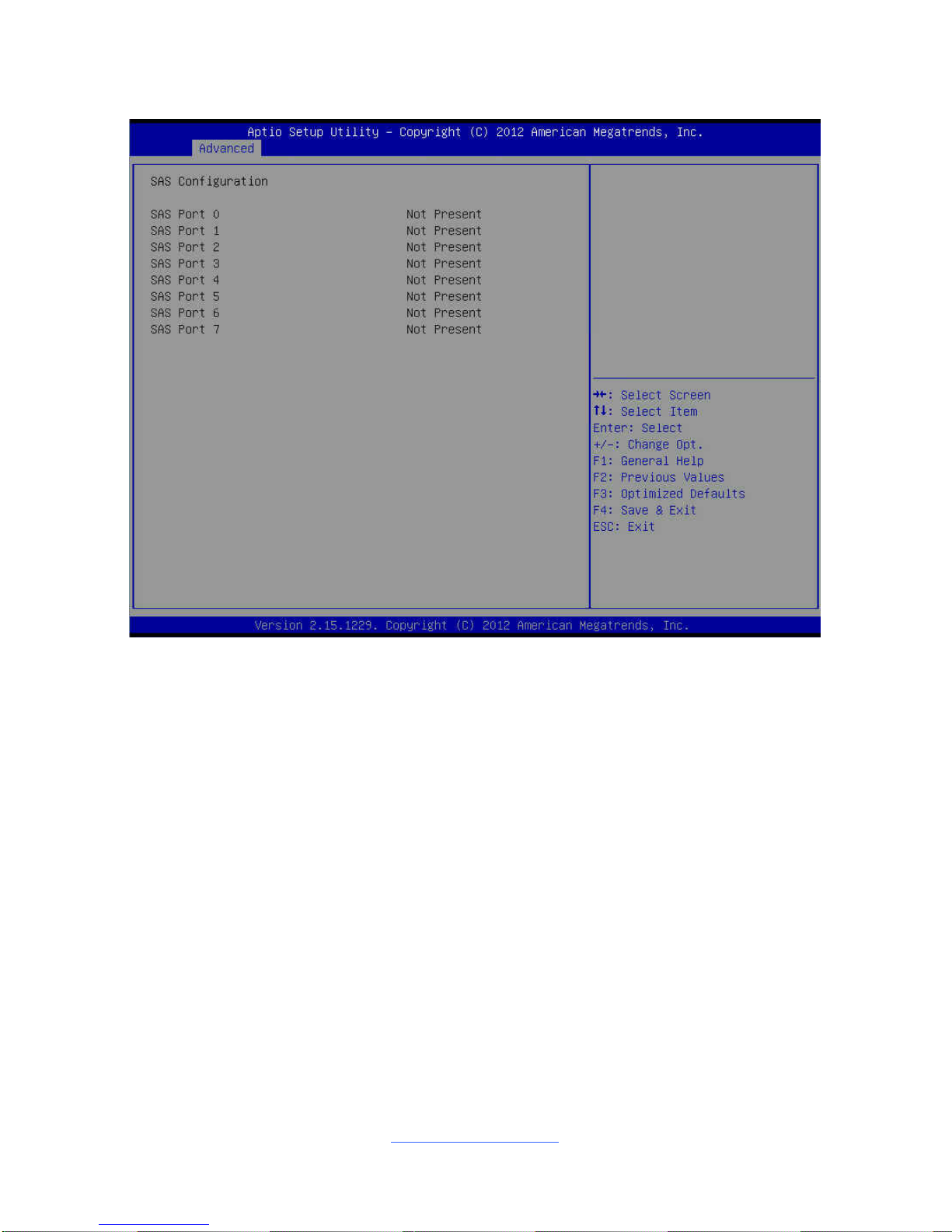

3.3.7 SAS Configuration
Read only.
NOTE: You can press [CTRL_I] to set the RAID function while the RAID Card
OPROM is loading.
Page 81
http://www.tyan.com
81

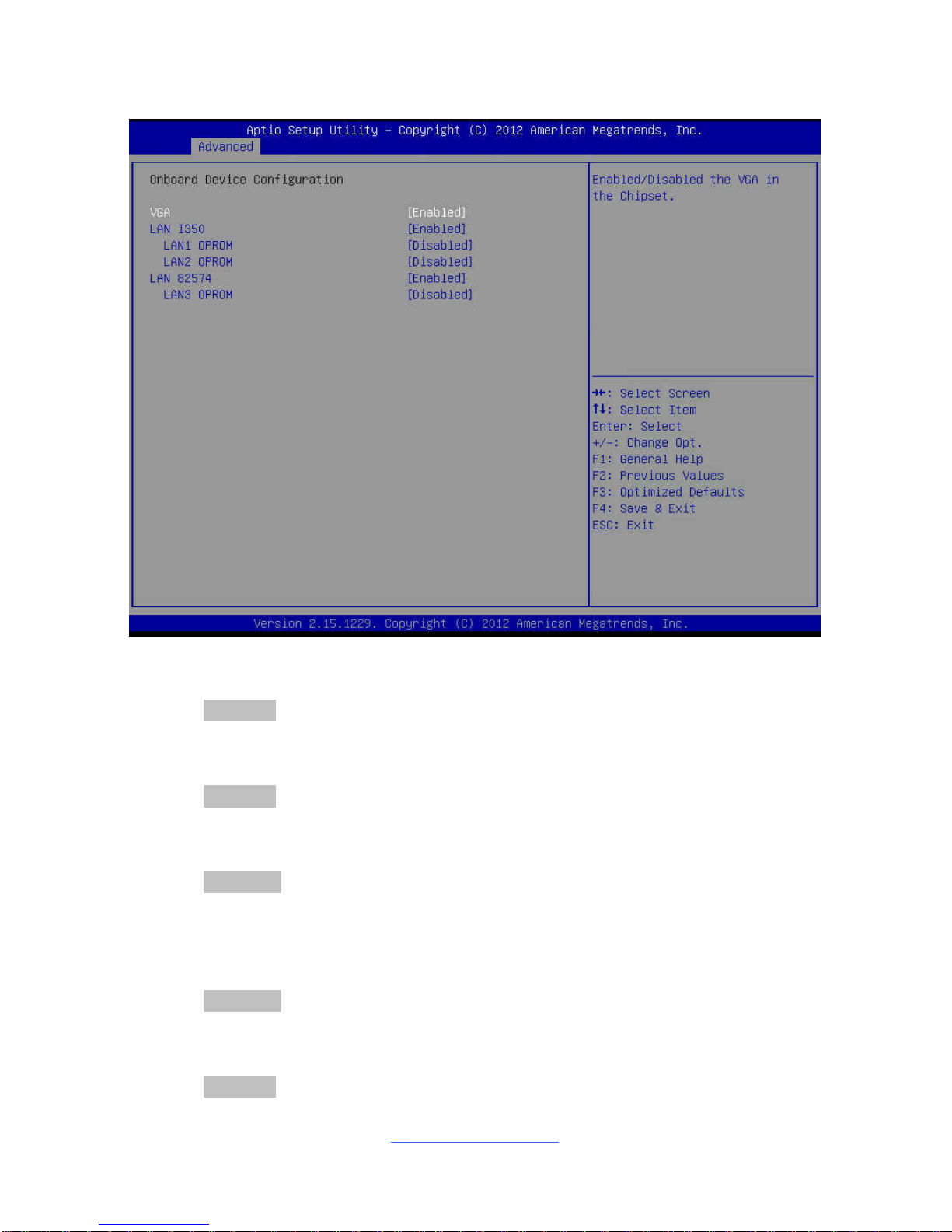

3.3.8 Onboard Device Configuration
VGA
Enabled/Disabled the VGA in the Chipset.
Enabled / Disabled
LAN i350
Enable or disable the LAN controller.
Enabled / Disabled
LAN1 Option ROM
Enabled/Disabled the LAN Option ROM in the Chipset.
Disabled / PXE / ISCSI
NOTE: The ISCSI function is only supported in LAN1.
LAN2 Option ROM
Enabled/Disabled the LAN Option ROM in the Chipset.
Disabled / PXE
LAN 82574
Enable or disable the LAN controller.
Enabled / Disabled
Page 82
http://www.tyan.com
82
LAN3 Option ROM
Enabled/Disabled the LAN Option ROM in the Chipset.
Disabled / PXE
Page 83
http://www.tyan.com
83

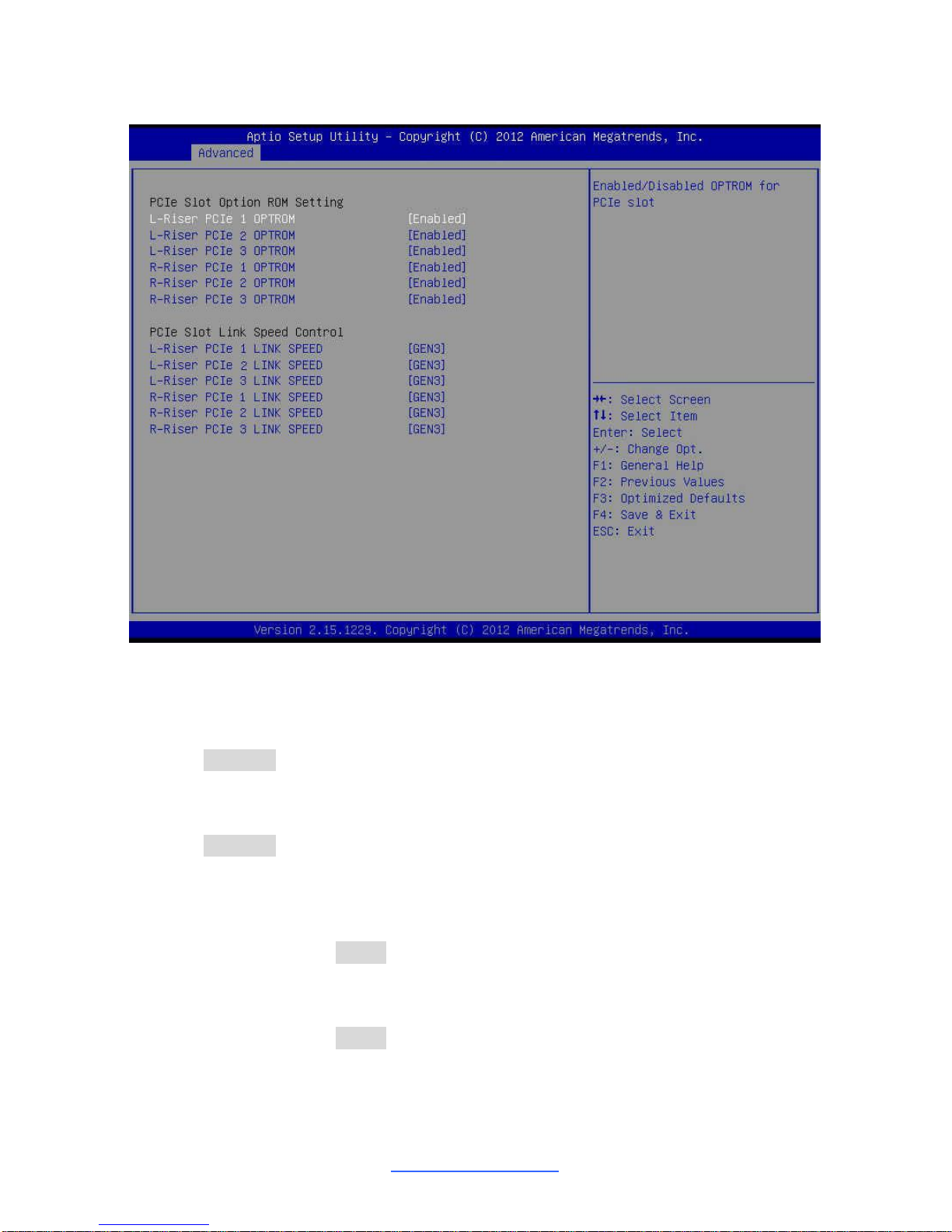

3.3.9 PCIe Slot Configuration
PCIe Slot Option ROM Setting
Left-Riser PCIe 1/2/3 OPTROM
Enabled/Disabled OPTROM for PCIe slot.
Enabled / Disabled
Right-Riser PCIe SLOT 1/2/3 OPTROM
Enabled/Disabled OPTROM for PCIe slot.
Enabled / Disabled
PCIe Slot Link Speed Control
Left-Riser PCIe 1/2/3 LINK SPEED
Select target Link Speed Gen1, Gen2 or Gen3
GEN1 / GEN2 / GEN3
Right-Riser PCIe 1/2/3 LINK SPEED
Enabled/Disabled OPTROM for PCIe slot.
GEN1 / GEN2 / GEN3
Page 84
http://www.tyan.com
84

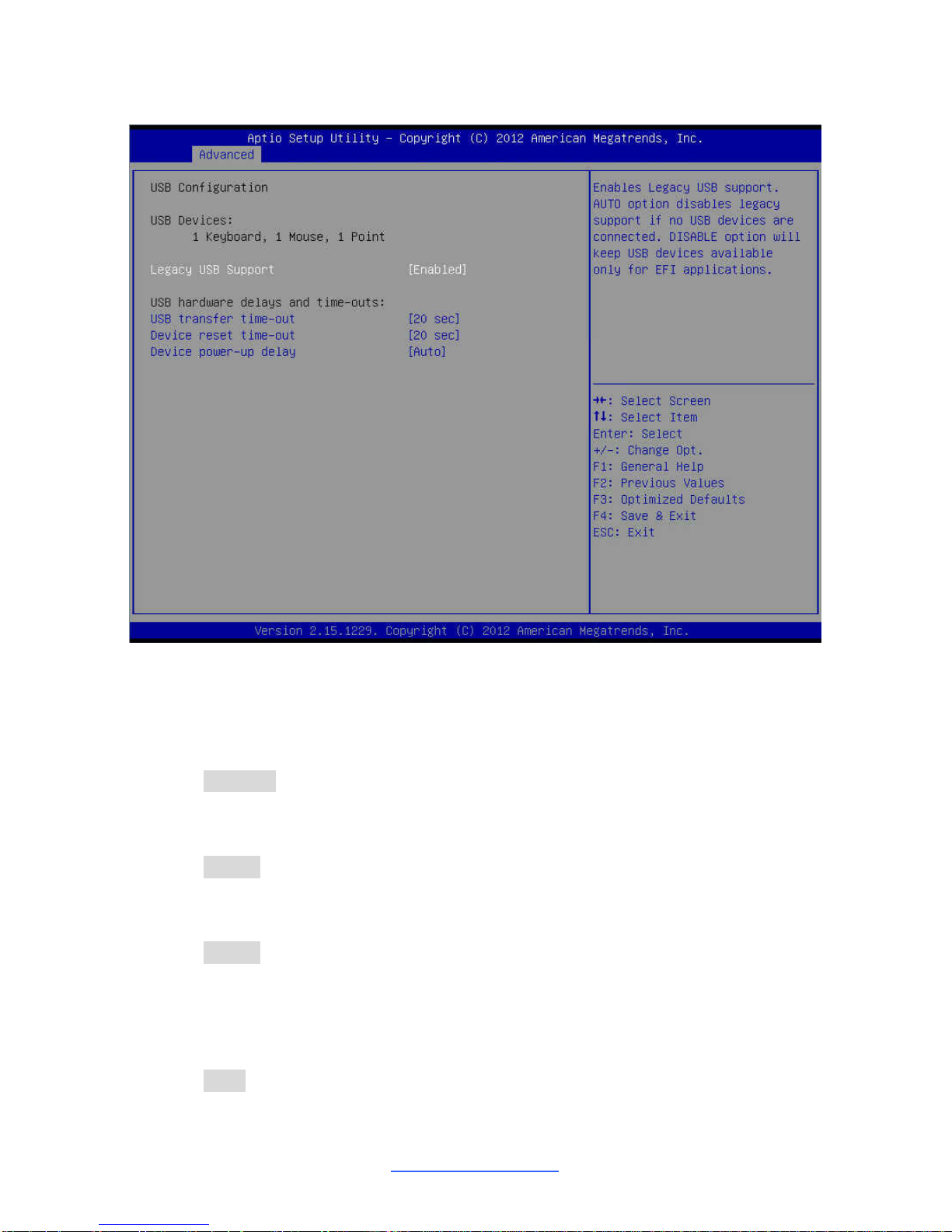

3.3.10 USB Configuration
Legacy USB Support
Enable USB legacy support. AUTO option disables legacy support if no USB
devices are connected. DISABLE option will keep USB devices available only for
EFI applications.
Enabled / Disabled / Auto
USB transfer time-out
The time-out value for Control, Bulk and Interrupt transfers.
20 sec / 10 sec / 5 sec / 1 sec
Device reset time-out
USB mass storage device Start Unit command time-out.
20 sec / 10 sec / 30 sec / 40 sec
Device power-up delay
Maximum time the device will take before it properly reports itself to the Host
Controller. AUTO uses default value: for a Root port it is 100 ms, for a Hub port the
delay is taken from Hub descriptor.
Auto / Manual
Page 85
http://www.tyan.com
85

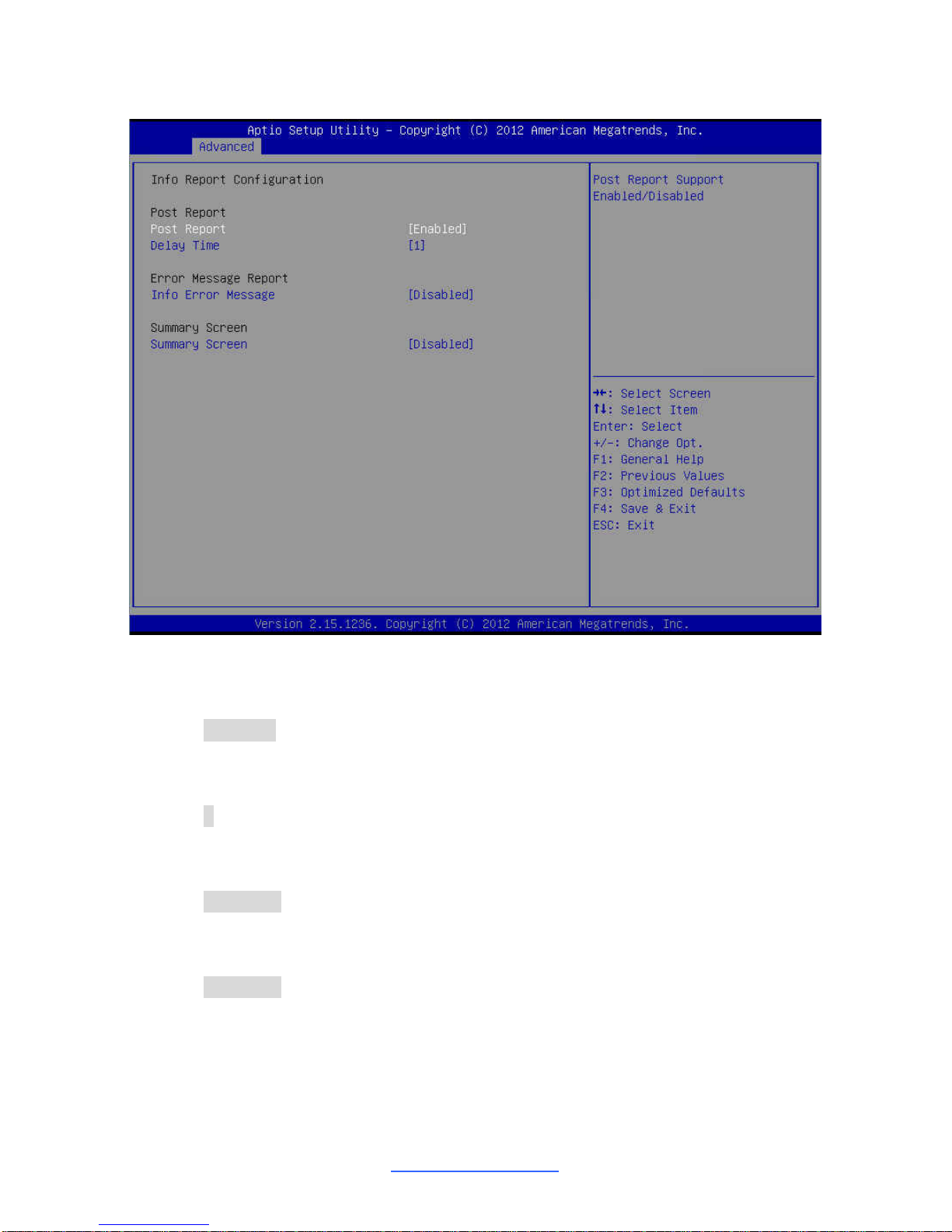

3.3.11 Info Report Configuration
Post Report
Post Report Support Enabled/Disabled.
Enabled / Disabled
Delay Time
Post Report Wait Time: 0 ~ 10 Seconds.
1 / 0 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / Until Press ESC
Info Error Message
Info Error Message Support Enabled/Disabled.
Disabled / Enabled
Summary Screen
Summary Screen Support Enabled/Disabled.
Disabled / Enabled
Page 86
http://www.tyan.com
86

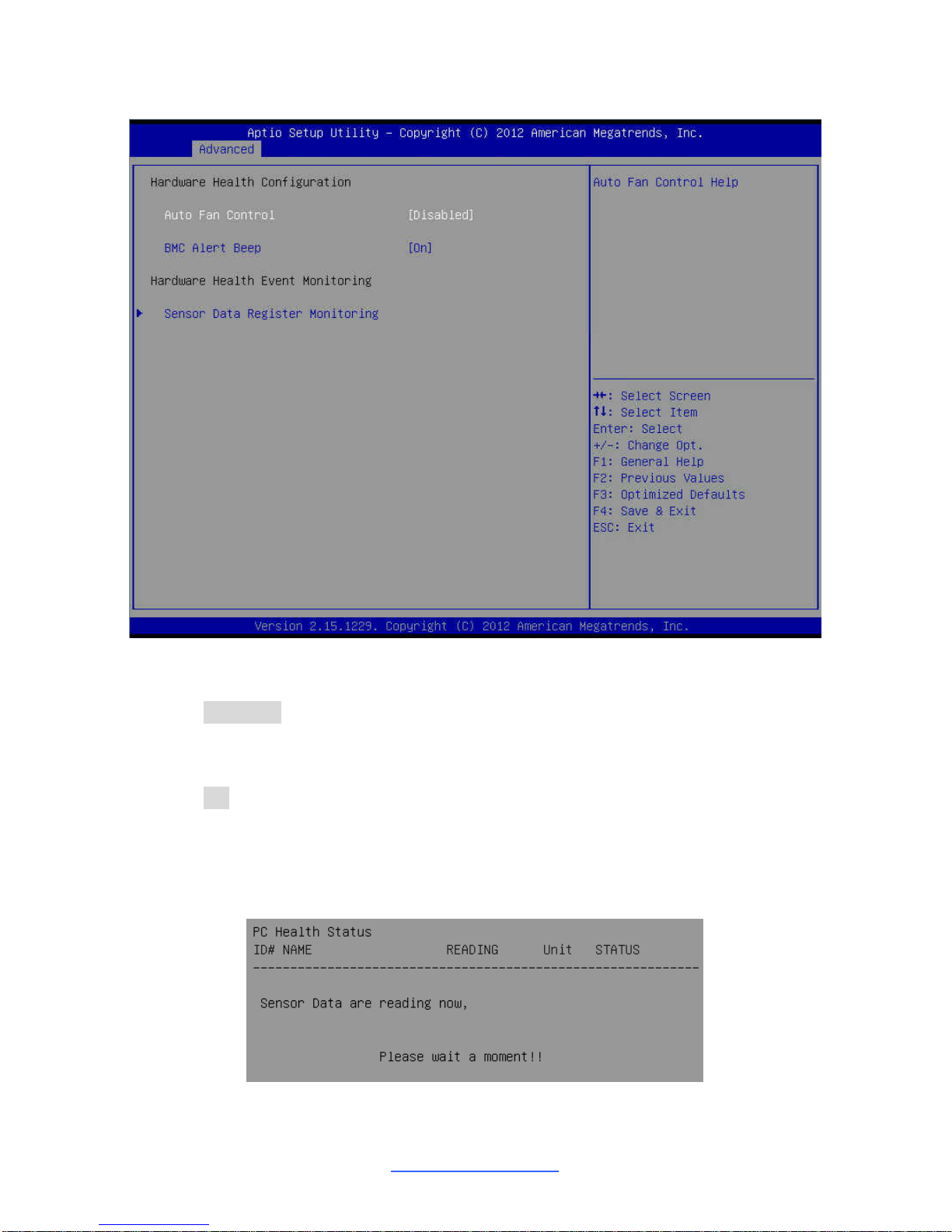

3.3.12 Hardware Health Configuration
Auto Fan Control
Select [Disabled] to allow the fan speed running FULL ON.
Disabled / Enabled
BMC Alert Beep
BMC Alert Beep On/Off.
On / Off
3.3.12.1 Sensor Data Register Monitoring
When you enter the Sensor Data Register Monitoring submenu, you will see the
following dialog window pop out. Please wait 8~10 seconds.
NOTE 1: SDR can not be modified. Read only.

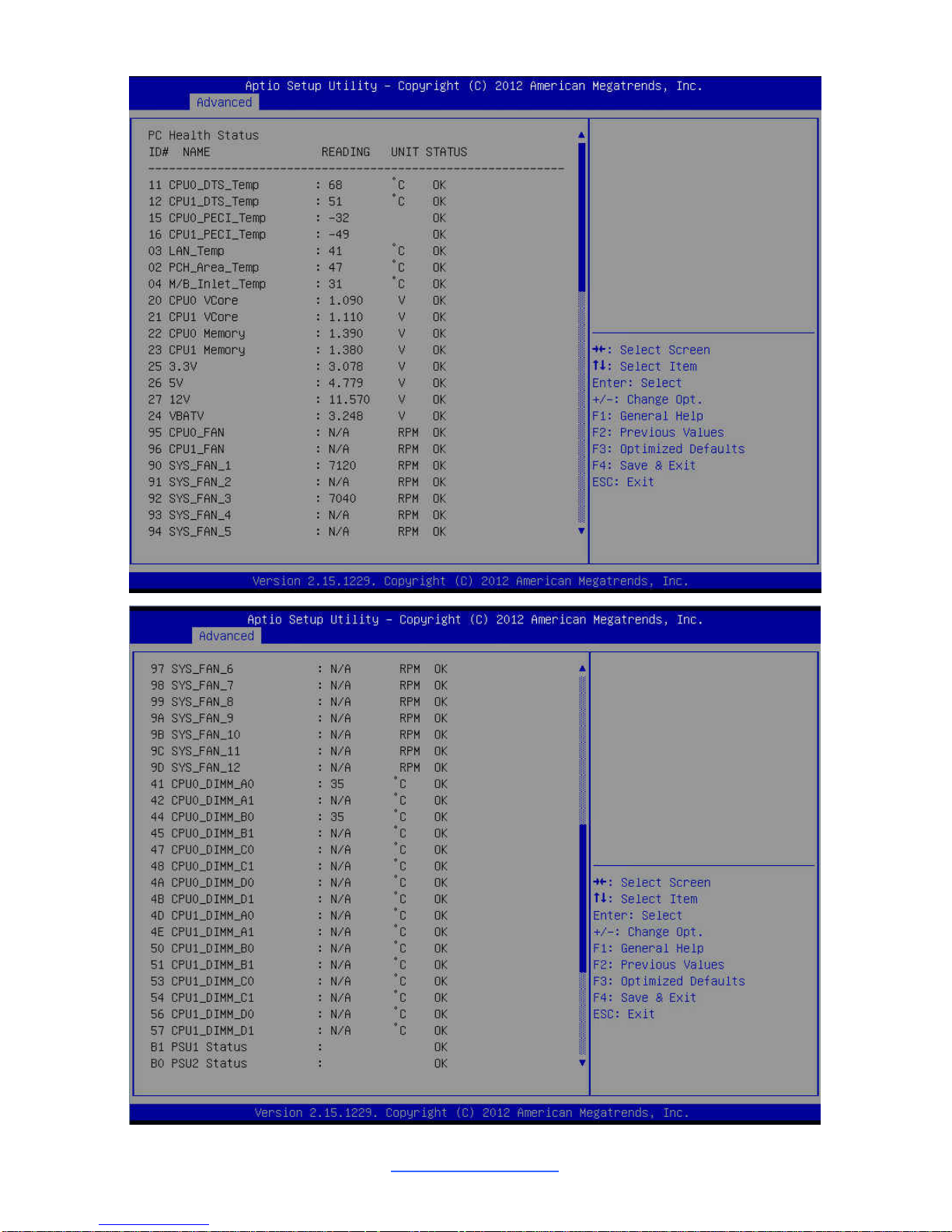

Page 87
http://www.tyan.com
87

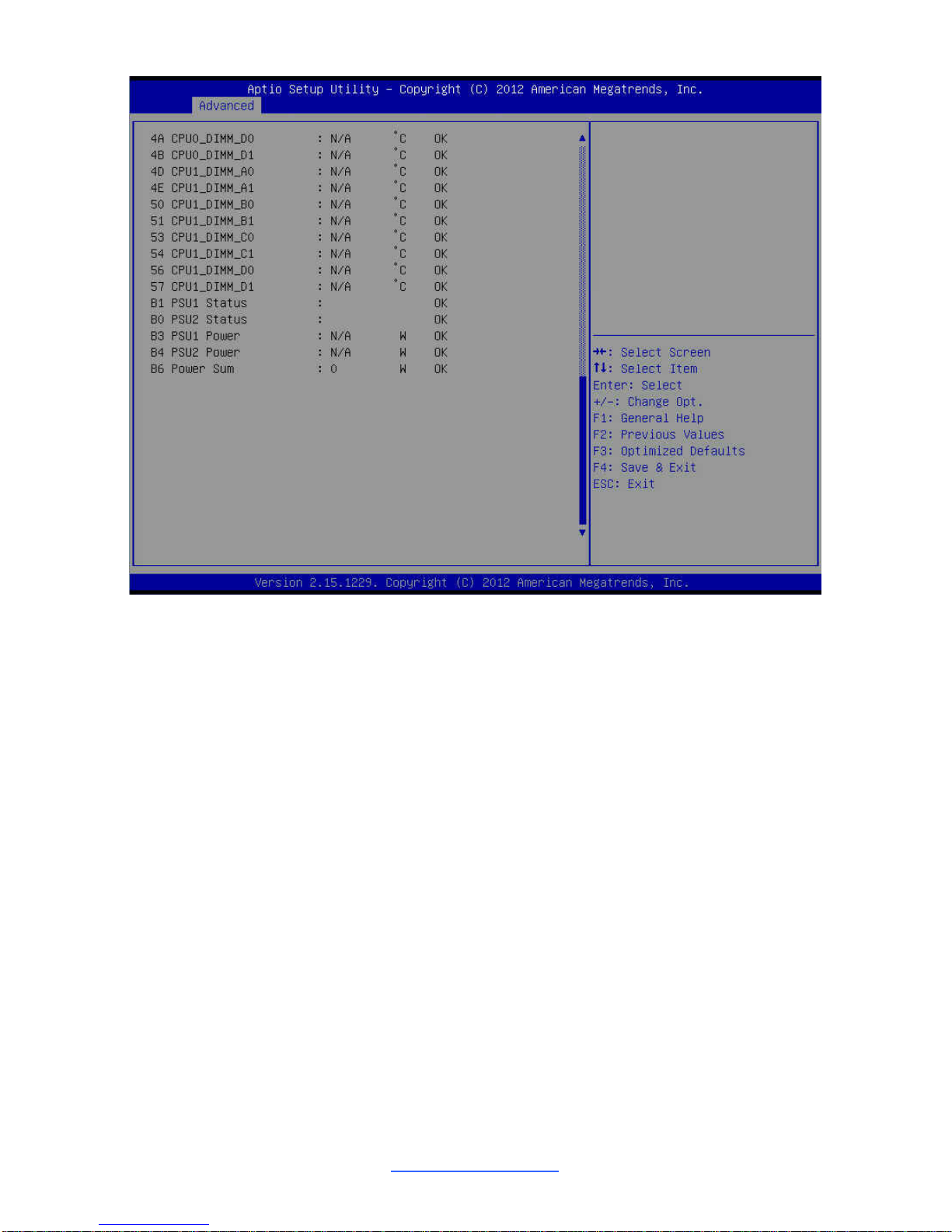

Page 88
http://www.tyan.com
88
Page 89
http://www.tyan.com
89

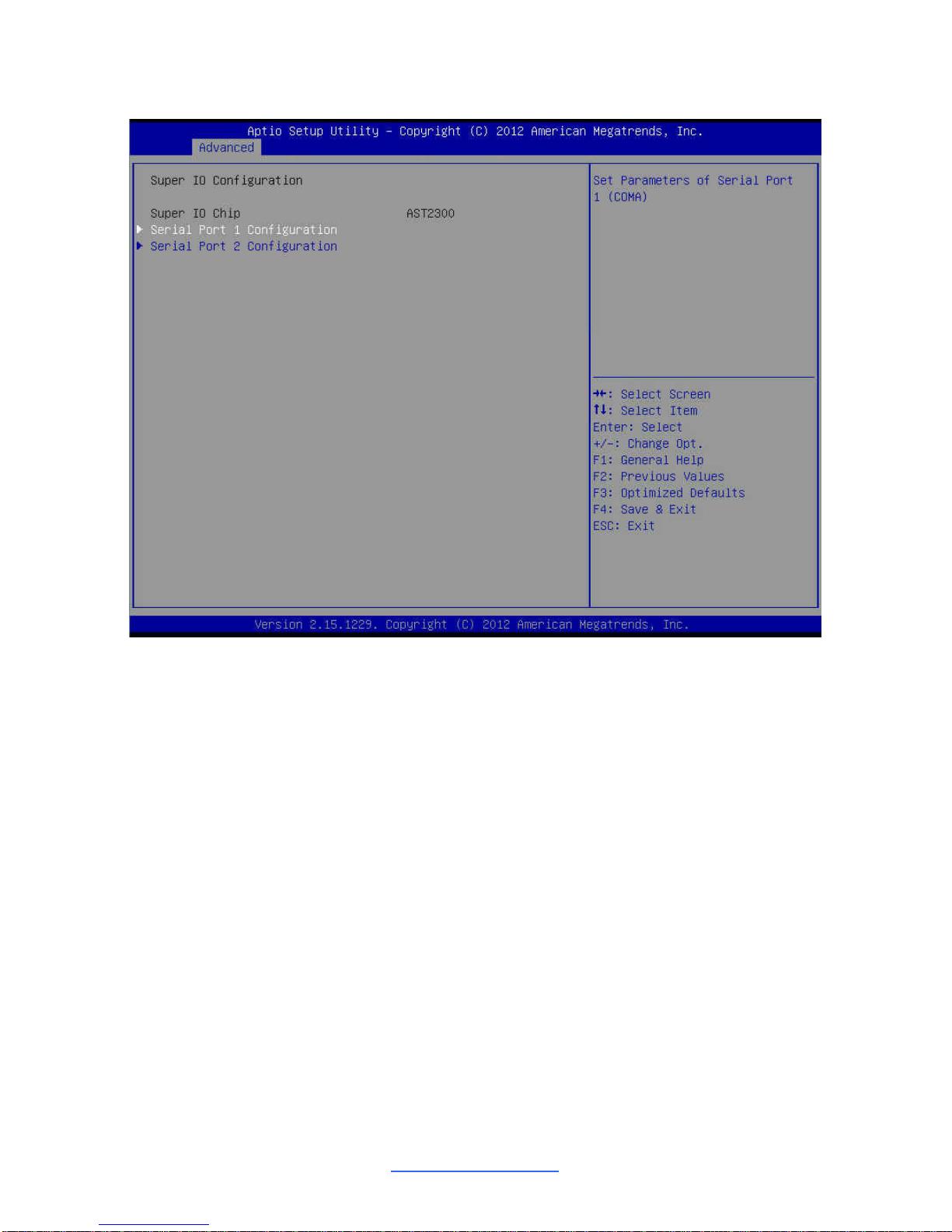

3.3.13 Super IO Configuration
Super IO Chip
Read only.
Page 90
http://www.tyan.com
90

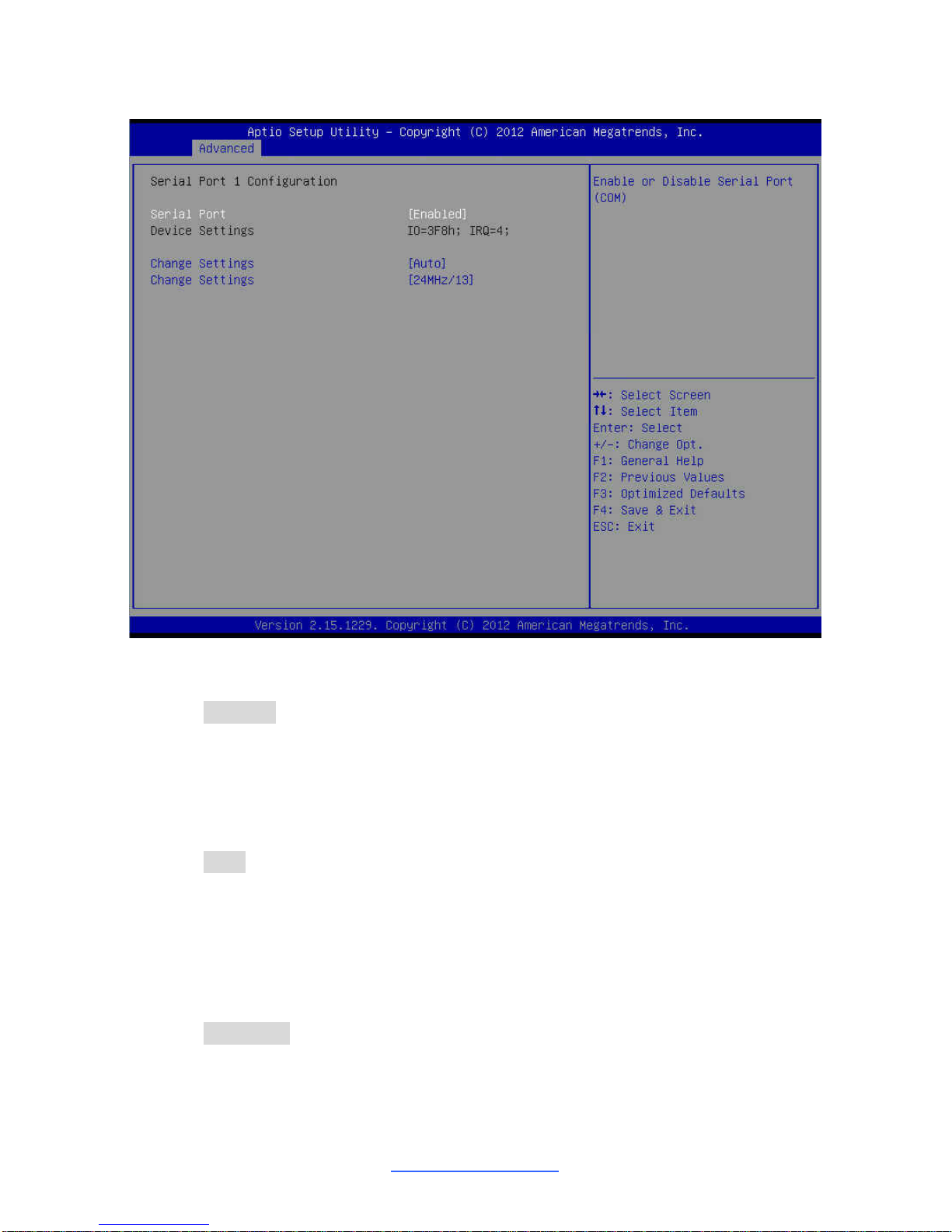

3.3.13.1 Serial Port 1/2 Configuration
Serial Port
Enable or disable Serial Port (COM).
Enabled / Disabled
Device Settings
Read only.
Change Settings
Select an optimal setting for Super IO Device.
Auto / IO=3F8h; IRQ=4;
/ IO=3F8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
/ IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
/ IO=3E8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
/ IO=2E8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
Change Settings
SUART clock source.
24MHZ/13 / 24MHz
Page 91
http://www.tyan.com
91

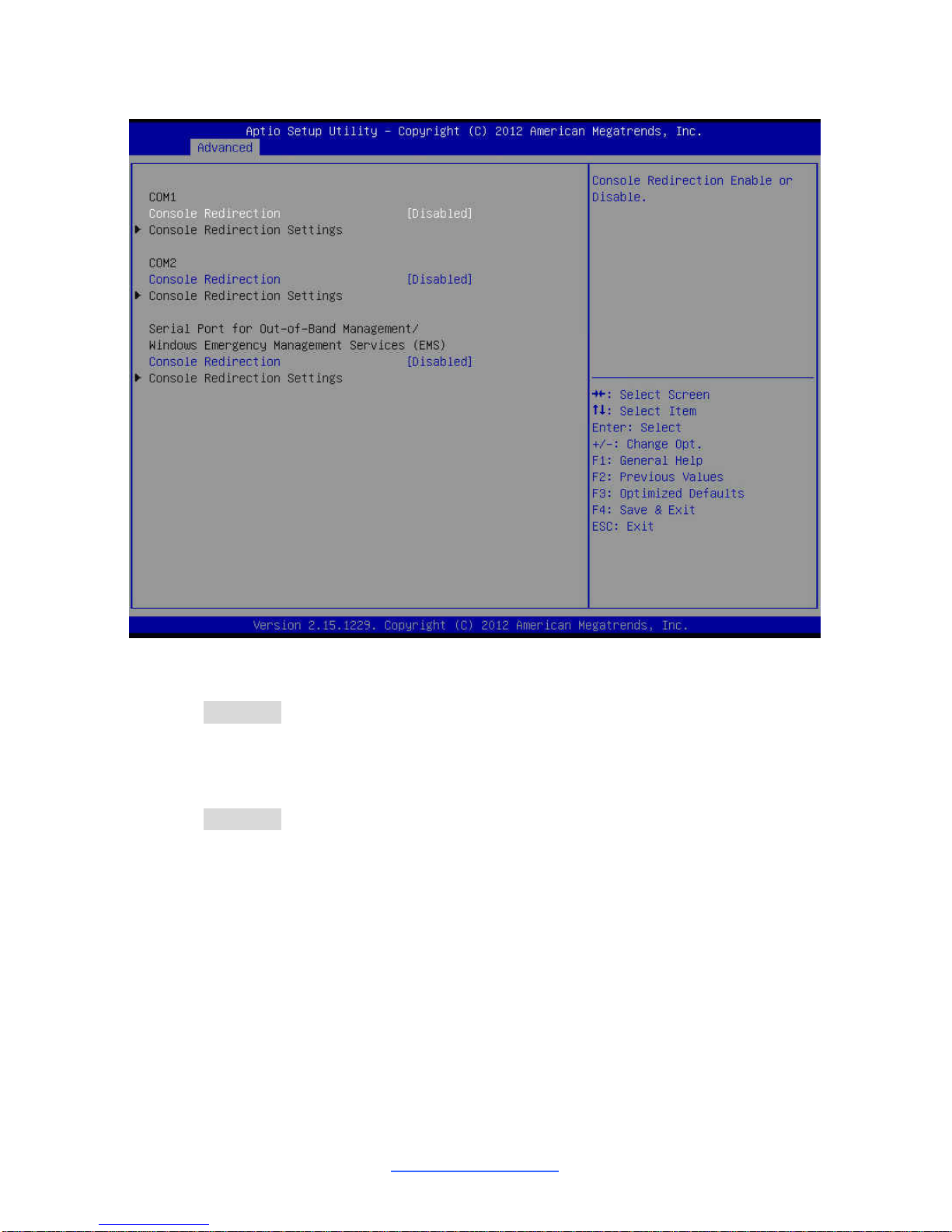

3.3.14 Serial Port Console Redirection
Console Redirection
Console redirection enable or disable.
Disabled / Enabled
Serial Port for Out-Of-Band Management/Windows Emergency Services (EMS)
Console Redirection
Console redirection enable or disable.
Disabled / Enabled
Console Redirection Settings
The settings specify how the host computer (which the user is using) will exchan ge
data. Both computers should have the same or compatible settings.
NOTE: Console Redirection Settings submenu appears when Console
Redirection is set to [Enabled].
Page 92
http://www.tyan.com
92

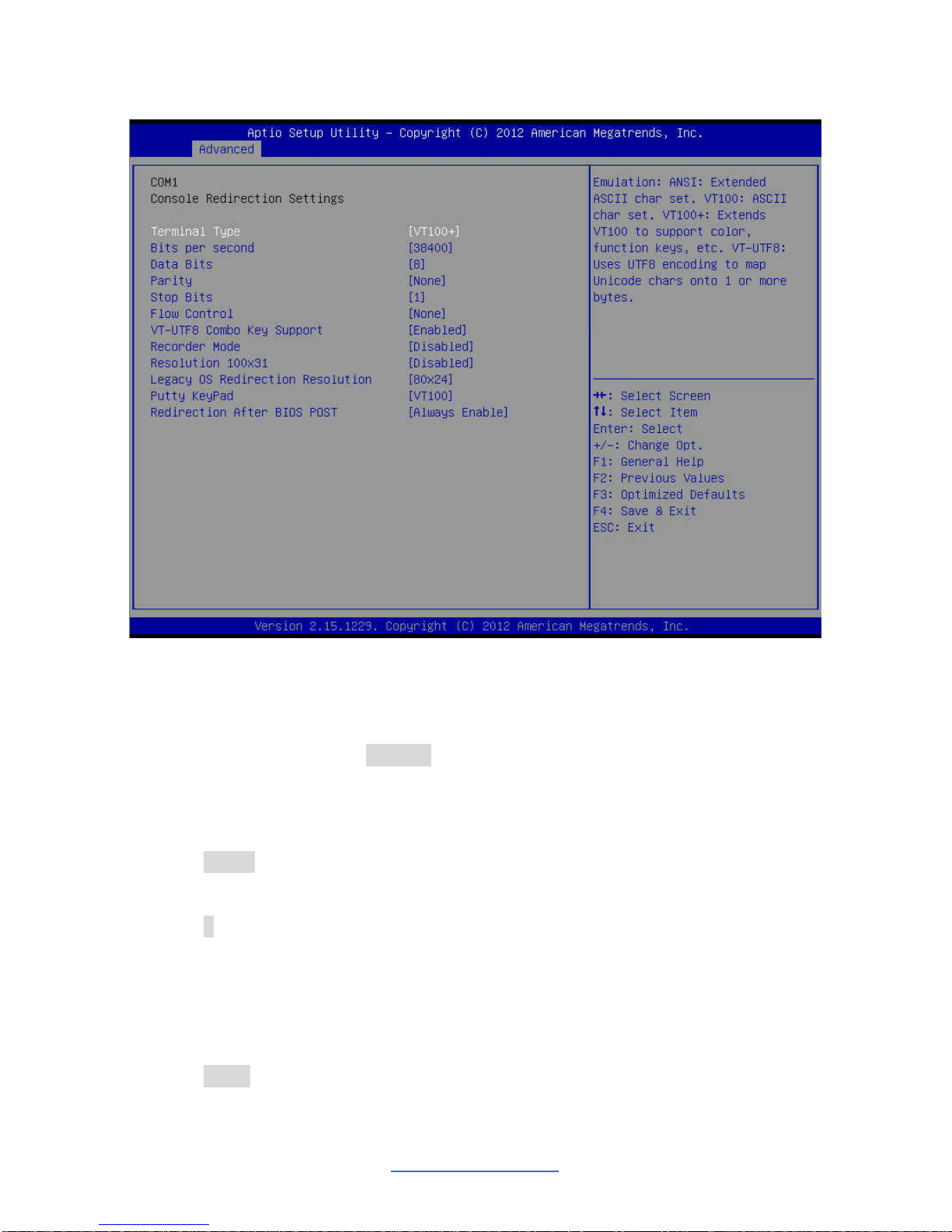

3.3.14.1 Console Redirection Settings
Terminal Type
VT-UTF8 is the preferred terminal type for out-of-band management. The next best
choice is VT100+ and then VT100. See above, in Console Redirection Settings
page, for more Help with Terminal Type/Emulation.
VT-UTF8 / VT100 / VT100+ / ANSI
Bits per Second
Select serial port transmission speed. The speed must be matched on the other
side. Long or noisy lines may require lower speeds.
38400 / 9600 / 19200 / 115200 / 57600
Data Bits
8 / 7
Parity
A parity bit can be sent with the data bits to detect some transmission errors. Even:
parity bit is 0 if the num of 1’s in the data bits is even. Odd: parity bit is 0 if the num
of 1’s in the data bits is odd. Mark: parity bit is al ways 1. Space: parity bit is al ways
0. Mark and Space parity do not allow for error detection.
None / Even / Odd / Mark / Space
Page 93
http://www.tyan.com
93
Stop Bits
Stop bits indicate the end of a serial data packet. (A start bit indicates the
beginning). The standard setting is 1 stop bit. Communication with slow devices
may require more than 1 stop bit.
1 / 2
Flow Control
Flow Control can prevent data loss from buffer overflow. When sending data, if the
receiving buffers are full, a ‘stop’ signal can be sent to stop the data flow. Once the
buffers are empty, a ‘start’ signal can be sent to restart the flow. Hardware flow
control uses two wires to send start/stop signal.
None / Hardware RTS/CTS
VT-UTF8 Combo Key Support
Enable VT-UTF8 Combination Key Support for ANSI/VT100 terminals.
Enabled / Disabled
Recorder Mode
With this mode enabled only text will be sent. This is to capture Terminal data.
Disabled / Enabled
Resolution 100x31
Enable or disable extended terminal resolution.
Disabled / Enabled
Legacy OS Redirection Resolution
On Legacy OS, the number of rows and columns supported redirection.
80x24 / 80x25
Putty KeyPad
Select FunctionKey and KeyPad on Putty.
VT100 / LINUX / XTERMR6 / SCO / ESCN / VT400
Redirection After BIOS POST
The Settings specify if BootLoader is selected than Legac y Console Redirection is
disabled before booting to Legacy OS. Default value is Always Enab le which means
Legacy Console Redirection is enabled for Legacy OS.
Always Enable / BootLoader
Page 94
http://www.tyan.com
94

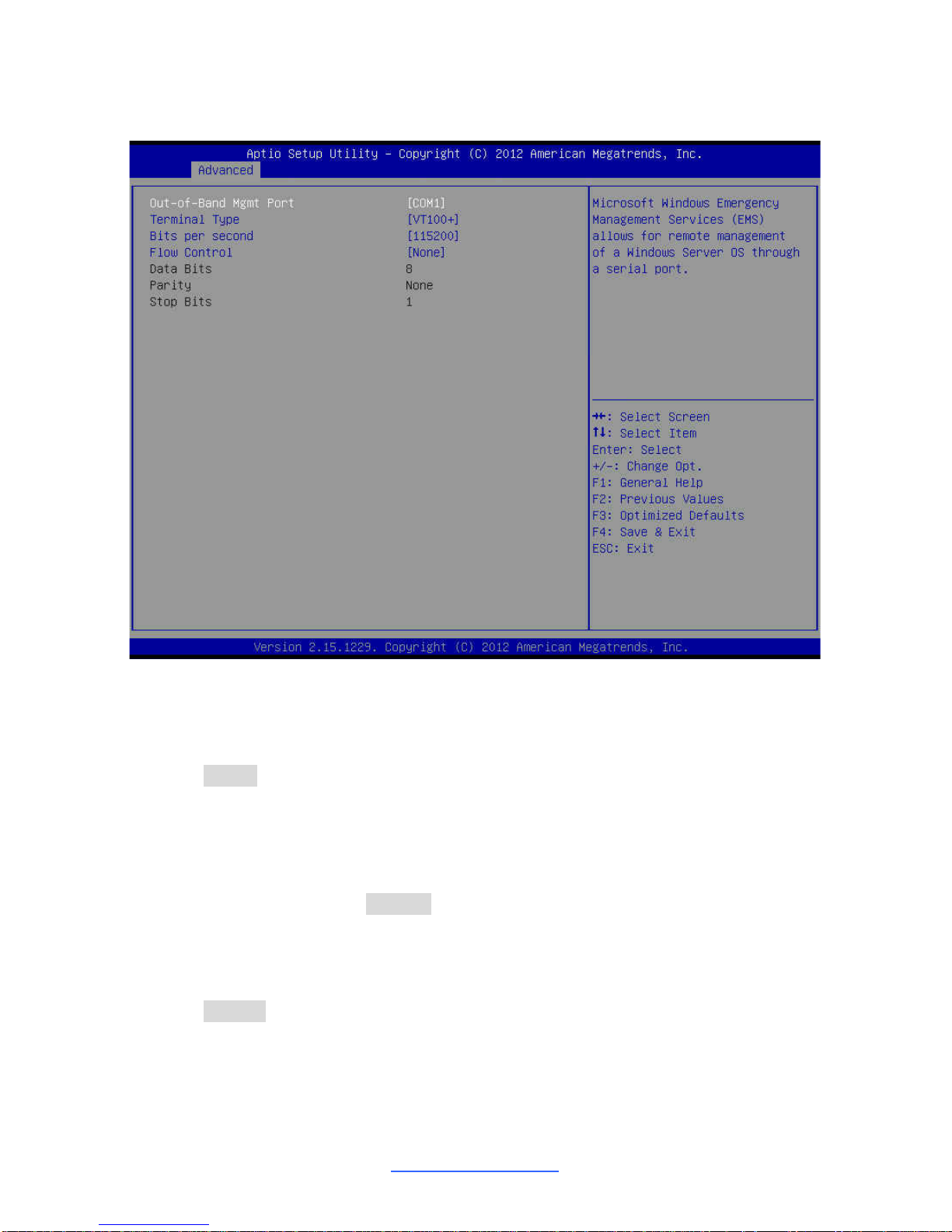

3.3.14.2 Serial Port for Out-Of-Band Management/Windows Emergency
Services (EMS) Console Redirection Settings
Out-of Band Mgmt Port
Microsoft Windows Emergency Management Services (EMS) allows for remote
management of a Windows Server OS through a serial port.
COM1 / COM2
Terminal Type
VT-UTF8 is the preferred terminal type for out-of-band management. The next best
choice is VT100+ and then VT100. See above, in Console Redirection Settings
page, for more Help with Terminal Type/Emulation.
VT-UTF8 / VT100 / VT100+ / ANSI
Bits per Second
Select serial port transmission speed. The speed must be matched on the other
side. Long or noisy lines may require lower speeds.
115200 / 9600 / 19200 / 38400 / 57600
Page 95
http://www.tyan.com
95
Flow Control
Flow Control can prevent data loss from buffer overflow. When sending data, if the
receiving buffers are full, a ‘stop’ signal can be sent to stop the data flow. Once the
buffers are empty, a ‘start’ signal can be sent to restart the flow. Hardware flow
control uses two wires to send start/stop signal.
None / Hardware RTS/CTS
Data Bits / Parity / Stop Bits
Read only.
Page 96
http://www.tyan.com
96

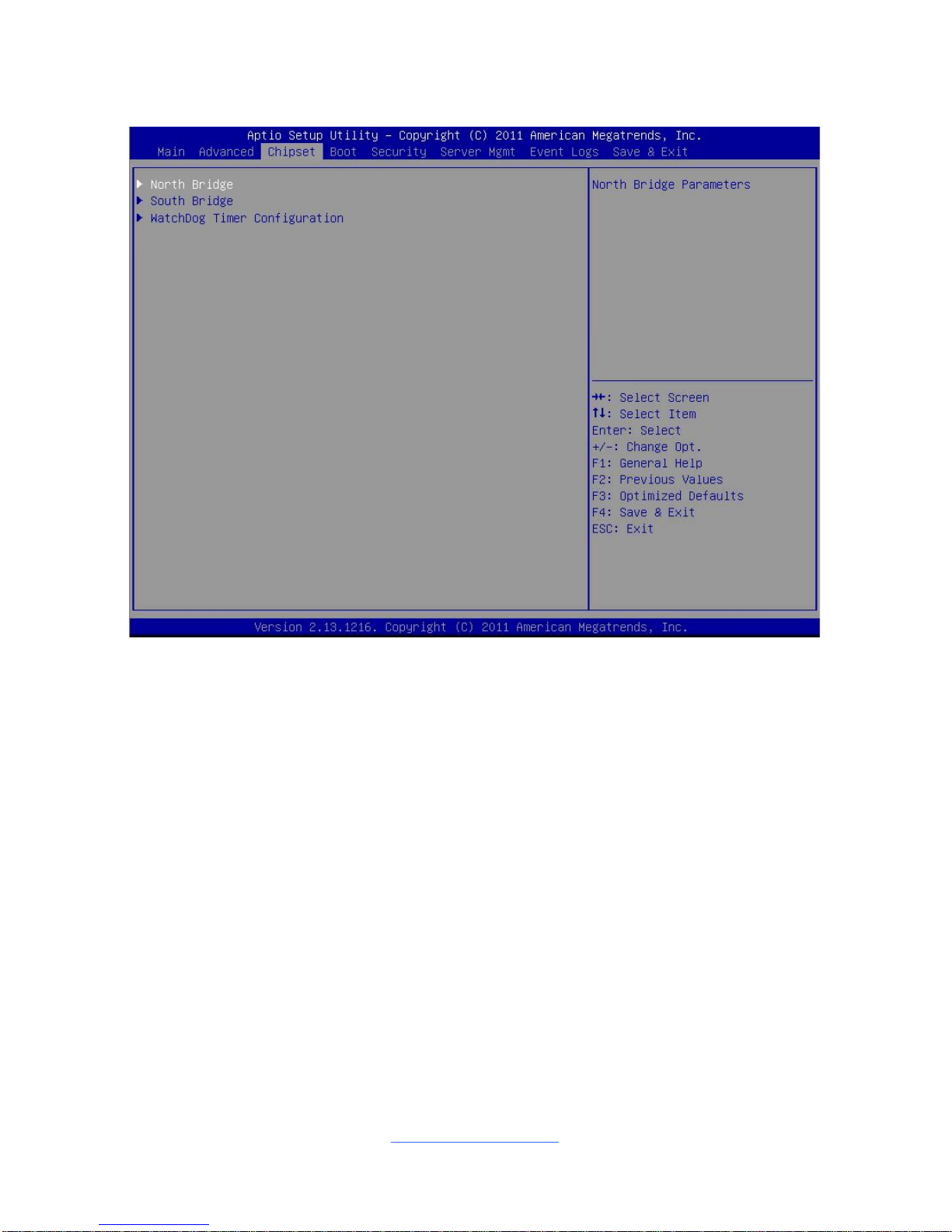

3.4 Chipset Menu
North Bridge
North Bridge Parameters.
South Bridge
South Bridge Parameters.
WatchDog Timer Configuration
WatchDog Timer Configuration.
Page 97
http://www.tyan.com
97
3.4.1 North Bridge
Memory Configuration
QPI and MRC Version / Total Memory / Current Memory Mode / Current
Memory Speed / Mirroring / Sparing
Read only.
Memory Mode
Select the mode for memory initialization.
Independent / Mirroring / Lock Step / Sparing
NUMA
Enable or Disable Non uniform Memory Access (NUMA).
Enabled / Disabled
MPST Support
Enable or Disable MPST Support. Along with enabling MPST Support, it also
requires NUMA to be enabled and Channel Interleaving to be set to 1-way for
MPST tables to be published.
Disabled / Enabled
Page 98
http://www.tyan.com
98
DDR Speed
Force DDR Speed.
Auto / Force DDR3 800 / Force DDR3 1066 / Force DDR3 1333 / Force
DDR3 1600
Page 99
http://www.tyan.com
99

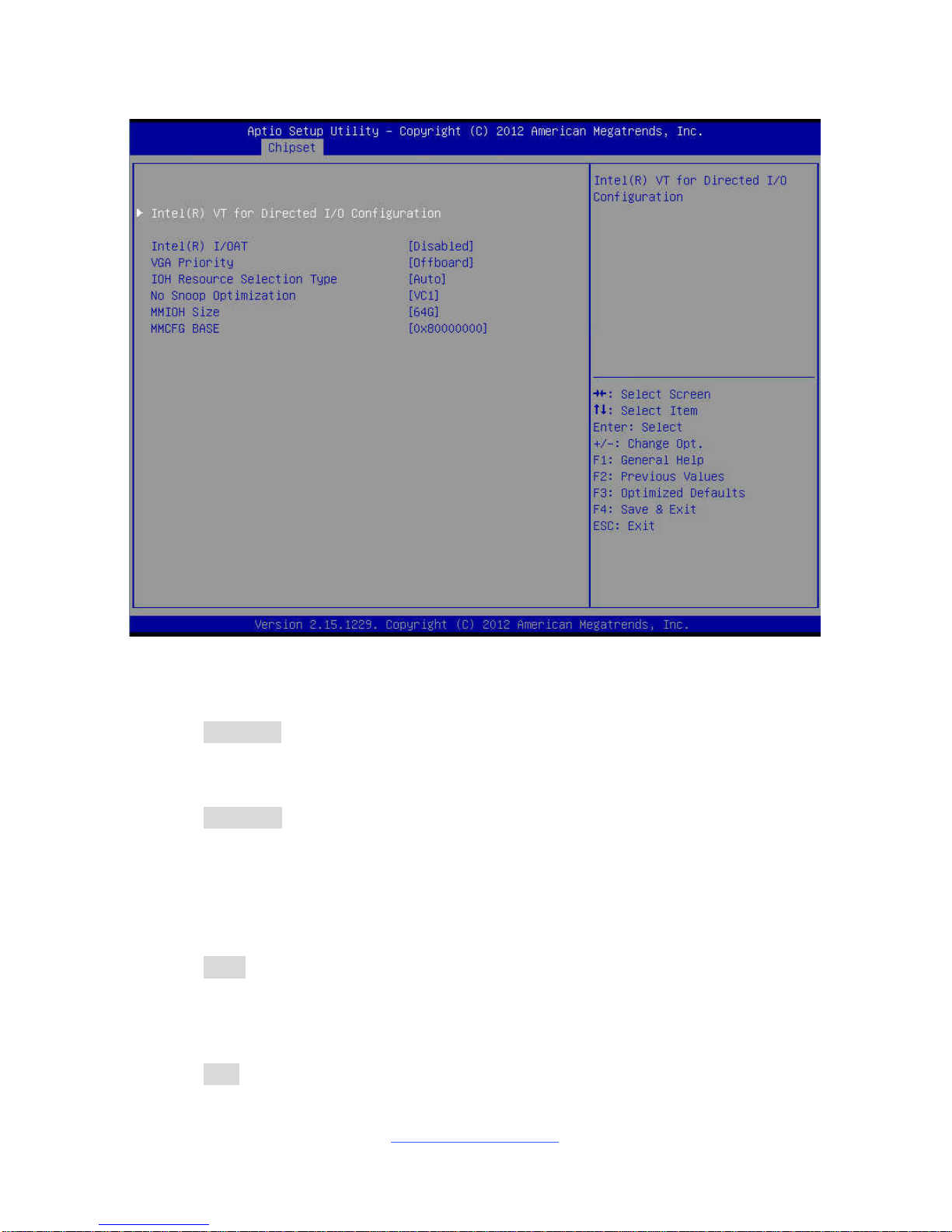

3.4.1.1 IOH Configuration Submenu
Intel® I/OAT
Enable/Disable Intel
®
I/O Acceleration Technology (I/OAT).
Disabled / Enabled
VGA Priority
Decide the priority between onboard and its offboard video device found.
Offboard / Onboard
IOH Resource Selection Type
Allow to select Auto/Manual. When Auto option is selected PCI resource allocation
across multiple IOHs is optimized automatically based on the PCI devices present.
With Manual option user can force the PCI resource allocation across multiple IOHs
based on the ratios selected.
Auto / Manual
No Snoop Optimization
This configuration requires that No Snoop in PCI Express Settings is enabled. It is
recommended that this option is left at default (VC1).
VC1 / VC0/VCP/VC1
Page 100
http://www.tyan.com
100
MMIOH Size
Select number of 1GB contiguous regions to be assigned MMIOH space per CPU.
64G / 1G / 2G / 4G / 8G / 16G / 32G / 128G
MMCFG Base
Select the MMCFG BASE Values.
0x80000000 / 0xA0000000 / 0xC0000000
Loading...
