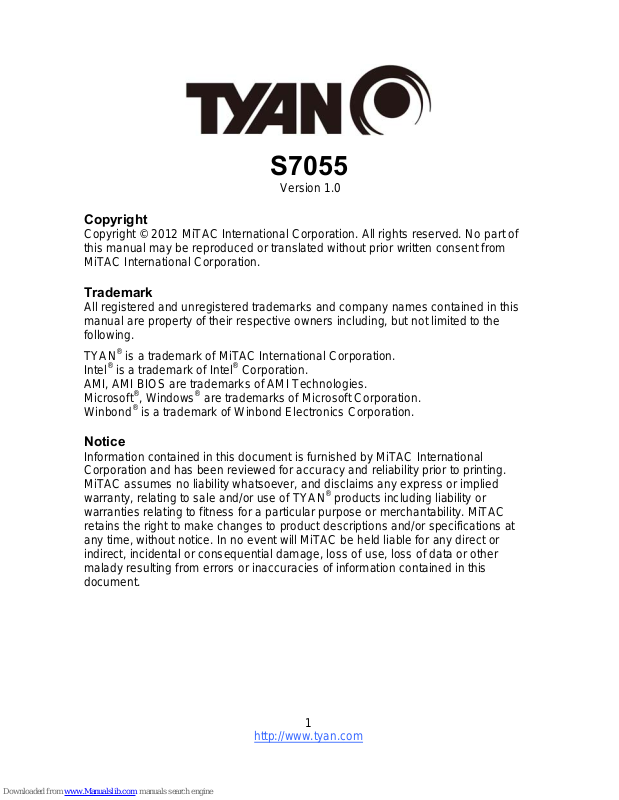

TYAN S7055 User Manual

http://www.tyan.com

1

S7055

Version 1.0

Copyright

Copyright © 2012 MiTAC International Corporation. All rights reserved. No part of
this manual may be reproduced or translated without prior written consent from
MiTAC International Corporation.

Trademark

All registered and unregistered trademarks and company names contained in this
manual are property of their respective owners including, but not limited to the
following.

TYAN® is a trademark of MiTAC International Corporation.
Intel

®

is a trademark of Intel® Corporation.
AMI, AMI BIOS are trademarks of AMI Technologies.
Microsoft®, Windows® are trademarks of Microsoft Corporation.
Winbond

®

is a trademark of Winbond Electronics Corporation.

Notice

Information contained in this document is furnished by MiTAC International
Corporation and has been reviewed for accuracy and reliability prior to printing.
MiTAC assumes no liability whatsoever, and disclaims any express or implied
warranty, relating to sale and/or use of TYAN

®

products including liability or
warranties relating to fitness for a particular purpose or merchantability. MiT A C
retains the right to make changes to product descriptions and/or specifications at
any time, without notice. In no event will MiTAC be held liable for any direc t or
indirect, incidental or consequential damage, loss of use, loss of data or other
malady resulting from errors or inaccuracies of information contained in this
document.

http://www.tyan.com

2

About this guide

This user guide contains the information you need when inst alling and configuring
the motherboard.

How this guide is organized

This guide contains the following parts:

Chapter1: Instruction

This chapter describes the features of the motherboard and the new technology it
supports.

Chapter2: Board Installation

This chapter lists the hardware setup procedures that you need to abide by when
installing system components. It includes description of the jumpers and connectors
on the motherboard.

Chapter3: BIOS Setup

This chapter tells how to change system settings through the BIOS setup menu.
Detailed descriptions of the BIOS parameters are also provided.

Chapter4: Diagnostics
This chapter introduces some BIOS codes and technical terms to provide better
service for the customers.

Appendix I: Fan and Temp Sensors
This section aims to help readers identify the locations of some specific Fan and
Temp Sensors on the motherboard. A table of BIOS Temp sensor name
explanation is also included for readers’ reference.

Appendix II: RAID OPROM Configuration
This section describes how to setup the RAID system with the RAID OPROM Utility.

http://www.tyan.com

3

Contents

Before you begin…....................................................................................4

Chapter 1: Instruction ................................................................................5

1.1 Congratulations .................................................................................5

1.2 Hardware Specifications....................................................................5

1.3 Software Specifications...................................................................13

Chapter 2: Board Installation................................................................... 15

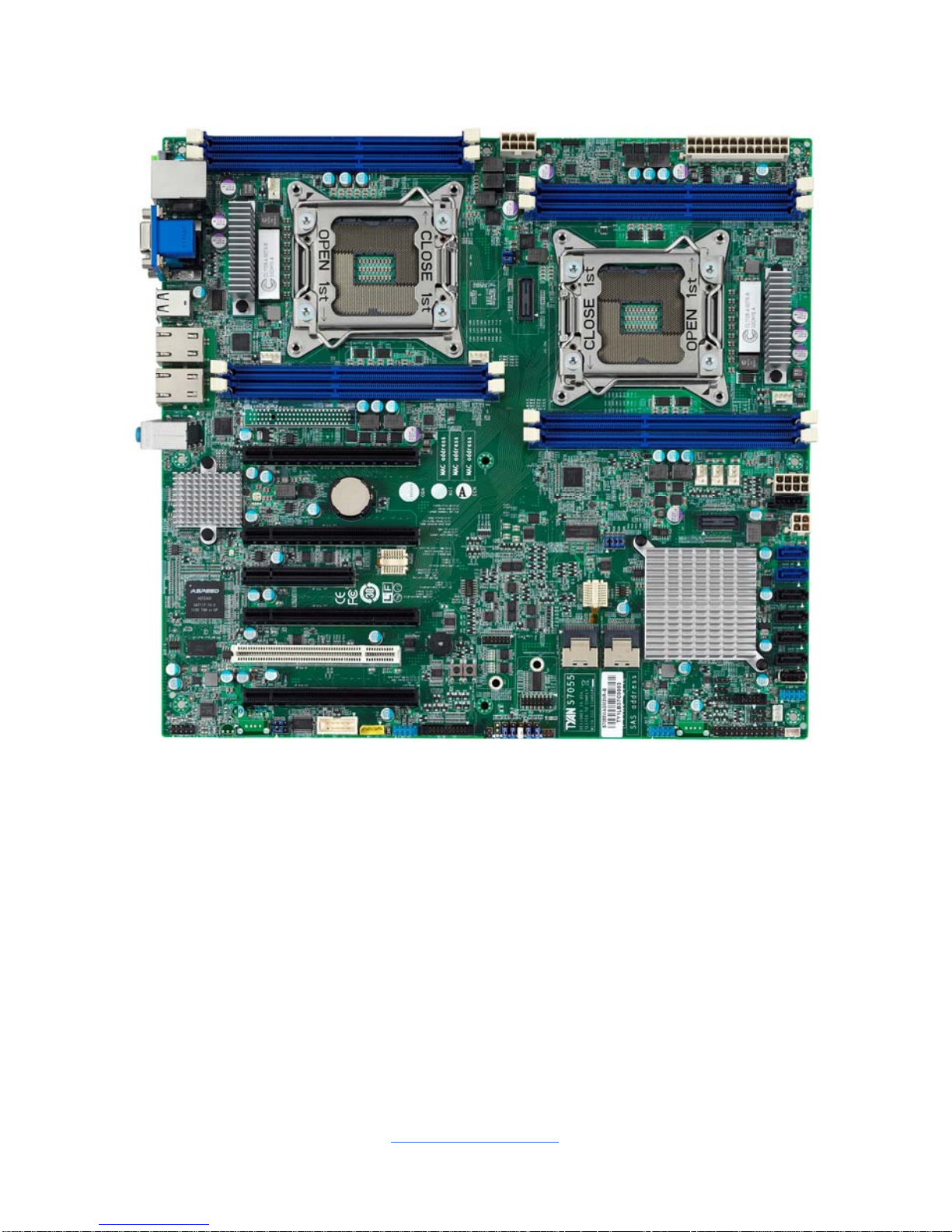

2.1 Board Image....................................................................................16

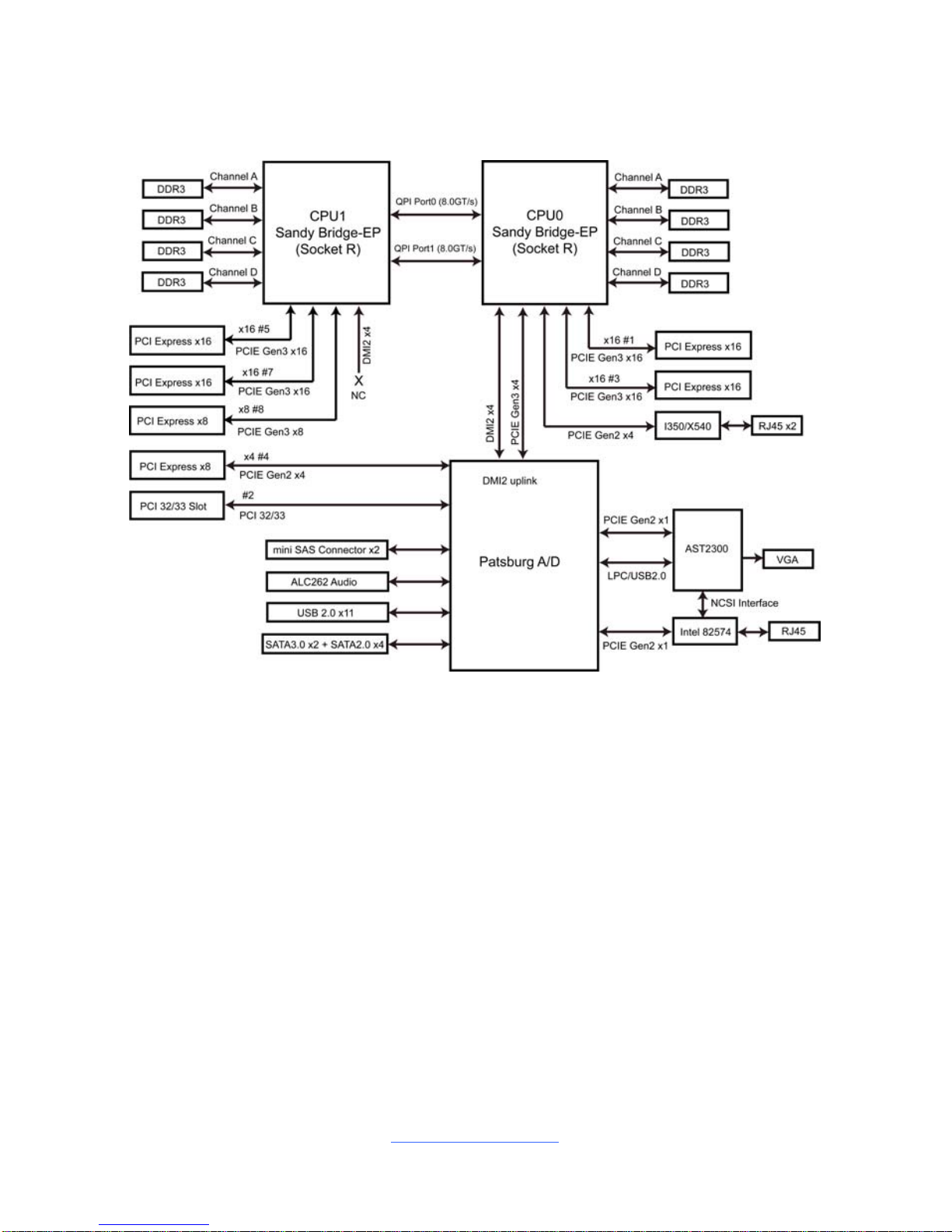

2.2 Block Diagram.................................................................................17

2.3 Mainboard Mechanical Drawing......................................................18

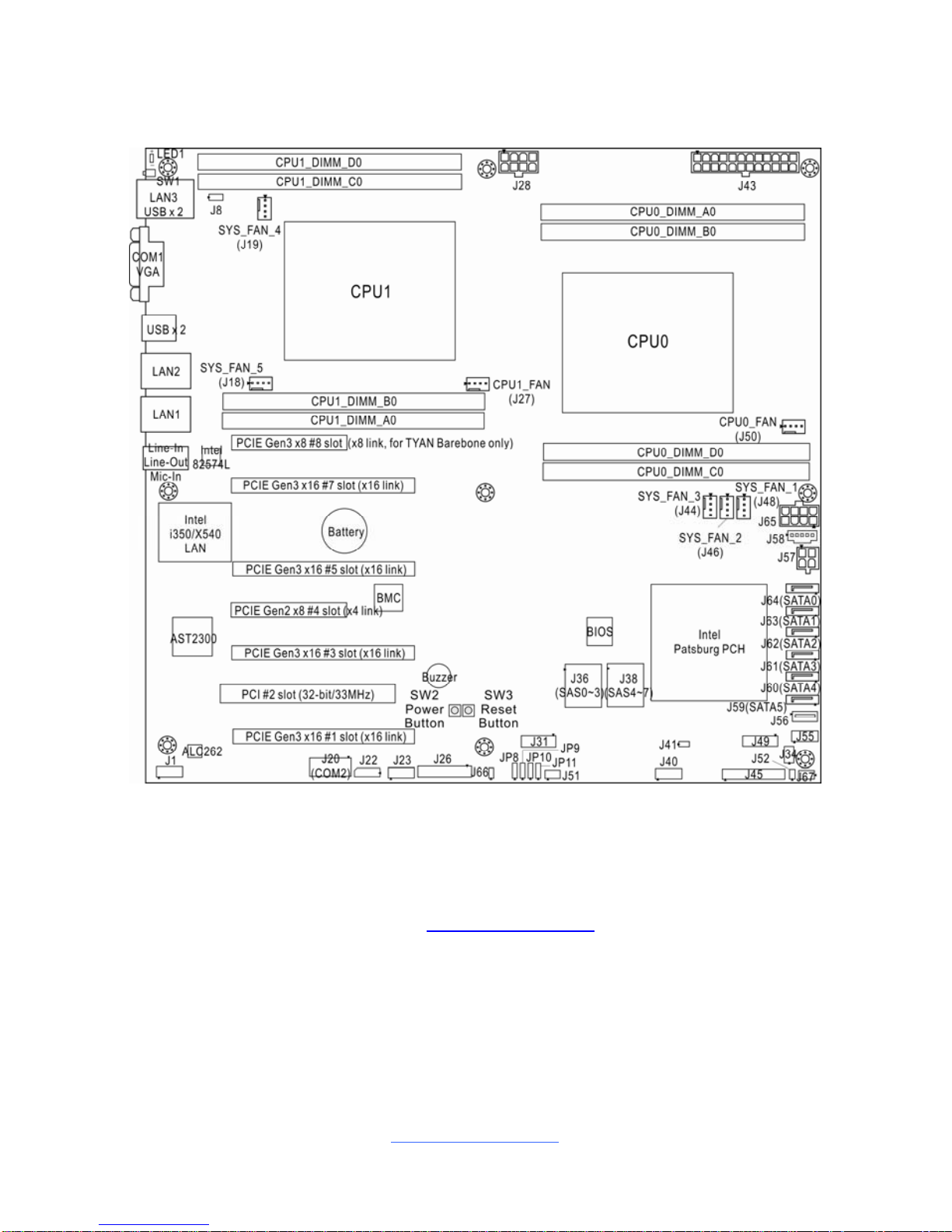

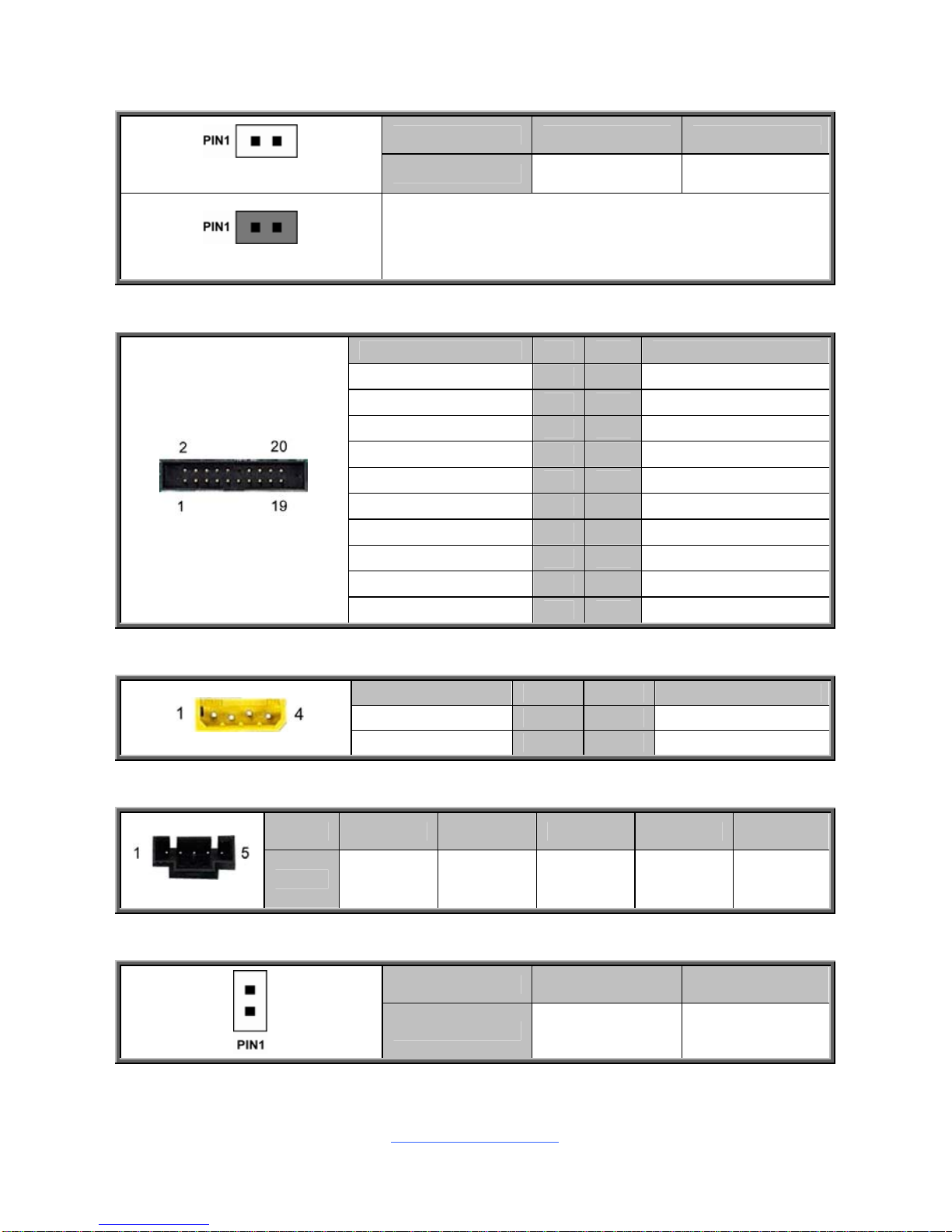

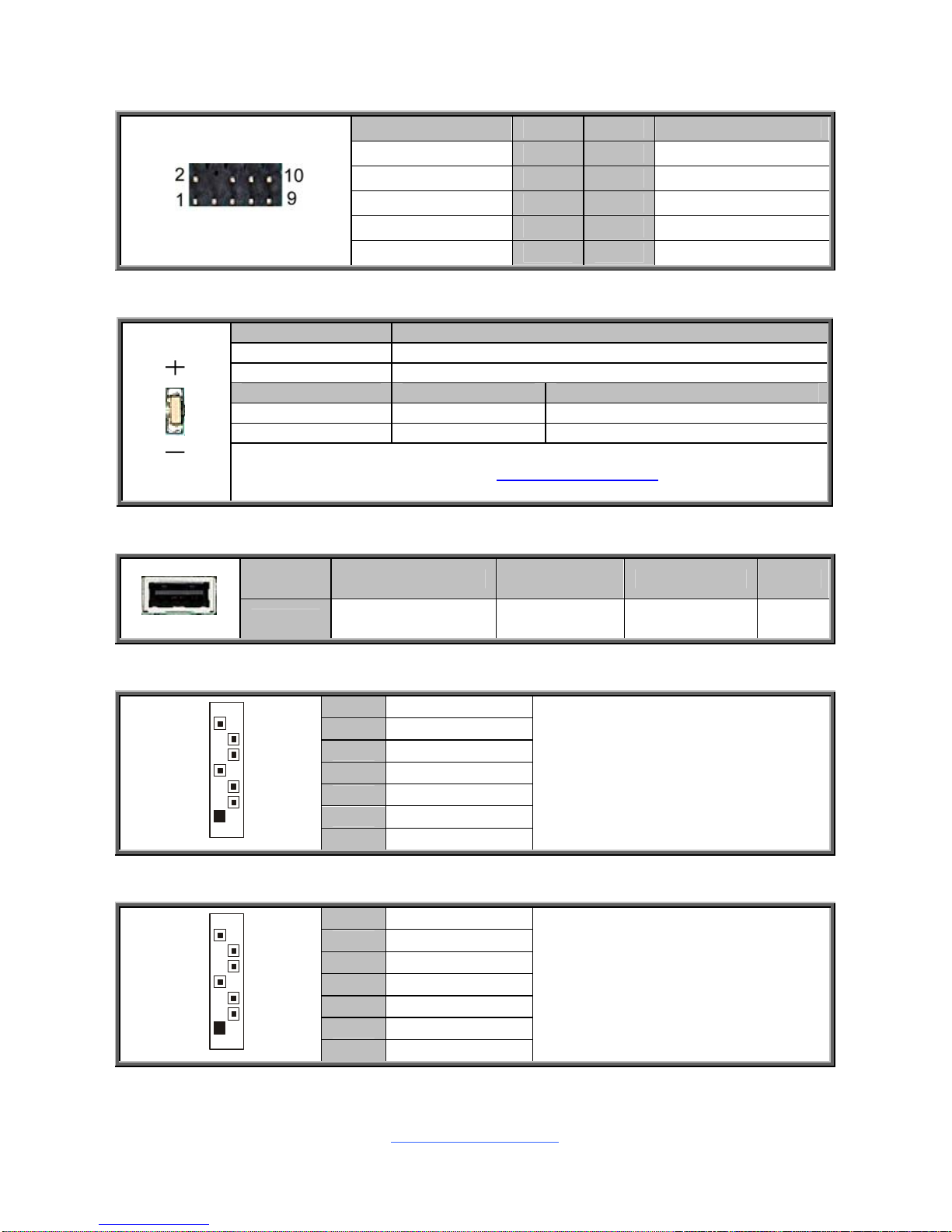

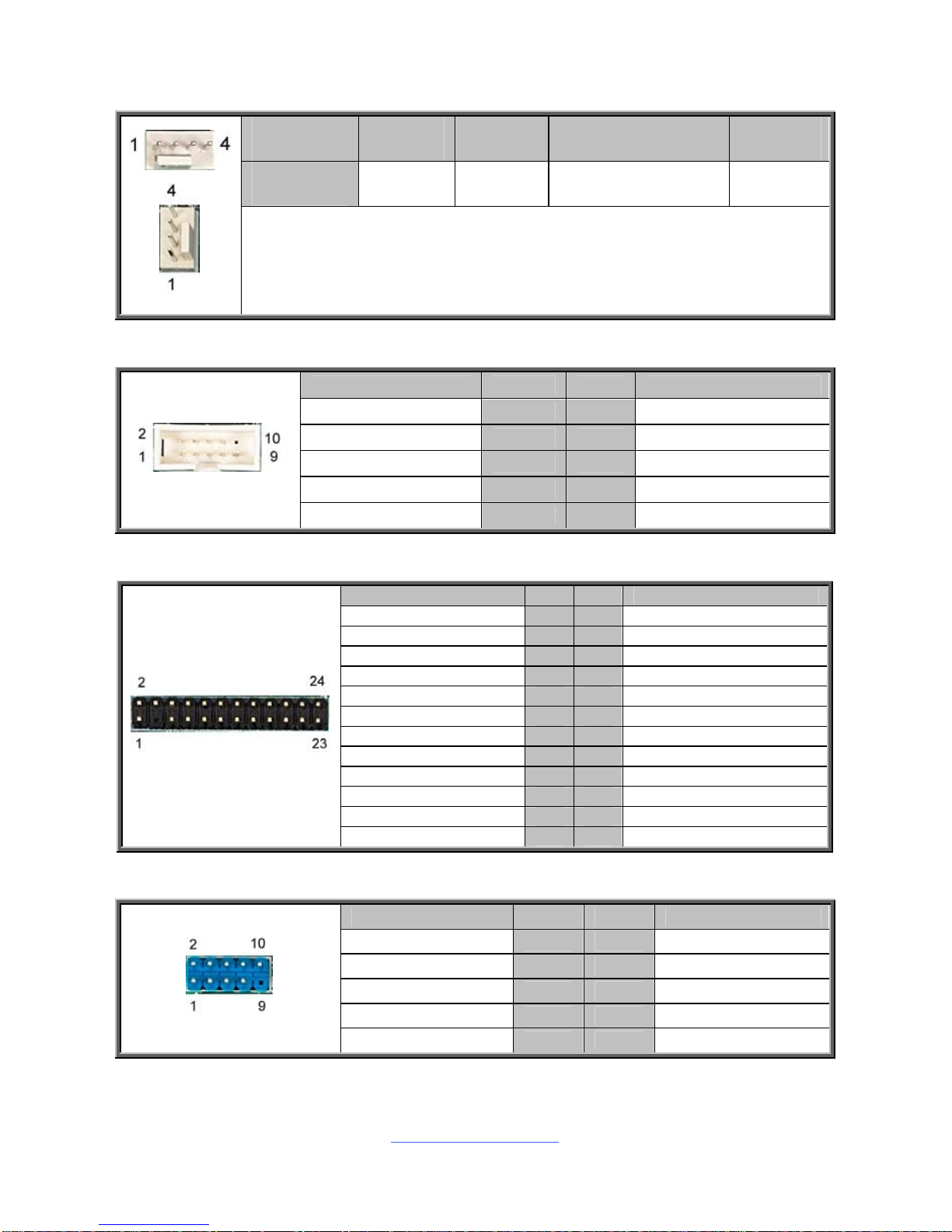

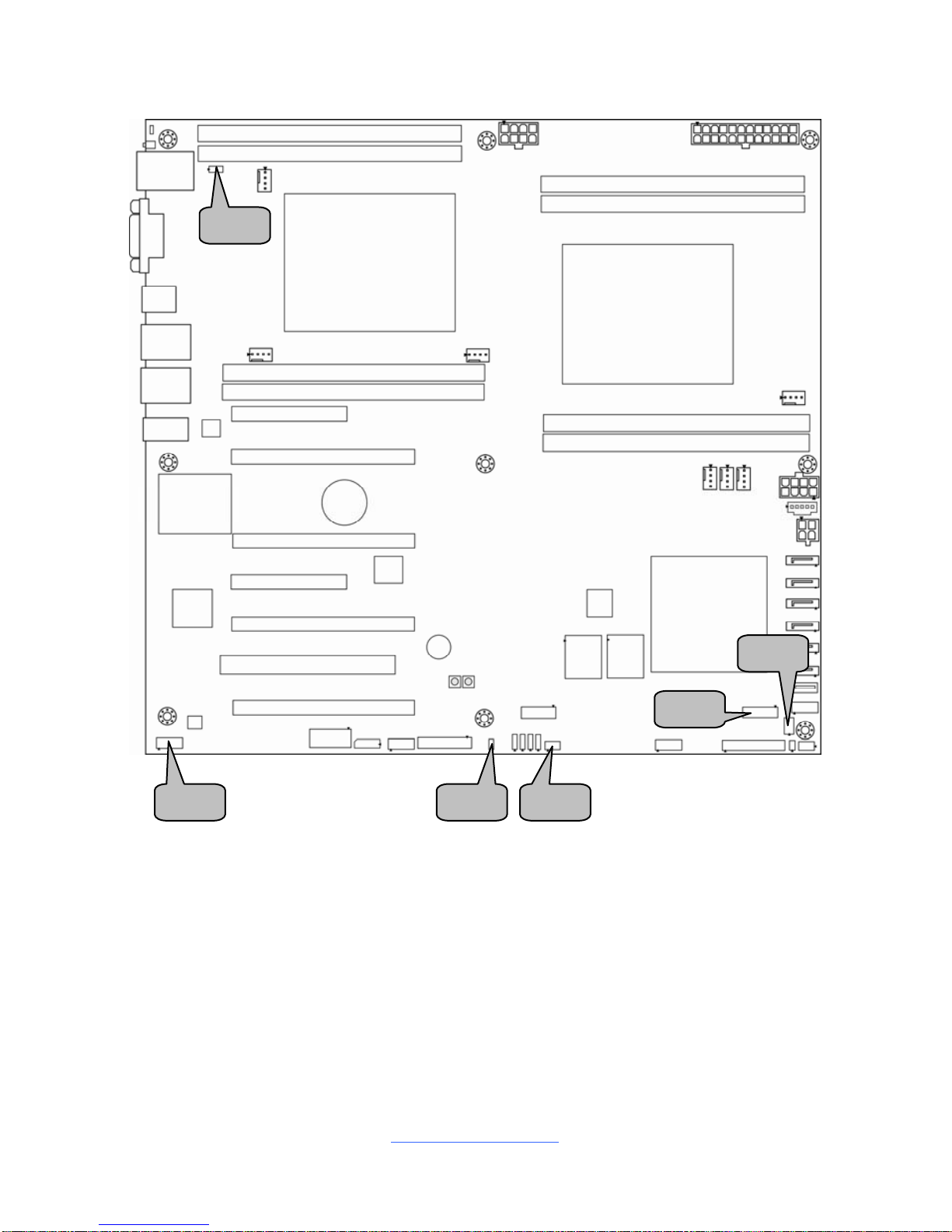

2.4 Board Parts, Jumpers and Connectors...........................................19

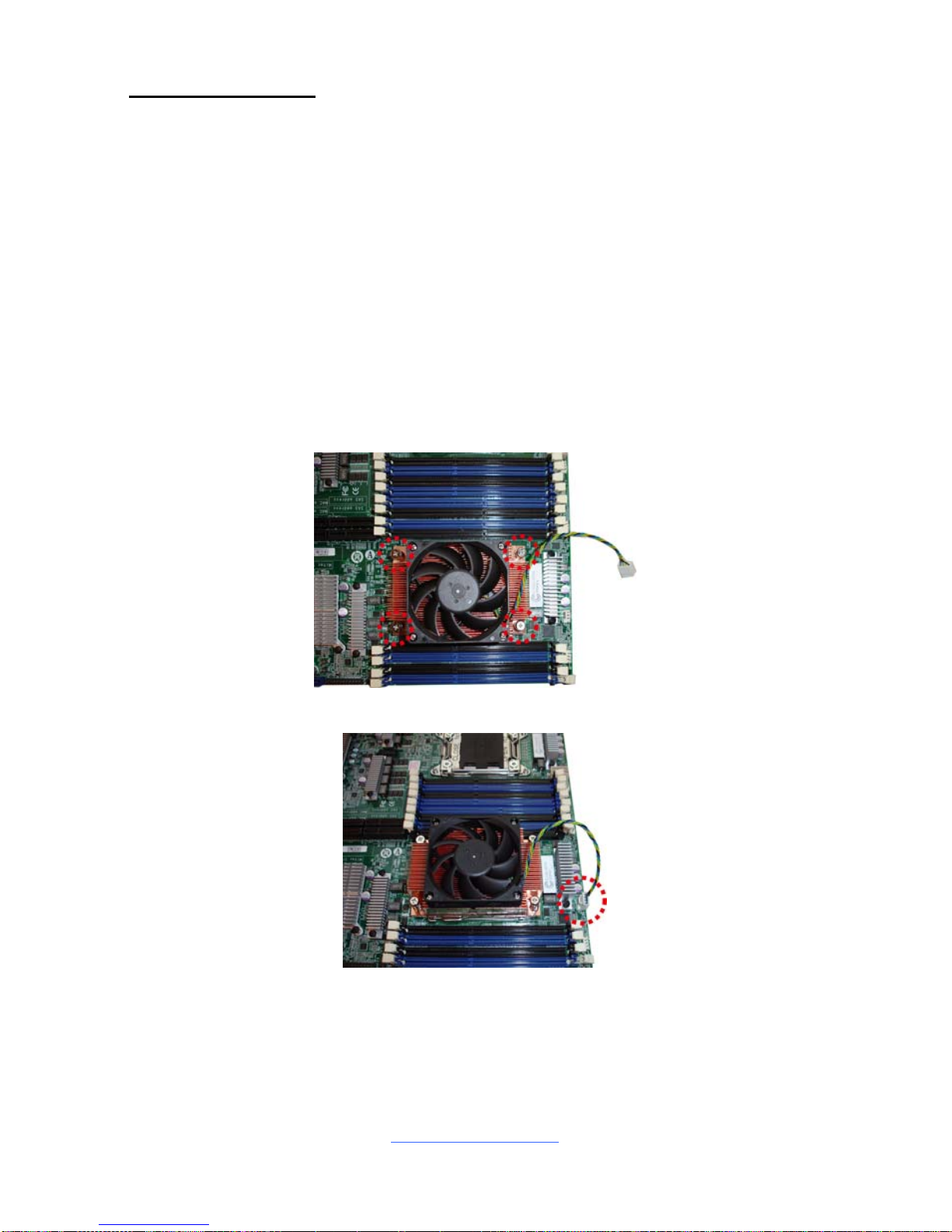

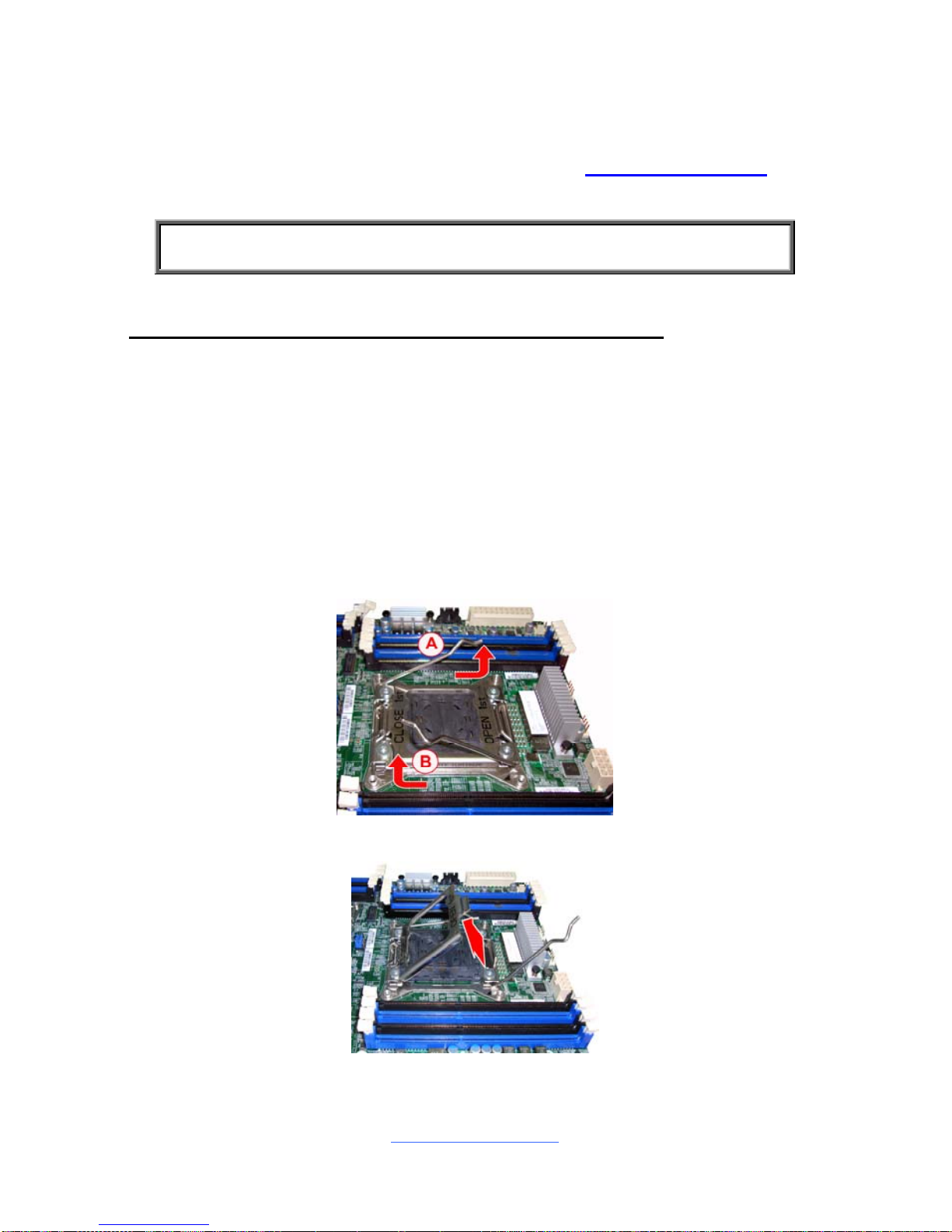

2.5 Installing the Processor and Heatsink.............................................35

2.6 Thermal Interface Material ..............................................................38

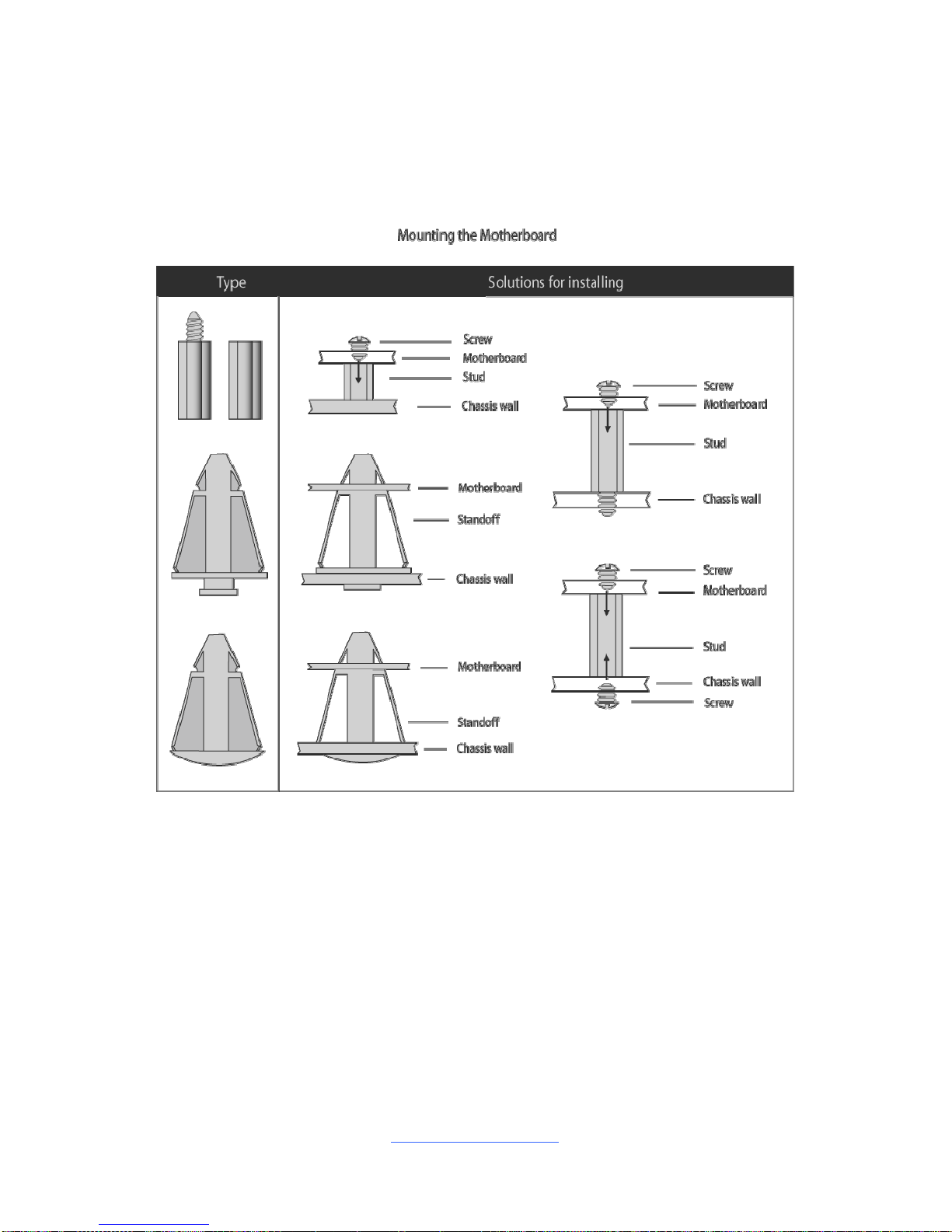

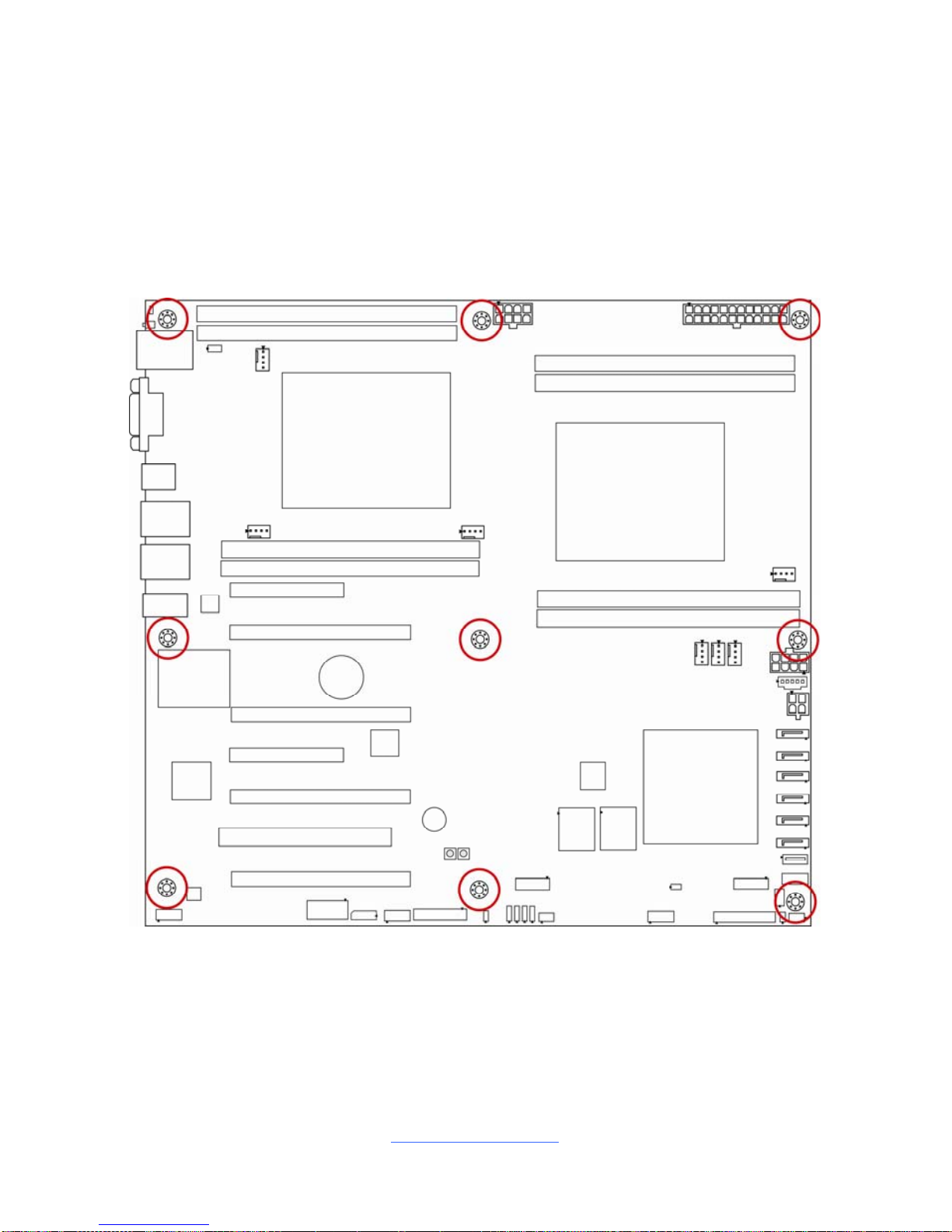

2.7 Tips on Installing Motherboard in Chassis .......................................39

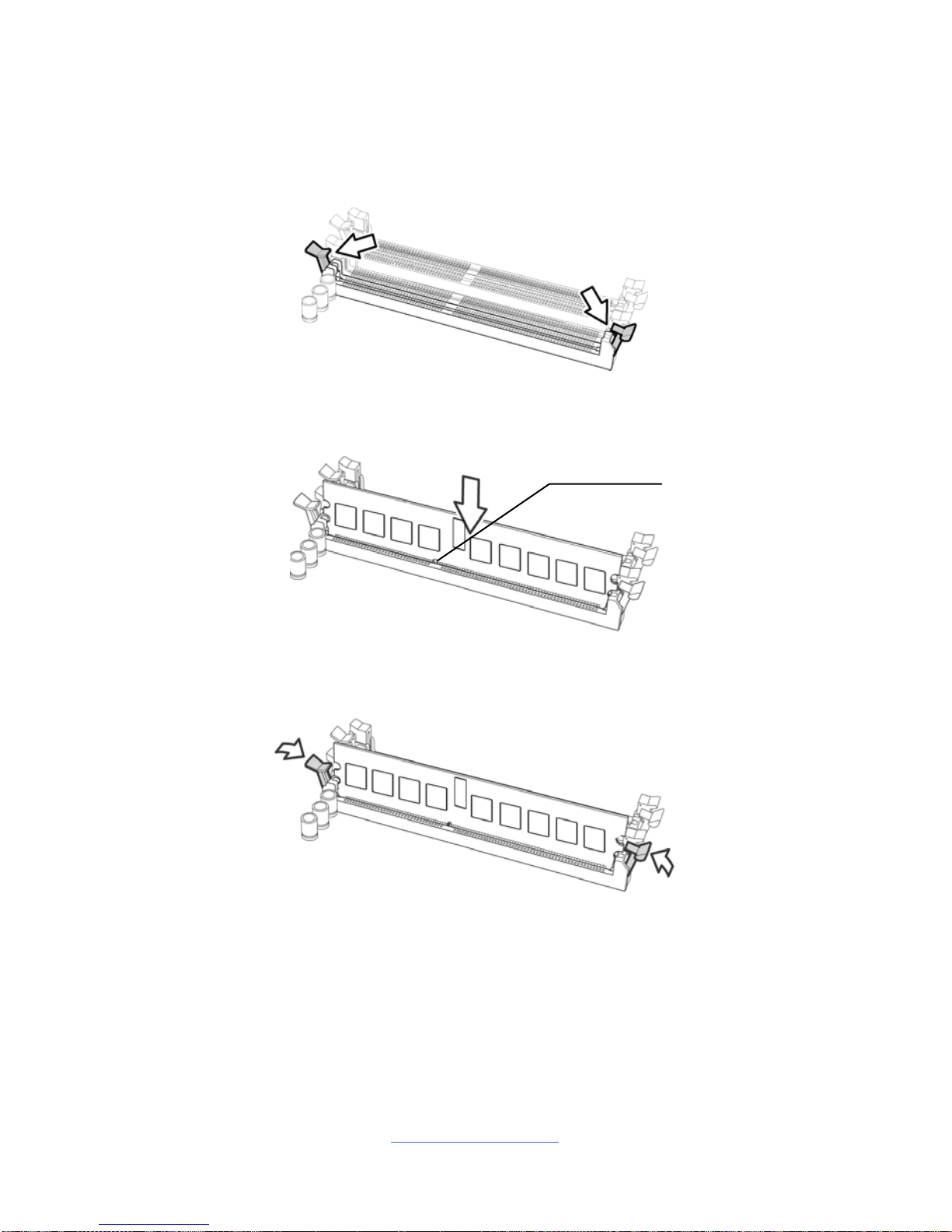

2.8 Installing the Memory ......................................................................41

2.9 Attaching Drive Cables....................................................................47

2.10 Installing Add-In Cards..................................................................48

2.11 Connecting External Devices ........................................................49

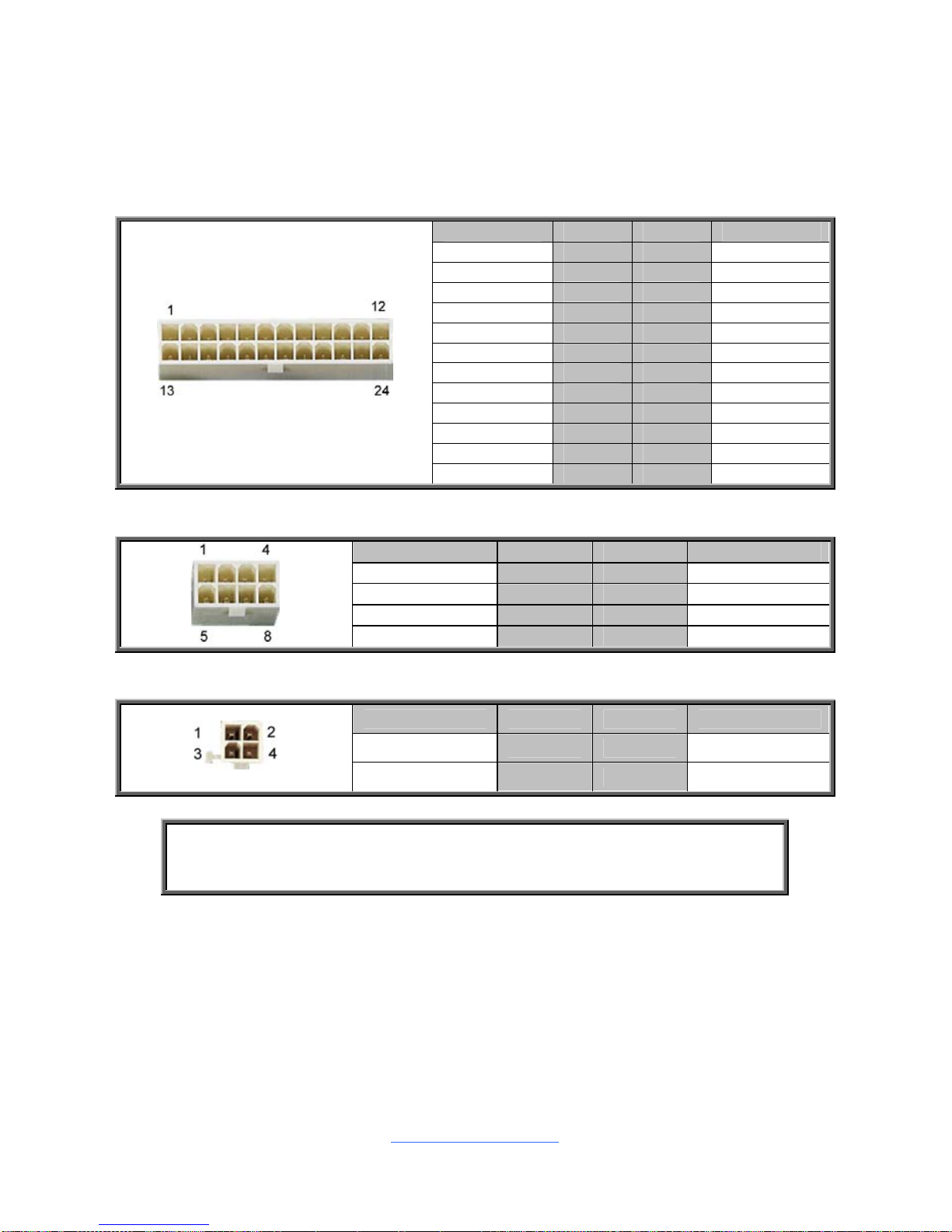

2.12 Installing the Power Supply...........................................................50

2.13 Finishing Up...................................................................................51

Chapter 3: BIOS Setup ............................................................................. 53

3.1 About the BIOS................................................................................53

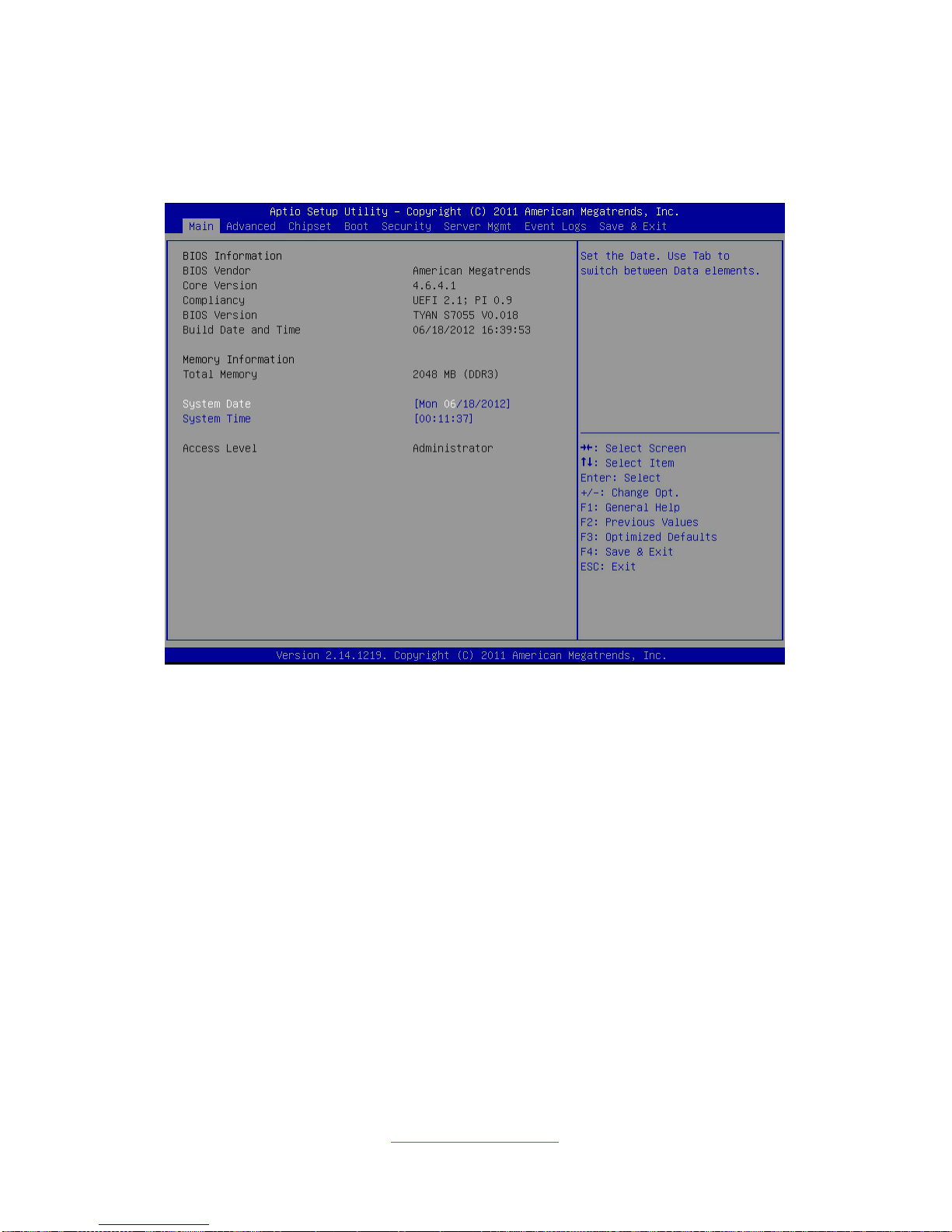

3.2 Main Menu.......................................................................................55

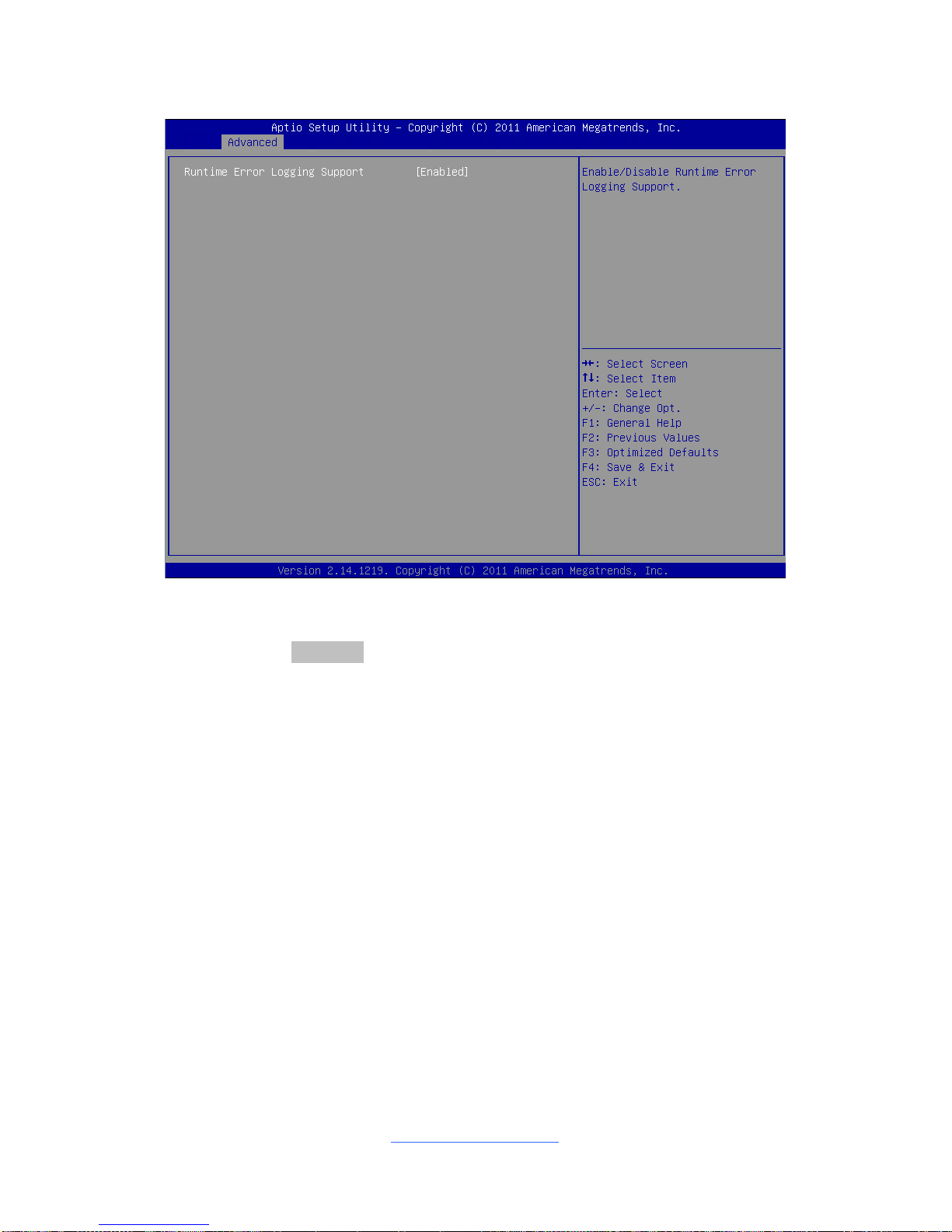

3.3 Advanced Menu...............................................................................56

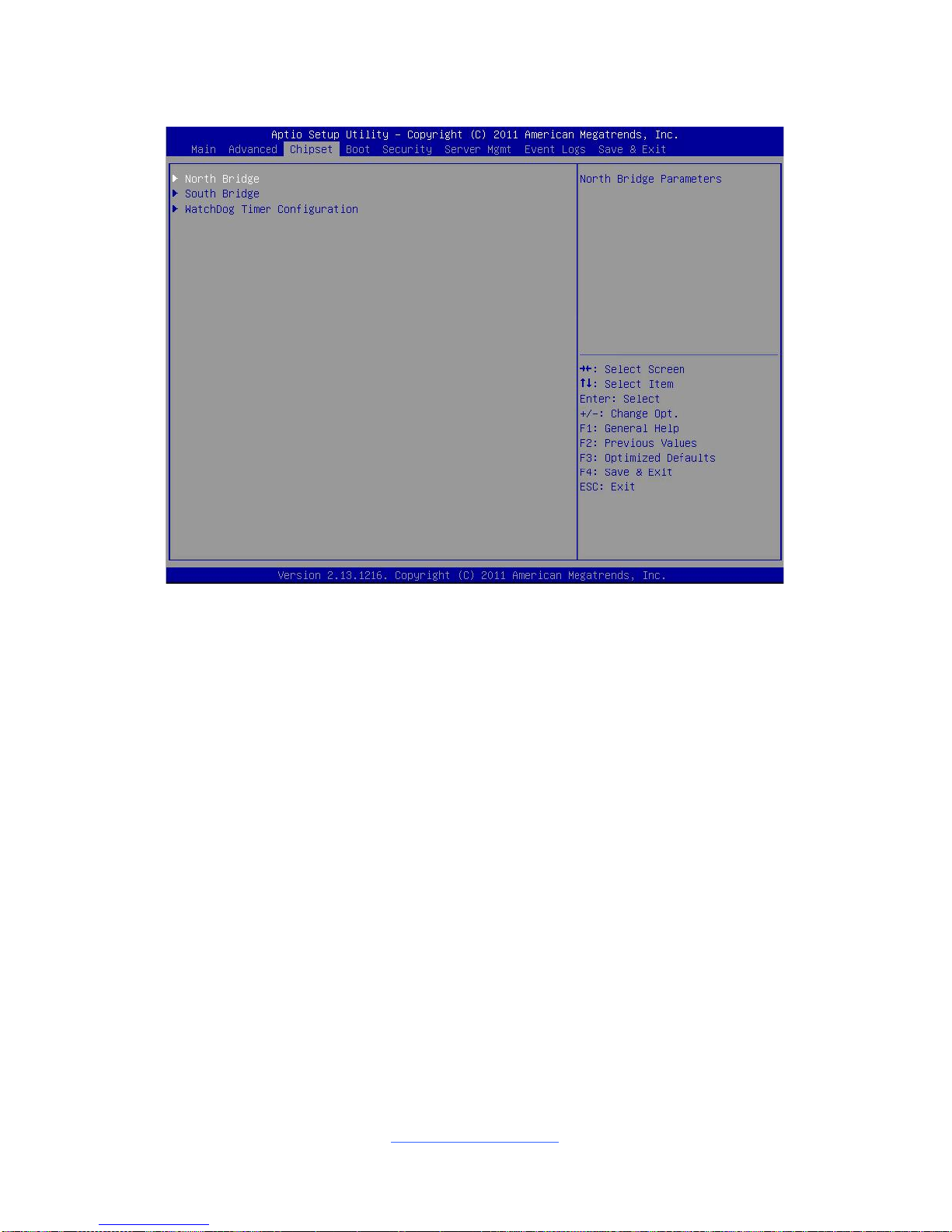

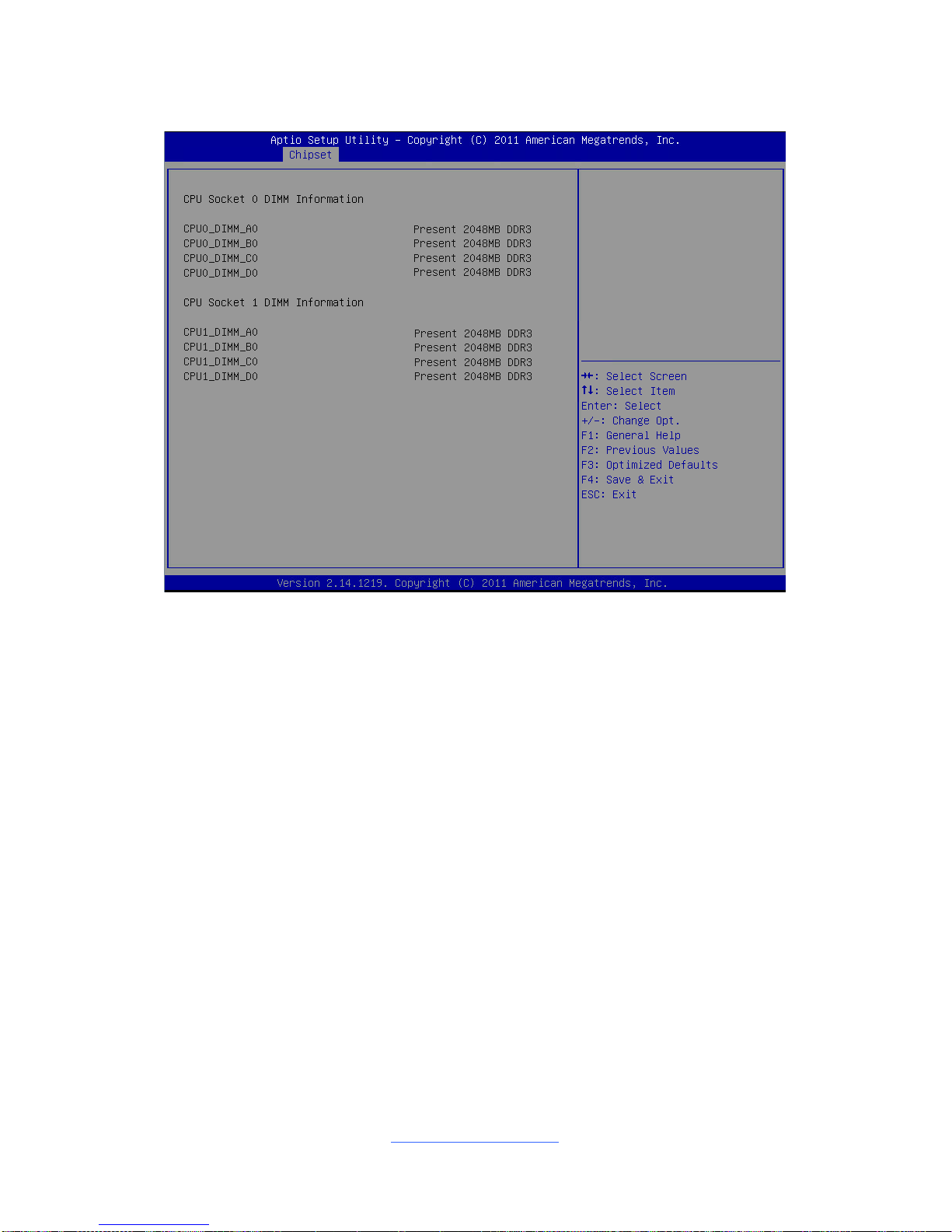

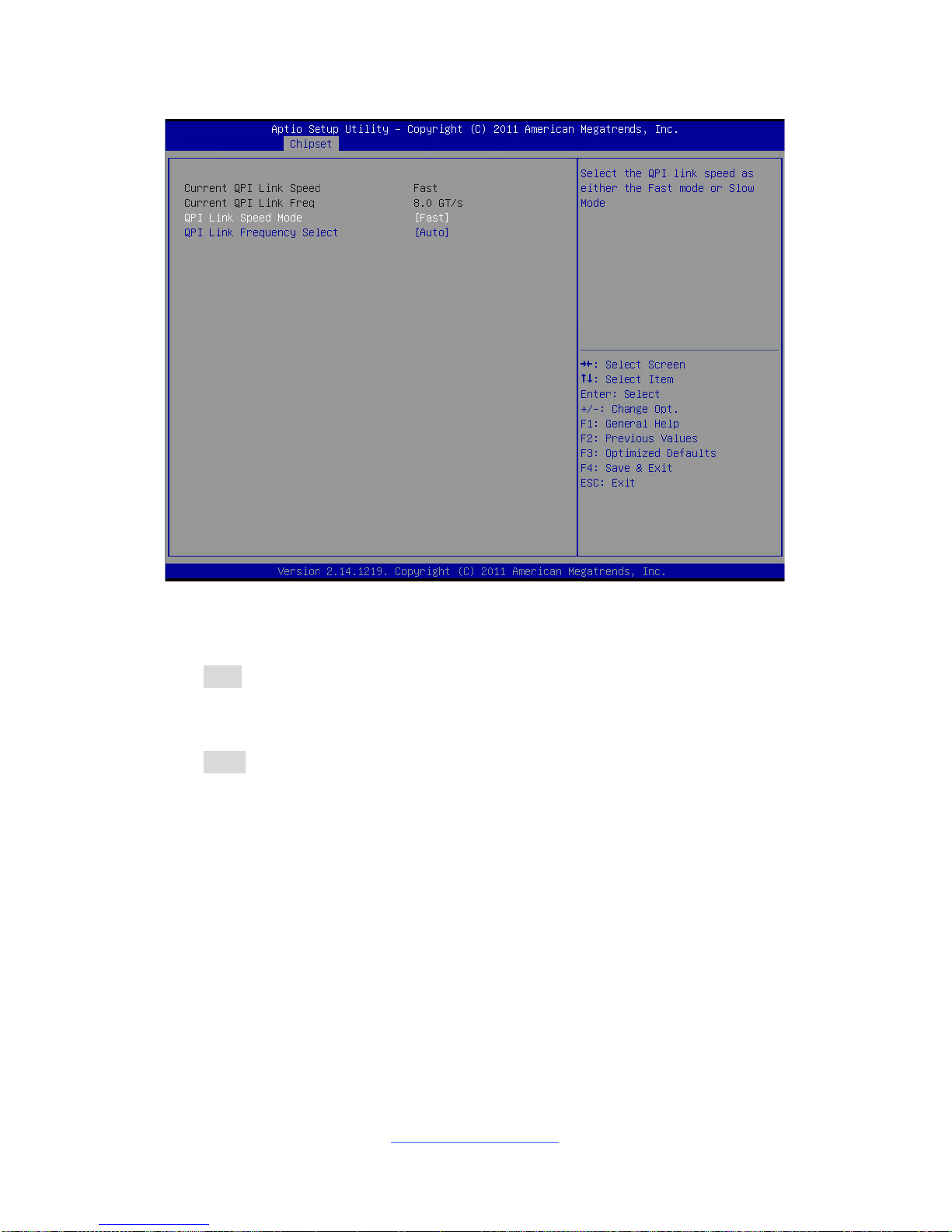

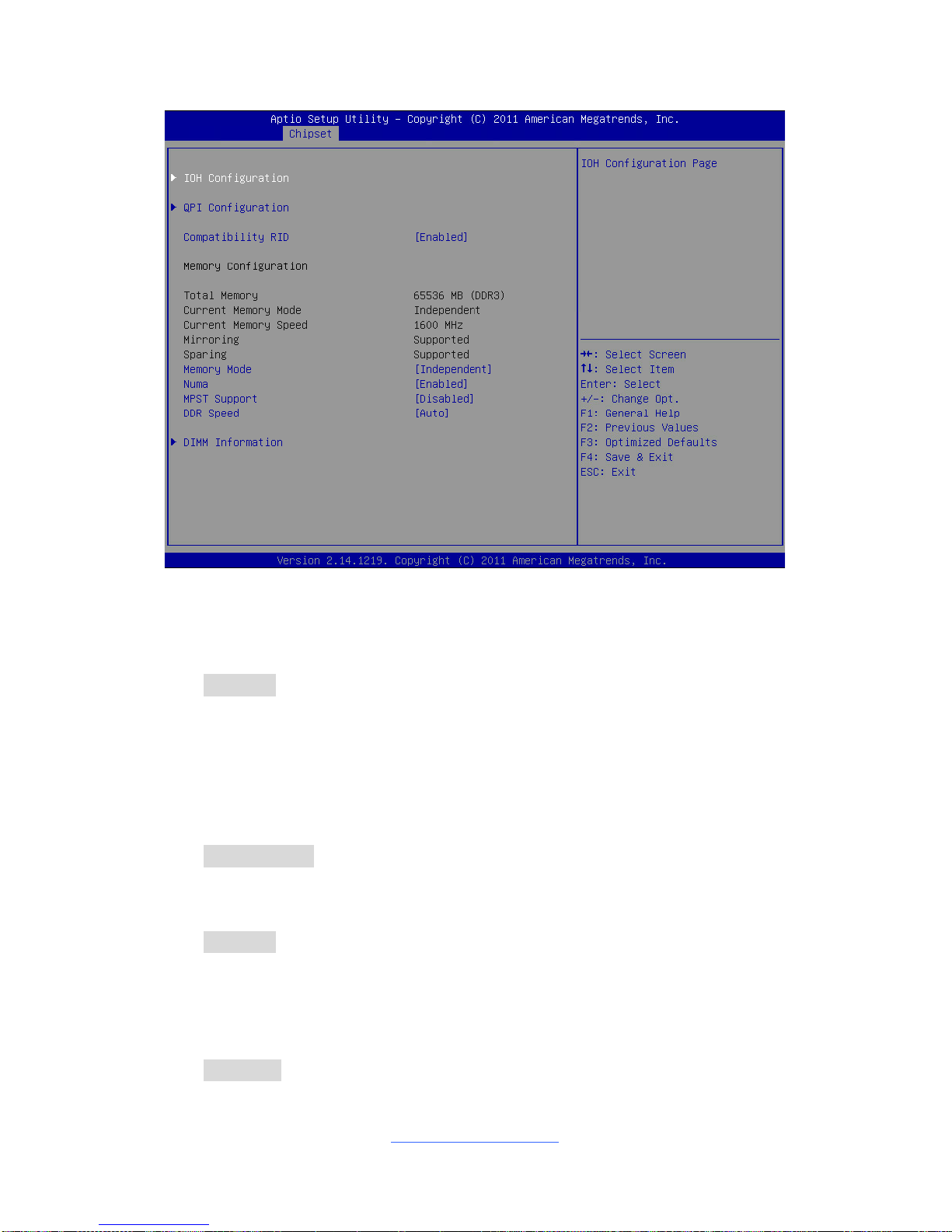

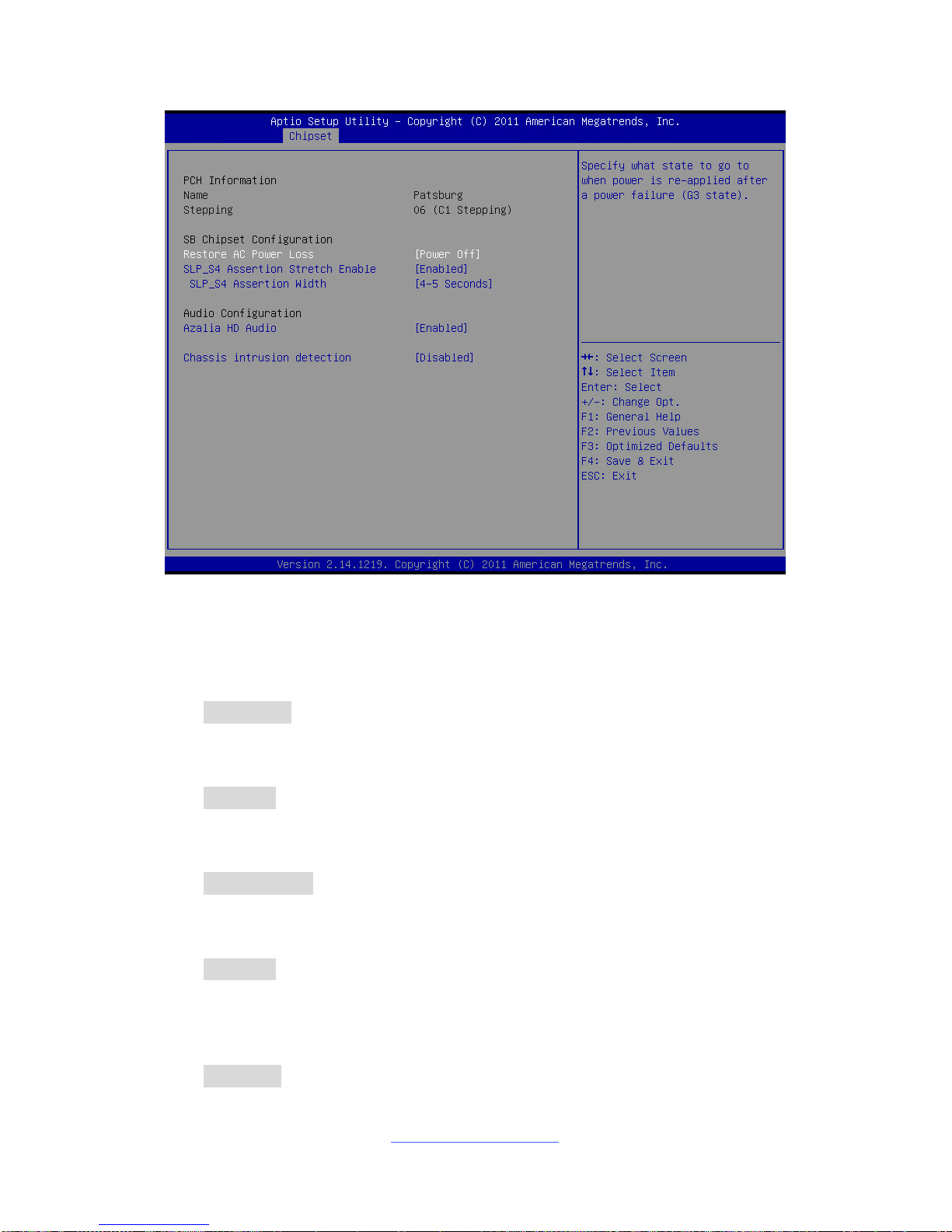

3.4 Chipset Menu ..................................................................................82

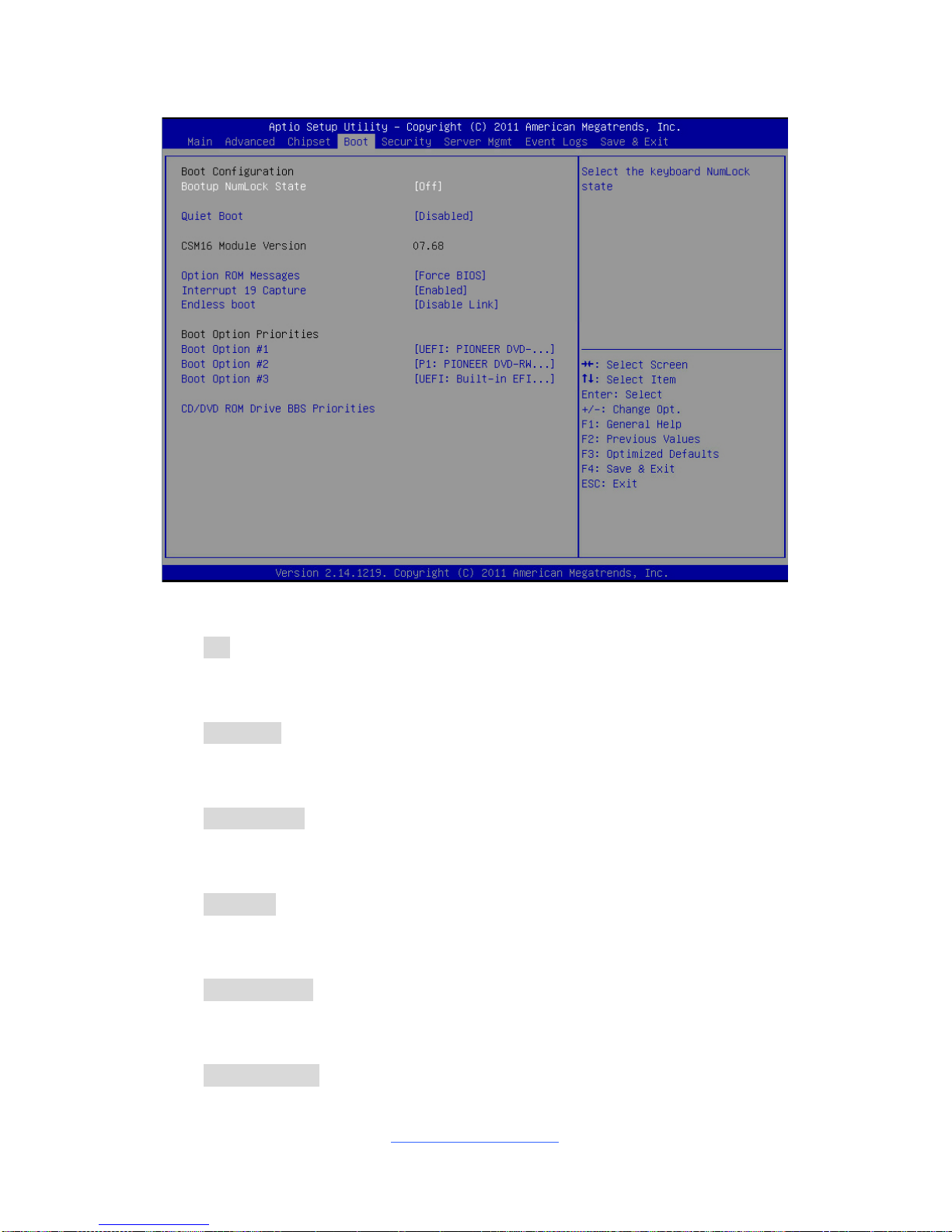

3.5 Boot .................................................................................................91

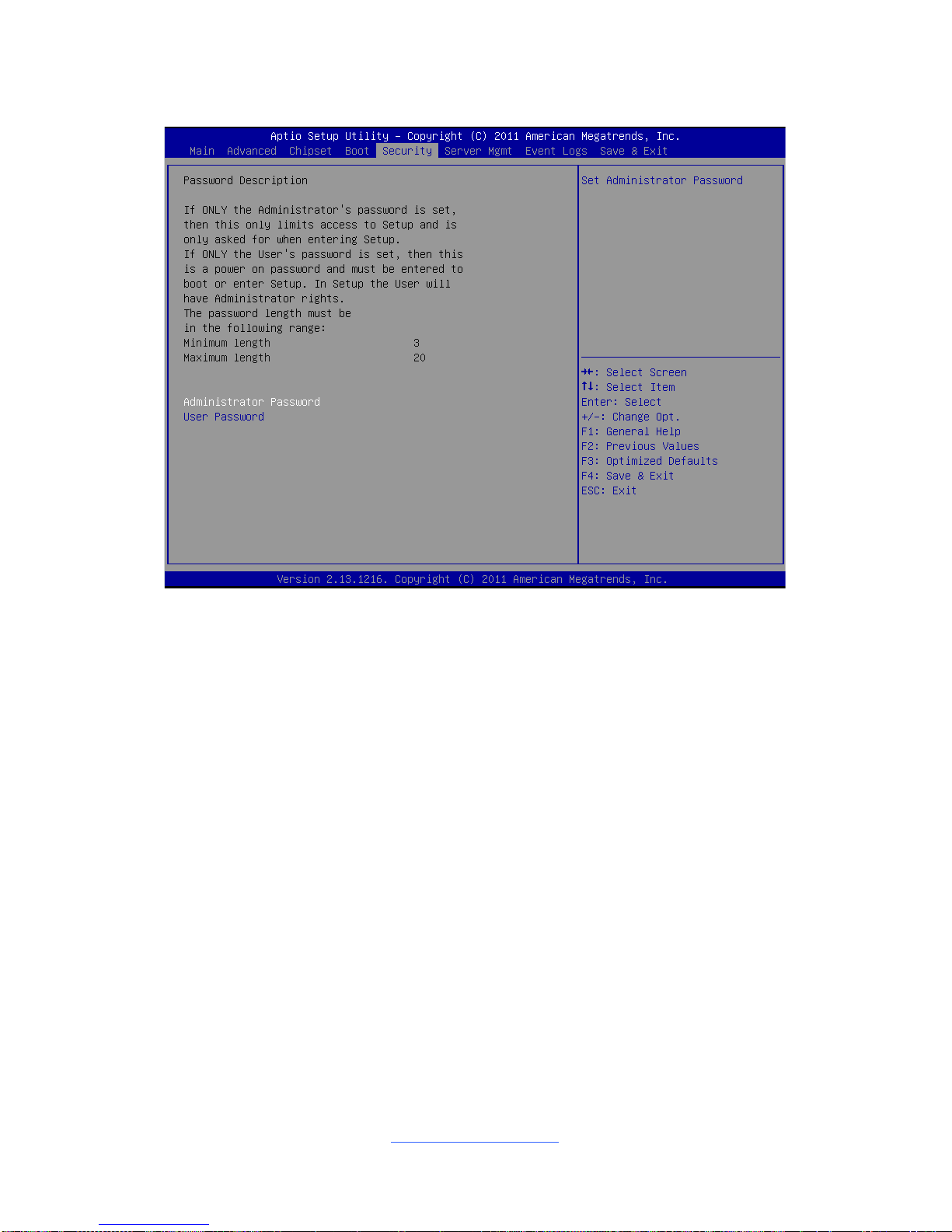

3.6 Security............................................................................................92

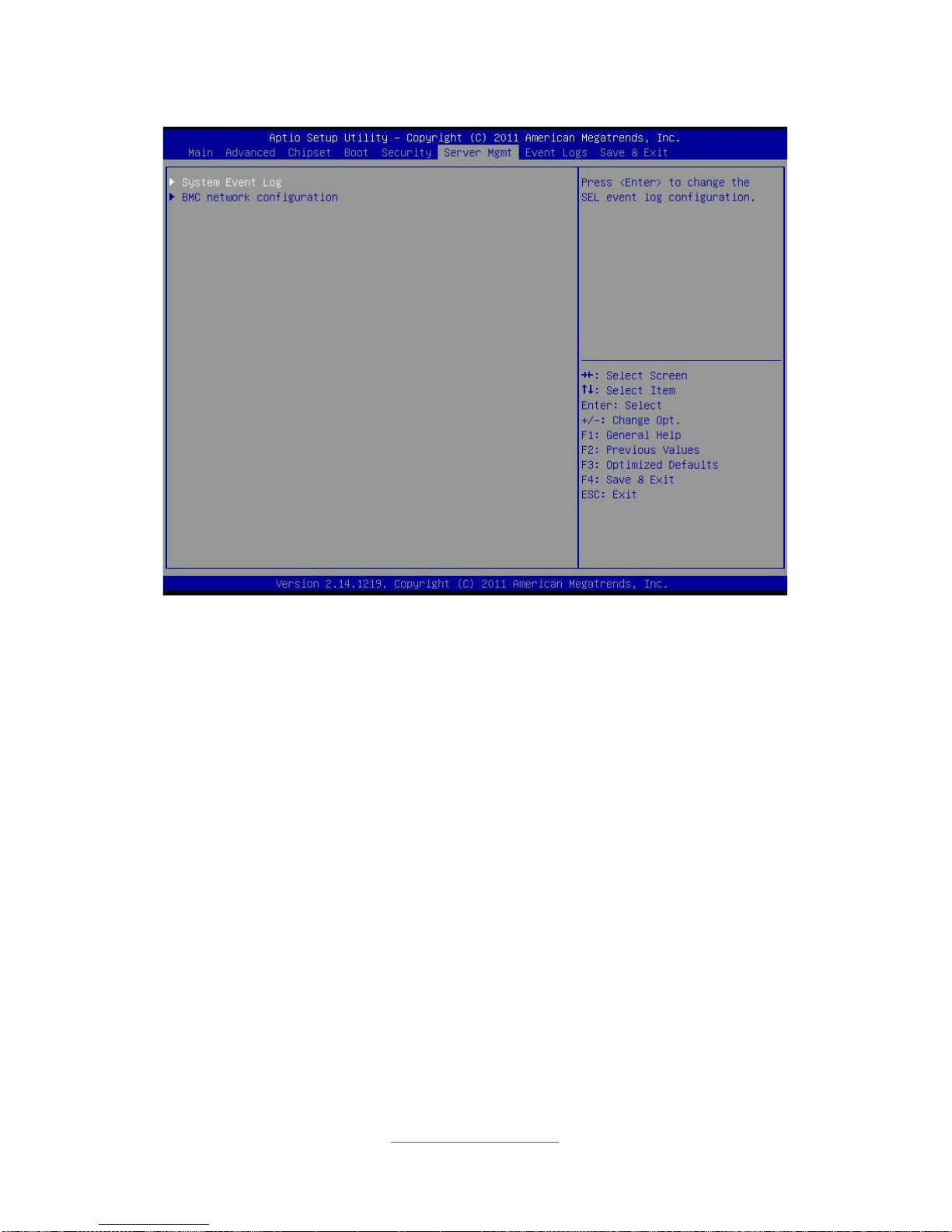

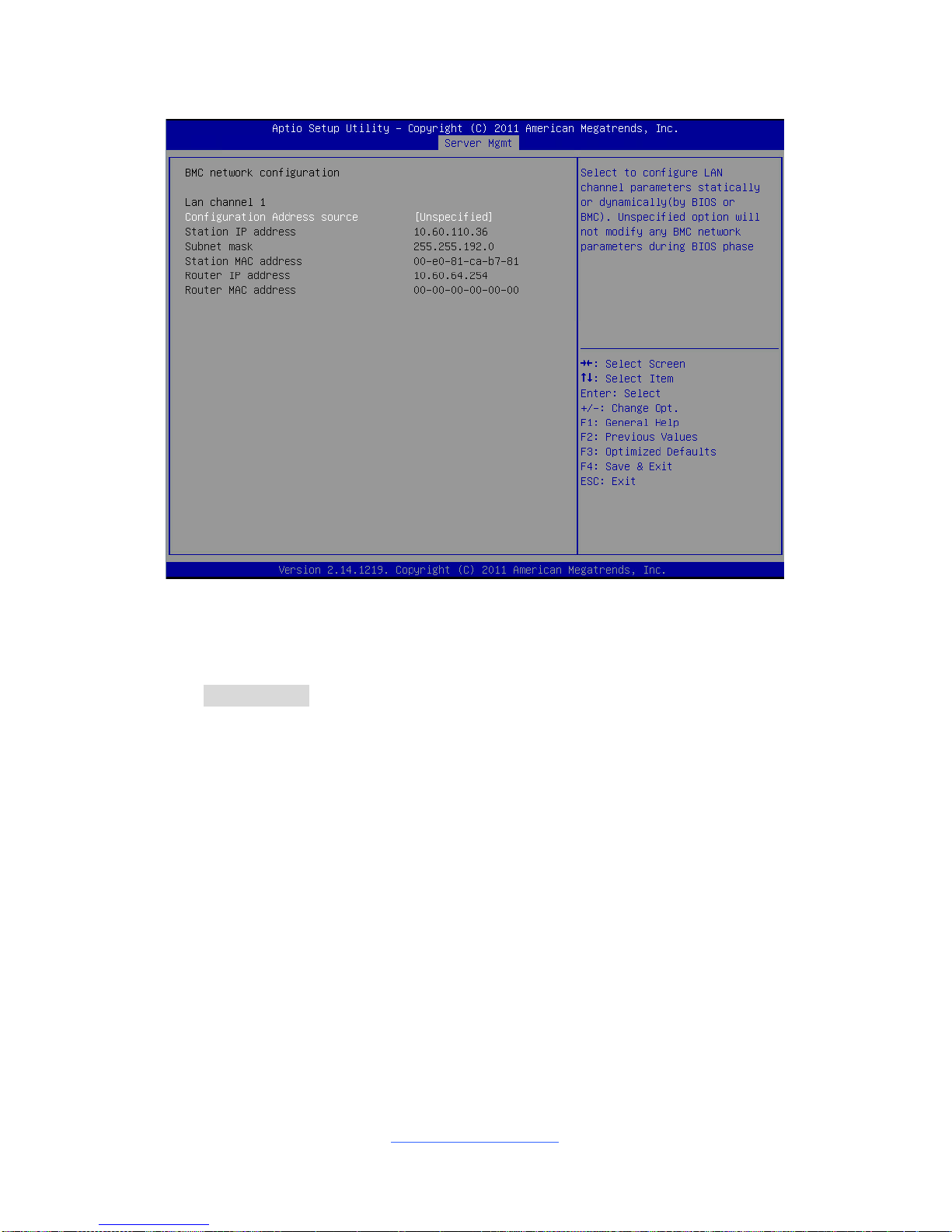

3.7 Server Management........................................................................93

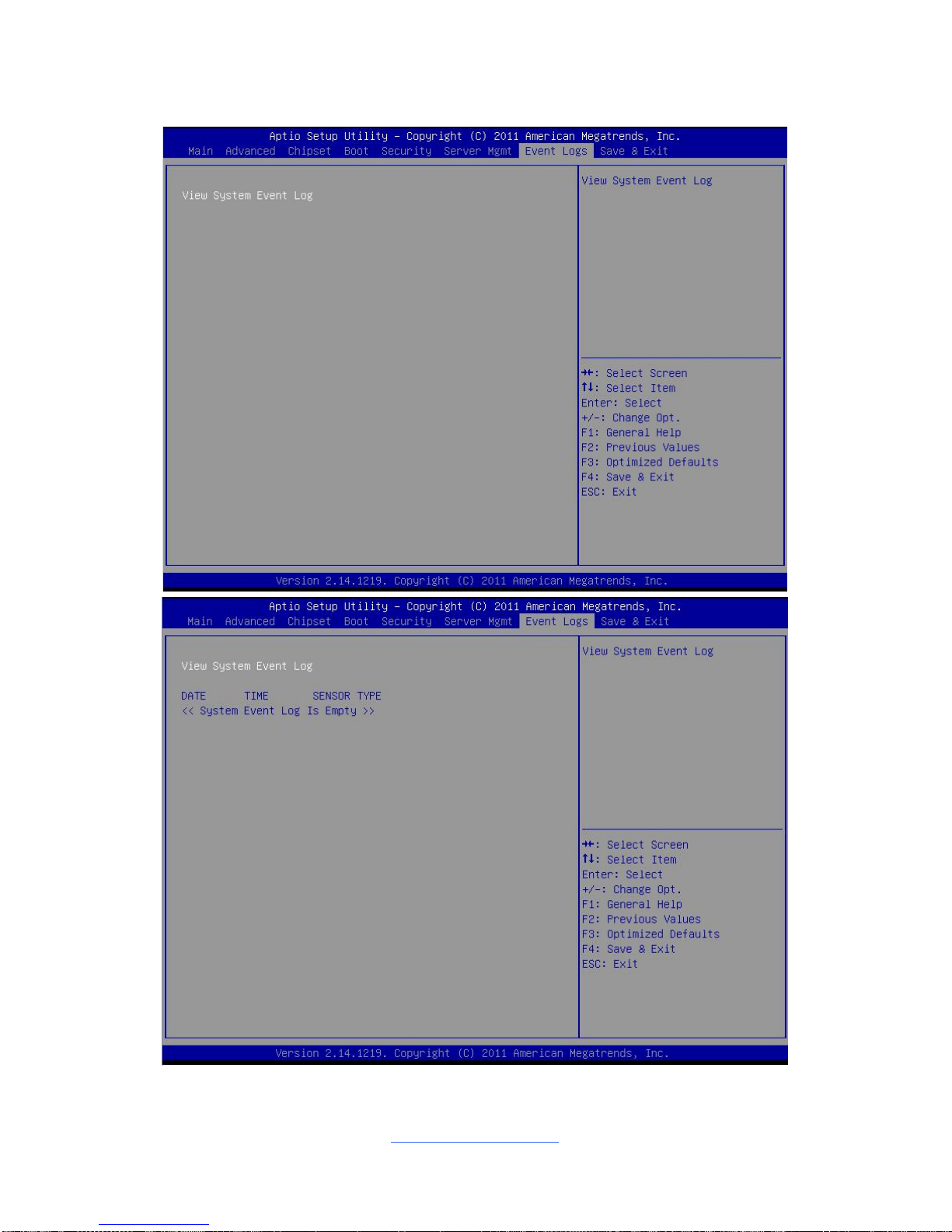

3.8 Event Logs.......................................................................................96

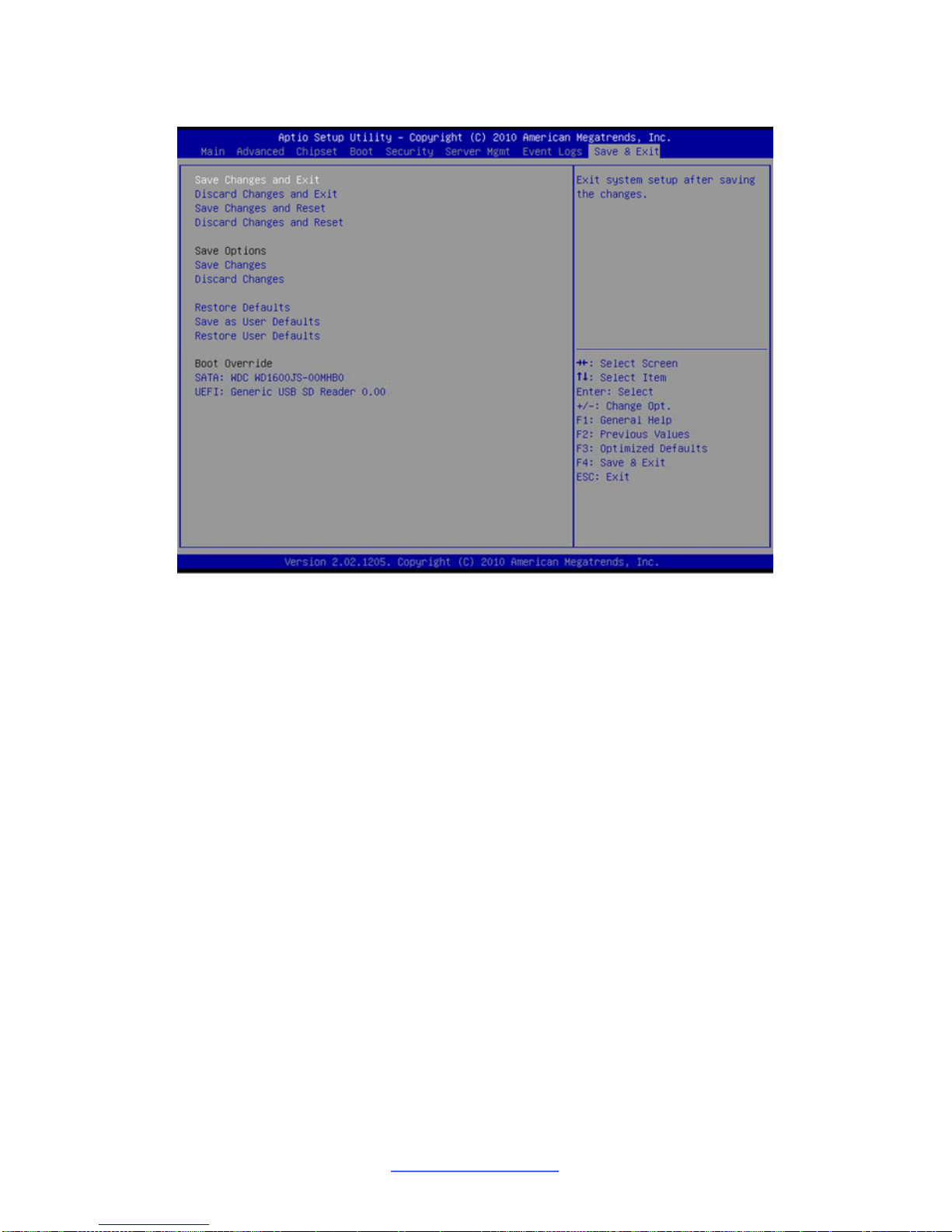

3.9 Save & Exit......................................................................................97

Chapter 4: Diagnostics............................................................................. 99

4.1 Flash Utility......................................................................................99

4.2 AMIBIOS Post Code (Aptio)..........................................................100

Appendix I: Fan and Temp Sensors .....................................................107

Appendix II: RAID OPROM Configuration ............................................111

Glossary................................................................................................... 113

Technical Support ..................................................................................119

http://www.tyan.com

4

Before you begin…

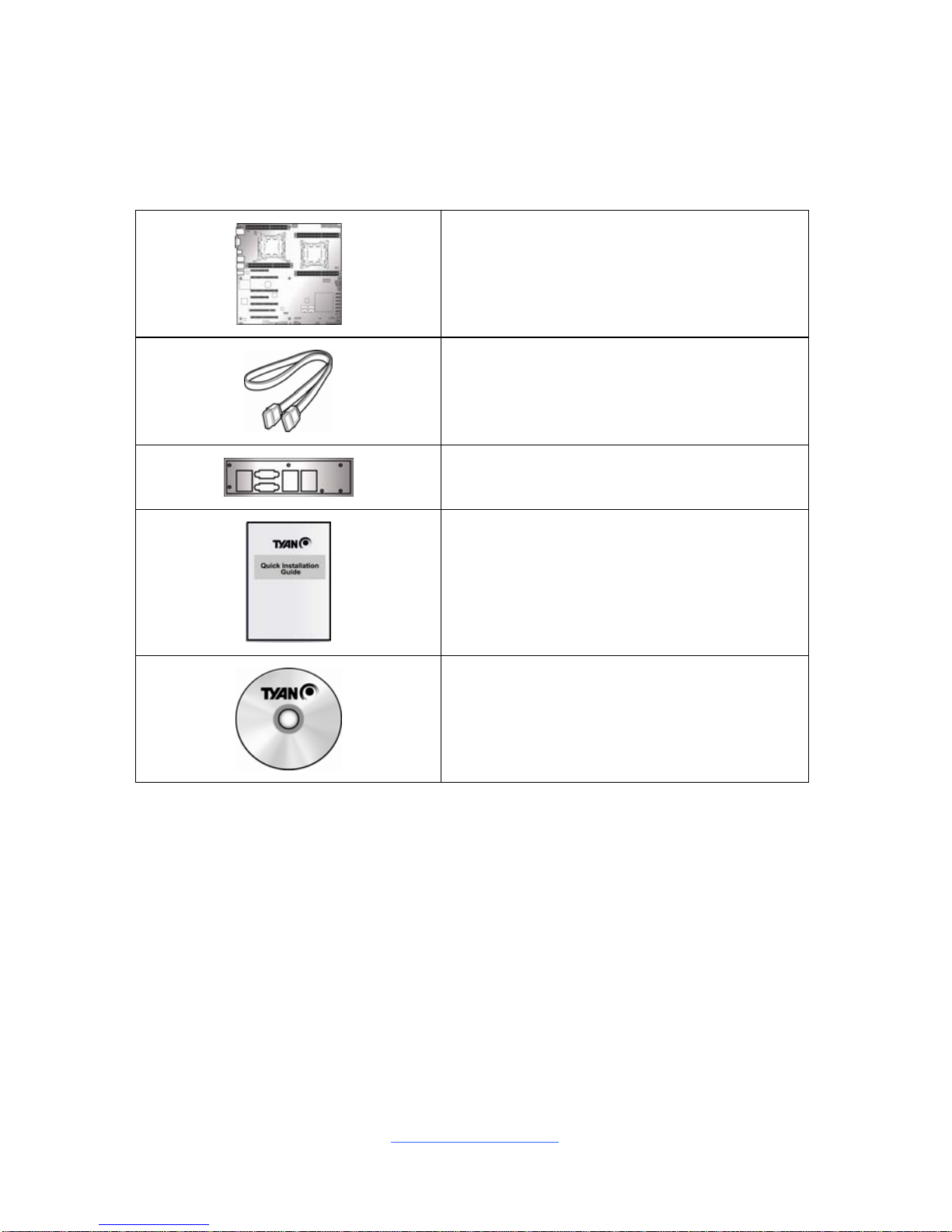

Check the box contents!

The retail motherboard package should contain the following:

1 x S7055 Motherboard

6 x SATA Single Cable

1 x IO shield

1 x S7055 Quick Installation Guide

1 x TYAN® Driver CD

IMPORTANT NOTE:

Sales samples may not come with any of the accessories listed above.
If you have ordered a sales sample and you are missing any of the above i tems,
please contact your sales representative to help order accessories.

http://www.tyan.com

5

Chapter 1: Instruction

1.1 Congratulations

You have purchased the powerful TYAN® S7055 motherboard, based on the
Intel

®

Patsburg (C602) chipset. The S7055 is designed to support dual Intel®
Xeon E5-2600 Series processors, and up to 128GB RDIMM and 64GB UDIMM
DDR3 memory. Leveraging advanced technology from Intel®, the S7055 is
capable of offering scalable 32 and 64-bit computing, high-bandwidth memory
design, and lightning-fast PCI-E bus implementation.

The S7055 not only empowers you in today’s demand ing IT environment but also
offers a smooth path for future application upgradeability. All of these rich feature
sets provide the S7055 with the power and flexibility to meet demanding
requirements for today’s IT environments.

Remember to visit the TYAN® website at http://www.tyan.com. There you can find
all the information on all TYAN

®

products as well as all the supporting

documentation, FAQs, Drivers and BIOS upgrades.

1.2 Hardware Specifications

TYAN S7055 (S7055AGM3NR)

Supported CPU
Series

Intel Xeon Processor E5-2600 Series

Socket Type / Q'ty (2) LGA2011

Thermal Design
Power (TDP)
wattage

150W

Processor

System Bus

Up to 8.0/ 7.2/ 6.4 GT/s with Intel QuickPath
Interconnect (QPI) support

Chipset PCH Intel C602

Supported DIMM
Qty

(4)+(4) DIMM slots

DIMM Type / Speed

DDR3/DDR3L 800 / 1066 / 1333 / 1600 RDIMM,
1066 / 1333 / 1600 UDIMM, 1066 / 1333 LRDIMM/
Support DDR3 Unbuffered and Register ECC

Capacity

Up to 256GB RDIMM / 64GB UDIMM / 256GB
LRDIMM

Memory channel 4 Channels per CPU

Memory

Memory voltage 1.5V or 1.35V

PCI-E

(4) PCI-E x16 Gen3 slots (x16 link, slot #7, #5, #3,
#1) / (1) PCI-E x8 Gen2 slot (x4 link, slot #4)

Expansion Slots

PCI (1) PCI 32-bit slot (slot #2)

Recommended 4U Barebone FT48-B7055

http://www.tyan.com

6

Barebone /
Chassis

Port Q'ty (3) GbE ports

LAN

Controller Intel 82574L / Intel I350-BT2

Connector (10) SATA; (2) 6G + (8) 3G
Controller Intel C602

Speed

(2) 6.0 Gb/s (blue color), (4) 3.0 Gb/s (black color)
+ (4) 3.0 Gb/s (mini-SAS connector)

Storage SATA

RAID RAID 0/1/10/5 (Intel RST)

Connector type D-Sub 15-pin

Graphic

Chipset Aspeed AST2300

Chipset Realtek ALC262

Audio

Feature HDA 2.0 spec. complaint

USB

(11) USB 2.0 ports (4 at rear, 6 via cable, 1 type A
onboard)

COM

(1) DB-9 COM Connector (at rear, COM1) + (1)
Header (COM2)

VGA (1) D-Sub 15-pin VGA port
Audio LINE_IN, LINE_OUT, MIC_IN connectors
RJ-45 (3) GbE ports

Power

SSI 24-pin + 8-pin + 8-pin + 4-pin power
connectors

Front Panel (1) 2x12-pin SSI front panel header

Input /Output

SATA (4) SATA-II and (2) SATA-III connectors

Voltage

Monitors voltage for CPU, memory, chipset &
power supply

Fan Total (6) 4-pin headers

System
Monitoring

Temperature

Monitors temperature for CPU & system
environment

Onboard Chipset Onboard Aspeed AST2300

AST2300 IPMI
Feature

IPMI 2.0 compliant baseboard management
controller (BMC) / Supports storage over IP and
remote platform-flash / USB 2.0 virtual hub

Server
Management

AST2300 iKVM
Feature

24-bit high quality video compression / 10/100
Mb/s MAC interface

Brand / ROM size AMI / 8MB

BIOS

Feature

Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power
on mode after power recovery / User-configurable
H/W monitoring / Auto-configurable of hard disk
types

Form Factor SSI EEB

Physical
Dimension

Board Dimension 12"x13" (305x330mm)

Operating System OS supported list Please visit out Web site for the latest update.

http://www.tyan.com

7

FCC (DoC) Class A

Regulation

CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)

Non-operating
Temp.

- 40° C ~ 70° C (-40° F ~ 158° F)

Operating
Environment

In/Non-operating
Humidity

90%, non-condensing at 35° C

RoHS RoHS 6/6 Compliant Yes

Motherboard (1) S7055 Motherboard
Manual (1) Quick Installation Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield

Package Contains

Cable SATA (6) SATA signal cables

TYAN S7055 (S7055WAGM3NR)

Supported CPU
Series

Intel Xeon Processor E5-2600 Series

Socket Type / Q'ty (2) LGA2011

Thermal Design
Power (TDP)
wattage

150W

Processor

System Bus

Up to 8.0/ 7.2/ 6.4 GT/s with Intel QuickPath
Interconnect (QPI) support

Chipset PCH Intel C602

Supported DIMM
Qty

(4)+(4) DIMM slots

DIMM Type / Speed

DDR3/DDR3L 800 / 1066 / 1333 / 1600 RDIMM,
1066 / 1333 / 1600 UDIMM, 1066 / 1333 LRDIMM/
Support DDR3 Unbuffered and Register ECC

Capacity

Up to 128GB RDIMM / 64GB UDIMM / 256GB
LRDIMM

Memory channel 4 Channels per CPU

Memory

Memory voltage 1.5V or 1.35V

PCI-E

(4) PCI-E Gen3 x16 slots (x16 link, slot #7, #5, #3,
#1) / (1) PCI-E Gen2 x8 slot (x4 link, slot #4)

Expansion Slots

PCI (1) PCI 32-bit slot (slot #2)

Recommended
Barebone /
Chassis

4U Barebone FT48-B7055

Port Q'ty (3) GbE ports

LAN

Controller Intel 82574L / Intel I350-BT2

Connector (2) Mini-SAS connectors (totally support 8 ports)

Storage SAS

Controller Intel C602 with TRK-5 upgrade ROM module

http://www.tyan.com

8

Speed 3.0 Gb/s
RAID RAID 0/1/10
Connector (6) SATA
Controller Intel C602
Speed (2) 6.0 Gb/s (blue color), (4) 3.0 Gb/s (black color)

SATA

RAID RAID 0/1/10/5 (Intel RST)

Connector type D-Sub 15-pin

Graphic

Chipset Aspeed AST2300
Chipset Realtek ALC262

Audio

Feature HDA 2.0 spec. complaint

USB

(11) USB 2.0 ports (4 at rear, 6 via cable, 1 type A
onboard)

COM

(1) DB-9 COM Connector (at rear, COM1) + (1)
Header (COM2)

SAS (2) Mini-SAS (4-in-1) connectors
VGA (1) D-Sub 15-pin VGA port
Audio LINE_IN, LINE_OUT, MIC_IN connectors
RJ-45 (3) GbE ports

Power

SSI 24-pin + 8-pin + 8-pin + 4-pin power
connectors

Front Panel (1) 2x12-pin SSI front panel header

Input /Output

SATA (4) SATA-II and (2) SATA-III connectors

Voltage

Monitors voltage for CPU, memory, chipset &
power supply

Fan Total (6) 4-pin headers

System
Monitoring

Temperature

Monitors temperature for CPU & system
environment

Onboard Chipset Onboard Aspeed AST2300

AST2300 IPMI
Feature

IPMI 2.0 compliant baseboard management
controller (BMC) / Supports storage over IP and
remote platform-flash / USB 2.0 virtual hub

Server
Management

AST2300 iKVM
Feature

24-bit high quality video compression / 10/100
Mb/s MAC interface

Brand / ROM size AMI / 8MB

BIOS

Feature

Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power
on mode after power recovery / User-configurable
H/W monitoring / Auto-configurable of hard disk
types

Form Factor SSI EEB

Physical
Dimension

Board Dimension 12"x13" (305x330mm)

Operating System OS supported list Please visit out Web site for the latest update.

FCC (DoC) Class A

Regulation

CE (DoC) Yes

http://www.tyan.com

9

Operating Temp. 10° C ~ 35° C (50° F~ 95° F)

Non-operating
Temp.

- 40° C ~ 70° C (-40° F ~ 158° F)

Operating
Environment

In/Non-operating
Humidity

90%, non-condensing at 35° C

RoHS RoHS 6/6 Compliant Yes

Motherboard (1) S7055 Motherboard
Manual (1) Quick Installation Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield

Package Contains

Cable SATA (6) SATA signal cables

TYAN S7055 (S7055AGM3NR-2T [BTO])

Supported CPU
Series

Intel Xeon Processor E5-2600 Series

Socket Type / Q'ty (2) LGA2011

Thermal Design
Power (TDP)
wattage

150W

Processor

System Bus

Up to 8.0/ 7.2/ 6.4 GT/s with Intel QuickPath
Interconnect (QPI) support

Chipset PCH Intel C602

Supported DIMM
Qty

(4)+(4) DIMM slots

DIMM Type / Speed

DDR3/DDR3L 800 / 1066 / 1333 / 1600 RDIMM,
1066 / 1333 / 1600 UDIMM, 1066 / 1333 LRDIMM/
Support DDR3 Unbuffered and Register ECC

Capacity

Up to 256GB RDIMM / 64GB UDIMM / 256GB
LRDIMM

Memory channel 4 Channels per CPU

Memory

Memory voltage 1.5V or 1.35V

PCI-E

(4) PCI-E Gen3 x16 slots (x16 link, slot #7, #5, #3,
#1) / (1) PCI-E Gen2 x8 slot (x4 link, slot #4)

Expansion Slots

PCI (1) PCI 32-bit slot (slot #2)

Recommended
Barebone /
Chassis

4U Barebone FT48-B7055

Port Q'ty (1) GbE port, (2) 10 GbE ports

LAN

Controller Intel 82574L / Intel X540-AT2

Connector (10) SATA; (2) 6G + (8) 3G
Controller Intel C602

Storage SATA

Speed

(2) 6.0 Gb/s (blue color), (4) 3.0 Gb/s (black color)
+ (4) 3.0 Gb/s (mini-SAS connector)

http://www.tyan.com

10

RAID RAID 0/1/10/5 (Intel RST)

Connector type D-Sub 15-pin

Graphic

Chipset Aspeed AST2300
Chipset Realtek ALC262

Audio

Feature HDA 2.0 spec. complaint

USB

(11) USB 2.0 ports (4 at rear, 6 via cable, 1 type A
onboard)

COM

(1) DB-9 COM Connector (at rear, COM1) + (1)
Header (COM2)

VGA (1) D-Sub 15-pin VGA port
Audio LINE_IN, LINE_OUT, MIC_IN connectors
RJ-45 (1) GbE port / (2) 10Gbe Ports

Power

SSI 24-pin + 8-pin + 8-pin + 4-pin power
connectors

Front Panel (1) 2x12-pin SSI front panel header

Input /Output

SATA (4) SATA-II and (2) SATA-III connectors

Voltage

Monitors voltage for CPU, memory, chipset &
power supply

Fan Total (6) 4-pin headers

System
Monitoring

Temperature

Monitors temperature for CPU & system
environment

Onboard Chipset Onboard Aspeed AST2300

AST2300 IPMI
Feature

IPMI 2.0 compliant baseboard management
controller (BMC) / Supports storage over IP and
remote platform-flash / USB 2.0 virtual hub

Server
Management

AST2300 iKVM
Feature

24-bit high quality video compression / 10/100
Mb/s MAC interface

Brand / ROM size AMI / 8MB

BIOS

Feature

Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power
on mode after power recovery / User-configurable
H/W monitoring / Auto-configurable of hard disk
types

Form Factor SSI EEB

Physical
Dimension

Board Dimension 12"x13" (305x330mm)

Operating System OS supported list Please visit out Web site for the latest update.

FCC (DoC) Class A

Regulation

CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)

Non-operating
Temp.

- 40° C ~ 70° C (-40° F ~ 158° F)

Operating
Environment

In/Non-operating
Humidity

90%, non-condensing at 35° C

RoHS RoHS 6/6 Compliant Yes

http://www.tyan.com

11

Motherboard (1) S7055 Motherboard
Manual (1) Quick Installation Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield

Package Contains

Cable SATA (6) SATA signal cables

TYAN S7055 (S7055WGM3NR)

Supported CPU
Series

Intel Xeon Processor E5-2600 Series

Socket Type / Q'ty (2) LGA2011

Thermal Design
Power (TDP)
wattage

150W

Processor

System Bus

Up to 8.0/ 7.2/ 6.4 GT/s with Intel QuickPath
Interconnect (QPI) support

Chipset PCH Intel C602

Supported DIMM
Qty

(4)+(4) DIMM slots

DIMM Type / Speed

DDR3/DDR3L 800 / 1066 / 1333 / 1600 RDIMM,
1066 / 1333 / 1600 UDIMM, 1066 / 1333 LRDIMM/
Support DDR3 Unbuffered and Register ECC

Capacity

Up to 256GB RDIMM / 64GB UDIMM / 256GB
LRDIMM

Memory channel 4 Channels per CPU

Memory

Memory voltage 1.5V or 1.35V

PCI-E

(4) PCI-E Gen3 x16 slots (x16 link, slot #7, #5, #3,
#1) / (1) PCI-E Gen2 x8 slot (x4 link, slot #4) / (1)
PCI-E Gen3 x8 slot (x8 link, slot #8)

Expansion Slots

PCI (1) PCI 32-bit slot (slot #2)

Recommended
Barebone /
Chassis

4U Barebone FT48-B7055

Port Q'ty (3) GbE ports

LAN

Controller Intel 82574L / Intel I350-BT2

Connector (2) Mini-SAS connectors (totally support 8 ports)
Controller Intel C602 with TRK-5 upgrade ROM module
Speed 3.0 Gb/s

SAS

RAID RAID 0/1/10
Connector (6) SATA
Controller Intel C602
Speed (2) 6.0 Gb/s (blue color), (4) 3.0 Gb/s (black color)

Storage

SATA

RAID RAID 0/1/10/5 (Intel RST)

http://www.tyan.com

12

Connector type D-Sub 15-pin

Graphic

Chipset Aspeed AST2300

USB

(11) USB 2.0 ports (4 at rear, 6 via cable, 1 type A
onboard)

COM

(1) DB-9 COM Connector (at rear, COM1) + (1)
Header (COM2)

SAS (2) Mini-SAS (4-in-1) connectors
VGA (1) D-Sub 15-pin VGA port
RJ-45 (3) GbE ports

Power

SSI 24-pin + 8-pin + 8-pin + 4-pin power
connectors

Front Panel (1) 2x12-pin SSI front panel header

Input /Output

SATA (4) SATA-II and (2) SATA-III connectors

Voltage

Monitors voltage for CPU, memory, chipset &
power supply

Fan Total (6) 4-pin headers

System
Monitoring

Temperature

Monitors temperature for CPU & system
environment

Onboard Chipset Onboard Aspeed AST2300

AST2300 IPMI
Feature

IPMI 2.0 compliant baseboard management
controller (BMC) / Supports storage over IP and
remote platform-flash / USB 2.0 virtual hub

Server
Management

AST2300 iKVM
Feature

24-bit high quality video compression / 10/100
Mb/s MAC interface

Brand / ROM size AMI / 8MB

BIOS

Feature

Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power
on mode after power recovery / User-configurable
H/W monitoring / Auto-configurable of hard disk
types

Form Factor SSI EEB

Physical
Dimension

Board Dimension 12"x13" (305x330mm)

Operating System OS supported list Please visit out Web site for the latest update.

FCC (DoC) Class A

Regulation

CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)

Non-operating
Temp.

- 40° C ~ 70° C (-40° F ~ 158° F)

Operating
Environment

In/Non-operating
Humidity

90%, non-condensing at 35° C

RoHS RoHS 6/6 Compliant Yes

Motherboard (1) S7055 Motherboard
Manual (1) Quick Installation Guide

Package Contains

Installation CD (1) TYAN installation CD

http://www.tyan.com

13

I/O Shield (1) I/O Shield
Cable SATA (6) SATA signal cables

1.3 Software Specifications

For the latest OS (operation system) support and IPMI Configuration Guide, please
visit our Web site for information.

http://www.tyan.com

14

NOTE

http://www.tyan.com

15

Chapter 2: Board Installation

You are now ready to install your motherboard.

How to install our products right… the first time

The first thing you should do is read this user’s manual. It contains important
information that will make configuration and setup much easier. Here are some
precautions you should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the

antistatic bag. Unplug the power from your computer power supply and
then touch a safely grounded object to release static charge (i.e. power
supply case). For the safest conditions, MiTAC recommends wearing a
static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the

board, or flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors,

memory modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the antist ati c

bag that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your
chassis, as well as installing the processor, memory, disk drives and cables.

Caution!

1. To avoid damaging the motherboard and associated

components, do not use torque force greater than

7kgf/cm (6.09 lb/in) on each mounting screw for

motherboard installation.

2. Do not apply power to the board if it has been
damaged.

http://www.tyan.com

16

2.1 Board Image

S7055

This picture is representative of the latest board revision available at the time of
publishing. The board you receive may not look exactly like the above picture.

http://www.tyan.com

17

2.2 Block Diagram

S7055 Block Diagram

http://www.tyan.com

18

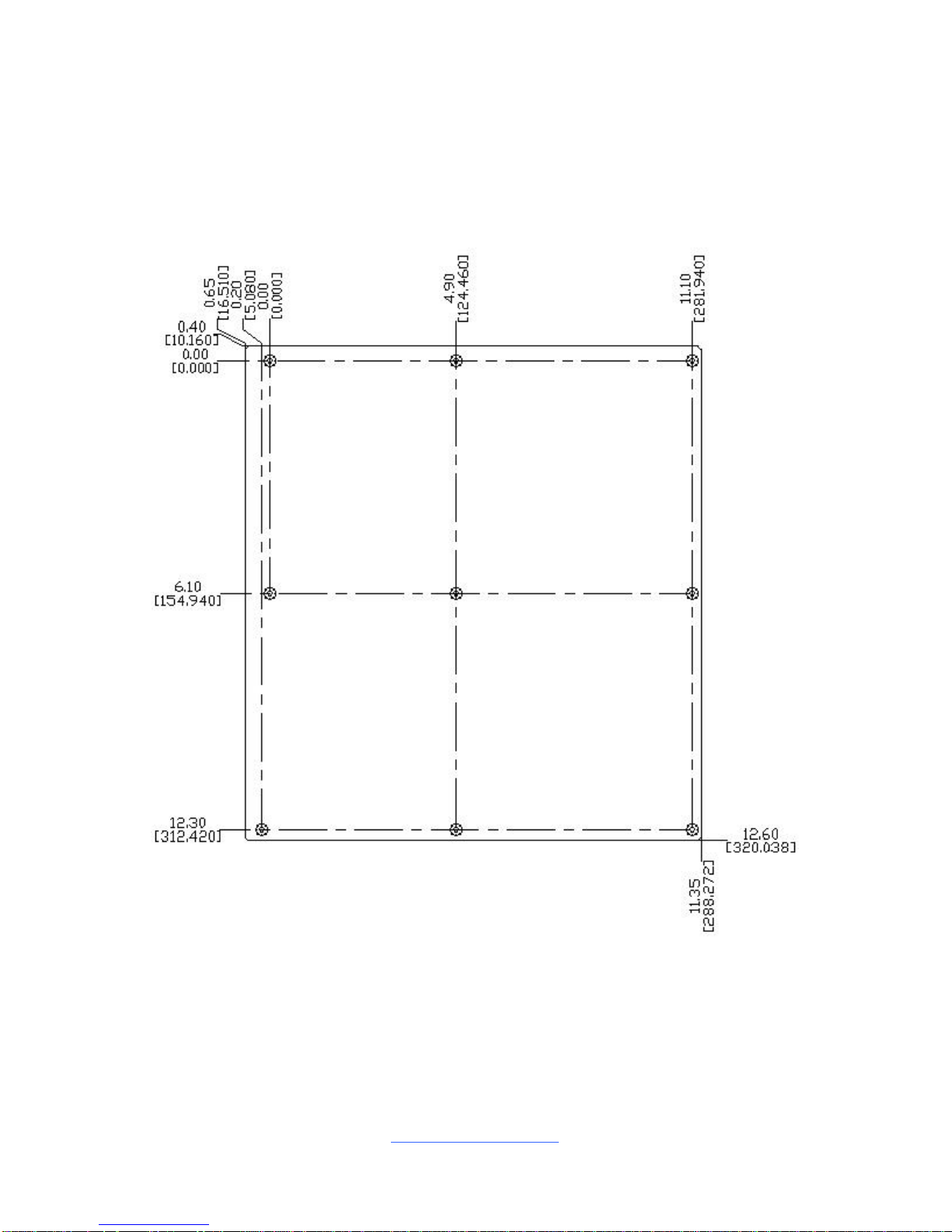

2.3 Mainboard Mechanical Drawing

http://www.tyan.com

19

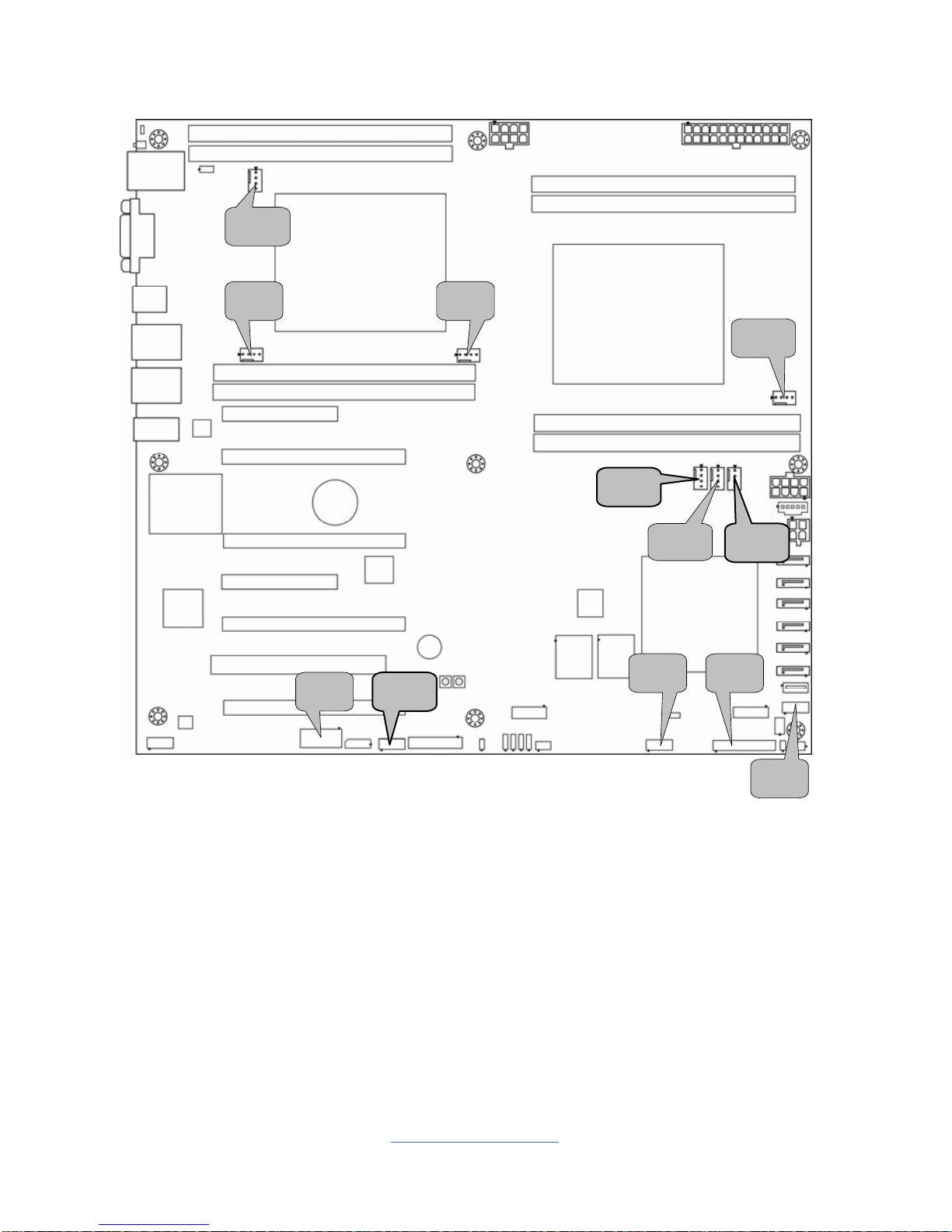

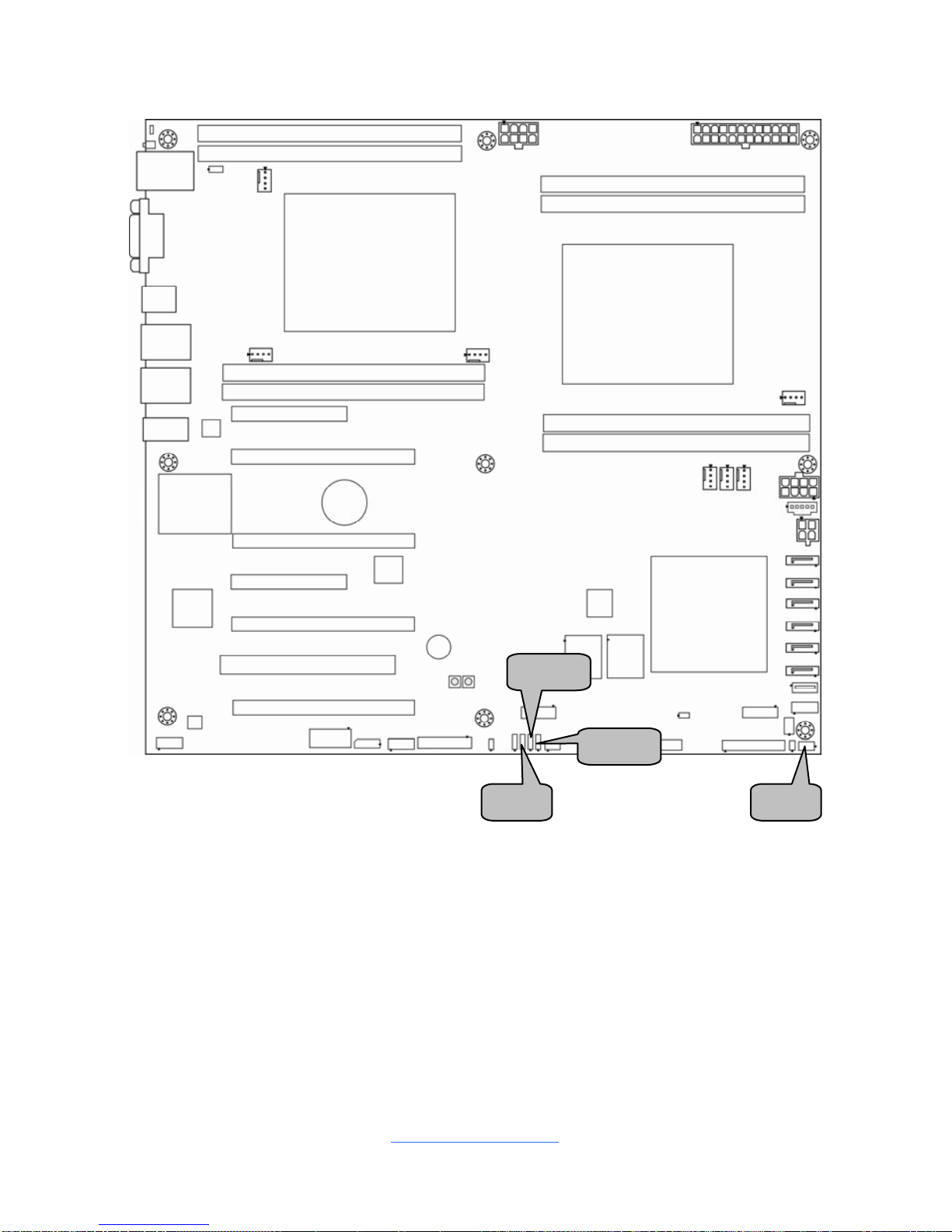

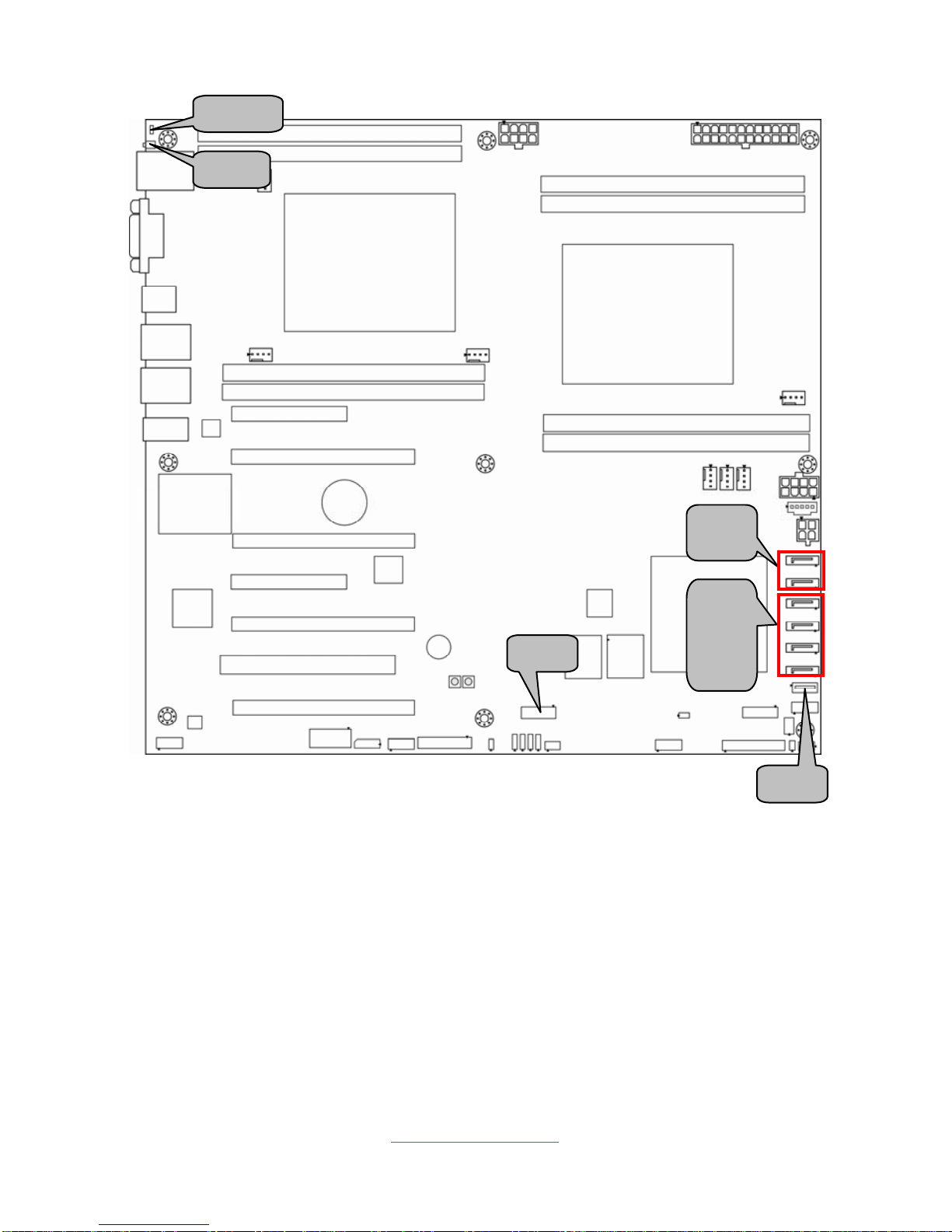

2.4 Board Parts, Jumpers and Connectors

This diagram is representative of the latest board revision available at the time of
publishing. The board you receive may not look exactly like the above diagram. The
DIMM slot numbers shown above can be used as a reference when reviewing the
DIMM population guidelines shown later in the manual. For the latest board
revision, please visit our web site at http://www.tyan.com

.

http://www.tyan.com

20

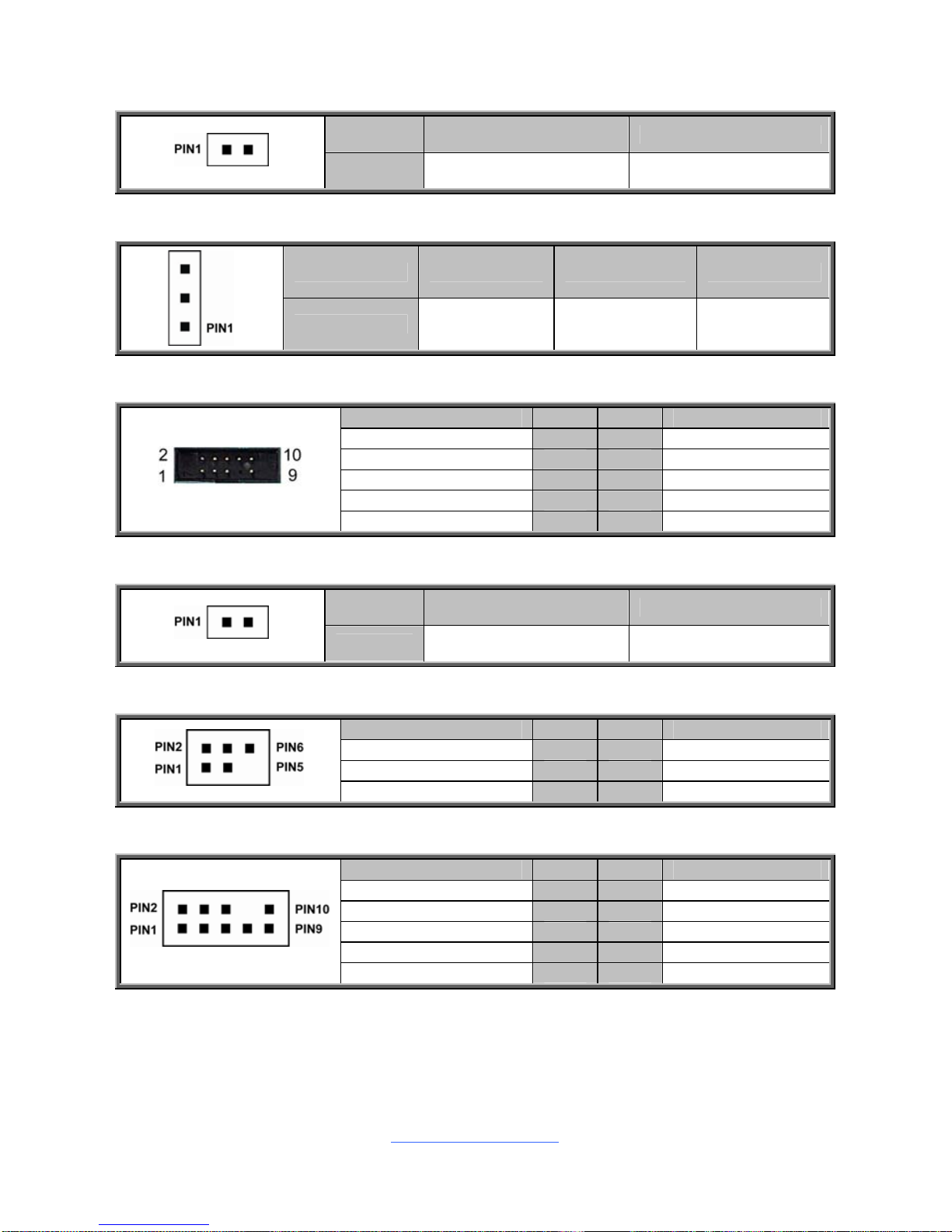

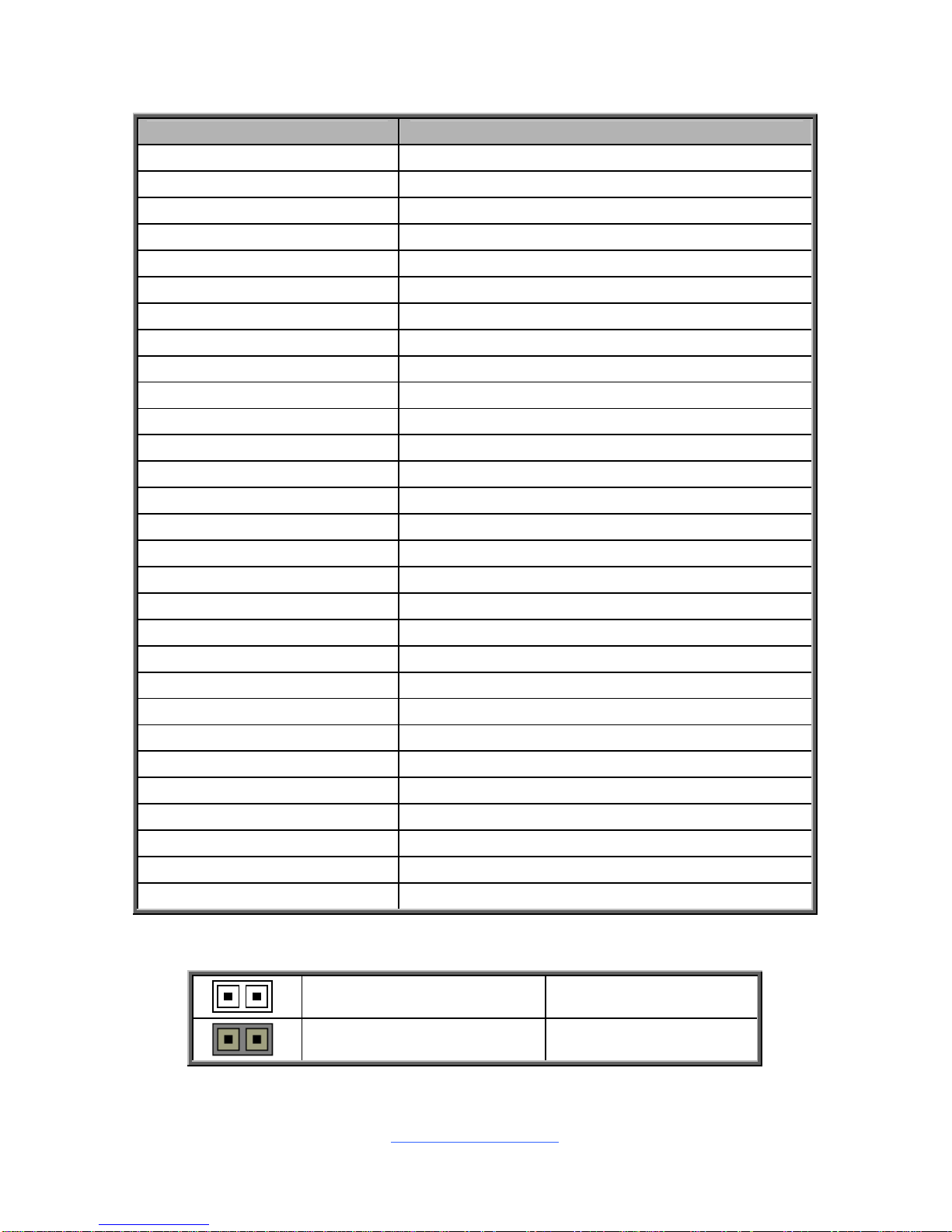

Jumpers & Connectors

Jumper/Connector Function

J1 Front Panel Audio Header
J8 ID LED SW Header
SW1/LED1 ID LED Button / ID LED
J18/J19/J27/J44/J46/J48/J50 4-pin FAN Connector
J20 COM2 Header
J22 IPMB Connector
J23/J40/J55 USB Front Panel Header
J26 Front Fan Connector Reserved for Barebone
J28 / J65 SSI 8-pin CPU1 / CPU0 Power Connector
J57 SSI 4-pin PCIE Power Connector
J43 SSI 24-pin Power Connector
J31 TYAN Module Header
J34 Patsburg Upgrade ROM Module Connector
J36 / J38 Mini SAS Connector
J56 Vertical Type-A USB Connector
J41 Chassis Intrusion Header
J45 Front Panel Header
J49 SATA SGPIO Header for BB HD Board
J51 HDD FAULT Header for BB HD Board
J52 LAN3 LED Header
J58 PSMI Connector
J63/J64 SATA3.0 Connector (SATA1/SATA0)
J62/J61/J60/J59 SATA2.0 Connector (SATA2/3/4/5)
J66 Flash Security Override Header
J67 PCH Software SAS RAID Key Header
JP8 Memory Slot Event Select Jumper
JP9 Clear CMOS Jumper
JP10 ME Firmware Update Jumper
JP11 ME Recovery Mode Jumper

Jumper Legend

OPEN - Jumper OFF

Without jumper cover

CLOSED - Jumper ON

With jumper cover

http://www.tyan.com

21

J48

J19

J46

J50

J18

J23

J44

J27

J20

J45

J55

J40

http://www.tyan.com

22

J18/J19//J27/J44/J46/J48/J50: 4-Pin FAN Connector

Pin 1 2 3 4

Signal GND VCC Tachometer PWM

Use this header to connect the cooling fan to your motherboard to keep the
system stable and reliable.

J18: SYS_FAN_5 J19: SYS_FAN_4 J27: CPU1_FAN
J44: SYS_FAN_3 J46: SYS_FAN_2 J48: SYS_FAN_1
J50: CPU0_FAN

J20: COM2 Header

Signal Pin Pin Signal

DCD 1 2 DSR
RXD 3 4 RTS
TXD 5 6 CTS
DTR 7 8 RI
GND 9 10 KEY

J45: Front Panel Header

Signal Pin Pin Signal

PWRLED+ 1 2 FP Power(3.3V standby)

KEY Pin 3 4 ID_LED+

PWRLED-(GND) 5 6 ID_LED-(GND)

HD_LED+ 7 8 Fault LED1-

HD_LED- 9 10 Fault LED2-

Power Switch+ 11 12 LAN1_ACTIVE_LED+

Power Switch-(GND) 13 14 LAN1_ACTIVE_LED-

Reset Switch+ 15 16 SMB_DATA

Reset Switch-(GND) 17 18 SMB_CLK

ID Switch+ 19 20 INTUDER#

TBMP Sensor 21 22 LAN2_ACTIVE_LED+

NMI Switch# 23 24 LAN2_ACTIVE_LED -

J23/J40/J55: USB Front Panel Header (blue)

Signal Pin Pin Signal

USB 5V Power 1 2 USB 5V Power

USB Data- 3 4 USB Data-

USB Data+ 5 6 USB Data+

GND 7 8 GND

KEY 9 10

NC

http://www.tyan.com

23

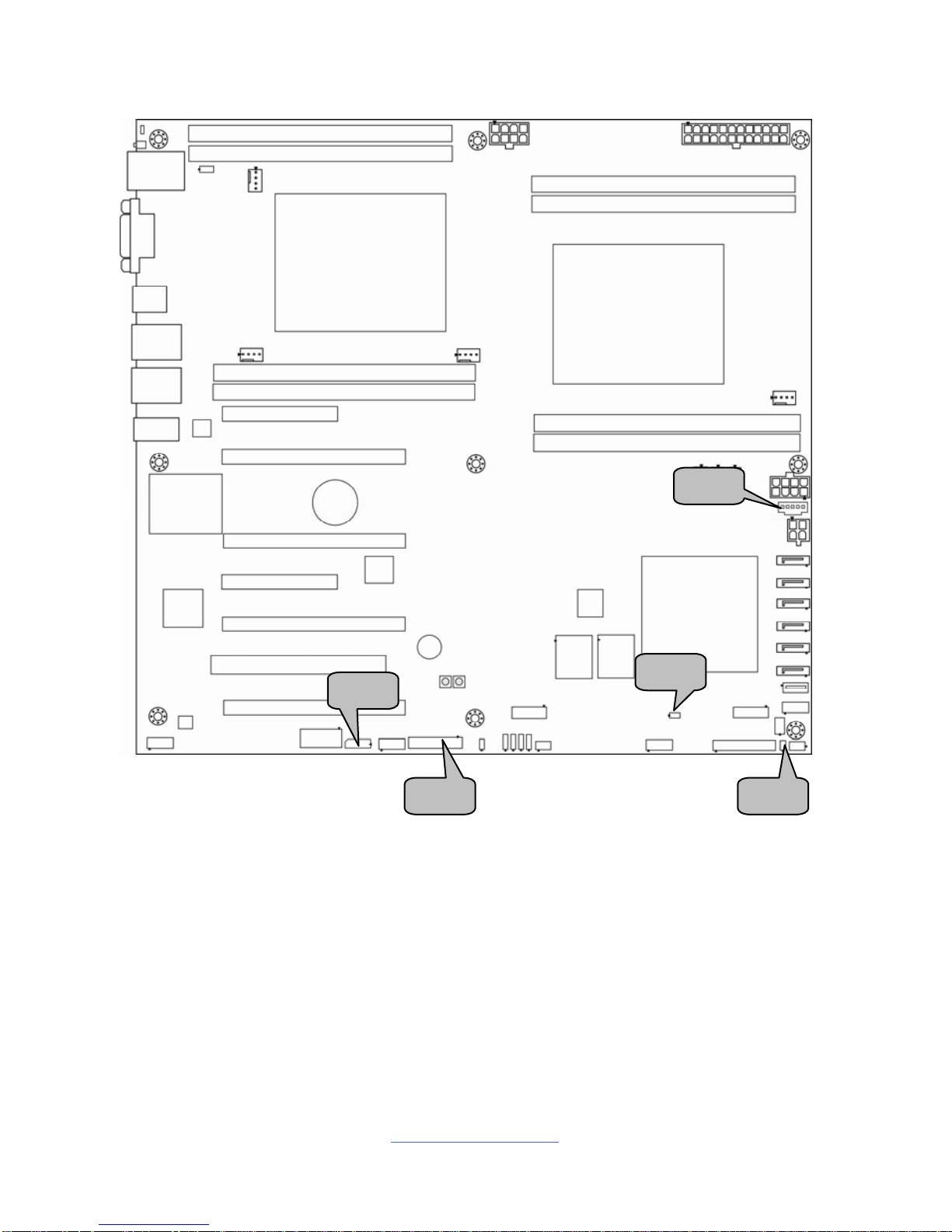

J22

J26

J41

J58

J52

http://www.tyan.com

24

J41: Chassis Intrusion Header

Pin 1 2

Open

Signal

INTRUSION

switch

INTRUSION

switch (GND)

Short (Default)

Open: Use this header to trigger the system
chassis intrusion alarm.
Short: Use this header to disable the system
chassis intrusion alarm.

J26: Front Fan Connector (Reserved for Barebone Fan Board)

Signal Pin Pin Signal

SYSFAN TACH1 1 2 SYSFAN TACH6
SYSFAN TACH2 3 4 SYSFAN TACH7
SYSFAN TACH3 5 6 SYSFAN TACH8
SYSFAN TACH4 7 8 SYSFAN TACH9
SYSFAN TACH5 9 10 SYSFAN TACH10

GND 11 12 KEY

SYSFAN PWM2 13 14 SYSFAN PWM1
SYSFAN TACH11 15 16 SMB DATA
SYSFAN TACH12 17 18 SMB CLK

VCC 19 20 SYSFAN PWM2

J22: IPMB Connector

Signal Pin Pin Signal

BMC SMB DATA 1 2 GND
BMC SMB CLK 3 4 NC

J58: PSMI Connector

Pin 1 2 3 4 5

Signal

PSMI
Clock

PSMI

Data

PSMI

Alert#

GND

3.3V

Standby

(option)

J52: LAN3 LED Header

Pin 1 2

Signal LAN3LED+ LAN3LED-

http://www.tyan.com

25

J31

SW1

J64

J62
J61
J60
J59

LED1

J56

http://www.tyan.com

26

J31: TYAN Module Header

Signal Pin Pin Signal

VCC3 1 2 P80_LFRAME­LPC_LAD0 3 4 KEY
LPC_LAD1 5 6 P80_RST­LPC_LAD2 7 8 GND
LPC_LAD3 9 10 CLK_33M_P80

LED1 / SW1: ID LED and ID LED Button

Pin Signal

+ P3V3_AUX

- ID_SW_L

State Color Description

On Blue System identified
Off Off System not identified

NOTE: The ID LED can be activated remotely using IPMI.

Please visit the TYAN Web Site at http://www.tyan.com

to download the

latest IPMI Configuration Guide for more details.

J56: Vertical Type-A USB Connector

Pin 1 2 3 4

Signal USB 5V Power USB Data- USB Data+ GND

J59/J60/J61/J62: SATA2.0 Connector

1 GND
2 SATA TX DP
3 SATA TX DN
4 GND
5 SATA RX DN
6 SATA RX DP

7

1

7 GND

Connects to the Serial ATA ready
drives via the Serial ATA cable.

J59: SATA5 J60: SATA4
J61: SATA3 J62: SATA2

J63/J64: SATA3.0 Connector

1 GND
2 SATA TX DP
3 SATA TX DN
4 GND
5 SATA RX DN
6 SATA RX DP

7

1

7 GND

Connects to the Serial ATA ready
drives via the Serial ATA cable.

J63: SATA1
J64: SATA0

http://www.tyan.com

27

J1 J66

J49

J34

J8

J49

http://www.tyan.com

28

J8: IDLED SW Header

Pin 1 2

Signal FP IDLED Switch FP IDLED Switch (GND)

J34: Patsburg Upgrade ROM Module Connector

Pin 1 2 3

Signal GND SKU KEY GND

J49: SATA SGPIO Header for BB HD Board

Signal Pin Pin Signal

SMB CLK 1 2 SGPIO DATA0
SMB DATA 3 4 SGPIO DATA1
GND 5 6 SGPIO LOAD
KEY 7 8 SGPIO CLOCK

3.3V Standby 8 10 BP HDD FAULT

J66: Flash Security Override Header

Pin 1 2

Signal V3P3_AUX AUD_AZA_SDO

J51: HDD Fault Header for BB HD Board

Signal Pin Pin Signal

VCC 1 2 SMB CLK
GND 3 4 SMB DATA
KEY 5 6 HDD FAULT

J1: Front Panel Audio Header

Signal Pin Pin Signal

MIC2 L 1 2

AGND

MIC2 R 3 4

NC

LINE2 R 5 6

MIC2 JD

SENSE

7 8

KEY

LINE2 L 8 10

LINE2 JD

http://www.tyan.com

29

JP9

JP10

J67

JP11

http://www.tyan.com

30

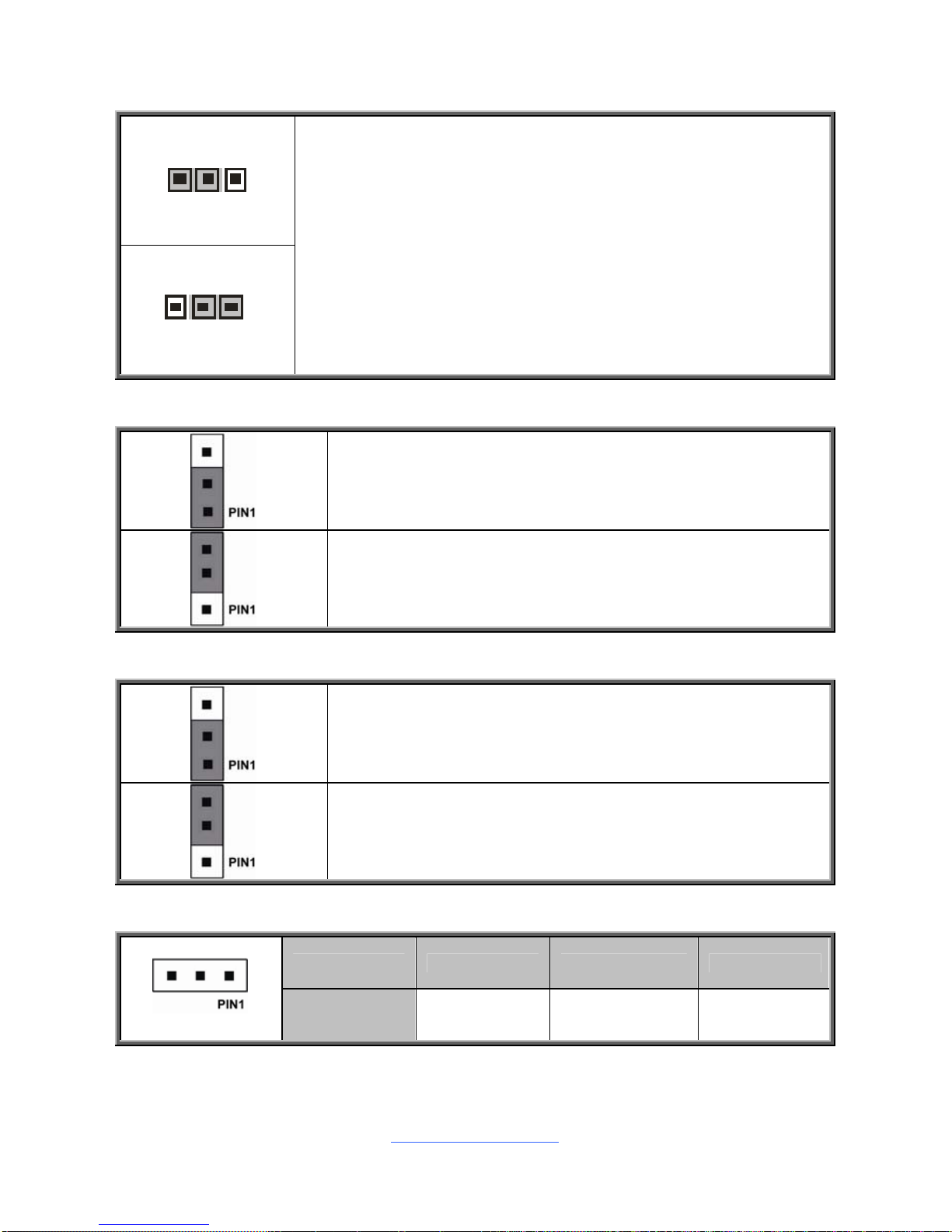

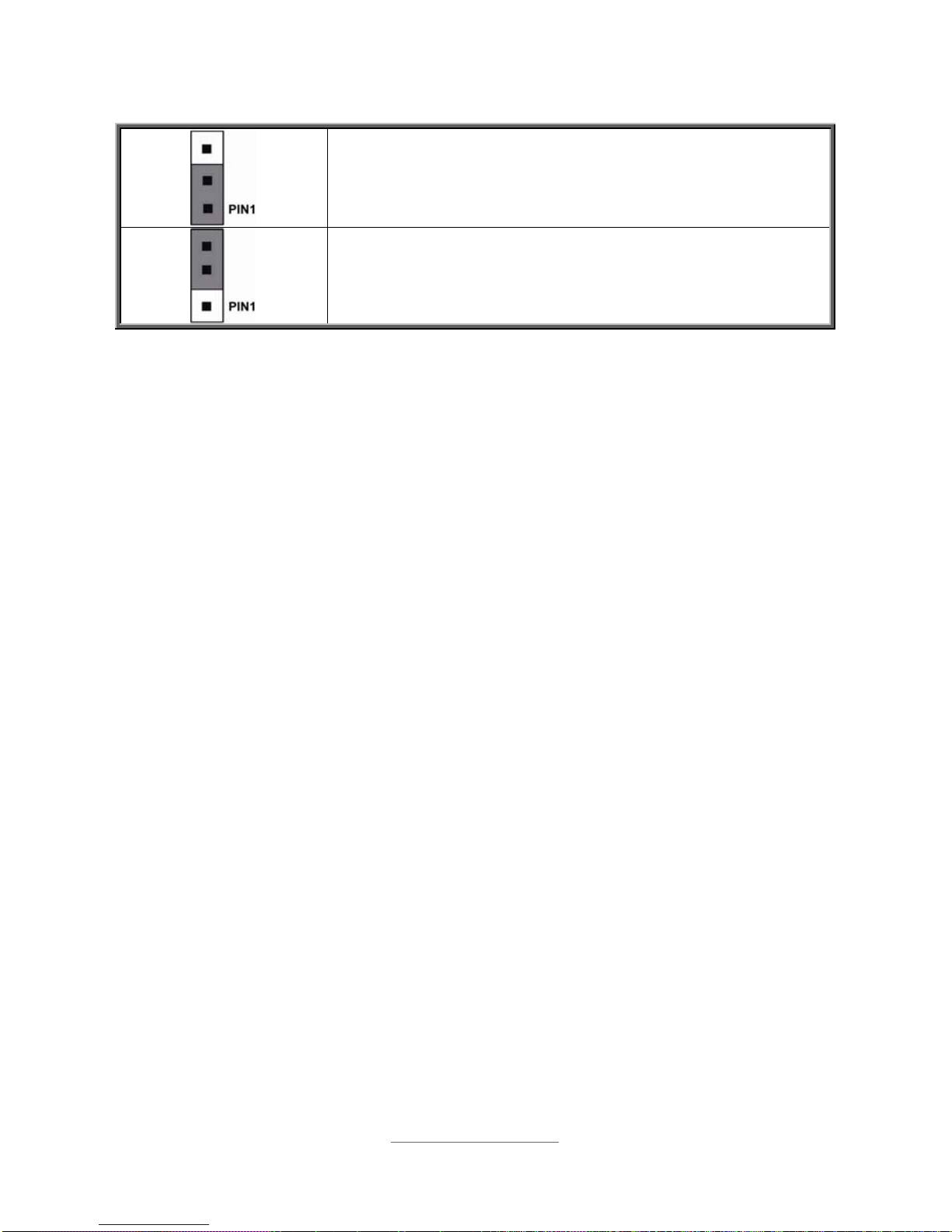

JP9: Clear CMOS Jumper

3

1

Normal (Default)

1

3

Clear CMOS

You can reset the CMOS settings by using this jumper. This
can be useful if you have forgotten your system/setup
password, or need to clear the system BIOS setting.

1. Power off system and disconnect power connectors from
the motherboard.

2. Remove the jumper from Pin_1 and Pin_2 (Default setting).

3. Move the jumper cap to close Pin_2 and Pin_3 for several
seconds to Clear CMOS.

4. Put jumper cap back to Pin_1 and Pin_2 (Default setting).

5. Reconnect power connectors to the motherboard and
power on system.

JP10: ME Firmware Update Jumper

Pin 1-2 Closed: no function (Default)

Pin 2-3 Closed: Update ME Firmware

JP11: ME Recovery Mode Jumper

Pin 1-2 Closed: Open (Default)

Pin 2-3 Closed: ME Recovery

J67: PCH Software SAS RAID Key Header

Pin 1 2 3

Signal GND PCH_RAID_KEY GND

http://www.tyan.com

31

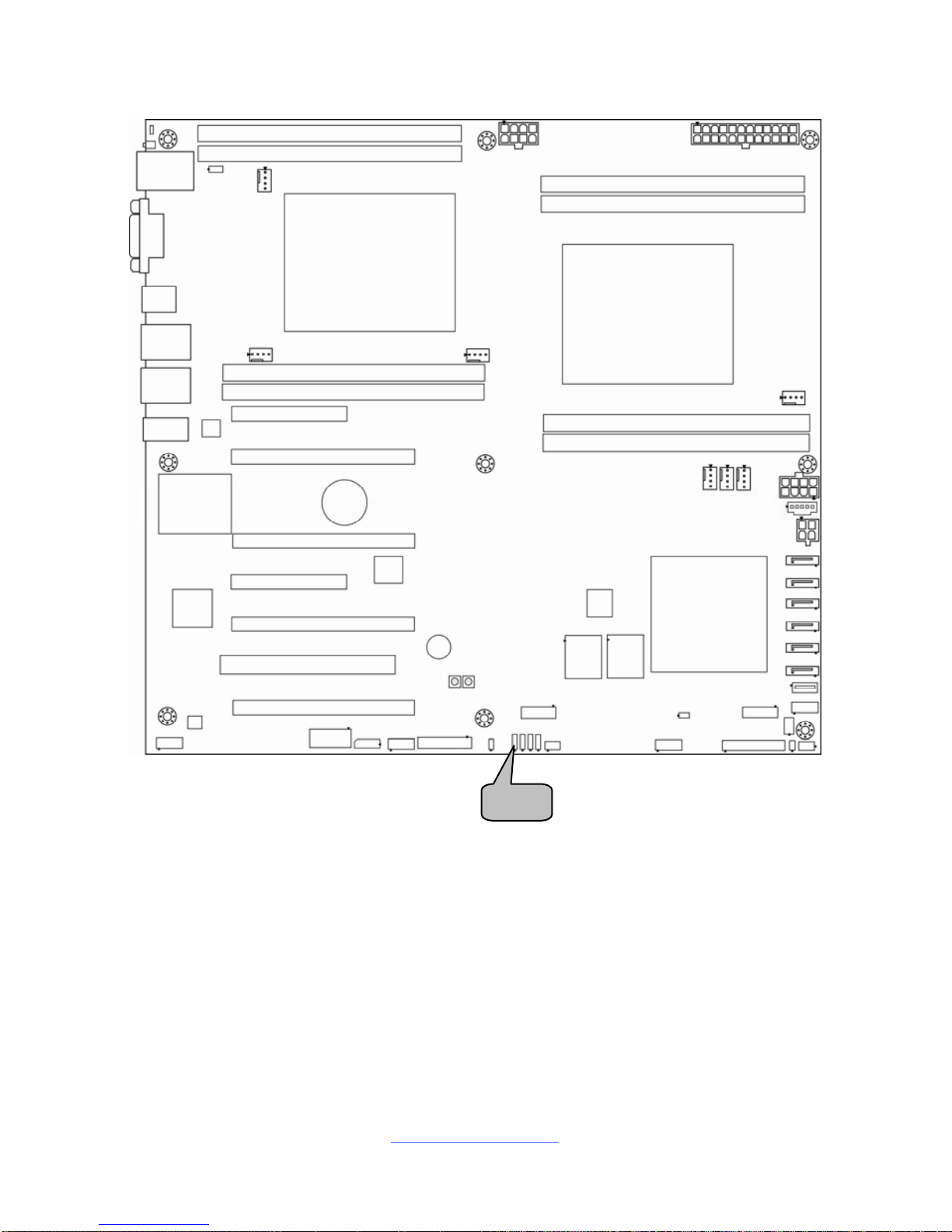

JP8

http://www.tyan.com

32

JP8: Memory Slot Event Select Jumper

Pin 1-2 Closed: Shutdown system (Default)

Pin 2-3 Closed: BMC record the event only

http://www.tyan.com

33

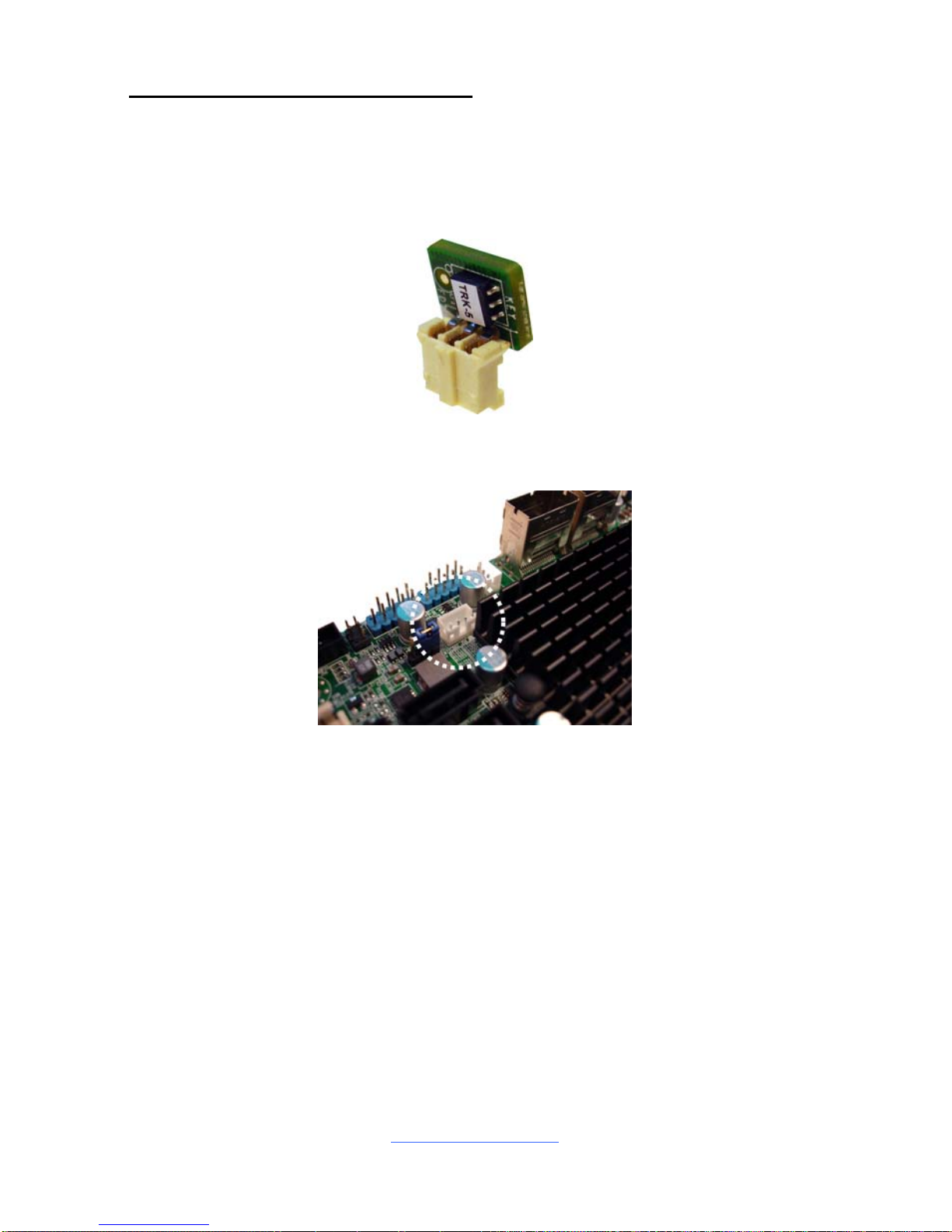

Patsburg Upgrade ROM Kit Installation

The following procedures illustrate how to install the Patsburg Upgrade ROM Kit on
the motherboard. Please note that the motherboard may not look like the board you
purchased. Therefore, the illustrations should be held for your reference only.

1. Take out the Patsburg Upgrade ROM Kit.

2. Locate the Patsburg Upgrade ROM Connector on your motherboard. Please
note that the picture is only an example and may not exactly match your
particular motherboard.

http://www.tyan.com

34

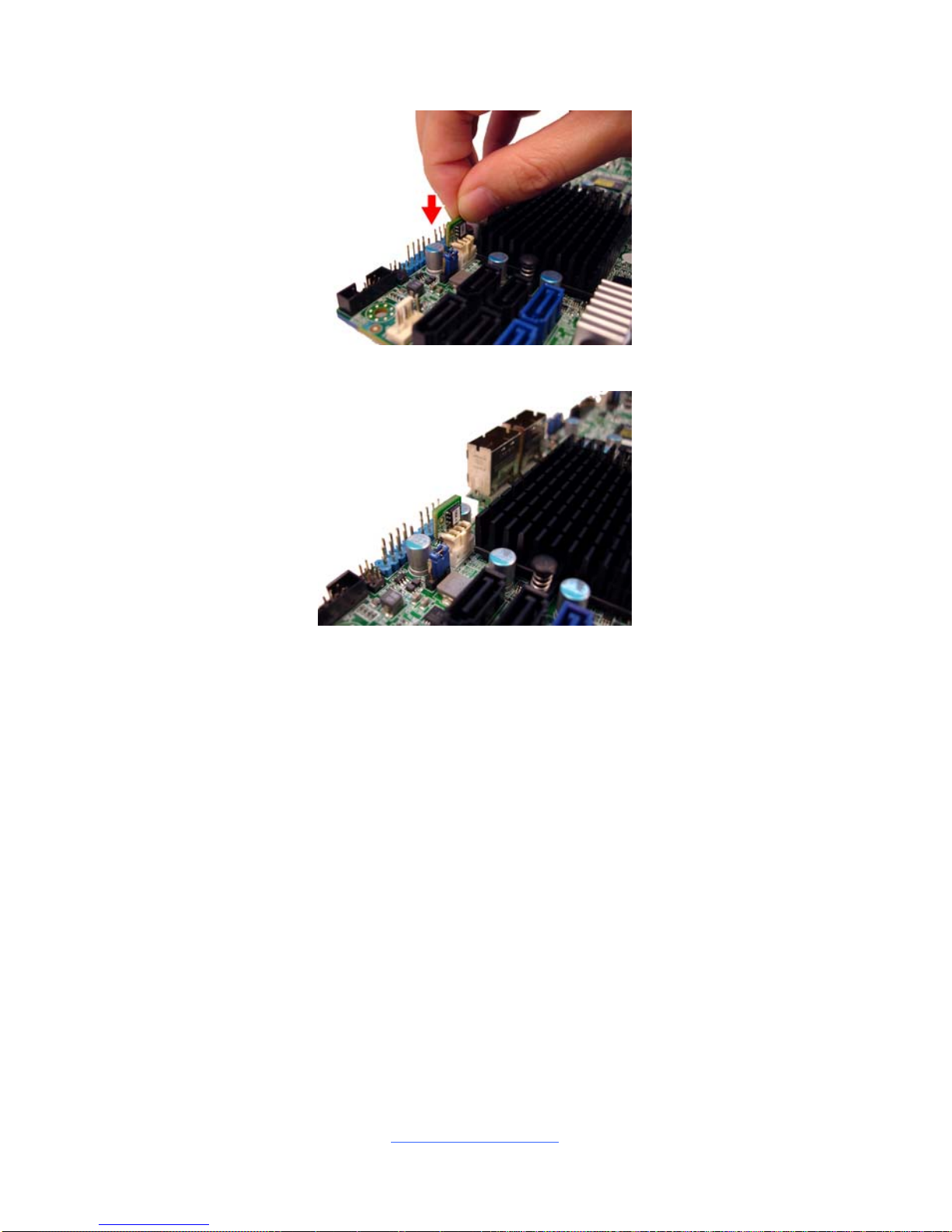

3. Insert the Upgrade ROM Kit in the direction as the arrow shows.

4. You have completed the Patsburg Upgrade ROM Kit installation.

http://www.tyan.com

35

2.5 Installing the Processor and Heatsink

The types of processors supported by the S7055 are listed in the 1.2 Hardware
Specifications section on page 5. Check our website at http://www.tyan.com

for

the latest list of validated Intel

®

processors for this specific motherboard.

NOTE: MiTAC is not liable for damage as a result of operating an

unsupported configuration.

Processor Installation (Socket R for Intel Sandy Bridge CPU)

Follow the steps described later to install the processors and heat sinks.
The following pictures illustrate how to install the Intel

®

Sandy Bridge processor on
the Socket R. Please note that the motherboard may not look e xactly like the one
you purchased. Therefore, the illustrations should be held for your reference only.

NOTE: Please save and replace the CPU protection cap when returni ng for service.

1. Locate the CPU socket.

2. Pull the CPU lever slightly away from the socket and then push it to a fully open

position.

3. Lift the socket cover to a fully open position.

http://www.tyan.com

36

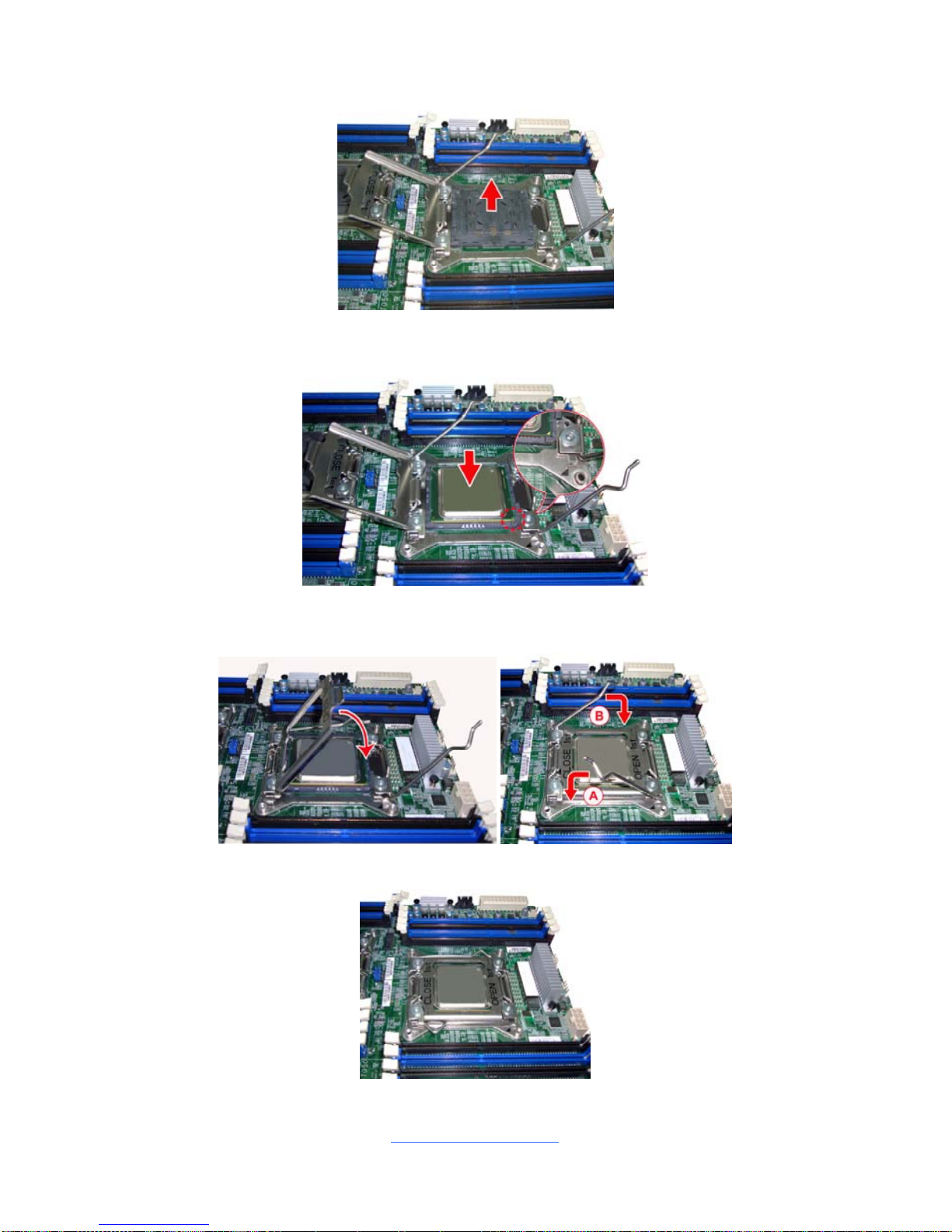

4. Take off the CPU protection cap.

5. Place the CPU in the CPU socket and make sure that the gold arrow is located

in the right direction with two notches properly aligned.

6. Close th e socket cover and press the CPU socket lever down to lock the CPU

in place.

7. The CPU installation is no w complete.

http://www.tyan.com

37

Heat sink Installation

After installing the processor, you will need to proceed to install the heat sink. The
CPU heat sink will ensure that the processor do not overheat and continue to
operate at maximum performance for as long as you own them. An overheated
processor is dangerous to the motherboard. The processors will overheat within
seconds, enter thermal protection, and shut down if heatsinks are not installed.

For the safest method of installation and information on choosing the appropriate
heat sink, using heat sinks validated by Intel®. Please refer to the Intel® website:

http://www.intel.com

The following diagram illustrates how to install the heatsink on the Intel

®

Sandy

Bridge Socket R:

1. Place the heat sink on top of the CPU and se cure it to the motherboard with 4

screws.

2. Connect the fan power cord.

http://www.tyan.com

38

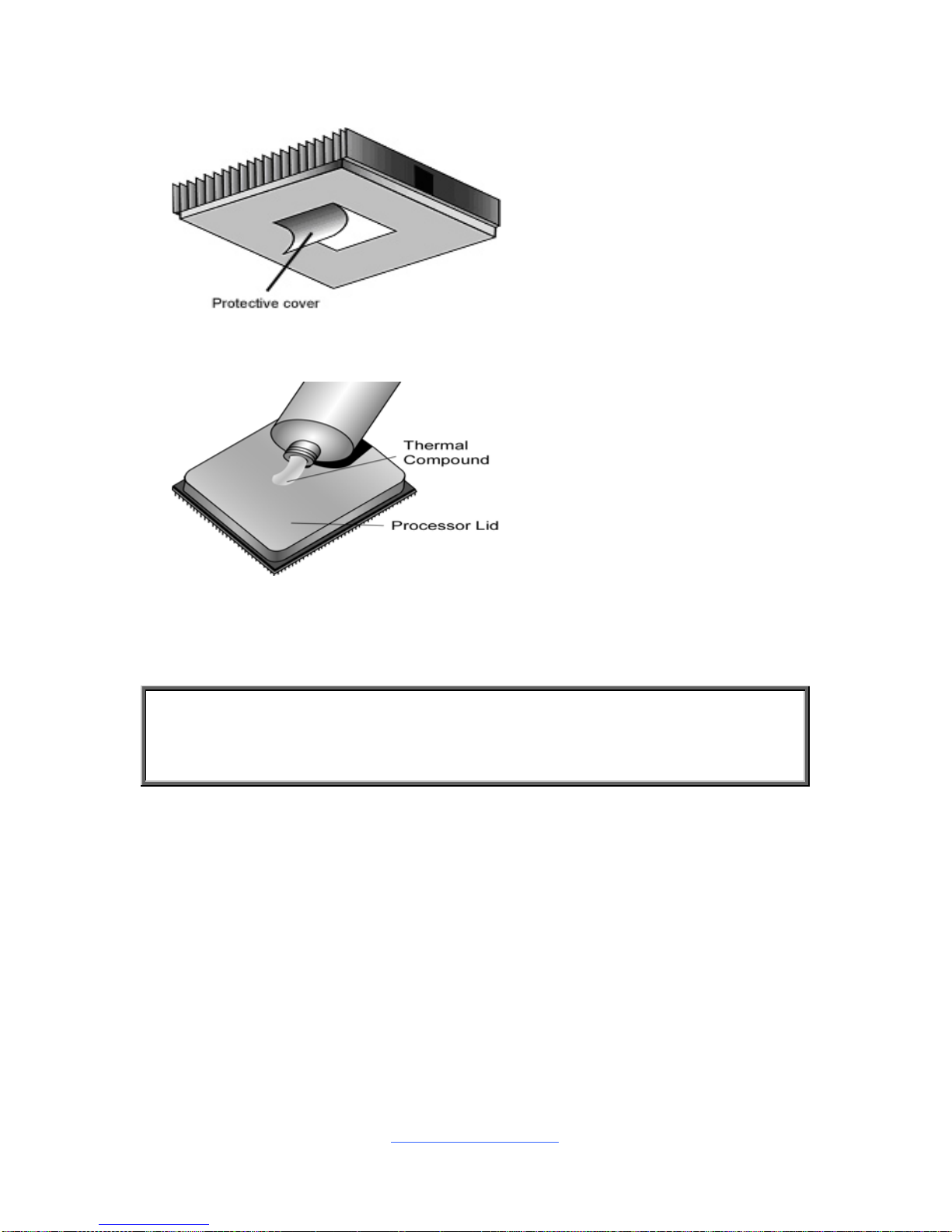

2.6 Thermal Interface Material

There are two types of
thermal interface materials
designed for use with the
processors.

The most common material
comes as a small pad
attached to the heat sink at
the time of purchase. There
should be a protective cover
over the material. Take care
not to touch this material.
Simply remove the protective
cover and place the heat
sink on the processor.

The second type of interface
material is usually packaged
separately. It is commonly
referred to as ‘thermal
compound’. Simply apply a
thin layer on to the CPU lid
(applying too much will
actually reduce the cooling).

NOTE: Always check with the manufacturer of the heat sink & processor to

ensure that the thermal interface material is compatible with the processor
and meets the manufacturer’s warranty requirements.

http://www.tyan.com

39

2.7 Tips on Installing Motherboard in Chassis

Before installing your motherboard, make sure your chassis has the necessary
motherboard support studs installed. These studs are usually metal and a re gold in
color. Usually, the chassis manufacturer will pre-install the support studs. If you ar e
unsure of stud placement, simply lay the motherb oard inside the chassis and align
the screw holes of the motherboard to the studs inside the case. If there are any
studs missing, you will know right away since the motherboard will not be able to b e
securely installed.

Note: Be especially careful to look for extra stand-offs. If there are any stand-offs
present that are not aligned with a mounting hole on the motherboard, it will likely
short components on the back of the motherboard when installed. This will cause
malfunction and/or damage to your motherboard.

http://www.tyan.com

40

Some chassis include plastic studs instead of metal. Although the plastic studs are
usable, MiTAC recommends using metal studs with screws that will fasten the
motherboard more securely in place.

Below is a chart detailing what the most common motherboard studs look like an d
how they should be installed.

http://www.tyan.com

41

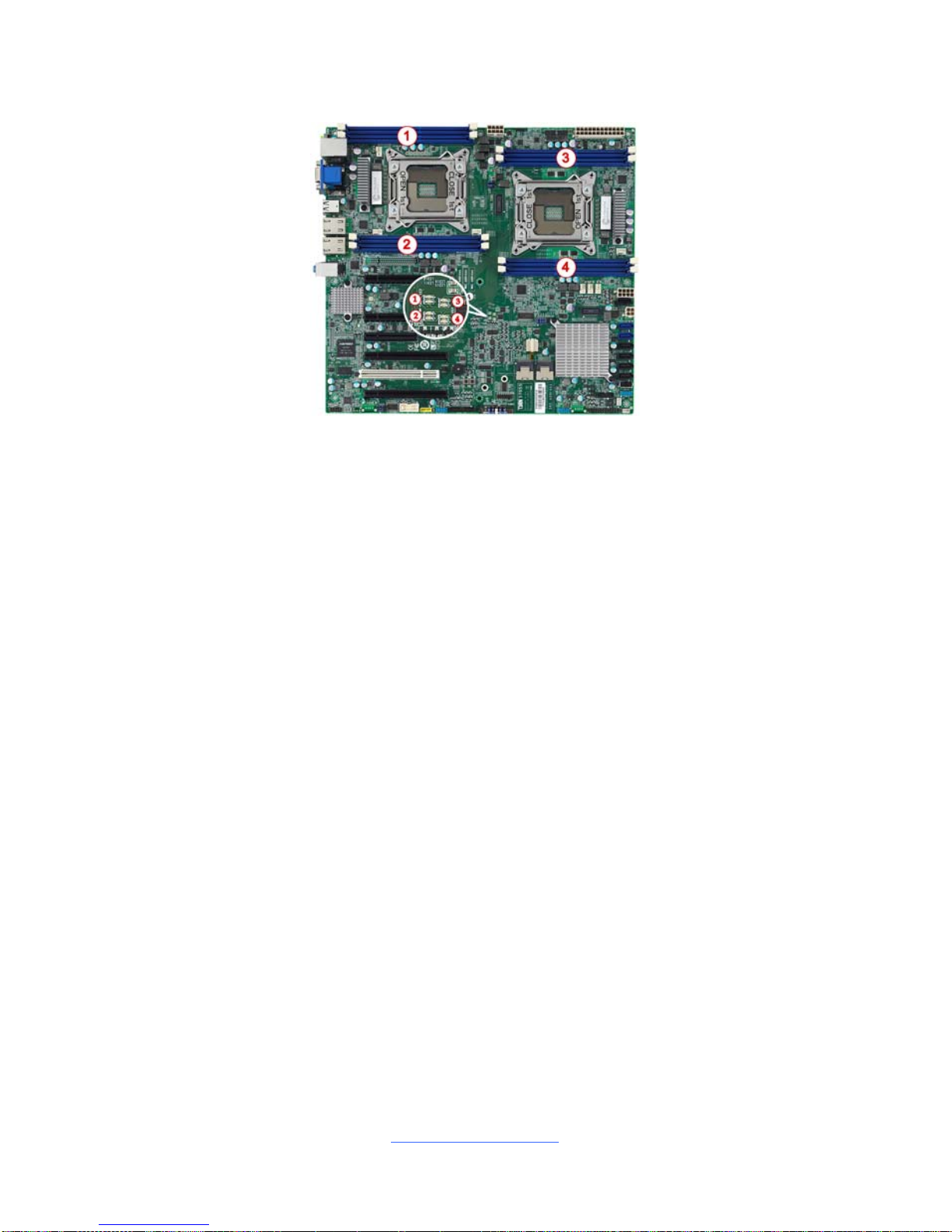

2.8 Installing the Memory

Before installing memory, ensure that the memory you have is compatible with the
motherboard and processor. Check the TYAN Web site at http://www.tyan.com

for

details of the type of memory recommended for your motherboard.

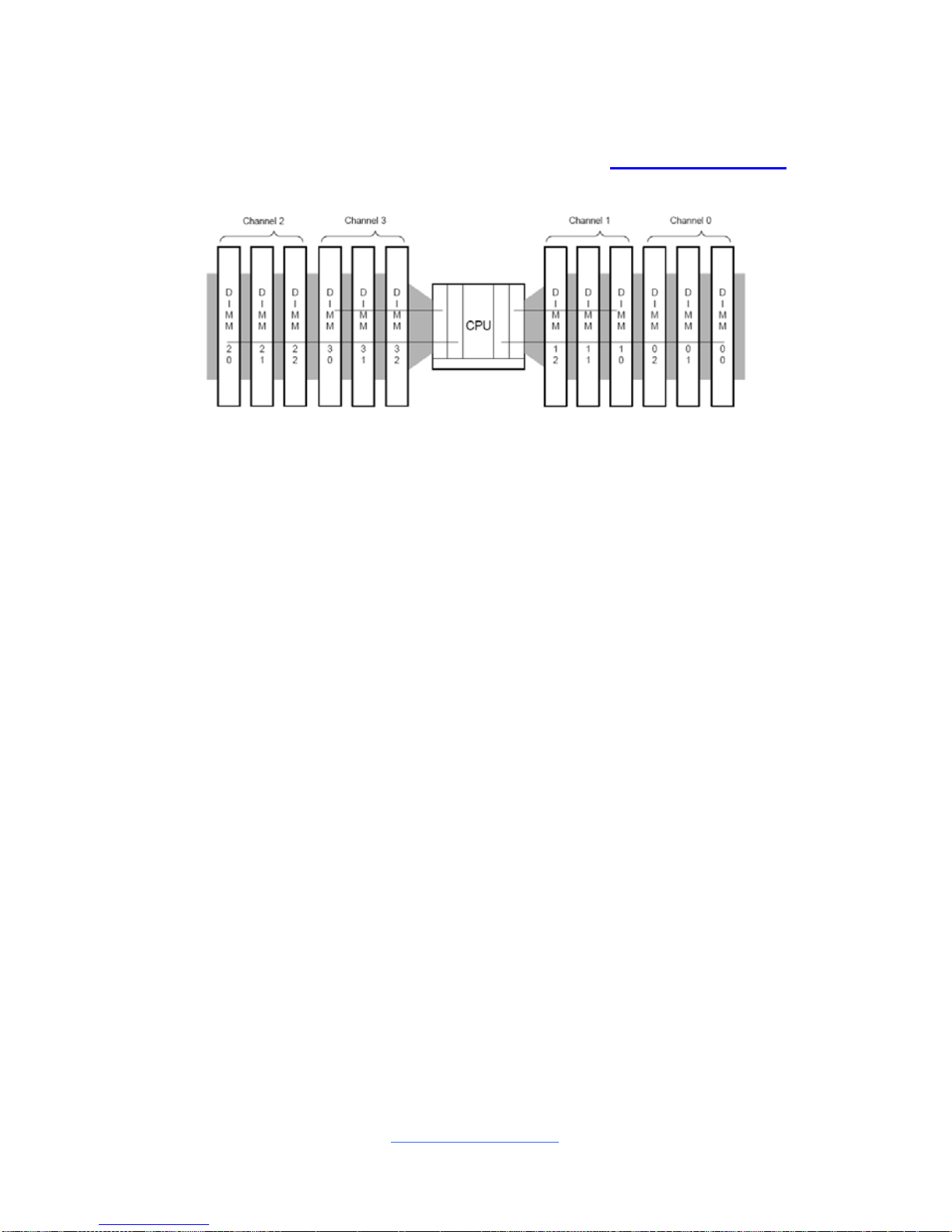

 The Sandy Bridge-EP/EX processor is a quad-channel design with a total of 4

DDR3 channels

 This platform supports Unbuffered DDR3, Registered DDR3, and LR DIMM

(Load Reduced DIMM) DDR3 for buffered memory solutions demanding
higher capacity memory subsystems.

 DDR3 data transfer rates of 1066, 1333, and 1600 MT/s are supported
 Each memory channel is 72 or 64 bits wide for ECC or Non-ECC
 Both 1.5V and 1.35V DDR3 DIMMs are supported
 Gb, 2-Gb, and 4-Gb DDR3 DRAM technologies are supported for these

devices:
— UDIMMs x8, x16
— RDIMMs x4, x8
— LRDIMM x4, x8

 Up to 8 ranks are supported per memory channel. DIMMS may be 1, 2 or 4

ranks per module.

 All installed memory will automatically be detected. No jumpers or settings

need to be changed for memory detection.

 All memory must be of the same type and density. Registered, Unbuffered,

and LRDIMM memory types can NOT be mixed and matched on the

same motherboard.

http://www.tyan.com

42

Recommended Memory Population Table

Single CPU Installed

(CPU0 only)

Quantity of

memory installed

1 2 3 4

CPU0_DIMM_A0

√ √ √ √

CPU0_DIMM_B0

√ √ √

CPU0_DIMM_C0

√ √

CPU0_DIMM_D0

√

NOTE:

1. √ indicates a populated DIMM slot.

2. Use paired memory installation for max performance.

3. Populate the same DIMM type in each channel, specifically

- Use the same DIMM size

- Use the same # of ranks per DIMM

4. Dual-rank DIMMs are recommended over single-rank DIMMs.

5. Un-buffered DIMM can offer slightly better performance than registerd DIMM if
populating only a single DIMM per channel.

6. Always install with CPU0 Socket and DIMM_0 Slot first, following the alphabetical order.

Dual CPU installed (CPU0 and CPU1)

Quantity of

memory installed

2 3 4 5 6 7 8

CPU0_DIMM_A0

√ √ √ √ √ √ √

CPU0_DIMM_B0

√ √ √ √ √ √

CPU0_DIMM_C0

√ √ √ √

CPU0_DIMM_D0

√ √

CPU1_DIMM_A0

√ √ √ √ √ √ √

CPU1_DIMM_B0

√ √ √ √ √

CPU1_DIMM_C0

√ √ √

CPU1_DIMM_D0

√

http://www.tyan.com

43

Intel®Xeon®processor E5-2600/4600 product families UDIMM Support

1.35V 1.50V Ranks Per DIMM &

Data Width

Memory Capacity per DIMM

1DPC 1DPC

SRx8 Non-ECC 1 GB 2GB 4GB N/A 1066, 1333, 1600
DRx8 Non-ECC 2GB 4GB 8GB N/A 1066, 1333, 1600
SRx16 Non-ECC 512 MB 1GB 2GB N/A 1066, 1333, 1600
SRx8 ECC 1GB 2GB 4GB 1066 1066, 1333, 1600
DRx8 ECC 2GB 4GB 8GB 1066 1066, 1333, 1600

NOTE 1: The blue blocks indicate that the DRAM Densities are supported but not validated.
NOTE 2: The grey blocks indicate that the DRAM Densities are supported and validated.
NOTE 3: 1DPC => One dimm per channel

 Supported DRAM Densities are 1Gb, 2Gb and 4Gb. Only 2Gb and 4Gb are validated

by Intel.

 Command Address Timing is 1N for 1DPC and 2N for 2DPC.
 Romley-EP/EX platform does not support 3DPC when using UDIMMs.

Intel®Xeon®processor E5-2600/4600 product families LRDIMM Support

1.35V 1.50V Ranks Per DIMM & Data

Width

Memory Capacity

per DIMM

1DPC 1DPC

QRx4 (DDP) 16GB 32GB 1066 1066, 1333
QRx8 (P) 8GB 16GB 1066 1066, 1333

NOTE: The grey blocks indicate that the DRAM Densities are supported and validated.

 Physical Rank is used to calculate DIMM Capacity.
 Supported and validated DRAM Densities are 2Gb and 4Gb.
 Command Address Timing is 1N.
 The speeds are estimated targets and will be verified through simulation.
 For 3SPC/3DPC -Rank Multiplication (RM) >= 2.
 DDP -Dual Die Package DRAM stacking. P –Planer monolithic DRAM Die.
 Romley-EP/EX platform does not support 3DPC when using E5-2400 LRDIMMs.

http://www.tyan.com

44

Intel®Xeon®processor E5-2600/4600 product families RDIMM Support

1.35V 1.50V

Ranks
Per
DIMM &
Data
Width

Memory Capacity per
DIMM

1DPC 1DPC

SRx8 1GB 2GB 4GB 1066, 1333 1066, 1333, 1600
DRx8 2GB 4GB 8GB 1066, 1333 1066, 1333, 1600
SRx4 2GB 4GB 8GB 1066, 1333 1066, 1333, 1600
DRx4 4GB 8GB 16GB 1066, 1333 1066, 1333, 1600
QRx4 8GB 16GB 32GB 800 1066
QRx8 4GB 8GB 16GB 800 1066

NOTE 1: The blue blocks indicate that the DRAM Densities are supported but not

validated.

NOTE 2: The grey blocks indicate that the DRAM Densities are supported and validated.
NOTE 3: The yellow blocks indicate that the DRAM Densities are supported with limited

validated.

 Supported DRAM Densities are 1Gb, 2Gb and 4Gb. Only 2Gb and 4Gb are validated

by Intel.

 Command Address Timing is 1N.
 QR RDIMM are supported but not validated by Intel/PMO in a homogenous

environment. The coverage will have limited system level testing, no signal integrity
testing, and no interoperability testing. The passing QR RDIMMs will be web posted.

http://www.tyan.com

45

Memory Installation Procedure

Follow these instructions to install memory modules into the S7055.

1. Press the locking levers in the direction shown in the following illustration.

2. Align the memory module with the socket. The memory module is keyed to fit

only one way in the socket.

3. Seat the module firmly into the socket by gently pressing down until it sits

flush with the socket. The locking levers pop up into place.

KEY SLOT

http://www.tyan.com

46

Memory Fault LED

There are 8 DIMM Fault LEDs on the motherboard. The DIMM Fault LEDs are off
when the DIMM slots work normally. However, if any of the DIMM slots failed, the
DIMM Fault LED will turn red to warn you and help you identify the failed slot.

http://www.tyan.com

47

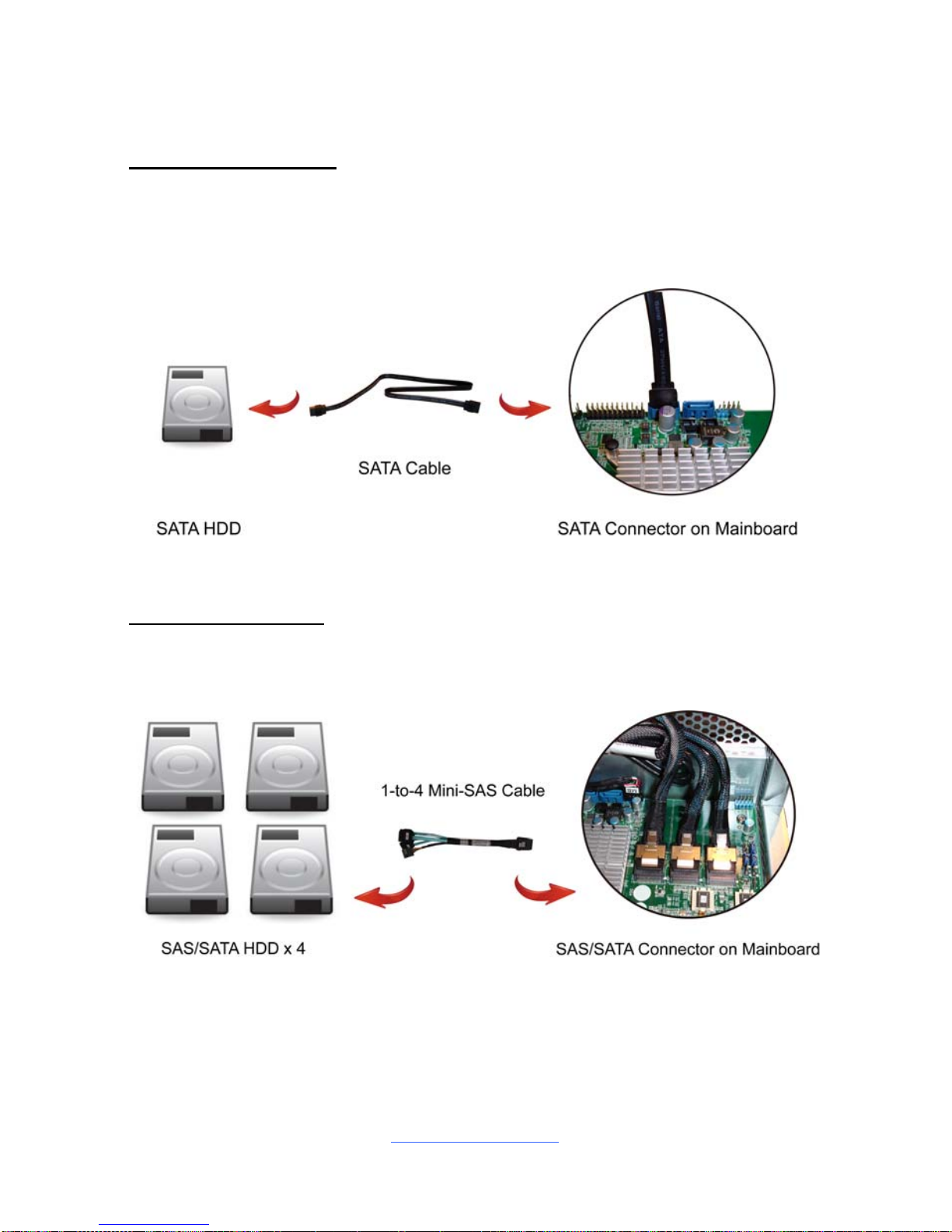

2.9 Attaching Drive Cables

Attaching SATA Cables

The following illustrates how to make a SATA Cable connection. If you are in ne ed
of SATA/SAS cables or power adapters please contact your local sales
representative.

Attaching SAS Cables

The following illustrates how to make a SAS Cable connection. If you are in need of
SATA/SAS cables or power adapters please contact your local sales representative.

http://www.tyan.com

48

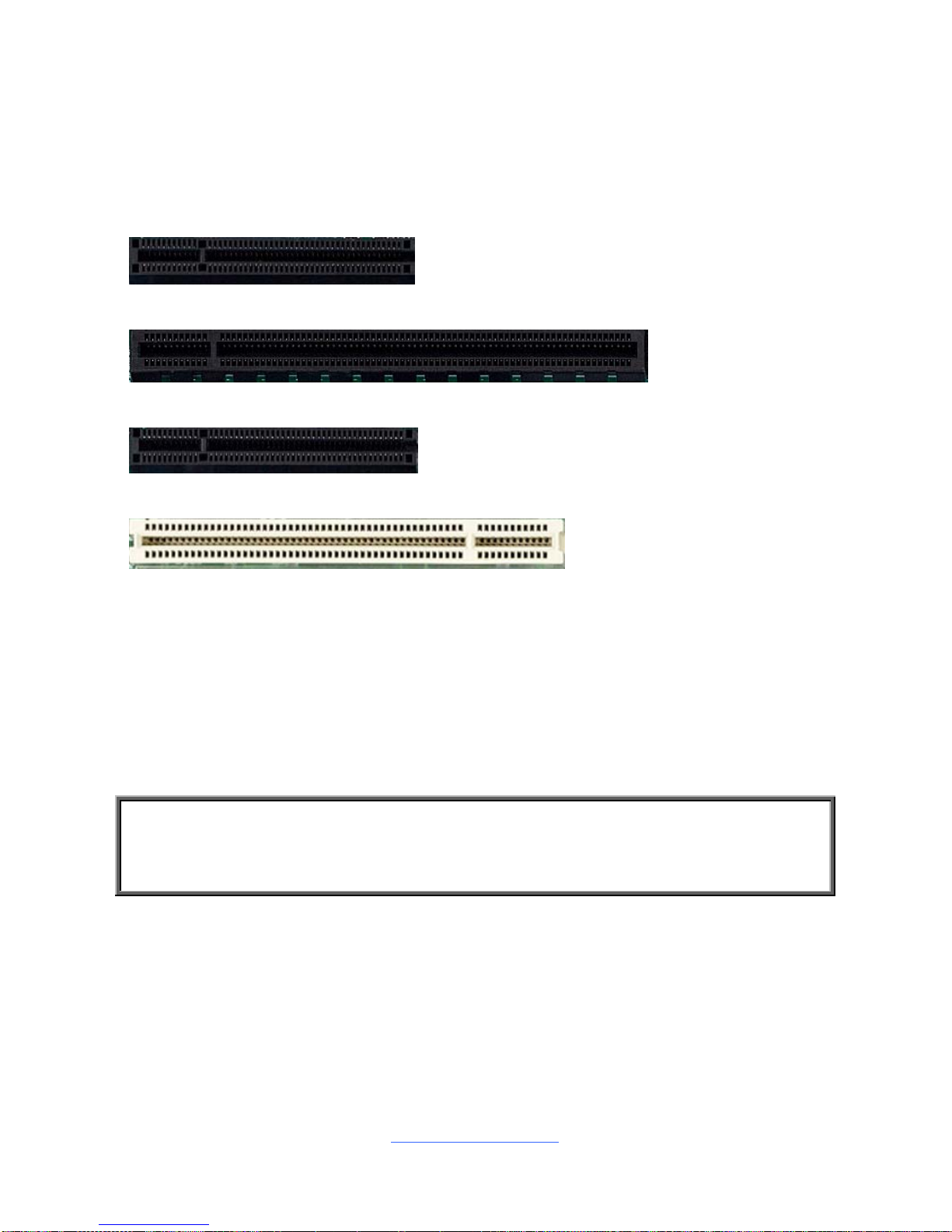

2.10 Installing Add-In Cards

Before installing add-in cards, it’s helpful to know if they are fully compatible with
your motherboard. For this reason, we’ve provided the diagrams below, showing
the slots that may appear on your motherboard.

PCI-E Gen3 x8 slot (x8 link)

PCI-E Gen3 x16 slot (x16 link)

PCI-E Gen2 x8 slot (x4 link)

PCI 32-bit/33MHz slot

Simply find the appropriate slot for your add-in card and insert the card firmly. Do
not force any add-in cards into any slots if they do not seat in place. It is better to try
another slot or return the faulty card rather than damaging both the motherboard
and the add-in card.

TIP: It’s a good practice to install add-in cards in a staggered manner rather than
making them directly adjacent to each other. Doing so allows air to circulate within
the chassis more easily, thus improving cooling for all installed devices.

NOTE: You must always unplug the power connector from the motherb oard before

performing system hardware changes to avoid damaging the board or expansion
device.

http://www.tyan.com

49

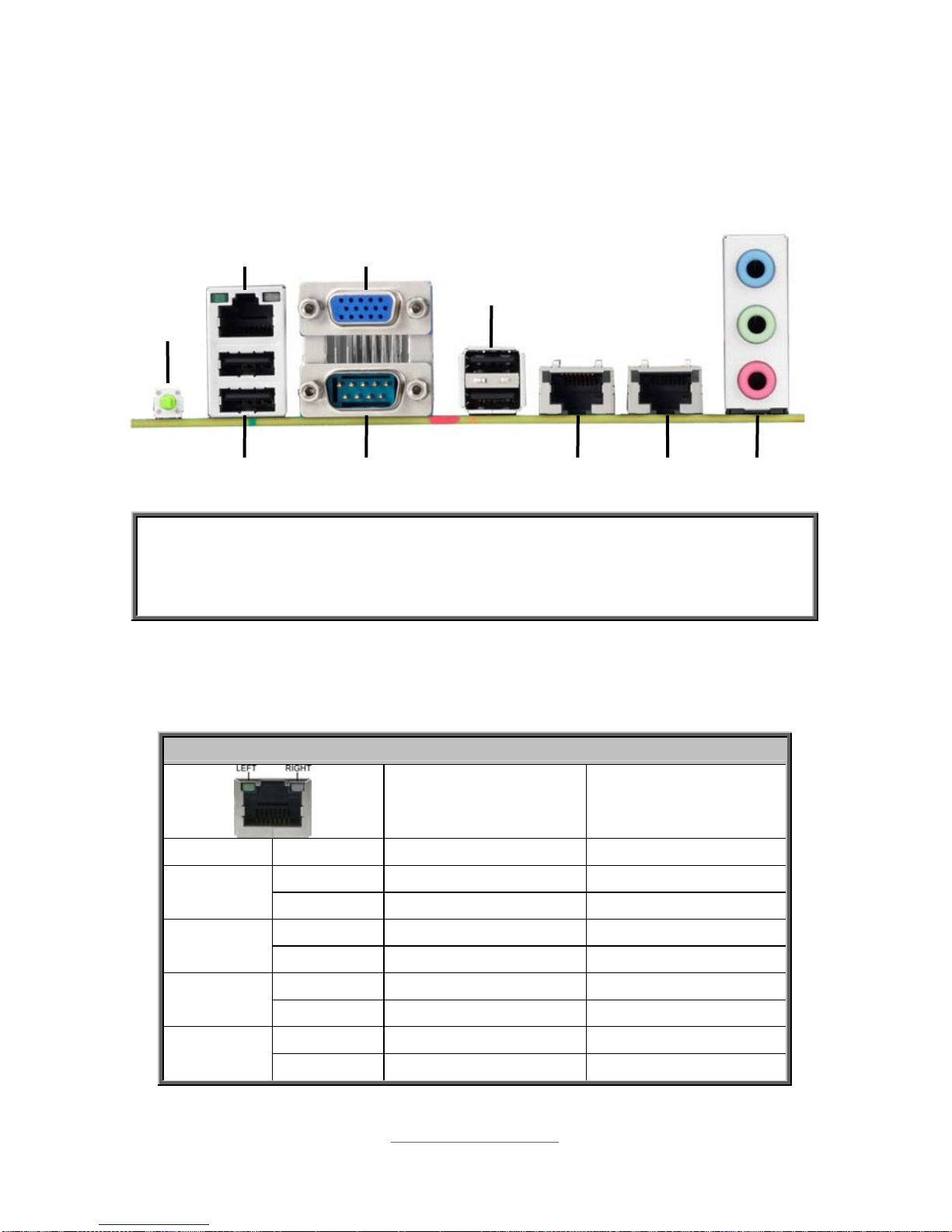

2.11 Connecting External Devices

Connecting external devices to the motherboard is an easy task. The motherboard
supports a number of different interfaces through connecting peripherals. See the
following diagrams for the details.

NOTE:

1. When i350 LAN chip is on, LAN1 and LAN2 can support 10Mbps~1Gbps.

2. When X540 LAN chip is on, LAN1 and LAN2 can support up to 100Mbps~10Gbps.

3. Peripheral devices can be plugged straight into any of these ports but software
may be required to complete the installation.

Onboard LAN LED Color Definition

The three (3) onboard Ethernet ports have green and yellow LEDs to indicate LAN
status. The chart below illustrates the different LED states.

10/100/1000 Mbps LAN Link/Activity LED Scheme

Left LED

(Link/Activity)

Right LED

(Speed)

No Link OFF OFF

Link Green OFF

10 Mbps

Active Blinking Green OFF

Link Green Solid Green

100 Mbps

Active Blinking Green Solid Green

Link Green Solid Yellow

1000 Mbps

Active Blinking Green Solid Yellow

Link Yellow Solid Yellow

10 Gbps

Active Blinking Yellow Solid Yellow

LAN3 (Intel 82574L)

shared with IPMI

LAN2

VGA

COM1

ID LED
Button

LAN1

USB x2

A

udio Ports

USB x2

http://www.tyan.com

50

2.12 Installing the Power Supply

There are three (3) power connectors on your S7055 motherboard. The S7055
supports EPS 12V power supply.

J43: ATX 24-Pin Power Connector

Signal Pin Pin Signal

+3.3V

1 13 +3.3V

+3.3V

2 14 -12V

GND

3 15

GND

+5V

4 16 PS ON#

GND

5 17

GND

+5V 6 18 GND

GND 7 19 GND

Power OK

8 20 Reserve

+5VSB

9 21 +5

+12V

10 22 +5

+12V

11 23 +5

+3.3V

12 24 GND

J65/J28: SSI 8-Pin CPU0/CPU1 Power Connector

Signal Pin Pin Signal

GND 1 5 +12V
GND 2 6 +12V
GND 3 7 +12V
GND 4 8 +12V

J57: SSI 4-Pin PCIE Power Connector

Signal Pin Pin Signal

GND 1 3 +12V
GND 2 4 +12V

NOTE: You must unplug the power supply before plugging the power

cables to motherboard connectors.

http://www.tyan.com

51

2.13 Finishing Up

Congratulations on making it this far! You have finished setting up the hardware
aspect of your computer. Before closing up your chassis, make sure that all cables
and wires are connected properly, especial ly SATA cables and most importantly,
jumpers. You may have difficulty powering on your system if the motherboard
jumpers are not set correctly.
In the rare circumstance that you have experienced difficulty, you can find help by
asking your vendor for assistance. If they are not available for assistance, please
find setup information and documentation online at our website or by calling your
vendor’s support line.

http://www.tyan.com

52

NOTE

http://www.tyan.com

53

Chapter 3: BIOS Setup

3.1 About the BIOS

The BIOS is the basic input/output system, the firmware on the motherboard that
enables your hardware to interface with your software. The BIOS determines what a
computer can do without accessing programs from a disk. The BIOS contains all
the code required to control the keyboard, display screen, disk drives, serial
communications, and a number of miscellaneous functions. T his chapter d escribes
the various BIOS settings that can be used to configure your system.

The BIOS section of this manual is subject to change without notice and is provided
for reference purposes only. The settings and configuratio ns of the BIOS are
current at the time of print and are subject to change, and therefore may not match
exactly what is displayed on screen.

This section describes the BIOS setup program. The setup program lets you modify
basic configuration settings. The settings are then stored in a dedicated, battery­backed memory (called NVRAM) that retains the information even when the po wer
is turned off.

To start the BIOS setup utility:

1. Turn on or reboot your system.

2. Press <Del> or <F2> during POST (Del on remote console) to start the BIOS
setup utility.

3.1.1 Setup Basics

The table below shows how to navigate in the setup program using the keyboard.

Key Function

Left/Right Arrow Keys Change from one menu to the next
Up/Down Arrow Keys Move between selections
Enter Open highlighted section
PgUp/PgDn Keys Change pages
+/- Change options
ESC Exit

http://www.tyan.com

54

3.1.2 Getting Help

Pressing [F1] will display a small help window that describes the appropriate
keys to use and the possible selections for the highlighted item. To exit the Help
Window, press [ESC] or the [Enter] key again.

3.1.3 In Case of Problems

If you have trouble booting your computer after making and saving the changes with
the BIOS setup program, you can restart the computer by holding the power button
down until the computer shuts off (usually within 4 seconds); resetting by pressing
CTRL-ALT-DEL; or clearing the CMOS.
The best advice is to only alter settings that you thoroughl y understan d. In particu lar,
do not change settings in the Chipset section unless you are absolute ly sure of
what you are doing. The Chipset defaults have bee n carefully chosen either by
MiTAC or your system manufacturer for best performance and reliability. Even a
seemingly small change to the Chipset setup options may cause the system to
become unstable or unusable.

3.1.4 Setup Variations

Not all systems have the same BIOS setup layout or options. While the basic look
and function of the BIOS setup remains more or less the same for most systems,
the appearance of your Setup screen may differ from the charts shown in this
section. Each system design and chipset combination requires a custom
configuration. In addition, the final appearance of the Setup program dep ends on
the system designer. Your system designer may decide that certain items should
not be available for user configuration, and remove them from the BIOS setup
program.

NOTE: The following pages provide the details of BIOS menu. Please be noticed

that the BIOS menu are continually changing due to the BIOS updating. T he BIOS
menu provided are the most updated ones when this manual is written. Please visit
TYAN’s website at http://www.tyan.com for the information of BIOS updating.

http://www.tyan.com

55

3.2 Main Menu

In this section, you can alter general features such as the date and time.
Note that the options listed below are for options that can directly be changed within
the Main Setup screen.

BIOS Information

It displays BIOS related information.

Memory Information

This displays the total memory size.

System Date

Adjust the system date.
MM (Months): DD (Days): YYYY (Years)

System Time

Adjust the system clock.
HH (24 hours format): MM (Minutes): SS (Seconds)

Access Level

Read only.

http://www.tyan.com

56

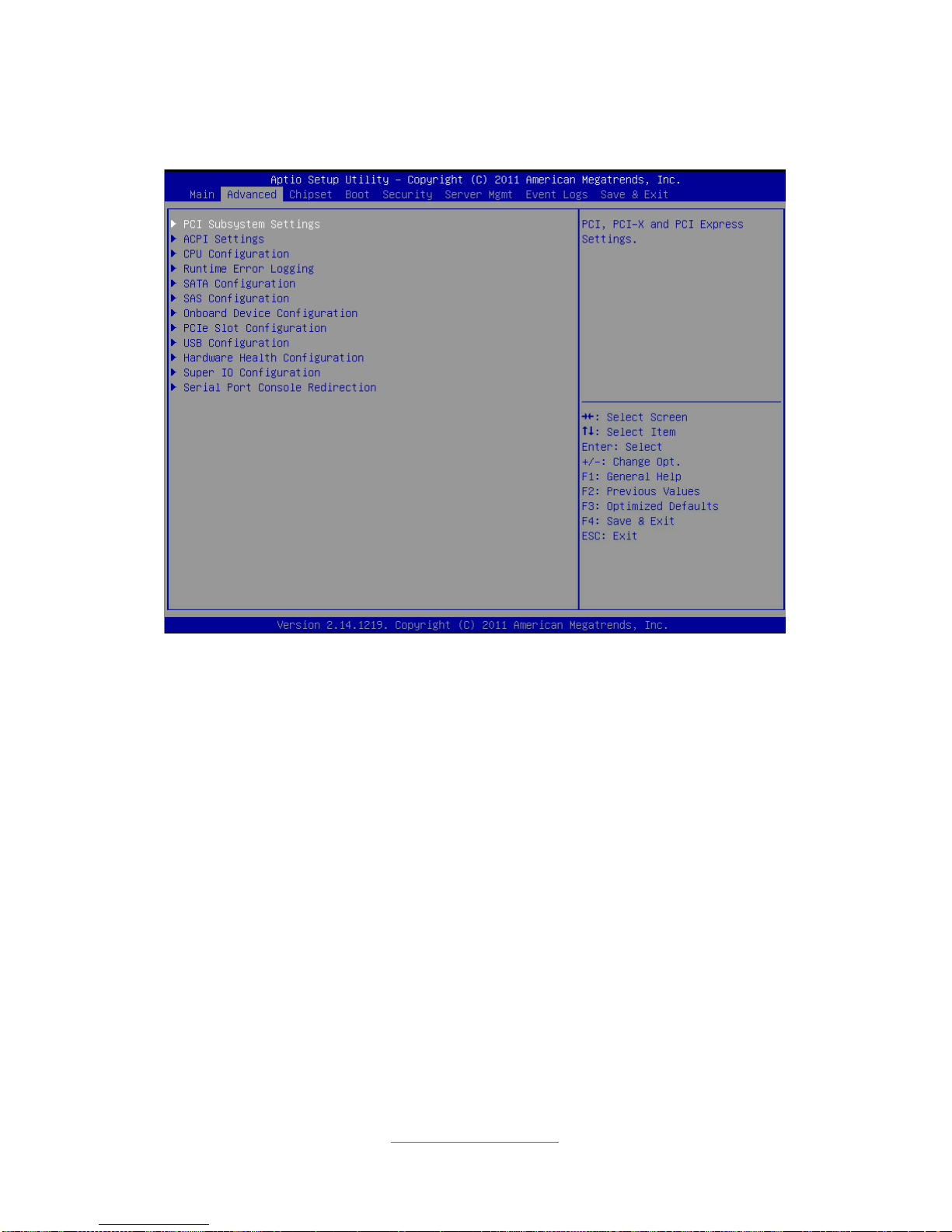

3.3 Advanced Menu

This section facilitates configuring advanced BIOS options for your system.

PCI Subsystem Settings

PCI, PCI-X and PCI Express Settings.

ACPI Settings

System ACPI Parameters.

CPU Configuration

CPU Configuration Parameters.

Runtime Error Logging

Runtime Error Logging Support Setup Options

SATA Configuration

SATA Devices Configuration.

SAS Configuration

SAS Devices Configuration.

Onboard Device Configuration

Onboard Device Configuration.

http://www.tyan.com

57

PCIe Slot Configuration

PCIe Slot Configuration.

USB Configuration

USB Configuration Parameters.

Hardware Health Configuration

Hardware health Configuration Parameters.

Super IO Configuration

System Super IO Chip Parameters.

Serial Port Console Redirection

Serial Port Console Redirection.

http://www.tyan.com

58

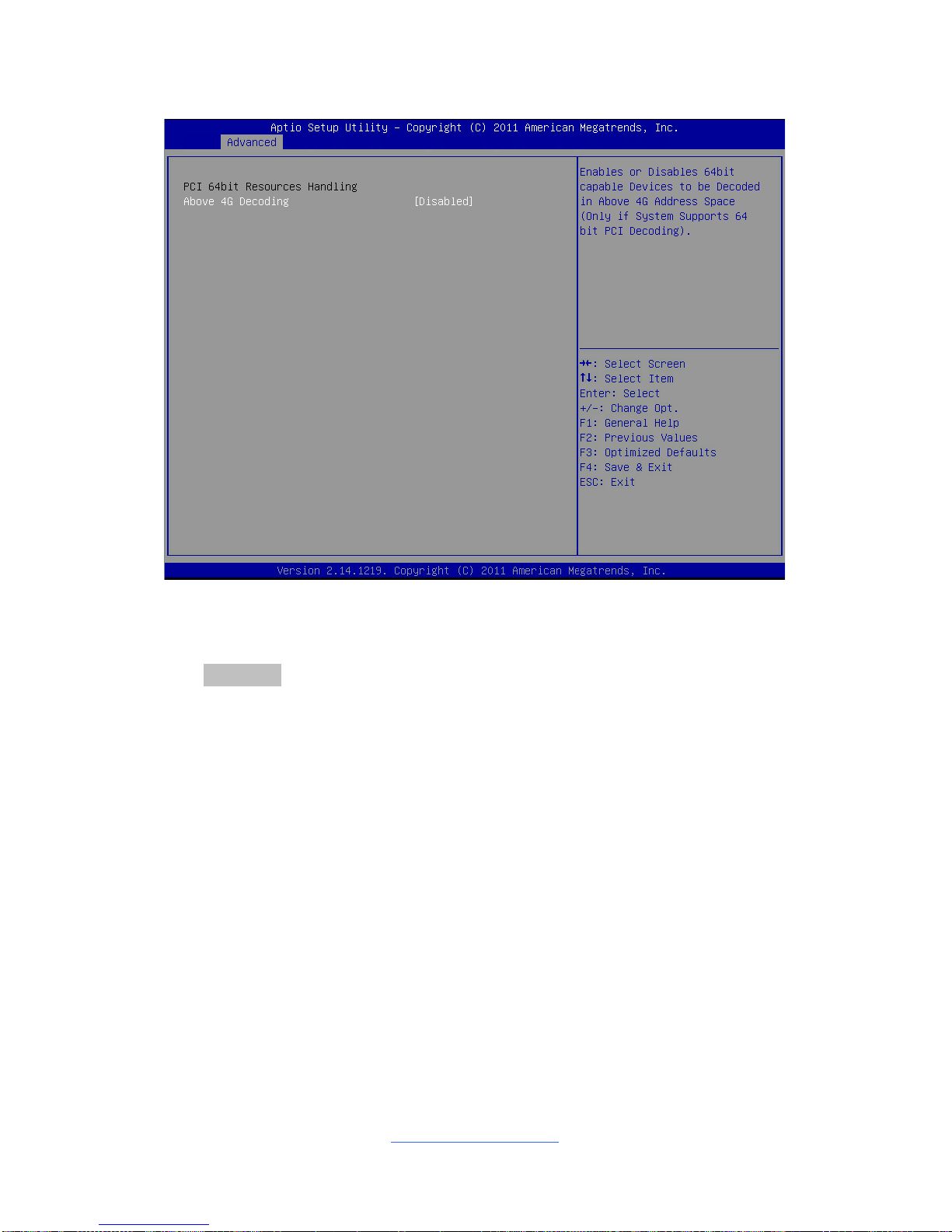

3.3.1 PCI Subsystem Settings

Above 4G Decoding

Enables or Disables 64bit capable Devices to be Decoded in Above 4G Address
Space (Only if System Supports 64 bit PCI Decoding).

Disabled / Enabled

http://www.tyan.com

59

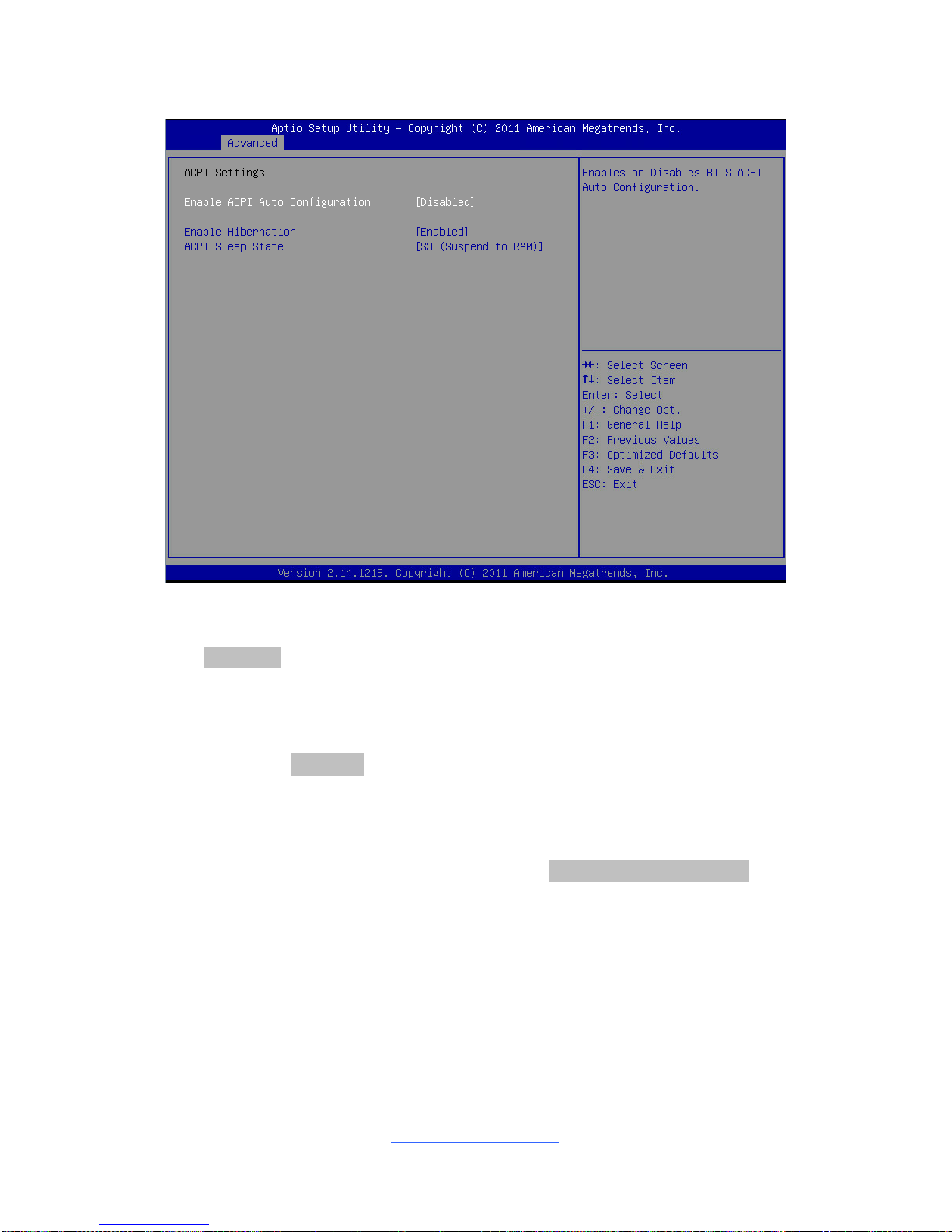

3.3.2 ACPI Settings

Enable ACPI Auto Configuration

Enable or disable ACPI Auto Configuration.

Disabled / Enabled

Enable Hibernation

Enable or disable System ability to Hibernate (OS/S4 Sleep State). This option may
not be effective with some OS.

Disabled / Enabled

ACPI Sleep State

Select the highest ACPI sleep state the system will enter when the SUSPEND
button is pressed.

Suspend Disabled / S1 (CPU Stop Clock) / S3 (Suspend to RAM)

http://www.tyan.com

60

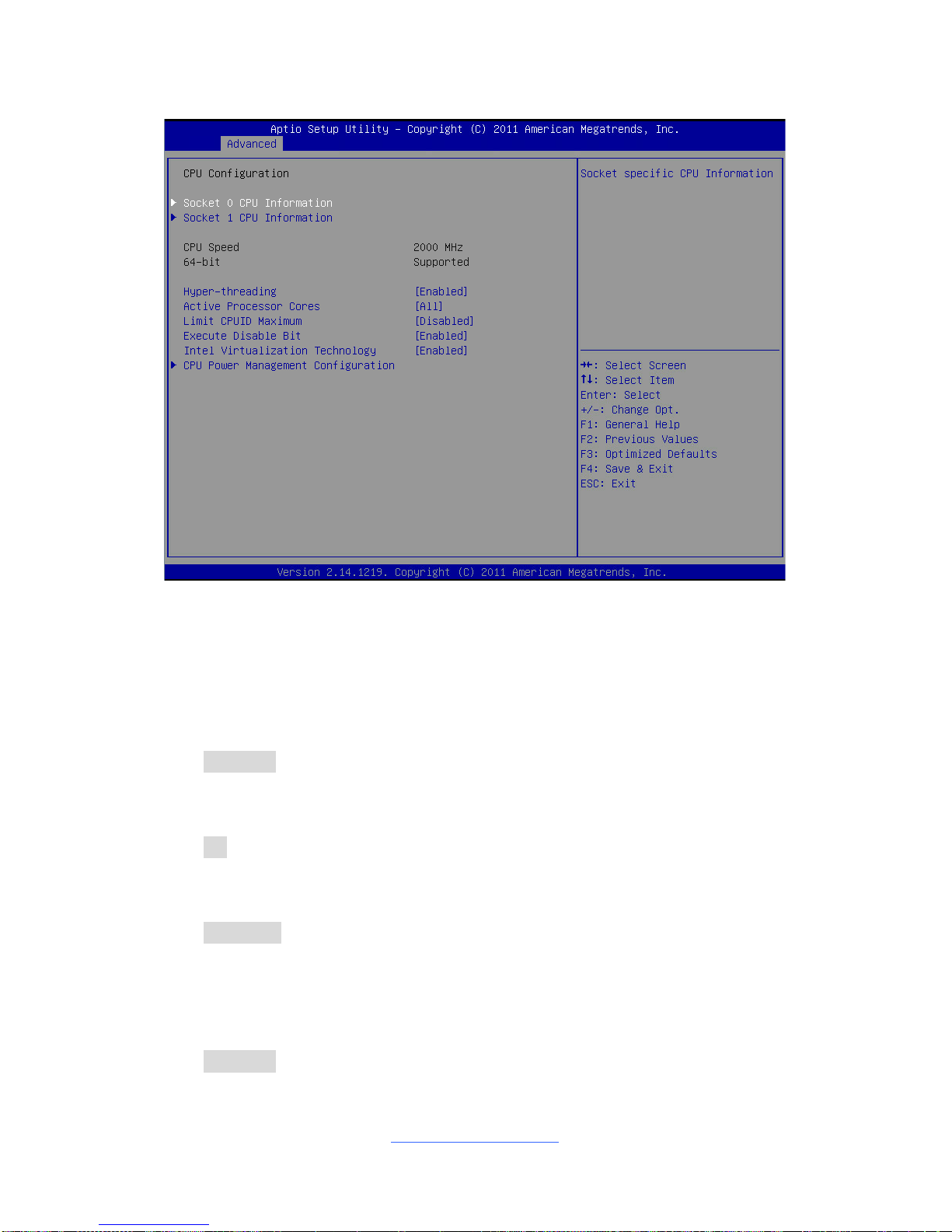

3.3.3 CPU Configuration

CPU Speed / 64-bit

Read only.

Hyper Threading

Enabled for Windows XP and Linux (OS optimized for Hyper Threading Technolog y)
and disabled for other OS (OS not optimized for Hyper Threading Technology).
When disabled only one thread per enabled core is enabled.

Enabled / Disabled

Active Processor Cores

Number of cores to enable in each processor package.

All / 1 / 2 / 3 / 4 / 5 / 6 / 7

Limit CPUID Maximum

Disabled for Windows XP.

Disabled / Enabled

Execute Disable Bit

XD can prevent certain classes of malicious buffer overflow attacks when combined
with a supporting OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux

9.2, RedHat Enterprise 3 Update 3).

Enabled / Disabled

http://www.tyan.com

61

Intel Virtualization Technology

When enabled, a VMM can utilize the additional hard ware capabilities provided by
Vanderpool Technology.

NOTE: Once the lock bit is set, the contents of this register can not be modified until

S5 reset occurs.

Enabled / Disabled

http://www.tyan.com

62

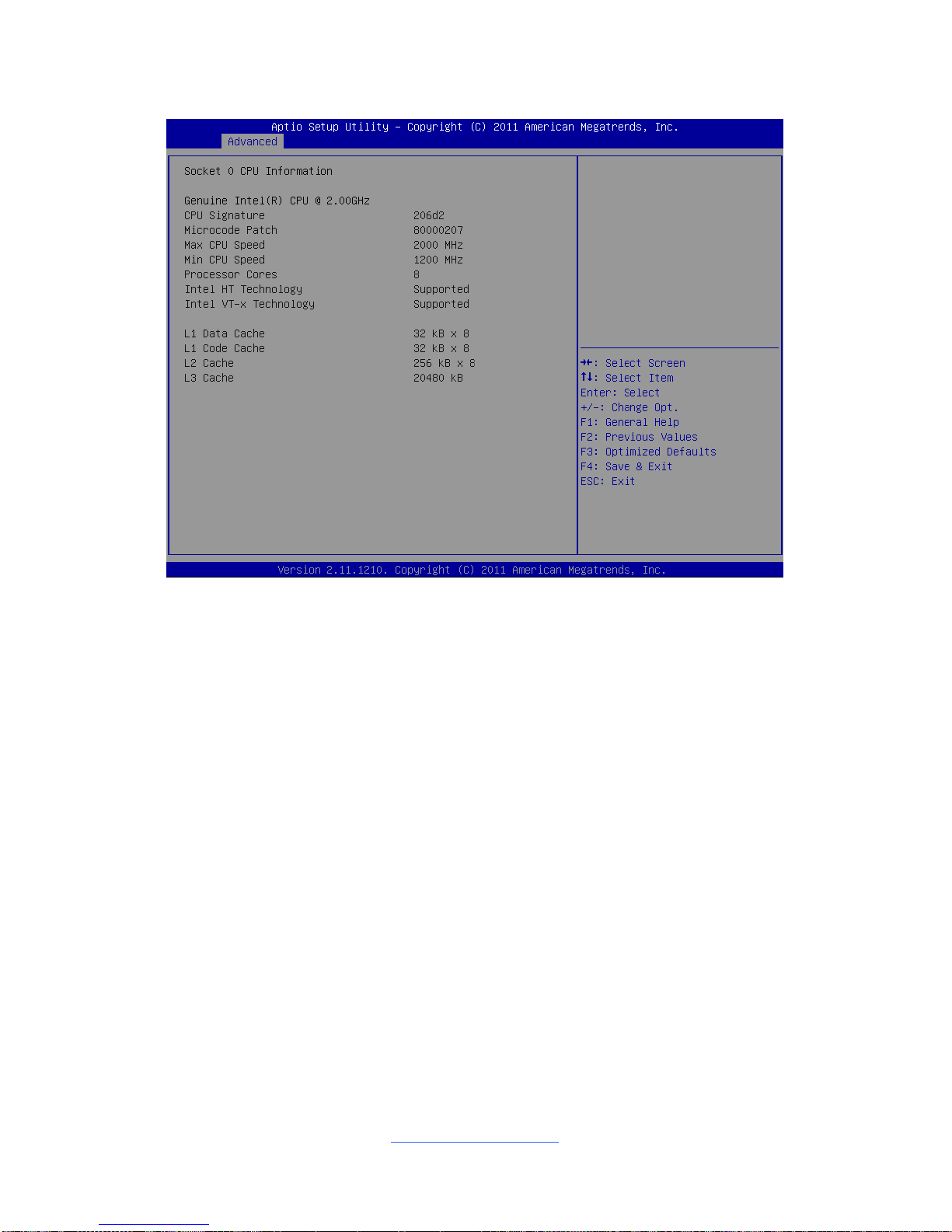

3.3.3.1 Socket 0/1 CPU Information

Read only.

http://www.tyan.com

63

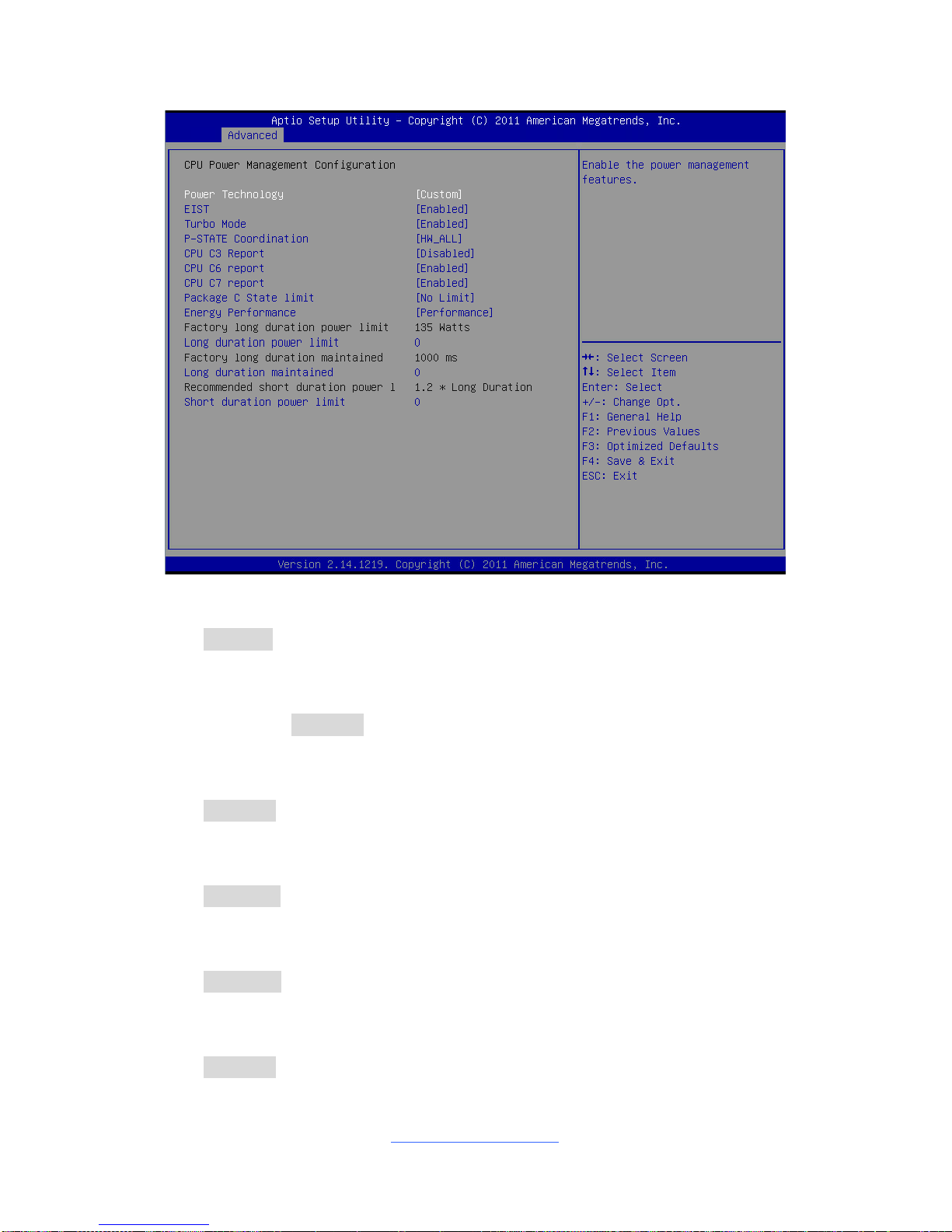

3.3.3.2 CPU Power Management Configuration

Power Technology

Enable the power management features.

Custom / Disabled / Energy Efficient

EIST

Enable/Disable Intel StepSpeed.

Disabled / Enabled

Turbo Mode

Enable/Disable Turbo Mode.

Enabled / Disabled

P-STATE Coordination

Change P-State coordination type.

HW_ALL / Disabled

CPU C3 Report

Enable/Disable CPU C3 (ACPI C2) report to OS.

Disabled / Enabled

CPU C6 Report

Enable/Disable CPU C6 (ACPI C3) report to OS.

Enabled / Disabled

http://www.tyan.com

64

CPU C7 Report

Enable/Disable CPU C7 report to OS.

Enabled / Disabled

Package C State Limit

Select Package C State Limit.

No Limit / C0 / C2 / C6 / C7

Energy Performance

Optimize between performance and power savings. Windows 2008 and later OSes
override this value according to its power plan.

Performance / Balanced performance / Balanced Energy / Energy
Efficient

Factory Long Duration Power Limit

Read only.

Long Duration Power Limit

Long duration power limit in Watts.

Factory Long Duration Maintained

Read only.

Long Duration Maintained

Time window which the long duration power is maintained.

Recommended short duration power limit

Read only.

Short duration power limit

Short duration power limit in Watts.

http://www.tyan.com

65

3.3.4 Runtime Error Logging

Runtime Error Logging Support

Enable/Disable Runtime Error Logging Support.

Disabled / Enabled

http://www.tyan.com

66

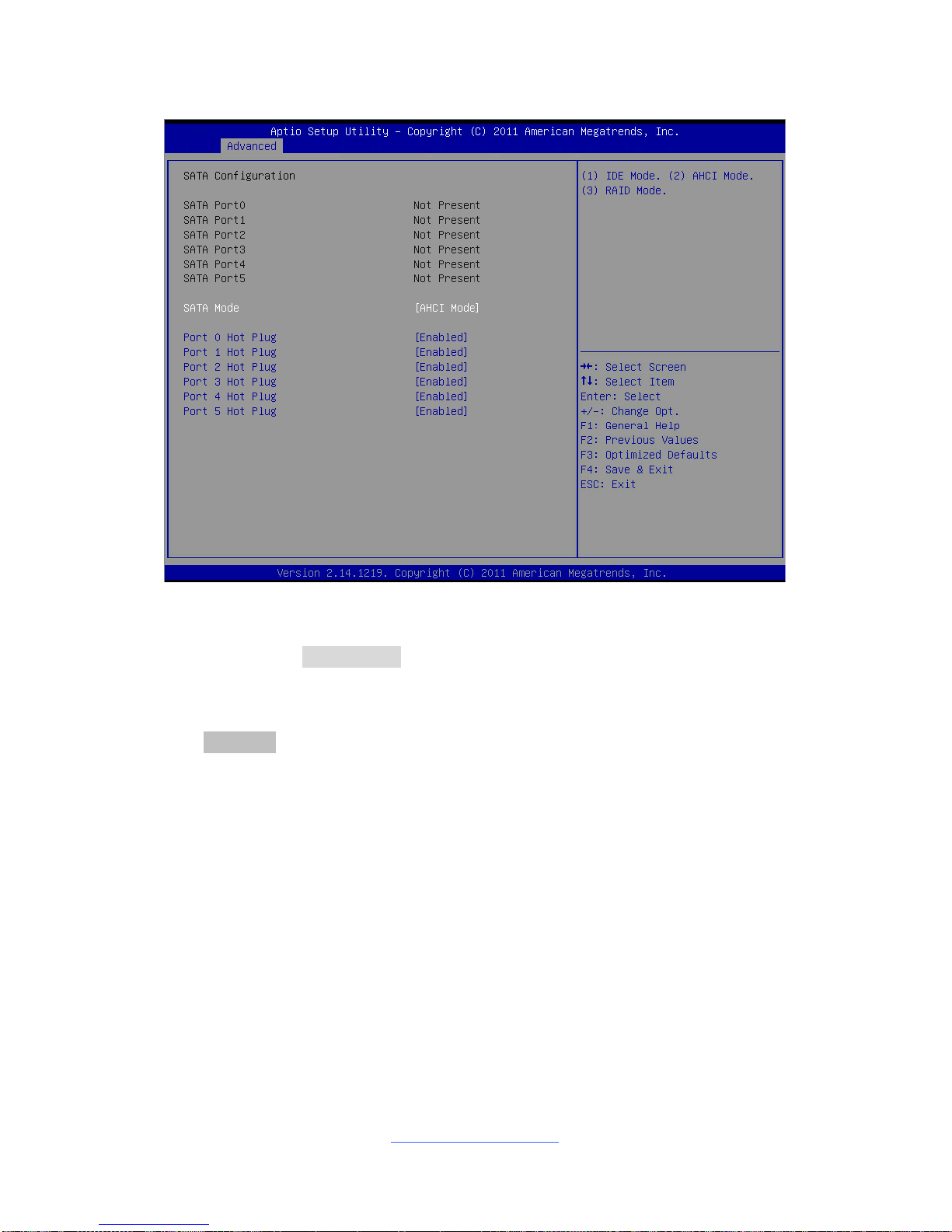

3.3.5 SATA Configuration

SATA Mode

Select SATA Mode.

IDE Mode / AHCI Mode / RAID Mode / Disabled

Port 0/1/2/3/4/5 Hot Plug

Enable/Disable SATA Ports Hot Plug Support.

Enabled / Disabled

http://www.tyan.com

67

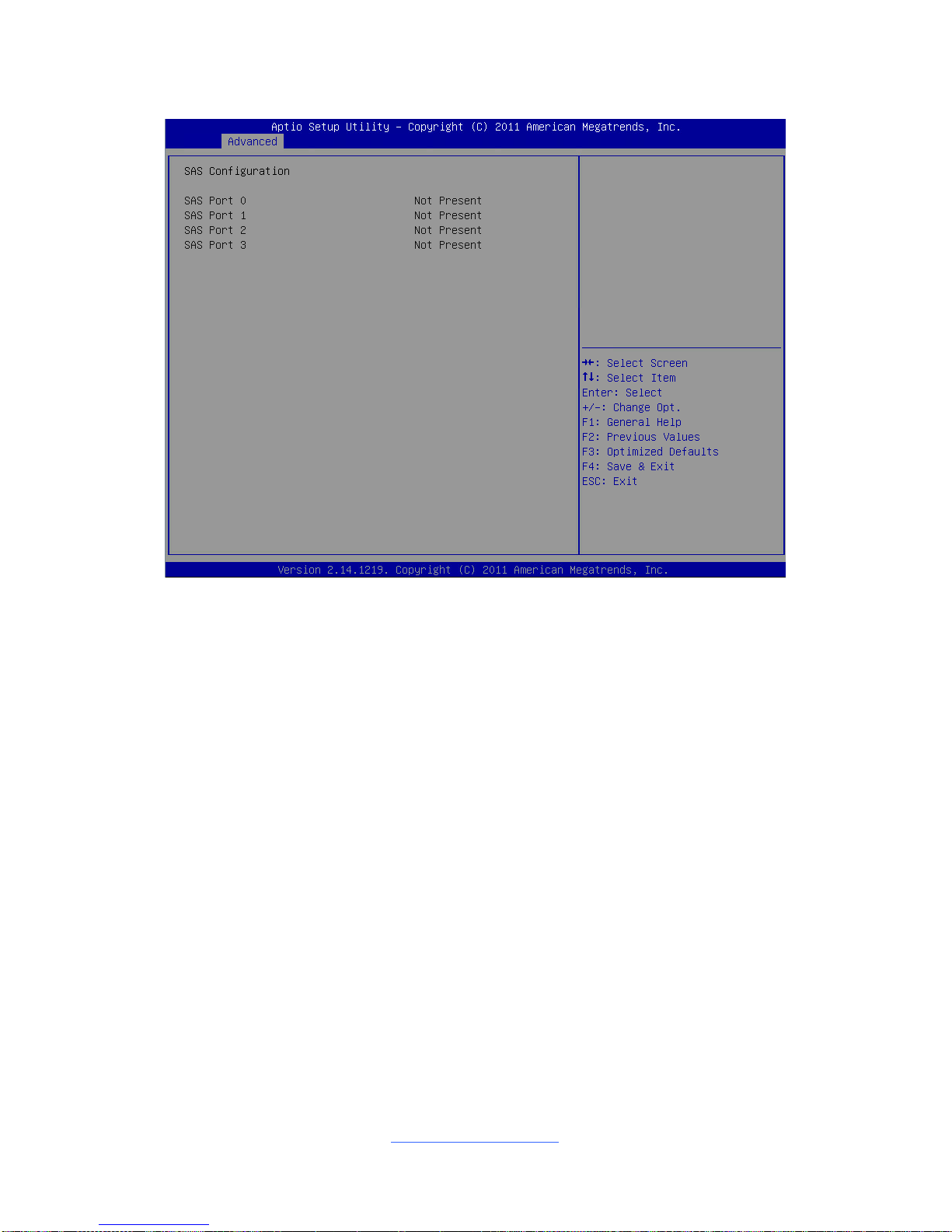

3.3.6 SAS Configuration

Read only.

NOTE: You can press [CTRL_I] to set the RAID function while the RAID Card

OPROM is loading.

http://www.tyan.com

68

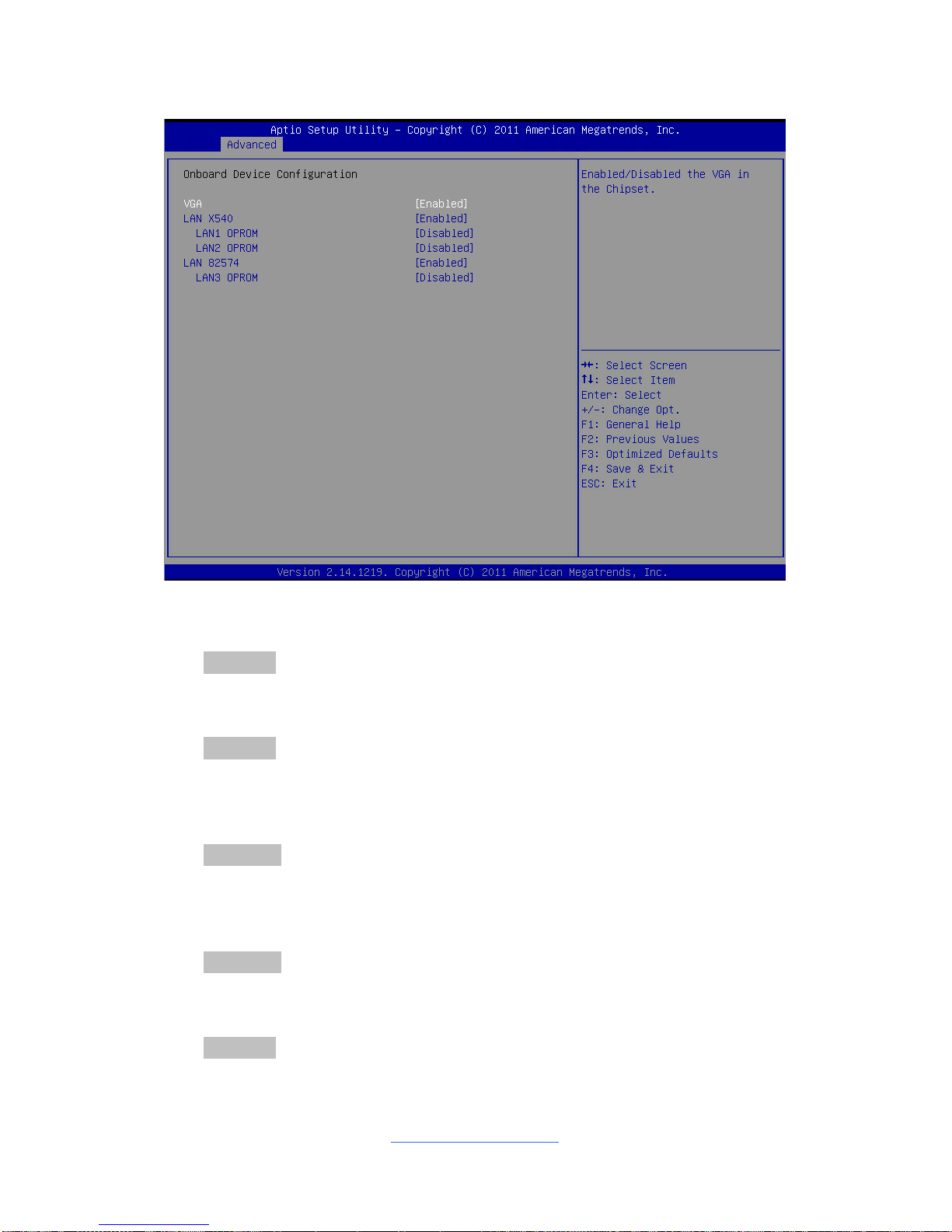

3.3.7 Onboard Device Configuration

VGA

Enabled/Disabled the VGA in the Chipset.

Enabled / Disabled

LAN i350/X540

Enabled/Disabled the LAN controller.

Enabled / Disabled

NOTE: The BIOS will automatically read the onboard LAN control ler.

LAN1 Option ROM

Enabled/Disabled the LAN Option ROM in the Chipset.

Disabled / PXE / ISCSI

NOTE: The ISCSI function is only supported in LAN1.

LAN2 Option ROM

Enabled/Disabled the LAN Option ROM in the Chipset.

Disabled / PXE

LAN 82574

Enable or disable the LAN controller.

Enabled / Disabled

http://www.tyan.com

69

LAN3 Option ROM

Enabled/Disabled the LAN Option ROM in the Chipset.

Disabled / PXE

http://www.tyan.com

70

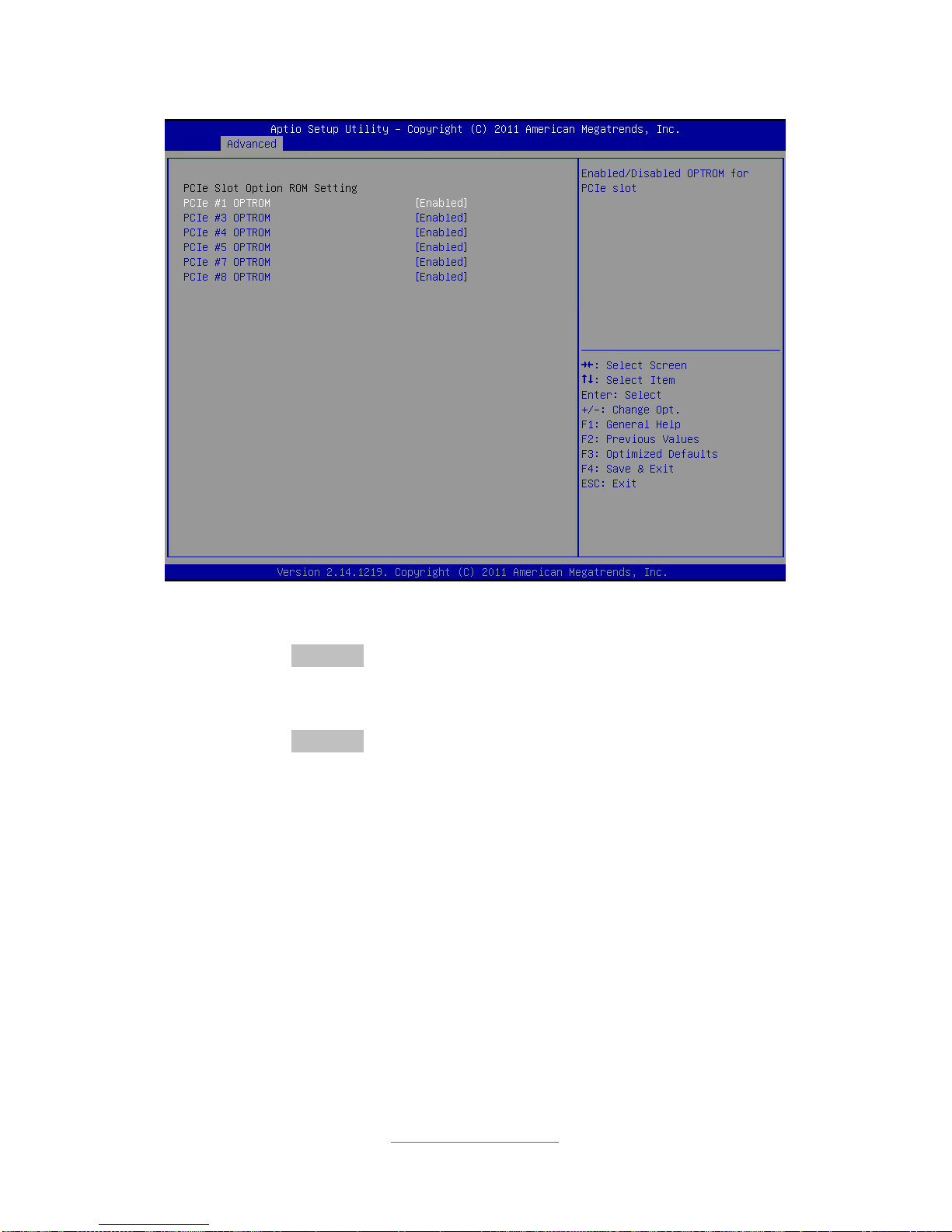

3.3.8 PCIe Slot Configuration

PCIe #1/3/4/5/7 OPTROM

Enable/Disable OPTROM for PCIe slot.

Disabled / Enabled

PCIe #8 OPTROM (optional)

Enable/Disable OPTROM for PCIe slot.

Disabled / Enabled

http://www.tyan.com

71

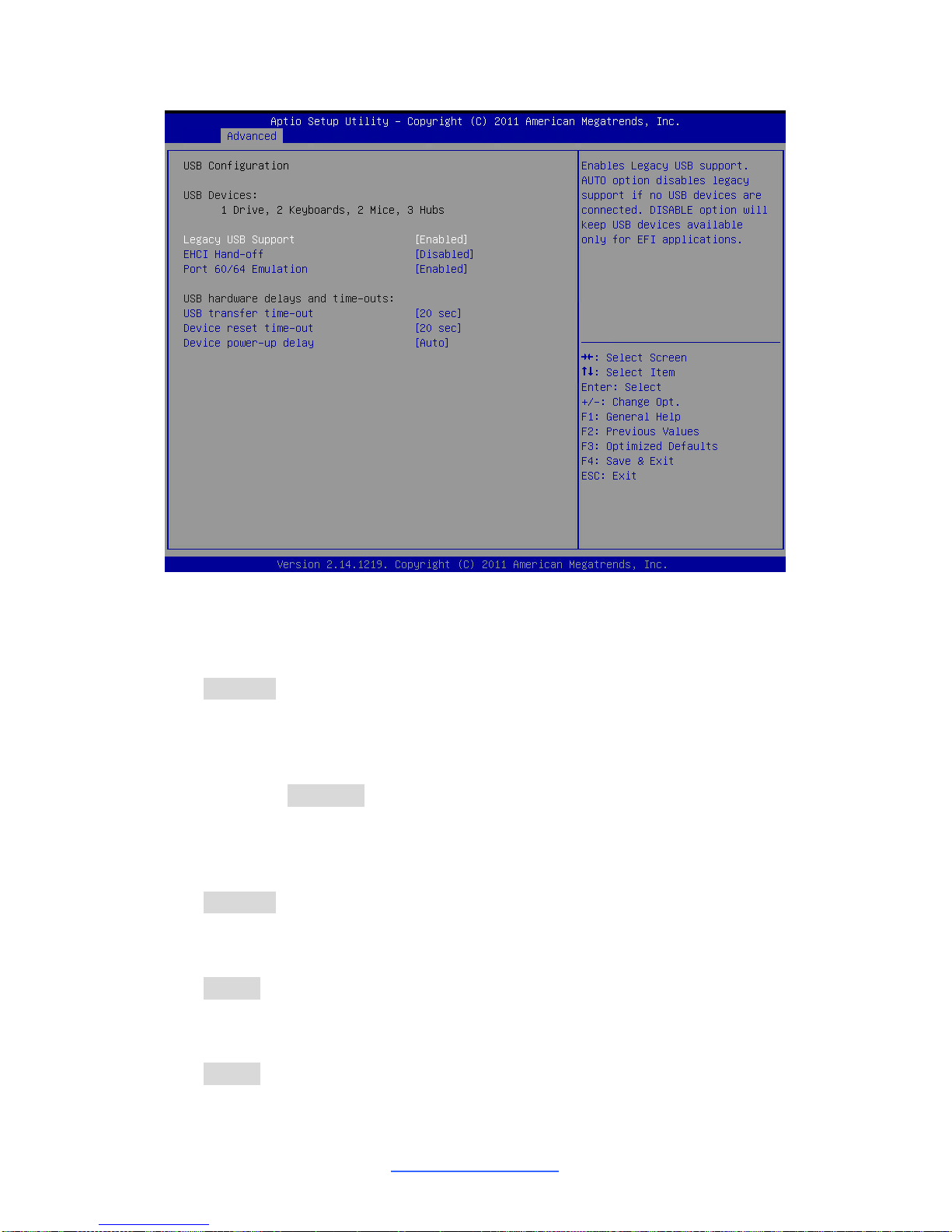

3.3.9 USB Configuration

Legacy USB Support

Enable USB legacy support. AUTO option disables legacy support if no USB
devices are connected. DISABLE option will keep USB devices available only for
EFI applications.

Enabled / Disabled / Auto

EHCI Hand-off

This is a workaround for OSes without EHCI hand-off support. The EHCI ownership
change should be claimed by EHCI driver.

Enabled / Disabled

Port 60/64 Emulation

Enables I/O port 60h/64h emulation support. This should be enabled for the
complete USB keyboard legacy support for non-USB aware OSes.

Enabled / Disabled

USB transfer time-out

The time-out value for Control, Bulk and Interrupt transfers.

20 sec / 10 sec / 5 sec / 1 sec

Device reset time-out

USB mass storage device Start Unit command time-out.

20 sec / 10 sec / 30 sec / 40 sec

http://www.tyan.com

72

Device power-up delay

Maximum time the device will take before it properly reports itself to the Host
Controller. AUTO uses default value: for a Root port it is 100 ms, for a Hub port the
delay is taken from Hub descriptor.

Auto / Manual

http://www.tyan.com

73

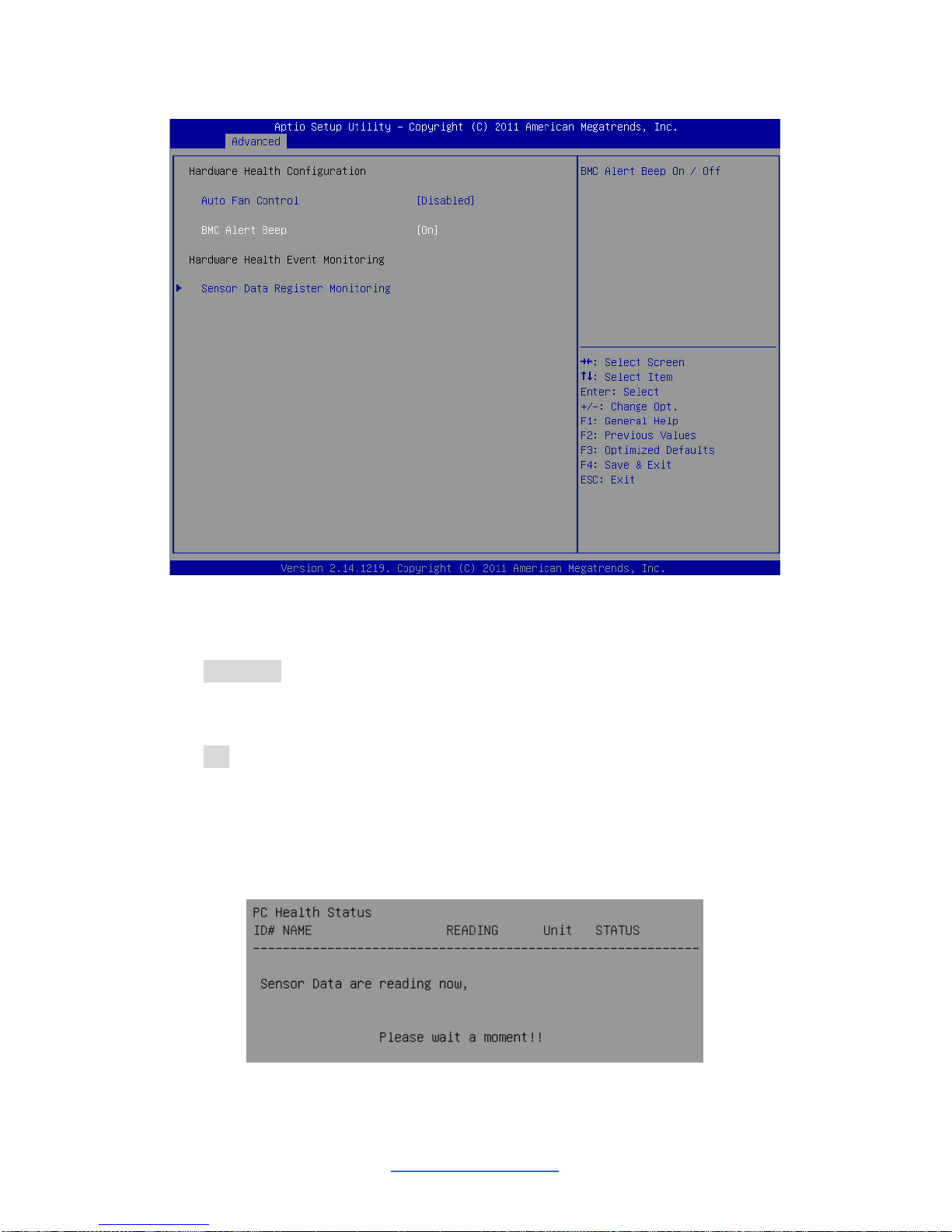

3.3.10 Hardware Health Configuration

Auto Fan Control

Select [Disabled] to allow the fan speed running FULL ON.

Disabled / Enabled

BMC Alert Beep

BMC Alert Beep On/Off.

On / Off

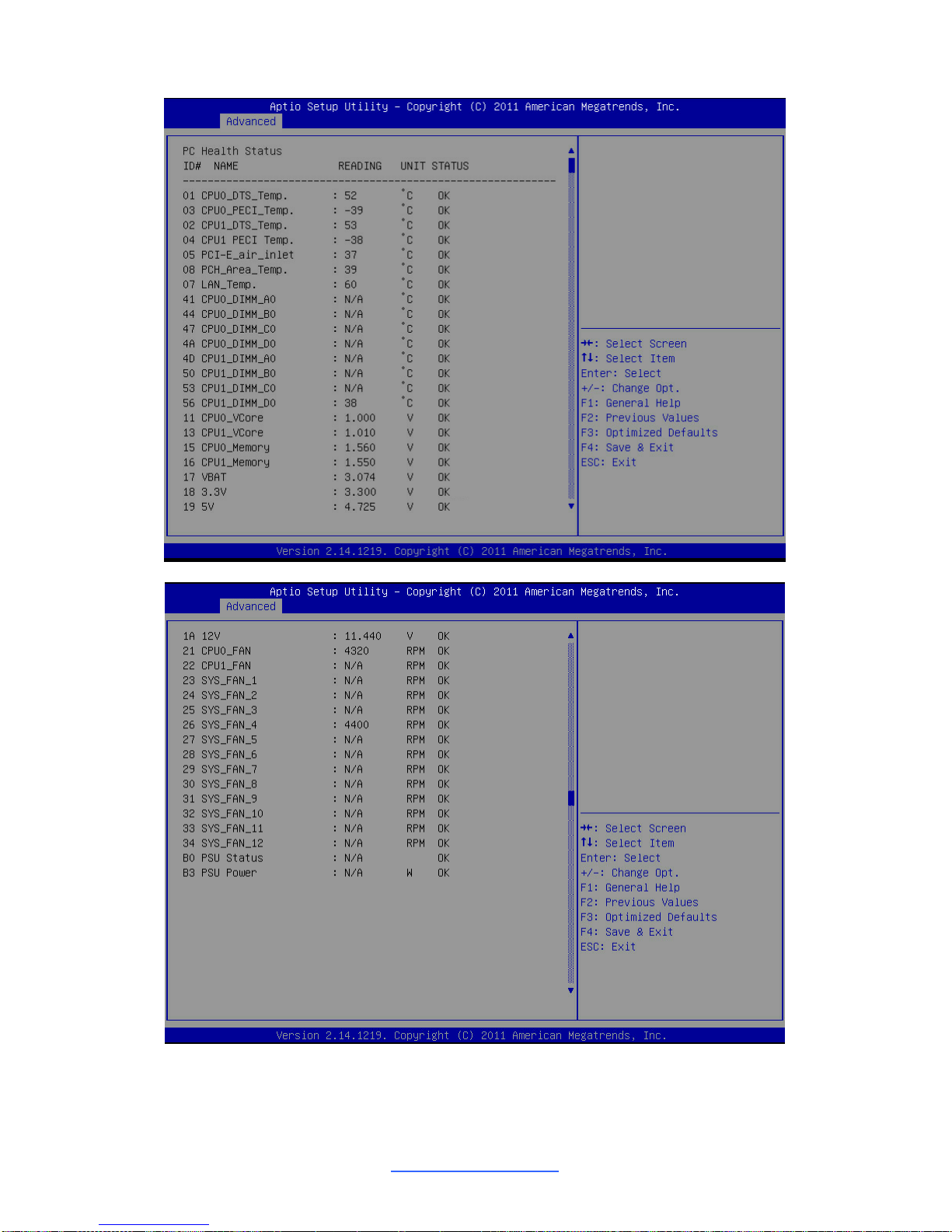

3.3.10.1 Sensor Data Register Monitoring

When you enter the Sensor Data Register Monitoring submenu, you will see the
following dialog window pop out. Please wait 8~10 seconds.

NOTE 1: SDR can not be modified. Read only.

http://www.tyan.com

74

http://www.tyan.com

75

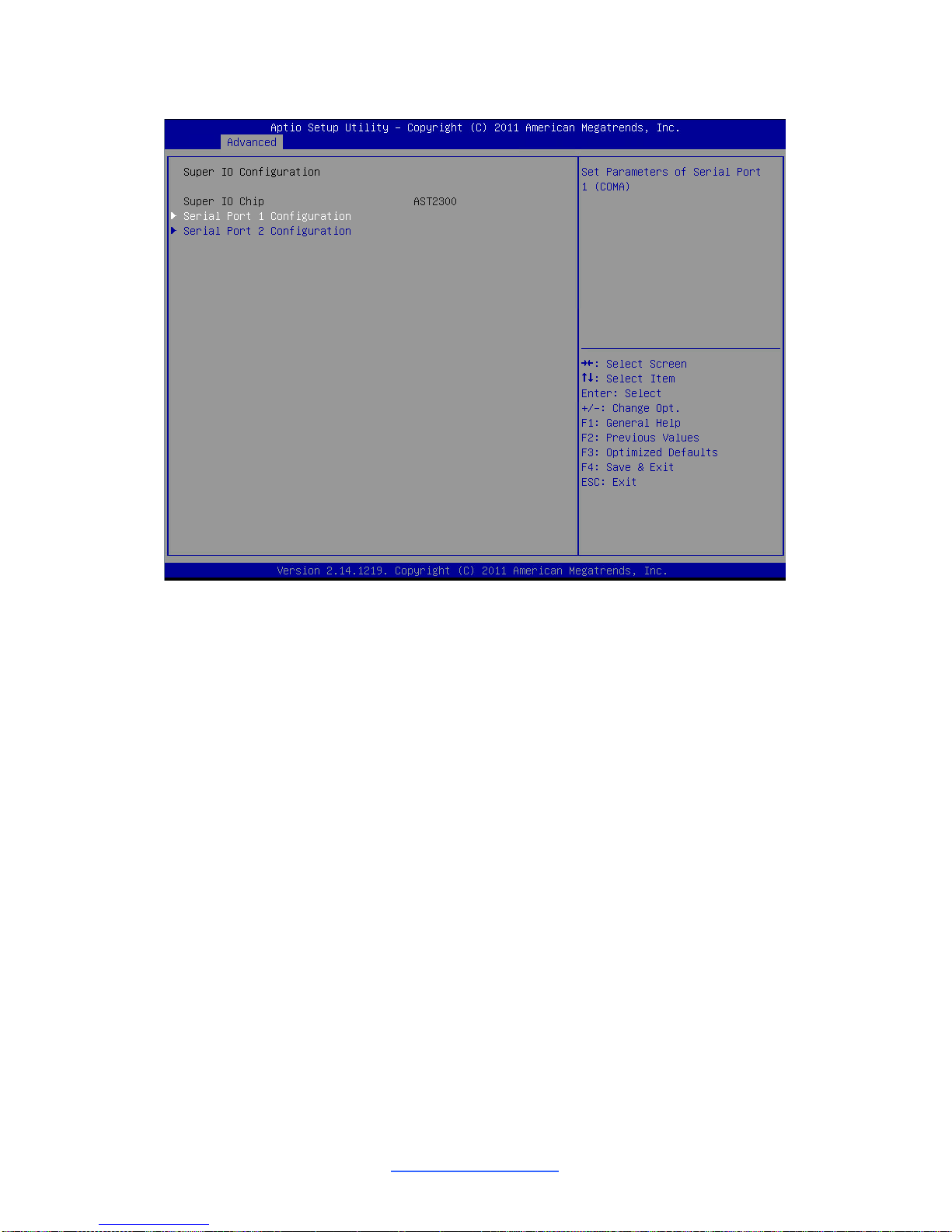

3.3.11 Super IO Configuration

Super IO Chip

Read only.

http://www.tyan.com

76

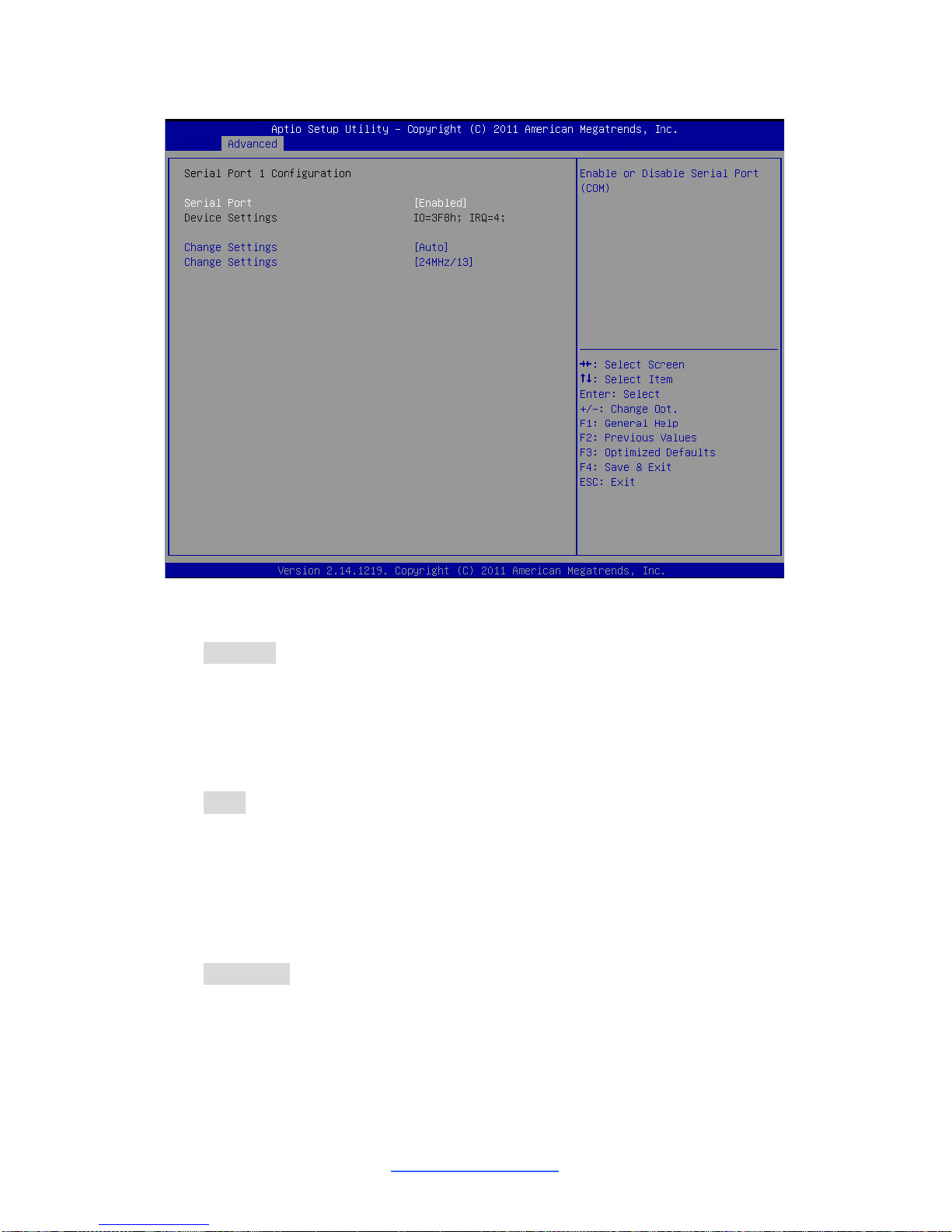

3.3.11.1 Serial Port 1/2 Configuration

Serial Port

Enable or disable Serial Port (COM).

Enabled / Disabled

Device Settings

Read only.

Change Settings

Select an optimal setting for Super IO Device.

Auto / IO=3F8h; IRQ=4;

/ IO=3F8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;

/ IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;

/ IO=3E8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;
/ IO=2E8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;

Change Settings

SUART clock source.

24MHZ/13 / 24MHz

http://www.tyan.com

77

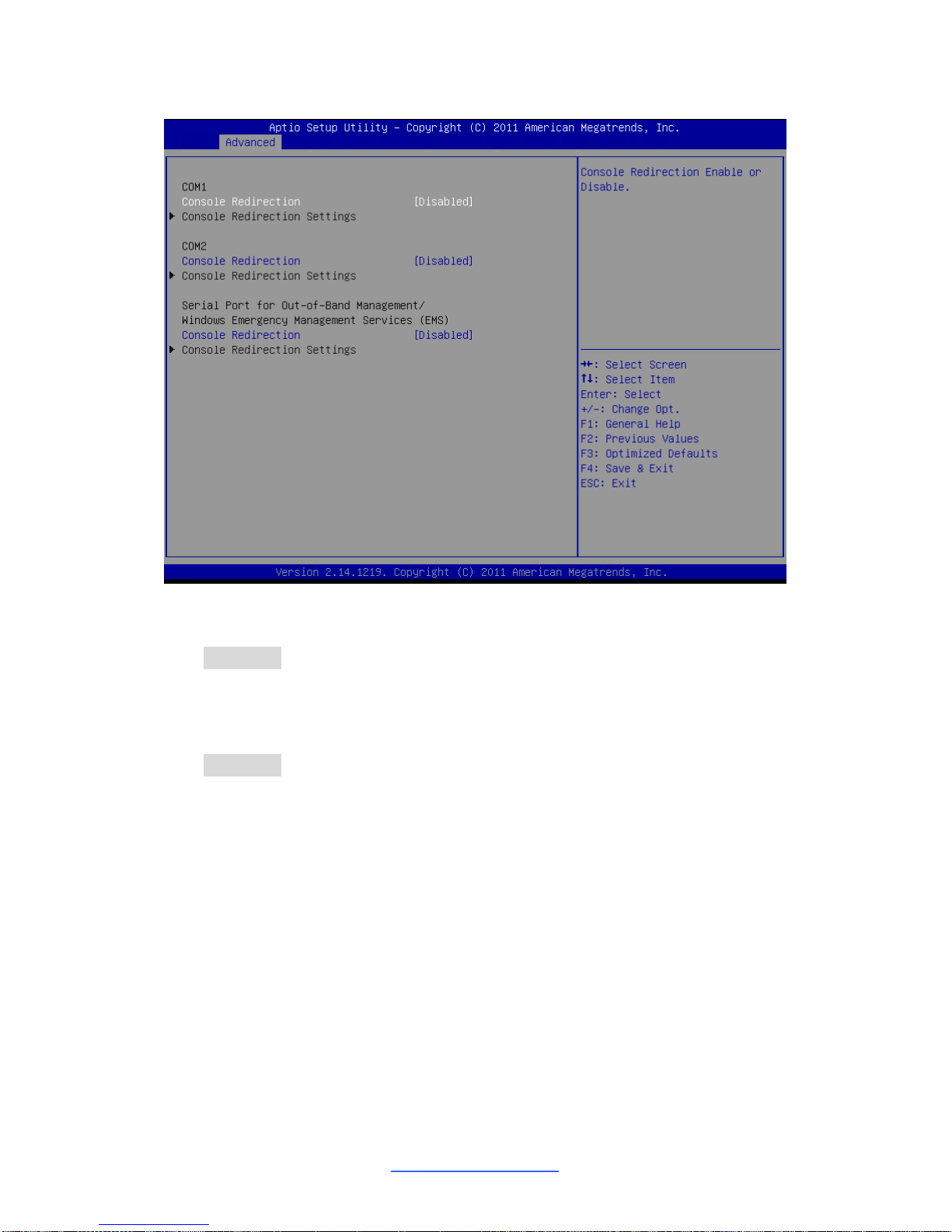

3.3.12 Serial Port Console Redirection

Console Redirection

Console redirection enable or disable.

Disabled / Enabled

Serial Port for Out-Of-Band Management/Windows Emergency Services (EMS)
Console Redirection

Console redirection enable or disable.

Disabled / Enabled

Console Redirection Settings

The settings specify how the host computer (which the user is using) will exchan ge
data. Both computers should have the same or compatible settings.

http://www.tyan.com

78

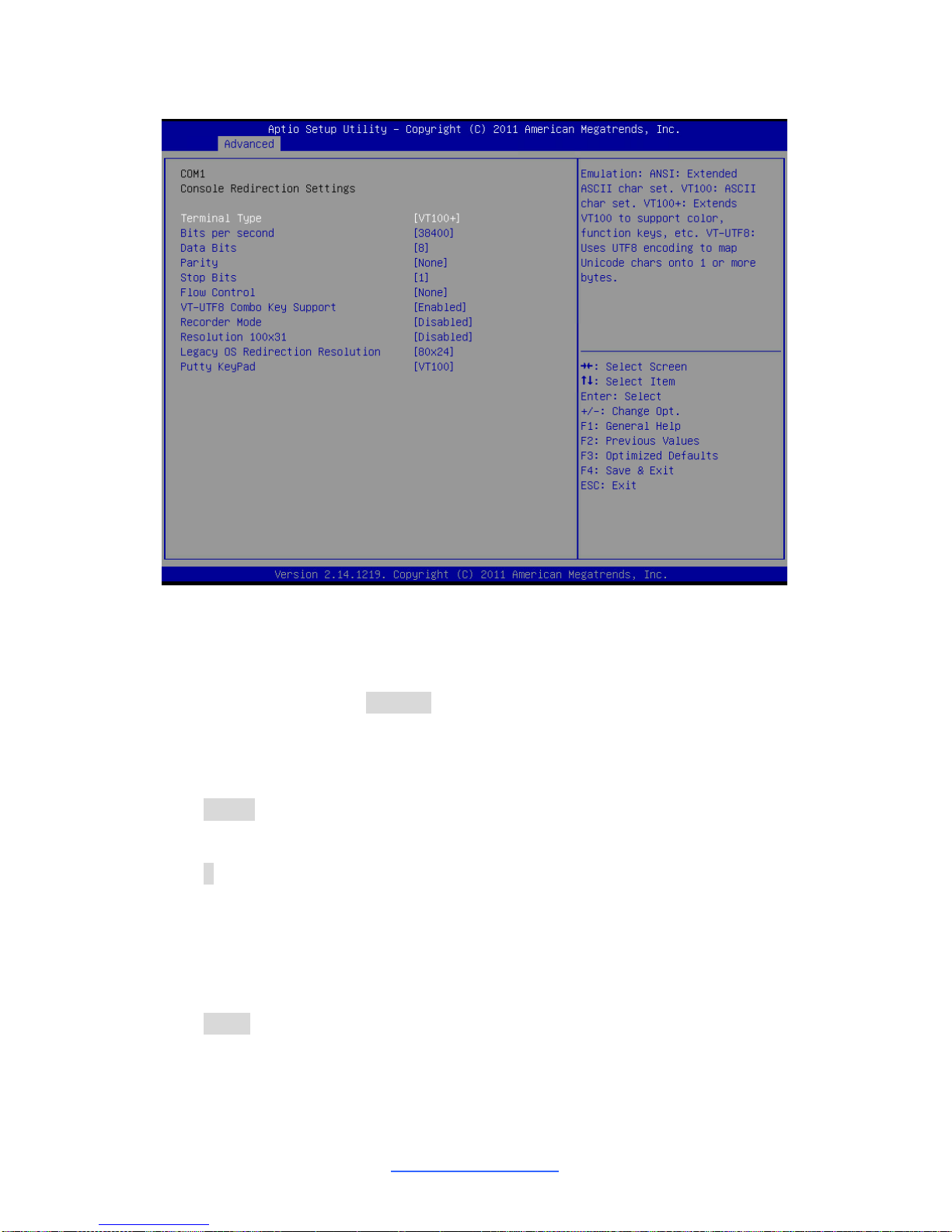

3.3.12.1 Console Redirection Settings

Terminal Type

VT-UTF8 is the preferred terminal type for out-of-band management. The next best
choice is VT100+ and then VT100. See above, in Console Redirection Settings
page, for more Help with Terminal Type/Emulation.

VT-UTF8 / VT100 / VT100+ / ANSI

Bits per Second

Select serial port transmission speed. The speed must be matched on the other
side. Long or noisy lines may require lower speeds.

38400 / 9600 / 19200 / 115200 / 57600

Data Bits

8 / 7

Parity

A parity bit can be sent with the data bits to detect some transmission errors. Even:
parity bit is 0 if the num of 1’s in the data bits is even. Odd: parity bit is 0 if the num
of 1’s in the data bits is odd. Mark: parity bit is al ways 1. Space: parity bit is al ways

0. Mark and Space parity do not allow for error detection.

None / Even / Odd / Mark / Space

http://www.tyan.com

79

Stop Bits

Stop bits indicate the end of a serial data packet. (A start bit indicates the
beginning). The standard setting is 1 stop bit. Communication with slow devices
may require more than 1 stop bit.

1 / 2

Flow Control

Flow Control can prevent data loss from buffer overflow. When sending data, if the
receiving buffers are full, a ‘stop’ signal can be sent to stop the data flow. Once the
buffers are empty, a ‘start’ signal can be sent to restart the flow. Hardware flow
control uses two wires to send start/stop signal.

None / Hardware RTS/CTS

VT-UTF8 Combo Key Support

Enable VT-UTF8 Combination Key Support for ANSI/VT100 terminals.

Enabled / Disabled

Recorder Mode

With this mode enabled only text will be sent. This is to capture Terminal data.

Disabled / Enabled

Resolution 100x31

Enable or disable extended terminal resolution.

Disabled / Enabled

Legacy OS Redirection Resolution

On Legacy OS, the number of rows and columns supported redirection.

80x24 / 80x25

Putty KeyPad

Select FunctionKey and KeyPad on Putty.

VT100 / LINUX / XTERMR6 / SCO / ESCN / VT400

http://www.tyan.com

80

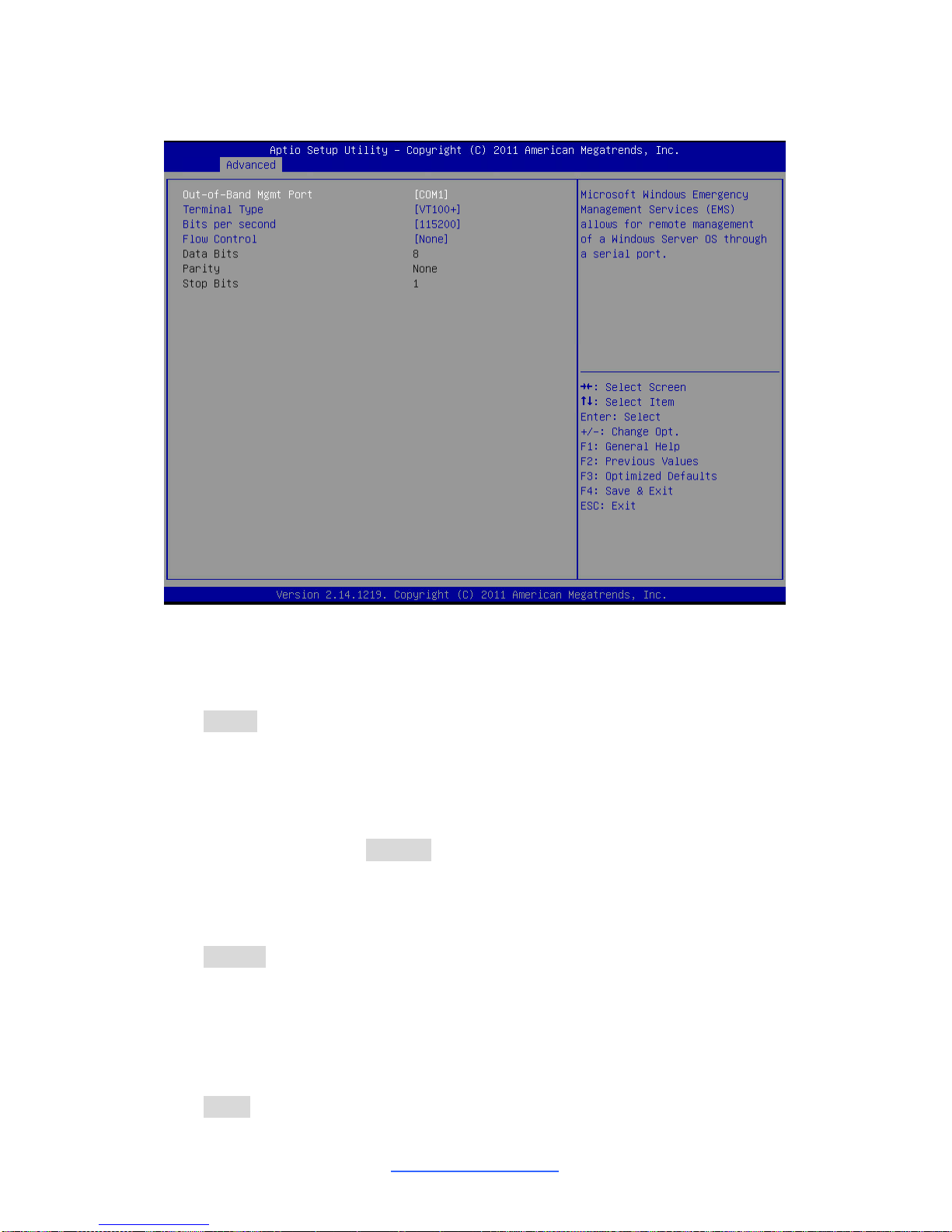

3.3.12.2 Serial Port for Out-Of-Band Management/Windows Emergency

Services (EMS) Console Redirection Settings

Out-of Band Mgmt Port

Microsoft Windows Emergency Management Services (EMS) allows for remote
management of a Windows Server OS through a serial port.

COM1 / COM2

Terminal Type

VT-UTF8 is the preferred terminal type for out-of-band management. The next best
choice is VT100+ and then VT100. See above, in Console Redirection Settings
page, for more Help with Terminal Type/Emulation.

VT-UTF8 / VT100 / VT100+ / ANSI

Bits per Second

Select serial port transmission speed. The speed must be matched on the other
side. Long or noisy lines may require lower speeds.

115200 / 9600 / 19200 / 38400 / 57600

Flow Control

Flow Control can prevent data loss from buffer overflow. When sending data, if the
receiving buffers are full, a ‘stop’ signal can be sent to stop the data flow. Once the
buffers are empty, a ‘start’ signal can be sent to restart the flow. Hardware flow
control uses two wires to send start/stop signal.

None / Hardware RTS/CTS

http://www.tyan.com

81

Data Bits / Parity / Stop Bits

Read only.

http://www.tyan.com

82

3.4 Chipset Menu

North Bridge

North Bridge Parameters.

South Bridge

South Bridge Parameters.

WatchDog Timer Configuration

WatchDog Timer Configuration.

http://www.tyan.com

83

3.4.1 North Bridge

Compatibility RID

Support for Compatibility Revision ID (CRID) Functionality mentioned in Sandy
Bridge BIOS spec.

Enabled / Disabled

Total Memory / Current Memory Mode / Current Memory Speed / Mirroring /
Sparing

Read only.

Memory Mode

Select the mode for memory initialization.

Independent / Mirroring / Lock Step / Sparing

NUMA

Enable or Disable Non uniform Memory Access (NUMA).

Enabled / Disabled

MPST Support

Enable or Disable MPST Support. Along with enabling MPST Support, it also
requires NUMA to be enabled and Channel Interleaving to be set to 1-way for
MPST tables to be published.

Disabled / Enabled

http://www.tyan.com

84

DDR Speed

Force DDR Speed.

Auto / Force DDR3 800 / Force DDR3 1066 / Force DDR3 1333 / Force
DDR3 1600 / Force DDR3 1866

http://www.tyan.com

85

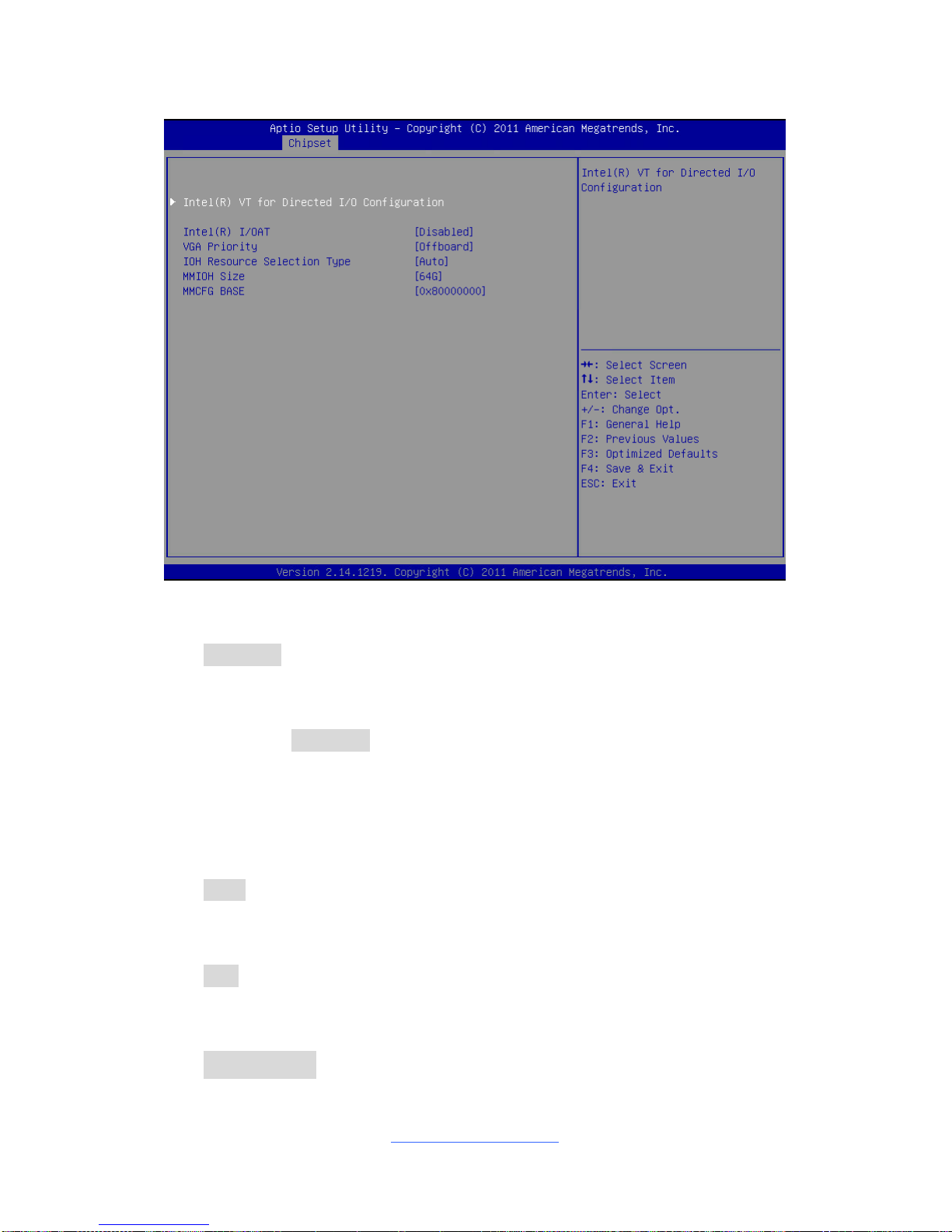

3.4.1.1 IOH Configuration Submenu

Intel

®

I/OAT

Enable/Disable Intel

®

I/O Acceleration Technology (I/OAT).

Disabled / Enabled

VGA Priority

Decides priority between onboard and 1st offboard vi deo device found.

Onboard / Offboard

IOH Resource Selection Type

Allow to select Auto/Manual. When Auto option is selected PCI resource allocation
across multiple IOHs is optimized automatically based on the PCI devices present.
With Manual option user can force the PCI resource allocation across multiple IOHs
based on the ratios selected.

Auto / Manual

MMIOH Size

Select number of 1GB contiguous regions to be assigned MMIOH space per CPU.

64G / 1G / 2G / 4G / 8G / 16G / 32G / 64G / 128G

MMCFG Base

Select the MMCFG BASE Values.

0x80000000 / 0xA0000000 / 0xC0000000

http://www.tyan.com

86

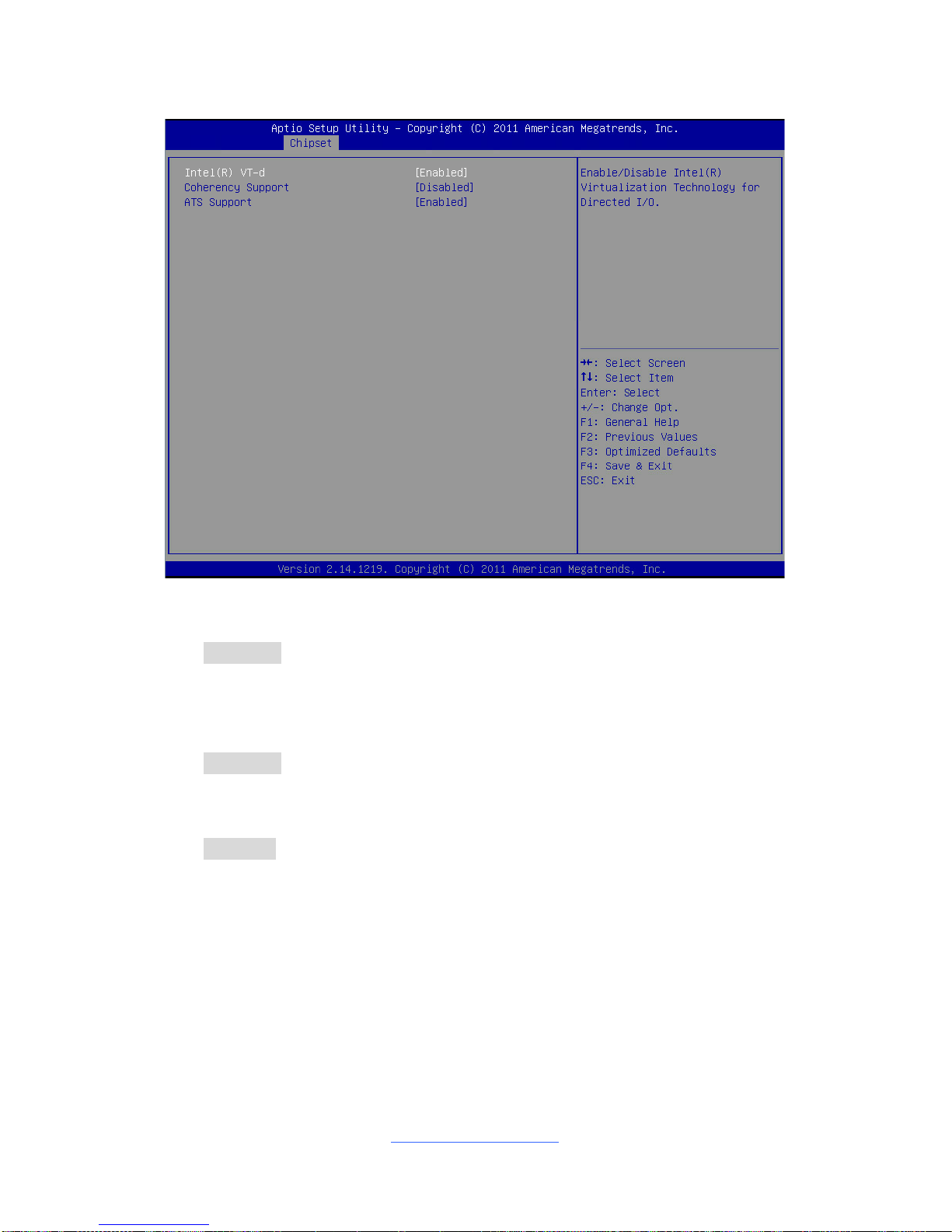

3.4.1.1.1 Intel® VT for Directed I/O Configuration Submenu

Intel

®

VT-d

Enable/Disable Intel

®

Virtualization Technology Directed I/O.

Disabled / Enabled

NOTE: The following items will appear when Intel

®

VT-d is set to [Enabled].

Coherency Support

Enable/Disable VT-d Engine Coherenc y Support.

Disabled / Enabled

ATS Support

Enable/Disable VT-d Engine Address Translation Services support.

Enabled / Disabled

http://www.tyan.com

87

3.4.1.2 QPI Configuration Submenu

QPI Link Speed Mode

Select the QPI link speed as either the Fast Mode or the Slow Mode.

Fast / Slow

QPI Link Frequency Select

Select the QPI Link Frequency.

Auto / 6.4GT/s / 7.2GT/s / 8.0GT/s

http://www.tyan.com

88

3.4.1.3 DIMM Information Submenu

Read only.

http://www.tyan.com

89

3.4.2 South Bridge

PCH Information

Read only.

Restore AC Power Loss

Specify what state to go to when power is re-app lied after a po wer failure ( G3 state).

Power Off / Power On / Last State

SLP_S4 Assertion Stretch Enable

Enabled/Disabled SLP_S4# Assertion Stretch.

Enabled / Disabled

SLP_S4 Assertion Width

Select a minimum assertion width of the SLP_S4# signal.

4-5 Seconds / 1-2 Seconds / 2-3 Seconds / 3-4 Seconds

Azalia HD Audio (optional)

Enabled/Disabled Azalia HD Audio.

Enabled / Disabled

NOTE: The BIOS will automatically read the onboard audio controller.

Chassis Intrusion Detection

Enabled: When a chassis open event is detected, the BIOS will display the event.

Disabled / Enabled

http://www.tyan.com

90

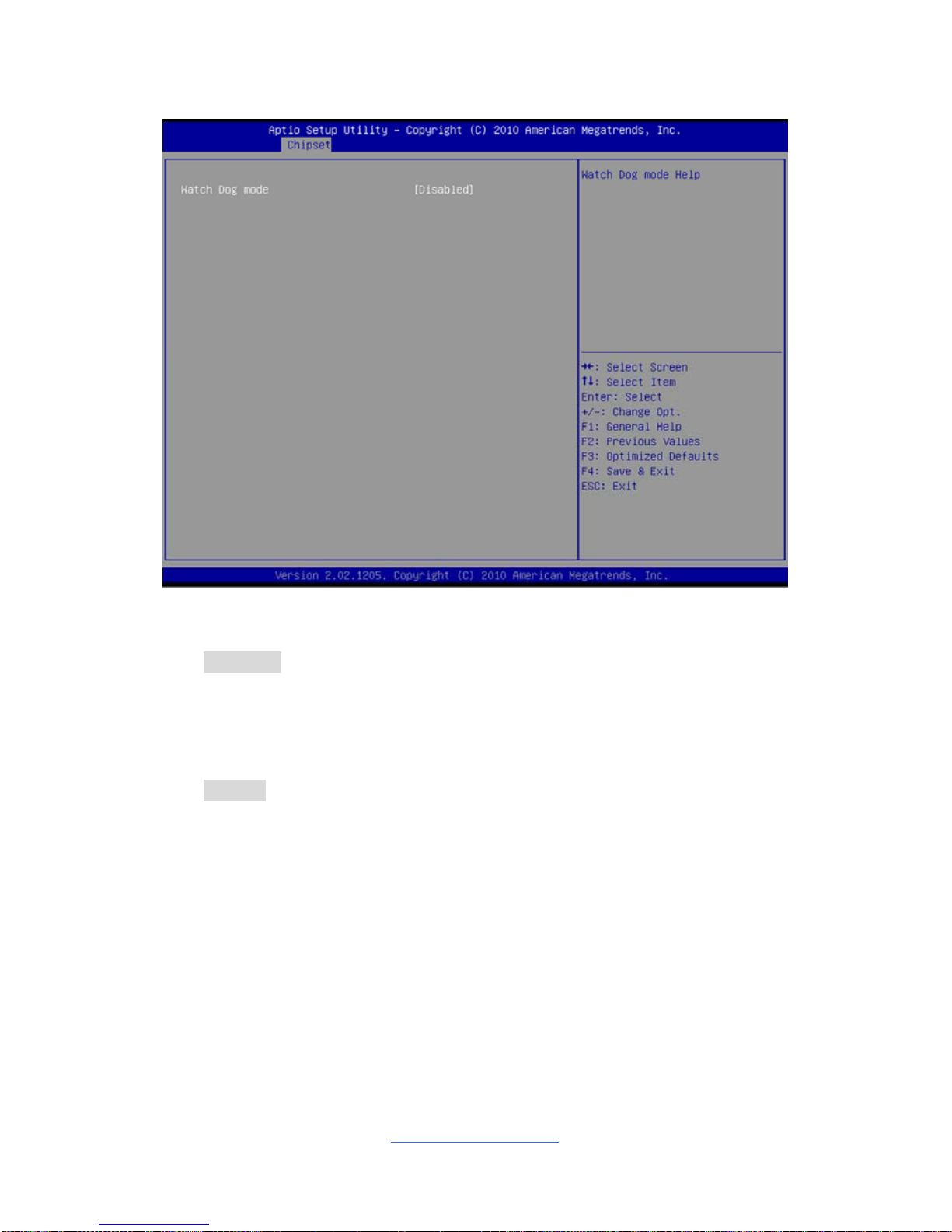

3.4.3 WatchDog Timer Configuration

Watch Dog Mode

Watch Dog Mode Help.

Disabled / POST / OS / PowerON

NOTE: Watch Dog Timer will appear when Watch Dog Mode is set to [Enabled].

Watch Dog Timer

Watch Dog Timer Help.

2 MINS / 4 MINS / 6 MINS / 8 MINS / 10 MINS

http://www.tyan.com

91

3.5 Boot

Bootup NumLock State

Select the keyboard NumLock state.

Off / On

Quiet Boot

Enable or disable Quiet Boot option.

Disabled / Enabled

Option ROM Messages

Select display mode for Option ROM.

Force BIOS / Keep Current

Interrupt 19 Capture

Enabled: allows Option ROMs to trap Int. 19.

Enabled / Disabled

Endless Boot

Enable or disable Endless Boot.

Disable Link / Enabled

Boot Option #1/Boot Option #2/Boot Option #3

Select the first boot device.

Device Name / Disabled

http://www.tyan.com

92

3.6 Security

Administrator Password

Set administrator password in the Create New Password window. After you key in
the password, the Confirm New Password window will pop out to ask for
confirmation.

User Password

Set user password in the Create New Password window. After you key in the
password, the Confirm New Password window will pop out to ask for confirmation.

http://www.tyan.com

93

3.7 Server Management

Press <Enter> to change the SEL event log configuration.
Enable/Disable interfaces to communicate with BMC.

http://www.tyan.com

94

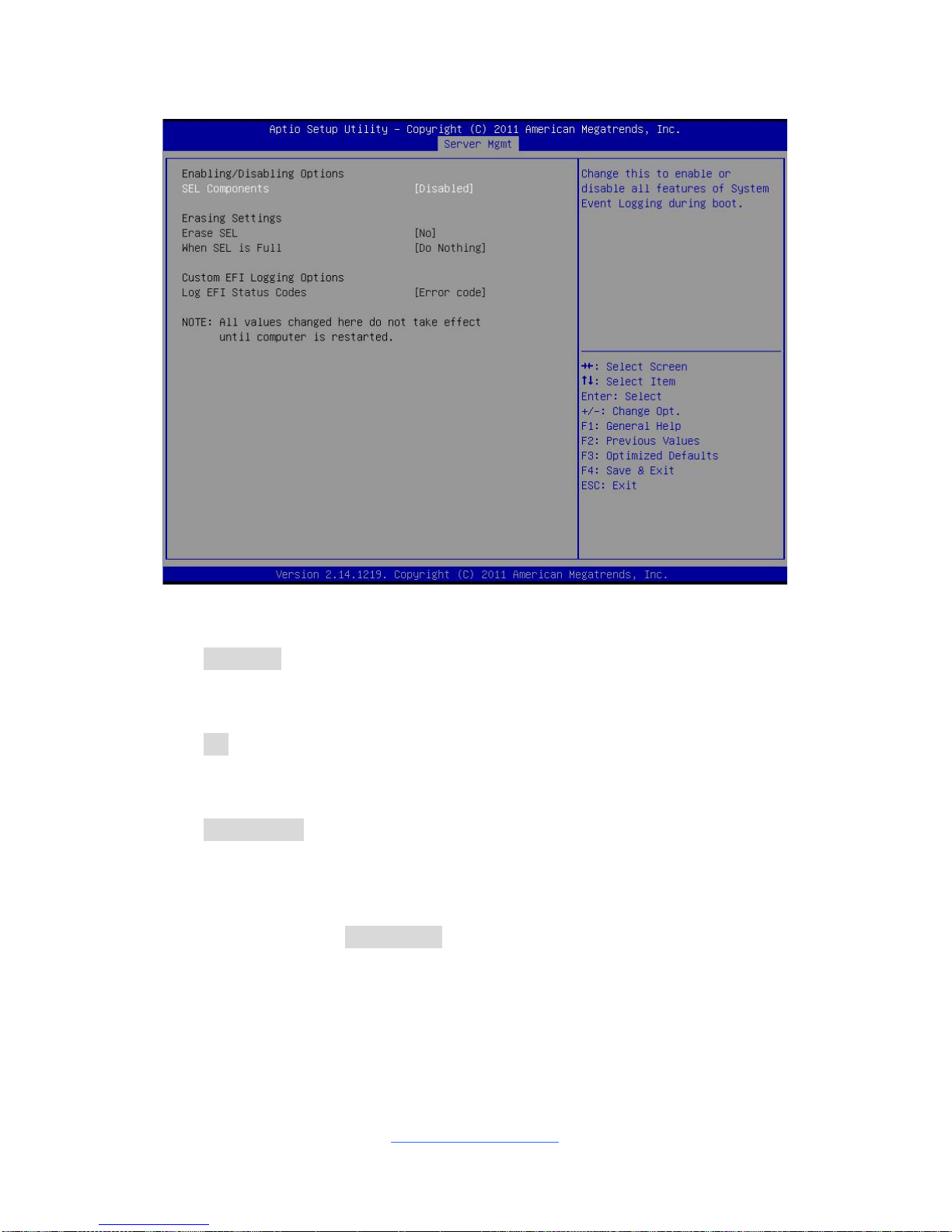

3.7.1 System Event Log

SEL Components

Change this to enable or disable all features of System Event Logging during bo ot.

Disabled / Enabled

Erase SEL

Choose options for erasing SEL.

No / Yes, on next reset / No, on every reset

When SEL is Full

Choose options for reactions to a full SEL.

Do Nothing / Erase Immediately

Log EFI Status Codes

Disable the logging of EFI Status Codes or log only error code or only progress
code or both.

Both / Disabled / Error Code / Progress Code

http://www.tyan.com

95

3.7.2 BMC Network Configuration

Configuration Address Source

Select the configure LAN channel parameters statically or dynamically (by BIOS or
BMC). Unspecified option will not modify any BMC network parameters during BIOS
phase.

Unspecified / Static / Dynamic-Obtained by BMC

http://www.tyan.com

96

3.8 Event Logs

Read only.

http://www.tyan.com

97

3.9 Save & Exit

Save Changes and Exit

Exit system setup after saving the changes.

Discard Changes and Exit

Exit system setup without saving any changes.

Save Changes and Reset

Reset the system after saving the changes.

Discard Changes and Reset

Reset system setup without saving any changes.

Save Options

Read only.

Save Changes

Save changes done so far to any of the setup options.
Discard Changes

Discard changes done so far to any of the setup options.

Restore Defaults

Restore/Load Default values for all the setup options.

http://www.tyan.com

98

Save as User Defaults

Save the changes done so far as User Defaults.

Restore User Defaults

Restore the User Defaults to all the setup options.

http://www.tyan.com

99

Chapter 4: Diagnostics

NOTE: if you experience problems with setting up your system, always check the

following things in the following order:

Memory, Video, CPU

By checking these items, you will most likely find out what the problem might have
been when setting up your system. For more information on troubleshooting, check
the TYAN website at http://www.tyan.com

.

4.1 Flash Utility

Every BIOS file is unique for the motherboard it was designed for. For Flash
Utilities, BIOS downloads, and information on how to properly use the Flash Utility
with your motherboard, please check the TYAN web site at http://www.tyan.com

NOTE: Please be aware that by flashing your BIOS, you agr ee that in the
event of a BIOS flash failure, you must contact your dealer for a replacement
BIOS. There are no exceptions. TYAN does not have a policy for replacing
BIOS chips directly with end users. In no event will TYAN be held responsible
for damages done by the end user.

http://www.tyan.com

100

4.2 AMIBIOS Post Code (Aptio)

The POST code checkpoints are the largest set of checkpoints during the BIOS pre­boot process. The following table describes the type of checkpoints that may occur
during the POST portion of the BIOS:

Checkpoint Ranges

Status Code Range Description

0x01 – 0x0B SEC execution

0x0C – 0x0F Sec errors

0x10 – 0x2F PEI execution up to and including memory detection
0x30 – 0x4F PEI execution after memory detection
0x50 – 0x5F PEI errors

0x60 – 0x8F DXE execution up to BDS
0x90 – 0xCF BDS execution
0xD0 – 0xDF DXE errors
0xE0 – 0xE8 S3 Resume (PEI)
0xE9 – 0xEF S3 Resume errors (PEI)

0xF0 – 0xF8 Recovery (PEI)
0xF9 – 0xFF Recovery errors (PEI)

Standard Checkpoints

SEC Phase

Status Code Description

0x00 Note used

Progress Codes

0x01 Power on. Reset type detection (soft/hard).
0x02 AP initialization before microcode loading
0x03 North Bridge initialization before microcode loading
0x04 South Bridge initialization before microcode loading
0x05 OEM initialization before microcode loading
0x06 Microcode loading
0x07 AP initialization after microcode loading
0x08 North Bridge initialization after microcode loading

0x09 South Bridge initialization after microcode loading
0x0A OEM initialization after microcode loading
0x0B Cache initialization
