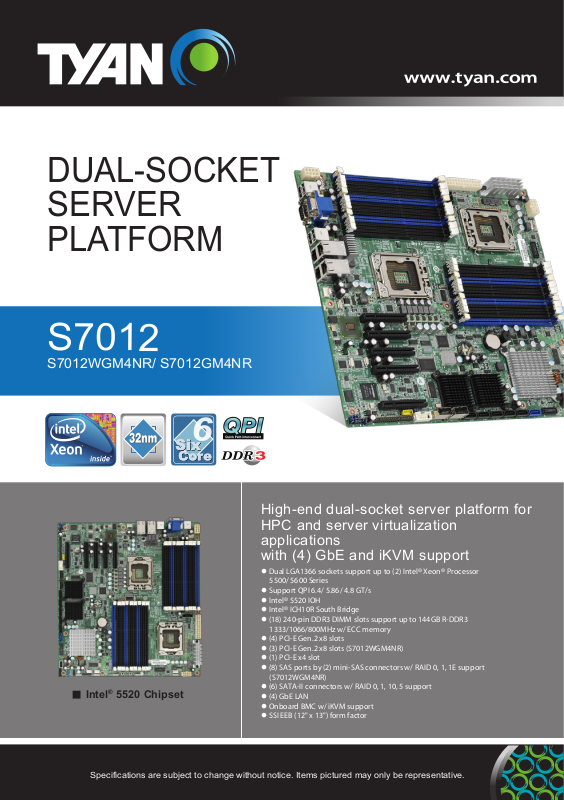

Tyan S7012 User Manual
DUAL-SOCKET
SERVER
PLATFORM
S7012
S7012WGM4NR/ S7012GM4NR
High-end dual-socket server platform for
HPC and server virtualization
applications
with (4) GbE and iKVM support
Dual LGA1366 sockets support up to (2) Intel® Xeon® Processor
5500/ 5600 Series
Support QPI 6.4/ 5.86/ 4.8 GT/s
Intel® 5520 IOH
Intel® ICH10R South Bridge
(18) 240-pin DDR3 DIMM slots support up to 144GB R-DDR3
1333/1066/800MHz w/ ECC memory
(4) PCI-E Gen.2 x8 slots
(3) PCI-E Gen.2 x8 slots (S7012WGM4NR)
(1) PCI-E x4 slot
(8) SAS ports by (2) mini-SAS connectors w/ RAID 0, 1, 1E support
(S7012WGM4NR)
Intel® 5520 Chipset
Specifications are subject to change without notice. Items pictured may only be representative.
(6) SATA-II connectors w/ RAID 0, 1, 10, 5 support
(4) GbE LAN
Onboard BMC w/ iKVM support
SSI EEB (12" x 13") form factor
S7012
®
Intel® 82576
S7012WGM4NR/ S7012GM4NR
Specifications
Processor
Chipset
Memory
Expansion Slots
LAN
Storage
Graphic
Input /Output
System
Monitoring
Supported CPU Series
Socket Type / Q'ty
Thermal Design Power
(TDP) wattage
System Bus
IOH / ICH
Super I/O
Supported DIMM Qty
DIMM Type / Speed
Capacity
Memory channel
Memory voltage
PCI-E
(S7012WGM4NR only)
PCI-E
(S7012GM4NR only)
Recommended TYAN
Riser Card
Port Q'ty
Controller
Connector
Controller
SAS
(opt.)
Speed
RAID
Connector
Controller
SATA
Speed
RAID
Connector type
Resolution
Chipset
USB
COM
SAS
(opt.)
VGA
RJ-45
Power
Front Panel
SATA
Chipset
Voltage
Fan
Temperature
LED
Others
Intel® Xeon® Processor 5500/ 5600 Series
LGA1366 / (2)
130W
Up to 4.8/ 5.86/ 6.4GT/s with Intel
QuickPath Interconnect (QPI) support
®
Intel
5520 / ICH10R
®
Winbond W83627
(18) DIMM sockets
DDR3 800/1066/1333 RDIMM/UDIMM
Up to 144GB at launch w/ dual rank RDIMMs
6 Channels (3 Channels per CPU)
1.5V
(3) PCI-E Gen.2 x8 slots
(1) PCI-E x8 slot (w/ x4 link)
(4) PCI-E Gen.2 x8 slots
(1) PCI-E x8 slot (w/ x4 link)
M2083-RS, PCI-E x16 1U riser card (left)
(4)
82574L
Intel
(2) Mini-SAS connectors (support 8 ports)
LSI SAS1068E (S7012WGM4NR only)
3.0 Gb/s
RAID 0/1/1E (LSI Integrated RAID)
(6) SATA
ICH10R
3.0 Gb/s
®
RAID 0/1/10/5 (Intel
Matrix RAID)
D-Sub 15-pin
1600x1200@60Hz
Aspeed AST2050
(7) USB2.0 ports (2 at rear, 4 via cable, 1
type A onboard)
(2) ports (1 at rear, 1 via cable)
(2) Mini-SAS (4-in-1) connectors
(S7012WGM4NR only)
(1) D-Sub 15-pin VGA port
(4) GbE ports
SSI 24-pin + 8-pin + 8-pin power connectors
/ EPS12V
(1) 2x12-pin SSI front panel header
(6) SATA-II connectors
Winbond W83793G
Monitors voltage for CPU, memory, chipset &
power supply
Total (5) 4-pin headers
Total (5) 8-pin headers
Monitors temperature for CPU & system
environment
Fan fail LED indicator (presented by system
front panel)
Over temperature warning indicator
Chassis intrusion detection
Watchdog timer support
Block Diagram
VRD 11.1
for CPU 0
CHA
CHB
CHC
PCI-E Gen.2 x8 (x8)
PCI-E Gen.2 x8 (x8)
PCI-E Gen.2 x8 (x8)
PCI-E Gen.2 x8 (x8)
GLCI
82574
GLCI
82574
BMC
AST2050
Intel Xeon
CPU0
Quad-Core
5520 Series
6.4GT/s 6.4GT/s
QPI
ESI
ICH10R
FWH
Mini SAS Conn
Mini SAS Conn
DDR3 MEMORY*3
DDR3 MEMORY*3
DDR3 MEMORY*3
LSI
1068E SAS
(Optional)
PCI-E x8 (x4)
RJ45
RJ45
D-sub VGA
Onboard Chipset
Server
Management
AST2050 IPMI Feature
AST2050 iKVM Feature
Brand / ROM size
BIOS
Form Factor
Operation
System
Regulation
Feature
Form Factor
Board Dimension
OS supported list
FCC (DoC)
CE (DoC)
Operating Temp.
Operating
Environment
Non-operating Temp.
In/Non-operating
Humidity
RoHS
(Specifications are subject to change without notice. Items pictured may only be
representative.)
RoHS 6/6 Complaint
VRD 11.1
for CPU 1
CHD
QPI
6.4GT/s
5520
IOH
SIO
W83627DHG
Intel Xeon
CPU1
Quad-Core
5520 Series
QPI
DDR3 MEMORY*3
CHE
DDR3 MEMORY*3
CHF
DDR3 MEMORY*3
Intel
82576
USB2.0 header *1
USB2.0 port *4
USB2.0 Type A *1
SATA *6
HWM W83793G
DB-9 serial port *1
Serial header *1
RJ45
RJ45
Onboard Aspeed AST2050
IPMI 2.0 compliant baseboard management
controller (BMC)
Supports storage over IP and remote
platform-flash
BIOS update
USB 2.0 virtual hub
24-bit high quality video compression
Dual 10/100 Mb/s MAC interfaces
AMI / 4MB
Plug and Play (PnP) / PCI2.3
WfM2.0 / SMBIOS2.3 / PXE boot
ACPI 2.0 power management
Power on mode after power recovery
User-configurable H/W monitoring
Auto-configurable of hard disk types
Multiple boot options
SSI EEB
12"x13" (305x330mm)
Please refer to our OS supported list.
Class B
Yes
10° C ~ 35° C (50° F~ 95° F)
- 40° C ~ 70° C (-40° F ~ 158° F)
90%, non-condensing at 35° C
Yes
(Front Panel)
(Rear I/O)
(onboard)
