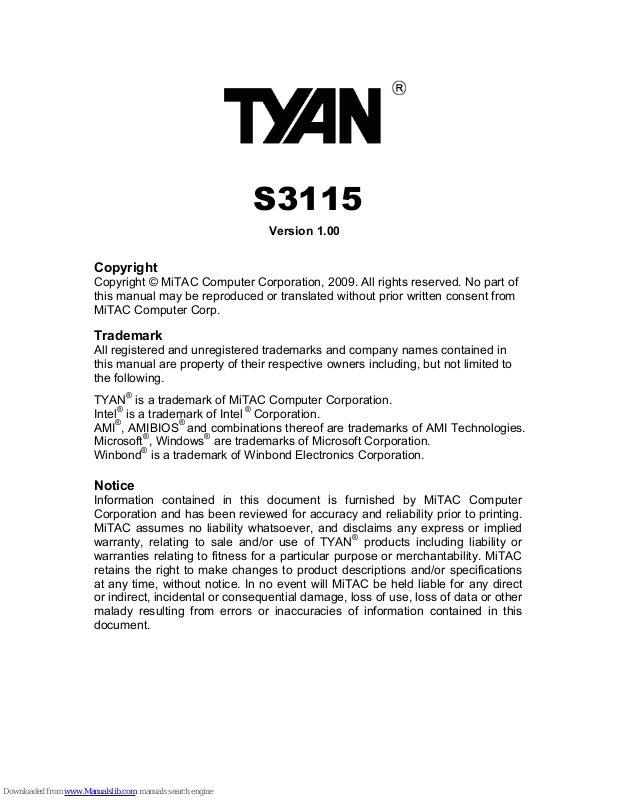

S3115
Version 1.00
Copyright
Copyright © MiTAC Computer Corporation, 2009. All rights reserved. No part of
this manual may be reproduced or translated without prior written consent from
MiTAC Computer Corp.
Trademark
All registered and unregistered trademarks and company names contained in
this manual are property of their respective owners including, but not limited to
the following.
TYAN® is a trademark of MiTAC Computer Corporation.
Intel
®
is a trademark of Intel ® Corporation.
AMI
®
, AMIBIOS® and combinations thereof are trademarks of AMI Technologies.
Microsoft
®
, Windows® are trademarks of Microsoft Corporation.
Winbond
®
is a trademark of Winbond Electronics Corporation.
Notice
Information contained in this document is furnished by MiTAC Computer
Corporation and has been reviewed for accuracy and reliability prior to printing.
MiTAC assumes no liability whatsoever, and disclaims any express or implied
warranty, relating to sale and/or use of TYAN
®
products including liability or
warranties relating to fitness for a particular purpose or merchantability. MiTAC
retains the right to make changes to product descriptions and/or specifications
at any time, without notice. In no event will MiTAC be held liable for any direct
or indirect, incidental or consequential damage, loss of use, loss of data or other
malady resulting from errors or inaccuracies of information contained in this
document.
Page 2
http://www.tyan.com
2
Page 3
http://www.tyan.com
3
Contents
Before you begin… ..............................................................................4
Chapter 1: Instruction .......................................................................... 5
1.1 - Congratulations ............................................................................................. 5
1.2 - Hardware Specifications................................................................................ 5
1.3 - Software Specifications ............................................................................... 11
1.4 - AST2050 User Guide .................................................................................. 11
Chapter 2: Board Installation ............................................................13
2.1 - Board Image................................................................................................ 14
2.2 - Block Diagram .............................................................................................15
2.3 - Board Parts, Jumpers and Connectors........................................................ 16
2.4 - Tips on Installing Motherboard in Chassis................................................... 22
2.5 - Installing the Memory .................................................................................. 24
2.6 - Attaching Drive Cables ................................................................................ 26
2.7 - Installing Add-In Cards ................................................................................ 27
2.8 - Connecting External Devices ...................................................................... 28
2.9 - Installing the Power Supply ......................................................................... 29
2.10 - Finishing Up .............................................................................................. 30
Chapter 3: BIOS Setup....................................................................... 31
3.1 - About the BIOS............................................................................................ 31
3.2 - BIOS Menu Bar ........................................................................................... 31
3.3 - Setup Basics ............................................................................................... 32
3.4 - Getting Help ................................................................................................ 32
3.5 - In Case of Problems .................................................................................... 32
3.6 - BIOS Main Menu ......................................................................................... 33
3.7 - BIOS Advanced Menu ................................................................................. 34
3.8 - PCI PnP Menu............................................................................................. 50
3.9 - Boot Menu ................................................................................................... 52
3.10 - Security Menu............................................................................................ 55
3.11 - Chipset Menu ............................................................................................56
3.12 - Exit Menu .................................................................................................. 59
Chapter 4: Diagnostics ......................................................................61
4.1 - Flash Utility.................................................................................................. 61
4.2 - AMIBIOS Post Code.................................................................................... 62
Appendix: How to Make a Driver Diskette........................................ 65
Glossary.............................................................................................. 67
Technical Support.............................................................................. 73
Page 4
http://www.tyan.com
4
Before you begin…
Check the box contents!
The retail motherboard package should contain the following:
1x S3115 Motherboard
2 x SATA Cable
1 x S3115 User’s manual
1 x S3115 Quick reference guide
1 x TYAN® Driver CD
1 x I/O shield
Page 5
http://www.tyan.com
5
Chapter 1: Instruction
1.1 - Congratulations
Congratulations in purchasing the TYAN
®
S3115 motherboard. This Intel 945GC
express chipset utilizes the latest Intel Atom 330 CPU to create a highly cost
affective product. This product can be used for social networking, voice over IP and
numerous other online activities.
TYAN
®
S3115 is designed around several different configurations which are all
detailed in the following Hardware Specification section:
1.2 - Hardware Specifications
TYAN S3115 (S3115GM2N)
Supported CPU Series
Intel Atom Processor 330 (1MB Cache, 1.60GHz,
533MHz FSB)
Socket Type / QTY Micro-FCBGA8 / (1)
Thermal Design Power
(TDP) wattage
8W
Processor
System Bus 533 MHz
Chipset MCH / ICH Intel 945GC / ICH7
Supported DIMM Qty (2) DIMM slots
DIMM Type / Speed Unbuffered DDR2 SO-DIMM 533 / 400
Capacity Up to 2GB
Memory channel 2 Channels per CPU
Memory
Memory voltage 1.8V
PCI-E (1) PCI-E x1 slot
Expansion
Slots
PCI (1) PCI 32-bit slot
Port QTY (2)
LAN
Controller Intel 82574L
Connector (4) SATA
Controller ICH7
Storage SATA
Speed 3.0 Gb/s
Connector type D-Sub 15-pin
Resolution 1600x1200@60Hz
Chipset Aspeed AST2050
Graphic
Video RAM 8MB
USB (4) USB 2.0 ports (2 at rear, 2 via cable)
COM (1) port
Input /Output
VGA (1) D-Sub 15-pin VGA port
Input /Output
RJ-45 (2) GbE ports
Page 6
http://www.tyan.com
6
Power ATX 2x10 pin connector
Front Panel (1) 2x12-pin SSI front panel header
PSMI (1) 1x5-pin header
SATA
(3) SATA-II vertical and (1) right angle SATA-II
connectors
Chipset Winbond W83627DHG-P
Voltage
Monitors voltage for CPU, memory, chipset and
power supply
Fan Total (3) 4-pin headers
System
Monitoring
Temperature
Monitors temperature for CPU and system
environment
Onboard Chipset Onboard Aspeed AST2050
AST2050 IPMI Feature
IPMI 2.0 compliant baseboard management
controller (BMC) / Supports storage over IP and
remote platform-flash/ USB 2.0 virtual hub
Server
Management
AST2050 iKVM Feature
24-bit high quality video compression / Dual 10/100
Mb/s MAC interfaces
Brand / ROM size AMI / 2MB
BIOS
Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power
on mode after power recovery / User-configurable
H/W monitoring / Auto-configurable of hard disk
types / Multiple boot options
Form Factor mini-ITX
Form Factor
Board Dimension 6.57" x 6.69" (167mm x 170mm)
Operating
System
OS supported list Please refer to our OS supported list.
FCC (DoC) Class B
Regulation
CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment
In/Non-operating
Humidity
90%, non-condensing at 35° C
RoHS RoHS 6/6 Complaint Yes
Motherboard (1) S3115 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Package
Contains
(Retail)
Cable SATA (2) SATA signal cables
Page 7
http://www.tyan.com
7
TYAN S3115 (S3115GM2N-B)
Supported CPU Series
Intel Atom Processor 330 (1MB Cache, 1.60GHz,
533MHz FSB)
Socket Type / QTY Micro-FCBGA8 / (1)
Thermal Design Power
(TDP) wattage
8W
Processor
System Bus 533 MHz
Chipset MCH / ICH Intel 945GC / ICH7
Supported DIMM QTY (2) DIMM slots
DIMM Type / Speed Unbuffered DDR2 SO-DIMM 533 / 400
Capacity Up to 2GB
Memory channel 2 Channels per CPU
Memory
Memory voltage 1.8V
Expansion
Slots
PCI (1) PCI 32-bit slot
Port QTY (2)
LAN
Controller Intel 82574L
Connector (2) SATA
Controller ICH7
Storage SATA
Speed 3.0 Gb/s
Connector type D-Sub 15-pin
Resolution 1600x1200@60Hz
Chipset Aspeed AST2050
Graphic
Video RAM 8MB
USB (2) USB 2.0 ports (at rear)
COM (1) port
VGA (1) D-Sub 15-pin VGA port
RJ-45 (2) GbE ports
Power ATX 2x10 pin connector
PSMI (1) 1x5-pin header
Input /Output
SATA (2) SATA-II vertical connectors
Chipset Winbond W83627DHG-P
Voltage
Monitors voltage for CPU, memory, chipset and
power supply
System
Monitoring
Temperature
Monitors temperature for CPU and system
environment
Onboard Chipset Onboard Aspeed AST2050
AST2050 IPMI Feature
IPMI 2.0 compliant baseboard management
controller (BMC) / Supports storage over IP and
remote platform-flash/USB 2.0 virtual hub
Server
Management
AST2050 iKVM Feature
24-bit high quality video compression / Dual 10/100
Mb/s MAC interfaces
BIOS Brand / ROM size AMI / 2MB
Page 8
http://www.tyan.com
8
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power
on mode after power recovery / User-configurable
H/W monitoring / Auto-configurable of hard disk
types / Multiple boot options
Form Factor mini-ITX
Form Factor
Board Dimension 6.57" x 6.69" (167mm x 170mm)
Operating
System
OS supported list Please refer to our OS supported list.
FCC (DoC) Class B
Regulation
CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment
In/Non-operating
Humidity
90%, non-condensing at 35° C
RoHS RoHS 6/6 Complaint Yes
Motherboard (10) S3115 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Package
Contains
(Bulk Pack)
Installation CD (1) TYAN installation CD
TYAN S3115 (S3115GMN)
Supported CPU Series
Intel Atom Processor 330 (1MB Cache, 1.60GHz,
533MHz FSB)
Socket Type / QTY Micro-FCBGA8 / (1)
Thermal Design Power
(TDP) wattage
8W
Processor
System Bus 533 MHz
Chipset MCH / ICH Intel 945GC / ICH7
Supported DIMM Qty (2) DIMM slots
DIMM Type / Speed Unbuffered DDR2 SO-DIMM 533 / 400
Capacity Up to 2GB
Memory channel 2 Channels per CPU
Memory
Memory voltage 1.8V
PCI-E (1) PCI-E x1 slot
Expansion
Slots
PCI (1) PCI 32-bit slot
Port QTY (1)
LAN
Controller Intel 82574L
Connector (4) SATA
Controller ICH7
Storage SATA
Speed 3.0 Gb/s
Connector type D-Sub 15-pin
Graphic
Resolution 1600x1200@60Hz
Page 9
http://www.tyan.com
9
Chipset Aspeed AST2050
Graphic
Video RAM 8MB
USB (4) USB 2.0 ports (2 at rear, 2 via cable)
COM (1) port
VGA (1) D-Sub 15-pin VGA port
RJ-45 (1) GbE port
Power ATX 2x10 pin connector
Front Panel (1) 2x12-pin SSI front panel header
PSMI (1) 1x5-pin header
Input /Output
SATA
(3) SATA-II vertical and (1) right angle SATA-II
connectors
Chipset Winbond W83627DHG-P
Voltage
Monitors voltage for CPU, memory, chipset and
power supply
Fan Total (3) 4-pin headers
System
Monitoring
Temperature
Monitors temperature for CPU and system
environment
Onboard Chipset Onboard Aspeed AST2050
AST2050 IPMI Feature
IPMI 2.0 compliant baseboard management
controller (BMC) / Supports storage over IP and
remote platform-flash / USB 2.0 virtual hub
Server
Management
AST2050 iKVM Feature
24-bit high quality video compression / Dual 10/100
Mb/s MAC interfaces
Brand / ROM size AMI / 2MB
BIOS
Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power
on mode after power recovery / User-configurable
H/W monitoring / Auto-configurable of hard disk
types / Multiple boot options
Form Factor mini-ITX
Form Factor
Board Dimension 6.57" x 6.69" (167mm x 170mm)
Operating
System
OS supported list Please refer to our OS supported list.
FCC (DoC) Class B
Regulation
CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment
In/Non-operating
Humidity
90%, non-condensing at 35° C
RoHS RoHS 6/6 Complaint Yes
Motherboard (1) S3115 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Package
Contains
(Retail)
Cable SATA (2) SATA signal cables
Page 10
http://www.tyan.com
10
TYAN S3115 (S3115GN)
Supported CPU Series
Intel Atom Processor 330 (1MB Cache, 1.60GHz,
533MHz FSB)
Socket Type / QTY Micro-FCBGA8 / (1)
Thermal Design Power
(TDP) wattage
8W
Processor
System Bus 533 MHz
Chipset MCH / ICH Intel 945GC / ICH7
Supported DIMM Qty (2) DIMM slots
DIMM Type / Speed Unbuffered DDR2 SO-DIMM 533 / 400
Capacity Up to 2GB
Memory channel 2 Channels per CPU
Memory
Memory voltage 1.8V
PCI-E (1) PCI-E x1 slot
Expansion
Slots
PCI (1) PCI 32-bit slot
Port QTY (1)
LAN
Controller Intel 82574L
Connector (4) SATA
Controller ICH7
Storage SATA
Speed 3.0 Gb/s
Connector type D-Sub 15-pin
Resolution 1600x1200@60Hz
Chipset 945GC integrated graphics
Graphic
Video RAM 1MB/8MB (select in BIOS)
USB (4) USB 2.0 ports (2 at rear, 2 via cable)
COM (1) port
VGA (1) D-Sub 15-pin VGA port
RJ-45 (1) GbE port
Power ATX 2x10 pin connector
Front Panel (1) 2x12-pin SSI front panel header
PSMI (1) 1x5-pin header
Input /Output
SATA
(3) SATA-II vertical and (1) right angle SATA-II
connectors
Chipset Winbond W83627DHG-P
Voltage
Monitors voltage for CPU, memory, chipset and
power supply
Fan Total (3) 4-pin headers
System
Monitoring
Temperature
Monitors temperature for CPU and system
environment
BIOS Brand / ROM size AMI / 2MB
Page 11
http://www.tyan.com
11
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power
on mode after power recovery / User-configurable
H/W monitoring / Auto-configurable of hard disk
types / Multiple boot options
Form Factor mini-ITX
Form Factor
Board Dimension 6.57" x 6.69" (167mm x 170mm)
Operating
System
OS supported list Please refer to our OS supported list.
FCC (DoC) Class B
Regulation
CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment
In/Non-operating
Humidity
90%, non-condensing at 35° C
RoHS RoHS 6/6 Complaint Yes
Motherboard (1) S3115 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Package
Contains
(Retail)
Cable SATA (2) SATA signal cables
Remember to visit TYAN® website at http://www.tyan.com there you can find
information on all of TYAN
®
s products with FAQs, online manuals and BIOS
upgrades and more.
1.3 - Software Specifications
For OS (operation system) support, please check the TYAN® website for the latest
information.
1.4 - AST2050 User Guide
Remember to visit the TYAN® website at http://www.tyan.com for the AST2050
user guide.
Page 12
http://www.tyan.com
12
Page 13
http://www.tyan.com
13
Chapter 2: Board Installation
You are now ready to install your motherboard.
How to install our products right… the first time
The first thing you should do is reading this user’s manual. It contains important
information that will make configuration and setup much easier. Here are some
precautions you should take when installing your motherboard:
(1) Ground yourself properly before removing your motherboard from the
antistatic bag. Unplug the power from your computer power supply and
then touch a safely grounded object to release static charge (i.e. power
supply case). For the safest conditions, TYAN
®
recommends wearing a
static safety wrist strap.
(2) Hold the motherboard by its edges and do not touch the bottom of the
board, or flex the board in any way.
(3) Avoid touching the motherboard components, IC chips, connectors,
memory modules, and leads.
(4) Place the motherboard on a grounded antistatic surface or on the antistatic
bag that the board was shipped in.
(5) Inspect the board for damage.
The following pages include details on how to install your motherboard into your
chassis, as well as installing the processor, memory, disk drives and cables.
Note:
DO NOT APPLY POWER TO THE BOARD IF IT HAS
BEEN DAMAGED.
Page 14
http://www.tyan.com
14
2.1 - Board Image
This diagram is representative of the latest motherboard revision available
at the time of publishing. The board you receive may not look exactly like
the above diagram.
Page 15
http://www.tyan.com
15
2.2 - Block Diagram
S3115 Block Diagram
Page 16
http://www.tyan.com
16

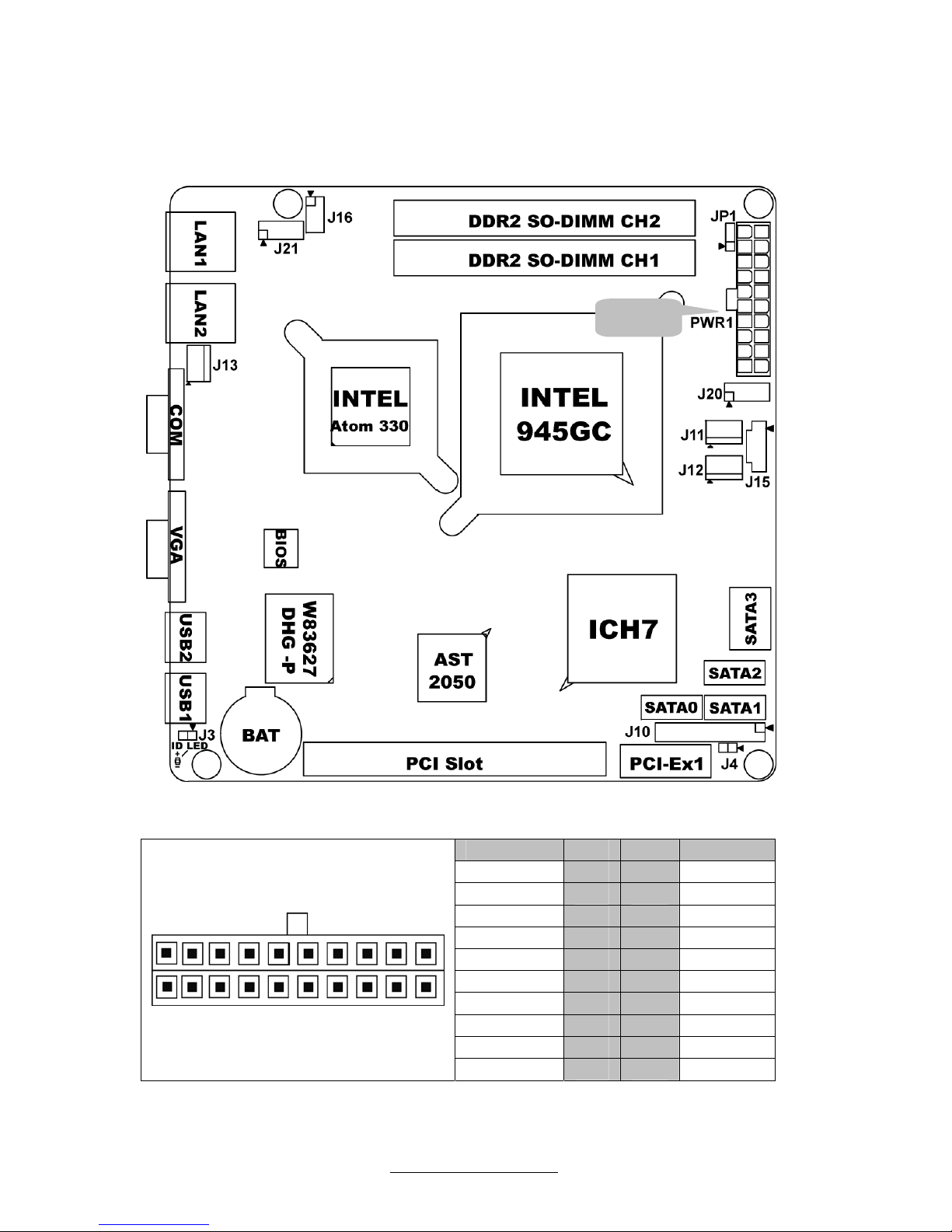

2.3 - Board Parts, Jumpers and Connectors
This diagram is representative of the latest board revision (S3115GM2N)
available at the time of publishing. The board you receive may not look exactly
like the above diagram.
Page 17
http://www.tyan.com
17
Jumpers and Connectors
Jumper/Connector Function
J11/J12/J13 FAN Connector
J3 BMC Reset Header
J4 HDD LED header
J10 Front Panel
J15 PSMI Header
J16 Rear Panel I/O
J20 USB Pin Header
J21 BMC Pin Header
JP1 Clear CMOS
Jumper Legend
OPEN - Jumper OFF
Without jumper cover
CLOSED - Jumper ON
With jumper cover
Page 18
http://www.tyan.com
18
Jumper Placement
J11/J12/J13: Fan Connector
Pin 1 2 3 4
Pin_1
Signal
GND +12V TACH PWM
Note: These fan headers are keyed to accept both 3-pin and 4-pin fans.
If you use only a 3-pin fan, some fan options will not be available.
J3: BMC Reset Pin Header
Pin 1 2
Pin_1
Signal
BMC_DIS_L GND
J11
J12
J13
J3 J4
J10
J15
J16
Page 19
http://www.tyan.com
19
J4: HDD LED Pin Header
Pin 1 2
Pin_1
Signal
FP1_HDLED_P FP1_HDLED_N
J10: Front Panel Header
Signal Pin Pin Signal
PWRLED+
1 2
PWR
KEY
3 4
IDLED+
PWRLED
5 6
IDLED
HDDLED+
7 8
FAULTLED1
HDDLED
9 10
FAULTLED2
PWRBTN
11 12
LAN1LED+
GND
13 14
LAN1LED
RESET
15 16
SMBUSDATA
GND
17 18
SMBUSCLK
IDBTN
19 20
CASEOPEN
NC
21 22
LAN2LED+
NMIBTN
23 24
LAN2LED
NOTE：1: +3.3VSB power rail is IDLED, WLED (Warning LED), LANLED
2: +5VSB power rail is PWRLED
3: +3.3V power rail is HDLED
J15: PSMI Pin Header
Pin 1
2 3 4 5
Pin_1
Signal
BMC_PS
MI_CLK
BMC_PS
MI_DAT
PSU_SM
BALERT
_N
GND NC
J16: Rear Panel I/O Header
Signal Pin Pin Signal
PWRSW
1 2
GND
RSTSW
3 4
GND
PWRLED
5 6
PWRLED+
NC
7 8
KEY
Page 20
http://www.tyan.com
20
J20: USB Pin Header
Signal Pin Pin Signal
V5_USB_FP0
1 2
V5_USB_FP0
USB_C4_FB
3 4
USB_C3_FB
USB_T4_FB
5 6
USB_T3_FB
GND
7 8
GND
KEY
9 10
GND
J20
JP1
ID LED
Page 21
http://www.tyan.com
21
JP1: Clear CMOS
Pin_3 Pin_1
Normal
(Default)
Pin_3 Pin_1
Clear CMOS
You can reset the CMOS settings by using this
jumper if you have forgotten your system/setup
password or need to clear system BIOS setting.
- Power off system and disconnect both
power connectors from the
motherboard
- Put jumper cap back to Pin_1 and Pin_2
(default setting)
- Use jumper cap to close Pin_2 and Pin_3
for several seconds to Clear CMOS
Reconnect power and power on system
Onboard ID LED
You can identify the specific system using this LED. Users from remote
site could also activate ID LED by input a few commands in IPMI,
detailed software support please visit http://www.tyan.com
for lastest
AST2050 user guide.
Pin Signal
+ P3V3_AUX
- SYS_ID_SW_N
State Color Description
On Blue System identified
+ -
Off Off System not identified
Page 22
http://www.tyan.com
22
2.4 - Installing the Motherboard into a Chassis
Before installing your motherboard, make sure your chassis has the
necessary motherboard support studs installed. These studs are usually
metal and are gold in color. Usually, the chassis manufacturer will preinstall the support studs. If you are unsure of stud placement, simply lay the
motherboard inside the chassis and align the screw holes of the
motherboard to the studs inside the case. If there are any studs missing,
you will know right away since the motherboard will not be able to be
securely installed.
Page 23
http://www.tyan.com
23
Some chassis’ include plastic studs instead of metal. Although the plastic studs
are usable, TYAN
®
recommends using metal studs with screws that will fasten
the motherboard more securely in place.
Below is a chart detailing what the most common motherboard studs look like
and how they should be installed.
Page 24
http://www.tyan.com
24
2.5 - Installing the Memory
Before installing memory, be sure that the memory you have is compatible with
the motherboard and processor. Check the TYAN® web site at: www.tyan.com
for details of the type of memory recommended for your motherboard.
The following diagram shows common type of DDR2 SO-DIMM memory module.
• The TYAN® S3115 supports up to 2GB of unbuffered DDR2 SO-DIMM
400/533 MHz memory.
• All installed memory will automatically be detected and no jumpers or
settings need changing.
Note:
Install a single SO-DIMM module into Channel 1.
Page 25
http://www.tyan.com
25

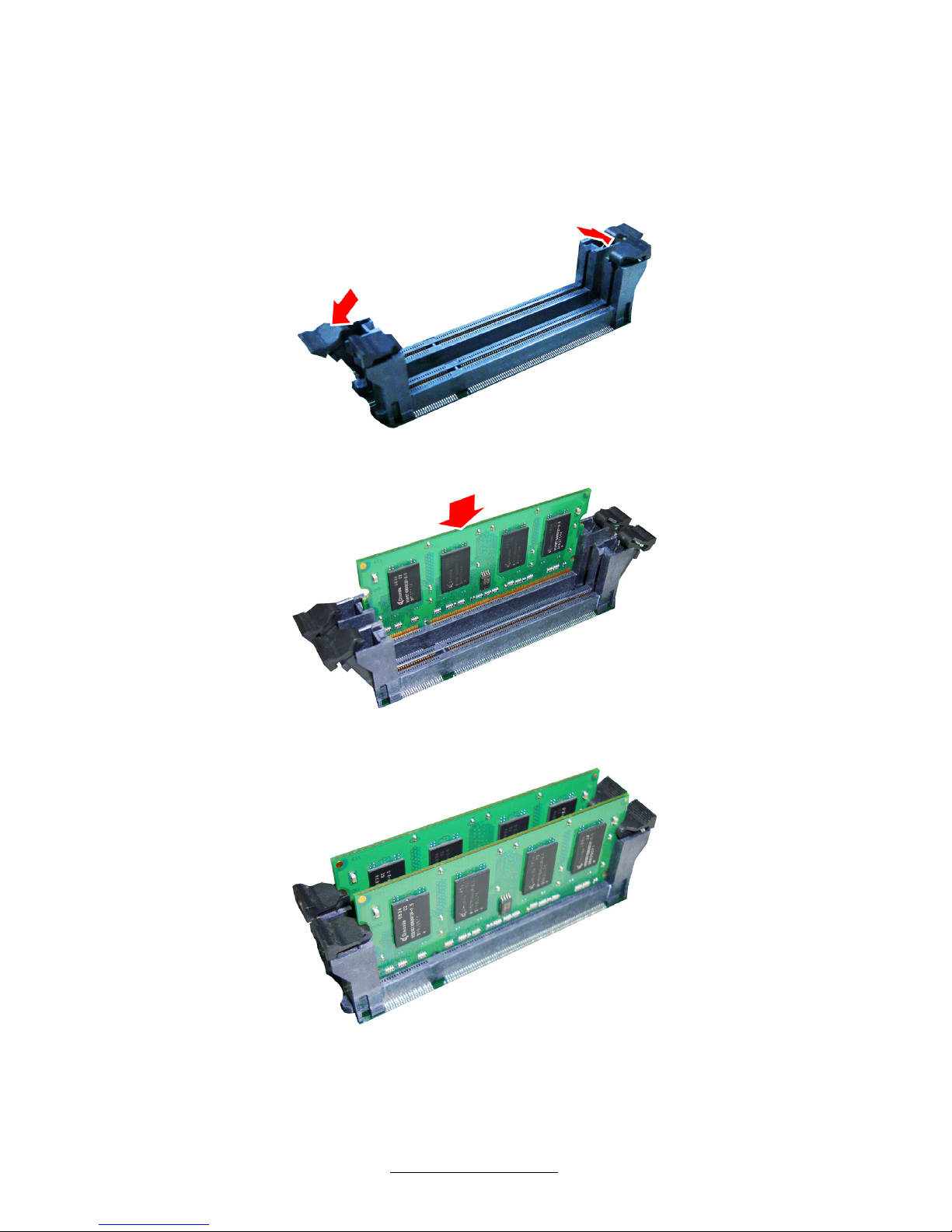

Memory Installation Procedure
Follow these instructions to install memory modules into the S3115.
1. Press the locking levers in the direction shown in the following illustration.
2. Align the memory module with the socket. The memory module is keyed to fit
only one way in the socket.
3. Seat the module firmly into the socket by gently pressing down until it sits flush
with the socket. The locking levers pop up into place.
Page 26
http://www.tyan.com
26
2.6 - Attaching Drive Cables
Attaching Serial ATA Cables
S3115 is equipped with 4 Serial ATA (SATA) channels. Connections for the
drives are very simple.
There is no need to set Master/Slave jumpers on SATA drives.
If you are in need of SATA cables or power adapters please contact your place
of purchase.
The following pictures illustrate how to connect an SATA drive
1. SATA drive cable
connection
2. SATA drive power
connection
3. SATA cable
motherboard connector
4. SATA drive power
adapter
Page 27
http://www.tyan.com
27

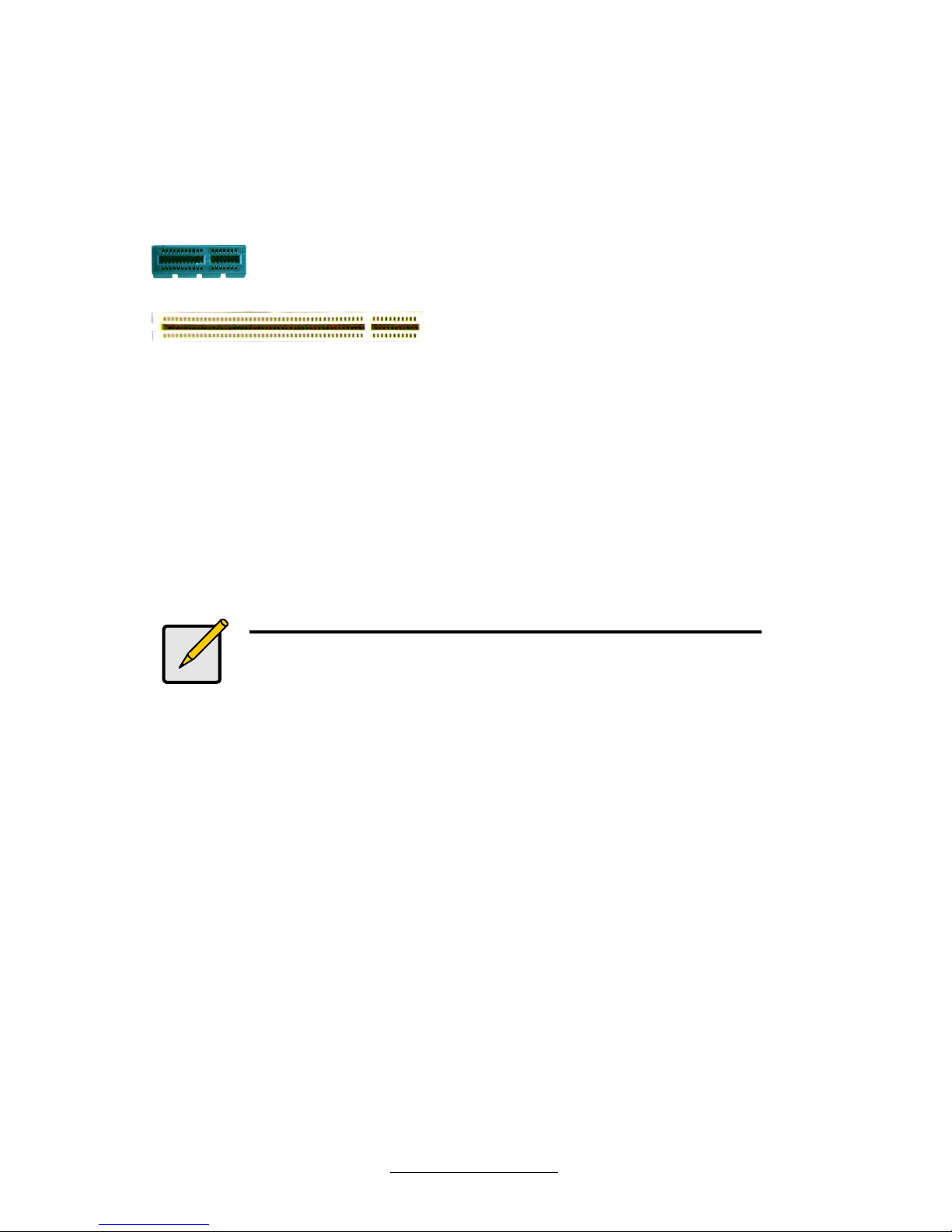

2.7 - Installing Add-In Cards
Before installing add-in cards, it’s helpful to know if they are fully compatible
with your motherboard. For this reason, we’ve provided the diagrams below,
showing the slots that may appear on your motherboard.
PCI-E x 1 slot
PCI 32bit slot
Simply find the appropriate slot for your add-in card and insert the card firmly.
Do not force any add-in cards into any slots if they do not seat in place. It is
better to try another slot or return the faulty card rather than damaging both the
motherboard and the add-in card.
TIP: It’s good practice to install add-in cards in a staggered manner rather
than making them directly adjacent to each other. Doing so allows air to
circulate within the chassis more easily, thus improving cooling for all
installed devices.
Note:
YOU MUST ALWAYS unplug the power connector to the
motherboard before performing system hardware changes
to avoid damaging the board or expansion device.
Page 28
http://www.tyan.com
28
2.8 - Connecting External Devices
Your motherboard supports a number of different interfaces through connecting
peripherals. See the following diagrams for the details.
Note:
Peripheral devices can be plugged straight into any of
these ports but software may be required to complete
the installation.
Onboard LAN LED Color Definition
The two onboard Ethernet ports have green and yellow LEDs to indicate LAN
status. The chart below illustrates the different LED states.
10/100/1000 Mbps LAN Link/Activity LED Scheme
Left LED Right LED
Link Green Off
10 Mbps
Active Blinking Green Off
Link Green Green
100 Mbps
Active Blinking Green Green
Link Green Yellow
1000 Mbps
Active Blinking Green Yellow
No Link Off Off
LAN1
(Share with BMC)
V
GA port
COM port
LAN2
USB2.0
Page 29
http://www.tyan.com
29
2.9 - Installing the Power Supply
TYAN® S3115 supports VRM11.0 ATX V2.x revisions (2x10 pin) power
supply.
PW 1: 20-Pin ATX PWR main Connector
Signal Pin Pin Signal
+3.3V
1 11
+3.3V
+3.3V
2 12
-12V
GND
3 13
GND
+5V
4 14
PS_ON
GND
5 15
GND
+5V
6 16
GND
GND
7 17
GND
PWRGD
8 18
-5V
5VSB
9 19
+5V
+12V
10 20
+5V
PW1
Page 30
http://www.tyan.com
30
We suggest using a standard ATX 2x10 pin 120W or higher power supply,
this is of course depends on how many devices you attach. 120W is
sufficient for common system (i.e. 4 hard drives, 1 expansion card)
configuration. However, a higher wattage solution may be needed if the
system is fully loaded.
Please refer to www.tyan.com
website for further information.
Note:
YOU MUST unplug the power supply before plugging the
power cables to motherboard connectors.
2.10 - Finishing Up
Congratulations on making it this far! You’re finished setting up the hardware
aspects of your computer. Before closing up your chassis, make sure that all
cables and wires are connected properly, especially IDE cables and most
importantly, jumpers. You may have difficulty powering on your system if the
motherboard jumpers are not set correctly. In the rare circumstance that you
have experienced difficulty, you can find help by asking your vendor for
assistance. If they are not available for assistance, please find setup information
and documentation online at our website or by calling your vendor’s support
line.
Page 31
http://www.tyan.com
31
Chapter 3: BIOS Setup
3.1 - About the BIOS
The BIOS is the basic input/output system, the firmware on the motherboard
that enables your hardware to interface with your software. The BIOS
determines what a computer can do without accessing programs from a disk.
The BIOS contains all the code required to control the keyboard, display
screen, disk drives, serial communications, and a number of miscellaneous
functions. This chapter describes the various BIOS settings that can be
used to configure your system.
The BIOS section of this manual is subject to change without notice and is
provided for reference purposes only. The settings and configurations of the
BIOS are current at the time of print and are subject to change, and
therefore may not match exactly what is displayed on screen.
This section describes the BIOS setup program. The setup program lets you
modify basic configuration settings. The settings are then stored in a
dedicated, battery-backed memory (called NVRAM) that retains the
information even when the power is turned off.
To start the BIOS setup utility:
1. Turn on or reboot your system.
2. Press <Del> during POST (<Tab> on remote console) to start the BIOS
setup utility.
3.2 - BIOS Menu Bar
The menu bar at the top of the windows lists these selections:
Main To configure basic system setups
Advanced To configure the advanced chipset features
PCI/PnP To configure legacy Plug and Play or PCI settings
Boot To configure system boot order
Security To configure user and supervisor passwords
Chipset To configure chipset management features
Exit To exit setup utility
Page 32
http://www.tyan.com
32
3.3 - Setup Basics
The table below shows how to navigate in the setup program using the
keyboard.
Key Function
<F1> General help window
<ESC> Exit current menu
Å Æ arrow keys Select a different menu
↑ or ↓ arrow keys
Move cursor up/down
<Tab> / <Shift-Tab> Cycle cursor up/down
<Home> / <End> Move cursor to top/bottom of the window
<PgUp> / <PgDn> Move cursor to next/previous page
<-> Select the previous value/setting of the field
<+> Select the next value/setting of the field
<F8> Load Fail Safe default configuration values of the menu
<F9> Load the Optimal default configuration values of the menu
<F10> Save and exit
<Enter> Execute command or select submenu
3.4 - Getting Help
Pressing [F1] will display a small help window that describes the appropriate
keys to use and the possible selections for the highlighted item. To exit the
Help Window, press [ESC].
3.5 - In Case of Problems
If you have trouble booting your computer after making and saving the
changes with the BIOS setup program, you can restart the computer by
holding the power button down until the computer shuts off (usually within 4
seconds); resetting by pressing CTRL-ALT-DEL; or clearing the CMOS. The
best advice is to only alter settings that you thoroughly understand. In
particular, do not change settings in the Chipset section unless you are
absolutely sure of what you are doing. The Chipset defaults have been
carefully chosen either by TYAN
®
or your system manufacturer for best
performance and reliability. Even a seemingly small change to the Chipset
setup options may cause the system to become unstable or unusable.
Note:
The following pages provide the details of BIOS
menu. Please be noticed that the BIOS menu are
continually changing due to the BIOS updating. The
BIOS menu provided are the most updated when this
manual is written. Please visit TYAN®’s website at
http://www.tyan.com
for the information of BIOS
update.
Page 33
http://www.tyan.com
33
3.6 - BIOS Main Menu
The Main BIOS Menu is the first screen that you can navigate. The Main
BIOS setup menu screen has two main frames. The left frame displays all
the options that can be configured. "Grayed-out" options cannot be
configured, options in blue can be changed.
The right frame displays the key legend. Above the key legend is an area
reserved for a text message. When an option is selected in the left frame,
it is highlighted in white. Often, a text message will accompany it.
BIOS Setup Utility
Main Advanced PCI/PnP Boot Security Chipset Exit
System Overview
AMIBIOS
Version : vx. xx
Build Date : DD/MM/YY
ID : xxxx_xxx
Processor
Intel (R) Atom(TM) CPU 330 @1.60GHz
Speed : xxxx MHz
Count : x
System Memory
Size : xxxx MB
System Time [HH:MM:SS]
System Date [MM:DD:YYYY]
Use [ENTER], [TAB] or
[SHIFT-TAB] to select a
field
Use [+] or [-] to
configure system time.
← → Select Screen
↑↓ Select Item
Enter Go to Sub Screen
F1 General Help
F10 Save and Exit
ESC Exit
Feature Option Description
Main
System Time HH : MM : SS Set the system time
System Date MM : DD : YYYY Set the system date
Page 34
http://www.tyan.com
34
3.7 - BIOS Advanced Menu
You can select any of the items in the left frame of the screen, such as
Super I/O Configuration, to go to the sub menu for that item. You can
display an Advanced BIOS Setup option by highlighting it using the
<Arrow> keys. All Advanced BIOS Setup options are described in this
section. The Advanced BIOS Setup screen is shown below. The sub
menus are described on the following pages.
BIOS Setup Utility
Main Advanced PCI/PnP Boot Security Chipset Exit
Advanced Settings
WARING: Setting wrong values in below sections
may cause system to malfunction.
CPU Configuration
IDE Configuration
Super IO Configuration
Hardware Health Configuration
ACPI Configuration
APM Configuration
IPMI 2.0 Configuration
PCI Express Configuration
Remote Access Configuration
USB Configuration
Configure CPU
← → Select Screen
↑↓ Select Item
Enter Go to Sub Screen
F1 General Help
F10 Save and Exit
ESC Exit
Feature Option Description
Advanced Settings
CPU Configuration Menu Item Configure CPU
IDE Configuration Menu Item Configure the IDE device(s)
Super IO Configuration Menu Item
Configures Super IO Chipset
Win627DHG
Hardware Health
Configuration
Menu Item
Configure/Monitor the Hardware
Health
ACPI Configuration Menu Item
Section for Advanced ACPI
Configuration
APM Configuration Menu Item
Configuration Advanced Power
Management
IPMI 2.0 Configuration Menu Item
IPMI configuration including server
monitoring and event log
PCI Express Configuration Menu Item Configure PCI Express Support
Remote Access
Configuration
Menu Item Configure Remote Access
USB Configuration Menu Item Configure the USB support
Page 35
http://www.tyan.com
35
3.7.1 - CPU Configuration
You can use this screen to view CPU Configuration Menu. Use the up and
down arrow (Ç/È) keys to select an item. Use the Plus and Minus (+/-) keys
to change the value of the selected option. The settings are described on
the following pages.
BIOS Setup Utility
Advanced
Configure advanced CPU settings
Module Version : XX.XX
Manufacturer : Intel
Intel(R) Atom(TM) CPU @ xxxx @xxxGHz
Frequency :x.xx GHz
FSB Speed :xxx MHz
Cache L1 : xxx KB
Cache L2 : xxxx KB
Ratio Actual Value :xx
Max CPUID Value Limit [Disabled]
Execute-Disable Bit Capability [Enabled]
Hyper Threading Technology [Enabled]
Sets the ratio between
CPU Core Clock and
the FSB Frequency.
← → Select Screen
↑↓ Select Item
+/- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
Feature Option Description
CPU Configuration
Manufacturer
Frequency
FSB Speed
Cache L1
Cache L2
Ratio Status
Ratio Actual Value
Read only Displays information about CPU
Enabled
Max CPUID Value
Limit
Disabled
Disabled for Windows XP
Enabled
Execute-Disable
Bit Capability
Disabled
When disabled, force the XD feature flag
to always return 0.
Enabled
Intel (R) HT
Technology
Disabled
When ’Disabled’ only one thread per
enabled core is enabled.
Page 36
http://www.tyan.com
36
3.7.2 - IDE Configuration Sub-Menu
You can use this screen to select options for the IDE Configuration Settings.
Use the up and down <Arrow> Keys to select an item. Use the <Plus> and
<Minus> Keys to change the value of the selection options.
Feature Option Description
IDE Configuration
Enhanced
Disabled
ATA Configuration
Compatible
Configure SATA devices
Configure SATA as IDE Configure SATA as IDE
Disabled
Hard Disk Write
Protect
Enabled
Enable/Disable device write protection.
This will be effective only if device is
accessed through BIOS.
IDE Detect Time
Out (Sec)
0~35
(at 5 interval)
Select the time out value for detecting
ATA/ATAPI device(s).
BIOS Setup Utility
Advanced
IDE Configuration
ATA/IDE Configuration
Configure SATA as
Primary IDE Master
Primary IDE Slave
Hard Disk Write Protect
IDE Detect Time Out (Sec)
[Enhanced]
[IDE]
[Not Detected]
[Not Detected]
[Disabled]
[35]
Options
Disabled
Compatible
Enhanced
← → Select Screen
↑↓ Select Item
+/- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
Page 37
http://www.tyan.com
37
3.7.2.1 - Primary IDE Master/Slave Configuration Sub-Menu
Feature Option Description
Primary IDE Master/Slave
Auto
Not Installed
CD/DVD
Type
ARMD
Selects the type of device
connected to the system.
Auto
LBA/Large Mode
Disabled
Auto: Enabled LBA Mode if the
device supports it and the device
is not already formatted with LBA
Mode disabled.
Disabled: Disabled LBA Mode.
BIOS Setup Utility
Advanced
Primary IDE Master
Device: Not Detected
TYPE
LBA/Large Mode
Block (Multi-Sector Transfer)
PIO Mode
DMA Mode
S.M.A.R.T.
32Bit Data Transfer
[Auto]
[Auto]
[Auto]
[Auto]
[Auto]
[Auto]
[Disabled]
Select the type of
device connected to
the system.
← → Select Screen
↑↓ Select Item
+/- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
BIOS Setup Utility
Advanced
Primary IDE Slave
Device: Not Detected
TYPE
LBA/Large Mode
Block (Multi-Sector Transfer)
PIO Mode
DMA Mode
S.M.A.R.T.
32Bit Data Transfer
[Auto]
[Auto]
[Auto]
[Auto]
[Auto]
[Auto]
[Disabled]
Select the type of
device connected to
the system.
← → Select Screen
↑↓ Select Item
+/- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
Page 38
http://www.tyan.com
38
Feature Option Description
Auto
Block (MultiSector
Transfer)
Disabled
Disabled: The Data transfer from
and to the device occurs one
sector at a time.
Auto: The Data transfer from and
to the device occurs multiple
sectors at a time if the device
supports it.
Auto
PIO Mode
0~4(at 1
interval)
Select the PIO Mode. Select Auto
to enhance hard disk performance
by optimizing the hard disk timing.
DMA Mode
Auto
Select DMA Mode.
Auto: Auto detected.
Auto
Disabled
S.M.A.R.T.
Enabled
S.M.A.R.T (Self-Monitoring
Analysis and Reporting
Technology) is a utility that
monitors your disk status to
predict hard disk failure.
Enabled
32Bit Data
Transfer
Disabled
Enable 32-bit to maximize the IDE
hard disk data transfer rate.
3.7.3 - Super I/O Configuration Sub- Menu
You can use this screen to select options for the Super I/O settings. Use the
up and down arrow ( / ) keys to select an item. Use the Plus and Minus
(+/-) keys to change the value of the selected option.
BIOS Setup Utility
Advanced
Configure Win627DHG Super IO Chipset
Serial Port1 Address
Serial Port2 Address
Serial Port2 Mode
Watchdog timer
[3F8/IRQ4]
[2F8/IRQ3]
[Normal]
[Disabled]
Allows BIOS to Select
Serial Port1 Base
Addresses.
← → Select Screen
↑↓ Select Item
+/- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
Page 39
http://www.tyan.com
39
3.7.4 - Hardware Health Configuration Sub-Menu
Feature Option Description
Configure Win627 Super I/O Chipset
3F8 IRQ4
3E8 IRQ4
2E8 IRQ3
Serial Port1
Address
Disabled
Allow BIOS to select Serial Port1 Base
Addresses.
3F8 IRQ4
3E8 IRQ4
2E8 IRQ3
2F8 IRQ3
Serial Port1
Address
Disabled
Allow BIOS to select Serial Port2 Base
Addresses.
Normal
IrDA
Serial Port2 Mode
ASK IR
Allows BIOS to select mode for serial
port 2.
Disabled
1 Minute
2 Minutes
3 Minutes
Watchdog timer
4 Minutes
Set watchdog time value.
When watchdog time-out occurs,system
will auto reboot.
BIOS Setup Utility
Advanced
Hardware Health Configuration
Smart FAN III+ Mode
Sensor Data Register Monitoring
[Disabled]
Options
Disabled
Enabled
← → Select Screen
↑↓ Select Item
+/- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
Feature Option Description
Configure Hardware Health
Disabled
Smart FAN III+ Mode
Enabled
\
Page 40
http://www.tyan.com
40
3.7.4.1 - Sensor Data Register Monitoring Configuration Sub-Menu
BIOS Setup Utility
Advanced
ID# NAME READING STATUS
30 CPU VCORE : xx V OK
31 VCC12VIN : xx V OK
32 AVCC 3.3V : xx V OK
33 VCC3.3 : xx V OK
34 VCC DDR : xx V OK
35 SYSCORE 1.1V : xx V OK
36 VCC5VIN : xx V OK
37 SYS TEMP : xx °C OK
38 CPUFAN : xxxx RPM Alert
39 REARFAN1 : xxxx RPM OK
3B REARFAN2 : xxxx RPM Alert
3C CPU THRMDA : xx °C OK
3E 3.3V DUAL : xx V OK
3F VBAT : xx V OK
← → Select Screen
↑↓ Select Item
+/- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
3.7.5 – ACPI Configuration Sub- Menu
You can use this screen to view the ACPI Configuration Menu. Use the up
and down arrow (Ç/È) keys to select an item. Use the Plus and Minus (+/-)
keys to change the value of the selected option. The settings are described
on the following pages.
BIOS Setup Utility
Advanced
ACPI Settings
General ACPI Configuration
Advanced ACPI Configuration
Chipset ACPI Configuration
General ACPI
Configuration settings
← → Select Screen
↑↓ Select Item
+/- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
Page 41
http://www.tyan.com
41
3.7.5.1 - General ACPI Configuration Sub- Menu
BIOS Setup Utility
Advanced
General ACPI Configuration
Suspend mode [S1(POS)]
Select the ACPI state
used for System
Suspend.
← → Select Screen
↑↓ Select Item
+/- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
Feature Option Description
General ACPI Configuration
S1(DOS)
S3(STR)
Suspend mode
AUTO
Select the ACPI state used for System
Suspend.
3.7.5.2 - Advanced ACPI Configuration Sub- Menu
BIOS Setup Utility
Advanced
Advanced ACPI Configuration
ACPI Version Features
ACPI APIC support
AMI OEMB table
Headless mode
[ACPI v3.0]
[Enabled]
[Enabled]
[Disabled]
Enabled RSDP pointers
to 64-bit Fixed System
Description Tables.
DiACPI version has
some
← → Select Screen
↑↓ Select Item
+/- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
Page 42
http://www.tyan.com
42
3.7.5.3 - South Bridge ACPI Configuration Sub- Menu
BIOS Setup Utility
Advanced
South Bridge ACPI Configuration
Energy Lake Feature
APIC ACPI SCI IRQ
High Performance Event Timer
HPET Memory Address
[Disabled]
[Disabled]
[Enabled]
[FED00000h]
Option
Enabled
Disabled
← → Select Screen
↑↓ Select Item
+/- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
Feature Option Description
Chipset ACPI Configuration
Disabled
Energy Lake
Feature
Enabled
Allow you to configure Intel’s Energy Lake
power management technology. If you are
running a Media Center you can install the
Intel VIIV software to get the correct driver;
otherwise disable the Energy Lake feature
in BIOS (it relates purely to Intel's Quick
Resume feature, which is generally
useless).
Disabled
ACPI APIC SCI
IRQ
Enabled
Enable / Disable ACPI APIC SCI IRQ
Enabled
High
Performance
Event Timer
Disabled
Enable/disable High Performance Event
Timer.
FED00000h
FED01000h
FED02000h
HPET Memory
Address
FED03000h
Choose HPET Memory Address
Feature Option Description
Advanced ACPI Configuration
ACPI v3.0
ACPI v2.0
ACPI Version
Features
ACPI v1.0
Enable RSDP pointers to 64-bit Fixed
System Description Tables. Di ACPI
version has some.
Enabled ACPI APIC
support
Disabled
Include ACPI APIC table pointer to RSDT
pointer list.
Enabled
AMI OEMB table
Disabled
Include OEMB table pointer to R(X)SDT
pointer lists.
Enabled
Headless mode
Disabled
Enable or disable Headless operation
mode through ACPI.
Page 43
http://www.tyan.com
43
3.7.6 - APM Configuration Sub-Menu
BIOS Setup Utility
Advanced
APM Configuration
Resume On LAN
Resume On PME#
Resume On RTC Alarm
[Disabled]
[Disabled]
[Disabled]
Disable/Enable
LAN GPI to generate
a wake event.
← → Select Screen
↑↓ Select Item
+/- Change Option
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit
Feature Option Description
APM Configuration
EnabledResume On
LAN
Disabled
Disable/Enable LAN GPI to generate a wake
event.
Enabled
Resume On
PME#
Disabled
Disable/Enable PME to generate a wake event.
EnabledResume On
RTC Alarm
Disabled
Disable/Enable RTC to generate a wake event.
Page 44
http://www.tyan.com
44
3.7.7 - IPMI 2.0 Configuration Sub-Menu
You can use this screen to view the IPMI 2.0 Configuration Settings. Use
the up and down arrow (Ç/È) keys to select an item. Use the Plus and
Minus (+/-) keys to change the value of the selected option. The settings
are described on the following pages.
BIOS Setup Utility
Advanced
IPMI 2.0 Configuration
Status of BMC
View BMC System Event Log
Clear BMC System Event Log
Set LAN Configuration
Set PEF Configuration
BMC Watch Dog Timer Action
BMC Alert LED and Beep
FW Key:
Working
[Disabled]
[Off]
[0000000]
View all events in
the BMC Event
Log.It will take a
max.of 15
seconds to read
all BMC SEL
records.
← → Select
Screen
↑↓ Select Item
+/- Change
Option
Tab Select Field
F1 General
Help
F10 Save and
Exit
ESC Exit
Feature Option Description
IPMI 2.0 Configuration
Status of BMC Read only Display BMC status
Disabled
Reset System
Power Down
BMC Watch
Dog Timer
Action
Power Cycle
Allows the BMC to reset or power down the
system if the operating system crashes or
hangs.
Off
BMC Alert
LED and Beep
On
BMC Alert LED and Beep On/Off
FW Key /
Enter IPMI FW Key upgrade to IPMI or
iKVM function.
Page 45
http://www.tyan.com
45
3.7.7.1 - View BMC System Event Log Sub-Menu
BIOS Setup Utility
Advanced
Total Number of Entries: XXX
SEL Entry Number
SEL Record ID:
SEL Record Type:
Event Timestamp:
Generator ID:
Event Message Format Ver:
Event Sensor Type:
Event Sensor Number:
Event Dir Type:
Event Data:
[x]
xxxx
xx(System Event)
xxxx, xxxx xx:xx:xx
xxxx
xx (IPMI ver 2.0)
xx (xx)
xx
xx
xx xx xx
Use +/- to traverse
the event log.
← → Select Screen
↑↓ Select Item
+/- Change Option
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit
Please refer to BMC event log.
3.7.7.2 - Set LAN Configuration Sub-Menu
BIOS Setup Utility
Advanced
LAN Configuration Status
Current IP source in BMC:
Current IP address in BMC:
Current Subnet Mask in BMC:
Current Gateway Address in BMC:
Current MAC address in BMC:
Set LAN Configuration
[DHCP]
xxx.xxx.xxx.xxx
xxx.xxx.xxx.xxx
xxx.xxx.xxx.xxx
xx.xx.xx.xx.xx.xx
This group provide
setup function for:
1. IP Address Source
2. IP Address
3. Subnet Mask
4.Gateway Address
← → Select Screen
↑↓ Select Item
+/- Change Option
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit
Feature Option Description
LAN Configuration
DHCP
IP Address Source
STATIC
IPMI IP Source STATIC/DHCP
Current IP Address in BMC Read only /
Current MAC Address in BMC Read only /
Current Subnet Mask in BMC Read only /
Gateway Address Read only /
Page 46
http://www.tyan.com
46
BIOS Setup Utility
Advanced
Setup LAN Configuration
IP Address Source
Save LAN Configration
[DHCP]
IPMI IP Address Source
STATIC/DHCP
After setup LAN
Configure need select
Save LAN Configuration
and choice [OK] to
enabled changes.
← → Select Screen
↑↓ Select Item
+/- Change Option
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit
3.7.7.3 - Set PEF Configuration Sub-Menu
BIOS Setup Utility
Advanced
Set PEF Configuration Parameters Command
PEF Support
PEF Action Global Control
Alert Startup Delay
Startup Delay
Event Message For PEF Action
[Enabled]
[Alert]
[Disabled]
[Disabled]
[Disabled]
Enable or Disable PEF
Support
← → Select Screen
↑↓ Select Item
+/- Change Option
Tab Select Field
F1 General Help
F10 Save and Exit
ESC Exit
Feature Option Description
Set PEF Configuration Parameters Command
Disabled
PEF Support
Enabled
Enable or Disable PEF Support
Alert
Power Down
Reset System
Power Cycle
OEM Action
PEF Action
Global Control
Diagnostic Int.
Select action for PEF action global control.
Disabled Alert Startup
Delay
Enabled
Enable/Disable alert startup delay.
Disabled
Startup Delay
Enabled
Enable/Disable Startup delay.
Disabled Event Message
For PEF Action
Enabled
Enable/Disable event msg for PEF Action
Page 47
http://www.tyan.com
47
3.7.8 - PCI Express Configuration Sub-Menu
BIOS Setup Utility
Advanced
PCI Express Configuration
Active State Power-Management
[Disabled]
Enable/Disable
PCI Express L0s and
L1 link power status.
← → Select Screen
↑↓ Select Item
+/- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
Feature Option Description
PCI Express Configuration
Disabled
Active State PowerManagement
Enabled
Enables/Disable PCI Express
L0s and L1 link power states.
3.7.9 - Remote Access Configuration Sub-Menu
You can use this screen to view the Remote Access Configuration Menu.
This feature allows access to the Server remotely via serial port. Use the
up and down arrow (Ç/È) keys to select an item. Use the Plus and Minus
(+/-) keys to change the value of the selected option. The settings are
described on the following pages.
BIOS Setup Utility
Advanced
Configure Remote Access type and parameters
Remote Access
[Disabled]
Select Remote Access
type.
← → Select Screen
↑↓ Select Item
+/- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
Page 48
http://www.tyan.com
48
Feature Option Description
Configure Remote Access type and parameters
Enabled
Remote Access
Disabled
Enables remote access to system
through serial port.
NOTE: The items listed below will appear when Remote Access is set to
[Enabled].
COM1
Serial Port Number
COM2
Select COM1 for console
redirection and COM2 for serial
over LAN.Make sure the selected
port is enabled.
Base Address, IRQ Read only
115200 8, n, 1
57600 8, n, 1
38400 8, n, 1
19200 8, n, 1
Serial Port Mode
9600 8, n, 1
Select Serial Port settings.
None
Hardware
Flow Control
Software
Select Flow Control for console
redirection.
Disabled
Boot Loader
Redirection After
BIOS POST
Always
Disable: Turns off the redirection
after POST
Boot Loader: Redirection is active
during POST and during Boot
Loader.
Always: Redirection is always
active.
<Some OSs may not work if set to
Always>
ANSI
VT100
Terminal Type
VT-UTF8
Select the target terminal type.
Enabled
VT-UTF8 Combo
Key Support
Disabled
Enable VT-UTF8 Combination key
Support for ANSI/VT100 terminals.
No Delay
Delay 1 Sec
Delay 2 Sec
Sredir Memory
Display Delay
Delay 4 Sec
Gives the delay in seconds to
display memory information
Page 49
http://www.tyan.com
49
3.7.10 - USB Configuration Sub- Menu
You can use this screen to view the USB Configuration Menu. Use the
up and down arrow (Ç/È) keys to select an item. Use the Plus and Minus
(+/-) keys to change the value of the selected option. The settings are
described on the following pages.
BIOS Setup Utility
Advanced
USB Configuration
Module Version – X.XX.X-XX.X
USB Devices Enabled:
2 Keyboards, 1 Mouse,2 Hubs
Legacy USB Support [Enabled]
USB 2.0 Controller Mode [Full Speed]
BIOS EHCI Hand-Off [Enabled]
Enables support for
legacy USB. AUTO
option disables legacy
support if no USB
devices are connected.
← → Select Screen
↑↓ Select Item
+/- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
Feature Option Description
USB Configuration
Disabled
Auto
Legacy USB
Support
Enabled
Enables support for legacy USB.
AUTO option disables legacy support if
no USB devices are connected.
Hi Speed
USB 2.0 Controller
Mode
Full Speed
Configure the USB 2.0 controller in Hi
Speed (480Mbps) or Full Speed
(12Mbps).
Enabled
BIOS EHCI HandOff
Disabled
This is a work around for OSes without
EHCI hand-off support. The EHCI
ownership change should claim by
EHCI driver.
Page 50
http://www.tyan.com
50
3.8 - PCI PnP Menu
You can use this screen to view PnP (Plug & Play) BIOS Configuration
Menu. This menu allows the user to configure how the BIOS assigns
resources & resolves conflicts. Use the up and down arrow (Ç/È) keys to
select an item. Use the Plus and Minus (+/-) keys to change the value of
the selected option. The settings are described on the following pages.
BIOS Setup Utility
PCI/PnP
Advanced PCI/PnP Settings
WARING: Setting wrong values in below sections may
cause system to malfunction.
Clear NVRAM
Plug & Play O/S
PCI Latency Timer
Allocate IRQ to PCI VGA
Palette Snooping
PCI IDE BusMaster
[No]
[No]
[64]
[Yes]
[Disabled]
[Disabled]
Clear NVRAM during
System Boot.
← → Select Screen
↑↓ Select Item
+/- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
Feature Option Description
Advanced PCI/PnP Settings
No
Clear NVRAM
Yes
Clears NVRAM during system
Boot.
Yes
Plug & Play O/S
No
No: lets the BIOS configure all
the devices in the system.
Yes: lets the operating system
configure Plug and Play (PnP)
devices not required for boot if
your system has a Plug and Play
operating system.
32
64
96
128
160
192
224
PCI Latency Timer
248
This setting controls how many
PCI clocks each PCI device can
hold the bus before another PCI
device takes over. When set to
higher values, every PCI device
can conduct transactions for a
longer time and thus improve the
effective PCI bandwidth.
Values in units of PCI clocks for
PCI device latency timer register.
Yes
Allocate IRQ to PCI VGA
No
Yes: assigns IRQ to PCI VGA
card if card requests IRQ.
Page 51
http://www.tyan.com
51
Feature Option Description
Disabled
Palette Snooping
Enabled
This is the default setting and
should not be changed unless the
VGA card manufacturer requires
Palette Snooping to be Enabled.
Enabled: informs the PCI devices
that an ISA graphics device is
installed in the system so the
card will function correctly.
Disabled
PCI IDE BusMaster
Enabled
Enabled: BIOS uses PCI bus
mastering for reading / writing to
IDE drives.
Page 52
http://www.tyan.com
52
3.9 - Boot Menu
You can display Boot Setup option by highlighting it using the Arrow
(Ç/È) keys and pressing Enter. The settings are described on the
following pages.
BIOS Setup Utility
Boot
Boot Settings
Boot Settings Configuration
Boot Device Priority
Configures settings
during System Boot.
← → Select Screen
↑↓ Select Item
Enter Go to Sub Screen
F1 General Help
F10 Save and Exit
ESC Exit
Page 53
http://www.tyan.com
53
3.9.1 - Boot Settings Configuration Sub-Menu
Use this screen to select options for the Boot Settings Configuration.
Use the up and down arrow (Ç/È) keys to select an item. Use the Plus
and Minus (+/-) keys to change the value of the selected option.
BIOS Setup Utility
Boot
Boot Settings Configuration
Quick Boot
Quiet Boot
AddOn ROM Display Mode
Boot up Num-Lock
Wait for ‘F1’ if Error
Hit ‘DEL’ Message Display
Interrupt 19 Capture
[Disabled]
[Disabled]
[Force BIOS]
[On]
[Enabled]
[Enabled]
[Disabled]
Allows BIOS to skip
certain tests while
booting. This will
decrease the time
needed to boot the
system.
← → Select Screen
↑↓ Select Item
+/- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
Feature Option Description
Boot Settings Configuration
Enabled
Quick Boot
Disabled
This option allows user bypass
BIOS self test during POST.
Disabled
Quiet Boot
Enabled
Disabled: displays normal POST
messages.
Enabled: displays OEM log instead
of POST messages.
Force BIOS
AddOn ROM Display
Mode
Keep Current
Allows user to force BIOS/Option
ROM of add-on cards to be
displayed during quiet boot.
On
Boot up Num-Lock
Off
Selects Power-on state for
Numlock.
Enabled
Wait for ‘F1’ If Error
Disabled
Waits for F1 key to be present if
error occurs.
Enabled
Hit ‘DEL’ Message
Display
Disabled
Displays “Press DEL to run Setup”
in POST.
Disabled
Interrupt 19 Capture
Enabled
Enabled: allows option ROMs to
trap interrupt 19.
Page 54
http://www.tyan.com
54
3.9.2 - Boot Device Priority Configuration Sub-Menu
BIOS Setup Utility
Boot
Boot Device Priority
1 st Boot Device
2 nd Boot Device
[Network: IBA GE Slo]
[Network: IBA GE Slo]
Specifies the boot
sequence from the
available devices.
A device enclosed in
parenthesis has been
disabled in the
corresponding type
menu.
← → Select Screen
↑↓ Select Item
+/- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
Feature Option Description
Boot Device Priority
Network: IBA GE Slot
0200 v1324
Network: IBA GE Slot
0100 v1324
1 st Boot
Device
Disabled
Specifies the boot sequence from
the available devices. A device
enclosed in parenthesis has been
disabled in the corresponding type
menu.
Network: IBA GE Slot
0200 v1324
Network: IBA GE Slot
0100 v1324
2 nd Boot
Device
Disabled
Specifies the boot sequence from
the available devices. A device
enclosed in parenthesis has been
disabled in the corresponding type
menu.
Page 55
http://www.tyan.com
55
3.10 - Security Menu
The system can be configured so that all users must enter a password
every time the system boots or when BIOS Setup is entered, using either
the Supervisor password or User password. The Supervisor and User
passwords activate two different levels of password security. If you select
password support, you are prompted for a one to six character password.
Type the password on the keyboard. The password does not appear on
the screen when typed. Make sure you write it down. If you forget it, you
must clear CMOS and reconfigure.
BIOS Setup Utility
Security
Security Settings
Supervisor Password : Not Installed
User Password : Not Installed
Change Supervisor Password
Change User Password
Boot Sector Virus Protection [Disabled]
Install or change the
password.
← → Select Screen
↑↓ Select Item
+/- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
Feature Option Description
Security Settings
Not Installed
Supervisor Password
Installed
If the password has been set,
Installed displays. If no
password is set, Not Installed
displays.
Not Installed
User Password
Installed
If the password has been set,
Installed displays. If no
password is set, Not Installed
displays.
Change Supervisor
Password
__
Selects this option to change
or install Supervisor Password.
Change User Password __
Selects this option to change
or install User Password.
Disabled
Boot Sector Virus
Protection
Enabled
When it is set to [Enabled],
BIOS will issue a virus warning
message and beep if a write to
the boot sector or the partition
table of the HDD is attempted.
Page 56
http://www.tyan.com
56
3.11 - Chipset Menu
This menu allows the user to customize functions of the Intel Chipsets.
Select a menu by highlighting it using the Arrow (Ç/È) keys and
pressing Enter. The settings are described on the following pages.
BIOS Setup Utility
Chipset
Advanced Chipset Settings
WARNING: Setting wrong values in below
sections may cause system to malfunction.
Northbridge Configuration
Southbridge Configuration
Configure CPU Bridge
features.
← → Select Screen
↑↓ Select Item
Enter Go to Sub Screen
F1 General Help
F10 Save and Exit
ESC Exit
3.11.1 - Northbridge Configuration Sub-Menu
This menu gives options for northbridge devices settings. Select a menu
by highlighting it using the Arrow (Ç/È) keys and pressing Enter. The
settings are described on the following pages.
BIOS Setup Utility
Chipset
North Bridge Chipset Configuration
DRAM Frequency
Configure DRAM Timing by SPD
Memory Hole
Initate Graphic Adapter
Internal Graphics Mode Select
[Auto]
[Enabled]
[Disabled]
[PCI/IGD]
[Disabled]
Options
Auto
400 MHz
533 MHz
← → Select Screen
↑↓ Select Item
+/- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
Page 57
http://www.tyan.com
57
Feature Option Description
North Bridge Chipset Configuration
Auto
400 MHz
DRAM Frequency
533 MHz
\
Disabled Configure DRAM
Timing by SPD
Enabled
\
Disabled
Memory Hole
15Mb~16Mb
\
IGD Initate Graphic
Adapter
PCI/IGD
Select which graphics controller to
use as the primary boot device.
Disabled
Enabled,1Mb
Internal Graphics
Mode Select
Enabled,8Mb
Select the anount of system memory
used by the Internal graphics device.
3.11.2 - Southbridge Configuration Sub-Menu
This menu gives options for southbridge devices settings. Select a menu
by highlighting it using the Arrow (Ç/È) keys and pressing Enter. The
settings are described on the following pages.
BIOS Setup Utility
Chipset
South Bridge Chipset Configuration
USB Functions
USB 2.0 Controller
SMBUS Controller
SLP_S4# Min. Assertion Width
Restore on AC Power Loss
[4 USB Ports]
[Enabled]
[Enabled]
[1 to 2 seconds]
[Last State]
Options
Disabled
2 USB Ports
4 USB Ports
← → Select Screen
↑↓ Select item
+/- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
Page 58
http://www.tyan.com
58
Feature Option Description
South Bridge Chipset Configuration
Disabled
2 USB Ports
USB Functions
4 USB Ports
Select supported USB ports
Enabled
USB 2.0 Controller
Disabled
Enable/Disable USB 2.0
Support
Enabled
SMBUS Controller
Disabled
Enable or disable SMBUS
controller
4-5 seconds
3-4 seconds
2-3 seconds
SLP_S4# Min. Assertion
Width
1-2 seconds
Select Timing for SLP_S4#
Power Off
Power On
Restore on AC Power
Loss
Last State
Configure how the system
board responds to a power
failure.
Page 59
http://www.tyan.com
59
3.12 - Exit Menu
You can display an Exit BIOS Setup option by highlighting it Arrow (Ç/È)
keys and pressing Enter.
BIOS Setup Utility
Exit
Exit Options
Save Changes and Exit
Discard Changes and Exit
Discard Charges
Load Optimal Defaults
Load Failsafe Defaults
Exit system setup after saving
the changes.
F10 key can be used for this
operation.
← → Select Screen
↑↓ Select Item
Enter Go to Sub Screen
F1 General Help
F10 Save and Exit
ESC Exit
Save Changes and Exit
Use this option to exit setup utility and re-boot.
All new selections you have made are stored into CMOS.
System will use the new settings to boot up.
Discard Changes and Exit
Use this option to exit setup utility and re-boot.
All new selections you have made are not stored into CMOS.
System will use the old settings to boot up.
Discard Changes
Use this option to restore all new setup values that you have made but
not saved into CMOS.
Load Optimal Defaults
Use this option to load default performance setup values.
Use this option when system CMOS values have been corrupted or
modified incorrectly.
Load Failsafe Defaults
Use this option to load all default failsafe setup values.
Use this option when troubleshooting.
Page 60
http://www.tyan.com
60
Page 61
http://www.tyan.com
61
Chapter 4: Diagnostics
If you experience problems with setting up your system, always check the
following things in the following order:
Memory, Video, CPU
By checking these items, you will most likely find out what the problem might
have been when setting up your system. For more information on
troubleshooting, check the TYAN
®
website at: http://www.tyan.com.
4.1 - Flash Utility
Every BIOS file is unique for the motherboard it was designed for. For Flash
Utilities, BIOS downloads, and information on how to properly use the Flash
Utility with your motherboard, please check the TYAN
®
web site:
http://www.tyan.com/
Note:
Please be aware that by flashing your BIOS, you agree
that in the event of a BIOS flash failure, you must contact
your dealer for a replacement BIOS. There are no
exceptions. TYAN
®
does not have a policy for replacing
BIOS chips directly with end users. In no event will TYAN
®
be held responsible for damages done by the end user.
Page 62
http://www.tyan.com
62
4.2 - AMIBIOS Post Code
The POST code checkpoints are the largest set of checkpoints during the BIOS
pre-boot process. The following table describes the type of checkpoints that
may occur during the POST portion of the BIOS:
Checkpoint Description
03 Disable NMI, Parity, video for EGA, and DMA controllers. Initialize
BIOS, POST, Runtime data area. Also initialize BIOS modules on
POST entry and GPNV area. Initialized CMOS as mentioned in the
Kernel Variable "wCMOSFlags."
04 Check CMOS diagnostic byte to determine if battery power is OK and
CMOS checksum is OK. Verify CMOS checksum manually by
reading storage area. If the CMOS checksum is bad, update CMOS
with power-on default values and clear passwords. Initialize status
register A.
Initializes data variables that are based on CMOS setup questions.
Initializes both the 8259 compatible PICs in the system
05 Initializes the interrupt controlling hardware (generally PIC) and
interrupt vector table.
06 Do R/W test to CH-2 count reg. Initialize CH-0 as system timer.Install
the POSTINT1Ch handler. Enable IRQ-0 in PIC for system timer
interrupt.
Traps INT1Ch vector to "POSTINT1ChHandlerBlock."
08 Initializes the CPU. The BAT test is being done on KBC. Program
the keyboard controller command byte is being done after Auto
detection of KB/MS using AMI KB-5.
0A Initializes the 8042 compatible Key Board Controller.
0B Detects the presence of PS/2 mouse.
0C Detects the presence of Keyboard in KBC port.
0E Testing and initialization of different Input Devices. Also, update the
Kernel Variables.
Traps the INT09h vector, so that the POST INT09h handler gets
control for IRQ1. Uncompress all available language, BIOS logo, and
Silent logo modules.
13 Early POST initialization of chipset registers.
24 Uncompress and initialize any platform specific BIOS modules.
30 Initialize System Management Interrupt.
2A Initializes different devices through DIM.
See DIM Code Checkpoints section of document for more information.
2C Initializes different devices. Detects and initializes the video adapter
installed in the system that have optional ROMs.
2E Initializes all the output devices.
31 Allocate memory for ADM module and uncompress it. Give control to
ADM module for initialization. Initialize language and font modules for
ADM. Activate ADM module.
33 Initializes the silent boot module. Set the window for displaying text
information.
37 Displaying sign-on message, CPU information, setup key message,
and any OEM specific information.
38 Initializes different devices through DIM. See DIM Code Checkpoints
section of document for more information.
Page 63
http://www.tyan.com
63
Checkpoint Description
39 Initializes DMAC-1 & DMAC-2.
3A Initialize RTC date/time.
3B Test for total memory installed in the system. Also, Check for DEL or
ESC keys to limit memory test. Display total memory in the system.
3C Mid POST initialization of chipset registers.
40 Detect different devices (Parallel ports, serial ports, and coprocessor
in CPU, … etc.) successfully installed in the system and update the
BDA, EBDA…etc.
50 Programming the memory hole or any kind of implementation that
needs an adjustment in system RAM size if needed.
52 Updates CMOS memory size from memory found in memory test.
Allocates memory for Extended BIOS Data Area from base memory.
60 Initializes NUM-LOCK status and programs the KBD typematic rate.
75 Initialize Int-13 and prepare for IPL detection.
78 Initializes IPL devices controlled by BIOS and option ROMs.
7A Initializes remaining option ROMs.
7C Generate and write contents of ESCD in NVRam.
84 Log errors encountered during POST.
85 Display errors to the user and gets the user response for error.
87 Execute BIOS setup if needed / requested.
8C Late POST initialization of chipset registers.
8E Program the peripheral parameters. Enable/Disable NMI as selected
90 Late POST initialization of system management interrupt.
A0 Check boot password if installed.
A1 Clean-up work needed before booting to OS.
A2 Takes care of runtime image preparation for different BIOS modules.
Fill the free area in F000h segment with 0FFh. Initializes the
Microsoft IRQ Routing Table. Prepares the runtime language module.
Disables the system configuration display if needed.
A4 Initialize runtime language module.
A7 Displays the system configuration screen if enabled. Initialize the
CPU’s before boot, which includes the programming of the MTRR’s.
A8 Prepare CPU for OS boot including final MTRR values.
A9 Wait for user input at config display if needed.
AA Uninstall POST INT1Ch vector and INT09h vector. Deinitializes the
ADM module.
AB Prepare BBS for Int 19 boot.
AC End of POST initialization of chipset registers.
B1 Save system context for ACPI.
00 Passes control to OS Loader (typically INT19h).
Page 64
http://www.tyan.com
64
Page 65
http://www.tyan.com
65
Appendix: How to Make a Driver Diskette
Follow the steps below to make a driver diskette from the TYAN
®
driver CD
provided.
1. Start the system and insert the TYAN
®
CD into the CD-ROM drive to boot
from CD. You will see the following menu. Then press [1] and [Enter] to boot
the system to TYAN® diskette maker. (If you would like to boot from hard
disk, press 0 and Enter or just wait for 10 seconds to boot automatically from
hard disk.).
Boot from CD:
ISOLINUX 2.00 2002-10-25 Copyright (C) 1994-2002 H. Peter Anvin
0) Boot from first hard drive
1) Boot to TYAN diskette maker
boot: 1_
2. Choose the chipset vender which you need from the main menu.
TYAN Driver Diskette Maker V1.0
** Main Menu**
====Choose Chipset Vendor====
01 Adaptec
02 Intel
03 LSI
04 nVidia
05 Promise
06 Silicon Image
07 VIA
EXIT
Page 66
http://www.tyan.com
66
3. The following picture pops up after selecting the chipset model.
TYAN Driver Diskette Maker
** Intel**
====Choose Chipset Model====
01 Intel 945GC / ICH7
EXIT
4. After selecting the chipset model, select the OS to start the diskette making.
TYAN Driver Diskette Maker
====Example Chipset Driver====
Diskette =01= Microsoft Windows 2000 32-bit
Diskette =02= Microsoft Windows XP 32-bit
Diskette =03= Microsoft Windows XP 64bit
Diskette =04= Microsoft Windows 2003 64-bit
Back
5. Follow the instruction on menu to insert a diskette and press [ENTER].
\Please insert a formatted diskette into A:/ and press [ENTER]
Writing image to drive A:
Track: 36 Hoad: 8 Sector: 1
6. Using "ESC" key to quit the TYAN
®
diskette maker. The system will
automatically restart.
Page 67
http://www.tyan.com
67
Glossary
ACPI (Advanced Configuration and Power Interface): a power management
specification that allows the operating system to control the amount of power
distributed to the computer’s devices. Devices not in use can be turned off,
reducing unnecessary power expenditure.
AGP (Accelerated Graphics Port): a PCI-based interface which was designed
specifically for demands of 3D graphics applications. The 32-bit AGP channel
directly links the graphics controller to the main memory. While the channel runs
only at 66 MHz, it supports data transmission during both the rising and falling
ends of the clock cycle, yielding an effective speed of 133 MHz.
ATAPI (AT Attachment Packet Interface): also known as IDE or ATA; a drive
implementation that includes the disk controller on the device itself. It allows CDROMs and tape drives to be configured as master or slave devices, just like
HDDs.
ATX: the form factor designed to replace the AT form factor. It improves on the
AT design by rotating the board 90 degrees, so that the IDE connectors are closer
to the drive bays, and the CPU is closer to the power supply and cooling fan. The
keyboard, mouse, USB, serial, and parallel ports are built-in.
Bandwidth: refers to carrying capacity. The greater the bandwidth, the more data
the bus, phone line, or other electrical path can carry. Greater bandwidth results
in greater speed.
BBS (BIOS Boot Specification): a feature within the BIOS that creates,
prioritizes, and maintains a list of all Initial Program Load (IPL) devices, and then
stores that list in NVRAM. IPL devices have the ability to load and execute an OS,
as well as provide the ability to return to the BIOS if the OS load process fails. At
that point, the next IPL device is called upon to attempt loading of the OS.
BIOS (Basic Input/Output System): the program that resides in the ROM chip,
which provides the basic instructions for controlling your computer’s hardware.
Both the operating system and application software use BIOS routines to ensure
compatibility.
Buffer: a portion of RAM which is used to temporarily store data; usually from an
application though it is also used when printing and in most keyboard drivers. The
CPU can manipulate data in a buffer before copying it to a disk drive. While this
improves system performance (reading to or writing from a disk drive a single
time is much faster than doing so repeatedly) there is the possibility of
Page 68
http://www.tyan.com
68
losing your data should the system crash. Information in a buffer is temporarily
stored, not permanently saved.
Bus: a data pathway. The term is used especially to refer to the connection
between the processor and system memory, and between the processor and PCI
or ISA local buses.
Bus mastering: allows peripheral devices and IDEs to access the system
memory without going through the CPU (similar to DMA channels).
Cache: a temporary storage area for data that will be needed often by an
application. Using a cache lowers data access times since the information is
stored in SRAM instead of slower DRAM. Note that the cache is also much
smaller than your regular memory: a typical cache size is 512KB, while you may
have as much as 4GB of regular memory.
Closed and open jumpers: jumpers and jumper pins are active when they are
“on” or “closed”, and inactive when they are “off” or “open”.
CMOS (Complementary Metal-Oxide Semiconductors): chips that hold the
basic startup information for the BIOS.
COM port: another name for the serial port, which is called as such because it
transmits the eight bits of a byte of data along one wire, and receives data on
another single wire (that is, the data is transmitted in serial form, one bit after
another). Parallel ports transmit the bits of a byte on eight different wires at the
same time (that is, in parallel form, eight bits at the same time).
DDR (Double Data Rate): a technology designed to double the clock speed of
the memory. It activates output on both the rising and falling edge of the system
clock rather than on just the rising edge, potentially doubling output.
DIMM (Dual In-line Memory Module): faster and more capacious form of RAM
than SIMMs, and do not need to be installed in pairs.
DIMM bank: sometimes called DIMM socket because the physical slot and the
logical unit are the same. That is, one DIMM module fits into one DIMM socket,
which is capable of acting as a memory bank.
DMA (Direct Memory Access): channels that are similar to IRQs. DMA channels
allow hardware devices (like soundcards or keyboards) to access the main
memory without involving the CPU. This frees up CPU resources for other tasks.
As with IRQs, it is vital that you do not double up devices on a single line. Plug-nPlay devices will take care of this for you.
Page 69
http://www.tyan.com
69
DRAM (Dynamic RAM): widely available, very affordable form of RAM which
looses data if it is not recharged regularly (every few milliseconds). This refresh
requirement makes DRAM three to ten times slower than non-recharged RAM
such as SRAM.
ECC (Error Correction Code or Error Checking and Correcting): allows data
to be checked for errors during run-time. Errors can subsequently be corrected at
the same time that they’re found.
EEPROM (Electrically Erasable Programmable ROM): also called Flash BIOS,
it is a ROM chip which can, unlike normal ROM, be updated. This allows you to
keep up with changes in the BIOS programs without having to buy a new chip.
TYAN
®
’s BIOS updates can be found at www.tyan.com
ESCD (Extended System Configuration Data): a format for storing information
about Plug-n-Play devices in the system BIOS. This information helps properly
configure the system each time it boots.
Firmware: low-level software that controls the system hardware.
Form factor: an industry term for the size, shape, power supply type, and
external connector type of the Personal Computer Board (PCB) or motherboard.
The standard form factors are the AT and ATX.
Global timer: onboard hardware timer, such as the Real-Time Clock (RTC).
HDD: stands for Hard Disk Drive, a type of fixed drive.
H-SYNC: controls the horizontal synchronization/properties of the monitor.
HyperTransport
TM
: a high speed, low latency, scalable point-to-point link for
interconnecting ICs on boards. It can be significantly faster than a PCI bus for an
equivalent number of pins. It provides the bandwidth and flexibility critical for
today's networking and computing platforms while retaining the fundamental
programming model of PCI.
IC (Integrated Circuit): the formal name for the computer chip.
IDE (Integrated Device/Drive Electronics): a simple, self-contained HDD
interface. It can handle drives up to 8.4 GB in size. Almost all IDEs sold now are
in fact Enhanced IDEs (EIDEs), with maximum capacity determined by the
hardware controller.
IDE INT (IDE Interrupt): a hardware interrupt signal that goes to the IDE.
I/O (Input/Output): the connection between your computer and another piece of
hardware (mouse, keyboard, etc.)
Page 70
http://www.tyan.com
70
IRQ (Interrupt Request): an electronic request that runs from a hardware device
to the CPU. The interrupt controller assigns priorities to incoming requests and
delivers them to the CPU. It is important that there is only one device hooked up
to each IRQ line; doubling up devices on IRQ lines can lock up your system. Plugn-Play operating systems can take care of these details for you.
Latency: the amount of time that one part of a system spends waiting for another
part to catch up. This occurs most commonly when the system sends data out to
a peripheral device and has to wait for the peripheral to spread (peripherals tend
to be slower than onboard system components).
NVRAM: ROM and EEPROM are both examples of Non-Volatile RAM, memory
that holds its data without power. DRAM, in contrast, is volatile.
Parallel port: transmits the bits of a byte on eight different wires at the same time.
PCI (Peripheral Component Interconnect): a 32 or 64-bit local bus (data
pathway) which is faster than the ISA bus. Local buses are those which operate
within a single system (as opposed to a network bus, which connects multiple
systems).
PCI PIO (PCI Programmable Input/Output) modes: the data transfer modes
used by IDE drives. These modes use the CPU for data transfer (in contrast,
DMA channels do not). PCI refers to the type of bus used by these modes to
communicate with the CPU.
PCI-to-PCI Bridge: allows you to connect multiple PCI devices onto one PCI slot.
Pipeline burst SRAM: a fast secondary cache. It is used as a secondary cache
because SRAM is slower than SDRAM, but usually larger. Data is cached first to
the faster primary cache, and then, when the primary cache is full, to the slower
secondary cache.
PnP (Plug-n-Play): a design standard that has become ascendant in the industry.
Plug-n-Play devices require little set-up to use. Devices and operating systems
that are not Plug-n-Play require you to reconfigure your system each time you
add or change any part of your hardware.
PXE (Preboot Execution Environment): one of four components that together
make up the Wired for Management 2.0 baseline specification. PXE was
Page 71
http://www.tyan.com
71
designed to define a standard set of preboot protocol services within a client with
the goal of allowing networked-based booting to boot using industry standard
protocols.
RAID (Redundant Array of Independent Disks): a way for the same data to be
stored in different places on many hard drives. By using this method, the data is
stored redundantly and multiple hard drives will appear as a single drive to the
operating system. RAID level 0 is known as striping, where data is striped (or
overlapped) across multiple hard drives, but offers no fault-tolerance. RAID level
1 is known as mirroring, which stores the data within at least two hard drives, but
does not stripe. RAID level 1 also allows for faster access time and fault-tolerance,
since either hard drive can be read at the same time. RAID level 0+1 is both
striping and mirroring, providing fault-tolerance, striping, and faster access all at
the same time.
RAIDIOS: RAID I/O Steering (Intel)
RAM (Random Access Memory): technically refers to a type of memory where
any byte can be accessed without touching the adjacent data and is often referred
to the system’s main memory. This memory is available to any program running
on the computer.
ROM (Read-Only Memory): a storage chip which contains the BIOS; the basic
instructions required to boot the computer and start up the operating system.
SDRAM (Synchronous Dynamic RAM): called as such because it can keep two
sets of memory addresses open simultaneously. By transferring data alternately
from one set of addresses and then the other, SDRAM cuts down on the delays
associated with non-synchronous RAM, which must close one address bank
before opening the next.
Serial port: called as such because it transmits the eight bits of a byte of data
along one wire, and receives data on another single wire (that is, the data is
transmitted in serial form, one bit after another).
SCSI Interrupt Steering Logic (SISL): Architecture that allows a RAID controller,
such as AcceleRAID 150, 200 or 250, to implement RAID on a system boardembedded SCSI bus or a set of SCSI busses. SISL: SCSI Interrupt Steering
Logic (LSI) (only on LSI SCSI boards)
Sleep/Suspend mode: in this mode, all devices except the CPU shut down.
SDRAM (Static RAM): unlike DRAM, this type of RAM does not need to be
refreshed in order to prevent data loss. Thus, it is faster and more expensive.
SLI (Scalable Link Interface): NVIDIA SLI technology
links two graphics cards
together to provide scalability and increased performance. NVIDIA SLI takes
advantage of the increased bandwidth
of the PCI Express bus architecture, and
Page 72
http://www.tyan.com
72
features hardware
and software innovations within NVIDIA GPUs (graphics
processing units) and NVIDIA MCPs (media and communications
processors).
Depending on the application
, NVIDIA SLI can deliver as much as two times the
performance of a single GPU configuration.
Standby mode: in this mode, the video and hard drives shut down; all other
devices continue to operate normally.
UltraDMA-33/66/100: a fast version of the old DMA channel. UltraDMA is also
called UltraATA. Without a proper UltraDMA controller, your system cannot take
advantage of higher data transfer rates of the new UltraDMA/UltraATA hard
drives.
USB (Universal Serial Bus): a versatile port. This one port type can function as
a serial, parallel, mouse, keyboard or joystick port. It is fast enough to support
video transfer, and is capable of supporting up to 127 daisy-chained peripheral
devices.
VGA (Video Graphics Array): the PC video display standard
V-SYNC: controls the vertical scanning properties of the monitor.
ZCR (Zero Channel RAID): PCI card that allows a RAID card to use the onboard
SCSI chip, thus lowering cost of RAID solution
ZIF Socket (Zero Insertion Force socket): these sockets make it possible to
insert CPUs without damaging the sensitive CPU pins. The CPU is lightly placed
in an open ZIF socket, and a lever is pulled down. This shifts the processor over
and down, guiding it into the board and locking it into place.
Page 73
http://www.tyan.com
73
Technical Support
If a problem arises with your system, you should first turn to your dealer for direct
support. Your system has most likely been configured or designed by them and
they should have the best idea of what hardware and software your system
contains. Hence, they should be of the most assistance for you. Furthermore, if
you purchased your system from a dealer near you, take the system to them
directly to have it serviced instead of attempting to do so yourself (which can have
expensive consequences).
If these options are not available for you then TYAN Computer Corporation can
help. Besides designing innovative and quality products for over a decade, Tyan
has continuously offered customers service beyond their expectations. TYAN's
website (www.tyan.com
) provides easy-to-access resources such as in-depth
Linux Online Support sections with downloadable Linux drivers and
comprehensive compatibility reports for chassis, memory and much more. With
all these convenient resources just a few keystrokes away, users can easily find
the latest software and operating system components to keep their systems
running as powerful and productive as possible. TYAN also ranks high for its
commitment to fast and friendly customer support through email. By offering
plenty of options for users, TYAN serves multiple market segments with the
industry's most competitive services to support them.
"TYAN's tech support is some of the most impressive we've seen, with
great response time and exceptional organization in general"
- Anandtech.com
You can contact TYAN Technical Support by using our Online Support System:
http://12.230.196.231/helpstar/hsPages/login.aspx?ReturnUrl=%2fhelpstar%
2fhsPages%2fDefault.aspx
Help Resources:
1. See the beep codes section of this manual.
2. See the TYAN website for FAQ’s, bulletins, driver updates,
and other information: http://www.tyan.com
3. Contact your dealer for help BEFORE calling TYAN.
4. Check the TYAN user group:
alt.comp.periphs.mainboard.TYAN
Returning Merchandise for Service
During the warranty period, contact your distributor or system vendor FIRST for
any product problems. This warranty only covers normal customer use and does
not cover damages incurred during shipping or failure due to the alteration,
misuse, abuse, or improper maintenance of products.
NOTE: A receipt or copy of your invoice marked with the date of purchase is
required before any warranty service can be rendered. You may obtain service
by calling the manufacturer for a Return Merchandise Authorization (RMA)
number. The RMA number should be prominently displayed on the outside of the
shipping carton and the package should be mailed prepaid. TYAN will pay to have
the board shipped back to you
Page 74
http://www.tyan.com
74
Notice for the USA
Compliance Information Statement (Declaration of
Conformity Procedure) DoC
FCC Part 15: This device complies with part 15 of the FCC
Rules
Operation is subject to the following conditions:
This device may not cause harmful interference, and this device must accept any
interference received including interference that may cause undesired operation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Plug the equipment into an outlet on a circuit different from that of the receiver.
Consult the dealer on an experienced radio/television technician for help.
Notice for Canada
This apparatus complies with the Class B limits for radio interference as specified
in the Canadian Department of Communications Radio Interference Regulations.
(Cet appareil est conforme aux norms de Classe B d’interference radio tel que
specifie par le Ministere Canadien des Communications dans les reglements
d’ineteference radio.)
Notice for Europe (CE Mark)
This product is in conformity with the Council Directive
2004/108/EC, 92/31/EEC (EMC).
CAUTION: Lithium battery included with this board. Do not puncture, mutilate, or
dispose of battery in fire. Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by manufacturer.
Dispose of used battery according to manufacturer instructions and in accordance
with your local regulations.
Document #: D2032 - 100
Loading...
