1
Thunder K8SRE
///
S2891
Version 1.0
Copyright
Copyright © TYAN Computer Corporation, 2004-2005. All rights reserved. No
part of this manual may be reproduced or translated without prior written
consent from TYAN Computer Corp.
Trademark
All registered and unregistered trademarks and company names contained in
this manual are property of their respective owners including, but not limited to
the following.
TYAN, Taro and Thunder K8SRE are trademarks of TYAN Computer
Corporation.
AMD, Opteron, and combinations thereof are trademarks of AMD Corporation.
Nvidia and nForce are trademarks of Nvidia Corporation
Microsoft, Windows are trademarks of Microsoft Corporation.
SuSE,is a trademark of SuSE AG.
Linux is a trademark of Linus Torvalds
IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.
Winbond is a trademark of Winbond Electronics Corporation.
Notice
Information contained in this document is furnished by TYAN Computer
Corporation and has been reviewed for accuracy and reliability prior to printing.
TYAN assumes no liability whatsoever, and disclaims any express or implied
warranty, relating to sale and/or use of TYAN products including liability or
warranties relating to fitness for a particular purpose or merchantability. TYAN
retains the right to make changes to product descriptions and/or specifications
at any time, without notice. In no event will TYAN be held liable for any direct or
indirect, incidental or consequential damage, loss of use, loss of data or other
malady resulting from errors or inaccuracies of information contained in this
document.
Page 2
http://www.tyan.com
2
Table of Contents
Chapter 1: Introduction
1.1 Congratulations Page 3
1.2 Hardware Specifications Page 3
1.3 Software Specifications Page 5
Chapter 2: Board Installation
2.1 Board Image Page 8
2.2 Block Diagram Page 9
2.3 Board Parts, Jumpers and Connectors Page 10
2.4 Installing the Processor(s) Page 18
2.5 Heatsink Retention Frame Installation Page 19
2.6 Thermal Interface Material Page 20
2.7 Heatsink Installation Procedures Page 21
2.8 Finishing Installing Heatsink Page 23

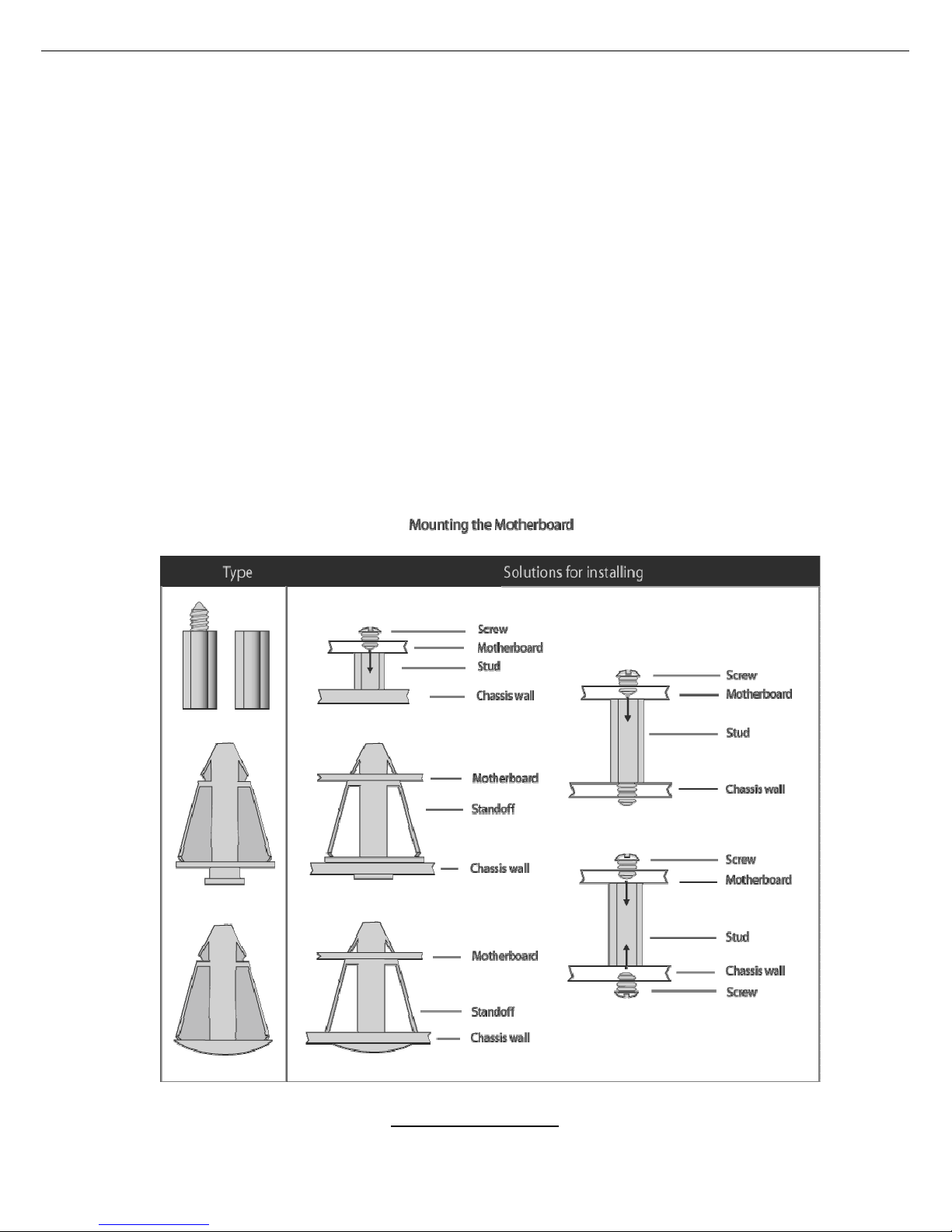

2.9 Tips on Installing Motherboard in Chassis Page 24

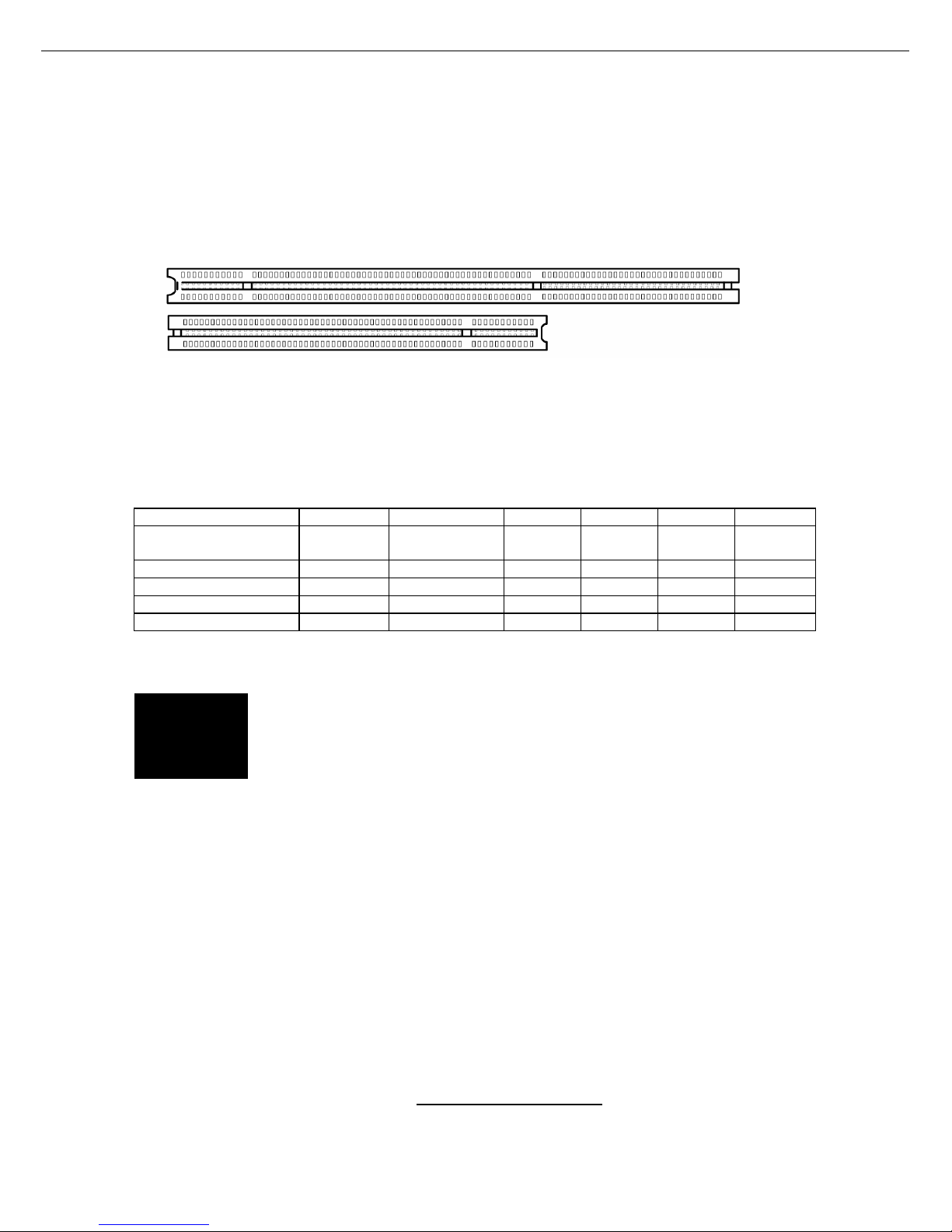

2.10 Installing the Memory Page 25

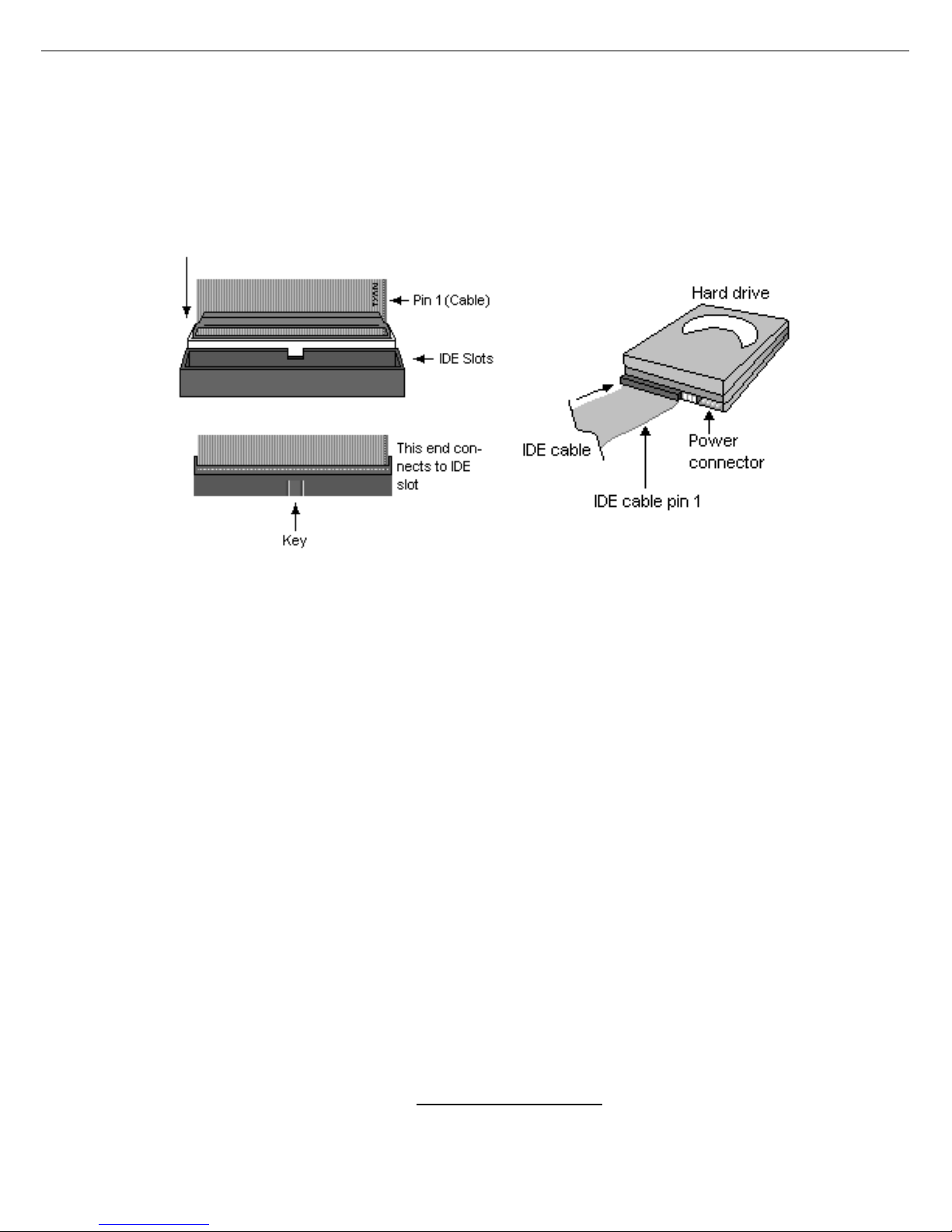

2.11 Attaching Drive Cables Page 28
2.12 Installing Add-In Cards Page 30
2.13 Connecting External Devices Page 31
2.14 Installing the Power Supply Page 32
2.15 Finishing Up Page 33
Chapter 3: BIOS
3.1 BIOS Setup Utility Page 35
3.2 BIOS Menu Bar Page 36
3.3 BIOS Legend Bar Page 36
3.4 Getting Help Page 36
3.5 BIOS Main Menu Page 37
3.6 BIOS Advanced Menu Page 38
3.7
3.8
BIOS Memory Menu
Security Menu
Page 52
Page 53
3.9 BIOS Boot Menu Page 54
3.10
3.11
Power Menu
BIOS Exit Menu
Page 56
Page 57
Chapter 4: Diagnostics
Page 59
4.1 Beep Codes Page 59
4.2 Flash Utility Page 59
4.3 BIOS Post Code Page 60
Glossary
Page 63
Technical Support
Page 69
Page 3
http://www.tyan.com
3
Chapter 1: Introduction
1.1 - Congratulations
You have purchased one of the most powerful server solutions. The Thunder
K8SRE (S2891) is a high-end server mainboard, based on Nvidia nForceTM
Professional 2200 Media and Communications Processor (MCP) and AMD
8131 PCI-X HyperTransport™ Tunnel.
Designed to support up to two AMD Opteron™ (200 series) processors and
16GB of DDR400 memory, the S2891 is ideal for CPU, memory, and network
intensive applications required in the HPC and cluster ing applications.
1.2 - Hardware Specifications
Processors
•Two uPGA 940-pin ZIF sockets
•Two onboard 4-phase VRM
•Supports one or two AMD
Opteron
TM
processors
•Scalable 32bit and 64bit
computing
•Integrated 144-bit DDR memory
controller (128bit+16bit ECC)
Chipset
•Nvidia nForce Professional 2200
(CrushK8-04 Pro)
•AMD 8131™ PCI-X Tunnel
•Winbond W83627HF Super I/O
•Analog Devices ADT7463
Hardware Monitoring IC
Memory
•128-bit dual channel memory bus
•Total Eight DDR DIMM sockets
(Four per CPU)
•Supports up to 16GB Registered
DDR
•Supports ECC and Chipkill
•Supports DDR400
Integrated Video Controller
•ATI® RAGE XL PCI VGA w/8MB
onboard memory
Integrated LAN Controllers
•One Broadcom
®
BCM5704 Dual
Port GbE
- Connected to PCI-X bus A
(133MHz)
- Two RJ-45 LAN connectors with
LEDs
- Two front panel LED headers
Integrated Enhanced IDE
Controller
•Two IDE dual-drive ports for up to
four EIDE devices
•Supports for ATA-133 IDE drives
and ATAPI devices
System Management
• Total ten 3-pin fan headers with
PWM support
- Seven fan headers with
tachometer
•One 2-pin chassis intrusion hdr
•Temperature, voltage and fan
monitoring
•Port 80h LED 7-segment display
Page 4
http://www.tyan.com
4
Expansion Slots
•One PCI Express x16 slot with
riser support for the following
configuration
- One 16 slot
- Future multiple slot riser support
in development (Check
TYAN.COM for updates)
•One Tyan TARO
TM
SODIMM
100MHz (PCI-X B)
•One PCI-X 100MHz slot (PCI-X B)
•Total of three usable slots in
pedestal chassis or two slots in
1U rackmount configuration
Integrated SATAII Controllers
•Two integrated dual port SATAII
controllers
•Four SATA connectors support up
to four drives
•Supports 3.0Gb/s per port
•NvRAID
TM
v2.0 support
•Supports RAID 0, 1, and 0+1
Integrated I/O
•One floppy connector supports up
to two drives
•One parallel port header and two
serial ports (one connector, one
header)
•Six USB2.0 ports (two rear
connectors & four front panel
headers)
•One 15-pin VGA connector
•PS/2 mouse and keyboard
connectors
Regulatory
•FCC Class B (DoC)
•European Community CE (DoC)
Intelligent Platform
Management Interface Header
•Tyan Server Management
Daughter card (optional)
supports features listed below
via SMDC header
- Baseboard Management
Controller (BMC)
- Tailored for IPMI
- Supports KCS and BT styles
- Flexible Windows or Linux
management solution
- Supports RMCP and SNMP
protocols
- Supports ASF standard and EMP
- 1
2
C serial multi-master controllers
and UARTs
- Built-in IPMB connector
- Remote power on/off and reset
support (IPMI-over-LAN)
BIOS
•Phoenix BIOS on 8Mbit LPC
Flash ROM
•ACPI 2.0 and SRAT support
•PXE via Ethernet
•USB device boot
•SMBIOS 2.3.1, BBS 1.1 compliant
•48-bit LBA support
Form Factor
•Extended ATX Footprint (12”x13”,
304.8x330.2mm)
•SSI 3.0/3.51 (24 + 8 pin) power
connectors
•Serial (one) and VGA (one)
connectors
•Stacked USB 2.0 (two)
connectors
•Stacked PS/2 connectors
•Two RJ-45 LAN connectors with
LEDs
Page 5
http://www.tyan.com
5
1.3 - Software Specifications
OS (Operating System) Support
Microsoft Windows 2000
Microsoft Windows XP
Microsoft Windows Server 2003
SUSE Professional 9.x and SLES 9
RHEL3 Update 4
TYAN reserves the right to add support or discontinue support for any OS with
or without notice.
Remember to visit TYAN’s websit at http://www.tyan.com. There you can find
information on all of TYAN’s products with FAQs, manuals, and BIOS updates.
Page 6
http://www.tyan.com
6
NOTES:
Page 7
http://www.tyan.com
7
Chapter 2: Board Installation
Precautions: The Thunder K8SRE supports SSI, EPS12V type power supplies
(24pin + 8pin) and will not operate with any other types. For proper power
supply installation procedures see page 32.
DO NOT USE ATX 2.x or ATXGES power supplies as they will damage the
board and void your warranty.
How to install our products right… the first time
The first thing you should do is reading this user’s ma nual. It contains important
information that will make configuration and setup much easier. Here are some
precautions you should take when installing your motherboard:
(1) Ground yourself properly before removing your motherboard from the
antistatic bag. Unplug the power from your computer power supply and
then touch a safely grounded object to release static charge (i.e. power
supply case). For the safest conditions, TYAN recommends wearing a
static safety wrist strap.
(2) Hold the motherboard by its edges and do not touch the b ottom of the
board, or flex the board in any way.
(3) Avoid touching the motherboard components, IC chips, connectors,
memory modules, and leads.
(4) Place the motherboard on a grounded antistatic surface or on the
antistatic bag that the board was shipped in.
(5) Inspect the board for dama ge .
The following pages include details on how to install your motherboard into your
chassis, as well as installing the processor, memory, disk drives and cables.
NOTE
DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN
DAMAGED
Page 8
http://www.tyan.com
8
2.1- Board Image
This picture is representative of the latest board re vision available at
the time of publishing. The board you receive may or may not look
exactly like the above picture.
The following page includes details on the vital components of this
motherboard.
Page 9
http://www.tyan.com
9
2.2 - Block Diagram
Thunder K8SRE (S2891) Block Diagram
Page 10
http://www.tyan.com
10
2.3 - Board Parts, Jumpers and Connectors
This diagram is representative of the latest board revision available at the time of
publishing. The board you receive may not look exactly like the above diagram.
Jumper Legend
OPEN - Jumper OFF, without jumper cover
CLOSED – Jumper ON, with jumper cover
Page 11
http://www.tyan.com
11
Jumper/Connector Function
J14 Onboard Buzzer/Speaker Header
J25/J140 USB Front Panel Header
J42 COM2 Header
J53 PCI-X Slot & TARO Connector Bus Speed Override
J73/J75 Front Panel LAN LED Headers
J77 INTR-Chassis Intrusion Header
J85 ATI Video Disable Jumper
J87 Gigabit Ethernet Disable Jumper
J112 Clear CMOS Jumper
J113 PCI Express x16 slot with riser card support
J139 Front Panel Header
TARO Connector
Connector for TYAN TAROTMSO-DIMM Controller
Cards
Page 12
http://www.tyan.com
12
J14
J25
J140
J42
J77
J53
Page 13
http://www.tyan.com
13
J14: Onboard Buzzer/Speaker Header
Closed Pin-3 and 4 (Default) - Onboard Buzzer
enabled
Open Pin-3 and 4 – Disable onboard buzzer or
connect to chassis speaker.
J25 & J140: USB Front Panel Headers
Use these headers to connect to chassis front panel
USB connectors.
Signal Pin Pin Signal
VCC
1 2
VCC
Data -
3 4
Data -
Data +
5 6
Data +
GND
7 8
GND
KEY
9 10
GND
J42: COM2 Header
Use these pin definitions to connect a port to COM2.
Signal Pin Pin Signal
Data Carrier Detect
1 2
Data-Set-Ready
Receive-Data
3 4
Request-to-Send
Transfer-Data
5 6
Clear-to-Send
Data Terminal Ready
7 8
Ring-Indicator
Ground
9 10
NC/KEY
J77: INTR-Chassis Intrusion Header
Pin1: Case Open
Pin2: GND
J53: PCI-X Slot & TARO Connector Bus Speed Override
Open-(Default) Allows PCI-X slot and the TARO slot to
operate at up to 100MHz (Maximum one PCI-X 100
device)
Closed-Forces PCI-X slot and the TARO slot to operate
at a maximum bus speed of 66MHz.
Page 14
http://www.tyan.com
14
J85: ATI Video Disable
Open-(Default) Enable onboard video
Closed-Disable onboard video
J113
The PCI Express x16 slot supports 1U or 2U riser cards. See p. 4 for the
detailed configuration.
J85
J87
J112
J139
J113
TARO
J73
J75
Page 15
http://www.tyan.com
15
J87: Gigabit Ethernet Disable
Open-(Default) Enable onboard Gigabit Ethernet
Closed-Disable onboard Gigabit Ethernet
J112: Reset CMOS Jumper
(Clear)
(Default)
You can reset CMOS settings by using this jumper if
you have lost your system/setup password or need to
clear system BIOS setting.
Power off system and disconnect both power
connectors from the motherboard.
Use jumper cap to close J112 for several seconds to
Clear CMOS.
Remove jumper cap (default setting).
Reconnect power & power on system.
J139: Front Panel Header
J73/J75: Front Panel LAN LED Headers
Pin1 Yellow+
Pin2 Yellow-
100Mb
LNK/ACT
Pin3 Green+
Pin4 Green-
10Mb
LNK/ACT
Gigabit
LNK/ACT
TARO SO-DIMM Connector
The TARO connector supports TYAN M7901, M7902 and M8110.
HDDLED+
1 2
PWR LED+
HDDLED-
3 4
PWR LED-
Reset SW
5 6
PWR SW
Reset SW
7 8
PWR SW
+5V
9 10
SLEEP SW
NC
11 12
SLEEP SW
+5V Standby
13 14
NC (KEY)
SMBUS DATA
15 16
GND
SMBUS CLOCK
17 18
Chassis Intr# (Active
Low)
Page 16
http://www.tyan.com
16
FAN8
FAN9
FAN6FAN5
FAN2
FAN1
FAN7
FAN3
FAN4
Page 17
http://www.tyan.com
17
Fan Connectors and Hardware Monitoring
1 2 3
Pin1=Ground
Pin2= +12v
Pin3= Tachometer
Use these headers to connect the processor or chassis
cooling fan to your motherboard to keep the system
stable and reliable.
FAN1 Direct +12V from power supply
(No power control and tachometer monitor)
FAN2 Fan power control: ADT7463A pin10
Fan tachometer monitor: ADT7463A pin12
FAN3 Fan power control: W83627HF/AW pin116
Fan tachometer monitor: W83627HF/AW pin113
FAN4 Fan power control: W83627HF/AW pin115
Fan tachometer monitor: W83627HF/AW pin112
FAN5 Direct +12V from power supply
(No power control and tachometer monitor)
FAN6 Fan power control: ADT7463A pin11
Fan tachometer monitor: ADT7463A pin24
FAN7 Direct +12V from power supply
(No power control and tachometer monitor)
FAN8 Fan tachometer monitor: W83627HF/AW pin111
FAN9 Fan power control: ADT7463A pin13
Fan tachometer monitor: ADT7463A pin9
CPU Temperature Monitoring
CPU1: ADT7463A pin15 and 16 (with processor differential thermal output)
CPU2: ADT7463A pin17 and 18 (with processor differential thermal output)
CPU1 area: W83627HF/AW pin104 (with R1794 10K themistor)
CPU2 area: W83627HF/AW pin103 (with R1792 10K themistor)
CPU VRM area: W83627HF/AW pin102 (with R179310K themistor)
Voltage Monitoring
+12V ADT7463A pin21
+5V ADT7463A pin20
3.3V W83627HF pin98
+3.3V standby ADT7463A pin4
CPU1 Vcore 1.55 V W83627HF pin100
CPU2 Vcore 1.55 V W83627HF pin99
CPU1 DDR VTT 1.25V W83627HF pin96
CPU2 DDR VTT 1.25V ADT7463A pin23
CPU1 DDR 2.5V W83627HF pin95
CPU2 DDR 2.5V ADT7463A pin22
Page 18
http://www.tyan.com
18
2.4 - Installing the Processor(s)
Your brand new Thunder K8SRE supports the latest 64-bit processor
technology from AMD. Only AMD Opteron™ processor 200 series are certified
and supported with this motherboard.
Check our website for latest processor support. http://www.tyan.com
NOTE
If using a single processor, it MUST be installed in socket
CPU0. When using a single processor only CPU0 memory
banks are addressable.
TYAN is not liable for damage as a result of operating an unsupported
configuration.
The diagram is provided as a visual guide to help you install socket processors
and may not be an exact representation of the processors you hav e.
Step 1: Lift the lever on the socket until it is approximately 90
o
or as far back as
possible to the socket.
Step 2: Align the processor with the socket. There are keyed pins underneath
the processor to ensure that the processor’s installed correctly.
Step 3: Seat the processor firmly into the socket by gently pressing down until
the processor sits flush with the socket.
Step 4: Place the socket lever back down until it locks into place. The
installation is finished.
Repeat these steps for the second processor if you are using two processors.
Take care when installing processors as they have very fragile connector pins
below the processor and can bend and break if inserted improperly.
Page 19
http://www.tyan.com
19
2.5 - Heatsink Retention Frame Installation
After you are done installing the processor(s), you shoul d proceed to installing
the retention frame and heatsink. The CPU heatsink will ensure that the
processors do not overheat and continue to operate at maximum performance
for as long as you own them. Overheated processors are also dangerous to the
motherboard.
The backplate assembly prevents excessive motherboard flexing in the area
near the processor and provides a base for the installation of the heatsink
retention bracket and heatsink.
Because there are many different types of heatsinks available from many
different manufacturers, a lot of them have their own method of installation. For
the safest method of installation and information on choosing the appropriate
heatsink, use heatsinks validated by AMD. Please refer to AMD’s website at
www.amd.com
.
The following diagram will illustrate how to install the most common CPU back
plates:
1. Mounting screws
2. Heatsink retention frame
3. CPU socket
4. Motherboard PCB
5. Adhesive insulator
material
6. Backplate assembly
NOTE: Please see next
section for specific
instructions on how to install
mounting bracket.
Page 20
http://www.tyan.com
20
2.6 - Thermal Interface Material
There are two types of
thermal interface materials
designed for use with the
AMD Opteron processor.
The most common material
comes as a small pad
attached to the heatsink at
the time of purchase. There
should be a protective cover
over the material. Take care
not to touch this material.
Simply remove the protective
cover and place the heatsink
on the processor.
The second type of interface
material is usually packaged
separately. It is commonly
referred to as ‘thermal
compound’. Simply apply a
thin layer on to the CPU lid
(applying too much will
actually reduce the cooling).
NOTE
Always check with the manufacturer of the heatsink &
processor to ensure the Thermal Interface material is
compatible with the processor & meets the manufacturer’s
warranty requirements
Page 21
http://www.tyan.com
21
2.7 - Heatsink Installation Procedures
Type A: CAM LEVER (TYPE) INSTALLATION
1. After placing backplate and
interface material under motherboard
place heatsink retention frame on top
of motherboard. Align plastic retention
bracket screw holes with CPU backplate standoffs.
Tighten screws to secure plastic
retention bracket. Repeat for the other
side. DO NOT OVER TIGHTEN.

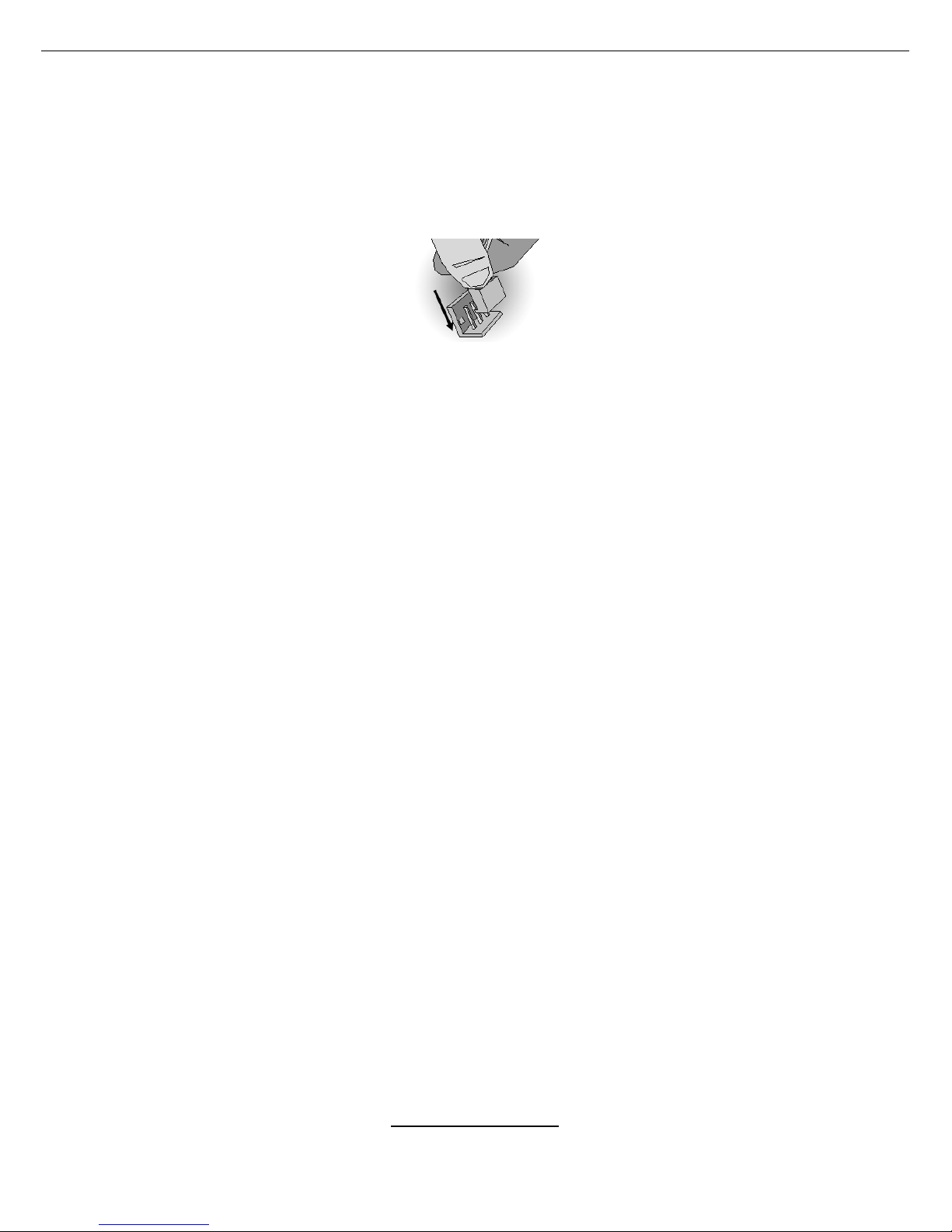

2. After tightening screws secure
metal clip to plastic retention bracket
center tab. Repeat for the other side
of heatsink.
3. After securing metal clip to plastic
retention bracket center tab, push
down on plastic clip to lock plastic clip
to side tab.
Page 22
http://www.tyan.com
22
Type B: SCREW RETENTION TYPE HEATSINK
1. After placing CPU back-plate and
adhesive interface material under
motherboard, place heatsink
retention frame on top of
motherboard. Align heatsink retention
frame screw hole with backplate
assembly standoffs. Place heatsink
inside plastic retention bracket. Place
metal clip over retention frame tab.
Repeat for other side.
2. Insert screw through metal clip.
BE SURE METAL CLIP IS LOCKED
ONTO RETENTION FRAME TAB.
3. Tighten screw through metal clip.
Repeat on the other side.
DO NOT OVER TIGHTEN.
Page 23
http://www.tyan.com
23
2.8 - Finishing Installing the Heatsink
After you have finished installing the heatsink onto the processor and
socket, attach the end wire of the fan (which should already be attached to
the heatsink) to the motherboard. The following diagram illustrates how to
connect fans onto the motherboard.
Once you have finished installing all the fans you can connect your drives
(hard drives, CD-ROM drives, etc.) to your motherboard.
Page 24
http://www.tyan.com
24
2.9 - Tips on Installing Motherboard in Chassis
Before installing your motherboard, make sure your chass is has the
necessary motherboard support studs installed. These studs are usually
metal and are gold in color. Usually, the chassis manufacturer will pre-install
the support studs. If you are unsure of stud placement, simply lay the
motherboard inside the chassis and align the screw holes of the
motherboard to the studs inside the case. If there are any studs missing,
you will know right away since the motherboard will not be able to be
securely installed.
Pay attention when installing board in chassis. Some components are
near the mounting holes and can be damaged.
Some chassis’ include plastic studs instead of metal. Although the plastic
studs are usable, TYAN recommends using metal studs with screws that will
fasten the motherboard more securely in place.
Below is a chart detailing what the most common motherboard studs look
like and how they should be installed.
Page 25
http://www.tyan.com
25
2.10 - Installing the Memory
Before attempting to install any memory, make sure that the memory you
have is compatible with the motherboard as well as the processor.

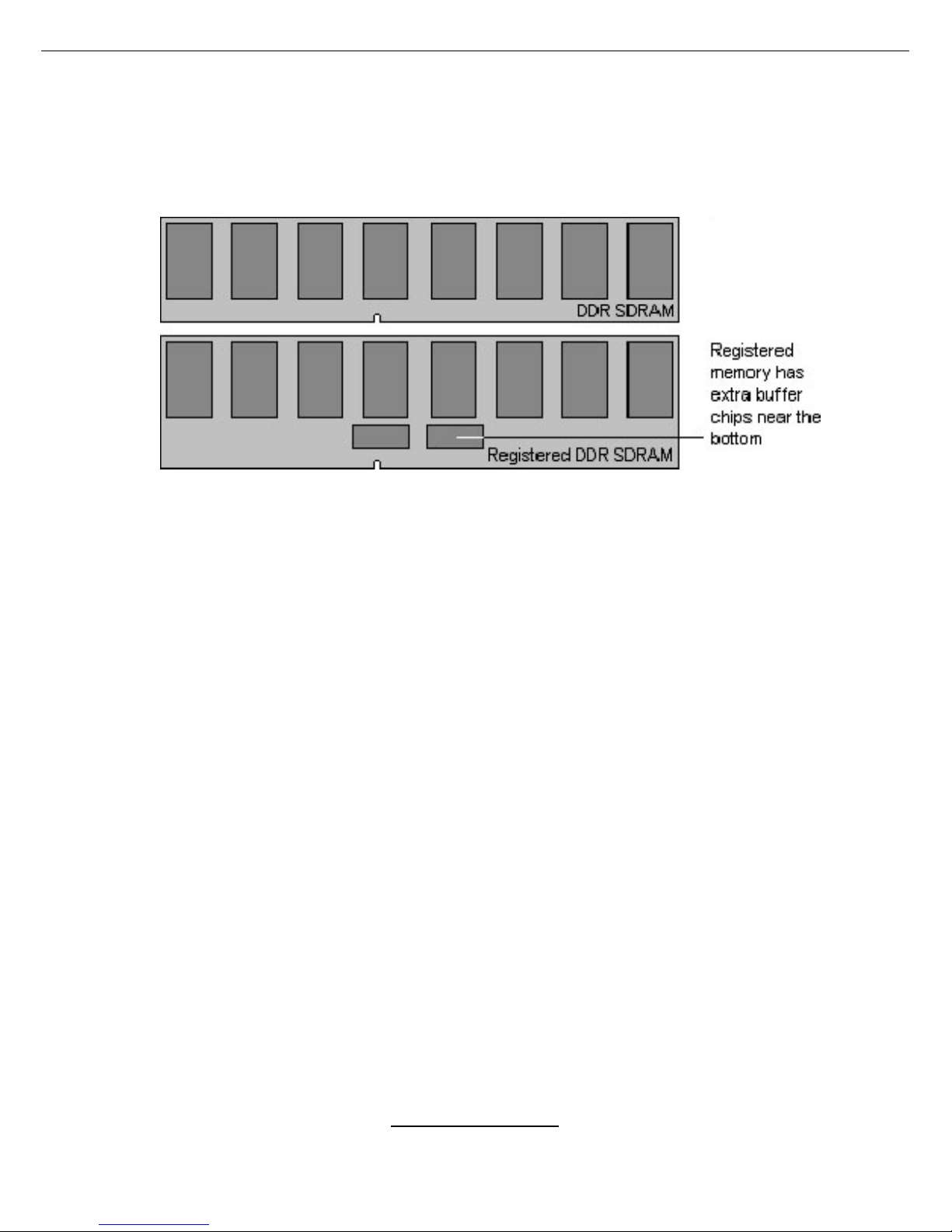

The following diagram shows common types of DDR SDRAM modules:
Here are a few key points to note before installing memory into your
Thunder K8SRE:
•Always install memory beginning with CPU0 DIMMA1.
•In order to access memory on CPU1, both processo rs must be
installed.
•Single, pairs, or four modules are supported on each CPU.
•Configure memory symmetrically on each CPU for best performance.
•AMD Opteron
TM
processors support 64bit (non-interleaved) or 128bit
(interleaved) memory configurations
•At least ONE Registered DDR SDRAM module must be installed for
the system to turn on and POST (power on self test)
•128MB, 256MB, 512MB, 1GB, and 2GB* Registered DDR400/333/266
DDR memory modules are supported
•All installed memory will be automatically detected
•The Thunder K8SRE supports up to 16GB* with two CPU’s installed.
* Not validated at time of print
Page 26
http://www.tyan.com
26
This following chart outlines the rules for po pulating memory
(Note: X indicates a populated DIMM Slot)
Memory Configuration Chart
CPU0
DIMM-A1
CPU0
DIMM-A2
CPU0
DIMM-B1
CPU0
DIMM-B2
CPU1
DIMM-A1
CPU1
DIMM-A2
CPU1
DIMM-B1
CPU1
DIMM-B2
X X
X X X X
X X X X
X X X X X X
X X X X X X X X
X X X X
X X
X X X X
X X X X
128 bit memory support
X X X X
X
X X
X X
X X
X X
64 bit memory support
X X
Page 27
http://www.tyan.com
27

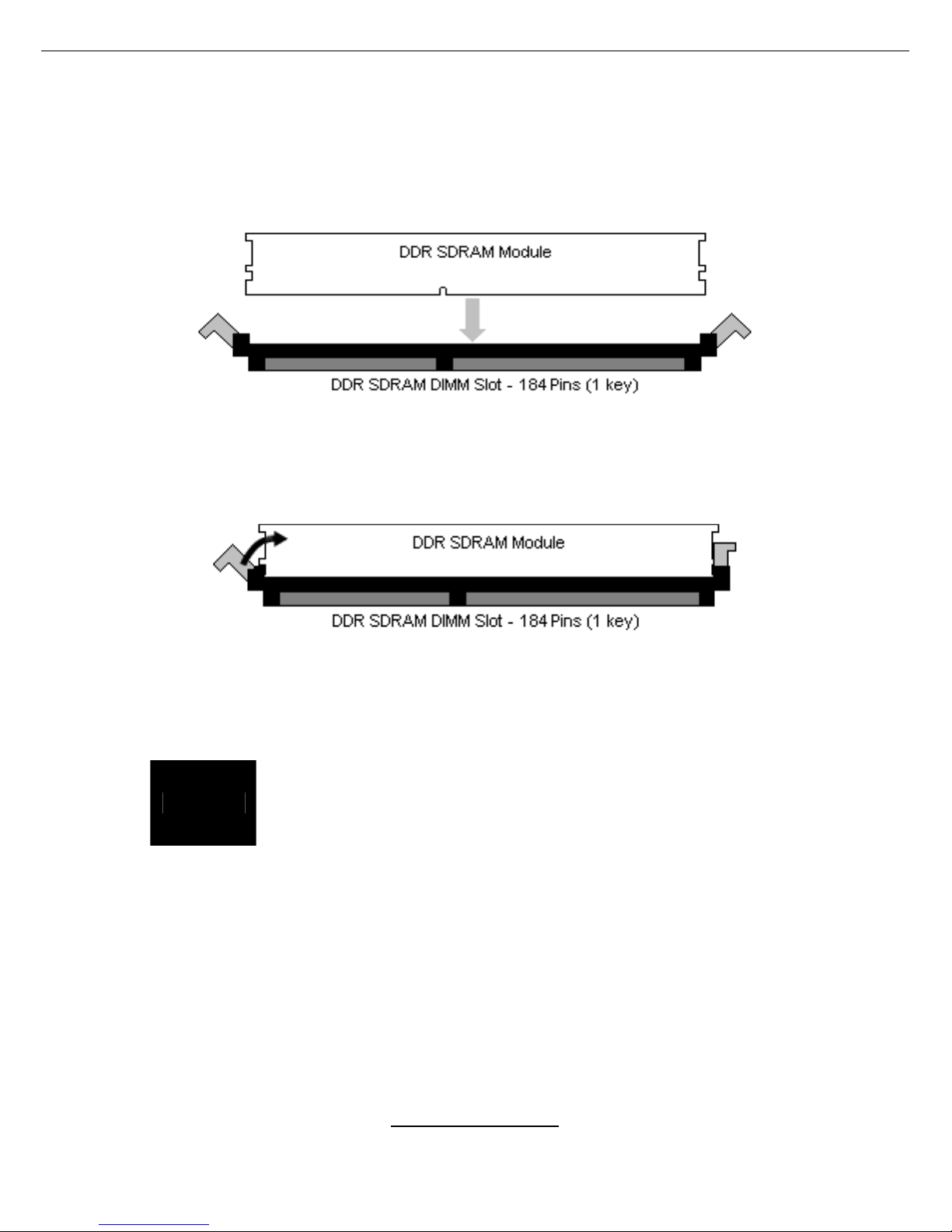

Memory Installation Procedure
When you install the memory modules, make sure the module aligns
properly with the memory slot. The modules are keyed to ensure that it is
inserted only one way. The method of installing memory modules are
detailed by the following diagrams.
Once the memory modules are firmly seated in the slot, two latches on
either side will close and secure the module into the slot. Sometimes you
may need to close the latches yourself.
To remove the memory module, simply push the latches outwards until the
memory module pops up. Then remove the module.
NOTE
YOU MUST ALWAYS unplug the power connector from the
motherboard before performing system hardware changes.
Otherwise you may damage the board and/or expansion
device.
Page 28
http://www.tyan.com
28
2.11 - Attaching Drive Cables
Attaching IDE Drive Cable
Attaching the IDE drive cable is simple. The cable is “keyed” to only allo w it
to be connected in the correct manner.
Attaching IDE cable to the IDE connector is illustrated below:
Simply plug in the BLUE END of the IDE cable into the motherboard IDE
connector, and the other end into the drive. Each standard IDE cable has
three connectors, two of which are closer together. The BLUE connector
that is furthest away from the other two is the end that connects to the
motherboard. The other two connectors are used to connect to drives.
Note: Always remember to properly set the drive jumpers. If only using one
device on a channel, it must be set as Master for the BIOS to detect it.
TIP: Pin 1 on the IDE cable (usually designated by a colored wire)
faces the drive’s power connector.
Attaching Serial ATA Cables
The Thunder K8SRE is also equipped with 4 Serial AT A (SATA) channels.
Connections for these drives are also very simple.
There is no need to set Master/Slave jumpers on SATA drives.
Page 29
http://www.tyan.com
29

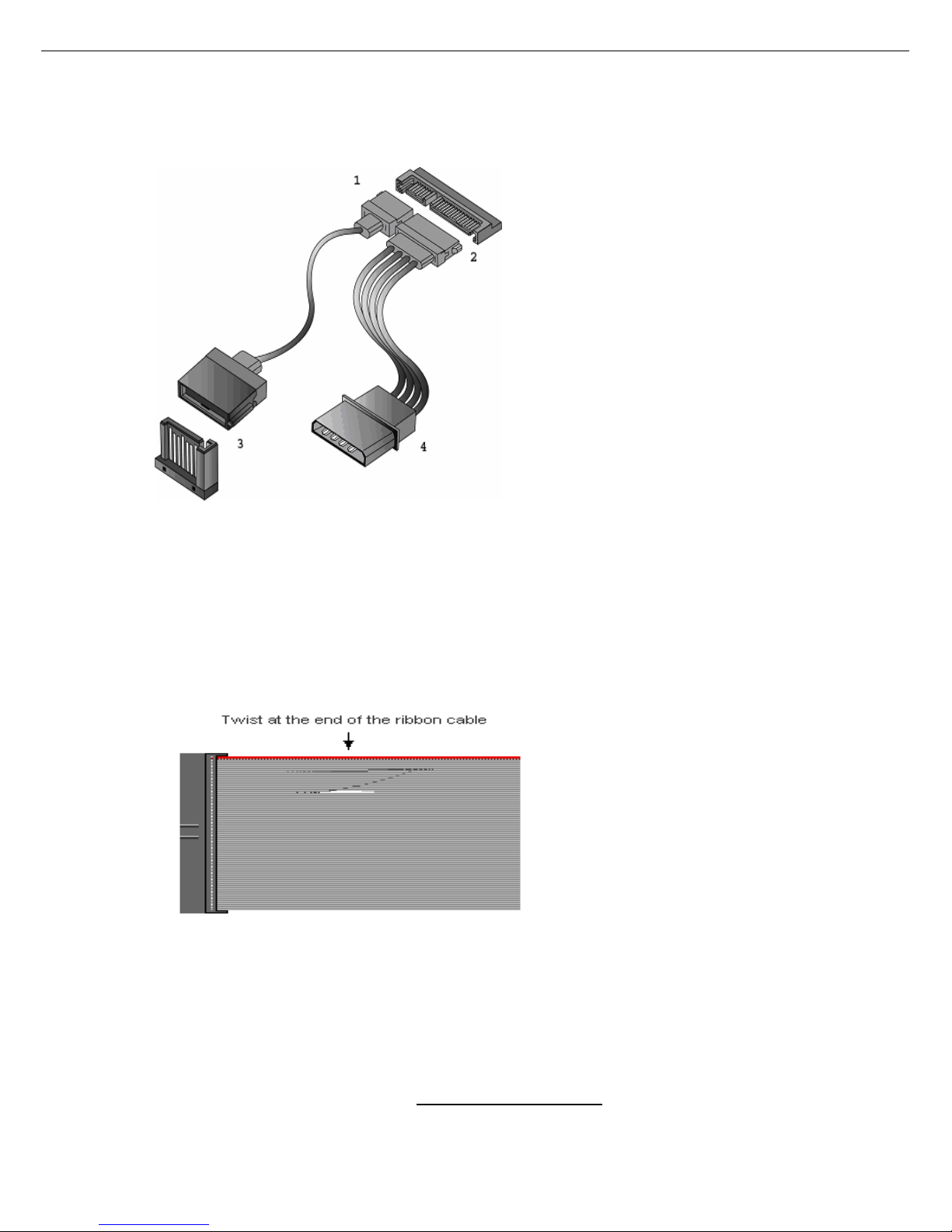

The following pictures illustrate how to connect an SATA drive
1.SATA drive cable
connection
2. SATA drive power
connection
3. SATA cable motherboard
connector
4. SATA drive power adapter
Attaching Floppy Drive Cables
Attaching floppy diskette drives are done in a similar manner to hard drives.
See the picture below for an example of a floppy cable. Most of the current
floppy drives on the market require that the cable be installed with the
colored stripe positioned next to the power connector. In most cases, there
will be a key pin on the cable which will force a proper conn ection of the
cable.
Attach first floppy drive
(drive A:) to the end of
the cable with the twist
in it. Drive B: is usually
connected to the next
possible connector on
the cable (the second or
third connector after you
install Drive A:).
Page 30
http://www.tyan.com
30
2.12 - Installing Add-In Cards
Before installing add-in cards, it’s helpful to know if they are fully compatible
with your motherboard. For this reason, we’ve provided the diagrams below,
showing the most common slots that may appear on your motherboard. Not
all of the slots shown will necessarily appear on your motherboard.
PCI-X 100 MHz Slot
PCI-Express x16 Slot
Simply find the appropriate slot for your add-in card and insert the card
firmly. Do not force any add-in cards into any slots if they do not seat in
place. It is better to try another slot or return the faulty card rather than
damaging both the motherboard and the add-in card.
Slot or Device IDSEL# Bus# INTA INTB INTC INTD
PCI Express
Slot #1
N/A PCIX-
Express
N/A N/A N/A N/A
PCI-X Slot #2 AD24 PCIX-A INTA INTB INTC INTD
SODIMM TARO AD26 PCIX-A INTC INTD N/A N/A
Onboard GB LAN AD25 PCIX-B INTA INTB N/A N/A
Onboard ATI AD23 PCIX Bus0 INTC N/A N/A
NOTE
YOU MUST ALWAYS unplug the power connector from the
motherboard before performing system hardware changes.
Otherwise you may damage the board and/or expansion
device.
Page 31
http://www.tyan.com
31

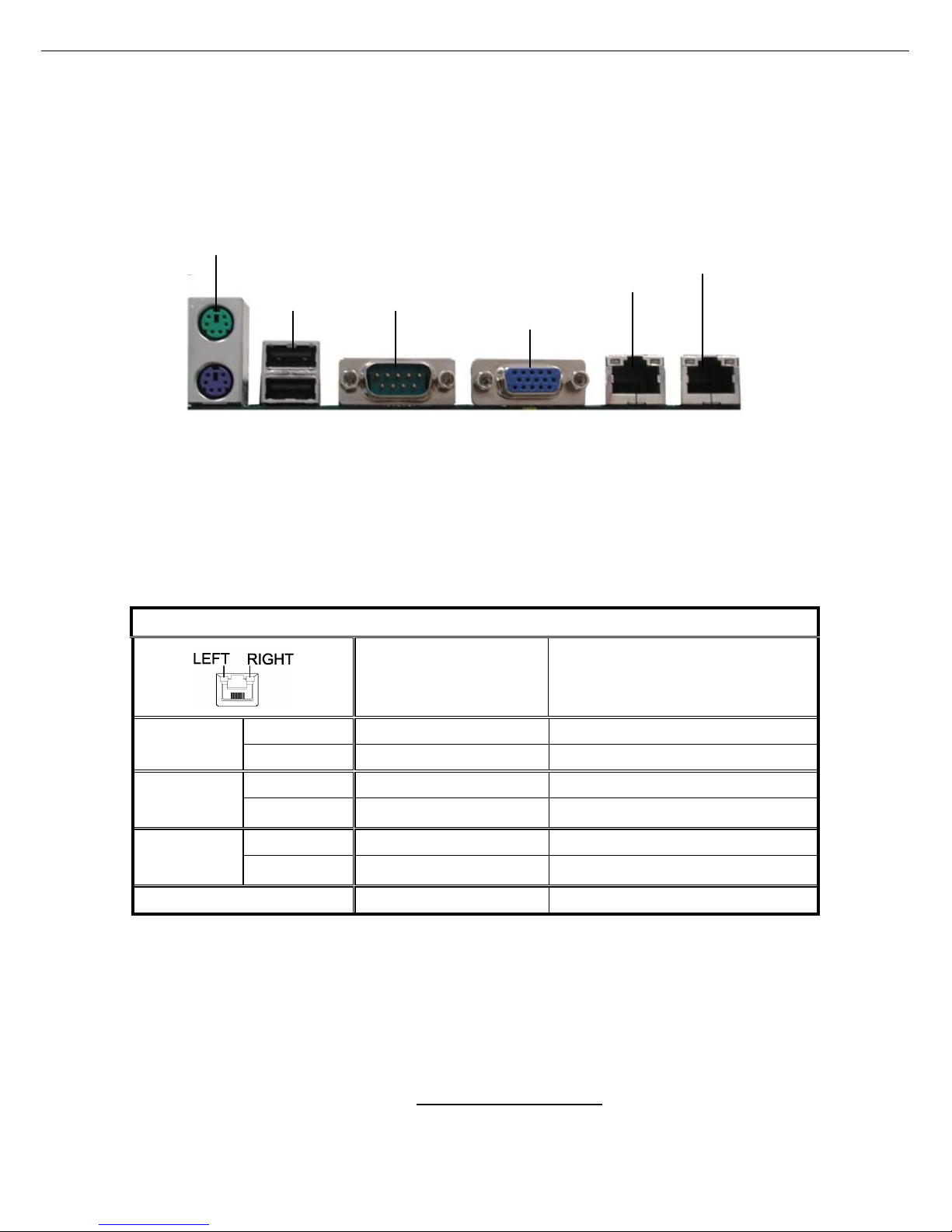

2.13 - Connecting External Devices
Your motherboard supports a number of different interfaces for connecting
peripherals. Some I/O ports may not be available with the board due to the
different configurations.
Peripheral devices can be plugged straight into any of these ports but software
may be required to complete the installation.
Onboard LAN LED Color Definition
The two onboard Ethernet ports have green and yellow LEDs to indicate LAN
status. The chart below illustrates the different LED states.
10/100/1000 Mbps LAN Link/Activity LED Scheme
Left LED Right LED
Link Green Off
10 Mbps
Active Blinking Green Off
Link Green Green
100 Mbps
Active Blinking Green Green
Link Green Orange
1000 Mbps
Active Blinking Green Orange
No Link Off Off
Integrated Video
Gigabit
Ethernet
USBx2
Serial Port
PS/2
Mouse/Keyboard
Gigabit
Ethernet
Page 32
http://www.tyan.com
32

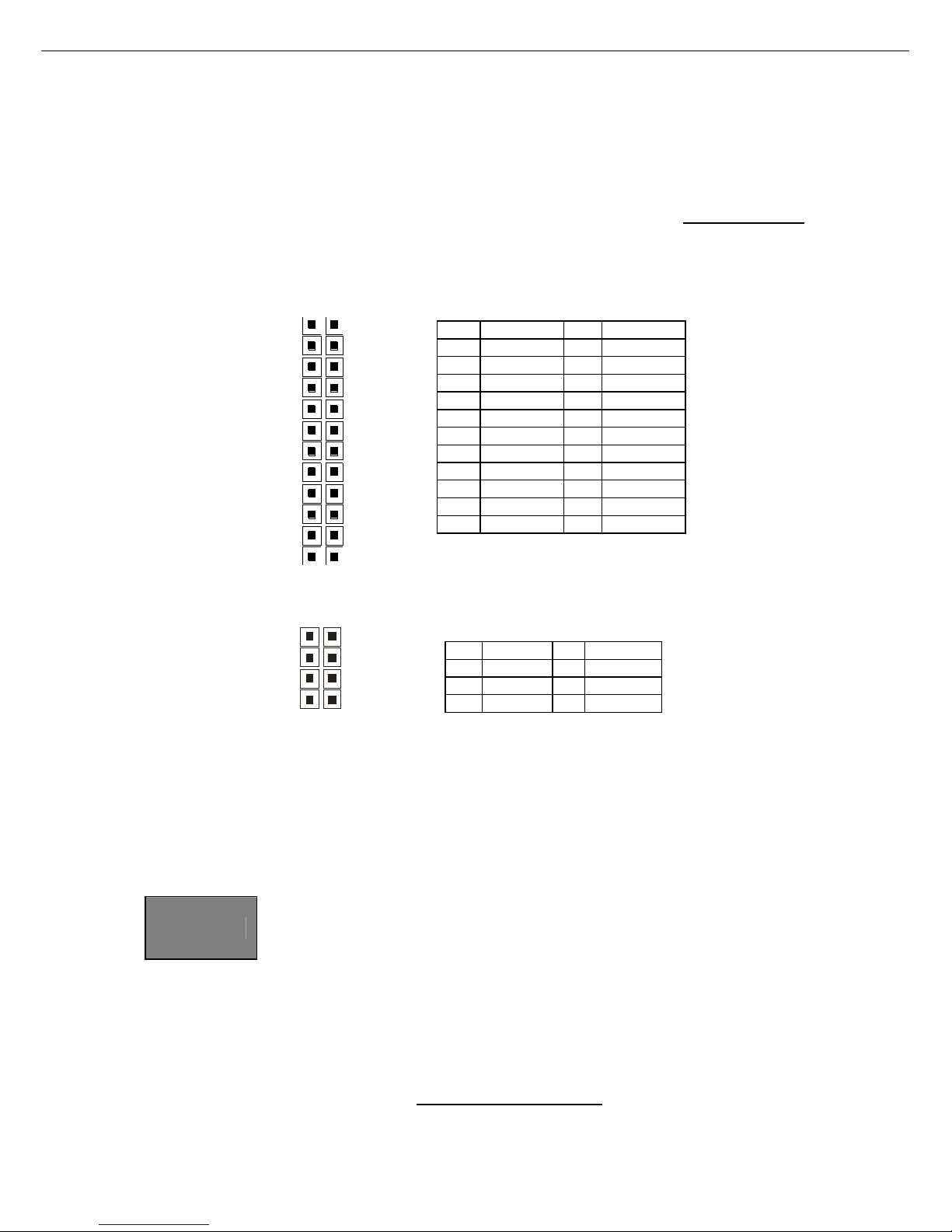

2.14 - Installing the Power Supply
There are two power connectors on your Thunder K8SRE.
The Thunder K8SRE requires an EPS12V (24 pin + 8 pin) po wer supply to boot.
Please be aware that ATX 2.x and ATXGES po wer supplies are not compatible
with the board and can damage the motherboard and/or CPU(s).
EPS12V Main Power 24-Pin
(Chipsets & Components)
12
24
131
121212
4
1
8
5
EPS 12V 8-pin (CPU Power)
4 GND 8 +12V3
3 GND 7 +12V3
2 GND 6 +12V3
1 GND 5 +12V3
Applying power to the board
1. Connect the EPS 12V 8-pin power connector.
2. Connect the EPS 12V 24-pin power connector.
3. Connect power cable to power supply and power outlet
NOTE
YOU MUST unplug the power supply from the wall outlet before
plugging the power cables to motherboard connectors.
12 +3.3V 24 GND
11 +12V2 23 +5V
10 +12V2 22 +5V
9 +5VSB 21 +5V
8 PWR OK 20 RESVD
7 GND 19 GND
6 +5V 18 GND
5 GND 17 GND
4 +5V 16 PSON#
3 GND 15 GND
2 +3.3V 14 -12V
1 +3.3V 13 +3.3V
Page 33
http://www.tyan.com
33
2.15 – Finishing Up
Congratulations on making it this far! You’re finished setting up the
hardware aspect of your computer. Before closing up your chassis, make
sure that all cables and wires are connected properly, espe cially IDE cables
and most importantly, jumpers. You may have difficulty powering on your
system if the motherboard jumpers are not set correctly.
In the rare circumstance that you have experienced difficulty, you can find
help by asking your vendor for assistance. If they are not available for
assistance, please find setup information and documentation online at our
website or by calling your vendor’s support line.
Page 34
http://www.tyan.com
34
Page 35
http://www.tyan.com
35
Chapter 3: BIOS Setup
3.1 - BIOS Setup Utility
With the BIOS setup utility, you can modify BIOS settings and control the
special features of your computer. The setup utility uses a number of
menus for making changes and turning the special features on or off.
NOTE
All menus are based on a typical system. The actual menus
displayed on your screen may be different and depend on the
hardware and features installed in your computer.
To start the BIOS setup utility:
a. Turn on or reboot your system
b. Press <F2> during POST (F4 on remote console) to start BIOS
setup utility
To select an item
Use the left/right (Å Æ) arrow keys to make a selection
To display a sub-menu (A pointer “” marks all sub menus)
Use the arrow keys to move the cursor to the sub menu you want. Then press
<Enter>.
Page 36
http://www.tyan.com
36
3.2 - BIOS Menu Bar
The menu bar at the top of the windows lists these selections:
Main To configure basic system setups
Advanced To configure the adva nce d chipset features
Memory To configure system memory features
Boot To configure system boot order
Exit To exit setup utility
NOTE Options written in bold type represent the BIOS setup default
3.3 - BIOS Legend Bar
The chart describes the legend keys and their alternates:
Key Function
<F1> or <Alt-H> General help window
<ESC> Exit current menu
Å Æ arrow keys Select a different menu
↑ or ↓ arrow keys
Select different item
<+> or <-> Change values
<F9> Load the Optimal default configuration values of
the menu
<F10> Select the previous value/setting of the field
<Enter> Execute command or select submenu
3.4 - Getting Help
Pressing [F1] will display a small help window that describes the appropr iate
keys to use and the possible selections for the highlighted item. To exit the Help
window, press [ESC] or [F1] key again.
Page 37
http://www.tyan.com
37
3.5 - BIOS Main Menu
The Main BIOS Menu is the first screen that you can navigate. The Main
BIOS setup menu screen has two main frames. The left frame displays all the
options that can be configured. "Grayed-out" options cannot be configured,
options in blue can be changed.
The right frame displays the key legend. Above the key legend is an area
reserved for a text message. When an option is selected in the left frame, it is
highlighted in white. Often, a text message will accompany it.
PhoenixBIOS Setup Utility
Main
Item Specific Help
BIOS Date
BIOS Version:
CPU Type
CPU Speed
System Memory
Extended Memory
Installed O/S
System Time
System Date
[XXXX KB]
[XXXX KB]
[Other]
[11:33:23]
[2004-11-05]
F1: Help ↑↓: Select Item -/+: Change Values F9: Setup Defaults
Esc: Exit ← →: Select Screen Enter: Select Sub-Menu
F10: Previous Values
Feature Option Description
System Time
HH:MM:SS
Set the system time
System Date
MM:DD:
YYYY
Set the system date
Page 38
http://www.tyan.com
38
3.6 - BIOS Advanced Menu
You can select any of the items in the left frame of the screen, such as
Hammer Configuration, to go to the sub menu for that item. You can display an
Advanced BIOS Setup option by highlighting it using the <Arro w> keys. All
Advanced BIOS Setup options are described in this section. The Advanced
BIOS Setup screen is shown below. The sub menus are described on the
following pages.
PhoenixBIOS Setup Utility
Advanced
Item Specific Help
Secured Setup Configurations [No]
Reset Configuration Data: [No]
Hammer Configuration
Integrated Devices
PCI Configuration
IDE Configuration
Floppy Configuration
I/O Device Configuration
Console Redirection
F1: Help ↑↓: Select Item -/+: Change Values F9: Setup Defaults
Esc: Exit ← →: Select Menu Enter: Select Sub-Menu
F10: Previous Values
Feature Option Description
No
Secured Setup
Configurations
Yes
Choosing “Yes” will
prevents a Plug and Play
Operation System from
changing system settings.
No
Reset Configuration Data
Yes
Select “Yes” if you want to
clear the Extended System
Configuration Data (ESCD)
area.
Hammer Configuration
Menu Item
Set Hammer Configuration.
Integrated Devices
Menu Item
Set integrated devices.
Page 39
http://www.tyan.com
39
PCI Configuration
Menu Item
Configure PCI devices.
IDE Configuration
Menu Item
Configure IDE interface.
Floppy Configuration
Menu Item
Configure floppy interface.
I/O Device Configuration
Menu Item
Peripheral configuration
Console Redirection
Menu Item
Additional setup menus to
configure console.
3.6.1 – Hammer Configuration Sub-Menu
You can use this screen to select options for the Hammer Configuration
settings. Use the up and down <Arrow> keys to select an item. Use the <Plus>
and <Minus> keys to change the value of the selected option.
PhoenixBIOS Setup Utility
Advanced
Item Specific Help
*CPU/Memory Controller WARNING*
Changing options to unsupported values
might hang the system. If this happens clear
CMOS and reboot
Mem Clock Mode:
Value:
Mode Memory Interleave:
Dram Bank Interleave
Large Memory Simulation:
HT-LDT Frequency:
MTRR Mapping
ACPI SRAT Table
[Auto]
[100 MHz]
[Disabled]
[Disabled]
[Disabled]
[200 Mhz]
[Discrete]
[Disabled]
F1: Help ↑↓: Select Item -/+: Change Values F9: Setup Defaults
Esc: Exit ← →: Select Screen Enter: Select Sub-Menu
F10: Previous Values
Feature Option Description
Auto
Mem Clock Mode
Limit
Select Memory Clock
frequency.
Page 40
http://www.tyan.com
40
Disabled
Node Memory Interleave
Enabled
Interleave memory blocks
across Processor Nodes.
BIOS will auto detect
capability of memory
system.
Disabled
Dram Block Interleave
Enabled
Interleave memory blocks
across dram chip selects.
BIOS will auto detect
capability on each node.
Disabled
Large Memory Simulation
Enabled
Enable LMS mode only
when one CPU is installed
with 64G or more memory.
Discrete
MTRR Mapping
Continuous
Configure MTRR mode.
Disabled
ACPI SRAT Table
Enabled
Enable ACPI2.0 static
resources affinity table for
ccNUMA systems.
3.6.2 - Integrated Devices Sub-Menu
You can use this screen to select options for the Integrated Devices
settings. Use the up and down <Arrow> keys to select an item. Use the <Plus>
and <Minus> keys to change the value of the selected option.
PhoenixBIOS Setup Utility
Advanced
Item Specific Help
USB Control
USB BIOS Legacy Support:
SATA0 Controller
SATA1 Controller
Interrupt Mode:
NV RAID Configuration
[Disabled]
[Disabled]
[Enabled]
[Enabled]
[PIC]
F1: Help ↑↓: Select Item -/+: Change Values F9: Setup Defaults
Esc: Exit ← →: Select Screen Enter: Select Sub-Menu
F10: Previous Values
Page 41
http://www.tyan.com
41
Feature Option Description
Disabled
USBA+USBB
USB Control
USBA+
USBB+USB2
Set USB controllers.
Disabled
USB BIOS Legacy Support
Enabled
Set support for USB
Keyboard/Mouse.
Enabled
SATA0 Controller
Disabled
Set First Serial ATA
device.
Enabled
SATA1 Controller
Disabled
Set Second Serial ATA
device.
PIC
Interrupt Mode
8529/PIC
Select Interrupt Mode
between 8259/PIC mode or
APIC mode.
NV RAID Configuration
Menu Item
Set Nvidia RAID control.
NV Configuration
You can use this screen to select options for the NV Configuration settings.
Use the up and down <Arrow> keys to select an item. Use the <Plus> and
<Minus> keys to change the value of the selected option.
PhoenixBIOS Setup Utility
Advanced
Item Specific Help
NV Configuration
IDE Primary Master
IDE Primary Slave
IDE Secondary Master
IDE Secondary Slave
Internal SATA Primary
Internal SATA Secondary
External SATA Primary
External SATA Secondary
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
F1: Help ↑↓: Select Item -/+: Change Values F9: Setup Defaults
Esc: Exit ← →: Select Screen Enter: Select Sub-Menu
F10: Previous Values
Page 42
http://www.tyan.com
42
Feature Option Description
Enabled
NV Configuration
Disbled
Set Nvidia RAID control.
Disabled
IDE Primary/Secondary
Master/Slave
Enabled
Enable the drive as RAID.
Disabled
Internal SATA
Primary/Secondary
Enabled
Enable the drive as RAID.
Disabled
External SATA
Primary/Secondary
Enabled
Enable the drive as RAID.
3.6.3 - PCI Configuration Sub-Menu
You can use this screen to select options for the PCI Configuration settings.
Use the up and down <Arrow> keys to select an item. Use the <Plus> and
<Minus> keys to change the value of the selected option.
PhoenixBIOS Setup Utility
Advanced
Item Specific Help
Note PCI Slot Layout Convention in Help Window
PCI Device, Slot # 1
PCI Device, Slot # 2
PCI/PNP ISA UHB Region Exclusion
PCI/PNP ISA IRQ Resource Exclusion
F1: Help ↑↓: Select Item -/+: Change Values F9: Setup Defaults
Esc: Exit ← →: Select Screen Enter: Select Sub-Menu
F10: Previous Values
Page 43
http://www.tyan.com
43
Feature Option Description
PCI Device, Slot #1 & 2
Menu Item
Select PCI slot
configuration.
PCI/PNP ISA UHB Region
Exclusion
Menu Item
Reserve specific upper
memory blocks for use by
legacy ISA devices.
PCI/PNP ISA IRQ
Resource Exclusion
Menu Item
Reserve the specific IRQs
for use by legacy ISA
devices.
PCI Device, Slot # 1 & 2
You can use this screen to select options for the PCI Device, Slot # 1 & 2
settings. Use the up and down <Arrow> keys to select an item. Use the <Plus>
and <Minus> keys to change the value of the selected option.
PhoenixBIOS Setup Utility
Advanced
Item Specific Help
Option ROM Scan:
Enable Master:
Latency Timer
[Enabled]
[Disabled]
[Defautl]
F1: Help ↑↓: Select Item -/+: Change Values F9: Setup Defaults
Esc: Exit ← →: Select Screen Enter: Select Sub-Menu
F10: Previous Values
Feature Option Description
Enabled
Option ROM Scan
Disabled
Initialize device expansion
ROM.
Disabled
Enable Master
Enabled
Enable selected device as
a PCI bus master.
Default
Latency Timer
0020h
Minimum guaranteed time
slice allotted for bus master
in units of PCI bus clocks.
Page 44
http://www.tyan.com
44
PCI/PNP ISA UHB Region Exclusion
You can use this screen to select options for the PCI/PNP ISA UHB Region
Exclusion settings. Use the up and down <Arrow> keys to select an item. Use
the <Plus> and <Minus> keys to change the value of the selected option.
PhoenixBIOS Setup Utility
Advanced
Item Specific Help
C800-CBFF:
CC00-CFFF:
D000-D3FF:
D400-D7FF:
D800-DBFF:
DC00-DFFF:
[Available]
[Available]
[Available]
[Available]
[Available]
[Available]
F1: Help ↑↓: Select Item -/+: Change Values F9: Setup Defaults
Esc: Exit ← →: Select Screen Enter: Select Sub-Menu
F10: Previous Values
Feature Option Description
Available
C800-CBFF, CC00-CFFF
D000-D3FF, D400-D7FF
D800-D8FF, DC00-DFFF
Reserved
Reserves the specified
block of upper memory for
use by legacy ISA devices.
Page 45
http://www.tyan.com
45
PCI/PNP ISA IRQ Resource Exclusion
You can use this screen to select options for the PCI/PNP IRQ Resource
Exclusion settings. Use the up and down <Arrow> keys to select an item. Use
the <Plus> and <Minus> keys to change the value of the selected option.
PhoenixBIOS Setup Utility
Advanced
Item Specific Help
IRQ3
IRQ4
IRQ5:
IRQ7
IRQ9
IRQ10
IRQ11
IRQ15
Indicates a DMA, interrupt, I/O, or
memory resource conflict with
another device.
[Available]
[Available]
[Available]
[Available]
[Available]
[Available]
[Available]
F1: Help ↑↓: Select Item -/+: Change Values F9: Setup Defaults
Esc: Exit ← →: Select Screen Enter: Select Sub-Menu
F10: Previous Values
Feature Option Description
Available
IRQ3/4/5/7/9/10/11/15
Reserved
Reserves the specified IRQ
for use by legacy ISA
devices.
Page 46
http://www.tyan.com
46
3.6.4 - IDE Configuration Sub-Menu
You can use this screen to select options for the IDE Configuration settings.
Use the up and down <Arrow> keys to select an item. Use the <Plus> and
<Minus> keys to change the value of the selected option.
PhoenixBIOS Setup Utility
Advanced
Item Specific Help
Large Disk Access Mode:
SMART Device Monitoring:
Local Bus IDE adapter:
Primary Master
Primary Slave
Secondary Master
Secondary Slave
Indicates a DMA, interrupt, I/O, or
memory resource conflict with
another device.
[Other]
[Disabled]
[Disabled]
F1: Help ↑↓: Select Item -/+: Change Values F9: Setup Defaults
Esc: Exit ← →: Select Screen Enter: Select Sub-Menu
F10: Previous Values
Feature Option Description
Other
Large Disk Access Mode
DOS
Select the IDE access
mode.
Disabled
SMART Device Monitoring
Enabled
IDE failure prediction.
Both
Disabled
Primary
Local Bus IDE adapter
Secondary
Enable the integrated local
bus IDE adapter.
Primary Master/Slave
Menu Item
Configure the IDE channel.
Secondary Master/Slave
Menu Item
Configure the IDE channel.
Page 47
http://www.tyan.com
47
Primary Master/Slave, Secondary Master/Slave
The following screen shows the information of IDE device.
PhoenixBIOS Setup Utility
Advanced
Item Specific Help
Type:
CHS Format
Cylinders:
Cylinders:
Heads:
Heads:
Sectors:
Sectors:
Maximum Capacity:
Maximum Capacity:
LBA Format’
Total Sectors:
Maximum Capacity:
Multi-Sector Transfers:
LBA Mode Control:
32 Bit I/O:
Transfer Mode:
Ultra DMA Mode:
[1]
[Disabled]
[Disabled]
[Disabled]
[Standard]
[Disabled]
F1: Help ↑↓: Select Item -/+: Change Values F9: Setup Defaults
Esc: Exit ← →: Select Screen Enter: Select Sub-Menu
F10: Previous Values
Feature Option Description
Disabled
Multi-Sector Transfers
Enabled
Specify the number of
sectors per block for
multiple sector transfer.
Disabled
LBA Mode Control
Enabled
Enabling LBA causes
Logical Block Addressing
to be used in place of
Cylinders, Heads_Sectors.
Disabled
32 Bit I/O
Enabled
This setting enables or
disables 32 bit IDE data
transfers.
Standard
Transfer Mode
Fast PIO 1
Select the method for
moving data to/from the
drive.
Page 48
http://www.tyan.com
48
Disabled
Ultra DMA Mode
Enabled
Select the Ultra DMA mode
used for moving data
to/from the drive.
3.6.5 - Floppy Configuration Sub-Menu
You can use this screen to select options for the Floppy Configuration
settings. Use the up and down <Arrow> keys to select an item. Use the <Plus>
and <Minus> keys to change the value of the selected option.
PhoenixBIOS Setup Utility
Advanced
Item Specific Help
Legacy Diskette A:
Legacy Diskette B:
Indicates a DMA, interrupt, I/O, or
memory resource conflict with
another device.
[Disabled]
[Disabled]
F1: Help ↑↓: Select Item -/+: Change Values F9: Setup Defaults
Esc: Exit ← →: Select Screen Enter: Select Sub-Menu
F10: Previous Values
Feature Option Description
Disabled
Legacy Diskette A/B
Enabled
Select floppy type
Page 49
http://www.tyan.com
49
3.6.6 - I/O Device Configuration Sub-Menu
You can use this screen to select options for the I/O Device Configuration
settings. Use the up and down <Arrow> keys to select an item. Use the <Plus>
and <Minus> keys to change the value of the selected option.
PhoenixBIOS Setup Utility
Advanced
Item Specific Help
Serial port A:
Base I/O address:
Interrupt:
Serial port B:
Mode:
Base I/O address:
Interrupt
Parallel port:
Base I/O address:
Interrupt:
Mode:
DMA channel:
Floppy disk controller:
Base I/O address
[Disabled]
[3F8]
[IRQ 3]
[Disabled]
[Normal]
[3F8]
[IRQ3]
[Disabled]
[378]
[IRQ5]
[Output only]
[DMA1]
[Disabled]
[Primary]
F1: Help ↑↓: Select Item -/+: Change Values F9: Setup Defaults
Esc: Exit ← →: Select Screen Enter: Select Sub-Menu
F10: Previous Values
Feature Option Description
Disabled
Serial port A
Enabled
Configure serial port A
using options.
3F8
Base I/O address
2F8
Set the base I/O address
for serial port A.
IRQ3
Interrupt
IRQ4
Set the interrupt for serial
port A.
Disabled
Serial port B
Enabled
Configure serial port B
using options.
Normal
Mode
IR
Set the mode for Serial
port B using options.
3F8
Base I/O address
2F8
Set the base I/O address
for serial port B.
Page 50
http://www.tyan.com
50
IRQ3
Interrupt
IRQ4
Set the interrupt for serial
port B
Disabled
Parallel port
Enabled
Configure parallel port
using options.
378
Base I/O Address
278
Set the base I/O address
for parallel port.
IRQ5
Interrupt
IRQ7
Set the interrupt for parallel
port.
Output only
Mode
Bi-directional
Set the mode for parallel
port using options.
DMA 1
DMA channel
DMA 3
Set the DMA channel for
parallel port.
Disabled
Floppy disk controller
Enabled
Configure Floppy disk
controller using options.
Primary
Base I/O address
Secondary
Set the base I/O address
for parallel port.
3.6.7 – Console Redirection Sub-Menu
You can use this screen to select options for the Console Redirection
settings. Use the up and down <Arrow> keys to select an item. Use the <Plus>
and <Minus> keys to change the value of the selected option.
PhoenixBIOS Setup Utility
Advanced
Item Specific Help
Com Port Address
Baud Rate
Console Type
Flow Control
Console connection
Continue C.R. after POST
[Disabled]
[300]
[VT100]
[None]
[Direct]
[off]
F1: Help ↑↓: Select Item -/+: Change Values F9: Setup Defaults
Esc: Exit ← →: Select Screen Enter: Select Sub-Menu
F10: Previous Values
Page 51
http://www.tyan.com
51
Feature Option Description
Disabled
On-board
COMA
Com Port Address
On-board
COMB
Select the Com Port
address.
300
Baud Rate
1200
Enable the specified baud
rate.
VT100
Console Type
VT100, 8bit
Enable the specified
console type.
None
Flow Control
XON/XOFF
Enable flow control.
Direct
Console connection
Via modem
Indicate whether the
console is connected
directly to the system or a
modem is used to connect.
Off
Continue C.R. after POST
On
Enable Console
Redirection after OS has
loaded.
Page 52
http://www.tyan.com
52
3.7 - BIOS Memory Menu
This menu has options for memory speed & latency. Use the up and down
<Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change
the value of the selected option.
PhoenixBIOS Setup Utility
Memory
Item Specific Help
Cache Ram
System Memory:
Extended Memory:
Memory Cache:
Cache System BIOS area:
Cache Video BIOS area:
Cache Base 0-512k:
Cache Base 512k-640k:
Cache Extended Memory Area:
Cache A000 – AFFF:
Cache B000 – BFFF
Cache C800 – CBFF:
Cache CC00 – CFFF:
Cache D000 – D3FF:
Cache D400 – D7FF:
Cache D800 – DBFF:
Cache DC00 – DFFF:
Cache E000 – E3FF:
Cache E400 – E7FF:
Cache E800 – E8FF:
Cache EC00 – EFFF:
[XXXX KB]
[XXXX KB]
[Enabled]
[uncached]
[uncached]
[uncached]
[uncached]
[uncached]
[uncached]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
[Disabled]
F1: Help ↑↓: Select Item -/+: Change Values F9: Setup Defaults
Esc: Exit ← →: Select Screen Enter: Select Sub-Menu
F10: Previous Values
Page 53
http://www.tyan.com
53
Feature Option Description
Disabled
Memory Cache
Enabled
Set the state of memory
cache.
Disabled
USHC
Write
Through
Write Protect
Cache A000-AFFF
Cache B000-BFFF
Write Back
Control caching of the
memory blocks.
Disabled
Write
Through
Write Protect
Cache C800-CBFF
~
Cache EC00-EFFF
Write Back
Control caching of the
memory blocks.
3.8 - Security Menu
This menu has options for the Security options. Use the up and down
<Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change
the value of the selected option.
PhoenixBIOS Setup Utility
Boot
Item Specific Help
Supervisor Password Is:
User Password Is:
Set Supervisor Password
Set User Password
Password on boot:
Fixed disk boot sector:
Diskette access:
Virus check reminder:
System backup reminder:
[Disabled]
[Normal]
[User]
[Disabled]
[Disabled]
F1: Help ↑↓: Select Item -/+: Change Values F9: Setup Defaults
Esc: Exit ← →: Select Screen Enter: Select Sub-Menu
F10: Previous Values
Page 54
http://www.tyan.com
54
Feature Option Description
Disabled
Password on boot
Enabled
Enable password entry on
boot.
Normal
Fixed disk boot sector
Write Protect
Write protects boot sector
on hard disk to protect
against viruses.
User
Diskette access
Supervisor
Control access to diskette
drives.
Disabled
Virus check reminder
Daily
Display reminder message
at boot (daily, every
Monday or 1
st
of every
month).
Disabled
System back reminder
Daily
Display reminder message
at boot (daily, every
Monday or 1
st
of every
month).
3.9 - BIOS Boot Menu
This menu has options for the Boot Device Priority. Use the up and do wn
<Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change
the value of the selected option.
PhoenixBIOS Setup Utility
Boot
Item Specific Help
QuickBoot Mode:
Boot-time Diagnostic Screen
Summary screen
Boot Device Priority
[Disabled]
[Disabled]
[Disabled]
F1: Help ↑↓: Select Item -/+: Change Values F9: Setup Defaults
Esc: Exit ← →: Select Screen Enter: Select Sub-Menu
F10: Previous Values
Page 55
http://www.tyan.com
55
Feature Option Description
Disabled
QuickBoot Mode
Enabled
Allow the system to skip
certain tests while booting.
Disabled
Boot-time Diagnostic
Screen
Enabled
Display the diagnostic
screen during boot.
Disabled
Summary screen
Enabled
Display system
configuration on boot.
Boot Device Priority
Menu Item
Select the search order for
the types of boot devices.
3.9.1 - Boot Device Priority
You can use this screen to select options for the Boot Device Priority
settings. Follow the “Item Specific Help” on the right side to select, move or
enable the item.
PhoenixBIOS Setup Utility
Boot
Item Specific Help
0: Legacy Floppy Drives
1: IDE0
2: IDE1
3: IDE2
4: IDE3
5: PCI BEV: MBA v7.6.6 Slot 0A48
6:
7:
: USB FDC
: USB HDD
: ALL PCI SCSI
: 1394 HDD
: 1394 CD
: Legacy Network Card
Keys used to view or
configure devices:
Up and Down arrows
Select a device
<+> and <-> moves
the device up and down.
<f> and <r> moves
the device fixed or removable.
<x> exclude or include
the device to boot.
<shift+1> enables or
disables a device
<1-4> Loads default
boot sequence.
F1: Help ↑↓: Select Item -/+: Change Values F9: Setup Defaults
Esc: Exit ← →: Select Screen Enter: Select Sub-Menu
F10: Previous Values
The boot menu will list all bootable devices. Use <Enter> to expand or collapses
devices with a ‘+’ or ‘-‘. Use <+> or <-> to arrange the priorities of all bootable
devices.
Page 56
http://www.tyan.com
56
3.10 - Power Menu
This menu has options for the Power management. Use the up and down
<Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change
the value of the selected option.
PhoenixBIOS Setup Utility
Boot
Item Specific Help
Spread Spectrum
Power Loss Control
[Disabled]
[Stay off]
F1: Help ↑↓: Select Item -/+: Change Values F9: Setup Defaults
Esc: Exit ← →: Select Screen Enter: Select Sub-Menu
F10: Previous Values
Feature Option Description
Disabled
Spread Spectrum
Enabled
Enable or disable Spread
Spectrum.
Stay Off
Power Loss Control
Power On
Control power loss.
Page 57
http://www.tyan.com
57
3.11 - BIOS Exit Menu
This menu has options for the Exit Priority. Use the up and down <Arrow>
keys to select an item. Use the <Plus> and <Minus> keys to change the value
of the selected option.
PhoenixBIOS Setup Utility
Exit
Item Specific Help
Exit Saving Charges
Exit Discarding Changes
Load Setup Defaults
Discard Changes
Save Changes
Exit System Setup and
save your changes to
CMOS.
F1: Help ↑↓: Select Item -/+: Change Values F9: Setup Defaults
Esc: Exit ← →: Select Screen Enter: Select Sub-Menu
F10: Previous Values
Exit Saving Changes
Use this option to exit setup utility and re-boot. All new selections you have
made are stored into CMOS. System will use the new settings to boot up.
Exit Discarding Changes
Use this option to exit setup utility and re-boot. All new selections you have
made are not stored into CMOS. System will use the old settings to boot up.
Load Setup Defaults
Use this option to load default setup values.
Discard Changes
Use this option to restore all new setup values that you have made but not
saved in CMOS.
Save Changes
Use this option to restore all new setup values that you have made and saved in
CMOS.
Page 58
http://www.tyan.com
58
Page 59
http://www.tyan.com
59
Chapter 4: Diagnostics
Note: if you experience problems with setting up your system, always check the
following things in the following order:
Memory, Video, CPU
By checking these items, you will most likely find out what the problem might
have been when setting up your system. For more information on
troubleshooting, check the TYAN website at: http://www.tyan.com
.
4.1 Beep Codes
Fatal errors, which halt the boot process, are communicated through a series of
audible beeps. For example, if the BIOS POST can initialize the video but an
error occurs, an error message will be displayed. If it cannot display the
message, it will report the error as a series of beeps.
The most common type of error is a memory error.
Before contacting your vendor or TYAN Technical S upport, be sure that you
note as much as you can about the beep code length and order that you
experience. Also, be ready with information regarding add-in cards, drives and
O/S to speed the support process and come to a quicker solution.
4.2 Flash Utility
Every BIOS file is unique for the motherboard it was designed for. For Flash
Utilities, BIOS downloads, and information on how to properly use the Flash
Utility with your motherboard, please check the TYAN web site:
http://www.tyan.com/
Note: Please be aware that by flashing your BIOS, you agree that in the event
of a BIOS flash failure, you must contact your dealer for a replacement BIOS.
There are no exceptions. TYAN does not have a policy for replacing BIOS chips
directly with end users. In no event will TYAN be held responsible for d amages
done by the end user.
Page 60
http://www.tyan.com
60
4.3 BIOS Post Code
Code Beeps / Description Code Beeps / Description
02h Verify Real Mode 32h Test CPU bus-clock
frequency
03h Disable Non-Maskable
Interrupt (NMI)
33h Initialize Phoenix Dispatch
Manager
04h Get CPU type 36h Warm start shut down
06h Initialize system hardware 38h Shadow system BIOS ROM
08h Initialize chipset with initial
POST values
3Ah Autosize cache
09h Set IN POST flag 3Ch Advanced configuration of
chipset registers
0Ah Initialize CPU registers 3Dh Load alternate registers with
CMOS values
0Bh Enable CPU cache 42h Initialize interrupt vectors
0Ch Initialize caches to initial
POST values
45h POST device initialization
0Eh Initialize I/O component 46h 2-1-2-3. Check ROM
copyright notice
0Fh Initialize the local bus IDE 48h Check video configuration
against CMOS
10h Initialize Power
Management
49h Initialize PCI bus and
devices
11h Load alternate registers with
initial POST values
4Ah Initialize all video adapters
in system
12h Restore CPU control word
during warm boot
4Bh QuietBoot start (optional)
13h Initialize PCI Bus Mastering
devices
4Ch Shadow video BIOS ROM
14h Initialize keyboard controller 4Eh Display BIOS copyright
notice
16h 1-2-2-3. BIOS ROM
checksum
50h Display CPU type and
speed
17h Initialize cache before
memory autosize
51h Initialize EISA board
18h 8254 timer initialization 52h Test keyboard
1Ah 8237 DMA controller
initialization
54h Set key click if enabled
1Ch Reset Programmable
Interrupt Controller
58h 2-2-3-1. Test for
unexpected interrupts
20h 1-3-1-1. Test DRAM refresh 59h Initialize POST display
service
22h 1-3-1-3. Test 8742 KBD
Controller
5Ah Display prompt "Press F2 to
enter SETUP"
24h Set ES segment register to
4 GB
5Bh Disable CPU cache
26h Enable A20 line 5Ch T est RAM between 512 and
640 KB
28h Autosize DRAM 60h Test extended memory
29h Initialize POST Memory
Manager
62h Test extended memory
address lines
2Ah Clear 512 KB base RAM 64h Jump to UserPatch1
2Ch 1-3-4-1. RAM failure on
address
66h Configure advanced cache
registers
Page 61
http://www.tyan.com
61
2Eh
1-3-4-3. RAM failure on
data bits of low byte of
memory bus
67h Initialize Multi Processor
APIC
2Fh Enable cache before
system BIOS shadow
68h Enable external and CPU
caches
30h 1-4-1-1. RAM failure on
data bits of high byte of
memory bus
69h Setup System Management
Mode (SMM) area
Code Beeps / Description Code Beeps / Description
6Ah Display external L2 cache
size
A2h Check key lock
6Bh Load custom defaults
(optional)
A4h Initialize Typematic rate
6Ch Display shadow-area
message
A8h Erase F2 prompt
6Eh Display possible high
address for UMB recovery
AAh Scan for F2 key stroke
70h Display error messages ACh Enter SETUP
72h Check for configuration
errors
AEh Clear Boot flag
76h Check for keyboard errors B0h Check for errors
7Ch Set up hardware interrupt
vectors
B2h POST done - prepare to
boot operating system
7Eh Initialize coprocessor if
present
B4h One short beep before boot
80h Disable onboard Super I/O
ports and IRQs
B5h Terminate QuietBoot
(optional)
81h Late POST device
initialization
B6h Check password (optional)
82h Detect and install external
RS232 ports
B9h Prepare Boot
83h Configure non-MCD IDE
controllers
BAh Initialize DMI parameters
84h Detect and install external
parallel ports
BBh Initialize PnP Option ROMs
85h Initialize PC-compatible
PnP ISA devices
BCh Clear parity checkers
86h. Re-initialize onboard I/O
ports.
BDh Display MultiBoot menu
87h Configure Motherboard
Devices
BEh Clear screen (optional)
88h Initialize BIOS Data Area BFh Check virus an d backup
reminders
89h Enable Non-Maskable
Interrupts (NMIs)
C0h T r y to boot with INT 19
8Ah Initialize Extended BIOS
Data Area
C1h Initialize POST Error
Manager (PEM)
8Bh Test and initialize PS/2
mouse
C2h Initialize error logging
8Ch Initialize floppy controller C3h Initialize error display
function
8Fh Determine number of ATA
drives (optional)
C4h Initialize system error
handler
90h Initialize hard-disk
controllers
C5h PnPnd dual CMOS
(optional)
91h Initialize local-bus hard-disk
controllers
C6h Initialize notebook docking
(optional)
Page 62
http://www.tyan.com
62
92h Jump to UserPatch2 C7h Initialize notebook docking
late
93h Build MPTABLE for multi-
processor boards
C8h Force check (optional)
95h Install CD ROM for boot C9h Extended checksum
(optional)
96h Clear huge ES segment
register
D2h BIOS Boot Block
97h Fixup Multi Processor table E0h BIOS Boot Block
98h 1-2. Search for option
ROMs.
E1h BIOS Boot Block
99h Check for SMART Drive
(optional)
E2h Initialize the CPU
9Ah Shadow option ROMs E3h Initialize system timer
9Ch Set up Po wer Management E4h Initialize system I/O
9Dh Initialize security engine
(optional)
E5h Check force recovery boot
9Eh Enable hardware interrupts E6h Checksum BIOS ROM
9Fh Determine number of ATA
and SCSI drives
E7h Go to BIOS
A0h Set time of day E8h Set Huge Segment
Code Beeps / Description Code Beeps / Description
E9h Initialize Multi Processor F1h Initialize Run Time Clock
EAh Initialize OEM special code F2h Initialize video
EBh Initialize PIC and DMA F3h Initialize System
Management Mode
ECh Initialize Memory type F4h Output one beep before
boot
EDh Initialize Memory size F5h Boot to Mini DOS
EEh Shadow Boot Block F6h Clear Huge Segment
EFh System memory test F7h Boot to Full DOS
F0h Initialize interrupt vectors
Page 63
http://www.tyan.com
63
Glossary
ACPI (Advanced Configuration and Power Interface): a power management
specification that allows the operating system to control the amount of power
distributed to the computer’s devices. Devices not in use can be turned off,
reducing unnecessary power expenditure.
AGP (Accelerated Graphics Port): a PCI-based interface which was designed
specifically for demands of 3D graphics applications. The 32-bit AGP channel
directly links the graphics controller to the main memory. While the channel runs
only at 66 MHz, it supports data transmission during both the rising and fall ing
ends of the clock cycle, yielding an effective speed of 133 MHz.
ATAPI (AT Attachment Packet Interface): also known as IDE or ATA; a drive
implementation that includes the disk controller on the device itself. It allows
CD-ROMs and tape drives to be configured as master or slave devices, just like
HDDs.
ATX: the form factor designed to replace the AT form factor. It improves on the
AT design by rotating the board 90 degrees, so that the IDE connectors are
closer to the drive bays, and the CPU is closer to the power supply and cooling
fan. The keyboard, mouse, USB, serial, and parallel ports are built-in.
Bandwidth: refers to carrying capacity. The greater the bandwidth, the more
data the bus, phone line, or other electrical path can carry. Greater bandwidth
results in greater speed.
BBS (BIOS Boot Specification): a feature within the BIOS that creates,
prioritizes, and maintains a list of all Initial Program Load (IPL) devices, and
then stores that list in NVRAM. IPL devices have the ability to load and execute
an OS, as well as provide the ability to return to the BIOS if the OS load process
fails. At that point, the next IPL device is called upon to attempt loading of the
OS.
BIOS (Basic Input/Output System): the program that resides in the ROM chip,
which provides the basic instructions for controlling your computer’s hardware.
Both the operating system and application software use BIOS routines to
ensure compatibility.
Buffer: a portion of RAM which is used to temporarily store data; usually from
an application though it is also used when printing and in most keyboard
drivers. The CPU can manipulate data in a buffer before copying it to a disk
drive. While this improves system performance (reading to or writing from a disk
Page 64
http://www.tyan.com
64
drive a single time is much faster than doing so repeatedly) there is the
possibility of
losing your data should the system crash. Information in a buffer is temporarily
stored, not permanently saved.
Bus: a data pathway. The term is used especially to refer to the connection
between the processor and system memory, and between the processor and
PCI or ISA local buses.
Bus mastering: allows peripheral devices and IDEs to access the s ystem
memory without going through the CPU (similar to DMA channels).
Cache: a temporary storage area for data that will be needed often by an
application. Using a cache lowers data access times since the information is
stored in SRAM instead of slower DRAM. Note that the cache is also much
smaller than your regular memory: a typical cache size is 51 2KB, while you may
have as much as 4GB of regular memory.
Closed and open jumpers: jumpers and jumper pins are active when they are
“on” or “closed”, and inactive when they are “off” or “open”.
CMOS (Complementary Metal-Oxide Semiconductors): chips that hold the
basic startup information for the BIOS.
COM port: another name for the serial port, which is called as such because it
transmits the eight bits of a byte of data along one wire, and receives data on
another single wire (that is, the data is transmitted in serial form, one bit after
another). Parallel ports transmit the bits of a byte on eight different wires at the
same time (that is, in parallel form, eight bits at the same time).
DDR (Double Data Rate): a technology designed to double the clock spee d of
the memory. It activates output on both the rising and falling edge of the system
clock rather than on just the rising edge, potentially doublin g output.
DIMM (Dual In-line Memory Module): faster and more capacious form of RAM
than SIMMs, and do not need to be installed in pairs.
DIMM bank: sometimes called DIMM socket because the physical slot and the
logical unit are the same. That is, one DIMM module fits into one DIMM socket,
which is capable of acting as a memory bank.
DMA (Direct Memory Access): channels that are similar to IRQs. DMA
channels allow hardware devices (like soundcards or keyboards) to access the
main memory without involving the CPU. This frees up CPU resources for other
Page 65
http://www.tyan.com
65
tasks. As with IRQs, it is vital that you do not double up devices on a single line.
Plug-n-Play devices will take care of this for you.
DRAM (Dynamic RAM): widely available, very affordable form of RAM which
looses data if it is not recharged regularly (every few milliseconds). This refresh
requirement makes DRAM three to ten times slower than non-recharged RAM
such as SRAM.
ECC (Error Correction Code or Error Checking and Correcting) : allows data
to be checked for errors during run-time. Errors can subsequently be corrected
at the same time that they’re found.
EEPROM (Electrically Erasable Programmable ROM): also called Flash
BIOS, it is a ROM chip which can, unlike normal ROM, be updated. This allows
you to keep up with changes in the BIOS programs without having to buy a new
chip. TYAN’s BIOS updates can be found at http://www.tyan.com
ESCD (Extended System Configuration Data): a format for storing
information about Plug-n-Play devices in the system BIOS. This information
helps properly configure the system each time it boots.
Firmware: low-level software that controls the system hardware.
Form factor: an industry term for the size, shape, power supply type, and
external connector type of the Personal Computer Board (PCB) or motherboard.
The standard form factors are the AT and ATX.
Global timer: onboard hardware timer, such as the Real-Time Clock (RTC).
HDD: stands for Hard Disk Drive, a type of fixed drive.
H-SYNC: controls the horizontal synchronization/properties of the monitor.
HyperTransport
TM
: a high speed, low latency, scalable point-to-point link for
interconnecting ICs on boards. It can be significantly faster than a PCI bus for
an equivalent number of pins. It provides the bandwidth and flexibility critical for
today's networking and computing platforms while retaining the fundamental
programming model of PCI.
IC (Integrated Circuit): the formal name for the computer chip.
IDE (Integrated Device/Drive Electronics): a simple, self-contained HDD
interface. It can handle drives up to 8.4 GB in size. Almost all IDEs sold now are
in fact Enhanced IDEs (EIDEs), with maximum capacity determined by the
hardware controller.
Page 66
http://www.tyan.com
66
IDE INT (IDE Interrupt): a hardware interrupt signal that goes to the IDE.
I/O (Input/Output): the connection between your computer and another piece
of hardware (mouse, keyboard, etc.)
IRQ (Interrupt Request): an electronic request that runs from a hardware
device to the CPU. The interrupt controller assigns priorities to incoming
requests and delivers them to the CPU. It is important that there is only one
device hooked up to each IRQ line; doubling up devices o n IRQ lines can lock
up your system. Plug-n-Play operating systems can take care of these det ails
for you.
Latency: the amount of time that one part of a system spends waiting for
another part to catch up. This occurs most commonly when the system sends
data out to a peripheral device and has to wait for the peripheral to spread
(peripherals tend to be slower than onboard system components).
NVRAM: ROM and EEPROM are both examples of Non-Volatile RAM, memory
that holds its data without power. DRAM, in contrast, is volatile.
Parallel port: transmits the bits of a byte on eight different wires at the same
time.
PCI (Peripheral Component Interconnect): a 32 or 64-bit local bus (data
pathway) which is faster than the ISA bus. Local buses are those which operate
within a single system (as opposed to a network bus, which connects multiple
systems).
PCI PIO (PCI Programmable Input/Output) modes: the data transfer modes
used by IDE drives. These modes use the CPU for data transfer (in contrast,
DMA channels do not). PCI refers to the type of bus used by these modes to
communicate with the CPU.
PCI-to-PCI bridge: allows you to connect multiple PCI devices onto one PCI
slot.
Pipeline burst SRAM: a fast secondary cache. It is used as a secondary cache
because SRAM is slower than SDRAM, but usually larger. Data is cached first
to the faster primary cache, and then, when the primary cache is full, to the
slower secondary cache.
PnP (Plug-n-Play): a design standard that has become ascendant in the
industry. Plug-n-Play devices require little set-up to use. Devices an d operating
Page 67
http://www.tyan.com
67
systems that are not Plug-n-Play require you to reconfigure your s ystem each
time you add or change any part of your hardware.
PXE (Preboot Execution Environment): one of four components that together
make up the Wired for Management 2.0 baseline specification. PXE was
designed to define a standard set of preboot protocol services within a client
with the goal of allowing networked-based booting to boot using industry
standard protocols.
RAID (Redundant Array of Independent Disks): a way for the same data to
be stored in different places on many hard drives. By using t his metho d, the
data is stored redundantly and multiple hard drives will appear as a single drive
to the operating system. RAID level 0 is known as striping, where data is striped
(or overlapped) across multiple hard drives, but offers no fault-tolerance. RAID
level 1 is known as mirroring, which stores the data within at least two hard
drives, but does not stripe. RAID level 1 also allows for faster access time and
fault-tolerance, since either hard drive can be read at the same time. RAID level
0+1 is both striping and mirroring, providing fault-tolerance, striping, and faster
access all at the same time.
RAIDIOS: RAID I/O Steering (Intel)
RAM (Random Access Memory): technically refers to a type of memory where
any byte can be accessed without touching the adjacent da ta and is often
referred to the system’s main memory. This memory is available to any program
running on the computer.
ROM (Read-Only Memory): a storage chip which contains the BIOS; the basic
instructions required to boot the computer and start up the operating system.
SDRAM (Synchronous Dynamic RAM): called as such because it can keep
two sets of memory addresses open simultaneously. By transferring data
alternately from one set of addresses and then the other, SDRAM cuts down on
the delays associated with non-synchronous RAM, which must close one
address bank before opening the next.
Serial port: called as such because it transmits the eight bits of a byte of data
along one wire, and receives data on another single wire (that is, the data is
transmitted in serial form, one bit after another).
SCSI Interrupt Steering Logic (SISL): Architecture that allows a RAID
controller, such as AcceleRAID 150, 200 or 250, to implement RAID on a
system board-embedded SCSI bus or a set of SCSI busses. SISL: SCSI
Interrupt Steering Logic ( LSI ) (only on LSI SCSI boards)
Page 68
http://www.tyan.com
68
Sleep/Suspend mode: in this mode, all devices except the CPU shut down.
SDRAM (Static RAM): unlike DRAM, this type of RAM does not need to be
refreshed in order to prevent data loss. Thus, it is faster and more expensive.
Standby mode: in this mode, the video and hard drives shut down; all other
devices continue to operate normally.
UltraDMA-33/66/100: a fast version of the old DMA channel. UltraDMA i s also
called UltraATA. Without a proper UltraDMA controller, your system cannot take
advantage of higher data transfer rates of the new UltraDMA/UltraATA hard
drives.
USB (Universal Serial Bus): a versatile port. This one port type can function
as a serial, parallel, mouse, keyboard or joystick port. It is fast enough to
support video transfer, and is capable of supporting up to 127 dais y-chained
peripheral devices.
VGA (Video Graphics Array): the PC video display standard
V-SYNC: controls the vertical scanning properties of the monitor.
ZCR (Zero Channel RAID): PCI card that allows a RAID card to use the
onboard SCSI chip, thus lowering cost of RAID solution
ZIF Socket (Zero Insertion Force socket): these sockets make it possible to
insert CPUs without damaging the sensitive CPU pins. The CPU is lightl y
placed in an open ZIF socket, and a lever is pulled down. This shifts the
processor over and down, guiding it into the board and locking it into place.
Page 69
http://www.tyan.com
69
Technical Support
If a problem arises with your system, you should turn to your deal er for help
first. Your system has most likely been configured by them, and they should
have the best idea of what hardware and software your system contains.
Furthermore, if you purchased your system from a dealer near you, you can
bring your system to them to have it serviced instead of attempting to do so
yourself (which can have expensive consequences).
Help Resources:
1. See the beep codes section of this manual.
2. See the TYAN website for FAQ’s, bulletins, driver updates,
and other information: http://www.tyan.com
3. Contact your dealer for help BEFORE calling TYAN.
4. Check the TYAN user group:
alt.comp.periphs.mainboard.TYAN
Returning Merchandise for Service
During the warranty period, contact your distributor or system vendor FIRST for
any product problems. This warranty only covers normal customer use and
does not cover damages incurred during shippi ng or failure due to the
alteration, misuse, abuse, or improper maintenance of products.
NOTE: A receipt or copy of your invoice marked with th e date of purchase
is required before any warranty service can be rendered. You may obtain
service by calling the manufacturer for a Return Merchandise
Authorization (RMA) number. The RMA number should be prominently
displayed on the outside of the shipping carton and the package should
be mailed prepaid. TYAN will pay to have the board shipped back to you.
Page 70
http://www.tyan.com
70
Notice for the USA
Compliance Information Statement (Declaration of
Conformity Procedure) DoC
FCC Part 15: This device complies with part 15 of the FCC
Rules
Operation is subject to the following conditions:
This device may not cause harmful interference, and
This device must accept any interference received including interference th at
may cause undesired operation. If this equipment does cause harmful
interference to radio or television reception, which can be determined b y tur ning
the equipment off and on, the user is encouraged to try one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Plug the equipment into an outlet on a circuit different from that of the receiver.
Consult the dealer on an experienced radio/television technicia n for help.
Notice for Canada
This apparatus complies with the Class B limits for radio interference as
specified in the Canadian Department of Communications Radio Interference
Regulations. (Cet appareil est conforme aux norms de Classe B d’interference
radio tel que specifie par le Ministere Canadien des Communications dans les
reglements d’ineteference radio.)
Notice for Europe (CE Mark)
This product is in conformity with the Council Directive
89/336/EEC, 92/31/EEC (EMC).
CAUTION: Lithium battery included with this board. Do not puncture, mutilate,
or dispose of battery in fire. Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type recommended b y
manufacturer. Dispose of used battery according to manufacturer instructions
and in accordance with your local regulations.
Document #: D1631-100
Page 71
http://www.tyan.com
71
Loading...
