Tiger 230 S2507

3

Chapter 1: Introduction

1.1 Overview

The Tiger 230™ is a hig h performance m otherboard desi gned for serve r and performan ce applications
that require the power of dual Intel® Pentium® III FC-PGA processors or a single Celeron® FC-PGA pro­cessor. This motherboard utilizes the VIA Apollo Pro 133A chipset and can support CPU speeds of 500
MHz through 1 GHz and fr ont side b us speeds of 100 M Hz or 133 MH z. Please see Tyan’s website for
updates and information concerning CPU information and support:

http://www.tyan.com

This integrated p erfo rm an ce boa rd is su ppo rte d in an ATX form factor. Some of the features inc lude d are
onboard UltraDMA-33/66/100 support, and sound bridge with integrated hardware monitoring.

With I/O and drive controller support onboard, the one 2x/4x mode AGP slot and five 32-bit PCI v2.2 slots
are free for numer ous typ es of add-o n expa nsion ca rds. T he fo ur 16 8-pi n DIMM socket s can s upp ort up
to 2GB* of PC100 memory or 1.5GB* of PC133 SDRAM.

Remember to visit Tyan’s website at http://www.tyan.com. There you can find information on all of
Tyan’s products with FAQs, distributors list, and BIOS settings explanations.

* 2.0GB total memory @ 4 DIMMs only, when using 100MHz SDRAM

1.5GB total memory @ 3 DIMMs only, when using 133MHz SDRAM
Check the Tyan website for details on memory compatibility: http://www.tyan.com

4

http://www.tyan.com

1.2 Hardware Specifications

Processor Information

Expansion Slots

Chipset Information

Hardware Monitoring

Memory

Integrated PCI IDE

Dual ZIF PGA370 Socket
Intel Pentium III, Celeron (only single socket) FC-PGA
Onboard VRM
Front side bus support for 100 or 133MHz

One 2x/4x mode AGP slot
Five 32-bit PCI v2.2 compliant slots
Total six usable slots

VIA Apollo Pro 133A chipset
(VT82C694X and VT82C686B)

Integrated hardware monitoring
3-pin Fan Monitoring headers
2-pin External SCSI LED header
Temperature and Voltage Monitoring
3-pin Wake on Modem header

Four 168-pin 3.3V DIMM sockets
Support s up to 2GB @ 100MHz (4 DIMMS)
Supports up to 1.5GB @ 133MHz (3 DIMMS)
Supports PC100/133 SDRAM

Two channel master mode
Supports up to four Enhanced IDE devices
Support for UltraDMA-33/66/100 IDE devices and
ATAPI compliant devices

INTRO

Integrated I/O

BIOS

Form Factor

Regulatory

One floppy connector for up to two drives
Two 9-pin UART serial ports
One 25-pin ECP/EPP parallel port
Four USB ports (two ports via cable - optional*)
PS/2 mouse and keyboard ports

Award BIOS 2 Mbit Flash
Auto-detection of memory size
Auto-configuration of IDE hard disk types
User settings of hardware monitoring
Multiple boot options
DMI 2.0 compliant

ATX 2.03 12” x 9.6” (304.8 x 243.84 mm)
One 20-pin ATX power connector
Stacked mouse & keyboard ports
Stacked two USB ports
Two serial ports

FCC Class B (Declaration of Conformity)
European Community CE (Declaration of Conformity)
Taiwan BSMI Notice (Declaration of Conformity)

* extra accessories can be purchased at the Tyan Online Store: http://www.etyan.com

Tiger 230 S2507

5

1.3 Software Specifications

OS

Operates with Windows 98/SE/ME,
Windows NT/2000

6

http://www.tyan.com

1.4 Technical Support

If a problem arises with your system, you should turn to your dealer for help first. Your system has most
likely been config ured by them , and they sh ould have the be st idea of what hardw are and so ftware your
system contains. Hence, they sh ou ld be of the mo st assist ance. Furthermore, if you p urch ase d you r sys­tem from a dealer n ear you, you can a ctually bring your syste m to them to have it serviced, instead of
attempting to do so yourself (which can have expensive consequences).

Help Resources:

1. See the FAQ and beep codes section of this manual.

2. See the Tyan website for FAQ, bulletins, driver updates, and other
information: http://www.tyan.com

3. Contact your dealer for help BEFORE calling Tyan.

4. Check the Tyan user group: alt.comp.periphs.mainboard.tyan

1.5 Returning Merchandise for Service

During the warrant y period, contact you r distributor or syste m vendor FIRST for any product p roblems.
This warranty only cove rs no rm al cust ome r use and does n ot cove r da mag es incu rr ed du ring shi pp ing or
failure due to the alteration, misuse, abuse, or improper maintenance of products.

NOTE: A receipt or co py o f your invoice mark ed wit h the date o f purch ase is requ ired befo re any
warranty service can be rendered. You may obtain service by calling the manufacturer for a
Return Merchan dise Authorization (RMA) number. The RMA number sho uld be prominently dis­played on the o ut sid e of the shipp i n g ca rton an d th e p ack ag e sh ou ld be m ail ed prep aid . Tyan will
pay to have the board shipped back to you.

INTRO

Tiger 230 S2507

7

Chapter 2: Board Installation

2.1 Unpacking

The retail motherboard package should contain the following:

Tiger 230 mothe r boa rd

34-pin floppy cable

ATA-66/100 IDE cable (with blue connector)

Tiger 230 user’s manual

Tyan driver CD

2.2 Installation

You are now ready to inst all your mother board. Th e mount ing hole patter n of the Tiger 230 match es the
ATX board specifica tion s, so you r cha ssis must be capable of supp ort ing an ATX board (check the m oth­erboard dimensions provided on p. 5).

2.3 How to install our products right.. the first time.

Question: what’s the first thing I should do?

The first thing you should do is read the user’s manual. It contains important info rmation wh ich will make
configuration and setup much easier, as well as provide information on device installation and component
set up.. By reading through the manual complete ly before installing your motherboard, you will have a
complete overview on the installation.

8

http://www.tyan.com

Here are some safety tips:

(1) Ground yourself properly before removing your motherboard from the antistatic bag. Unplug

the power from your computer power supply and touch any metal part on the computer case. (You

might also want to wear a grounded wrist strap.)
(2) Hold the motherboard by its edges and do not touch the bottom of the board.
(3) Avoid touching motherboard components, IC chips, connectors, and leads.
(4) Avoid touching pins of memory modules and chips.
(5) Place motherboard on a grounded antistatic surface or on the antistatic bag.

Having reviewed the precautions above, the next step is to take the motherboard out of the cardboard box
and static bag, hold it by its edges, an d place it on a ground ed antistatic surface, component side up.
Inspect the board for damage.

NOTE: DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED!

Press down on any of the socke ted ICs if it appe ars that t hey are not prope rly seated (the board shou ld
still be on an antistatic mat). Do n ot touch th e bottom of the board. Remember, don’t take any electronic
device out o f i ts p ro t ec ti v e bag un t i l y o u a r e r e ad y t o a c t ua ll y i n s tal l it i nto t he c o mp ute r ca s e . If yo u do n ot
ground yourself, yo u ri sk zapping the mo therb oard o r adap ter card . Subseq uent pr oble ms may not ari se
immediately because electrostatic discharge, unlike physical damage, causes the device to fail over time.

INSTALL

Installation Steps

1. Set jumpers (if necessary)

2. Mount motherboard in chassis

3. Install memory

4. Instal l CPU and cooling fan(s)

5. Connect IDE and floppy drives

6. Instal l add-on cards

7. Connect PS/2, USB, and serial devices

Tiger 230 S2507

9

2.4 Quick References for Jumpers

In this manual, the term “closed” and “on” are used when referring to jump ers (or jumper pins) th at are
active; “open” a nd “off” a re u sed whe n re fer ri ng to ju mp ers (or jumper pin s) th at are inactive. See Figure

2.0a and Figure 2.0c for examples o f “on” and “off” pins and jumpers.

Jumpers and pins are con nected by slipping the plasti c jumper connector over the top of two adjacent
jumper pins ( indicated by 1- 2 or 2-3). The met al rod inside t he plastic sh ell b ridges the ga p betw een the
two pins, completin g the circuit. See Figure 2 .0b and Figure 2.0d for more examples of 3-pin jumper
connections. NOTE: The small number “1” indicates pin 1.

The tables and maps on the following p ages will help you set the jum pers for CPU speed, infr ared, and
external connector pin assignments, among others. The miniature motherboard maps will help you locate
the jumpers on your board. Full page maps of the motherboard can be found on the next two pages.

2-pin jumpers

off on

Figure 2.0a

(overhead view)

1-2 2-3 open

3-pin jumpers

1
2
3

Figure 2.0b

(overhead view)

1
2
3

2-pin jumpers 3-pin jumpers

1-2 2-3 openoff on

1
2
3

Figure 2.0c

(front angle view)

10

11

Figure 2.0d

(front angle view)

http://www.tyan.com

2.5 Map of Motherboard Jumpers

Keyboard port
(lower port)

USB

Ports

port

Serial

port

Parallel

port

Serial

Mouse port
(upper port)

JWOL

ATX Power

Connector

FAN4

ZIF Socket370

CPU1

2x/4x AGP slot

CPU2

VIA

VT82C694X

chipset

FAN3

ZIF Socket370

FAN1

INSTALL

FDD Connector

JWOM

IR

Battery

JP11

2 Mbit Flash

Primary IDE

Secondary IDE

JP3

JP9

USB1

Speaker

FAN2

J1

Tiger 230 S2507

11

2.6 Setting Jumpers

2.6-A. Front Pa nel Connector (J1)

VCC

LED

HDD

Reset

Infrered

2.6-B. CMOS Reset (JP11)

LED

Ground Switch

Switch

Switch

IR +5V

IR RX

Ground

IR TX no connect

1-2

12
34
56

78

910
11 12
1314

1516

Pwr LED+

Slp LED+

Ground

SN_NMI

Ground

no connect

2-3

FAN4

LEDs

Pwr/Slp

Power

Switch

FAN3

JP11

FAN1

J1

USB1

FAN2

JP11

Normal

If you have been locked out o f your system beca use you forgot your password or set the CMOS incor­rectly, or have just finished flashing your BIOS follow the instructions below.

Clear

1. Power off the system, and disconnect the power supply

2. Close pins 2-3 on JP11 (see mini-map for location of JP11)

3. Wait about three seconds

4. Move jumper back to 1-2, then power on the system again

By following this procedure, you will erase your password and reset the CMOS.

2.6-C. USB Connector (USB1)

This connector is for the a ddit io na l US B co nnector* (which ad ds two m ore p ort s o n a seco nd USB chan­nel).

2.6-D. Cooling Fans (FAN1, FAN2, FAN3, FAN4)

1

2

3

FAN

Ground

In addition to installing your CPU, Tyan highly recommends that you install a CPU fan/heatsink combina­tion, and if n eeded, addi tional ch assis fans . To this end Tyan has provided several connectors to power
the fan(s), as well as the fan pinout (shown above). Here is some information you may find useful:

- We rec ommend you use FAN3 and FAN4 for the CPU cooling fans

- All other fan connectors are left to the user’s discretion

+12V

Speed

* extra accessories can be purchased at the Tyan Online Store: http://www.etyan.com

12

http://www.tyan.com

2.6-E. Wake on LAN (JWOL)

This is the connector for the Wake on LAN function.

2.6-F. Wake on Modem (JWOM)

This is the connector for the Wake on Modem function.

2.6-G. External SCSI LED (JP3)

If your peripheral supports a feature for hassis intrusion, you
can use this connector to use that feature. If activity is
detected from the peripheral and this feature is connected,
the activity will be displayed on the chassis front side LED.

2.6-H. CPU Frequency Setting s (JP9 )

NOTE: The following settings are only valid if a non-retail/engineering sample CPU is installed. Retail
CPU settings will automatically be detected and used accordingly.

Ratio

2

3

4

5

5.5

7.5

9.5

11.5

Bus

Speed

100
133
100
133
100
133

66
100
133

66
100
133

66
100
133

66
100
133

66
100
133

CPU

Speed

200
333
300
433
400
533
333
500
667
366
550
733
500
750
997
633
950

1264

733
1150
1530

Pins 1-2 Pins 3-4 Pins 5-6 Pins 7-8

ON

ON

ON ON ON

OFF

ON ON

OFF OFF

OFF

ON ON ON

OFF

ON ON ON

OFFOFF

OFF

ON ON

JWOL

JWOM

ON ON

OFFON ON ON

OFF

IR

JP3

JP9

ONOFFOFF

INSTALL

2.6-I. Infrared Reserved (IR)

This is a reserved connector for IR functions.

Tiger 230 S2507

13

2.6-J. Soft Power Connector

The soft power conne ctor is par t of jumper bloc k J1 (pins 6 to 8). T his board use s the chipse t for power
management, inclu ding turning on and off the system. If the power button function option in the BIOS
Power Managemen t menu i s set to “On/ Off” (which is t he defaul t), pressin g the power button on ce after
the BIOS has booted up will turn the syste m on and off. If the power button function is set to Suspend,
pressing the power button once will wa ke up the system or send it to Suspend mode. In this case, you
cannot turn the syste m off unless you sh ut down t hrough the Windows op erating system o r you hold the
power button down for four seconds.

2.6-K. Hardware Reset Switch Connector Installation

The reset switch on your chassis case provides you with the Hardware Reset function, which is the same
as power on/off, except that the system will immediately execu te a cold start after the reset button is
pushed.

2.6-L. Flash Utility

You can upgrade t he BIOS of this mo therboard by using t he Flash Utility (se e p. 37). Check the Tyan
website for details: http://www.tyan.com

* check the Tyan website for updates: http://www.tyan.com

14

http://www.tyan.com

2.7 Mounting the Motherboard into the Chassis

Your chassis may include moun ting hardwar e. If mounting hardware was included, yo u can use the fo l­lowing examples to help you in installing your motherboard into the chassis.

The chassis may h ave com e with th e studs integrated in to t he cha ssis wa ll, so in t hose ca ses you wou ld
only need to us e scre ws (possib ly inclu ded wi th you r chass is) to i nstall th e mot herboa rd. S ee the exam­ples (Figure 2.0, shown below) for more details.

If the chassis includes mounting hardware without the studs pre-installed, then you will need to install the
motherboard usin g the mounting hardware as sho wn in the examples below. Remember not to over­tighten any of th e screws, or you migh t risk breaki ng intern al traces i n the surroun ding ar ea, or dam age
the motherboard in some other way.

Other examples of how to install your motherboard using other hardware (that may or may not have been
included with your chassis) are shown below.

One solution for installing motherboardType of hardware Another solution Another solution

screw

motherboard

base

stud

chassis wall

motherboard

base

INSTALL

The diagrams above are only representative of a few solutions for installing a

NOTE:

motherboard into the chassis. The installation procedure for installing your m oth­erboard may differ.

Tiger 230 S2507

standoff

chassis wall

motherboard

base

standoff

chassis wall

Figure 2.0

15

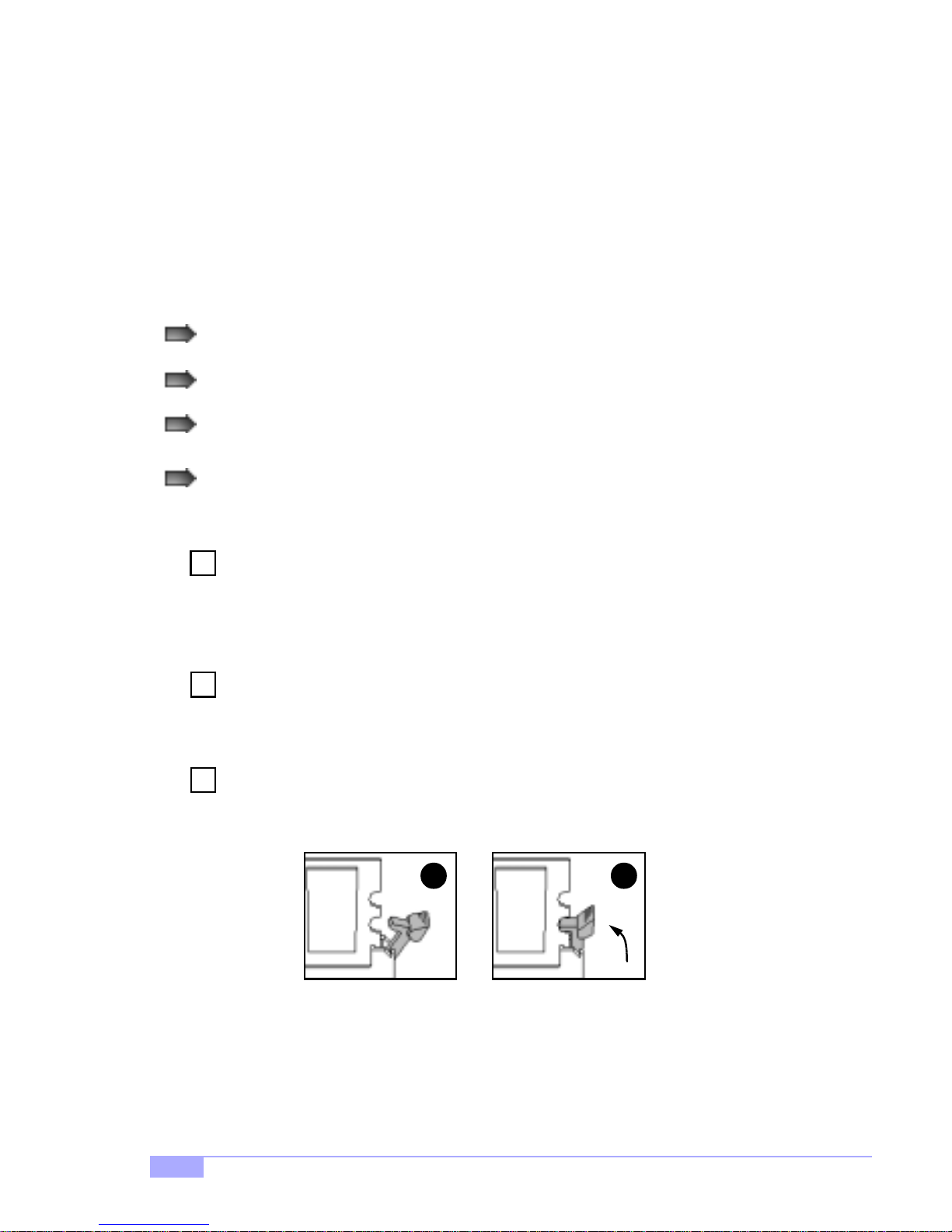

2.8 Installing Memory

Please keep in m i nd t hat a lthough some mem or y m od ul es m ay ap pe ar to b e hi gh -q uali ty, they may con­tain inferior or substandard p arts. The type o f memory you ch oose to instal l should be checke d against
the memory compatibility list, which is available from Tyan’s website at http://www.tyan.com

Memory Installation Procedure

Here are some details of memory installation for this board:

At least one unbuffered DIMM must be installed for the system to POST.

The motherboard supports 64MB, 128MB, 256MB, and 512MB PC100/133 SDRAM.

All installed memory will be automatically detected, so there is no need to set any jumpers.

The motherboard supports up to 1.5 (3 DIMMs)* or 2 GB (4 DIMMs)* of memory.

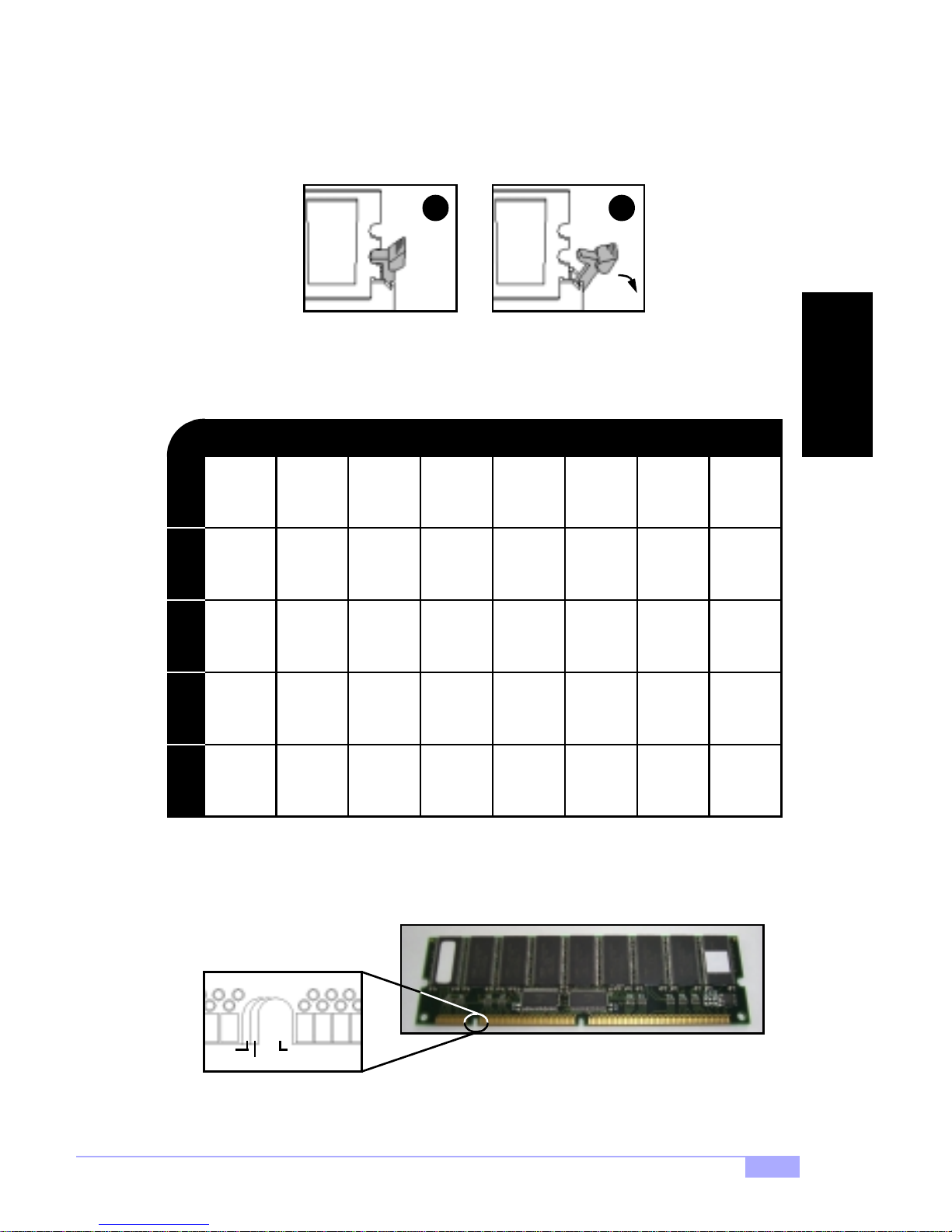

Insert the DIMM by pushing the modul e into the socket wit h even force. Do not insert one

Step

1

end and then the ot her: instal l the whole module at onc e or you m ight bend the DIMM pin s.
Make sure the DIMM is securely seated.

Line your module up so that the pins fit into the socket. There is only one way your DIMM can

Step

2

fit properly. Make sure that the short row of pins is lined up with the short gap in the DIMM
socket.

Lock the DIMM into plac e by pushing the clips back on either end of the socket onto the

Step

3

notches in the ends of the DIMM (see pictures below for details).

1

* 2.0GB total memory @ 4 DIMMs only, when using 100MHz SDRAM

1.5GB total memory @ 3 DIMMs only, when using 133MHz SDRAM
Check the Tyan website for details on memory compatibility: http://www.tyan.com

2

16

http://www.tyan.com

Removing a DIMM

Removing a DIMM is just the reverse : si mply pu l l back the clips fro m the D IM M (see pictur es belo w), and
carefully pull the module straight out. Place the DIMMs in an anti-static bag as soon as you remove them
to avoid static damage.

21

Suggested Memory Confi g ur at ion s
The table below shows some of the possible memory configur ations. Not all poss ible configurations
are listed. Your memory configuration may differ from one or more of the combinations shown below.

2GB* at 100 MHz combination or 1.5GB* at 133 MHz combination

INSTALL

64MBx1

DIMM 1DIMM 2DIMM 3DIMM 4

0

0

0

64MB

TOTAL

The 168-pin DIM Ms (Du al In- l ine M em ory M odu les) must be of th e 3.3V PC100/PC133 variet y. The posi­tion of the notch in the SDRAM key position will tell you whether or not a DIMM is unbuffered (see Figure

2.1 below). All installed memory will be automatically detected, so there is no need to set any jumpers.

64MBx1

64MBx1

0

0

128MBx1

0

64MBx1

0

192MB 256MB

128MBx1

128MBx1

0

0

0

256MBx1

0

128MBx1

384MB

0

0

512MBx1

512MBx1

1024MB

512MBx1

0

1024MBx1

0

1536MB

0

1024MBx1

0

1024MBx1

2048MB128MB

RFU

buffered

* 2.0GB total memory @ 4 DIMMs only, when using 100MHz SDRAM

1.5GB total memory @ 3 DIMMs only, when using 133MHz SDRAM
Check the Tyan website for details on memory compatibility: http://www.tyan.com

unbuffered

Tiger 230 S2507

Figure 2.1

17

2.9 Installing the CPU and Cooling Fan

Intel Pentium III FC-PGA processors (500 MHz through 1 GHz) or a single FC-PGA type Celeron proces­sor can be used on this board. For more information on CPU compatibility, check Tyan’ s website at:
http://www.tyan.com.

When installing your CPU, remember the following:

The CPU is a sensitive electronic component and can easily be damaged by static electricity

Do not touch the CPU pins with your fingers

You should be able to insert the CPU into the socket with virtually no force

Do not press down hard on the CPU as you might bend or break pins, or otherwise damage the
CPU

The CPU voltage will automatically be detected by the motherboard, so there is no need to set any jump­ers or BIOS setting.

Installing the Intel Pentium III FC-PGA CPU

Before installing the CPU, check it for any visible damage. Make su re none of the pins are bent or miss­ing. Be sure where Pin 1 is on both the CPU and the socket. The following steps each have a correspond­ing picture next to it to help guide you through the installation.

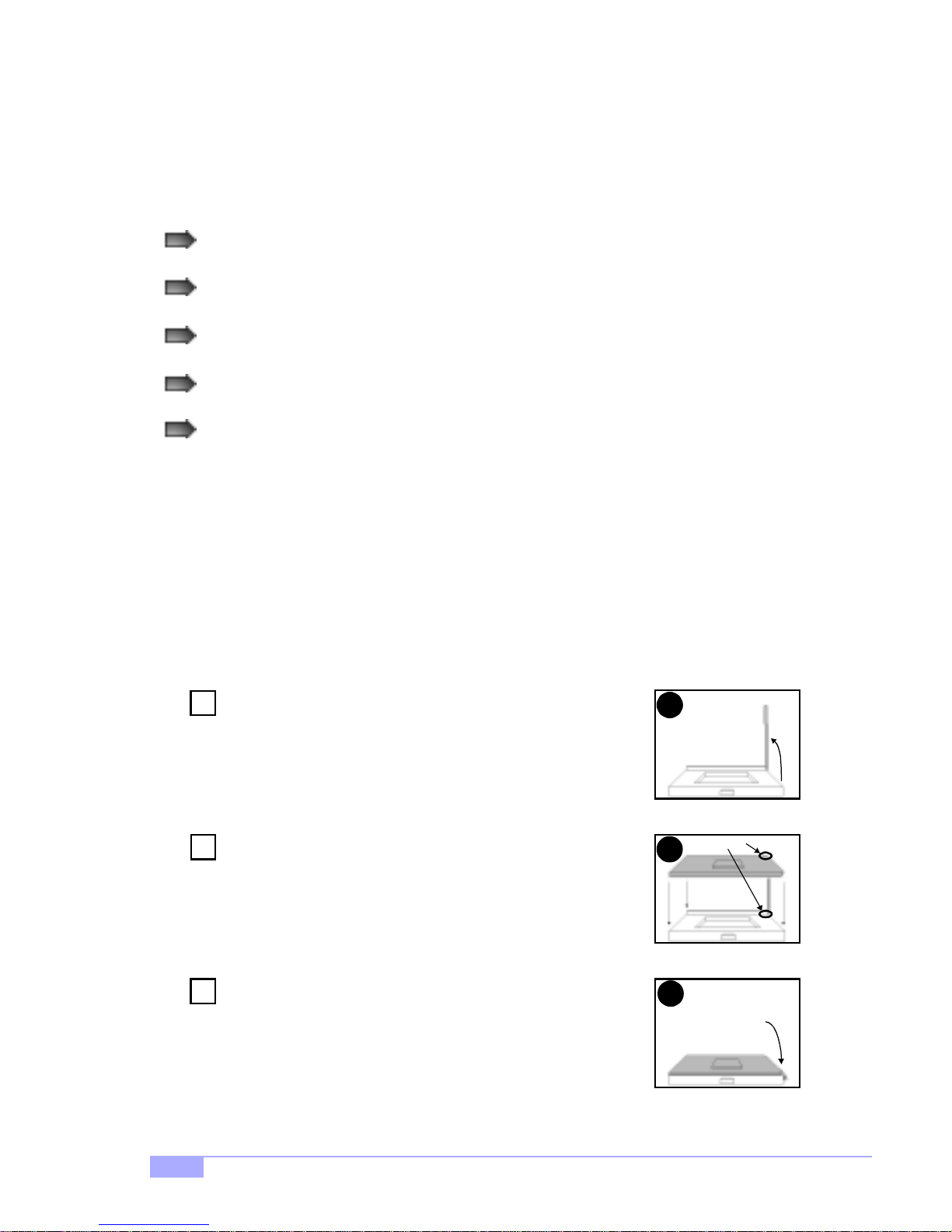

Step

Step

Step

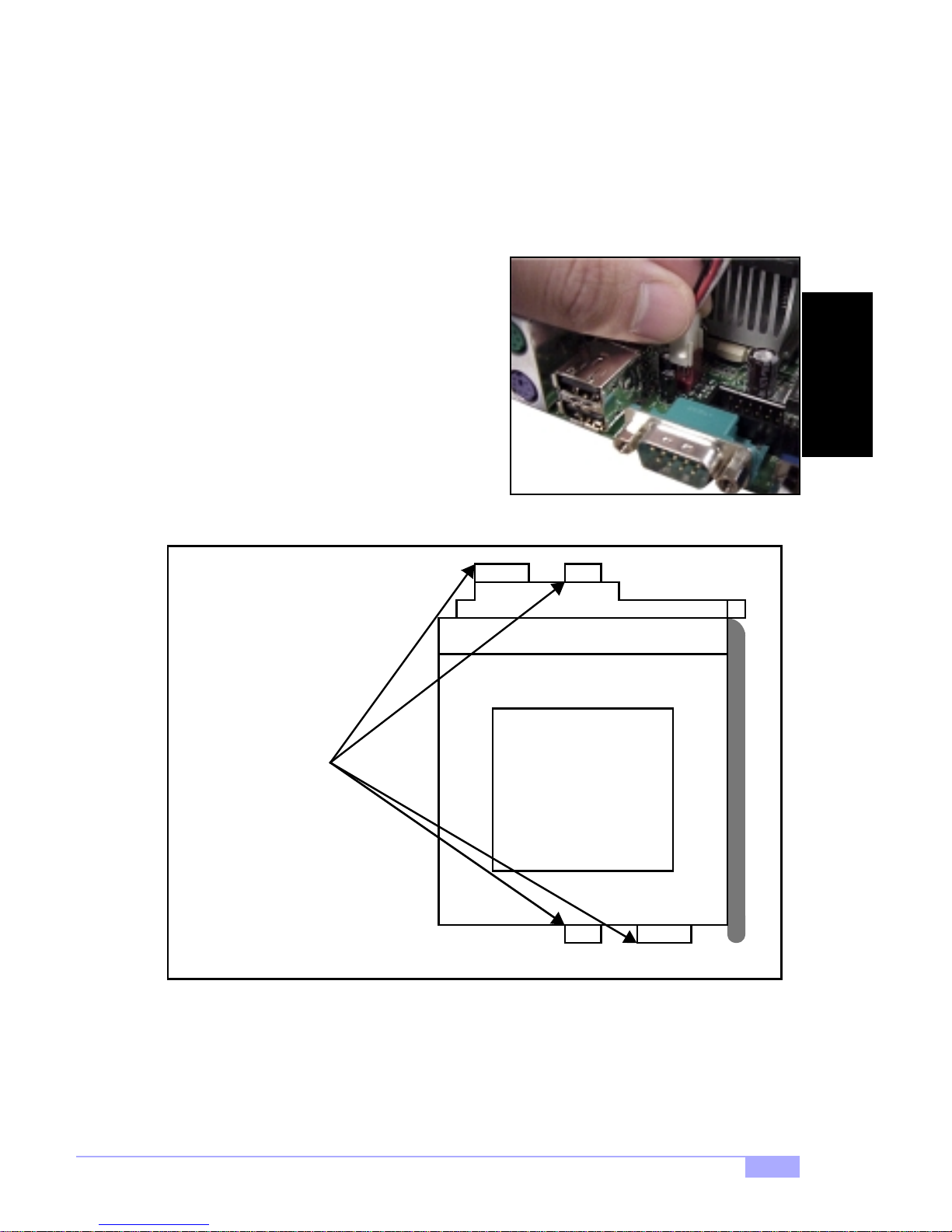

Carefully lift the arm of the ZIF socket until it is at a 90 degree angle

1

pointing away from the motherboard. Be very careful not to damage
any components that might be next to the socket.

There are two beveled corners on the CPU, which will match the

2

two angled corners on the socket. Carefully install the CPU by lining
both Pin 1 on th e CPU and Pin 1 on the s ocket, making sure the
pins actually fit into the socket. Do not force the CPU into the
socket: check the pin alignment of CPU pins to socket holes.

Push down lightly on the CPU while lowering the arm on the socket

3

to secure the CPU (see right). A squea king noise may be heard
while lowering the arm, or the socket may make a ‘click’ noise when
the arm is locked into position: these noises are normal.

1

2

3

Pin 1

Arm moves down
to lock CPU

18

http://www.tyan.com

Installing the Cooling Fan

After the CPU has been installed, you will need to install t he proper cooling device fo r the CPU. This
device, a heatsink /fan combina tion, can be p urchased a t many comp uter retail st ores. In stallation o f the
cooling device may vary d epending on the fan manufactur er’s design. You should also take spa ce into
consideration when in stal l a cooling device: m ake su re th e cooling device is no t to o big, or e l se y ou ma y
end up damaging components around the CPU socket.

Tyan highly recommends that you use some type of
thermal compound (available from computer retail
stores), between the CPU and heat sink, to maximize dis­tribution of heat away from the CPU. Please use extra
caution when installing any type of clamp-style fan, or
else damage may occur to the CP U socket, and/or the
CPU itself. See Figure 2.2 (see right) for an example of
how to connect the cooling fan’s power supp ly. Another
diagram has als o be en pro v ide d be l ow, to aid in CP U fan
installation onto the socket.

Figure 2.2*

INSTALL

Can be used to install

a cooling device

Mounting points on the CPU socket

Installing Chassis Fans

Alternatively, if you wish to also install chassis fans for increased cooling, we have provided headers to
power those fans as well (see p. 12, section 2.6-D). Chassis fan installation will vary depending on your
chassis manufacturer’s design. Please check with your chassis manufacturer for details on proper chas­sis fan installation.
* image may not be representative of your motherboard

Tiger 230 S2507

19

2.10 Connecting IDE and Floppy Drives

A variety of IDE and ATAPI-compliant devices* can be
installed on this motherboard, such as hard disk drives
(HDDs) and CD-ROMs.

Please keep in mind that on this motherboard, the primary IDE
connector is BLACK, and the secondary IDE connector is

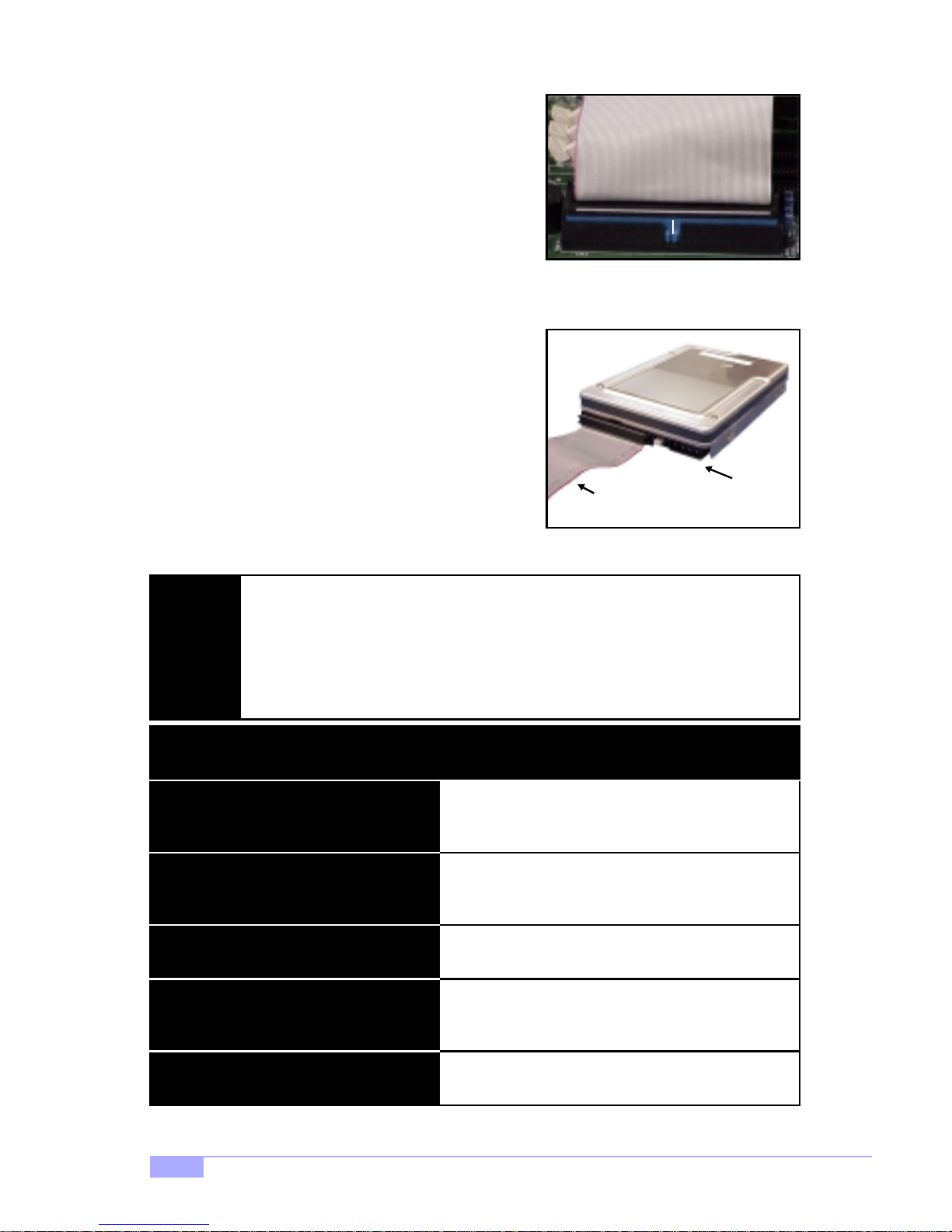

WHITE. See Figure 2.3 (right) for an example of the IDE cable
properly connected to the motherboard. Consult the documen­tation that came with your IDE/ATAPI device, or contact the
device’s manufacturer for more details on installation.

Also see Figure 2.4 (right) for an example of the HDD with the
IDE cable installed. Please note that Ultra DMA-66 IDE HDDs
require a special 80-wire cable which has additional grounding
wires. This cab le has been inclu ded with thi s moth erboa rd for
your convenience. The UltraDMA-66 cable is upwards com­patible with UltraDMA-100 IDE HDDs, and backwards com­patible with UltraDMA-33 and legacy IDE HDDs.

The BLUE end of the AT A-66 cable must connect to the motherboard. The black con­nector on the ATA-66 cable is for the master HDD, and the g rey connec tor is for the
slave HDD. See Figure 2.3 (above) for an example o f installation on the mother-

NOTE:

board.
Only Tyan-approved cables a re rec omm en de d fo r th is mo the rbo ard . If you a re usi ng

an existing configuration with old er cables, your system might not function properly.
Use only Tyan-approved cables (i.e. the ones includ ed with your mothe rbo ar d).

Blue end of ATA-66 cable

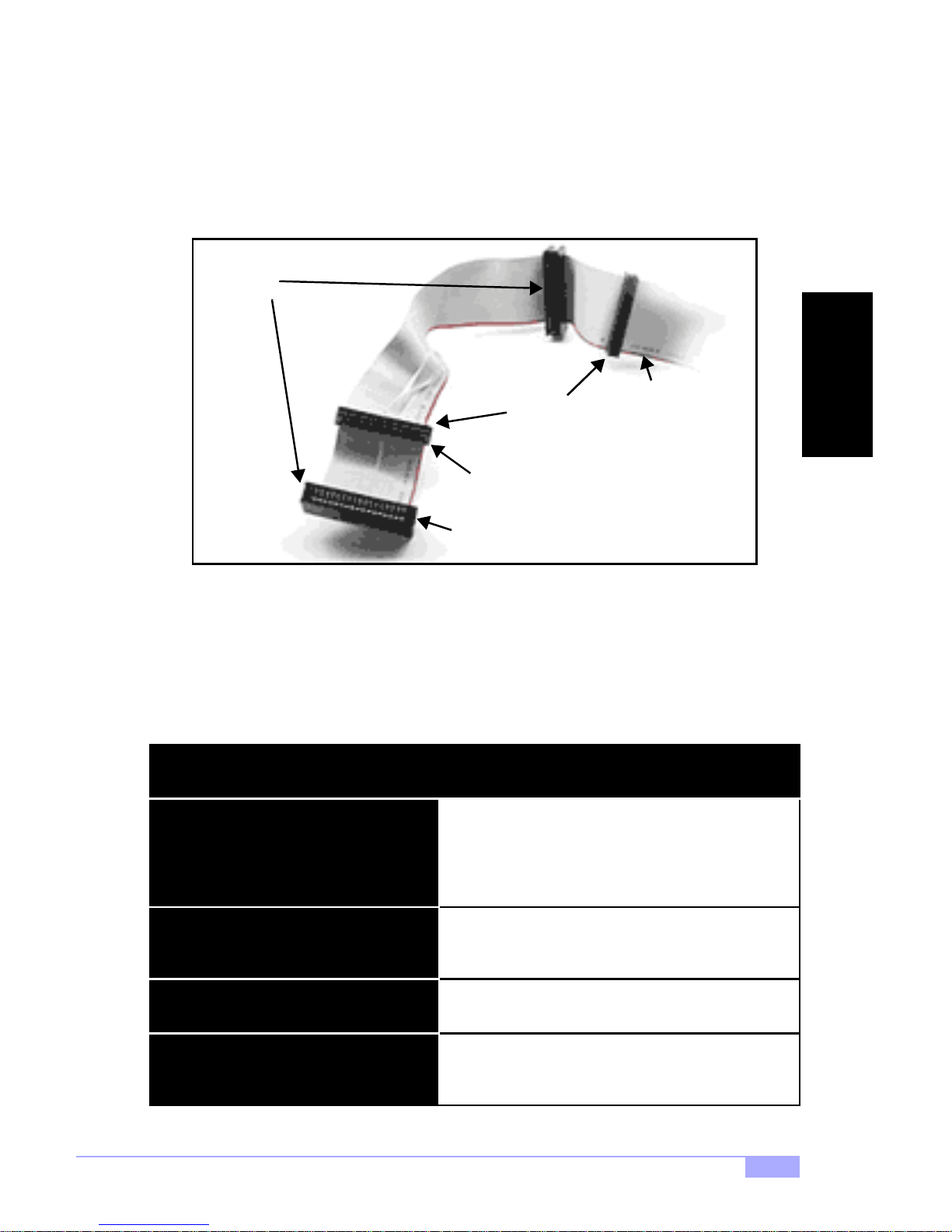

Figure 2.3

Colored stripe
indicates Pin 1

Power

Figure 2.4

Some symptoms of incorrectly installed HDDs are...

HDDs are not auto-detected

Hard Disk Drive Fail message at bootup

No video or beeps during bootup

HDD lights are constantly on

HDD does not power on

* ATAPI-compliant devices may not work with the Promise IDE RAID connectors. Check the Tyan website
for updates and information: http://www.tyan.com

20

May be a Master/Slave configuration problem, bad
IDE cable, or BIOS mis-configuration. Consult the
HDD documentation or contact your HDD vendor.

May be a bad cable or lack of power going to the
drive. Check the cables for damage and bad con­nections.

Usually means the cable has been installed back­wards.

Bad IDE cable or defective drives/motherboard. Try
another HDD, or contact your HDD vendor.

Check power cables and cabling. May be a bad
power supply or IDE drive problem.

http://www.tyan.com

Connecting Floppy Drives

Pin 1 on the floppy cable i s usually denot ed by a red or colored stripe down one side of the cable. See
Figure 2.5 (below) for an example o f a floppy cable. Most of the curr ent floppy drives on the ma rket
require that the cable be i nstalled wi th the color ed stripe po sition ed next to the power conn ector. In most
cases, there will be a key pin on the cable which will force a proper connection of the cable.

Drive B:

Colored stripe

Drive A:

3.5” connector

5.25” connector

indicates Pin 1

INSTALL

Figure 2.5

The first floppy (den oted as A:) i s usually attached to the end of the cable with the twist in it. S ee Figure

2.5 (above) for a n e xam pl e. D riv e B: is usu all y con ne cted to the middle of the cabl e . Ref er to your floppy

drive’s installation inst ructions, or contact yo ur dealer if you are unsur e about how to attach the floppy
drive(s). Remember, you can only have 2 floppy drives connected at any given time.

Some symptoms of incorrectly installed FDDs are...

Usually caused by faulty cables , cables put in back-

FDDs are not auto-detected

Floppy Drive Fa il mes sag e at bo ot up

FDD does not power on

wards, or a bad floppy or motherboard. Try another
floppy drive to verify the problem or try another
cable. Also chec k to see if the onboard floppy is
enabled in the BIOS.

The cable, floppy, or motherboard may be faulty. T ry
another cable or floppy drive to verify.

Check power cables and cabling. May be a bad
power supply or IDE drive problem.

FDD light is constantly on

Tiger 230 S2507

Usually signifies that the cable is on backwards.
Reverse the cable at the floppy drive end and try
again.

21

2.11 Installing Add-on Cards

There are a few rules you need to follow when installing add-on cards. In order to assure proper operation
and a quick installation, adhere to the following guidelines:

If you are going to install a PCI-bus interface card on your system, be aware that any one of the
six PCI slots can support a Master or Slave device.

NEVER force a card into a slot. If it doesn’t fit, look at the socket on the motherboard to make

sure there are no wires or other obstructions to the slot.

NEVER plug an ISA card into a PCI slot. You will void your warranty and damage your system

board if you do this.

When plugging the card in, especially when installing long cards, try to push the entire card in at
one time. Don’t force one end of the card into the socket first and then the other, or a rocking
motion between the card and the slot might occur, and could damage the pins within the socket.

Make sure the cards are seated securely into their slots.

Before turning on the system, make sure no cards are touc hing .

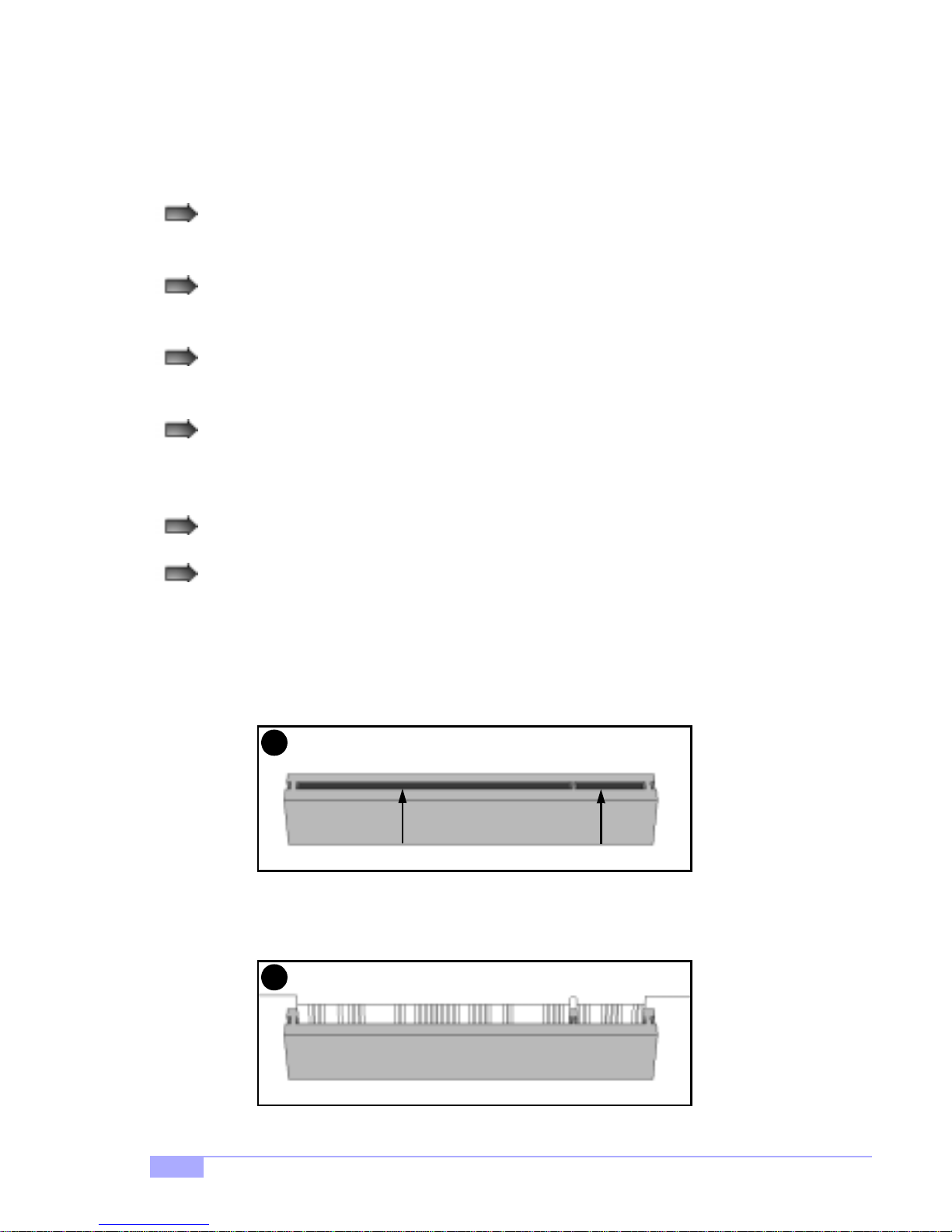

When installing the add-on cards, make sure the cards are installed with even force; do not insert one
end and then the other. See the before (Figure 2.6a) and after (Figure 2.6b) example insta l la t ion i ma g es
below for details.

1

Check orientation of card when installing

Figure 2.6a

2

22

Push card down with even force

Figure 2.6b

http://www.tyan.com

2.12 Connecting PS/2, USB, and Serial Devices

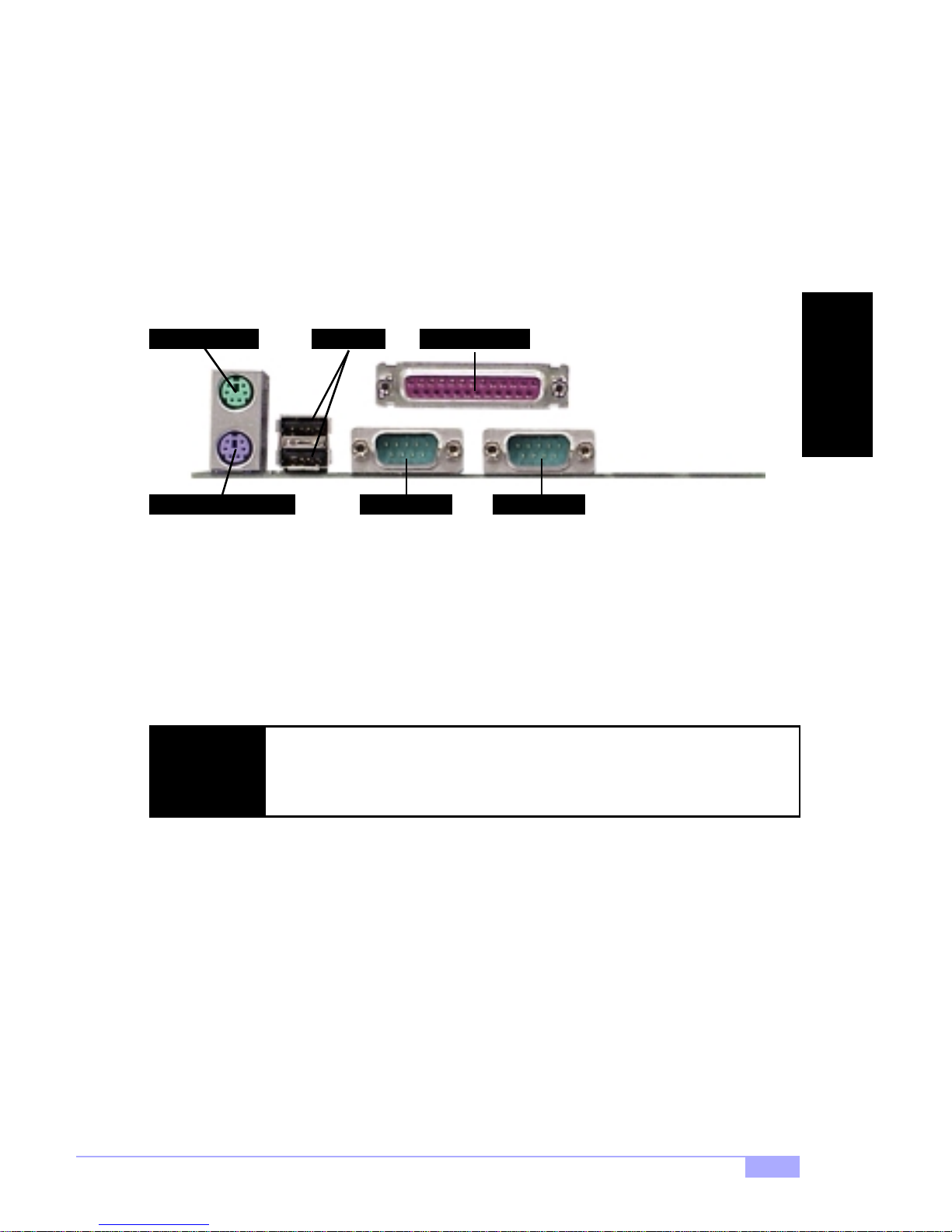

This motherboard includes ports for PS/2 mouse and keyboard, Universal Serial Bus (USB) devices, and
serial and parallel* devices. Please note that the upper PS/2 port is the mouse port, and the lower PS/2
port is for the keyboard (see Figure 2.7 below).

The PS/2 connectors are probably quite familiar to you, while the USB connectors may not be. A USB
port can function as a serial, parallel, mouse, keyboard, display, or joystick port. It is capable of supporting
up to 127 daisy-chained peripheral devices. All external ports are labeled in Figure 2.7, shown below.

PS/2 Mouse Port USB Ports

Parallel Port

INSTALL

PS/2 Keyboard Port

Serial PortSerial Port

Figure 2.7

Connecting Serial and Parallel Ports

The serial and parallel ports can be used to connect various devices such as a mouse or printer. The con­nectors can only be connected one way: be sure and check the orientation of the connector before install­ing it into the port.

When plugging in y our ke yboard and mouse, or w hen pluggi ng in anythi ng in to a

NOTE:

serial or parallel* port, m ake sure th at the po wer i s off. Connectin g these d evices
and ports while the power is on is called hot plugging and may damage your sys­tem and/or external devices that you are trying to install.

Tiger 230 S2507

23

2.13 Connecting the power supply

This motherboard requires an ATX power supply. Tyan recommends using one that conforms to industry
standard Revision 2.01. The images below show the A TX power connector before (Figure 2.8a) and after
(Figure 2.8 b ) it has been plugged in. The clip on the power connector should lock over the tab on the
onboard connector. You shouldn’t be able to plug the power connector in any other way but just to be
safe, make sure it looks like Figure 2.8b. Make certain that you do not miss connecting any of the pins
because if you do, you will void your warranty and possibly cause damage to yourself and/or your moth­erboard when the power is turned on. After connecting the power, make sure the connector is seated
firmly into its socket so it will not become loose or fall off when the computer is jostled or moved.

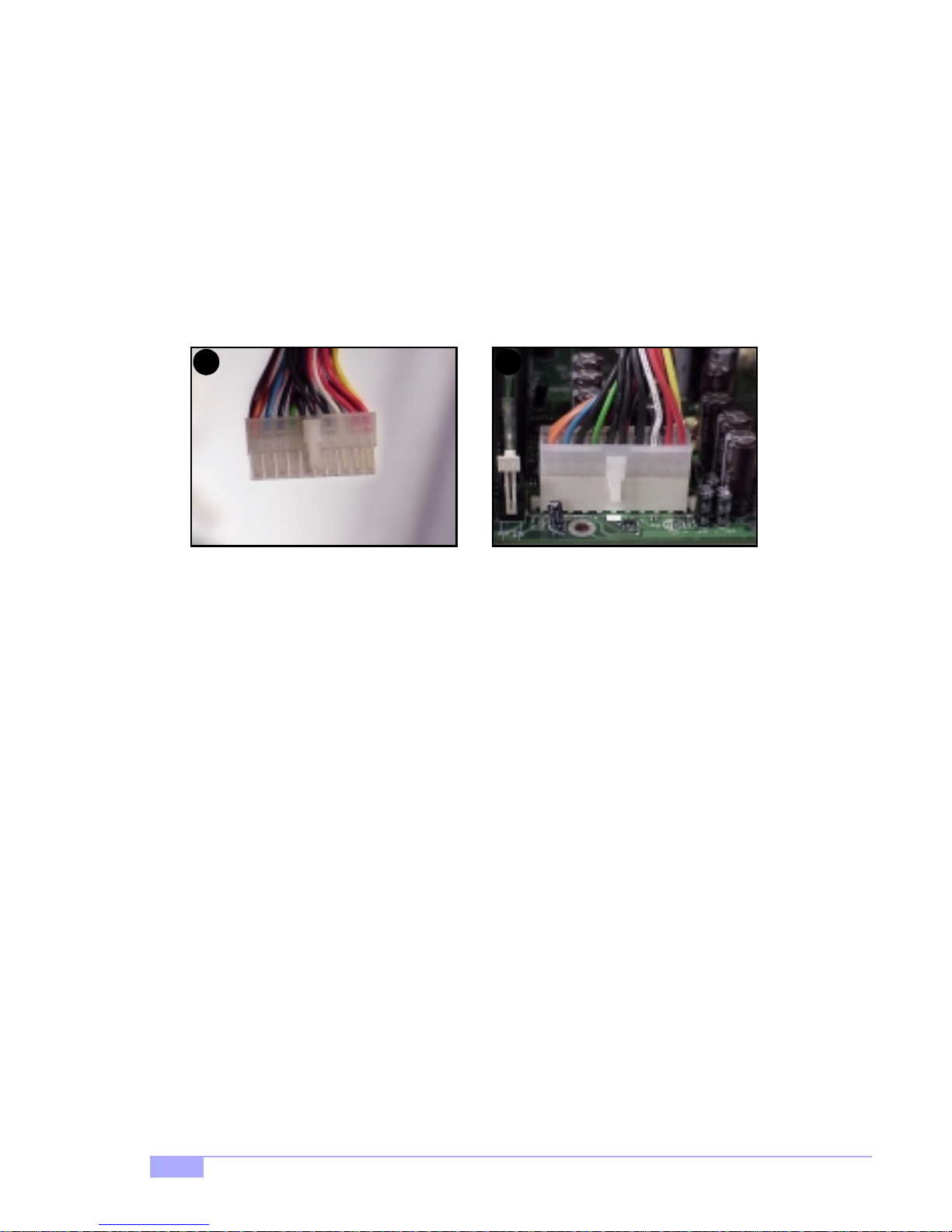

1 2

Figure 2 .8a

You are done!

Other than checking the jumper settings and cable connections, and putting the case back on, you are
done. Installing a new motherboard may seem difficult, but by following these directions, you should have
a fairly uneventful time installing our products. If you do encounter problems, your dealer will be able to
help you, or you can consult one of our many technical support resources (see p. 7).

Figure 2.8b*

* image may not be representative of your motherboard

24

http://www.tyan.com

2.14 Frequently Asked Questions (FAQ)

Q: My system sometimes becomes unstable. How should I check the system?
A: The first thing to do is to check and see if you have any device conflicts related to the IRQ, or DMA. If
you are using Microsoft Windows, the Control Panel is a good place to start investigating the conflict.
Please consult your operating system documentation for details. Secondly, slowing down the memory tim­ing in the BIOS’ chipset setup section will help the situation as well. Many memory modules are not suit­able for high performance systems and are probably the main source of your problem. Also check to
make sure you are using an ATX 2.01 compliant or better power supply. Lastly, make sure the mother­board is receiving adequete cooling.

Q: I have a question about memory compatibility; what memory will work on my motherboard?
A: Memory compatibility information can be found on Tyan’s website at: http://www.tyan.com

Q: Where can I get additional accessories for my Tyan motherboard?
A: You can purchase additional accessories such as USB cables, as well as other Tyan-approved acces­sories at the Tyan Computer Online Store: http://www.etyan.com

Q: Where do I get pinout information for my motherboard?
A: Pinouts of certain headers are available on the Tyan website: http://www.tyan.com

INSTALL

Q: My motherboard is dead, how do I return it?
A: Contact the place of purchase o r your distributor for ass istance to return the motherboard for service.
RMA issues will not be handled via e-mail by Tyan Tech Support. Please refer to the URL link here for
more details: http://www.tyan.com/support/html/rma_faq.html

Q: How do I upgrade my BIOS?
A: Check the section about the Flash Utility (see p.37) for information on upgrading your BIOS. BIOS
update files, flash utilities, and instructions on how to install them are also available from the Tyan website
at: http://www.tyan.com

Q: Why do I get a “CMOS checksum invalid” error message during POST?
A: If you get the above error message or “Invalid configuration, run Setup” message, it is an indication that
the CMOS battery needs to be changed. Contact your dealer for assistance. Once you’ve replaced your
battery, don’t forget to check the Clear CMOS section (see p.12) so that you can reset your CMOS.

Tiger 230 S2507

25

Chapter 3: BIOS Setup

Introduction to the BIOS setup

The BIOS is the basic input/output system, required by the computer to perform functions such as CPU
and hard drive support. This chapter describes different settings for Award BIOS that can be used to con­figure your system.

The BIOS section of the manual is subject to change without notice and is provided here for refer­ence purposes only. The settings and configurations of the BIOS are current at the time of print,
and therefore they may not be exactly the same as that displayed on your screen.

The manual describes the Award BIOS setup program. The setup program lets you modify basic configu­ration settings. The settings are then stored in a dedicated battery-backed memory, called NVRAM, that
retains the information when the power is turned off.

The Award BIOS in your computer is a customized version of an industry-standard BIOS for IBM
PC AT-compatible personal computers. It supports Intel x86 and compatible processors. The
BIOS provides critical low-level support for the system central processing, memory, and I/O sub­systems.

The BIOS has been customized by adding important, but non-standard, features such as virus and
password protection, power mangement, and detailed fine-tuning of the chipset controlling the
system. The rest of this manual is intended to guide you through the process of configuring your
system usi ng the Award BIOS setup program.

Starting Setup

The BIOS is immediately activated when you first turn on the computer. The BIOS reads system configu­ration information in CMOS RAM and begins the process of checking out the system and configuring it
through the Power-On Self Test (POST).

When these preliminaries are finished, the BIOS seeks an operating system on one of the data storage
devices (HDD, FDD, etc.) and if one is found, the BIOS will launch that operating system and hand control
of system operations to it. During POST, you can start the setup program by pressing the [DEL] key when
the “Press DEL key to enter BIOS setup” message appears on the screen.

26

http://www.tyan.com

Setup Keys

The table below shows how to navigate in the setup program using the keyboard.

Key Function

Arrow keys

Enter

+/-/PGUP/PGDN Change option setting

ESC

F1

F2 Item Help

F5 Previous values

F6 Load failsafe defaults

F7 Load optimized defaults

Moves from one selection to the next

Select the highlighted option

Exit

General Help

BIOS

F9 Menu in BIOS

F10 Save settings and exit

Getting Help

Press [F1] to displa y a small help window that de scribes the appr opriate keys to use and the p ossible
selections for the highlighted item. To exit the Help Window press [ESC] or the [F1] key again.

In Case of Problems

If you discover that you have trouble boot ing the computer after making and saving change s with the
BIOS setup program, you can restart the computer by either:

Pressing [CTRL]+[ALT]+[DEL] (all three keys at the same time), or

Holding the power button down until the computer shuts off, then reset the CMOS (see p. 15)

Tiger 230 S2507

27

The best advice is to alter on ly sett ings that yo u thoro ughly un dersta nd. In pa rticu lar, do not change set­tings in the Chips et screen unless you are abso lutely sure that you need to. T he Chipset defa ults were
carefully chosen f or the b est perfo rmance a nd reliab ility. Even a seemingly small chan ge to th e Chipse t
setup may cause the system to become unstable.

Setup Variations

Not all systems have the same setup program. W hile the basic look and fu nction of the setup prog ram
remains more or less the same for all system, the appearance of your Setup screen may differ from other
Award BIOS screens. Each system des ign and chipset combination req uire custom configurations. In
addition, the final appearance of the setup program depends on your system designer. You system
designer can decide that certai n items should no t be available for user config uration, and r emove them
from the BIOS setup program.

General Help

At any time, you can p res s [F1] to bring up a G en era l H elp scre en in ca se you want to learn the sho rtcu t
commands. There are two settings you should be aware of (listed below).

Setting Function

Load Failsafe Defaults

Load Optimal Defaults

3.1 Main Setup

The BIOS allows you to select from several setup functions and two exit choices. If an additional configu­ration screen is available, it will have a symbol. If you select that option with that symbol, you will be
brought to another configuration screen. Hitting [ESC] will bring you back out.

3.2 Stan dard CMOS Setup

3.2-A. Date/Time

You can type in the date and time directly, or select the portion of the date or time that you want to modify
and adjust it using the cursor keys. The clock runs on a 24-hour cycle (i.e 1:00 PM is 13:00).

If your system is experiencing configuration problems, you can choose
this option to reset all settings.

This will load preset options that are designed for maximum system
performance, but may not work for all computer applications. You
should not use this option if you are experiencing configuration prob­lems.

3.2-B. IDE Primary/Seco ndary Master/Slave

These four options are for setting IDE devices such as HDDs and CD-ROMs. If left on the default setting
of “Auto”, the drives will be auto-detected.

The next page describes the settings available for configuring the IDE devices.

28

http://www.tyan.com

3.2-C. Table of IDE device settings

Type

LBA/Large Mode

Block (Multi-sector Transfer)

PIO Mode

DMA Mode

S.M.A.R.T. (Self-Monitoring

Analysis and Re po r tin g Tech-

nology)

The type of IDE device installed can be configured using this
option. [Default setting is Auto for aut o-d ete ct]

These modules make it possible for the BIOS to take advantage
of the additional space on drives which are larger than 504MB.
This can be auto-detected (when you select Auto for Type), or
you can manually set this mode to Disabled. [Default setting is
Auto]

When set to Auto, the block mode auto-detects the optimal num­ber of block read/writes per section that the drive supports.
[Default is 0]

Programming input/output is a method of transmitting data
between devices that use the system’s CPU as part of the data
path. There are 6 modes: 5 with their own transmission speed
and 1 auto mode. To use modes 3 and 4, you must use an
Enhanced IDE drive. [Default is Auto]

This option secifies the Direct Memory Access mode for the IDE
device. If set to Auto, the BIOS will determine the DMA mode.
[Default is Auto]

This option allows the S.M.A.R.T. protocol to report server sys­tem information over a network. [Default is Auto]

BIOS

If set to On, this option allows for the transmission of 32-bits in

32Bit Data Transfer

ARMD Emulation Type

The following settings are also available in the Standard CMOS Setup screen.

Drive A

Drive B

Floppy 3 Mode

Video

parallel (e.g. at the same time). If set to Off, only 16-bits will be
transmitted in parallel. [Default is Enabled]

Specifies the type of emulation used for a non-disk device
attached as the primary master IDE device. If set to Auto, the
BIOS will determine the emulation type. [Default is Auto]

The settings are 360KB 5.25”, 1.2MB 5.25”, 720KB 3.5”, 1.44MB

3.5”, or 2.88MB 3.5”.

The options are the same as listed for Floppy A. [Default setting
is Disabled]

Sets whether yo u have a Japanese standard mode floppy
(1.2MB storage on 3.5” drive). [Default is Disabled]

Sets whether or not the drive can be written to. [Default is Dis-

abled]

Halt On

Tiger 230 S2507

Sets whether or not the BIOS should check for the drive at
bootup. [Default is Disabled]

29

3.2-D. Memory

You cannot change any values in the Memory fields, as they are shown only for your information. The
fields show the total installed random access memory (RAM) and amounts allocated to base, extended,
and other memory. RAM is the computer’s working emmory, where the computer stroes programs and
data currently being used, so that they are accessible to the CPU. RAM is counted in kilobytes (KB:
approximately one thousand bytes) and megabytes (MB: approximately one million bytes). Modern per­sonal computers may contain up to 128, 256 MB, or more.

Base Memory

Extended memory

Other Memory

3.3 Advanced BIOS Features

This section may allow the user to alter certain settings that affect the way their computer boots up,
checks CPU cache, and other advanced features. Please note that you should not alter settings in

this BIOS section unless you are absolutely sure

Virus W arning

CPU Internal Cache

Typically 640KB. Also called conventional memory. The DOS
operating system and conventional applications use this area.

Above the 1MB boundary. Early IBM personal computers could
not use memory above 1MB, but current PCs and their software
can use extended memory.

Between 640KB and 1MB; often called high memory. DOS may
load terminate-and-stay (TSR) programs in this area, such as
device drivers, to free as much conventional memory as possi­ble for applications. Lines in your config.sys file that start with

loadhigh, load programs into high memory, for example.

that you know what you are doing.

Sets whether the BIOS should try to auto-detect for boot virii,
etc. [Default setting is Disabled]

Sets whether or not your installed CPU has internal cache
[Default setting is Enabled]

External Cache

CPU L2 Cache ECC Checking

Quick Power On Self Test

First Boot Device

Second Boot Device

Third Boot Device

Boot Other Device

(continued on next page)

Sets whether or not external cache is installed. [Default is
Enabled]

Sets whether the CPU’s L2 (Level 2) cache has ECC checking.
[Default is Enabled]

Sets whether BIOS should perform the quick POST during boot­up. [Default is Disabled]

Sets the first device that the BIOS should check in order to boot­up. [Default is Floppy]

Sets the second device that the BIOS should check in order to
boot-up. [Default is CD-ROM]

Sets the third device that the BIOS should check in order to
boot-up. [Default is HDD-0]

Sets whether still another boot device should be checked.
[Default is Enabled]

30

http://www.tyan.com

(continued from previous page)

Swap Floppy D ri ve

Boot Up Floppy Seek

Boot Up Numlock Status

Gate A20 Option

Typematic Rate Setting

Typematic Ra te

Typematic Delay

Security Option

PS/2 Mouse Function Control

If you have two drives and need to swap them for some reason,
use this option. [Default setting is Disabled]

Sets whether the BIOS should check all floppy drives during
boot-up. [Default settin g is Enabled]

Sets whether the Num Lock key should be enabled during boot­up. [Default is Enabled]

Refers to the method that the system addresses memory above
1MB. [Default is Normal]

Sets whether the keyboard input speed should be altered.
[Default is Disabled]

If above setting is Enabled, this sets the characters per second
of keyboard input. [Default is 6]

If above setting is Enabled, this sets the delay on character input
from keyboard. [Default is 250]

BIOS

Sets whether the password should be enabled. [Default is
Setup]

Reserved. [Default is Enabled]

MPS Version Control f or OS

OS Select for DRAM > 64MB

C800-CBFFF Shadow to

DC000-DFFFF Shadow

Reserved. [Default is 1.1]

If your OS requires this setting, it can be altered from here.
[Default is Non-OS2]

Reserved. [Default is Enabled]Video BIOS Shadow

Reserved. [Default is Enabled]

Tiger 230 S2507

31

3.4 Advanced Chipset Features
This section describes the settings for the chipset installed on this motherboard. Please note that the
parameters described in this section are for technically competent users only. Do not change
these values unless you completely understand the consequences of your changes.

Bank 0/1 to

Bank 6/7 DRAM Timing

SDRAM Cycle Length

DRAM Drive Strength Reserved. [Default is Auto]

DRAM Drive Value Reserved. [Default is 2F]

Memory Hole

P2C/C2P Concurrency

System Bios Cacheable

Video RAM Cacheable

Settings depend on type of memory installed, and therefore
these settings are reserved. [Default settings are 5/10ns]

Sets the CAS latency timing. [Default setting is 3]

Specifies the location of an area or memory that cannot be
addressed on the ISA bus. [Default is Disabled]

If Enabled, the PCI/AGP Master to CPU cycle can be concurrent
if the Host CPU is performing R/W access to the PCI or slave
devices. [Default is Enabled]

Sets ability to cache system BIOS ROM at F0000h-FFFFFh.
[Default is Disabled]

Sets whether the video memory should be cacheable. [Default is

Disabled]

AGP Aperture Size

AGP-4x Mode

AGP Driving Control

AGP Driving Value

CPU to PCI Write Buffer

PCI Dynamic Bufferin g

The aperture is a portion of the PCI memory address range ded­icated for graphics memory address space. [Default is 64M]

Enables the 4X AGP mode (requires a 4X-capable AGP card).
[Default is Enabled]

Some AGP cards require setting this option, otherwise this
option is reserved. [Default is Auto]

This function is generally reserved for manufacturer use.
[Default is dependent on graphics card]

Setting is dependent on AGP card. [Default is Disabled]AGP Fast Write

Sets whether you have USB devices. [Default is Enabled]OnChip USB

Enable or disable use of a USB keyboard. [Default is Disabled]USB Keyboard Support

Setting this can compensate for speed differences between the
CPU and PCI bus. [Default is Enabled]

If Enabled, every write transaction goes to write buffer. Burstable
transactions then burst on the PCI bus, but non-burstable trans­actions do not. [Default is Enabled]

(continued on next page)

32

http://www.tyan.com

(continued from previous page)

PCI Master 0 WS Write

PCI Delay Transaction

PCI#2 Access #1 Retry

AGP Master 1 WS Write / Read

Memory Parity / ECC Check

3.5 Integrated Peripherals

This section describes settings for the integrated peripherals setup options.

On-Chip IDE Channel 0 / 1

IDE Prefetch Mode

Sets whether writes to PCI bus are executed with zero wait
states. [Default settings are Enabled]

Sets write buffer support in compliance with PCi spec v2.1.
[Default setting is Enabled]

Sets whether PCI masters should rotate priority [Default is Dis-
abled]

Sets whether one clock tick should be added to AGP write oper­ations. [Default is Enabled]

Sets whether the BIOS should enable memory checking auto­matically when it detects ECC DRAM. [Default is Disabled]

Sets the onboard support for the two IDE channels. [Default set­ting is Enabled]

Sets support for IDE prefetching for faster drive accesses.
[Default setting is Enabled]

BIOS

IDE Pri/Sec Master/Slave PIO

IDE Pri/Sec Master/Slave UDMA

Init Display First

IDE HDD Block Mode

Onboard FDD Controller

Onboard Serial Port 1 / 2

UART Mode Selecty

UART2 Duplex Mode

Sets PIO mode for each of up to four IDE devices that the
onboard IDE interface supports. [Default is Auto]

Sets whether UDMA data transfer protocol should transfer at
optimal speed, or to auto-detect optimal speed. [Default is Auto]

Sets type of display adapter installed. [D efa ult is PCI Slot]

Sets onboard detection of optimal number of block R/W’s per
sector that the drive can support. [Default is Enabled]

Sets whether onboard floppy controller should be used. [Default
is Enabled]

Sets logical COM port address and corresponding interrupt for
1st and 2nd serial ports. IR is offered on 2nd port. [Default is
Auto]

Sets operating mode for seco nd seria l port. [Defa ult is Stan-
dard]

Sets whether COM port should be able to receive and transmit
data simultaneously. [Default is Half, as in Half-Duplex]

Tx,Rx Inverting Enabled

(continued on next page)

Tiger 230 S2507

Reserved. [Default is No, Yes]

33

(continued from previous page)

Onboard Parallel Port

Onboard Parallel Mode

ECP Mode Use DMA

Parallel Port EPP Type

3.6 Power Management Setup

This section describes the different power management functions that may be available on your system.
Please note that power management functions are also dependent on your OS’ power management func­tions, and that both OS and system power management functions should be set up to work in conjunction
with one another.

ACPI Function

Power Management (subscreen)

Sets logical LPT port address and corresponding interrupt.
[Default setting is 378/IRQ7]

Sets mode for onboard parallel port. [Default setting is Normal]

Sets whether parallel port should use DMA for faster transfer
rate. [Default is 3]

Sets parallel port data transfer mode. [Default is EPP1.9]

Enable or Disable Advanced Configuration Power Interface.
[Default setting is Enabled]

Lets you enter the screen for configuring power states.

Power Management

HDD Power Down

Doze Mode

Suspend Mode

ACPI Suspend Type

PM Control by APM

Video Off Option

Video Off Method

Sets whether each mode should be set separately. [Default is
User Define]

Sets time that system should wait before powering down the
HDD(s). [Default is Disable]

Sets time that system should wait before CPU clock runs at
slower speed to save power. [Default is Disabled]

Sets time that system should wait before suspending all devices
except for CPU, to save power. [Default is Disabled]

Sets type of suspend function to enable once the system enters
suspend mode. [Default is S1(POS)]

Reserved. [Default is Yes]

Sets power-saving mode for video display. [Default is Suspend-
>Off]

Determines manner in which the monitor is blanked. [Default is

V/H SYNC+Blank]

Modem Use IRQ

(continued on next page)

34

If Modem Ring Resume is Enabled, it’s possible to wake the
system up by dialing into it. [Default is 3]

http://www.tyan.com

(continued from previous page)

Soft-Off by PWRBTN

Wake Up Events (subscreen)

VGA

LPT & COM

HDD & FDD

PCI Master

Wake Up on LAN / RING

RTC Alarm Resume

Date / Time

Sets time needed to hold down the power button to shutdown
the system. [Default setting is Instant-Off]

Lets you enter the screen for configuring wake up events.

Sets video activity as power management event. [Default is Off]

Sets LPT and COM/Serial Port activity as power management
events. [Default is LPT/COM]

Sets floppy and HDD activity as power management events.
[Default is ON]

Sets PCI activity as power management events. [Default is Off]

Sets Wake Up on LAN / Ring as power management events.
[Default is Disabled]

BIOS

Sets RTC Alarm as a power management event. [Default is Dis­abled]

Sets Date and Time that system will wake up. [Default is 0]

Primary INTR

IRQs Activity Monitoring

(subscreen)

3.7 PnP/PCI Configuration

This section describes the PCI/PnP configuration options available.

PNP OS Installed

Reset Configuration Data

Resources Controlled By

(ESCD)

IRQ Resources

DMA Resources

Sets whether IRQ activity should be a power mana gem en t
event. [Default is ON]

In this screen, you can assign how power management will
monitor each IRQ.

Sets whether the system is using a Plug-n-Play OS. [Default set­ting is NO]

Sets whether the configuration data in the ESCD should be
reset at bootup. [Default setting is Disabled]

Sets how the PnP devices will be controlle d. [Defa ult is
Auto(ESCD)]

Sets IRQs PnP control statuses.

Sets DMAs PnP control statuses.

(continued on next page)

Tiger 230 S2507

35

(continued from previous page)

PCI/VGA Palette Snoop

Assign IRQ for VGA

Assign IRQ for USB

3.8 PC Health Status

This section describes the hardware monitoring of certain onboard devices. No options are user-defined.

Current CPU1 Temp. Displays temperature of CPU1 in Celsisus and Farenheit.

Current CPU2 Temp.

Current CPUFAN1 Speed

Current CPUFAN2 Speed

Reserved. [Default setting is Disabled]

Sets whether an IRQ should be reserved for VGA. [Default set­ting is Enabled]

Sets whether an IRQ should be reserved for USB. [Default set­ting is Enabled]

Displays temperature of CPU2 in Celsisus and Farenheit.

Displays speed of CPUFAN1 in revolutions per minute (RPM).

Displays speed of CPUFAN2 in revolutions per minute (RPM).

CPU1 Vcore

CPU2 Vcore

3.3V

12V

3.9 Set Supervisor Password / Set User Password

Both of these functions allow for passwords to be set accordingly for BIOS configuration.
When selecting one of the password functions, the following words will appear:

After typing in a new password of up to eight characters, press [Enter]. The following words will then
appear:

Displays core voltage of CPU1.

Displays core voltage of CPU2.

Displays power supply voltage on 3.3V line.

Displays power supply voltage on 5V line.5V

Displays power supply voltage on 12V line.

ENTER PASSWORD:

Type your new password again, and the password will then be set. Please note that entering a new pass­word and then confirming it, will clear any old password that you had (depending on type of password).

36

CONFIRM PASSWORD:

http://www.tyan.com

3.10 Flash Utility

NOTE: You will need to visit the Tyan website at http://www.tyan.com if you would like to get the Flash
Utility, as well as any BIOS updates for your motherboard. Updates and more information about flashing
the BIOS are available from the Tyan website.

Instructions on flashing the BIOS are available from the Tyan website at http://www.tyan.com

Please be aware tha t by flashing your BIO S, you agree that i n the event of a BIOS
flash failure, yo u must contact your deale r for a replacement BIO S. There are no

NOTE:

exceptions. Tyan does not have a policy of repla cing BIOS chips directly with end
users. In no event will Tyan be held responsible for damage done to the BIOS by the
end user.

BIOS

Tiger 230 S2507

37

Chapter 4: System Resources

Note: If you experience problems with setting up your system, always check the following things in the

following order:

CPU, MEMORY, VIDEO

By checking these items, you will most likely find out what the problem might have been when setting up
your system. For more information on troubleshooting, check the Tyan webs ite at http://www.tyan.com

4.1 Beep Codes

Fatal errors, which halt the boot process, are communicated through a series or audible beeps. For exam­ple, if the Award BIOS POST can initialize the video but an error occurs, an error message will be dis­played. If it cannot display video, it will convey a series of beeps.

If you hear one long beep followed by two short beeps, then a video problem has probably occured and
the BIOS is having difficulty initializing the video display. Any other beep sequences that may or may not
occur are probably due to memory problems.

4.2 Displayed Error Messages

If an error occurs after the system display has been initialized, an error message will be displayed as fol­lows:

ERROR Message Line 1
ERROR Message Line 2

Press <F1> to continue

and the system will halt. Depending on how the Halt On setting was configured in the Standard CMOS
Setup menu, the system may or may not display the error message.

RUN SETUP UTILITY

may also appear. Press [F1] to run the Award BIOS Setup if this message appears. The following two
pages show the possible error messages and explanations.

38

http://www.tyan.com

8042 Gate-A20 Error Gate A20 on the keyboard controller (8042) is not working.

Address Line Short!

C: Drive Error No response from drive C:

C: Drive Failure No response from drive C:

Cache Memory Bad, Do Not

Enable Cache!

CH-2 Timer Error Timer 2 has failed.

CMOS Battery State Low The battery is running low and needs to be replaced.

CMOS Checksum Failure

CMOS System Options Not Set

CMOS Displ ay Type Mi smatch

CMOS Memory Size Mismatch

Error in the address decoding circuitry.

Cache memory is defective.

The CMOS data is different than previous data. Run BIOS setup
to enter new data.

CMOS RAM values were destroyed. Run BIOS setup to enter
new data.

Video type set in BIOS does not match actual video display. Run
BIOS setup to enter new data.

Memory size does not match actual detected memory size. Run
BIOS setup to enter new data.

SYSTEM

CMOS Time and Date Not Set

Display Switch Not Proper

Time and Date have not been set. Run BIOS setup to enter new
data.

No response from drive D:D: Drive Error

No response from drive D:D: Drive Failure

Diskette cannot be used to boot system.Diskette Boot Failure

Some systems require a video switch to be set to either color or
monochrome. Power down the system and set the switch.

Error in the DMA controller.DMA Error

Error in the first DMA channel.DMA 1 Error

Error in the second DMA channel.DMA 2 Error

Tiger 230 S2507

39

FDD Controller Failure FDD con tro lle r is not responding.

HDD Controller Failure

INTR1 Error Interrupt channel 1 failed POST.

INTR2 Error Interrupt channel 2 failed POST.

Invalid Boot Diskette Diskette is not bootable.

Keyboard is Locked... Unlock it Keyboard lock is engaged. Power down and unlock it.

Keyboard Error Keyboard appears to have a timing problem.

KB/Interface Error

No ROM BASIC

HDD controller is not responding.

Error in keyboard connection.

System cannot find a bootable sector on any boot drive.

Parity error in external memory.Off Board Parity Error

Parity Error ???

Parity error in internal memory.On Board Parity Error

Parity error at unknown address.

40

http://www.tyan.com

Appendix I: Glossary

ACPI (Advanced Configura tion and Power Interface): a power m anage ment s pecif ication that allows the

operating system to control the amount of power distributed to the computer’s devices. Devices not in use
can be turned off, reducing unnecessary power expenditure.

AGP (A
3D graphics applicati ons. Th e 32-bit AG P channel di rectly l inks the grap hics contro ller to the mai n mem­ory . While the channel runs at only 66 MHz, it supports data transmission during both the rising and falling
ends of the clock cycle, yielding an effective speed of 133 MHz.

AMR (A
Intel’s core logic chipsets supporting AC-link 2.1. It supports fax and all data feedback modes. It provides
high speed communications between your personal computer and a remove lcoation, such as an Internet
Service Provider (ISP).

AT: the original form factor of IBM’s PC.

ATAPI (AT

the disk controller o n the dev ice itself . It allow s CD-ROM s and tap e driv es to be confi gure d as master or
slave devices, just like HDDs.

ATX: the form factor desig ned to rep lace the AT form factor. It improves on the AT design by rotating the
board 90 degrees, so that the IDE connectors ar e closer to the d rive bays, and th e CPU is closer to the
power supply and cooling fan. The keyboard, mouse, USB, serial, and parallel ports are built-in.

ccelerated Graphics Port): a PCI- base d inte rfa ce w hich was de si gn ed spe cifi cally for dem and s of

udio Modem Ris er): a mod em that can b e used on Inte l Refe rence Mothe rboard pl atfor ms using

Attachment Packet Interface): also known as IDE or ATA; a drive implementation that includes

Bandwidth: refers to car rying cap acity. The greater the ban dwidth, the more data the bus, phone line, or
other electrical path, can carry. Greater bandwidth, then, also results in greater speed.

BBS (B
center for users to post messages and access information.

BIOS (B
instructions for controlling your computer’s hardware. Both the operating system and application software
use BIOS routines to ensure compatibility.

Buffer: a portion of RAM which i s u sed to te mp ora ri ly sto re d ata , usu al ly fr om an a ppli ca ti on , tho ugh it i s
also used when printing , and in most keyboa rd drivers . The CPU can manip ulate dat a in a buffer before
copying it, all at once, to a disk drive. While this im proves system performance -- - reading to or writing
from a disk drive a single time is much faster th an doing so repeatedly - -- there is also t he possibility of
losing your data should t he system cr ash. Inf orm atio n sto red in a bu ffer is te mp ora rily st ored, n ot p er ma­nently saved.

Tiger 230 S2507

ulletin Board System): a computer system with a number of modems hooked up to it which acts a

asic Input/Output System): the progr am that resides in the ROM ch ip, and provides the basic

41

GLOSSARY

Bus: a data pathwa y. The term is used especi ally to refer to the con nection between the processor and
system memory, and between the processor and PCI or ISA local buses.

Bus mastering: allows peripheral devices and IDEs to access the system memory without going through
the CPU (similar to DMA channels).

Cache: a temporary storage area for data that will be needed often by an application. Using a cache low­ers data access times, sin c e th e ne ed ed in for mat ion i s st ore d in t he S RA M in stea d o f in the sl ow DR AM .
Note that the cache is al so mu ch sm alle r th an your regular mem or y: a typi ca l cach e size i s 51 2KB , wh ile
you may have as much as 1GB of regular memory.

Cache siz e: refers to the physical size of the cache onboard. This should not be confused with the cache­able area, which is the total am oun t of m em ory wh ich ca n be scann ed by the syste m in se arch of da ta to
put into the cac he. A typi cal setu p w ould b e a ca che size of 5 12KB, and a cache able ar ea of 512M B. In
this case, up to 512KB of the main memory onboard is capable of being cached. However, only 512KB of
this memory will be in the cache at any given moment. Any main memory above 512MB could never be
cached.

Closed and open jumpers: jumpers and jumper pins are active when they are “on” or “closed”, and inac­tive when they are “off” or “open”.

CMOS (C
the BIOS.

COM port: another n am e for the serial port, whi ch is ca l led as su ch beca use i t tr an smits the eig ht b i ts o f
a byte of data alo ng one wi re , an d re ceives data on anoth er s ingl e wi re (t ha t is, th e da ta i s t ran smi t ted in
serial form, one bi t after ano ther). Para llel ports t ransmit the b its of a by te on eight di fferent wires a t the
same time (that is, in parallel form, eight bits at the same time).

DDR (D
and falling edge of the system clock rather than on just the rising edge, potentially doubling output.

DIMM (D
need to be installed in pairs.

DIMM bank: sometimes called DIMM sockets, because the physical slot and the logical unit are the
same. That is, one DIMM module fits into one DIMM socket, which is capa ble of acting as a memor y
bank.

DMA (D
(like soundcards or keyboards) to access the main memory without involving the CPU. This frees up CPU
resources for other tasks. As with IRQs, it is vital that you do not double up devices on a single line. Plug­n-Play devices will take care of this for you.

omplementary Metal-Oxide Semiconductors): chips that hold the basic startup information for

ouble Data Rate): improves RAM speed to at least 200 MHz. It activates output on both the rising

ual In-line Memory M odule): faster and more capa cious form of RAM than S IMMs, and do not

irect Memory Access): chann els that are similar to IRQs. DMA channels allow ha rdware devices

42

http://www.tyan.com

Doze mode: in this mode, only the CPU’s speed is slowed.

DRAM (D

dency to lose data if it is not recharged regularly (every few milliseconds). This refresh requirement
makes DRAM three to ten times slower than non-recharged RAM such as SRAM.

EDO RAM (E
addresses are static; the next time it looks for a bit of data, it will be at the same spot, or one nearby.

EEPROM (E
unlike normal ROM, b e update d. This al lows you to keep up w ith chang es in the B IOS progr ams wit hout
having to buy a new chip. Tyan’s BIOS updates can be found at http://www.tyan.com

ESCD (E
in the system BIOS. This information helps properly configure the system each time it boots.

Fault-tolerance: a term describi ng a sy stem w her e one c ompo nent can qu ick ly be re pl aced w itho ut ca us ­ing a loss of service, such as in a RAID system.

Firmware: low-level software that controls the system hardware.

ynamic RAM): wide ly available, very affordabl e form of RAM which h as the unfortunate ten-

xtended Data-Out RAM): speeds access to memory locations by assuming t hat memory

lectrically Erasable Programmable ROM): also called Flash BIOS, is a ROM chip which can,

xtended System Configuration Data): a form at fo r stor ing infor ma ti on a bou t Plug- n-P la y device s

Form factor : an ind ust ry t erm fo r the size, shape, power su ppl y typ e, a nd ext ern al c onn ecto r type of the
Personal Computer Board (PCB) or motherboard. The standard form factors are the AT and ATX,
although Tyan also makes some Baby-AT and ATX Footprint boards.

Global timer: onboard hardware timer, such as the Real-Time Clock (RTC).

Handshaking: a form of encryption. One system, typically the server, sends an encryption scheme to

another agent, typically a client. Thus, the client’s data is protected during transmittal to the server.

HDD: stands for H

H-SYNC: controls the horizontal synchronization/properties of the monitor.

ntegrated Circuit): the formal name for the computer chip.

IC (I

ntegrated Device/Drive Electronics): a simple, self-contained HDD interface. It can handle drives up

IDE (I
to 8.4 GB in size. Almost a ll IDEs sold now are in fact En hanced IDEs (EIDE s), with maximu m capacity
determined by the hardware controller.

ard Disk Drive, a type of fixed drive.

GLOSSARY

IDE INT (IDE Interrupt): a hardware interrupt signal that goes to the IDE.

Tiger 230 S2507

43

I/O (Input/Output): the connection between your computer and another piece of hardware (mouse, key-

board, etc.)

IRQ (Interrupt Request): an electronic request that runs from a hardware device to the CPU. The interrupt
controller assigns priorities to incoming requests and delivers them to the CPU. It is important that there is
only one device hooked up to ea ch IRQ line; doub ling up de vices on IR Q lines ca n lock up yo ur system .
Plug-n-Play operating systems can take care of these details for you.

ISA (I

ndustry Standard Architecture): a slower 8- or 16-bit bus (data pathway).

Latency: the amount of time that one part of a system spends waiting for another part to catch up. This is
most common when the syste m s end s da ta o ut t o a per iphe ra l dev ice, a nd it waiting for the perip her al to
send some data back (peripherals tend to be slower than onboard system components).

Mirroring: see RAID.

NVRAM: ROM and EEPROM are both examples of Non-Volatile RAM, memory that holds its data without

power. DRAM, in contrast, is volatile.

OEMs (O
and hardware inside their case and sell them.

Parallel port: transmits the bits of a byte on eight different wires at the same time (that is, in parallel form,
eight bits at the same time).

PCI (P
bus. Local buses are t hose which operate within a s ingle system (as oppose d to a network bus, which
connects multiple systems).

PCI PIO (PCI P
modes use t he CPU for data transfer (in contras t, DMA chan nels do no t). PCI ref ers to the t ype of bus
used by these modes to communicate with the CPU.

PCI-to-PCI bridge: allows you to connect multiple PCI devices onto one PCI slot.

Pipeline burst SRAM: a fast secondary cache. It is used as a secondary cache because SRAM is slower

than SDRAM, but usual ly larger. Data is cached first to the faster primary ca che, and th en, when the pri­mary cache is full, to the slower secondary cache.

riginal Equ ipment Manufacturers): Compaq or IBM package ot her companies’ motherboards

eripheral Co mpone nt Int erconn ect): a 32 -bi t local bus (da ta pathway) whi ch is fas ter than the ISA

rogrammabl e Input/Output ) modes: the data transfe r modes used by IDE driv es. These

Pipelining: improves system p erformance by allowing th e CPU to begin executing a sec ond instruction
before the fi rst is com pl et ed. A p ipel in e can be l ike ned to an assembly li ne , wi t h a g iven pa rt of the pipe­line repeatedly executing a set part of an operation on a series of instructions.

44

http://www.tyan.com

PM timers (P owe r M ana gem en t ti me rs) : soft ware ti me rs th at co unt down the number of secon ds or min­utes until the system times out and enters sleep, suspend, or doze mode.

PnP (P

lug-n-Play): a design sta ndard that has beco me ascendant in th e industry. Plug-n-Play devices
require little set- up to use. Novice en d users can simply plug them into a computer that is running on a
Plug-n-Play aware o perating syst em (such as Windows 9 8), and go to work. De vices and o peratin g sys­tems that are not Plug-n- Play require you to recon figure your system each tim e you add or change an y
part of your hardware.

Striping: see RAID.

RAID (R

on many hard drives . By using this method , the data i s stored red undantly, also the multiple ha rd drive s
willl appear as a single drive to the operating system. RAID level 0 is is known as striping, where data is
striped (or overlapped) across multiple hard drives, but offers no faul t-tolerance. RAID level 1 is known as
mirroring, which sto res the data within at least two har d drives, but does not stripe. RA ID level 1 also
allows for faster acce ss time and fault-tole rance, since either hard drive can be read at the same time.
RAID level 0+1 is both striping and mirroring, pro viding fault-t olerance, stripi ng, and faster acce ss all at
the same time.

RAM (R
without touching the adjacent da ta, is often used to refer to the syste m’s main memory. This memory is
available to any program running on the computer.

ROM (R
boot the computer and start up the operating system.

SDRAM (S
addresses open simulta neously. By transferring data alter nately fro m one set of addresse s and then the
other, SDRAM cuts down on the delays associate d with non-synchronous RAM, which must close one
address bank before opening the next.

edundant Arra y of Ind ependent Disks): a wa y for the sa me data to be stored in differe nt places

andom Access Memory): technically refers to a type of memory where any byte can be accessed

ead-Only Memory): a storage ch ip which contains the BIOS; the basic instructio ns required to

ynchronous Dynamic RAM): called as such because it can keep two sets of memory

GLOSSARY

Serial port: called as such because it t ransmits the eight bits of a byte of data along one wire, and

receives data on another single wire (that is, the data is transmitted in serial form, one bit after another).

SIMM (S
must be installed in pairs, and do not have the carrying capacity or the speed of DIMMs.

SIMM bank/s ocket : SIMM socke ts are the physical s lots into which you install SIMM mod ules. A pair of
SIMM sockets form a SIMM bank, and act as one unit. If only one socket is filled, th e bank will not oper­ate.

Sleep/Suspend mode: in this mode, all devices except the CPU shut down.

ingle In-line Memory Module): formerly the most comm on form of RA M for moth erboards. They

Tiger 230 S2507

45

SRAM (Static RAM): unlike DRAM , this type of RAM does not need t o be refreshed in order to pre vent

data loss. Thus, it is faster, and more expensive.
Standby mode: in this mode, the video and fixe d disk drive (usually the HDD) shuts down; a ll other
devices continue to operate normally.

UltraDMA/33/66/100: a fast version of the old DMA channel. UltraDMA is also called UltraATA. Without
the proper UltraDMA controller, your system cannot take advantage of the higher data transmission rates
of the new UltraDMA/UltraATA HDDs.

USB (U
keyboard, or joystick port. It is fast eno ugh to s upport vi deo trans fer, and is capa ble of su pporti ng up to
127 daisy-chained peripheral devices.

VGA (V

V-SYNC: controls the vertical properties of the monitor.

ZIF socket (Z

ing the sensitive CPU pins. The CPU is lightly placed in an open ZIF socket, and the metal level is pulled
down. This shifts the processor over and down, guiding it into place on the board.

niversal Serial Bu s): a ver satile por t. This on e port ty pe ca n functio n as a ser ial, pa rallel , mouse,

ideo Graphics Array): the PC video display standard.

ero Insertion For ce socket): these sockets m ake it possi ble to insert CP Us withou t damag-

46

http://www.tyan.com

Notice fo r the USA

Compliance Information Statement (Declaration of Conformity Procedure) DoC
FCC Part 15: This device complies with Part 15 of the FCC Rules.

Operation is subject to the followin g cond iti ons:

1)

this device may not cause harmful interference, and

2)

this device must accept any interference received including
interference that may cause undesired operation. If this
equipment does cause harmful interference to radio or televi ­sion reception, which can be determined by turning the equi­ipment off and on, the user is encouraged to try one or more
of the following measures:

Reorient or relocate the receivi n g
antenna.
Increase the separation between the
equipment and receiver.
Plug the equipment into an outlet on
a circuit different from that of the
receiver.
Consult the dealer or an experienced
radio/television technician for help.

Notice for Canada

This apparatus complies with the Class B limits for radio interference as specified in the Canadian Depart­ment of Communications Radio Interference Regulations. (Cet appareil est conforme aux normes de
Classe B d’interfer ence radio tel que spécifié par le M inistére Candien des Communic ations dans les
réglements d’inteférence radio.)

Notice for Europ e (C E Mar k)

This product is in conformity with the Council Directive 89/336/EEC, 92/31/EEC (EMC).

CAUTION: Lithium ba ttery included w ith this board. Do not puncture, m ultilate, or disp ose of battery in
fire. Danger of expl osion if batter y is inco rrectly r epla ced. Rep lace onl y with th e same o r equiva lent type
recommended b y manufacturer. Dispose of used battery according to m anufacturer instructio ns and in
accordance with your local regulations.

Tiger 230 S2507

Document # D1429-101

47
