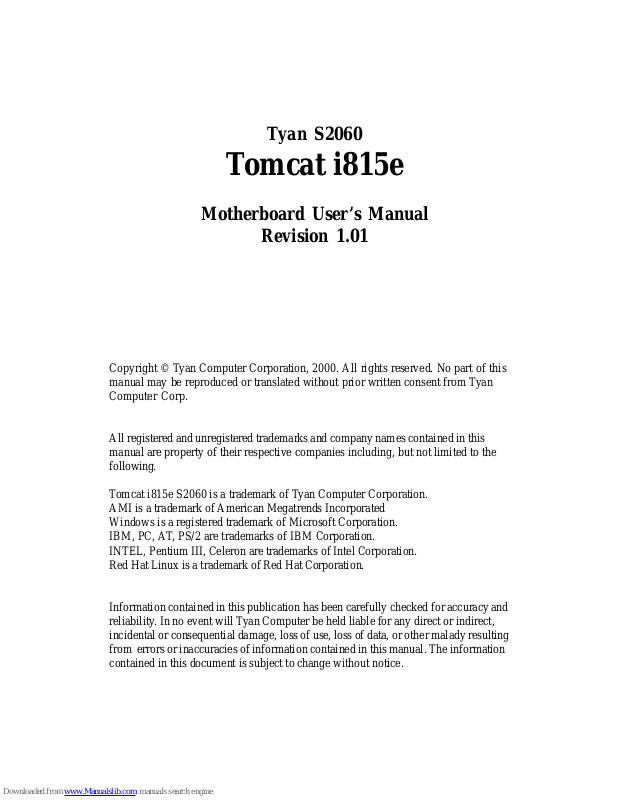

TYAN S2060 User Manual

Tyan S2060

Tomcat i815e

Motherboard User’s Manual

Revision 1.01

Copyright © Tyan Computer Corporation, 2000. All rights reserved. No part of this
manual may be reproduced or translated without prior written consent from Tyan
Computer Corp.

All registered and unregistered trademarks and company names contained in this
manual are property of their respective companies including, but not limited to the
following.

Tomcat i815e S2060 is a trademark of Tyan Computer Corporation.
AMI is a trademark of American Megatrends Incorporated
Windows is a registered trademark of Microsoft Corporation.
IBM, PC, AT, PS/2 are trademarks of IBM Corporation.
INTEL, Pentium III, Celeron are trademarks of Intel Corporation.
Red Hat Linux is a trademark of Red Hat Corporation.

Information contained in this publication has been carefully checked for accuracy and
reliability . In no event will Tyan Computer be held liable for any direct or indirect,
incidental or consequential damage, loss of use, loss of data, or other malady resulting
from errors or inaccuracies of information contained in this manual. The information
contained in this document is subject to change without notice.

T able of Contents

1. Introduction............................................................................................... 4

Overview ......................................................................................... 4

Icons................................................................................................ 5

Hardware Specifications/Features.............................................. 6

Software Specifications................................................................ 8

T echnical Support......................................................................... 8

Returning Merchandise for Service............................................ 8

2. Board Installation.................................................................................. 10

Unpacking.................................................................................... 1 0

Installation................................................................................... 10

Quick Reference for Jumpers..................................................... 1 2

Map of Motherboard Jumpers.................................................. 1 3

Setting Jumpers........................................................................... 1 5

Clear CMOS and Reset PW ........................................................ 1 5

BIOS Flash TL.............................................................................. 1 5

Chassis Intrusion Alarm Connector ..........................................1 6

Soft Power Connector ................................................................. 17

Mounting the Motherboard in the Chassis.............................1 8

Installing Memory ........................................................................1 8

Installing the CPU and Cooling Fan......................................... 21

Connecting IDE and Floppy Drives......................................... 22

Installing Add on Cards ............................................................ 2 4

Connecting PS/2, USB, Ethernet*, Serial & Parallel Devices 2 5

Connecting the Power Supply ................................................... 2 6

Ethernet Setup and Use*........................................................... 2 6

Frequently Asked Questions.................................................... 3 0

3. BIOS Configuration.............................................................................. 32

Main Setup................................................................................... 3 3

Advanced Menu......................................................................... 3 3

Configure Nat366 Serial Port(s) and Parallel Port................... 3 4

IDE Configuration....................................................................... 3 4

Floppy Configuration................................................................. 3 6

Boot Settings Configuration..................................................... 3 7

Event Log Configuration........................................................... 3 8

Chipset Menu.............................................................................. 3 9

GMCH Configuration.................................................................. 39

ICH Configuration.......................................................................... 4 1

PCI / PnP Menu.............................................................................. 41

Power Menu.................................................................................... 4 3

Boot Menu...................................................................................... 44

Security Menu................................................................................ 44

Exit Menu......................................................................................... 45

4. System Resources.................................................................................... 46

Beep Codes..................................................................................... 46

Troubleshooting System Problems............................................. 47

Displayed Error Messages........................................................... 48

Flash Utility ..................................................................................... 5 0

Appendix - Glossary ...................................................................................... 52

* Indicates an optional feature available on some models of T omcat i815e.

http://www.tyan.com

4

Chapter 1

Introduction

Overview

The T omcat i815e is a quality, high performance motherboard designed for Socket 370
Type Intel Pentium III / Celeron microprocessors. The Tomcat i815e utilizes the Intel
i815e Chipset with AMI BIOS and can support CPU speeds of 500 MHz through
800 MHz, and host bus speeds of 66MHz to 133MHz. For CPU speed support,
please refer to the CPU Compatibility Chart in Tyan’s website:

http://www.tyan.com/support/html/pentiumii_iii_ppga.html

The T omcat i815e motherboard, provides high performance capabilities that are ideal
for a wide range of demanding applications such as CAD, CAM, CAE, desktop
publishing, 3D modeling, animation, and video production.

This integrated high-performance system board in an ATX form factor offers more
features and expandability than other ATX boards in its class. Some of the features
included are onboard UltraDMA 66 / 100, onboard digital link sound (optional) and
built-in Intel 3D Graphics accelerator for enhanced graphics performance.

chapter 1

Introduction

S2060 Tomcat i815e

5

INTRO

Flexibility and expandability have been designed into the T omcat i815e.
With I/O and drive controller support built onboard (along with the many
onboard features previously mentioned), the AGP 2x / 4x slot and six PCI slots
are free for more add-on expansion cards.

Remember to take a look at T yan’ s web site located at
http://www .tyan.com. There you can find information on all of T yan’ s products
along with F AQs, distributors list, drivers, and BIOS setting explanations.

Icons

In order to help you navigate this manual and set up your system, we have
added several icons to our format.

This icon alerts you to particularly important details regarding the
setup or maintenance of your system. This icon often appears next to
information that may keep you from damaging your board or system.
While we will often point out the most vital paragraphs in a chapter,
you should always read every word in the text. Failing to do so can
lead to exasperation and expense.

Wherever possible, we have included step-by-step instructions for
setting up your system, which are indicated by this icon. However, it
is in your best interest to read an entire section (and perhaps the
entire manual) before you begin to install your motherboard.

While we have alerted you to potential dangers in several places in
the manual with this icon, these warnings should not be regarded as
the whole of your safety regimen. Never forget that computers are
electrical devices, and are capable of delivering a shock. Prevent
damage to yourself and to your board: always ensure that your
system is turned off and unplugged whenever you are working with
it, and that you are equipped with a static safety device. If a static
safety device is not available to you, remember to touch any un­painted metal surface in your case before handling your board.

procedure

1.

2.

3.

warning

!

important!

http://www.tyan.com

6

Chapter 1

Introduction

Hardware Specifications/Features

Processor Information •Single PGA370 Socket

•Intel® Pentium III (FC-PGA) 500 mhz-800MHz*

•Intel® Celeron (FC-PGA) 533 mhz - 600 MHz*

•Intel® Celeron (PGA370) 300 mhz - 533 mhz*

•On-board VRM

•Frontside Bus support for 66 / 100 / 133 MHz

Expansion Slots •One 2x / 4x mode 3.3V / 1.5V AGP slot

•Six 32-bit PCI slots

•Total seven usable slots

Chipset Information •Intel® i815e AGPset

•MCH + ICH2 + FWH (4Mb)

•National PC87366 LPC Super I/O Chipset

Hardware Monitoring •National PC87366 hardware monitoring chip

•3-pin fan monitoring headers

•2-pin Chassis intrusion header

•Flexible temperature and voltage sensing

•3-pin Wake on LAN header (optional)

•3-pin W ake on Ring header (optional)

Memory*** •Three 3.3V 168-pin DIMM sockets

•Supports up to 512 MB PC100 / PC133
Unbuffered, non-ECC, non-registered SDRAM

Integrated PCI IDE •Dual channel master mode

•Up to four Enhanced IDE devices

•Support for UDMA 33/66/100 IDE drives and
ATAPI compliant devices

Integrated I/O •One Floppy connector for up to two drives

•Two 9-pin UART serial ports
(one port is via cable -optional)**

•One 25-pin ECP/PPP parallel port

•PS/2 keyboard and mouse ports

•Four USB ports (two ports via cable -optional)**

See T yan website for Memory Compatibility details: http://www .tyan.com

***

S2060 Tomcat i815e

7

INTRO

Integrated LAN Controller •One Intel® ICH2 s/82562M “Kinnereth”
(Manfuacturing Option) controller

•10/100 Mbps data transfer rate

•3-pin Wake on LAN (optional)

Integrated 2D/3D Graphics •Intel i815e D.V.M. T echnology graphics core

•Integrated 230 Mhz DAC

•Integrated H/W Motion Compensation
engines

•Optional 4 MB PC133 SDRAM AGP In-Line
Memory Module (AIMM) to improve graphics
performance

•Standard 15-pin Analog VGA port

Integrated Audio •Software audio codec
(Manufacturing Option) •Line-in, line-out, mic and game / MIDI ports

•4-pin CD-ROM audio header (ATAPI)

BIOS •AMI BIOS 4 Mbit Flash

•Supports APM 1.2 & ACPI 1.0

•Auto detection of memory size

•Auto configuration of IDE hard disk types

•User settings of hardware monitoring

•Mutliple boot options

•DMI 2.0 compliant

Form Factor •ATX 2.03 (12” x 8”)

•One 20-pin ATX power connector

•Stacked mouse and keyboard ports

•Stacked two USB; one RJ-45 with LED
ports (optional)

•Stacked one serial, one video, and one parallel
port

•Stacked audio and game / MIDI ports (optional)

Regulatory •FCC Class B (Declaration of Conformity)

•European Community CE
(Declaration of Conformity)

See T yan website for CPU Compatibility List:

http://www .tyan.com/support/html/pentiumii_iii_ppga.html

*

Extra cables available for sale at etyan: http://www.etyan.com

**

http://www.tyan.com

8

Chapter 1

Introduction

Software Specifications

OS •Operates with Windows 98/ME,

Windows 2000, and Red Hat Linux 6.2

Technical Support

If a problem arises with your system, you should turn to your dealer for help first.
Your system has most likely been configured by them, and they should have the best
idea of what hardware and software your system contains. Hence, they should be of
the most assistance. Further, if you purchased your system from a dealer near you,
you can actually bring your system in to them to have it serviced, instead of attempt­ing to do so yourself (which can have expensive consequences).

Help resources:

1. See FAQ and beep codes sections of this manual.

2. See Tyan web site for FAQ, bulletins, driver updates, etc: http://www.tyan.com

3. Contact your dealer or distributor for help BEFORE calling Tyan.

4. Check the Tyan user group: alt.comp.periphs.mainboard.tyan

Returning Merchandise for Service

During the warranty period, contact your distributor or system vendor FIRST for any
product problems. This warranty only covers normal customer use and does not cover
damages incurred during shipping or failure due to the alteration, misuse, abuse, or
improper maintenance of products.

For Resellers Only:

A receipt or copy of your invoice marked with the date of purchase is required before
any warranty service can be rendered. You can obtain service by calling the manufac­turer for a Return Merchandise Authorization (RMA) number. The RMA number
should be prominently displayed on the outside of the shipping carton and the package
should be mailed prepaid, or hand-carried to the manufacturer. Tyan will pay to have
the board shipped back to you.

S2060 Tomcat i815e

9

INTRO

This page left blank intentionally .

http://www.tyan.com

10

Chapter 2

Board Installation

chapter 2

Board Installation

Unpacking

The motherboard package should contain the following:
(1) T omcat i815e mainboard
(1) 34-pin floppy cable
(1) 80-wire, 40-pin AT A-66/100 IDE cable with blue connector included
(1) Tomcat i815e User’s Manual
(1) Driver CD
(1) I/O shield included (optional)

Installation

You are now ready to install your motherboard. The mounting hole pattern of the
Tomcat i815e matches the ATX system board specifications. Your chassis should
support a standard ATX mainboard form factor.

How to install our products right... the first time.

What’s the first thing I should do?

The first thing you should do is read this user’s manual. It contains important
information which will make configuration and setup much easier .

S2060 Tomcat i815e

11

procedure

1.

2.

3.

INSTALL

Here are some precautions you should follow when installing your motherboard:

(1) Ground yourself properly before removing your motherboard
from the antistatic bag. Unplug the power from your computer
and then touch any unpainted metal part on the computer case.
(Or wear a grounded static safety wrist strap.)
(2) Hold the motherboard by its edges and do not touch the bottom of

the board.
(3) Avoid touching motherboard components, IC chips, connectors,
and leads.

(4) Avoid touching pins of memory modules and chips.
(5) Place motherboard on a grounded antistatic surface or on the

antistatic bag.

Having reviewed the precautions above, the next step is to take the motherboard out of
the cardboard box and static bag, hold it by its edges, and place it on a grounded
antistatic surface, component side up. Inspect the board for damage.

DO NOT APPL Y POWER TO THE BOARD IF IT HAS BEEN DAMAGED!

Press down on any of the socket ICs if it appears that they are not properly seated
(the board should still be on an antistatic mat). Do not touch the bottom of the board.
Remember, don’t take any electronic device out of its protective bag until you are
ready to actually install it into the computer case. If you do not ground yourself, you
risk zapping the motherboard or adapter card. Subsequent problems may not arise
immediately because electrostatic discharge damage unlike physical damage, causes the
device to fail over time.

Installation Steps

1. Set Jumpers

2. Mount Motherboard in Chassis

3. Install Memory

4. Install CPU & Cooling Fan

5. Connect IDE and Floppy Drives

6. Install Add-on Cards

7. Connect PS/2, USB, Ethernet (optional), Serial and Parallel Devices

8. Connect Power Supply

!

important!

http://www.tyan.com

12

Chapter 2

Board Installation

Quick References for Jumpers

In this manual, the terms “closed” and “on” are used when referring to jumpers
(or jumper pins) that are active; “open” and “off” are used when referring to
jumpers (or jumper pins) that are inactive. See the Figure 2-1 for examples of
“on” and “off” pins and jumpers. The square pin in the diagram is Pin 1.

Jumpers and pins are connected by slipping the blue plastic jumper connector
overtop of two adjacent jumper pins (indicated by 1-2 or 2-3). The metal rod
inside the plastic shell bridges the gap between the two pins, completing the
circuit. See Figure 2-2 for more example of pin connections.

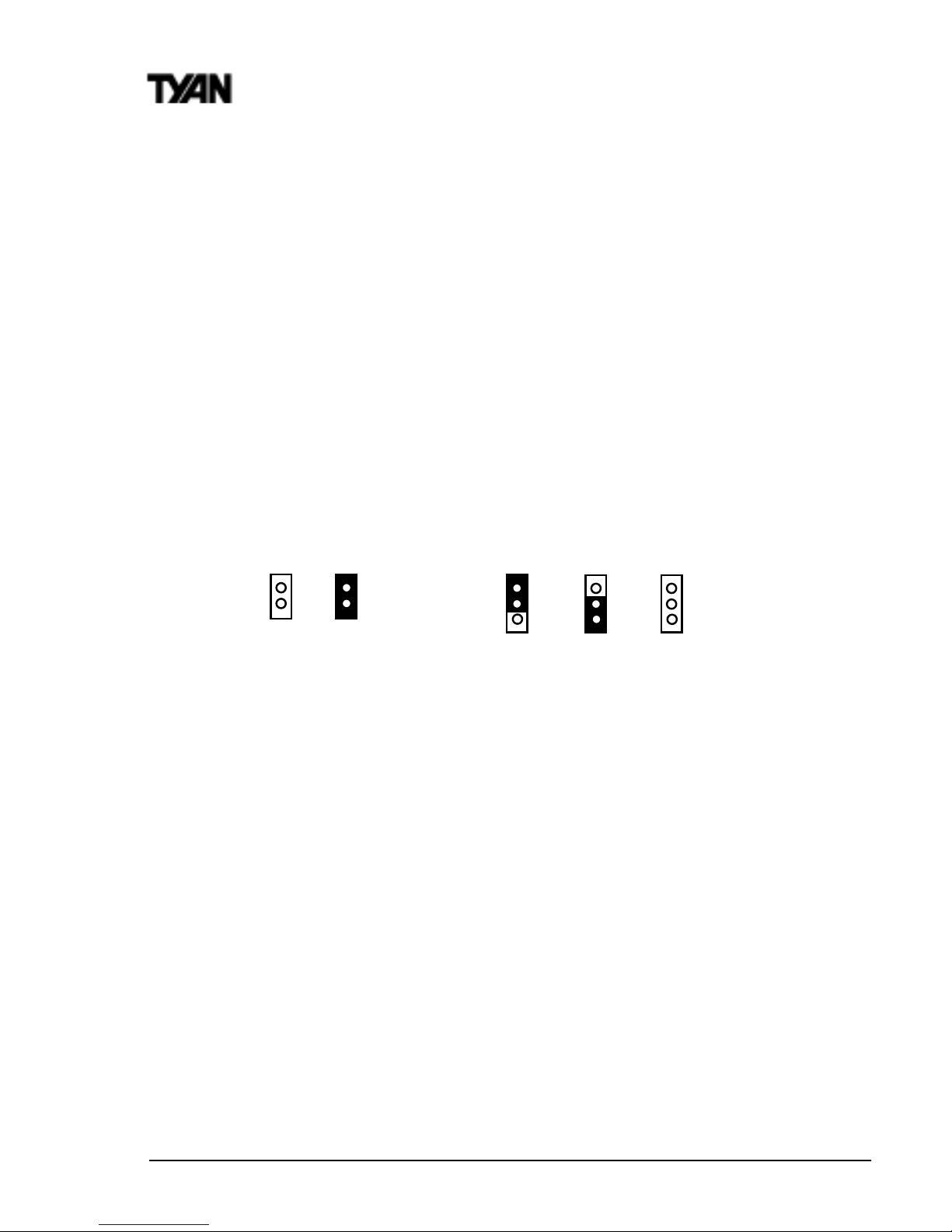

Figure 2-1 Figure 2-2

The tables and maps on the following pages will help you set the jumpers for
CPU speed, Infrared, and external connector pin assignments, among others.
The miniature motherboard maps will help you locate the jumpers on your board.
A full-page map of the motherboard can be found on the next two pages.

2 pin jumpers

off on

3 (or more) pin jumpers

1-2 2-3 open

1
2
3

1
2
3

1
2
3

S2060 Tomcat i815e

13

The tiny “1”s next to jumpers of 3 pins or more indicate the position of pin 1 for that jumper.

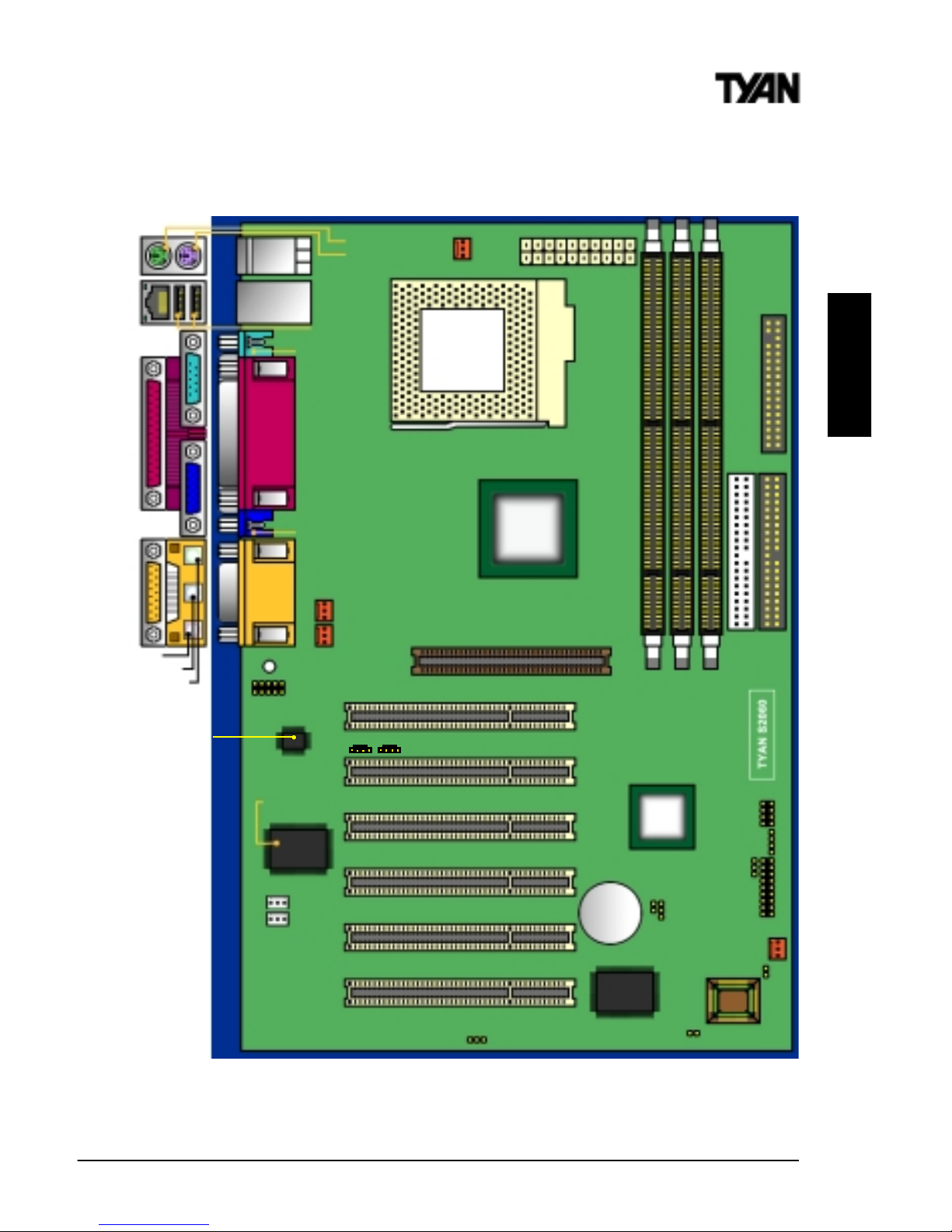

Map of Motherboard Jumpers

INSTALL

Mouse
Keyboard

2 USB Ports

LPT1 Printer Port

Power Supply

FAN1

Intel® PGA 370 FSB 66/100/133 MHz

3 DIMM Sockets (PC100/133)

Video Out

Game Port*

P-IDE

FAN2

FDD

S-IDE

1 AGP 2x / 4x

Intel® i815e

Intel® i815e

Battery

Super I/O

BIOS

Mic*
Line-in*
Line-out*

FAN4

J34*
J8*

J33

J18J15

PJ2

J12

J7

J38

J13

JP2

FAN3

Software audio codec*

6 32-bit PCI slots

J29* J37*

JP1

11

11

1

11

11

1

11

11

1

11

11

1

11

11

1

11

11

1

11

11

1

Com1 Port

LAN*

Audio Codec*

* Indicates an optional feature available on some models of Tomcat i815e.

http://www.tyan.com

14

Chapter 2

Board Installation

3 DIMM slots

PS/2 Mouse &

Keyboard ports

Parallel, COM1, VGA ports

Joystick port*, mic*, line-in*, line-out*

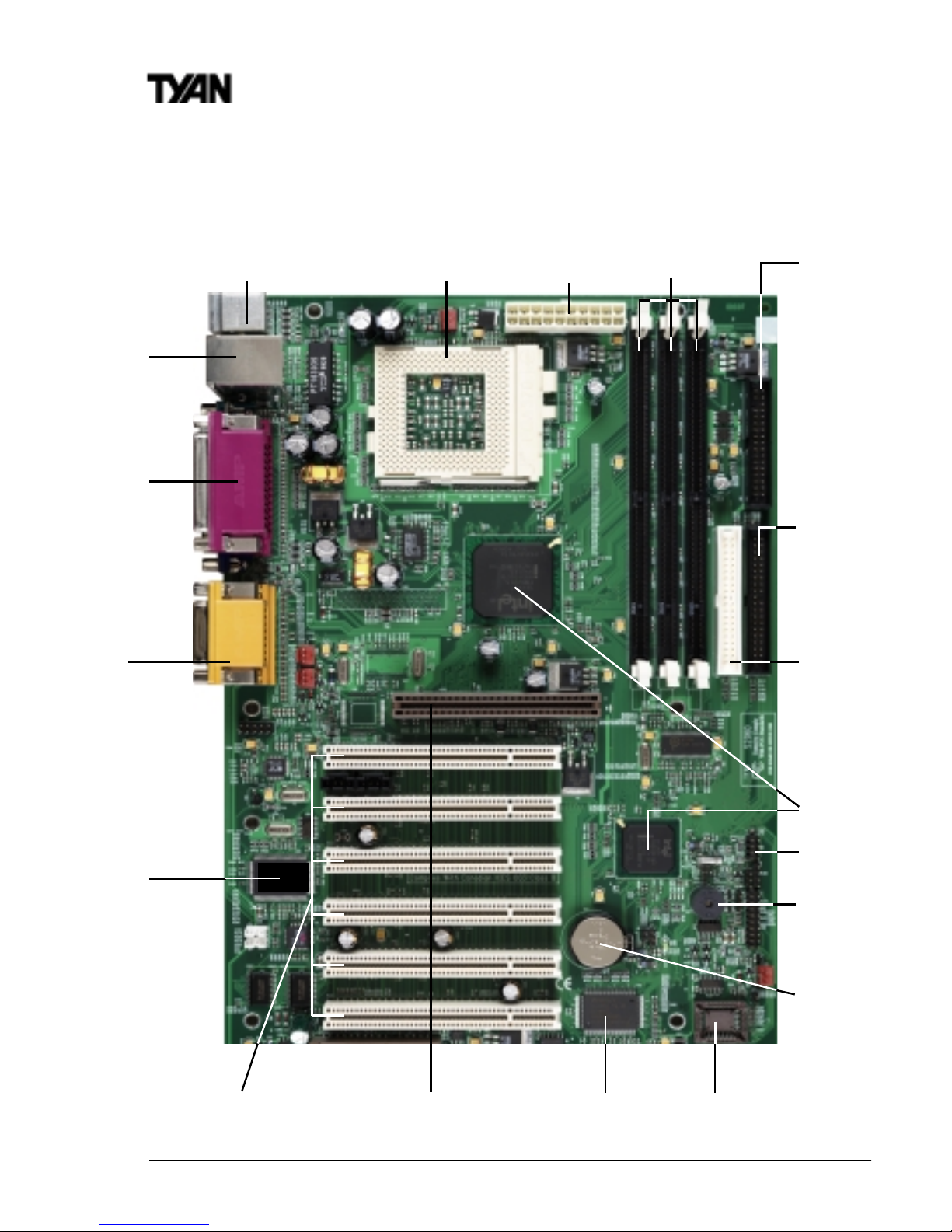

Map of Tomcat i815e Features

Socket 370 Type for

Celeron/PIII CPU

Ethernet*, 2 USB ports

Primary IDE

Intel i815e

AGPset

Secondary IDE

ATX Power
Supply Header

Battery

AGP

2x / 4x slot

AMI

(BIOS)

National hardware

monitoring chip

6 PCI slots

Software audio codec*

USB

* Indicates optional feature available on some models of Tomcat i815e.

Floppy connector

Internal

Buzzer

S2060 Tomcat i815e

15

INSTALL

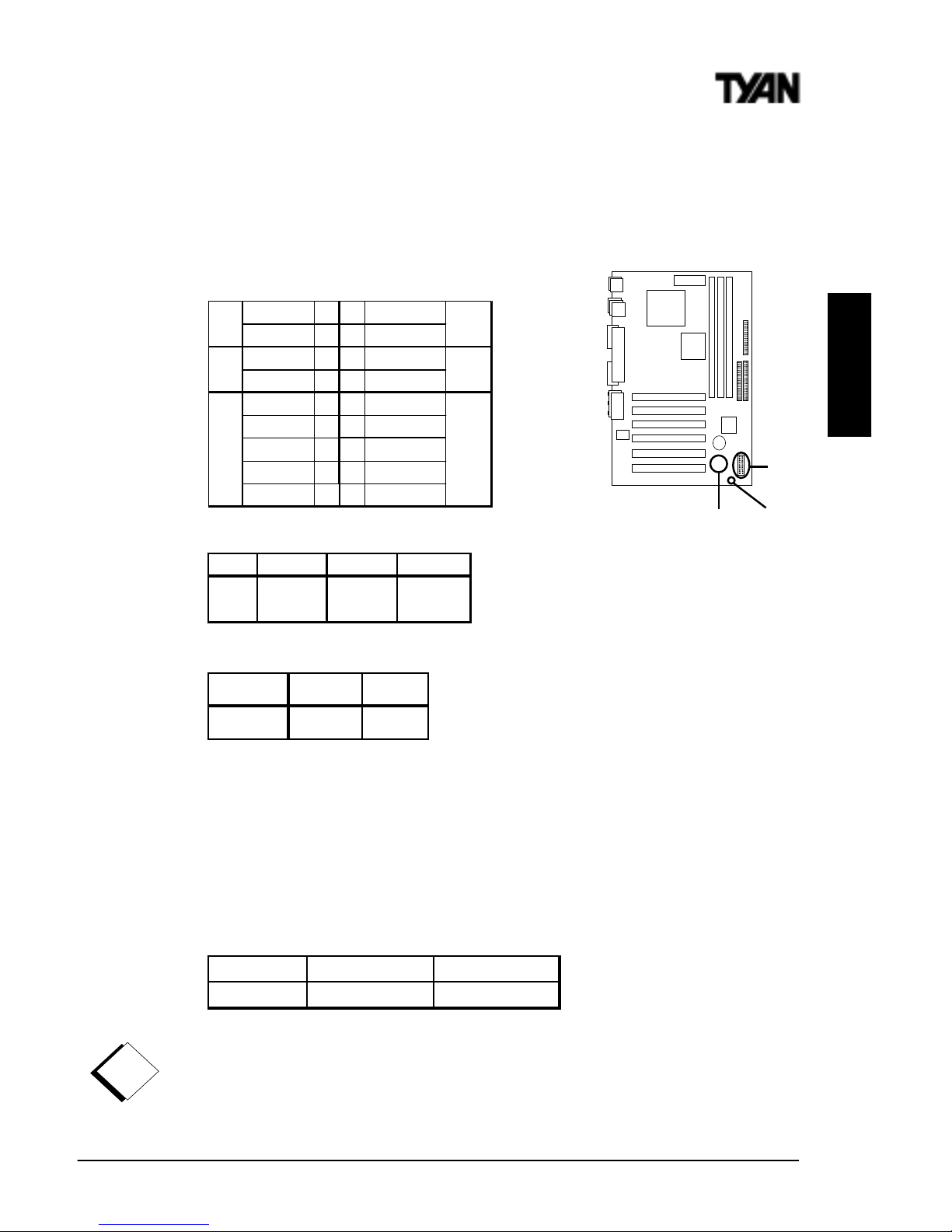

1. Setting Jumpers

Note: There are no Jumper settings for CPU bus speed or clock multiplier on the

Tomcat i815e board. The Tomcat i815e is designed to automatically detect the
socketed Pentium III / Celeron CPU and its proper speed settings.

1-A. J15 External Pin Assignments

1-B. Power LED (J33)

Jumper J33 is a 3-pin ACPI LED
header. If you need a 2-pin Power
LED header, use jumper J15 above.

1-C. Clear CMOS and Reset Password (JP1)

If you have been locked out of your system because you forgot your password or set
the CMOS incorrectly, follow the instructions below.

1. Power off the system and unplug power cable from the motherboard.

2. Set jumper JP1 to pins 2 and 3.

3. Wait for 10 seconds, then return jumper JP1 to pins 1 and 2.

4. Plug in power cable and power on the system again.
By following this procedure, you will erase your password and reset the CMOS to the
BIOS defaults.

1-D. BIOS Flash TL (JP2)

By default, this jumper is set to OPEN (locked) position. Having the Top Lock (TL)
protection “locked” will allow normal system operation. Closing jumper JP2 (un­locked) will allow the BIOS to be flashed. NOTE: If the jumper JP2 is closed

(unlocked), and if failure occurs during a new BIOS flash, you run the risk of
rendering your entire system unbootable. The “backup” protection of the Boot
Block will be lost.

Pin 1 2 3

+5 VSB

LED YEL

Ground

VCC

LED GRN

tluafeDteseR

1PJ

2-13-2

VCC+ 1 2 P ower L E D+
Ground 3 4 Sleep LED+

Ground 5 6 Power On/Off
Switch 7 8 Pwr On/Off GND

IR +5V 9 10 NO CONNECT
IR RX 11 12 Ground

IR GND 13 14 NO CONNECT
IR TX 15 16 NO CONNECT
IR RX2 17 18 NO CONNECT

Infrared

HDD

LED

Reset

Switch

Pwr/Slp

LEDs

Power

(Sleep)

Switch

Close Open

JP2 Unlock Lock Flash TL

!

important!

J15,
J33

JP1 (clear CMOS) JP2

http://www.tyan.com

16

Chapter 2

Board Installation

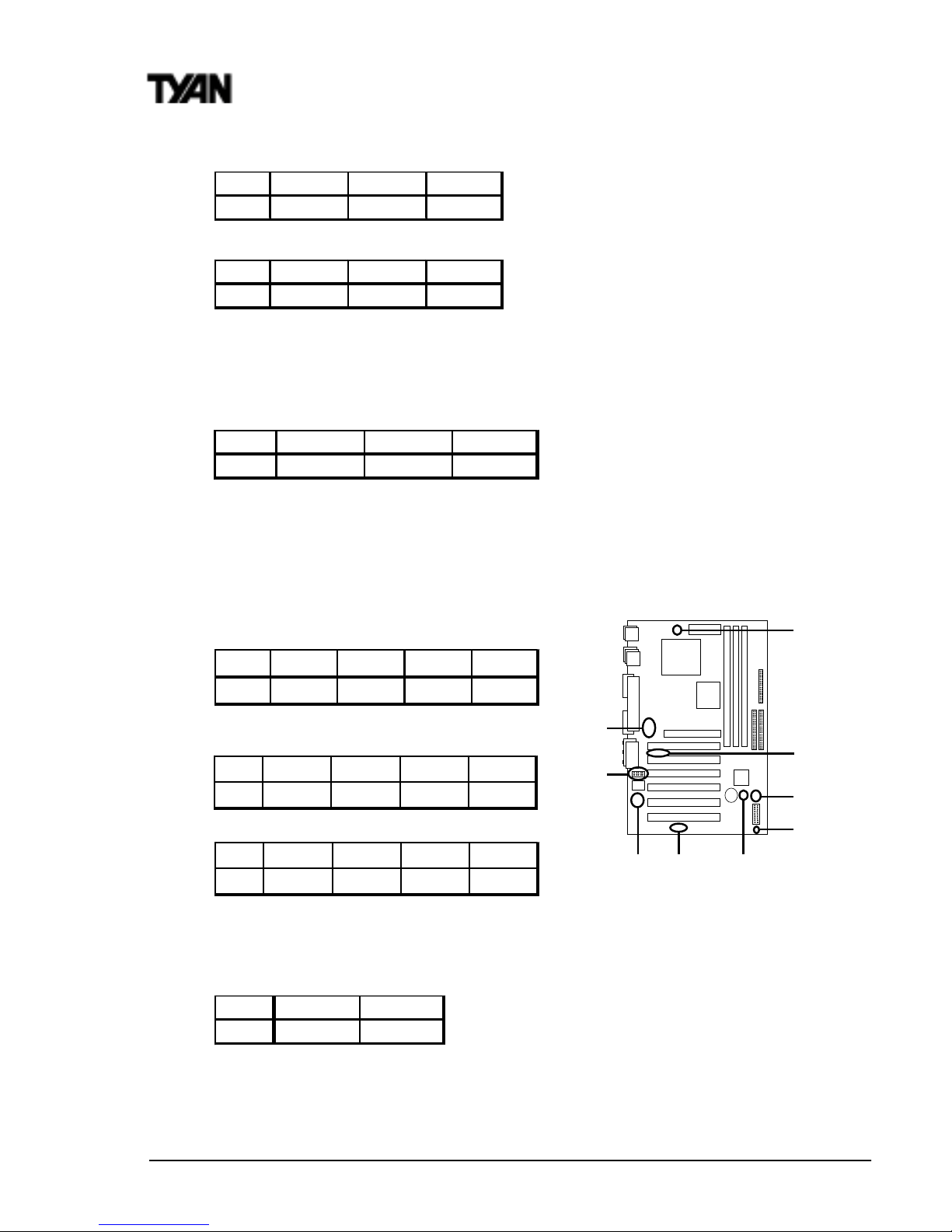

1-E. Wake-On Ring Connector (optional) (J34)

1-F. Wake-On LAN Connector (optional) (J8)

1-G. Chassis Intrusion Alarm Connector (J7)

The jumper J7 connector is an intrusion alarm connector. When attached to the chassis,
this alarm will alert the system administrator when someone opens the system’s case.

1-H. Fan Connectors (F AN1,F AN2,FAN3,FAN4)

Fan1 is for the CPU fan. Fan2, Fan3, and Fan4 connectors are for the Chassis Fans.

You can monitor the status of three of these Fans by using Intel’s LANDesk system
management software.

1-I. External Speaker Connector (J13)

The external speaker should be connected to pins 1­4 of jumper J13.

1-J. CD Audio Connector (optional) (J29)

1-K. AUX Audio Connector (optional) (J37)

1-L. COM2 port header (PJ2)
This is the connector header for the COM2 Port (see p. 30 for availability of cable).

1-M. LAN EEPROM Enable/Disable (optional) (J38)

By default, jumper J38 is set to ENABLE (close pins 1-2). Disabled settings are
reserved and settings should remain default. The LAN EEPROM contains the
configuration data for the LAN controller. Enabling J38 will allow normal operation of
the LAN EEPROM.

Pin 1 2 3 4

VCC ~ Buzzer SpkDrv

Enable Disable

J38 1 - 2 2- 3

Pin 1 2 3 4

L Ground Ground R

Pin1234

CD-L Ground Ground CD-R

Pin 1 2 3

+5 VSB Ground WOR

Pin 1 2 3

+5 VSB Ground WOL

Pin123

Ground +12V Speed

J34,
J8

F AN1

J7

J13

F AN2,
F AN4

F AN3

PJ2

J29,
J37

J38

S2060 Tomcat i815e

17

INSTALL

1-N. Front Side USB Header (J18)

Certain computer chassis allow for two front-end USB port connections. This board
provides a front side USB header should you decide to
set up a USB connector at the front side of your
computer. Note: The front side USB header supports

a seperate channel from the rear USB ports.*

1-O. External HDD LED (J12)

Connecting J12 to an external device (i.e. SCSI card) will
result in the LED output of the device to be redirected to
the front panel HDD LED.

Soft Power Connector

The Soft Power Connector is part of jumper block J15
(pins 6-8). The Tomcat i815e uses the chipset for power
management, including turning on and off the system. If
the Power Button Function option in the BIOS Power
Management Menu is set to On/Off (which is the default), pressing the power button
once after the BIOS has booted up will turn the system on and off. If the Power
Button Function option is set to Suspend, pressing the power button once will wake
the system or send it to Suspend mode. In this case, you cannot turn the system off
unless you shut down through the Windows operating system or you hold the power
button down for four seconds.

Hardware Reset Switch Connector Installation

The Reset switch on your case’s display panel provides you with the Hardware Reset
function, which is the same as power on/off. The system will do a cold start after the
Reset button is pushed.

CMOS RTC

The Real Time Clock (RTC) circuit, which provides the date and time for the system is
integrated into the i815e chipset. If the external battery for the RTC is low, it will
prevent your system from POSTing, and you will not get a display. Normally the life
span of an external battery is 2 years. If yours is running low, you will need to replace
it with a new 3V lithium battery (Sony CR2032).

Flash EEPROM

The Tomcat i815e uses flash memory to store BIOS firmware. It can be updated as
new versions of the BIOS become available. You can upgrade your BIOS easily using
the Flash Writer Utility (see page 50). NOTE: Please be aware that by flashing

your BIOS, you agree that in the event of a BIOS flash failure, you must contact
your dealer for a replacement BIOS. There are no exceptions. Tyan does not
have a policy of replacing BIOS chips directly with end users. In no event will
Tyan be held responsible for damage done to the BIOS by the end user.

!

important!

* Extra cables available at etyan: http://www.etyan.com

J18

J12

http://www.tyan.com

18

Chapter 2

Board Installation

2. Mounting the Motherboard in the Chassis

Follow the instructions provided by the case manufacturer for proper installation
guidelines. T yan recommends that you make use of all mounting holes to screw down
the motherboard. The adapter cards and the screws holding them down will keep your
board flat. The fastening screws should not short / touch any of the traces on the
motherboard. Make certain that you do not overtighten the screws, as that will damage
the motherboard and possibly break internal traces in the surrounding area. The hole
you should use is located at the top-center of the board where the adapter cards are
fastened to the case.

3. Installing Memory

Since Tyan boards are manufactured with performance in mind, you should use add-in
components that match. Some DIMM modules may seem to be high quality because of
name or feel but that does not guarantee real-world usability . Some cheaper or OEM
memory may have brand-name components, but they may contain inferior or substan­dard parts which do not meet the critical tolerances our products require. Because of
this, your memory may not work correctly in a Tyan board though it may work well in
a competitor’s board. This is because many of our competitors do not adhere to the
strict tolerances required for high performance. If you buy a Tyan board, you are

Figure 2-3

S2060 Tomcat i815e

19

getting the best system available. T o make installation easy and trouble free, get high
quality parts. For a list of recommended memory vendors, please visit Tyan’s website
at www.tyan.com - go to the “Memory Support” area in the Support Section. The
website memory compatibility lists include DIMMs that have proven to be very stable
on our boards and perform extremely well.

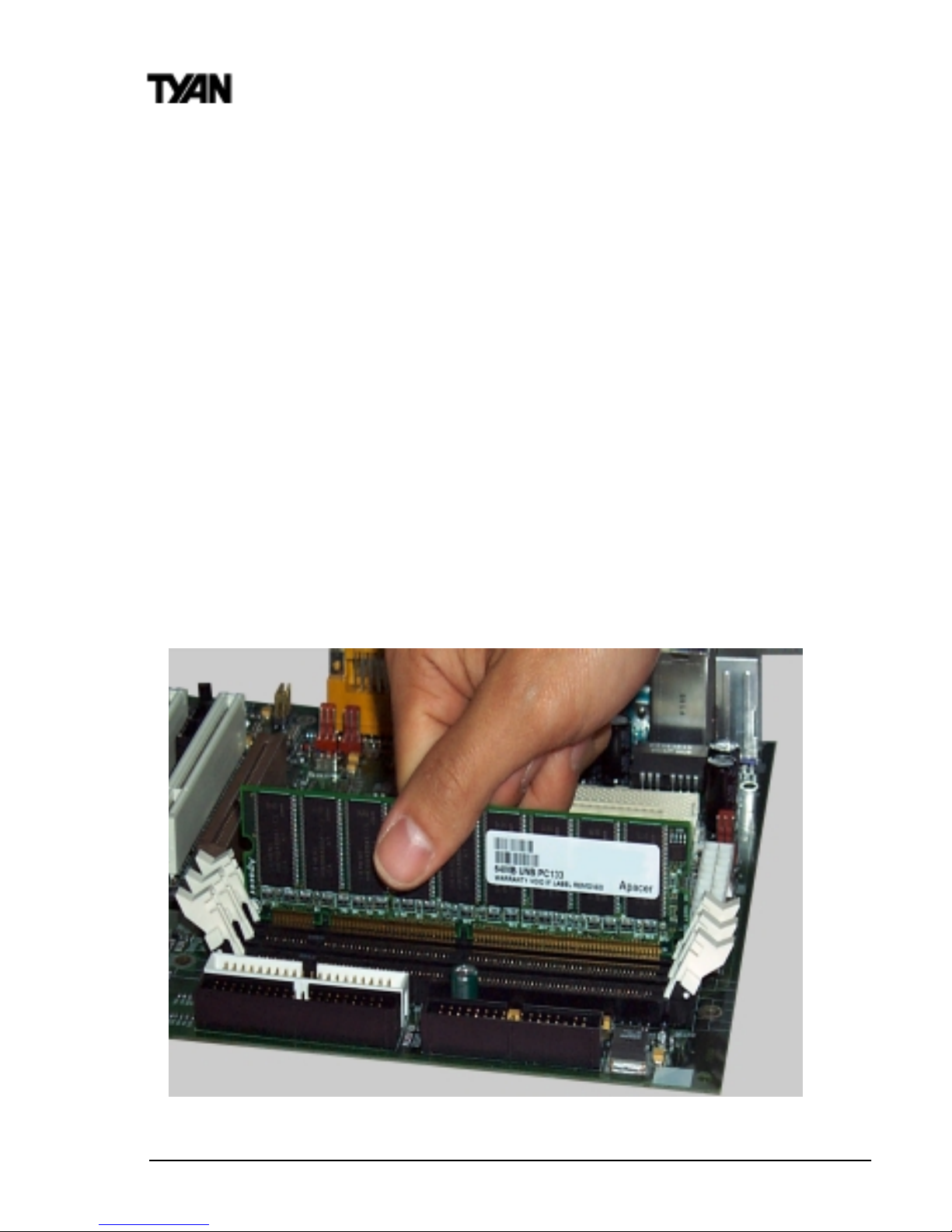

To install your DIMMs, line your module up so that the pins fit into the slot. There
is only one way that your DIMM can fit properly. Make sure that the short row of
pins is lined up with the short gap in the DIMM slot. Figure 2-3 (previous page)
shows how to sit the DIMM into its slot. To insert the DIMM, push down vertically
on the module with even force, as shown in the photo. Do not shove one end in first;
doing so will bend the DIMM pins.

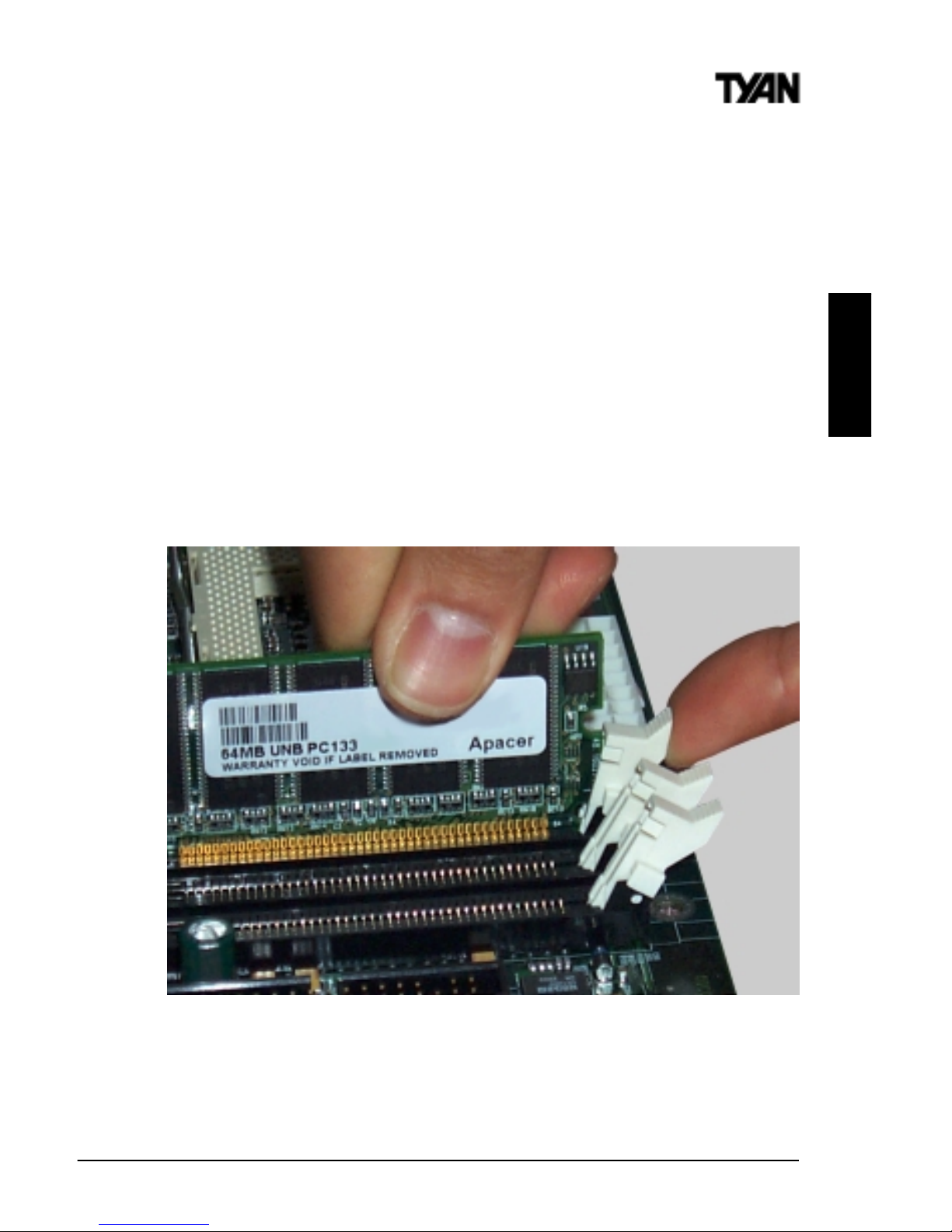

To lock the DIMM into place, push the plastic clips on either end of the slot onto the
notches in the ends of the DIMM (see Figure 2-4 below). In some cases, pushing the
memory module into the DIMM slot will move the plastic clips inward, automatically
locking the module into place. To remove your DIMM, simply pull the clips back, and
pull up on the module.

Place the DIMMs in an anti-static bag as soon as you remove them to avoid static
damage.

INSTALL

Figure 2-4

http://www.tyan.com

20

Chapter 2

Board Installation

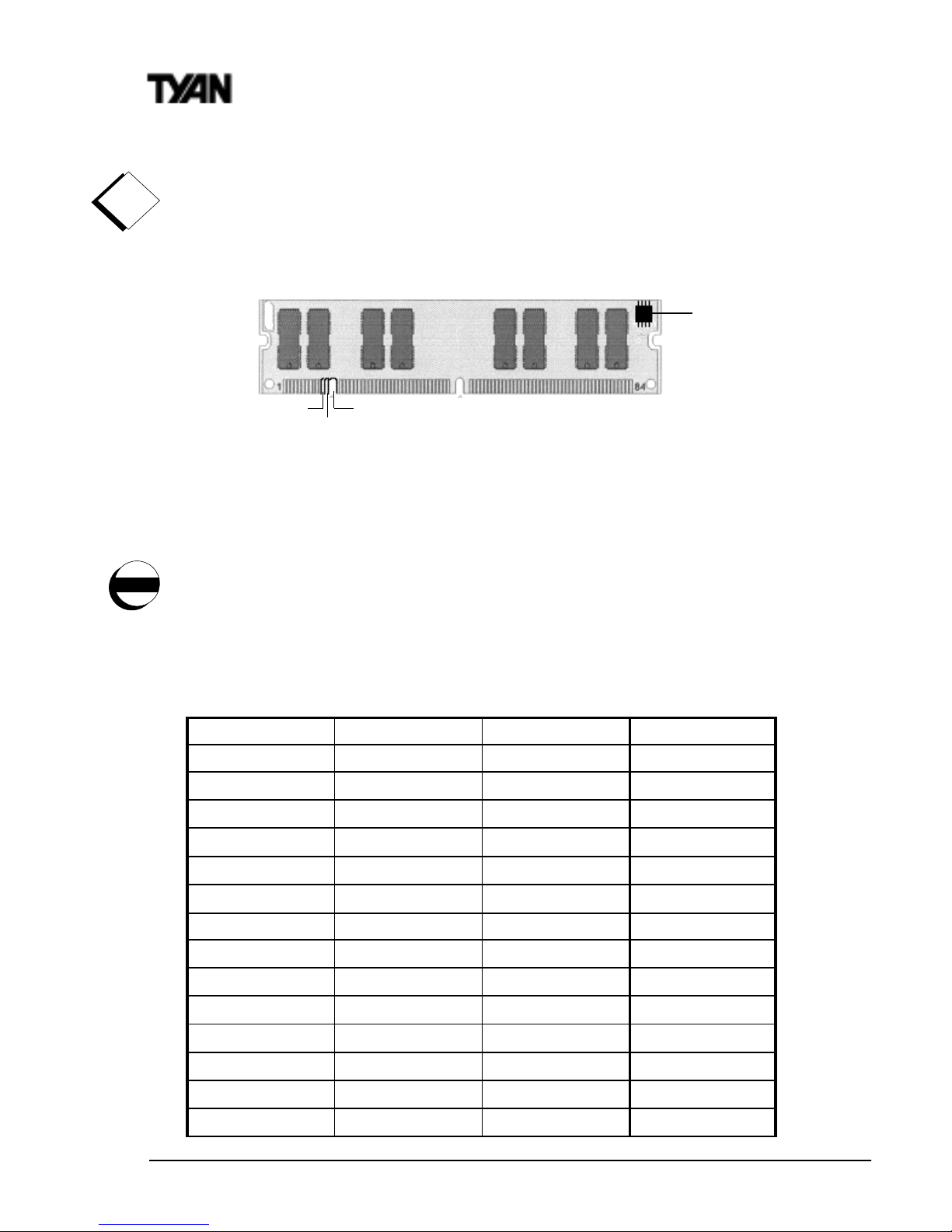

The Tomcat i815e uses a 64-bit data path from memory to CPU and can accommodate
up to 512MB of SDRAM. The 168-pin DIMMs (Dual In-line Memory Modules)
must be of the 3.3V, unbuffered variety. The position of the notch in the SDRAM
key position will tell you whether or not a DIMM is unbuffered (see the Figure 2-5
below). All installed memory will be automatically detected, so there is no need to set
any jumpers.

Some details of memory installation:

• The mainboard supports 32MB, 64MB, 128MB, and 256MB unbuffered DIMMs.

• There is a limit of two double-sided PC-133 DIMMS that can be installed.

• No ECC type memory can be used.

• Warning! DO NOT use registered DIMMs. (Check with your memory dealer
for more information). See www.tyan.com for the latest memory compatibility
information.

The table below shows some of the possible memory configurations. Not all
possible configurations are listed.

1knaBMMID2knaBMMID3knaBMMIDlatoT

1xBM231xBM230BM46

0

1xBM231xBM23

46

BM

1xBM461xBM23

0BM69

1xBM23

BM23

1x

1xBM23

69

BM

46

1xBM

1xBM46

0

1

82

BM

046

1xBM

1xBM46

1

82

BM

1xBM461xBM821BM291

0

1xBM8211xBM46

BM291

1xBM8211xBM821

0

BM652

0

1xBM8211xBM821BM652

1xBM8211xBM652

0BM483

0

1xBM6521xBM821

BM483

1xBM6521xBM652

0

BM215

0

1xBM6521xBM652BM215

warning

168-pin DIMM

RFU

Buffered

Unbuffered

Figure 2-5

EEPROM

!

important!

S2060 Tomcat i815e

21

INSTALL

4. Installing the CPU and Cooling Fan

Socket 370 type Pentium III / Celeron processors can be used on the Tomcat i815e.
Remember:

• The CPU is a

sensitive electronic
component and it can
easily be damaged by
static electricity. Do
not touch the CPU
pins with your
fingers.

• Before the CPU is

installed, the
mainboard must be
placed on a flat
surface. You should
be able to insert the
CPU into the socket
with minimal, but firm
pressure. Do not
press down hard on
the CPU.

Pin 1 on the CPU is denoted by a small dot on one of the corners and Pin 1 on the ZIF
socket is denoted by an angled corner (see Figure 2-6). Never force a CPU into a
socket. Forcing a CPU to seat will bend the pins on the CPU and possibly damage the

motherboard.

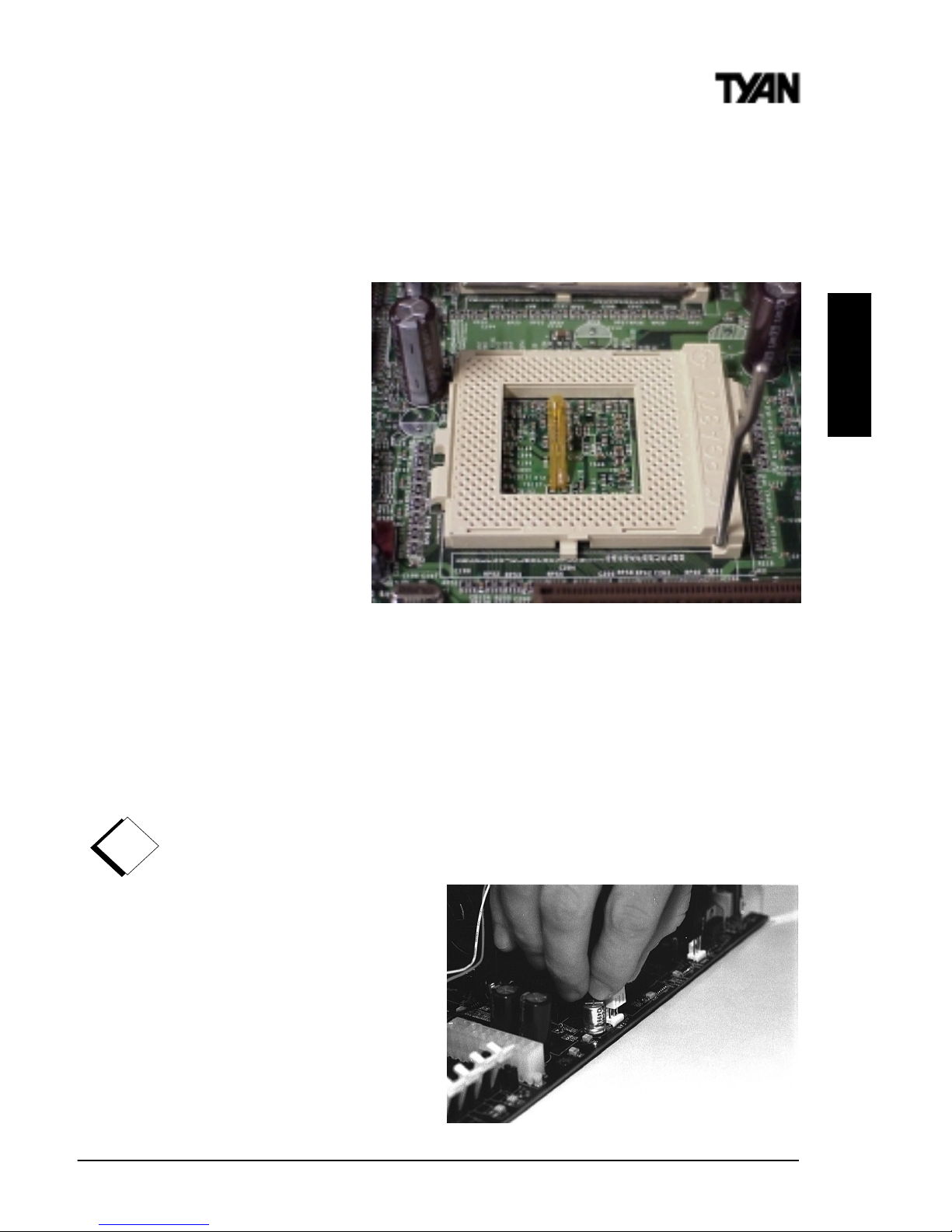

Push down lightly on the CPU, and lower the arm on the ZIF socket to secure the

CPU. A squeaking noise is normal as the arm lowers. After the CPU is securely seated,
you must install an appropriate cooling device (otherwise damage will occur to your
CPU). Tyan strongly recomends a heatsink / fan combination. Consult with your case
manufacturer for other cooling
options.

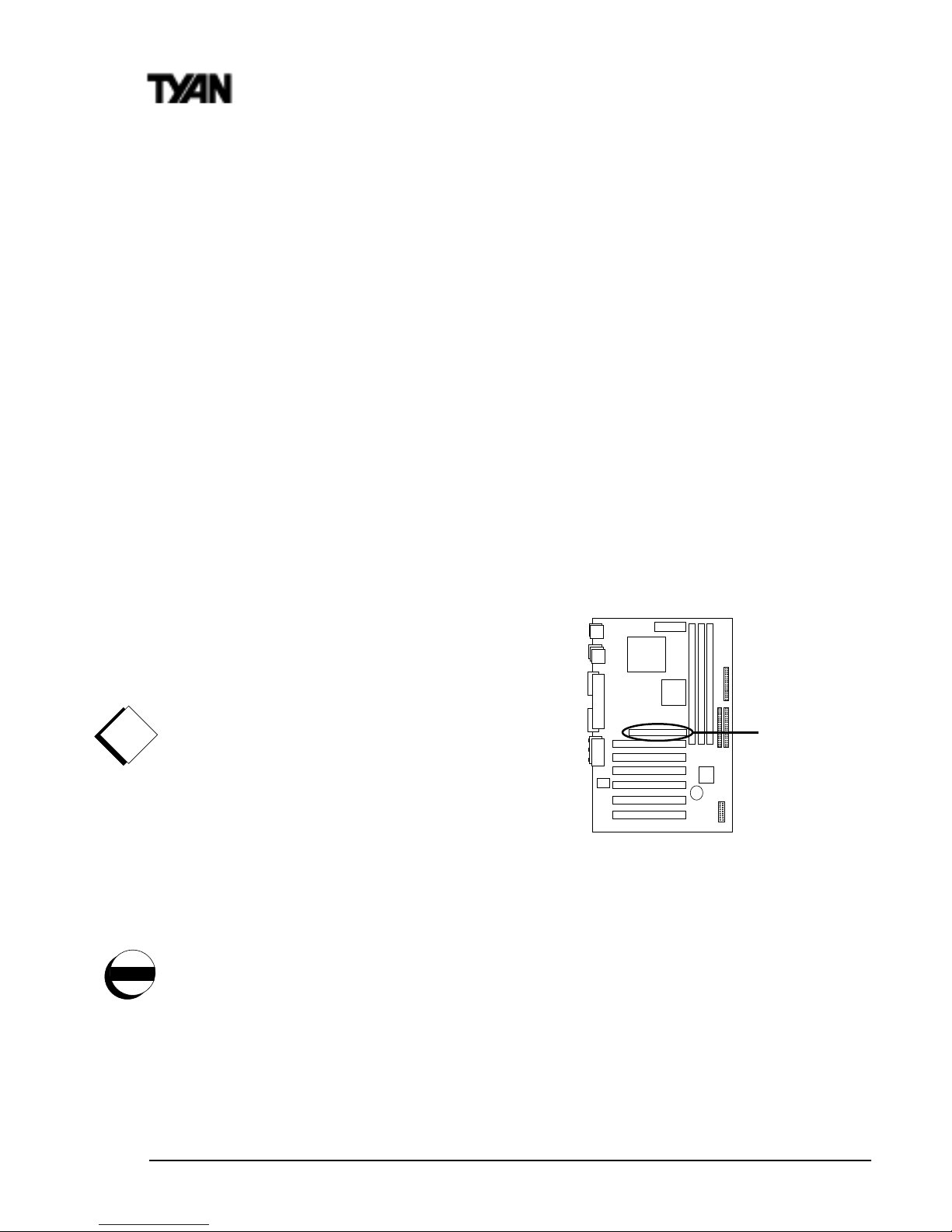

Locate the cooling fan connector (e.g.
FAN1) on the motherboard. Plug the
CPU’s cooling fan cable into the
cooling fan connector on the board.
There will be a plastic clip assembly
similar to that of the ATX power
connector that will force you to
connect the fan cable correctly (see

Figure 2-7 to the right).

Figure 2-6*

Figure 2-7

!

important!

* Image not representative of actual Tomcat i815e socket. It is provided as an example only.

http://www.tyan.com

22

5. Connecting IDE and Floppy Drives

The colored stripe on a ribbon cable should face toward the ATX Power Connector on

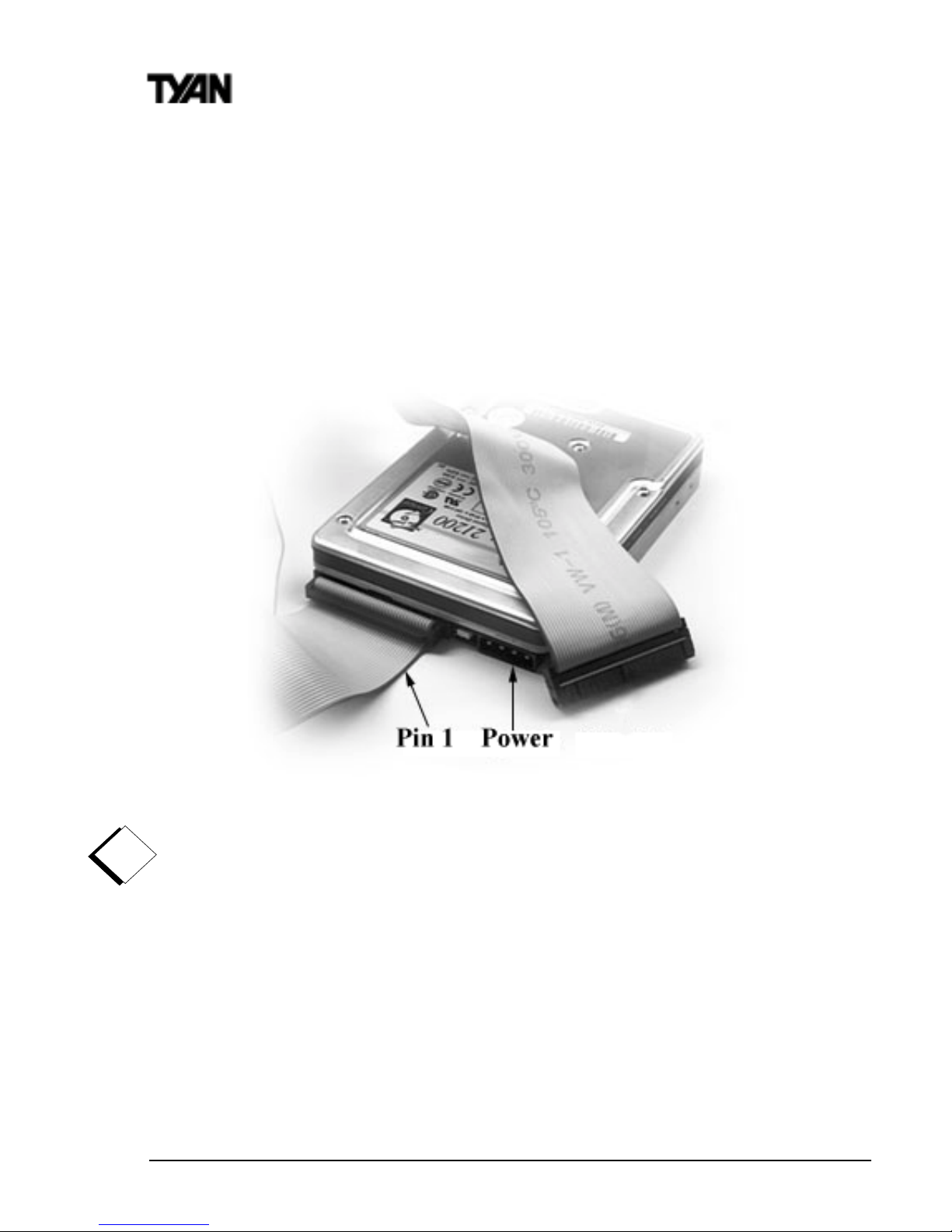

the motherboard. In Figure 2-8 (below), you can see how the IDE cables should look
when they are connected to your hard drive. Notice how Pin 1 (denoted by a colored
stripe) is connected so that it is next to the power connector of the drive. The primary
IDE connector is black; the secondary IDE connector is white. In most cases, this is
the proper way of connecting your IDE cable to the hard drive. Figure 2-9 on the next
page shows the IDE cable properly connected to the motherboard. Contact your hard
disk drive manufacturer or documentation for more information.

AT A-66/100 IDE hard drives require a special 80 pin IDE cable which has additional
grounding wires. The cable is included in the motherboard package, and is required
when using AT A-66/100 drives. This cable will also support all legacy IDE drives.

(Note: The BLUE end of the ATA-66 cable must connect to the motherboard.)

Some symptoms of incorrectly installed HDDs are:

• Hard disk drives are not auto-detected: may be a Master / Slave problem or a bad
IDE cable. Contact your vendor.

• Hard Disk Drive Fail message at bootup: may be a bad cable or lack of power
going to the drive.

• No video or beeps on bootup: usually means the cable is on backwards.

• Hard drive lights are constantly on: usually means bad IDE cable or defective
drives / motherboard. Try another HDD.

• Hard drives do not power up: check power cables and cabling. May also be a bad
power supply or IDE drive.

Chapter 2

Board Installation

Figure 2-8

!

important!

S2060 Tomcat i815e

23

Note: Only Tyan-approved cables will work on this motherboard. If you are
using an existing case with old cables, your system may not function properly.
Use only Tyan-approved cables.

Connecting Floppy Drives

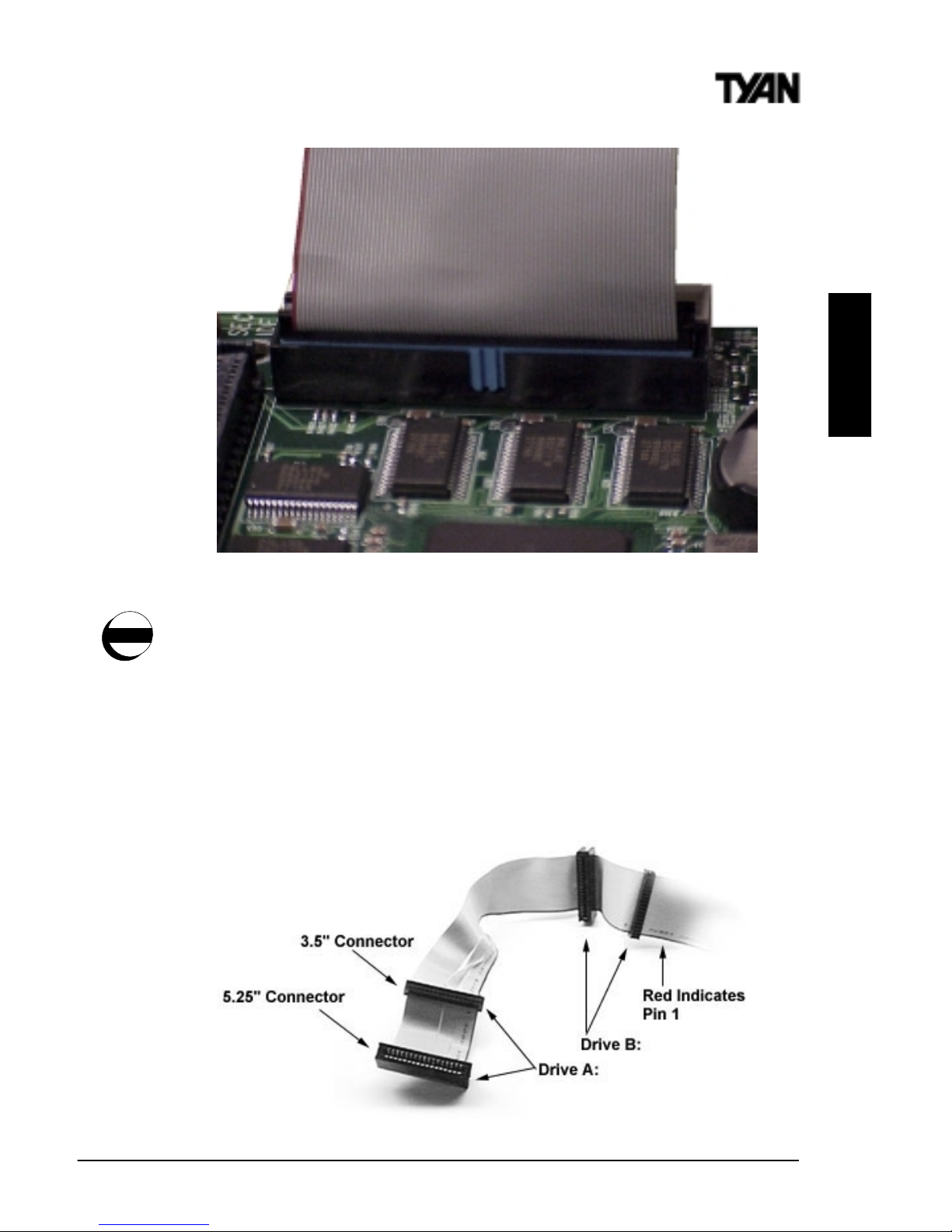

Pin 1 on the floppy cable is usually denoted by a red or colored stripe down one side
of the cable (see Figure 2-10 below). Most of the current floppy drives on the market
require that the colored stripe be positioned so that it is right next to the power
connector. In most cases, there will be a key pin on the cable which will force you to
connect the cable properly.

INSTALL

Figure 2-9

*Note: The images above is used to illustrate a concept and may not represent

the actual image of your motherboard.

Figure 2-10

11

11

1

warning

http://www.tyan.com

24

Drive A: is always attached to the end of the cable with the twist in it. Drive B: is
always connected to the middle of the cable. Refer to your installation instructions or
call your dealer if you are unsure about attaching floppy drives. Refer to Figure 2-10
for a detailed anatomy of the floppy cable.

Remember, you can only have 2 floppy drives connected at any given time.
Some symptoms of incorrectly installed floppy drives are:

• Floppy drives are not detected: usually caused by faulty cables, backward
cables, or a bad floppy or motherboard. Try another single floppy drive to
verify the problem or try another cable. Also, check to see if the onboard floppy
is enabled in the BIOS.

• Floppy Drive Fail message at bootup: the cable, floppy, or motherboard
may be faulty. Try another cable or floppy drive to verify.

• Light on the floppy is on constantly: normally signifies that the cable is on
backwards. Reverse the cable at the motherboard end and try again.

6. Installing Add-on Cards

There are a few rules you need to follow when plugging in a card. In order to assure
proper operation and a quick installation, adhere to these guidelines:

• Installing an AGP card will automatically
disable the onboard VGA.

• If you are going to install a soundcard, the
onboard sound must be manually disabled through
the BIOS first.

• NEVER force a card into a slot. If it doesn’t fit,
look at the socket on thecomputer to make sure
there are no wires or other obstructions to the slot.

• When plugging the card in, especially when
installing long cards, try to push the entire card in
at one time. Don’t force one end of the card into
the socket first and then the other. This will
create a rocking motion between the card and the slot and it will damage the pins
within the socket.

• Make sure that the cards are seated securely into the slots.

• Before turning on the system, make sure no cards are touching each other .

• NOTE: This mother board operates on a 3.3V standby for PCI v2.2.

Because of this, you need to UNPLUG the AC power cord before
installing your card. Otherwise, the motherboard may automatically
power up when the card is inserted into the slot.

Chapter 2

Board Installation

!

important!

warning

AGP

slot

S2060 Tomcat i815e

25

If you follow these basic guidelines, there shouldn’t be any problems with installation.
However, if you do encounter any problems, have a qualified professional install your
cards for you or contact your card manufacturer.

Remember, always read the manuals and installation notes that come with the adapter
cards. They contain important information which will help you install the components
right, the first time.

7. Connecting PS/2, USB, Ethernet*, Serial and

Parallel Devices

This board includes ports for USB, Ethernet*, PS/2 mouse, and PS/2 keyboard devices.
Note that, for this board, the mouse port is the upper PS/2 port, and the keyboard port
is the lower PS/2 port.

The PS/2 connectors are probably quite familiar to you, while the Universal Serial Bus
(USB) connectors, may not be. The USB port can function as a serial, parallel, mouse,
keyboard, or joystick port. It is fast enough to support video transfers, and is capable
of supporting up to 127 daisy-chained peripheral devices. Figure 2-11 (below) shows

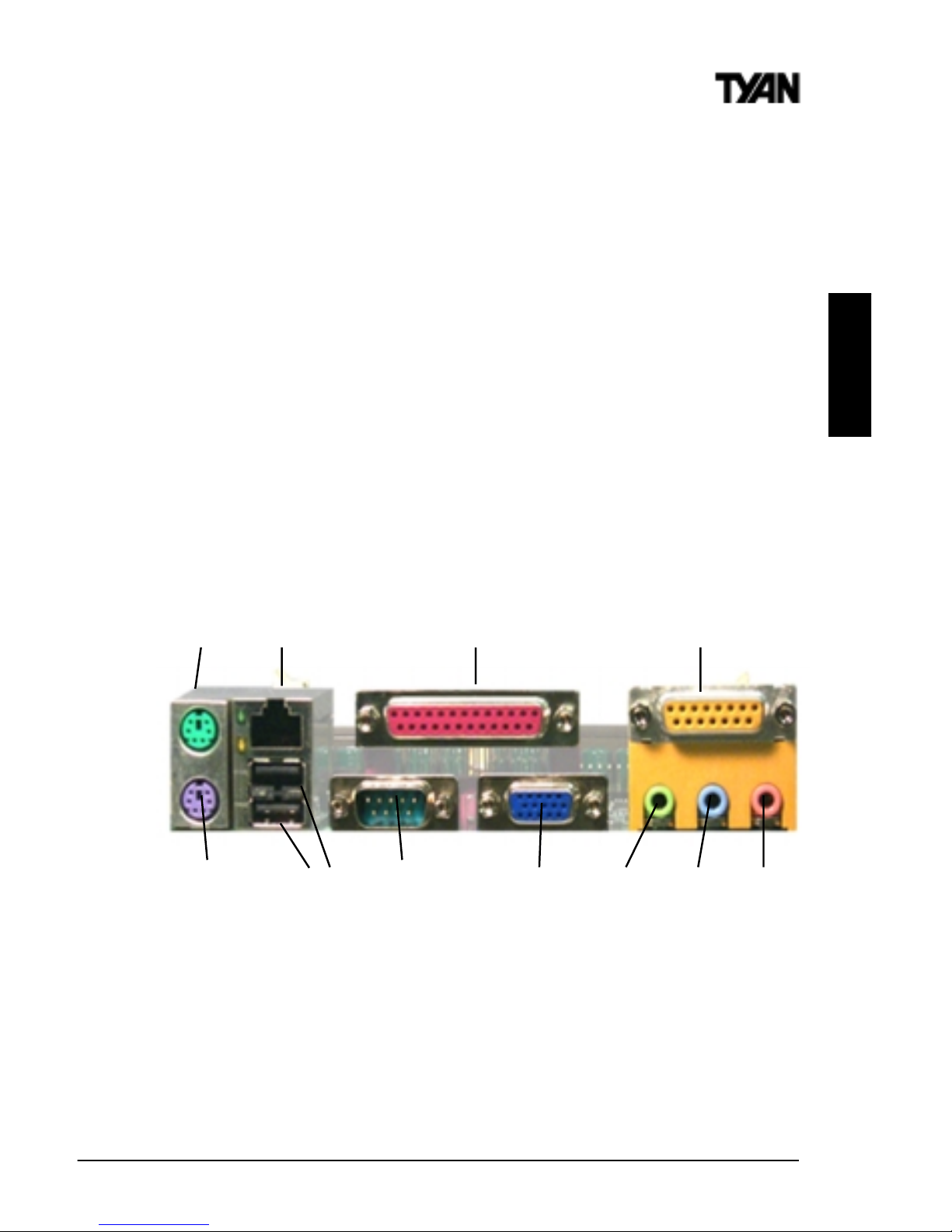

the ATX double row connectors on this board. The Ethernet*, Serial, and Parallel
ports, as well as the other ports, are labeled.

Connecting Serial and Printer Ports
Warning: When plugging in your keyboard and mouse, or when plugging anything into

a serial or parallel port, make sure that the power is off. Connecting these devices and
ports while the power is on is called “hot plugging,” and may damage your system.

INSTALL

Figure 2-11

PS/2 mouse Ethernet* LPT MIDI* / Game Port*

PS/2 keybrd USB O/1 COM1 Video-out Line-out* Line-in* Mic-in*

* Indicates an optional feature available on some models of T omcat i815e.

http://www.tyan.com

26

8. Connecting the Power Supply

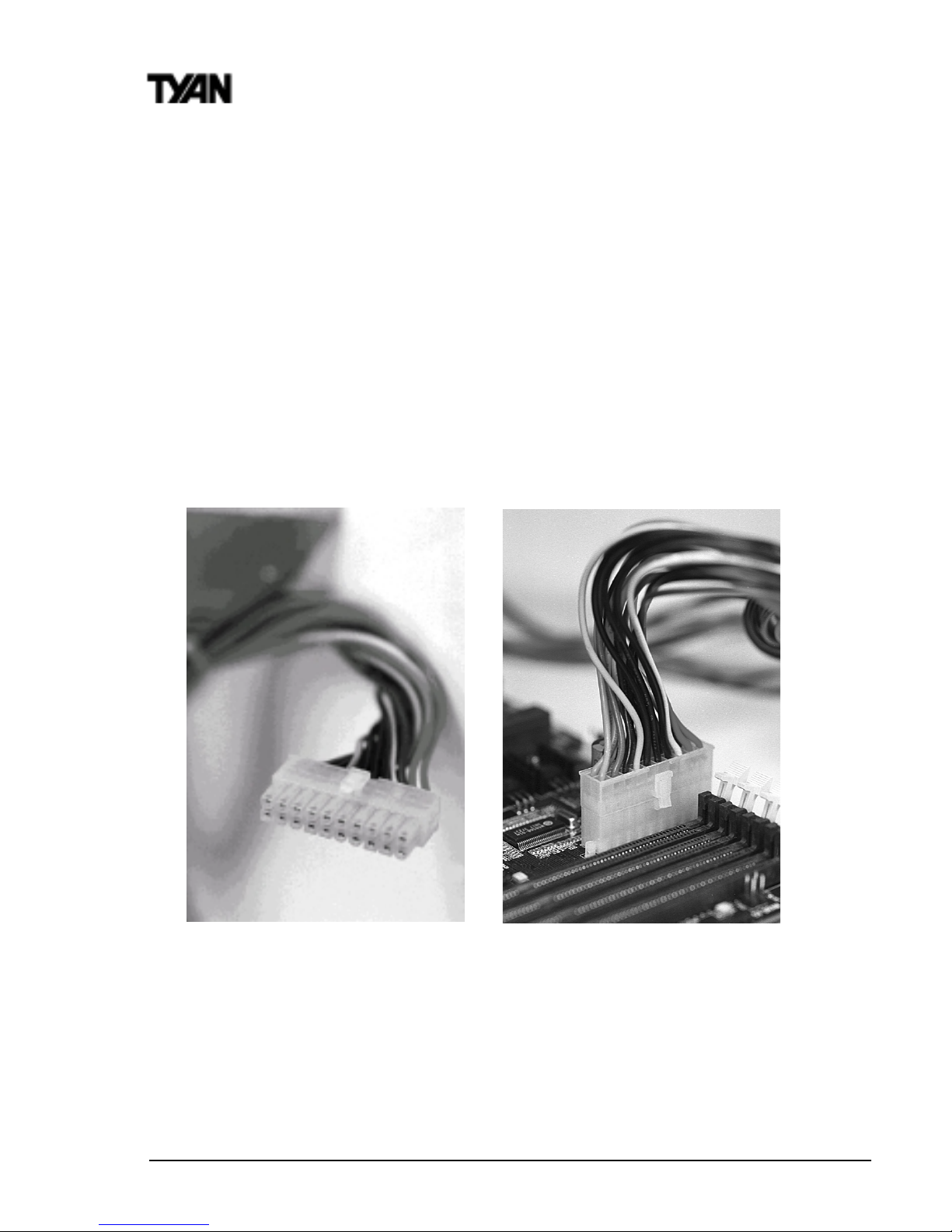

The Tomcat i815e requires an ATX power supply. Tyan recommends using one that
conforms to industry standard revision 2.01. The photos below show the ATX power
connector before (Figure 2-12) and after (Figure 2-13) it has been plugged in. The
plastic clip on the power connector should lock over the plastic tab on the onboard
connector. You shouldn’t be able to plug the power connector in any other way but
just to be safe, make sure it looks like Figure 2-13 below.

Make certain that you do not miss connecting any pins because if you do, you will
void your warranty and cause damage to yourself or your motherboard when you turn
the system on. After connecting the power, make sure the connector is seated firmly
into its socket so it will not become loose or fall off when the computer is jostled or
moved. NOTE: When installing your power supply, make sure the power supply

switch is turned ‘OFF’. You may turn the switch back ‘ON’ once you’ve finished
building your system.

Ethernet Setup and Use*

Cetain models of the Tomcat i815e motherboards have the optional Intel 82562ET 10/
100 Ethernet controller onboard. For more information, data sheets, white papers, or
demos, visit the Intel Network Products web site at: http://www.intel.com/network

Chapter 2

Board Installation

Figure 2-13

Figure 2-12

* Indicates an optional feature available on some models of Tomcat i815e.

S2060 Tomcat i815e

27

Configuration and Drivers

The Ethernet driver cannot be installed directly from the TYAN Driver CD. Before
installing the Intel 82562 Ethernet drivers, the complete LAN 82562 directory and all
it’s contents must first be copied from the TYAN Driver CD onto your hard drive. The
82562 driver can then be installed from your hard drive.

Connecting the Network Cable

Connect a single network cable to the Ethernet adapter (see Figure 2-14). The cable
will only fit one way. For 100BASE-TX, your network cable must be category 5,
twisted-pair wiring. If you plan on running the adapter at 100 Mbps, it must be
connected to a 100BASE-TX hub (not a 100BASE-T4 hub). For 10BASE-T, use
category 3, 4, or 5 twisted-pair wiring.

100BASE-T Wiring: Twisted Pair Ethernet (TPE)

Use category 5 cable and an RJ-45 connector for this adapter. Do not use category 3
wiring at 100 Mbps. At 100 Mbps, connect to a TX hub, not a T4 hub. NOTE: To

configure the adapter for your operating system, please refer to your operating
system’s documentation.

Troubleshooting

If the adapter can’t connect to the network:

· Make sure the cable is installed properly. The network cable must be securely

attached at both RJ-45 connections (adapter and hub). If the cable is attached but
the problem persists, try a different cable. The maximum allowable distance from
adapter to hub is 100 meters. If you’re directly connecting two computers (no
hub), use a crossover cable. Most hubs require a straight-through cable, while
most switches require a crossover cable (see your hub or switch documentation to
verify).

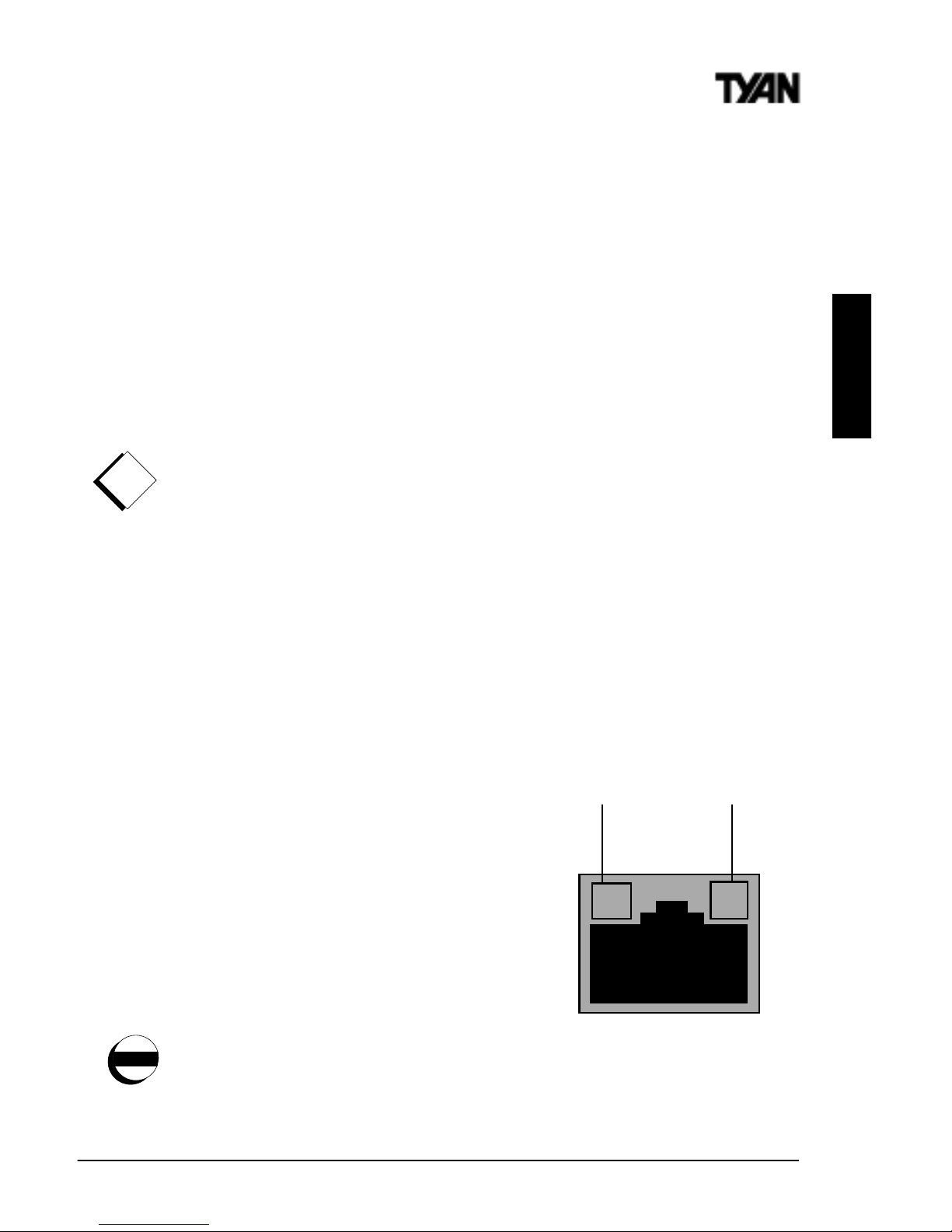

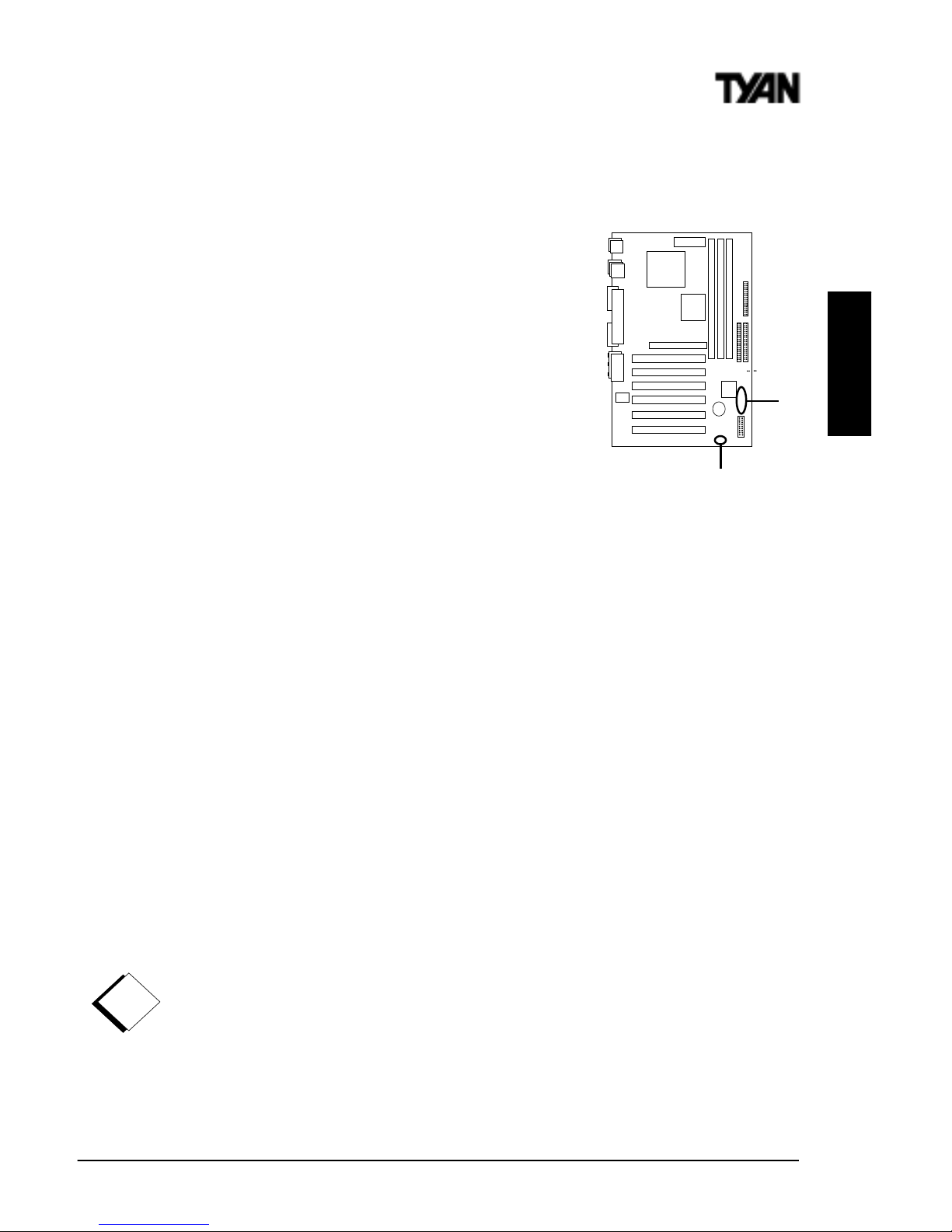

· Check the LED lights on the adapter. The

onboard cable connector has
two diagnostic LEDs. These lights help
indicate if there’s a problem with the
connector, cable, or hub. The table below
describes the LEDs, and the drawing on the
previous page shows their location (see
Figure 2-14).

· Make sure you’re using the correct drivers.

Make sure you’re using the drivers that
come with this adapter.

· Make sure the hub port and the adapter have the same duplex setting. If you

configured the adapter for full duplex, make sure the hub port is also configured
for full duplex. Setting the wrong duplex mode can degrade performance, cause

data loss, or result in lost connections.

INSTALL

!

important!

Figure 2-14

100 Mbps LED

Link LED

Y

G

warning

http://www.tyan.com

28

Testing the adapter

Test the adapter by running Intel diagnostics. For Windows 95/98/2000 and Windows
NT run Intel PROSet by double-clicking the Intel PROSet Icon in the Control Panel.
Click Help from the main PROSet window to get complete diagnostics information and
instructions.

Ethernet Technical Information

Fast Ethernet Wiring

100BASE-TX Specification: The 100BASE-TX specification supports 100Mbps
transmission over two pairs of category 5 twisted-pair Ethernet (TPE) wiring. One pair
is for transmit operations and the other for receive operations. Segment lengths are
limited to 100 meters with 100BASE-TX for signal timing reasons. This complies with
the EIA-568 wiring standard.

Fast Ethernet Hub and Switches

The two basic types of hubs are shared hubs and switching hubs. Intel PRO/100+
adapters can be used with either type of hub for 10Mbps. At 100Mbps, a TX hub or
switch is required.

Shared hubs

In a shared network environment, computers are connected to hubs called repeaters. All
ports of the repeater hub share a fixed amount of bandwidth, or data capacity. On a
100Mbps shared hub, all nodes on the hub must share the 100Mbps of bandwidth. As
stations are added to the hub, the effective band-width available to any individual
station gets smaller. Shared hubs do not support full duplex. Think of a shared repeater
hub as a single-lane highway that everyone shares. As the number of vehicles on the
highway increases, the traffic becomes congested and transit time increases for
individual cars.

Chapter 2

Board Installation

DEL

noitacidnInoitcnuF

KNL

nO

;noitcennocadegdelwonkcaevahbuhdnaretpadaehT

.doogsiretpadadnabuhehtneewtebknileht

)neerg(

ffO

,ytluafsiretpadadnabuhehtneewtebnoitcennocelbacehT

.melborpnoitarugifnocrevirdaevahuoyro

001

nO.spbM001tagnitareponoitcennockrowteN

)wolley(

ffO.spbM01tagnitareponoitcennockrowteN

S2060 Tomcat i815e

29

INSTALL

On a shared hub all nodes must operate at the same speed, either 10Mbps or
100Mbps. Fast Ethernet repeaters provide 100Mbps of available bandwidth, ten times
more than what’s available with a 10BASE-T repeater.
Repeaters use a well-established, uncomplicated design, making them highly cost
effective for connecting PCs within a workgroup. These are the most common type of
Ethernet hubs in the installed base.

Switching hubs

In a switched network environment, each port gets a fixed, dedicated amount of
bandwidth. In the highway scenario, each car has its own lane on a multi-lane highway
and there is no sharing. In a switched environment, data is sent only to the port that
leads to the proper destination station. Network bandwidth is not shared among all
stations, and each new station added to the hub gets access to the full bandwidth of the
network.

If a new user is added to a 100Mbps switching hub, the new station receives its own
dedicated 100Mbps link and doesn’t impact the 100Mbps bandwidth of another
station. Switching hubs can effectively increase the overall bandwidth available on the
network, significantly improving performance. Switching hubs can also support full
duplex.

For more information on Fast Ethernet, visit the Intel Network Products website:

http://www.intel.com/network

You are done!

Other than checking the jumper settings and cable connections, and putting the case
back on, you are done. Installing a new motherboard may sound difficult, but by
following these directions, you should have a fairly uneventful time installing our
products. If you do encounter problems, your dealer will be able to help you, or you
can consult one of our many technical support resources (see page 8).

http://www.tyan.com

30

Chapter 2

Board Installation

Frequently Asked Questions

Q: My system sometimes becomes unstable. How should I check the system?
A: The first thing to do is to check and see if you have any device conflicts in IRQ, or

DMA. If you are using Windows 98/2000, the Control Panel is a good place to start.
Please consult your operating system manual for details. Second of all, slowing down
the memory timing in the BIOS’s chipset setup section will help the situation, as well.
Many memory modules are not suitable for high performance systems and are
probably the main source of your problem.

Q: How do I find out what memory will work with my motherboard?
A: Memory compatibility information can be found on Tyan’s web site at:
http://www.tyan.com

Q: Where can I get USB and flat serial cables for my motherboard?
A: You can purchase USB and serial cables from www.etyan.com. USB cables are also
available at www.wiretekusa.com (Tyan USB Cable Part #S1606-001-01)

Q: What is the USB pin out information for Tyan motherboards?
A: Please refer to URL link here: http://www.tyan.com/techref/html/io_usb.html

Q: My motherboard is dead, how do I return it?
A: Contact the place of purchase or your distributor for assistance to return the
motherboard for service. RMA issues will not be handled via email by Tyan Tech
Support. Please refer to URL link here for more details:
http://www .tyan.com/support/html/rma_faq.html

Q: How do I upgrade my BIOS?
A: BIOS update files and instructions on how to install them are available from the
T yan web site at: http://www.tyan.com

Q: Is my motherboard Y2K compliant?
A: Please refer to URL link here: http://www.tyan.com/support/html/year2000.html

Q: Why do I get a "CMOS checksum invalid" error message during POST?
A: If you get the above error message or "Invalid configuration, run Setup" message,

the it is an indication that the CMOS battery may need to be changed, or simply reset
the CMOS and see if that solves the problem. If all else fails, contact your dealer for
assistance.

S2060 Tomcat i815e

31

INSTALL

This page left blank intentionally.

http://www.tyan.com

32

Chapter 3

BIOS Configuration

chapter 3

BIOS Configuration

Introduction to Setup

The BIOS is the basic input output system is required by the computer to perform
functions such as CPU and hard drive support. This chapter decribes different settings
for AMIBIOS that can be use to configure your system.

The BIOS section of the manual is subject to change without notice and is
provided here for reference purposes only. The settings and configurations of
the BIOS are current at the time of print, and therefore they may not be exactly
the same as that displayed on your screen.

You can select a Setup option by using the following keyboard keys:

The pages which follow contain explanations of the settings for the AMIBIOS Setup
menus. Drawings have been included for ease of reference. Overall, the AMIBIOS
Setup program is easy to use, and fairly intuitive. Note that the graphics in the manual
are simpler than those that appear on your screen.

Key Function
Tab

Moves from one selection to the next

Left/Right Arrow Keys

Changes from one menu to the next

Up/Down Arrow Keys

Move between selection s

Ente r

Opens highlighted selection

PgUp/PgDn

Change setting

!

important!

S2060 Tomcat i815e

33

BIOS

Main Setup

Select the AMIBIOS Setup options by choosing Main Setup from the AMIBIOS
Setup main menu. The other sub screens (e.g. Main, Advanced, Chipset, PCIPnP,
Power, Boot, Security, and Exit) are accessible by using the ← → keys.

System Date/Time

You can type the date and time in directly, or select the portion of the date or time that
you want to modify and adjust it using the ↑ ↓ cursor keys. The clock runs on a 24­hour cycle (i.e. 1:00 PM is 13:00).

General Help

At any time, you can press F1 to bring up a General Help screen in case you want to
learn the shortcut commands. There are two settings you should be aware of.

Advanced Menu

In the Advanced setup (shown below) you can setup your system devices, boot
options, and more. Each option has a configuration sub screen (denoted by the
symbol).

Setup Warning
Setting items on this screen to incorrect values
may cause the system to malfunction!

SuperIO Configuration
IDE Configuration
Floppy Configuration
Boot Settings Configuration
Event Log Configuration

Select Screen

↑ ↓ Select Item
Enter Go to Su b Screen
F1 General Help
F10 Save and Exit
ESC Exit

Main Advanced Chipset PCIPnP Power Boot Security Exit

BIOS SETUP UTILITY

v02.01 (C) Copyright 1985-2000, American Megatrends Inc.

← →

Configure SuperIO
Chipset Nat366

Load Failsafe Defaults

If your system is experiencing configuration problems,
you can choose thi s option to reset all settings.

Load Optimal Defaults

This will load preset options that are designed for
maximum system performa nce, but may not work for all
computer applications. You should not use this opti on if
your is experie ncing configu ration probl e ms.

http://www.tyan.com

34

Chapter 3

BIOS Configuration

Configure Nat366 Serial Port(s) and Parallel Port (Super I / O)

In this sub screen you can configure the different hardware ports available, and change
the status of the floppy controller.

IDE Configuration

On bootup, the BIOS will auto-detect the existence of IDE devices such as hard drives
and CD-ROMs. You also can check the status of those IDE devices and change other
IDE-related options. There are also configuration sub screens for each IDE device
(denoted by the symbol).

Onboard Floppy
Controller

This device handles communication betw een
the floppy drive and the motherboard. [Default
is

Enab le d

]

Serial Port Address

The addresses of Serial Ports 1 and 2 can be
changed if a hardw are conflict occurs.
[Default is

Disable d

]

Serial Port 2 Mode

Default is

Normal

Parallel Port Address

Th e ad dress and IRQ of the P a ral lel Port can
be changed if a hardware conflict occurs.
Th e Paral l e l P ort Mode relates to your printer’s
mode of communication (check your printer
documentation for details). [Default is

Disable d

]

Parallel Port IRQ

Default is

7

Parallel Port Mode

Default is

Normal

Onboard MIDI Port*

Th e ad dress and IRQ of the Onboard MI DI P ort
can be changed if a hardw are conflict
occurs. [Default is

330

]

Onboard Game P ort*

The address of the game port can be changed
i f a hardware conflict occurs. [Default is

Enab le d

]

Onboard PCI IDE Controller

The PCI IDE Controll er is essential for communication
betw een the IDE devices and the motherboard.
[Default is

Both

]

Hard Disk Protect

This option disables or enables write protection to the
IDE devices. This option is only effective if the
devices are being accessed through the BIOS.
[Default is

Disable d

]

ATA(PI) Detect Time Out

The BIOS w ill spend a preset amount of time to detect
any IDE devices before it continues to the next stage
of bootup. The amount of time can be changed using
this option. [Default is 0]

ATA(PI) 80Pin Cable Detection

Selects the process that the BIO S w ill use to detect
80Pin ATA(PI) cables. [Default is

Host & Device

]

S2060 Tomcat i815e

35

BIOS

When you enter one of the IDE configuration sub screens (by highlighting one of the
options preceded by a symbol, and pressing <ENTER>, example shown below),
you will be presented with a status on the IDE device, and a set of configuration
options for the IDE device (shown on the next page).

IDE Configuration

Select Screen

↑ ↓ Select Item
Enter Go to Su b S cr ee n
F1 General Help
F10 Save and Exit
ESC Exit

Main Advanced Chipset PCIPnP Power Boot Security Exit

BIOS SETUP UTILITY

v02.01 (C) Copyright 1985-2000, American Megatrends Inc.

← →

DISABLED: disables the
integrated IDE
Controller.
PRIMARY: enables only
the Primary IDE
Controller.
SECONDARY: enables only
the Secondary IDE
Controller.
BOTH: enables both IDE
Controllers

Onboard PCI IDE Controller [Enabled]

Primary IDE Master : [Hard Disk]
Primary IDE Slave : [Not Detected]
Secondary IDE Master : [Not Detected]
Secondary IDE Slave : [Not Detected]

Hard Disk Protect [Disabled]
ATA(PI) Detect Time Out [35]
ATA(PI) 80Pin Cable Detection [Host & Device]

Primary IDE Master

Select Screen

↑ ↓ Select Item
F1 General Help
F10 Save and Exit
ESC Exit

Main Advanced Chipset PCIPnP Power Boot Security Exit

BIOS SETUP UTILITY

v02.01 (C) Copyright 1985-2000, American Megatrends Inc.

← →

DISABLED: disables the
integrated IDE
Controller.
PRIMARY: enables only
the Primary IDE
Controller.
SECONDARY: enables only
the Secondary IDE
Controller.
BOTH: enables both IDE
Controllers

Device : Hard Disk
Vendor : IBM-DTLA-307075
Size : 65.5 GB
LBA Mode : Supported
Block Mode : 16 Sectors
PIO Mode : 4
Async DMA : MultiWord DMA-2
Ultra DMA : Ultra DMA-2
S.M.A.R.T. : Supported

Type [Auto]
LBA / Large Mode [Auto]
Block (Multi-Sector Transfer) [Auto]
PIO Mode [Auto]
DMA Mode [Auto]
S.M.A.R.T. [Auto]
32Bit Data Transfer [Disabled]
ARMD Emulation Type [Auto]

* Indicates an optional feature not available on all Tomcat i815e models.

http://www.tyan.com

36

Chapter 3

BIOS Configuration

Floppy Configuration

In this configuration sub screen you can change options for your floppy drive(s).

Type

The type of IDE device installed can be configured using this
option. [Default is

Auto

]

LBA/Large Mode

These modes make it possible for the BIOS to take
advantage of the ad ditional space on drives w hi ch are larger
than 504MB. This can be auto-detected (w hen you select
Auto for Type), or you can manually set this mode to
Disabled. [Default is

Auto

]

Block (Multi-Sector Transfer)

When set to Auto, the B lock mode auto-detects the op timal
number of block read / writes per sector that the drive
supports. D efault is

Auto

]

PIO Mode

Programming Input / Output is a method of transmitting data
between devices that uses the system’s CPU as part of the
data path. There are 6 modes: 5 with their own transmission
speed and 1 auto mode. To use modes 3 and 4, you must
use an Enhanced IDE drive. [Default is

Auto

]

DMA M ode

This option specifies the Direct Memory Access mode for the
IDE device. If set to Auto, the BIOS will determine the DMA
Mode. [Default is

Auto

]

S.M.A.R.T. (S elf-Monitoring
Analysis and Reporting
Technology)

This option allows the S.M.A.R.T. protocol to report server
system information over a network. [Default is

Auto

]

32Bit Data Transfer

If set to On, this options allow s for the transmission of 32­bits in parallel (e.g. at the same time). If set to Off, only 16­bits will be transmitted in parallel. [Default is

Disable d

]

ARMD Emulation Type

Specifies the type of emulation used for a non-disk device
attached as the primary master IDE device. If set to Auto, the
BIOS will determine the emulation type. [Default is

Auto

]

Floppy A

The settings are 360KB 5¼ inch, 1.2 MB 5¼ inch,
720KB 3½ inch, 1.44MB 3½ inch, or 2.88MB 3½ inch. If
you are not sure what type of floppy drive you have,
consult the documentation that came with your drive.

Floppy B

The options are the same as listed for Floppy A.

Diskette Write Protect

Sets whether or not the drive can be written to. [Default
is

Disabled

]

Floppy Driv e Seek

Sets whether or not the BIOS should check for the
drive at bootup. [Default is

Disabled

]

S2060 Tomcat i815e

37

BIOS

Boot Settings Configuration

The Boot Settings Configuration sub screen several options are available to change how
the system boots up.

Quick B oot

When Enabled, the BIOS will save time during bootup by
skipping certain items. [Default is

Disabled

]

Quiet Boot

When Disabled, the normal POST messages are displayed.
[Default is

Disabled

]

AddOn ROM Display
Mode

Specifies the system display mode that is set at the time that
AMIBIOS POST initializes an optional ROM. If set to Fo rce BIOS,
the current mode used by AMIBIOS is used. If set to Keep
Current, the current display mode is used. [Default is

Force

BIOS

]

Bootup Num-Lock

Sets whether or not the Num Lock key should be turned on at
bootup. [Default is On]

Bootup CP U Speed

Sets the in itial CPU speed to high or low at bootup. [Default is

High

]

PS / 2 Mouse Support

Sets whether or not the PS / 2 ports should support a mouse
device. If set to Enabled, IRQ12 w ill be reserved for the mouse
device . [Default is

Enable d

]

Typematic Rate

Sets how fast the ke yboard will accept i n pu t. [Default is

Fast

]

System Keyboard

Sets whether or not the keyboard exists. [Default is

Present

]

Primary Display

Sets the type of monitor that is being used. [Default is

VGA /

EGA

]

Parity Check

Sets whether or not the memory w ill be checked for parity.
[Default is

Disabled

]

Boot to OS / 2

Set this option to Yes is you are using OS / 2 and using more
than 64MB of system memory. [Default is No]

Wait for ‘F1’ if error

If an error occurs during bootup, the BIOS will ask the user to
press ‘F 1 ’ to en ter the BIOS S etu p Util ity to repair the problem.
[Default is

Enable d

]

Hit ‘DEL’ Message Display

If Enabled, the BIOS will display an option to enter the BIOS
Setup Utility at bootup. [Default is

Enable d

]

Internal Cache

Sets the type of caching algorithm that w ill be used for the L1
internal cache memory. [Default is

Write-Back

]

Exte rnal Cache

Sets the type of caching algorithm that w ill be used for the L2
external cache memory. [Default is

Disabled

]

http://www.tyan.com

38

Chapter 3

BIOS Configuration

Event Log Configuration

The Event Log Configuration sub screen (shown below), the log of errors during
bootup can be viewed to help you troubleshoot any configuration problems you might
experience. The status of the Event Log is shown on the top half of the screen.

Event Log Configuration

Select Screen

↑ ↓ Select Item
Enter Go to Su b S cr ee n
F1 General Help
F10 Save and Exit
ESC Exit

Main Advanced Chipset PCIPnP Power Boot Security Exit

BIOS SETUP UTILITY

v02.01 (C) Copyright 1985-2000, American Megatrends Inc.

← →

ENABLED: Allow logging
of events.

Event Log Area : Space Available
Event Log Data : Valid

Event Logging : [Enabled]
ECC Event Logging : [Disabled]
Clear All Event Logs : [No]

View Event Log
Mark All Events As Read

Event Logging

If set to Enabled, events will be logged .
[Default is

Enable d

]

ECC Event Loggin g

If set to Enabled, ECC events will be logged.
On the Tomcat i815e, ECC events are not
logged. [Default is

Enable d

]

Clear All Event Logs

If set to Yes, the event log will be cleared.
[Default is No]

View Event Log

Shows you the Event Log.

Mark All Events As Read

By using this option, the events in the Event
Log can be organized to help troubleshoot
configuration problems.

S2060 Tomcat i815e

39

BIOS

Chipset Menu

The Chipset Setup is for advanced configuration of the motherboard attributes. There
are also two sub screens available (denoted by the symbol).

GMCH Configuration

The graphics chipset can be configured in the GMCH sub screen.

Processor S er ial Nu mb er

Identifies the CPU.

CPU Frequency

Sets the ratio for the CPU frequency. [Default is

1: 2

]

CPU Latency Ti mer

R eserved for debugging. [D efault is

Disable d

]

C000 - C4000, 16k Shadow

Specifies how the 16k of Video ROM is treated at the
listed address.
Disabled: contents of video ROM are not copied to
RAM.
Enabled: contents of video ROM at listed address
segm ent is copied (shadowed) from ROM to RAM for
faster execution.
Cached / WP: contents of video ROM from listed
address segment are copied from ROM to RAM and
can be w ritten to or read from cache me mory. [Default
is

Cached/WP

]

C800 - DC00, 16k shadow

[Default is

Cached/WP

]

Primary Video Device

Sets the primary device for video output. [Default is Auto]

Internal Graphics Mode Select

Enables / disables the internal video device. [Default is
Enabled, 1MB]

Display Cache Window Size

Specifies amount of cache available for the graphics local
memory w indow. [Default is 64MB]

Display VBIOS Message

Enable / disable video BIOS message. [Default is Enabled]

Internal Graphics Scaling

Sets scaling for internal video device. [Default is Auto]

Internal Graphics TV Format

Sets TV video standard (depends on your country
location). [Default is NTSC]

Output Device Sync / Non-sync

Sets this depending on your video monitor. See your
monitor documentation for details. [Default is Non­Synchronous]

Digital Device Priority

Sets order of priority for video output devices. [Default is
CRT / FP / TV]

AGP Graphics Aperture Size

Sets maximum memory aperture f or onboard A GP port.
[Default is 64M B]

Init Display Cache Memory

If enabled, the display cache will be initialized at time of
system boot. See the table on the next page for more
details. [Default is Enabled]

http://www.tyan.com

40

If the Init Display Cache Memory is enabled, the following options will appear.

Chapter 3

BIOS Configuration

Paging Mode Control

Enable / disable paging mode. [Default is

Closed

]

RAS-to-CAS Override

Sets delay override. [Default is

Disable d

]

CAS Latency

Sets number of SCLKs between the time when Read
comm and is sampled by DRAM and the Whitney Sample
reads data from SDRAM. [Default is

Slow

]

RAS Timing

Sets cl ock frequency for R AS and RC. [Default i s

Slow

]

RAS Pre-charge

Sets clock frequency for RAS and RP. [Default is

Slow

]

System Memory Frequency

Sets frequency of onboard D IMM memo ry. [De fault is

Auto

]

SDRAM Re fre s h

Sets interval between Refresh signals to SDRAM. [Default
is

Auto

]

DRAM Cycle Time (SCLKs)

Sets length of DRAM cycle time in SCLKs. [Default is

Auto

]

CAS Latency (SCLKs)

Sets number of SCLKs between time when the Read
com mand is sampled by DRAM, and the Whitney Sample
reads data from SDRAM. [Default is

Auto

]

RAS# to CAS# Delay (SCLKs)

Sets length of delay inserted between the RAS and CAS
signals of the DRAM system memory access cycle if
SDRAM is installed. [Default is

Auto

]

RAS# Precharge (SCLKs)

Sets length of RAS precharge part of DRAM system
memory access cy cle w hen SDRAM system memory is
installed. [Default is

Auto

]

DRAM Page Closing Policy

Sets whether DRAM pages should be closed after use, or
left open. [Default is

Open

]

Memory Hol e

Sets the location of an area of memory that cannot be
address on the ISA bus. [Default is

Disabled

]

S2060 Tomcat i815e

41

BIOS

ICH Configuration

The interface chipset can be configured in the ICH sub screen.

PCI / PnP Menu

In this sub screen you can configure the onboard PCI Plug-n-Play devices available.

Plug & Play O / S [No]
Reset Config Data [No]
PCI Latency Timer [64]
Allocate IRQ to PCI VGA [Yes]
Palette Snooping [Disabled]
PCI IDE BusMaster [Disabled]
OffBoard PCI / ISA IDE Card [Auto]

USB Function [Enabled]
Legacy USB Support [Auto]

IRQ3 [Available]
IRQ4 [Available]
IRQ5 [Available]
IRQ7 [Available]
IRQ9 [Available]
IRQ10 [Available]
IRQ11 [Available]
IRQ14 [Available]

Select Screen

↑ ↓ Select Item
F1 General Help
F10 Save and Exit
ESC Exit

Main Advanced Chipset PCIPnP Power Boot Security Exit

BIOS SETUP UTILITY

v02.01 (C) Copyright 1985-2000, American Megatrends Inc.

← →

Moon ISA Device Enable

Enable / disable Moon ISA device. [Default is

Disable d

]

ICH Pos itive De code*

Sets type of ICH decode used. [Default is

Disable d

]

CPU BIST Enable*

Enable / disable CPU B IST. [Default is

Disable d

]

ICH DCB Enable *

Enable / disable DC B . [Default is

Disable d

]

ICH Dev31 Func(3,5,6)Enable*

Enable / disable ICH device l isted. [Default is

Enab le d

]

Sound Blaster Decode*

Specifies address used for Sound Blaster devices.
[Default is

Disable d

]

Microsoft Sound Decode*

Specifies address used for Microsoft Sound System
(MSS) d evices. [De fa ul t is

Disable d

]

MIDI Decode

Sets I / O address range for MIDI devices. [Default is

Disable d

]

Adlib Range 388h-35Bh*

Allows Adlib-com patible sound devices to use
address listed. [Default is

Enab le d

]

Game Port (A, B)*

Enable / disable Game Port listed. [Default is

Enab le d

]

LPC 4Eh-4Fh Decode*

Enable / disabl e LPC devices to use address range
listed. [Default is

Enab le d

]

DMA-(0,1,2,3,5,6,7) Type*

Specifies the bus that the specified DMA channel can
be used on. [Default is

LPC DMA

]

* Indicates an optional feature available on some models of Tomcat i815e.

http://www.tyan.com

42

Chapter 3

BIOS Configuration

Plug & Play O / S

Indicates if you are using a PnP O / S.
[Default is No]

Reset Con fig Data

If set to Yes, PCI / PnP data will be stored in
Flash on next boot. [Default is No]

PCI Latency Ti mer

Specifies latency timings for PCI devices.
[Default is 64]

Allocate IRQ to PCI VGA

Informs PCI devices t hat an ISA gra phics
device is installed in the system so th e card
will function correctly. [Default is

Yes

]

Palette Snooping

If set to Enabled, multiple VGA devices
operating on different buses can handle data
from the CPU on each set of palette registers
on every video device. [Default is

Disable d

]

PCI IDE Bus Master

Specifies that the IDE controller on the PCI
bus has bus mastering capability. [Default is

Disable d

]

OffBoard PCI / ISA IDE Card

Specifies if an offboard PCI or ISA IDE
controller card is installed. [Default is

Auto

]

USB Function

Enables USB. [Default is

Enab le d

]

Legacy USB Support

Enables lega cy USB device su pport. [Default
is

Auto

]

IRQ (3,4,5,7,9,10,11,14 ,1 5)

Allows listed IRQ to be used by PCI / PnP
devices. [Default is

Available

]

DMA Channel (0,1,3,5,7)

Allows listed DMA to be used by PCI / P n P
devices. [Default is

Available

]

Reserved Memory Size

Speci fies size of memory area reserve d for
legacy IS A adapter cards. [Default is

Disable d

]

S2060 Tomcat i815e

43

Power Menu

In this sub screen you can configure how the BIOS handles power management. Note
that the screen shown below is has Power Management / APM enabled, which will
allow for more options to appear.

BIOS

ACPI Aware O / S

Indicates w hether or not the O / S has pow er
management capabilities. [Default is

Yes

]

Repost Video on S3 Resume

Sets whether or not to repost the video on S3
power state (hibernation). [Default is

Yes

]

Power Management / APM

Enable / disable power management functions.
[Default is

Enab le d

]

Standby Time Out

Sets time that system will w ait during inactivity
before the system w ill enter Standby mode. [Default
is

Disable d

]

Suspend Power Saving Type

Set type of pow er saving mode for Suspend.
[Default is S1]

Suspend Time Out

Sets time that system will wait in Standby before
the system w ill enter Suspend mode. [Default is

Disable d

]

Power Button Mode

Sets how power button mounted externally on the
case will be used.
On / Off: Pow er button turns system on / off.
Suspend: Pow er button places computer in
Suspend or Full On pow er mode. [Default is

On /

Off

]

After G3 Enable

Enable / disable After G3 function. [Default is

Disable d

]

Green PC Monitor Pow er State

Sets power state for green PC-compliant monitor.
[Default is

Suspend

]

Video Power Down Mode

Sets power state for video subsystem. [Default is

Suspend

]

Hard Disk Pow e r Dow n Mode

Sets what power state hard disk will enter after
period of inactivity. [Default i s

Suspend

]

Hard Disk Time Out (Minute)

Sets time that system w ill wait before hard disk
goes into power saving mode. [Default is

Disable d

]

Display Activity

Sets event monitoring on video display. [Default is

Ignore

]

Manual Throttle Ratio

Sets speed at which the system clock runs in
Standby mode. Setting is expressed as a
percentage betw een normal speed and speed
when CPU is in power saving mode. [Default is

50%

]

http://www.tyan.com

44

Boot Menu

In this sub screen you can configure options set for each device during boot. The
options available will depend on what devices you have installed in your computer.

Security Menu

In this sub screen you can configure security options such as passwords and boot
sector virus protection.

The status of the Supervisor and User Passwords are shown at the top, and options
can be set through the rest of the configuration sub screen.

Chapter 3

BIOS Configuration

THRM Throttle R atio

Adjusts THRM throttle rati o. [Default is

50%

]

Intruder Sel

Sets Intruder Sel [Default is

SMI

]

Thermal SMI Enable

Enable / disabl e Thermal SMI. [Default is

Disabled

]

PME SMI Enable

Enable / disable PME SMI. [Default is

Disabled

]

SW SMI Timer Enable

Enable / disable SW SMI . [Default is

Disabled

]

TCO Logic SMI Enable

Enable / disabl e TCO Logic SMI. [Default is

Disabled

]

SLP SMI Enable

Enable / disabl e SLP SMI. [Defaul t is

Disabled

]

RTC Resum e

Enable / disabl e Real Time Cl ock resume.
[Default is

Disabled

]

AC97 Logic Resume

Enable / disabl e AC'97 Logic resume. [Default
is

Disabled

]

USB Controller Re s ume

Enable / disable USB controller resume.
[Default is

Disabled

]

PME Resume

Enable / disabl e PME resum e. [Default is

Disabled

]

RI Res um e

Enable / disable RI resume. [D efault is

Disabled

]

SM BUS Resume

Enable / disable System Management Bus
resume. [Default is

Disabled

]

Boot De vice Priority

Sets the order of devices that the BIOS
will attempt to boot from.

Ha rd Disk Drives

Shows the Hard Di sk Drives available.

Removeable Drives

Shows the Removeable Drives

ATAPI CDROM Drives

Shows the CDROM drives available.

S2060 Tomcat i815e

45

If you decide to change the Supervisor or User Password, the following box will
appear.

To set the password, enter a unique set of 6 letters and / or numbers.

Exit Menu

Before you exit the BIOS Setup a set of options will be presented to you.

BIOS

Enter New Password:

Exit Saving Changes

Save changes and exit setup

Exit Discarding Cha nges

Do not save changes and exit setup

Load Optimal Defaults

Load optimal settings
NOTE: May not work with all applications

Load Failsafe Defaults

Load failsafe settings
NOT E: May not be the optimal configuration

D iscard Changes

D isregard all changes you made

Cha nge Supervisor Password

Install or change the password

C hange User Passwor d

Install or change the password

C lear User Password

Immediately clears the User passw ord

Boot Sector Virus Protection

Protect against boot sector viruses.
[Default is

Disable d

]

http://www.tyan.com

46

Chapter 4

System Resources

chapter 4

System Resources

Beep Codes

Fatal errors, which halt the boot process, are communicated through a series of audible
beeps. If AMIBIOS POST can initialize the system video display, it displays the error
message. Displayed error messages, in most cases, allow the system to continue to
boot. Displayed error messages are described on pages 48-49. See the top of the next
page for the beep code chart.

speeBegasseMrorrE noitpircseD

1eruliaFhserfeR .ytluafsiyrtiucrichserferyromemehT
2rorrEytiraP .yromemfo)kcolbBK46tsrifeht(yromemesabehtnirorreytiraP
3eruliaFyromeMBK46esaB .BK46tsrifnieruliafyromeM

4lanoitarepOtoNremiT

tonsi1remiTro,yromemfoBK46tsrifehtnieruliafyromemA

.gninoitcnuf
5rorrErossecorP .rorrenadetarenegUPCehT

6eruliaF02AetaG-2408 .edomdetcetorpothctiwstonnaC
7rorrEtpurretnInoitpecxErossecorP .tpurretninoitpecxenadetarenegdraCUPCehtnoUPCehT

8rorrEetirW/daeRyromeMyalpsiD

sisihT.ytluafsiyromemstirognissimrehtiesiretpadaoedivmetsysehT

.rorrelatafaton

9rorrEmuskcehCMOR .SOIBIMAnidedocneeulavehthctamtonseodeulavmuskcehcMORehT

01rorrEetirW/daeRretsigeRnwodtuhSSOMC .deliafsahMARSOMCrofretsigernwodtuhsehT

11ehcaCelbanEtoNoD—daByromeMehcaC

sserptonoD.delbasidsiyromemehcaC.deliaftsetyromemehcacehT

.yromemehcacelbaneot>+<>tfihS<>tlA<>lrtC<

S2060 Tomcat i815e

47

SYSTEM

Troubleshooting System Problems

If the computer beeps... then...

1, 2, or 3 times... reseat the memory DIMMs or DIPs.

If the system still beeps, replace the
memory.

6 times... try a different keyboard, or replace the

keyboard fuse, if there is one. If the error
occurs again, return the board to your dealer
for a replacement.

8 times... there is a memory error on the video

adapter. Replace the video adapter, or
the RAM on the video adapter (applies only to
external video adapters). If the error occurs
again, return the board to your dealer for a
replacement.

9 times... the BIOS ROM chip is bad. The

system probably needs a new BIOS
ROM chip.

11 times... reseat the cache memory on the

motherboard. If it still beeps, replace
the cache memory .

4, 5, 7, or 10 times... for 5 or 7 beeps, first test with a new CPU - if that

does not solve the problem, then motherboard must
be replaced.

http://www.tyan.com

48

Displayed Error Messages

If an error occurs after the system display has been initialized, the error message will
be displayed as follows:

ERROR Message Line 1
ERROR Message Line 2
Press <F1> to continue

and the system will halt. The system will not halt if the Wait for <F1> If Any Error
option in Advanced Setup is Disabled.

RUN SETUP UTILITY

may also appear. Press <F1> to run WINBIOS Setup if this message appears.

egasseMrorrEnoitanalpxE

rorrE02A-etaG2408 .2408ehtecalpeR.gnikrowtonsi)2408(rellortnocdraobyekehtno02AetaG

!trohSeniLsserddA.yrtiucricgnidocedsserddaehtnirorrE

rorrEevirD:C

drah:CehtkcehC.ytilitUksiDdraHgaiDIMAehtnuR.:CevirdmorfesnopseroN

.puteSdradnatSniepytksid

eruliaFevirD:C .evirdehtecalpeR.:CevirdksiddrahmorfesnopseroN

,daByromeMehcaC

!ehcaCelbanEtoNoD

.gaiDIMAnuR.evitcefedsiyromemehcaC

rorrEremiT2-HC .2remitnirorrenasierehT.sremitowtsahmetsysTAnA

etatSyrettaBSOMC

woL

.yrettabehtecalpeR.wolsirewopyrettabehT.yrettabaybderewopsiMARSOMC

muskcehCSOMC

eruliaF

.puteSSOIBNIWnuR.eulavsuoiverpehtnahttnereffidsimuskcehcMARSOMC

snoitpOmetsySSOMC

teStoN

.puteSSOIBNIWnuR.deyortsedneebevahMARSOMCniderotsseulavehT

epyTyalpsiDSOMC

hctamsiM

SOIBNIWnuR.detcetedepytehthctamtonseodMARSOMCniepytoedivehT

.puteS

eziSyromeMSOMC

hctamsiM

SOMCnitnuomaehtnahttnereffidsiSOIBIMAybdnuofyromemfotnuomaehT

.puteSSOIBNIWnuR.MAR

etaDdnaemiTSOMC

teStoN

.emitdnaetadehttesotputeSdradnatSnuR

rorrEevirD:D

ksiddrahehtkcehC.ytilitUksiDdraHgaiDIMAehtnuR.:DevirdmorfesnopseroN

.puteSdradnatSniepyt

Chapter 4

System Resources

S2060 Tomcat i815e

49

egasseMrorrEnoitanalpxE

eruliafevird:D .evirdehtecalpeR.:DevirdksiddrahmorfesnopseroN

eruliaFtooBetteksiD

esU.metsysehttoobotdesuebtonnac:AevirdnietteksidtoobehT

.snoitcurtsnineercsehtwollofdnaetteksidtoobrehtona

toNhctiwSyalpsiD

reporP

rorolocrehtieottesebhctiwsoedivaeriuqersmetsysemoS

.norewopneht,ylreporphctiwsehttes,ffometsysehtnruT.emorhconom

rorrEAMD.rellortnocAMDehtnirorrE

rorrE1AMD.lennahcAMDtsrifehtnirorrE
rorrE2AMD.lennahcAMDdnocesehtnirorrE

eruliaFrellortnoCDDF

kcehC.rellortnocevirdksidyppolfehthtiwetacinummoctonnacSOIBIMA

.nwodderewopsimetsysehtretfasnoitcennocetairporppalla

eruliaFrellortnoCDDH

kcehC.rellortnocevirdksiddrahehthtiwetacinummoctonnacSOIBIMA

.nwodderewopsimetsysehtretfasnoitcennocetairporppalla
rorrE1RTNI.TSOPdeliaf1lennahctpurretnI
rorrE2RTNI.TSOPdeliaf2lennahctpurretnI

etteksiDtooBdilavnI

ehttoobtonnactitub,:AevirdyppolfnietteksidehtdaernacSOIBIMA

neercsehtwollofdnaetteksidtoobrehtonaesU.tihtiwmetsys

.snoitcurtsni

sIdraobyeK

tIkcolnU...dekcoL

ebtsummetsysehT.degagnesimetsysehtnokcoldraobyekehT

.tooboteunitnocotdekcolnu

rorrEdraobyeK

rellortnoCdraobyeKaerusekaM.melborpgnimitasahdraobyekehT

otdellatsnItoNotputeSdecnavdAnidraobyeKteS.dellatsnisiSOIBIMA

.senituorTSOPdraobyekehtpiks

rorrEecafretnI/BK.rotcennocdraobyekehtnirorrenasierehT

CISABMORoN

SOIBIMA.:Cro:AevirdrehtienorotceselbatoobreporpadniftonnaC

.cisaBMORdniftonnac

rorrEytiraPdraoBffO

.tolsnoisnapxenanidracretpadananodellatsniyromemnirorreytiraP

:sitamrofehT

)XXXX(=RDDARORREYTIRAPDRAOBFFO

dnifotgaiDIMAnuR.derruccororreehterehwsserddaxehehtsiXXXX

.smelborpyromemtcerrocdna

rorrEytiraPdraoBnO

:sitamrofehT.yromemdraobrehtomnirorreytiraP

)XXXX(=RDDARORREYTIRAPDRAOBNO

dnifotgaiDIMAnuR.derruccororreehterehwsserddaxehehtsiXXXX

.smelborpyromemtcerrocdna

????rorrEytiraP

otgaiDIMAnuR.sserddanwonknunatayromemmetsysnirorreytiraP

.smelborpyromemtcerrocdnadnif

Chapter 4

System Resources

SYSTEM

http://www.tyan.com

50

Flash Utility

Note: You need to download the Flash Utility from the Tyan web site at:

http://www.tyan.com

1. If you want to flash BIOS without updating the boot block, do this:

Boot to DOS, and type “flash4mb” followed by the BIOS file
name.

Example: FLASH4MB BIOSFILE.ROM

2. If you want to flash BIOS with boot block update, do this:

i. Shutdown system, close JP2 to disable the boot block

protection. Then boot system to DOS.
ii. Type "flash4mb" followed by <Enter> key.
iii. To save or not save the old BIOS by you choice.
iv. Type in the BIOS file name, like "BIOSFILE.ROM”.
v. Flash utility will auto-complete the flash, include boot block

at this point.
vi. Shutdown the system, open jumper JP2 again. Then restart

the system.

For more information and updates about the Flash Utilities, check the Tyan web site
at: http://www.tyan.com

NOTE: Please be aware that by flashing your BIOS, you agree that in the event
of a BIOS flash failure, you must contact your dealer for a replacement BIOS.
There are no exceptions. Tyan does not have a policy of replacing BIOS chips
directly with end users. In no event will Tyan be held responsible for damage
done to the BIOS by the end user.

!

important!

S2060 Tomcat i815e

51

This page left blank intentionally .

http://www.tyan.com

52

ACPI (Advanced Configuration and Power Interface) is a power management specifica-
tion that allows the operating system to control the amount of power distributed to the
computer’s devices. Devices not in use can be turned off, reducing unnecessary power
expenditure.

AGP (Accelerated Graphics Port) is a PCI-based interface which was designed
specifically for demands of 3D graphics applications. The 32-bit AGP channel directly
links the graphics controller to the main memory . While the channel runs at only
66MHz, it supports data transmission during both the rising and falling ends of the
clock cycle, yielding an effective speed of 133MHz.

AIMM (AGP Inline Memory Module) is intended to provide 4MB of addressable
SDRAM (arranged as 1Mx32), which resides on a module in a 3.3V or universal AGP
slot.

AMR (Audio Modem Riser) is a modem that can be used on Intel Reference
Motherboard platforms using Intel’s core logic chipsets supporting AC-Link 2.1 It
supports fax and all data feeback modes. It provides high speed communicstions
between your perosnal computer and a remote location, such as an Internet Service
Provider (ISP).

AT was the original form factor of IBM’s PC.
ATAPI (AT Attachment Packet Interface), also known as IDE or AT A, is a drive

implementation that includes the disk controller on the device itself. It allows CD­ROMs and tape drives to be configured as master or slave devices, just like hard drives.

Appendix

Glossary

Appendix

Glossary

S2060 Tomcat i815e

53

ATX form factor was designed to replace the AT form factor. It improves on the AT
design by rotating the board ninety degrees, so that the IDE connectors are closer to
the drive bays, and the CPU is closer to the power supply and cooling fan. The
keyboard, mouse, serial, USB, and parallel ports are built in.

Bandwidth refers to carrying capacity. The greater the bandwidth, the more data the
bus, phone line, or other electrical path, can carry. Greater bandwidth, then, also results
in greater speed.

A BBS (Bulletin Board System) is a computer system with a number of modems
hooked up to it which acts as a center for users to post messages and access informa­tion.

The BIOS (Basic Input/Output System) program resides in the ROM chip, and
provides the basic instructions for controlling your computer’s hardware. Both the
operating system and application software use BIOS routines to ensure compatibility.

A buffer is a portion of RAM which is used to temporarily store data, usually from an
application, though it is also used when printing, and in most keyboard drivers. The
CPU can manipulate data in a buffer before copying it, all at once, to a disk drive.
While this improves system performance--reading to or writing from a disk drive a
single time is much faster than doing so repeatedly--there is the possibility of losing
your data should the system crash. Information stored in a buffer is temporarily
stored, not permanently saved.

A bus is a data pathway. The term is used especially to refer to the connection
between the processor and system memory, and between the processor and PCI or ISA
local buses.

Bus mastering allows peripheral devices and IDEs to access the system memory
without going through the CPU (similar to DMA channels).

A cache is a temporary storage area for data that will be needed often by an applica-
tion. Using a cache lowers data access times, since the needed information is stored in
the SRAM instead of in the slower DRAM. Note that the cache is also much smaller
than your regular memory: a typical cache size is 512KB, while you may have as much
as 1GB of regular memory .

Cache size refers to the physical size of the cache onboard. This should not be
confused with the cacheable area, which is the total amount of memory which can be
scanned by the system in search of data to put into the cache. A typical setup would
be a cache size of 512KB, and a cacheable area of 512MB. In this case, up to 512MB
of the main memory onboard is capable of being cached. However, only 512KB of this
memory will be in the cache at any given moment. Any main memory above 512MB

could never be cached.
Closed and open jumpers Jumpers and jumper pins are active when they are On or

Closed, and inactive when they are Off or Open.

GLOSSARY

http://www.tyan.com

54

CMOS Complementary Metal-Oxide Semiconductors are chips that hold the basic
start-up information for the BIOS.

Communication and Networking Riser (CNR) provides interfaces to support
multichannel audio, V.90 analog modem, telephone line-based home networking, and 10/
100 Ethernet-based networking, as well as expandability for future technologies.

The COM port is another name for the serial port, which is so-called because it
transmits the eight bits of a byte of data along one wire, and receives data on another
single wire (that is, the data is transmitted in serial form, one bit after another). Parallel
ports transmit the bits of a byte on eight different wires at the same time (that is, in
parallel form, eight bits at the same time).

DIMM (Dual In-line Memory Modules) are a faster and more capacious form of RAM
than SIMMs, and do not need to be installed in pairs.

DIMM bank DIMM banks are sometimes called DIMM sockets, because the physical
slot and the logical unit are the same. That is, one DIMM module fits into one DIMM
socket, which is capable of acting as a memory bank.

DMA (Direct Memory Access) channels are similar to IRQs. DMA channels allow
hardware devices (like sound cards or keyboards) to access the main memory without
involving the CPU. This frees up CPU resources for other tasks. As with IRQs, it is
vital that you do not double up devices on a single line. Plug and Play devices will take
care of this for you.

In Doze mode, only the CPU’s speed is slowed.
DRAM Dynamic RAM is a widely available, very affordable form of RAM which has

the unfortunate tendency to lose data if it is not recharged regularly (every few
milliseconds). This refresh requirement makes DRAM three to ten times slower than
non-recharged RAM such as SRAM.

EDO RAM (Extended Data-Out RAM) speeds access to memory locations by
assuming that memory addresses are static: the next time it looks for a bit of data, it
will be at the same spot, or one nearby.

EEPROM Electrically Erasable Programmable ROM, also called Flash BIOS, is a
ROM chip which can, unlike normal ROM, be updated. This allows you to keep up
with changes in the BIOS programs without having to buy a new chip. TYAN’s BIOS
updates can be found at: http://www.tyan.com/html/drivers.html

ESCD (Extended System Configuration Data) is a format for storing information
about Plug and Play devices in the system BIOS. This information helps properly
configure the system each time it boots.

Firmware is low level software that controls the system hardware.

Appendix

Glossary

S2060 Tomcat i815e

55

Form factor is an industry term for the size, shape, power supply type, and external
connector type of the PCB (personal computer board) or motherboard. The standard
form factors are the AT and ATX, although TYAN also makes some Baby-AT boards.

AGlobal timer is an onboard hardware timer, such as the Real Time Clock.
Handshaking is a form of encryption. One system, typically the server, sends an
encryption scheme to another agent, typically a client. Thus, the client’s data is
protected during transmittal to the server.

HDD stands for Hard Disk Drive.
H-SYNC controls the horizontal properties of the monitor.
IC (Integrated Circuit) is the formal name for the computer chip.
IDE Integrated Device (or Drive) Electronics is a simple, self-contained hard drive

interface. It can handle drives up to 8.4GB in size. Almost all IDEs sold now are in fact
Enhanced IDEs (EIDEs).

IDE INT (IDE Interrupt) is a hardware interrupt signal that goes to the IDE.
I/O (Input/Output) is the connection between your computer and another piece of

hardware (mouse, keyboard, etc.).
IRQ An Interrupt Request is an electronic request that runs from a hardware device to

the CPU. The interrupt controller assigns priorities to incoming requests and delivers
them to the CPU. It is important that there is only one device hooked up to each IRQ
line; doubling up devices on IRQ lines can lock up your system. Happily, Plug and
Play operating systems take care of these details for you.

ISA (Industry Standard Architecture) is a slower 8- or 16-bit bus (data pathway).
Latency is the amount of time that one part of a system spends waiting for another

part to catch up. This is most common when the system sends data out to a peripheral
device, and is waiting for the peripheral to send some data back (peripherals tend to be
slower than onboard system components).

NVRAM ROM and EEPROM are both examples of Non-Volatile RAM, memory that
holds its data without power. DRAM, in contrast, is volatile.

OEMs (Original Equipment Manufacturers) like Compaq or IBM package other
companies’ motherboards and hardware inside their case and sell them.

The parallel port transmits the bits of a byte on eight different wires at the same time
(that is, in parallel form, eight bits at the same time).

PCI (Peripheral Component Interconnect) is a 32-bit local bus (data pathway) which
is faster than the ISA bus. Local buses are those which operate within a single system

(as opposed to a network bus, which connects multiple systems).

GLOSSARY

http://www.tyan.com

56

PCI PIO (PCI Programmable Input/Output) modes are the data transfer modes used
by IDE drives. These modes use the CPU for data transfer (DMA channels do not).

PCI refers to the type of bus used by these modes to communicate with the CPU.

PCI-to-PCI bridge allows you to connect multiple PCI devices onto one PCI slot.

Pipeline burst SRAM is a fast secondary cache. It is used as a secondary cache

because SRAM is slower than SDRAM, but usually larger. Data is cached first to the
faster primary cache, and then, when the primary cache is full, to the slower secondary
cache.

Pipelining improves system performance by allowing the CPU to begin executing a
second instruction before the first is completed. A pipeline can be likened to an
assembly line, with a given part of the pipeline repeatedly executing a set part of an
operation on a series of instructions.

PM timers (Power Management timers) are software timers that count down the
number of seconds or minutes until the system times out and enters sleep, suspend, or
doze mode.

PnP is an acronym for Plug and Play , a design standard that has become ascendant in
the industry. Plug and Play devices require little set-up to use. Novice end users can
simply plug them into a computer that is running on a Plug and Play-aware operating
system (such as Windows 98), and go to work. Devices and operating systems that are
not Plug and Play require you to reconfigure your system each time you add or change
any part of your hardware.

The term RAM (Random Access Memory), while technically referring to a type of
memory where any byte can be accessed without touching the adjacent data, is often
used to refer to the system’s main memory. This memory is available to any program
running on the computer.

ROM (Read-Only Memory) is a storage chip which contains the BIOS, the basic
instructions required to boot the computer and start up the operating system.

SDRAM (Synchronous Dynamic RAM) is so-called because it can keep two sets of
memory addresses open simultaneously. By transferring data alternately from one set
of addresses, and then the other, SDRAM cuts down on the delays associated with
non-synchronous RAM, which must close one address bank before opening the next.

The serial port is so called because it transmits the eight bits of a byte of data along
one wire, and receives data on another single wire (that is, the data is transmitted in
serial form, one bit after another).

SIMM (Single In-line Memory Modules) are the most common form of RAM. They
must be installed in pairs, and do not have the carrying capacity or the speed of
DIMMs.

Appendix

Glossary

S2060 Tomcat i815e

57

SIMM bank / socket SIMM sockets are the physical slots into which you stick
SIMM modules. A pair of SIMM sockets form a SIMM bank, and act as a unit. If
only one socket is filled, the bank will not operate.

In Sleep / Suspend mode, all devices except the CPU shut down.

SRAM (Static RAM), unlike DRAM, does not need to be refreshed in order to
prevent data loss. Thus, it is faster, and more expensive.

In Standby mode, the video and fixed disk drive shut down; all other devices operate
normally.

UltraDMA 33 / 66 / 100 is a fast version of the old DMA channel. UltraDMA is also
called UltraATA. Without UltraDMA your system cannot take advantage of the higher
data transmission rates of the new UltraATA hard drives.

USB (Universal Serial Bus) is a versatile port type that can function as a serial,
parallel, mouse, keyboard, or joystick port. It is fast enough to support video transfer,
and is capable of supporting up to 127 daisy-chained peripheral devices.

VGA (Video Graphics Array) is the PC video display standard.

V-SYNC controls the vertical properties of the monitor.

ZIF (Zero Insertion Force) sockets make it possible to insert CPUs without damaging

the sensitive pins. The CPU is lightly placed in an open ZIF socket, and the metal
lever pulled down. This shifts the processor over and down, guiding it into place on the
board.

GLOSSARY

http://www.tyan.com

58

Notice for the USA

Compliance Information Statement (Declaration of Conformity Procedure) DoC
FCC Part 15: This Device complies with Part 15 of the FCC Rules.
Operation is subject to the following conditions:

1) this device may not cause harmful interference, and

2) this device must accept any interference received including interference that may
cause undesired operation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try one or more of the following measures:

· Reorient or relocate the receiving antenna.

· Increase the separation between the equipment and receiver.

· Plug the equipment into an outlet on a circuit different from
that of the receiver.

· Consult the dealer or an experienced radio/television
technician for help.

Notice for Canada

This apparatus complies with the Class B limits for radio interference as specified in
the Canadian Department of Communications Radio Interference Regulations. (Cet
appareil est conforme aux normes de Classe B d’ interference radio tel que spécifié par
le Ministére Canadien des Communications dans les réglements d’interférence radio.)

Notice for Europe (CE Mark)

This product is in conformity with the Council Directive 89/336/EEC, 92/31/EEC
(EMC).

CAUTION: Lithium Batteries included with this board. Danger of explosion if battery
is incorrectly replaced. Replace only with the same or equivalent type recommended
by manufacturer. Dispose of used batteries according to manufacturer instructions and
your local county regulations.

Note: The joystick port (optional) maximum output rating is 9 amperes at 5 volts.

Document # D1419-101
