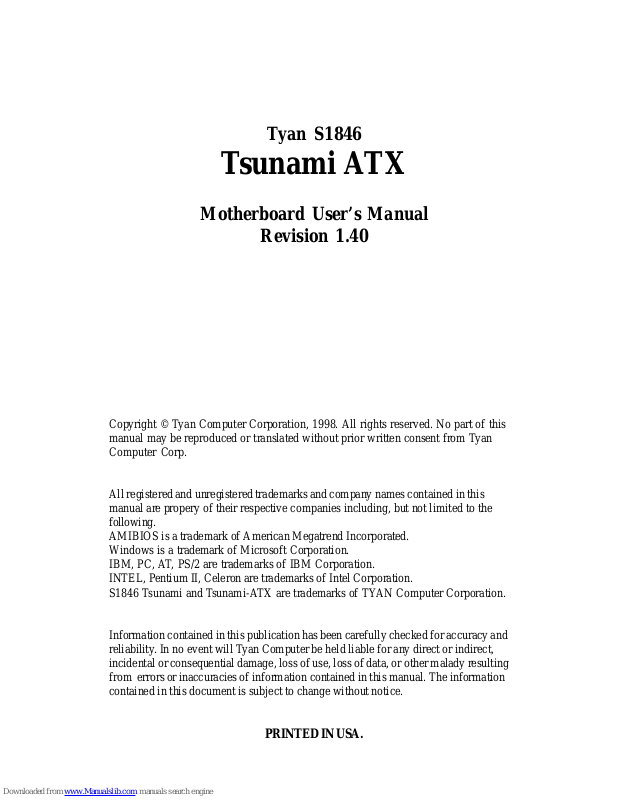

TYAN S1846 User Manual
Tyan S1846
Tsunami ATX
Motherboard User’s Manual
Revision 1.40
Copyright © Tyan Computer Corporation, 1998. All rights reserved. No part of this
manual may be reproduced or translated without prior written consent from Tyan
Computer Corp.
All registered and unregistered trademarks and company names contained in this
manual are propery of their respective companies including, but not limited to the
following.
AMIBIOS is a trademark of American Megatrend Incorporated.
Windows is a trademark of Microsoft Corporation.
IBM, PC, AT, PS/2 are trademarks of IBM Corporation.
INTEL, Pentium II, Celeron are trademarks of Intel Corporation.
S1846 Tsunami and Tsunami-ATX are trademarks of TYAN Computer Corporation.
Information contained in this publication has been carefully checked for accuracy and
reliability. In no event will Tyan Computer be held liable for any direct or indirect,
incidental or consequential damage, loss of use, loss of data, or other malady resulting
from errors or inaccuracies of information contained in this manual. The information
contained in this document is subject to change without notice.
PRINTED IN USA.
T able of Contents
1. Introduction................................................................................................. 4
Overview ........................................................................................... 4
Icons................................................................................................. 5
Hardware Specifications/Features................................................ 5
Software Specifications.................................................................. 7
T echnical Support........................................................................... 7
Returning Merchandise for Service............................................. 8
2. Board Installation..................................................................................... 10
Unpacking....................................................................................... 1 0
Installation...................................................................................... 1 0
Setting Jumpers.............................................................................. 2 3
3. Onboard Resource Settings................................................................... 24
Quick Reference for Jumpers........................................................ 2 4
Map of Motherboard Jumpers..................................................... 2 5
Hardware CMOS & Password Reset........................................... 2 5
Soft Power Connector .................................................................... 2 6
Speaker Connector Installation.................................................... 2 6
Hardware Reset Switch Connector Installation......................... 2 7
External SMI.................................................................................... 2 7
Chassis Intrusion Alarm Connector ............................................ 2 8
Ensoniq Audio Connectors......................................................... 2 8
CMOS R TC...................................................................................... 29
Flash EEPROM.............................................................................. 2 9
RAM Installation........................................................................... 3 0
Cache Memory ............................................................................... 3 1
Frequently Asked Questions....................................................... 3 2
4. BIOS Configuration................................................................................. 34
Standard Setup............................................................................... 3 6
Advanced Setup............................................................................. 4 0
Chipset Setup.................................................................................. 4 5
Power Management Setup............................................................ 5 2
PnP/PCI Setup................................................................................. 5 6
Peripheral Setup............................................................................. 6 0
Supervisor and User Security ...................................................... 6 3
Anti-V irus Security......................................................................... 6 3
Detect IDE Utility ........................................................................... 6 4
Language Utility ............................................................................. 64
Flash Writer Utility ......................................................................... 6 4
5. System Resources.................................................................................... 66
POST Checkpoint Codes.............................................................. 6 7
Beep Codes..................................................................................... 7 4
Troubleshooting System Problems............................................. 7 5
Displayed Error Messages.......................................................... 7 6
Glossary .......................................................................................... 7 8
http://www.tyan.com
4
Chapter 1
Introduction
Overview
The S1846 (S1846S and S1846SLA) T sunami A TX is a quality , high performance motherboard designed for Intel Pentium II microprocessors. This
motherboard utilizes the Intel 440BX AGPset and can support CPU speeds of
233MHz through 450MHz, and host bus speeds of 66MHz to 100MHz.
The S1846 motherboard, with built-in AGP slot, provides high performance
capabilities that are ideal for a wide range of demanding applications such as
CAD, CAM, CAE, desktop publishing, 3D animation, and video production.
This integrated system board achieves high reliability with numerous features
and yet is small enough to be supported in an ATX form factor . Some of the
features included are onboard dual channel PCI PIO, BUS Master IDE and
UltraDMA/33, onboard floppy controller, and onboard high speed I/O.
Flexibility and expandability have been designed into the T sunami ATX. W ith
I/O and drive controller support built onboard, the one AGP slot, five PCI and
two ISA slots (one shared, seven usable) are free for numerous add-on
expansion cards.
Remember to take a look at TY AN Computer’ s web site located at
http://www .tyan.com. There you can find information on all of TYAN’ s
chapter 1
Introduction
S1846 Tsunami ATX
5
INTRO
products along with F AQs, distributors list, drivers, and BIOS setting explanations.
Icons
In order to help you navigate this manual and set up your system, we have
added several icons to our format.
This icon alerts you to particularly important details regarding the
setup or maintenance of your system. This icon often appears next
to information that may keep you from damaging your board or
system. While we will often point out the most vital paragraphs in a
chapter, you should always read every word in the text. Failing to do so can
lead to exasperation and expense.
Wherever possible, we have included step-by-step instructions for
setting up your system, which are indicated by this icon. However, it
is in your best interest to read an entire section (and perhaps the
entire manual) before you begin to fiddle with your motherboard.
While we have alerted you to potential dangers in several places in
the manual with this icon, these warnings should not be regarded as
the whole of your safety regimen. Never forget that computers are
electrical devices, and are capable of delivering a shock. Prevent damage to
yourself and to your board: always ensure that your system is turned off and
unplugged whenever you are working with it, and that you are equipped with a
static safety device.
Hardware Specifications/Features
Processor Information •One SEC slot (Slot One type)
•66MHz to 100MHz bus support
(BIOS selectable)
•Pentium II 233-450MHz
•Supports Celeron CPUs
Chipset Information •Intel 440BX AGPset
•Intel PIIX4e controller
!
important!
procedure
1.
2.
3.
warning
http://www.tyan.com
6
Chapter 1
Introduction
•National 309 Super I/O chipset
V oltage and Power •ATX power supply connector
Information •+12V power source for DC fan onboard
•3.3V DRAM support
•Utilizes GTL+ bus to reduce power
consumption and EMI
Main Memory •Up to 768MB onboard
•Three 168-pin DIMM sockets
•Supports 100MHz SDRAM with SPD
System Management •Optional National LM79 and LM75 ASICs
with onboard alarm for monitoring temperature,
supply voltages, and fan speed
•Intel LANDesk Client Manager software
(with LM79 installed)
•Chassis intrusion detection capable
Expansion Slots •One 32-bit AGP slot
•Five 32-bit PCI BUS Master slots
•T wo 16-bit ISA slots
•One shared, seven usable slots
Physical Dimensions •ATX design
•12 inches x 8.25 inches
•S1846S requires Intel V enus
compatible I/O shield
•S1846SLA requires Intel Caveman compatible
I/O shield
BIOS Information •AMI Plug and Play flash BIOS
•Deep Green, Energy Star , ACPI, Y ear 2000, and
PC98 compliant
•Soft power-down, multiple boot
options
•W in98/NT5 ready , DMI 2.0 compliant
•PCI 2.1, APM 1.1 compliant
Disk Drive & System I/O •T wo PCI bus mastering EIDE
S1846 Tsunami ATX
7
INTRO
channels
•Supports EIDE CD-ROMs
•PIO Mode 3 & 4 (up to 17MB/sec DTR)
•UltraDMA/33 bus mastering mode (up to
33MB/sec DTR)
•Support for two floppy drives (up to 2.88MB)
•T wo serial ports (16550 UAR T s)
•One ECP/EPP parallel port
•One IR (InfraRed) I/O interface port
•T wo USB rev 1.2 (universal serial bus)
connectors
•One PS/2 mouse connector
•One PS/2 keyboard connector
Ensoniq ES 1371 AudioPCI •AC97 Codec
(S1846SLA only) •Uses a single, shared IRQ
•High performance PCI bus master
•Spatial enhanced 3D sound (SWS)
•Wavetable synthesis built in
•Joystick, Audio in, Speaker, Microphone
connectors
W arranty •3 year manufacturer’s warranty
Software Specifications
OS •Operates with MS-DOS, Windows 3.x,
Windows for WorkGroup 3.x, W indows 95,
Windows 98, W indows NT , OS/2, Novell
Netware, Solaris, and SCO Unix
T echnical Support
If a problem arises with your system, you should turn to your dealer for help
first. Your system has most likely been configured by them, and they should
have the best idea of what hardware and software your system contains.
Hence, they should be of the most assistance. Further, if you purchased your
system from a dealer near to you, you can actually bring your system in to
them to have it serviced, instead of attempting to do so yourself (which can
have expensive consequences).
http://www.tyan.com
8
Chapter 1
Introduction
Help resources:
1. See FAQ and beep codes sections of this manual.
2. See T yan web site for FAQ, bulletins, driver updates, etc.
http://www .tyan.com
3. Contact your dealer or distributor for help BEFORE calling T yan.
4. Check the Tyan user group: alt.comp.periphs.mainboard.tyan
5. Email T yan tech support: techsupport@tyan.com
6. Call T yan tech support: 510-440-8808
Returning Merchandise for Service
During the warranty period, contact your distributor or system vendor FIRST
for any product problems. This warranty only covers normal customer use and
does not cover damages incurred during shipping or failure due to the
alteration, misuse, abuse, or improper maintenance of products.
For Resellers Only:
A receipt or copy of your invoice marked with the date of purchase is required
before any warranty service can be rendered. You can obtain service by calling
the manufacturer for a Return Merchandise Authorization (RMA) number . The
RMA number should be prominently displayed on the outside of the shipping
carton and the package should be mailed prepaid, or hand-carried to the
manufacturer . TYAN will pay to have the board shipped back to you.
S1846 Tsunami ATX
9
INTRO
This page left blank intentionally .
http://www.tyan.com
10
Chapter 2
Board Installation
chapter 2
Board Installation
Unpacking
The motherboard package should contain the following:
(1 ) S1846S(LA) mainboard
( 1) 40-pin IDE and 34-pin floppy cable pack
(1 ) S1846 User’s Manual
( 1 ) Retention module
( 1 ) Driver CD with Ensoniq AudioPCI manual and installation instructions
(S1846S only)
( 1 ) System Management & Driver CD with Ensoniq AudioPCI manual and
installation instructions (1846SLA only)
Installation
You are now ready to install your motherboard. The mounting hole pattern of
the S1846 matches the ATX system board specifications. Your chassis should
be that of a standard ATX mainboard form factor .
How to install our products right...the first time.
What’s the first thing I should do?
The first thing you should do is read this user’s manual. It contains important
S1846 Tsunami ATX
11
procedure
1.
2.
3.
INSTALL
information which will make configuration and setup much easier.
The next step is to properly ground yourself. First, unplug the power from your
computer case and then touch the metal casing of the power supply or any
metal part on the computer case. This will discharge any electricity from your
body. Take the motherboard out of the cardboard box and static bag, holding it
by its edges, and place it on a grounded anti-static surface, component side
up. Inspect the board for damage.
DO NOT APPL Y POWER TO THE BOARD IF IT HAS BEEN DAMAGED!
Press down on any of the socket ICs if it appears that they are not properly
seated (the board should still be on an anti-static mat). Do not touch the
bottom of the board. Remember, don’ t take any electronic device out of its
protective bag until you are ready to actually install it into the computer case.
If you don’t ground yourself, you risk zapping the motherboard or adapter
card. Subsequent problems may not arise immediately because electrostatic
discharge damage, unlike physical damage, causes the device to fail over time.
Install the motherboard into your case.
Follow the instructions provided by the case manufacturer for proper installation guidelines. TYAN recommends that you use only one screw to hold down
the motherboard. The rest of the mounting holes should be used for the plastic
standoffs. If your case does not have a hole for a standoff, simply cut off the
bottom of the plastic standoff so that the flat portion rests on the metal. The
adapter cards and the screws holding them down will keep your board flat. The
fastening screw should not short any of the traces on the motherboard. Make
certain that you do not overtighten the screw , as it will damage the
motherboard and possibly break internal traces in the surrounding area. The
hole you should use is located at the top-center of the board where the adapter
cards are fastened to the case.
Plug in the power connector as shown.
The following photos show the ATX power connector before (Figure 1) and
after (Figure 2) it has been plugged in.
The plastic clip on the power connector should lock over the plastic tab on the
onboard connector. You shouldn’t be able to plug the power connector in any
other way but just to be safe, make sure it looks like Figure 2 above. Make
absolutely certain that you do not miss any pins because, if you do, you will
void your warranty and cause damage to yourself or your motherboard when
!
important!
warning
http://www.tyan.com
12
Chapter 2
Board Installation
!
important!
you turn the system on. After connecting the power, make sure the connector
is seated firmly into its socket so it will not become loose or fall off when the
computer is jostled or moved. Note: T yan recommends using an A TX power
supply that conforms to industry standard revision 2.01.
Next, connect your IDE cables (if you’re using IDE hard drives).
The colored stripe on the cable indicating pin 1 should face towards the rear of
the case (towards the ATX connectors).
In Figure 3 you can see how the IDE cables should look when they are
connected to your hard drive. Notice how Pin 1 (denoted by a red stripe) is
connected so that it is next to the power connector of the drive. In most cases,
this is the proper way of connecting your IDE cable to the hard drive. Figure 4
shows the IDE cable properly connected to the motherboard.
Contact your hard disk drive manufacturer or documentation for more information.
Some symptoms of incorrectly installed HDDs are:
• Hard disk drives are not auto-detected: may be a Master/Slave
Figure 2
Figure 1
S1846 Tsunami ATX
13
INSTALL
Figure 4
Pin 1
problem or a bad IDE cable. Contact your vendor.
• Hard Disk Drive Fail message at bootup: may be a bad cable or lack of
power going to the drive.
• No video or beeps on
bootup: usually means
the cable is on
backwards.
• Hard drive lights are
constantly on: bad
IDE cable or defective
drives/motherboard.
Try another HDD.
• Hard drives do not
power up: check
power cables and
cabling. May also be a
bad power supply or
IDE drive.
Figure 3
http://www.tyan.com
14
Chapter 2
Board Installation
Now that you have installed your IDE drives, your floppies are next.
Pin 1 on the floppy cable is usually denoted by a red or colored stripe down
one side of the cable (see Figure 5). Most of the current floppy drives on the
market require that the colored stripe be positioned so that it is right next to
the power connector. In most cases, there will be a key pin on the cable which
will force you to connect the cable properly .
Drive A: is usually attached to the end of the cable with the twist in it. Drive B:
is usually connected to the middle of the cable. Refer to your installation
instructions or call your dealer if you are unsure about attaching floppy drives.
Refer to Figure 5 below for a detailed anatomy of the floppy cable. Remember,
you can only have two floppy drives connected at any given time.
Figure 5
The colored stripe on the cable indicating pin 1 should face towards the rear of
the case (towards the ATX connectors), as with the IDE cables. Please refer to
your documentation for proper installation, or see Figure 4 on page 13.
Some symptoms of incorrectly installed floppies are:
• Floppy drives are not detected: usually caused by faulty cables, backward
cables, or a bad floppy or motherboard. Try another single floppy drive to
verify the problem or try another cable. Also, check to see if the onboard
floppy is enabled in the BIOS.
• Floppy Drive Fail message at bootup: the cable, floppy , or motherboard
may be faulty . T ry another cable or floppy drive to verify.
S1846 Tsunami ATX
15
INSTALL
!
important!
• Light on the floppy is on constantly: a dead give-away that the cable is on
backwards. Reverse the cable at the motherboard end and try again.
Next are the Com and Printer ports.
W arning: When plugging in your keyboard and mouse, or when plugging
anything into a serial or Com port, make sure that the power is off. Connecting
these devices and ports while the power is on is called “hot plugging,” and
may damage your system.
Figure 6 at the top of the next page shows the ATX double row connectors on
this board. The Com and Printer ports, as well as the other ports, are labeled.
Figure 6
Note: Only TYAN cables will work on this motherboard. If you are using an
existing case with old cables, your system may not function properly . Use
only TYAN-approved cables.
Connecting the USB and PS/2 ports.
This board includes ports for USB, PS/2 mouse, and PS/2 keyboard devices.
The location of these ports is shown in Figure 6 above. Note that, for this
http://www.tyan.com
16
Chapter 2
Board Installation
board, the PS/2 mouse port is the upper PS/2 port, and the PS/2 keyboard port
is the lower PS/2 port.
The PS/2 connectors are probably quite familiar to you. The USB connectors,
however, may be foreign. The USB (Universal Serial Bus) is a versatile port.
This one port type can function as a serial, parallel, mouse, keyboard, or
joystick port. It is fast enough to support video transfer, and is capable of
supporting up to 127 daisy-chained peripheral devices. Close-ups of the USB
connector, as well as of the USB and PS/2 ports, are on the following page.
Figure 7 shows the USB ports and Figure 8 the PS/2 ports.
Installing your add-in cards is relatively simple but...
there are a few rules you need to follow when plugging in a card. In order to
assure proper operation and a quick installation, adhere to these guidelines:
• If you are going to install a PCI-Bus interface card on your system, be
aware that any one of the two PCI slots can support a Master or Slave
Figure 7 Figure 8
S1846 Tsunami ATX
17
INSTALL
!
important!
device.
• NEVER force a card into a slot. If it doesn’t fit, look at the socket on the
computer to make sure there are no wires or other obstructions to the slot.
• NEVER plug an ISA card into a PCI slot or a PCI card in an ISA slot. Y ou
will void your warranty and damage your system board if you do this.
• When plugging the card in, especially when installing long cards, try to
push the entire card in at one time. Don’t force one end of the card into
the socket first and then the other. This will create a rocking motion
between the card and the slot and it will damage the pins within the
socket.
• Make sure that the cards are seated securely into the slots.
• Before turning on the system, make sure no cards are touching each other
or are shorting.
If you follow these basic guidelines, there shouldn’t be any problems with
installation. However, if you do encounter any problems, have a qualified
professional install your cards for you or contact your card manufacturer .
Remember, always read the manuals and installation notes that come with the
adapter cards. They contain important information which will help you install
the components right, the first time.
Next, you need to install your memory.
Since TYAN boards are manufactured with performance in mind, you should
use add-in components that match. Some DIMM modules may seem to be high
quality because of name or feel but that does not guarantee real-world
usability . Some cheaper or OEM memory may have brand-name components,
but they may contain inferior or substandard parts which do not meet the
critical tolerances our products require. Because of this, your memory may not
work correctly in a TYAN board though it may work well in a competitor’s
board. This is because many of our competitors do not adhere to the strict
tolerances required for high performance. If you buy a TYAN board, you are
getting the best system available. To make installation easy and trouble free,
get high quality parts. Some brands we recommend are Advantage Memory ,
Corsair Microsystems, Millenium, Kingston Memory , QesT ec Incorporated,
Unigen, Micron Technology, and Crucial Technology. These DIMMs have
proven to be very stable on our boards and perform extremely well.
http://www.tyan.com
18
Chapter 2
Board Installation
!
important!
Figure 9
To install your DIMMs, line your module up so that the pins fit into the slot.
There is only one way that your DIMM can fit properly . Make sure that the
short row of pins is lined up with the short gap in the DIMM slot. Figure 9
shows how to sit the DIMM into its slot. To insert the DIMM, push down
vertically on the module with even force, as shown in the photo. Do not shove
one end in first; doing so will bend the DIMM pins.
To lock the DIMM into place, push the plastic clips on either end of the slot
onto the notches in the ends of the DIMM (see Figure 10 on the next page). To
remove your DIMM, simply pull the clips back, and pull up on the module.
Place the DIMMs in an anti-static bag as soon as you remove them to avoid
static damage.
S1846 Tsunami ATX
19
INSTALL
Figure 10
Finally , install your CPU.
Pentium II processors (233 through 450MHz) can be used on the T sunami. Please
refer to pages 29-30 for the correct CPU jumper settings for your board. Remember:
• The CPU is a sensitive electronic component and it can easily be damaged
by static electricity . Do not touch the CPU pins with your fingers.
• Before the CPU is installed, the mainboard must be placed on a flat
surface. Y ou should be able to insert the CPU with minimal, but firm,
pressure. Do not press down hard on the CPU.
Currently , Intel produces two types of Pentium II processors: the active (or
boxed) processor and the passive processor (see Figures 11 and 12 on the next
page). These two types of processors are essentially the same in design; the
only difference lies in their cooling methods. The active processor is equipped
with a cooling fan and heat sink, while the passive processor is equipped with
a heat sink alone. Both types of CPUs provide the user with the same performance, and both types can be installed in the Pentium II slot on the Tsunami
board.
!
important!
http://www.tyan.com
20
Chapter 2
Board Installation
Pentium II Slot Connector
and Key Pin
Figure 13
Figure 1 1 Figure 12
Installing CPU Retention Modules
Installation of a Pentium II processor requires a CPU retention module, which
is first secured onto the motherboard.
To attach the retention module,
place the motherboard on a flat
surface. Locate the key pin on
one end of the Pentium II slot on
the board. Then carefully line up
the key notch on the retention
module with the key pin on the
Pentium II slot (the key pin on
the Pentium II slot indicates the
correct orientation of the CPU).
Drop the retention module
(Figure 14 on the following page)
down over the Pentium II slot so
that the retention module sits flat
against the motherboard.
Tighten the screws in a clockwise manner to secure the module to the board.
Warning: Do not overtighten the screws as you may
damage the module and/or the motherboard.
Installing the Active Processor
When the retention module is securely installed, you
are ready to plug in the CPU. Press down firmly on the
CPU until you hear a “click” (see Figure 15). This clicking sound indicates that the CPU is fully locked into
Figure 14
S1846 Tsunami ATX
21
INSTALL
the retention module. If you have an active processor,
you will also need to connect the CPU’s cooling fan cable
to the cooling fan power connector on the board.
Locate the cooling fan connector (e.g. FAN1) on the
motherboard. Plug the CPU’s cooling fan cable into the
cooling fan connector on the board. There will be a plastic clip assembly similar to that of the A TX power connector that will force you to connect the fan cable correctly
(see Figure 16 below).
Figure 16
Installing the Passive Processor
The installation of the passive processor differs only slightly from that of the
active processor. Your passive CPU package should contain one CPU retention
module, one heat sink retention bracket with mounting locks, two mounting
attachments, and one heat sink lock.Install the retention module as explained in
the active processor section.
The heat sink mount (Figure 17) has two pins on the bottom and four pins on
the top. Notice that the bottom two pins are of different sizes. The size of the
Figure 15
http://www.tyan.com
22
Figure 17
Figure 18
Chapter 2
Board Installation
pins and the holes in the motherboard will determine the correct orientation.
When the bracket is correctly installed, the four pins on top will be right next
to the Pentium II CPU slot.
Insert the heat sink mount into the
holes on the motherboard. When
the bracket is properly inserted into
the holes on the motherboard, you
will hear a clicking noise.
Align the CPU with the CPU
retention module. Make sure the heat sink is lined up with the heat sink mount
bracket. If you put the CPU in the wrong way , you may damage the CPU, the
motherboard, and/or the CPU socket. Slowly press down on the CPU module
until the CPU locks into place. Y ou will hear a clicking noise when the CPU is
locked securely into the module.
The heat sink lock (Figure 18) has four
notches which will correspond to the
four pins on the heat sink mounting
bracket. Gently slide the lock between
the heat sink and the heat sink mounting bracket until both sides of the lock are firmly secured. A clicking sound will
be heard when the lock is securely fastened to the heat sink mounting bracket.
To remove the lock from the heat sink mounting bracket, gently press the ends
of the locks inward and pull.
Lock the heat sink mount to the board by inserting
the two mounting locks (Figure 19) into the pins of
the heat sink mounting bracket which are now below
the mainboard. There will be a click when the locks
are securely fastened.
Removing the CPU.
T o remove the CPU, move the locks to the center of
the CPU. A click will be heard when the CPU has
been unlocked. Gently pull up on the CPU, taking
care not to bend the motherboard or the CPU retention module.
To remove the lock from the retention module, gently press the ends of the
locks inward and pull.
Figure 19
S1846 Tsunami ATX
23
INSTALL
2 pin jumpers
off on
3 (or more) pin jumpers
1-2 2-3 open
1
2
3
1
2
3
1
2
3
Y ou are done.
Other than checking the jumper settings and cable connections and putting
the case back on, you are done. Installing a new motherboard may sound
difficult, but by following these directions, you should have a fairly uneventful
time installing our products. If you do encounter problems, your dealer will be
able to help you, or you can consult one of our many technical support
resources (see page 8).
Setting Jumpers
In this manual, the terms “closed” and “on” are used when referring to jumpers
(or jumper pins) that are active; “open” and “off” are used when referring to
jumpers (or jumper pins) that are inactive. Jumpers and pins are connected by
slipping the blue plastic jumper connector overtop of two adjacent jumper
pins. The metal rod inside the plastic shell bridges the gap between the two
pins, completing the circuit. See the drawings below for examples of “on” and
“off” pins and jumpers.
http://www.tyan.com
24
Chapter 3
Onboard Resource Settings
chapter 3
Onboard Resource Settings
Quick References for Jumpers
The tables on the following pages will help you set the jumpers for CPU speed,
wake on events, and external connector pin assignments among other things.
The miniature motherboard maps will help you locate the jumpers on your board.
A full-page map of the motherboard can be found on the facing page.
S1846 Tsunami ATX
25
The tiny “1”s next to jumpers of 3 pins or more indicate the position of pin 1
for that jumper.
Map of Motherboard Jumpers
JP10
JP11
JP12
JP13
USB1
Keyboard
USB2
Mouse
DIMM bank 2
DIMM bank 3
DIMM bank 1
Primary IDE connector
3 volt
lithium
battery
COM2
COM1
Printer Port
PCI slot 2
PCI slot 3
AGP port
PCI slot 4
PCI slot 5
ISA slot 2
ISA slot 1
Flash BIOS
1
J8
Intel 82443BX
PCI slot 1
CPU slot (Slot One type)
Intel
82371EB
FAN3
1
Secondary IDE connector
Floppy drive connector
ATX power connector
National
LM79
National
LM75
EXTSMI
1
JP8
1
1
JP2
FAN1
1
1
FAN2
1
J9
Ensoniq
Audio PCI
1
J11
1
J13
J10
1
1
1
CON3
CON2
Joystick
Line in
Microphone in Speaker out
JP4
JP7
J7
JP17
ONBO ARD
1
1
1
http://www.tyan.com
26
Chapter 3
Onboard Resource Settings
Intel 443BX
LM75
3 DIMM slots
AGP port
Intel PIIX4e
AMIBIOS
LM79
2 ISA slots
5 PCI slots
SEC slot (Slot One type)
PS/2 ports
USB ports
COM2 LPT1 COM1
Joystick
Audio ports
Ensoniq 1371 AudioPCIAC97codec
National Super I/O
OnBoard
Speaker
BiColor LED
Loading...
