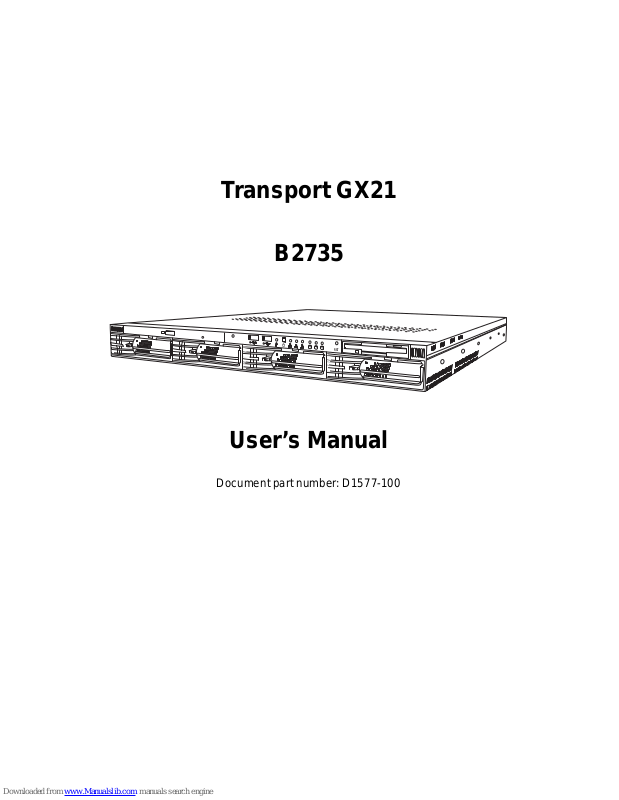

TYAN Transport GX21 B2735, Transport GX21, B2735 User Manual

Transport GX21

B2735

User’s Manual

Document part number: D1577-100

1

2

3

1

2

3

RST

Preface

Copyright

This publication, including all photographs, illustrations, and soft­ware, is protected under international copyright laws, with all rights
reserved. Neither this manual, nor any material contained herein,
may be reproduced without written consent of the manufacturer-.

Copyright 2003-4
Version 1.00

Disclaimer

Information contained in this document is furnished by TYAN com­puter Corporation and has been reviewed for accuracy and reliability
prior to printing. TYAN assumes no liability whatsoever, and dis­claims any express or implied warranty, relating to sale and/or use
of TYAN products including liability or warranties relating to fitne ss
for a particular purpose or merchantability. TYAN retains the right to
make changes to product descriptions and/or specifications at any
time, without notice. In no event will TYAN be held liable for any
direct or indirect, incidental or consequential damage, loss of use,
loss of data or other malady resulting from errors or inaccuracies of
information contained in this document.

Trademark recognition

All registered and unregistered trademarks and company names
contained in this manual are property of their respective owners
including, but not limited to the following.

TYAN, TYAN Tiger i7501R S2735-8M, and Transport GX21 are
trademarks of TYAN Computer Corporation.

Intel, Xeon, and combinations thereof are trademarks of Intel Corpo­ration.

AMI, AMIBIOS, and combinations thereof are trademarks of AMI
Software Incorporated.

Microsoft Windows is a trademark of Microsoft Corporation.
IBM, PC, AT and PS/2 are trademarks of IBM Corporation.
Winbond is a trademark of Winbond Electronics Corporation.
Portable Document Format (PDF) is a trademark of Adobe Corpora-

tion.

ii

Federal Communications Commission

Notice for the USA Compliance Information State-

ment (Declaration of Conformity Procedure) DoC
FCC Part 15: This device complies with part 15 of the
FCC Rules

Operation is subject to the following conditions:

1) This device may not cause harmful interference, and

2) This device must accept any interference received including inter­ference that may cause undesired operation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the

receiver.

• Plug the equipment into an outlet on a circuit different from

that of the receiver.

Consult the dealer on an experienced radio/television technician for
help.

Notice for Canada

This apparatus complies with the Class B limits for radio interfer­ence as specified in the Canadian Department of Communications
Radio Interference Regulations. (Cet appareil est conforme aux
norms de Classe B d’interference radio tel que specifie par le Minis­tere Canadien des Communications dans les reglements d’inetefer­ence radio.)

Notice for Europe (CE Mark) This product is in conformity
with the Council Directive 89/336/EEC, 92/31/EEC
(EMC).

CAUTION: Lithium battery included with this board. Do not puncture,
mutilate, or dispose of battery in fire. Danger of explosion if battery
is incorrectly replaced. Replace only with the same or equivalent
type recommended by manufacturer. Dispose of used battery
according to manufacturer instructions and in accordance with your
local regulations.

iii

About this manual

This manual provides you with instructions on installing your Trans­port GX21 (B2735), and consists of the following sections

Chapter 1:
Provides an introduction to the Transport GX21 (B2735) bare bones,

packing list, describes the external components, gives tables of key
components, and provides block diagrams of the system.

Chapter 2:

Covers procedures on installing the CPUs, memory modules,
optional PCI card, and hard drives.

Chapter 3:

Covers removal and replacement procedures for pre-installed com­ponents.

Appendix:

Provides detailed specifications, maintenance and troubleshooting
procedures, an explanation of BIOS and technical diagra ms.

iv

Safety information

Before installing and using the Transport GX21 , take note of the fol­lowing precautions:

• Read all instructions carefully.

• Do not place the unit on an unstable surface, cart or stand.

• Do not block the slots or openings on the unit which are

provided for ventilation.

• Only use the power source indicated on the marking label.

If you are not sure, contact the power company.

• The unit uses a three-wire grounded cable, which is sup-

plied with a third pin to ground the unit and prevent electric
shock. Do not defeat the purpose of this pin. If your outlet
does not support this type of plug, contact an electrician to
replace the obsolete outlet.

• Do not place anything on the power cord. Place the power

cord where it will not be stepped on.

• Follow all warnings and cautions in this manual and on the

unit case.

• Do not push objects in the ventilation slots as they may

touch high voltage components and result in shock and
damage to the components.

• When replacing parts, ensure that you use parts specified

by the manufacturer.

• When service or repairs have been carried out, perform

routine safety checks to verify that the system is operating
correctly.

• Avoid using the system near water, in direct sunlight, or

near a heating device.

• Cover the unit when not in use.

Table of Contents

Overview

About the Transport GX21 (B2735) .............................. ..................... 1

Product models.................................................................................... 1

Features ............... ................................................ ................................ 2

B2735G21S2 specifications ............................................................. 2

B2735G21S4H specifications.......................................................... 3

B2735G21U4H specifications......................................................... 4

Unpacking ........................................................................................... 5

Box contents .................................................................................... 5

Accessories ...................................................................................... 7

Opening the box............................................................................... 8

About the product................................................................................ 9

System front view and front panel................................................... 9

System rear view........................................ ...................................... 10

System internal views.................. .................................................... 11

Setting up

Before you begin................................................................................. 15

Work area..................................... ................................................ .... 15

Tools ......................................... ....................................................... 15

Precautions....................................................................................... 16

Installing motherboard components.................................................... 17

Removing the chassis cover............................................................. 17

Installing CPUs................................................ ................................ 18

Installing memory............................................... ............................. 20

Installing a PCI card ........................................................................ 21

Installing a hard drive.......................................................................... 25

Installing internal hard drives (B2735G21S2)................................. 25

Installing an IDE hard drive..................................................... 25

Installing an internal S-ATA hard drive.................................. 27

Installing an external S-ATA hard drive (B2735G21S4H)............. 30

Installing an external SCSI hard drive (B2735G21U4H)................ 31

Rack mounting .................................................................................... 34

Replacing pre-installed components

Introduction......................................................................................... 39

Replacing motherboard components................................................... 39

Disconnecting all motherboard cables............................................. 39

Replacing the motherboard.............................................................. 42

Replacing the CD-ROM drive ............................................................ 43

Replacing the slim CD-ROM drive (B2735G21S2)........................ 43

Replacing the CD-ROM drive (B2735G21U4H/B2735G21S4H ) .. 45

Replacing the floppy disk drive .......................................................... 47

Replacing the floppy disk drive (B2735G21S2).............................. 47

Replacing the floppy disk drive (B2735G21S4H/B2735G21U4H). 48

Replacing the LED control board ....................................................... 49

Replacing the storage backplane.......................................... ............... 50

S-ATA backplane (B2735G21S4H)................................................ 50

Replacing the S-ATA backplane (B2735G21S4H)................ 50

S-ATA backplane features............................... ........................ 52

SCSI backplane (B2735G21U4H)................................................... 53

Replacing the SCSI backplane (B2735G21U4H).................... 53

SCSI backplane features.......................................................... 55

Replacing the power supply................................................................ 56

Replacing the cooling fans.................................................................. 57

Cooling fan connections ................................................... ............... 59

Appendix

BIOS................................................ .................................................... 61

Introduction........................................ .............................................. 61

BIOS setup utility ............................................................................ 61

BIOS menu bar ................................................................................ 63

BIOS legend bar........................... ... ................................................ . 64

BIOS main menu .................................... ......................................... 65

BIOS advanced menu ...................................................................... 66

CPU configuration submenu............................................................ 67

IDE configuration submenu............................................................. 69

S-ATA Port/Primary IDE/Secondary IDE configuration submenu. 71

Floppy configuration submenu........................................................ 72

Super I/O configuration submenu.................................................... 73

ACPI settings submenu....................................... ............................. 74

Advanced ACPI configuration submenu............ ............................. 76

DMI event logging submenu ........................................................... 78

Remote access configuration submenu............................................ 79

USB configuration menu................................. ................................ 80

USB mass storage device configuration submenu........................... 82

Onboard devices configuration submenu ................................. ... .... 83

Hardware monitor submenu............................................................. 84

Advanced PCI/PnP menu........................ ......................................... 86

BIOS boot settings menu................................................................. 88

Boot Settings configuration submenu.............................................. 89

Boot device priority submenu.......................................................... 91

Hard disk submenu .......................................................................... 93

Removable drives submenu............................................................. 94

ATAPI CD-ROM drives submenu.................................................. 95

BIOS security menu......................................................................... 96

BIOS chipset settings....................................................................... 98

Northbridge chipset configuration submenu.................................... 99

Southbridge chipset configuration submenu.................................... 100

Intel PCI-64 Hub 2 configuration submenu..................................... 101

BIOS exit menu ............................................................................... 102

SCSI and S-ATA controller cards....................................................... 104

Controller card location................................................................... 104

M7902 Ultra 320 SCSI controller card features............... ............... 105

M8110 S-ATA RAID controller card features ................................ 106

Technical support................................................................................ 107

Help resources: ................................................................................ 107

Returning merchandise for service.................................................. 107

1.1 About the Transport GX21 (B2735)

Chapter 1: Overview 1

Chapter 1: Overview

1.1 About the Transport GX21 (B2735)

Congratulations on your purchase of the Transport GX21
(B2735), rack mountable, bareb one system for Intel® Xeon™
processor. The Transport GX21 (B2735) uses an advanced
Intel chipset for optimum performance and reliability. Add-on
S-ATA or SCSI storage controllers provide great flexibility
and combine with Gigabit Ethernet ports to provide powerful
computing capacity and optimal I/O bandwidth for the most
demanding of enterprises.

The rugged, industry standard 19-inch, rack mountable
design contains up to 4 HDD bays, 1 slim CD-ROM bay and 1

3.5-inch FDD, making it both flexible and practical.

1.2 Product models
Table 1: Transport GX21 (B2735) models

Model HDD

Hot

Swap

Support

HDD

Back-

plane

SKU TYpe

B2735G21S2 2 internal

HDD bays

No NA Standard SKU

B2735G21S4H 4 removable

HDD bays

Yes 4 port

S-ATA

OEM Only

B2735G21U4H 4 removable

HDD bays

Yes 4 port

SCSI

OEM Only

1.3 Features

2 Chapter 1: Overview

1.3 Features

1.3.1 B2735G21S2 specifications

Enclosure

• Industry standard, 19” rack mount­able, 1U chassis

• 2 internal access 1” HDD bays, 1
slim CD-ROM bay, 1 bay for 3.5”
FDD or internal access 1” HDD

• 21.5 x 17 x 1.7 inch (547 x 432 x
43 mm)

Storage

• Integrated dual channel IDE con­troller from ICH5R

• 2 Integrated S-ATA ports from
ICH5R (RAID 0,1 support)

• 2 Internal (fixed) HDD bays

• Slim 24x CD-ROM drive

• Optional 3.5 inch FDD

Processors

• Dual mPGA604 socket

• Single or dual Intel® Xeon™ pro­cessor with 512K iL2 and 1 MB iL3

• 533/400 MHz FSB

Cooling

• 5 cooling fans(40 x 40 x 28 mm)

• 1 power supply fan

• 2 CPU heatsinks

• Hardware auto fan speed control

Chipset

• Intel® E7501 server chipset

• MCH + ICH5R + P64H2 + FWH

• Winbond W83627HF super I/O
chip

• analog device ADM 1027 hard­ware monitoring IC

Motherboard

• Tyan Tiger S2735G3NR-8M moth­erboard

• ATX form factor

• Award BIOS 8.0 on 8 Mb LPC
flash ROM

• LAN remote boot (PXE) support
and SMBIOS v2.3

Memory

• 128-bit dual channel memory bus

• 6 DDR DIMM sockets

• Up to 12 GB DDR266/200SDRAM

• Support for registered ECC type
memory modules

Networking

• 2 Gigabit Ethernet ports (Intel®
82546EB LAN controller)

• 1 10/100 Mbps LAN port (Intel®
82551QM controller)

Expansion sl ots

• (1) 64-bit/133 MHz PCI-X slot on
riser card

Power supply

• EPS 12V, 1U, 400W with PFC

Back I/O ports

• Stacked PS/2 mouse and key­board ports

• 2 USB 2.0 ports

• 1 9-pin UART serial port

• 3 RJ-45 LAN ports

• 1 VGA port

Video

• ATI® Rage™ XL PCI Graphics
controller

• 8 MB frame buffer video memory

Front panel

• 2 USB 2.0 ports

• IDE activity, LAN activity, and
power LEDs

• Power and reset switches

Regulatory

• FCC class B (declaration of
conformity)

• CE (declaration of conformity)

1.3 Features

Chapter 1: Overview 3

1.3.2 B2735G21S4H specification

s

Enclosure

• Industry standard, 19” rack mount­able, 1U chassis

• 4 external access HDD bays, 1
slim CD-ROM bay, 1 slim FDD bay

• 21.5 x 17 x 1.7 inch (547 x 432 x
43 mm)

Storage

• Integrated dual channel IDE con­troller from ICH5R

• Tyan M8110 4-port S-ATA RAID
card (RAID 0,1, 0+1)

• 4 hot-swap S-ATA HDD bays

• Slim 24x CD-ROM drive

•Slim FDD

Processors

• Dual mPGA604 socket

• Single or dual Intel® Xeon™ pro­cessor with 512K iL2 and 1 MB iL3

• 533/400 MHz FSB

Cooling

• 5 cooling fans (40 x 40 x 28 mm)

• 1 power supply fan

• 2 CPU heatsinks

• Hardware auto fan speed control

Chipset

• Intel® E7501 server chipset

• MCH + ICH5R + P64H2 + FWH

• Winbond W83627HF super I/O
chip

• analog device ADM 1027 hard­ware monitoring IC

Motherboard

• Tyan Tiger S2735G3NR-8M moth­erboard

• ATX form factor

• Award BIOS 8.0 on 8 Mb LPC
flash ROM

• LAN remote boot (PXE) support
and SMBIOS v2.3

Memory

• 128-bit dual channel memory bus

• 6 DDR DIMM sockets

• Up to 12 GB DDR266/200SDRAM

• Support for registered ECC type
memory modules

Networking

• 2 Gigabit Ethernet ports (Intel®
82546EB LAN controller)

• 1 10/100 Mbps LAN port (Intel®
82551QM controller)

Expansion sl ots

• (1) 64-bit/133 MHz PCI-X slot on
riser card

Power supply

• EPS 12V, 1U, 400W with PFC

Back I/O ports

• Stacked PS/2 mouse and key­board ports

• 2 USB 2.0 ports

• 1 9-pin UART serial port

• 3 RJ-45 LAN ports

• 1 VGA port

Video

• ATI® Rage™ XL PCI Graphics
controller

• 8 MB frame buffer video memory

Front panel

• 2 USB 2.0 ports

• HDD activity, LAN activity, power,
fan fail and temperature fail LEDs

• Power and reset switches

Regulatory

• FCC class B (declaration
conformity)

• CE (declaration of conformity)

1.3 Features

4 Chapter 1: Overview

1.3.3 B2735G21U4H specifications

Enclosure

• Industry standard, 19” rack mount­able, 1U chassis

• 4 external access HDD bays, 1
slim CD-ROM bay, 1 slim FDD bay

• 21.5 x 17 x 1.7 inch (547 x 432 x
43 mm)

Storage

• Integrated dual channel IDE con­troller from ICH5R

• Tyan M702 dual channel Ultra 320
SCSI card (HostRAID support)

• 4 hot-swap, Ultra320 SCSI HDD
bays

• Slim 24x CD-ROM drive

•Slim FDD

Processors

• Dual mPGA604 socket

• Single or dual Intel® Xeon™ pro­cessor with 512K iL2 and 1 MB iL3

• 533/400 MHz FSB

Cooling

• 5 cooling fans (40 x 40 x 28 mm)

• 1 power supply fan

• 2 CPU heatsinks

• Hardware auto fan speed control

Chipset

• Intel® E7501 server chipset

• MCH + ICH5R + P64H2 + FWH

• Winbond W83627HF super I/O
chip

• analog device ADM 1027 hard­ware monitoring IC

Motherboard

• Tyan Tiger S2735G3NR-8M moth­erboard

• ATX form factor

• Award BIOS 8.0 on 8 Mb LPC
flash ROM

• LAN remote boot (PXE) support
and SMBIOS v2.3

Memory

• 128-bit dual channel memory bus

• 6 DDR DIMM sockets

• Up to 12 GB DDR266/200SDRAM

• Support for registered ECC type
memory modules

Networking

• 2 Gigabit Ethernet ports (Intel®
82546EB LAN controller)

• 1 10/100 Mbps LAN port (Intel®
82551QM controller)

Expansion sl ots

• (1) 64-bit/133 MHz PCI-X slot on
riser card

Power supply

• EPS 12V, 1U, 400W with PFC

Back I/O ports

• Stacked PS/2 mouse and key­board ports

• 2 USB 2.0 ports

• 1 9-pin UART serial port

• 3 RJ-45 LAN ports

• 1 VGA port

Video

• ATI® Rage™ XL PCI Graphics
controller

• 8 MB frame buffer video memory

Front panel

• 2 USB 2.0 ports

• HDD activity, LAN activity, power,
fan fail and temperature fail LEDs

• Power and reset switches

Regulatory

• FCC class B (declaration
conformity)

• CE (declaration of conformity)

1.4 Unpacking

Chapter 1: Overview 5

1.4 Unpacking

1.4.1 Box contents

Component Description

B2735

G21S2

B2735

G21S4H

B2735

G21U4H

P/N 541273080001

1 U chassis, 2
internal HDD
bays

Yes

P/N 541273080002

1U chassis, 4
external HDD
bays

Yes Yes

P/N 541172850002

Tyan S2735
system board
(pre-installed)

Yes Yes Yes

P/N 541172850002

Tyan M8110 S­ATA RAID con­troller card
(pre-installed)

Yes

P/N 541190860001

Tyan M7902
Ultra 320 SCSI
controller card
(pre-installed)

Yes

P/N 340729700001

Slim CD-ROM
adapter

Yes Yes Yes

P/N 523430061006

24x slim CD­ROM drive
(pre-installed)

Yes Yes Yes

P/N 344723200001

Slim FDD
adapter

Yes Yes

P/N 523410290033

Slim floppy
disk drive (pre­installed)

Yes Yes

1

2

3

RST

1

2

1

2

3

1

2

3

R
S
T

CORER1.PCB MADE TAIWAN

40 94V-0

41

1

J4

J3

J1

2

1

39

CORER1.PCB MADE TAIWAN

40 94V-0

41

1

J4

J3

J1

2

1

39

1.4 Unpacking

6 Chapter 1: Overview

Box contents (cont.)

Component Description

B2735
G21S2

B2735

G21S4H

B2735

G21U4H

P/N 412223700099

S-ATA back­plane and
holding bracket
(pre-installed)

Yes

P/N 523410290033

4-port Ultra
320 SCSI
backplane
(pre-installed)

Yes

P/N 412223700102

LED control
board (pre­installed)

Yes Yes Yes

P/N 412223700109

64-bit riser
card (pre­installed)

Yes Yes Yes

P/N 471172400038

ATX 12V
400W PSU
(pre-installed)

Yes Yes Yes

P/N 336252012099

15,500 rpm
cooling fan (2
pcs per sys­tem)

Yes Yes Yes

P/N 336252012101

11,500 rpm
cooling fan (3
pcs per sys­tem)

Yes Yes Yes

P/N 342730800002

Fan holding
bar

Yes Yes Yes

1

ON KE

23456

1.4 Unpacking

Chapter 1: Overview 7

1.4.2 Accessories

Power cord (US) Power cable (Germany)

4 x S-ATA cables, motherboard to
backplane (B2735G21S4H)

1 x 34 pin FDD cable
(B2735G21S2)

1 x front panel cable

1 x SCSI cable (B2735G21U4H)

2 x mounting ears

1 x 40 pin IDE cable for CD-ROM

2 x CPU heatsinks
P/N 343730800001

2 x Sliding rails
P/N 341730200001

S-ATA power riser cable

Tyan driver CD and Intel 82801ER
(ICH5R) S-ATA RAID driver CD

Motherboard quick reference guide
and user’s manual

Transport GX21 (B2735) hardware
installation guide

h

t

t

p

:
//w

w

w

.t

y

a

n

.c

o

m

h

t

t

p

://w

w

w

.
t

y

a

n

.c

o

m

S5102

Tomcat i875P

#D 1528 - 100

Revision 1.0

High Performance Motherboard

User's Manual

1

1

1

Tomcati875PS5102Board Parts

and

Jumpers

CMOS Clear

JP3

J1

J4

J5

J6

J7

J9

SATA1
SATA2
SATA3
SATA4

USB2 /
USB3 /
USB4

Power Supply

The Tomcat

i875P

S5102

CMOS

Chassis FAN

SMDC

Connector

CPU FAN

FAN

POWER

Front USB Header
an optional cable)

(via

(SATA3 / SATA4 by
PDC20378 Optional)

Connector

SMBus_0

Serial ATA Connector

Card)

Management Daughter

(System

COM2 port

Normal

Claer

(Default)

(via a cable)

Pin 2-3 Close:

Pin 1-2 Close:

is
ATX

ATX

ATX12V

(4-pin)

ATXand 12V

compatible.

2 power connectors:

power connectors:

Check User's

http://www.TYAN.com

P/N : 12-0012-3431

Pin

PWR_LED

J8 Front

Panel Connector

PWR SPKR

Pin

1 3 5 7 9 11 13 15 17

2

2

18
17

1

46810

12 14

16 18

IR

RST

HD_LED

Manual for details

Rev.

1.00

(20-pin)

+

HDD_LED+

HDD_LED-

POWER

POWER

GND

GND

GND

BUTTONBUTTON

RESET

VCC

VCC

CIRRX

IRRX

GND

GND

NC

SPEAKER

LED+

GND

IRTX

PWR1

lntel

lntel
GbE LAN

lntel

GbE LAN

10/100 LAN

lntel

S5102

LED1

DIMM1

DIMM2

DIMM3

DIMM4

32-bit 33MHz (5V)PCI PCI1

32-bit 33MHz (5V)PCI PCI2

32-bit 33MHz (5V)PCI PCI3

32-bit 33MHz (5V)PCI PCI4

FDD

J10

LPT1

ATI

EFI1

POWER FAN

BT1

SMDCJ5

J7

PDC20378

W83627HF

8MB

SDRAM

SATA3 SATA4

PRI-IDE

J13

J15

RAID-IDEJ12

SEC-IDE

SATA1SATA2

USB2

USB3

USB4

FAN

COM2

1

J1

J4

J8

J9

RAGE XL

Chassls

J6

PWR2

CPU

PGA478B

1

CPU FAN

875P

lntel
ICH5

CMOS
JP3

LED2

BIOS

KB-MO1

Mouse(Top)
KB(Bottom)

USB1

LAN1

LAN2

(Optional)

(Optional)

CN1

LAN(Top)
USB(Bottom)

(COM1)

J2

(VGA)

1

1

1U 2-Way Server Platform

B2880T1S

Transport GX28

ID : 1540 - 100

Revision 1.0

Hardware

Installation Guide

1.4 Unpacking

8 Chapter 1: Overview

1.4.3 Opening the box

Open the box carefully and ensure that all components are
present and undamaged. The product should arrive pack­aged as illustrated below.

htt

p
:

//
w

w

w

.
t
y

a

n
.
c

o

m

h

t
t

p

:

/
/
w

w

w

.

t
ya

n
.

co

m

Box contents as packaged

Accessory pack Accessories as packaged

1.5 About the product

Chapter 1: Overview 9

1.5 About the product

1.5.1 System front view and front panel
B2735G21S2

B2735G21S4H

1

2

3

RST

disc

1

2

3

RST

Power indicator

Power switch

USB ports

LAN activity
indicator

IDE channel
status

Reset switch

1

2

3

RST

1234

1

2

3

RST

1234

USB ports

Power switch

Power indicator

LAN activity
indicator

HDD status
indicator

Reset switch

1.5 About the product

10 Chapter 1: Overview

B2735G21U4H

1.5.2 System rear view

Note: All models have identical rear panel

features.

1

2

3

RST

1234

1

2

RST

Reset switch

HDD activi­ty indicator

LAN activity
indicator

Power switch

Power indicator

USB ports

Ventilation fan

EPS 12V 400W PSU

Power switch

Stacked PS/2 mouse and keyboard ports

RJ-45 LAN port

USB ports

VGA port

Serial port (COM 1)

RJ-45 LAN ports

Expansion slot

1.5 About the product

Chapter 1: Overview 11

1.5.3 System internal views
B2735G21S2

1 LED control board 8 Riser card
2 Floppy disk drive (optional) 9 Power connector
3 Slim CD-ROM drive 10 Memory slots
4 Fan bracket 11 EPS 12V 400W power supply
5 S-ATA connector 12 Processor sockets
6 IDE connector 13 Front panel cable
7 FDD connector

123

4

5
6

7
8

9

10

11

12

13

1.5 About the product

12 Chapter 1: Overview

B2735G21S4H

1 Floppy disk drive 8 Riser card
2 LED control board 9 Power connector
3 Slim CD-ROM drive 10 Memory slots
4 Fan bracket 11 EPS 12V 400W power supply
5 S-ATA connector 12 Processor sockets
6 IDE connector 13 Front panel cable
7 FDD connector 14 4-port S-ATA backplane

12

3

4

5

6

7

8

9

10

11

12

13

14

1.5 About the product

Chapter 1: Overview 13

B2735G21U4H

1 Floppy disk drive 8 Riser card
2 LED control board 9 Power connector
3 Slim CD-ROM drive 10 Memory slots
4 Fan bracket 11 EPS 12V 400W power supply
5 S-ATA connector 12 Processor sockets
6 IDE connector 13 Front panel cable
7 FDD connector 14 4-port ultra320 SCSI back-

plane

1

2

3

4

5

6

7

8

9

10

11

12

13

14

1.5 About the product

14 Chapter 1: Overview

Block diagram

VRM

Intel Xeon

Intel E7501 MCH

Intel 82801ER

ICH5R

DDR

P64H2

SUPER-I/O
W83627HF

PRIMARY

IDE CONN

HOST BUS 400 or 533

MEM CNTRL AND DATA

BUS #02

HI 2.0

BUS # 01

BUS # 00

DDR

DDR

DDR

DDR

DDR

ICH3_PIRQ#A

BUS #03

133MHz OR

100MHz PCI-X

BUS #04

133MHz OR

100MHz PCI-X

GBIT

LAN

82546

RJ45 RJ45

SECONDARY

IDE CONN

SATA
CONN

USB

CONN

PRINTER

PORT

SERIAL

PORT

SERIAL

PORT

KBD

PORT

FLOPPY

CONN

BIOS

8Mb

SERVER

MGMT
CONN

Winbond
83782D or
ADM1027

ATI

Rage XL

10/100

LAN

82551

8MB DISPLAY

MEMORY

RJ45

CRT

CONN

MEM CNTRL AND DATA

HI 1.5

DDR B DIMMS

DDR A DIMMS

SLOT# 1

*Option

SLOT# 2

BUS A

BUS B

SLOT# 4

SLOT# 3

LPC BUS

FIRMWARE HUB

SO DIMM

SLOT#1

Intel Xeon

PCI 32/33MHz

2.1 Before you begin

Chapter 2: Setting up 15

Chapter 2: Setting up

2.1 Before you begin

This chapter explains how to install mother board components
including CPUs, memory modules, an d PCI card . Ther e are
also instructions in this section for installing S-AT A, SCSI and
IDE hard drives.

Careful attention should be given to the precautions men­tioned in this section when setting up your system.

2.1.1 Work area

Make sure you have a stable, clean working environment.
Dust and dirt can get into components and cause malfunc­tions. Use containers to keep small components separated.
Putting all small components in separ ate cont ainers prevent s
them from becoming lost. Adequate lighting and proper tools
can prevent you from accidentally damaging the internal
components.

2.1.2 Tools

The following tools will be required to complete the installa­tions described in this chapter.

• A cross head (Phillips) screwdriver

• A grounding strap and/or anti static pad

Most of the electrical and mechanical connectors in your sys­tem can be disconnected using your fingers. It is recom­mended that you do not use needle-nosed pliers to remove
connectors as these can damage the soft metal or plastic
parts of the connectors.

2.1 Before you begin

16 Chapter 2: Setting up

2.1.3 Precautions

Components and electronic circuit boards can be damaged
by static electricity. Working on a system that is connected to
a power supply can be extremely dangerous. Follow the
guidelines below to avoid damage to the Transport GX21 or
injury to yourself.

• Ground yourself properly before removing the top

cover of the system. Unplug the power from the
power supply and then touch a safely grou nded
object to release static charge (i.e. power supply
case). If available, wear a grounded wrist strap. Alter­natively, discharge any static electricity by touching
the bare metal chassis of the unit case, or the bare
metal body of any other grounded appliance.

• Avoid touching motherboard components, IC chips,

connectors, memory modules, and leads.

• The motherboard is pre-installed in the system.

When removing the motherboard , always place it on
a grounded anti-static surface until yo u ar e re ad y to
reinstall it.

• Hold electronic circuit boards by the edges only. Do

not touch the components on the board unless it is
necessary to do so. Do not flex or stress circuit
boards.

• Leave all components inside the static-proof packag-

ing that they ship with until they are ready for installa­tion.

• After replacing optional devices, make sure all

screws, springs, or other small par ts ar e in place and
are not left loose inside the case. Metallic parts or
metal flakes can cause electrical shorts.

• Always use the correct size screws and fixings when

installing or replacing components.

Note: All connectors are designed to fit

one way only, no force should required to
make a connection.

2.2 Installing motherboard components

Chapter 2: Setting up 17

2.2 Installing motherboard components

This section describes how to install CPUs, memory modules
and PCI card.

2.2.1 Removing the chassis cover

Follow these instructions to remove the Transport GX21
(B2735) chassis cover . T his step is required be fore any other
procedures in this chapter can be undertaken.

1. Remove the six screws that secure the chassis cover.

2. Slide the cover in the direction of the arrow (A) and then
lift the cover off (B).

A

B

2.2 Installing motherboard components

18 Chapter 2: Setting up

2.2.2 Installing CPUs

This section describes how to install Intel® Xeon processors
and heatsinks in your Transport GX21 (B2735) system. This
section applies to all models.

1. Remove the chassis cover as described in section 2.2.1
Removing the chassis cover.

2. Locate the CPU sockets on the motherboard as shown
below.

3. Lift the CPU locking lever as shown below.

2.2 Installing motherboard components

Chapter 2: Setting up 19

4. Place the CPU in the CPU socket, ensuring that pin 1 is
located as shown in the following illustration.

5. Press the CPU locking lever back down to secure the
CPU in the socket.

6. Repeat steps three to five for the second CPU.

7. Apply thermal grease to the top of the CPUs and place
the CPU heatsinks on the CPUs.

8. Tighten the four screws to secure the heatsinks in place
as shown below.

Note: CPU heatsinks must be removed to

install or remove memory modules.

pin 1

2.2 Installing motherboard components

20 Chapter 2: Setting up

2.2.3 Installing memory

Follow the instructions in this section to install memory mod­ules in your Transport GX21 (B2735) system.

1. Remove the chassis cover as described n section 2.2.1
Removing the chassis cover.

2. Locate the memory slots on the motherboard.

3. Press the memory slot locking levers in the direction of
the arrows as shown below.

Note: It is not possible to move the mem-

ory slot locking levers without first removing
the CPU heatsinks.

4. Align the memory module with the slot. The module will fit
only one way in the slot. Ensure that indentations in the
memory module line up with corresponding notches in
the memory slot.

2.2 Installing motherboard components

Chapter 2: Setting up 21

5. Insert the memory module into the slot as shown.

6. Ensure that the locking levers are firmly in place and that
the memory module is properly seated in the slot.

2.2.4 Installing a PCI card

Follow the instructions in this section to install a PCI card in
your Transport GX21 (B2735) system.

1. Remove the chassis cover as described in section 2.2.1
Removing the chassis cover.

2. Remove the PCI retention bar.

2.2 Installing motherboard components

22 Chapter 2: Setting up

3. Remove the screw securing the PCI faceplate to the
chassis.

4. Slide the PCI card clamp out as shown.

5. Slide the dust cover out.

2.2 Installing motherboard components

Chapter 2: Setting up 23

6. Press the PCI card into place in the slot on the riser card.
Ensure that the card is seated properly in the slot on the
riser card and that the riser card is properly seated in its
slot on the motherboard.

7. Reinsert the PCI card clamp.

Insert PCI card tip
in slot here

Riser card

2.2 Installing motherboard components

24 Chapter 2: Setting up

8. Insert the screw to secure the PCI card to the chassis.

2.3 Installing a hard drive

Chapter 2: Setting up 25

2.3 Installing a hard drive

Follow these instructions to install various different types of
hard drives in your system.

2.3.1 Installing internal hard drives (B2735G21S2)

This B2735G21S2 can support internal IDE or S-SATA hard
drives.

2.3.1.1 Installing an IDE hard drive

Follow these instructions to instal an internal IDE hard drive
in your B2735G21S2 system.

1. Remove the chassis cover as described in section 2.2.1
Removing the chassis cover.

2. If you are replacing an existing IDE hard drive, remove
the power and data cables from it.

3. Remove the screw securing the HDD tray to the chass is.

2.3 Installing a hard drive

26 Chapter 2: Setting up

4. Slide the HDD tray out of the chassis.

5. Place a new HDD in the tray and slide it to the front.

Note: If an you are replacing an existing

hard disk you will need to remove the 4
screws securing it to the tray and remove it.

6. Secure the new disk drive in the tray with 4 screws.

2.3 Installing a hard drive

Chapter 2: Setting up 27

7. Reinsert the HDD tray and secure it to the chassis with a
screw.

8. Connect the IDE data cable and power cabl e to the HDD.

2.3.1.2 Installing an internal S-ATA hard drive

Follow these instructions to install an internal S-ATA hard
drive in your B2735G21S2 system.

1. Remove the chassis cover as described in section 2.2.1
Removing the chassis cover.

2. If you are replacing an existing S-AT A hard drive, remove
the power and data cables from it.

2.3 Installing a hard drive

28 Chapter 2: Setting up

3. Remove the screw securing the HDD tray to the chass is.

4. Slide the HDD tray out of the chassis.

5. Place a new HDD in the tray and slide it to the front.

Note: If an you are replacing an existing

hard disk you will need to remove the 4
screws securing it to the tray and remove it.

2.3 Installing a hard drive

Chapter 2: Setting up 29

6. Secure the new disk drive in the tray with 4 screws.

7. Reinsert the HDD tray and secure it to the chassis with a
screw.

8. Connect the S-ATA data cable and power cable to the
HDD.

2.3 Installing a hard drive

30 Chapter 2: Setting up

2.3.2 Installing an external S-ATA hard drive (B2735G21S4H)

Follow these instructions to install an external S-ATA hard
drive in your B2735G21S4H system.

1. Remove the chassis cover as described in section 2.2.1
Removing the chassis cover.

2. Press the drive bay locking latch in the direction of the
arrow (1) and pull the locking lever open (2).

3. Slide the drive bay out.

4. Place a S-ATA drive in the drive bay.

1

2

3

1

2

RST

1

2

1

2

3

1

2

RST

2.3 Installing a hard drive

Chapter 2: Setting up 31

Note: If you are replacing an existing HDD,

you will need to remove the four screws that
secure it in the drive bay and remove it.

5. Insert four screws to secure the new unit in the drive bay.

6. Reinsert the drive bay into the chassis. Ensure that the
rear connector of the new drive is firmly seated in the
backplane.

2.3.3 Installing an external SCSI hard drive (B2735G21U4H)

Follow these instructions to install an external SCSI hard
drive in your B2735G21U4H system.

1. Remove the chassis cover as described in section 2.2.1
Removing the chassis cover.

1

2

3

1

2

RST

2.3 Installing a hard drive

32 Chapter 2: Setting up

2. Press the drive bay locking latch in the direction of the
arrow (1) and pull the locking lever open (2).

3. Slide the drive bay out.

4. Insert a SCSI hard drive in the drive bay.

Note: If you are replacing an existing HDD,

you will need to remove the four screws that
secure it in the drive bay and remove it.

1

2

3

1

2

RST

1

2

1

2

3

1

2

RST

2.3 Installing a hard drive

Chapter 2: Setting up 33

5. Insert four screws to secure the new unit in the drive bay.

6. Reinsert the drive bay into the chassis. Ensure that the
rear connector of the new drive is firmly seated in the
backplane.

1

2

3

1

2

RST

2.4 Rack mounting

34 Chapter 2: Setting up

2.4 Rack mounting

Follow these instructions to mount the Transport GX21
(B2735) into an industry standard 19" rack.

Note: Before mounting the

Transport GX21 in a rack, ensure that all
internal components have been in stalled and
that the unit has been fully tested. Mainte­nance can be performed on the unit while in
a rack but it is preferable to install the device
in a fully operational condition.

1. Screw the mounting ears to the Transport GX21 as
shown using 4 screws from the supplied nuts, screws
and washers kit.

2. Screw the sliding rail mounting brackets to the sliding
rails as shown, using the short black screws from the
supplied nuts, screws and washers kit.

Note: Ensure that the brackets with the cut

away section (to accommodate the handles

2.4 Rack mounting

Chapter 2: Setting up 35

on the front of the unit) are fixed to the front
end of the rail.

3. Fully extend the sliding rails until they lock.

Note: Do not tighten the brac ke ts to the

rails as you will need to adjust their position
later.

4. Screw each sliding rail to the side of the Transport GX21
as shown. You will need 3 short, silver colored screws
from the supplied nuts, screws and washers kit, for each
rail.

5. Return the sliding rails to their shortest position.

Note: When fully extended, the sliding rails

will lock. The release mechanism is located
on the sliding rail as shown. Press the

2.4 Rack mounting

36 Chapter 2: Setting up

release mechanism while pushing the sliding
rails to shorten them.

6. With the rails in their shortest position, adjust both front
mounting brackets so that they are flush with the front of
the unit.

7. Accurately measure the depth of your rack and adjust th e
rear brackets accordingly.

8. When all brackets are positioned correctly, tighten them.

2.4 Rack mounting

Chapter 2: Setting up 37

9. Lift the unit into place in the rack and screw it into place
as shown.

Note: To avoid injury, it is strongly recom-

mended that two people lift the
Transport GX21 into place while a third per­son screw it to the rack.

1

2

132

RST

2.4 Rack mounting

38 Chapter 2: Setting up

3.1 Introduction

Chapter 3: Replacing pre-installed components 39

Chapter 3: Replacing pre-installed

components

3.1 Introduction

This chapter describes how to replace all the pre-installed
components of your T ransport GX21 (B2735), inclu ding CPU,
PCI card, riser card, memory modules, mo therboard, CD­ROM drive, floppy disk drive and LED control board. There is
also a section covering the replacement of the 4 port S-ATA
backplane (B2735G21S4H only), and a section covering the
replacement of the 4 port SCSI back plane (B2735G21U4H
only).

Before you attempt to replace any components, make sure
you have read section 2.1 Before you begin, in chapter 2,
which describes the precau tio ns you ne e d to take and th e
tools you will require.

3.2 Replacing motherboard components

Follow these instructions to remove motherboard compo­nents and replace the motherboard.

3.2.1 Disconnecting all motherboard cables

When replacing the motherboard or certain motherboard
components, it my be necessary to remove cables connected
to the motherboard. Follow these instructions to remove all
motherboard cabling. See section Technical support in the
Appendix for detailed diagrams of cable locations.

3.2 Replacing motherboard components

40 Chapter 3: Replacing pre-installed components

1. Disconnect ATX power cables.

2. Disconnect CD-ROM drive cable (A) (all models) and
S-ATA hard drive cable (B) (B2735G21S2 only).

EPS 12V power

Main power

A

B

3.2 Replacing motherboard components

Chapter 3: Replacing pre-installed components 41

Note: If there is FDD or IDE HDD installed

in the bay beneath the CD-ROM drive, you
will have to disconnect those cables too
before you can remove the motherboard.

3. Disconnect front panel LED and USB connectors.

Front panel LED connector

USB connector

3.2 Replacing motherboard components

42 Chapter 3: Replacing pre-installed components

3.2.2 Replacing the motherboard

Follow these instructions to remove the motherboard from
your Transport GX21 (B2735).

Note: Before removing the motherboard

you must remove all cable connections to the
motherboard. See section 3.2.1 Disconnect-
ing all motherboard cables for details on how
to do this.

1. Remove the fan assembly bracket from the chassis.

2. Remove the PCI retention bar.

3.3 Replacing the CD-ROM drive

Chapter 3: Replacing pre-installed components 43

3. Remove the nine screws that secure the motherboard to
the chassis.

4. Remove the motherboard from the chassis.

3.3 Replacing the CD-ROM drive

This section describes how to remove and replace the CD­ROM drive in your Transport GX21 (B2735) system.

3.3.1 Replacing the slim CD-ROM drive (B2735G21S2)

Follow these instructions to replace the slim CD-ROM drive in
your B2735G21S2 system.

1. Remove the chassis cover as described in section 2.2.1
Removing the chassis cover.

2. Locate the drive bay housing the FDD and slim CD-ROM
drive and remove power and data cables fr om both.

3.3 Replacing the CD-ROM drive

44 Chapter 3: Replacing pre-installed components

3. Remove the two screws that secure the CD-ROM back­plane to the CD-ROM drive.

4. Remove the four screws that secure the drive bay to the
chassis and lift the drive bay free.

5. Slide the slim CD-ROM from the drive bay.

3.3 Replacing the CD-ROM drive

Chapter 3: Replacing pre-installed components 45

3.3.2 Replacing the CD-ROM drive

(B2735G21U4H/B2735G21S4H)

Follow these instructions to replace the slim CD-ROM drive in
your B2735G21U4H or B2735G21S4H system.

1. Remove the chassis cover as described in section 2.2.1
Removing the chassis cover.

2. Remove the power and data cables from the CD-ROM
drive.

3. Remove the two screws that secure the CD-ROM bracket
to the chassis and lift it free.

4. Lift the CD-ROM drive from the chassis.

3.3 Replacing the CD-ROM drive

46 Chapter 3: Replacing pre-installed components

5. Remove the two screws that secure the CD-ROM
adapter to the CD-ROM drive and remove it.

3.4 Replacing the floppy disk drive

Chapter 3: Replacing pre-installed components 47

3.4 Replacing the floppy disk drive

This chapter describes how to replace the floppy disk drive.

3.4.1 Replacing the floppy disk drive (B2735G21S2)

Follow these instructions to replace the FDD in your
B2735G21S2 system.

1. Remove the chassis cover as described in section 2.2.1
Removing the chassis cover.

2. Locate the drive bay housing the slim CD-ROM drive an d
the FDD and remove power and data cables from both.

Note: Unless you are intending to replace

the CD-ROM drive, there is no need to
remove the CD-ROM backplane.

3. Remove the 4 screws that secure the drive bay to the
chassis and lift the drive bay free.

4. Remove the four screws that secure the FDD in the drive
bay and slide the unit out of the drive bay.

Note: The FDD bay can be used to house

an additional IDE HDD if required.

3.4 Replacing the floppy disk drive

48 Chapter 3: Replacing pre-installed components

3.4.2 Replacing the floppy disk drive

(B2735G21S4H/B2735G21U4H).

Follow these instructions to replace the slim floppy disk drive
in your B2735G21U4H or B2735G21S4H system.

1. Remove the chassis cover as described in section 2.2.1

Removing the chassis cover

2. Remove the ribbon cable from the back of the slim floppy
disk drive.

Note: The slim floppy disk drive uses a sin-

gle ribbon cable that provides it with both
power and data. To remove the ribbon cable
you must operate the release mechanism as
shown below.

3. Remove the two screws that secure the floppy disk
bracket to the chassis and lift it free.

3.5 Replacing the LED control board

Chapter 3: Replacing pre-installed components 49

4. Remove the floppy disk drive from the chassis.

3.5 Replacing the LED control board

Follow these instructions to replace the LED control board.

1. Remove the two screws that secure the metal retaining
plate to the chassis and lift it free.

3.6 Replacing the storage backplane

50 Chapter 3: Replacing pre-installed components

2. Remove the front panel ribbon cable from the rear of the
LED control panel.

3. Remove the two screws that se cu re the LE D con tro l
panel to the chassis and lift the board free of the chassis.

3.6 Replacing the storage backplane

This section describes how to replace the S-ATA or SCSI
backplane on your Transport GX21 (B2735).

3.6.1 S-ATA backplane (B2735G21S4H)

3.6.1.1 Replacing the S-ATA backplane (B2735G21S4H)

Follow these instructions to replace the S_ATA backplane on
your B2735G21S4H system.

3.6 Replacing the storage backplane

Chapter 3: Replacing pre-installed components 51

1. Remove the chassis cover as described in section 2.2.1
Removing the chassis cover.

2. Remove the two screws that secure the metal retaining
plate to the chassis and lift it free as shown.

3. Remove all cables connected to the S-ATA backplane,
including front panel cable, power cables, and S-ATA
data cables.

4. Remove the six screws that secure the S-ATA backplane
bracket to the chassis.

5. Remove the S-ATA backplane bracket and backplanes
free from the chassis.

3.6 Replacing the storage backplane

52 Chapter 3: Replacing pre-installed components

3.6.1.2 S-ATA backplan e features

Note: B2735G21S4H is shipped with two

2-port S-ATA backplanes to support 4 hot­swap S-ATA hard disk drives

1

ON KE

23456

J3 serial ATA 7 pin
connector

J4 HDD2 serial ATA
7 pin connector

BZ1 buzzer

Fan 5 connector

Fan 3 connector

Fan 2 connector

Fan 4 connector

J6 1 square C

connector

Fan 1 connector

P1 LED pin out-

put, 2 x 6 pin

header

J5 DC power in-

put connector

S1 Function set

switch

3.6 Replacing the storage backplane

Chapter 3: Replacing pre-installed components 53

3.6.2 SCSI backplane (B2735G21U4H)

3.6.2.1 Replacing the SCSI backplane (B2735G21U4H)

Follow these instructions to replace the SCSI backplane on
your B2735G21U4H system.

1. Remove the chassis cover as described in section 2.2.1
Removing the chassis cover.

2. Remove the two screws that secure the metal retaining
plate to the chassis and lift it free as shown.

3. Remove all cables connected to the SCSI backplane,
including power cables, SCSI cable, and floppy disk drive
cable.

Note: The slim floppy disk drive uses a sin-

gle ribbon cable that provides it with both
power and data. To remove the ribbon cable
you must operate the release mechanism as
shown below.

3.6 Replacing the storage backplane

54 Chapter 3: Replacing pre-installed components

4. Remove the 10 screws that secure the SCSI backplane
to the chassis and lift the backplane free.

3.6 Replacing the storage backplane

Chapter 3: Replacing pre-installed components 55

3.6.2.2 SCSI backplane features

J5 80 pin SCA2

J4 80 pin SCA2

J3 80 pin SCA2

J2 80 pin SCA2

J1 SCSI 68 pin

JP1 to 12C

J

P2 to system

J

11 floppy 34P

J6 front panel

display board

F1/2 fan 3P

U14 MPU

F3 fan 3P

J7 big 4P 90

deg

J8 big 4P 90

deg

3.7 Replacing the power supply

56 Chapter 3: Replacing pre-installed components

3.7 Replacing the power supply

Follow these instructions to replace the power supply in your
Transport GX21 (B2735) system.

1. Remove the chassis cover as described in section 2.2.1
Removing the chassis cover.

2. Remove the four screws tha t sec ur e the fa n assembly to
the chassis and lift it free.

3. Disconnect power cables from the motherboard, HDDs,
FDDs, CD-ROM drive and fans. See section 3.4.2 Dis-
connecting Cables for details on how to do this.

4. Remove the four screws tha t sec ure the power supply to
the chassis and lift the unit free.

3.8 Replacing the cooling fans

Chapter 3: Replacing pre-installed components 57

3.8 Replacing the cooling fans

Follow these instructions to replace the cooling fans in your
Transport GX21 (B2735) system.

1. Remove the chassis cover as described in section 2.2.1
Removing the chassis cover.

2. Remove the PCI retention bar

Note: You may need to cut the cable ties

that secure the fan power cables before
attempting to unplug them.

3. Remove the power cables for the 5 fans from the mother­board.

4. Remove the four screws tha t sec ur e th e fa n br ack et to
the chassis.

5. Lift the fan bracket free of the unit

3.8 Replacing the cooling fans

58 Chapter 3: Replacing pre-installed components

6. Remove the four screw s sec ur ing eac h fa n to th e fa n
bracket to remove them from the fan bracket.

Note: The Transport GX21 (B2735) uses

two different types of cooling fans which
operate at different speeds. The two fans
installed nearest the power supply have a
peak speed of 15,000 rpm. The remaining 3
fans have a peak speed of 11,500 rpm. The
two fans nearest the power supply should be
connected to the speed-controllable pin
headers (CPU1_FAN and CPU2_FAN) on
the mother board. See 3. 8.1 Cooling fan con-
nections.

3.8 Replacing the cooling fans

Chapter 3: Replacing pre-installed components 59

3.8.1 Cooling fan connections

CPU1_FAN pin
header

CPU2_FAN pin
header

The 2 fans closest to the power supply
should be connected to the CPU_1FAN
and CPU_2FAN pin headers on the moth­erboard.

3.8 Replacing the cooling fans

60 Chapter 3: Replacing pre-installed components

61

Appendix

BIOS

Introduction

Your Transport GX21 (B2735) system includes a powerful
Tiger i7501R S27 35 motherboard with AMI BIOS v8.0 on 4
MB flash ROM.

The BIOS is the motherboard’s basic input/output system.
The BIOS contains all the settings required to control the key­board, display, disk drives, serial communications, and a
number of miscellaneous functions. This section of the
appendix describes the various BIOS settings that can be
used to configure your system.

BIOS setup utility

With the BIOS setup utility , you can modify BIOS settings and
control the features of your system. The setup utility uses a
number of menus.

Note: All menus shown in this section are

based on a typical system. The actual menus
displayed on your screen may look different
depending on the hardware and features
installed.

To start the BIOS setup utility:

1. Turn on or reboot your system.

2. Press <Del> during POST (F4 on remote console) to
start the BIOS setup utility

62

BIOS setup utility

To select an item:

Use the <Arrow> keys to make a selection.
To display a submenu (a pointer marks all submenus)

Use the arrow keys to move the cursor to the required sub­menu and press <Enter>.

Main Advanced PCI/PnP Boot Security Chipset Exit

System Overview

Use [Enter], [TAB] or
[SHIFT_TAB] to select
a field

Use [+] or [-] to config­ure system time.

 Select Screen
 Select item

+/- Change option
Tab Select field
F1 General Help
F10 Save and Exit
ESC Exit

AMIBIOS
Version :08.00.09
Build Date :xx/xx/2003
ID :0ABBP006

Processor
Type :Intel® Xeon™ CPU x.xx GHz
Logical Count : x

System Memory
Size : xxxx MB

System Time [12:59:59]
System Date [xxx xx/xx/2003

63

BIOS menu bar

The menu bar at the top of the window lists the following
selections:

Menu bar selections

Note: Options written in bold type repre-

sent the BIOS setup default.

Main To configure basic system setups

Advanced Configure advanced chipset options
PCI/PnP Configure legacy PnP or PCI settings
Boot Configure system boot order
Security Configure user and supervisor passwords
Chipset Configure chipset management features
Exit Exit setup utility

64

BIOS legend bar

The following chart describes the legend keys and their func­tions.

BIOS legend bar

Key Function

<F1> or <Alt-H> General help window
<ESC> Exit current window

 arrow keys Select a different window
 arrow keys Move cursor up/down

<Tab> or <Shift-Tab> Cycle cursor up/down
<Home> or <End> Move cursor to the top or bottom of the window
<PgUp> or <PgDn> Move cursor tot he next or previous page
<F5> or <-> Select the previous value/setting of the field
<F6>, <+> or <Space> Select the next value/setting of the field
<F8> Load fail safe default configuration values
<F9> Load optimal default configuration values
<F10> Save and exit
<Enter> Execute command or select submenu

65

BIOS main menu

The Main BIOS menu is the first screen that appears when
you enter BIOS setup. The menu has two main frames. The
left frame displays all the options that can be configure d.
"Grayed-out" options cannot be configured, options in blue
can be changed.

The right frame displays the key legend. Above the key leg­end is an area reserved for a text message. When an option
is selected in the left frame, it is highlighted in white. Often, a
text message will accompany it.

BIOS main menu

Main Advanced PCI/PnP Boot Security Chipset Exit

System Overview

Use [Enter], [TAB] or
[SHIFT_TAB] to select
a field

Use [+] or [-] to config­ure system time.

 Select Screen
 Select item

+/- Change option
Tab Select field
F1 General Help
F10 Save and Exit
ESC Exit

AMIBIOS
Version :08.00.09
Build Date :xx/xx/2003
ID :0ABBP006

Processor
Type :Intel® Xeon™ CPU x.xx GHz
Logical Count : x

System Memory
Size : xxxx MB

System Time [12:59:59]
System Date [xxx xx/xx/2003

Feature Option Description

Main

System time HH:MM:SS Set the system time
System date MM:DD:YY Set the system date

66

BIOS advanced menu

You can select any of the items in the left frame of the
screen, such as Super I/O Configuration, to go to the sub
menu for that item. You can display an Advanced BIOS
Setup option by highlighting it using the <Arrow> keys. All
Advanced BIOS Setup options are described in this section.
The Advanced BIOS Setup screen is shown below.

BIOS advanced menu

Main Advanced PCI/PnP Boot Security Chipset Exit

Advanced Settings

Use [Enter], [TAB] or
[SHIFT_TAB] to select
a field

Use [+] or [-] to config­ure system time.

 Select Screen
 Select item

+/- Change option
Tab Select field
F1 General Help
F10 Save and Exit
ESC Exit

WARNING: Setting wrong values in below sec­tions may cause system malfunction.

CPU Configuration
IDE Configuration
Floppy Configuration
Super I/O Configuration
ACPI Configuration
DMI Event Log
Remote Access Configuration
USB Configuration
Onboard Devices Configuration
Hardware Monitor

67

BIOS advanced menu

CPU configuration submenu

You can use this screen to change the CPU Settings. Use the
up and down <Arrow> keys to select an item. Use the <Plus>
and <Minus> keys to change the value of the selected option.

Features Option Description

Advanced settings
CPU Configuration Menu Item Configure CPU
IDE Configuration Menu Item Configure the IDE devices(s)
Floppy Configuration Menu Item Configures devices connected to

the floppy controller

Super I/O Configura­tion

Menu Item Configures devices connected to

the SUper I/O controller

ACPI Configuration Menu Item Section for advanced ACPI con-

figuration
DMI Event Logging Menu Item Views and controls event log
Remote Access Con-

figuration

Menu Item Configures Cons ole Redirect

USB Configuration Menu Item Configures USB controller and

legacy device support
Onboard devices Con-

figuration

Menu Item Use this section to Enable/Dis-

able special onboard devices
Hardware monitor Menu Item Hardware Monitor and Display

68

CPU configuration submenu

Main Advanced PCI/PnP Boot Security Chipset Exit

CPU Configuration submenu

Use [Enter], [TAB] or
[SHIFT_TAB] to select
a field

Use [+] or [-] to config­ure system time.

 Select Screen
 Select item

+/- Change option
Tab Select field
F1 General Help
F10 Save and Exit
ESC Exit

Manufacturer: Intel
Brand String : Intel® Xeon™ CPU x.xx GHz

Cache L2 : 512 KB
Cache L3 : 0 KB

Ratio Status : Unlocked
Ratio Actual Value : 15
Ratio CMOS Setting [255]

Hyper Threading [Embedded]

Feature Option Description

Configure advanced CPU settings
Ratio Status Unlocked
Ratio Actual

value

xx

Ratio CMOS
Setting

255 Sets the ratio between CPU Core

Clock and the FSB frequency.
Note: If an invalid ratio is set in
CMOS, actual and set point values
may differ

Hyper Thread­ing

Enabled

Disabled

ENABLE: Enable CPU Hyper­Threading for HT enabled proces­sor(s).
DISABL:E: Disable CPU Hyper­Threading for HT enabled proces­sor(s).

69

IDE configuration submenu

You can use this screen to change IDE Configuration Set­tings. Use the up and down <Arrow> keys to select an item.
Use the <Plus> and <Minus> keys to change the value of the
selected option.

IDE configuration submenu

Main Advanced PCI/PnP Boot Security Chipset Exit

IDE Configuration

Use [Enter], [TAB]
or [SHIFT_TAB] to
select a field

Use [+] or [-] to
configure system
time.

 Select Screen
 Select item

+/- Change option
Tab Select field
F1 General Help
F10 Save and Exit
ESC Exit

IDE Legacy Configuration
S-ATA Running Enhanced Mode
P-ATA Channel Selection
S-ATA Ports Definition
Configure S-ATA as RAID

IDE channel 0 Master
IDE channel 0 Slave
IDE channel 1 Master
IDE channel 1 Slave
IDE channel 2 Master
IDE channel 2 Slave
IDE channel 3 Master
IDE channel 3 Slave

Hard Disk Write Protect
IDE Detect Time Out (Sec)
ATA (PI) 80 pin Ca bl e Dete cti o n

[P-ATA Only]
[Yes]
[Both]
[P0-3rd/P1-4th]
[No]

: [xxxx]
: [xxxx]
: [xxxx]
: [xxxx]
: [xxxx]
: [xxxx]
: [xxxx]
: [xxxx]

[Disable]
[xx]
[Host & Device]

70

IDE configuration submenu

Feature Option Description

IDE Configuration
IDE Legacy Con-

figuration

Disabled

P-ATA only

S-ATA only
P-ATA & S-ATA

Select combination you wish to
use. Note, only 4 IDE drives
can be used at one time, no
matter what the combination.

S-ATA Running
Enhanced Mode

Yes
No

P-ATA Channel
Selection

Primary
Secondary

Both

S-ATA Ports Def­inition

P0-3rd/P1-4th

P0-4th/P1-3rd

Configure S-ATA
as RAID

No

Yes

S-ATA port 0/1
Master

S-ATA port 0/1
Slave

Both

Primary
Secondary
Disabled

While entering setup, BIOS
auto detects the presence of
IDE devices. This displays the
status of auto detection of IDE
devices.

Primary/Second­ary Master

Primary/Second­ary Slave

Auto

User
ATAPI Removable
CD-ROM
None

Auto - To determine the IDE
drive type by system BIOS
User - To set IDE drive type by
user
ATAPI Removable - Read/write
media (e.g... IDE zip)
CD-ROM - Readable CD-ROM
drive

Hard Disk Write
protect

Disabled

Enabled

This option protects the first
sector of the IDE HDD from
being written

IDE Detect Time
Out (Sec)

0, 5, 10,15,..35 Configure the time (in sec-

onds) before the BIOS times
out when detecting an IDE
device

71

S-ATA Port/Primary IDE/Secondary IDE config­uration submenu

You can use this screen to change SAT A Port / Primary IDE /
Secondary IDE Configuration Settings. Use the up and down
<Arrow> keys to select an item. Use the <Plus> and <Minus>
keys to change the value of the sele ct ed opt i on .

S-ATA Port/Primary IDE/Secondary IDE Configuration submenu

ATA (PI) 80 pin
Cable Detection

Host and Device

Host
Device

Toggles the detection of 80
wire IDE cables

Main Advanced PCI/PnP Boot Security Chipset Exit

S-ATA Port 0 IDE Master

Use [Enter], [TAB] or
[SHIFT_TAB] to
select a field

Use [+] or [-] to config­ure system time.

 Select Screen
 Select item

+/- Change option
Tab Select field
F1 General Help
F10 Save and Exit
ESC Exit

Device: [P-ATA Only]
Type

LBA/Large Mode
Block (Multi - Sector transfer)
PIO Mode
S.M.A.R.T
32 Bit Data Transfer

[Auto]
[Auto]
[Auto]
[Auto]
[Auto]
[Disabled]

Feature Option Description

72

Floppy configuration submenu

You can use this screen to change the Floppy Configuration
Settings. Use the up and down <Arrow> keys to select an
item. Use the <Plus> and <Minus> keys to change the value
of the selected option.

Floppy configuration submenu

Main Advanced PCI/PnP Boot Security Chipset Exit

Floppy Configuration

Use [Enter], [TAB] or
[SHIFT_TAB] to select
a field

Use [+] or [-] to config­ure system time.

 Select Screen
 Select item

+/- Change option
Tab Select field
F1 General Help
F10 Save and Exit
ESC Exit

Floppy A
Floppy B

[1.44 MB 3 1/2”]
[Disabled]

73

Floppy configuration submenu

Super I/O configuration submenu

You can use this screen to change the configuration of Super
I/O. Use the up and down <Arrow> keys to select an item.
Use the <Plus> and <Minus> keys to change the value of the
selected option.

Super I/O configuration submenu

Features Option Description

Floppy Configuration
Floppy A Disabled

360 KB 5 1/4”

1.2 MB 5 1/4”
720 KB 3 1/2”

1.44 MB 3 1/2”

2.88 MB 3 1/2”

This setting defines the type of
floppy drive installed in the sys­tem

Floppy B Disabled

360 KB 5 1/4”

1.2 MB 5 1/4”
720 KB 3 1/2”

1.44 MB 3 1/2”

2.88 MB 3 1/2”

This setting defines the type of
floppy drive installed in the sys­tem

Main Advanced PCI/PnP Boot Security Chipset Exit

Win627 Super I/O chipset Use [Enter], [TAB] or

[SHIFT_TAB] to select
a field

Use [+] or [-] to config­ure system time.

 Select Screen
 Select item

+/- Change option
Tab Select field
F1 General Help
F10 Save and Exit
ESC Exit

Onboard Floppy Controller
Serial Port1 Address
Serial Port2 Address

Serial Port2 Mode

Parallel Port Address

Parallel Port Mode
Parallel Port IRQ

[Enabled]
[3F8/IRQ4]
{Disabled]

[Disabled]

[Disabled]

[Normal]
[IRQ7]

74

Super I/O configuration submenu

ACPI settings submenu

Use this screen to change options for ACPI. Use the up and
down <Arrow> keys to select an item. Use the <Plus> and
<Minus> keys to change the value of the selected option. A
description of the selected item appears on the right side of
the screen.

Feature Option Description

Win627 Super I/O Chipset
Onboard

floppy con­troller

Enabled

Disabled

Enables or disables the onboard floppy
controller

Serial Port 1
Address

3F8/IRQ4

3E8/IRQ4
2E8/IRQ3
Disabled

Sets the serial port 1 (com 1) base I/O
address and an interrupt number. Dis­abled - port disabled

Serial Port 2
Address

3F8/IRQ3
3E8/IRQ4
2E8/IRQ3

Disabled

Sets the serial port 2 (com 2) base I/O
address and interrupt number. Disabled ­port disabled

Serial Port 2
Mode

Normal

IrDA
ASK IR

Allows BIOS to Select Mode for serial
port 2

Parallel port
address

378
278
3BC

DIsabled

Assigns the Parallel Port I/O address.
Disabled - Port disabled

Parallel Port
Mode

Bi-Directional

Normal

EPP
ECP

Configures parallel port mode.
Bi-directional - send and receive data.
Normal - can send data.
EPP - Enhanced parallel port.
ECP - Extended capability port.

Parallel Port
Interrupt

IRQ7

IRQ5

Assigns IRQ to parallel port

75

ACPI settings submenu

Main Advanced PCI/PnP Boot Security Chipset Exit

ACPI Settings

Use [Enter], [TAB] or
[SHIFT_TAB] to select
a field

Use [+] or [-] to config­ure system time.

 Select Screen
 Select item

+/- Change option
Tab Select field
F1 General Help
F10 Save and Exit
ESC Exit

ACPI Aware O/S
Advanced ACPI Configuration
WOL S48S5 Support
Power Button Instant Off
After Power Failure

[Yes]

[Enabled]
[Enabled]
[Always Off]

Feature Option Description

ACPI Settings
ACPI Aware

O/S

Yes

No

Yes - Allows the system to utilize
ACPI (Advanced Configuration and
Power Interface) specification

WOL S4855
Support

Enabled

Disabled

Enable WOL event before system
goes to S4855 mode

The power Enabled

Disabled

The Power Button Instant Off func­tion only supports non ACPI O/S

After Power
Failure

Always On

Always Off

Previous State

Determines the mode of operation if
an AC power failure occurs

76

Advanced ACPI configuration submenu

Use this screen to select options for ACPI. Use the up and
down <Arrow> keys to select an item. Use the <Plus> and
<Minus> keys to change the value of the selected option. A
description of the selected item appears on the right side of
the screen.

Advanced ACPI configuration submenu

Main Advanced PCI/PnP Boot Security Chipset Exit

Advanced ACPI Configuration

Use [Enter], [TAB] or
[SHIFT_TAB] to select
a field

Use [+] or [-] to config­ure system time.

 Select Screen
 Select item

+/- Change option
Tab Select field
F1 General Help
F10 Save and Exit
ESC Exit

ACPI 2.0 Support
ACPI APIC Support
Ami OEMB table
Headless Mode

[No]
[Enabled]
[Enabled]
[Disabled]

77

Advanced ACPI configuration

Feature Option Description

Advanced ACPI Configuration
ACPI 2.0

Support

Yes

No

Set this value to allow or prevent the system
complying with the ACPI 2.0 specification

APIC Sup­port

Enabled

Disabled

This option allows you to delete whether or not
to enable ACPI management features

Ami OEMB
Table

Enabled

Disabled

Set this value to allow the ACPI BIOS to add a
pointer to an OEMB table in the Root System
Description Table (RSDT). Note, OEMB table
is used to pass POST data to the AML code
during ACPI O/S operations

Headless
Mode

Enabled

Disabled

Enable/Disable Headless operation mode
through ACPI

78

DMI event logging submenu

You can use this screen to view the Event Log Control Menu.
This logs system events (such as CMOS clear, ECC memory
errors, etc.) and writes the log into NVRAM. Use the up and
down <Arrow> keys to select an item. Use the <Plus> and
<Minus> keys to change the value of the selecte d option. The
settings are described on the following pages.

DMI event logging submenu

Main Advanced PCI/PnP Boot Security Chipset Exit

DMI Event Logging

Use [Enter], [TAB] or
[SHIFT_TAB] to select
a field

Use [+] or [-] to config­ure system time.

 Select Screen
 Select item

+/- Change option
Tab Select field
F1 General Help
F10 Save and Exit
ESC Exit

View Event Log
Mark All Events as Read
Clear Event Log
Event Log Statistics

Feature Option Description

DMI Event Logging
View Event

Log

View all unread events on the event log

Mark all events
as read

mark all unread events as read

Clear event log Discard all events in the event log
Event log sta-

tistics

Displays the storage capacity and usage
statistics of the event log

79

Remote access configuration submenu

You can use this screen to view the Remote Access Configu­ration Menu. This feature allows remote access to the Server
via serial port. Use the up and down <Arrow> keys to select
an item. Use the <Plus> and <Minus> keys to chan g e the
value of the selected option.

Remote access configuration

Main Advanced PCI/PnP Boot Security Chipset Exit

Configure Remote Access Type and Parameters

Use [Enter], [TAB] or
[SHIFT_TAB] to select
a field

Use [+] or [-] to config­ure system time.

 Select Screen
 Select item

+/- Change option
Tab Select field
F1 General Help
F10 Save and Exit
ESC Exit

Remote Access [Disabled]

Feature Option Description

Configure Remote Access Type and Parameters
Remote Access Disabled

Serial
SMDC

Enables remote access to system
through the serial port

80

USB configuration menu

You can use this screen to view the USB Configuration
Menu. Use the up and down <Arrow> keys to select an item.
Use the <Plus> and <Minus> keys to change the value of the
selected option. The settings are described on the following
pages.

USB configuration menu

Main Advanced PCI/PnP Boot Security Chipset Exit

USB Configuration

Use [Enter], [TAB] or
[SHIFT_TAB] to select
a field

Use [+] or [-] to config­ure system time.

 Select Screen
 Select item

+/- Change option
Tab Select field
F1 General Help
F10 Save and Exit
ESC Exit

Model Version - X.XX.X-XX
USB Devices Enabled:

None
USB Function

Legacy USB Support
USB 2.0 Controller
USB 2.0 Controller Mode

[4 USB Ports]
[Enabled]
[Enabled]
[HiSpeed]

USB Mass Storage Device Configuration

81

USB configuration submenu

Feature Option Description

USB Configuration
USB Function Disabled

2 USB ports

4 USB ports

Enables USB host controllers

Legacy USB
Support

Auto
Disabled

Enabled

Enables support for legacy USB devices
such as keyboards, mice and bootable
USB devices

USB 2.0 Con­troller

Disabled

Enabled

Select “Enabled” if your system contains
a USB controller and you have a USB
keyboard

USB 2.0 Con­troller Mode

FullSpeed

HiSpeed

Configures the USB 2.0 controller in HiS­peed (480 Mbps_ or FullSpeed 12 Mbps)

82

USB mass storage device configuration sub­menu

You can use this screen to view the USB Mass Storage
Device Configuration Menu. Use the up and down <Arrow>
keys to select an item. Use the <Plus> and <Minus> keys to
change the value of the selected option.

USB mass storage device configuration

Main Advanced PCI/PnP Boot Security Chipset Exit

USB Mass Storage Device Configuration

Use [Enter], [TAB]
or [SHIFT_TAB] to
select a field

Use [+] or [-] to
configure system
time.

 Select Screen
 Select item

+/- Change option
Tab Select field
F1 General Help
F10 Save and Exit
ESC Exit

USB Mass Storage Reset Delay
No USB Mass Storage Device Detected

[20 Sec]

Feature Option Description

USB Configuration
USB Mass Storage

Reset Delay

10 Sec

20 Sec

30 Sec
40 Sec

Number of seconds POST waits for
the USB storage device af ter start un til
command

83

Onboard devices configuration submenu

Use this screen to changer the Onboard Devices Configura­tion Settings. Use the up and down <Arrow> keys to select an
item. Use the <Plus> and <Minus> keys to change the value
of the selected option. A description of t

Onboard devices configuration submenu

Main Advanced PCI/PnP Boot Security Chipset Exit

Special Onboard Devices Configuration Settings

Use [Enter], [TAB] or
[SHIFT_TAB] to
select a field

Use [+] or [-] to con­figure system time.

 Select Screen
 Select item

+/- Change option
Tab Select field
F1 General Help
F10 Save and Exit
ESC Exit

Onboard ATI Video
Onboard 82551 LAN
Remote Boot OS by 82551
Onboard 82546 Dualport LAN
Remote Boot OS by 82546

[Enabled]
[Enabled]
[Enabled]
[Enabled]
[Enabled]

Feature Option Description

Special Onboard Devices Configuration Settings
Onboard ATI Video Enabled

Disabled

Toggles the onboard ATI video
graphics

Onboard 82551
LAN

Enabled

Disabled

Toggles 10/100 Mbit LAN port

Remote Boot OS
by 82551

Enabled

Disabled

Remote boot OS from 82551

Onboard 82546
Dualport LAN

Enabled

Disabled

Toggles the Gigabit LAN ports

Remote Boot OS
by 82546

Enabled

Disabled

Remote boot OS from 82546

84

Hardware monitor submenu

You can use this screen to view the Hardware Monitor Con­figuration Settings. Use the up and down <Arrow> keys to
select an item. Use the <Plus> and <Minus> keys to change
the value of the selected option.

Hardware monitor submenu

Main Advanced PCI/PnP Boot Security Chipset Exit

Monitor CPU Temperature, Fan Speed and
Voltage Use [Enter], [T AB] or

[SHIFT_TAB] to select
a field

Use [+] or [-] to config­ure system time.

 Select Screen
 Select item

+/- Change option
Tab Select field
F1 General Help
F10 Save and Exit
ESC Exit

CPU Temperature
CPU1
CPU2

Fan Speed
CPU1 Fan
CPU2 Fan
Fan2
Fan3
Fan 5
Fan 7

Voltage
+3.3V
+5V
+12V

Auto-Control Fan’s Speed
Chassis Intrusion Detect

:xx C
:xx C

:xxxx RPM
:xxxx RPM
:xxxx RPM
:xxxx RPM
:xxxx RPM
:xxxx RPM

:x.xxx V
:x.xxx V
:xx.xxx V

[Disabled]
[Disabled]

85

Hardware monitor submenu

Feature Option Description

Monitor CPU Temperature, Fan Speed and Volt age
CPU1 Temperature

CPU2 Temperature

Displays CPU temperatures

CPU1 Fan
CPU2 Fan
Fan 2
Fan 3
Fan 4
Fan 5
Fan 7

Displays speed of fans connected to
appropriate fan headers

+3.3V
+5V
+12V

Displays voltages for CPU, memory
and other devices

Auto-Control Fan’s
Speed

Disabled

Enabled

All fan speeds are controlled by tem­perature sensor to reduce noise. This
feature is not supported by old 603
Xeon processor.

Chassis intrusion
Detect

Disabled

Enabled

Enabled/Disabled - When chassis is
open, event is detected. BIOS will
record event.

86

Advanced PCI/PnP menu

You can use this screen to view PnP (Plug & Play) BIOS
Configuration Menu. This menu allows the user to configure
how the BIOS assigns resources & resolves conflicts. Use
the up and down <Arrow> keys to select an item. Use the
<Plus> and <Minus> keys to change the value of the selected
option.

Advanced PCI/PnP Menu

Main Advanced PCI/PnP Boot Security Chipset Exit

Advanced PCI/PnP Settings

Use [Enter], [TAB] or
[SHIFT_TAB] to select
a field

Use [+] or [-] to config­ure system time.

 Select Screen
 Select item

+/- Change option
Tab Select field
F1 General Help
F10 Save and Exit
ESC Exit

WARNING: Setting wrong values in below sec­tions may cause system to malfunction

Plug & Play OS
PCI Legacy Timer
Allocate IRQ to PCI VGA
Palette Snooping
PCI IDE BusMaster

IRQ3
IRQ4
IRQ4
IRQ7
IRQ9
IRQ10
IRQ11
IRQ14
IRQ15

DMA Channel_0
DMA Channel_1
DMA Channel_3
DMA Channel_5
DMA Channel_6
DMA Channel_7

Received Memory Size
Extended BIOS Data Area

[Yes]
[64]
[Yes]
[Disable]
[Enable]

[Available]
[Available]
[Available]
[Available]
[Available]
[Available]
[Available]
[Available]
[Available]

[Available]
[Available]
[Available]
[Available]
[Available]
[Available]

[Disabled]
[Enabled]

87

Advanced PCI/PnP Menu

Feature Option Description

Advanced PCI/PnP Menu
Plug & Play OS Yes

No

The Yes setting allows the operating
system to change the interrupt, I/O,
and DMA settings. Set this option if
the system is running Plug and Play
aware operating systems. Set No for
operating systems that do not meet
the Plug and Play specifications.

PCI Latency Timer 32, 64, 96

...248

This setting controls how many PCI
clocks each PCI device can hold the
bus before another PCI device takes
over. When set to higher values,
every PCI device can conduct trans­actions for a longer time and thus
improve the effective PCI bandwidth.

Allocate IRQ to PCI
VGA

Yes

No

Allows or restricts the system from
giving the VGA adaptor an IRQ.

Palette Snooping Disabled

Enabled

This is the default setting and should
not be changed unless the VGA card
manufacturer requires Palett e Snoop­ing to be Enabled.

PCI IDE Bus Master Disabled

Enabled

ENABLED: BIOS uses PCI bus mas­tering for reading / writing to IDE
drives.

IRQ3 - IRQ15 Available

Reserved

Allows user to reserve a specific IRQ
for a legacy device (Note: most hard­ware devices & OS do not support
manually assigned IRQs).

DMA0 ~ 7 Available

Reserved

Allows user to reserve a specific IRQ
for a legacy device

Reserved Memory
Size

Disabled
16K
32K
64K

Size of memory block to reserve for
legacy ISA devices

Enabled BIOS Data
Area

Enabled
Disabled

Enable / Disable Extended BIOS
Data Area

88

BIOS boot settings menu

You can display Boot Setup option by highlighting it u sing the
<Arrow> keys and pressing <Enter>.

BIOS boot settings menu

Main Advanced PCI/PnP Boot Security Chipset Exit

Boot Settings

Use [Enter], [TAB] or
[SHIFT_TAB] to select
a field

Use [+] or [-] to config­ure system time.

 Select Screen
 Select item

+/- Change option
Tab Select field
F1 General Help
F10 Save and Exit
ESC Exit

Boot Settings Configuration
Boot Device Priority

Hard Disk Drives
Removable Drives
ATAPI CD-ROM Drives

89

Boot Settings configuration submenu

Use this screen to select options for the Boot Settings Config­uration. Use the up and down <Arrow> keys to select an item.
Use the <Plus> and <Minus> keys to change the value of the
selected option.

Boot settings configuration submenu

Main Advanced PCI/PnP Boot Security Chipset Exit

Boot Settings Configuration

Use [Enter], [TAB] or
[SHIFT_TAB] to select
a field

Use [+] or [-] to config­ure system time.

 Select Screen
 Select item

+/- Change option
Tab Select field
F1 General Help
F10 Save and Exit
ESC Exit

Quick Boot
Quiet Boot
Add On ROM Display Mode
Boot Up Number Lock
PS/2 Mouse Support
Wait for ‘F1’ If Error
Hit ‘DEL’ Message Display
Interrupt 19 Capture
Primary Display Devices

[Disabled]
[Disabled]
[Force BIOS]
[On]
[Auto]
[Enabled]
[Enabled]
[Enabled]
[Auto]

90

Boot settings configuration submenu

Feature Option Description

Boot Settings Configuration
Quick Boot Mode Enabled

Disabled

Allows user bypass BIOS self
test during POST.

Quiet Boot Disabled

Enabled

Enable this option to hide BIOS
Post messages during POST

Add On ROM Dis­play Mode

Force Bios

Keep Current

Allows user to force BIOS/Option
ROM of add on cards to be dis­played during quiet boot

Boot Up Number
Lock

On

Off

Choose status of keyboard NUM
LOCK key

PS/2 Mouse Sup­port

Enabled
Disabled

Auto

Allows user to choose status of
PS/2 mouse support

Wait for ‘F1’ If Error Enabled

Disabled

Allows user to disable the "Press
F1 to Continue" error message
when error is detected.

Hit ‘Del’ Message
Display

Enabled

Disabled

Allows user to disable the "Press
DEL to enter setup" message
during POST

Interrupt 19 Capture Enabled

Disabled

Allows devices (such as network
card) to capture INT19 for boot­ing

Primary Display
Device

Auto

Onboard VGA

Display Device is used by BIOS
POST

91

Boot device priority submenu

Use this screen to select options for the Boot Device Priority.
Use the up and down <Arrow> keys to select an item. Use
the <Plus> and <Minus> keys to change the value of the
selected option.

Boot device priority submenu

Main Advanced PCI/PnP Boot Security Chipset Exit

Boot Device Priority

Use [Enter], [TAB] or
[SHIFT_TAB] to select
a field

Use [+] or [-] to config­ure system time.

 Select Screen
 Select item

+/- Change option
Tab Select field
F1 General Help
F10 Save and Exit
ESC Exit

1st Boot Device
2nd Boot Device
3rd Boot Device
4th Boot Device

[1st FLOPPY DRIVE]
[IBA FE Slot 0108 V4110]
[IBA GE Slot 0409 V1211]
[IBA GE Slot 0408 V1211]

92

Boot device priority submenu

Feature Option Description

Boot Device Priority
1st Boot Device 1st FLOPPY DRIVE

Disabled
IBA FE Slot 0108 V4110
IBA GE Slot 0409 V1211
IBA GE Slot 0408 V1211

Settings for boot prior­ity can be customized
depending on your
preference.

2nd Boot Device 1st FLOPPY DRIVE

Disabled

IBA FE Slot 0108 V4110

IBA GE Slot 0409 V1211
IBA GE Slot 0408 V1211

3rd Boot Device 1st FLOPPY DRIVE

Disabled
IBA FE Slot 0108 V4110

IBA GE Slot 0409 V1211

IBA GE Slot 0408 V1211

4th Boot Device 1st FLOPPY DRIVE

Disabled
IBA FE Slot 0108 V4110
IBA GE Slot 0409 V1211

IBA GE Slot 0408 V1211
