1. About CMD
CMD is Car Multimedia Device.
1-1 Product Appearance
CMD
1
Page 4
www.itingway.com
1-2 Main Interfaces
After power on, we can see the standard interface based on Android System.
1-3 The Main Function of the CMD
1-3-1 GPS: Car GPS Navigation
1-3-2 VSA: Visible Side Assist Camera (Optional)
1-3-3 DVR: Digital Video Recorder (Optional)
1-3-4 RVC: Rear Visible Camera (Optional)
1-3-5 CTP: Car Tablet PC
1-3-6 CMP: Car Music Player
2. GPS: Car GPS Navigation
The user can install the local map based on Android OS 4.4.2 and above. The map software
resolution is 800*480.
3. CTP: Car tablet PC
Use standard Android 4.4.2 Operation System interface.
2
CMD
Page 5
www.itingway.com
4. CMP: Car Music Player
Car music player plays the music in the CMD via Car Audio System, it can not only make
the sound more loudly, but also let the sound quality much better. Let the user feel much
better when navigation and play music. This function is used more frequently by the Car
Navigation.
By using the FM function of the CMD, you need to keep the receiving frequency of CMD
FM and Car radio stay same. When set the frequency band, remember do not overlap with
local radio spectrum, otherwise will be disturbed. Before using, please connect the car
charger. Because the car charger is the antenna of FM transmit. Open the Car radio
equipment, adjust the receiving frequency to the band without disturbed, and then click
the CMD interface【FM Transmit】icon, open the FM transmit and adjust the frequency to
stay same with car radio, check , that is the FM Transmit open, right now the
CDM music plays via car radio.
Notes:
1. Must connect to the car charger, otherwise cannot use FM Transmit function.
2. If not use FM Transmit function, please click again to close it, otherwise
the CMD is in the mute state.
CMD
3
Page 6
www.itingway.com
3. According to the different car model, the Car FM Receiving antenna position is different.
Some is in the back of the car which will influence the receiving result. Please use this
function according to the actual condition.
5. Installation Method
5-1 First remove the sticker on the metal holder, fix the metal holder to the CMD device.
Please stick according to the indication area.
5-2 Find the suitable position, fix the metal holder to the car console together with CMD.
CMD
4
Page 7
www.itingway.com
5-3 CMD device can face to the driver and passenger, and can be laid on the console.
CMD
5
Page 8
www.itingway.com
5-4 Metal holder level can rotate 360 degrees, vertical can rotate 90 degrees.
Advantage：
1. Fixed position, stay the same level with driver, the driver does not need rise or low head,
which make the driving more safety.
2. Fixed position, do not put in the windshield, will not block the driver's line of sight.
Make the driving much more safety.
3. Product placement angle is adjustable, drivers and passengers can enjoy the best visual
angle, can be folded up when not working.
Notice:
The device screen has been covered the protective film please don’t remove it
CMD
6
Page 9
www.itingway.com
Visible Side Assist
7
Page 10
www.itingway.com
1. About VSA
VSA is visible side assist camera system for vehicle traveling. As soon as you turn on the
turn light during driving, the VSA can show the side image automatically.

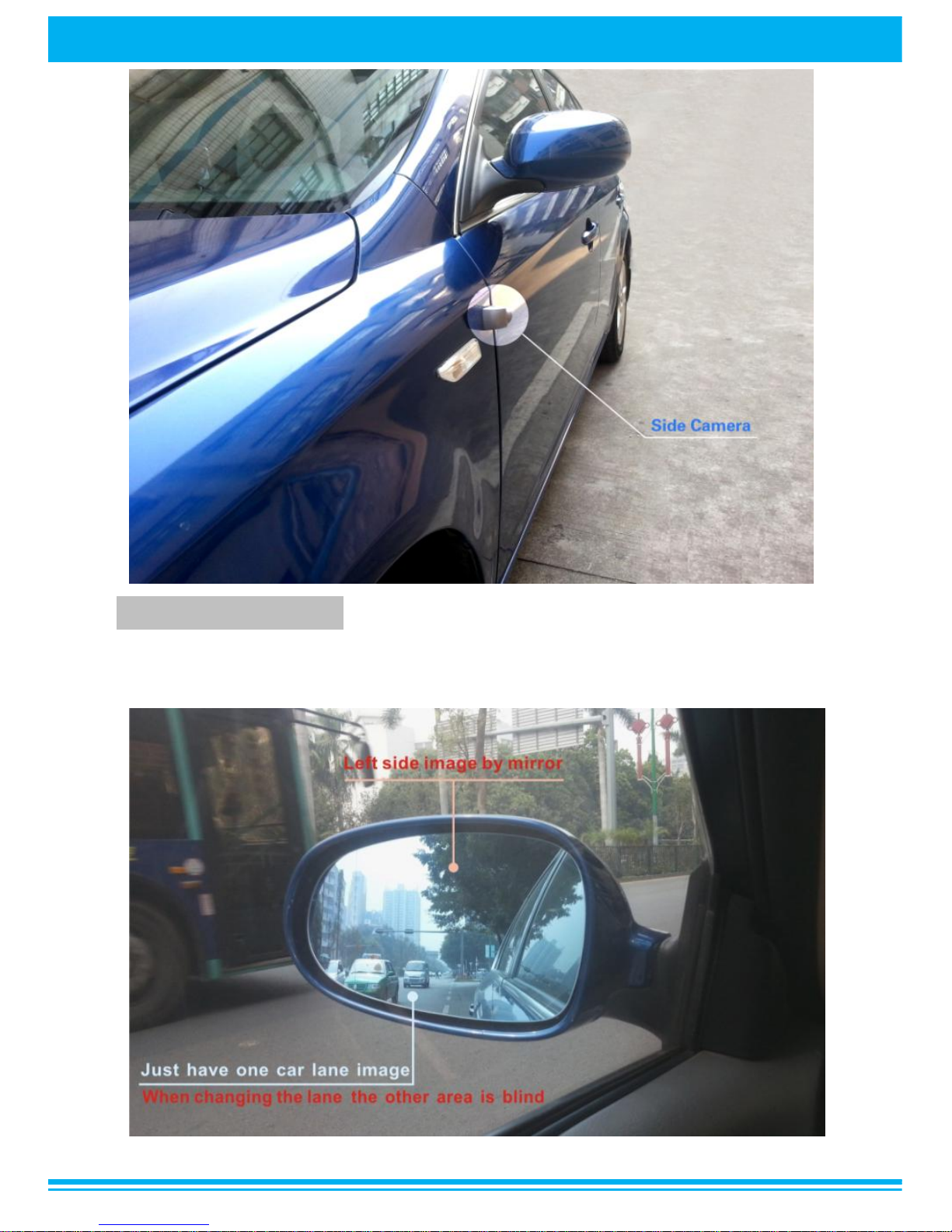

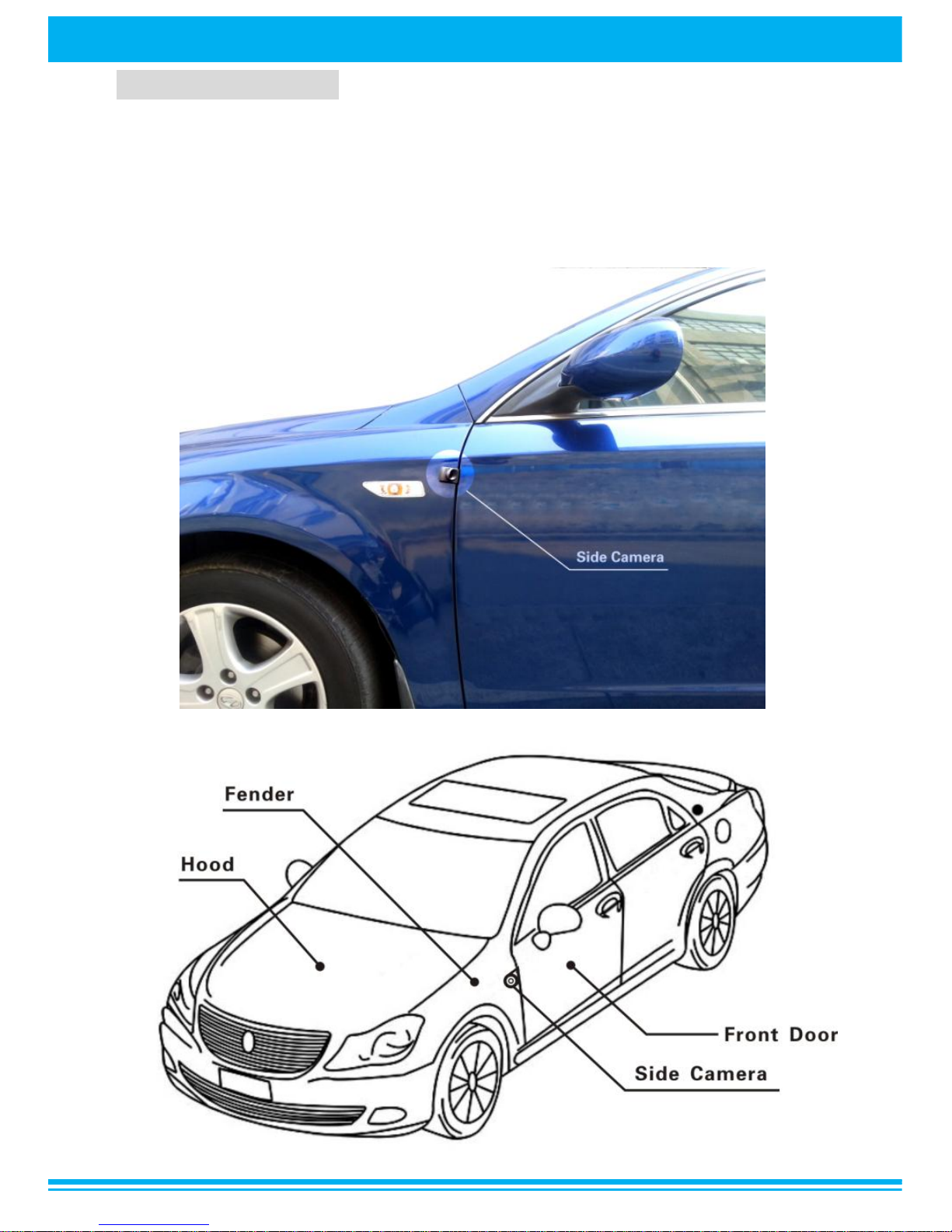

1-1 Product Appearance

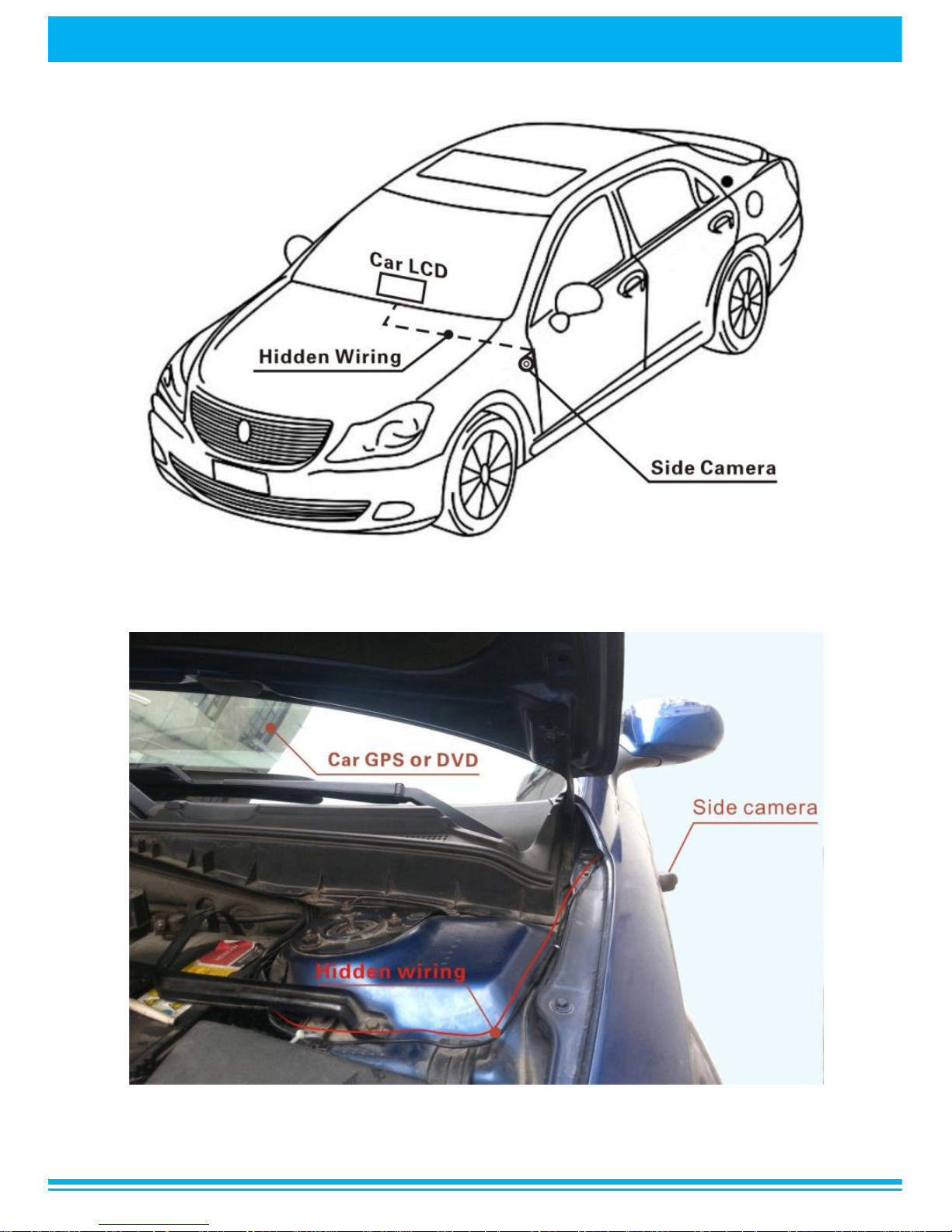

1-2 Installation Position
VSA (Optional)
8
Page 11
www.itingway.com
1-3 Product Advantage

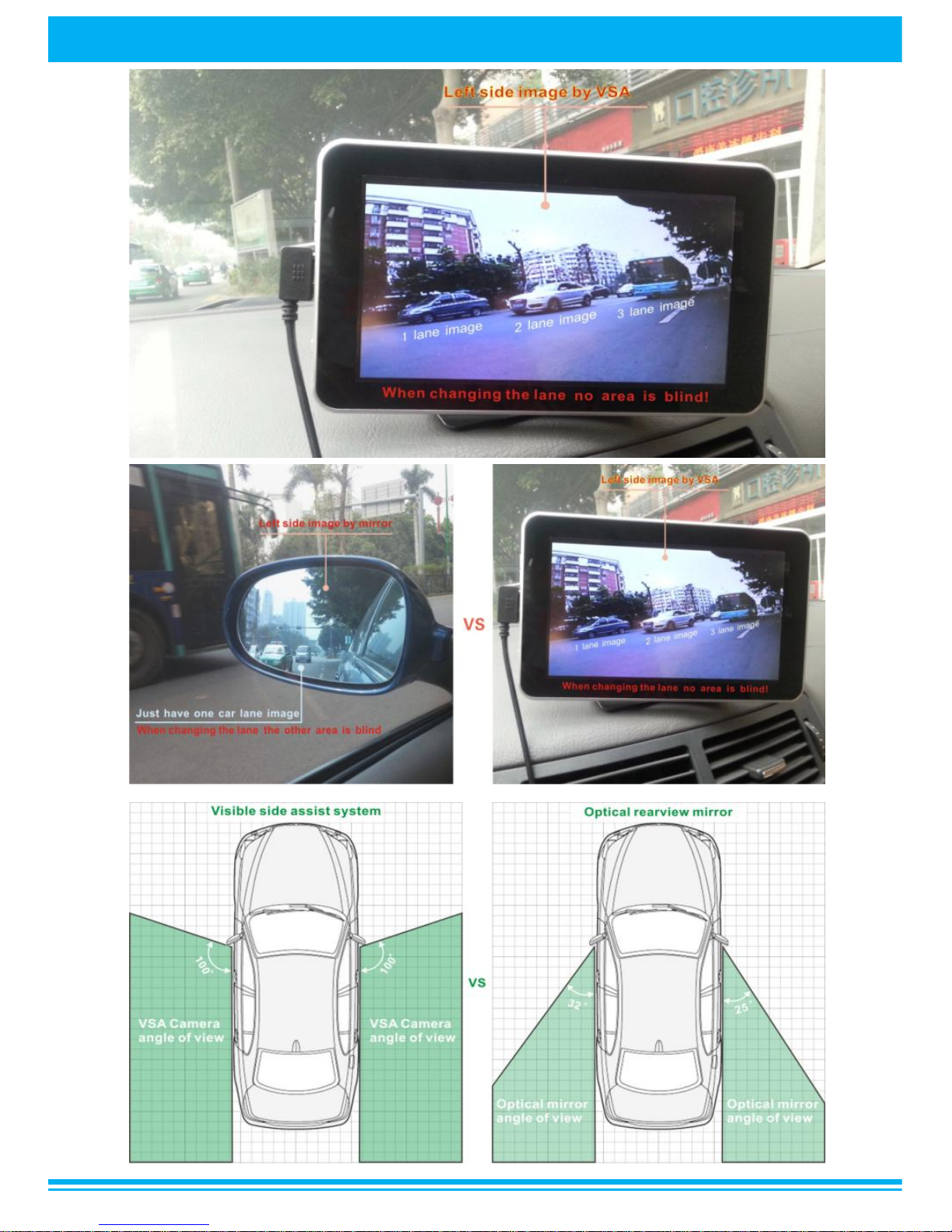

1-3-1 Large angle, compared with conventional rear-view mirror, completely eliminate the
blind area, make the drive safer.
VSA (Optional)
9
Page 12
www.itingway.com
VSA (Optional)
10
Page 13
www.itingway.com

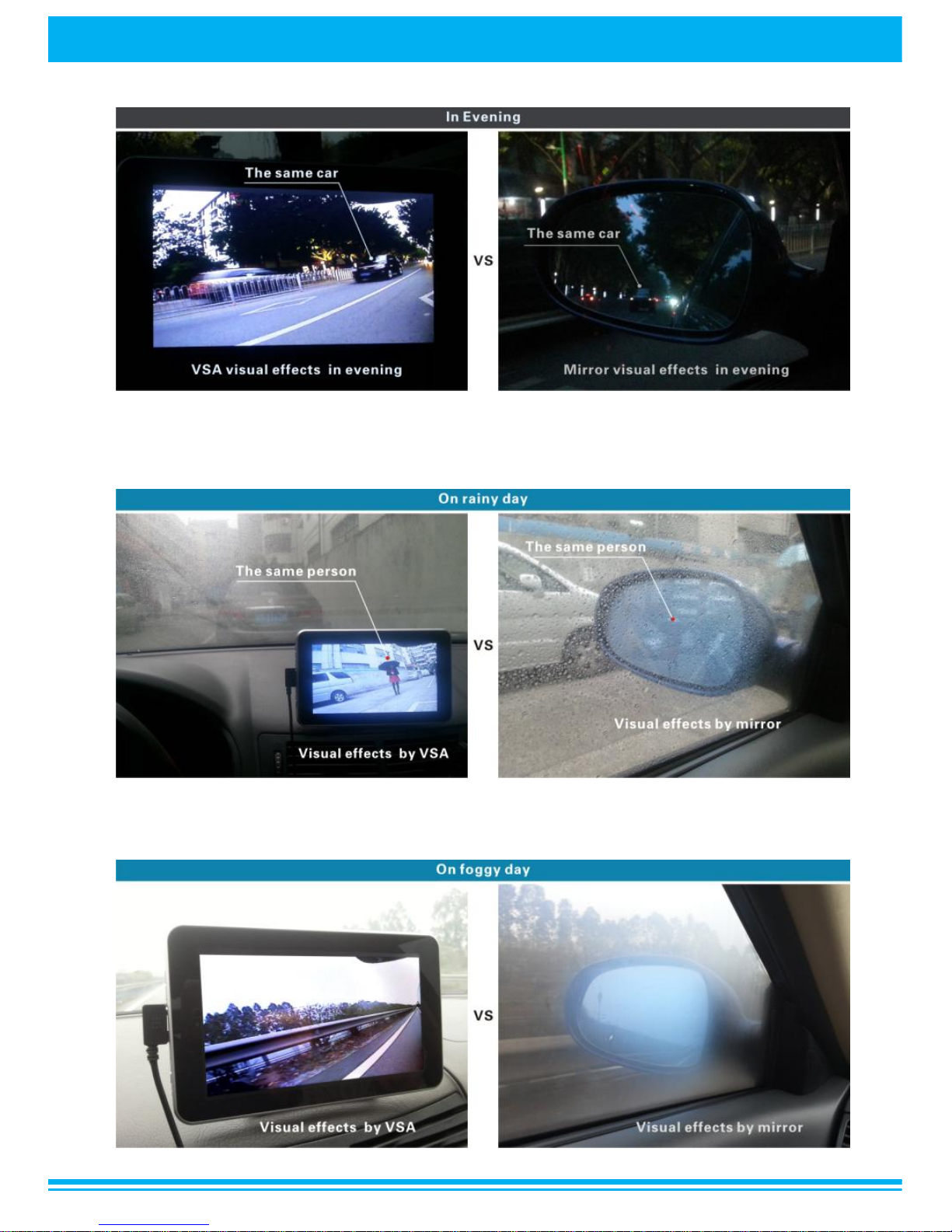

1-3-2 In evening the VSA image is more brightness than car rear-view mirror.

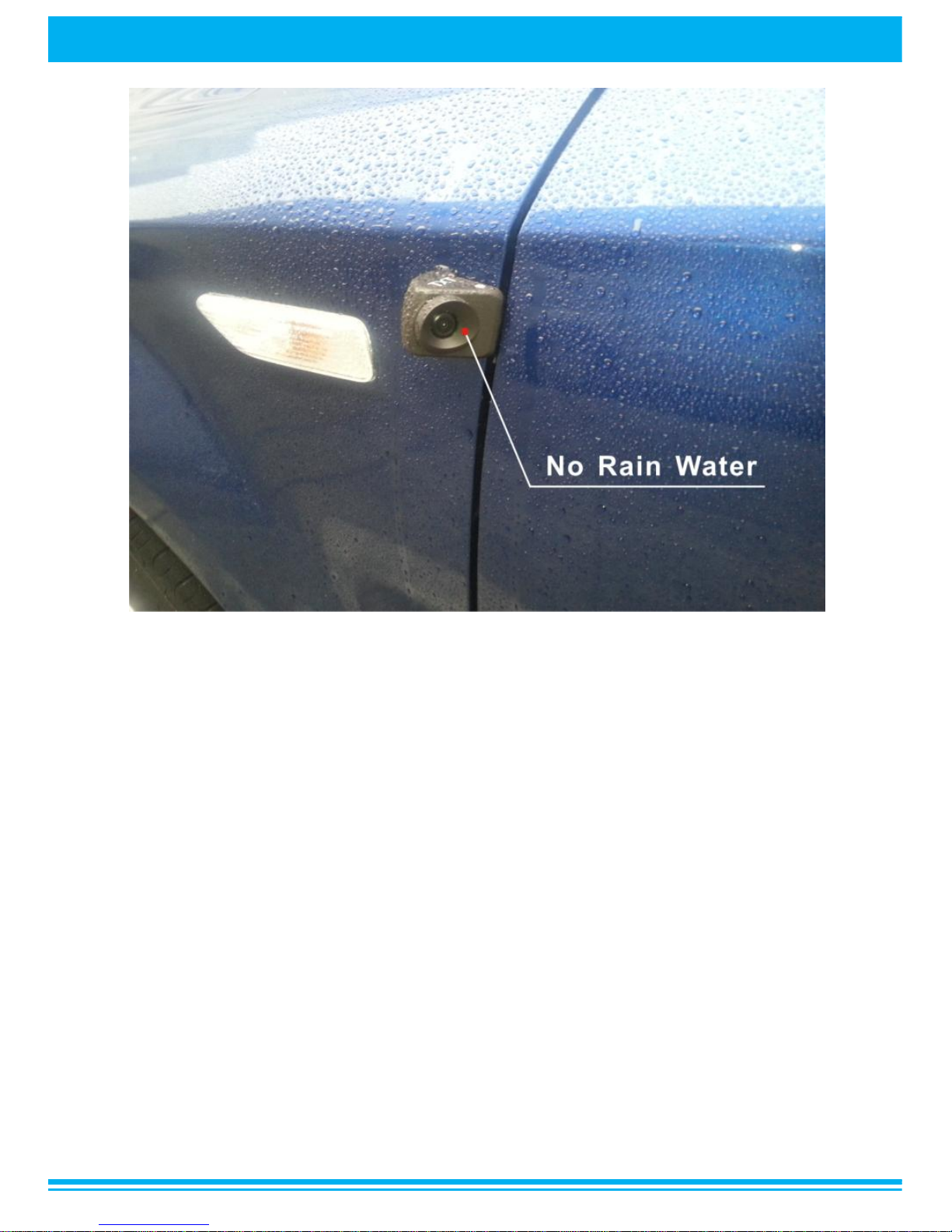

1-3-3 On rainy day you can’t see anything on mirror but can see the rear image clearly by
VSA.
1-3-4 On foggy day you can’t see anything on mirror but can see the rear image clearly by
VSA.
VSA (Optional)
11
Page 14
www.itingway.com
VSA (Optional)
12
Page 15
www.itingway.com
2. Installation Method
Step 1 Please removes the sticker of side camera and fixes the camera on the edge of car
door. Please note let camera parallel to the ground. Put the cable of the camera into the
gap between fender and door. Please fix the side camera with mark “L” onto car left and
fix the right camera onto car right.
VSA (Optional)
13
Page 16
www.itingway.com
Step 2 Make the cable through the fender. You can use one iron wire to guide

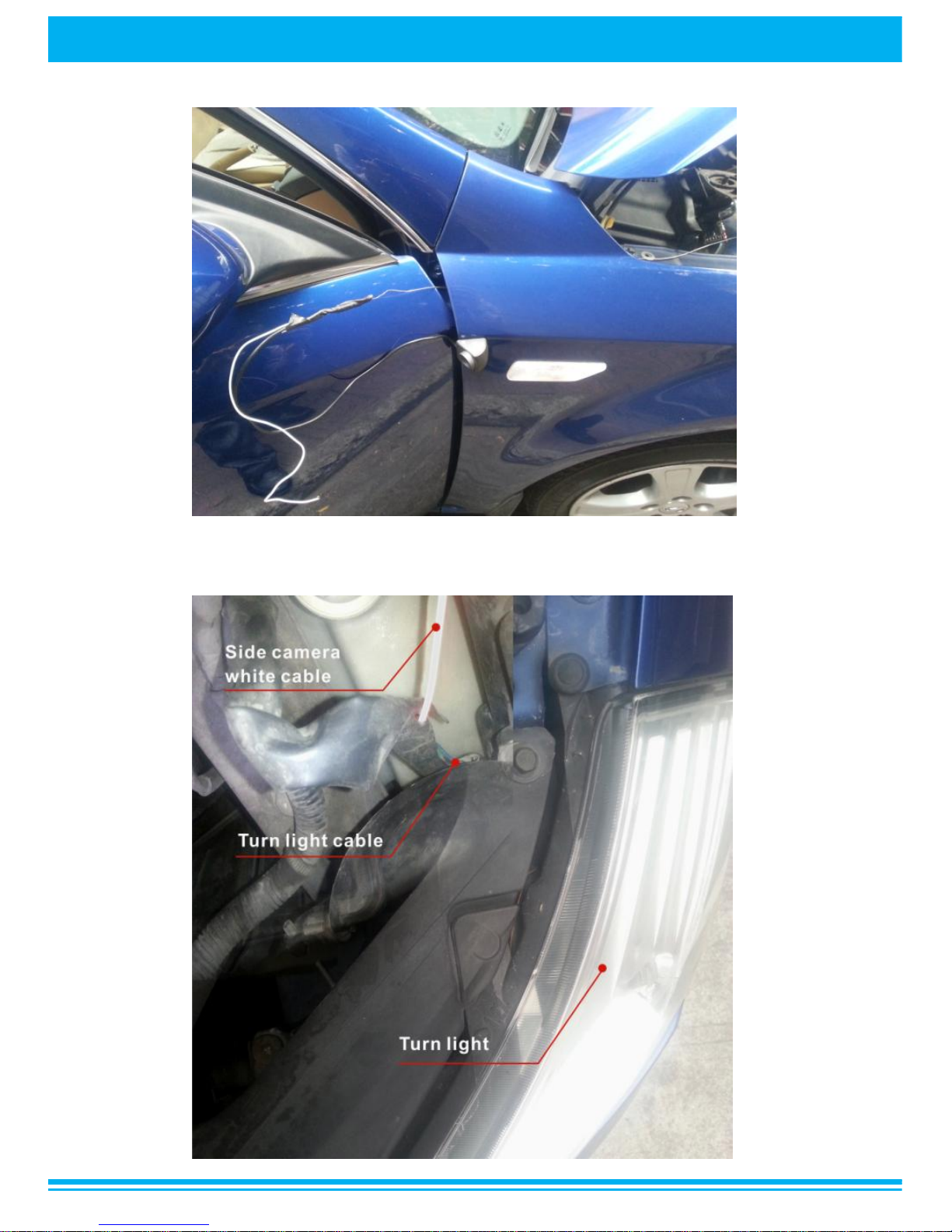

Step 3 Find the front turns light cable and connects the white cable of camera
together with it. (The left and right side camera use the same fix method)
VSA (Optional)
14
Page 17
www.itingway.com

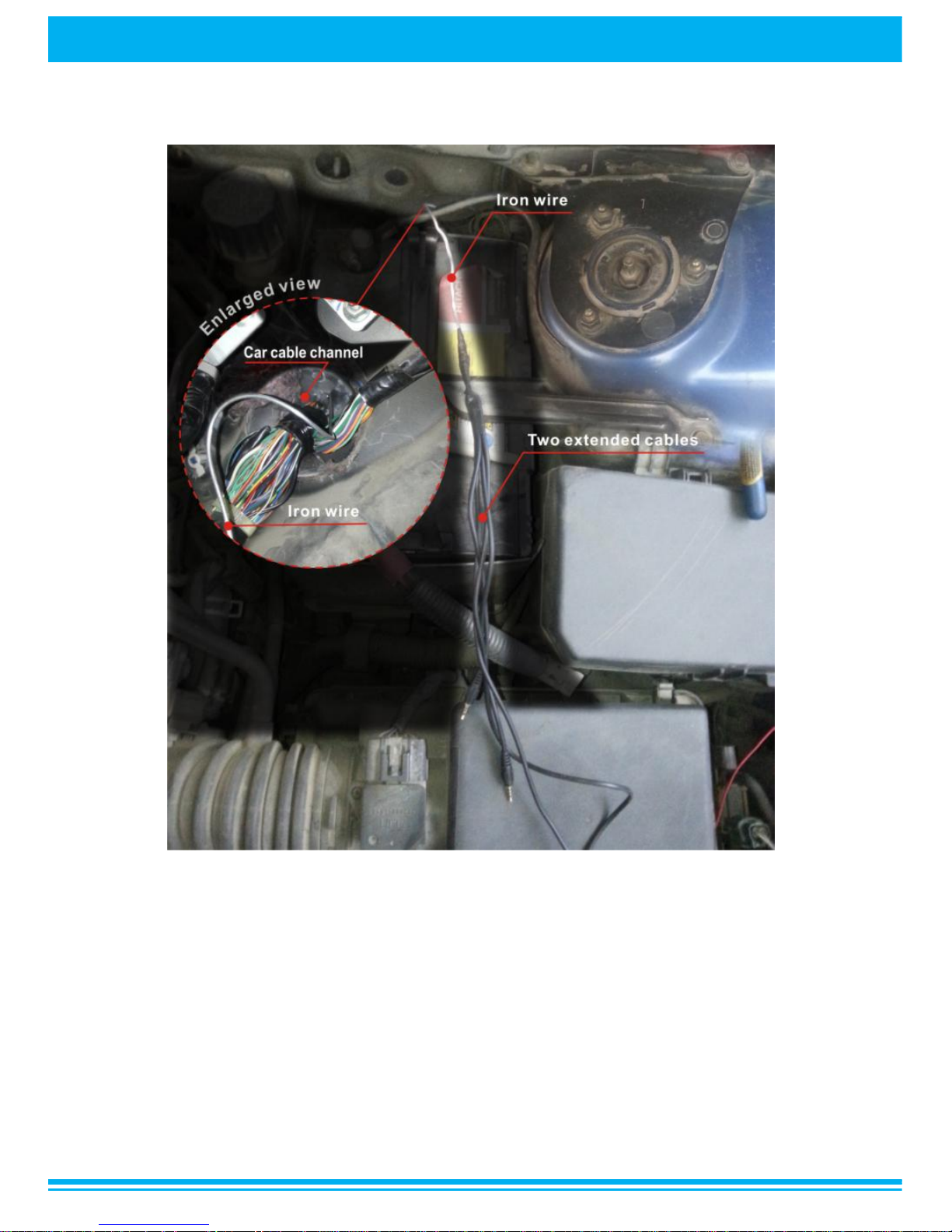

Step 4 Connect the side camera extended cable and put the two cables into the cab
through cable channel. You can use one iron wire to guide
VSA (Optional)
15
Page 18
www.itingway.com
VSA (Optional)
16
Page 19
www.itingway.com

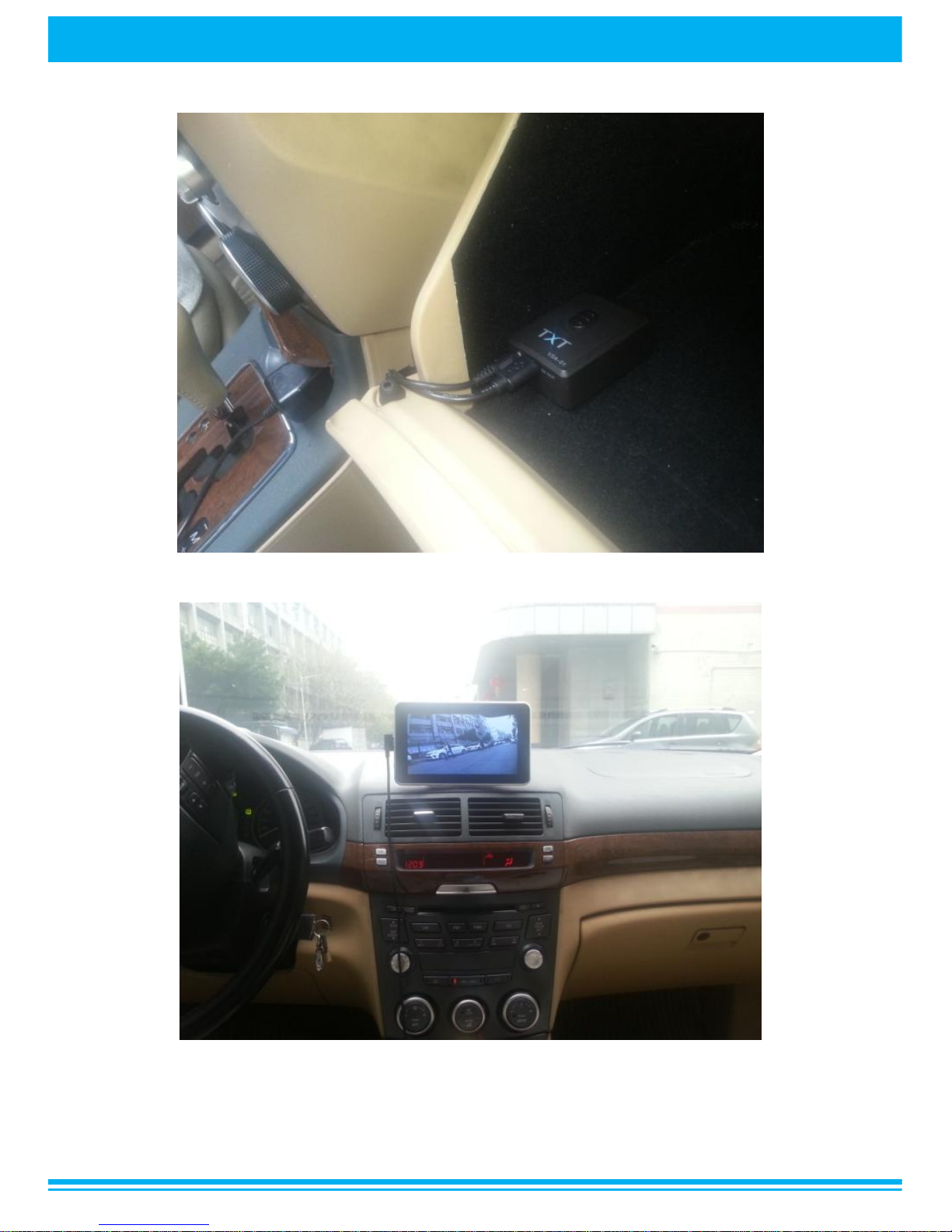

Step 5 Fix the VSA device into car storage box and connect all the cables with it
VSA (Optional)
17
Page 20
www.itingway.com
Notice:
Make all the cables to keep away from engine and other heating element. Fix all the cables
with Tingway plastic wires.

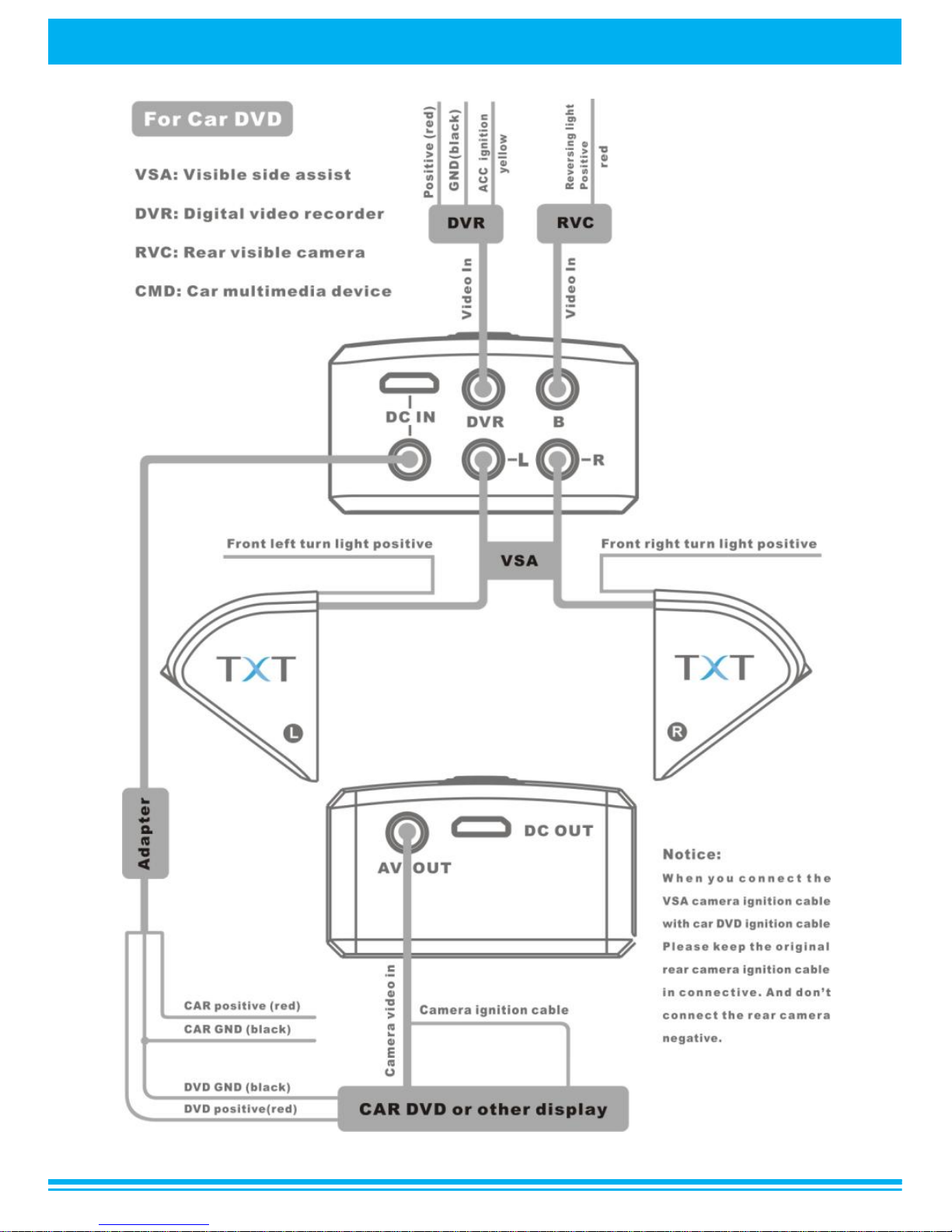

Please reference the general assembly drawing
3. Precautions for USE
When you enjoy using VSA system, sometimes you can use it combination with the car
rear-view mirror together, for example in the bright light weather conditions.
VSA (Optional)
18
Page 21
www.itingway.com
1. About DVR
DVR is digital video recorder or car black box.

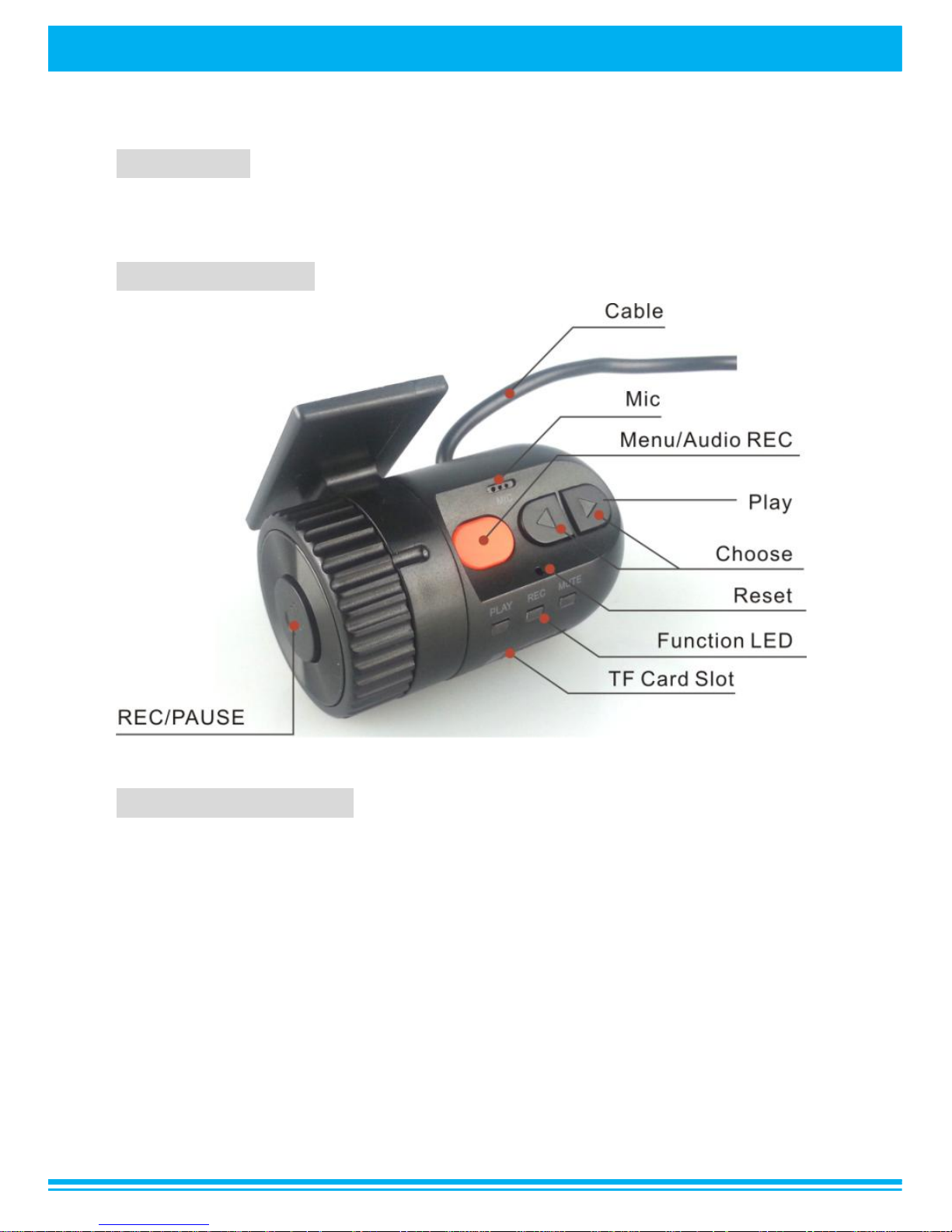

1-1 Button Function

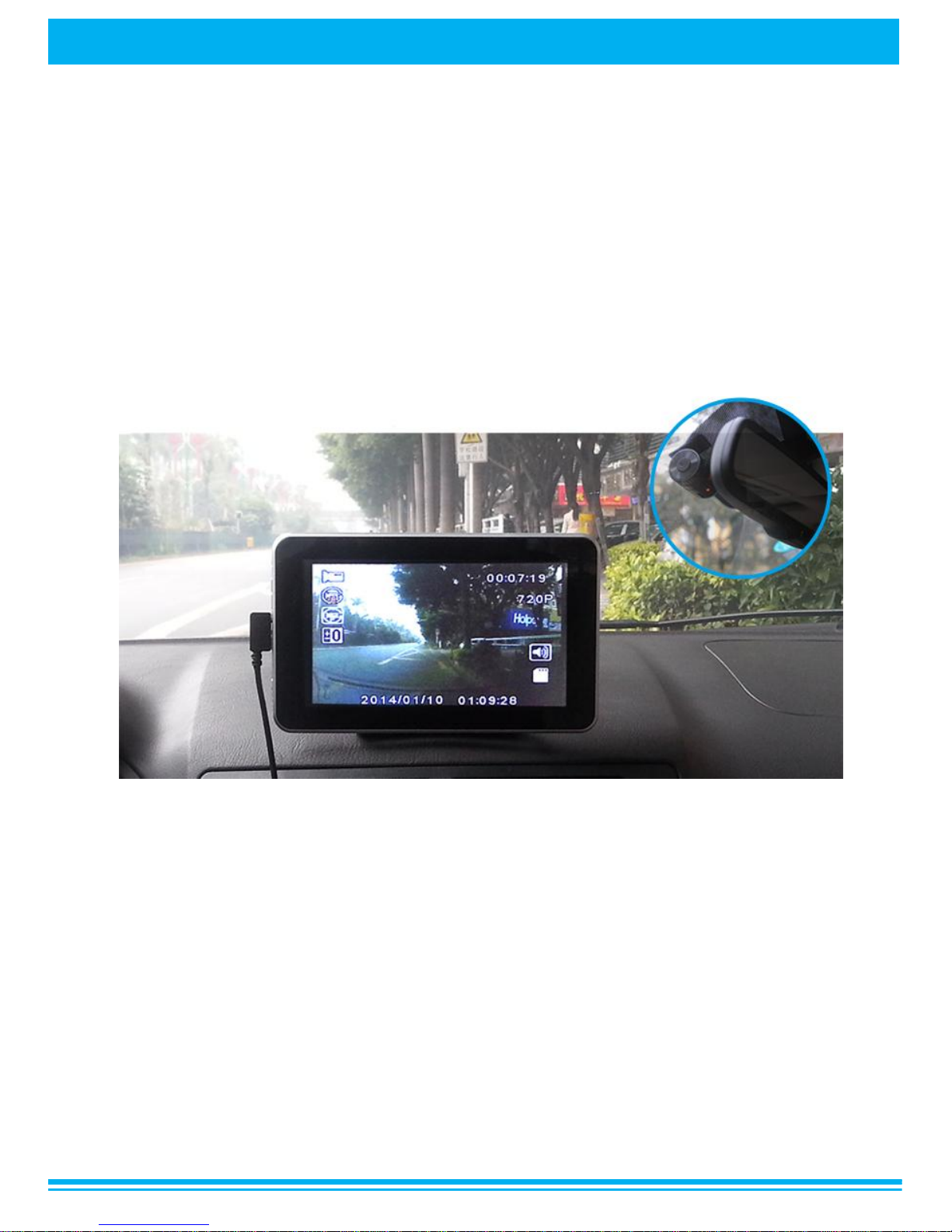

1-2 Instruction of install
Turn off the car
Put the TF card into correct place of recorder. Notice: please use the high speed TF card
(class 6 or higher), 512mb or larger; TF card can support 32G.
Tear the RED 3M glue of the bottom of the recorder, and then put the recorder on the
windscreen of the car. Notice: please install the recorder in a safe place, we recommend
user who installs it back of the wing mirror, which make it looks good.

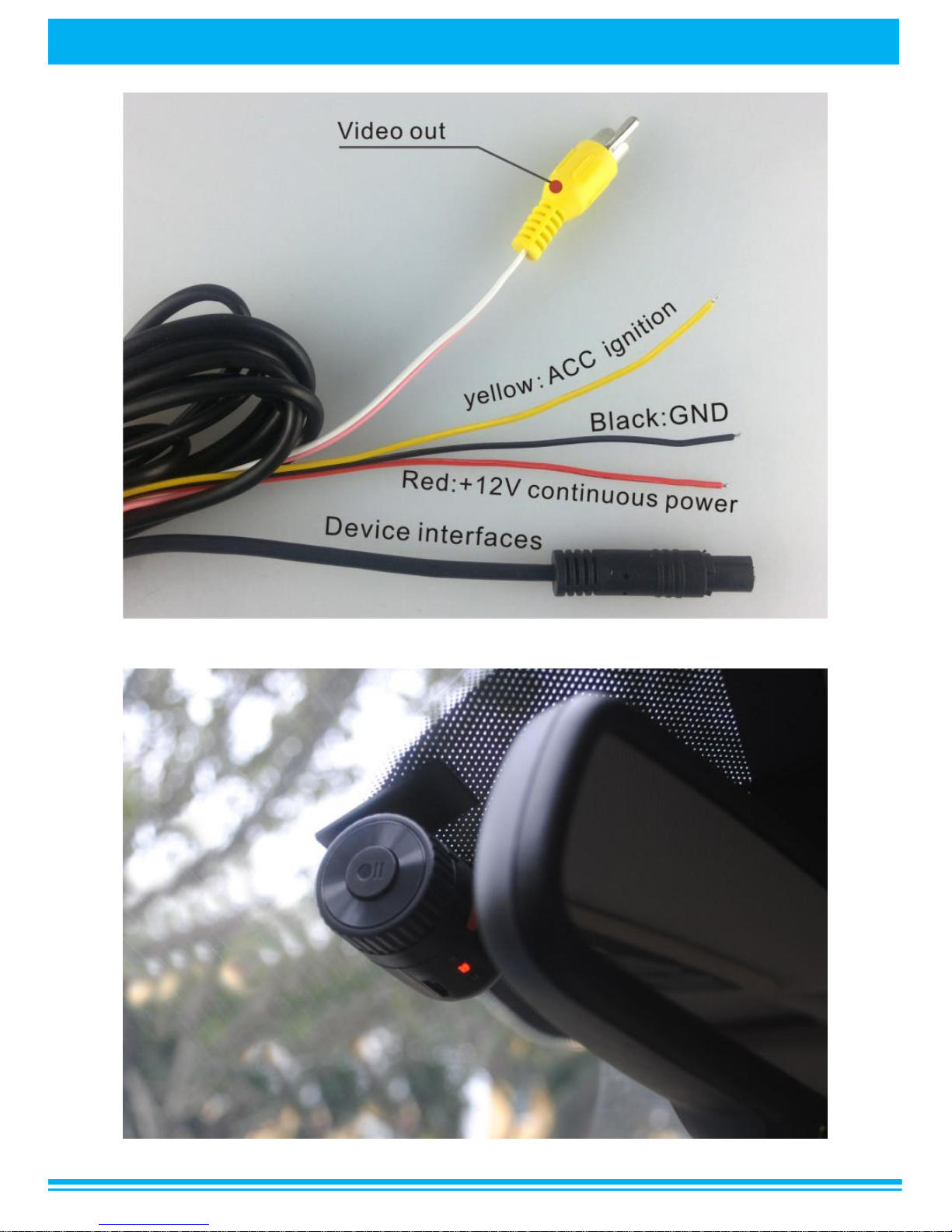

Connected the red power cable to the 12v driver, white ACC ignition control line, black one
with earth, yellow one with video; AV output connect to the AVI connector of the GPS.
Turn on the engine, check it install right or not, red light turn on and flashing, means it
turn on and in a video situation.
DVR (Optional)
19
Page 22
www.itingway.com
DVR (Optional)
20
Page 23
www.itingway.com
2. Instruction of the KEY functions
Turn on/off/OK key
Under the standby mode, long press turn off, short press video; short press will stop to
video when videoing; functions choosing, short press means OK
MANU key
Under the standby mode, short press the menu into main menu function setting, short
press UP or DOWN, choose what you need to setting; press ON or OFF key to OK. After
setting, short press MANU back to last till to exit the MANU. (Under the situation of the
video, MANU does no working). Long press into the mode of re-play, press UP or DOWN to
choose the file, press ON or OFF/ OK key to play or stop. Long press menu exit the mode of
re-play.
Reset
If the recorder meet crash fault, short press can renew to the default factory setting, then
it will restart.
UP
Under the video or standby mode, short press turn on tape; it means UP function under
menu or re-play mode.
DOWN
Under standby mode, long press mean mode switch (APL/NTSC); under the MANU or
RE-play mode mean DOWN function.
Indicator
Re-play mode, yellow light ON; standby mode, red light ON, video mode, red light flashing;
turn on the tape function, blue light ON, no TF card, yellow, red and blue light all ON.
3. Operation instruction
Use auto-record function
Turn on the engine, recorder auto turn on the record function, red light flash. Turn off the
engineer, recorder auto save the recording file and turn off. The video will save in the TF
card by section; when TF full up, recorder will switch with newer video. Notice: recorder
section can set in the MANU setting; range is 3, 5 or 10 minutes. Default setting is 3 mins.
Use manual record function
Under the standby mode, short press ON/OFF/ OK key, recorder start to video; press 3
minutes to turn off, recorder will auto save the recording and turn off.
Use sport sense function
Under standby mode, and set sport sense with ON. When the scene feeling to the move
things around it, start to video; when the scene do not felling anything moving, 5 seconds
later, stop to video. Enter into main menu turn off the sport sense.
G-sensor function
DVR (Optional)
21
Page 24
www.itingway.com
Inside with G-sensor, Under video mode, recorder shaking or swing, which will auto locked,
lock the front seconds and behind 20 seconds video, and left screen show lock mark,
locked video be saved with a special file, which will not be switched by new video.
Date and Time setting
Under standby mode, short press MANU enter into system setting menu, short press
UP/DOWN and move cursor to the Time/date menu, short press turn on/off, press OK into
TIME and DATE Modification interface, short press UP/DOWN to adjust the numbers;
finished it, short press MANU key to exit.
Quiet function key
Under standby mode, long press MANU enter into re-play mode, short press UP/DOWN
key to choose the file what you need; short press turn on/off, press OK key to play, short
press again, paly pause. If you want to exit the re-play mode, long press MANU after paly
pause or finish play.
System convert
APL/NTSC 2 systems, if need to switch the systems, under standby mode, long press
DOWN key; or switch it in the MANU “TV mode”. The default mode is APL system.
4. Responsible for the declaration
The information support by vehicle recording instruction only for reference, the right
information please checks by your own recorder buy from us. We will not responsible for
anything, if anything happen when using our products, like a fine or traffic accident.
Traveling recorder video cycle recording, users please safe the important file in time. We
cannot guarantee something happen in the using process; we do not responsible for it, if
without record video file. At the same time, our company also advocates civilized driving,
obey the traffic rules.
Comply with this statement, when you buy this product.
5. Product Parameter
Main chip: Taiwan Lian yong NT96220
Sensitization chip: OV9712
Built-in G-sensor accelerometer, start video when vehicle suffered mutations,
records the 15 seconds video before and after mutations.
Shooting angle: use 140 degree high-definition wide angle lens
Screen: no screen, use car DVD navigation screen
DVR (Optional)
22
Page 25
www.itingway.com
Image formats: JPG (resolution: 2560*1920/3264*2448)
Video format: AVI (video resolution: 1280*720)
Memory card format: TF memory card (1-32GB), recommend use the 6X or higher
speed card
No battery version, no explosion, long memory, more stable.
Video output: input by car AVIN/AUX channel of car
Microphone: support
Video mode: automatic cycle cover motion
Power supply: 12V
Intelligent control: motion detecting, automatic startup video, turn it off.
DVR (Optional)
23
Page 26
www.itingway.com
1. About RVC
RVC is rear visible camera for car

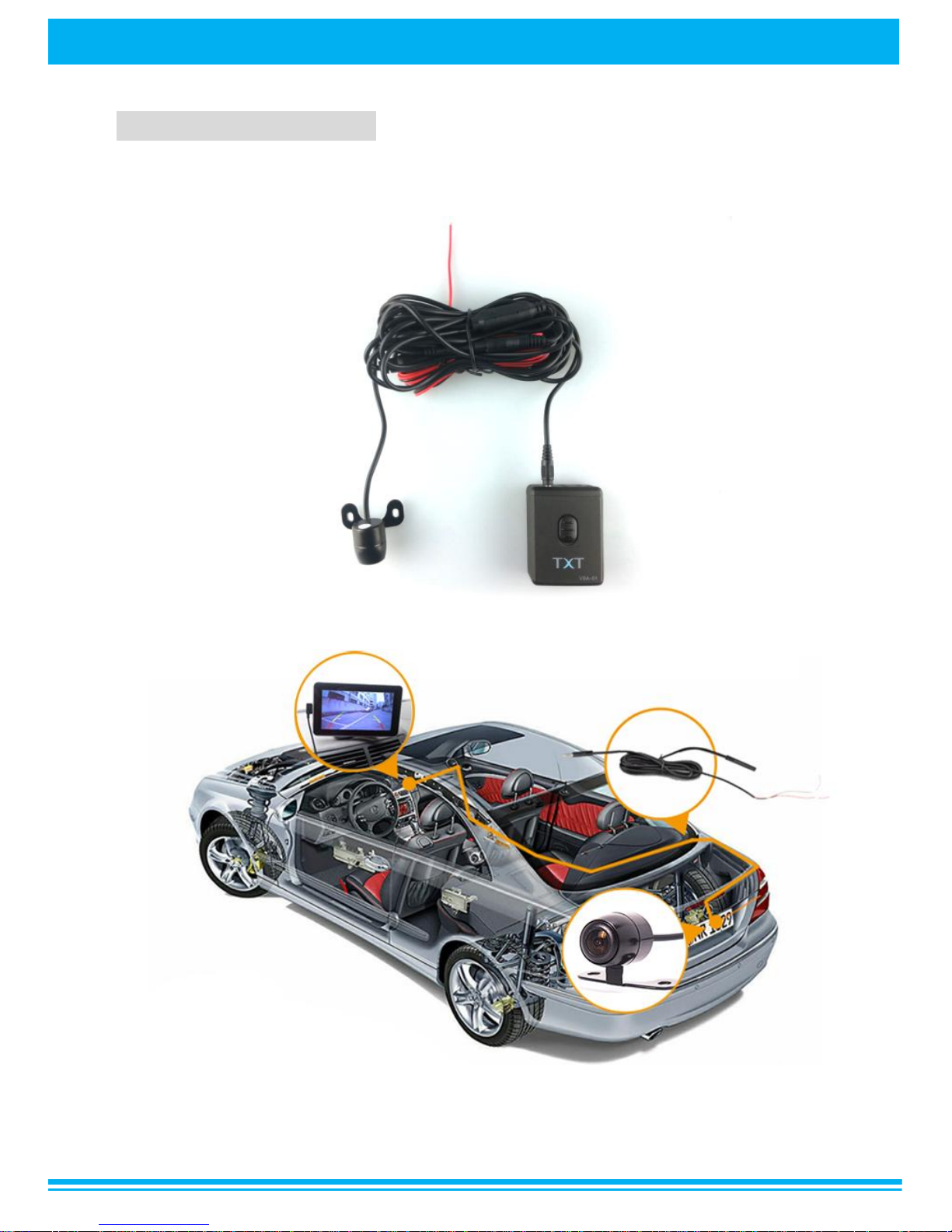

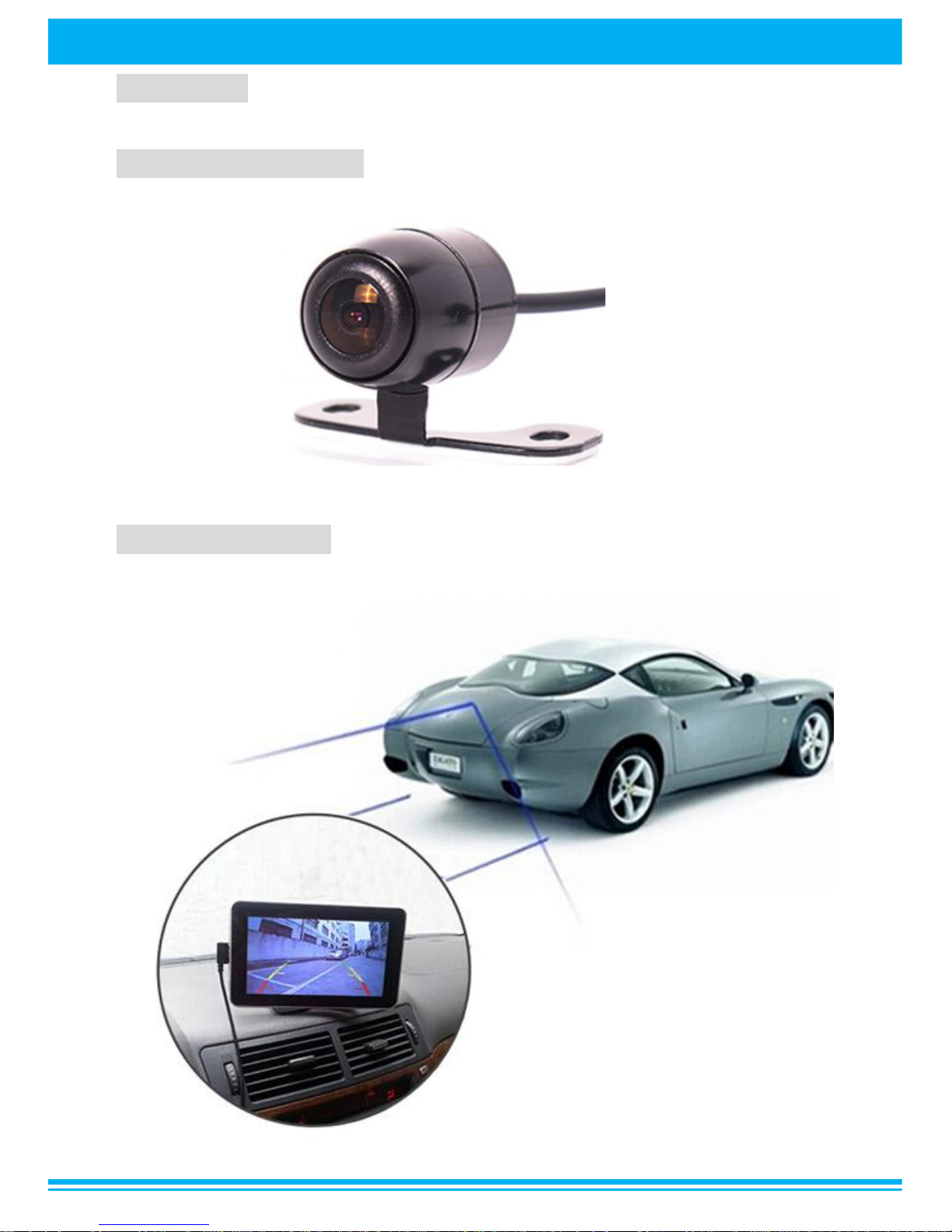

1-1. Product Appearance
1-2. Product Function
When backing a car, you will see the back image from the CMD screen immediately.
RVC (Optional)
24
Page 27
www.itingway.com
2. Installation instructions

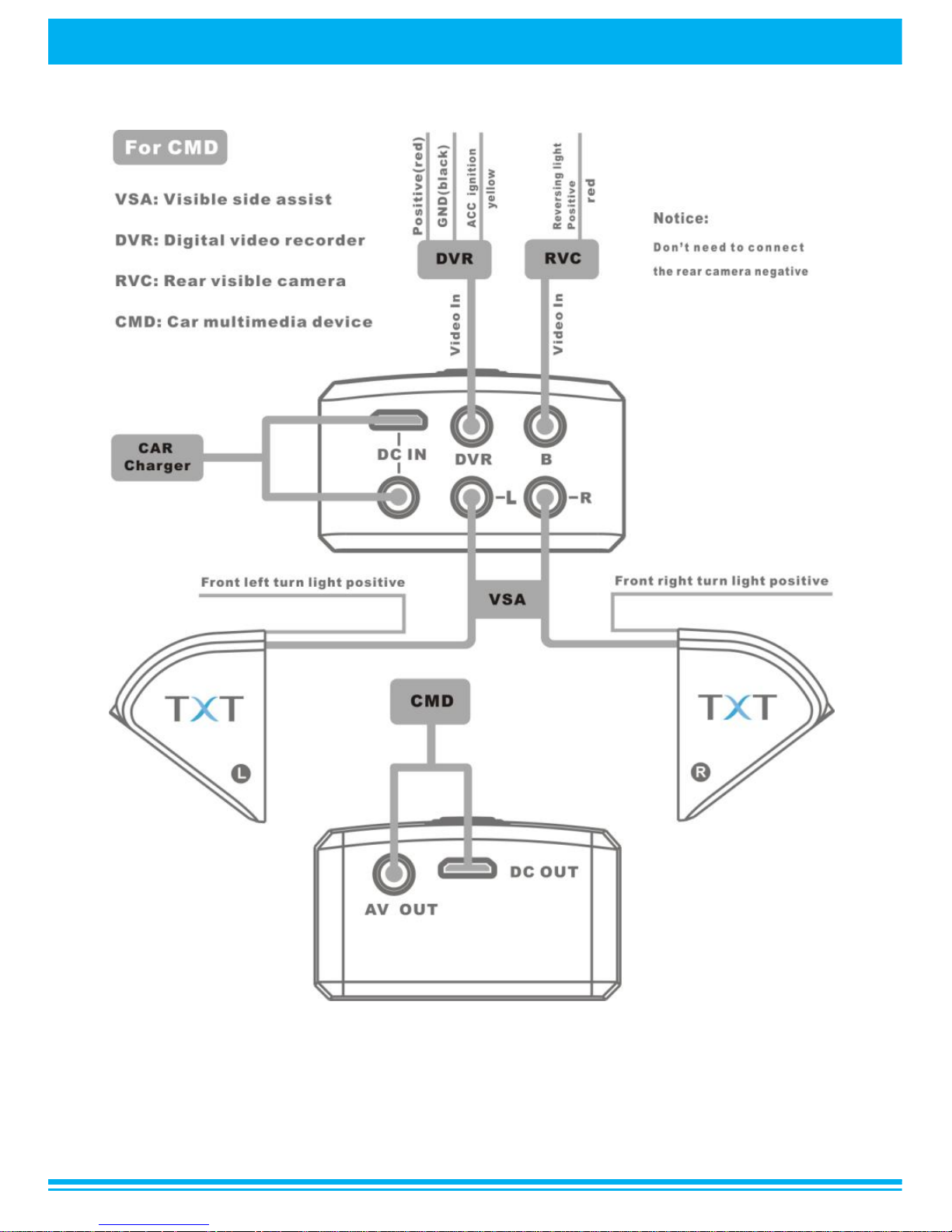

Connect car reversing light positive voltage 12V with the red cable, and the headset plug
connects with VSA device. Please refer to the generally assembly drawing on the details.
Notice:
Please connect car reversing light positive only, don't connect the car reversing light
negative.
RVC (Optional)
25
Page 28
www.itingway.com
3. Product Parameter
Product Model
602-C
CMOS Image Sensor
PC 1/4-inch Color CMOS
Pixel
628*582
Resolution
420TV Line
Mini illuminance
1.0LUX
Camera Lens
1.8mm
SYSTEM
PAL/NTSC
Working Temperature
-20℃--50℃
Power Supply
DC 5V
Current
100mA
Viewing Angle
170°
Night Vision Range
0-3M
RVC (Optional)
26
Page 29
www.itingway.com
General Assembly Drawing
27
Page 30
www.itingway.com
28
General Assembly Drawing
Page 31
www.itingway.com
Notice:
All the pictures are for reference only. Please adhere to the original products in case of any
mistake! You must buy and use Tingway produced Accessories.
Use the original manufacturing accessories only. Unauthorized accessories may damage
the device or shorten the using life；
Keep the device dry and away from water to protect the device and accessories；
Do not store your device near magnetic fields；
Do not stored the device together with metal objects such as coins, keys, etc.；
Avoid pressed by excess weight, fall from height, etc.
Security Knowledge:
Please carefully use the product in the following case：
Airplane
Prohibited in aircraft use, please turn off the device before boarding. When the aircraft is yet to
take off or just landed, please also comply with the relevant airline regulations on the use of
wireless electronic devices.
Vehicle traffic safety
Do not use the unit while driving. Place the unit in a safe place; do not place the unit on a
passenger seat or other places easy to lose.
Electronic Devices
Most electronic devices use radio frequency signals; your device may interfere with other
devices.
Potentially Explosive Areas
We recommend that you off the device in the might explosive area and comply with their
environment slogans and instructions. In some special places, spark could cause an explosion or
fire, which will lead to body injury or even death and other damage.
Pacemakers and Other Medical Devices
In order to avoid the possible adverse effects, pacemaker manufacturers recommend that
Proper care and use the device
29
Page 32
www.itingway.com
mobile devices better to maintain at least 20 cm distance from the pacemaker.
Operation of any radio transmitting equipment may interfere with the function of inadequately
protected medical devices. Please refer to a doctor or medical device manufacturer if not clear
about medical device whether shielded from external RF energy or not。Please shut down the
device in any area or health care facilities which express provision to turn off your phone.
Operating Environment
When the unit is connected to other devices or accessories, please read the device's user
manual or instructions for detailed safety instructions. Do not connect incompatible products.
To avoiding hurting people then the airbag opened. Please do not place the equipment or install
in the area an opened airbag can reach.
Please be sure to shut down the device in the places where prohibit the use electronic products
or it may cause interference or danger.
Places Post Notices
Please shut down the device when expressly provided requires you to turn off the device.
30
Loading...
