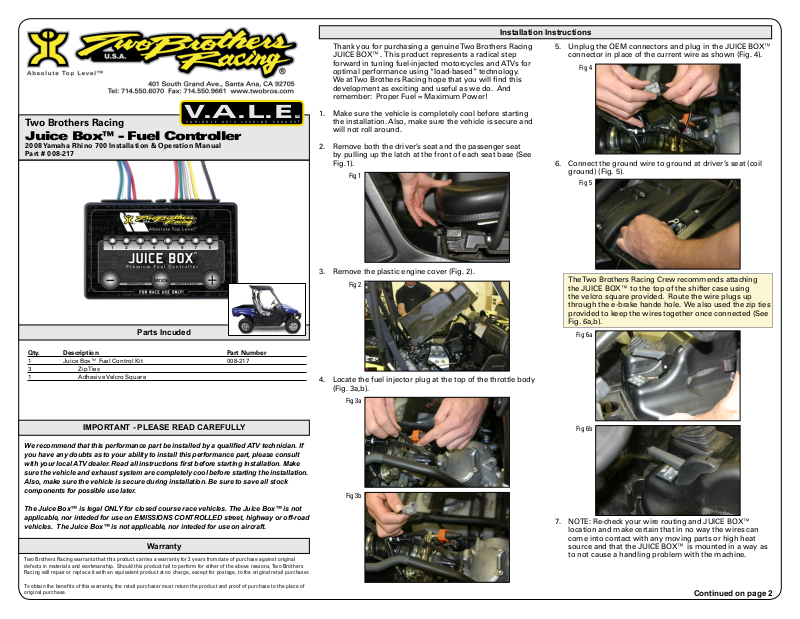

Two Brothers Racing Rhino 700 User Manual
V.A.L.E.
Two Brothers Racing
V A R I A B L E A X I S L O C K I N G E X H A U S T
Juice Box™ - Fuel Controller
2008 Yamaha Rhino 700 Installation & Operation Manual
Part # 0 08-217
Parts Incuded
Installation Instructions
Unplug the OEM connectors and plug in the JUICE BOX™
Thank you for purchasing a genuine Two Brothers Racing
JUICE BOX™. This product represents a radical step
forward in tuning fuel-injected motorcycles and ATVs for
optimal performance using “load-based” technology.
5.
connector in place of the current wire as shown (Fig. 4).
Fig 4
We at Two Brothers Racing hope that you will find this
development as exciting and useful as we do. And
remember: Proper Fuel = Maximum Power!
TM
the installation. Also, make sure the vehicle is secure and
Make sure the vehicle is completely cool before starting
1.
will not roll around.
Remove both the driver’s seat and the passenger seat
2.
by pulling up the latch at the front of each seat base (See
Connect the ground wire to ground at driver’s seat (coil
Fig.1).
Fig 1
Remove the plastic engine cover (Fig. 2).
3.
Fig 2
6.
ground) (Fig. 5).
Fig 5
The Two Brothers Racing Crew recommends attaching
the JUICE BOX™ to the top of the shifter case using
the velcro square provided. Route the wire plugs up
through the e-brake hande hole. We also used the zip ties
provided to keep the wires together once connected (See
Fig. 6a,b).
Fig 6a
Qty. Description Part Number
1 Juice Box™ Fuel Control Kit 008-217
3 Zip Ties
1 Adhesive Velcro Square
IMPORTANT - PLEASE READ CAREFULLY
We recommend that this performance part be installed by a qualied ATV technician. If
you have any doubts as to your ability to install this performance part, please consult
with your local ATV dealer. Read all instructions rst before starting installation. Make
sure the vehicle and exhaust system are completely cool before starting the installation.
Also, make sure the vehicle is secure during installation. Be sure to save all stock
components for possible use later.
The Juice Box™ is legal ONLY for closed course race vehicles. The Juice Box™ is not
applicable, nor inteded for use on EMISSIONS CONTROLLED street, highway or off-road
vehicles. The Juice Box™ is not applicable, nor inteded for use on aircraft.
Warranty
Two Brothe rs Racing w arrants tha t this produ ct carries a warranty for 2 years from date of purchase against or iginal
defects in materia ls and work manship. S hould this product fai l to perfor m for eithe r of the ab ove reasons , Two Brothers
Racing will repair or replace it with an equivalent product at no charge, except for postage, to the origin al retail pu rchaser.
To obtain t he benefits of this wa rranty, the r etail purch aser must r eturn the pr oduct and p roof of pur chase to th e place of
origina l purchase.
Locate the fuel injector plug at the top of the throttle body
4.
(Fig. 3a,b).
Fig 3a
Fig 3b
Fig 6b
NOTE: Re-check your wire routing and JUICE BOX™
7.
location and make certain that in no way the wires can
come into contact with any moving parts or high heat
source and that the JUICE BOX™ is mounted in a way as
to not cause a handling problem with the machine.
Continued on page 2
Operation Manual
Two Brothers Racing
Juice Box™ - Fuel Controller
2008 Yamaha Rhino 700 Installation & Operation Manual
Part # 0 08-217
Installation Instructions continued...
Start the UTV and double check to make sure the JUICE
8.
BOX™ lights up.
Re-assemble the UTV. Make sure the wires are not in the
9.
way of installing the driver’s side seat. Where ever you
decide to attach the JUICE BOX™, make sure you keep it
away from any moving or hot parts.
If the unit requir es cleaning , use a clo th that is only lightl y dampened with water or mild det ergent.
Cleaning
It is recommended that the pre-programmed settings of
1.
the Juice Box™be used. However, the Juice Box™ can be
adjusted to suit different engine modifications, states of
tune and environmental conditions. To begin this process,
press the mode button. To enter each successive mode, just
press the mode button again. Note that every mode will
be identifiable by the color(s) of the flashing LED(s) on the
LED display.
by an LED color or color combination.
as follows, respectively: Green, Yellow, Red, Green-Blue,
Yellow-Blue and Red-Blue.
2.
You are now ready to manually program each mode.
Consult the base settings supplied with the unit.
To program the Juice Box™, the bike must be running in
order to supply power to the Juice Box™.
Simply press the mode button to activate the first mode.
If at anytime you stay in an adjustment mode for longer
than 5 seconds without pressing any buttons, the Juice
Box™ will exit the adjustment mode and will return to the
operational mode.
To save settings in a particular mode press the MODE
button which goes to the next adjustable mode or wait for
the Juice Box™ to exit back to the operational mode.
The settings in each mode are adjusted by pressing the
(+) and (-) buttons located on the right and left side of the
mode button, respectively. For easy reference, the LEDs are
numbered 1 through 8. However, the LEDs can be adjusted
to the following positions: 0.5, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5,
5.5, 6, 6.5, 7, 7.5, 8. For example, in a particular mode, if LED
4 is flashing then the LED display is set to 4 in that mode. If
the (+) button is pressed once then LEDs 4 and 5 will flash
simultaneously and the LED display is set to 4.5. If the (+)
button is pressed once again, only LED 5 will flash and the
LED display is set to 5. The LED display can also be set
to 0.5 by pressing the (-) button and scrolling the colored
LED to position 1 and then pressing the (-) button once
more until the LED in position 1 is flashing twice as fast as
normal.
I.
additional amount of fuel added under cruise conditions.
A flashing green LED should appear on the LED display.
To add more fuel, scroll the flashing green LED to the right
using the (+) button. To add less fuel, scroll the flashing
green LED to the left using the (-) button. If you set the
flashing green LED to the 0.5 position on the LED display,
no fuel will be added to the stock fuel curve.
II.
additional amount of fuel added during acceleration. A
flashing yellow LED should appear on the LED display. To
add more fuel, scroll the flashing yellow LED to the right
using the (+) button. To add less fuel, scroll the flashing
yellow LED to the left using the (-) button. If you set the
flashing yellow LED to the 0.5 position on the LED display,
no fuel will be added to the stock fuel curve.
There are six modes that are distinguished
The 6 modes are
The first mode (Green Mode) represents an
The second mode (Yellow Mode) represents an
III. The third mode (Red Mode) represents an additional
amount of fuel added during full throttle conditions. A
flashing red LED should appear on the LED display. To add
more fuel, scroll the flashing red LED to the right using the
(+) button. To add less fuel, scroll the flashing red LED to
the left using the (-) button. If you set the flashing red LED
to the 0.5 position on the LED display,
to the stock fuel curve.
Note: If the flashing green, yellow and red LEDs in modes
1 through 3 (Green, Yellow and Red) are set to the 0.5
position on the LED display then the Juice Box™ will not
add any fuel to the bike’s stock fuel curve. This setting will
essentially turn off the Juice Box™ even though it is still
attached to the bike’s fuel injection system. The bike will
run as though the Juice Box™ is not installed. The Juice
Box™ LEDs will still operate normally even though no fuel
is being added.
IV.
The fourth mode (Green-Blue Mode) is an
adjustment to determine the point on the RPM range when
the cruise/Green Mode fuel turns OFF. A flashing green
LED appears on the LED display while at the same time a
flashing blue LED appears on the 8th LED. The cruise/Green
Mode fuel can be set to turn OFF during high cruise rpms at
a point selected by the user by adjusting the green LED in
this mode. The Green-Blue mode is RPM based only. Each
LED position represents a specific RPM on your bike. In this
case, LED 0.5 will turn OFF the cruise/Green Mode fuel at
2,500 RPM and LED 8 will turn OFF the cruise/Green Mode
fuel at 5,000 RPM. Each LED setting in between 0.5 and 8
will turn ON the cruise/Green Mode fuel in between the
above-mentioned RPM points. You can calculate what RPM
corresponds to what LED by interpolation. If during cruise,
the Green LED is solid, then the Green Mode is active;
Green Mode fuel is being added during cruise. If during
cruise, the Green LED is slowly flashing, then the Green
Mode is NOT active; Green Mode fuel is NOT being added
during cruise.
V.
to determine the time when the acceleration/Yellow Mode
fuel amount turns on. A flashing yellow LED appears on
the LED display while at the same time a flashing blue LED
appears on the 8th LED. To increase the sensitivity and
therefore cause the Yellow Mode fuel to turn on sooner,
scroll the flashing yellow LED to the left using the (-) button.
To decrease the sensitivity and therefore cause the Yellow
Mode fuel to turn on later, scroll the flashing yellow LED to
the right using the (+) button.
VI.
to determine the time when the full throttle/Red Mode fuel
amount turns on. A flashing red LED appears on the LED
display while at the same time a flashing blue LED appears
on the 8th LED. To increase the sensitivity and therefore
cause the Red Mode fuel to turn on sooner, scroll the
flashing red LED to the left using the (-) button. To decrease
the sensitivity and therefore cause the Red Mode fuel to
turn on later, scroll the flashing red LED to the right using
the (+) button.
The fifth mode (Yellow-Blue Mode) is an adjustment
The sixth mode (Red-Blue Mode) is an adjustment
no fuel will be added
