Page 1
www.twistyride.com
SCOOTER IPHONE CASE
Page 2
www.twistyride.com 2
CONTENTS
Introduction .......................................................................... 5
What’s in the Box?............................................................... 6
Mirror / Pinchbolt Mount (RAM-B-252) ......................... 8
Double Socket Arm (RAM-B-201-A) ............................. 9
Quick Release Male Base (RAP-B-326M) .................... 9
Quick Release Female Base (RAP-326F) .................. 10
Assembling the iPhone Case ............................................ 11
Positioning the iPhone Case for Optimal Visibility and
Safety Notices and Warnings ............................................ 21
iPhone Applications ........................................................... 22
iPhone Screen Rotation ............................................. 22
Page 3
www.twistyride.com 3
iPhone Screen Brightness .......................................... 23
iPhone Auto-Lock ....................................................... 23
Maps App Auto-Tracking ............................................ 25
Other RAM® Mount Solutions ........................................... 27
Custom Mounts .......................................................... 28
Fork Stem Mount (RAM-B-342) .................................. 28
Reservoir Cover Base (RAM-B-345 or RAM-B-346) .. 30
Technical Specifications .................................................... 31
Warranty and Support ....................................................... 33
Page 4
www.twistyride.com 4
Copyright Notices .............................................................. 37
Page 5
www.twistyride.com 5
INTRODUCTION
Congratulations on your purchase and welcome to Twisty Ride! The waterproof iPhone case, its battlefield proven RAM® mount and optional battery charger (sold separately) have been designed by Twisty Ride in order to make GPS navigation accessible to all riders.
This document provides details over all components of the Twisty Ride iPhone case system and how they work together. If you have purchased only parts of the system please keep this in mind as you read through it.
Visit us at www.twistyride.com to access our FREE motorcycle journey planner as well as a range of expert tips and specialised gear.
Page 6
www.twistyride.com 6
WH AT’S IN THE BOX?
WATERPROOF IPHONE CASE
The iPhone case is used to protect the iPhone from water projections and dirt whilst riding, and mount it to the motorbike. It is made of the following components:
- The case itself
- One iPhone 3G / 3GS footprint
- One iPhone 4 / 4S footprint
- One “cable plug” used to keep the case waterproof when the charger cable is not used.
- Three button plastic inserts.
Page 7
www.twistyride.com 7
Page 8
www.twistyride.com 8
SCOOTER MOUNT KIT
RAM® is the leading manufacturer of ball mounts in the world. It provides a wide array of mounts specially adapted to the motorcycling world. RAM® mounts are used by the top manufacturers of GPS units for motorcycles.
Twisty Ride’s iPhone case is compatible with a number of RAM® mount solutions. It is sold bundled with either a motorcycle or a scooter kit which covers the majority of models. However, due to the wide variety of motorcycles and scooters available on the market, it is important to check whether the standard kits will fit yours or other RAM® mount solutions need to be used (see “OTHER RAM® MOUNT SOLUTIONS” section).
MIRROR / PINCHBOLT MOUNT (RAM-B-252)
The RAM-B-252 marine grade aluminium base consists of a 1" diameter ball and 2.25" x 0.875 base with 11mm hole. This part is often used attached to the mirror frame. This part fits well on many handlebar pinchbolts with a washer (base is 5mm thick).
Page 9
www.twistyride.com 9
DOUBLE SOCKET ARM (RAM-B-201-A)
The RAM-B-201-A, short double socket arm, has a socket at both ends that accommodates 1" ball bases. This socket technology allows for almost infinite adjustment and perfect viewing angles. It connects to the handlebar mount’s ball.
QUICK RELEASE MALE BASE (RAP-B-326M)
Ezy Mount quick release male base with 1" ball. It connects on the other end of the arm presented above.
Page 10
www.twistyride.com 10
QUICK RELEASE FEMALE BASE (RAP-326F)
A quick release female base, part of the RAM® Ezy-Mount range. It is mounted to the iPhone case and allows it to be quickly fixed or un-fixed to the RAM® mount solidary to the motorbike.
Page 11
www.twistyride.com 11
ASSEMBLING THE IPHONE CASE
CAUTION
Extreme care must be taken when mounting the iPhone case on a motorcycle or scooter. Read this document carefully before mounting the iPhone case on your motorcycle or scooter. The iPhone case and its mount shall be mounted in compliance with the relevant legislation and the vehicle manufacturer's rules. Failure to mount the iPhone case or its mount correctly could result in damage to your vehicle and serious injury to the vehicle rider and other road users. The iPhone case and its mount are fitted on your motorcycle or scooter at your own risk. In doubt, always refer to a qualified professional.
FIXING THE QUICK RELEASE ADAPTOR
The motorcycle and scooter RAM® mount kits come with a shared component called the “Quick Release Female Base” pictured below.
Page 12
www.twistyride.com 12

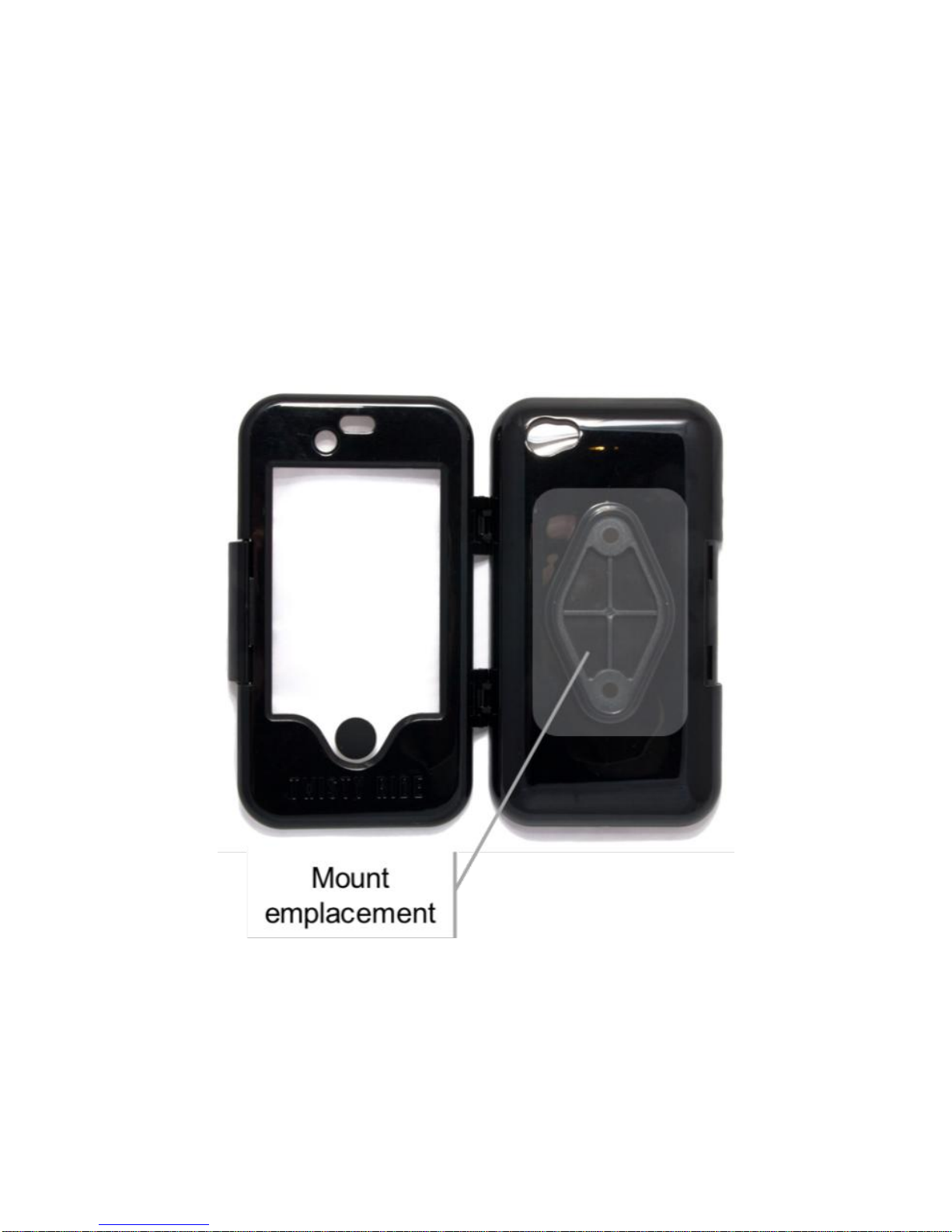

This component needs to be mounted at the back of the case as displayed in the picture below.
Page 13
www.twistyride.com 13
In order to do so, the RAM® base needs to be first inserted inside the emplacement located at the back of the iPhone case. This is a tight fit and will require applying pressure with the hand to click it into place. Once the RAM® base has been inserted keep it in position with your hand until the nuts have been tightened (see next step).
Page 14
www.twistyride.com 14

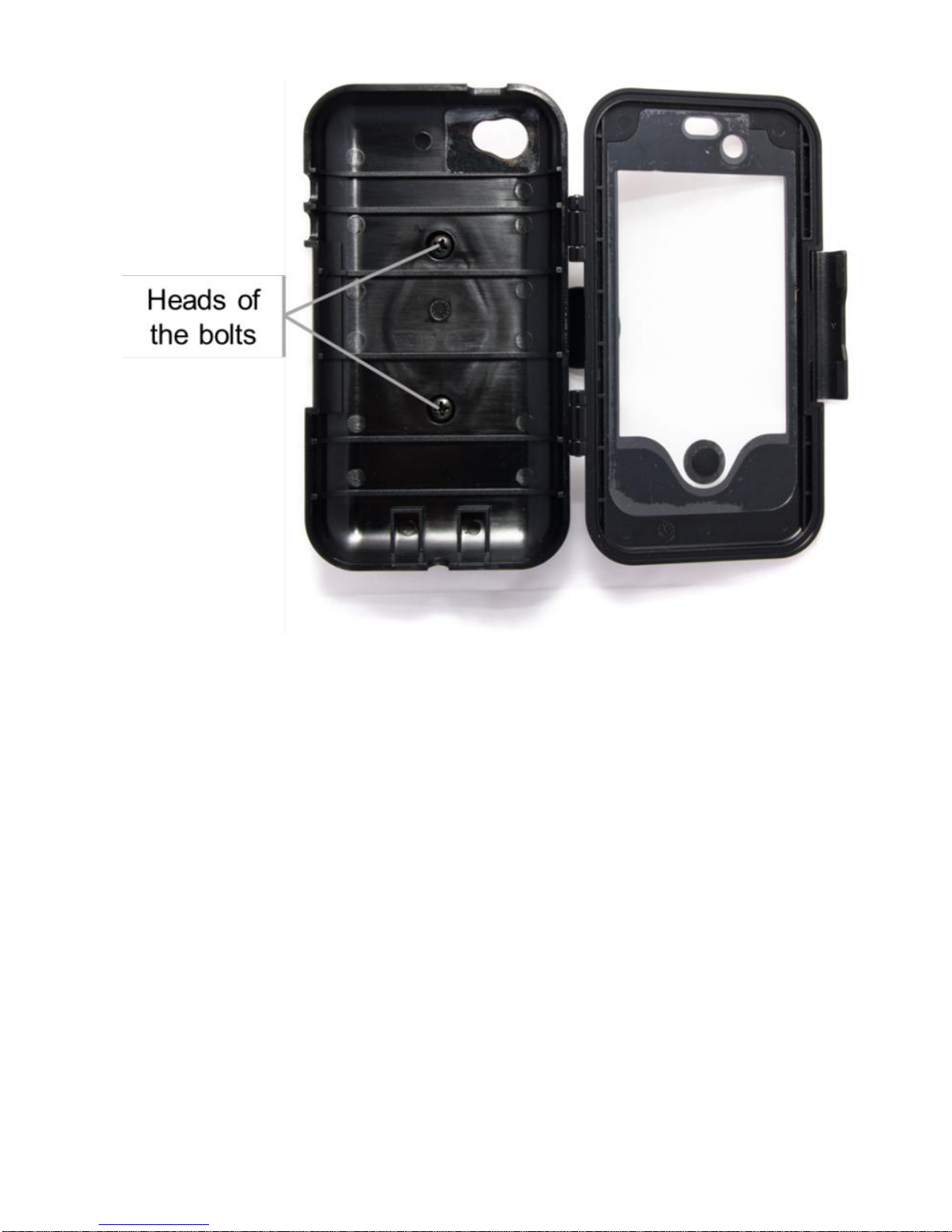

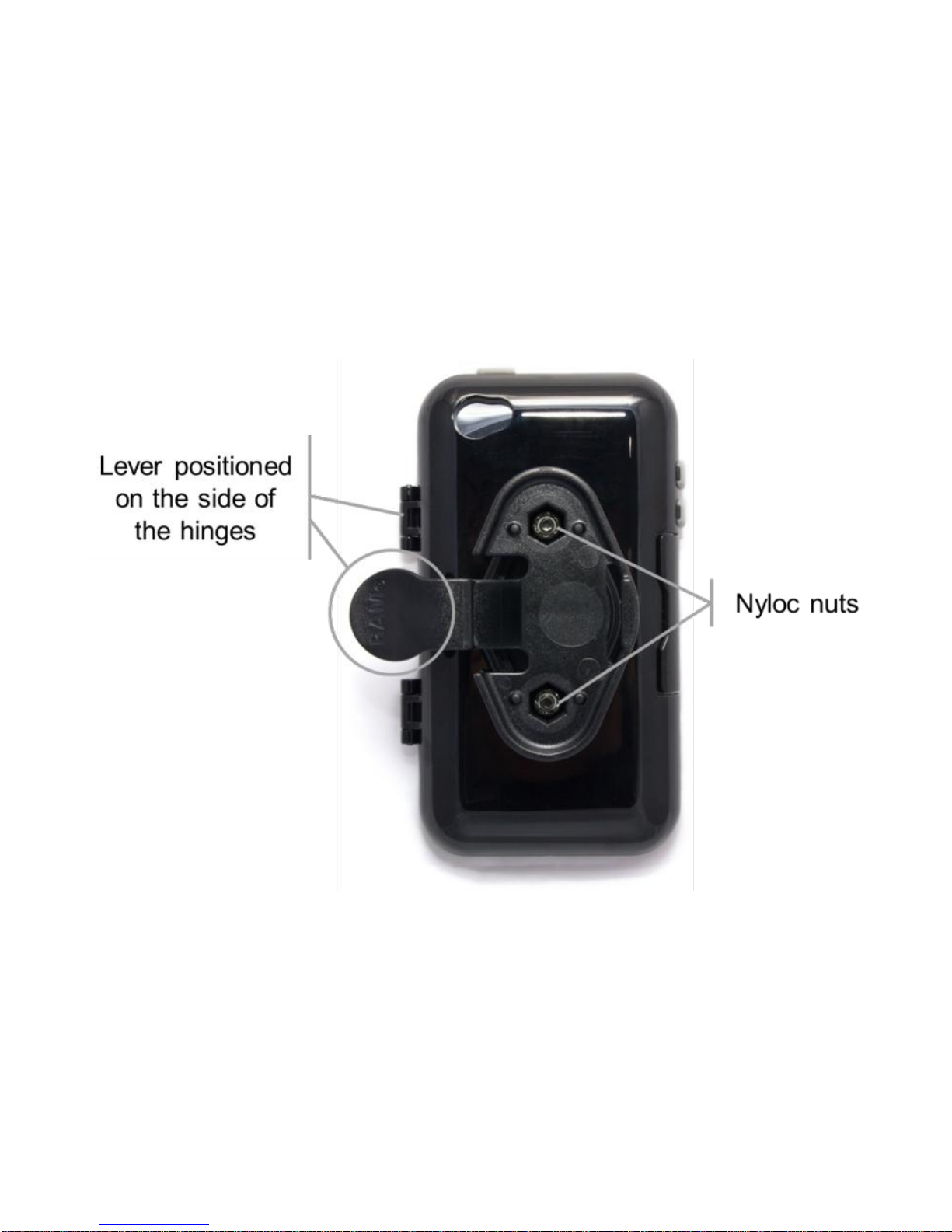

The next step is to secure the base with two Nyloc nuts and two bolts. Two lengths are provided with the kit, use the shortest bolts. Insert the bolts inside the case and through the base and place the nuts inside their hexagonal lodgings within the base. Then, using a Phillips style screw driver, tighten the bolts until the effort required to turn the screw driver rises sharply.
Page 15
www.twistyride.com 15
Page 16
www.twistyride.com 16

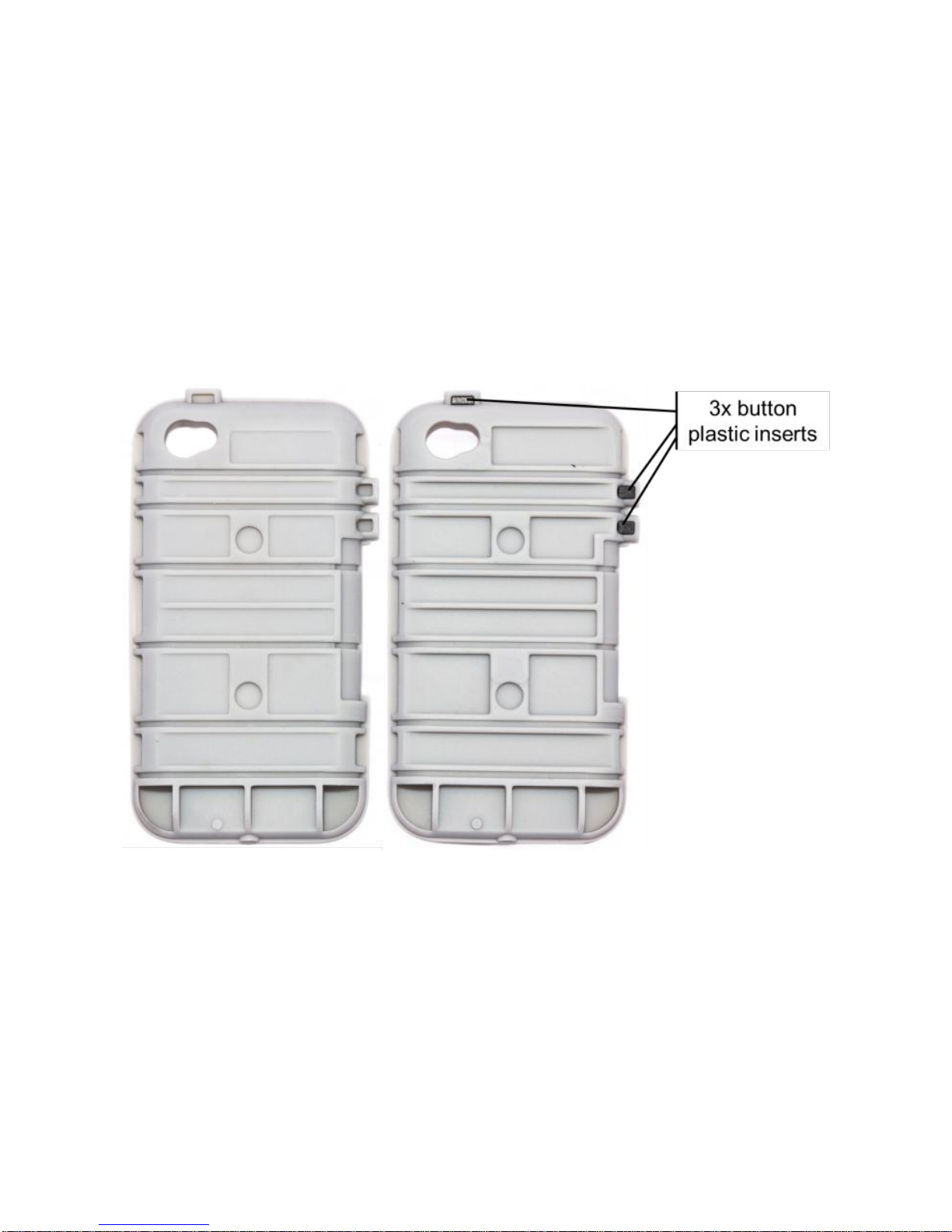

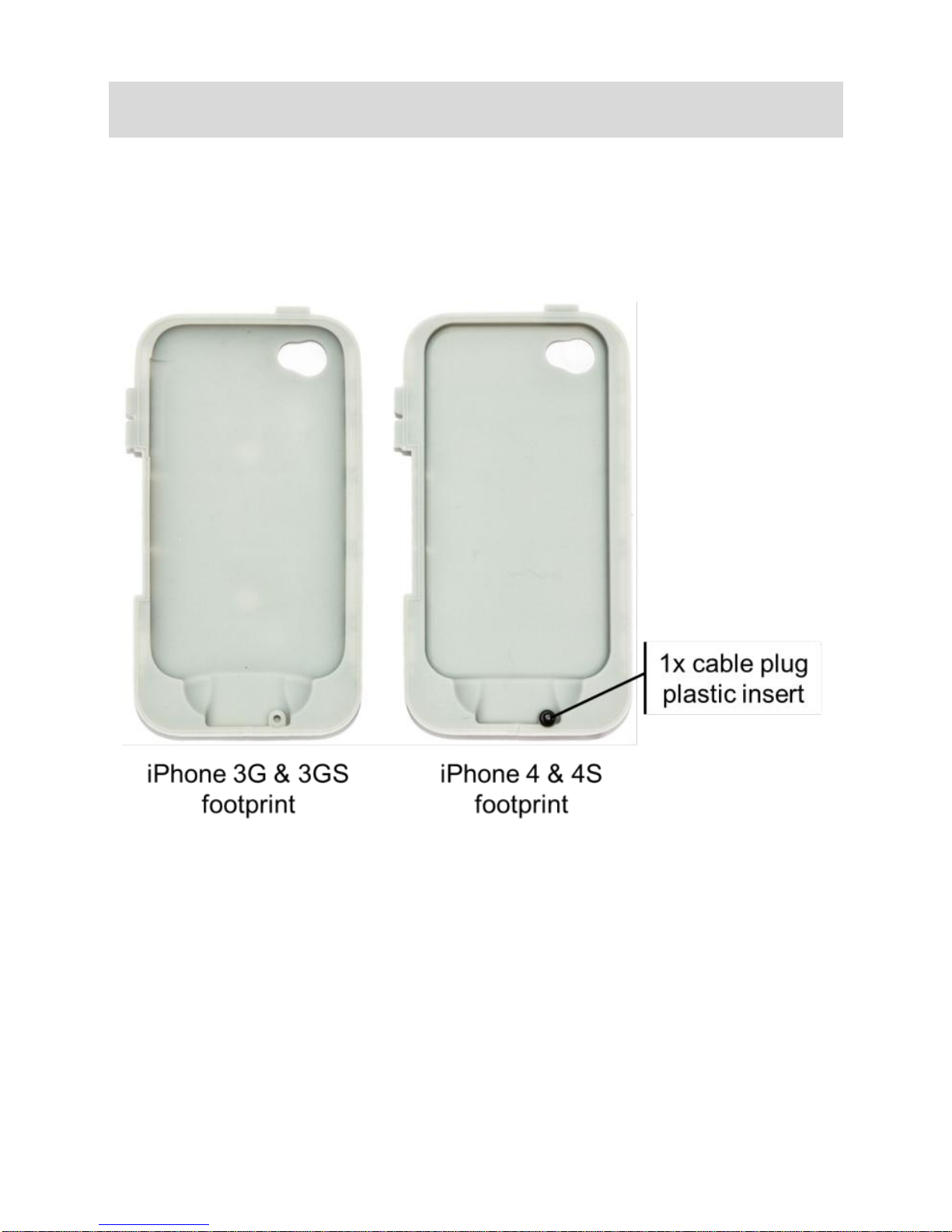

CHANGING IPHONE MODEL
Two footprints are provided with the case. One fits the iPhone 3G / 3GS and the other one fits the iPhone 4 & 4S (see below).
Page 17
www.twistyride.com 17
Changing iPhone type is as easy as removing one footprint from the case and fitting the other. In doing so, all plastic inserts must be ported from one footprint to the other. This includes the cable plug insert (used to make the case waterproof when the charger cable is not used) and the three button inserts (see picture below).
Page 18
www.twistyride.com 18

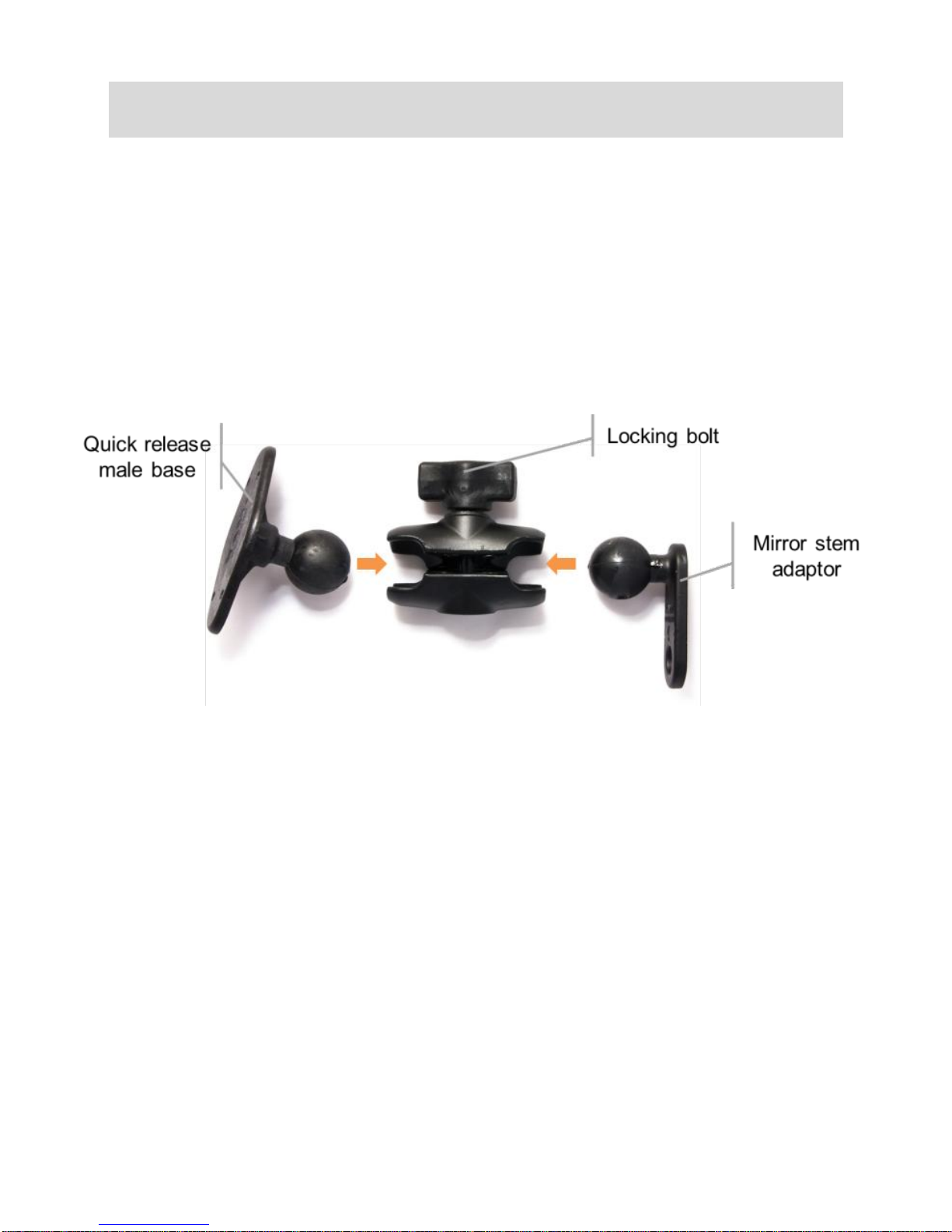

ASSEMBLING THE RAM® BRACKET
The scooter bracket comes in three parts which need to be assembled as pictured below. To do so, unscrew the locking bolt until both ball heads can be fitted into the bracket. Once fitted, screw the locking bolt again. This bolt will also allow you to adjust the position of the mount on the scooter and lock it into position.

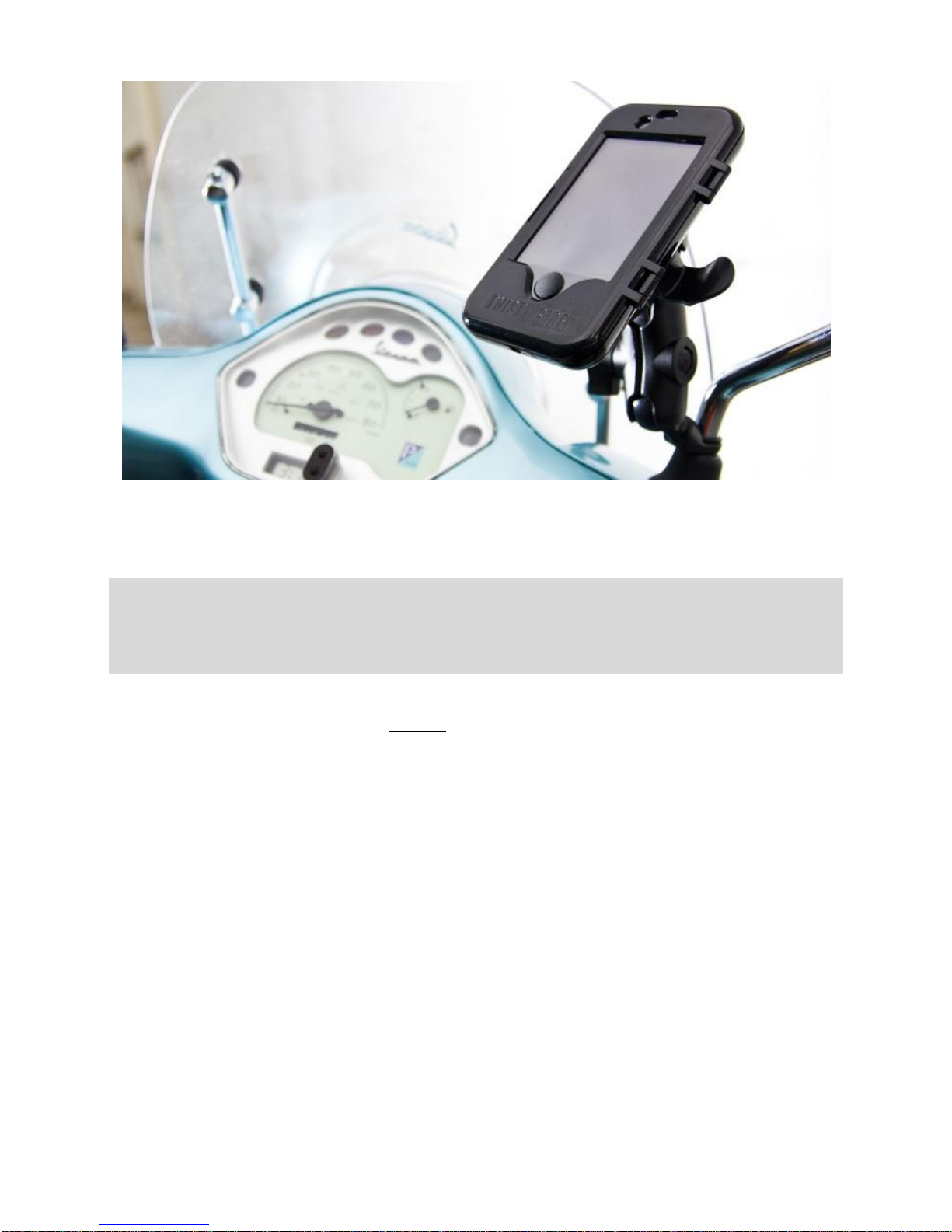

The scooter kit is made to be mounted on the mirror stem. The mirror needs to be undone at the base of its stem using the appropriate spanner. The mirror / pinchbolt mount will then usually be fitted on the threaded portion of the stem and re-assembled with it. Some mirror stems are not threaded and are fixed using a conical pressure bolt. If this is the case, alternative RAM® solutions must be investigated.
Page 19
www.twistyride.com 19
POSITIONING THE IPHONE CASE FOR OPTIMAL VISIBILITY AND SAFETY
The following checks must be performed once the iPhone case and its bracket have been mounted on the on the motorbike or scooter:
- Ensure that the assembly does not restrict the movement of the handlebar. Swing the handlebar from side to side and see that the bracket, case and wires from the charger do not catch onto the windscreen or any other item present on the bike. Note that in case you intend to travel with additional items such as a tank bag, this check must be performed with said items on the bike to confirm the bike can still be manoeuvred properly.
Page 20
www.twistyride.com 20
- Ensure that the assembly does not restrict any movements the rider may make whilst riding his motorcycle or scooter. This includes but is not limited to: movement of the wrists to accelerate and decelerate movements of the hands / fingers to operate the clutch or brake, movement of the body when turning, etc.
- Ensure that the assembly does not prevent a correct reading of the complete dashboard of the motorbike and scooter when the rider assumes its standard driving position.
- Ensure that the iPhone case is angled such that
the screen is perpendicular to the rider’s line of
sight. This is to minimise any reflection from the screen and provide the best position to read the screen of the iPhone.
Page 21
www.twistyride.com 21
SAFETY NOTICES AND WARNINGS
USE WITH CARE
Use of the iPhone case and RAM® mount for navigation or other still means that you need to drive with due care and attention.
MAINTENANCE AND SECURITY
Do not leave your iPhone device on view when you leave your motorbike. It may become an easy target for thieves.
Take care of your iPhone case and clean it correctly:
- Use a soft cloth to wipe the screen of your device; do not use any liquid cleaners.
- If your device gets wet, dry it with a soft cloth.
- Do not disassemble the case under any circumstances. Doing so will invalidate your warranty.
- Do not expose your case or mount to extreme high or low temperatures, which can cause permanent damage.
Page 22
www.twistyride.com 22
IPHONE APPLICATIONS
One of the main advantages of having an iPhone mounted on the bike is the ability to leverage some of the mapping and navigation applications readily available in iTunes. This section explores some, but not all, of these apps.
IPHONE SCREEN ROTATION
As you are riding a motorcycle, all applications will be tempted to rotate their screens when you take a corner. Thankfully, the iOS 4 firmware includes a rotation lock feature. Follow the procedure below in order to avoid this problem:
1. Double click the home button to bring up the multitasking bar.
2. Swipe right until the last set of icons is displayed in the multitasking bar (i.e your finger is moving from left to right).
3. The furthest left icon looks like a circular arrow ­touch this icon to enable or disable rotation lock on the iPhone.
4. A rotation lock icon will appear in the status bar next to the battery charge icon when rotation lock is enabled. This looks like a circular arrow around a padlock.
When rotation lock is enabled apps will not respond to the accelerometer sensor.
Page 23
www.twistyride.com 23

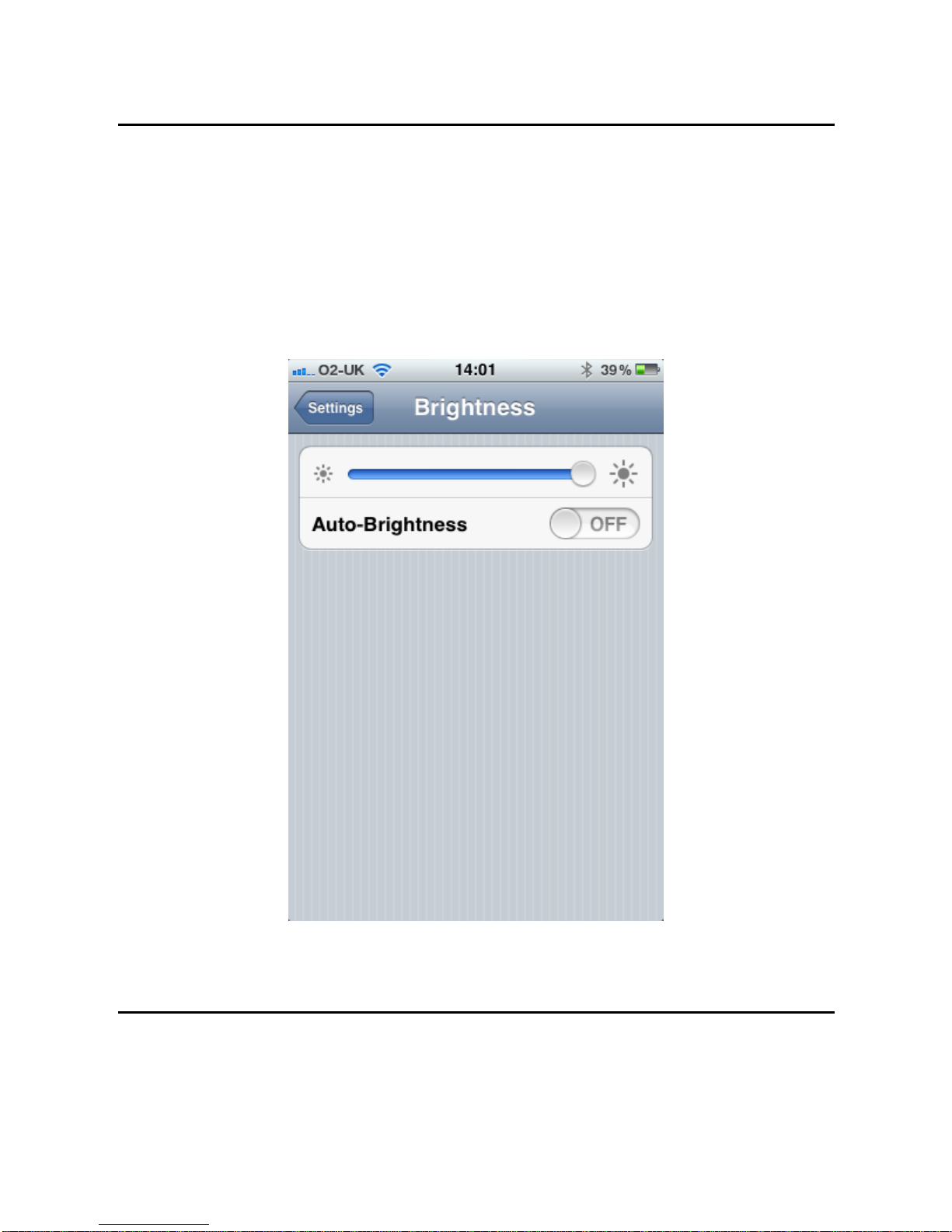

IPHONE SCREEN BRIGHTNESS
In order to ensure the screen is visible in broad daylight, got to Settings and then Brightness on your iPhone and set it to its maximum value (as pictured below). Auto-Brightness should also be turned off. Note that this change of setting will increase the battery consumption of the iPhone.

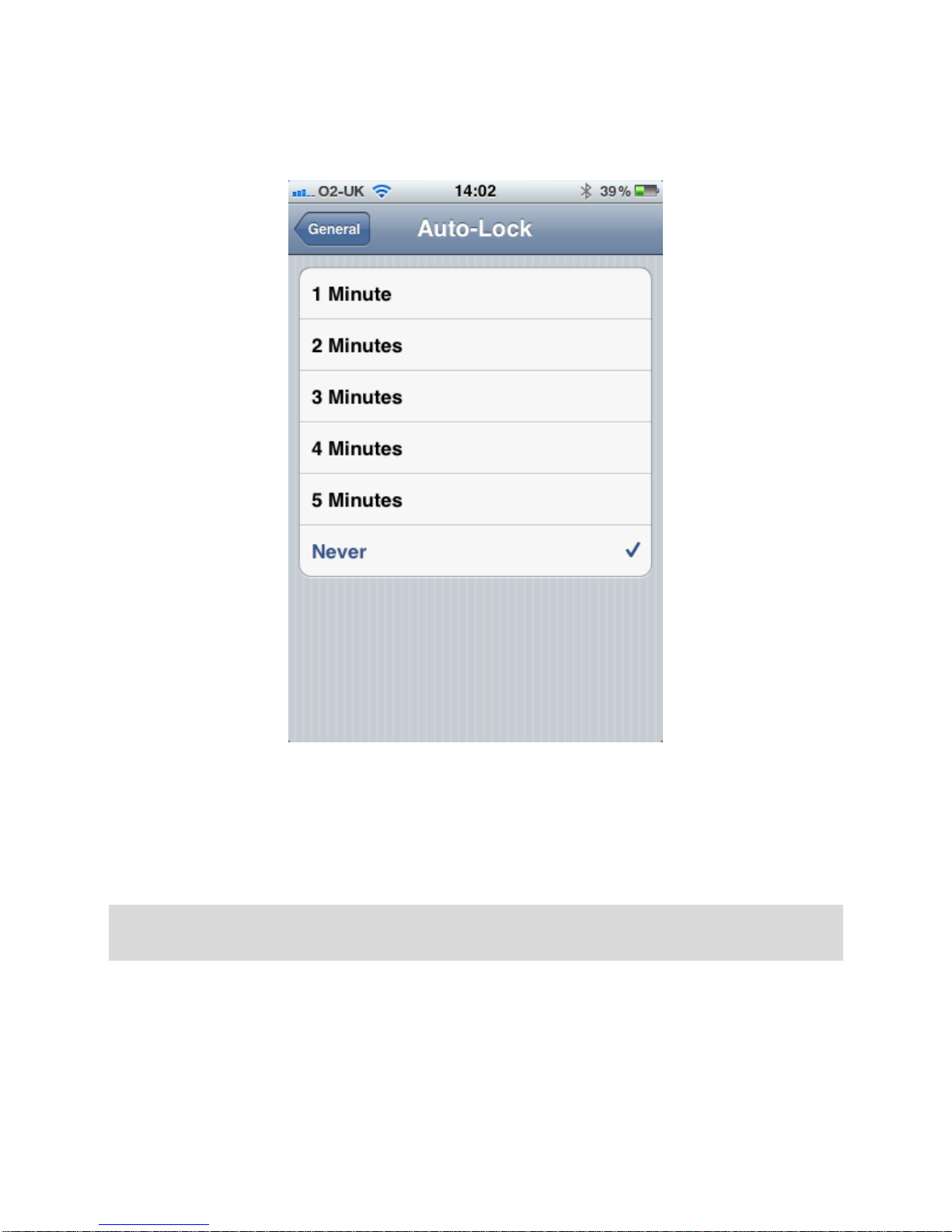

IPHONE AUTO-LOCK
To prevent the iPhone from automatically turning itself off and thus allow the rider to constantly see his position, the iPhone auto-lock feature must be turned off. To do so go to
Page 24
www.twistyride.com 24
Settings -> General -> Auto-Lock and set it to never (see screenshot below).
MAPS APP
Free and already installed on the iPhone, the Maps app is an obvious first choice and can be used as a basic navigation system. The following tips must be followed to make the most out of this app.
Page 25
www.twistyride.com 25

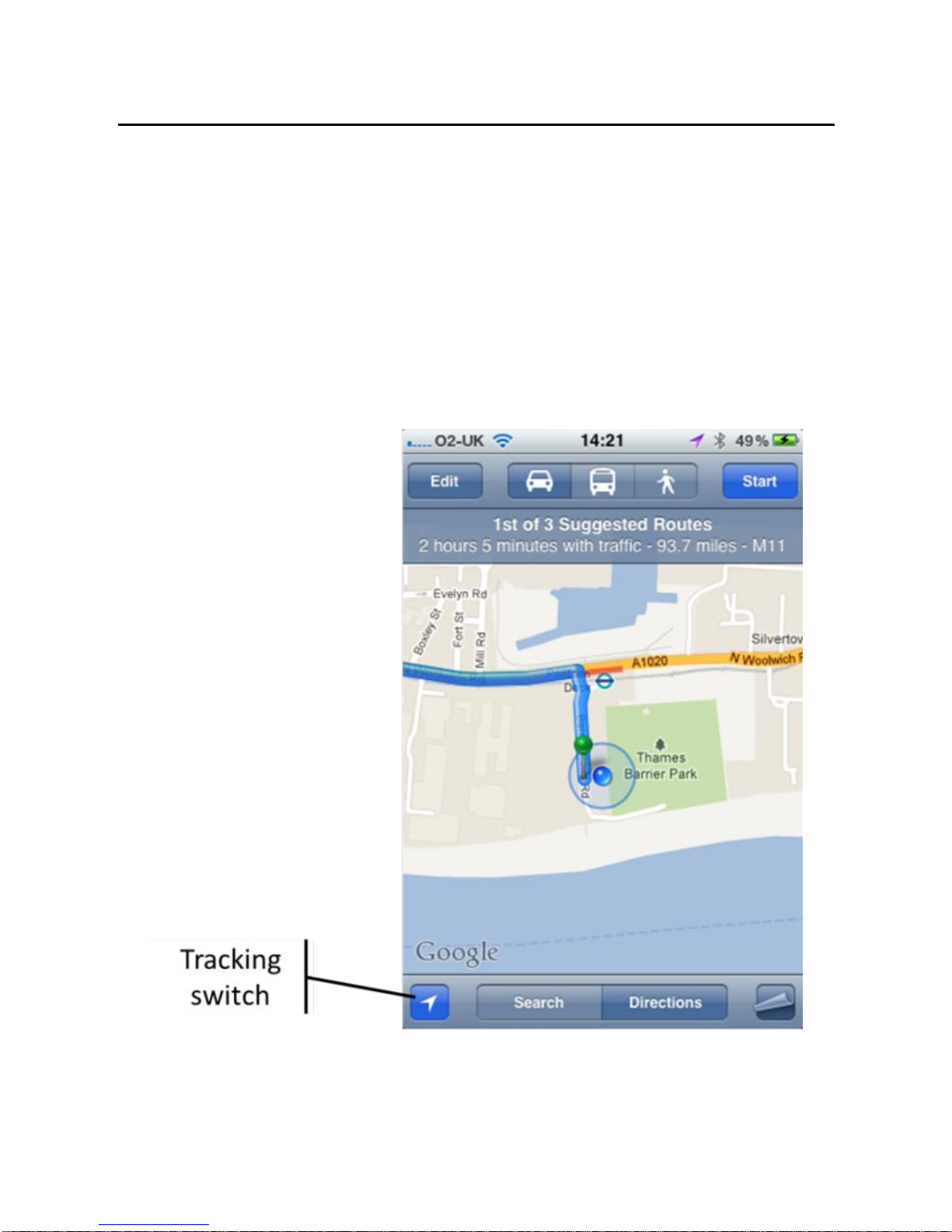

MAPS APP AUTO-TRACKING
Once you have entered a route in the Maps application, tap once on the tracking switch to have the iPhone centre the map on your position in real time. The tracking switch has three modes: off (grey button), track position (blue button as below) and track position and direction (blue button with
“beam” arrow). Either of the last two will allow you to track
your position in real time.
Note that your iPhone must be constantly connected to the internet (3G connection) for this to work.
Page 26
www.twistyride.com 26
TOMTOM APP
The TomTom application available for purchase on iTunes has a number of advantages over the more simplistic Maps application provided with the iPhone:
- It is a fully fledged navigation software which will, amongst other things, re-compute your itinerary should you take a wrong turn and provide detailed information about each junction. The Maps app does not do that.
- Once purchased, all the maps are stored on the iPhone meaning this application does not need to be connected to the data network to be used. This is particularly advantageous when riding outside of your country as keeping the cellular data turned on is prohibitively expensive.
- This TomTom application features a new “Winding
Roads” mode which allows for more interesting
rides with better sceneries and better corners.
GARMIN APP
The Garmin app is another navigation application available for purchase on iTunes. The user will note that this application does not store its maps on the iPhone and therefore requires constant data access. This is limiting when riding abroad (high costs) or in areas with poor 3G coverage.
Page 27
www.twistyride.com 27
OTHER RAM® MOUNT SOLUTIONS

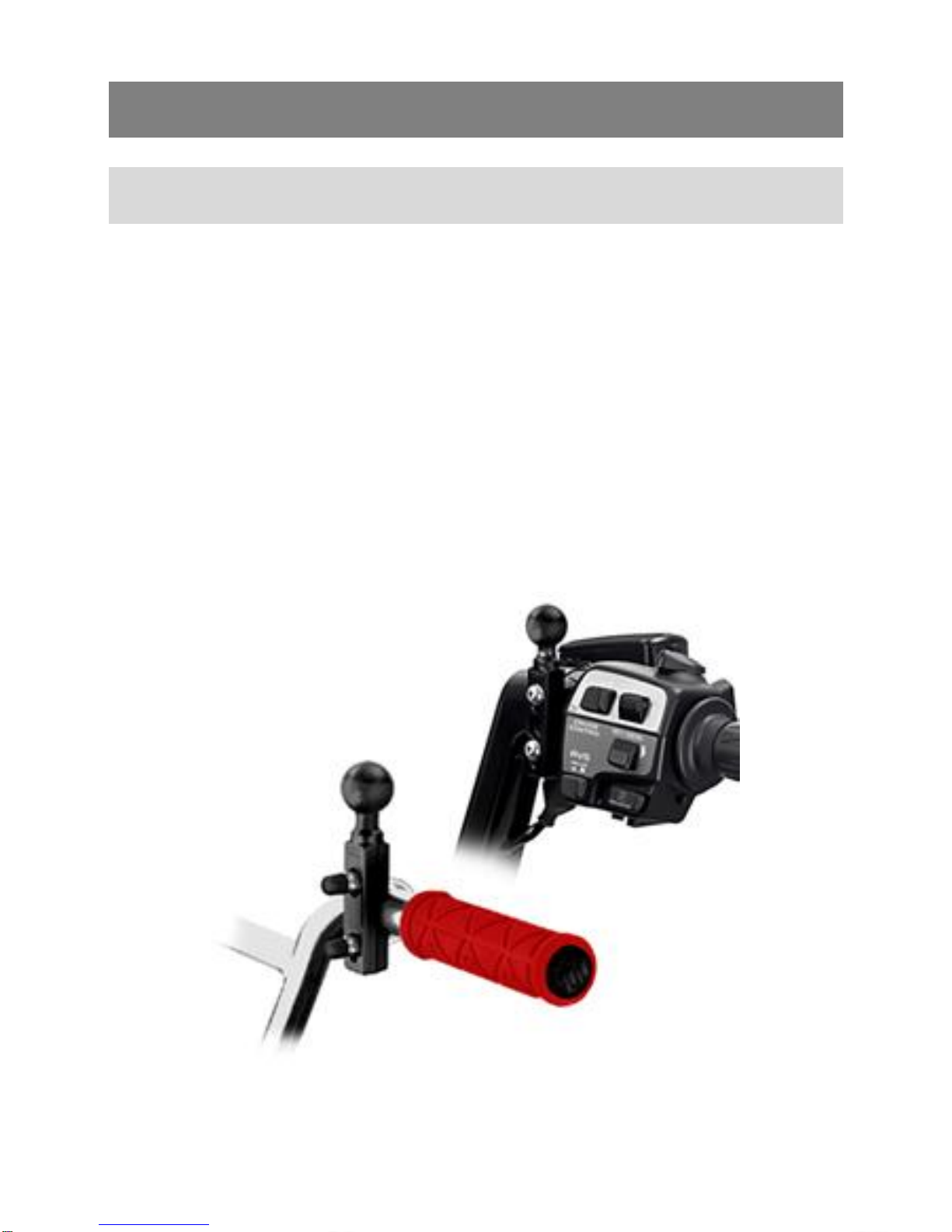

MOTORCYCLE MOUNT KIT
The Twisty Ride motorcycle kit replaces the Mirror or
Pinchbolt Mount (RAM-B-252) with a Clutch/Brake U-Bolt Handlebar Mount (RAM-B-309-7).
The RAM® combination handlebar and brake/clutch reservoir base provides flexibility for mounting to your motorcycle or scooter. Mount to either your handlebar or brake/clutch, almost infinite adjustment and perfect viewing angles are provided by this kit.
Page 28
www.twistyride.com 28
OTHER OPTIONS
The advantage of partnering up with RAM® for the mount of the Twisty Ride iPhone case system is that a complete catalogue of adapters is readily available to fit any and all bikes or scooters. The components below are just a few chosen examples of what is available. For more information please go to http://shop.twistyride.com/.
CUSTOM MOUNTS
For the discerned biker, bespoke versions of RAM® adapted ball parts are available through a specialist service. These are made to measure for the model of bike of your choice and will achieve the cleanest look of them all. For more information please go to http://shop.twistyride.com/.
FORK STEM MOUNT (RAM-B-342)
The RAM® fork stem mount is one of the cleanest ways to mount small electronics on your motorcycle or scooter. Simply slide the assembly into the hole of the stem and tighten the machine screw to create a tight fit.
Page 29
www.twistyride.com 29
This part is designed to fit into the cylindrical bore hole of fork stems and will work with stems that measure from 12­20 and 28mm or 0.5" - 1.10" at the following intervals:
- 12mm 0.5"
- 14mm 0.55"
- 16mm 0.63"
- 18mm 0.71"
- 20mm 0.79"
- 28mm 1.10"
Please note: It is NOT possible to use this part on bore holes of 21mm to 27mm.
If you have a sports bike and want a mount to fit into the centre yoke stem bore hole on your handlebars the yoke stem mount kit on this page is fine.
Page 30
www.twistyride.com 30
The mount is configured using parts determined by the diameter size of the inner bore cylinder. Check the size of the bore against the gripper washers in the kit. These are 12mm, 14mm, 16mm, 18mm, 20mm and 28mm.
This kit does not suit all bikes, for example, Honda Fireblade, Blackbird or any sports bike where a steering damper is attached.
Bikes that this will NOT fit include: Honda Fireblade CBR 1000RR, Blackbird CBR 1100XX, VTR 1000 SP2, VFR1200, Kawasaki ZZR 1100, ZZR1200, ZZR 1400, Aprilia bikes, Ducati ST series, BMW S1000RR and any bike where a steering damper is fitted.

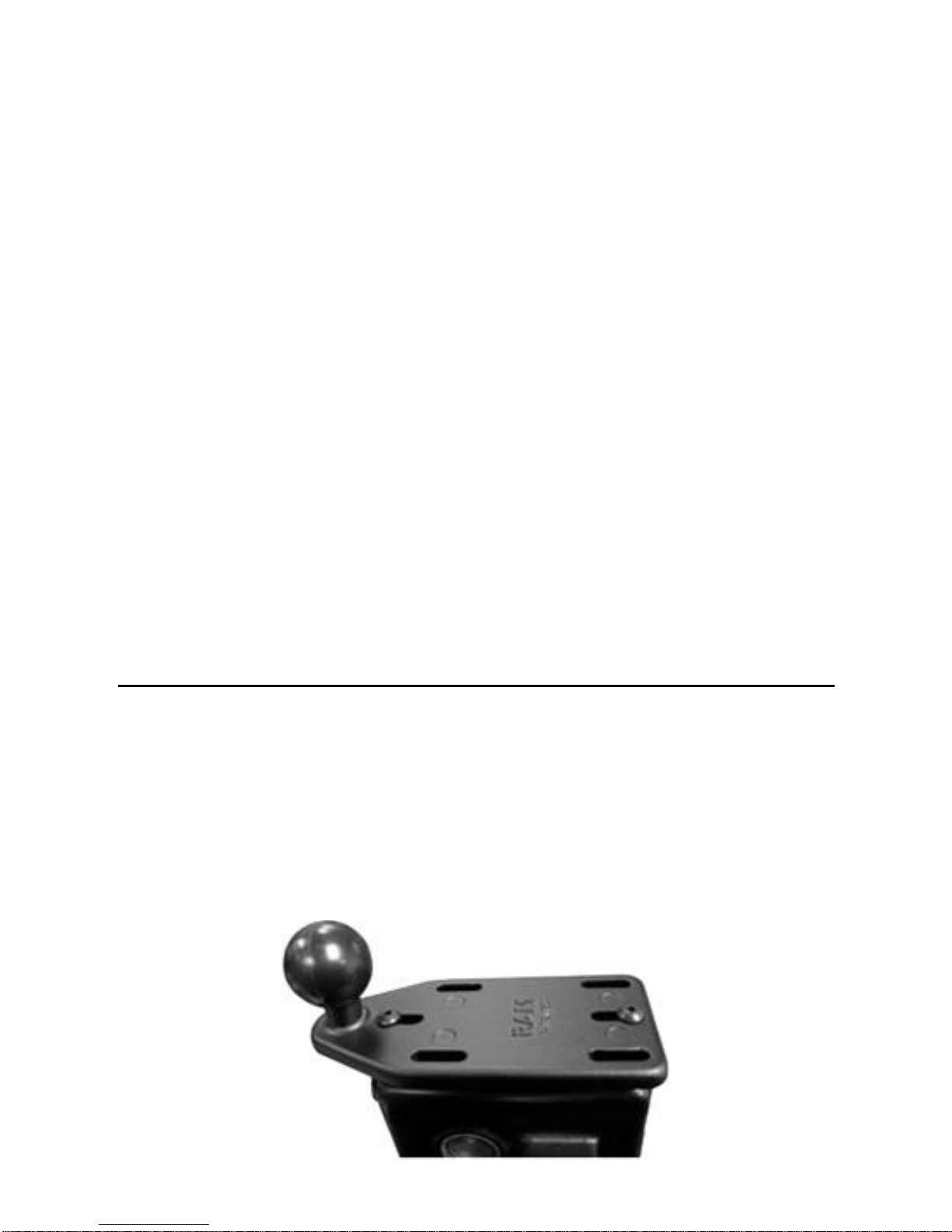

RESERVOIR COVER BASE (RAM-B-345 OR RAM-B-346)

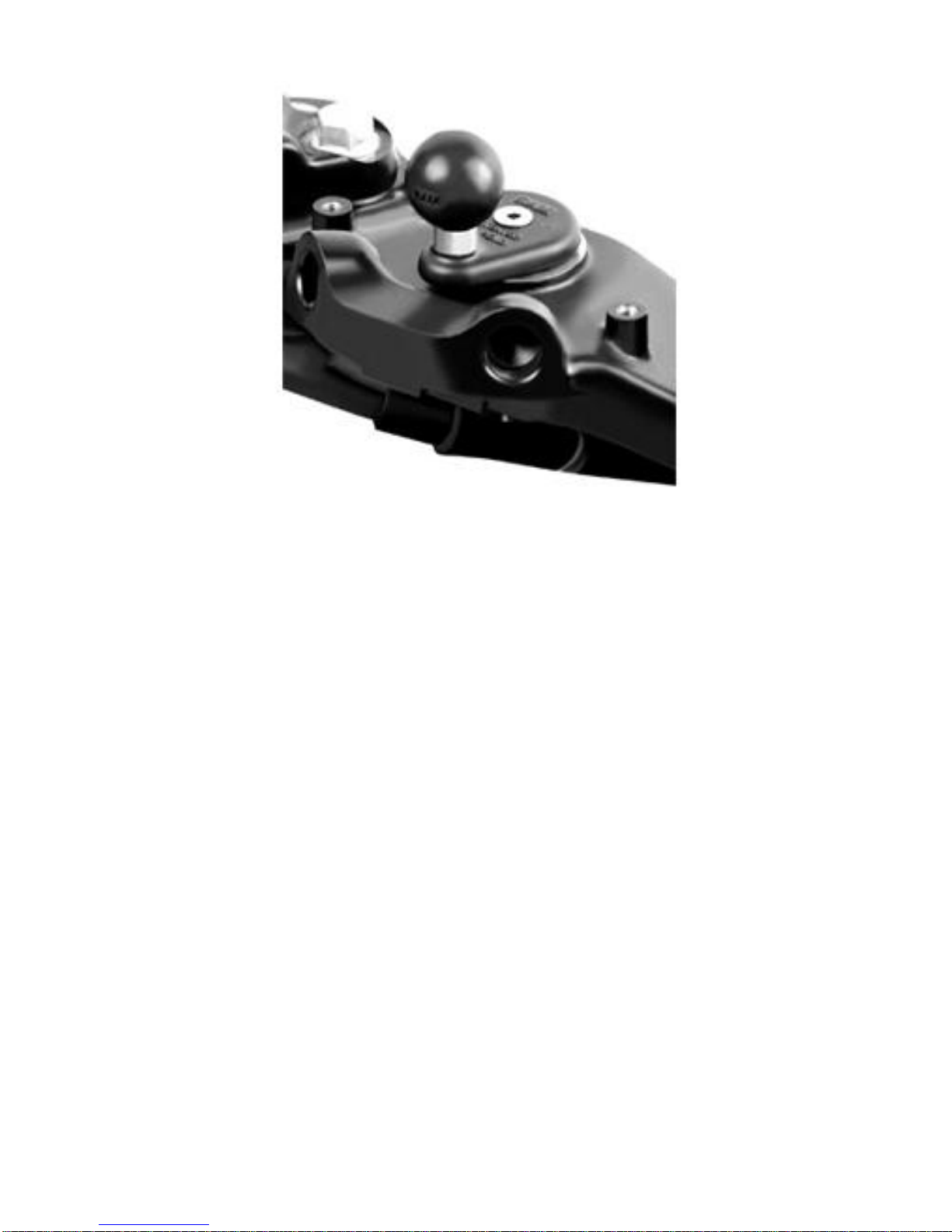

The RAM-B-345 brake/clutch reservoir cover base fits cleanly over your existing reservoir cover with the 1" ball centered. Made of Die Cast aluminum with an over molded rubber ball, both form and function are unsurpassed. Installation is simple and all necessary hardware is included.
Page 31
www.twistyride.com 31
TECHNICAL SPECIFICATIONS
IPHONE WATERPROOF CASE
- Water resistant (test duration 5 mins, water
volume: 10 litres per minute, pressure: 80–100 kN/m²)
- Resistance to temperatures ranging from -20°C to
+70°C
- Compatible with the iPhone 3G, 3GS, 4 and 4S
- Compatible with any RAM® mount “diamond” base,
including RAM® quick release adaptor
- Compatible with Twisty Ride’s power supply
- Allows usage of the iPhone’s front and back
cameras through a purpose built openings in the case
- Allows usage of the power on/off and volumes
buttons
- Does not interfere with the cellular, WIFI or
Bluetooth signals emitted by the device
MIRROR OR PINCHBOLT MOUNT (RAM-B-
252)
- Material: Powder Coated Marine Grade Aluminium
- Ball Size: 1" Rubber Ball "B" Size
- 11mm hole
Page 32
www.twistyride.com 32
DOUBLE SOCKET ARM (RAM-B-201-A)
- Dimensions:
- Overall Length: 2.38"
- Socket-To-Socket Length: 2"
- Material: Powder Coated Marine Grade Aluminium
- Ball Size: 1" Rubber Ball "B" Size
QUICK RELEASE MALE BASE (RAP-B-326M)
- Material: High Strength Composite
- Ball Size: 1" Rubber Ball "B" Size
QUICK RELEASE FEMALE BASE (RAP-326F)
- Material: High Strength Composite
Page 33
www.twistyride.com 33
WARRANTY AND SUPPORT
WARRANTY COVER
Twisty Ride Ltd (“Twisty Ride”) warrants to you that the
Hardware will be free from defects in workmanship and
materials under normal use (“Defects”) for a period of one
(1) year from the date that the Hardware was first purchased
by you (“Warranty Period”). During the Warranty Period the
Hardware will be repaired or replaced at Twisty Ride’s choice (“Limited Warranty”) without charge to you for either
parts or labour. This Limited Warranty covers the replacement of the Hardware only. If the Hardware is repaired after the Warranty Period has expired, the Warranty Period for the repair will expire six (6) months after the date of repair.
EXCLUSIONS FROM WARRANTY
The Limited Warranty does not apply to normal wear and tear, does not apply when the Hardware is opened or repaired by someone not authorized by Twisty Ride and does not cover repair or replacement of any Hardware or part thereof damaged by: misuse, liquids, proximity or exposure to heat and accident, abuse, non-compliance with the instructions supplied with the Hardware, neglect or misapplication. The Limited Warranty does not cover physical damage to the surface of the Hardware. This Limited Warranty does not cover any software that may
Page 34
www.twistyride.com 34
accompany or be installed on the Hardware. The Limited Warranty does not cover the installation, removal or maintenance of the Hardware or any costs related herewith.
YOUR LEGAL RIGHTS
- Some countries may not allow the exclusion or
limitation of damages. If any part of this Limited Warranty is held to be invalid or unenforceable, the remainder of the Limited Warranty shall nonetheless remain in full force and effect.
- This Limited Warranty is the only express warranty
made to you and is provided in lieu of any other express warranties or similar obligations (if any) created by any advertising, documentation, packaging, or other communications.
- Except for the Limited Warranty and to the
maximum extent permitted by applicable law, Twisty Ride and its suppliers provide the Hardware
“AS IS AND WITH ALL FAULTS”, and hereby
disclaim all other warranties and conditions, whether express, implied or statutory, including, but not limited to, any (if any) implied warranties, duties or conditions of satisfactory quality, of fitness for a particular purpose, of reliability or availability, of accuracy or completeness of responses, of results, of workmanlike effort, of lack of viruses, and of reasonable care and skill, all with regard to the Hardware, and the provision of or failure to provide support or other services, information, software,
Page 35
www.twistyride.com 35
and related content through the Hardware or otherwise arising out of the use of the Hardware. Also, there is no warranty or condition of quiet enjoyment, quiet possession, or non-infringement with regard to the Hardware. This exclusion does not apply to (i) any implied condition as to title and (ii) any implied warranty as to conformity with description.
- This Limited Warranty does not affect any legal
rights under applicable national legislation governing the sale of consumer goods.
- This Limited Warranty cannot be transferred to any
other person.
LIMITATION OF LIABILITY
- Neither Twisty Ride Ltd nor its suppliers shall be
liable to you or to any third party for any damages either direct, indirect, incidental, consequential or otherwise (including in each case, but not limited to, damages for the inability to use the equipment or access data, loss of data, loss of business, loss of profits, business interruption or the like) arising out of the use of or inability to use the Hardware even if Twisty Ride Ltd has been advised of the possibility of such damages.
- Notwithstanding any damages that you might incur
for any reason whatsoever (including, without limitation, all damages referenced herein and all direct or general damages in contract or anything
Page 36
www.twistyride.com 36
else), the entire liability of Twisty Ride Ltd and any of its suppliers shall be limited to the amount actually paid by you for the Hardware.
- Twisty Ride Ltd shall not be liable for (i) any fraud
on the part of its employees and/or agents; or (ii) any fraudulent misrepresentation on the part of its employees and/or agents.
- Notwithstanding the above, neither party’s liability
for death or personal injury resulting from its own negligence shall be limited.
CE MARKING
This equipment complies with the requirements for CE marking when used in a residential, commercial, vehicular or light industrial environment.
Page 37
www.twistyride.com 37
COPYRIGHT NOTICES
© 2011 Twisty Ride Ltd
Any reproduction of the Twisty Ride logo or name is governed by the laws standardized through the international copyright agreements.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
