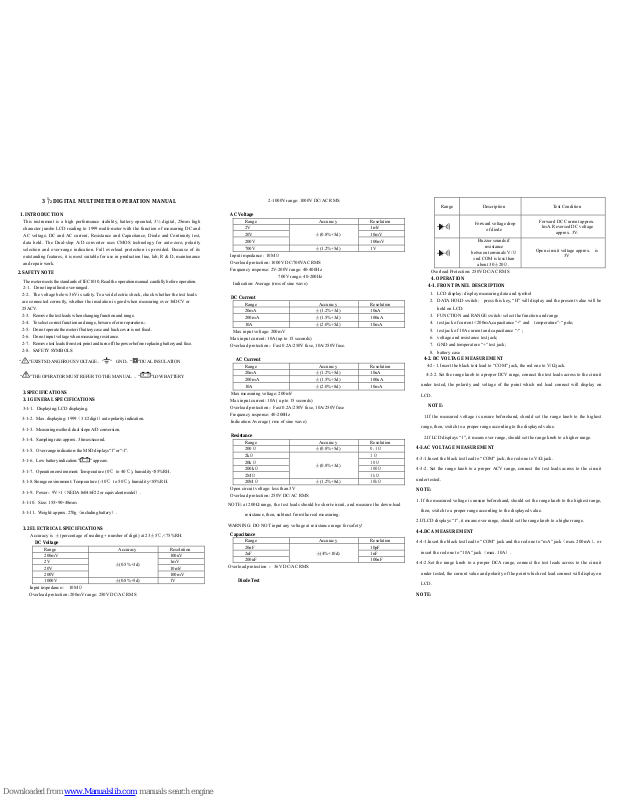

3 1/2 DIGITAL MULTIMETER OPERATION MANUAL
1. INTRODUCTION
This instrument is a high performance stability, battery operated, 3½ digital, 25mm high
character jumbo LCD reading to 1999 multi-meter with the function of measuring DC and
AC voltage, DC and AC current, Resistance and Capacitance, Diode and Continuity test,
data hold. The Dual-slop A/D converter uses CMOS technology for auto-zero, polarity
selection and over-range indication. Full overload protection is provided. Because of its
outstanding features, it is most suitable for use in production line, lab, R & D, maintenance
and repair work.
2. SAFETY NOTE
The meter meets the standards of IEC1010. Read the operation manual carefully before operation.
2-1．Do not input limit over-ranged.
2-2．The voltage below 36V is safety. To avoid electric shock, check whether the test leads
are connected correctly, whether the insulation is good when measuring over 36DCV or
25ACV.
2-3．Remove the test leads when changing function and range.
2-4．To select correct function and range, beware of error operation.；
2-5．Do not operate the meter if battery case and back cover is not fixed.
2-6．Do not input voltage when measuring resistance.
2-7．Remove test leads from test point and turn off the power before replacing battery and fuse.
2-8．SAFETY SYMBOLS
“
”EXISTS DANGEROUS VOLTAGE，“ ” GND，“ ”DUAL INSULATION
“
”THE OPERATOR MUST REFER TO THE MANUAL ，“ ”LOW BATTERY
3.SPECIFICATIONS
3.1 GENERAL SPECIFICATIONS
3-1-1．Displaying: LCD displaying.
3-1-2．Max. displaying: 1999（3 1/2digit）auto polarity indication.
3-1-3．Measuring method: dual slope A/D conversion.
3-1-4．Sampling rate: approx. 3 times/second.
3-1-5．Over range indication: the MSD displays“1” or“-1”.
3-1-6．Low battery indication:“
” appears.
3-1-7．Operation environment: Temperature (0℃ to 40℃), humidity<85%RH.
3-1-8. Storage environment: Temperature (-10℃ to 50℃), humidity<85%RH.
3-1-9．Power：9V×1（NEDA1604/6F22 or equivalent model）.
3-1-10．Size: 155×90×48mm
3-1-11．Weight: approx. 270g（including battery）.
3.2 ELECTRICAL SPECIFICATIONS
Accuracy is ±(percentage of reading + number of digit) at 23±5℃,<75%RH.
DC Voltage
Range Accuracy Resolution
200mV 100uV
2V 1mV
20V 10mV
200V
±(0.5%+3d)
100mV
1000V
±(0.8%+5d)
1V
Input impedance： 10MΩ
Overload protection: 200mV range: 250V DC/AC RMS
2-1000V range: 1000V DC/AC RMS
AC Voltage
Range Accuracy Resolution
2V 1mV
20V 10mV
200V
±(0.8%+5d)
100mV
700V
±(1.2%+5d)
1V
Input impedance : 10MΩ
Overload protection: 1000V DC/700VAC RMS
Frequency response: 2V-200V range: 40-400Hz
700V range: 40-200Hz
Indication: Average (rms of sine wave)
DC Current
Range Accuracy Resolution
20mA
±(1.2%+3d)
10uA
200mA
±(1.5%+3d)
100uA
10A
±(2.0%+5d)
10mA
Max input voltage: 200mV
Max input current: 10A (up to 15 seconds)
Overload protection：Fast 0.2A/250V fuse, 10A/250V fuse.
AC Current
Range Accuracy Resolution
20mA
±(1.2%+5d)
10uA
200mA
±(1.5%+5d)
100uA
10A
±(2.0%+8d)
10mA
Max measuring voltage: 200mV
Max input current: 10A ( up to 15 seconds)
Overload protection：Fast 0.2A/250V fuse, 10A/250V fuse
Frequency response: 40-200Hz
Indication: Average ( rms of sine wave)
Resistance
Range Accuracy Resolution
200Ω ±(0.8%+5d) 0.1Ω
2kΩ 1Ω
20kΩ 10Ω
200kΩ 100Ω
2MΩ
±(0.8%+3d)
1kΩ
20MΩ ±(1.2%+8d) 10kΩ
Open circuit voltage: less than 3V
Overload protection: 250V DC/AC RMS
NOTE: at 200Ω range, the test leads should be short-circuit, and measure the down-lead
resistance, then, subtract from the real measuring.
WARNING: DO NOT input any voltage at resistance range for safety!
Capacitance
Range Accuracy Resolution
20nF 10pF
2uF 1nF
200uF
±(4%+10d)
100nF
Overload protection ：36V DC/AC RMS
Diode Test
Range Description Test Condition
Forward voltage drop
of diode
Forward DC Current approx.
1mA. Reversed DC voltage
approx. 3V.
Buzzer sounds if
resistance
between terminals V/Ω
and COM is less than
about 30±20Ω.
Open circuit voltage approx. is
3V
Overload Protection: 250V DC/AC RMS
4. OPERATION
4-1. FRONT PANEL DESCRIPTION
1. LCD display: display measuring data and symbol
2. DATA HOLD switch: press this key, “H” will display and the pre sent value will be
hold on LCD.
3. FUNCTION and RANGE switch: select the function and range
4. test jack of current <200mA,capacitance”+” and temperature”-“ pole;
5. test jack of 10A current and capacitance “-“ ;
6. voltage and resistance test jack;
7. GND and temperature “+” test jack;
8. battery case
4-2. DC VOLTAGE MEASUREMENT
4-2- 1. Insert the black test lead to “COM” jack, the red one to V/Ω jack.
4-2-2. Set the range knob to a proper DCV range, connect the test leads across to the circuit
under tested, the polarity and voltage of the point which red lead connect will display on
LCD.
NOTE:
1.If the measured voltage is unsure beforehand, should set the range knob to the highest
range, then, switch to a proper range according to the displayed value.
2.If LCD displays “1”, it means over range, should set the range knob to a higher range.
4-3.AC VOLTAGE MEASUREMENT
4-3-1.Insert the black test lead to “COM” jack, the red one to V/Ω jack.
4-3-2. Set the range knob to a proper ACV range, connect the test leads across to the circuit
under tested.
NOTE:
1. If the measured voltage is unsure beforehand, should set the range knob to the highest range,
then, switch to a proper range according to the displayed value.
2.If LCD displays “1”, it means over range, should set the range knob to a higher range.
4-4.DCA MEASUREMENT
4-4-1.Insert the black test lead to “COM” jack and the red one to “mA” jack（max. 200mA），or
insert the red one to “10A” jack（max. 10A）.
4-4-2.Set the range knob to a proper DCA range, connect the test leads across to the circuit
under tested, the current value and polarity of the point which red lead connect will disp lay on
LCD.
NOTE:
1.If the measured current is unsure beforehand, should set the range knob to a higher range, then,
switch to a proper range according to the displayed value.
2.If LCD displays “1” , it means overrange, should set the range knob to a higher range.
3.Max. input current is 200mA or 10A（subject to where red lead insert），excessive current will
blow the fuse. Be careful when measuring 10A due to un-fused. Continuously measuring
large current may heat the circuit, affect the accuracy, even damage the meter.
4-5. ACA MEASUREMENT
4-5-1. Insert the black test lead to “COM” jack and the red one to“mA” jack（max. 200mA），or
insert the red one to “10A” jack（max. 10A）.
4-5-2.Set the range knob to a proper ACA range; connect the test leads across to the circuit
under tested.
NOTE:
1.If the measured current range is unsure beforehand, should set the range knob to the highest
range, then set to a proper range according to the displayed value.
2.If LCD displays “1” , it means overrange, should set the range knob to a higher range.
3.Max. input current is 200mA or 10A（subject to where the red lead insert to），excessive
current will blow the fuse. Be careful when measuring 10A due to un-fused. Continuously
measuring large current may heat the circuit, affect the accuracy, even damage the meter.
4-6. RESISTANCE MEASUREMENT
4-6-1. Insert the black test lead to “COM” jack and the red one to“V/Ω” jack.
4-6-2.Set the range knob to a proper resistance range, connect the test leads across to the
resistance under measured.
NOTE:
1. If the resistance value being measured exceeds the max value of the range selected, LCD
displays "1", thus, should set the range knob to a higher range. When the resistance is over 1MΩ,
the meter may take a few seconds to stabilize. This is normal for high resistance readings.
2.When input terminal is in open circuit, overload displays.
3.When measuring in-line resistance, be sure that power is off and all capacitors are released
completely.
4-7. CAPACITANCE MEASUREMENT
4-7-1.Insert the red test lead to “10A” terminal and the black one to “mA Cx” jack.
4-7-2.Set the range knob to a proper capacitance range, connect the test leads to the capacitor
under measured（note: the polarity of red test lead is “+”）.
NOTE:
1.f the capacitance range under measured is unsure beforehand, should set the range knob to the
highest range, then, set to a proper range according to the displayed value.
2.If LCD displays“1” , it means over range, should set the range knob to a higher range.
3.Before measuring, LCD display might not be zero, the residual reading will be decreased
gradually and could be disregarded.
4.When measuring large capacitance, if creeps seriously or break capacitance, LCD will display
some instability value.
5.Discharge all capacitors completely before capacitance measurement to avoid damage.
6.UNIT: 1uF =1000nF 1nF=1000pF
4-8.DIODE AND CONTINUITY TEST
4-8-1.Insert the black test lead to “COM” terminal and the red one to V/Ω jack( Note: the
polarity of red test lead is “+”).
4-8-2.Set the range knob to “
” range, connect the test leads to the diode under measured,
reading is the approximation of the diode positive volt drop.
4-8-3.Connect the test leads to two points of the measured circuit, if buzzer sounds, the
resistance is lower than approx.(30±20)Ω.
4-9.DATA HOLD
Press HOLD key, the present value will be hold on LCD.
5.MAINTENANCE
DO NOT try to verify the circuit for it’s a precision meter.
5-1.Be ware of waterproof, dustproof and shockproof.
5-2.Do not operate and store the meter in the circumstance of high temperature, high humidity,
and flammability, explosive and strong magnetic field.
5-3.Use the damp cloth and soft solvent to clean the meter, do not use abrasive and alcohol.
5-4.If do not operate it for a long time, should take out the battery.
5-4-1.When LCD displays “
” symbol, should replace the battery as below:
5-4-1-1. Take out the holster and drop out the battery case.
5-4-1-2 take out the battery and replace a new one. It’s better to use alkalescency battery for
long time use.
5-4-1-3.Fix the battery case and take on the holster.
5-4-2.Fuse replacement
To use the specified type when replacement.
5-4-2-1. Take out the holster and drop out the battery case and the battery inside.
5-4-2-2 When you change the fuse of 200mA, please replace a new one as the following f ig,
then fit on the battery case, screw on the case and fit on the holster.
5-4-2-3. When you change the fuse of 10A, please take off the 9V battery and the screw fit on
the back shell, then unscrew the fixed screws which showed on the following fig, uncover the
PCB, and replace a new 10A fuse on the position of the small board showed., finally fit on the
battery case, screw on the case and fit on the holster.
6. If the meter does not work properly, check the meter as following:
CONDITIONS WAY TO SOLVE
NO DISPLAYING
Power is off
HOLD key
Replace battery
symbol displays
Replace battery
NO CURRENT
INPUT
Replace fuse
BIG ERROR Replace battery
VC890D
