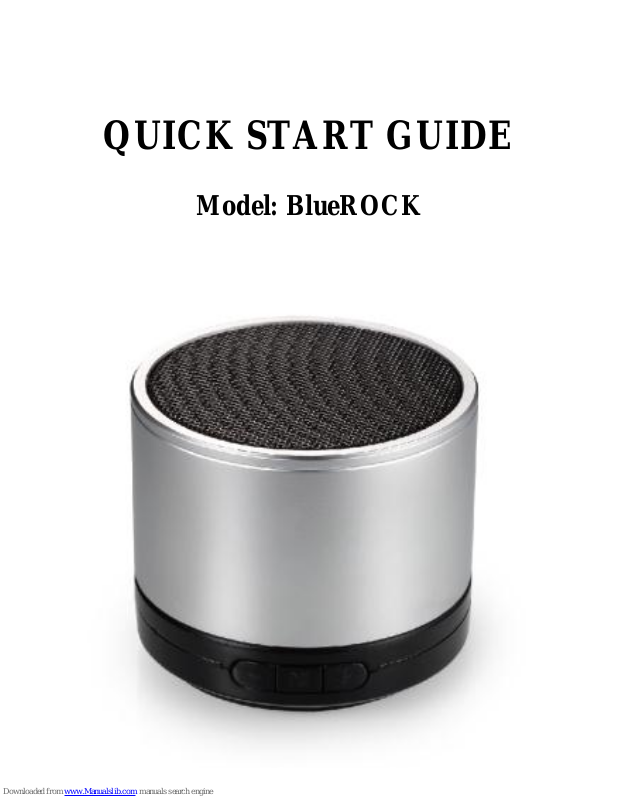

QUICK START GUIDE
Model: BlueROCK
Page 2

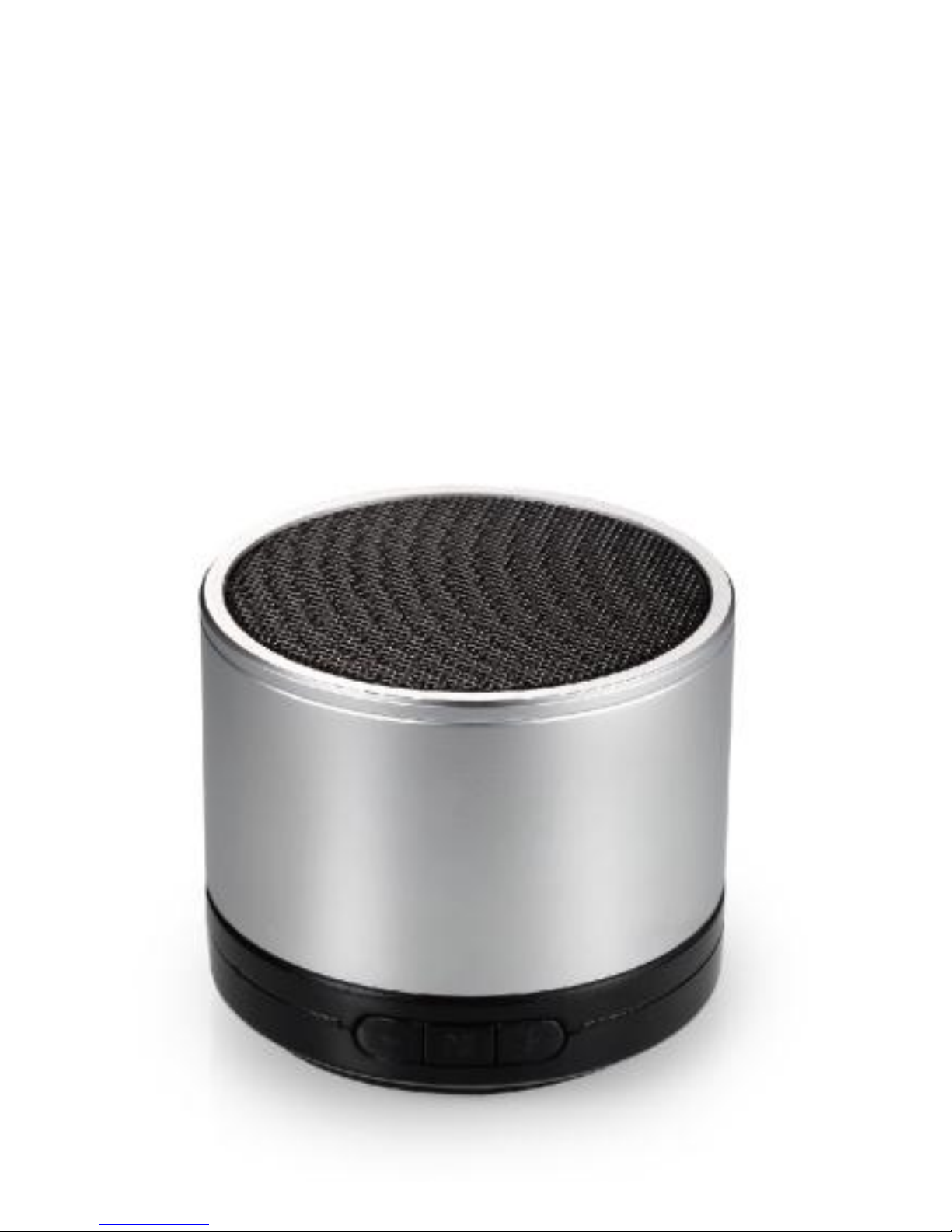

The BlueROCK wireless Bluetooth speaker is
designed to provide the high definition sound your
digital life demands. Simply pair your handheld
device with the BlueROCK to enjoy dynamic stereo
sound.
Includes:
• 1 x BlueROCK
• 1 x Charging Cable
• 1 x Line In Audio Cable
Speaker Controls (Bluetooth Only)
Charging the Battery
Before first use follow these instructions to fully
charge the BlueROCK:
1. Move the “On / Off” switch t
o the “O” position.
2. Plug the provided USB charging cable into the
speaker and a powered USB port. While charging,
the indicator LED light will be red. Once fully
charged, the red LED will turn off.
Play / Pause
Push Once: Previous Song
Push and Hold: Volume Down
Push Once: Next Song
Push and Hold: Volume Up
Page 3
Playing Music with a Bluetooth Connection
1. Move the “On / Off” switch to the “On” position.
2. The BlueROCK will make a loud beep and the LED
indicator light will flash, indicating that the speaker
is in pairing mode. If a device is not connected
after 30 seconds, the speaker will leave pairing
mode and enter sleep mode. Turn the speaker off
and then on again to re-enter pairing mode.
3. On your mobile device: Turn Bluetooth on, search
for Bluetooth devices, and select the speaker.
4. If you are prompted to enter a password to complete
pairing, enter 0000. The BlueROCK will beep,
indicating that it has successfully paired with your
device and is ready for use.
Note: If the BlueROCK is moved out of range or runs
out of power and drops the connection to your
portable device, then you will need to recharge or
move the BlueROCK closer to your portable
device and return to step 1 above to re-establish the
Bluetooth connection.
Playing Music with a Line In Connection
1. Move the “On / Off” switch to the “Off” position.
2. Plug the provided audio cable into the BlueROCK
and then into your portable device.
3. Move the “On / Off” switch to the “On” position.
The BlueROCK is now ready for use.
Page 4
Specifications
• Battery Voltage: 3.7 V
• Battery Capacity: 400 mAh
• Recharging Voltage: 5 V
• Horn Specifications: 40mm 2.6Ω 3W
• Frequency Response: 60Hz – 18KHz
• Wireless Range: up to 10M
• Bluetooth 2.1 + EDR Compliant
• Supports A2DP and AVRCP Profiles
• SNR (Signal to Noise Ratio): ≥ 95 dB
• Distortion: ≤ 0.5%
• Play Time: 6 – 7 hours
• Recharge Time: 2 – 3 hours
• Dimensions: 60*60*50mm
