Twinca e800 User Manual

User Manual E-800

1

E-800_GB

Contents

1. How to use the machine

2. Environmental protection

3. Technical data

4. Personal safety

5. Transportation of the machine

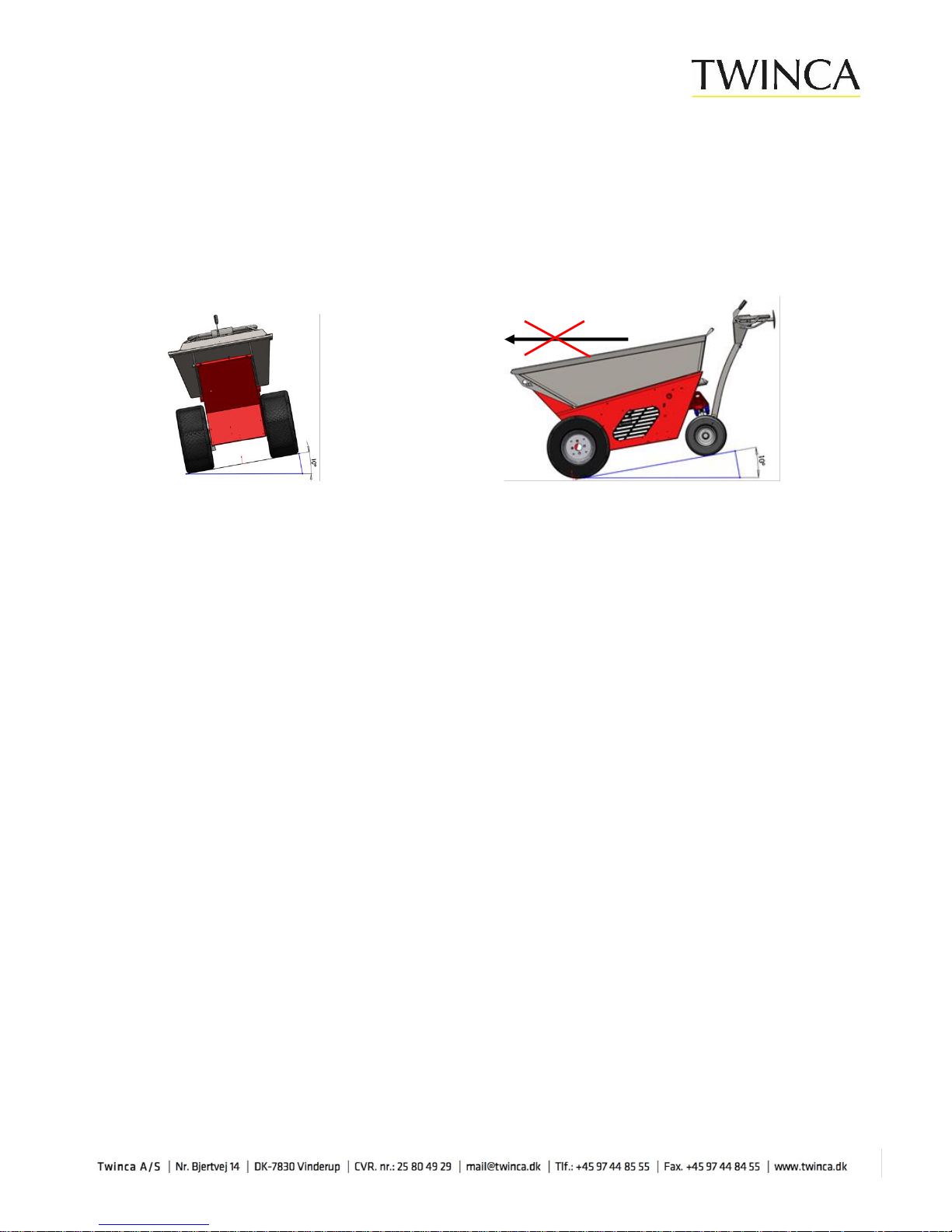

6. Driving in terrain

7. Check before starting

8. How to operate the machine

9. Troubleshooting guide

10. Service and maintenance

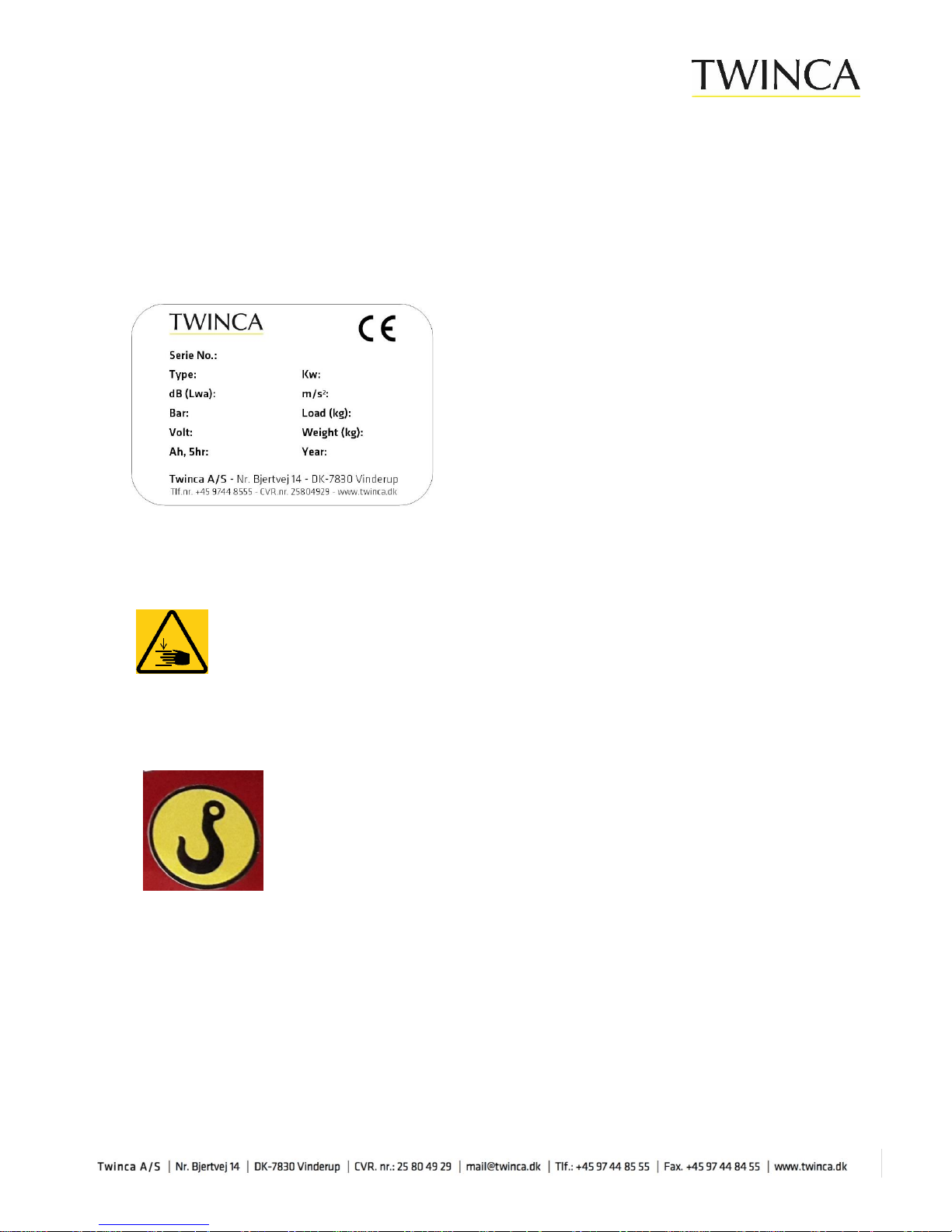

11. Pictographs

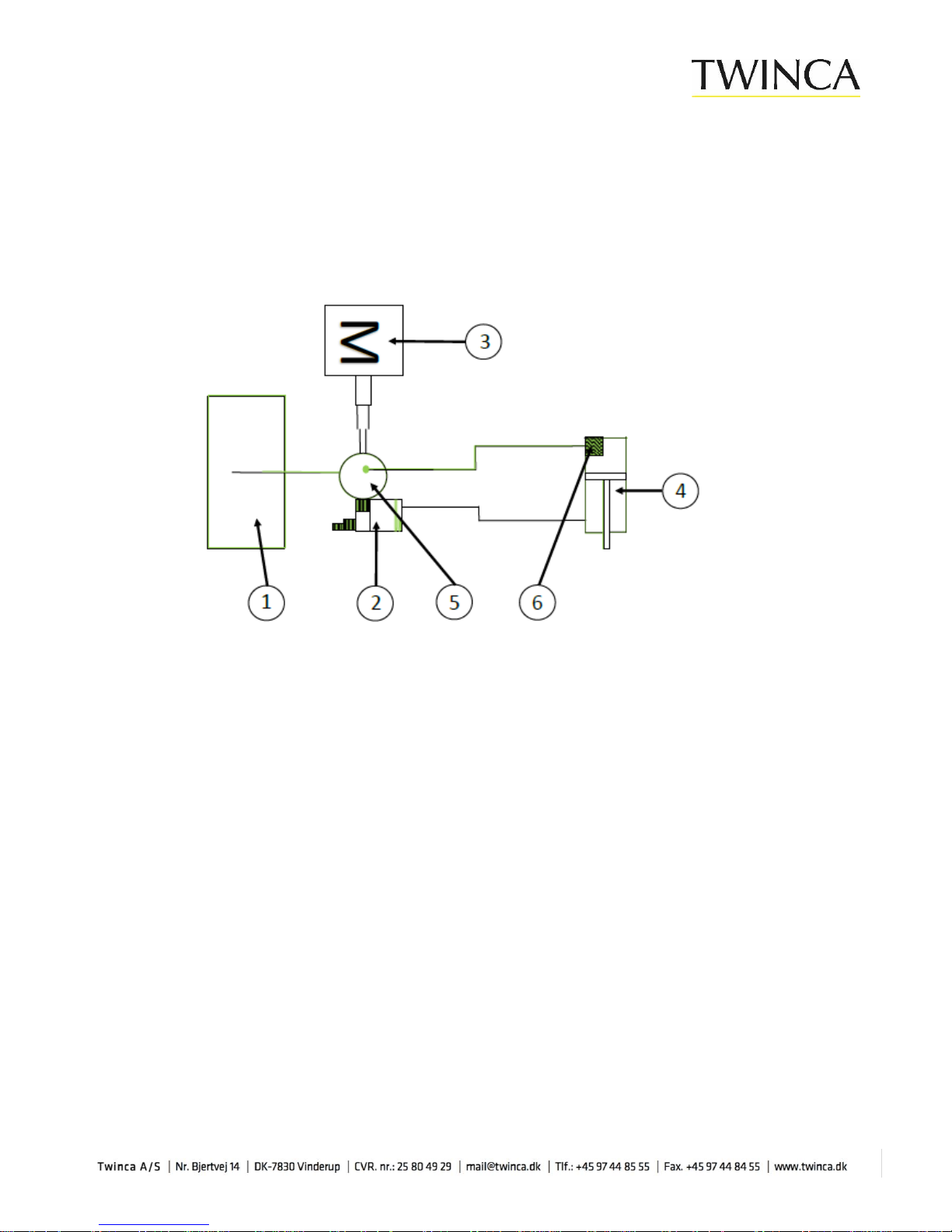

12. Hydraulic diagram

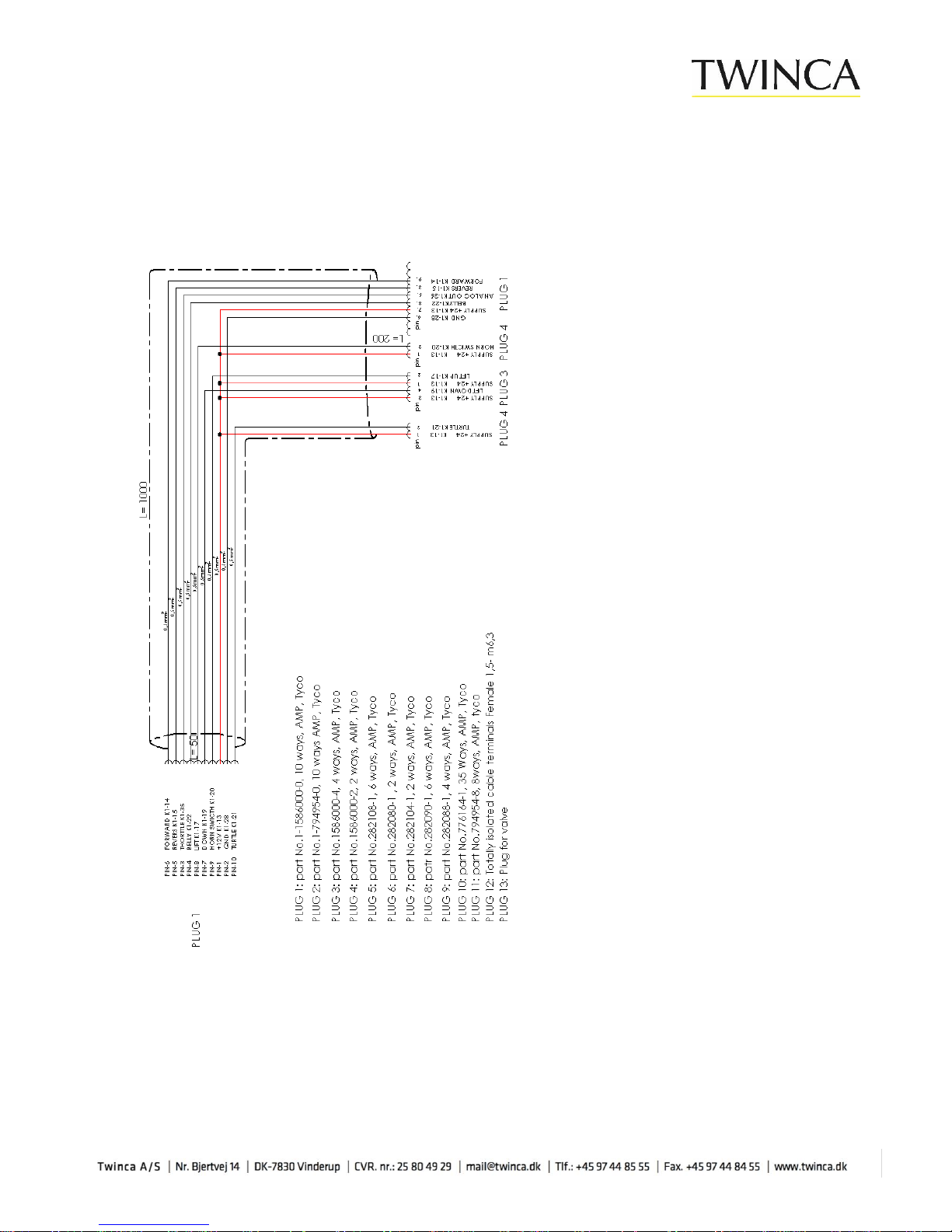

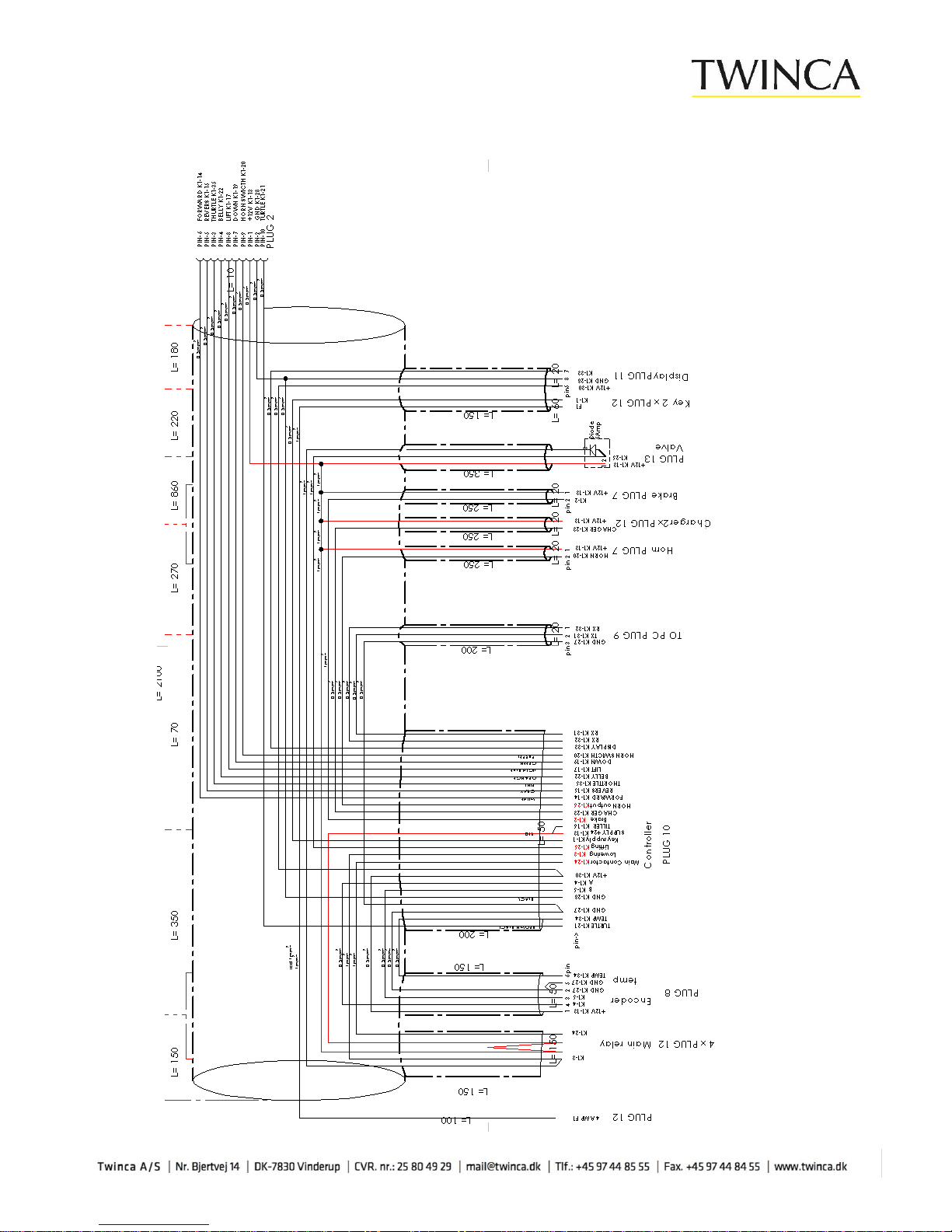

13. Current diagram

14. Warranty

15. A-declaration

Twinca A/S reserve the right to change the specifications of the machine without a prior binding notice

2

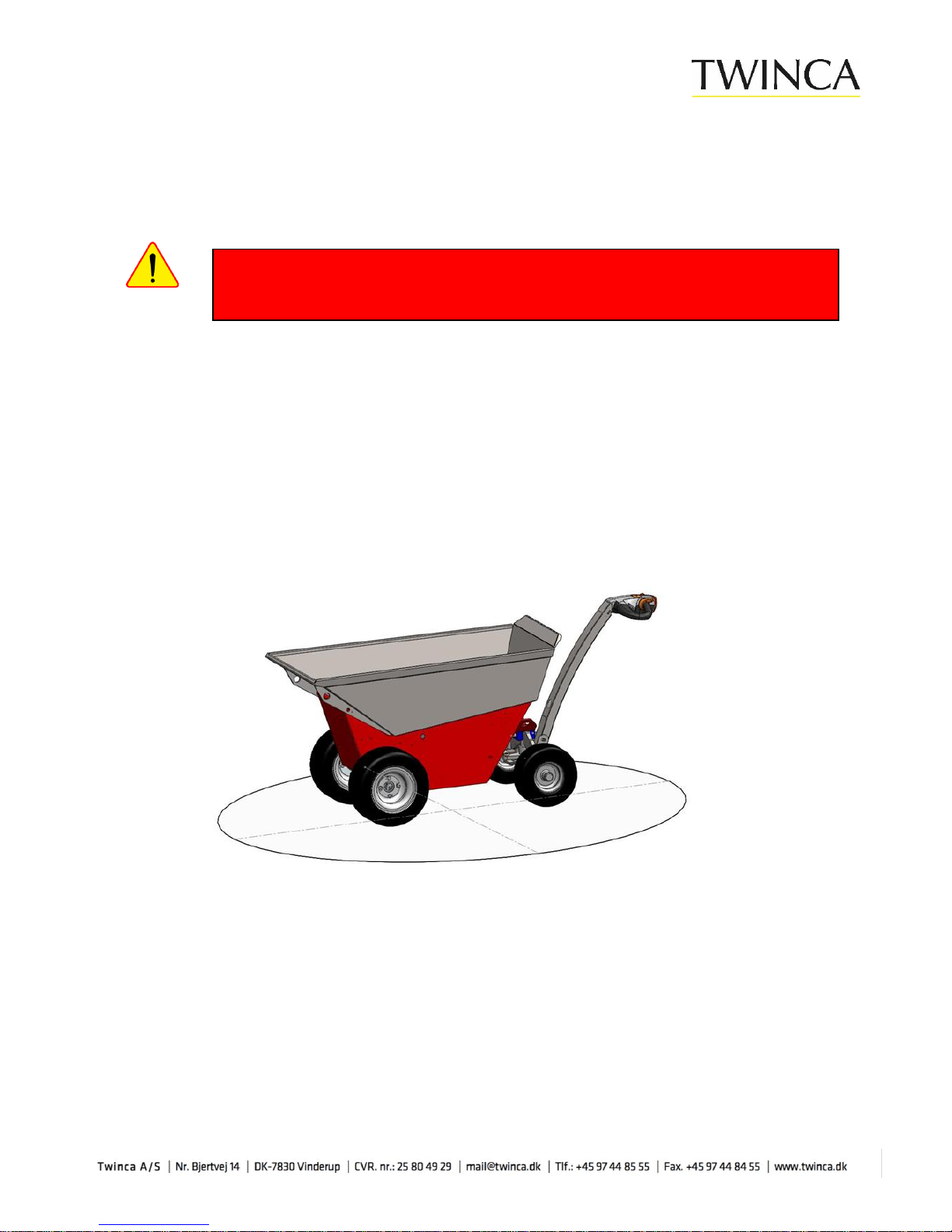

1 How to operate the machine

Contractor is for transportation of primarily soil, granulates, stone, concrete and organic
materials.

Contractor has a unique ergonomic steering system. Contractor is easy to manoeuvre in a
way that hard physical strain during operation of heavy goods is minimized.

Contractor makes the working procedures on the site easier. Contractor mini dumper can
manage anywhere and there is no need for dock plates, not even when driving on uneven
terrain.

Contractor is particularly suitable for landscape gardeners, contractors, farmers, sextons,
municipal service divisions and rental companies.

3

2 Environmental protection

For the protection of the environment, it is important that discarded machine parts
and accessories be delivered to relevant recycling depots, as the machine
contains reusable materials.

Machine parts

Material

Steering wheel

Steel

Frame

Steel

Battery

Hydraulic gear pump

Aluminium and steel

Variable hydraulic pump

Steel and brass

Dump bed

Steel

Other parts

Steel and aluminium

Since the noise level of the machine is less than 70 db(A), the noise level has not
been measured.

4

3 Technical data

Contractor

Width (mm)

900

Length (mm)

2150

Height (control lever)(mm)

1120

Height (dump bed (mm)

920

Battery TE35

4 units 6V

Maximum speed - forwards (km/h)

5

Maximum speed -backwards (km/h)

5

Bed capacity -loading volume (litre)

280

Bed capacity - maximum volume (kg)

800

Machine weight (kg)

398

Noise level (db(A))

<70

IP Code

IP44

5

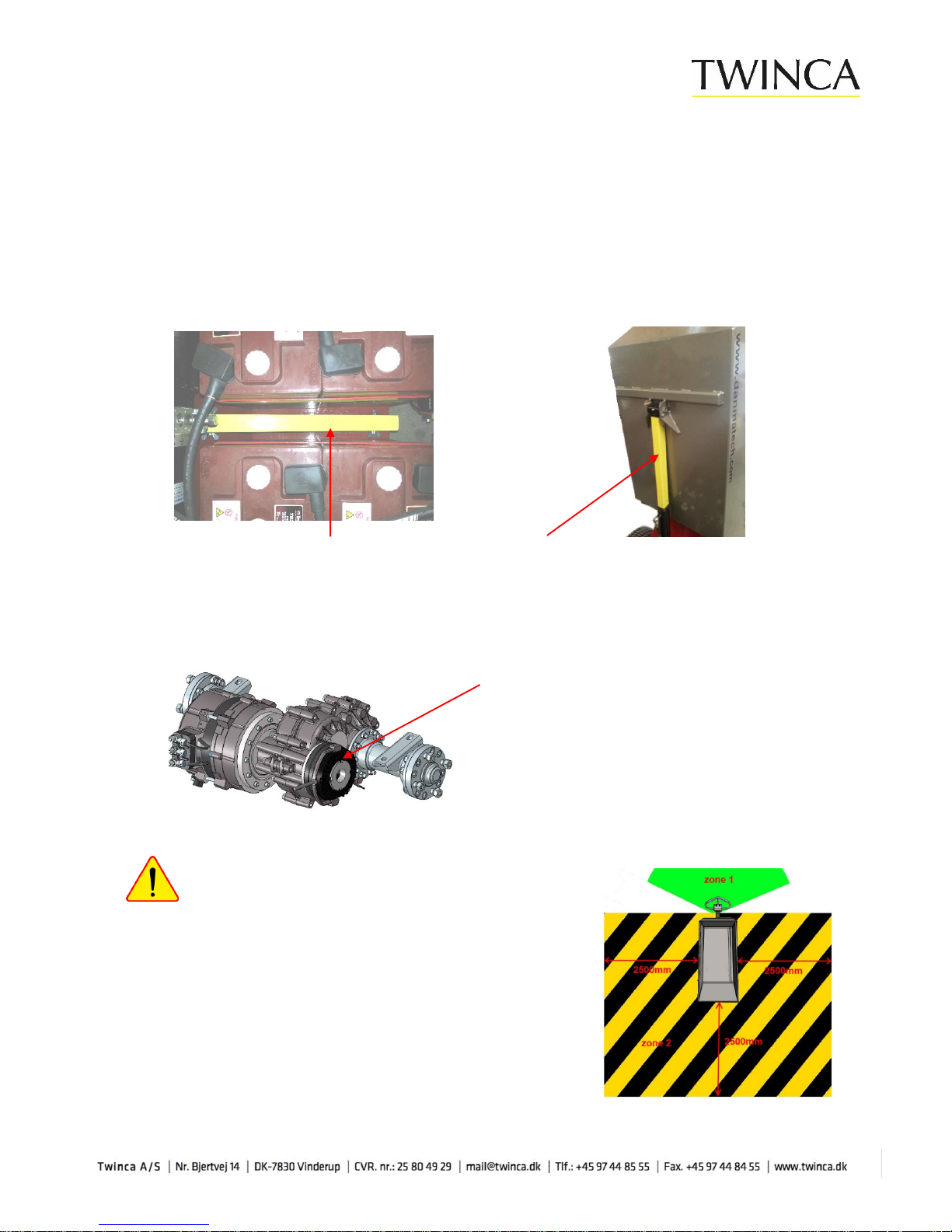

4 Personal safety

For your own personal safety and the safety of your surroundings, it is important that you
read and understand the user manual. It is the responsibility of the user to perfectly
understand the manual to ensure the correct use and safe operation of the machine.
If you feel uncertain as to the correct handling and use of the Contractor mini dumper, it is
important that you get in contact with the seller or Twinca A/S.

Warning A faulty maintenance could be risky. Read and understand the

sections before carrying out any kind of maintenance, service or
repair of the machine.

 This machine is very heavy and should not be lifted without assistance. Get help

and use a suitable lifting appliance.

 Keep the working area free and make sure that persons without affiliation to the

working process are at a safe distance from the machine and the working area.

 The user should wear personal protective equipment when required.
 Be sure that you know how to switch off the machine before you turn it on in case

you get into some kind of trouble during the operation of the machine

 Always switch off the engine before transportation or servicing/repair of the

machine.

 Never modify or remove safety devices, mounted in order to ensure your personal

safety. It is important that you check the correct functioning of the safety devices. If
such devices are defective or missing – DO NOT OPERATE THE CONTRACTOR

MINI DUMPER until the safety devices have been restored or repaired.

 Do not operate the machine if you are ill, feel tired or under the influence of alcohol

or drugs.

 Never stand on the machine at any time.
 Do not use the Contractor mini dumper for transportation of people or animals.
 Driving downhill should always be during reversing.
 Walk carefully around the machine, as the dump bed has sharp edges.
 Make sure that the dump bed is always in the lower position when you leave

the machine!

Personal protective equipment

When operating the machine, always wear suitable personal protective equipment such as
safety goggles, safety gloves, ear plugs, dust respirator and safety footwear. Wear the
personal protective equipment required for the operation to be made. Cover and protect
long hair and take off all pieces of jewellery, as they may stuck in the moving parts of the
machine.
