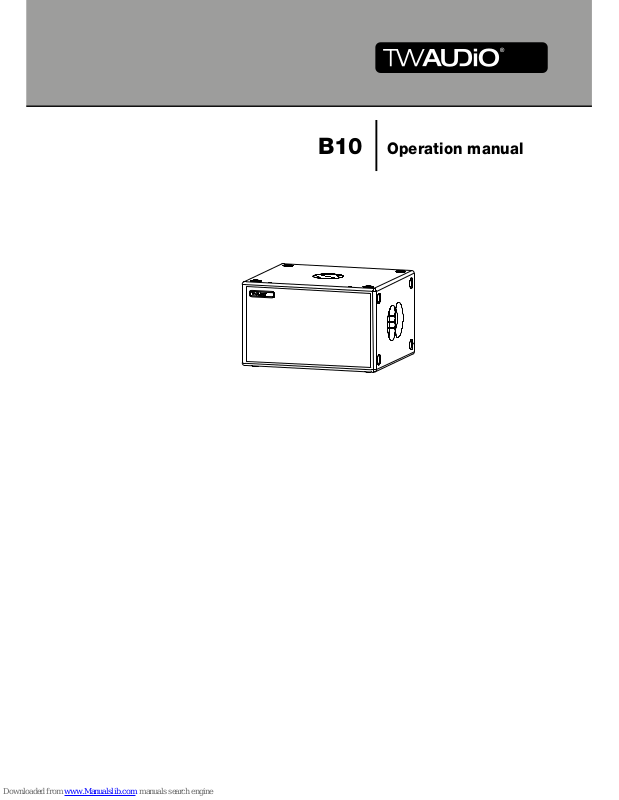

twaudio B10A, B10P Operation Manual
Operation manual
B10
Operation manual B10
2
Introduction
Thank you for choosing a high-quality product “MADE IN GERMANY” from TW AUDiO.
A sudden impact in depth paired with an exactly defined sound – this is what “bass” sounds
like.
The dimensions of our “smallest” let not assume such a performance. But the B10 wouldn’t
be a TW AUDiO sub if it hadn’t more to offer: Its newly developed long excursion cone driver
with an uncompromising 3“ dual voice coil and optional passive cross-over with switchable high-pass outputs enable the standard bi-amp mode amongst numerous other passive
applications:
One single B10 in stereo mode together with two C5 tops, two B10 switched to mono each
with one M8, or four B10 together with two M10, all variations powered by one standard
amplifier.
If you lend your product to another party, inform that party of the safety-related operating procedures and hand over this assembly guide. If you require additional copies of this manual,
you can obtain them free of charge from TW AUDiO or download them from www.twaudio.de
Instructions in this user manual
Strictly adhere to the instructions contained in this operating manual that are marked as
follows:
This symbol in combination with the signal word “Caution” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to light or moderate injury.
This symbol in combination with the signal word “Note” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to product damage.
This symbol in combination with the signal word “Warning” identifies a potentially hazardous
situation. Failure to comply with this safety instruction can lead to serious injury or even death.
NOTE
CAUTION
WARNING
This symbol in combination with the signal word “Warning” identifies a potentially hazardous
situation for persons with a pacemaker. Failure to comply with this safety instruction can lead
to serious injury or even death.
WARNING
Operation manual B10
3
This symbol in combination with the signal word “Tip” identifies additional information or
notes that will simplify working with TW AUDiO products on the basis of practical experience.
TIP
Notes on the products
Read manual
before use!
Before using the device, carefully read the operating manual and keep it with the B10 loudspe-
aker.
General information
Operation manual: OM-B10
Version 1.1 en, 11/2018
© by TW AUDiO 2018; all rights reserved.
All information contained in this operating manual was correct to the best of our knowledge
at the time of printing.
Quality warranties or assurance of suitability for a certain type of use based on the technical
specifications, dimensions and weights are not granted by TW AUDiO.
TW AUDiO also shall not assume liability for any secondary damage (property damage and/or
personal injury) nor for the failure to comply with this operating manual!
TW AUDiO reserves the right to update this document based on recent developments.
TW AUDiO GmbH
Osterholzallee 140
71636 Ludwigsburg
Germany
Phone : + 49 (0) 71 41-48 89 89 0
Fax: + 49 (0) 71 41-48 89 89 99
E-Mail: info@twaudio.de
WWW: www.twaudio.de
Operation manual B10
4
Content
1. Safety | Intended use ...................................................................................................... 5
2. Overview ........................................................................................................................ 7
2.1 Components ........................................................................................................... 7
2.2 Variants ................................................................................................................... 8
2.2.1 B10A / B10P model ........................................................................................... 8
2.3 Operation modes ..................................................................................................... 9

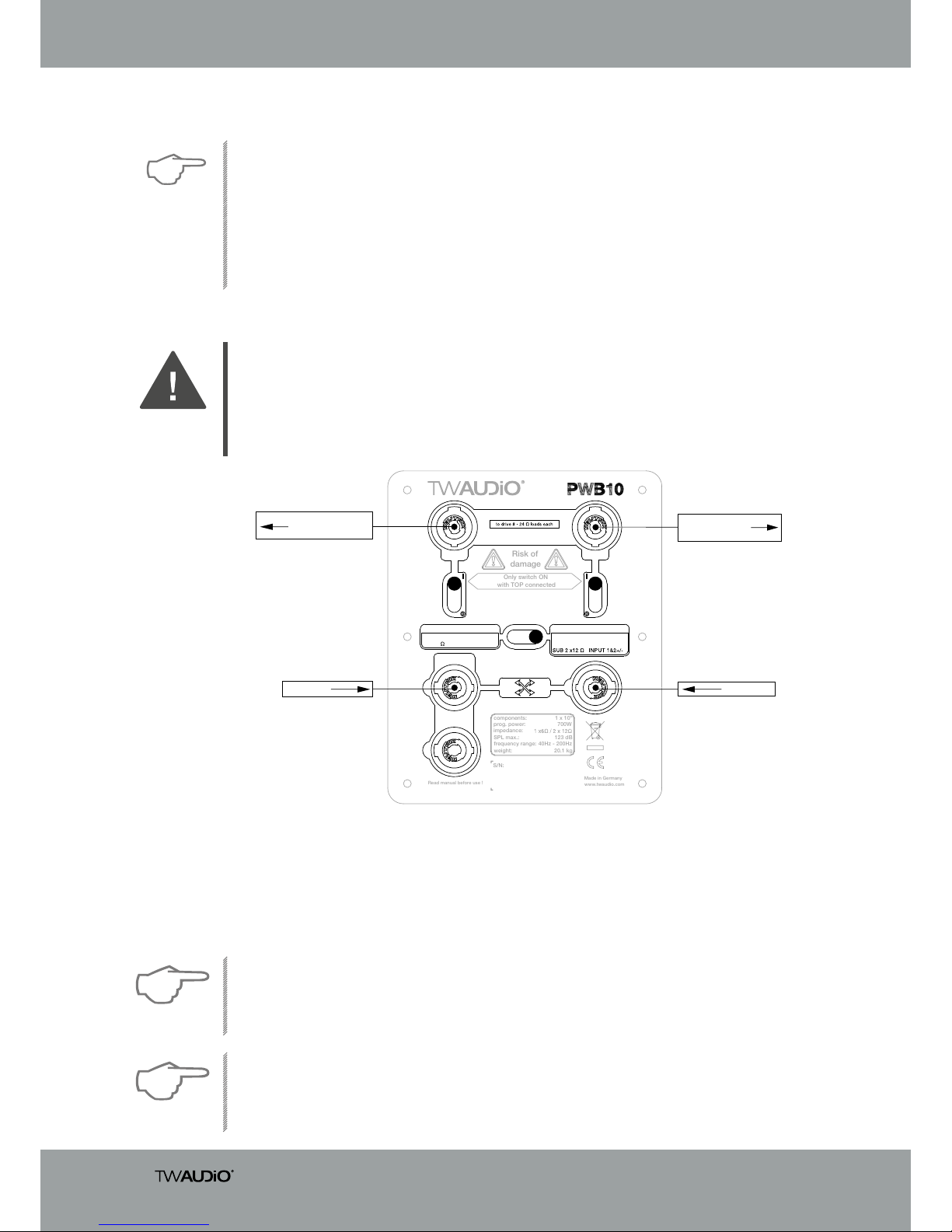

2.3.1 Selector switch S3 - MONO/STEREO mode ...................................................... 9

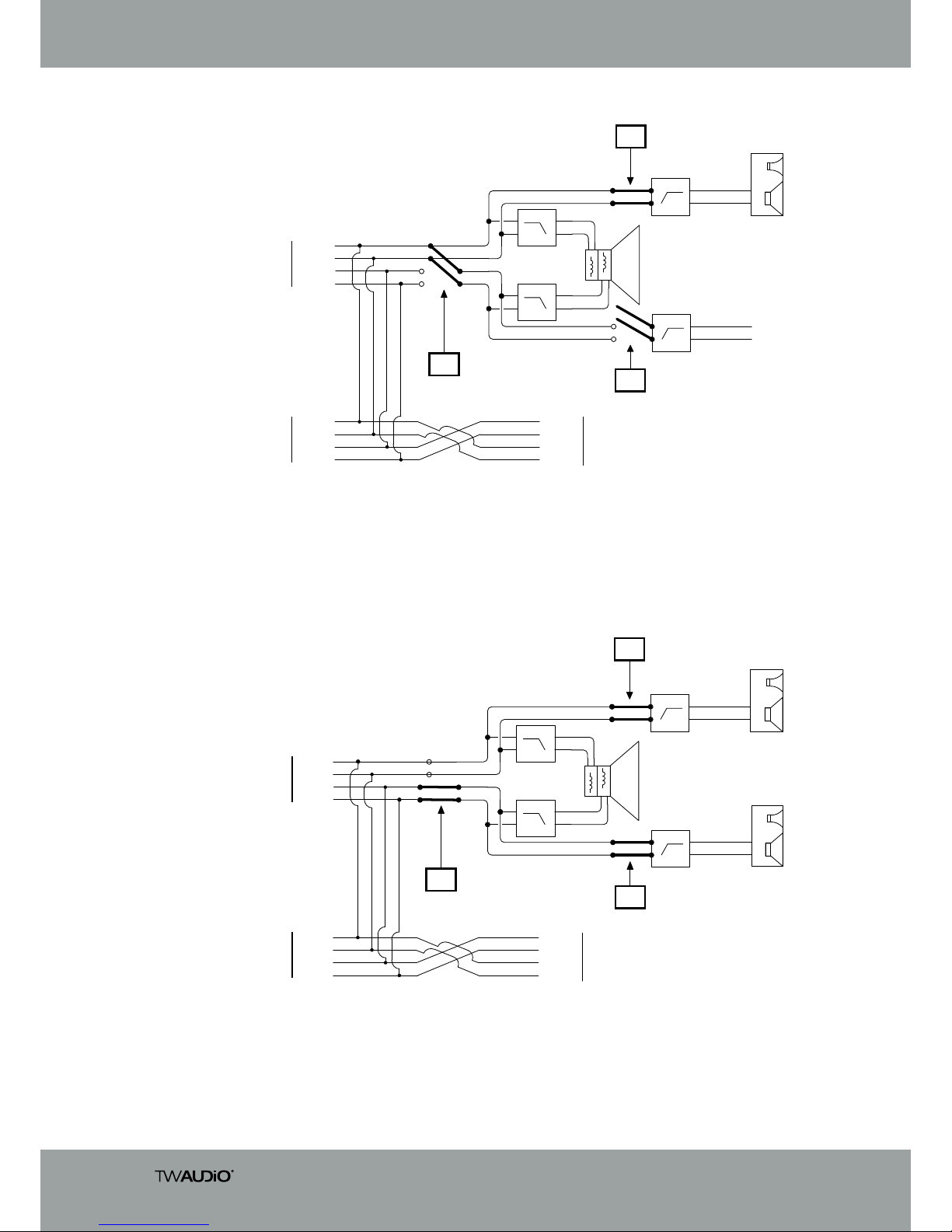

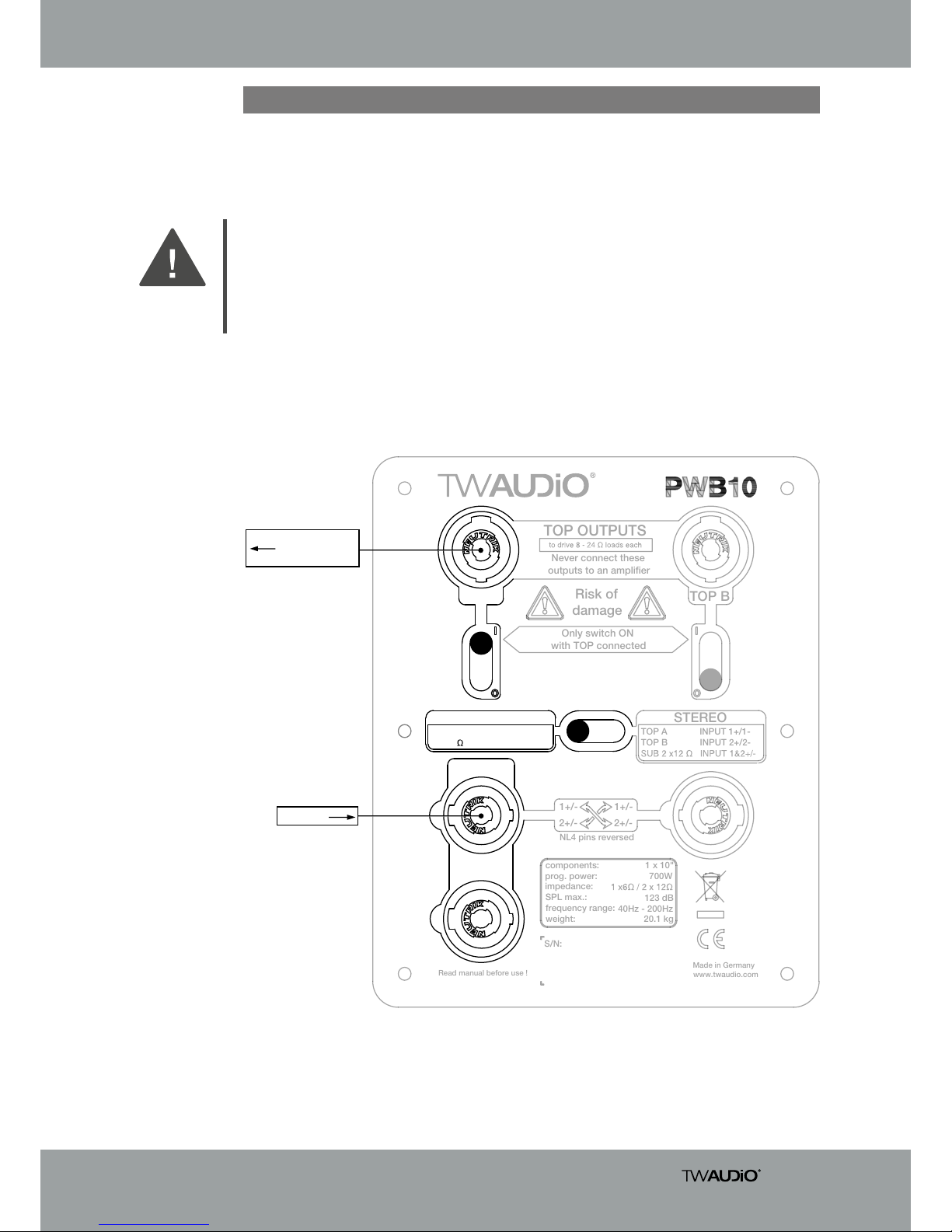

2.3.2 Selector switch S1 and S2 - TOP OUTPUT mode ............................................ 10
3. Technical data .............................................................................................................. 11

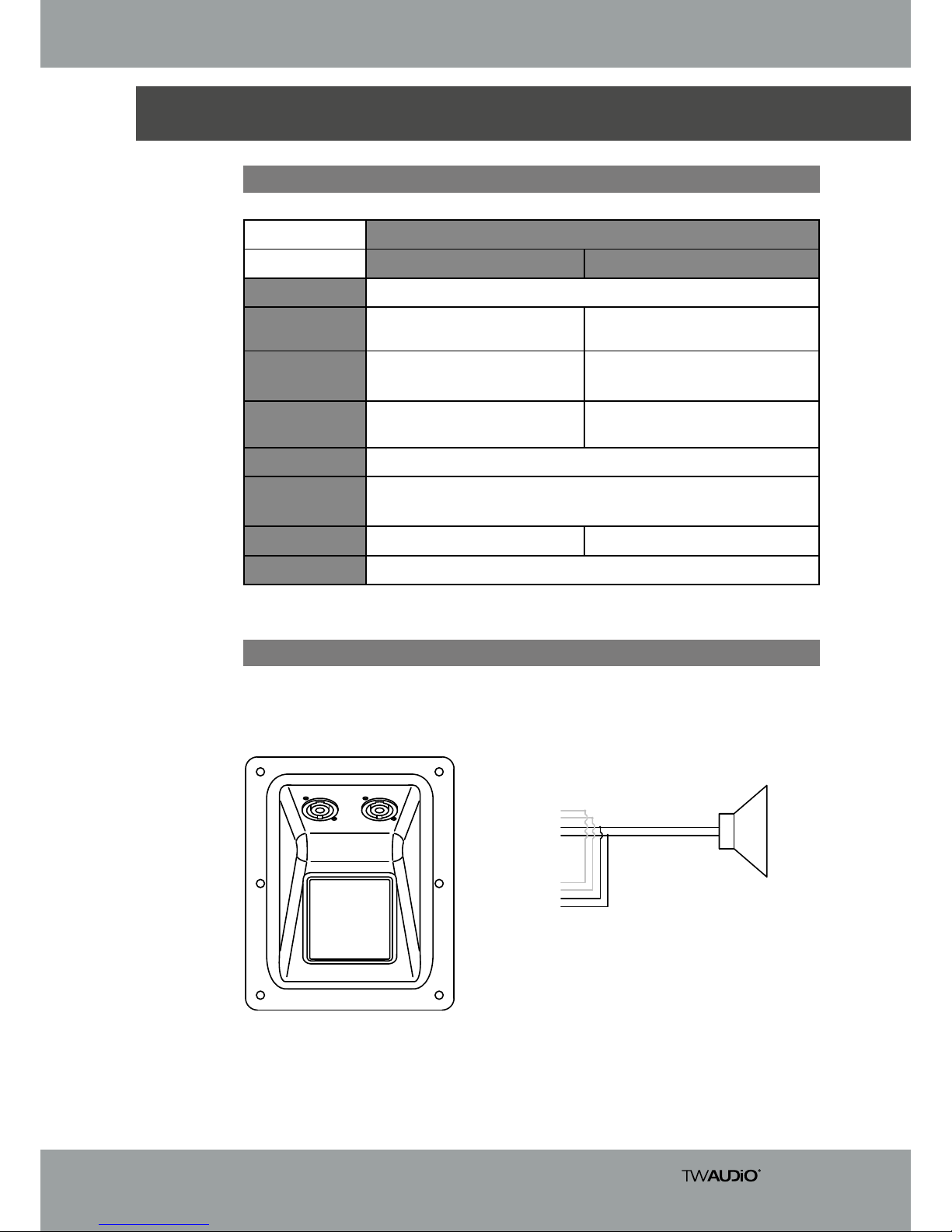

3.1 Data sheet ............................................................................................................. 11
3.2 Connection diagram .............................................................................................. 11
3.2.1 Variant: B10A ................................................................................................... 11
3.2.2 Variant: B10P ................................................................................................... 12
4. Commissioning ............................................................................................................. 13
4.1 Setup .................................................................................................................... 13
4.2 M20 pole mount flange .......................................................................................... 13
4.3 Operation .............................................................................................................. 16
4.4 Connecting the cable ............................................................................................. 16
5. Transport and storage .................................................................................................. 17
6. CE Conformity Declaration ............................................................................................ 18
7. Disposal ....................................................................................................................... 19
Operation manual B10
5
1. Safety | Intended use
Please adhere to the following safety instructions to avoid risks when operating loudspeakers.
The B10 loudspeaker was developed for use in professional sound systems. The loudspeaker may only be used by trained and qualified personnel.
Note the operating modes described in this operating manual. Other uses are not permissible.
Damage caused by improper use is not covered by TW AUDiO.
Loudspeakers generate an electromagnetic field. Persons with pacemakers are not permitted to remain in the immediate vicinity of loudspeakers as the electromagnetic fields can
cause pacemakers to malfunction.

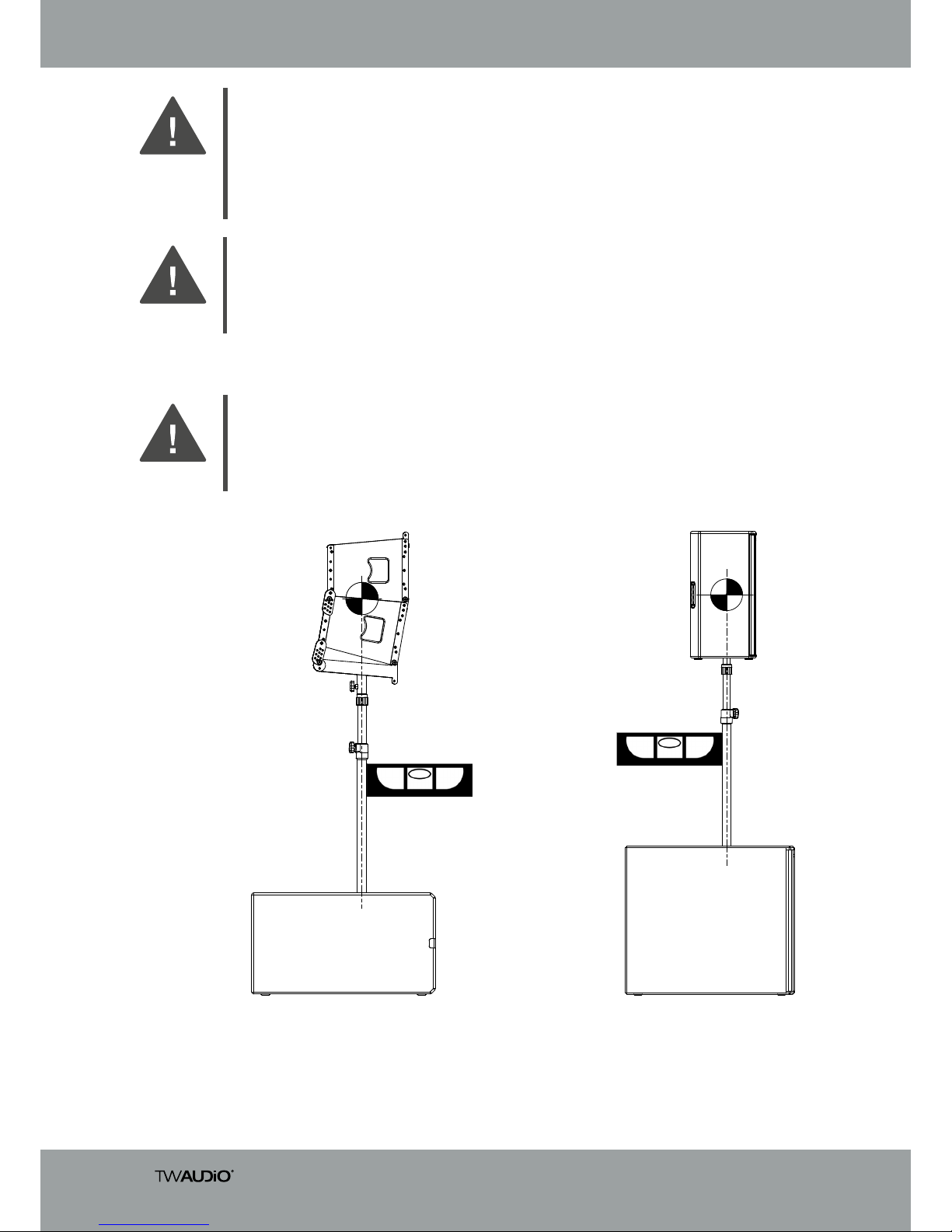

When working with heavy loads exceeding 20 kg (44,09 lbs.), use suitable aids (dollies, hoisting slings, etc.). Multiple persons may be required depending on the situation.
Ensure that the units are in a stable position and are firmly attached. A falling loudspeaker can
result in serious personal injury and property damage.
When using and assembling TW AUDiO loudspeakers, only use materials specified by
TW AUDiO. These tasks must be performed by qualified personnel. Adhere to the applicable
safety regulations.
WARNING
When setting up loudspeakers, ensure that they are not exposed to the following ambient
conditions:
• direct sunlight
• Humidity
• Jolting
• Dust
Keep away from the immediate vicinity of loudspeakers that are operated at high sound pres
sure levels. These loudspeaker systems are capable of endangering your health. Sound levels
beginning as low as approximately 90 dB SPL can lead to long-term hearing impairment.
WARNING
Avoid:
• Feedback
• Distorted signals (clipping) and
• Peaks resulting from switching on devices, plugging in devices or unplugging devices during
operation.
Such signals can lead to loudspeaker overload and ultimately to loudspeaker failure.
WARNING
NOTE
NOTE
Operation manual B10
6
Ensure that the loudspeaker is not exposed to permanent thermal overloads. Thermal overloads may cause a fire and result in serious personal injury and property damage.
WARNING
Note that TW AUDiO does not provide a warranty for damage that can be attributed to this
type of overload and therefore cannot be held liable for any secondary damage.
A permanent magnetic field is present in the immediate vicinity of loudspeakers. Ensure that
objects which react sensitively to magnetic fields are not located in the immediate vicinity of
the loudspeaker. In particular, this applies to magnetic storage media, magnetic stripe cards
such as debit cards and CRT displays. A distance of approximately one meter is sufficient to
avoid damage.
Check loudspeakers and accessory parts regularly for visible wear. This is essential to ensure
continuing fault-free operation. Worn parts should be replaced immediately. Spare parts are
available from TW AUDiO.
NOTE
NOTE
