TW Arc-Slim User Manual
USER MANUAL
CONGRATULATIONS
ON PURCHASING YOUR
TOTALLY WICKED
ARC SLIM
ELECTRONIC
CIGARETTE KIT.
3
Power
Settings
Battery Life
Indicator
Tank
Connection
LED Screen
USB
Charge
Port
Mouthpiece
CS Air Slim
Tank
Airflow
Control
Ring
Power
Button
Using Your arc Slim Kit
4
If you are familiar with using
e-cigarettes, follow the quick
start guide below to be vaping in
minutes:
• Prime the atomizer head.
• Fill the tank.
• Switch the arc Slim on (5 clicks).
• Set the arc Slim to low power
mode (3 clicks per change).
• Press the power button and inhale
• Charge the battery (it will possibly
not have been shipped with a full
charge).
Detailed descriptions of these
steps and more are given in the
full user guide to follow.
Using Your arc Slim Kit
5
Priming the Atomizer Head and
Filling the Tank:
Using Your arc Slim Kit
6

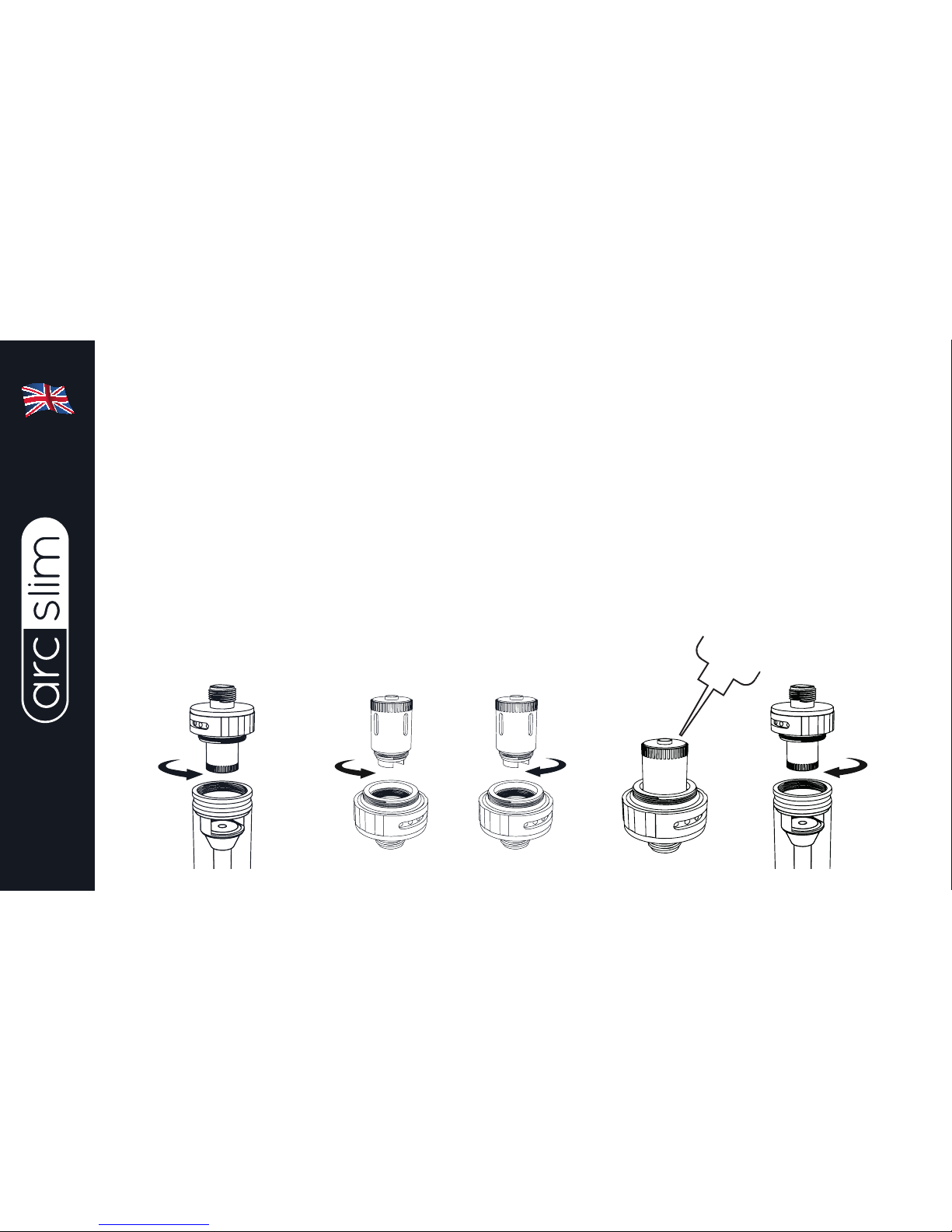

Priming the Atomizer Head and
Filling the Tank:
Note: It is important to “prime”
a new atomizer head before first
use. Failure to do so can cause the
atomizer coil to overheat, leading to
an unpleasant taste and sometimes
irreversible damage to the atomizer
head.

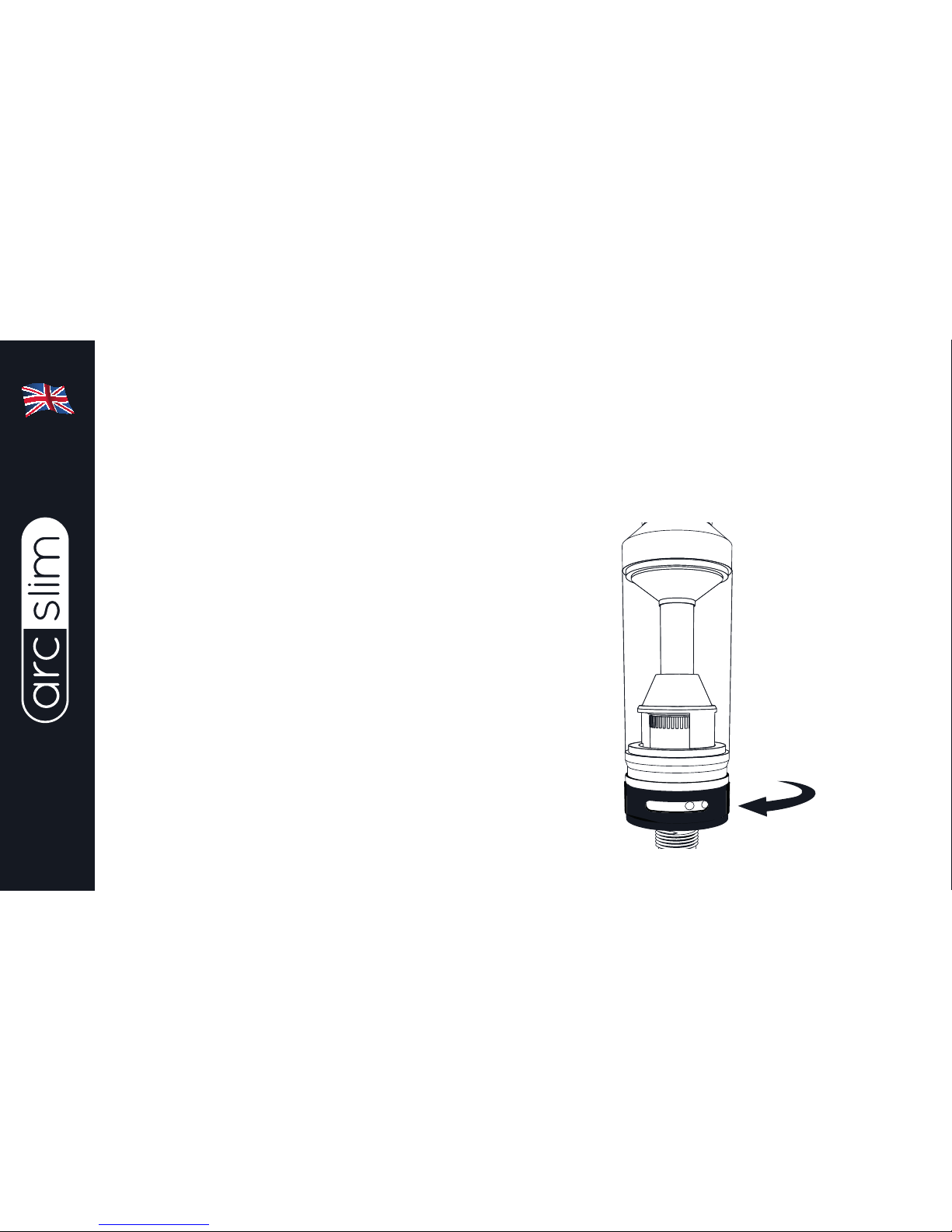

Remove the tank from the arc Slim
by unscrewing at the atomizer
base. Turn the tank upside down,
then remove the atomizer base
from the glass section of the tank
by unscrewing it. Prime the fitted
atomizer head by dripping a few
drops of E-liquid into its central hole.
After priming, fill the tank through
one of the apertures either side of
the central air hole. Do not allow fluid
to enter the central air hole. Refit
the atomizer base, then screw the
assembled tank back onto the arc
Slim battery.
Using Your arc Slim Kit
