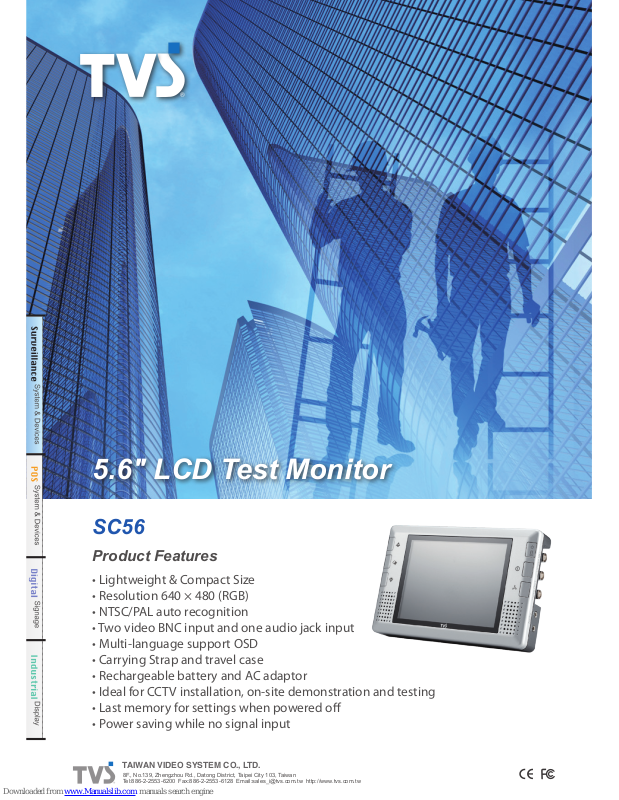

TVS electronics SC56 Specifications

• Lightweight & Compact Size

• Resolution 640 × 480 (RGB)

• NTSC/PAL auto recognition

• Two video BNC input and one audio jack input

• Multi-language support OSD

• Carrying Strap and travel case

• Rechargeable battery and AC adaptor

• Ideal for CCTV installation, on-site demonstration and testing

• Last memory for settings when powered o

• Power saving while no signal input

Product Features

5.6" LCD Test Monitor

TAIWAN VIDEO SYSTEM CO., LTD.

8F., No.139, Zhengzhou Rd., Datong District, Taipei City 103, Taiwan
Tel:[phone] Fax:[phone] Email:[e-mail] http://www.tvs.com.tw

SC56

Model SC56

LCD panel
spec.

LCD display 5.6 Active Matrix TFT LCD”

Viewable size ( HxV ) 112.9 x 84.7 mm

Pixel Pitch ( HxV ) 0.0588 x 0.1764 mm

Max. resolution 640 × 480

Contrast ratio 500 : 1 (Typ.)

Brightness 200 cd/m2 (Typ.)

Response time Tr/Tf 10/15 ms (Typ.)

Display Color 16.7M

Viewing angle ( HxV ) 120º / 140º

MTBF 20,000 hours

Front Control

Power on/o ,Power/Recharge LED Indicator,

Source, Up (Volume Increase),Menu(OSD menu),

Down(Volume Decrease)

OSD menu Video

Language, Auto O, Contrast, Brightness,

Color, Tint, Sharpness, Recall

Display mode Video1, Video 2, Test pattern

Signal
connector

Input BNC x 2 (1.0 Vp-p 75), Audio x 1(3.5 stereo Jack)

Output BNC x 1(2.0 Vp-p 75), Audio x 1(3.5 stereo Jack)

Audio speaker 1W (Max.)

Power Input AC 100~240V, 50/60 Hz

Power Supply DC 12V / 1.5A

Power Management VESA DPMS Standard

Stands/bracket supported 1/4”standard screw mount on bottom

Rechargeable battery Lithium battery (7.4V/2600mAh)

Environment

Operating Condition Temp.: 0° ~ 40° Hum.: 20% ~ 85%

Storage Condition Temp.: -20° ~ 60° Hum.: 20% ~ 85%

Net Weight 0.62 Kg

Gross Weight 1.55 Kg

Dimension (WxHxD) 190 x 126 x 44.5 mm

Safety FCC,CE,BSMI

Optional Rechargeable battery EP-2FC2S1P

Specication

SC56

*Specications subject to change without notice.

• 5.6" TFT LCD monitor x1

• Travel case with carrying and waist strap x1

• AC adaptor x1

• Rechargeable Li-poly battery x1

• 12VDC vehicle cigar lighter charger x1

• 3.5" stereo jack to RCA jack cable x1

• User manual x1

Test Pattern Generator

Pcking List

TAIWAN VIDEO SYSTEM CO., LTD.

8F., No.139, Zhengzhou Rd., Datong District, Taipei City 103, Taiwan
Tel:[phone] Fax:[phone] Email:[e-mail] http://www.tvs.com.tw

Dimension
