TVS electronics RP 3200 STAR User Manual

Receipt Printer User’s Manual

RP 3200 STAR

All specifications are subject to change without notice

RP 3200 STAR User’s Manual

Part Number: 1025040087, Rev A, Description: User Manual, RP3200 STAR

1

RP 3200 STAR User’s Manual

1. Parts Identifications

3

2. Setting up the printer

4

2.1 Unpacking

4

2.2 Connecting the cables

5

2.3 Loading the roll paper

9

2.4 Adjustment of paper width

12

3. Control panel and other functions

13

4. Self Test

14

5. ASCII Print

14

6. Select Baud Rate Mode

15

7. Hexadecimal Dump

15

8. Printer Cleaning

16

9. Specifications

17

9.1. General Specifications

17

9.2. Auto Cutter Specifications

19

9.3. Interface

19

9.4. Electrical Characteristics

19

9.5. Environmental Requirements

20

9.6. Reliability

20

9.7. Certification

20

10. Command List

21

TABLE OF CONTENTS

2

1. Parts Identifications

INTERFACE CONNECTOR(USB)

INTERFACE CONNECTOR

PERIPHERAL DRIVE CONNECTOR

POWER CONNECTOR

Open this cover to load or replace paper.

Features LED indicators to indicate printer status and switches to operate the printer.

Used to turn on/off power to the printer.

Pull down this lever to open the printer cover.

RP 3200 STAR User’s Manual

3

RP 3200 STAR User’s Manual

2. Setting up the Printer

2-1. Unpacking

Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance.

The Printer User’s Manual Roll Paper

Adaptor Interface Cable (Option)

4

RP 3200 STAR User’s Manual

For connection to a host computer.

Connects to peripheral units such as cash drawers, etc. Do not connect this to a telephone.

For connection of the AC adapter. Never unplug the AC adapter while the printer is on.

INTERFACE CONNECTOR(USB)

INTERFACE CONNECTOR

PERIPHERAL DRIVE CONNECTOR

POWER CONNECTOR

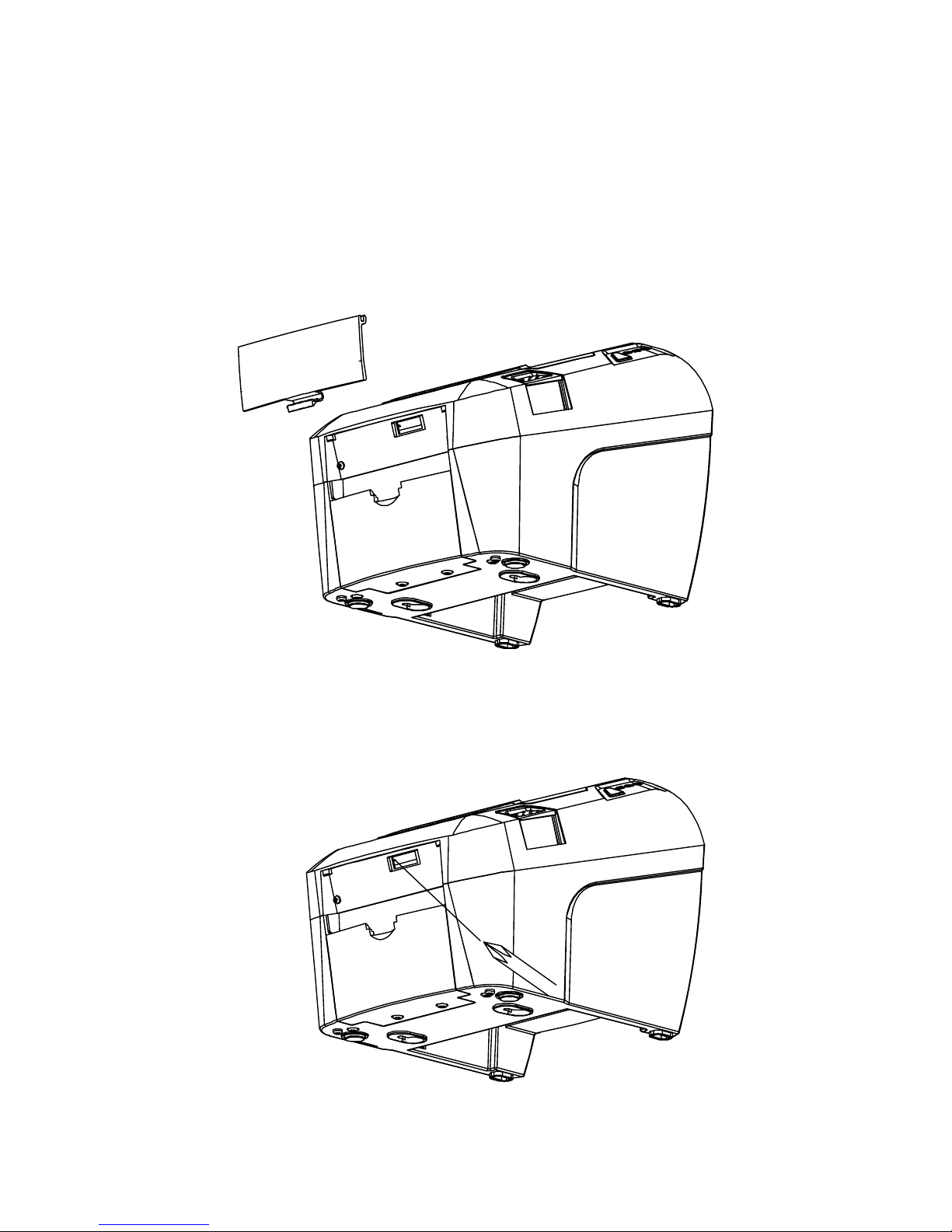

2-2. Connecting the Cables

You can connect up the cables required for printing to the printer. They all connect to the connector panel on the back of the printer, which is shown below:

Before connecting any of the cables, make sure that both the printer and the computer are turned off.

5

RP 3200 STAR User’s Manual

SIGNAL

I/O

DESCRIPTION

2

TxD

Output

Printer transmit data line RS-232C level

3

RxD

Input

Printer receive data line RS-232C level

4, 20

DTR

Output

Printer handshake to host line RS-232C level

6

DSR

Input

Data Send Ready

1, 7

GND

-

System Ground

SIGNAL

I/O

DESCRIPTION

1

+5V

-

+5V 2 DATA-

-

Printer transmit data line

3

DATA+

-

Printer transmit data line

4

GND

-

System Ground

2-2-1. Interface Connector

<D-SUB 25 Female Serial> <Centronics Parallel>

Serial interface

USB interface

6

Centronics Parallel interface

SIGNAL

I/O

DESCRIPTION

1

STROBE-

Input

Synchronize signal Data received

2~9

DATA0~7

Input/Output

Data bit Transmitted 0~7

10

ACK-

Output

Data receiving completed.

11

BUSY

Output

Impossible to print of data receiving.

12

PE

Output

Paper empty

13

SELECT

Output

Printer status for ON/OFF line

14

AUTO FEED-

Input

Paper auto feed signal

15

GROUND

-

System ground

16

GROUND

-

System ground

17

NC -

18

LOGIC-H

-

+3.3V

19~30

GROUND

-

System ground

31

INIT-

Input

Initialize

32

ERROR-

Output

Printer error

33

GROUND

-

System ground

34

NC -

35

NC -

36

SELLECT IN-

Input

Printer select signal

SIGNAL

I/O

1

Data Out +

Output Data +

2

Data Out -

Output Data -

3

GND

Ground

4

Data IN +

Input Data +

5

Data IN -

Input Data -

6

N.C

7

N.C

8

N.C

RP 3200 STAR User’s Manual

Ethernet Interface

7

RP 3200 STAR User’s Manual

SIGNAL

DESCRIPTION

1

Signal GND

-

2

Drawer kick-out drive signal 1

Output

3

Drawer open/close signal

Input

4

+24V - 5

Drawer kick-out drive signal 2

Output

6

Signal GND

-

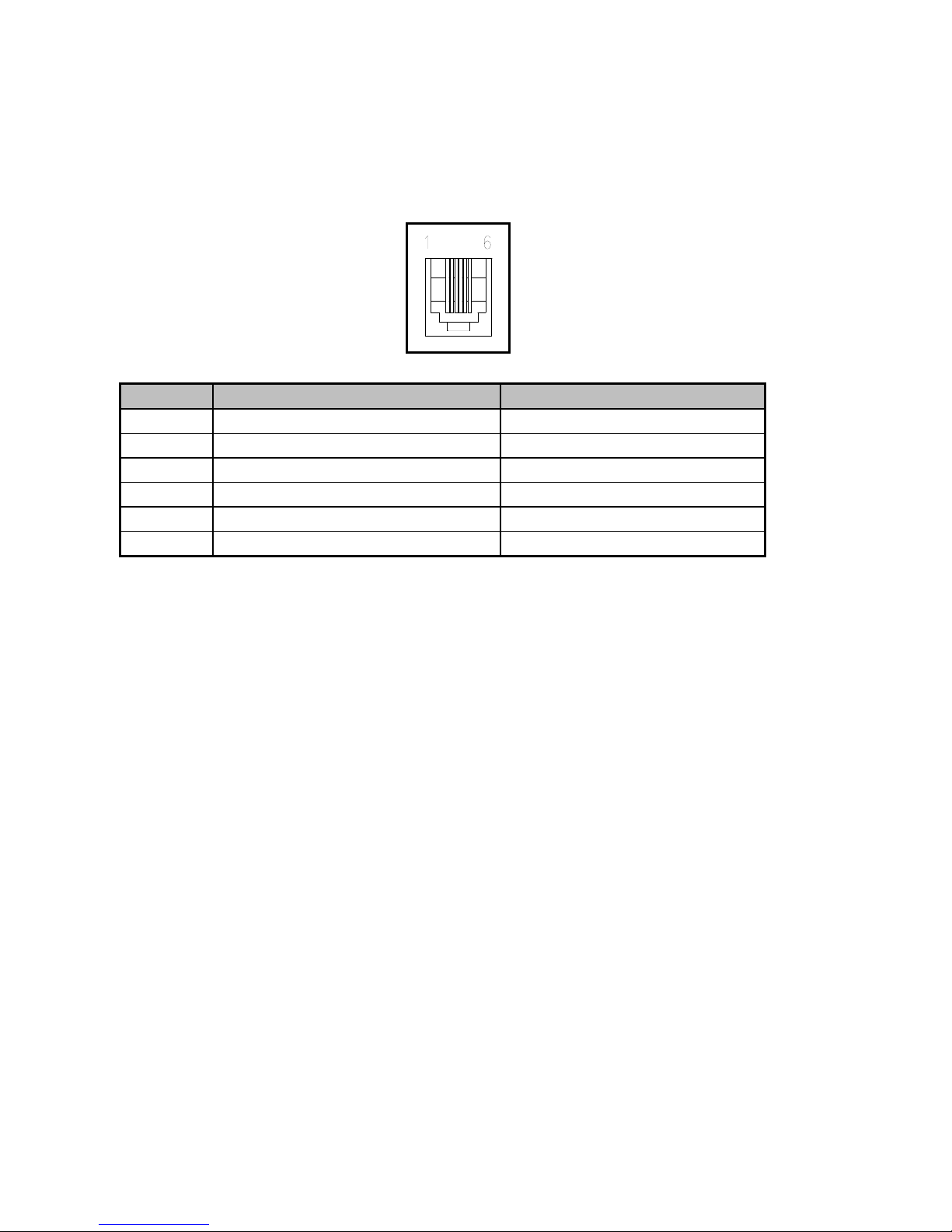

2-2-2. Cash Drawer Connector

The printer can operate two cash drawers with a 6 pin RJ-11 modular connector. The driver is capable of supplying a maximum current of 1.0A/24VDC for 510ms or less when not printing.

CAUTION:

To avoid an over current, the resistance of the drawer kick-out solenoid must be 24 Ω or more.

8

RP 3200 STAR User’s Manual

Notes: Be sure to use paper rolls that meet the specifications. Do not use paper rolls that have the

paper glued to the core because the printer cannot detect the paper end correctly. (Turn off power switch)

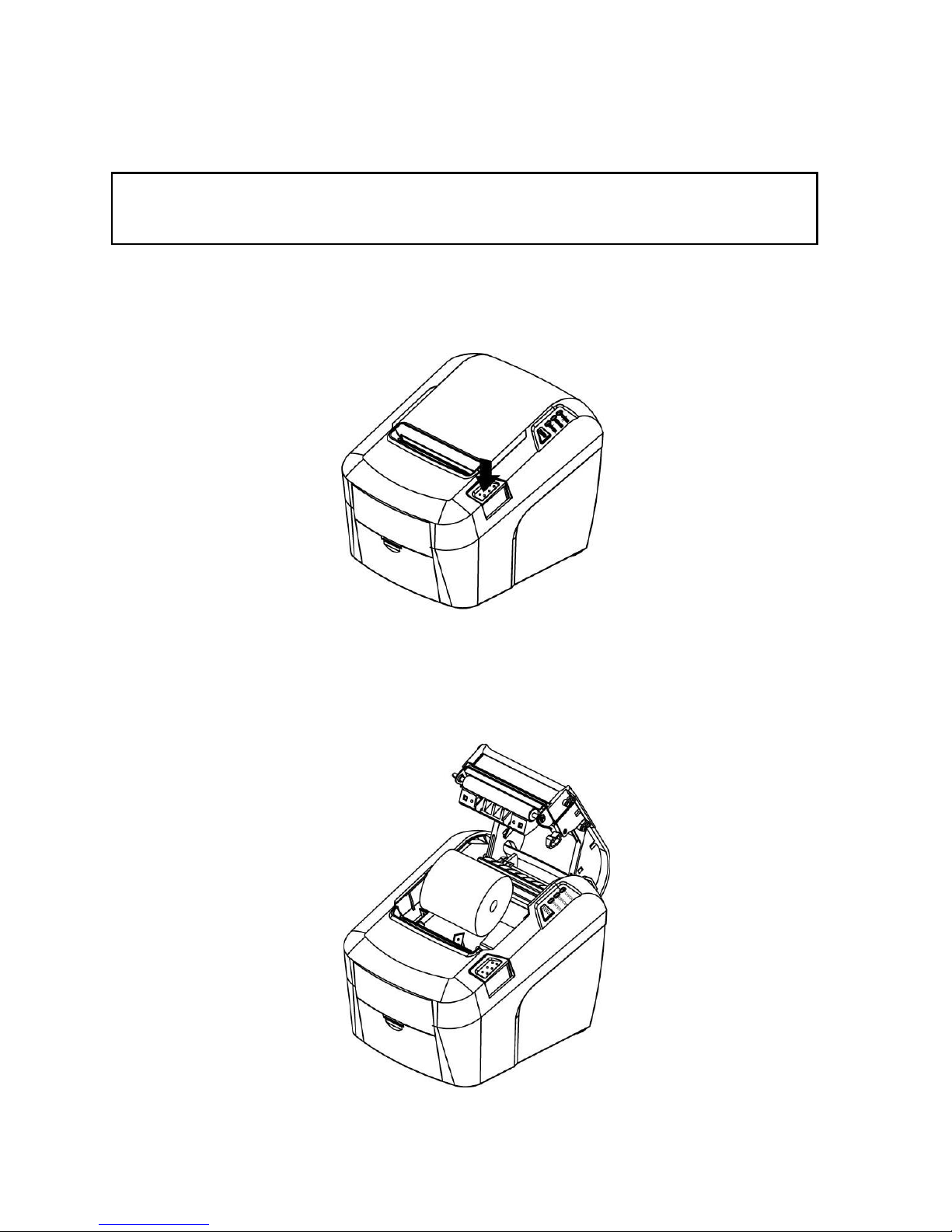

2-3. Loading the Roll Paper

☞ Turn off power switch.

1. Make sure that the printer is not receiving data; Otherwise, data may be lost.

2. Open the paper roll cover by pulling down the cover-open lever.

3. Remove the used paper roll core if there is one inside.

4. Insert new paper roll as shown.

9

RP 3200 STAR User’s Manual

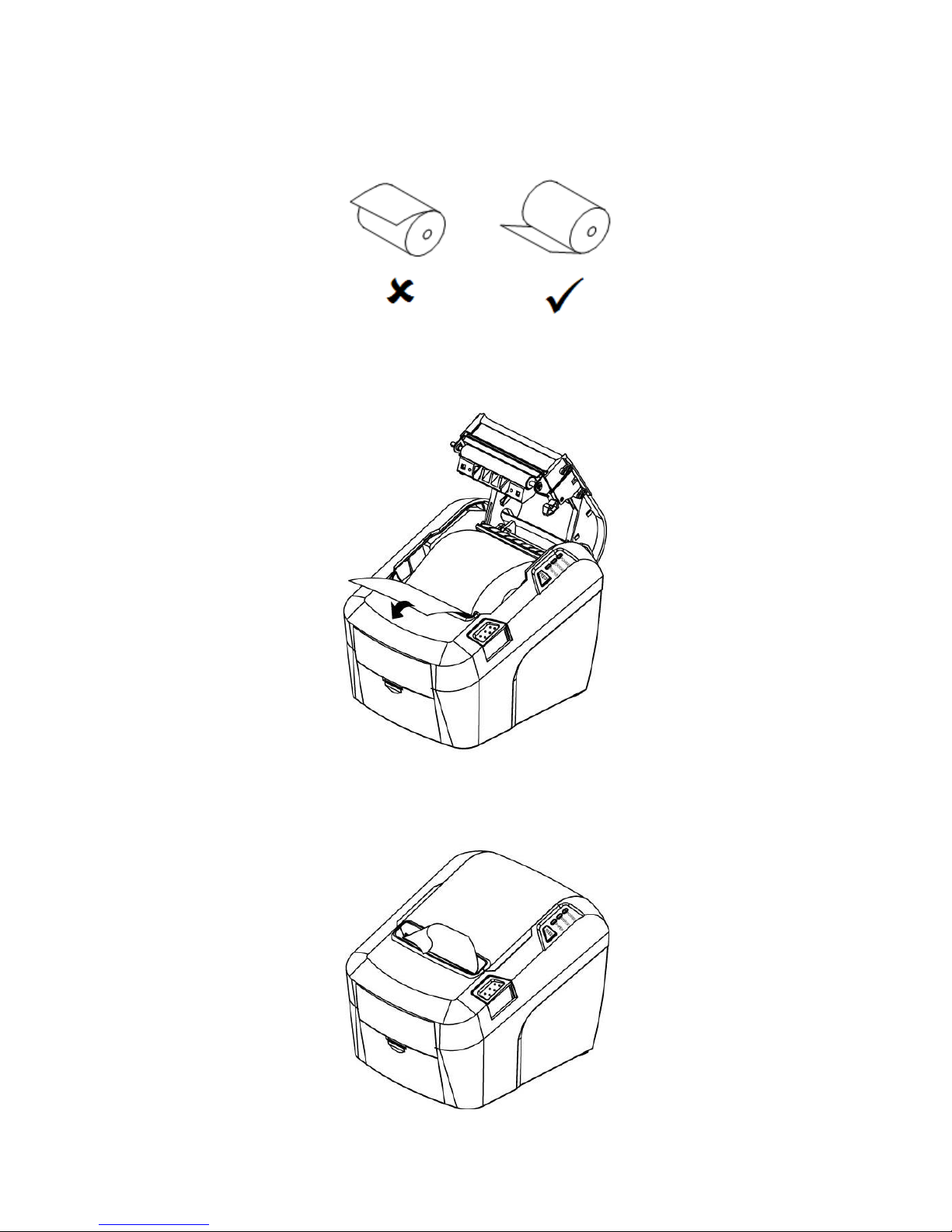

5. Be sure to note the correct direction that the paper comes off the roll.

6. Pull out a small amount of paper, as shown. Then, close the cover.

7. Tear off the paper as shown.

10

RP 3200 STAR User’s Manual

CAUTION:

When the paper is jammed with cutter, the top cover might be stuck. In this case, repeat power on and off several times. If the top cover is still stuck, please follow the steps to release the papers from jamming.

1. Make sure the printer is turned off.

2. Take out cutter cover as shown.

3. Turn screw with drivers to a direction until paper is released from the cutter.

11

RP 3200 STAR User’s Manual

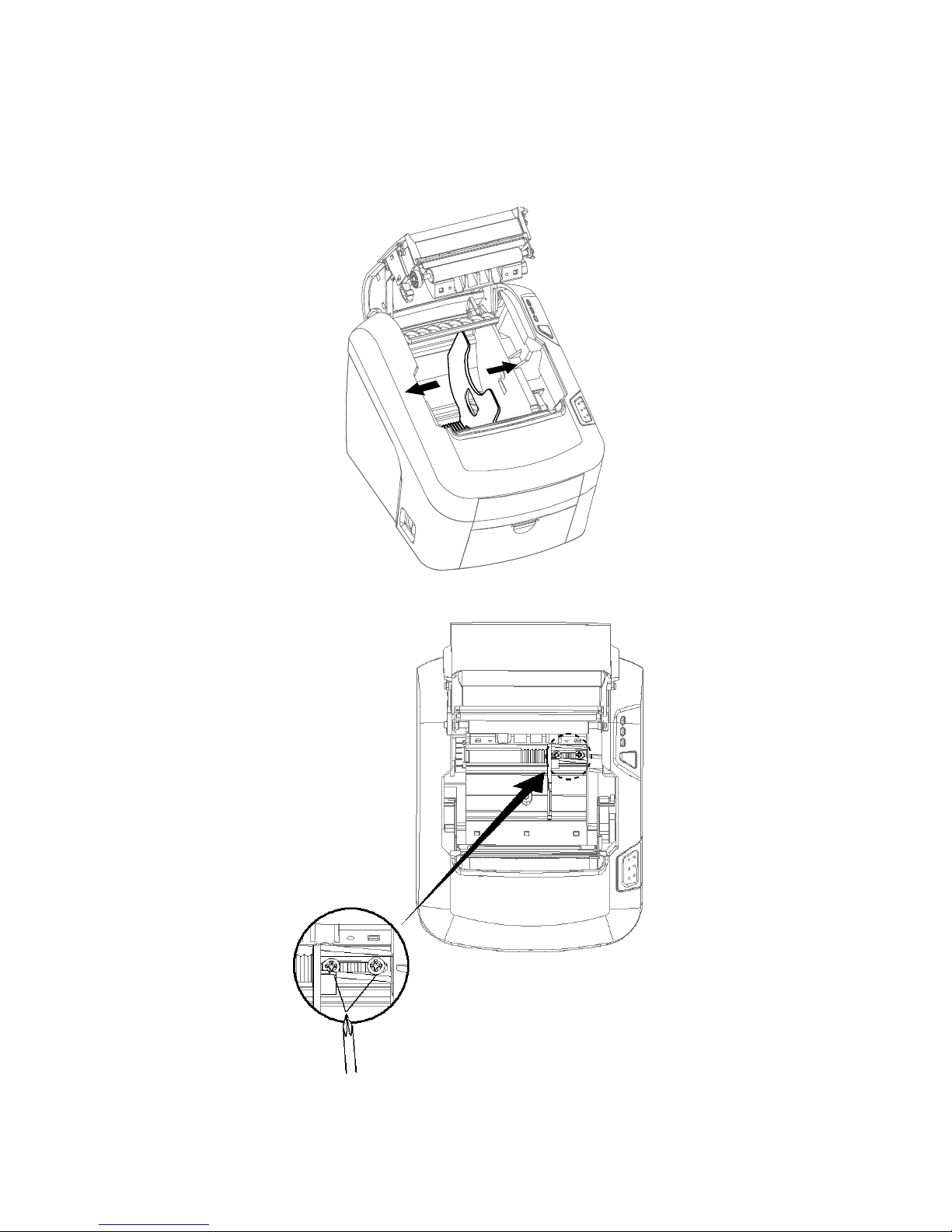

2-4.

Adjustment of paper width

1. Please adjust the Paper Guide to fit to the paper width as the direction of arrow.

2. Tight the screw after adjusting the Paper Guide.

3. Pull the edge of paper once the paper roll is installed correctly and close the Paper Cover.

12

RP 3200 STAR User’s Manual

STATUS

PAPER

ERROR

POWER

REMARKS

RED

GREEN

Power off

OFF

Normal power is not supplied to the printer

Power on

OFF

ON

Normal power is supplied to the printer

On line

OFF

ON

Normal error-free mode

Cover open

OFF

ON

Close cover

Paper empty

OFF

ON

Insert new paper roll

Paper near end

ON

OFF

ON

Paper is low

Test mode

OFF

ON

Ignored error led

3. Control panel and other functions.

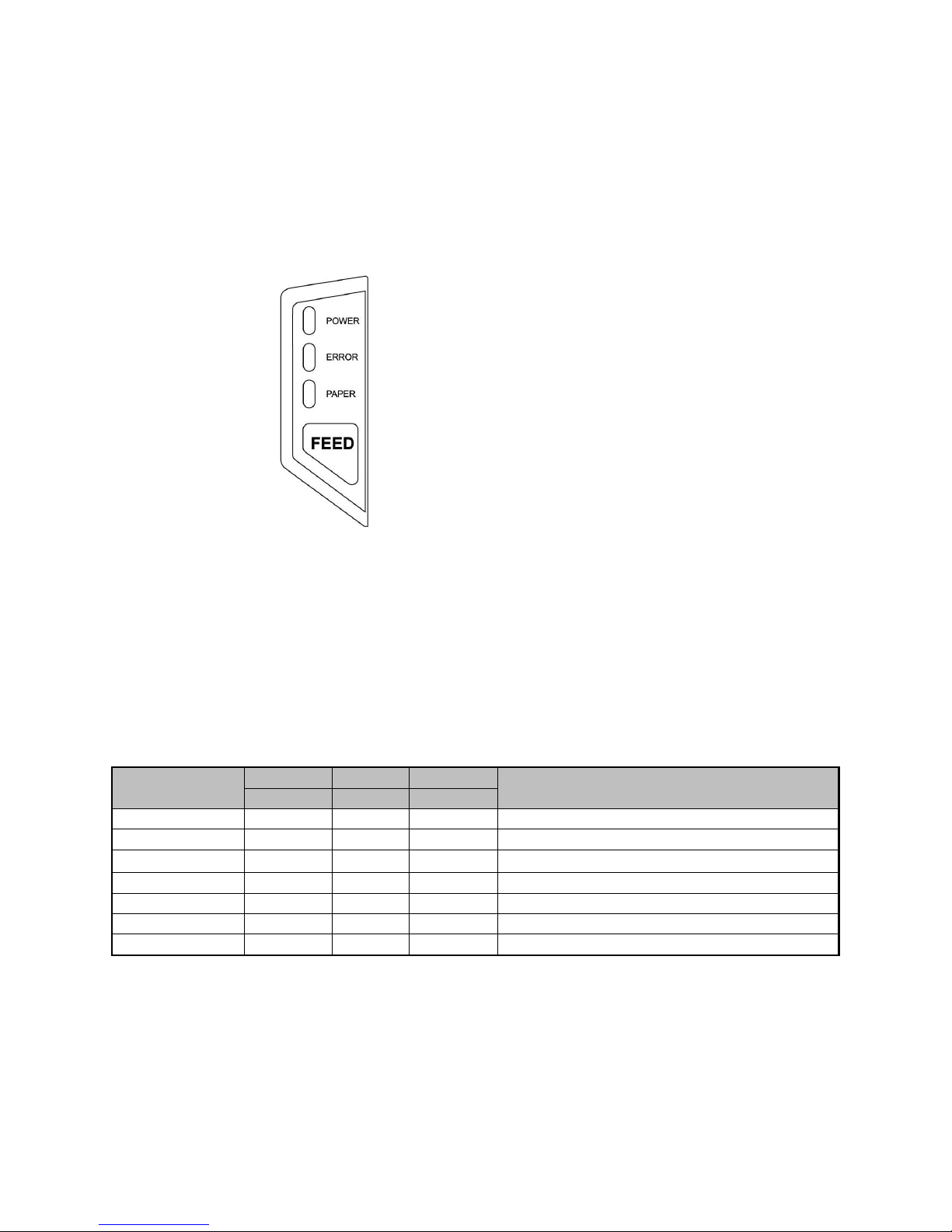

3-1. Control panel

You can control the basic paper feeding operations of the printer with the button on the control panel. The indicator lights help you to monitor the printer’s status.

Control Panel

Button

The button can be disabled by the ESC c 5 command. Press the FEED button once to advance paper one line. You can also hold down the FEED button to feed

paper continuously.

3-2. Error indicating

This section explains the different patterns signaled by the two LED indicators located on the top cover of the printer.

13

RP 3200 STAR User’s Manual

1. ASCII PRINT (press the FEED button once)

2.SELECT BAUDRATE MODE (press the FEED button twice)

3. HEXADUMP MODE (press the FEED button triple time)

Printing test page constructed with ASCII code.

Set the speed of Serial Interface (You can set the BAUDRATE in this mode)

Printing the HEX value received from the interface

4. Self Test

The self-test result indicated whether the printer is operating properly. Also with this, user can check following options or status of the printer.

 Control circuit  Printer mechanism  Printing quality  ROM version  Interface setting

This test is independent of any other equipment or software.

Running the self test

1. Make sure the printer is turned off and the printer cover is closed properly before performing the self test

2. Turn the printer on holding the FEED button, then the self-test will start. The self-test prints the printer setting value and then prints the following, and pauses. (Error LED On)

SELECT MODE BY BUTTON

1. ASCII PRINT

2. SELECT BAUDRATE MODE

3. HEXADUMP MODE

3. Press the FEED button consecutively (1~3)

※ Wait for 5~6 seconds if you want to exit. Printer performs a cutting when exiting this mode

4. The printer is ready to receive data after finishing setting.

5. ASCII Print

ASCII PRINT is printing a test page constructed ASCII code. You check whether the printer works properly with this The ASCII PRINT test automatically ends and cuts the paper after printing the following:

The printer is ready to receive data as soon as it completes the ASCII PRINT.

*** Completed ***

14

RP 3200 STAR User’s Manual

6. Select Baud Rate Mode

After entering the BAUDRATE MODE, the list which can select the BPS will be printed. Similarly like Self Test, you can press the FEED button to select a BAUDRATE. Once the input performs properly, the printer shows a result and store. The printer is ready to receive data as soon as it completes the SELECT BAUDRATEMODE.

SELECT BAUDRATE BY BUTTON

1. 9600bps

2. 19200bps

3. 38400bps

4. 115200bps

7. Hexadecimal Dump

This feature allows experienced users to see exactly what data is coming to the printer. This can be useful in finding software problems. When you go into the hex dump function, the printer prints all commands and other data in hexadecimal format along with a guide section to help you find specific commands.

To use the hex dump feature, follow these steps

1. Please turn printer off.

2. Please turn printer on while press down “Feed” button.

3. Press the FEED button three times when the Self Test printed.

4. Now printer has entered into Hexa dump mode.

5. Run any software program that sends data to the printer. The printer prints”Hexadecimal printing mode…” and then all the codes it receives in a two-column format. The first column contains the hexadecimal codes and the second column gives the ASCII characters that correspond to the codes.

Hexadecimal Dump 1B 21 00 1B 26 02 40 40 .!..& . @ @ 1B 25 01 1B 63 34 00 1B .%..c4 ..

41 42 43 44 45 46 47 48 ABCDEFGH

□ A period (.) is printed for each code that has no ASCII equivalent.

5. Turn off the printer.

6. Turn on the printer.

15

RP 3200 STAR User’s Manual

Notes:

1. Make sure to turn the printer power off prior to cleaning

2. Regarding print head cleaning, as the print head is very hot during printing, turn off the printer power and wait approximately 10 minutes before start.

3. When cleaning the print head, take care not to touch the heated part of the print head. The print head will damaged by static electricity.

4. Take care not to allow the print head to get scratched and /or damaged in any way.

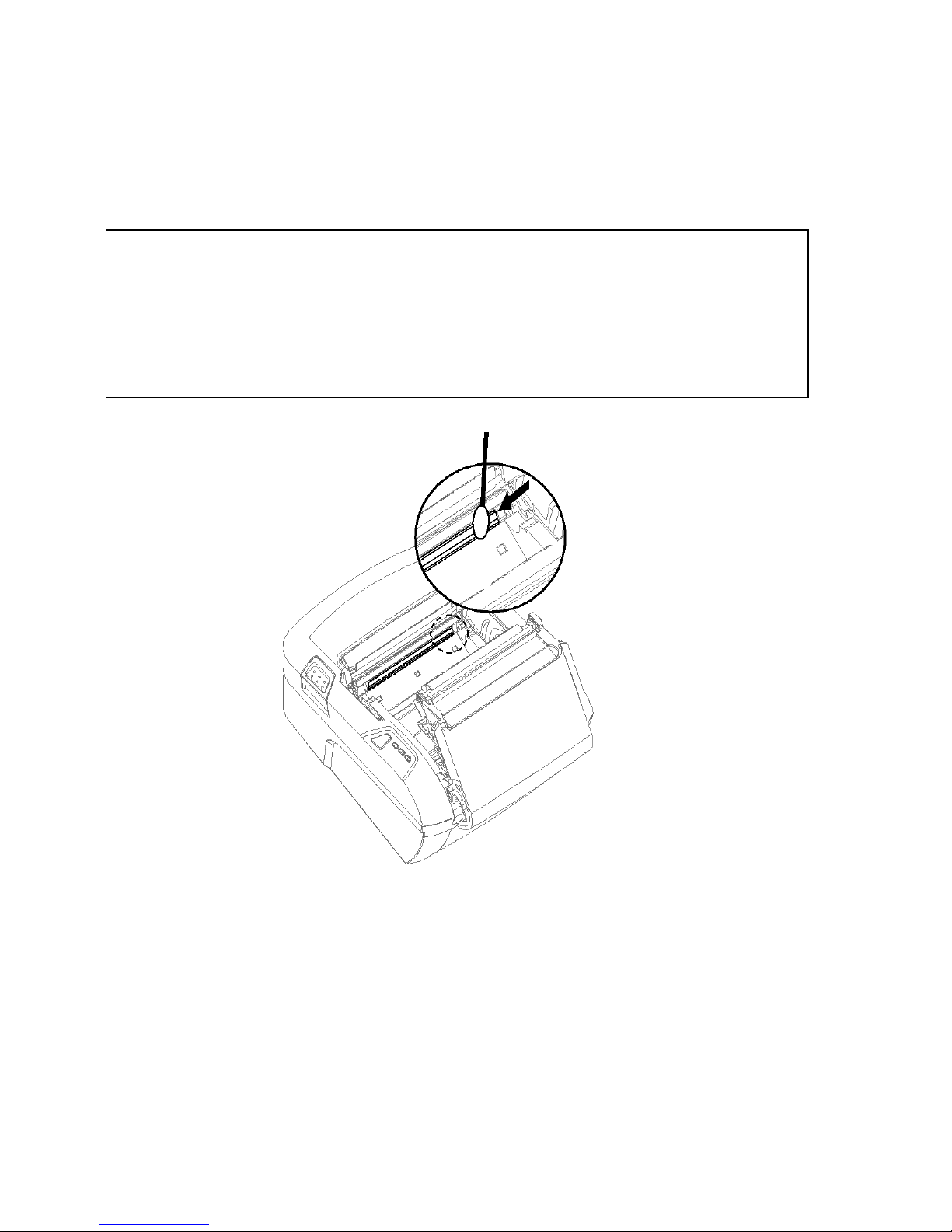

8. Printer Cleaning

If the interior of the printer is dusty, printing quality can be lowered. In this case, follow the instructions below to clean the printer.

1. Use an applicator swab moistened with an alcohol solution to clean the print head and remove any dusts.

2. Once the cleaning is completed, insert paper roll into the printer few minutes later and close the printer cover.

♣

Preventing Overheating

To prevent the motor from overheating, continuous operation of the printer should be

1.5 m or less in print length. Set the pause time for 30 seconds or more than it.

16

RP 3200 STAR User’s Manual

180 DPI (Hor / Ver)

180 / 180 (0.142mm / 0.142mm dot)

180 DPI

Max 72mm (512 dots)

Font “A”

Font “B”

180 DPI

42

56

9. Specifications

♣Important!

When connecting or disconnecting the power supply from the printer, be sure that the following cautions are observed. Use a power supply (Limited Power Supply) of DC 24V±10% and more than 2.5A.

Be careful about installing the printer in an area where there is noise. Take appropriate measure to protect against electrostatic AC line noise, etc.

9-1. General Specifications

(1) Printing Method Direct line thermal printing.

(2) Print speed 200mm/sec.

(3) Dot density

(4) Printing Width

(5) Number of print columns. No. of columns

(6) Roll paper Refer to chapter 2 for details on the recommended roll Paper. Paper width : 50mm~82.5mm Roll diameter : Max. Ø80mm

(7) Weight 1.7Kg

17

RP 3200 STAR User’s Manual

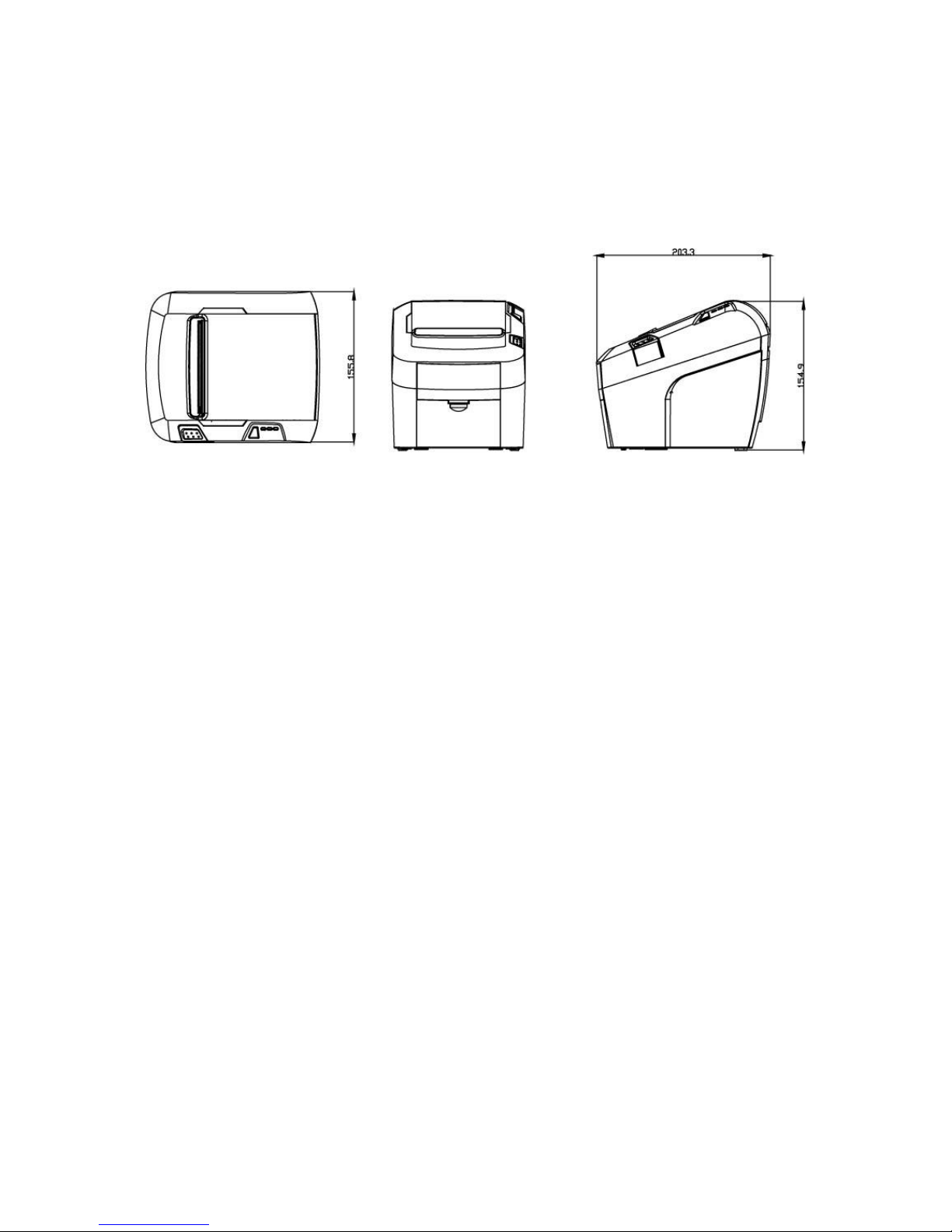

(8) Overall dimension

18

RP 3200 STAR User’s Manual

9-2. Auto Cutter Specifications

(1) Cutting Frequency Max. 30 cuts per minute

(2) Thickness of paper 0.06 ~ 0.09mm

(3) Cutter Life 1.5 million cuttings (if the paper thickness is between 65 and100µm)

9-3. Interface

RS232C Serial Interface, Centronics Parallel Interface(IEEE1284), USB Interface Ethernet Interface(10Mbps)

9-4. Electrical Characteristics

(1) Input Voltage DC 24V ± 10%

(2) Current Consumption Operating: Approx. 1.5 A (at ASC∥ printing) Peak : Approx. 10 A (at print duty 100%, For 10 seconds or less) Stand-by : Approx. 0.03 A (3) Power Connector

19

RP 3200 STAR User’s Manual

♣Important!

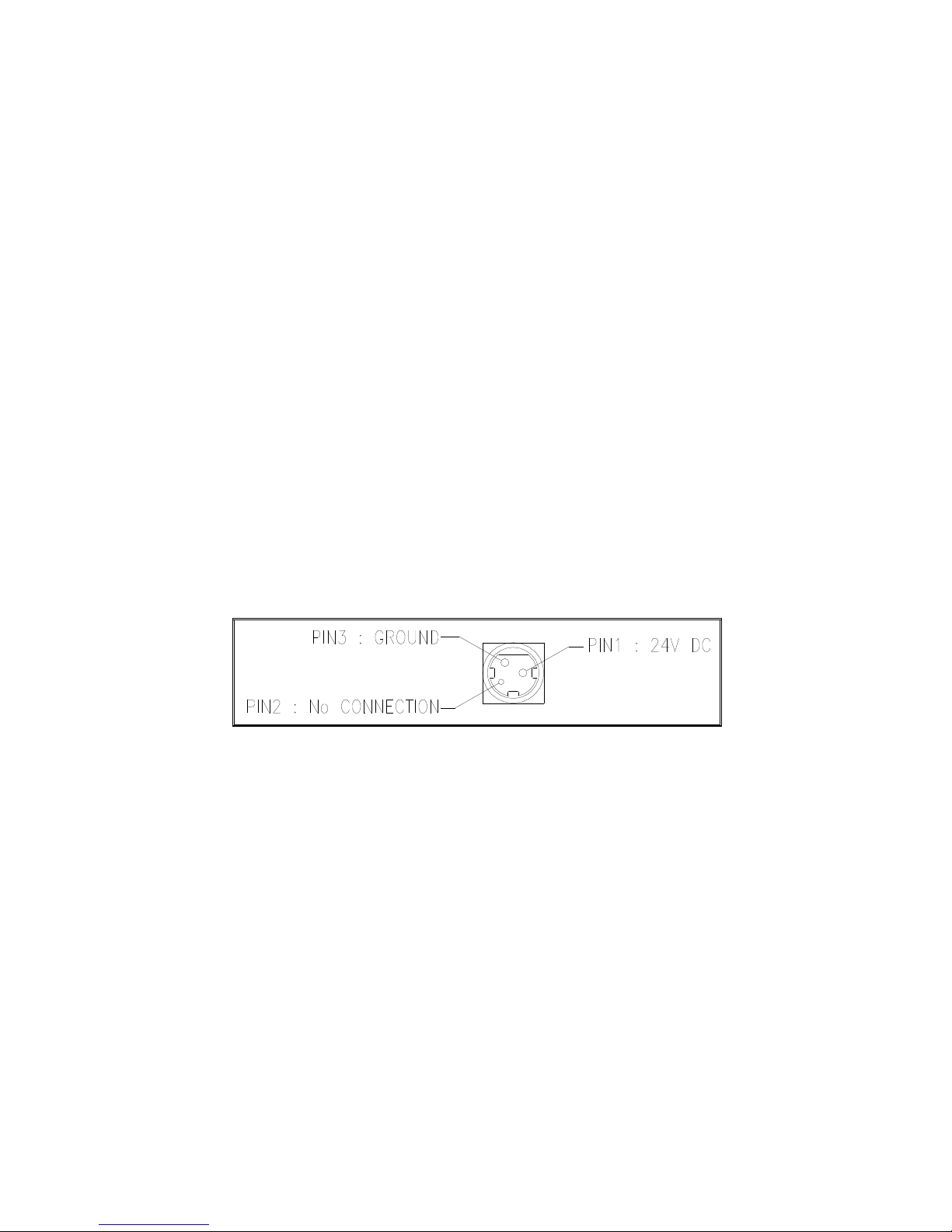

When using a printer power supply other than optional AC adaptor, be sure that the following cautions are observed. Use a power supply (Limited Power Supply) of DC 24V±10% and more than 1.75A. Be careful about installing the printer in an area where there is noise. Take the appropriate measure to protect against electrostatic AC line noise, etc.

9-5. Environmental Requirements

(1)Operating Temperature 5°C to 40°C Humidity 10% to 90% RH (without condensation)

(2)Transport/Storage (except paper) Temperature -20°C to 60°C Humidity 10% to 90% RH (without condensation)

9-6. Reliability

(1)MCBF 60 million lines (based on an average printing rate of 12.5% with paper thickness in the range 65µm to 75µm) 35 million lines (based on an average printing rate of 12.5% with paper thickness in the range 76µm to 150µm)

(2)Head Life 160Km (3)Cutter Life 1.5 million cuttings (if the paper thickness is between 65 and 90µm)

9-7. Certification

(1)ENERGY STAR

20

10. Command List

No. Command

Function

Remarks

1

HT

Horizontal tab

2

LF

Print and line feed

3

CR

Print and carriage return

4

FF

Print and return to standard mode(in page mode)

5

CAN

Cancel print data in page mode

6

DLE EOT

Real-time status transmission

7

DLE ENQ

Real-time request to printer

8

DLE DC4

Generate pulse at real-time

9

ESC FF

Print data in page mode

10

ESC SP

Set right-side character spacing

11

ESC !

Select print mode(s)

12

ESC $

Set absolute print position

13

ESC %

Select/cancel user-defined character set

14

ESC &

Define user-defined characters

15

ESC *

Set bit-image mode

16

ESC -

Turn underline mode on/off

17

ESC 2

Select default line spacing

18

ESC 3

Set line spacing

19

ESC =

Select peripheral device

20

ESC ?

Cancel user-defined characters

21

ESC @

Initialize printer

22

ESC D

Set horizontal tab positions

23

ESC E

Turn emphasized mode on/off

24

ESC G

Turn double-strike mode on/off

25

ESC J

Print and feed paper using minimum units

26

ESC L

Select page mode

27

ESC M

Select character font

28

ESC R

Select an international character set

29

ESC S

Select standard mode

30

ESC T

Select print direction in page mode

31

ESC V

Turn 90° clockwise rotation mode on/off

32

ESC W

Set printing area in page mode

33

ESC ＼

Set relative print position

34

ESC a

Select justification

35

ESC c 3

Select paper sensor(s) to output paper-end signals

36

ESC c 4

Select paper sensor(s) to stop printing

37

ESC c 5

Enable/disable panel buttons

38

ESC d

Print and feed paper n lines

39

ESC p

General pulse

40

ESC t

Select character code table

RP 3200 STAR User’s Manual

21

RP 3200 STAR User’s Manual

No. Command

Function

Remarks

41

ESC {

Turn upside-down printing mode on/off

42

FS p

Print NV bit image

43

FS q

Define NV bit image

44

GS !

Select character size

45

GS $

Set absolute vertical print position in page mode

46

GS *

Define downloaded bit image

47

GS /

Print downloaded bit image

48

GS B

Turn white/black reverse printing mode on/off

49

GS H

Select printing position of HRI characters

50

GS I

Transmit printer ID

51

GS L

Set left margin

52

GS P

Set horizontal and vertical motion units

53

GS V

Select cut mode and cut paper

54

GS W

Set printing area width

55

GS ＼

Set relative vertical print position in page mode

56

GS a

Enable/disable Automatic Status Back(ASB)

57

GS f

Select font for HRI characters

58

GS h

Set bar code height

59

GS k

Print bar code

60

GS r

Transmit status

61

GS v 0

Print raster bit image

62

GS w

Set bar code width

< Add >

1

ESC i

Full cut

2 ESC m

Partial cut

3 FS !

Set print mode(s) for Kanji characters

4 FS &

Select Kanji character mode

5 FS -

Turn underline mode on/off for Kanji character

6

FS .

Cancel Kanji character mode

7 FS 2 c1 d1…dk

Define user-defined Kanji characters

8

FS C

Select Kanji character code system

9 FS S 1 2

Set Kanji character spacing

10

FS W

Turn quadruple-size mode on/off for Kanji character

Part Number: 1025040087, Rev A, Description: User Manual, RP3200 STAR

22

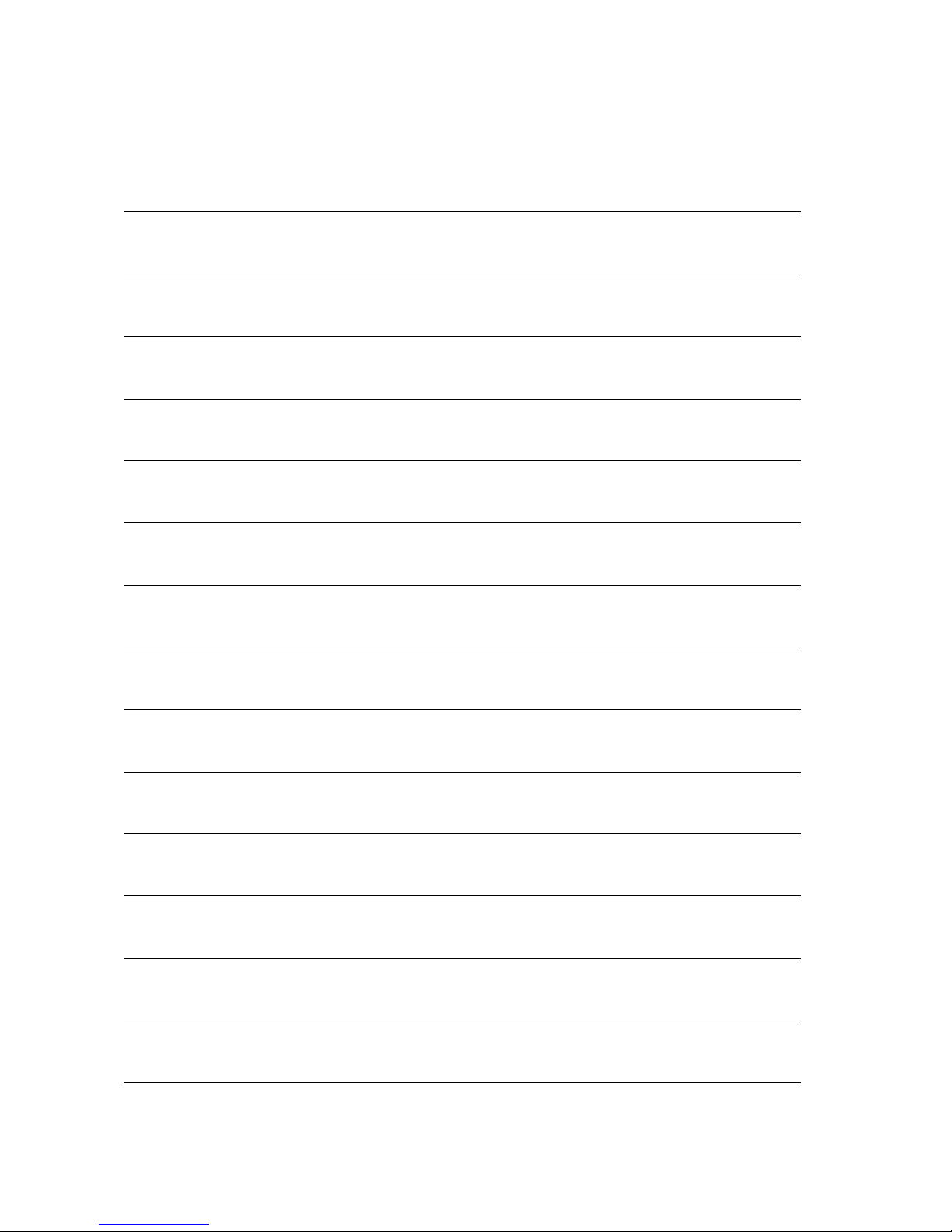

:: MEMO ::
