Receipt Printer User’s Manual
RP 3160 STAR
All specifications are subject to change without notice
Page 2
RP 3160 STAR User’s Manual
Part Number: 1025040086, Rev A, Description: User Manual, RP3160 STAR
1
Page 3
RP 3160 STAR User’s Manual
1. Parts Identifications
3
2. Setting up the printer
4
2.1 Unpacking
4
2.2 Connecting the cables
5
2.3 Loading the roll paper
8
2.4 Adjustment of paper width
11
3. Control panel and other functions
12
4. Self Test
13
5. ASCII Print
13
6. Select Baud Rate Mode
14
7. Hexadecimal Dump
14
8. Printer Cleaning
15
9. Specifications
16
9.1. General Specifications
16
9.2. Auto Cutter Specifications
18
9.3. Interface
18
9.4. Electrical Characteristics
18
9.5. Environmental Requirements
19
9.6. Reliability
19
9.7. Certification
19
10. Command List
20
TABLE OF CONTENTS
2
Page 4
1. Parts Identifications
INTERFACE CONNECTOR(USB)
INTERFACE CONNECTOR
PERIPHERAL
DRIVE CONNECTOR
POWER CONNECTOR
Open this cover to load
or replace paper.
Features LED indicators
to indicate printer status
and switches to operate
the printer.
Used to turn on/off
power to the printer.
Pull down this lever to
open the printer cover.
RP 3160 STAR User’s Manual
3
Page 5
RP 3160 STAR User’s Manual
2. Setting Up the Printer
2-1. Unpacking
Your printer box should include these items. If any items are damaged or missing, please contact your
dealer for assistance.
The Printer User’s Manual Roll Paper
Adaptor Interface Cable (Option)
4
Page 6
RP 3160 STAR User’s Manual
For connection to a
host computer.
INTERFACE CONNECTOR
Connects to peripheral units
such as cash drawers, etc.
Do not connect this to a
telephone.
PERIPHERAL
DRIVE CONNECTOR
For connection of the AC
adapter. Never unplug the
AC adapter while the printer
is on.
POWER CONNECTOR
For connection to a
host computer.
INTERFACE CONNECTOR (USB)
2-2. Connecting the Cables
You can connect up the cables required for printing to the printer.
They all connect to the connector panel on the back of the printer, which is shown below :
Before connecting any of the cables, make sure that both the printer and the computer are turned off.
5
Page 7
RP 3160 STAR User’s Manual
PIN
SIGNAL
I/O
DESCRIPTION
1
+5V
-
+5V
2
DATA-
-
Printer transmit data line
3
DATA+
-
Printer transmit data line
4
GND
-
System Ground
PIN
SIGNAL
I/O
DESCRIPTION
2
RXD
Input
Printer receive data line RS-232C level
3
TXD
Output
Printer transmit data line RS-232C level
4,7
DTR
Output
Printer handshake to host line RS-232C level
5
GND
-
System Ground
6
DSR
Input
Data Send Ready
1,8,9
NC
2-2-1. Interface Connector
<9 Pin Serial> <USB “B” Type>
USB interface
9Pin Serial Interface
6
Page 8
RP 3160 STAR User’s Manual
PIN
SIGNAL
DESCRIPTION
1
Signal GND
-
2
Drawer kick-out drive signal 1
Output
3
Drawer open/close signal
Input
4
+24V - 5
Drawer kick-out drive signal 2
Output
6
Signal GND
-

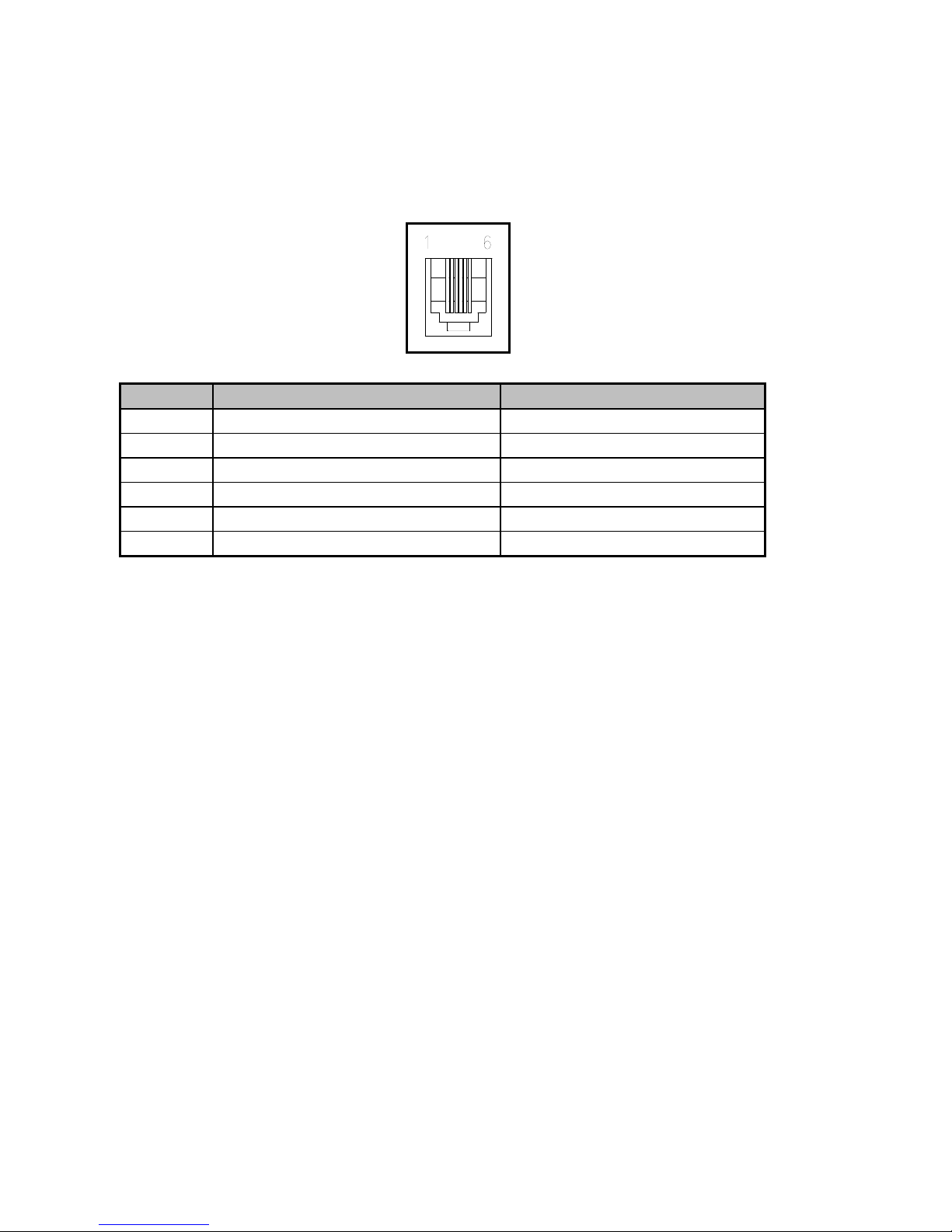

2-2-2. Cash Drawer Connector
The printer can operate two cash drawers with a 6 pin RJ-11 modular connector.
The driver is capable of supplying a maximum current of 1.0A/24VDC for 510ms or less when not printing.
CAUTION:
To avoid an over current, the resistance of the drawer kick-out solenoid must be 24 Ω or more.
7
Page 9
RP 3160 STAR User’s Manual
Notes: Be sure to use paper rolls that meet the specifications. Do not use paper rolls that
have the paper glued to the core because the printer cannot detect the paper end correctly.
(Turn off power switch)
2-3. Loading the Roll Paper
1. Make sure that the printer is not receiving data; Otherwise, data may be lost.

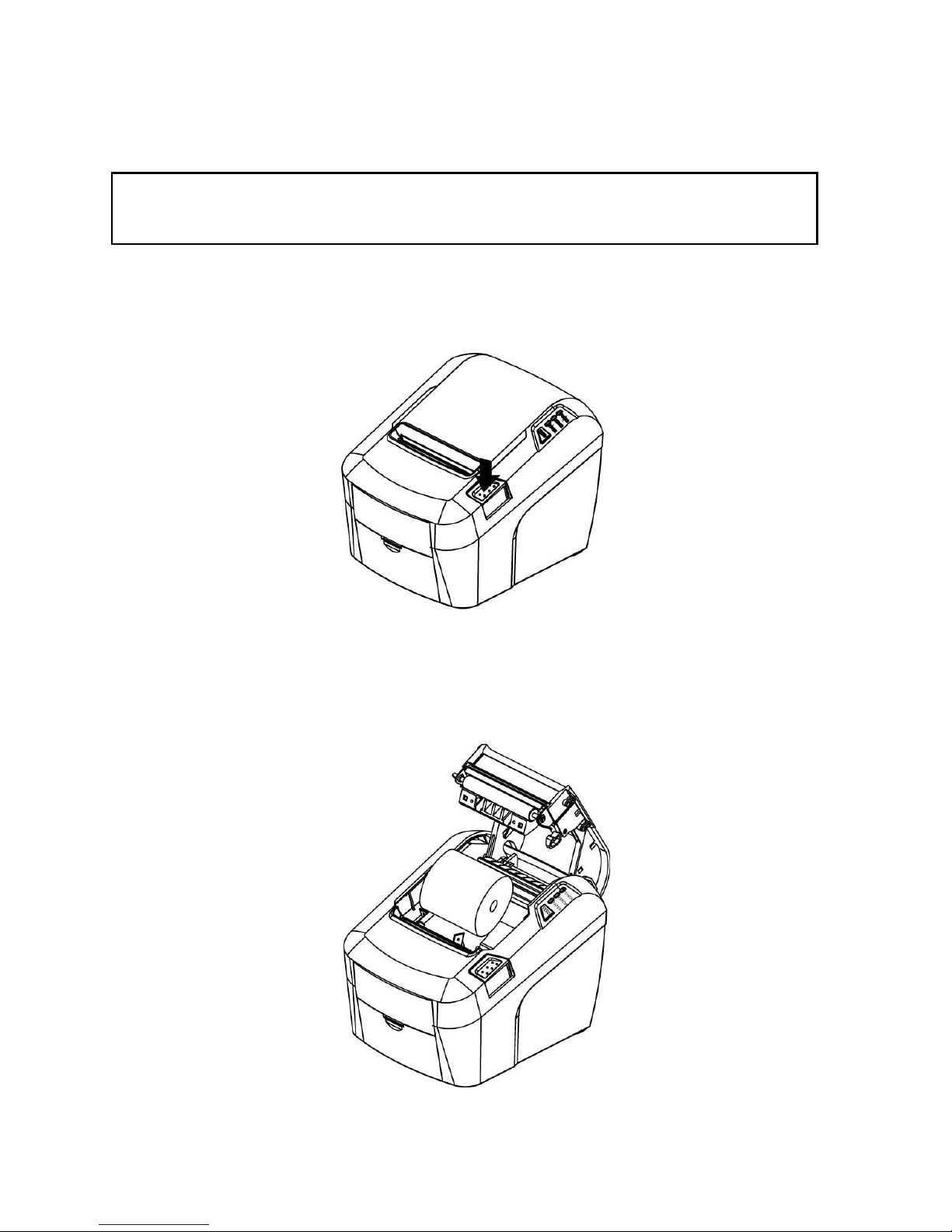

2. Open the paper roll cover by pulling down the cover-open lever.
3. Remove the used paper roll core if there is one inside.

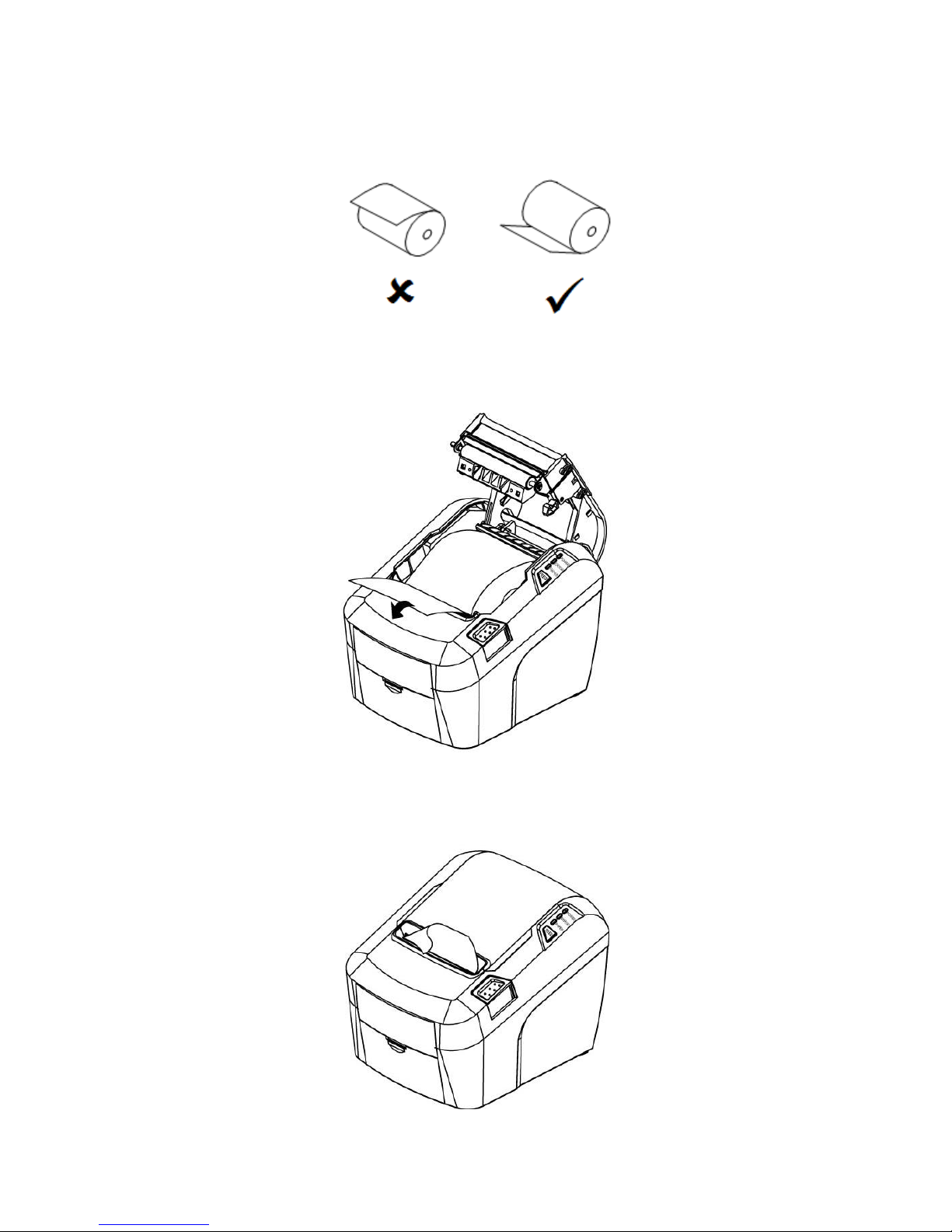

4. Insert new paper roll as shown.
8
Page 10
RP 3160 STAR User’s Manual
5. Be sure to note the correct direction that the paper comes off the roll.
6. Pull out a small amount of paper, as shown. Then, close the cover.
7. Tear off the paper as shown.
9
Page 11
RP 3160 STAR User’s Manual

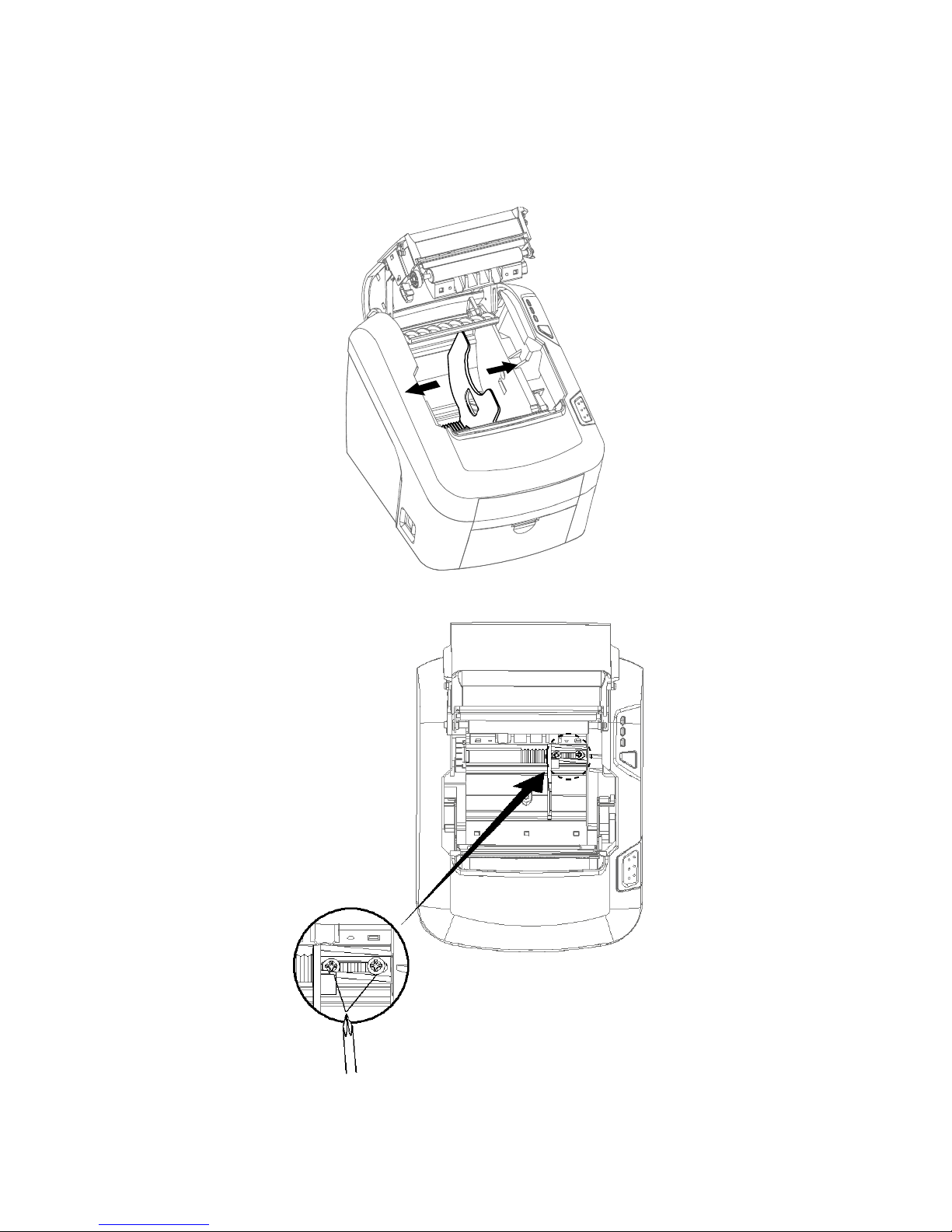

CAUTION:
When the paper is jammed with cutter, the top cover might be stuck. In this case, repeat power on and off
several times.
If the top cover is still stuck, please follow the steps to release the papers from jamming.
1. Make sure the printer is turned off.

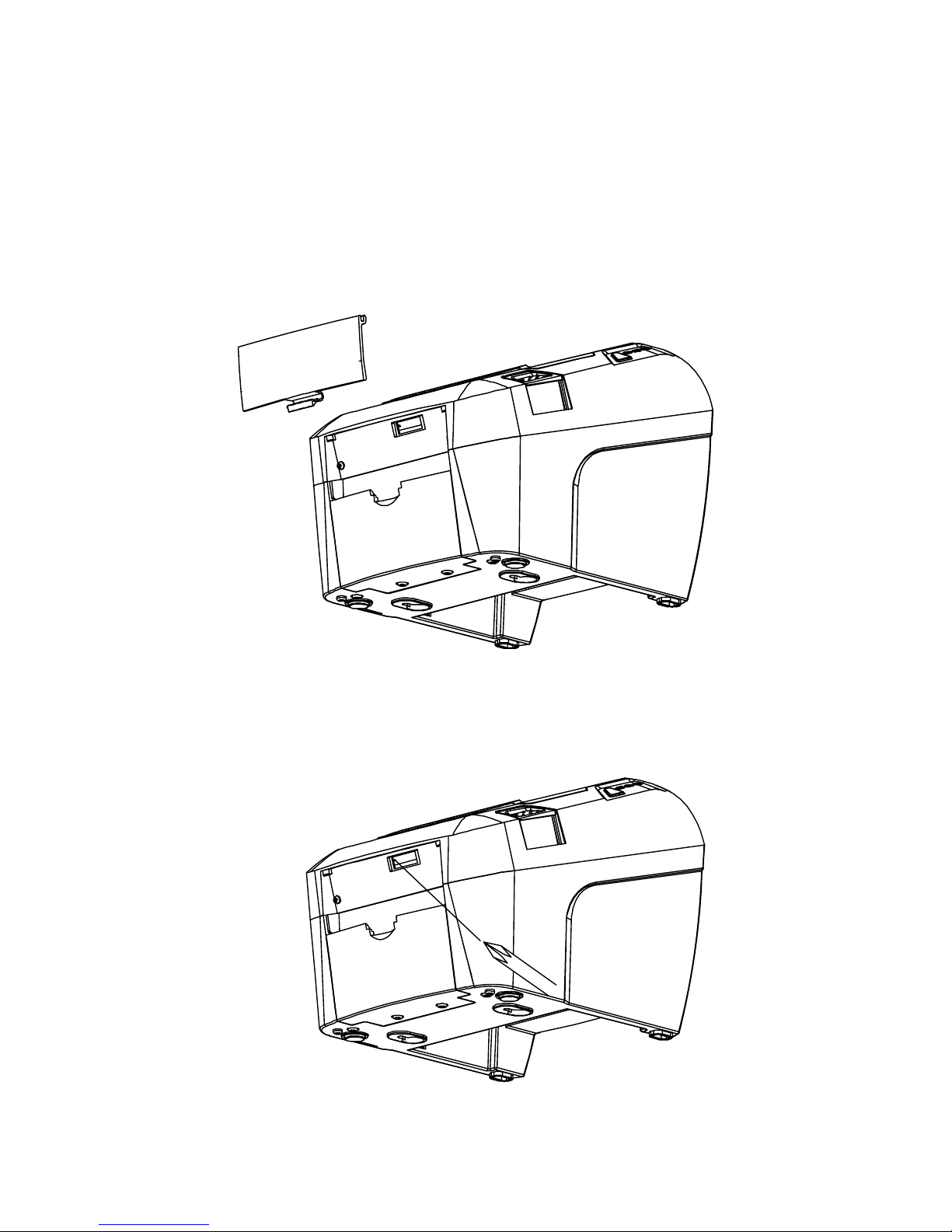

2. Take out cutter cover as shown.
3. Turn screw with drivers to a direction until paper is released from the cutter.
10
Page 12
RP 3160 STAR User’s Manual
2-4.
Adjustment of paper width
1. Please adjust the Paper Guide to fit to the paper width as the direction of arrow.
2. Fasten the screw after adjusting the Paper Guide.
3. Pull the edge of paper once the paper roll is installed correctly and close the Paper Cover.
11
Page 13
RP 3160 STAR User’s Manual
STATUS
PAPER
ERROR
POWER
REMARKS
RED
RED
GREEN
Power off
OFF
OFF
OFF
Normal power is not supplied to the printer
Power on
OFF
OFF
ON
Normal power is supplied to the printer
On line
OFF
OFF
ON
Normal error-free mode
Cover open
OFF
ON
ON
Close cover
Paper empty
OFF
ON
ON
Insert new paper roll
Paper near end
ON
OFF
ON
Paper is low
Test mode
OFF
OFF
ON
Ignored error led

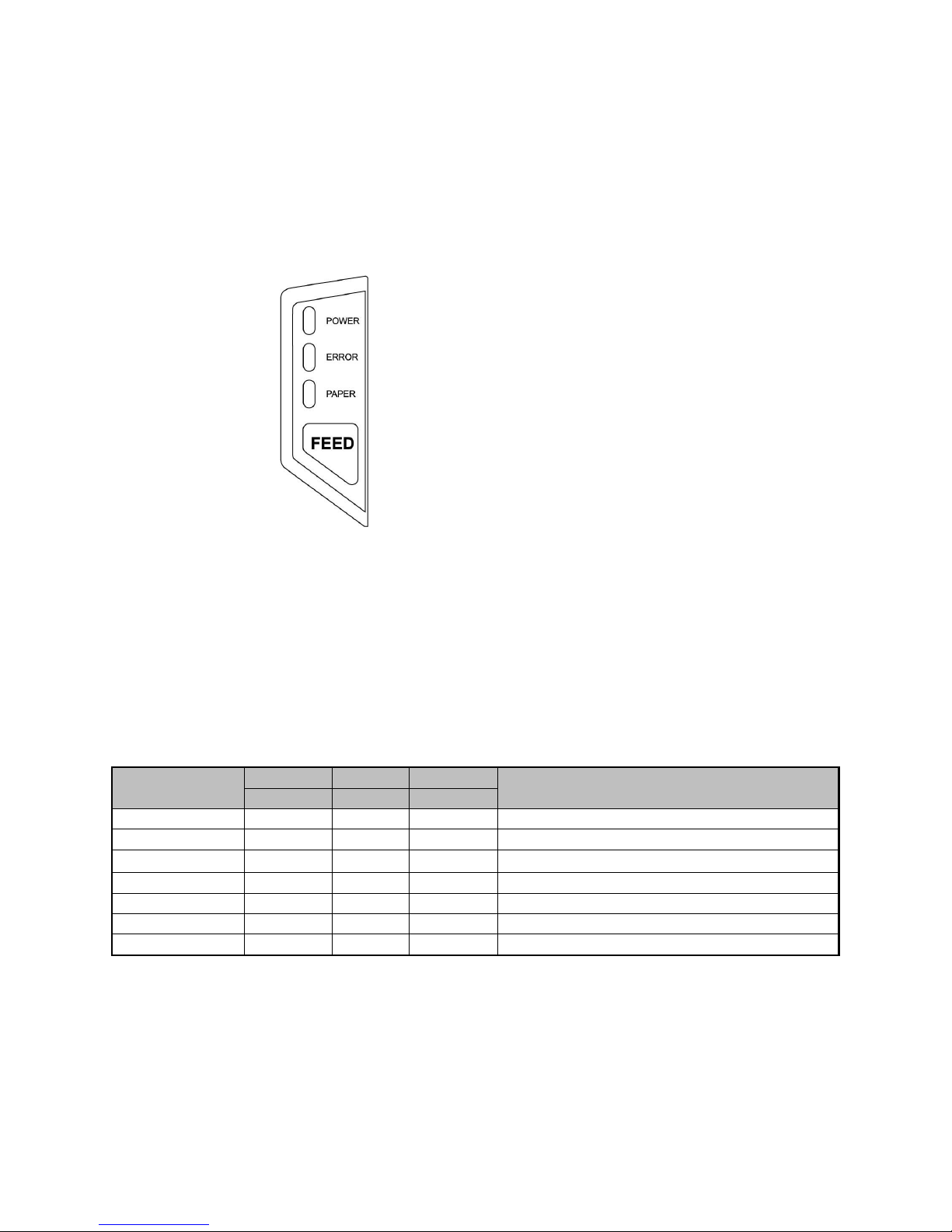

3. Control panel and other functions.
3-1. Control panel
You can control the basic paper feeding operations of the printer with the button on the control panel. The
indicator lights help you to monitor the printer’s status.
Control Panel
Button
The button can be disabled by the ESC c 5 command.
Press the FEED button once to advance paper one line. You can also hold down the FEED button to feed
paper continuously.
3-2. Error indicators
This section explains the different patterns signaled by the two LED indicators located on the top cover of
the printer.
12
Page 14
RP 3160 STAR User’s Manual
1. ASCII PRINT
(press the FEED button once)
2.SELECT BAUDRATE MODE
(press the FEED button twice)
3. HEXADUMP MODE
(press the FEED button triple time)
Printing test page constructed
with ASCII code.
Set the speed of Serial Interface
(You can set the BAUDRATE in this
mode)
Printing the HEX value received
from the interface
4. Self Test
The self-test result indicated whether the printer is operating properly. Also with this, user can check
following options or status of the printer.
Control circuit
Printer mechanism
Printing quality
ROM version
Interface setting
This test is independent of any other equipment or software.
Running the self test
1. Make sure the printer is turned off and the printer cover is closed properly before performing the self
test
2. Turn the printer on holding the FEED button, then the self-test will start. The self-test prints the printer
setting value and then prints the following, and pauses. (Error LED On)
SELECT MODE BY BUTTON
1. ASCII PRINT
2. SELECT BAUDRATE MODE
3. HEXADUMP MODE
3. Press the FEED button consecutively (1~3)
※ Wait for 5~6 seconds if you want to exit. Printer performs a cutting when exiting this mode
4. The printer is ready to receive data after finishing setting.
5. ASCII Print
ASCII PRINT is printing a test page constructed ASCII code. You can check whether the printer works
properly with this
The ASCII PRINT test automatically ends and cuts the paper after printing the following:
The printer is ready to receive data as soon as it completes the ASCII PRINT.
*** Completed ***
13
Page 15
RP 3160 STAR User’s Manual
6. Select Baud Rate Mode
After entering the BAUDRATE MODE, the list which can select the BPS will be printed. Similarly like Self
Test, you can press the FEED button to select a BAUDRATE.
Once the input performs properly, the printer shows a result and store.
The printer is ready to receive data as soon as it completes the SELECT BAUDRATEMODE.
SELECT BAUDRATE BY BUTTON
1. 9600bps
2. 19200bps
3. 38400bps
4. 115200bps
7. Hexadecimal Dump
This feature allows experienced users to see exactly what data is coming to the printer. This can be useful
in finding software problems.
When you go into the hex dump function, the printer prints all commands and other data in hexadecimal
format along with a guide section to help you find specific commands.
To use the hex dump feature, follow these steps
1. Please turn printer off.
2. Please turn printer on while press down “Feed” button.
3. Press the FEED button three times when the Self Test printed.
4. Now printer has entered into Hexa dump mode.
5. Run any software program that sends data to the printer. The printer prints”Hexadecimal printing
mode…” and then all the codes it receives in a two-column format. The first column contains the
hexadecimal codes and the second column gives the ASCII characters that correspond to the codes.
Hexadecimal Dump
1B 21 00 1B 26 02 40 40 .!..& . @ @
1B 25 01 1B 63 34 00 1B .%..c4 ..
41 42 43 44 45 46 47 48 ABCDEFGH
□ A period (.) is printed for each code that has no ASCII equivalent.
5. Turn off the printer.
6. Turn on the printer.
14
Page 16
RP 3160 STAR User’s Manual
Notes:
1. Make sure to turn the printer power off prior to cleaning
2. Regarding print head cleaning, as the print head is very hot during printing, turn off the printer
power and wait approximately 10 minutes before start.
3. When cleaning the print head, take care not to touch the heated part of the print head.
The print head will be damaged by static electricity.
4. Take care not to allow the print head to get scratched and /or damaged in any way.
8. Printer Cleaning
If the interior of the printer is dusty, printing quality can be lowered.
In this case, follow the instructions below to clean the printer.

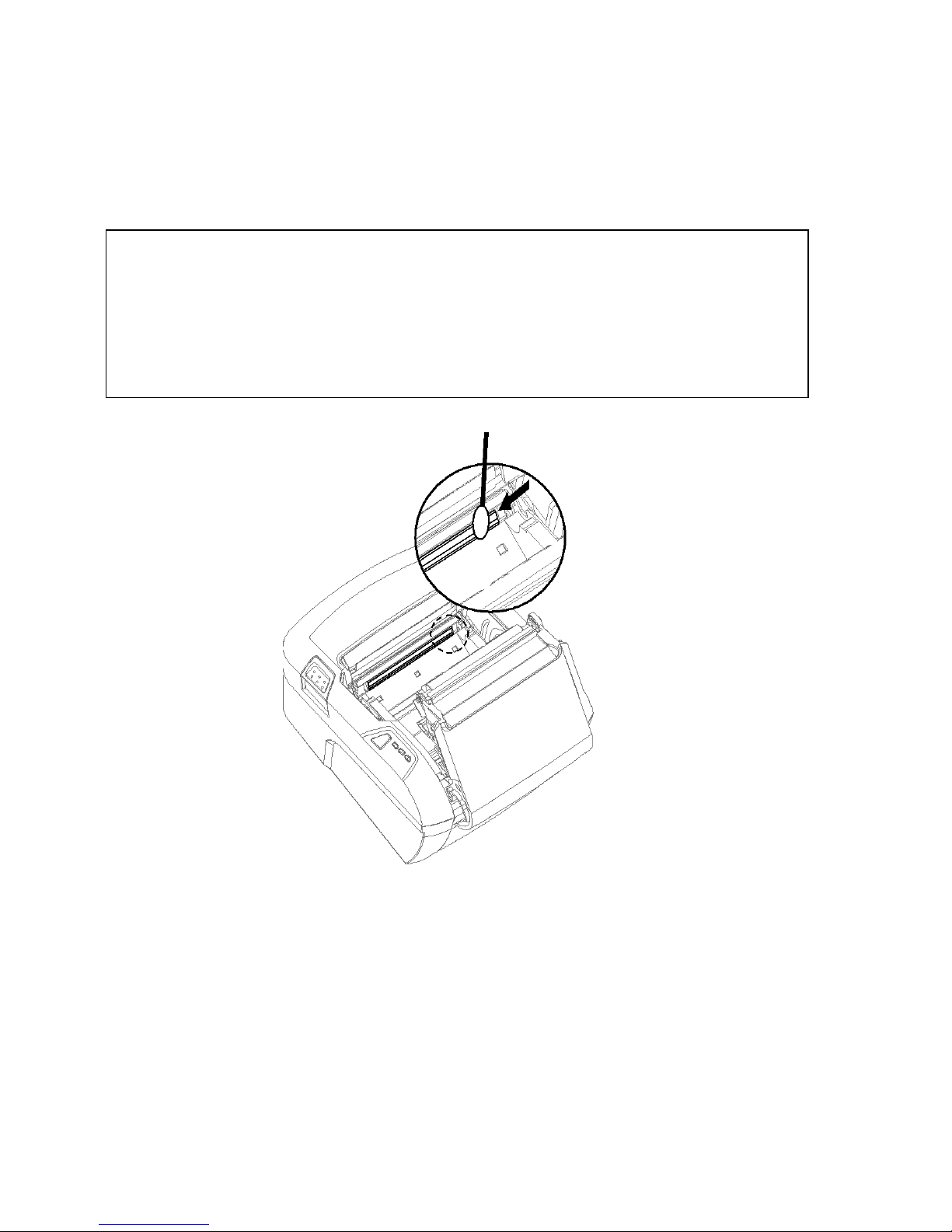

1. Use an applicator swab moistened with an alcohol solution to clean the print head and remove any
dusts.
2. Once the cleaning is completed, insert paper roll into the printer few minutes later and close
the printer cover.
♣
Preventing Overheating
To prevent the motor from overheating, continuous operation of the printer should be
1.5 m or less in print length. Set the pause time for 30 seconds or more than it.
15
Page 17
RP 3160 STAR User’s Manual
180 DPI (Hor / Ver)
180 / 180 (0.142mm / 0.142mm dot)
180 DPI
Max 72mm (512 dots)
Font “A”
Font “B”
180 DPI
42
56
9. Specifications
♣Important!
When connecting or disconnecting the power supply from the printer, be sure that the following
cautions are observed.
Use a power supply (Limited Power Supply) of DC 24V±10% and more than 2.5A.
Be careful about installing the printer in an area where there is noise.
Take appropriate measure to protect against electrostatic AC line noise, etc.
9-1. General Specifications
(1) Printing Method Direct line thermal printing.
(2) Print speed 160mm/sec.
(3) Dot density
(4) Printing Width
(5) Number of print columns.
No. of columns
(6) Roll paper Refer to chapter 2 for details on the recommended roll Paper.
Paper width: 50mm~82.5mm
Roll diameter: Max. Ø80mm
(7) Weight 1.7Kg
16
Page 18

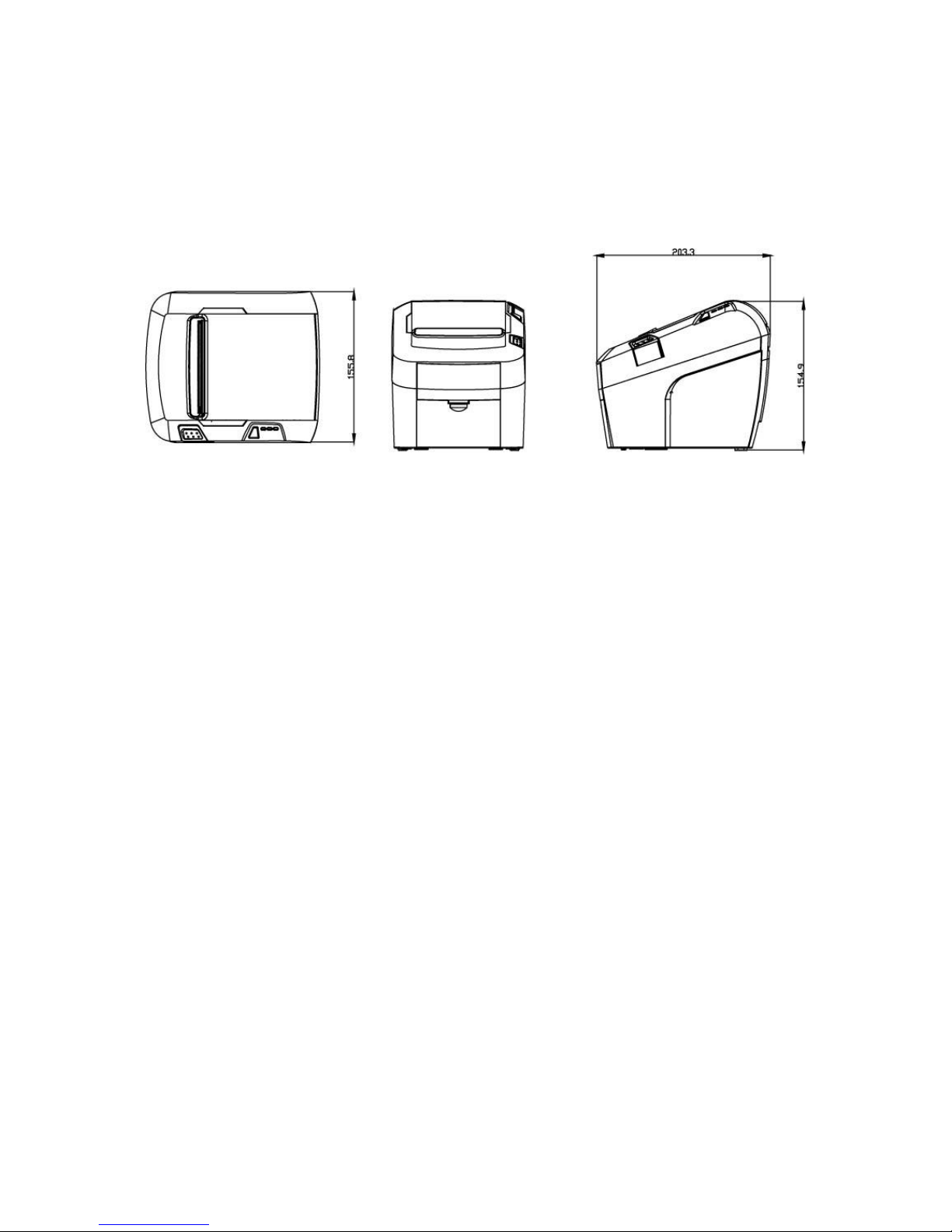

(8) Overall dimension
RP 3160 STAR User’s Manual
17
Page 19
RP 3160 STAR User’s Manual
9-2. Auto Cutter Specifications
(1) Cutting Frequency Max. 30 cuts per minute
(2) Thickness of paper 0.06 ~ 0.09mm
(3) Cutter Life 1.5 million cuttings
(if the paper thickness is between 65 and100µm)
9-3. Interface
USB (B type) + Serial Build-in
9-4. Electrical Characteristics
(1) Input Voltage DC 24V ± 10%
(2) Current Consumption Operating: Approx. 1.5 A (at ASC∥ printing)
Peak : Approx. 10 A
(at print duty 100%, For 10 seconds or less)
Stand-by : Approx. 0.03 A

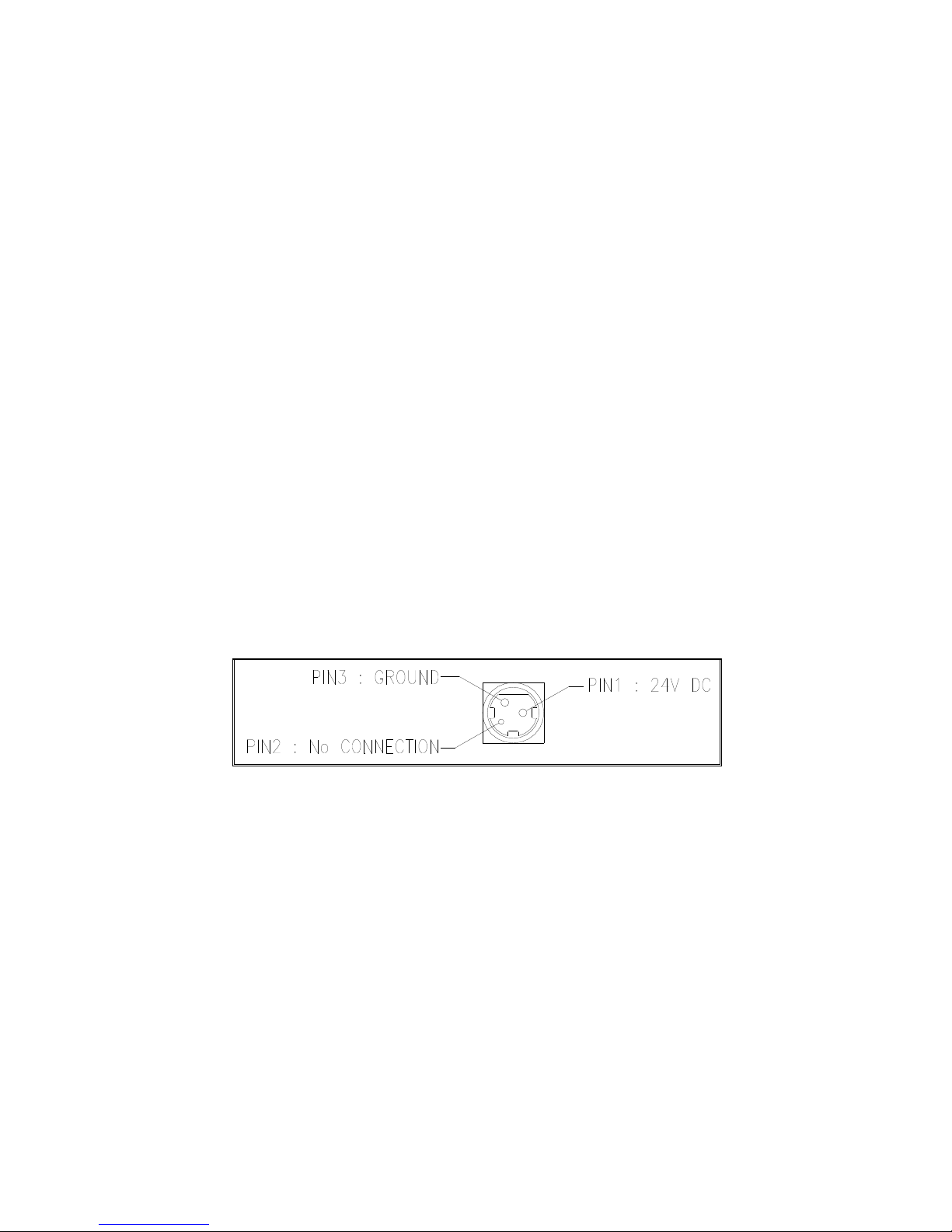

(3) Power Connector
18
Page 20
RP 3160 STAR User’s Manual
♣Important!
When using a printer power supply other than optional AC adaptor, be sure that the following cautions are
observed.
Use a power supply (Limited Power Supply) of DC 24V±10% and more than 1.75A.
Be careful about installing the printer in an area where there is noise.
Take the appropriate measure to protect against electrostatic AC line noise, etc.
9-5. Environmental Requirements
(1)Operating
Temperature 5°C to 40°C
Humidity 10% to 90% RH (without condensation)
(2)Transport/Storage (except paper)
Temperature -20°C to 60°C
Humidity 10% to 90% RH (without condensation)
9-6. Reliability
(1)MCBF 60 million lines (based on an average printing rate of 12.5% with paper
thickness in the range 65µm to 75µm)
35 million lines (based on an average printing rate of 12.5% with paper
thickness in the range 76µm to 150µm)
(2)Head Life 160Km
(3)Cutter Life 1.5 million cuttings (if the paper thickness is between 65 and 90µm)
9-7. Certification
(1)ENERGY STAR
19
Page 21
RP 3160 STAR User’s Manual
No. Command
Function
Remarks
1
HT
Horizontal tab
2
LF
Print and line feed
3
CR
Print and carriage return
4
FF
Print and return to standard mode(in page mode)
5
CAN
Cancel print data in page mode
6
DLE EOT
Real-time status transmission
7
DLE ENQ
Real-time request to printer
8
DLE DC4
Generate pulse at real-time
9
ESC FF
Print data in page mode
10
ESC SP
Set right-side character spacing
11
ESC !
Select print mode(s)
12
ESC $
Set absolute print position
13
ESC %
Select/cancel user-defined character set
14
ESC &
Define user-defined characters
15
ESC *
Set bit-image mode
16
ESC -
Turn underline mode on/off
17
ESC 2
Select default line spacing
18
ESC 3
Set line spacing
19
ESC =
Select peripheral device
20
ESC ?
Cancel user-defined characters
21
ESC @
Initialize printer
22
ESC D
Set horizontal tab positions
23
ESC E
Turn emphasized mode on/off
24
ESC G
Turn double-strike mode on/off
25
ESC J
Print and feed paper using minimum units
26
ESC L
Select page mode
27
ESC M
Select character font
28
ESC R
Select an international character set
29
ESC S
Select standard mode
30
ESC T
Select print direction in page mode
31
ESC V
Turn 90° clockwise rotation mode on/off
32
ESC W
Set printing area in page mode
33
ESC ＼
Set relative print position
34
ESC a
Select justification
35
ESC c 3
Select paper sensor(s) to output paper-end signals
36
ESC c 4
Select paper sensor(s) to stop printing
37
ESC c 5
Enable/disable panel buttons
38
ESC d
Print and feed paper n lines
39
ESC p
General pulse
40
ESC t
Select character code table
10. Command List
20
Page 22
RP 3160 STAR User’s Manual
No. Command
Function
Remarks
41
ESC {
Turn upside-down printing mode on/off
42
FS p
Print NV bit image
43
FS q
Define NV bit image
44
GS !
Select character size
45
GS $
Set absolute vertical print position in page mode
46
GS *
Define downloaded bit image
47
GS /
Print downloaded bit image
48
GS B
Turn white/black reverse printing mode on/off
49
GS H
Select printing position of HRI characters
50
GS I
Transmit printer ID
51
GS L
Set left margin
52
GS P
Set horizontal and vertical motion units
53
GS V
Select cut mode and cut paper
54
GS W
Set printing area width
55
GS ＼
Set relative vertical print position in page mode
56
GS a
Enable/disable Automatic Status Back(ASB)
57
GS f
Select font for HRI characters
58
GS h
Set bar code height
59
GS k
Print bar code
60
GS r
Transmit status
61
GS v 0
Print raster bit image
62
GS w
Set bar code width
< Add >
1
ESC i
Full cut
2 ESC m
Partial cut
3 FS !
Set print mode(s) for Kanji characters
4 FS &
Select Kanji character mode
5 FS -
Turn underline mode on/off for Kanji character
6
FS .
Cancel Kanji character mode
7 FS 2 c1 d1…dk
Define user-defined Kanji characters
8
FS C
Select Kanji character code system
9 FS S 1 2
Set Kanji character spacing
10
FS W
Turn quadruple-size mode on/off for Kanji character
Part Number: 1025040086, Rev A, Description: User Manual, RP3160 STAR
21
Page 23
:: MEMO ::
Loading...
