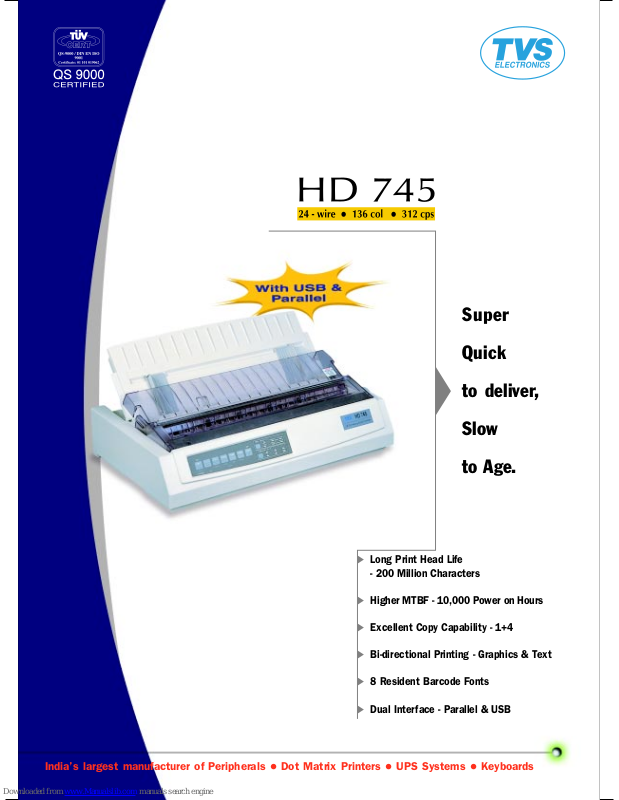

Page 1
Super
Quick
to deliver,
Slow
to Age.
K Long Print Head Life
- 200 Million Characters
K Higher MTBF - 10,000 Power on Hours
Indias largest manufacturer of Peripherals l Dot Matrix Printers l UPS Systems l Keyboards
K Excellent Copy Capability - 1+4
K Bi-directional Printing - Graphics & Text
K 8 Resident Barcode Fonts
K Dual Interface - Parallel & USB
Page 2
0,%"#Product Specifications
Print Method Serial Impact Dot Matrix
Print Direction Bi-directional Logic Seeking
Print Head - Type 24 - Wire
Print Width 136 Column
Print Head Life 200 Million Characters
Print Speed
Character Pitch (cpi) 10 12 15
Utility-Draft (cps) 260 312 390
Letter Quality (cps) 87 104
Resident Printer Fonts
Utility- Draft Gothic
Letter Quality Courier, Gothic, Prestige, Orator,
Letter Quality Scalable Fonts Courier & Gothic (22 to 216
Resident Barcode Fonts Code 39, UPC A, UPC E, EAN 8,
Paper Handling
Paper Path-Standard Top, Rear and Bottom
Continuous-Tractor Feed-Standard Rear Push
Continuous-Tractor Feed-Optional Bottom Push & Top Pull
Auto Sheet Feeder-Optional Single Bin-50 Pages
Paper Size
Continuous Form Width 3.0 - 16
Cutsheets Width 7.2 - 14.3
Paper Thickness (max) - Tractor feed
Paper Thickness (max) - Friction feed
Copy Capability** 1+4 with Carbon
** Max. possible copy capability
***Ribbon Life @ Draft 10 cpi
Roman, Swiss
points in 1 pt increments)
EAN 13, Interleaved 2 of 5,
Code 128, PostNet
0.36 mm (Rear), 0.44 mm (Bottom)
0.3 mm
Consumables - Ribbon
Fabric-Ink Type High Density-Seamless
Fabric Life*** 3 Million Characters
Input Buffer (Kilo Bytes) 79 KB
Reliability-MTBF (Power On Hours) 10,000 POH
Acoustics - Noise Level 57 dB(A)
Emulation Epson LQ, IBM Proprinter,
Interface
Standard Centronics Parallel & USB
Optional RS 232C Serial
Electrical Specifications
Operating Voltage 230 / 240 VAC
Mains Frequency 50 / 60 Hz
Power (Standby) 10 W
Environmental - Operating Conditions
Temperature +5 to +35
Relative Humidity 10% to 80%
Physical Dimensions
Size (WxDxH) mm 552 x 345 x 116
Weight (Kg) 9.2
Ordering Information
SKU / FRU No. Description
10745H06 HD 745
Standard Configuration Users Manual, CD-ROM,
Optional Auto Sheet Feeder
Consumables
8A161065
4W660021 USB Cable
IBM AGM
o
C
Parallel Interface Cable,
Power Cable, Black Ribbon
(High Density)
Bottom Push Tractor
Top Pull Tractor
Serial Interface
HD 745 High Density Black Ribbon
1 kg = 2.2lbs; 1 inch = 2.54 cms.
TVS Electronics Limited
34, Developed Plots, South Phase, Industrial Estate, Guindy, Chennai - 600 032.
Ph: (44)22325506 / 09 / 52195001 Fax: (44)22327577
Branch Offices: n Ahmedabad Ph: (79)7412325 / 35 E-mail: [email protected] n Bangalore Ph: (80)6565010 / 6561679
E-mail: [email protected] n Bhopal Ph: (755)5275988 E-mail: [email protected] n Chandigarh Ph: (172)631196
E-mail: [email protected] n Chennai Ph: (44)52143232 / 34 / 35 / 52142823 E-mail: [email protected]
n Hyderabad Ph: (40)27816667 / 27845144 E-mail: [email protected] n Kochi Ph: (484)355433 E-mail: [email protected]
n Kolkata Ph: (33)24769611-14 E-mail: [email protected] n Lucknow Ph: (522)2285614 / 2282042 E-mail: [email protected]
n Mumbai Ph: (22)55912766-70 E-mail: [email protected] n New Delhi Ph: (11)26282940-44 E-mail: [email protected]
n Pune Ph: (20)5674508 / 5675364 E-mail: [email protected]
Visit us at www.tvs-e.com
Dealer / Channel Partner / Contact:
Note: All specifications are at standard operating
conditions and are subject to change without notice.
