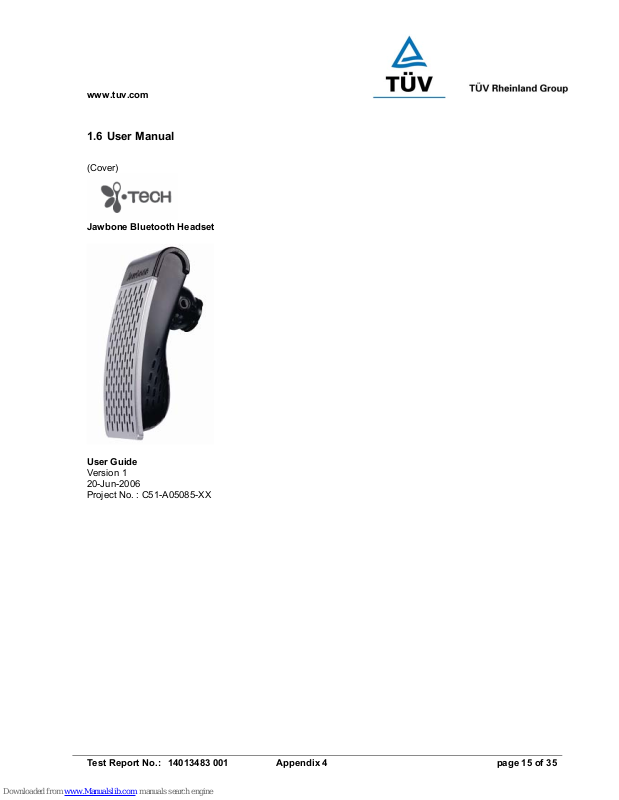

(Cover)

Jawbone Bluetooth Headset

User Guide

Version 1
20-Jun-2006
Project No. : C51-A05085-XX

www.tuv.com

Test Report No.: 14013483 001 Appendix 4 page 16 of 35

[Inside Cover]

Jawbone Bluetooth Headset gives you more freedom when moving around. With your Bluetooth-enabled mobile
phone, the headset makes it easy for you to carry on with your tasks while making a call.

Jawbone Bluetooth Headset is compliant with Bluetooth Version 1.2 Class 2 specifications, and is compatible
with mobile phone supporting Bluetooth Headset or Handsfree Profiles. The Noise Cancellation technology
comes with the headset which makes you answer your call in any environments.

www.tuv.com

Test Report No.: 14013483 001 Appendix 4 page 17 of 35

(Page 0)

Contents
Title Page
Jawbone Bluetooth Headset Overview 2
Getting Started 2
Charging Your Headset
Normal Charging Time
Talk and Standby Time
Battery Low Indication

3-4
4
4

4
Turning Your Headset On and Off 5
Pairing Your Headset 6-7
Using Your Headset
Answering a Call
Rejecting a Call
Ending a Call
Muting a Built-in Microphone
Dialling from Your Mobile Phone
Voice Dialling from Your Headset
Last Number Redialling from Your Headset
Rejecting a Call (Handsfree Profile ONLY)
Transferring a Call (Handsfree Profile ONLY)

8-9

8

8

8

8

9

9

9

9

9
Adjusting the Volume 10
Resetting or Removing Pairing 10
Care and Maintenance
Headset
Built-in Battery
Charger

11-12

11

12

12
Safety Information 13
Troubleshooting 14
Declaration of Conformity (DoC) 15
Product Specifications 16

www.tuv.com

Test Report No.: 14013483 001 Appendix 4 page 18 of 35

(Page 1)

Jawbone Bluetooth Headset Overview

-

Figure 1

1 Reset Button
2 Charging Port
3 Ear Hook Insert Hole
4 Earphone
5 Noise Cancellation Technology
6 Built-in Rechargeable Battery
7 Built-in Microphone
8 Status Indicator
9 Multi-Function Button (MFB)

1
2
3

4

5

6

7

8

9

www.tuv.com

Test Report No.: 14013483 001 Appendix 4 page 19 of 35

Getting Started (Page 2)

To use your Jawbone Bluetooth Headset (“the headset”), please start with the following steps below:

1. Charge your headset, and

2. Pair your headset with a Bluetooth-enabled mobile phone.

Figure 2

www.tuv.com

Test Report No.: 14013483 001 Appendix 4 page 20 of 35

(Page 3)

Charging Your Headset

Figure 3

The headset comes with a built-in rechargeable battery. Prior to using the headset for the first time, it is
recommended to fully charge the battery first.

Contact port

www.tuv.com

Test Report No.: 14013483 001 Appendix 4 page 21 of 35

(Page 4)
Insert the charger plug into the headset’s charging socket (refer to Figure 3) and plug the charger to an AC wall
outlet. The status indicator will stay red during charging.

IMPORTANT: Charging indication will be delayed for a few seconds if the headset has not been used for
a long time or the battery is drained.

Normal Charging Time

It takes about three hours to fully charge the battery. When the battery is fully charged, the status indicator will
turn blue and remain on. Unplug the charger from the AC wall outlet and the charger plug from the headset.
Press and hold the MFB (refer to Figure 1) for two seconds to turn on the headset. Please refer to “Turning Your
Headset On and Off” on the next page for details.

Talk and Standby Time

The fully charged battery can offer up to 10 hours of talk time and up to 200 hours of standby time. When there
are no calls the headset should remain turned on in standby mode.

Battery Low Indication

When the battery has become low when the headset is on, the status indicator will flash red and the headset will
emit a beep* every minute. Please follow the instructions describe above to recharge the battery.

*If you are setting up the headset and your mobile phone in a noisy environment, we advise you to put on the
earphone first so that the beep will be more audible.
