to protect your product, please read the operating
instructions before opening the parasol
applies to: ocean master MAX & plantation MAX cantilever parasols
MAX cantilever with easy drive crank
assembly & operating instructions
12.19.17 | INSA2011
ASSEMBLY & OPERATING INSTRUCTIONS MAX Cantilever EASY DRIVE SYSTEM
Step 1
Remove all packaging from the umbrella, including inside the umbrella.
Step 2
Pull the pin to unlock the cam lock handle. Open the cam lock handle.
Step 3
Once you have leveled the stem using the base installation instructions, slide the
beauty cover and umbrella over the security stem as pictured/illustrated below
(security stem is included with umbrella)
mast
beauty cover
security stem
Step 4
Push cam lock handle down until it is locked into the security stem. Insert the pin into the lock handle.
Step 5
Connect the umbrella cable swedge eye to the cable bracket on top of the
bottom trolley car using the provided security pin.
Note: If the cable does not have enough give to reach the bracket,
insert the crank handle and turn counter clock-wise with the
mast lock in the up position to release some of the cable (see step 7).
INSA2011 | 12.19.17
2 | tuuci
ASSEMBLY & OPERATING INSTRUCTIONS MAX Cantilever EASY DRIVE SYSTEM

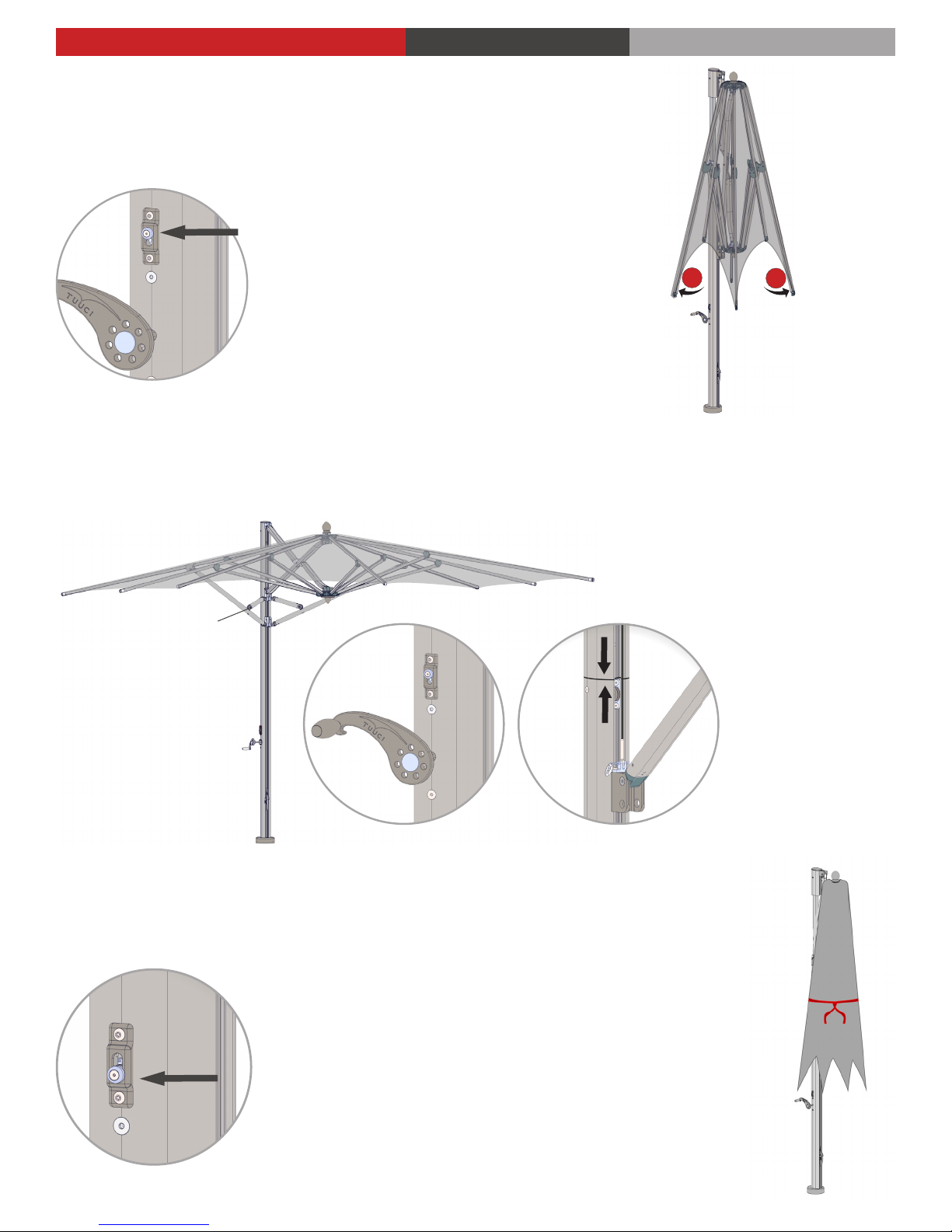

Step 6
Gently separate the ribs outward from the center by 10 inches, if you feel resistance,
do not force, recheck the umbrella for packaging.
Step 7
Set the mast lock in the open/up position
6
6
Step 8
Insert the crank handle and turn clockwise to open the umbrella. You will know the umbrella is fully engaged when
the auto-scope meets the mast (shown below).
Note: your umbrella may or may not come with high wind stabilizers
high wind stabilizers
auto-scope
meets the
mast
crank handle
Step 9
Once fully open set the mast lock in the
down/locked position and remove the
crank handle when not in use
Step 10
To close the umbrella reverse steps 7-9.
When not in use the canopy should be carefully
folded and secured with the tie-strap.
12.19.17 | INSA2011
tuuci | 3
ASSEMBLY & OPERATING INSTRUCTIONS TUUCI LUNA LED LIGHT
IF APPLICABLE - WITH LED LIGHT
Step 1
Connect the electrical cord to the outlet.
Step 2
Tap nial once to power on-o, or touch and hold for light dimming control.
2
1
finial
Unit is supplied with a 12ft power cord and plug.
INSA2011 | 12.19.17
4 | tuuci
LIGHTING SPECIFICATIONS
Input Voltage 90 - 305VAC
Input Current
Output Voltage 12 VDC
Output Power 40 Watts
0.6A / 115VAC
0.3A / 230VAC
ASSEMBLY & OPERATING INSTRUCTIONS CARE & MAINTENANCE
TUUCI frames are constructed from durable, marine-grade, weather resistant materials including: fiberglass,
armor-wall aluminum, Dura-TEAK composites, Aluma-TEAK aluminum and sustainable hardwood. All fasten-
ers (nuts, bolts, pulleys, cam cleats, etc.) are marine-grade stainless steel and will withstand the most corrosive
environments. Proper care and maintenance is important to extend the serviceable life of all TUUCI products.
We recommend the following:
• Fresh water rinses once a week
• Weekly inspection of your TUUCI product is recommended. Loose screws should be tightened and any
broken components replaced immediately to avoid further damage to your product.
• Prior to opening, ensure that the shade product is properly secured to an adequate shade anchor system.
• When opening a TUUCI parasol, separate each rib 10 inches from the center post, before raising the hub.
Do not force hub if it does not rise easily.
• When closing the parasol, pull the fabric out from between the struts to avoid pinching or damaging the
TUFF-SKIN canopy membrane.
• TUUCI recommends that all collapsible shade equipment be closed in wind conditions which exceed 25 MPH.
• Clean above ground parasol bases regularly to maintain appearance. To clean, gently wash with soap and
water using a nonabrasive cloth or pad.
• Check bolts in security stem regularly to ensure that they remain fully tightened.
• Do not roll Aluma-crete (Aluminum Shell, Concrete Filled) bases on their side as damage to shell
or nish can occur.
• Do not use on stairways or over distances which exceed 50 feet, as damage to welded wheel tray may occur.
• Canopy should be cleaned regularly and can be cleaned without being removed from the frame. Hose down
and clean with a mild soap and lukewarm water (no more than 100° F.) using a soft bristle brush.
Rinse thoroughly to remove soap. Allow fabric to air dry. TUUCI Parts can be purchased at parts@tuuci.com.
• Do not use a pressure washer to clean canopes.
12.19.17 | INSA2011
tuuci | 5
