to protect your product, please read the operating instructions before opening the parasol
MAX cantilever
TUUCI
with tilt
assembly & operating instructions
applies to:
ocean master MAX cantilever & plantation MAX cantilever
ASSEMBLY & OPERATING INSTRUCTIONS TILT CANTILEVER
Step 1
Remove all packaging from umbrella, including inside the umbrella.
Step 2
Pull pin to unlock and make sure cam lock handle is open.
Step 3
Once the security stem is installed in its desired location, slide the
beauty cover over the mast and insert the mast into the security stem.
mast
beauty cover
security stem
Step 4
Push cam lock handle until it engages in the proper
gear slot then lock handle with pin .
2
4
3
INSA2000
2 | tuuci
applies to:
square
octagon
rectangle
ASSEMBLY & OPERATING INSTRUCTIONS TILT CANTILEVER
OPENING UMBRELLA
Step 5
Gently separate each rib individually from center hub
approx. 10 inches. If rib does not move easily do not force.
Inspect product for additional packaging.
Step 6
Lift cart lever to release tension and to unlock canopy frame.
Step 7
Make sure the gear lock button is in the
top/unlock position before turning crank handle.
Step 8
Insert crank handle and rotate clockwise.
Step 9
Once umbrella is fully deployed, engage gear lock and remove
crank handle. Make sure to store crank handle in a safe place.
9
7
5
8
6
INSA2000
tuuci | 3
ASSEMBLY & OPERATING INSTRUCTIONS TILT CANTILEVER
ADJUSTING CANOPY ANGLE
Step 10
Make sure cart lever is unlocked.
Step 11
The angle of the canopy can be adjusted to a desired position by moving the cart handle up or down,
lock the position by setting the cart lever down.
11
10
INSA2000
4 | tuuci
ASSEMBLY & OPERATING INSTRUCTIONS TILT CANTILEVER
CLOSING UMBRELLA
Step 12
Lift cart lever to release tension and to unlock.
Step 13
Make sure the gear lock button is in the
top/unlock position before turning crank handle.
Step 14
Insert crank handle and rotate counterclockwise, until it stops.
Step 15
Lower cart to bottom.
Step 16
Collapse the umbrella frame in full against the mast, then lock
the closed position by setting the cart lever down.
Step 17
Tie back umbrella canopy when not in use.
13
14
15
12
16
Note: close umbrella during wind conditions that exceed manufacturer’s specications.
INSA2000
tuuci | 5
ASSEMBLY & OPERATING INSTRUCTIONS MAX Cantilever

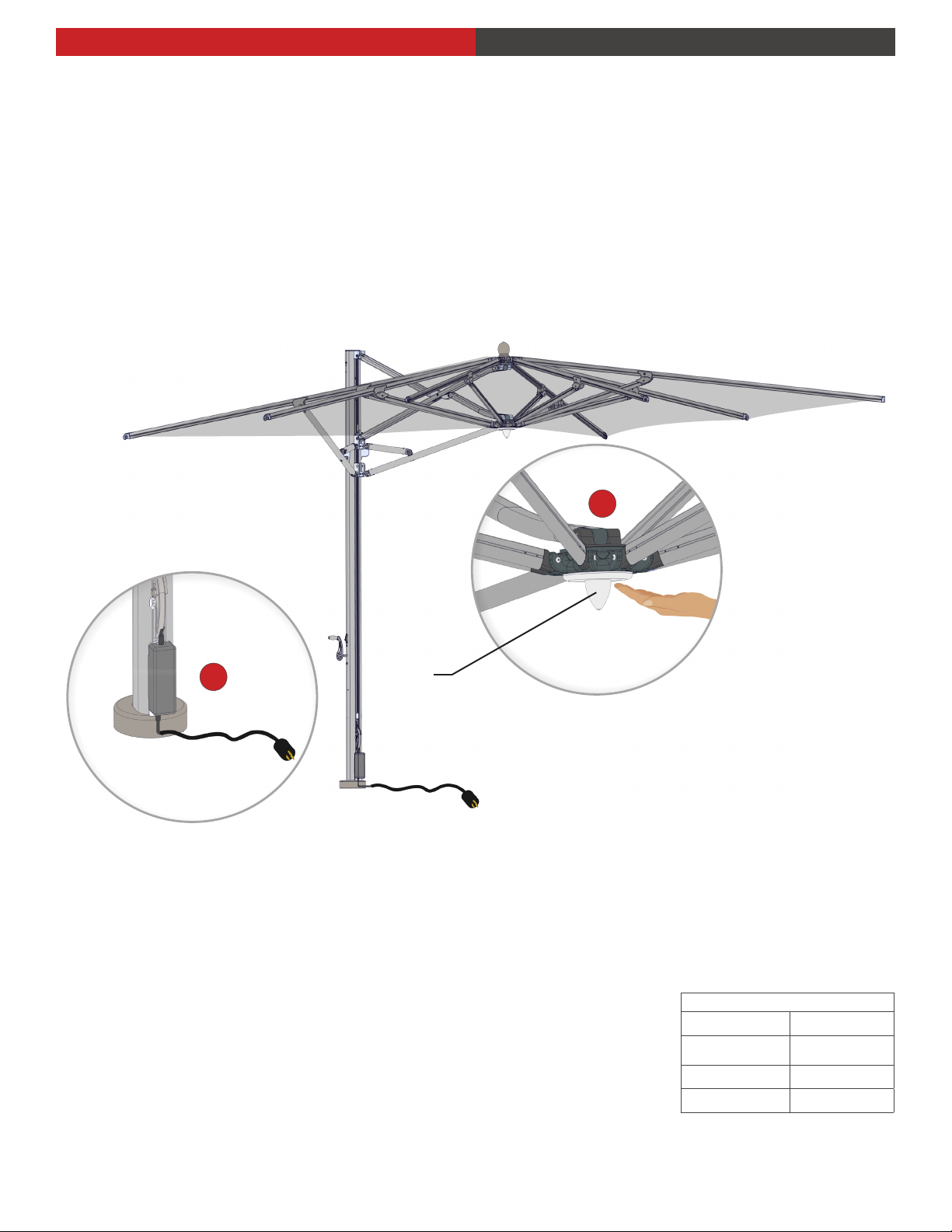

IF APPLICABLE - WITH LED LIGHT
Step 1
Connect the electrical cord to the outlet.
Step 2
Tap nial once to power on-o, or touch and hold for light dimming control.
2
1
finial
Unit is supplied with a 12ft power cord and plug.
LIGHTING SPECIFICATIONS
Power Supply:
Input Voltage 90 - 305VAC
Input Current
Output Voltage 12 VDC
Output Power 40 Watts
0.6A / 115VAC
0.3A / 230VAC
ASSEMBLY & OPERATING INSTRUCTIONS CARE & MAINTENANCE
TUUCI frames are constructed from durable, marine-grade, weather resistant materials including: fiberglass,
armor-wall aluminum, Dura-TEAK composites, Aluma-TEAK aluminum and sustainable hardwood. All fasten-
ers (nuts, bolts, pulleys, cam cleats, etc.) are marine-grade stainless steel and will withstand the most corrosive
environments. Proper care and maintenance is important to extend the serviceable life of all TUUCI products.
We recommend the following:
• Fresh water rinses once a week
• Weekly inspection of your TUUCI product is recommended. Loose screws should be tightened and any
broken components replaced immediately to avoid further damage to your product.
• Prior to opening, ensure that the shade product is properly secured to an adequate shade anchor system.
• When opening a TUUCI parasol, separate each rib 10 inches from the center post, before raising the hub.
Do not force hub if it does not rise easily.
• When closing the parasol, pull the fabric out from between the struts to avoid pinching or damaging the
TUFF-SKIN canopy membrane.
• TUUCI recommends that all collapsible shade equipment be closed in wind conditions which exceed 25 MPH.
• Clean above ground parasol bases regularly to maintain appearance. To clean, gently wash with soap and
water using a nonabrasive cloth or pad.
• Check bolts in security stem regularly to ensure that they remain fully tightened.
• Do not roll Aluma-crete (Aluminum Shell, Concrete Filled) bases on their side as damage to shell
or nish can occur.
• Do not use on stairways or over distances which exceed 50 feet, as damage to welded wheel tray may occur.
• Canopy should be cleaned regularly and can be cleaned without being removed from the frame. Hose down
and clean with a mild soap and lukewarm water (no more than 100° F.) using a soft bristle brush. Rinse thor
oughly to remove soap. Allow fabric to air dry. TUUCI Parts can be purchased at parts@tuuci.com.
• Do not use a pressure washer to clean canopes.
INSA2000
tuuci | 7
