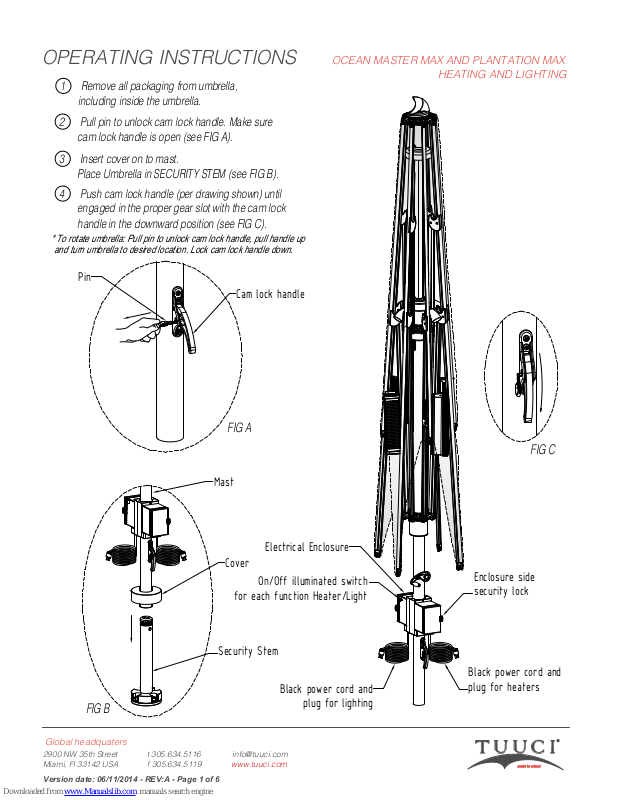

OPERATING INSTRUCTIONS
1 Remove all packaging from umbrella,
including inside the umbrella.
3 Insert cover on to mast.
Place Umbrella in SECURITY STEM (see FIG B).
2 Pull pin to unlock cam lock handle. Make sure
4 Push cam lock handle (per drawing shown) until
cam lock handle is open (see FIG A).
engaged in the proper gear slot with the cam lock
handle in the downward position (see FIG C).
and turn umbrella to desired location. Lock cam lock handle down.
* To rotate umbrella: Pull pin to unlock cam lock handle, pull handle up
OCEAN MASTER MAX AND PLANTATION MAX
HEATING AND LIGHTING
Mast
Cover
Cam lock handle
Security Stem
On/Off illuminated switch
for each function Heater/Light
Black power cord and
plug for heaters
Enclosure side
security lock
Black power cord and
plug for lighting
Global headquaters
2900 NW 35th Street t 305.634.5116 info@tuuci.com
Miami, Fl 33142 USA f 305.634.5119
www.tuuci.com
FIG A
Pin
FIG B
FIG C
Electrical Enclosure
Version date: 06/11/2014 - REV:A - Page 1 of 6
OPERATING INSTRUCTIONS
4-6"
5 Gently separate EACH RIB INDIVIDUALLY from
center post, approx. 10-12"/25-30Cm. If rib does
not move easily, DO NOT force. Inspect product
for additional packaging.
6 Use crank handle to open umbrella. Continue
turning crank handle clockwise until light cap is
covered over the light (see FIG D & FIG E).
4-6"
OPEN
OPEN UMBRELLA
Light cap covered over the light
Crank handle
Light cap
Lights
Heater
Rib
Crank handle
Global headquaters
2900 NW 35th Street t 305.634.5116 info@tuuci.com
Miami, Fl 33142 USA
f 305.634.5119
www.tuuci.com
FIG D
FIG E
OCEAN MASTER MAX AND PLANTATION MAX
HEATING AND LIGHTING
Version date: 06/11/2014 - REV:A - Page 2 of 6
OPERATING INSTRUCTIONS
7 Adjust the lights and heaters as per the details shown
Horizon Line
Adjust the lights 90° only. Do NOT adjust over horizon line
Horizon Line
WRONG
LIGHT
HEATER
Vertical Line
Adjust the heaters only 30° on each side.
30°"
3 hub and support struts
rd
Global headquaters
2900 NW 35th Street t 305.634.5116 info@tuuci.com
Miami, Fl 33142 USA f 305.634.5119
www.tuuci.com
on this page.
OCEAN MASTER MAX AND PLANTATION MAX
HEATING AND LIGHTING
Version date: 06/11/2014 - REV:A - Page 3 of 6
exceed manufacturer's specifications.
9 Close umbrella during wind conditions that
OPERATING INSTRUCTIONS
8 Connect plug-in to power supply.
Turn on or off the light or heaters by using illuminated switch (see Page 1).
IMPORTANT NOTE: MAKE SURE THE HEATERS ARE COLD BEFORE CLOSING UMBRELLA.
Umbrella should not be closed entirely until heaters have cooled down.
Global headquaters
2900 NW 35th Street t 305.634.5116 info@tuuci.com
Miami, Fl 33142 USA f 305.634.5119
www.tuuci.com
OCEAN MASTER MAX AND PLANTATION MAX
HEATING AND LIGHTING
Version date: 06/11/2014 - REV:A - Page 4 of 6
Heating & Lighting General Specifications
110V Lighting Specifications:
OPERATING INSTRUCTIONS
Global headquaters
2900 NW 35th Street t 305.634.5116 info@tuuci.com
Miami, Fl 33142 USA f 305.634.5119
www.tuuci.com
FIG F
OCEAN MASTER MAX AND PLANTATION MAX
HEATING AND LIGHTING
1. 110V, 1 phase with (4) 7 Watt LED bulbs (requires a minimum 10 amp circuit).
2. Titanium Color Housing
3. Each light is independently adjustable (tilts and rotates)
4. 4 LED bulb lamps supplied only with the 110V option:
Part Number: LED7GU10MR1627KFL
Description: LED 7W GU10 MR16 Flood (40 degree)
110Volt, 7Watts, 340 Lumens, 40º Beam Angle, 2700K CCT, 80 CRI
5. Umbrella comes with 10ft Power Cord & Plug (Use with 15 Amp, 125-volt, NEMA 5-15
Receptacles compatible with NEMA 5-15 Plugs)
Customer must connect to a ground GFIC junction box with a 110V power source, and proper
current rating (“Amps”), near the umbrella (see FIG F).
220V Lighting Specifications:
1. 220V, 2 phase (requires a minimum 10 amp circuit)
2. Titanium Color Housing
3. Each light is independently adjustable (tilts and rotates)
4. LED bulb lamps are NOT supplied.
Recommended LED 7W GU10 MR16 Flood (40 degree) 2700K CC
5. Umbrella comes with 10ft Power Cord & Plug (Use with 10 - 15 Amp, 220-volt, NEMA 6-15
Receptacles compatible with: NEMA 6-15 Plugs)
Version date: 06/11/2014 - REV:A - Page 5 of 6
OPERATING INSTRUCTIONS
Global headquaters
2900 NW 35th Street t 305.634.5116 info@tuuci.com
Miami, Fl 33142 USA f 305.634.5119
www.tuuci.com

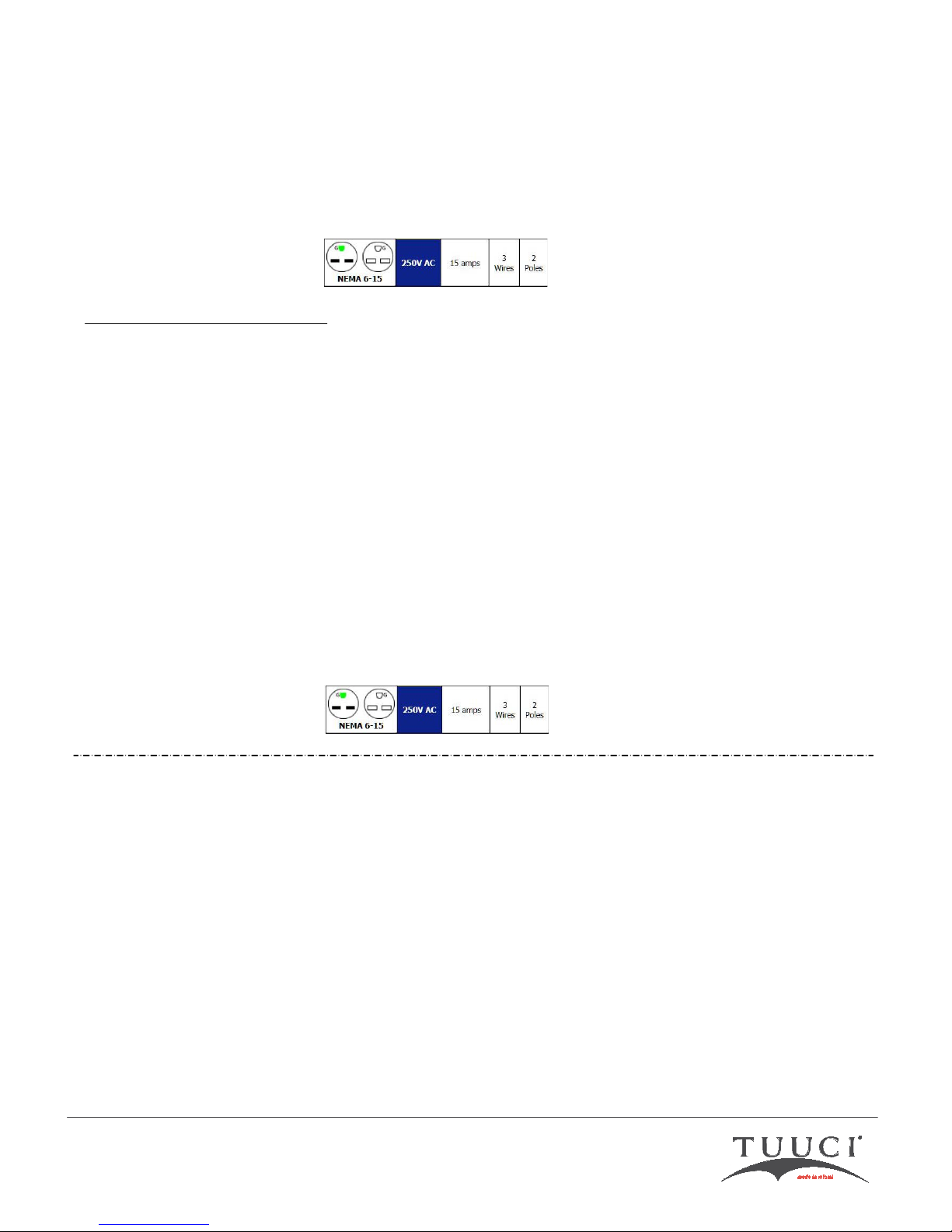

FIG G
1. All heaters are 1400 watts each (1500W@240V)
2.
3. Amperage: 2-Heaters Configuration: 15 Amps
4-Heaters Configuration: 30 Amps
4. Please see Heater cut (specification) sheet for more technical info
5. All heaters meet UL 1278, UL 2021, UL 875, & UL834 standards
6. Black or White Color options
7. Umbrella comes with 10ft Power Cord & Plug (Use with 15 Amp, 220-volt, NEMA 6-15
Receptacles compatible with: NEMA 6-15 Plugs)
FIG H
WARNINGS & SAFETY INSTRUCTIONS
1. READ AND UNDERSTAND ENTIRE OWNER’S MANUAL BEFORE ASSEMBLING OR OPERATING UMBRELLA.
2. READ AND UNDERSTAND THE WARNINGS POSTED ON THE UMBRELLA AND/OR COMPONENTS INSTALLED ON THE UMBRELLA.
3.
DISCONNECT ELECTRICAL POWER TO UMBRELLA DURING INCLEMENT WEATHER.
4. TEST ELECTRICAL FUNCTIONING OF LIGHTS AND HEATERS BEFORE EACH USE.
5. THERE IS A RISK OF FIRE IF HEATERS CONTACT FLAMMABLE MATERIALS OR LIQUIDS.
6. KEEP CHILDREN AWAY FROM POWER CORDS ON OR AROUND UMBRELLA.
7. DISCONNECT POWER BEFORE REMOVING OR SERVICING UMBRELLA.
8. ALLOW SUFFICIENT COOLING OF HEATERS BEFORE CLOSING UMBRELLA.
9. BEFORE CLOSING UMBRELLA SWING HEATERS INWARD TO ALLOW ADEQUATE CLEARANCE.
10. DO NOT USE THIS UMBRELLA FOR OTHER THAN ITS INTENDED USE.
11. REPLACE WARNING LABELS IF THEY BECOME OBSCURED OR REMOVED.
12. MAKE SURE THE UMBRELLA IS PROPERLY GROUNDED IF THERE ARE ANY ELECTRICAL DEVICES INSTALLED SUCH AS HEATERS OR
LIGHTS.
13. PROVIDE FOR ADEQUATE SPACE TO OPEN AND CLOSE UMBRELLA WITHOUT OBSTRUCTIONS.
14. THE ELECTRICAL CONNECTIONS FOR THE MOUNTED DEVICES ON THIS UMBRELLA, IF ANY, ARE TO BE INSTALLED/CONNECTED BY A
CERTIFIED ELECTRICIAN. CHECK LOCAL CODES FOR GUIDANCE.
15.
WHEN CLOSING/OPENING UMBRELLA KEEP HANDS AND FACE CLEAR OF ALL PINCH POINTS, OR PROTRUDING UMBRELLA
COMPONENTS.
OCEAN MASTER MAX AND PLANTATION MAX
HEATING AND LIGHTING
Customer must connect to a ground GFIC junction box with a 220V power source, and proper
current rating “Amps”, near the umbrella (see FIG G).
220V Heating Specifications:
Voltage requirement: 220V, 1 (SINGLE) PHASE INPUT
Customer must connect to a ground GFIC junction box with a 220V (input range of 208-240V)
power source for Heating and proper current rating “Amps”, near the umbrella (see FIG H).
Version date: 06/11/2014 -REV:A-Page 6 of 6
