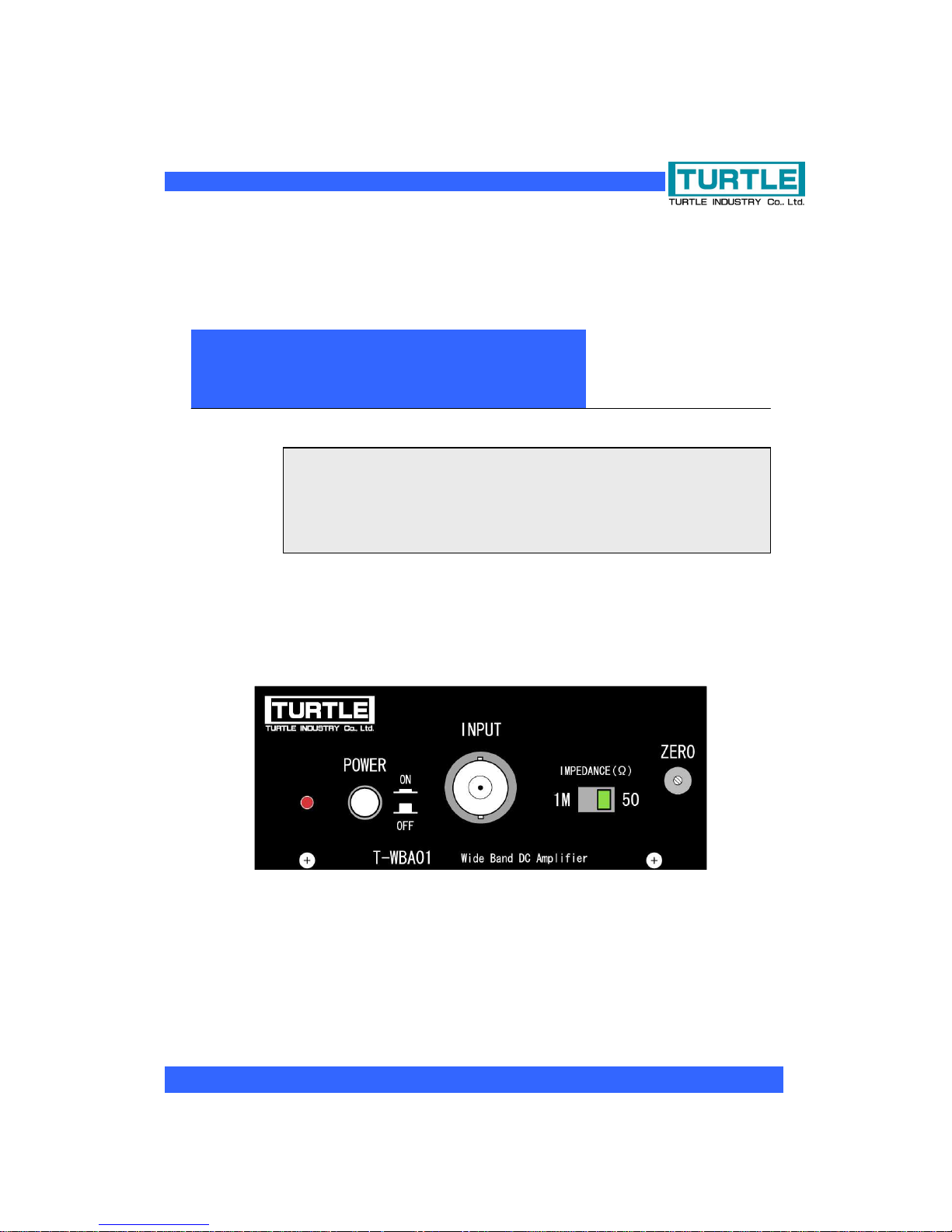

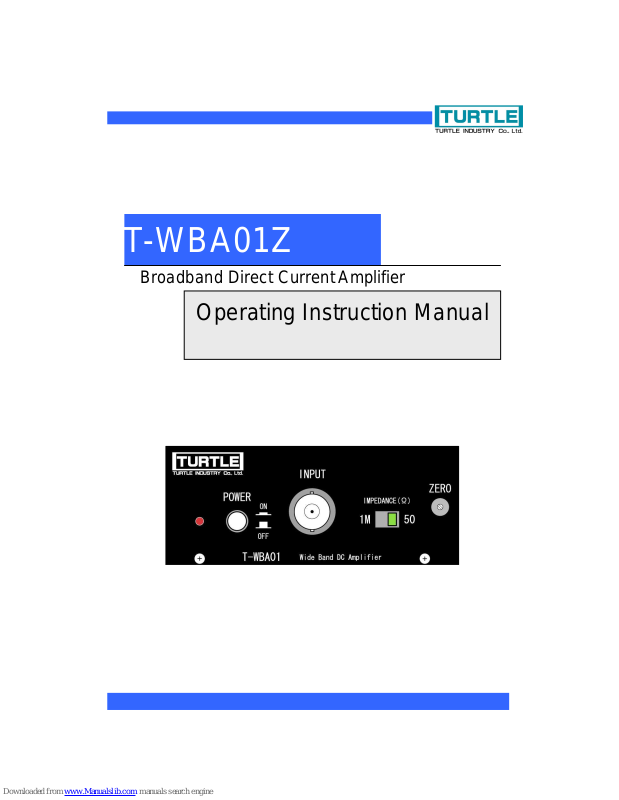

Page 1
T-WBA01Z
Broadband Direct Current Amplifier
Operating Instruction Manual
Page 2
Instruction Manual for T-WBA01Z
1
©2000 Turtle Industry Co., Ltd. All rights reserved.
Copying or modifying the document is prohibited without the permission of Turtle Industry
Co., Ltd.
Warnings and Cautions (Ensure to Read Before Use)
This operating instructions manual describes how to prevent any physical injury or damage
to property and ensures safe use of the product.
The indications and labels used in this document have the following meanings. Please
ensure you have carefully read and understand the content before reading the main text.
Any failure to observe this warning or mishandling
the product could result in death or severe injury.
Any failure to observe this caution or mishandling
the product could result in physical injury or
damage to property.
(1) The specifications of the product and content of this operating instructions manual are both subject
to change without prior notice.
(2) No individual parts or all of the product or this operating instructions manual can be reprinted
without prior permission.
(3) This operating instructions manual was created to be thorough but if anything is unclear or requires
correction please contact the Service Support Section of Turtle Industry.
(4) We will bear no responsibility for any claims for losses or lost earnings allegedly due to operation
of the product, notwithstanding the above.
(5) The product was not intended to be incorporated in or to control any facilities or equipment that
could involve human lives or that require a high level of reliability. We will bear absolutely no
responsibility for any fatal accidents or damage to property that occur because the product was
used in any such facilities or equipment.
(6) If the product and software fall under the category of being strategic goods (or services) according
to the provisions of the Foreign Exchange and Foreign Trade Control Law an export permit issued
by the Japanese government will be required in exporting the product abroad.
©2004 Turtle Industry Co., Ltd. All rights reserved.
Copying or modifying this document is prohibited without prior permission from Turtle Industry Co., Ltd.
Any names of companies or products used in this document are the trademark or registered trademark
of the company concerned.
Warning
Caution
Page 3
Instruction Manual for T-WBA01Z
2
Warnings and Cautions on Use
Ensure to cut off all the power supply to any equipment before attaching or
removing it. Failure to do so could pose the hazard of an electric shock
depending on the equipment used.
Ensure to observe the indicated range of voltage and current in the
specifications with the terminals. Failure to do so could result in overheating and
fire or electricity leaking.
Do not use the product anywhere it could be exposed to water or chemicals.
Failure to do so could result in fire or other type of disaster.
Do not use the product anywhere inflammable gases could be present. Failure
to do so could result in fire or explosion.
Do not install the product anywhere unstable or it could fall over and cause
physical injury.
If any smoke or abnormal odor is generated immediately cease use of the
product. Remove the cable and consult our Service Support Section.
Warning
Caution
Page 4
Instruction Manual for T-WBA01Z
3
1. Introduction......................................................................................................................... 4
1.1 Product Outline............................................................................................................. 4
1.2 Product Structure.......................................................................................................... 4
2. Names of Each Part........................................................................................................... 5
2.1 Front.............................................................................................................................. 5
2.2 Rear.............................................................................................................................. 5
3. Description of Each Part..................................................................................................... 7
3.1 Input Terminal (INPUT)................................................................................................. 7
3.2 Output Terminal (OUTPUT).......................................................................................... 7
3.3 Zero Adjustment (ZERO)......................................................................................... 7
3.4 Input Resistance Selection........................................................................................... 8
3.5 Power Supply Input Terminal (DC 5V).......................................................................... 8
4. Property Data Sample........................................................................................................ 8
4.1 Amplification Factor, Phase Property ........................................................................... 8
5. Other................................................................................................................................... 9
5.1 Limited Warranty........................................................................................................... 9
5.2 Contact Information...................................................................................................... 9
6. Specifications.....................................................................................................................11
6.1 Summary of Specifications..........................................................................................11
6.2 Outline of Dimensions................................................................................................. 12
Page 5
Instruction Manual for T-WBA01Z
4
1. Introduction
Thank you very much for purchasing the Broadband Direct Current Amplifier T-WBA01Z
made by Turtle Industry Co., Ltd.
This document describes what you will need to know to use the product, including its special
features, how to use it, handling instructions, and other related information.
To ensure correct use of the product you will need to be familiar with electronic circuits
because of its inherent nature. Any wrong usage or mishandling could not only result in
damage to the product but also lead to a serious accident. Please ensure to thoroughly read
and understand this document in thereby enabling correct use of the product.
1.1 Product Outline
The product is a signal amplifier for amplifying broadband signals, including direct current
signals. The product has a 20dB amplification factor at a transmission impedance of 50Ω,
and therefore is suitable as an amplifier in front of an AD convertor. The product runs on a
single power supply of 5 V and thus is easy to handle.
1.2 Product Structure
The product packaging contains:
(1) Main T-WBA01Z body
(2) Dedicated AC/DC adaptor
(3) Four case feet to be attached
* If anything is missing please ensure to contact our Service Support Section. (Refer to
page 9 for contact information.)
Page 6
Instruction Manual for T-WBA01Z
5

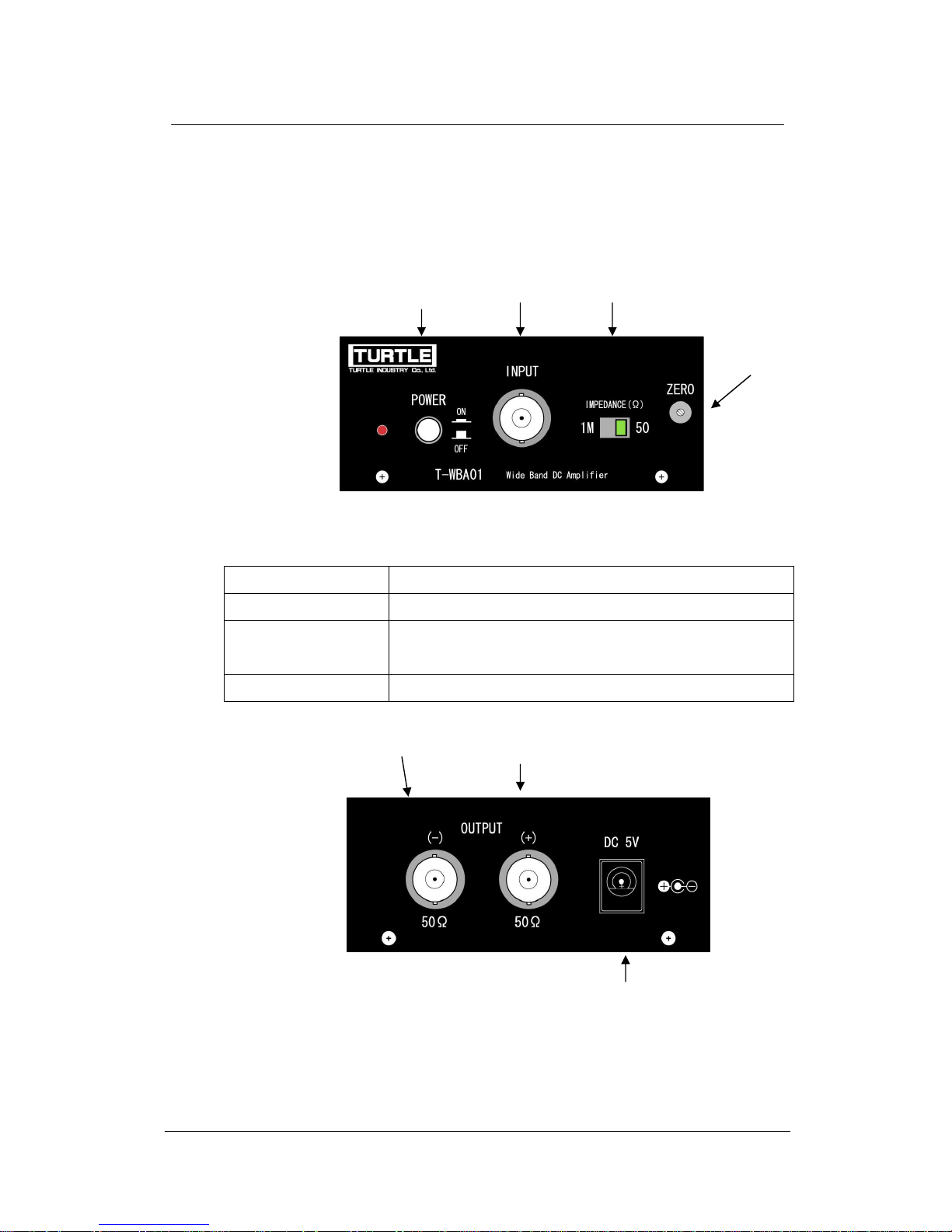

2. Names of Each Part
2.1 Front
Power Supply Switch A push button switch for supplying power.
Input Terminal The terminal for inputting signals. (BNC)
Input Resistance
Selection
This allows an input resistance of between 1M and 50Ω to
be selected.
Zero Adjustment The offset adjustment volume.
2.2 Rear
Power Supply Switch
Input Resistance Selection
Input Terminal
DC Power Supply Terminal
Zero Adjustment
Inverted Output Terminal
Non-inverted Output Terminal
Page 7
Instruction Manual for T-WBA01Z
6
Inverted Output
Terminal
The terminal used for outputting inverted signals after
amplification. (BNC)
Non-inverted Output
Terminal
The terminal used for outputting non-inverted signals after
amplification. (BNC)
DC Power Supply
Terminal
Used to connect the accompanying AC/DC adaptor to the
power supply.
Page 8
Instruction Manual for T-WBA01Z
7

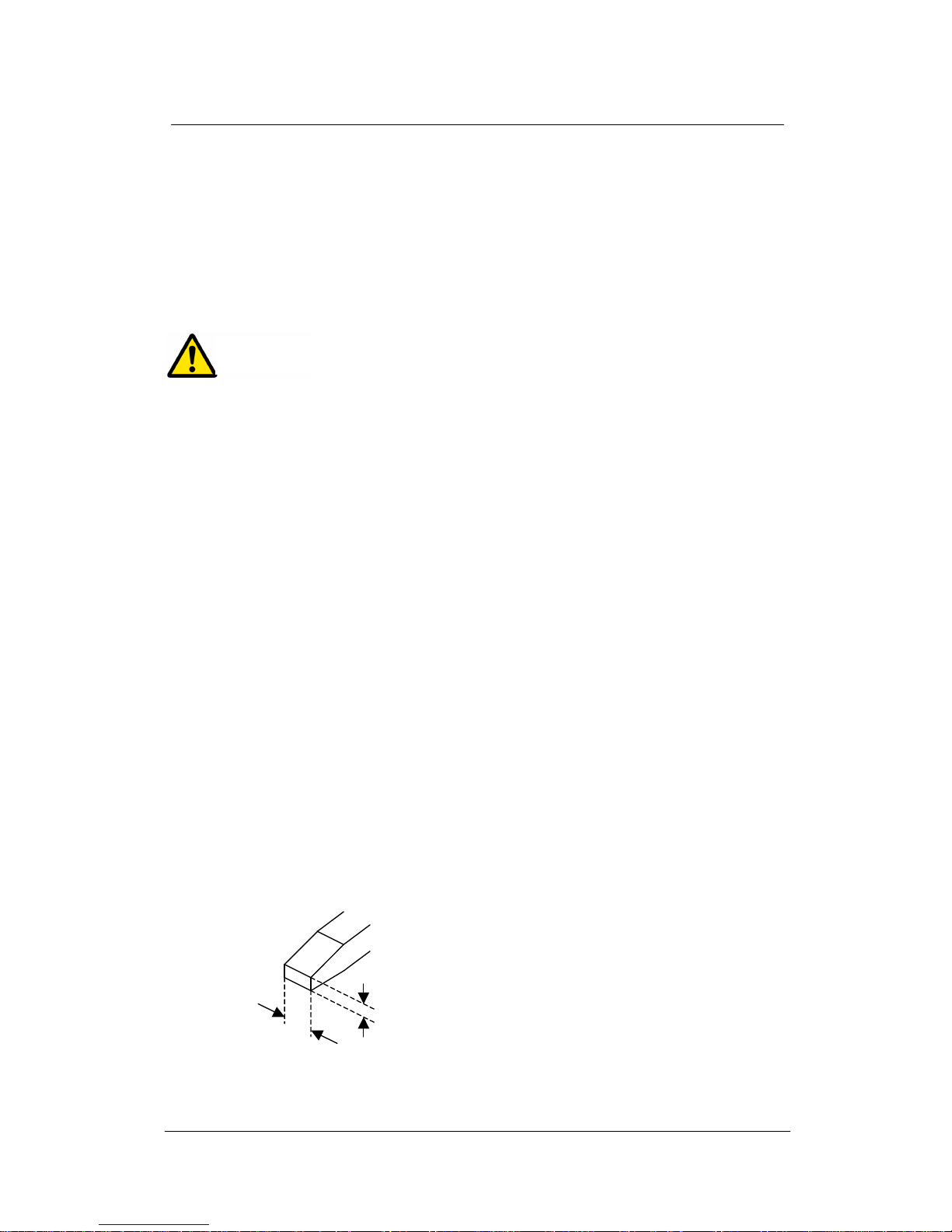

3. Description of Each Part
3.1 Input Terminal (INPUT)
The terminal for input of the signals to be amplified.
A BNC connector is used here. An input resistance of between 1M (mega) ohm and 50
ohms can be selected using the input resistance selection switch.
The maximum value for any input voltage is ±5V. Exceeding that voltage could
not only damage the product but also pose the risk of fire or electric shock.
* The DC power supply terminal (DC 5V) and current input terminal (INPUT) are isolated.
(The insulation withstanding voltage is not guaranteed)
* The INPUT shield and OUTPUT shield sides have common potentiality (electrically
connected).
* The INPUT shield and case have common potentiality (electrically connected).
3.2 Output Terminal (OUTPUT)
The terminal will output amplified voltage. Connect it with, for example, an instrument that
measures the voltage input. Both (+) non-inverted and (-) inverted output are supported.
* The OUTPUT shield and INPUT shield have common potentiality (electrically connected).
* The OUTPUT shield and case have common potentiality (electrically connected).
3.3 Zero Adjustment (ZERO)
Used to make any necessary zero adjustments. The adjustable range is ±100mV of the
output (at 50Ω, ±50mV).
(Concerning the driver for use in making adjustments)
W
L
Please use a driver that is (W) 0.3 ~ 0.5 mm thick at the tip which is (L) 1.6 ~ 2.0 mm wide.
Warning
Page 9
Instruction Manual for T-WBA01Z
8

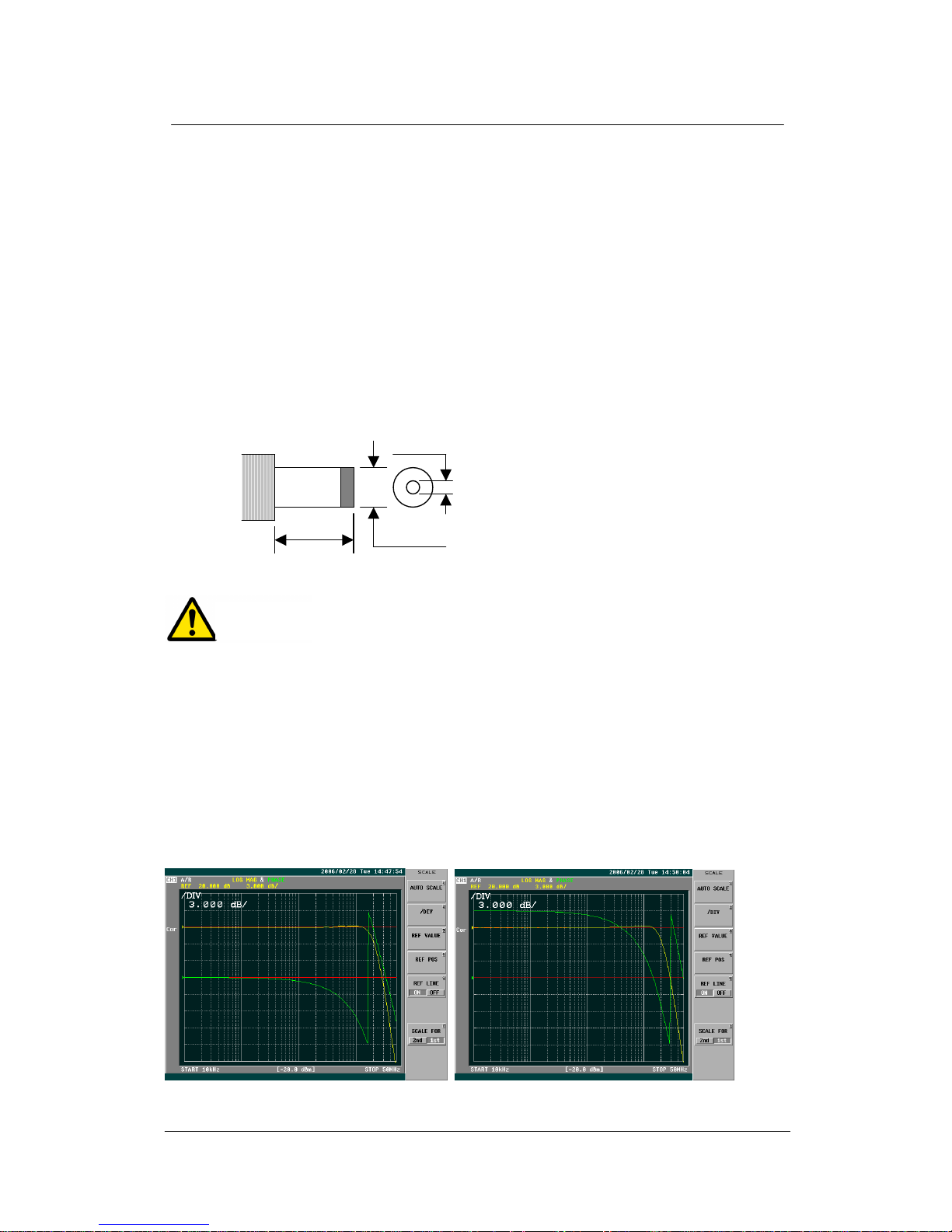

3.4 Input Resistance Selection
Used for selecting an input resistance of between 1M (mega) ohm and 50 ohm.
Selecting 50 ohm will result in the head of the switch lighting up green.
* When switching ensure to cut off the power supply first.
3.5 Power Supply Input Terminal (DC 5V)
Connect the accompanying AC/DC adaptor here.
The power supply input terminal is isolated from the ground used for the signal
processing circuit. However, the insulation withstanding voltage is not guaranteed.
Shape of Compatible Plug
9.5
5.5DIA
2.1DIA
Polarity: Center (negative), Outside (positive)
Reversing the power supply input polarity could damage the product or lead to a
fire.
4. Property Data Sample
4.1 Amplification Factor, Phase Property
* Input/Output 50Ω, 10k - 50MHz
[Non-inverted Output] [Inverted Output]
Warning
Page 10
Instruction Manual for T-WBA01Z
9
5. Other
5.1 Limited Warranty
The Turtle Industry (Turtle-Ind) warrants each product of its manufacture to be free
from defects in material and workmanship subject to the following terms and conditions.
The warranty is effective for half a year after the shipment by Turtle-Ind to the original
purchaser.
The obligation of Turtle-Ind under the warranty is limited to servicing or adjusting any
product returned to the head office of Turtle-Ind for this purpose and to replacing any
defective part thereof. Such product must be returned by the original purchaser,
transportation charges prepaid, with sufficient and detailed proof in writing of the
defect. If the fault has been caused by misuse or abnormal conditions of operation,
repairs must be paid for. Prior to repair, in this instance, a quotation will be submitted.
Service or shipping information will be notified depending on the difficulty encountered.
Model and serial numbers must be supplied by user. Batteries are specifically excluded
under warranty.
Turtle-Ind shall not be liable for any injury to persons or property or for expenses
incurred by the use of any Turtle-Ind product.
5.2 Contact Information
If you have any operating problems or questions please contact us at the following.
We will investigate the cause of the problem before getting back to you.
When making any inquiries please provide as detailed information as possible, including the
operating environment.
Page 11
Instruction Manual for T-WBA01Z
10
Turtle Industry Co., Ltd.
~ Service Support Section,
Technical Division, Technical Department ~
1-12-4 Nishineminami, Tsuchiura-shi,
Ibaraki, Japan, 300-0842
Page 12
Instruction Manual for T-WBA01Z
11
6. Specifications
6.1 Summary of Specifications
Number of Input
Channels
1
Input Resistance Switchable between 50Ω and 1M (mega) Ω
Allowable Input
Voltage
±5Vp
Gain 26dB (high resistance load)/ 20dB (50Ω load), all ±0.3dB
Maximum Output
Voltage
approx. ±4.9Vp (high resistance load)/approx. ±2Vp (50Ω load)
Maximum Output
Current
approx. ±50mAp
Frequency Band DC ~ 20MHz (-3dB)
Noise Voltage
approx. 2.5mVrms (output value with input short of 50Ω and load
of 1MΩ from 3Hz to 20MHz)
Offset Voltage
Adjustable Range
approx. ±100mV (output value with high resistance load)
Output Resistance 50Ω (BNC x 2) each with both inverted and non-inverted
Power Supply Voltage DC 5V (using the accompanying AC/DC adaptor, insulated from
internal circuit)
Consumption Current approx. 200mA (5V)
Operating
Temperature
5C ~ 45C
Dimensions 80 (w) x 35 (h) x 75 (d) mm (protrusions such as connectors not
included)
Weight approx. 170g (AC/DC adaptor and connection cable not included)
Page 13
Instruction Manual for T-WBA01Z
12

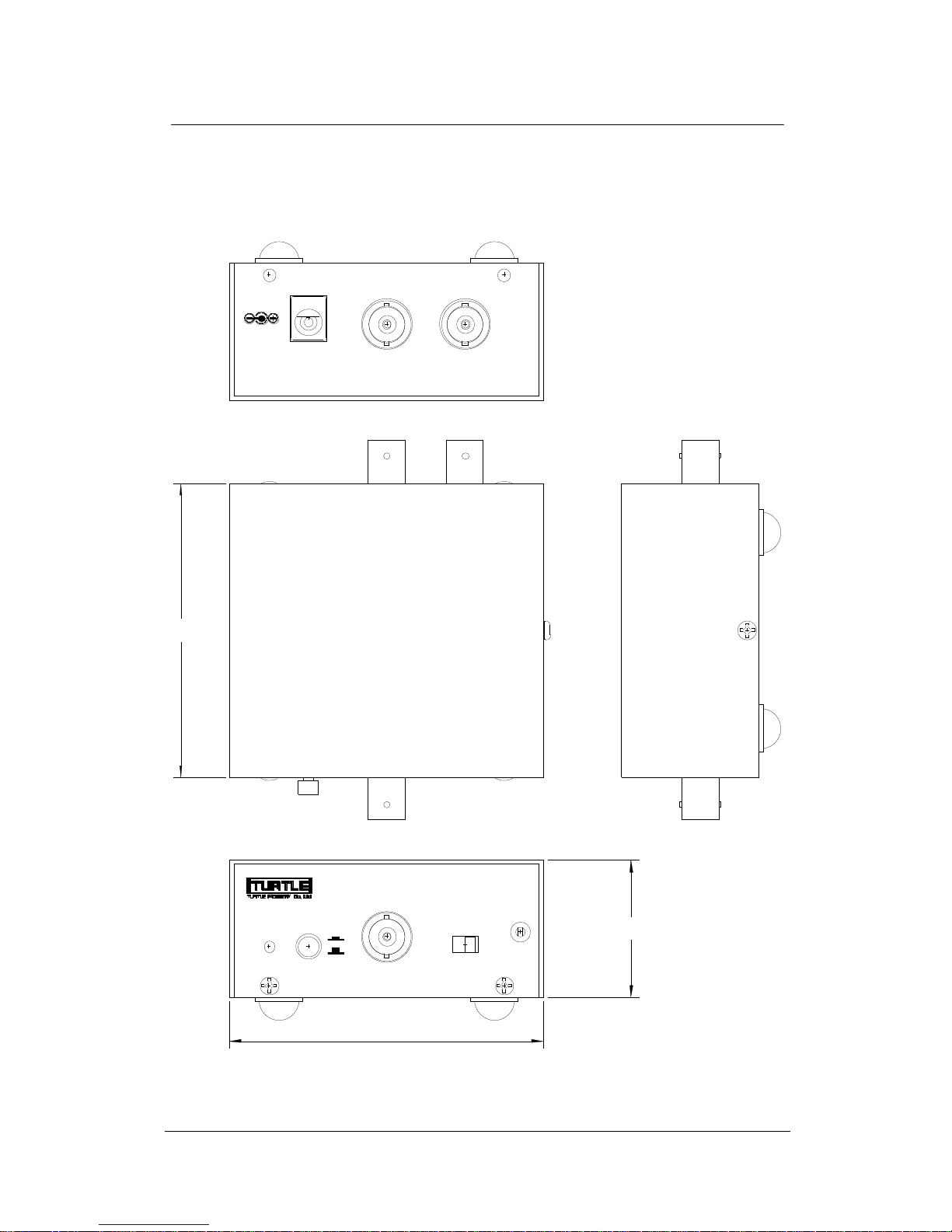

6.2 Outline of Dimensions
35
80
75
INPUT
1M 50
POWER
ZERO
ON
OFF
T-WBA01
Wide Band DC Amplifier
IMPEDANCE(Ω)
OUTPUT
(-) (+)
50Ω 50Ω
DC 5V
Page 14
Instruction Manual for T-WBA01Z
13
Operating Instruction Manual for
T-WBA01Z
Date of Issue: April 2012, Third Edition
Issued by: Turtle Industry Co., Ltd.
Edited by: Turtle Industry Co., Ltd.
c2006 Turtle Industry Co., Ltd.
Loading...
