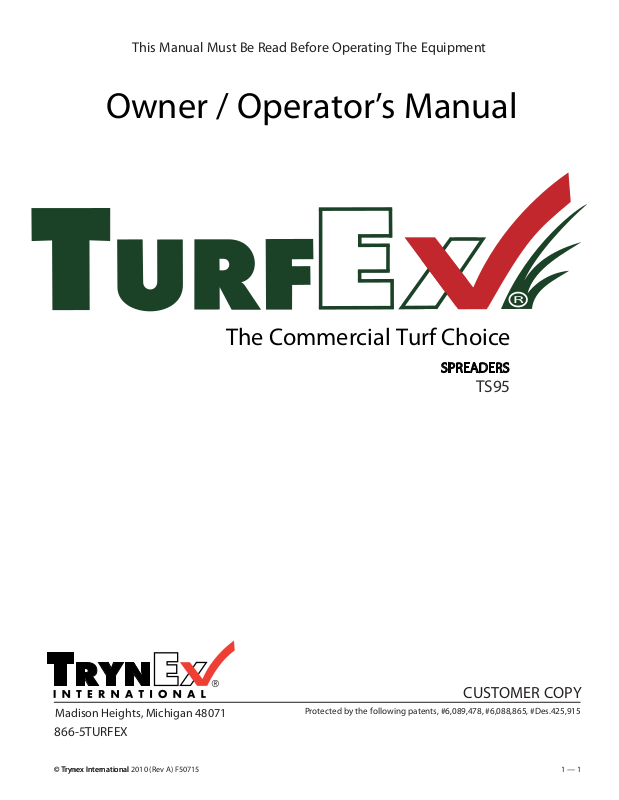

TurfEx TS95 User Manual
This Manual Must Be Read Before Operating The Equipment
Owner / Operator’s Manual
The Commercial Turf Choice
R
SPREADERS
TS95
Madison Heights, Michigan 48071
866-5TURFEX
© Trynex International 2010 (Rev A) F50715
© Trynex International
CUSTOMER COPY
Protected by the following patents, #6,089,478, #6,088,865, #Des.425,915
1 — 1
Table of Contents
R
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SPREADER PARTS/DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-15
OPERATING THE SPREADER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
CALIBRATION INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NOTES PAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
4
5-6
17
18
19
Have a question or need assistance?
TurfEx Customer Service
(866) 5TURFEX
or (586) 756-6555
Monday through Friday 8:00 AM to 4:30 PM EST
Fax: (586) 427-0552
E-Mail: customercare@trynexfactory.com
Website: www.turfexproducts.com
1 — 2
© Trynex International 2010 (Rev A)
Introduction
This manual has been designed for your help. It will assist you and instruct you on the proper set-up, installation and use of
this spreader. Refer to the table of contents for an outline of this manual.
We require that you read and understand the contents of this manual completely (especially all safety information) before
attempting any procedure contained herein. Extra copies of Owner/Operator Manuals can be purchased at your Turfex
Dealer.
THIS SIGN SHOULD ALERT YOU:
The Society of Automotive Engineers has adopted this SAFETY ALERT SYMBOL to pinpoint characteristics
that, if NOT carefully followed, can create a safety hazard. When you see this symbol in this manual or on the
machine itself, BE ALERT! Your personal safety and the safety of others is involved
below are the SAFETY ALERT messages and how they will appear in this manual:
(RED)
Information that, if not carefully followed,
can cause death!
.
R
(ORANGE)
Information that, if not carefully followed,
can cause serious personal injury or death!
(YELLOW)
Information that, if not carefully followed,
can cause minor injury or damage to equipment.
© Trynex International 2010 (Rev A)
1 — 3
General Information
CONGRATULATIONS!
R
The spreader you have purchased is an example of quality and performance. Your spreader’s self-contained design is a
trademark of all Turfex products. Here’s why...
SIMPLICITY: Manufactured from higher quality components means minimal maintenance for your TurfexEx spreader.
RELIABILITY:
Polyethelyne hopper combined with a custom engineered
powder coated frame found only on Turfex products.
VERSATILITY:
WARRANTY:
Multi-use capabilities allows spreading of a variety of materials for turf management.
Best in the industry, hands down! 2 years standard.
The you are about to recognize are that of time, money and .
We welcome you to the world of Turfex Performance.
1 — 4
© Trynex International 2010 (Rev A)
Safety
Before attempting any procedure in this book, these safety instructions must be read and understood by all workers who
have any part in the preparation or use of this equipment.
For your safety ,warning and information decals have been placed on this product to remind the operator of safety
precautions. If anything happens to mark or destroy the decals, please request new ones from Snowex.
R
Remember, most accidents are preventable and caused by human error.
Exercising of care
and precautions must be observed to prevent the possibility of injury to operator or others!
Never operate equipment when under the of alcohol, drugs, or medication that
might alter your judgment and/or reaction time.
Always wear safety glasses with side shields when working metal against metal. Failure to do
this could result in serious injury to the eyes.
Never allow children to operate or climb on equipment.
Never weld or grind on equipment without having a
Always check areas
area. Always inspect unit for defects:
Always make sure personnel are clear of areas of danger when using equipment.
to be spread to be sure no hazardous conditions or substances are in the
broken, worn or bent parts, weakened areas on spreader.
extinguisher available.
© Trynex International 2010 (Rev A)
Remember, it is the owner’s responsibility to communicate information on safe usage and
proper maintenance of all equipment.
1 — 5
Safety
R
Never use wet materials or materials with foreign debris with any of these spreaders. These
units are designed to handle dry, clean, owing material.
Never leave material in hopper for long periods of time. Be aware that all fertilizers are
hygroscopic and will attract atmospheric moisture and harden up.
Inspect the unit periodically for defects. Parts that are broken, missing, or worn out must be
replaced immediately. The unit or any part of it can not be altered without prior written
permission from the manufacturer.
1 — 6
© Trynex International 2010 (Rev A)
