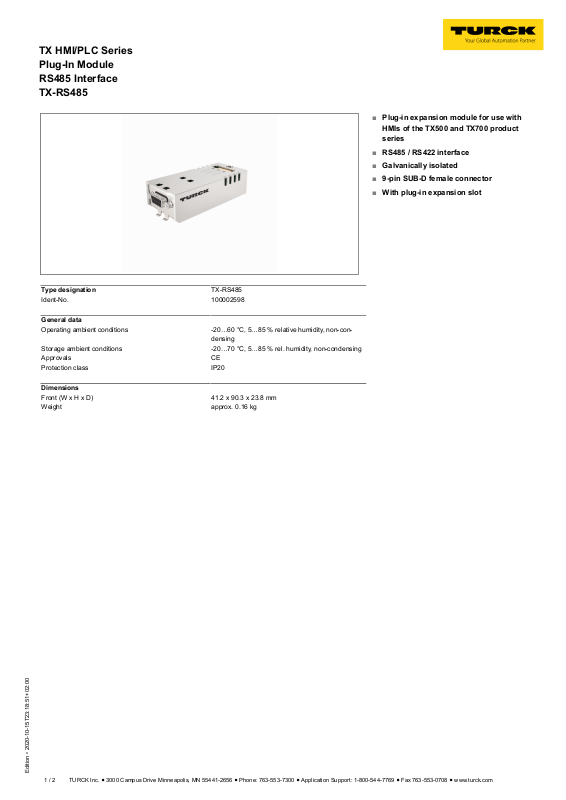

TURCK TX-RS485 User Manual

TX HMI/PLC Series
Plug-In Module
RS485 Interface
TX-RS485

Type designation TX-RS485

Ident-No. 100002598

General data

Operating ambient conditions -20…60 °C, 5…85 % relative humidity, non-con-

densing
Storage ambient conditions -20…70 °C, 5…85 % rel. humidity, non-condensing
Approvals CE
Protection class IP20

■ Plug-in expansion module for use with

HMIs of the TX500 and TX700 product
series

■ RS485 / RS422 interface

■ Galvanically isolated

■ 9-pin SUB-D female connector

■ With plug-in expansion slot

Dimensions

Front (W x H x D) 41.2 x 90.3 x 23.8 mm
Weight approx. 0.16 kg

Edition • 2020-10-15T23:18:51+02:00

1 / 2 TURCK Inc. ñ 3000 Campus Drive Minneapolis, MN 55441-2656 ñ Phone: [phone] ñ Application Support: 1-800-544-7769 ñ Fax [phone] ñ www.turck.com

TX HMI/PLC Series
Plug-In Module
RS485 Interface
TX-RS485

Connection and pin assignment

Serial Interface

SUB-D female connector, 9-pin

Pin Assignment in RS485 Operating Mode

Pin Assignment in RS422 Operating Mode

Port for Plug-in Module

The expansion slot can be used for another plug-in module. The

possible module combinations are described in the manual for the

base units.

.
