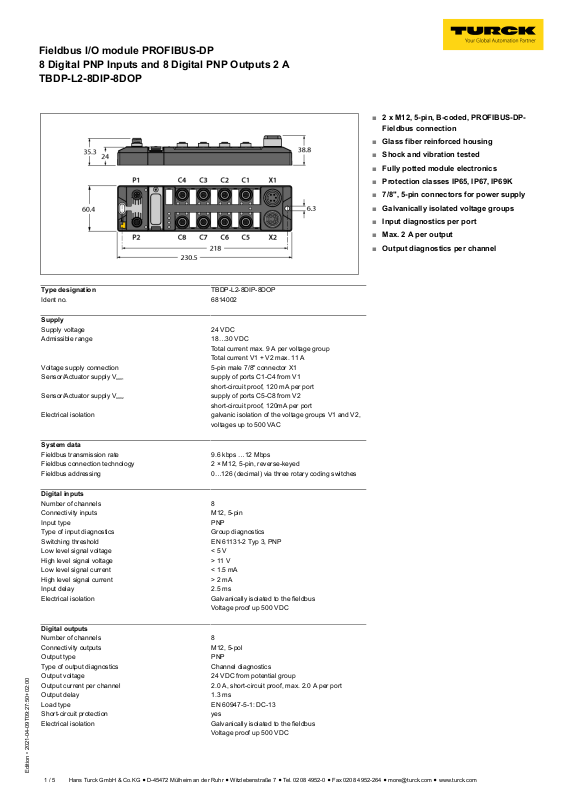

TURCK TBDP-L2-8DIP-8DOP Technical data

Fieldbus I/O module PROFIBUS-DP
8 Digital PNP Inputs and 8 Digital PNP Outputs 2 A
TBDP-L2-8DIP-8DOP

Type designation TBDP-L2-8DIP-8DOP

Ident no. 6814002

Supply

Supply voltage 24 VDC
Admissible range 18…30 VDC

Total current max. 9 A per voltage group

Total current V1 + V2 max. 11 A
Voltage supply connection 5-pin male 7/8" connector X1
Sensor/Actuator supply V

Sensor/Actuator supply V

Electrical isolation galvanic isolation of the voltage groups V1 and V2,

AUX1

AUX2

supply of ports C1-C4 from V1

short-circuit proof, 120 mA per port

supply of ports C5-C8 from V2

short-circuit proof, 120mA per port

voltages up to 500 VAC

■ 2 x M12, 5-pin, B-coded, PROFIBUS-DP-

Fieldbus connection

■ Glass fiber reinforced housing

■ Shock and vibration tested

■ Fully potted module electronics

■ Protection classes IP65, IP67, IP69K

■ 7/8", 5-pin connectors for power supply

■ Galvanically isolated voltage groups

■ Input diagnostics per port

■ Max. 2 A per output

■ Output diagnostics per channel

System data

Fieldbus transmission rate 9.6 kbps …12 Mbps
Fieldbus connection technology 2 × M12, 5-pin, reverse-keyed
Fieldbus addressing 0…126 (decimal) via three rotary coding switches

Digital inputs

Number of channels 8
Connectivity inputs M12, 5-pin
Input type PNP
Type of input diagnostics Group diagnostics
Switching threshold EN 61131-2 Typ 3, PNP
Low level signal voltage < 5 V
High level signal voltage > 11 V
Low level signal current < 1.5 mA
High level signal current > 2 mA
Input delay 2.5 ms
Electrical isolation Galvanically isolated to the fieldbus

Voltage proof up 500 VDC

Digital outputs

Number of channels 8
Connectivity outputs M12, 5-pol
Output type PNP
Type of output diagnostics Channel diagnostics
Output voltage 24 VDC from potential group
Output current per channel 2.0 A, short-circuit proof, max. 2.0 A per port
Output delay 1.3 ms
Load type EN 60947-5-1: DC-13
Short-circuit protection yes
Electrical isolation Galvanically isolated to the fieldbus

Voltage proof up 500 VDC

Edition • 2021-04-09T09:27:50+02:00

1 / 5 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. [phone] ñ Fax [phone] ñ [e-mail] ñ www.turck.com

Fieldbus I/O module PROFIBUS-DP
8 Digital PNP Inputs and 8 Digital PNP Outputs 2 A
TBDP-L2-8DIP-8DOP

Standard/Directive conformity

Vibration test acceleration to 20 g

acc. to EN 60068-2-6
Shock test acc. to EN 60068-2-27
Drop and topple acc. to EN 60068-2-31/IEC 60068-2-32
Electromagnetic compatibility acc. to EN 61131-2
Approvals and certificates CE,

FCC,

UV-resistant in accordance with DIN EN ISO

4892-2A (2013)
UL Certificate cULus LISTED 21 W2, Encl.Type 1 IND.CONT.EQ.

General Information

Dimensions (W x L x H) 60.4 x 230.4 x 39mm
Operating temperature -40…+70 °C
Storage temperature -40 °C … +85 °C
Altitude max. 5000 m
Protection class IP65

IP67

IP69K
MTTF 198 years
Housing material PA6-GF30
Housing color Black
Window material Lexan
Material screw 303 stainless steel
Material label Polycarbonate
Halogen-free yes
Mounting 2 mounting holes � 6.3 mm

Edition • 2021-04-09T09:27:50+02:00

2 / 5 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. [phone] ñ Fax [phone] ñ [e-mail] ñ www.turck.com

Fieldbus I/O module PROFIBUS-DP
8 Digital PNP Inputs and 8 Digital PNP Outputs 2 A
TBDP-L2-8DIP-8DOP

Note

PROFIBUS cable (example):

RSSW-RKSW451-3M

Ident no. 6915658

Note

Actuator and sensor cable, PUR extension cable (example):

RKC4.4T-2-RSC4.4T/TXL

Ident no. 6625608

Extension cable with Y piece for single assignment (example):

FSM4-2WAK3-1/1/P00

Ident no. 8009560

M12 x 1 Fieldbus

M12 x 1 Input

M12 x 1 Output

Note

Power supply cable (example):

RKM52-1-RSM52

Ident no. 6914149

7/8'' Power Supply

Edition • 2021-04-09T09:27:50+02:00

3 / 5 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. [phone] ñ Fax [phone] ñ [e-mail] ñ www.turck.com

Fieldbus I/O module PROFIBUS-DP
8 Digital PNP Inputs and 8 Digital PNP Outputs 2 A
TBDP-L2-8DIP-8DOP

Module Status LED

LED Color Status Description

BUS Green ON PROFIBUS online

Red ON PROFIBUS offline

OFF Power off

ERR Green ON Diagnostics disabled

Red ON Diagnostics enabled

PWR Green ON V1 and V2 power on

Red ON V2 power off or below defined tolerance of 18 V

OFF V1 power off or below defined tolerance of 18 V

LED Status I/O

LED Color Status Description

LED 1 … 8 Green ON Input active

Red flashing Power overload at the corresponding port. Both port LEDs are flashing.

OFF Input inactive

LED 9 … 16 green on Output active

red on Output active with overload / short circuit

flashing Power overload at the corresponding port. Both port LEDs are flashing.

off Output inactive

Edition • 2021-04-09T09:27:50+02:00

4 / 5 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. [phone] ñ Fax [phone] ñ [e-mail] ñ www.turck.com

Fieldbus I/O module PROFIBUS-DP
8 Digital PNP Inputs and 8 Digital PNP Outputs 2 A
TBDP-L2-8DIP-8DOP

Process Data Mapping of the Single Protocols

For more details on the corresponding protocols see manual.

PROFIBUS process data

Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0

Inputs 0 DI8

C4P2

Outputs 0 DO16

C8P2

1 SCS8 SCS7 SCS6 SCS5 SCS4 SCS3 SCS2 SCS1Diagnostics

Input

2 SCO16 SCO15 SCO14 SCO13 SCO12 SCO11 SCO10 SCO9

DI7

C4P4

DO15

C8P4

DI6

C3P2

DO14

C7P2

DI5

C3P4

DO13

C7P4

DI4

C2P2

DO12

C6P2

DI3

C2P4

DO11

C6P4

DI2

C1P2

DO10

C5P2

DI1

C1P4

DO9

C5P4
