Fieldbus I/O module PROFIBUS-DP
8 Digital PNP Inputs and 8 Digital PNP Outputs 2 A
TBDP-L2-8DIP-8DOP
Type designation TBDP-L2-8DIP-8DOP
Ident-No. 6814002
Supply
Supply voltage 24 VDC
Admissible range 18…30 VDC
Total current max. 9 A per voltage group
Total current V1 + V2 max. 11 A
Voltage supply connection 5-pin male 7/8" connector X1
Sensor/Actuator supply V
Sensor/Actuator supply V
Electrical isolation galvanic isolation of the voltage groups V1 and V2,
AUX1
AUX2
supply of ports C1-C4 from V1
short-circuit proof, 120 mA per port
supply of ports C5-C8 from V2
short-circuit proof, 120mA per port
voltages up to 500 VAC
■ 2 × M12, 5-pin, B-coded, PROFIBUS-DP-
Fieldbus connection
■ 7/8" connector for power supply, 5-pin
■ Separated power groups for safety
shutdown
■ Input diagnostics per port
■ Max. 2 A per output
■ Output diagnostics per channel
■ Glass-fiber reinforced housing
■ Shock and vibration tested
■ Fully potted module electronics
■ Protection classes IP65 / IP67 / IP69K
System data
Fieldbus transmission rate 9.6 kbps …12 Mbps
Fieldbus connection technology 2 × M12, 5-pin, reverse-keyed
Fieldbus addressing 0…126 (decimal) via three rotary coding switches
Digital inputs
Number of channels 8
Connectivity inputs M12, 5-pin
Input type PNP
Type of input diagnostics Group diagnostics
Switching threshold EN 61131-2 Typ 3, PNP
Low level signal voltage < 5 V
High level signal voltage > 11 V
Low level signal current < 1.5 mA
High level signal current > 2 mA
Input delay 2.5 ms
Electrical isolation galvanic isolation to P1/P2
, voltages up to 500 VDC
Digital outputs
Number of channels 8
Connectivity outputs M12, 5-pol
Output type PNP
Type of output diagnostics Channel diagnostics
Output voltage 24 VDC from potential group
Output current per channel 2.0 A, short-circuit proof, max. 2.0 A per port
Output delay 1.3 ms
Load type EN 60947-5-1: DC-13
Short-circuit protection yes
Electrical isolation galvanic isolation to P1/P2
, voltages up to 500 VDC
Edition • 2019-01-21T18:53:49+01:00
1 / 5 TURCK Inc.
Fieldbus I/O module PROFIBUS-DP
8 Digital PNP Inputs and 8 Digital PNP Outputs 2 A
TBDP-L2-8DIP-8DOP
Standard/Directive conformity
Vibration test acceleration to 20 g
acc. to EN 60068-2-6
Shock test acc. to EN 60068-2-27
Drop and topple acc. to EN 60068-2-31/IEC 60068-2-32
Electromagnetic compatibility acc. to EN 61131-2
Approvals and certificates CE, FCC
UL Certificate cULus LISTED 21 W2, Encl.Type 1 IND.CONT.EQ.
General Information
Dimensions (W x L x H) 60.4 x 230.4 x 39mm
Operating temperature -40…+70 °C
Storage temperature -40…+85 °C
Altitude max. 5000 m
Protection class IP65
IP67
IP69K
MTTF 198 years
Housing material PA6-GF30
Housing color Black
Window material Lexan
Material screw 303 stainless steel
Material label Polycarbonate
Halogen-free yes
Mounting 2 mounting holes � 6.3 mm
Edition • 2019-01-21T18:53:49+01:00
2 / 5 TURCK Inc.
Fieldbus I/O module PROFIBUS-DP
8 Digital PNP Inputs and 8 Digital PNP Outputs 2 A
TBDP-L2-8DIP-8DOP

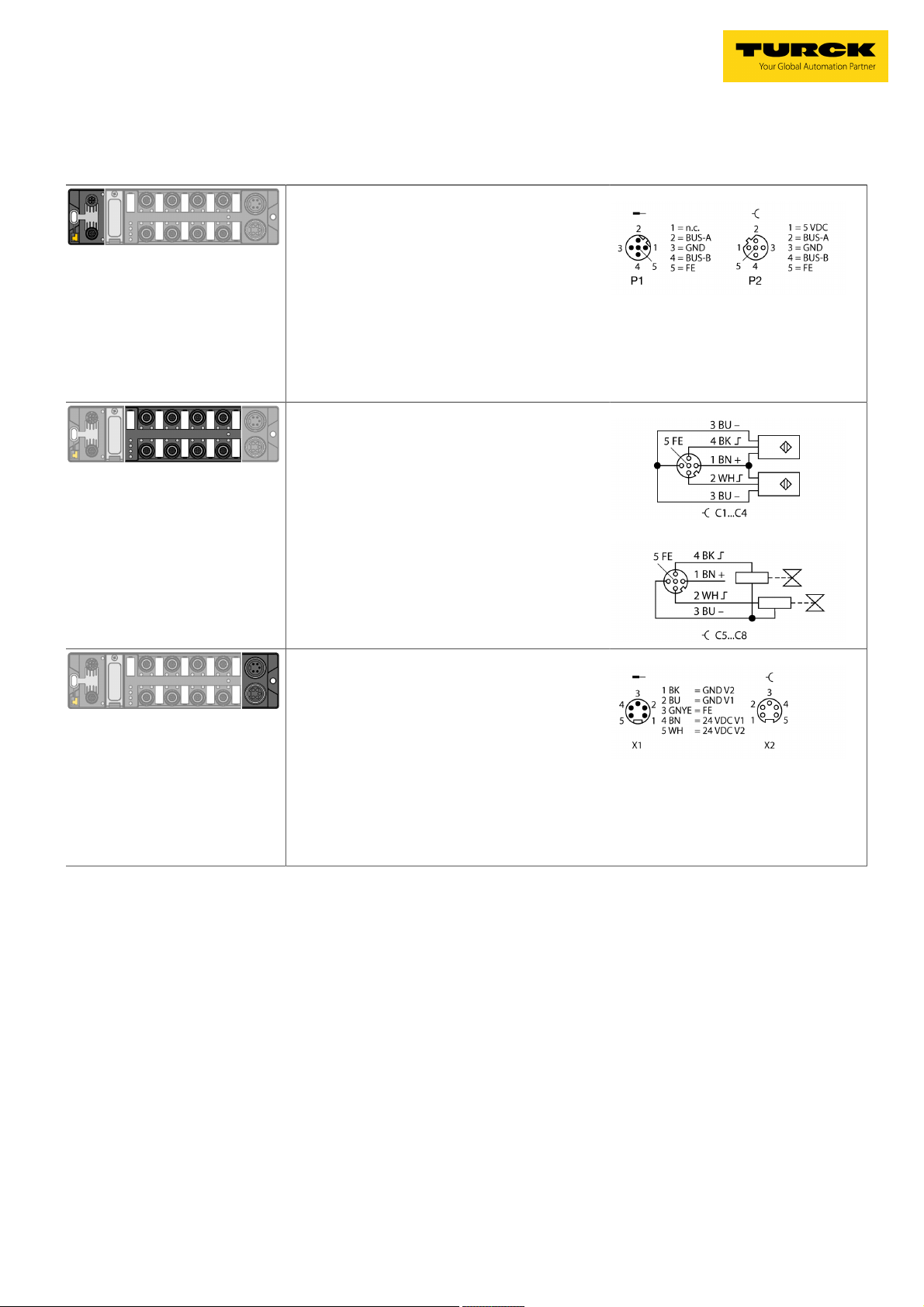

Accessories
PROFIBUS-DP cable (example):
RSSW RKSW 455-2M
Ident no. U0350
Accessories
Accessories:
Connection cable , 2-channel (example):
RK 4.4T-2-RS 4.4T
Ident no. U2445
Splitter, 1-channel (example):
YB2-FSM 4.5-2FKM 4.5
Ident no. U0875-78
M12 x 1 Fieldbus
M12 x 1 Input
M12 x 1 Output
Accessories
Power supply cable (example):
RSM RKM 50-2M
Ident no. U2282-0
7/8'' Power Supply
Edition • 2019-01-21T18:53:49+01:00
3 / 5 TURCK Inc.
Fieldbus I/O module PROFIBUS-DP
8 Digital PNP Inputs and 8 Digital PNP Outputs 2 A
TBDP-L2-8DIP-8DOP
Module LED Status
LED Color Status Description
BUS Green ON PROFIBUS online
Red ON PROFIBUS offline
OFF Power off
ERR Green ON Diagnostics disabled
Red ON Diagnostics enabled
PWR Green ON V1 and V2 power on
Red ON V2 power off or below defined tolerance of 18 V
OFF V1 power off or below defined tolerance of 18 V
LED Status I/O
LED Color Status Description
LED 1 … 8 Green ON Input active
Red flashing Power overload at the corresponding port. Both port LEDs are flashing.
OFF Input inactive
LED 9 … 16 green on Output active
red on Output active with overload / short circuit
flashing Power overload at the corresponding port. Both port LEDs are flashing.
off Output inactive
Edition • 2019-01-21T18:53:49+01:00
4 / 5 TURCK Inc.
Fieldbus I/O module PROFIBUS-DP
8 Digital PNP Inputs and 8 Digital PNP Outputs 2 A
TBDP-L2-8DIP-8DOP
Process Data Mapping of the Single Protocols
For more details on the corresponding protocols see manual.
PROFIBUS process data
Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
Inputs 0 DI8
C4P2
Outputs 0 DO16
C8P2
1 SCS8 SCS7 SCS6 SCS5 SCS4 SCS3 SCS2 SCS1Diagnostics
Input
2 SCO16 SCO15 SCO14 SCO13 SCO12 SCO11 SCO10 SCO9
DI7
C4P4
DO15
C8P4
DI6
C3P2
DO14
C7P2
DI5
C3P4
DO13
C7P4
DI4
C2P2
DO12
C6P2
DI3
C2P4
DO11
C6P4
DI2
C1P2
DO10
C5P2
DI1
C1P4
DO9
C5P4
Edition • 2019-01-21T18:53:49+01:00
5 / 5 TURCK Inc.
