Fieldbus I/O module PROFIBUS-DP
16 Digital PNP Inputs
TBDP-L2-16DIP
Type designation TBDP-L2-16DIP
Ident-No. 6814001
Supply
Supply voltage 24 VDC
Admissible range 18…30 VDC
Total current max. 9 A per voltage group V1
Voltage supply connection 5-pin male 7/8" connector X1
Sensor/Actuator supply V
Electrical isolation galvanic isolation of the voltage groups V1 and V2,
AUX1
supply of ports C1-C8 from V1
short-circuit proof, 120 mA per port
voltages up to 500 VAC

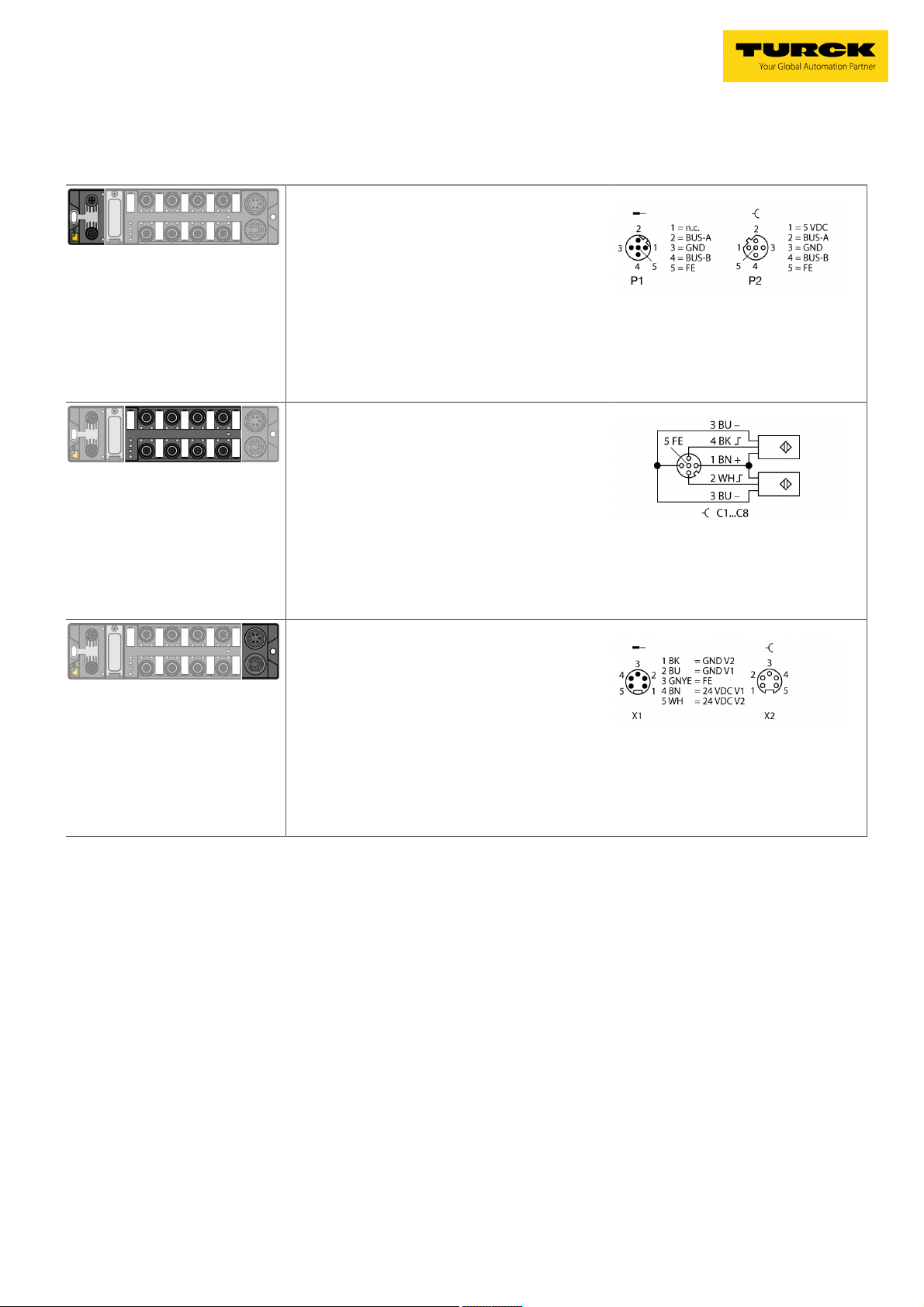

■ 2 × M12, 5-pin, B-coded, PROFIBUS-DP-
Fieldbus connection
■ 7/8" connector for power supply, 5-pin
■ Input diagnostics per port
■ Glass-fiber reinforced housing
■ Shock and vibration tested
■ Fully potted module electronics
■ Protection classes IP65 / IP67 / IP69K
System data
Fieldbus transmission rate 9.6 kbps …12 Mbps
Fieldbus connection technology 2 × M12, 5-pin, reverse-keyed
Fieldbus addressing 0…126 (decimal) via three rotary coding switches
Digital inputs
Number of channels 16
Connectivity inputs M12, 5-pin
Input type PNP
Type of input diagnostics Group diagnostics
Switching threshold EN 61131-2 Typ 3, PNP
Low level signal voltage < 5 V
High level signal voltage > 11 V
Low level signal current < 1.5 mA
High level signal current > 2 mA
Input delay 2.5 ms
Electrical isolation galvanic isolation to P1/P2
, voltages up to 500 VDC
Standard/Directive conformity
Vibration test acceleration to 20 g
acc. to EN 60068-2-6
Shock test acc. to EN 60068-2-27
Drop and topple acc. to EN 60068-2-31/IEC 60068-2-32
Electromagnetic compatibility acc. to EN 61131-2
Approvals and certificates CE, FCC
UL Certificate cULus LISTED 21 W2, Encl.Type 1 IND.CONT.EQ.
Edition • 2019-01-21T18:53:42+01:00
1 / 5 TURCK Inc.
Fieldbus I/O module PROFIBUS-DP
16 Digital PNP Inputs
TBDP-L2-16DIP
General Information
Dimensions (W x L x H) 60.4 x 230.4 x 39mm
Operating temperature -40…+70 °C
Storage temperature -40…+85 °C
Altitude max. 5000 m
Protection class IP65
IP67
IP69K
MTTF 228 years
Housing material PA6-GF30
Housing color Black
Window material Lexan
Material screw 303 stainless steel
Material label Polycarbonate
Halogen-free yes
Mounting 2 mounting holes � 6.3 mm
Edition • 2019-01-21T18:53:42+01:00
2 / 5 TURCK Inc.
