Stoneface
Turck Inc.
We reserve the right to make technical alterations without prior notice.
Turck's Stoneface sensors use a glass filled thermoset
plastic material on the sensing face that:
Protects the sensing face from abrasion
■
Is resistant to weld slag buildup that is often a result of MIG/TIG welding
■
Is available with PTFE coated barrels to shed weld slag
■
Protects against:
■
Impact
Housing 12 mm 18 mm 30 mm
Sensing Range 2 - 4 mm 5 - 8 mm 10 - 15 mm
Pages 72, 78 74, 78 76 - 78
MIG/TIG Weld
Embeddable Metal Barrel
Abrasion
71
We reserve the right to make technical alterations without prior notice.
Turck Inc.

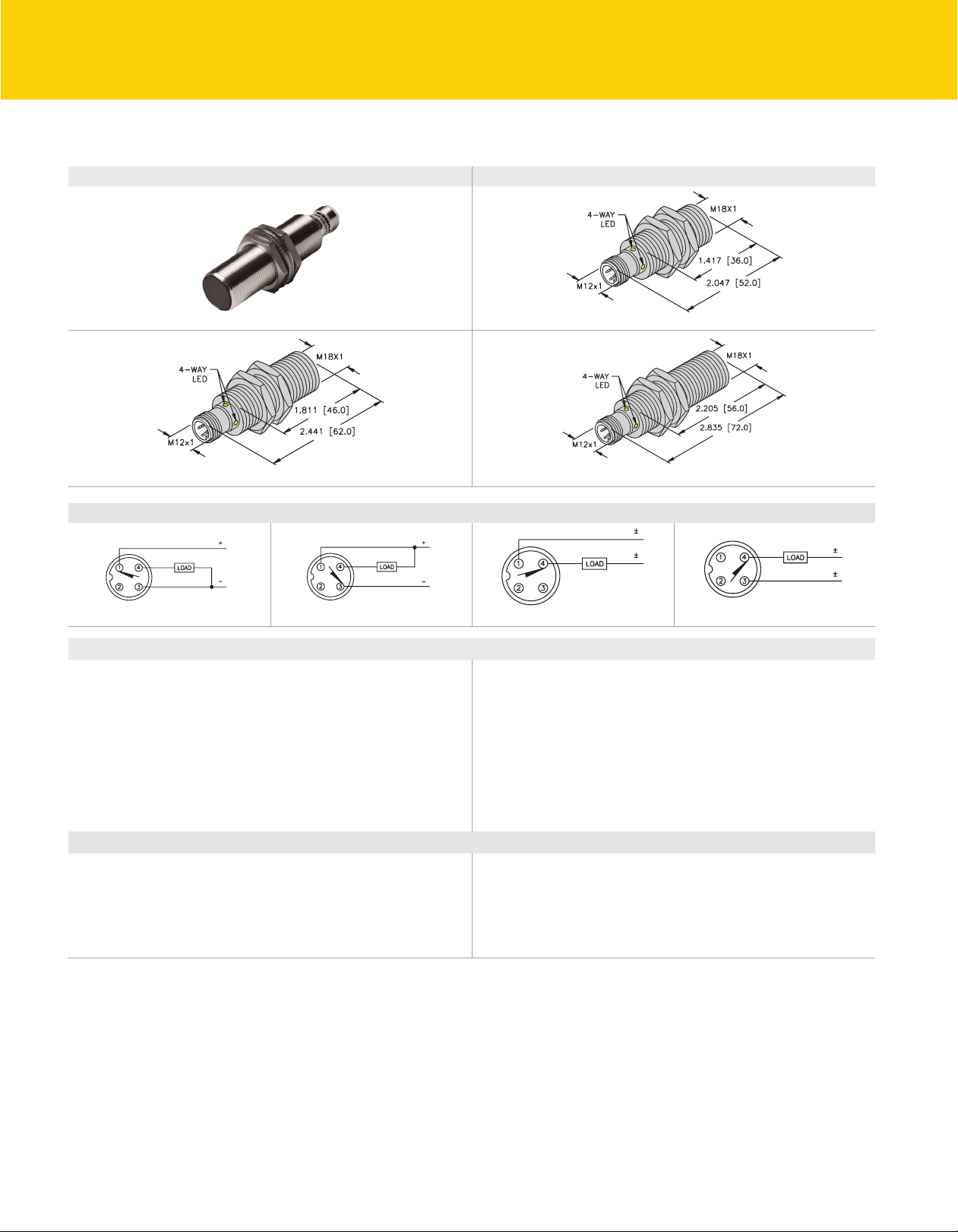

Stoneface | 12 mm
Embeddable Threaded Metal Barrels with Cable and DC Outputs
Housing Style Dimension Drawings
B
12 mm - Embeddable, M12 Eurofast Connection, Extended Barrel Length
A
12 mm - Embeddable, M12 Eurofast Connection
1
Mating Cordset: RK 4T-*; RKV 4T-*
A2
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
Time Delay Before Availability:
A3
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Minimum Load Current:
Ripple:
Ripple:
Wiring Diagrams/Mating Cordsets
2
Mating Cordset: RK 4T-*; RKV 4T-*
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox, Rectangular)
≤20 mA (Uprox+, Uprox 3)
≤8 ms
≤10%
3-15% (5% typical)
Non-polarized (AD) <5.0 V
Polarized (AG) ≤4.2 V
≥120 mA
≥3.0 mA
3
Mating Cordset: RK 4.23T-*
2-wire DC - (AD, RD, AG)
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
Off-State (Leakage) Current:
Power-On Effect:
Transient Protection:
Shock:
Vibration:
Repeatability:
4
Mating Cordset: RK 4.2T-*
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
≤0.8 mA
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
72
Stoneface
Turck Inc.
We reserve the right to make technical alterations without prior notice.
Stoneface | 12 mm
Embeddable Threaded Metal Barrels with Cable and DC Outputs
Part Number/
ID Number
BI4-MT12H-AN6X-H1141
4607194
BI4-MT12H-AP6X-H1141
4607093
BI4-MT12HE-AN6X-H1141
4607197
BI4-MT12HE-AP6X-H1141
4608093
BI3U-EM12H-AP6X-H1141
1634312
BI3U-EM12HE-AN6X2-H1141
1634311
BI3U-EM12HE-AP6X2-H1141
1634310
BI3U-MT12H-AP6X-H1141
1634212
BI3U-MT12HE-AN6X2-H1141
1634230
BI3U-MT12HE-AP6X2-H1141
1634220
BI3-MT12H-AD4X-H1144
44050983
BI3-MT12HE-AD4X-H1141
4405088
Features
PTFE 4 3-wire DC NPN 10-30 VDC 2000 ≤200 -25 to +70 IP67 TC SF N/A YE A 2 A2
PTFE 4 3-wire DC PNP 10-30 VDC 2000 ≤200 -25 to +70 IP67 TC SF N/A YE A 1 A2
PTFE 4 3-wire DC NPN 10-30 VDC 2000 ≤200 -25 to +70 IP67 TC SF N/A YE B 2 A2
PTFE 4 3-wire DC PNP 10-30 VDC 2000 ≤200 -25 to +70 IP67 TC SF N/A YE B 1 A2
Uprox 3 3-wire DC PNP 10-30 VDC 2000 ≤200 -30 to +85 IP67 SS SF N/A YE A 1 A2
Uprox 3 3-wire DC NPN 10-30 VDC 2000 ≤200 -30 to +85 IP67 SS SF GN YE B 2 A2
Uprox 3 3-wire DC PNP 10-30 VDC 2000 ≤200 -30 to +85 IP67 SS SF GN
Uprox, PTFE 3 3-wire DC PNP 10-30 VDC 2000 ≤200 -30 to +85 IP67 TC SF N/A YE A 1 A2
Uprox, PTFE 3 3-wire DC NPN 10-30 VDC 2000 ≤200 -30 to +85 IP67 TC SF GN YE B 2 A2
Uprox, PTFE 3 3-wire DC PNP 10-30 VDC 2000 ≤200 -30 to +85 IP67 TC SF GN YE B 1 A2
PTFE 3 2-wire DC 10-65 VDC 1000 ≤100 -25 to +70 IP67 TC SF N/A YE A 3 A3
PTFE 3 2-wire DC 10-65 VDC 1000 ≤100 -25 to +70 IP67 TC SF N/A YE B 4 A3
Sensing Range (mm)
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Front Cap/Face
Power LED
Output LED
YE B 1 A2
Dimension Drawings
Wiring Diagrams
Spec List
73
We reserve the right to make technical alterations without prior notice.
Turck Inc.
Stoneface | 18 mm
Embeddable Threaded Metal Barrels with Cable and DC Outputs
Housing Style Dimension Drawings
B
A
18 mm - Embeddable, M12 Eurofast Connection
C
18 mm - Embeddable, M12 Eurofast Connection
1
Mating Cordset: RK 4T-*; RKV 4T-*
A2
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
Time Delay Before Availability:
A3
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Minimum Load Current:
Ripple:
Ripple:
Wiring Diagrams/Mating Cordsets
2
Mating Cordset: RKV 4T-*
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox, Rectangular)
≤20 mA (Uprox+, Uprox 3)
≤8 ms
≤10%
3-15% (5% typical)
Non-polarized (AD) <5.0 V
Polarized (AG) ≤4.2 V
≥120 mA
≥3.0 mA
3
Mating Cordset: RK 4.23T-*
2-wire DC - (AD, RD, AG)
18 mm - Embeddable, Ext. Barrel Length, M12 Eurofast Connection
4
Mating Cordset: RK 4.2T-*
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
Off-State (Leakage) Current:
Power-On Effect:
Transient Protection:
Shock:
Vibration:
Repeatability:
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
≤0.8 mA
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
74
Stoneface
Turck Inc.
We reserve the right to make technical alterations without prior notice.
Stoneface | 18 mm
Embeddable Threaded Metal Barrels with Cable and DC Outputs
Part Number/
ID Number
BI8-EM18H-AP6X-H1141
4615094
BI8-EMT18H-AP6X-H1141
46150941
BI8-EM18HE-AN6X-H1141
4615194
BI8-EM18HE-AP6X-H1141
4614100
BI8-EMT18HE-AP6X-H1141
46150943
BI7-MT18H-AD4X-H1141
44145808
BI7-EM18HE-AD4X-H1141
44145802
BI7-MT18HE-AD4X-H1141
4414597
BI7-MT18HE-AD4X-H1144
4414598
BI5U-EM18H-AP6X-H1141
1635112
BI5U-EM18H-AN6X2-H1141/S395
1635146
BI5U-EM18H-AP6X2-H1141/S395
1635158
BI5U-MT18H-AP6X2-H1141/S395
1635220
BI5-EM18H-AP6X-H1141
4614687
Features
PTFE 8 3-wire DC PNP 10-30 VDC 500 ≤200 -25 to +70 IP67 TC SF N/A YE A 1 A2
PTFE 8 3-wire DC PNP 10-30 VDC 500 ≤200 -25 to +70 IP67 TC SF N/A YE C 1 A2
PTFE 7 2-wire DC 10-65 VDC 1000 ≤100 -25 to +70 IP67 TC SF N/A YE B 4 A3
PTFE 7 2-wire DC 10-65 VDC 1000 ≤100 -25 to +70 IP67 TC SF N/A YE C 4 A3
PTFE 7 2-wire DC 10-65 VDC 1000 ≤100 -25 to +70 IP67 TC SF N/A YE C 3 A3
Uprox 5 3-wire DC PNP 10-30 VDC 2500 ≤200 -30 to +85 IP68 SS SF N/A YE A 2 A2
Uprox 5 3-wire DC NPN 10-30 VDC 2500 ≤200 -30 to +85 IP68 SS SF GN YE B 2 A2
Uprox 5 3-wire DC PNP 10-30 VDC 2500 ≤200 -30 to +85 IP68 SS SF GN YE B 1 A2
Uprox, PTFE 5 3-wire DC PNP 10-30 VDC 2500 ≤200 -30 to +85 IP68 TC SF GN YE B 1 A2
Sensing Range (mm)
8 3-wire DC PNP 10-30 VDC 500 ≤200 -25 to +70 IP67 SS SF N/A YE A 1 A2
8 3-wire DC NPN 10-30 VDC 500 ≤200 -25 to +70 IP67 SS SF N/A YE C 2 A2
8 3-wire DC PNP 10-30 VDC 500 ≤200 -25 to +70 IP67 SS SF N/A YE C 1 A2
7 2-wire DC 10-65 VDC 1000 ≤100 -25 to +70 IP67 SS SF N/A YE C 4 A3
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Front Cap/Face
Power LED
Output LED
Dimension Drawings
Wiring Diagrams
5 3-wire DC PNP 10-30 VDC 500 ≤200 -25 to +70 IP67 SS SF N/A YE A 1 A2
Spec List
75
We reserve the right to make technical alterations without prior notice.
Turck Inc.

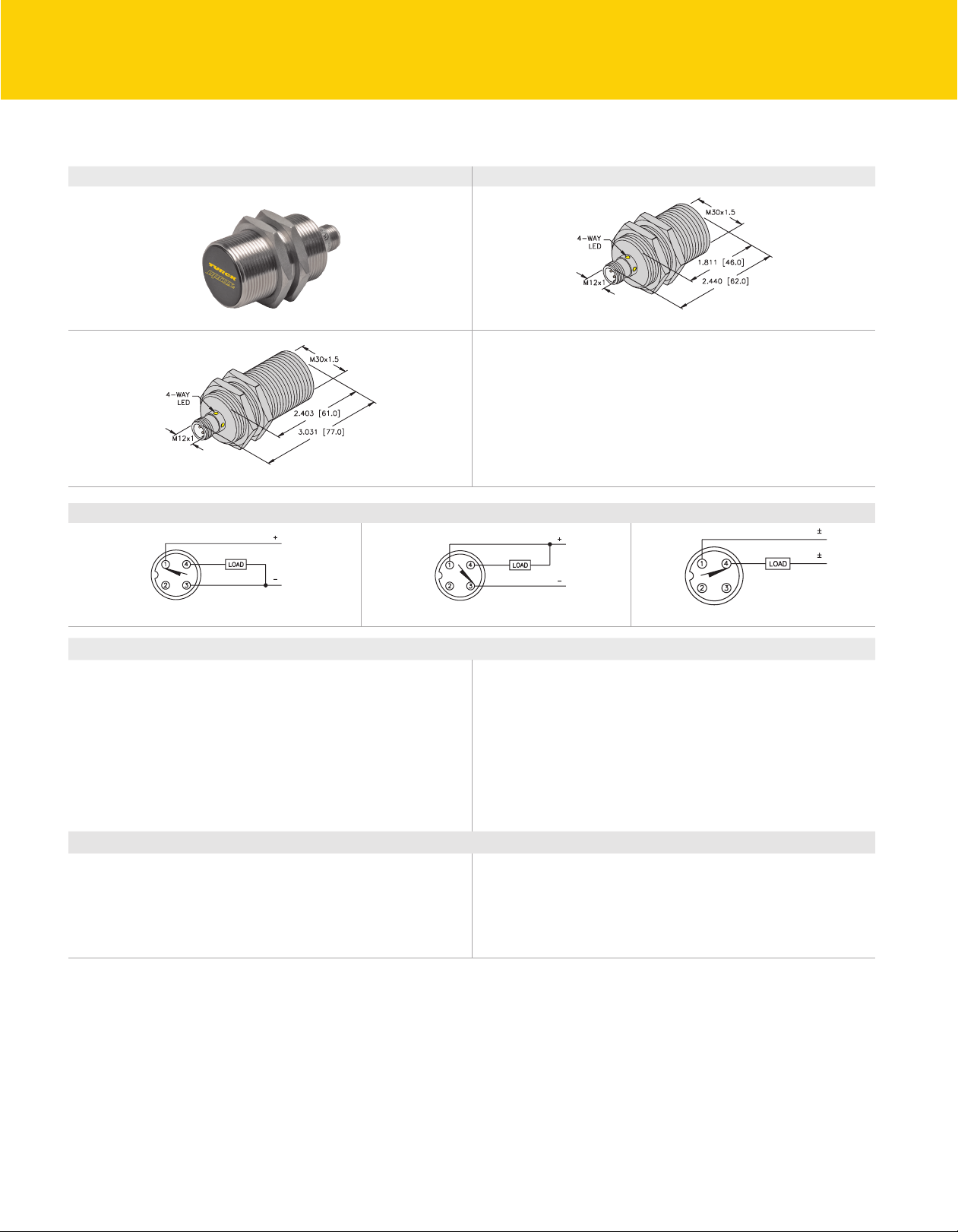

Stoneface | 30 mm
Embeddable Threaded Metal Barrels with Cable and DC Outputs
Housing Style Dimension Drawings
B
30 mm - Embeddable, M12 Eurofast Connection, Extended Barrel Length
A
30 mm - Embeddable, M12 Eurofast Connection
1
Mating Cordset: RK 4T-*; RKV 4T-*
A2
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
Time Delay Before Availability:
A3
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Minimum Load Current:
Ripple:
Ripple:
Wiring Diagrams/Mating Cordsets
2
Mating Cordset: RKV 4T-*
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox, Rectangular)
≤20 mA (Uprox+, Uprox 3)
≤8 ms
2-wire DC - (AD, RD, AG)
≤10%
3-15% (5% typical)
Non-polarized (AD) <5.0 V
Polarized (AG) ≤4.2 V
≥120 mA
≥3.0 mA
3
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
Off-State (Leakage) Current:
Power-On Effect:
Transient Protection:
Shock:
Vibration:
Repeatability:
Mating Cordset: RK 4.23T-*
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
≤0.8 mA
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
76
Stoneface
Turck Inc.
We reserve the right to make technical alterations without prior notice.
Stoneface | 30 mm
Embeddable Threaded Metal Barrels with Cable and DC Outputs
Part Number/
ID Number
BI15-EMT30H-AP6X-H1141
4618570
BI15-EM30H-AN6X-H1141
4618692
BI15-EM30H-AP6X-H1141
4618592
BI12-MT30H-AD4X-H1144
4417095
BI10U-MT30H-AP6X2-H1141
1636220
BI10U-EM30HE-AP6X2-H1141
1636415
Features
PTFE 15 3-wire DC PNP 10-30 VDC 300 ≤200 -25 to +70 IP67 TC SF N/A YE A 1 A2
PTFE 12 2-wire DC 10-65 VDC 500 ≤100 -25 to +70 IP67 TC SF N/A YE A 3 A3
Uprox, PTFE 10 3-wire DC PNP 10-30 VDC 1000 ≤200 -30 to +85 IP67 TC SF GN YE A 1 A2
Uprox 10 3-wire DC PNP 10-30 VDC 2000 ≤200 -30 to +85 IP67 SS SF GN YE B 1 A2
Sensing Range (mm)
15 3-wire DC NPN 10-30 VDC 300 ≤200 -25 to +70 IP67 SS SF N/A YE A 2 A2
15 3-wire DC PNP 10-30 VDC 300 ≤200 -25 to +70 IP67 SS SF N/A YE A 1 A2
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Front Cap/Face
Power LED
Output LED
Dimension Drawings
Wiring Diagrams
Spec List
77
We reserve the right to make technical alterations without prior notice.
Turck Inc.

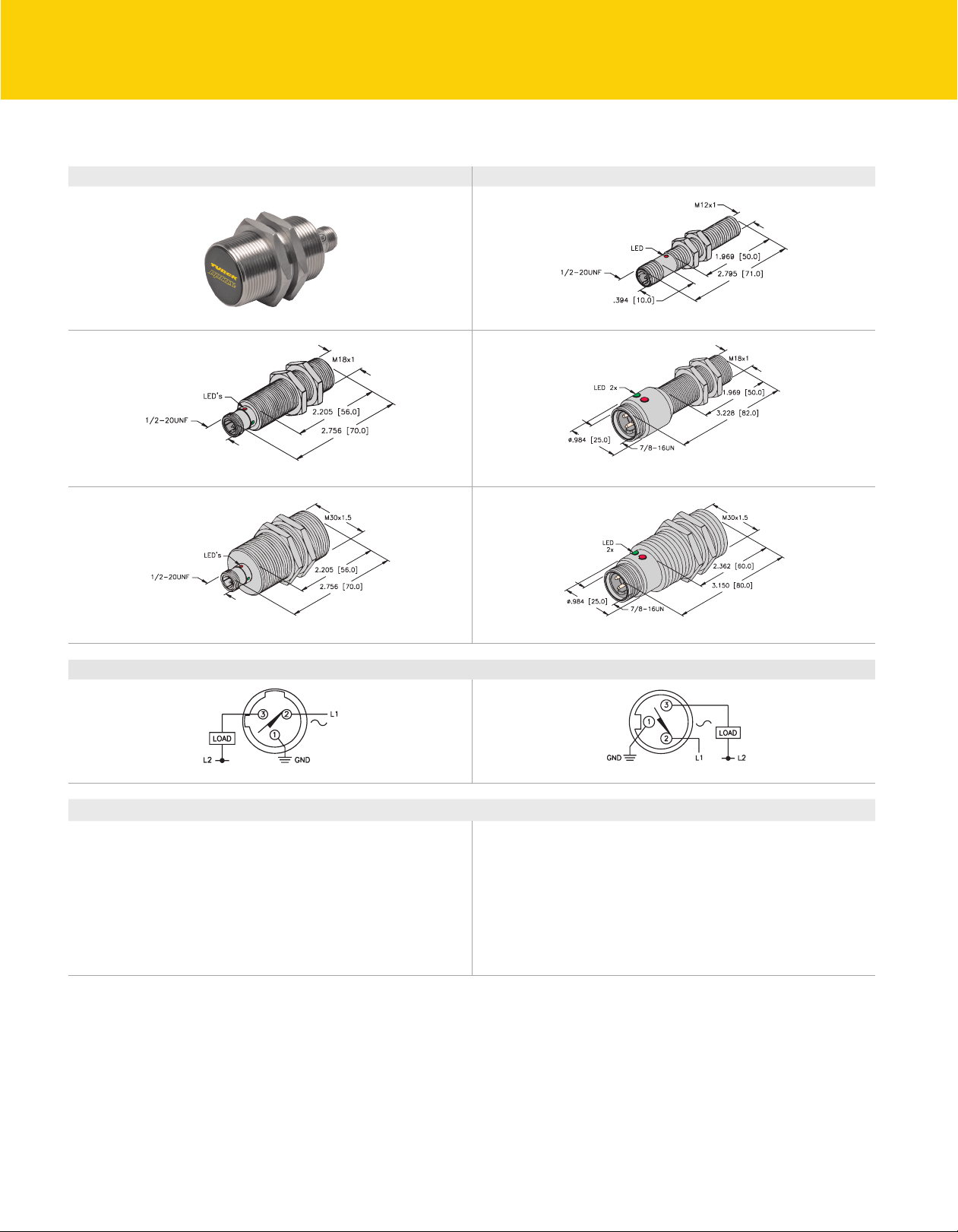

Stoneface | 12, 18, and 30 mm
Embeddable Threaded MetalBarrels with Connector and AC/DC Outputs
Housing Style Dimension Drawings
A
B
C
12 mm - Embeddable, 1/2" Microfast Connection
18 mm - Embeddable, 1/2" Microfast Connection
D
30 mm - Embeddable, 1/2" Microfast Connection
1
Mating Cordset: KB 3T-*
A4
Line Frequency:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Continuous Load Current:
Off-State (Leakage) Current:
E
Wiring Diagrams/Mating Cordsets
2
2-wire AC/DC w/ Short-Circuit Protection - (ADZ, RDZ, FDZ, VDZ)
≥50... ≤60 Hz
3-15% (5% typical)
≤6.0 V
AC: ≥440 mA; DC: ≥330 mA
AC: ≥120 mA; DC: ≥120 mA
AC: ≤400 mA; DC: ≤300 mA
AC: ≤100 mA; DC: ≤100 mA
≤1.7 mA (AC)
≤1.5 mA (DC)
18 mm - Embeddable, 7/8" Minifast Connection
30 mm - Embeddable, 7/8" Minifast Connection
Mating Cordset: RKM 30-*M
Minimum Load Current:
Inrush Current:
Power-On Effect:
Transient Protection:
Shock:
Vibration:
Repeatability:
≥3.0 mA
≤3 A (≤20 ms, max 5 Hz)
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤2% of Rated Operating Distance
78
Stoneface
Turck Inc.
We reserve the right to make technical alterations without prior notice.
Stoneface | 12, 18, and 30 mm
Embeddable Threaded MetalBarrels with Connector and AC/DC Outputs
Part Number/
ID Number
BI4-GT12H-ADZ32X-B3131
4205097
BI2-GT12H-ADZ32X-B3131/S34
4205093
BI5-GT18H-ADZ30X2-B3331/S34
4255289
BI5-GT18H-ADZ30X2-B1331/S34
4255299
BI10-GT30H-ADZ30X2-B3131/S34
4256094
BI15-EG30H-ADZ30X2-B3131
4207284
BI15-EG30H-ADZ30X2-B1131
4207292
Features
PTFE 4
PTFE,
WFI
PTFE,
WFI
PTFE,
WFI
PTFE,
WFI
Sensing Range (mm)
2-wire AC/DC
Short-Circuit Protected
2-wire AC/DC
2
Short-Circuit Protected
2-wire AC/DC
5
Short-Circuit Protected
2-wire AC/DC
5
Short-Circuit Protected
2-wire AC/DC
10
Short-Circuit Protected
2-wire AC/DC
15
Short-Circuit Protected
2-wire AC/DC
15
Short-Circuit Protected
Output
Voltage
20-250 VAC/10-300
VDC
20-250 VAC/10-300
VDC
20-250 VAC/10-300
VDC
20-250 VAC/10-300
VDC
20-250 VAC/10-300
VDC
20-250 VAC/10-300
VDC
20-250 VAC/10-300
VDC
Switching Freq. (Hz)
Operating Current (mA)
20 ≤100 -25 to +70 IP67 TC SF N/A RD A 1 A4
20 ≤100 -25 to +70 IP67 TC SF N/A RD A 1 A4
20 ≤400/300 -25 to +70 IP67 TC SF GN RD B 1 A4
20 ≤400/300 -25 to +70 IP67 TC SF GN RD C 2 A4
20 ≤400/300 -25 to +70 IP67 TC SF GN RD D 1 A4
10 ≤400/300 -25 to +70 IP67 SS SF GN RD D
10 ≤400/300 -25 to +70 IP67 SS SF GN RD E 2 A4
Operating Temp. (°C)
Protection
Housing
Front Cap/Face
Power LED
Output LED
Dimension Drawings
Wiring Diagrams
1 A4
Spec List
79
Loading...
