Splitters
M12 Eurofast® 4-Branch Splitters, Standard Wiring
y Combine four Sensors into one Cable
y Tough TPU Construction
y For 3-wire DC Sensors or Switches

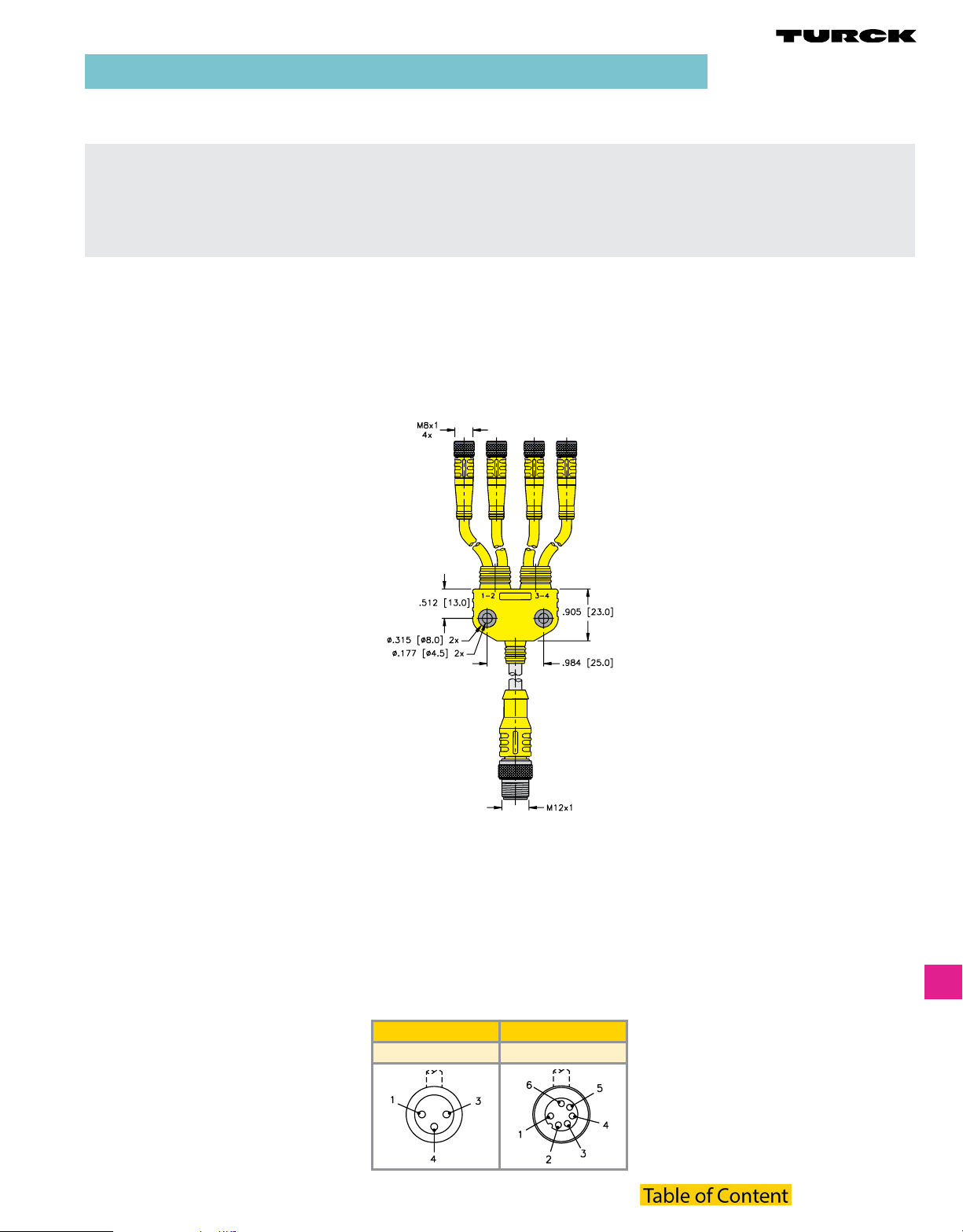

Housing Part Number Features Wiring Diagram
V6RSC-*/PKG3M-*/*/*/*
60 VAC/75 VDC, 2.0 A, RSC 6T = Grey PVC, 5.7 mm
OD, 6x24 AWG, PKG = Yellow PVC, 4.4 mm OD, 3x24
AWG, combine four sensors into one cable
Standard
We reserve the right to make technical alterations without prior notice.
* Length in meters.
Wiring Diagram
V24 B2007 www.turck.com • 1-800-544-7769 • Fax: (763) 553-0708 • Turck • Minneapolis, MN 55441 B2007 V25
Splitters
M12 Eurofast® 4-Branch Splitters, Standard Wiring
Specications
Junction Body: Oil resistant yellow TPU Coupling Nuts:
Connector:
Contacts:
Cable Length:
Cable Options:
Connector Options:
Notes:
Oil resistant TPU body material, Nylon or TPU contact
carrier
Gold plated brass
Trunk - nominal 1 meter. Branches - nominal 0.3 meters. Other lengths available by request - consult factory.
Standard cable jacket - grey PVC. TPU and other jackets available by request - consult factory.
(for legs with cable)
Stainless steel coupling nut add “V” to part number (PKG to PKGV).
Mounting hole accepts #8 screw.
V6RSC-*/PKG3M-*/*/*/*
Cable:
Temperature:
Protection:
Nickel plated brass
See table
-40 °C to +105 °C (-40 °F to +221 °F)
IEC IP67
We reserve the right to make technical alterations without prior notice.
Splitters
Pinouts
3-Pin 6-Pin
Female Male
B2007 V25
