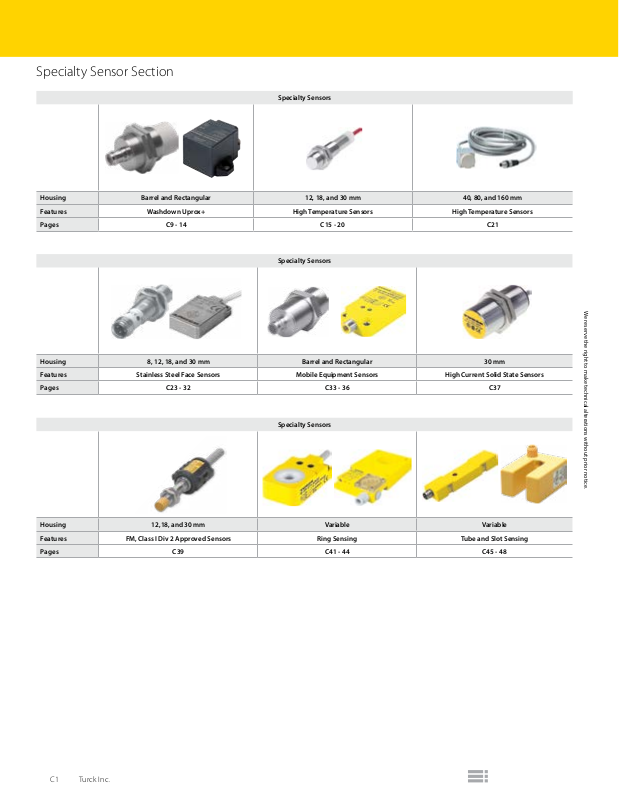

Specialty Sensor Section
Specialty Sensors
Housing Barrel and Rectangular 12, 18, and 30 mm 40, 80, and 160 mm
Features Washdown Uprox+ High Temperature Sensors High Temperature Sensors
Pages C9 - 14 C15 - 20 C21
Specialty Sensors
Housing 8, 12, 18, and 30 mm Barrel and Rectangular 30 mm
Features Stainless Steel Face Sensors Mobile Equipment Sensors High Current Solid State Sensors
Pages C23 - 32 C33 - 36 C37
We reserve the right to make technical alterations without prior notice.
Specialty Sensors
Housing 12,18, and 30 mm Variable Variable
Features FM, Class I Div 2 Approved Sensors Ring Sensing Tube and Slot Sensing
Pages C39 C41 - 44 C45 - 48
C1
Turck Inc.
Specialty Sensor SeIection Guide
Specialty Sensors
Housing 12 mm 80 and 130 mm 130 mm
Features Weld Nut Detection Sensor Edge Detection Sensing Can Line Sensing
Pages C49 C51 - 54 C55
Specialty Sensors
Housing 8, 12, and 18 mm 18 mm Barrel and Rectangular
Features Magnetic Inductive Sensing Submersible Selective Metal Sensing
Pages C57 - 60 C61 C63 - 66
Specialty Sensors
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Housing 12 and 18 mm 18 and 30 mm
Features In Cylinder Sensor Rotational Speed Monitoring
Pages C67 C69
Turck Inc.
C2
Specialty Sensor Part Number Key
B I 10 U - G T 30 - A DZ 30 X2 Wiring Option* Special Option Code**
Mounting
B = embeddable
BID = high pressure sensor
N = nonembeddable
S = slot
Principle of Operation
I = inductive
IM = inductive magnet operated
Rated Operating Distance (mm)
Sensing Characteristics
FE = ferrous only
R = ring sensor
U =Uprox® Sensor
Housing Material Modier
E = stainless steel
Housing Style
Barrel - Metal
G = full threading, generally chrome plated brass
H = smooth, chrome plated brass or stainless steel
M = partial threading, chrome plated brass
Barrel - Plastic
K = smooth
P = full threading
S = partial threading
Rectangular
Q = metal or plastic, various rectangular styles
Limit Switch
CA = stubby ®, short aluminum housing, connector
CK = stubby ®, short plastic housing, connector
Slot
K = slot sensor, plastic housing
Ring
32SR = large plastic housing, static or dynamic output
Q = small rectangular plastic housing, static output
W = small plastic housing, dynamic output
Primary Barrel Modier
T = PTFE® coated
Housing Diameter or Height (mm)
Number of LEDs
(blank) = no LEDs
X = 1 LED
X2 = 2 LEDs
Voltage Range
AC/DC: (No SCP**)
3 = 20-250 VAC, 10-300 VDC
AC/DC: (Latched SCP)
30 = 20-250 VAC, 10-300 VDC 400 mA
DC:
4 = 10-65 VDC, polarity protected, pulsed SCP**
6 = 10-30 VDC, polarity protected, pulsed SCP
44 = 10-55 VDC
45 = 8.4-65 Volts
Output
D = 2-wire DC (transistor output)
DZ = 2-wire AC/DC, (power MOSFET output)
N = NPN transistor (current sinking)
P = PNP transistor (current sourcing)
Z = 2-wire AC or 2-wire AC/DC
M = high current solid state relay
Output Function
A = normally open (N.O.)
DA = dynamic output (ring sensor), normally open
R = normally closed (N.C.)
U = jumper programmable (N.O. or N.C.)
V = complementary outputs: one N.O., one N.C.
Y0 = NAMUR output, requires switching amplier
Y1 = NAMUR output, requires switching amplier, ATEX approved
Secondary Barrel Modier
E = extended barrel length
EE = extra long barrel length
FE = stainless steel face, extended barrel length
FM = stainless steel face, medium barrel length
M = medium barrel length
TC = terminal chamber
WD = washdown IP67/IP68/IP69K
F = stainless steel face, standard length
We reserve the right to make technical alterations without prior notice.
NOTE:
Part number keys are to assist in identication only.
Verify new part numbers with factory; some congurations are not possible.
* See next page Wiring Options and Special Option Codes.
C3
Turck Inc.
Specialty Sensor Part Number Key
Wiring Options*
A. Connectorized Sensor
Connector Family
B1 = Minifast®, 7/8”-16UN, metal, male
B2 = Minifast , 7/8”-16UN, plastic, male
B3 = Microfast®, 1/2”-20UNF, metal, male
H1 = Eurofast®, M12x1, metal or plastic, male
V1 = Picofast®, snap and M8x1, metal, male (Q08 snap only)
V2 = Picofast , snap and M8x1, male (Q08 only)
Connector/Sensor Transition
1 = straight
3 = straight with adapter
4 = right-angle with adapter
Bi2 - M12 - AN6X2 - H1 1 4 1
Wiring Conguration
Example:
0 = non-standard wiring
1 = standard wiring
3 = N.C. DC output on pin 4 (for US)
4 = N.O. 2-wire DC output on pin 4
Number of Pins
3 = 3
4 = 4
5 = 5
B. Potted Cable
Special Option Codes**
Example:
/S90 = TPU cable
/S97 = -40 °C (-40 °F) operating temperature
/S100 = +100 °C (+212 °F) operating temperature
/S120 = +120 °C (+248 °F) operating temperature
/S139 = submersible
/S907 = +160 °C (+320 °F) operating temperature
/S1009 = 250 ms internal o delay
/S1102 =+250 °C (+482 °F) operating temperature
/S1751 = approved for FM Class I, Div 2, groups A, B, C, and D
We reserve the right to make technical alterations without prior notice.
Bi2 - G12 - AN6X 7M
Cable Length
(blank) = 2 meter cable
7M = 7 meter cable
*M = custom cable lengths available
Bi 2-S12-AN7X /S100 or Bi10R-W30-DAN6X-H1141 /F2
Example:
/F2 = alternate oscillator frequency
Specialty Sensors
Turck Inc.
C4
Specialty Sensors
Uprox+ Washdown Sensors
The Uprox+ Washdown product family is with a full line of inductive sensors that senses all metals
at the same range (no correction factor), extended temperature rating from -40 to +100 °C, robust
construction with IP68 and IP69k sealing ratings, and housing materials compatible with common
acidic and alkaline chemicals used in Food and Beverage applications.
Sensors with Extended Temperature Range
Turck oers sensors for applications that withstand extreme temperatures of -40 to +250 °C.
Typically, these sensors are used in applications like cold storage facilities, metal foundries, glass
making, outdoor applications, and in painting shops in the automotive industry.
We reserve the right to make technical alterations without prior notice.
Stainless Steel Face Sensors
Inductive sensors with one piece stainless steel faced barrels are ideal for applications where
physical impact is common or where ingress through the sensing face is a concern. The sensors
are available in barrel diameters from 8 mm to 30 mm, standard and extended sensing ranges,
rated IP68/IP69K, with optional coatings for welding environments, and 2 and 3-wire designs.
Mobile Equipment Sensors
Position sensing applications in mobile equipment have dierent electrical requirements than
what is common for industrial sensors. Turck designs and manufactures a diverse line of inductive
sensors that meet or exceed the industry requirements for sealing (IP68/IP69K), load dump
protection, resistance to shock, vibration, EMC immunity, extended temperature range, wide
operating voltage, and extended sensing range.

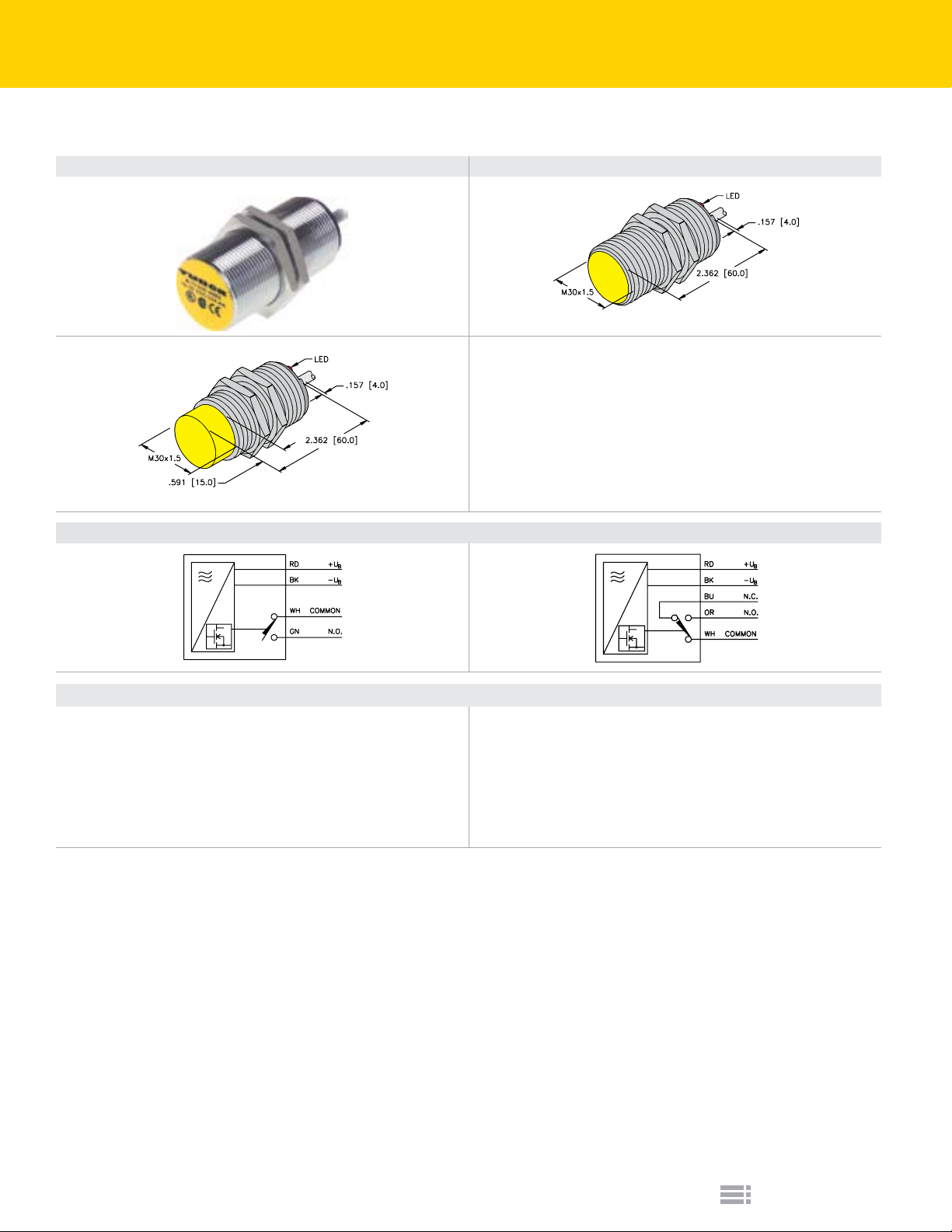

Inductive Sensor with 6 A Rated Output
This 30 mm mobile equipment sensor uses a MOSFET component to switch up to 6 amps of
current with either a normally open output or a complementary normally open and closed
output in a stainless steel housing. The sensor can be congured as an embeddable or
nonembeddable sensor.
C5
Turck Inc.
Specialty Sensors
FM Class I Div 2
The new FM approval standard permits the use of quick disconnect with a lock fast accessory
equipped sensor being used in Class I Div 2, Groups A, B, C, D. The ability to use quick
disconnect will enable users to install sensors faster and at a lower cost than traditional
conduit methods. We also oer approved cordsets with Eurofast or Minifast connectors
(when used with a Lokfast guard). All cables have the ITC-ER rating. For applications where
conduit is preferred, we oer sensors with potted-in ITC rated cables.

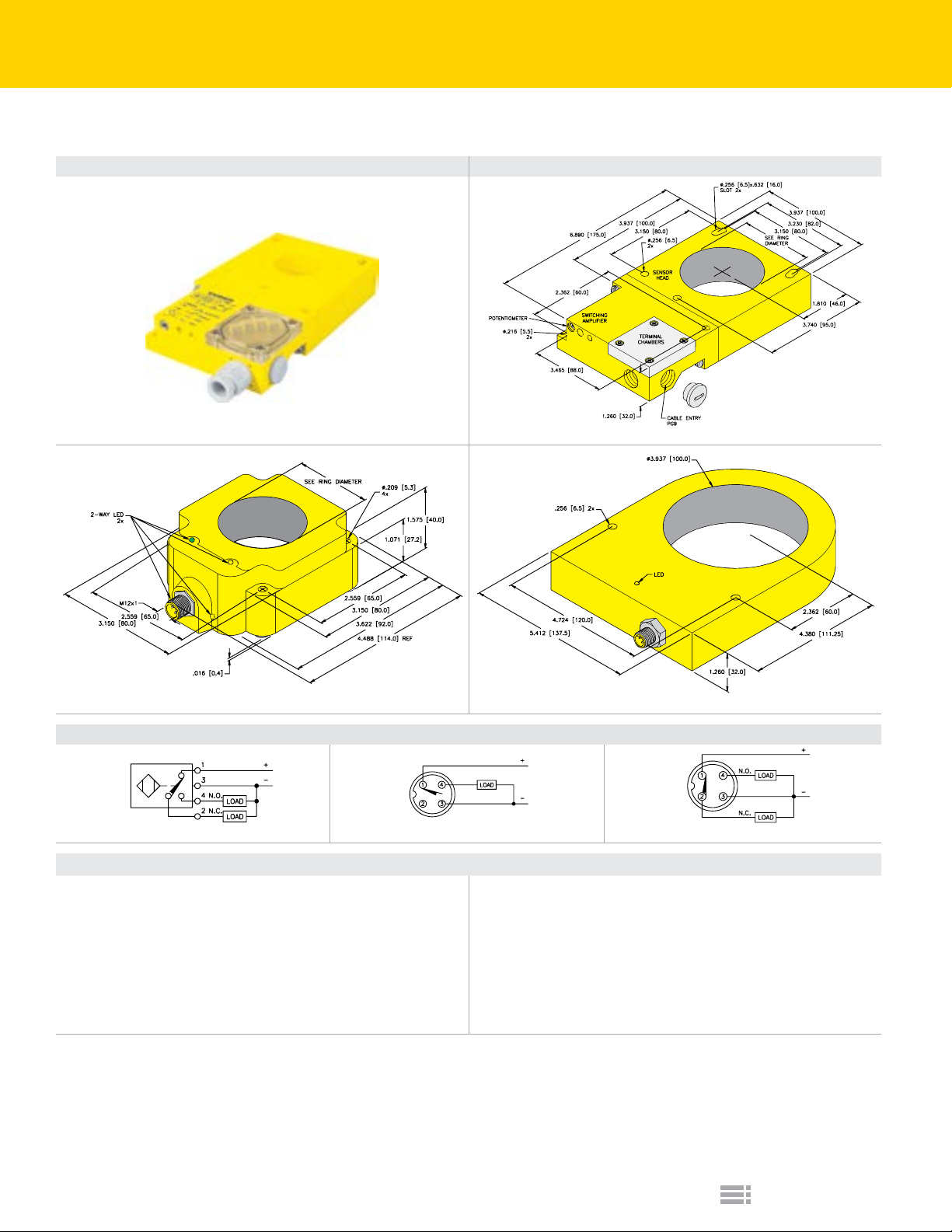

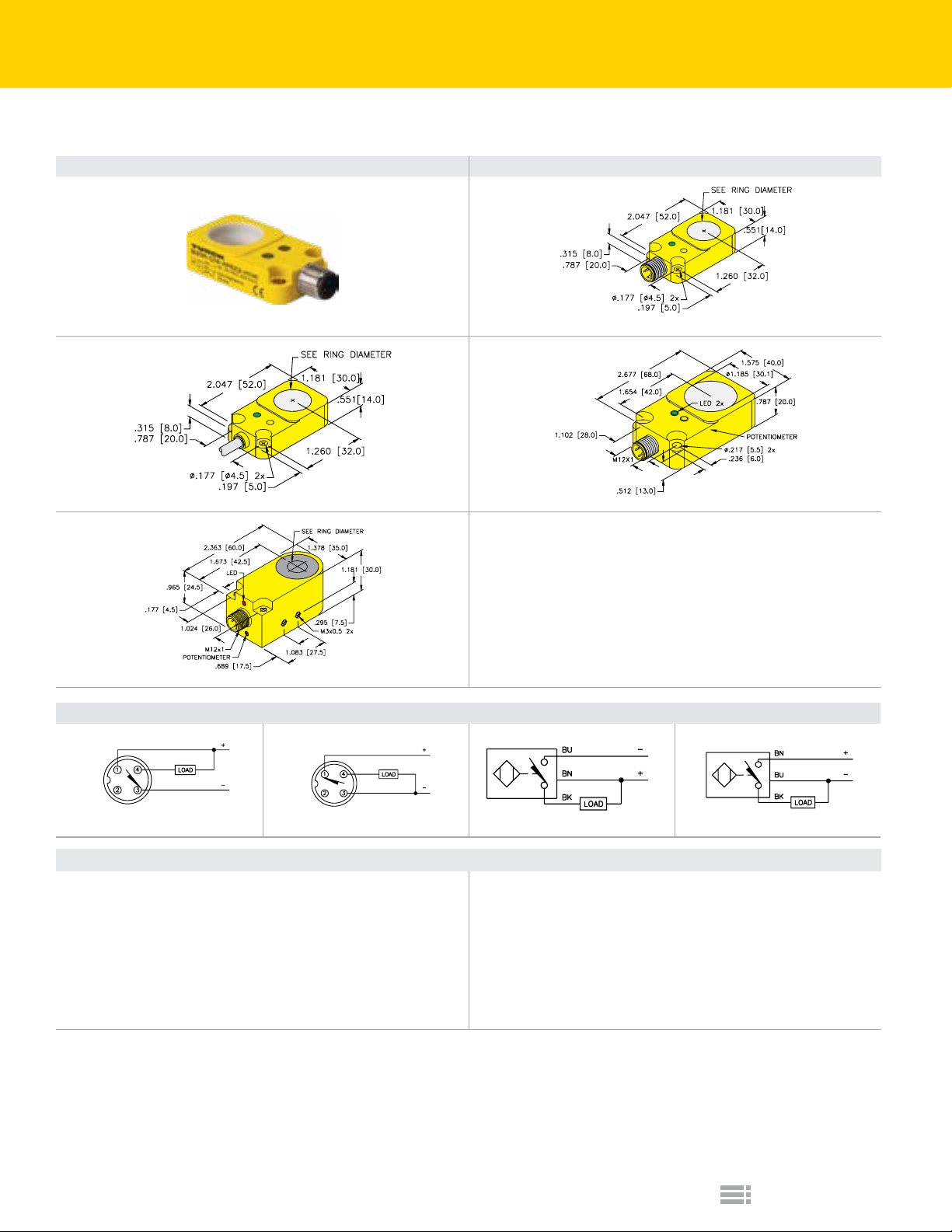

Inductive Ring Sensor
Turck oers a variety of ring sensor designs that detect a wide variety of target sizes,
with sensor outputs to solve either static or dynamic part feeding applications. In addition
to our six dierent ring sensor housings, Turck oers the TS12 Uprox®+ sensor, which senses
all metals at the same range while functioning like a ring sensor but can be strapped onto a
tube to simplify installation.

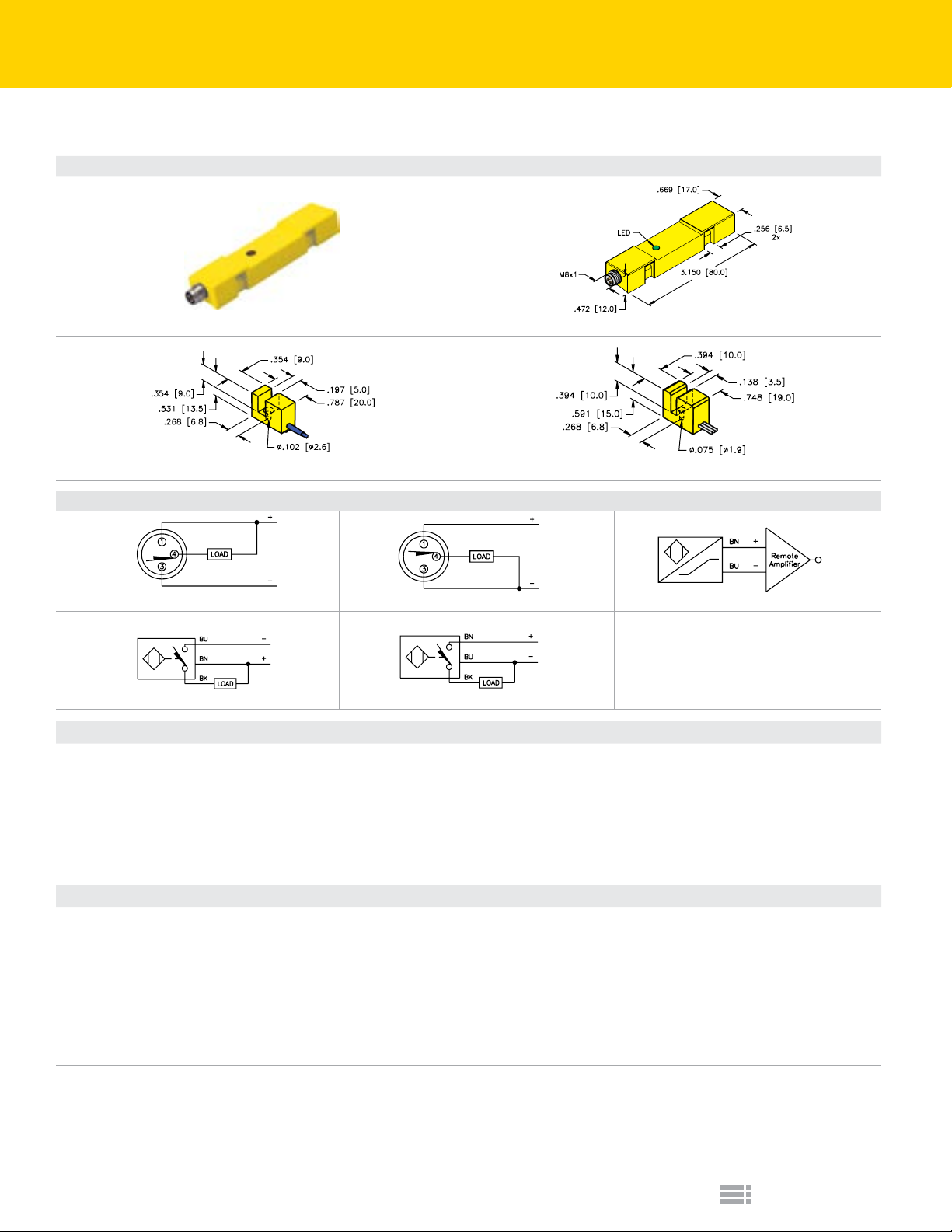

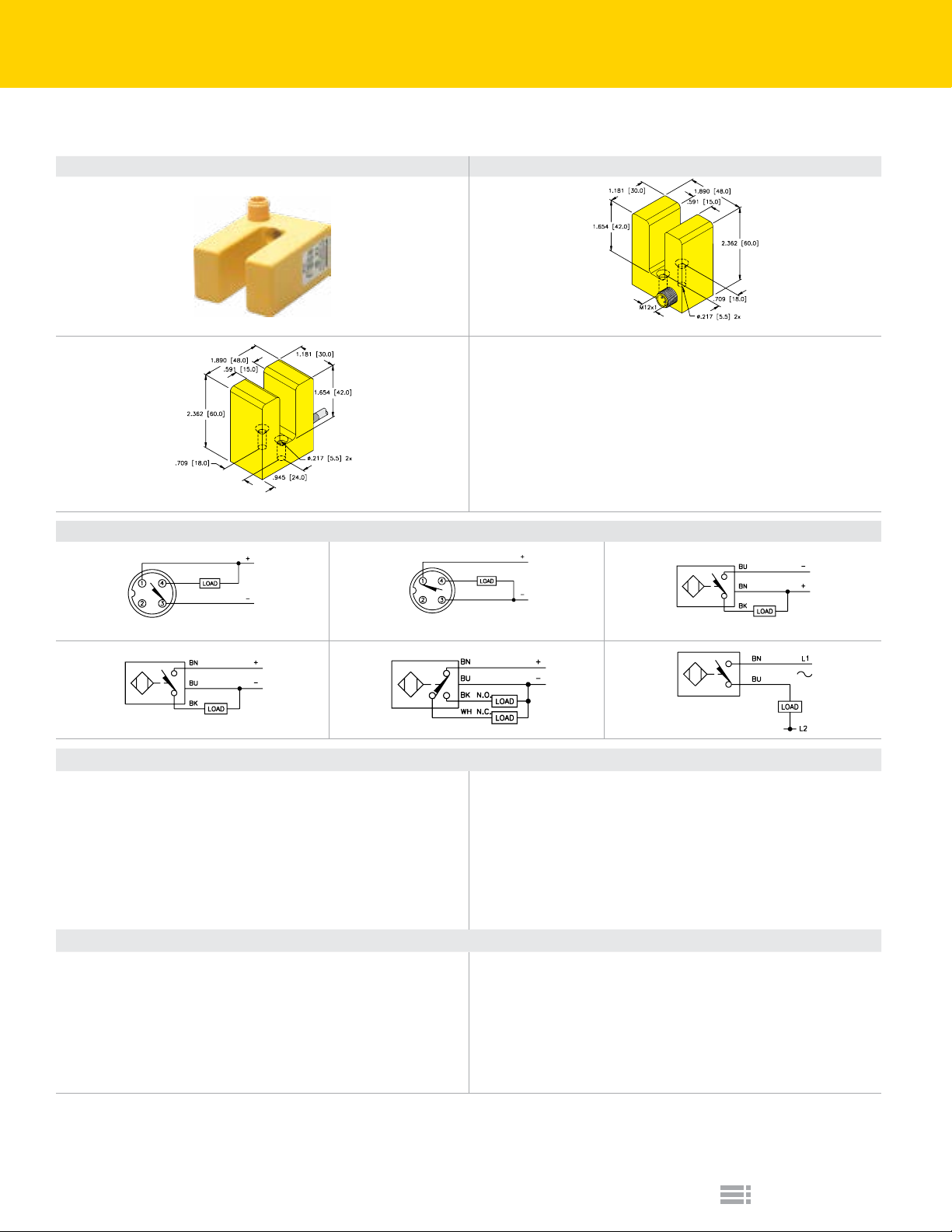

Inductive Slot Sensors
Turck’s slot sensors incorporate a U-shaped design with the active sensing face between the
two arms. If the object being detected moves into the U-shaped area, the sensor is actuated.
Slot sensors are capable of securely detecting targets whose distance from the active face is
not clearly dened upon side approach.
Weld Nut Sensors
We reserve the right to make technical alterations without prior notice.
Turck’s magnetic weld nut sensors provide ecient and economical detection of weld
nuts in automotive applications. The sensors detect ferromagnetic components, such as
nuts, bushings and spacer sleeves, to ensure these components are present before robotic
welding occurs. These sensors are less complex than existing devices that require additional
software or electronics to detect the target.

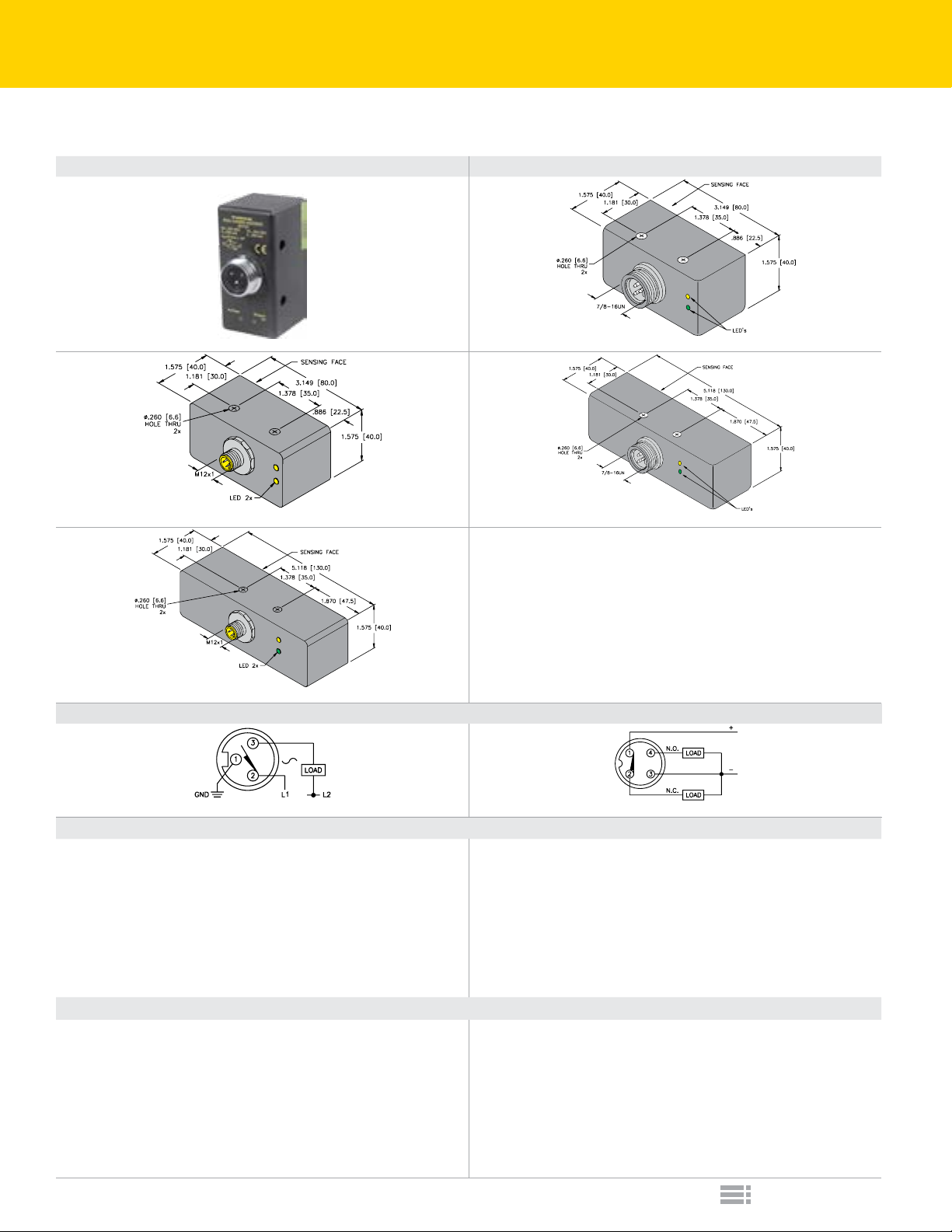

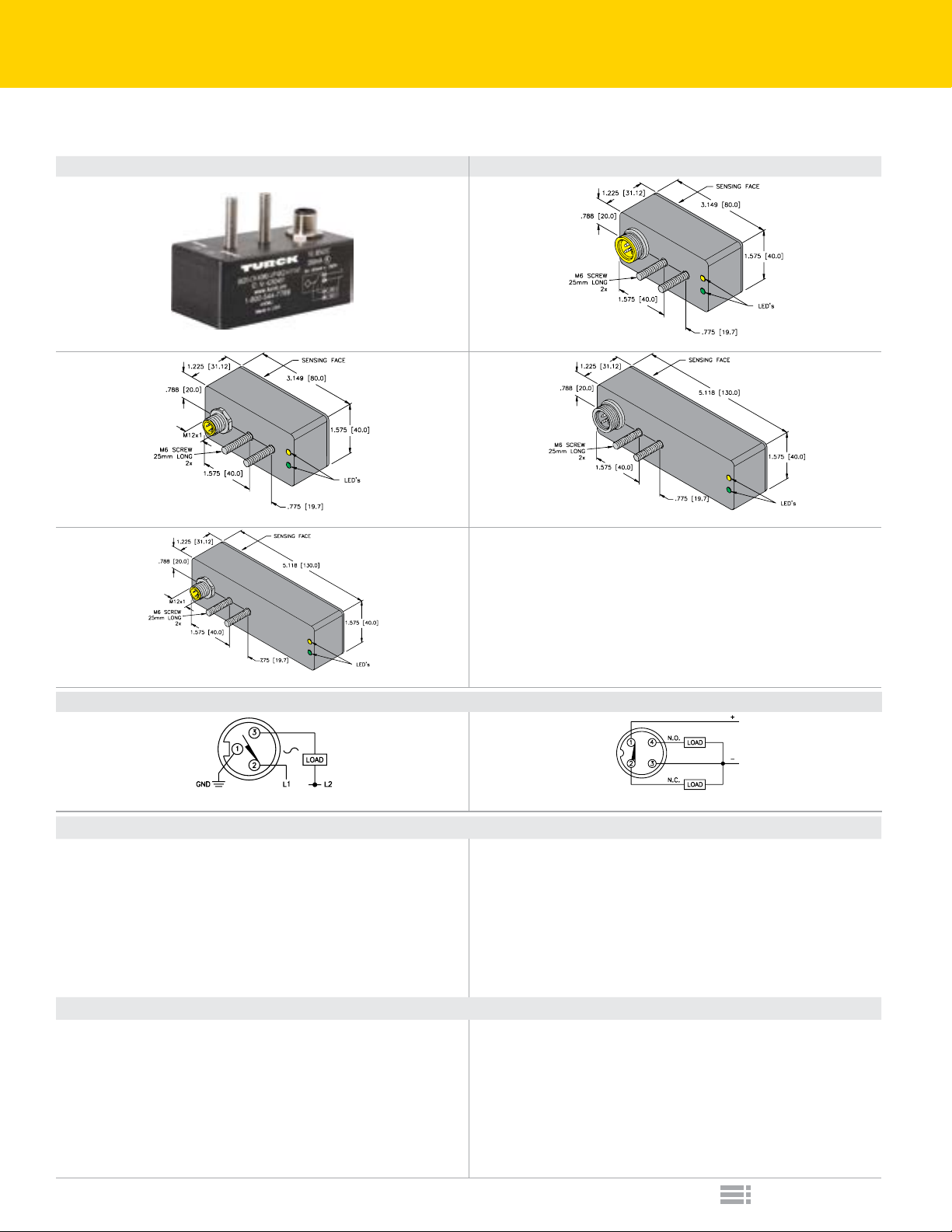

Can and Edge Detection Sensor
Turck’s Q130 sensor is designed for easy mounting on metal can conveying systems to help
detect jam ups or lack of metal cans in the conveyor, while the CK4080 and CK40130 sensors
are optimized to detect the edges of metal sheets commonly used in transfer presses found
in automotive or white goods stamping applications.
Specialty Sensors
Turck Inc.
C6
Specialty Sensors
Inductive-Magnetic Proximity Sensors
Turck’s line of BIM barrel sensors are designed to work with external magnets and can be used
to solve a wide variety of sensing applications, especially where the user would like long sensing
ranges (up to 90 mm with DMR31-15-5 magnet) in small housings, such as 8 or 12 mm.
Submersible Inductive Sensors
These sensors are rated for submersion in water depths up to 500 meters. The materials used to
construct this 18 mm diameter sensor are seawater resistant. Available in a variety of sensing
ranges and outputs.
Selective Metal Sensors
We reserve the right to make technical alterations without prior notice.
Standard inductive sensors sense all metals. Turck’s family of selective metal inductive sensors
oer a reliable solution for applications where the user wants to detect ferrous metals or
non-ferrous metals only.
In-Cylinder Inductive Sensors
These inductive sensors are designed for use in a hydraulic cylinder to detect extended or
retracted positions. Available in M12 or M18 barrels, these senors can withstand static pressures
up to 7,250 psi.
Rotational Speed Sensors
Rotational speed sensors are designed to work with a rotating metal target like a keyway or
sprocket. These sensors feature a simple potentiometer for adjusting the set point and are
ideal for monitoring applications where the user wants to monitor under speed or over speed
conditions. If the speed is below the set point the output is o, and if the speed is above the set
point the output turns on.
C7
Turck Inc.
Specialty Sensors
Ring and Tube Sensor Mounting Characteristics
Sensor Type A B C D
Bi6R-Q14 0 14 45 45
Bi6R-W30 120 6 120 120
Bi10R-Q14 30 14 45 45
Bi10R-W30 120 10 120 120
Bi15R-Q14 30 14 45 45
Bi15R-W30 120 15 120 120
Bi20R-Q14 30 14 45 45
Bi20R-W30 120 20 120 120
Ni20R-S32SR 150 150 150 150
Bi30R-Q20 40 20 55 55
Bi30R-W30 120 30 120 120
Ni40R-S32SR 150 150 150 150
Bi50R-Q80* 90 50 140 120
Ni65R-Q80* 90 65 140 150
Ni65R-S32SR 150 150 150 150
Ni100R-S32XL** Consult data sheet Consult data sheet 290 240
We reserve the right to make technical alterations without prior notice.
Ni20U-TS12*** (tube) Consult data sheet Consult data sheet 42 50
Dimensions are in mm.
* Do not use a metal mounting bracket.
** Sensitivity adjustment does aect the recommended mounting spacing. Please consult factory for assistance when using multiple sensors.
*** Spacing of multiple sensors depends on the actual number and orientation. Please contact factory for assistance.
Specialty Sensors
Slot Sensor Mounting Characteristics
Sensor Type A B C D E F
Si3.5 15.00 5.00 15.00 0 0 0
Si5 10.00 0 5.00 0 0 0
Si15 30.00 10.00 30.00 5.00 5.00 5.00
Dimensions are in mm.
Turck Inc.
C8
Specialty Sensors | Washdown

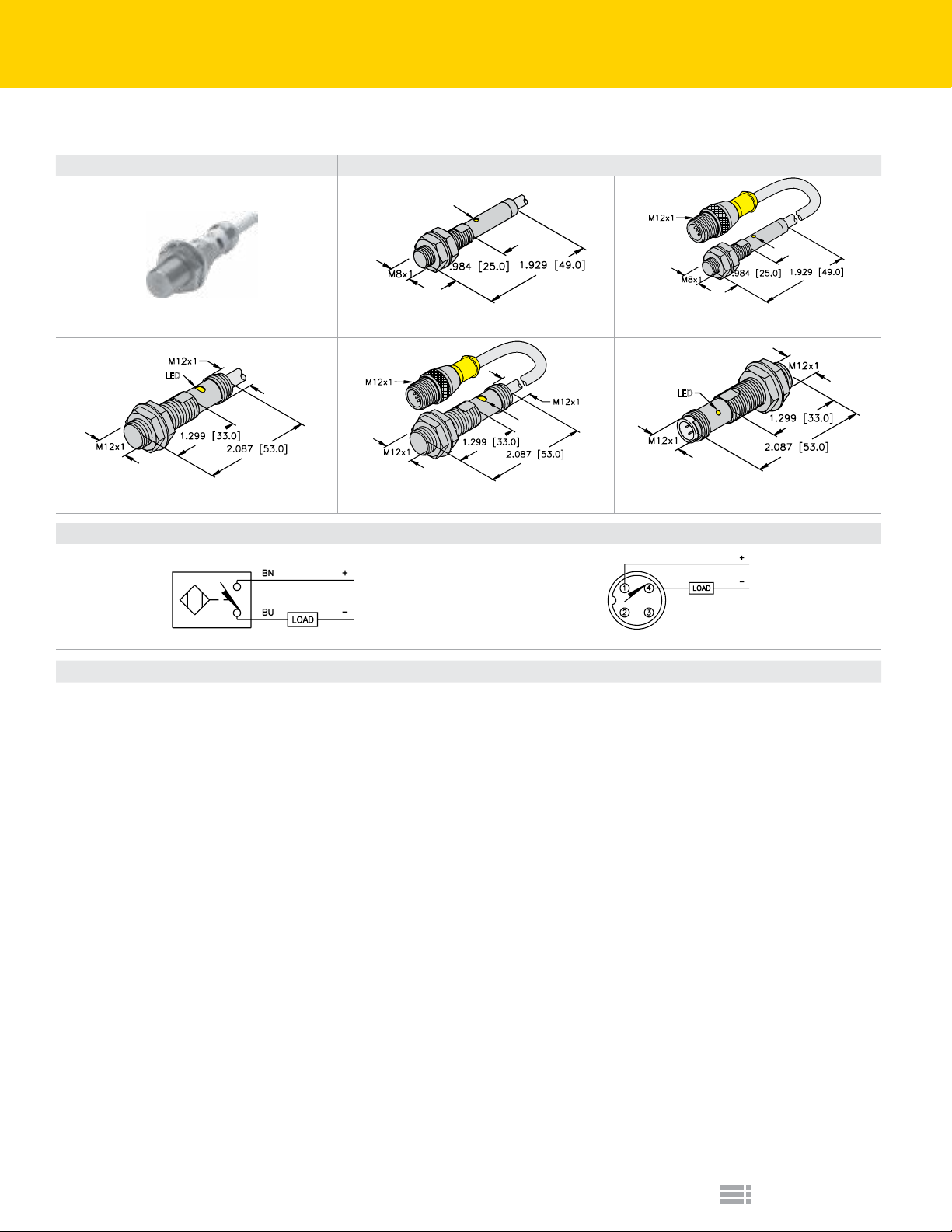

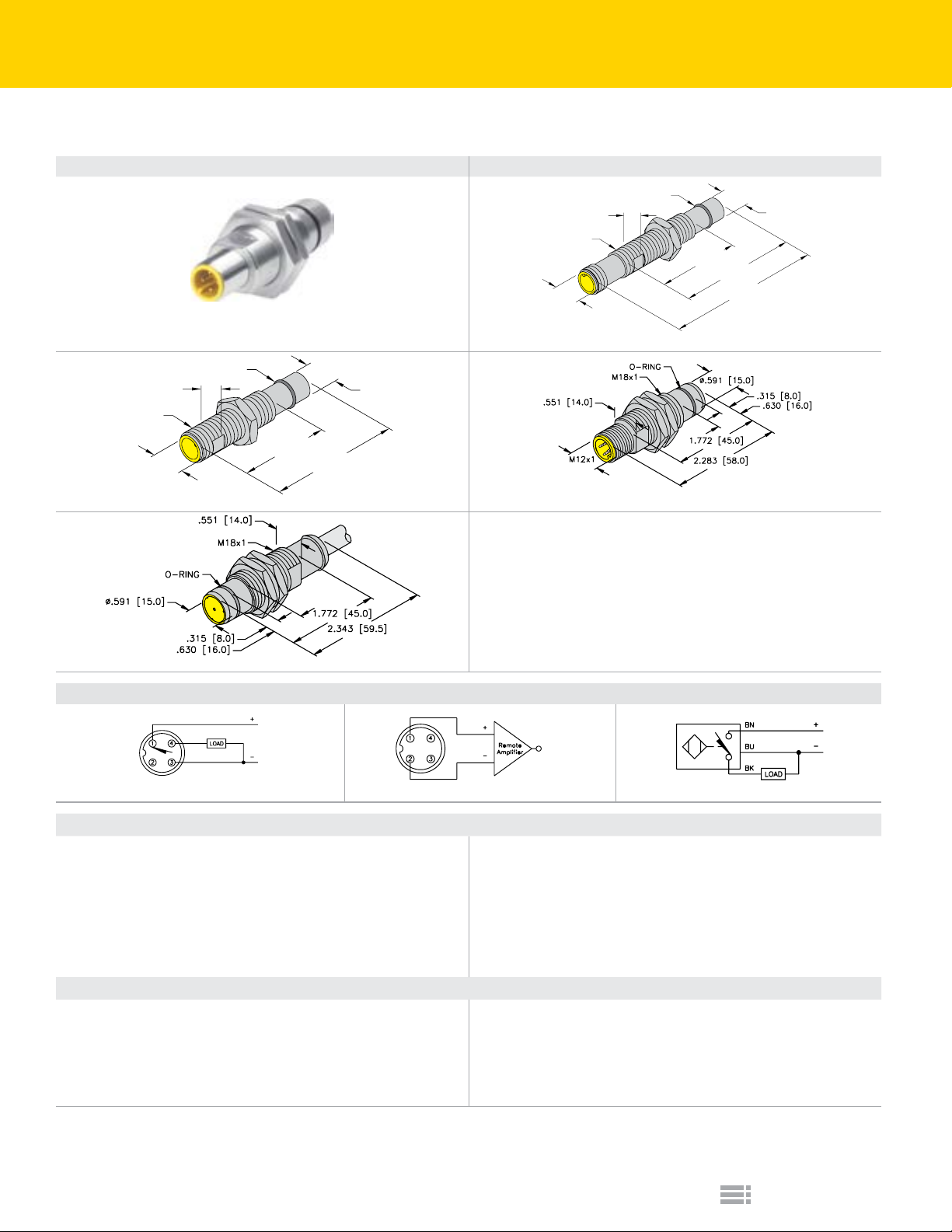

Threaded Metal Barrels with Cable or Connector and 3-Wire DC Outputs

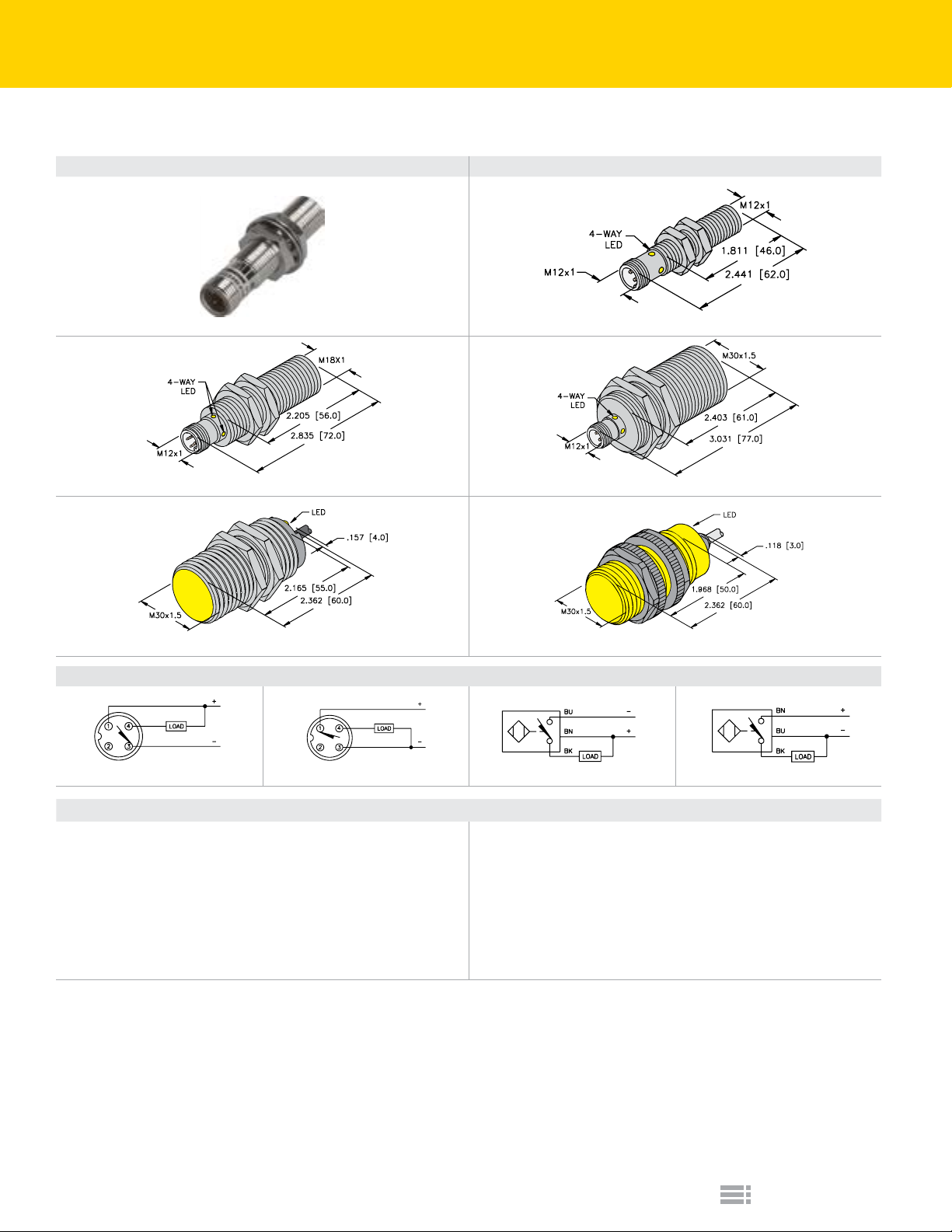

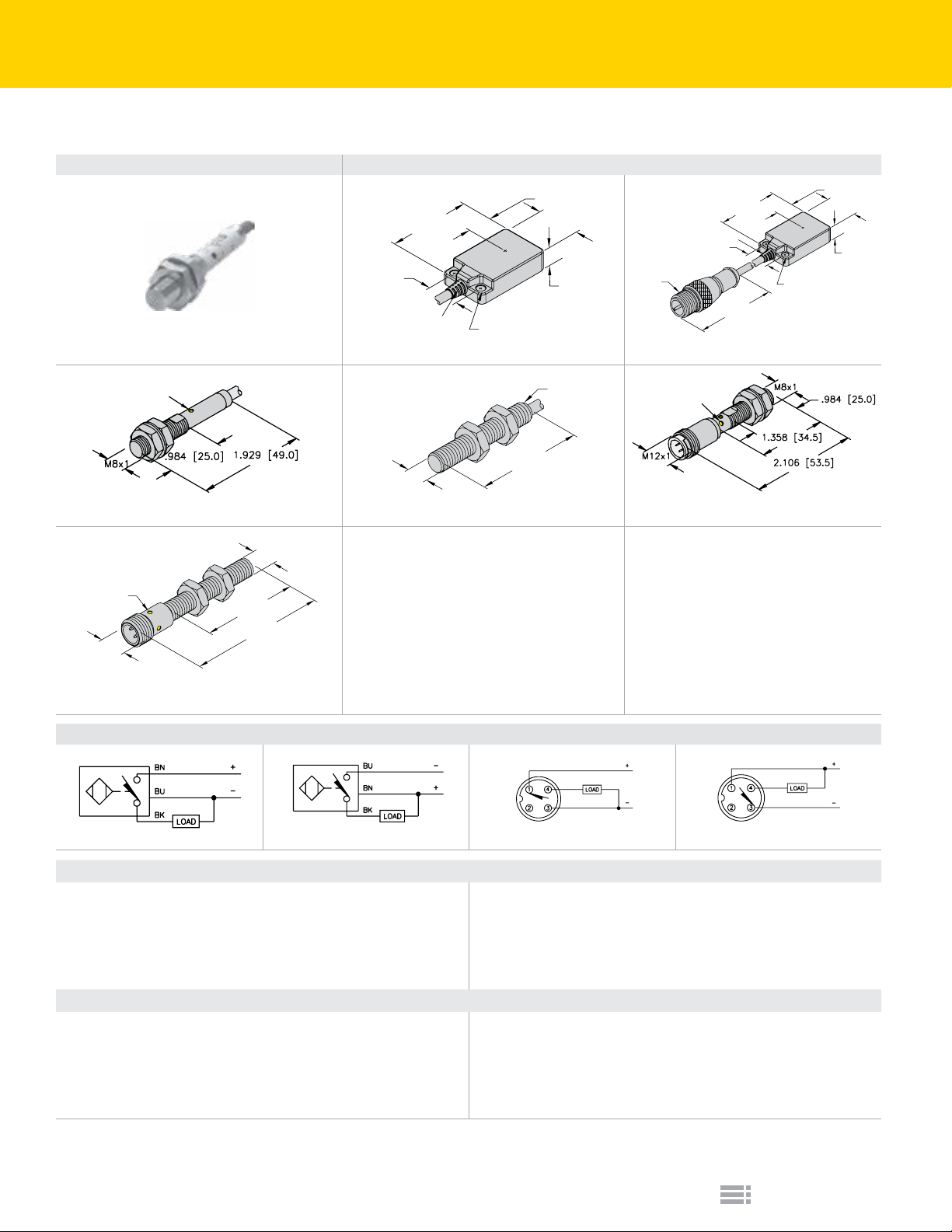

Housing Style Dimension Drawings
A
B
8 mm - Embeddable, M12 Eurofast Connection
C
12 mm - Nonembeddable, M12 Eurofast Connection
D
12 mm - Embeddable, Potted-in Cable
Wiring Diagrams/Mating Cordsets
1
Mating Cordset: RKV 4T-*; RKV 4T-*/S902Mating Cordset: RKV 4T-*; RKV 4T-*/S90
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox)
≤20 mA (Uprox+, Uprox 3)
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
12 mm - Embeddable, M12 Eurofast Connection
E
12 mm - Nonembeddable, Potted-in Cable
3 4
Time Delay Before Availability:
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
We reserve the right to make technical alterations without prior notice.
≤8 ms
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
C9
Turck Inc.
Specialty Sensors | Washdown
Threaded Metal Barrels with Cable or Connector and 3-Wire DC Outputs
Part Number/
ID Number
Bi1.5-EG08WD-AN6X-H1341
4602211
Bi1.5-EG08WD-AP6X-H1341
4602210
Bi4U-EM12WD-AN6X-H1141
1634841
Bi4U-EM12WD-AP6X-H1141
1634812
Ni10U-EM12WD-AN6X-H1141
1634837
Ni10U-EM12WD-AP6X-H1141
1634814
Bi4U-EM12WD-AN6X
1634842
Bi4U-EM12WD-AP6X
1634811
Ni10U-EM12WD-AP6X
1634813
Features
Sensing Range (mm)
Washdown 1.5 3-wire DC NPN 10-30 VDC 3000 ≤150 -25 to +85 IP68/69K SS PVDF N/A YE - - A 1 A4
Washdown 1.5 3-wire DC PNP 10-30 VDC 3000 ≤150 -25 to +85 IP68/69K SS PVDF N/A YE - - A 2 A4
Uprox+,
Washdown
Uprox+,
Washdown
Uprox+,
Washdown
Uprox+,
Washdown
Uprox+,
Washdown
Uprox+,
Washdown
Uprox+,
Washdown
4 3-wire DC NPN 10-30 VDC 2000 ≤200 -40 to +100 IP68/69K SS PVDF N/A YE - - B 1 A4
4 3-wire DC PNP 10-30 VDC 2000 ≤200 -40 to +100 IP68/69K SS PVDF N/A YE - - B 2 A4
10 3-wire DC NPN 10-30 VDC 1000 ≤200 -40 to +100 IP68/69K SS PVDF N/A YE - - C 1 A4
10 3-wire DC PNP 10-30 VDC 1000 ≤200 -40 to +100 IP68/69K SS PVDF N/A YE - - C 2 A4
4 3-wire DC NPN 10-30 VDC 2000 ≤200 -40 to +100 IP68/69K SS PVDF N/A YE 2M/PP D 3 A4
4 3-wire DC PNP 10-30 VDC 2000 ≤200 -40 to +100 IP68/69K SS PVDF N/A YE 2M/PP D 4 A4
10 3-wire DC PNP 10-30 VDC 1000 ≤200 -40 to +100 IP68/69K SS PVDF N/A YE 2M/PP E 4 A4
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Face
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
C10
Specialty Sensors | Washdown
Threaded Metal Barrels with Cable or Connector and 3-Wire DC Outputs

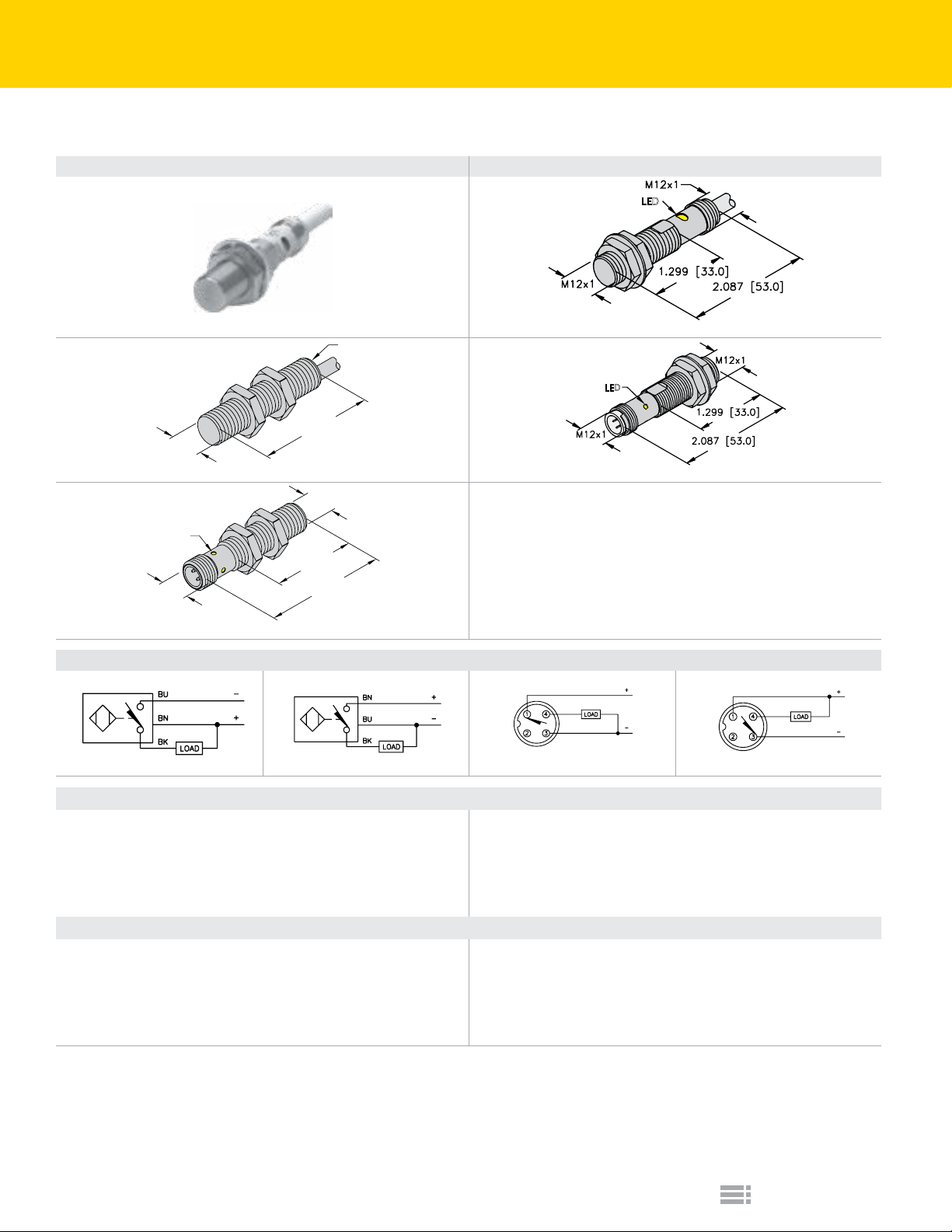

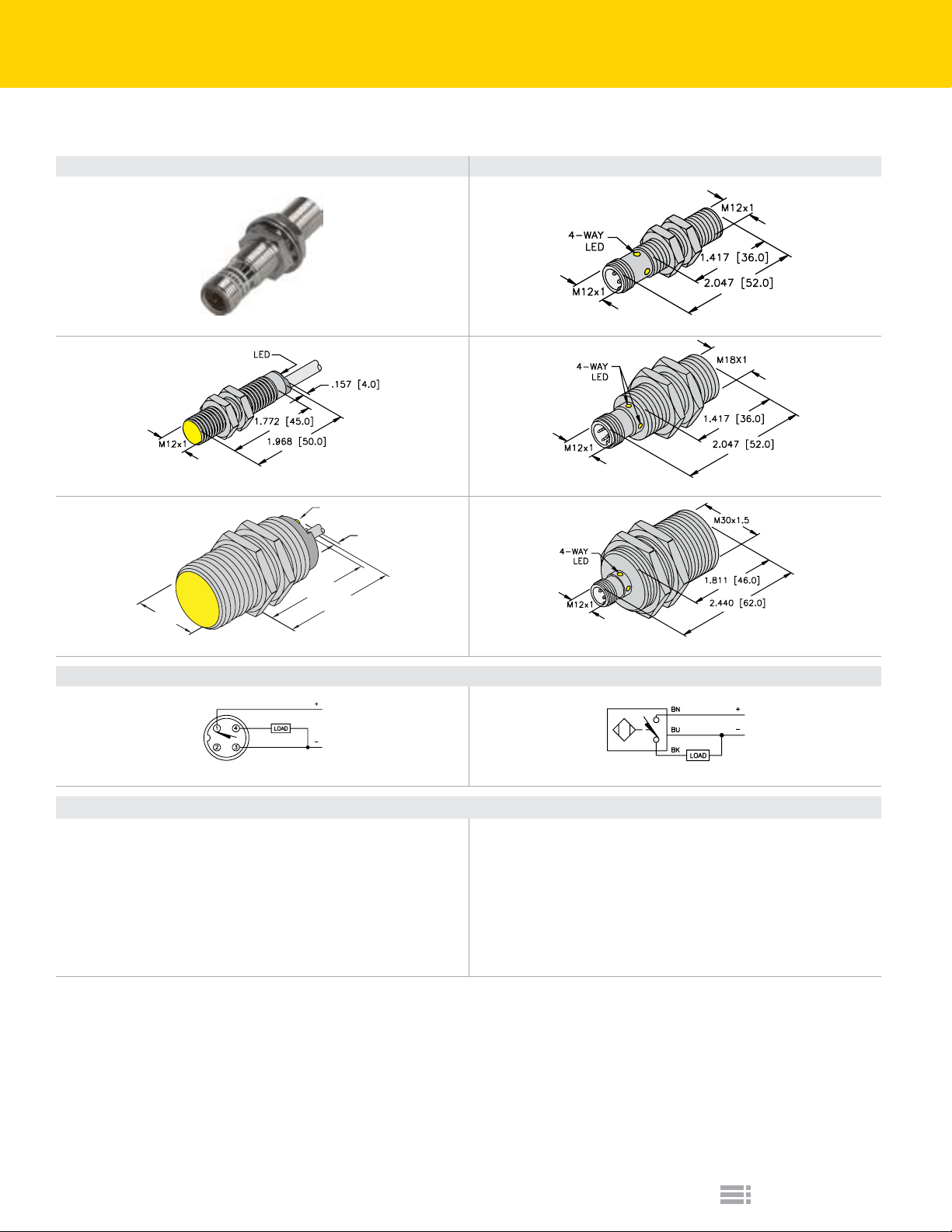

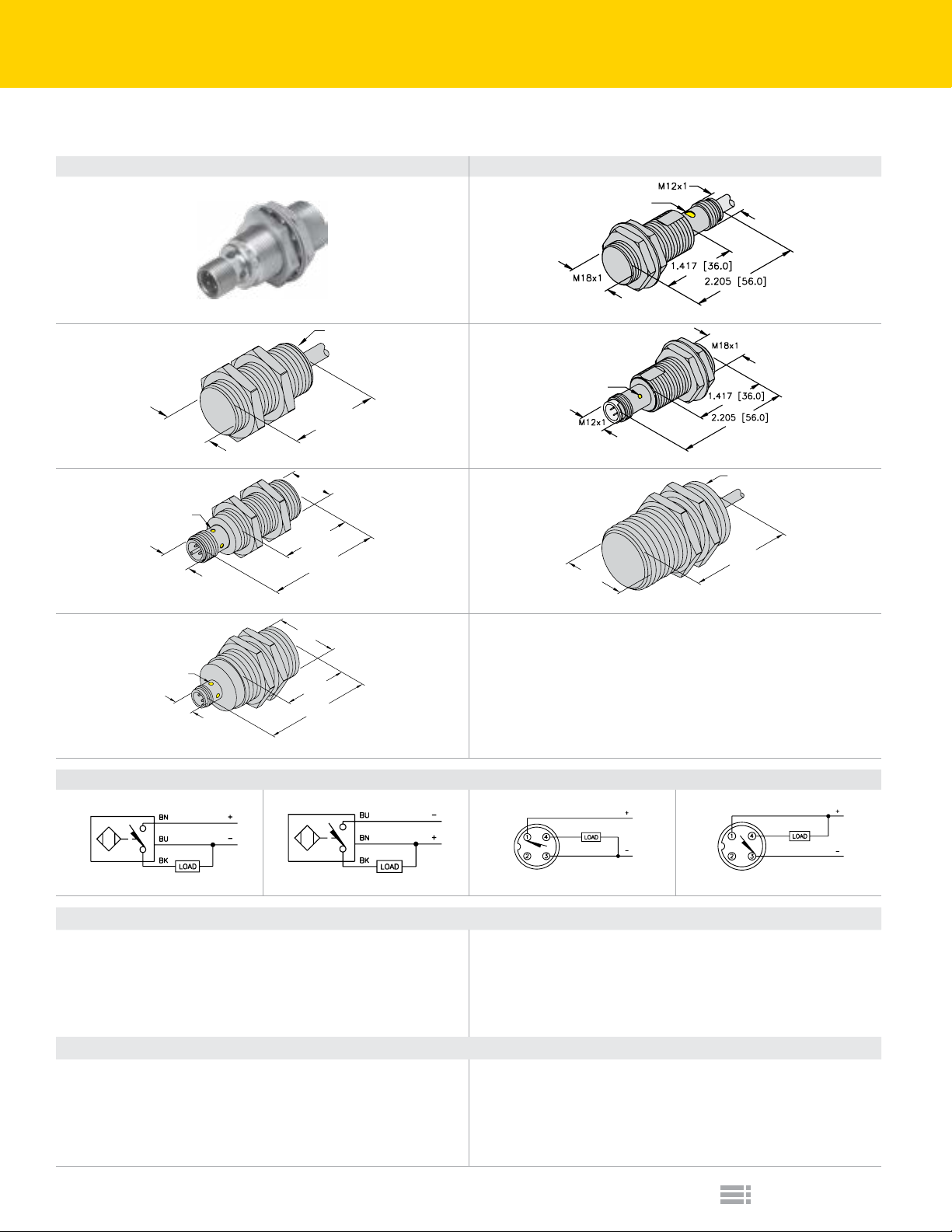

Housing Style Dimension Drawings
B
A
18 mm - Embeddable, M12 Eurofast Connection
C
18 mm - Nonembeddable, M12 Eurofast Connection
D
18 mm - Nonembeddable, Potted-in Cable
1
Mating Cordset: RKV 4T-*/S90
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
Wiring Diagrams/Mating Cordsets
2
Mating Cordset: RKV 4T-*/S90
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox)
≤20 mA (Uprox+, Uprox 3)
18 mm - Embeddable, Potted-in Cable
3 4
Time Delay Before Availability:
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
We reserve the right to make technical alterations without prior notice.
≤8 ms
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
C11
Turck Inc.
Specialty Sensors | Washdown
Threaded Metal Barrels with Cable or Connector and 3-Wire DC Outputs
Part Number/
ID Number
Bi8U-EM18WD-AN6X-H1141
1634839
Bi8U-EM18WD-AP6X-H1141
1634816
Ni15U-EM18WD-AN6X-H1141
1634835
Ni15U-EM18WD-AP6X-H1141
1634818
Bi8U-EM18WD-AN6X
1634840
Bi8U-EM18WD-AP6X
1634815
Ni15U-EM18WD-AN6X
1634836
Ni15U-EM18WD-AP6X
1634817
Features
Uprox+,
Washdown
Uprox+,
Washdown
Uprox+,
Washdown
Uprox+,
Washdown
Uprox+,
Washdown
Uprox+,
Washdown
Uprox+,
Washdown
Uprox+,
Washdown
Sensing Range (mm)
8 3-wire DC NPN 10-30 VDC 1500 ≤200 -40 to +100 IP68/69K SS LCP N/A YE - - A 1 A4
8 3-wire DC PNP 10-30 VDC 1500 ≤200 -40 to +100 IP68/69K SS LCP N/A YE - - A 2 A4
15 3-wire DC NPN 10-30 VDC 1500 ≤200 -40 to +100 IP68/69K SS LC P N/A YE - - B 1 A4
15 3-wire DC PNP 10-30 VDC 1500 ≤200 -40 to +100 IP68/69K SS LCP N/A YE - - B 2 A4
8 3-wire DC NPN 10-30 VDC 1500 ≤200 -40 to +100 IP68/69K SS LCP N/A YE 2M/PP C 3 A4
8 3-wire DC PNP 10-30 VDC 1500 ≤200 -40 to +100 IP68/69K SS LCP N/A YE 2M/PP C 4 A4
15 3-wire DC NPN 10-30 VDC 1500 ≤200 -40 to +100 IP68/69K SS LC P N/A YE 2M/PP D 3 A4
15 3-wire DC PNP 10-30 VDC 1500 ≤200 -40 to +100 IP68/69K SS LCP N/A YE 2M/PP D 4 A4
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Face
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
C12
1.673 [42.5]
1.575 [40.0
ø.209 [ø5.3] 4x
Specialty Sensors | Washdown
1.673 [42.5]
Rectangular and Threaded Metal Barrels with Cable or Connector and 3-Wire DC Outputs
Housing Style Dimension Drawings
A
B
C
30 mm - Embeddable, Potted-in Cable
F
Front Sensing
M12x1
.079 [2.0]
1.673 [42.5]
2.665 [67.7]
Q42F - Nonembeddable, M12 Eurofast Connector
1
2.047 [52.0]
.900[22.85]
30 mm - Embeddable, M12 Eurofast Connection
D
30 mm - Nonembeddable, Potted-in Cable
G
2.559 [65.0]
]
4.015 [102.0]
Q80 - Nonembeddable, M12 Eurofast Connector
Wiring Diagrams/Mating Cordsets
2
3.268 [83.0]
2.559 [65.0]
30 mm - Nonembeddable, M12 Eurofast Connection
E
Top Sensing
M12x1
.079 [2.0]
1.673 [42.5]
2.665 [67.7]
2.047 [52.0]
.900[22.85]
Q42T - Nonembeddable, M12 Eurofast Connector
3
We reserve the right to make technical alterations without prior notice.
Mating Cordset: RKV 4T-*/S90
4 5
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
C13
Turck Inc.
Mating Cordset: RKV 4T-*/S90
Mating Cordset: RKV 4.4T-*
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox, Q42)
≤20 mA (Uprox+, Uprox 3, Q80)
Time Delay Before Availability:
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
≤8 ms
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
Specialty Sensors | Washdown
Rectangular and Threaded Metal Barrels with Cable or Connector and 3-Wire DC Outputs
Part Number/
ID Number
Bi15U-EM30WD-AN6X-H1141
1634834
Bi15U-EM30WD-AP6X-H1141
1634820
Ni30U-EM30WD-AN6X-H1141
1634832
Ni30U-EM30WD-AP6X-H1141
1634822
Bi15U-EM30WD-AN6X
1634843
Bi15U-EM30WD-AP6X
1634819
Ni30U-EM30WD-AN6X
1634833
Ni30U-EM30WD-AP6X
1634821
NI50U-Q42TWD-VP6X-H1141
1538306
NI50U-Q42FWD-VP6X-H1141
1538305
NI75U-Q80WD-VP6X2-H1141
1625920
Features
Uprox+,
Washdown
Uprox+,
Washdown
Uprox+,
Washdown
Uprox+,
Washdown
Uprox+,
Washdown
Uprox+,
Washdown
Uprox+,
Washdown
Uprox+,
Washdown
Uprox+,
Washdown
Uprox+,
Washdown
Uprox+,
Washdown
Sensing Range (mm)
3-wire DC
15
3-wire DC
15
3-wire DC
30
3-wire DC
30
3-wire DC
15
3-wire DC
15
3-wire DC
30
3-wire DC
30
4-wire DC
50
4-wire DC
50
4-wire DC
75
NPN
PNP
NPN
PNP
NPN
PNP
NPN
PNP
PNP
PNP
PNP
Output
Voltage
10-30 VDC 750 ≤200 -40 to +100 IP68/69K SS LCP N/A YE - - A 1 A4
10-30 VDC 750 ≤200 -40 to +100 IP68/69K SS LCP N/A YE - - A 2 A4
10-30 VDC 500 ≤200 -40 to +100 IP68/69K SS LCP N/A YE - - B 1 A4
10-30 VDC 500 ≤200 -40 to +100 IP68/69K SS LCP N/A YE - - B 2 A4
10-30 VDC 750 ≤200 -40 to +100 IP68/69K SS LCP N/A YE 2M/PP C 3 A4
10-30 VDC 750 ≤200 -40 to +100 IP68/69K SS LCP N/A YE 2M/PP C 4 A4
10-30 VDC 500 ≤200 -40 to +100 IP68/69K SS LCP N/A YE 2M/PP D 3 A4
10-30 VDC 500 ≤200 -40 to +100 IP68/69K SS LCP N/A YE 2M/PP D 4 A4
10-30 VDC 250 ≤200 -40 to +100 IP68/69K PA 12 PA 12 N/A YE - - E 5 A4
10-30 VDC 250 ≤200 -40 to +100 IP68/69K PA 12 PA 12 N/A YE - - F 5 A4
10-30 VDC 250 ≤200 -25 to +70 IP68/69K PPS PPS GN YE - - G 5 A4
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Face
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
C14
Specialty Sensors | High Temperature
Threaded Metal Barrels with Cable and AC or DC Outputs
Housing Style Dimension Drawings
B
A
12 mm - Embeddable, Potted-In Cable
C
12 mm - Nonembeddable, Potted-In Cable
D
18 mm - Nonembeddable, Partial Threading, Potted-In Cable
Wiring Diagrams/Mating Cordsets
1 2
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
A6
Line Frequency:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Continuous Load Current:
Off-State (Leakage) Current:
Minimum Load Current:
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox)
≤20 mA (Uprox+, Uprox 3)
≥50... ≤60 Hz
3-15% (5% typical)
≤6.0 V
AC: ≤400 mA; DC: ≤300 mA
AC: ≤100 mA; DC: ≤100 mA
≤1.7 mA
≥3.0 mA
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
2-wire AC/DC w/o Short-Circuit Protection - (AZ,RZ,FZ)
18 mm - Embeddable, Partial Threading, Potted-In Cable
Time Delay Before Availability:
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
Inrush Current:
Power-On Effect:
Transient Protection:
Shock:
Vibration:
Repeatability:
≤8 ms
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
≤8 A (≤10ms max. 5 Hz)
≤1 A (≤10 ms max. 5 Hz) 12 mm
≤0.2 A (≤10 ms max. 0.2 Hz) 8 mm
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤2% of Rated Operating Distance
We reserve the right to make technical alterations without prior notice.
C15
Turck Inc.
Specialty Sensors | High Temperature
Threaded Metal Barrels with Cable and AC or DC Outputs
Part Number/
ID Number
Bi2-EM12D-AP6/S120
4614512
Ni4-EM12D-AP6/S120
1633110
Bi5-M18-AP6X/S120
4611030
Bi5-M18-AZ3X/S120
4310410
Ni8-M18-AZ3X/S120
4310530
Ni8-M18-AP6X/S120
4611230
Features
High Temp.
120 °C
High Temp.
120 °C
High Temp.
120 °C
High Temp.
120 °C
High Temp.
120 °C
High Temp.
120 °C
Sensing Range (mm)
Output
3-wire
2
DC PNP
3-wire
4
DC PNP
3-wire
5
DC PNP
2-wire AC20-250
5
2-wire AC20-250
8
3-wire
8
DC PNP
Voltage
Switching Freq. (Hz)
Operating Current (mA)
10-30
100 ≤200 -25 to +120 IP67 SS PTFE PTFE N/A N/A 2M/PTFE A 1 A4
VDC
10-30
100 ≤200 -25 to +120 IP67 SS PTFE PTFE N/A N/A 2M/PTFE B 1 A4
VDC
10-30
100 ≤200 -25 to +120 IP67 CPB PA 12 EPTR N/A YE 2M/Silicone C 1 A4
VDC
20 ≤100 -25 to +120 IP67 CPB PA 12 EPTR N/A YE 2M/Silicone C 2 A6
VAC
20 ≤400 -25 to +120 IP67 CPB PA 12 EPTR N/A YE 2M/Silicone D 2 A6
VAC
10-30
100 ≤200 -25 to +120 IP67 CPB PA 12 EPTR N/A YE 2M/Silicone D 1 A4
VDC
Operating Temp. (°C)
Protection
Housing
Face
End Cap
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
C16
Specialty Sensors | High Temperature
Threaded Metal Barrels with Cable and AC or DC Outputs
Housing Style Dimension Drawings
B
A
18 mm - Embeddable, Partial Threading, Potted-In Cable
C
18 mm - Nonembeddable, Partial Threading, Potted-In Cable
30 mm - Embeddable, Partial Threading, Potted-In Cable
D
30 mm - Embeddable, Partial Threading, Potted-In Cable
Wiring Diagrams/Mating Cordsets
1 2 3
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
A6
Line Frequency:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Continuous Load Current:
Off-State (Leakage) Current:
Minimum Load Current:
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox)
≤20 mA (Uprox+, Uprox 3)
≥50... ≤60 Hz
3-15% (5% typical)
≤6.0 V
AC: ≤400 mA; DC: ≤300 mA
AC: ≤100 mA; DC: ≤100 mA
≤1.7 mA
≥3.0 mA
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
Time Delay Before Availability:
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Repeatability:
2-wire AC/DC w/o Short-Circuit Protection - (AZ, RZ, FZ)
Inrush Current:
Power-On Effect:
Transient Protection:
Repeatability:
Shock:
Vibration:
Shock:
Vibration:
We reserve the right to make technical alterations without prior notice.
≤8 ms
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
≤8 A (≤10ms max. 5 Hz)
≤1 A (≤10 ms max. 5 Hz) 12 mm
≤0.2 A (≤10 ms max. 0.2 Hz) 8 mm
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤2% of Rated Operating Distance
C17
Turck Inc.
Specialty Sensors | High Temperature
Threaded Metal Barrels with Cable and AC or DC Outputs
Part Number/
ID Number
Bi5-EM18D-VP6X/S120
4614900
Ni7-EM18D-VP6X/S120
4632100
Bi10-M30-AP6X/S120
4617010
Bi10-M30-AZ3X/S120
4316410
Bi10-EM30D-VP6X/S120
4617035
Features
High Temp.
120 °C
High Temp.
120 °C
High Temp.
120 °C
High Temp.
120 °C
High Temp.
120 °C
Sensing Range (mm)
4-wire
5
DC PNP
4-wire
7
DC PNP
3-wire
10
DC PNP
2-wire AC20-250
10
4-wire
10
DC PNP
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
10-30
100 ≤200 -25 to +120 IP68/69K SS PTFE PTFE N/A YE 2M/PTFE A 2 A4
VDC
10-30
100 ≤200 -25 to +120 IP68/69K SS PTFE PTFE N/A YE 2M/PTFE B 2 A4
VDC
10-30
100 ≤200 -25 to +120 IP67 CPB PA 12 PA 12 N/A YE 2M/Silicone C 1 A4
VDC
20 ≤400 -25 to +120 IP67 CPB PA 12 PA 12 N/A YE 2M/Silicone C 3 A6
VAC
10-30
100 ≤200 -25 to +120 IP68/69K SS PTFE PTFE N/A YE 2M/PTFE D 2 A4
VDC
Operating Temp. (°C)
Protection
Housing
Face
End Cap
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
C18
Specialty Sensors | High Temperature
Threaded Metal Barrels with Cable and AC or DC Outputs
Housing Style Dimension Drawings
B
A
30 mm - Nonembeddable, Potted-In Cable
C
30 mm - Nonembeddable, Potted-In Cable
D
30 mm - Embeddable, Partial Threading, Potted-In Cable
Wiring Diagrams/Mating Cordsets
E
18 mm - Embeddable, Partial Threading, Potted-In Cable
30 mm - Non-embeddable, Partial Threading, Potted-In Cable
1 2 3
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
A6
Line Frequency:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Continuous Load Current:
Off-State (Leakage) Current:
Minimum Load Current:
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox)
≤20 mA (Uprox+, Uprox 3)
≥50... ≤60 Hz
3-15% (5% typical)
≤6.0 V
AC: ≤400 mA; DC: ≤300 mA
AC: ≤100 mA; DC: ≤100 mA
≤1.7 mA
≥3.0 mA
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
Time Delay Before Availability:
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Repeatability:
2-wire AC/DC w/o Short-Circuit Protection - (AZ, RZ, FZ)
Inrush Current:
Power-On Effect:
Transient Protection:
Repeatability:
Shock:
Vibration:
Shock:
Vibration:
We reserve the right to make technical alterations without prior notice.
≤8 ms
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
≤8 A (≤10ms max. 5 Hz)
≤1 A (≤10 ms max. 5 Hz) 12 mm
≤0.2 A (≤10 ms max. 0.2 Hz) 8 mm
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤2% of Rated Operating Distance
C19
Turck Inc.
Specialty Sensors | High Temperature
Threaded Metal Barrels with Cable and AC or DC Outputs
Part Number/
ID Number
Ni15-M30-AP6X/S120
4617210
Ni15-M30-AZ3X/S120
4316506
Ni15-EM30D-VP6X/S120
4617410
Bi5-EM18-AP6/S907
4617425
Bi10-EM30-AP6/S907
4614513
Ni15-EM30-AP6/S907
4617412
Features
High Temp.
120 °C
High Temp.
120 °C
High Temp.
120 °C
High Temp.
160 °C
High Temp.
160 °C
High Temp.
160 °C
Sensing Range (mm)
3-wire
15
DC PNP
2-wire AC20-250
15
4-wire
15
DC PNP
3-wire
5
DC PNP
3-wire
10
DC PNP
3-wire
15
DC PNP
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
10-30
500 ≤200 -25 to +120 IP67 CPB PA 12 PA 12 N/A YE 2M/Silicone A 1 A4
VDC
20 ≤400 -25 to +120 IP67 CPB PA 12 PA 12 N/A YE 2M/Silicone A 2 A6
VAC
10-30
100 ≤200 -25 to +120 IP68/69K SS PTFE PTFE N/A YE 2M/PTFE B 3 A4
VDC
10-30
200 ≤200 -25 to +160 IP67 SS PEEK PTFE N/A N/A 2M/PTFE C 1 A4
VDC
10-30
200 ≤200 -25 to +160 IP67 SS PEEK PTFE N/A N/A 2M/PTFE D 1 A4
VDC
10-30
200 ≤200 -25 to +160 IP67 SS PEEK PTFE N/A N/A 2M/PTFE E 1 A4
VDC
Operating Temp. (°C)
Protection
Housing
Face
End Cap
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
C20
Specialty Sensors | High Temperature
Rectangular and Round Housings
Housing Style Dimension Drawings
B
A
160 mm -Nonembeddable
C
We reserve the right to make technical alterations without prior notice.
CQ40 - Nonembeddable
D
30 mm - Signal Processor
Wiring Diagrams/Mating Cordsets
1 2
A20
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
Note:
CQ40 and CQ80 sensors require signal processor for operation.
≤10%
3-15% (5% typical)
≤2 V (120 °C)
≤1.8 V (250 °C)
≥420 mA on 400 mA Load Current
≥220 mA on 200 mA Load Current
≤0.1 mA
3-wire DC -High Temp (AP)
CQ80 - Nonembeddable
Temperature Drift:
Reverse Polarity Protection:
Wire-Break Protection:
Shock:
Vibration:
Repeatability:
≤±20%
Incorporated
Incorporated
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤2% of Rated Operating Distance
C21
Turck Inc.
Specialty Sensors | High Temperature
Rectangular and Round Housings
Part Number/
ID Number
Ni100-Q160-AP44X/S120
1440012
Ni25-CQ40/S1102 5M
1602410
Ni25-CQ40/S1102 10M
1602403
Ni40-CQ80/S1102 5M
1602404
EM30-AP6X2-H1141/S1102
1602411
Features
High Temp.
120 °C
High Temp.
250 °C
High Temp.
250 °C
High Temp.
250 °C
Signal
Processor
Sensing Range (mm)
Output
3-wire
100
DC PNP
25 Remote - - 40 Remote 0 to +250 IP60 AL PEEK PEEK N/A N/A 5M/PTFE B 2 - -
25 Remote - - 40 Remote 0 to +250 IP60 AL PEEK PEEK N/A N/A 10M/PTFE B 2 - -
40 Remote - - 40 Remote 0 to +250 IP60 AL PEEK PEEK N/A N/A 5M/PTFE C 2 - -
3-wire
N/A
DC PNP
Voltage
Switching Freq. (Hz)
Operating Current (mA)
10-55
50 ≤400 -25 to +120 IP67 PPO PPO - - N/A YE 2M/Silicone A 1 A20
VDC
10-30
40 ≤200 -20 to +70 IP67 SS SS - - GN YE - - D 2 A20
VDC
Operating Temp. (°C)
Protection
Housing
Face
End Cap
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
C22
Specialty Sensors | Stainless Front Face
Embeddable Threaded Metal Barrels with 2-Wire DC Outputs
Housing Style Dimension Drawings
A
B
LED
LED
8 mm - Embeddable, Stainless Steel Barrel, Potted-In Cable
C
LED
8 mm - Embeddable, Stainless Steel Barrel, Potted-In Cable
D
12 mm - Embeddable, Stainless Steel Barrel,
Potted-In Cable
Wiring Diagrams/Mating Cordsets
1 2
A21
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Minimum Load Current:
≤10%
1-15% (5% typical)
≤3.5 V Polarized
≥120 mA on 100 mA Load Current
≥3.0 mA
2-wire DC Stainless Front Face (AG)
E
LED
Mating Cordset: RKV 4.23T-*
Temperature Drift:
Off-State (Leakage) Current:
Vibration:
Repeatability:
8 mm - Embeddable, Stainless Steel Barrel,
M12 Eurofast Quick Disconnect
LED
12 mm - Embeddable, Stainless Steel Barrel,
M12 Eurofast Quick Disconnect
≤±20%
≤0.8 mA
Shock:
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
We reserve the right to make technical alterations without prior notice.
C23
Turck Inc.
Specialty Sensors | Stainless Front Face
Embeddable Threaded Metal Barrels with 2-Wire DC Outputs
Part Number/
ID Number
Bi1.5-EG08F-AG6X
4614628
Bi1.5-EGT08F-AG6X
4614677
Bi1.5-EG08F-AG6X-0.3-RS4.23T
4614684
Bi1.5-EGT08F-AG6X-0.2-RS4.23T
4614686
Bi2-EG08F-AG6X
4614664
Bi2-EG12F-AG6X
4614634
Bi2-EGT12F-AG6X
46146651
Bi2-EG12F-AG6X-0.3-RS4.23T
4614693
Bi3-EG12F-AG6X
4614665
Bi2-EG12F-AG6X-H1141
4614637
Bi2-EGT12F-AG6X-H1141
4614698
Features
Full Stainless
Steel
Full Stainless
Steel, PTFE
Full Stainless
Steel
Full Stainless
Steel, PTFE
Full Stainless
Steel
Full Stainless
Steel
Full Stainless
Steel, PTFE
Full Stainless
Steel
Full Stainless
Steel
Full Stainless
Steel
Full Stainless
Steel, PTFE
Sensing Range (mm)
Output
1.5 2-wire DC 10-30 VDC 200 ≤100 -25 to +70 IP68/69K SS SS GN RD
1.5 2-wire DC 10-30 VDC 200 ≤100 -25 to +70 IP68/69K TC SS GN RD
1.5 2-wire DC 10-30 VDC 200 ≤100 -25 to +70 IP68/69K SS SS GN RD
1.5 2-wire DC 10-30 VDC 200 ≤100 -25 to +70 IP68/69K TC SS GN RD
2 2-wire DC 10-30 VDC 200 ≤100 -25 to +70 IP67 SS SS N/A RD
2 2-wire DC 10-30 VDC 100 ≤100 -25 to +70 IP68/69K SS SS GN RD
2 2-wire DC 10-30 VDC 100 ≤100 -25 to +70 IP68/69K TC SS GN RD
2 2-wire DC 10-30 VDC 100 ≤100 -25 to +70 IP68/69K SS SS GN RD
3 2-wire DC 10-30 VDC 80 ≤100 -25 to +70 IP67 SS SS N/A RD
2 2-wire DC 10-30 VDC 100 ≤100 -25 to +70 IP68/69K SS SS GN RD - - E 2 A21
2 2-wire DC 10-30 VDC 100 ≤100 -25 to +70 IP68/69K TC SS GN RD - - E 2 A21
Voltage
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Face
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
2M/
A 1 A21
PVC
2M/
A 1 A21
PVC
0.3M/
B 2 A21
PVC
0.2M/
B 2 A21
PVC
2M/
A 1 A21
PVC
2M/
C 1 A21
PVC
2M/
C 1 A21
PVC
0.3M/
D 2 A21
PVC
2M/
C 1 A21
PVC
Spec List
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
C24
Specialty Sensors | Stainless Front Face
M12x1
Embeddable Threaded Metal Barrels with 2-Wire DC Outputs
Housing Style Dimension Drawings
B
A
LED
18 mm - Embeddable, Stainless Steel Barrel, Potted-In Cable
C
LED
18 mm - Embeddable, Stainless Steel Barrel, M12 Eurofast Quick Disconnect
D
M30x1.5
30 mm - Embeddable, Stainless Steel Barrel, Potted-In Cable
LED
1.693 [43.0]
2.500 [63.5]
Wiring Diagrams/Mating Cordsets
1 2
A21
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Pro-
tection:
Minimum Load Current:
≤10%
1-15% (5% typical)
≤3.5 V Polarized
≥120 mA on 100 mA Load Current
≥3.0 mA
2-wire DC Stainless Front Face (AG)
LED
18 mm - Embeddable, Stainless Steel Barrel, M12 Eurofast Quick Disconnect
E
LED
30 mm - Embeddable, M12 Eurofast Connection, Stainless Steel
Mating Cordset: RKV 4T-*; RKV 4.23T-*
Temperature Drift:
Off-State (Leakage) Current:
Shock:
Vibration:
Repeatability:
≤±20%
≤0.8 mA
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
We reserve the right to make technical alterations without prior notice.
C25
Turck Inc.
Specialty Sensors | Stainless Front Face
Embeddable Threaded Metal Barrels with 2-Wire DC Outputs
Part Number/
ID Number
Bi5-EG18F-AG6X
4614640
Bi5-EGT18F-AG6X
46146400
Bi5-EG18F-AG6X-0.3-RS4.23T
4614694
Bi7-EG18F-AG6X
4614666
Bi5-EG18F-AG6X-H1141
4614643
Bi12-EG30F-AG6X
4614667
Bi10-EG30F-AG6X-H1141
4614649
Bi10-EGT30F-AG6X-H1141/
S1589
46146490
Features
Full Stainless
Steel
Full Stainless
Steel, PTFE
Full Stainless
Steel
Full Stainless
Steel
Full Stainless
Steel
Full Stainless
Steel
Full Stainless
Steel
Full Stainless
Steel, PTFE,
Weldguard
Sensing Range (mm)
Output
5 2-wire DC 10-30 VDC 100 ≤100 -25 to +70 IP68/69K SS SS GN RD 2M/PVC A 1 A21
5 2-wire DC 10-30 VDC 100 ≤100 -25 to +70 IP68/69K TC SS GN RD 2M/PVC A 1 A21
5 2-wire DC 10-30 VDC 100 ≤100 -25 to +70 IP68/69K SS SS GN RD
7 2-wire DC 10-30 VDC 100 ≤100 -25 to +70 IP67 SS SS N/A RD 2M/PVC A 1 A21
5 2-wire DC 10-30 VDC 100 ≤100 -25 to +70 IP68/69K SS SS GN RD - - C 2 A21
12 2-wire DC 10-30 VDC 50 ≤100 -25 to +70 IP67 SS SS N/A RD 2M/PVC D 1 A21
10 2-wire DC 10-30 VDC 50 ≤100 -25 to +70 IP68/69K SS SS GN RD - - E 2 A21
10 2-wire DC 10-30 VDC 50 ≤100 -25 to +70 IP68/69K TC WG GN RD - - E 2 A21
Voltage
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Face
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
0.3M/
PVC
B 2 A21
Spec List
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
C26
.374 [9.5]
.315 [8.0]
ø.134 [3.4] 2x
.512 [13.0]
.374 [9.5]
Specialty Sensors | Stainless Front Face
Embeddable Rectangular and Threaded Metal Barrels with 3-Wire DC Outputs
Housing Style Dimension Drawings
A
1.260 [32.0]
.787 [20.0]
B
.787 [20.0]
.315 [8.0]
.512 [13.0]
1.260 [32.0]
LED
LED
8 mm - Embeddable, Stainless Steel, Potted-In Cable
C
LED
1.772 [45.0]
M8x1
LED
8 mm - Embeddable, Stainless Steel Barrel, Potted-In CableD8 mm - Embeddable, Stainless Steel Barrel, Potted-In Cable
F
M8x1
4-WAY
LED
M12x1
8 mm - Embeddable, Stainless Steel Barrel,
M12 Eurofast Quick Disconnect
1.811 [46.0]
2.598 [66.0]
M12x1
1.546 [39.3]
8 mm - Embeddable, Stainless Steel,
M12 Eurofast Quick Disconnect
E
LED
8 mm - Embeddable, Stainless Steel Barrel,
M12 Eurofast Quick Disconnect
ø.134 [3.4] 2x
We reserve the right to make technical alterations without prior notice.
Wiring Diagrams/Mating Cordsets
2 3
A22
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
No-Load Current:
Off-State (Leakage) Current:
A23
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
C27
Turck Inc.
No-Load Current:
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≤15 mA
≤0.1 mA
≤10%
20%
≤2 V
≥220 mA on 200 mA Load Current
≤10 mA
≤0.1 mA
3-wire DC Stainless Front Face (AP, AN, RP, RN)
3-wire DC Stainless Front Face Ext Range (AP, AN, RP, RN)
Mating Cordset: RKV 4T-*
Temperature Drift:
Reverse Polarity Protection:
Wire-Break Protection:
Repeatability:
Temperature Drift:
Reverse Polarity Protection:
Wire-Break Protection:
Repeatability:
Shock:
Vibration:
Shock:
Vibration:
4
Mating Cordset: RKV 4T-*
≤±10%
Incorporated
Incorporated
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
≤±10%
Incorporated
Incorporated
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤5% of Rated Operating Distance
Specialty Sensors | Stainless Front Face
Embeddable Rectangular and Threaded Metal Barrels with 3-Wire DC Outputs
Part Number/
ID Number
Bi7-Q08F-AN6X
1608914
Bi7-Q08F-AP6X
1608916
Bi7-Q08F-AP6X-0.2-RS4T
16089160
Bi1.5-EG08F-AN6X
4614627
Bi3-EG08FE-AN6X
4614712
Bi1.5-EG08F-AP6X
4614626
Bi1.5-EGT08F-AP6X
4614678
Bi3-EG08FE-AP6X
4614704
Bi3-EGT08FE-AP6X
46147043
Bi1.5-EG08F-AN6X-H1341
4614630
Bi3-EG08FE-AN6X-H1341
4614711
Bi1.5-EG08F-AP6X-H1341
4614629
Bi3-EG08FE-AP6X-H1341
4614703
Bi3-EGT08FE-AP6X-H1341
We reserve the right to make technical alterations without prior notice.
46147030
Bi3-EGT08FE-AP6X-H1341/S1589
46147032
Features
Full Stainless
Steel
Full Stainless
Steel
Full Stainless
Steel
Full Stainless
Steel
Full Stainless
Steel
Full Stainless
Steel
Full Stainless
Steel, PTFE
Full Stainless
Steel
Full Stainless
Steel, PTFE
Full Stainless
Steel
Full Stainless
Steel
Full Stainless
Steel
Full Stainless
Steel
Full Stainless
Steel, PTFE
Full Stainless
Steel, PTFE,
Weldguard
Sensing Range (mm)
7
7
7
1.5
3
1.5
1.5
3
3
1.5
3
1.5
3
3
3
Output
3-wire DC
NPN
3-wire DC
PNP
3-wire DC
PNP
3-wire DC
NPN
3-wire DC
NPN
3-wire DC
PNP
3-wire DC
PNP
3-wire DC
PNP
3-wire DC
PNP
3-wire DC
NPN
3-wire DC
NPN
3-wire DC
PNP
3-wire DC
PNP
3-wire DC
PNP
3-wire DC
PNP
Voltage
Switching Freq. (Hz)
Operating Current (mA)
10-30
200 ≤200 -25 to +70 IP68/69K SS SS N/A YE 2M/TPE A 2 A23
VDC
10-30
200 ≤200 -25 to +70 IP68/69K SS SS N/A YE 2M/TPE A 1 A23
VDC
10-30
200 ≤200 -25 to +70 IP68/69K SS SS N/A YE
VDC
10-30
200 ≤200 -25 to +70 IP68/69K SS SS N/A YE 2M/PVC C 2 A22
VDC
10-30
1000 ≤200 -25 to +70 IP67 SS SS N/A YE 2M/PVC D 2 A23
VDC
10-30
200 ≤200 -25 to +70 IP68/69K SS SS N/A YE 2M/PVC C 1 A22
VDC
10-30
200 ≤200 -25 to +70 IP68/69K TC SS N/A YE 2M/PVC C 1 A22
VDC
10-30
1000 ≤200 -25 to +70 IP67 SS SS N/A YE 2M/PVC D 1 A23
VDC
10-30
1000 ≤200 -25 to +70 IP67 TC SS N/A YE 2M/PVC D 1 A23
VDC
10-30
200 ≤200 -25 to +70 IP68/69K SS SS N/A YE - - E 4 A22
VDC
10-30
1000 ≤200 -25 to +70 IP67 SS SS N/A YE - - F 4 A23
VDC
10-30
200 ≤200 -25 to +70 IP68/69K SS SS N/A YE - - E 3 A22
VDC
10-30
1000 ≤200 -25 to +70 IP67 SS SS N/A YE - - F 3 A23
VDC
10-30
1000 ≤200 -25 to +70 IP67 TC SS N/A YE - - F 3 A23
VDC
10-30
1000 ≤200 -25 to +70 IP67 TC WG N/A YE - - F 3 A23
VDC
Operating Temp. (°C)
Protection
Housing
Face
Power LED
Output LED
0.2M/
TPE
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
B 3 A23
Spec List
Specialty Sensors
Turck Inc.
C28
Specialty Sensors | Stainless Front Face
LED
Embeddable Threaded Metal Barrels with 3-Wire DC Outputs
Housing Style Dimension Drawings
B
1.968 [50.0]
M12x1
A
LED
12 mm - Embeddable, Stainless Steel Barrel, Potted-In Cable
C
LED
12 mm - Embeddable, Stainless Steel Barrel, Potted-In Cable
D
4-WAY
LED
M12x1
12 mm - Embeddable, Stainless Steel Barrel, M12 Eurofast Quick Disconnect
M12x1
1.614 [41.0]
2.362 [60.0]
Wiring Diagrams/Mating Cordsets
1 2 3
A22
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
No-Load Current:
Off-State (Leakage) Current:
A23
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
No-Load Current:
Off-State (Leakage) Current:
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≤15 mA
≤0.1 mA
≤10%
20%
≤2 V
≥220 mA on 200 mA Load Current
≤10 mA
≤0.1 mA
3-wire DC Stainless Front Face (AP, AN, RP, RN)
3-wire DC Stainless Front Face Ext Range (AP, AN, RP, RN)
12 mm - Embeddable, Stainless Steel Barrel, M12 Eurofast Quick Disconnect
4
Mating Cordset: RKV 4T-*
Temperature Drift:
Reverse Polarity Protection:
Wire-Break Protection:
Shock:
Vibration:
Repeatability:
Temperature Drift:
Reverse Polarity Protection:
Wire-Break Protection:
Shock:
Vibration:
Repeatability:
Mating Cordset: RKV 4T-*
≤±10%
Incorporated
Incorporated
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
≤±10%
Incorporated
Incorporated
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤5% of Rated Operating Distance
We reserve the right to make technical alterations without prior notice.
C29
Turck Inc.
Specialty Sensors | Stainless Front Face
Embeddable Threaded Metal Barrels with 3-Wire DC Outputs
Part Number/
ID Number
Bi2-EG12F-AN6X
4614633
Bi6-EG12FE-AN6X
4614721
Bi2-EG12F-AP6X
4614632
Bi6-EG12FE-AP6X
4614720
Bi2-EG12F-AN6X-H1141
4614636
Bi6-EG12FE-AN6X-H1141
4614714
Bi6-EGT12FE-AN6X-H1141
46147140
Bi2-EG12F-AP6X-H1141
4614635
Bi2-EGT12F-AP6X-H1141
46146971
Bi6-EG12FE-AP6X-H1141
4614706
Bi6-EGT12FE-AP6X-H1141
46147060
Bi6-EGT12FE-AP6X-H1141/S1589
46147061
Features
Full Stainless
Steel
Full Stainless
Steel
Full Stainless
Steel
Full Stainless
Steel
Full Stainless
Steel
Full Stainless
Steel
Full Stainless
Steel, PTFE
Full Stainless
Steel
Full Stainless
Steel, PTFE
Full Stainless
Steel
Full Stainless
Steel, PTFE
Full Stainless
Steel, PTFE,
Weldguard
Sensing Range (mm)
3-wire
2
DC NPN
3-wire
6
DC NPN
3-wire
2
DC PNP
3-wire
6
DC PNP
3-wire
2
DC NPN
3-wire
6
DC NPN
3-wire
6
DC NPN
3-wire
2
DC PNP
3-wire
2
DC PNP
3-wire
6
DC PNP
3-wire
6
DC PNP
3-wire
6
DC PNP
Output
Voltage
10-30 VDC 100 ≤200 -25 to +70 IP68/69K SS SS N/A YE 2M/PVC A 2 A22
10-30 VDC 600 ≤200 -25 to +70 IP68/69K SS SS N/A YE 2M/PVC B 2 A23
10-30 VDC 100 ≤200 -25 to +70 IP68/69K SS SS N/A YE 2M/PVC A 1 A22
10-30 VDC 600 ≤200 -25 to +70 IP68/69K SS SS N/A YE 2M/PVC B 1 A23
10-30 VDC 100 ≤200 -25 to +70 IP68/69K SS SS N/A YE - - C 4 A22
10-30 VDC 600 ≤200 -25 to +70 IP68/69K SS SS N/A YE - - D 4 A23
10-30 VDC 600 ≤200 -25 to +70 IP68/69K TC SS N/A YE - - D 4 A23
10-30 VDC 100 ≤200 -25 to +70 IP68/69K SS SS N/A YE - - C 3 A22
10-30 VDC 100 ≤200 -25 to +70 IP68/69K TC SS N/A YE - - C 3 A22
10-30 VDC 600 ≤200 -25 to +70 IP68/69K SS SS N/A YE - - D 3 A23
10-30 VDC 600 ≤200 -25 to +70 IP68/69K TC SS N/A YE - - D 3 A23
10-30 VDC 600 ≤200 -25 to +70 IP68/69K TC WG N/A YE - - D 3 A23
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Face
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
C30
LED
4-
Specialty Sensors | Stainless Front Face
LED
Embeddable Threaded Metal Barrels with 3-Wire DC Outputs
Housing Style Dimension Drawings
B
A
LED
18 mm - Embeddable, Stainless Steel Barrel, Potted-In Cable
C
LED
M18x1
1.378 [35.0]
18 mm - Embeddable, Stainless Steel Barrel, Potted-In Cable
D
4-WAY
LED
M12x1
M18x1
1.260 [32.0]
1.909 [48.5]
18 mm - Embeddable, Stainless Steel Barrel, M12 Eurofast Quick Disconnect
F
WAY
LED
M12x1
M30x1.5
1.654 [42.0]
2.500 [63.5]
30 mm - Embeddable, M12 Eurofast Connection, Stainless Steel
Wiring Diagrams/Mating Cordsets
1 2 3
18 mm - Embeddable, Stainless Steel Barrel, M12 Eurofast Quick Disconnect
E
1.969 [50.0]
M30x1.5
30 mm - Embeddable, Stainless Steel Barrel, Potted-In Cable
4
We reserve the right to make technical alterations without prior notice.
Mating Cordset: RKV 4T-*
A22
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
No-Load Current:
Off-State (Leakage) Current:
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≤15 mA
≤0.1 mA
A23
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
No-Load Current:
C31
Off-State (Leakage) Current:
Turck Inc.
≤10%
20%
≤2 V
≥220 mA on 200 mA Load Current
≤10 mA
≤0.1 mA
3-wire DC Stainless Front Face (AP, AN, RP, RN)
Temperature Drift:
Reverse Polarity Protection:
Wire-Break Protection:
Shock:
Vibration:
Repeatability:
3-wire DC Stainless Front Face Ext Range (AP, AN, RP, RN)
Temperature Drift:
Reverse Polarity Protection:
Wire-Break Protection:
Shock:
Vibration:
Repeatability:
Mating Cordset: RKV 4T-*
≤±10%
Incorporated
Incorporated
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
≤±10%
Incorporated
Incorporated
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤5% of Rated Operating Distance
Specialty Sensors | Stainless Front Face
Embeddable Threaded Metal Barrels with 3-Wire DC Outputs
Part Number/
ID Number
Bi5-EG18F-AN6X
4614639
Bi10-EG18F-AN6X
4614723
Bi10-EG18F-AP6X
4614722
Bi5-EG18F-AN6X-H1141
4614642
Bi5-EGT18F-AN6X-H1141
4614672
Bi10-EG18F-AN6X-H1141
4614716
Bi5-EG18F-AP6X-H1141
4614641
Bi5-EGT18F-AP6X-H1141
4614675
Bi10-EG18F-AP6X-H1141
4614708
Bi10-EGT18F-AP6X-H1141
46147080
Bi10-EGT18F-AP6X-H1141/S1589
46147081
Bi20-EG30F-AP6X
4614724
Bi20-EG30F-AP6X-H1141
4614710
We reserve the right to make technical alterations without prior notice.
Bi20-EGT30F-AP6X-H1141
46147100
Bi20-EGT30F-AP6X-H1141/S1589
46147101
Features
Full Stainless
Steel
Full Stainless
Steel
Full Stainless
Steel
Full Stainless
Steel
Full Stainless
Steel, PTFE
Full Stainless
Steel
Full Stainless
Steel
Full Stainless
Steel, PTFE
Full Stainless
Steel
Full Stainless
Steel, PTFE
Full Stainless
Steel, PTFE,
Weldguard
Full Stainless
Steel
Full Stainless
Steel
Full Stainless
Steel, PTFE
Full Stainless
Steel, PTFE,
Weldguard
Sensing Range (mm)
5
DC NPN
10
DC NPN
10
DC PNP
5
DC NPN
5
DC NPN
10
DC NPN
5
DC PNP
5
DC PNP
10
DC PNP
10
DC PNP
10
DC PNP
20
DC PNP
20
DC PNP
20
DC PNP
20
DC PNP
Output
3-wire
3-wire
3-wire
3-wire
3-wire
3-wire
3-wire
3-wire
3-wire
3-wire
3-wire
3-wire
3-wire
3-wire
3-wire
Voltage
10-30 VDC 100 ≤200 -25 to +70 IP68/69K SS SS N/A YE 2M/PVC A 2 A22
10-30 VDC 200 ≤200 -25 to +70 IP68/69K SS SS N/A YE 2M/PVC B 2 A23
10-30 VDC 200 ≤200 -25 to +70 IP68/69K SS SS N/A YE 2M/PVC B 1 A23
10-30 VDC 100 ≤200 -25 to +70 IP68/69K SS SS N/A YE - - C 4 A22
10-30 VDC 100 ≤200 -25 to +70 IP68/69K TC SS N/A YE - - C 4 A22
10-30 VDC 200 ≤200 -25 to +70 IP68/69K SS SS N/A YE - - D 4 A23
10-30 VDC 100 ≤200 -25 to +70 IP68/69K SS SS N/A YE - - C 3 A22
10-30 VDC 100 ≤200 -25 to +70 IP68/69K TC SS N/A YE - - C 3 A22
10-30 VDC 200 ≤200 -25 to +70 IP68/69K SS SS N/A YE - - D 3 A23
10-30 VDC 200 ≤200 -25 to +70 IP68/69K TC SS N/A YE - - D 3 A23
10-30 VDC 200 ≤200 -25 to +70 IP68/69K TC WG N/A YE - - D 3 A23
10-30 VDC 100 ≤200 -25 to +70 IP68/69K SS SS N/A YE 2M/PVC E 1 A23
10-30 VDC 100 ≤200 -25 to +70 IP68/69K SS SS N/A YE - - F 3 A23
10-30 VDC 100 ≤200 -25 to +70 IP68/69K TC SS N/A YE - - F 3 A23
10-30 VDC 100 ≤200 -25 to +70 IP68/69K TC WG N/A YE - - F 3 A23
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Face
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
Specialty Sensors
Turck Inc.
C32

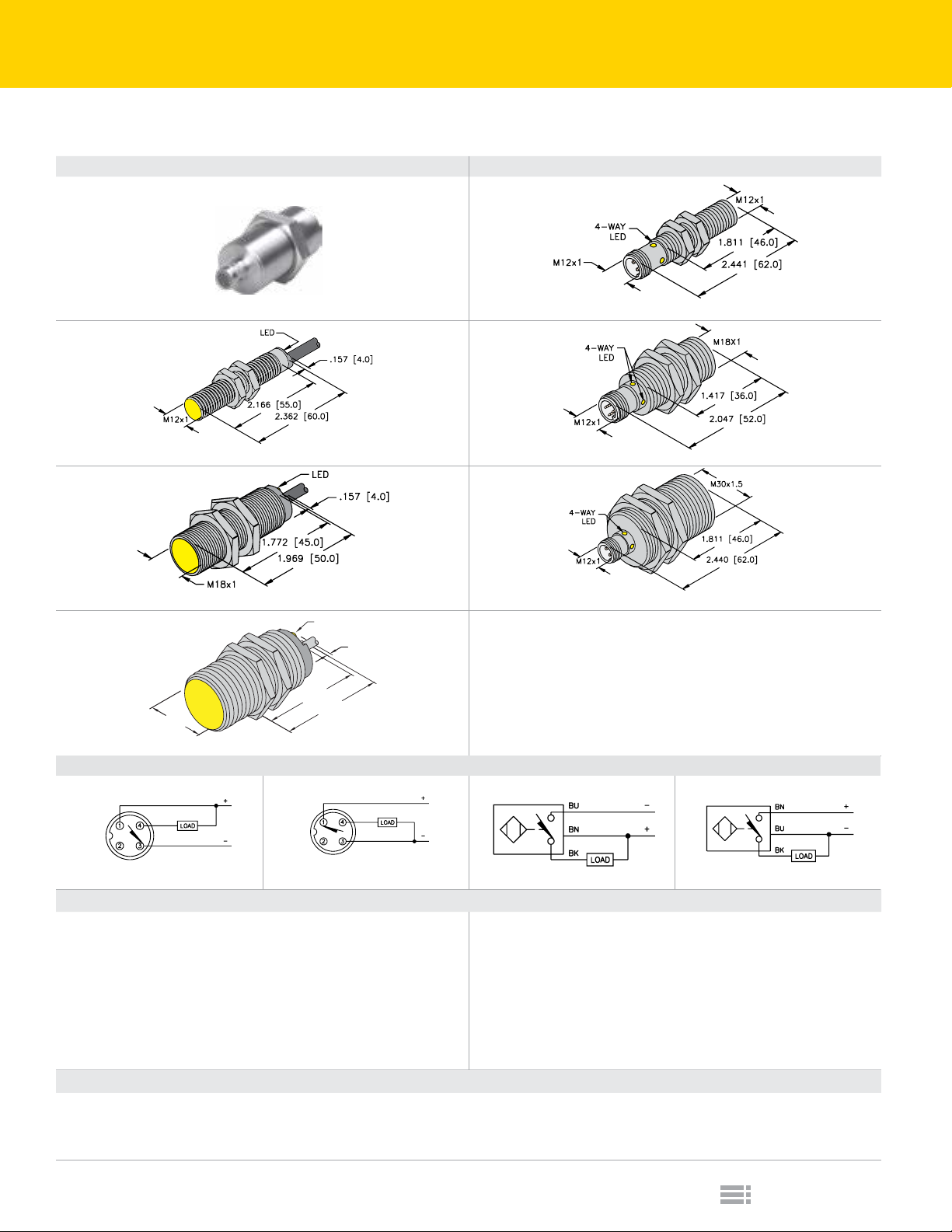

Specialty Sensors | Mobile Equipment
Barrel Sensors Designed for use on Vehicles and Equipment
Housing Style Dimension Drawings
B
A
12 mm - Embeddable, M12 Eurofast Connection
C
12 mm - Embeddable, Partial Threading, Potted-In Cable
D
18 mm - Embeddable, Partial Threading, Potted-In Cable
F
M30x1.5
30 mm - Embeddable, Partial Threading, Potted-In Cable
1
Mating Cordset: RK 4T-*/S90
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
LED
.157 [4.0]
2.165 [55.0]
2.362 [60.0]
Wiring Diagrams/Mating Cordsets
2
Mating Cordset: RK 4T-*/S90
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox)
≤20 mA (Uprox+, Uprox 3)
• Load Dump Protection
• Shock Resistant
• EMC Immunity
• Extended Temperature Range
18 mm - Embeddable, M12 Eurofast Connection
E
30 mm - Embeddable, M12 Eurofast Connection
3 4
Time Delay Before Availability:
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Vibration:
Repeatability:
Features
• Broader Operating Voltage
• Improved Sealing and Environmental Protection
• Longer Sensing Range
Shock:
We reserve the right to make technical alterations without prior notice.
≤8 ms
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
C33
Turck Inc.
Specialty Sensors | Mobile Equipment
Barrel Sensors Designed for use on Vehicles and Equipment
Part Number/
ID Number
Bi4-EM12E-AN45XLD-H1141
1584003
Bi4-EM12E-AP45XLD-H1141
1584000
Bi4-EM12E-AN45XLD
1584004
Bi4-EM12E-AP45XLD
1584001
Bi8-EM18-AN45XLD-H1141
1584017
Bi8-EM18-AP45XLD-H1141
1584010
Bi8-EM18-AN45XLD
1584014
Bi8-EM18-AP45XLD
1584011
Bi15-EM30-AN45XLD-H1141
1584024
Bi15-EM30-AP45XLD-H1141
1584020
Bi15-EM30-AN45XLD
1584022
Bi15-EM30-AP45XLD
1584021
Sensing Range (mm)
4 3-wire DC NPN 8.4-65 VDC 2000 ≤200 -40 to +85 IP68/69K SS PA12 N/A YE - - A 1 A4
4 3-wire DC PNP 8.4-65 VDC 2000 ≤200 -40 to +85 IP68/69K SS PA12 N/A YE - - A 2 A4
4 3-wire DC NPN 8.4-65 VDC 2000 ≤200 -40 to +85 IP68/69K SS PA12 N/A YE 2M/TPE B 3 A4
4 3-wire DC PNP 8.4-65 VDC 2000 ≤200 -40 to +85 IP68/69K SS PA12 N/A YE 2M/TPE B 4 A4
8 3-wire DC NPN 8.4-65 VDC 500 ≤200 -40 to +85 IP68/69K SS PA12 N/A YE - - C 1 A4
8 3-wire DC PNP 8.4-65 VDC 500 ≤200 -40 to +85 IP68/69K SS PA12 N/A YE - - C 2 A4
8 3-wire DC NPN 8.4-65 VDC 500 ≤200 -40 to +85 IP68/69K SS PA12 N/A YE 2M/TPE D 3 A4
8 3-wire DC PNP 8.4-65 VDC 500 ≤200 -40 to +85 IP68/69K SS PA12 N/A YE 2M/TPE D 4 A4
15 3-wire DC NPN 8.4-65 VDC 500 ≤200 -40 to +85 IP68/69K SS PA12 N/A YE - - E 1 A4
15 3-wire DC PNP 8.4-65 VDC 500 ≤200 -40 to +85 IP68/69K SS PA12 N/A YE - - E 2 A4
15 3-wire DC NPN 8.4-65 VDC 500 ≤200 -40 to +85 IP68/69K SS PA12 N/A YE 2M/TPE F 1 A4
15 3-wire DC PNP 8.4-65 VDC 500 ≤200 -40 to +85 IP68/69K SS PA12 N/A YE 2M/TPE F 2 A4
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Face
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
C34
Specialty Sensors | Mobile Equipment
Rectangular Sensors Designed for use on Vehicles and Equipment
Housing Style Dimension Drawings
B
A
14 mm - Embeddable, Potted-In Cable
C
We reserve the right to make technical alterations without prior notice.
20 mm - Embeddable, M12 Eurofast Connection
Wiring Diagrams/Mating Cordsets
20 mm - Embeddable, Potted-In Cable
1 2 3
4
Mating Cordset: RK 4T-*/S90
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox)
≤20 mA (Uprox+, Uprox 3)
5
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
Time Delay Before Availability:
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Repeatability:
Shock:
Vibration:
Mating Cordset: RK 4T-*/S90
≤8 ms
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
C35
Turck Inc.
• Load Dump Protection
• Shock Resistant
• EMC Immunity
• Extended Temperature Range
Features
• Broader Operating Voltage
• Improved Sealing and Environmental Protection
• Longer Sensing Range
Specialty Sensors | Mobile Equipment
Rectangular Sensors Designed for use on Vehicles and Equipment
Part Number/
ID Number
Bi10-Q14-AN45X2LD
1584032
Bi10-Q14-AP45X2LD
1584031
Bi20-Q20-AN45X2LD-H1141
1584042
Bi20-Q20-AP45X2LD-H1141
1584040
Bi20-Q20-AN45X2LD
1584043
Bi20-Q20-AP45X2LD
1584041
Bi20-Q20-VP45X2LD
1584047
Sensing Range (mm)
10 3-wire DC NPN 8.4-65 VDC 500 ≤200 -40 to +85 IP68/69K PBT PBT GN YE 2M/TPE A 1 A4
10 3-wire DC PNP 8.4-65 VDC 500 ≤200 -40 to +85 IP68/69K PBT PBT GN YE 2M/TPE A 2 A4
20 3-wire DC NPN 8.4-65 VDC 500 ≤200 -40 to +85 IP68/69K PBT PBT GN YE - - B 3 A4
20 3-wire DC PNP 8.4-65 VDC 500 ≤200 -40 to +85 IP68/69K PBT PBT GN YE - - B 4 A4
20 3-wire DC NPN 8.4-65 VDC 500 ≤200 -40 to +85 IP68/69K PBT PBT GN YE 2M/TPE C 1 A4
20 3-wire DC PNP 8.4-65 VDC 500 ≤200 -40 to +85 IP68/69K PBT PBT GN YE 2M/TPE C 2 A4
20 4-wire DC PNP 8.4-65 VDC 500 ≤200 -40 to +85 IP68/69K PBT PBT GN YE 2M/TPE C 5 A4
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Face
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
C36
Specialty Sensors | 6A Solid State
Threaded Metal Barrel Sensors with Cable
Housing Style Dimension Drawings
B
30 mm - Nonembeddable, Potted-In Cable
Wiring Diagrams/Mating Cordsets
1 2
A
30 mm - Embeddable, Potted-In Cable
We reserve the right to make technical alterations without prior notice.
A10
Ripple:
Output Voltage:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Continuous Load Current:
Off-State (Leakage) Current:
Inrush Current:
No-Load Current:
≤10%
≤35 V AC, ≤50 V DC
3-15% (5% typical)
≤0.4 V
≤6 Amp
≤0.1 mA
≤8.0 A (≤10.0 ms max 5 Hz)
≤25 mA
Solid State Relay (AM6, VM6)
Reverse Polarity Protection:
Wire-Break Protection:
Short Circuit Protected:
Transient Protection:
Shock:
Vibration:
Repeatability:
Incorporated
Incorporated
No
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤2% of Rated Operating Distance
C37
Turck Inc.
Specialty Sensors | 6A Solid State
Threaded Metal Barrel Sensors with Cable
Part Number/
ID Number
Bi12-G30-AM6/37X/S97
1711200
Bi12-G30-VM6/37X/S97
1711290
Ni20-G30-VM6/37X/S97
4205472
Features
High current rated 12 4-wire DC 10-30 VDC 20 ≤6000 -40 to 70 IP67 CPB PA12 N/A YE 2M/PVC A 1 A10
High current rated 12 5-wire DC 10-30 VDC 20 ≤6000 -40 to 70 IP67 CPB PA12 N/A YE 2M/PVC A 2 A10
High current rated 20 5-wire DC 10-30 VDC 20 ≤6000 -40 to 70 IP67 CPB PA12 N/A YE 2M/PVC B 2 A10
Sensing Range (mm)
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Face
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
C38
Specialty Sensors | FM Approved Class I Div 2
LED
Threaded Metal Barrels with 3-Wire DC Outputs
Housing Style Dimension Drawings
B
A
12 mm - Embeddable, M12 Eurofast Connector
C
12 mm - Embeddable, Potted-In Cable
D
M30x1.5
30 mm - Embeddable, Potted-In Cable
1
Mating Cordset: P-RKGV 4.43T-1699XL-*
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
.157 [4.0]
2.165 [55.0]
2.362 [60.0]
Wiring Diagrams/Mating Cordsets
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox)
≤20 mA (Uprox+, Uprox 3)
18 mm - Embeddable, M12 Eurofast Connector
We reserve the right to make technical alterations without prior notice.
E
30 mm - Embeddable, M12 Eurofast Connector
2
Time Delay Before Availability:
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
≤8 ms
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
C39
Turck Inc.
Specialty Sensors | FM Approved Class I Div 2
Threaded Metal Barrels with 3-Wire DC Outputs
Part Number/
ID Number
Bi4-M12-AP6X-H1141/S1751
4607075
Bi4-M12-AP6X/S1751
4607073
Bi8-M18-AP6X-H1141/S1751
4615078
Bi15-M30-AP6X-H1141/S97/S1751
4618574
Bi15-M30-AP6X/S1751
46185302
Features
FM Approved 4 3-wire DC PNP 10-30 VDC 2000 ≤200
FM Approved 4 3-wire DC PNP 10-30 VDC 2000 ≤200
FM Approved 8 3-wire DC PNP 10-30 VDC 500 ≤200
FM Approved 15 3-wire DC PNP 10-30 VDC 500 ≤200
FM Approved 15 3-wire DC PNP 10-30 VDC 500 ≤200
Sensing Range (mm)
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
-25 to
+70
-25 to
+70
-25 to
+70
-40 to
+70
-25 to
+70
Operating Temp. (°C)
Protection
Housing
Face
Power LED
Output LED
IP67 CPB PA 12 N/A YE - - A 1 A4
IP67 CPB PA 12 N/A YE
IP67 CPB PA 12 N/A YE - - C 1 A4
IP67 CPB PA 12 N/A YE - - E 1 A4
IP67 CPB PA 12 N/A YE
2M/
PVC
2M/
PVC
Cable Length/Jacket
D 2 A4
Dimension Drawings
Wiring Diagrams
B 2 A4
Spec List
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
C40
Specialty Sensors | Ring Sensors
Plastic Housing Sensors with Cable or Connector and 3-Wire DC Output
Housing Style Dimension Drawings
B
A
14 mm - Rectangular, Ring Sensor, M12 Eurofast Connector
C
We reserve the right to make technical alterations without prior notice.
14 mm - Rectangular, Ring Sensor, Potted-In Cable
D
30 mm - Rectangular, Ring Sensor, M12 Eurofast Connector
1
Mating Cordset: RK 4T-*
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
Wiring Diagrams/Mating Cordsets
2
Mating Cordset: RK 4T-*
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox)
≤20 mA (Uprox+, Uprox 3)
20 mm - Rectangular, Ring Sensor, M12 Eurofast Connector
3 4
Time Delay Before Availability:
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
≤8 ms
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
C41
Turck Inc.
Specialty Sensors | Ring Sensors
Plastic Housing Sensors with Cable or Connector and 3-Wire DC Output
Part Number/
ID Number
Bi10R-Q14-AN6X2-H1141
1407120
Bi15R-Q14-AN6X2-H1141
1407220
Bi20R-Q14-AN6X2-H1141
1407320
Bi6R-Q14-AP6X2-H1141
14070
Bi10R-Q14-AP6X2-H1141
14071
Bi15R-Q14-AP6X2-H1141
14072
Bi20R-Q14-AP6X2-H1141
14073
Bi10R-Q14-AN6X2
1406120
Bi15R-Q14-AN6X2
1406220
Bi20R-Q14-AN6X2
1406320
Bi10R-Q14-AP6X2
14061
Bi15R-Q14-AP6X2
14062
Bi20R-Q14-AP6X2
14063
Bi30R-Q20-AN6X2-H1141
We reserve the right to make technical alterations without prior notice.
1407520
Bi30R-Q20-AP6X2-H1141
14075
Bi6R-W30-DAN6X-H1141
14037
Bi10R-W30-DAN6X-H1141
14039
Bi15R-W30-DAN6X-H1141
14041
Bi20R-W30-DAN6X-H1141
14043
Bi30R-W30-DAN6X-H1141
1404501
Bi6R-W30-DAP6X-H1141
14036
Bi10R-W30-DAP6X-H1141
14038
Bi15R-W30-DAP6X-H1141
14040
Bi20R-W30-DAP6X-H1141
14042
Bi30R-W30-DAP6X-H1141
14045
Features
Static Output ≥ 2 mm 10
Static Output ≥ 3 mm 15
Static Output ≥ 4 mm 20
Static Output ≥ 2 mm 6
Static Output ≥ 2 mm 10
Static Output ≥ 3 mm 15
Static Output ≥ 4 mm 20
Static Output ≥ 2 mm 10
Static Output ≥ 3 mm 15
Static Output ≥ 4 mm 20
Static Output ≥ 2 mm 10
Static Output ≥ 3 mm 15
Static Output ≥ 4 mm 20
Static Output ≥ 6 mm 30
Static Output ≥ 6 mm 30
Dynamic Output ≥ 0.6 mm 6
Dynamic Output ≥ 1 mm 10
Dynamic Output ≥ 1.5 mm 15
Dynamic O
Dynamic Output ≥ 3 mm 30
Dynamic Output ≥ 0.6 mm 6
Dynamic Output ≥ 1 mm 10
Dynamic Output ≥ 1.5 mm 15
Dynamic Output ≥ 2 mm 20
Dynamic Output ≥ 3 mm 30
utput ≥ 2 mm 20
Minimum Target
Diameter
Ring Diameter (mm)
3-wire
DC NPN
3-wire
DC NPN
3-wire
DC NPN
3-wire
DC PNP
3-wire
DC PNP
3-wire
DC PNP
3-wire
DC PNP
3-wire
DC NPN
3-wire
DC NPN
3-wire
DC NPN
3-wire
DC PNP
3-wire
DC PNP
3-wire
DC PNP
3-wire
DC NPN
3-wire
DC PNP
3-wire
DC NPN
3-wire
DC NPN
3-wire
DC NPN
3-wire
DC NPN
3-wire
DC NPN
3-wire
DC PNP
3-wire
DC PNP
3-wire
DC PNP
3-wire
DC PNP
3-wire
DC PNP
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
10-30
8 ≤200 -25 to +70 IP67 PBT POM GN YE - - A 1 A4
VDC
10-30
8 ≤200 -25 to +70 IP67 PBT POM GN YE - - A 1 A4
VDC
10-30
8 ≤200 -25 to +70 IP67 PBT POM GN YE - - A 1 A4
VDC
10-30
8 ≤200 -25 to +70 IP67 PBT POM GN YE - - A 2 A4
VDC
10-30
8 ≤200 -25 to +70 IP67 PBT POM GN YE - - A 2 A4
VDC
10-30
8 ≤200 -25 to +70 IP67 PBT POM GN YE - - A 2 A4
VDC
10-30
8 ≤200 -25 to +70 IP67 PBT POM GN YE - - A 2 A4
VDC
10-30
8 ≤200 -25 to +70 IP67 PBT POM GN YE 2M/PVC B 3 A4
VDC
10-30
8 ≤200 -25 to +70 IP67 PBT POM GN YE 2M/PVC B 3 A4
VDC
10-30
8 ≤200 -25 to +70 IP67 PBT POM GN YE 2M/PVC B 3 A4
VDC
10-30
8 ≤200 -25 to +70 IP67 PBT POM GN YE 2M/PVC B 4 A4
VDC
10-30
8 ≤200 -25 to +70 IP67 PBT POM GN YE 2M/PVC B 4 A4
VDC
10-30
8 ≤200 -25 to +70 IP67 PBT POM GN YE 2M/PVC B 4 A4
VDC
10-30
8 ≤200 -25 to +70 IP67 PBT POM GN YE - - C 1 A4
VDC
10-30
8 ≤200 -25 to +70 IP67 PBT POM GN YE - - C 2 A4
VDC
10-30
8 ≤200 -25 to +70 IP67 PA 12 POM N/A YE - - D 1 A4
VDC
10-30
8 ≤200 -25 to +70 IP67 PA 12 POM N/A YE - - D 1 A4
VDC
10-30
8 ≤200 -25 to +70 IP67 PA 12 POM N/A YE - - D 1 A4
VDC
10-30
8 ≤200 -25 to +70 IP67 PA 12 POM N/A YE - - D 1 A4
VDC
10-30
8 ≤200 -25 to +70 IP67 PA 12 POM N/A YE - - D 1 A4
VDC
10-30
8 ≤200 -25 to +70 IP67 PA 12 POM N/A YE - - D 2 A4
VDC
10-30
8 ≤200 -25 to +70 IP67 PA 12 POM N/A YE - - D 2 A4
VDC
10-30
8 ≤200 -25 to +70 IP67 PA 12 POM N/A YE - - D 2 A4
VDC
10-30
8 ≤200 -25 to +70 IP67 PA 12 POM N/A YE - - D 2 A4
VDC
10-30
8 ≤200 -25 to +70 IP67 PA 12 POM N/A YE - - D 2 A4
VDC
Operating Temp. (°C)
Protection
Housing
Face
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
Specialty Sensors
Turck Inc.
C42
Specialty Sensors | Ring Sensors
Plastic Housing Sensors with a Large Diameter Ring and 3 or 4-Wire DC Output
Housing Style Dimension Drawings
A
B
C
32 mm - Rectangular, Ring Sensor, Terminal Chamber
We reserve the right to make technical alterations without prior notice.
80 mm - Rectangular, Ring Sensor, M12 Eurofast Connector
1 2
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox)
≤20 mA (Uprox+, Uprox 3)
100 mm - Rectangular, Ring Sensor, M12 Eurofast Connector
Wiring Diagrams/Mating Cordsets
Mating Cordset: RK 4T-*
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
Time Delay Before Availability:
Reverse Polarity Protection:
3
Power-On Effect:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
Mating Cordset: RK 4.4T-*
≤8 ms
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
C43
Turck Inc.
Specialty Sensors | Ring Sensors
Plastic Housing Sensors with a Large Diameter Ring and 3 or 4-Wire DC Output
Part Number/
ID Number
Ni20R-S32SR-VP44X
1440001
Ni40R-S32SR-VP44X
1440005
Ni65R-S32SR-VP44X
1440008
Bi50R-Q80-AP6X2-H1141
1407530
Bi65R-Q80-AP6X2-H1141
1407531
Ni100R-S32XL-VP44X-H1141
1510301
Features
Static
Output
Static
Output
Static
Output
Static
Output
Static
Output
Static
Output
Minimum Target
Diameter
Ring Diameter (mm)
≥ 0.4 mm 20 4-wire DC PNP 10-55 VDC 8 ≤200 -25 to +70 IP67 ABS ABS N/A YE A 1 A4
≥ 1 mm 40 4-wire DC PNP 10-55 VDC 8 ≤200 -25 to +70 IP67 ABS ABS N/A YE A 1 A4
≥ 12 mm 65 4-wire DC PNP 10-55 VDC 8 ≤200 -25 to +70 IP67 ABS ABS N/A YE A 1 A4
≥ 8 mm 50 3-wire DC PNP 10-30 VDC 10 ≤200 -25 to +70 IP67 PBT PA 66 GN YE B 2 A4
≥ 10 mm 65 3-wire DC PNP 10-30 VDC 10 ≤200 -25 to +70 IP67 PBT PA 66 GN YE B 2 A4
≥ 10mm 100 4-wire DC PNP 10-55 VDC 8 ≤200 -25 to +70 IP67 POM POM N/A YE C 3 A4
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Face
Power LED
Output LED
Dimension Drawings
Wiring Diagrams
Spec List
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
C44
Specialty Sensors | Tube and Slot Sensors
Plastic Housing Sensors with Cable or Connector
Housing Style Dimension Drawings
B
A
Tube Sensing Nonembeddable, M8 Picofast Connector
C
9 mm - Slot Sensor, Potted-In Cable
1
Mating Cordset: PKG 3M-*
4 5
A1
Differential Travel (Hysteresis):
Nominal Voltage:
Load Resistance:
Non-activated Current Consumption:
Activated Current Consumption:
Recommended Switching Point for Remote
Amplifier:
1-10% (5% typical)
8.2 VDC (EN60947-5-6)
1000 Ω
≥2.1 mA
≤1.2 mA
>1.2 to <2.1 mA,
typ. 1.55 mA ON/1.75 mA OFF
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox)
≤20 mA (Uprox+, Uprox 3)
Wiring Diagrams/Mating Cordsets
2
Mating Cordset: PKG 3M-*
2-wire DC NAMUR - (Y0 and Y1)
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
10 mm - Slot Sensor, Potted-In Cable
3
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Shock:
Vibration:
Repeatability:
Time Delay Before Availability:
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
We reserve the right to make technical alterations without prior notice.
Realized in Amplifier
Incorporated
Realized in Amplifier
Realized in Amplifier
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
≤8 ms
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
C45
Turck Inc.
Specialty Sensors | Tube and Slot Sensors
Plastic Housing Sensors with Cable or Connector
Part Number/
ID Number
Ni20U-TS12-AN6X2-V1131
1625822
Ni20U-TS12-AP6X2-V1131
1646640
Si5-K09-Y1 0.5M
10240
Si3.5-K10-AN7
17190
Si3.5-K10-AP6X
1650001
Si3.5-K10-Y1
10365
Features
Sensing Range (mm)
Uprox+ 20 3-wire DC NPN 10-30 VDC 8 ≤200 -25 to +70 IP68 PBT PBT GN YE - - A 1 A4
Uprox+ 20 4-wire DC PNP 10-30 VDC 8 ≤200 -25 to +70 IP68 PBT PBT GN YE - - A 2 A4
5 2-wire DC NAMUR 5-30 VDC 5000 Remote -25 to +70 IP67 PBT PBT N/A N/A 0.5M/PVC B 3 A1
3.5 3-wire DC NPN 10-30 VDC 2000 ≤200 -25 to +70 IP67 PBT PBT N/A N/A 2M/PVC C 4 A4
3.5 3-wire DC PNP 10-30 VDC 2000 ≤200 -25 to +70 IP67 PBT PBT N/A YE 2M/PVC C 5 A4
3.5 2-wire DC NAMUR 5-30 VDC 3000 Remote -25 to +70 IP67 PBT PBT N/A N/A 2M/PVC C 3 A1
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Face
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
C46
Specialty Sensors | Slot Sensors
Plastic Housing Sensors with Cable or Connector
Housing Style Dimension Drawings
B
30 mm - Slot Sensor, Potted-In Cable
1
2
A
30 mm - Slot Sensor, M12 Eurofast Connector
We reserve the right to make technical alterations without prior notice.
Wiring Diagrams/Mating Cordsets
3
Mating Cordset: RK 4T-*
Mating Cordset: RK 4T-*
4 5 6
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
A6
Line Frequency:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Continuous Load Current:
Off-State (Leakage) Current:
Minimum Load Current:
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox)
≤20 mA (Uprox+, Uprox 3)
≥50... ≤60 Hz
3-15% (5% typical)
≤6.0 V
AC: ≤400 mA; DC: ≤300 mA
AC: ≤100 mA; DC: ≤100 mA
≤1.7 mA
≥3.0 mA
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
Time Delay Before Availability:
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Repeatability:
2-wire AC/DC w/o Short-Circuit Protection - (AZ, RZ, FZ)
Inrush Current:
Power-On Effect:
Transient Protection:
Repeatability:
Shock:
Vibration:
Shock:
Vibration:
≤8 ms
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
≤8 A (≤10ms max. 5 Hz)
≤1 A (≤10 ms max. 5 Hz) 12 mm
≤0.2 A (≤10 ms max. 0.2 Hz) 8 mm
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤2% of Rated Operating Distance
C47
Turck Inc.
Specialty Sensors | Slot Sensors
Plastic Housing Sensors with Cable or Connector
Part Number/
ID Number
Si15-K30-AN6X-H1141
1605107
Si15-K30-AP6X-H1141
1605007
Si15-K30-AN6X
1605003
Si15-K30-AP6X
1605001
Si15-K30-VP6
1605030
Si15-K30-AZ3
13069
Features
Comp.
Outputs
Sensing Range (mm)
15 3-wire DC NPN 10-30 VDC 500 ≤200 -25 to +70 IP67 PBT PBT N/A YE - - A 1 A4
15 3-wire DC PNP 10-30 VDC 500 ≤200 -25 to +70 IP67 PBT PBT N/A YE - - A 2 A4
15 3-wire DC NPN 10-30 VDC 500 ≤200 -25 to +70 IP67 PBT PBT N/A YE 2M/PVC B 3 A4
15 3-wire DC PNP 10-30 VDC 500 ≤200 -25 to +70 IP67 PBT PBT N/A YE 2M/PVC B 4 A4
15 4-wire DC PNP 10-30 VDC 350 ≤200 -25 to +70 IP67 PBT PBT N/A N/A 2M/PVC B 5 A4
15 2-wire AC/DC
Output
Voltage
20-250 VAC/10-
300 VDC
Switching Freq. (Hz)
20 ≤400/300 -25 to +70 IP67 PBT PBT N/A N/A 2M/PVC B 6 A6
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Face
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
C48

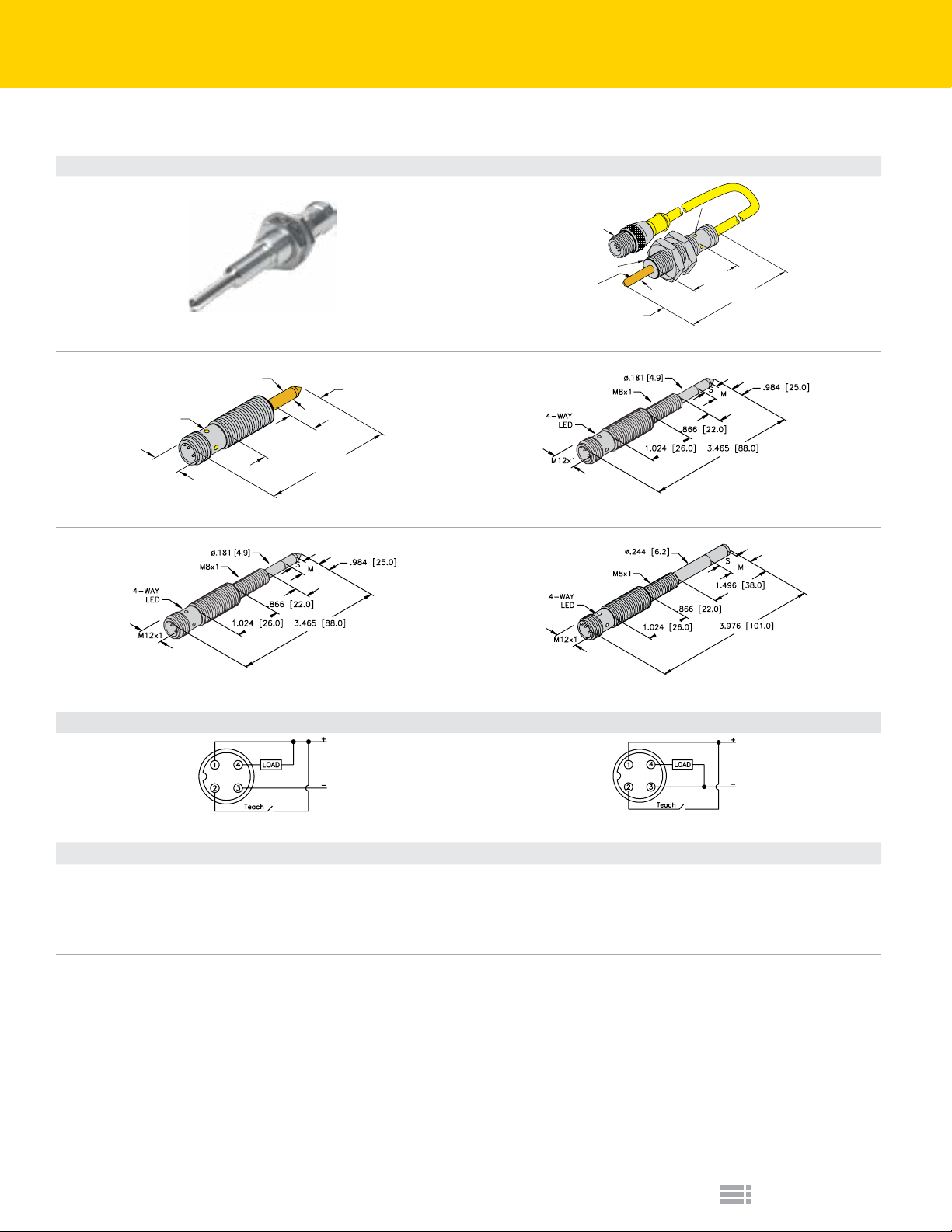

Specialty Sensors | Weld Nut Sensors
.787 [20.0]
ø.157 [4.0]
Threaded Metal Barrel with Smooth Sensing Probe and 3-Wire DC Output
Housing Style Dimension Drawings
A
M12x1
4-WAY
LED
M12x1
ø.157 [4.0]
.787 [20.0]
1.024 [26.0]
OS*
2.401 [61.0]
Nut Sensor, 5-12 mm Diameter Nut, Potted-In Cable
B
4-WAY
M12x1
LED
OS*
1.024 [26.0]
2.402 [61.0]
C
S** = 9 mm
We reserve the right to make technical alterations without prior notice.
M*** = 13 mm
Nut Sensor, 5-12 mm Diameter Nut, M12 Eurofast Connector
D
E
S** = 9 mm
M*** = 13 mm
Nut Sensor, 6-12 mm Diameter Nut, M12 Eurofast Connector
S** = 11 mm
M*** = 14 mm
Nut Sensor, 6-12 mm Diameter Nut, M12 Eurofast Connector
Nut Sensor, 10-20 mm Diameter Nut, M12 Eurofast Connector
Wiring Diagrams/Mating Cordsets
1
Mating Cordset: RK 4.4T-*
A24
Ripple:
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
No-Load Current:
Off-State (Leakage) Current:
3-wire DC Nut Detection Sensor (AP, AN)
≤10%
≤1 V
≥220 mA on 200 mA Load Current
≤15 mA
≤0.1 mA
2
Mating Cordset: RK 4.4T-*
Reverse Polarity Protection:
Wire-Break Protection:
Shock:
Vibration:
Incorporated
Incorporated
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
Note:
OS* The optimal sensitive area for the 4.0 mm diameter probes has a width of 0.5 mm and is laser-engraved on the tip of the probe, 11.9 mm above the M12 thread.
S** Sensitive area: Within this area the sensor signal changes when assembly parts are changed.
M*** Maximum area: The maximum signal intensity is reached if the sensitive area is completely covered.
Optional teach adapter available, part number VB2-SP1.
C49
Turck Inc.
Specialty Sensors | Weld Nut Sensors
Threaded Metal Barrel with Smooth Sensing Probe and 3-Wire DC Output
Part Number/
ID Number
NIMFE-EM12/4.0L61-UP6X-0.3XYE-RS4/S1182
1600623
NIMFE-EM12/4.0L61-UN6X-0.3XYE-RS4/S1182
1600624
NIMFE-EM12/4.0L61-UP6X-H1141/S1182
1600621
NIMFE-EM12/4.0L61-UN6X-H1141/S1182
1600622
NIMFE-M12/4.6L88-UN6X-H1141
1600610
NIMFE-EMT12/4.6L88-UN6X-H1141
1600618
NIMFE-EM12/4.6L88-UN6X-H1141/S1182
1600617
NIMFE-M12/4.6L88-UP6X-H1141
1600608
NIMFE-EMT12/4.6L88-UP6X-H1141
1600619
NIMFE-EM12/4.6L88-UP6X-H1141/S1182
1600620
NIMFE-EM12/4.9L88-UP6X-H1141/S1182
1600616
NIMFE-M12/6.2L101-UN6X-H1141
1600611
NIMFE-EMT12/6.2L101-UN6X-H1141
1600615
NIMFE-M12/6.2L101-UP6X-H1141
We reserve the right to make technical alterations without prior notice.
1600609
NIMFE-EMT12/6.2L101-UP6X-H1141
1600613
NIMFE-EM12/6.2L101-UP6X-H1141/S1182
1600612
Features
Titanium
Nitride
Titanium
Nitride
Titanium
Nitride
Titanium
Nitride
PTFE
Coated
Titanium
Nitride
PTFE
Coated
Titanium
Nitride
Titanium
Nitride
PTFE
Coated
PTFE
Coated
Titanium
Nitride
Nut Diameter
5-12 mm
5-12 mm
5-12 mm
5-12 mm
6-12 mm
6-12 mm
6-12 mm
6-12 mm
6-12 mm
6-12 mm
6-12 mm
10-20 mm
10-20 mm
10-20 mm
10-20 mm
10-20 mm
Output
3-wire DC
PNP
3-wire DC
NPN
3-wire DC
PNP
3-wire DC
NPN
3-wire DC
NPN
3-wire DC
NPN
3-wire DC
NPN
3-wire DC
PNP
3-wire DC
PNP
3-wire DC
PNP
3-wire DC
PNP
3-wire DC
NPN
3-wire DC
NPN
3-wire DC
PNP
3-wire DC
PNP
3-wire DC
PNP
Voltage
10-30 VDC ≤200 -25 to +70 IP67 SS GN YE
10-30 VDC ≤200 -25 to +70 IP67 SS GN YE
10-30 VDC ≤200 -25 to +70 IP67 SS GN YE - - B 2 A24
10-30 VDC ≤200 -25 to +70 IP67 SS GN YE - - B 1 A24
10-30 VDC ≤200 -25 to +70 IP67 CPB GN YE - - C 1 A24
10-30 VDC ≤200 -25 to +70 IP67 SS GN YE - - C 1 A24
10-30 VDC ≤200 -25 to +70 IP67 SS GN YE - - C 1 A24
10-30 VDC ≤200 -25 to +70 IP67 CPB GN YE - - C 2 A24
10-30 VDC ≤200 -25 to +70 IP67 SS GN YE - - C 2 A24
10-30 VDC ≤200 -25 to +70 IP67 SS GN YE - - C 2 A24
10-30 VDC ≤200 -25 to +70 IP67 SS GN YE - - D 2 A24
10-30 VDC ≤200 -25 to +70 IP67 CPB GN YE - - E 1 A24
10-30 VDC ≤200 -25 to +70 IP67 SS GN YE - - E 1 A24
10-30 VDC ≤200 -25 to +70 IP67 CPB GN YE - - E 2 A24
10-30 VDC ≤200 -25 to +70 IP67 SS GN YE - - E 2 A24
10-30 VDC ≤200 -25 to +70 IP67 SS GN YE - - E 2 A24
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Power LED
Output LED
Cable Length/Jacket
0.3M/
TPE
0.3M/
TPE
Dimension Drawings
Wiring Diagrams
A 2 A24
A 1 A24
Spec List
Specialty Sensors
Turck Inc.
C50
Specialty Sensors | Edge Detection Sensors
Rectangular Metal Housing with AC or DC Outputs and Integral Connector
Housing Style Dimension Drawings
A
B
C
CA4080 - Embeddable, Minifast Connector
We reserve the right to make technical alterations without prior notice.
CA4080 - Embeddable, M12 Eurofast Connector
D
CA40130 - Embeddable, M12 Eurofast Connector
1
Mating Cordset: RKM 30-*M
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
A5
Line Frequency:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Continuous Load Current:
Off-State (Leakage) Current:
Wiring Diagrams/Mating Cordsets
2
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox)
≤20 mA (Uprox+, Uprox 3)
2-wire AC/DC w/ Short-Circuit Protection - (ADZ, RDZ, FDZ, VDZ)
≥50... ≤60 Hz
3-15% (5% typical)
≤6.0 V
AC: ≥440 mA; DC: ≥330 mA
AC: ≥120 mA; DC: ≥120 mA
AC: ≤400 mA; DC: ≤300 mA
AC: ≤100 mA; DC: ≤100 mA
≤1.7 mA (AC)
≤1.5 mA (DC)
Time Delay Before Availability:
CA40130 - Embeddable, Minifast Connector
Mating Cordset: RK 4.4T-*
≤8 ms
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
Minimum Load Current:
Inrush Current:
Power-On Effect:
Transient Protection:
Shock:
Vibration:
Repeatability:
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
≥3.0 mA
≤3 A (≤20 ms, max 5 Hz)
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤2% of Rated Operating Distance
C51
Turck Inc.
Specialty Sensors | Edge Detection Sensors
Rectangular Metal Housing with AC or DC Outputs and Integral Connector
Part Number/
ID Number
Bi20-CA4080-ADZ30X2-B1131
4283400
Bi20-CA4080-VP4X2-H1141
1625591
BI20-CA4080-VP4X2-H1141/S1009
1625590
Bi20-CA40130-ADZ30X2-B1131
4283503
BI20-CA40130-ADZ30X2-B1131/S1009
4283597
Bi20-CA40130-VP4X2-H1141
4283599
Features
250 ms
Off Delay
250 ms
Off Delay
Sensing Range (mm)
20 2-wire AC/DC
20
20
20 2-wire AC/DC
20 2-wire AC/DC
20
Output
4-wire DC
PNP
4-wire DC
PNP
4-wire DC
PNP
Voltage
20-250 VAC/10-
300 VDC
10-65 VDC 100 ≤400 -25 to +70 IP67 TS SF GN YE B 2 A4
10-65 VDC 100 ≤400 -25 to +70 IP67 TS SF GN YE B 2 A4
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
10-65 VDC 100 ≤400 -25 to +70 IP67 TS SF GN YE D 2 A4
Switching Freq. (Hz)
30/100 ≤400/300 -25 to +70 IP67 TS SF GN YE A 1 A5
30/100 ≤400/300 -25 to +70 IP67 TS SF GN YE C 1 A5
30/100 ≤400/300 -25 to +70 IP67 TS SF GN YE C 1 A5
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Face
Power LED
Output LED
Dimension Drawings
Wiring Diagrams
Spec List
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
C52
Specialty Sensors | Edge Detection Sensors
Rectangular Plastic Housing with AC or DC Outputs and Integral Connector
Housing Style Dimension Drawings
A
B
C
CK4080 - Embeddable, 7/8” Minifast Connector
We reserve the right to make technical alterations without prior notice.
CK4080 - Embeddable, M12 Eurofast Connector
D
CK40130 - Embeddable, M12 Eurofast Connector
1
Mating Cordset: RKM 30-*M
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
A5
Line Frequency:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Continuous Load Current:
Off-State (Leakage) Current:
Wiring Diagrams/Mating Cordsets
2
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox)
≤20 mA (Uprox+, Uprox 3)
2-wire AC/DC w/ Short-Circuit Protection - (ADZ, RDZ, FDZ, VDZ)
≥50... ≤60 Hz
3-15% (5% typical)
≤6.0 V
AC: ≥440 mA; DC: ≥330 mA
AC: ≥120 mA; DC: ≥120 mA
AC: ≤400 mA; DC: ≤300 mA
AC: ≤100 mA; DC: ≤100 mA
≤1.7 mA (AC)
≤1.5 mA (DC)
Time Delay Before Availability:
CK40130 - Embeddable, 7/8” Minifast Connector
Mating Cordset: RK 4.4T-*
≤8 ms
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
Minimum Load Current:
Inrush Current:
Power-On Effect:
Transient Protection:
Shock:
Vibration:
Repeatability:
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
≥3.0 mA
≤3 A (≤20 ms, max 5 Hz)
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤2% of Rated Operating Distance
C53
Turck Inc.
Specialty Sensors | Edge Detection Sensors
Rectangular Plastic Housing with AC or DC Outputs and Integral Connector
Part Number/
ID Number
Bi20-CK4080-ADZ30X2-B1131
4283493
BI20-CK4080-ADZ30X2-B1131/S1009
4283495
Bi20-CK4080-VP4X2-H1141
4283491
BI20-CK4080-VP4X2-H1141/S1009
4283496
Bi20-CK40130-ADZ30X2-B1131
4283589
BI20-CK40130-ADZ30X2-B1131/S1009
42835953
Bi20-CK40130-VP4X2-H1141
42835911
BI20-CK40130-VP4X2-H1141/S1009
42835963
Features
250 ms
Off Delay
250 ms
Off Delay
250 ms
Off Delay
250 ms
Off Delay
Sensing Range (mm)
20
20
20
20
20
20
20
20
Output
2-wire
AC/DC
2-wire
AC/DC
4-wire
DC PNP
4-wire
DC PNP
2-wire
AC/DC
2-wire
AC/DC
4-wire
DC PNP
4-wire
DC PNP
Voltage
20-250 VAC/10-300
VDC
20-250 VAC/10-300
VDC
10-65 VDC 100 ≤400 -25 to +70 IP67 PBT PBT GN YE B 2 A4
10-65 VDC 100 ≤400 -25 to +70 IP67 PBT PBT GN YE B 2 A4
20-250 VAC/10-300
VDC
20-250 VAC/10-300
VDC
10-65 VDC 100 ≤400 -25 to +70 IP67 PBT PBT GN YE D 2 A4
10-65 VDC 100 ≤400 -25 to +70 IP67 PBT PBT GN YE D 2 A4
Switching Freq. (Hz)
30/100 ≤400/300 -25 to +70 IP67 PBT PBT GN RD A 1 A5
30/100 ≤400/300 -25 to +70 IP67 PBT PBT GN RD A 1 A5
30/100 ≤400/300 -25 to +70 IP67 PBT PBT GN YE C 1 A5
30/100 ≤400/300 -25 to +70 IP67 PBT PBT GN YE C 1 A5
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Face
Power LED
Output LED
Dimension Drawings
Wiring Diagrams
Spec List
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
C54

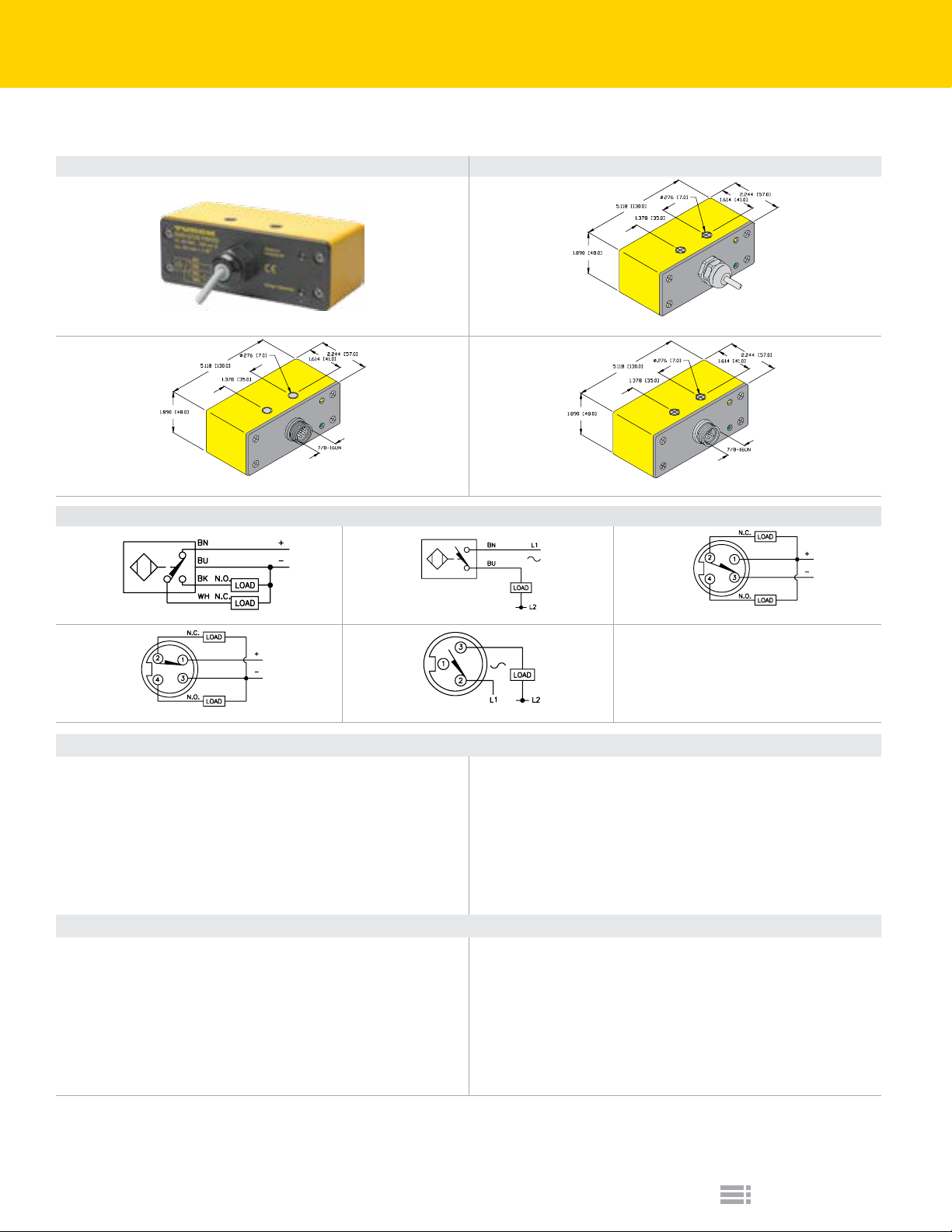

Specialty Sensors | Can Sensors
Rectangular Plastic Housing with AC or DC Outputs and Integral Connector
Housing Style Dimension Drawings
A
B
C
Q130 - Nonembeddable, Potted-In Cable
Q130 - Nonembeddable, 7/8” Minifast Connector
Wiring Diagrams/Mating Cordsets
Q130 - Nonembeddable, 7/8” Minifast Connector
1 2 3
4
Mating Cordset: RK 40-*M
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
A5
Line Frequency:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Continuous Load Current:
Off-State (Leakage) Current:
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox)
≤20 mA (Uprox+, Uprox 3)
≥50... ≤60 Hz
3-15% (5% typical)
≤6.0 V
AC: ≥440 mA; DC: ≥330 mA
AC: ≥120 mA; DC: ≥120 mA
AC: ≤400 mA; DC: ≤300 mA
AC: ≤100 mA; DC: ≤100 mA
≤1.7 mA (AC)
≤1.5 mA (DC)
5
Mating Cordset: RK 30-*M
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
Time Delay Before Availability:
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Repeatability:
2-wire AC/DC w/ Short-Circuit Protection - (ADZ, RDZ, FDZ, VDZ)
Minimum Load Current:
Inrush Current:
Power-On Effect:
Transient Protection:
Repeatability:
Shock:
Vibration:
Shock:
Vibration:
We reserve the right to make technical alterations without prior notice.
Mating Cordset: RK 40-*M
≤8 ms
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
≥3.0 mA
≤3 A (≤20 ms, max 5 Hz)
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤2% of Rated Operating Distance
C55
Turck Inc.
Specialty Sensors | Can Sensors
Rectangular Plastic Housing with AC or DC Outputs and Integral Connector
Part Number/
ID Number
Ni30-Q130-VP4X2
15179
Ni30-Q130-ADZ30X2
42095
Ni30-Q130-VN4X2-B2141
15180
Ni30-Q130-VP4X2-B2141
1518001
Ni30-Q130-ADZ30X2-B1131
42100
Features
Comp. Output 30 4-wire DC PNP 10-65 VDC 60 ≤200 -25 to +70 IP67 PBT PBT GN YE
Comp. Output 30 4-wire DC NPN 10-65 VDC 60 ≤200 -25 to +70 IP67 PBT PBT GN YE - - B 3 A4
Comp. Output 30 4-wire DC PNP 10-65 VDC 60 ≤200 -25 to +70 IP67 PBT PBT GN YE - - B 4 A4
Sensing Range (mm)
30 2-wire AC/DC
30 2-wire AC/DC
Output
Voltage
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
Switching Freq. (Hz)
Operating Current (mA)
30 ≤400/300 -25 to +70 IP67 PBT PBT GN RD
30 ≤400/300 -25 to +70 IP67 PBT PBT GN YE - - C 5 A5
Operating Temp. (°C)
Protection
Housing
Face
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
2M/
A 1 A4
PVC
2M/
A 2 A5
PVC
Spec List
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
C56

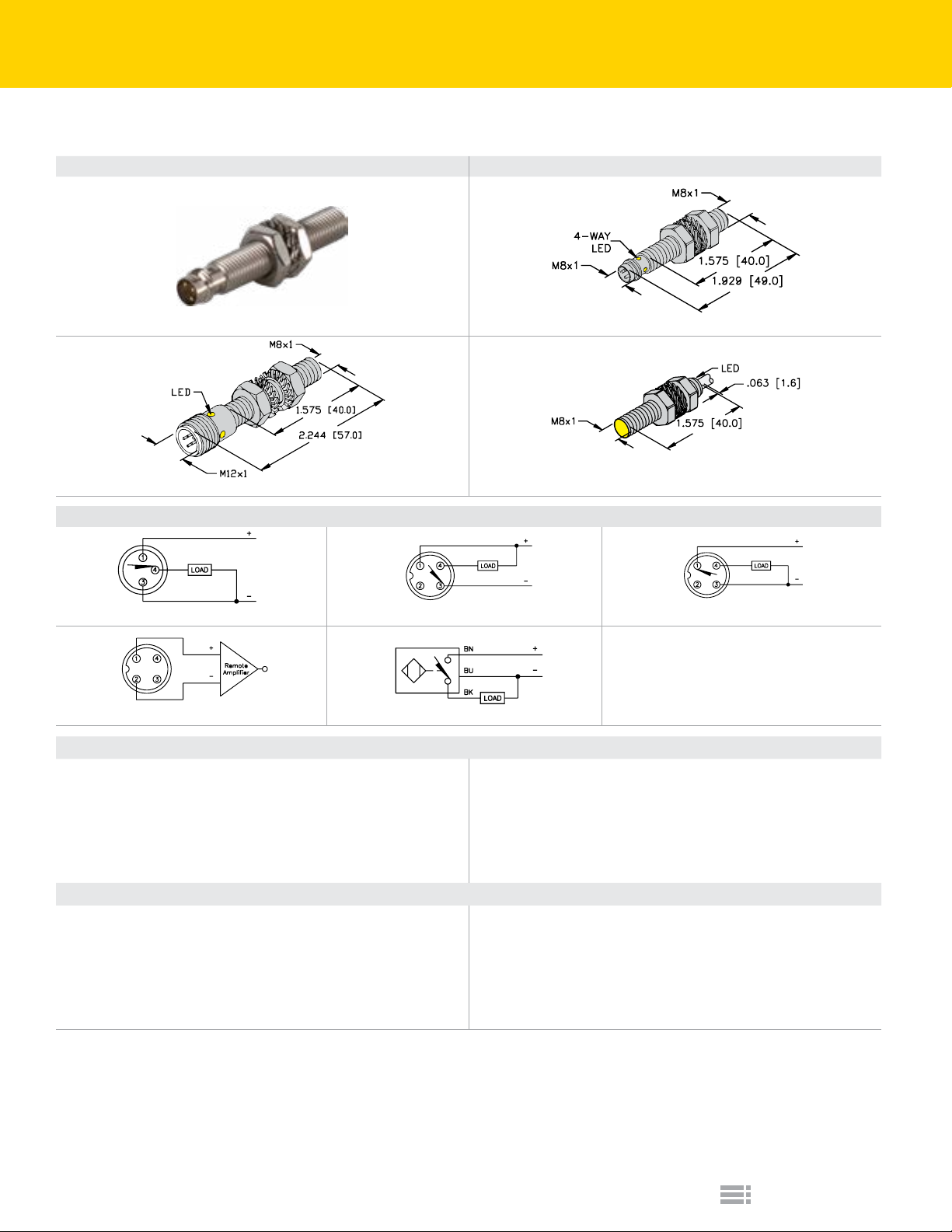

Specialty Sensors | Inductive Magnetic Sensors
Threaded Metal Barrels Designed to Sense a Magnetic Field
Housing Style Dimension Drawings
B
A
8 mm - Barrel, M8 Picofast Connector
C
8 mm - Barrel, M12 Eurofast Connector
1
Mating Cordset: PKG 3M-*
4
Mating Cordset: RK 4.21T-*
2
5
A25
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
No-Load Current:
Off-State (Leakage) Current:
≤10%
1-10%
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≤15 mA
≤0.1 mA
A27
Differential Travel (Hysteresis):
Nominal Voltage:
Load Resistance:
Non-activated Current Consumption:
Activated Current Consumption:
Recommended Switching Point for Remote
Amplifier:
Note:
Use with Turck actuation magnet to achieve longest switching distance.
See page I18 for part numbers and details.
1-10%
8.2 VDC (EN60947-5-6)
1000 Ω
≤1.2 mA
≥2.1 mA
>1.2 to <2.1 mA,
typ. 1.55 mA ON/1.75 mA OFF
Wiring Diagrams/Mating Cordsets
Mating Cordset: RK 4T-*
3-wire DC Magnetic Barrel (AP, AN)
Reverse Polarity Protection:
2-wire DC Namur Magnetic Barrel (Y1)
Reverse Polarity Protection:
8 mm - Barrel, Potted-In Cable
3
Temperature Drift:
Wire-Break Protection:
Shock:
Vibration:
Repeatability:
Temperature Drift:
Wire-Break Protection:
Transient Protection:
Shock:
Vibration:
Repeatability:
We reserve the right to make technical alterations without prior notice.
Mating Cordset: RK 4T-*
≤±15%
Incorporated
Incorporated
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤0.3% of Full Scale
≤±10%
Incorporated
Realized in Amplifier
Realized in Amplifier
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤0.3% of Full Scale
C57
Turck Inc.
Specialty Sensors | Inductive Magnetic Sensors
Threaded Metal Barrels Designed to Sense a Magnetic Field
Part Number/
ID Number
BIM-EG08-AP6X-V1131
4621314
BIM-EG08-AN6X-H1341
4621301
BIM-EG08-AP6X-H1341
4621311
BIM-EG08-Y1X-H1341
1074001
BIM-EG08-AP6X
4621310
Features
Up to 78 mm Range
Up to 78 mm Range
Up to 78 mm Range
Up to 78 mm Range
Up to 78 mm Range
Output
3-wire DC
PNP
3-wire DC
NPN
3-wire DC
PNP
2-wire DC
NAMUR
3-wire DC
PNP
Voltage
10-30 VDC 1000 ≤150 -25 to +70 IP67 SS PA 12 N/A YE - - A 1 A25
10-30 VDC 1000 ≤150 -25 to +70 IP67 SS PA 12 N/A YE - - B 2 A25
10-30 VDC 1000 ≤150 -25 to +70 IP67 SS PA 12 N/A YE - - B 3 A25
5-30 VDC 1000 Remote -25 to +70 IP67 SS PA 12 N/A YE - - B 4 A27
10-30 VDC 1000 ≤150 -25 to +70 IP67 SS PA 12 N/A YE 2M/TPU C 5 A25
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Face
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
C58

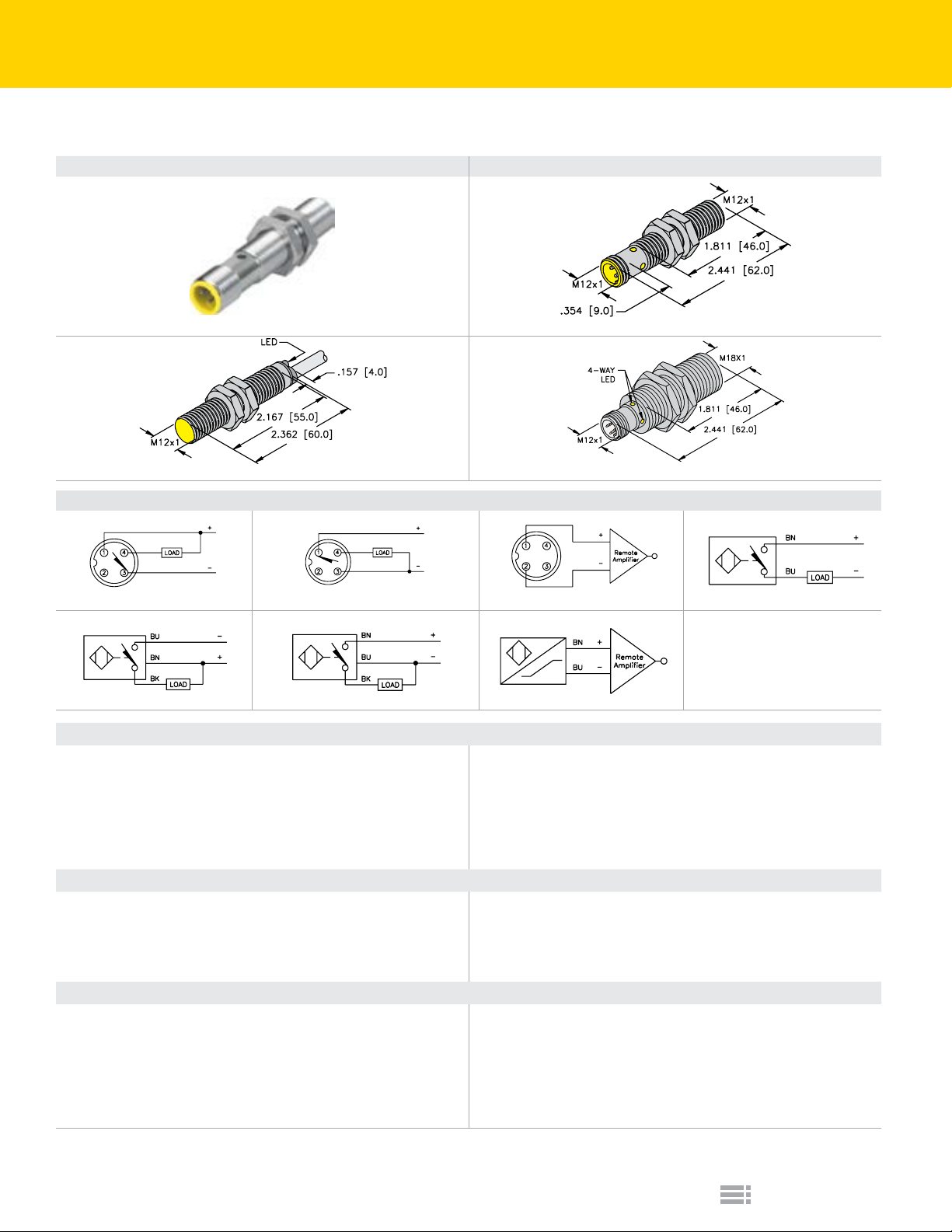

Specialty Sensors | Inductive Magnetic Sensors
Threaded Metal Barrels Designed to Sense a Magnetic Field
Housing Style Dimension Drawings
B
A
12 mm - M12 Eurofast Connector
C
12 mm - Potted-In Cable
Wiring Diagrams/Mating Cordsets
1
Mating Cordset: RK 4T-*
2
Mating Cordset: RK 4T-*; P-RKGV 4.43T-1699XL-*
5 6 7
A25
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
No-Load Current:
Off-State (Leakage) Current:
A26
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Minimum Load Current:
A27
Differential Travel (Hysteresis):
Nominal Voltage:
Load Resistance:
Non-activated Current Consumption:
Activated Current Consumption:
Recommended Switching Point for Remote
Amplifier:
≤10%
1-10%
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≤15 mA
≤0.1 mA
≤10%
1-10%
≤4.2 V Polarized
≥220 mA on 200 mA Load Current
≥3.0 mA
1-10%
8.2 VDC (EN60947-5-6)
1000 Ω
≤1.2 mA
≥2.1 mA
>1.2 to <2.1 mA,
typ. 1.55 mA ON/1.75 mA OFF
3-wire DC Magnetic Barrel (AP, AN)
2-wire DC Magnetic Barrel (AG)
2-wire DC Namur Magnetic Barrel (Y1)
3
Mating Cordset: RK 4.21T-*
Reverse Polarity Protection:
Off-State (Leakage) Current:
Reverse Polarity Protection:
18 mm - M12 Eurofast Connector
Temperature Drift:
Wire-Break Protection:
Shock:
Vibration:
Repeatability:
Temperature Drift:
Shock:
Vibration:
Repeatability:
Temperature Drift:
Wire-Break Protection:
Transient Protection:
Shock:
Vibration:
Repeatability:
We reserve the right to make technical alterations without prior notice.
4
≤±15%
Incorporated
Incorporated
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤0.3% of Full Scale
≤±15%
≤0.8 mA
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤0.3% of Full Scale
≤±10%
Incorporated
Realized in Amplifier
Realized in Amplifier
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤0.3% of Full Scale
Note:
Use with Turck actuation magnet to achieve longest switching distance.
See page I18 for part numbers and details.
C59
Turck Inc.
Specialty Sensors | Inductive Magnetic Sensors
Threaded Metal Barrels Designed to Sense a Magnetic Field
Part Number/
ID Number
BIM-M12E-AN4X-H1141
1579914
BIM-EM12E-AP4X-H1141
1579915
BIM-M12E-AP4X-H1141
1579913
BIM-M12E-AP6X-H1141/S1751
4681289
BIM-M12E-Y1X-H1141
1074003
BIM-M12E-AG4X
44302
BIM-M12E-AN4X
1579912
BIM-EM12E-AP4X
1579918
BIM-M12E-AP4X/S90
1579911
BIM-EM12E-Y1X
1070036
BIM-M12E-Y1X
1074002
BIM-EM18M-AP4X-H1141
1579933
Features
Up to 90 mm
Range
Up to 90 mm
Range
Up to 90 mm
Range
FM Approved 3-wire DC PNP 10-30 VDC 1000 ≤200 -25 to +70 IP67 CPB PA 12 N/A YE A 2 A25
Up to 90 mm
Range
Up to 90 mm
Range
Up to 90 mm
Range
Up to 90 mm
Range
Up to 90 mm
Range
Up to 90 mm
Range
Up to 90 mm
Range
Up to 90 mm
Range
2-wire DC NAMUR 5-30 VDC 1000 Remote -25 to +70 IP67 CPB PA 12 N/A YE A 3 A27
2-wire DC NAMUR 5-30 VDC 1000 Remote -25 to +70 IP67 SS POM N/A YE B 7 A27
2-wire DC NAMUR 5-30 VDC 1000 Remote -25 to +70 IP67 CPB PA 12 N/A YE B 7 A27
Output
3-wire DC NPN 10-65 VDC 1000 ≤200 -25 to +70 IP67 CPB PA 12 N/A YE A 1 A25
3-wire DC PNP 10-65 VDC 1000 ≤200 -25 to +70 IP67 SS POM N/A YE A 2 A25
3-wire DC PNP 10-65 VDC 1000 ≤200 -25 to +70 IP67 CPB PA 12 N/A YE A 2 A25
2-wire DC 10-65 VDC 1000 ≤100 -25 to +70 IP67 CPB PA 12 N/A YE B 4 A26
3-wire DC PNP 10-65 VDC 1000 ≤200 -25 to +70 IP67 CPB PA 12 N/A YE B 5 A25
3-wire DC PNP 10-65 VDC 1000 ≤200 -25 to +70 IP67 SS POM N/A YE B 6 A25
3-wire DC PNP 10-65 VDC 1000 ≤200 -25 to +70 IP67 CPB PA 12 N/A YE B 6 A25
3-wire DC PNP 10-65 VDC 1000 ≤200 -25 to +70 IP67 SS POM N/A YE C 2 A25
Voltage
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Face
Power LED
Output LED
Dimension Drawings
Wiring Diagrams
Spec List
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
C60

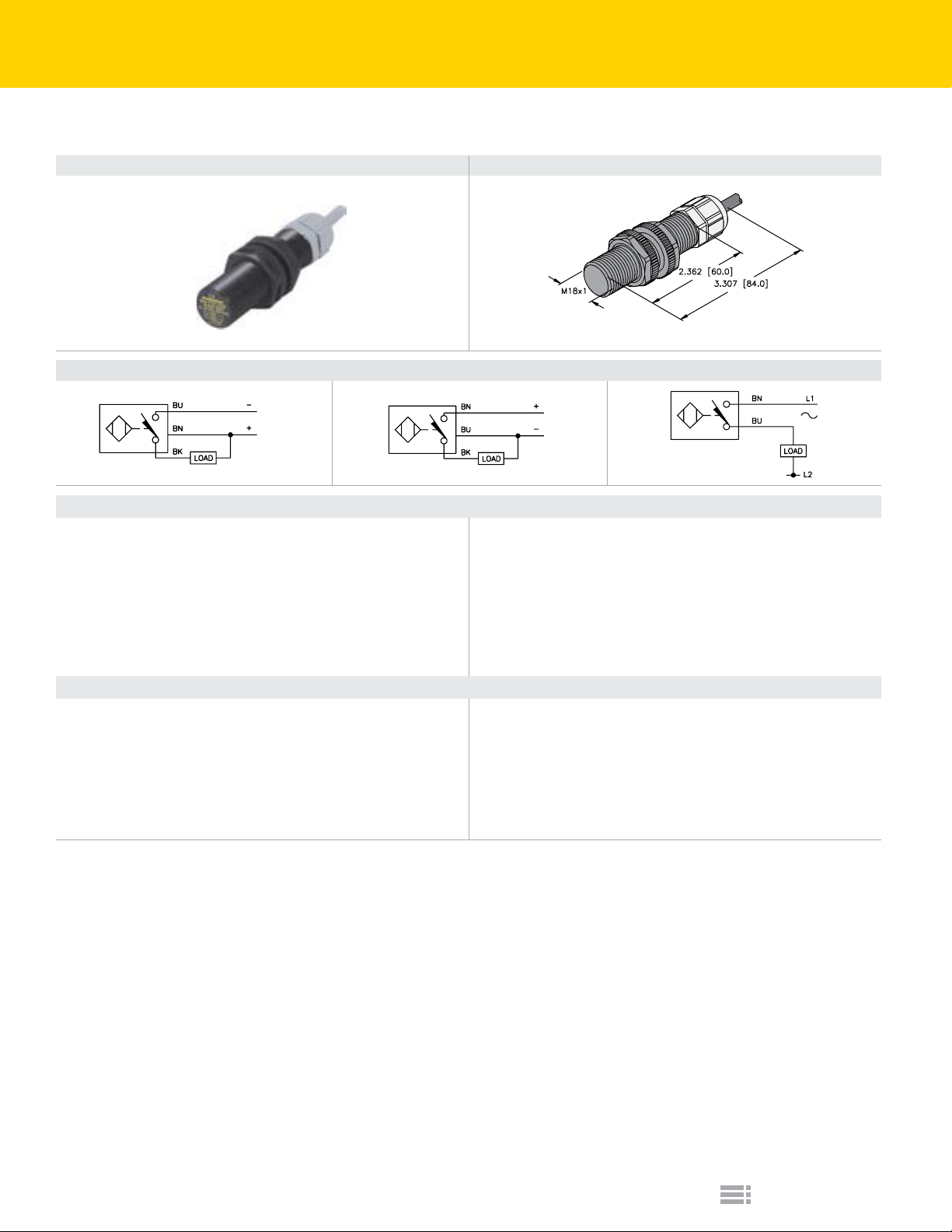

Specialty Sensors | Submersible Sensors
Threaded Plastic Barrel Sensors with Cable for Underwater Applications
Housing Style Dimension Drawings
A
18 mm - Embeddable, Full Threading, Potted-In Cable
Wiring Diagrams/Mating Cordsets
1 2 3
We reserve the right to make technical alterations without prior notice.
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
A6
Line Frequency:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Continuous Load Current:
Off-State (Leakage) Current:
Minimum Load Current:
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox)
≤20 mA (Uprox+, Uprox3)
2-wire AC/DC w/o Short-Circuit Protection - (AZ, RZ, FZ)
≥50... ≤60 Hz
3-15% (5% typical)
≤6.0 V
AC: ≤400 mA; DC: ≤300 mA
AC: ≤100 mA; DC: ≤100 mA
≤1.7 mA
≥3.0 mA
Time Delay Before Availability:
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
Inrush Current:
Power-On Effect:
Transient Protection:
Shock:
Vibration:
Repeatability:
≤8 ms
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
≤8 A (≤10ms max. 5 Hz)
≤1 A (≤10 ms max. 5 Hz) 12 mm
≤0.2 A (≤10 ms max. 0.2 Hz) 8 mm
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤2% of Rated Operating Distance
C61
Turck Inc.
Specialty Sensors | Submersible Sensors
Threaded Plastic Barrel Sensors with Cable for Underwater Applications
Part Number/
ID Number
Bi5-P18-AN6/S139-S1261
1650239
Bi5-P18-AP6/S139-S1261
1650234
Bi8U-P18-AP6/S139-S1261
1650230
Bi5-P18-AZ3/S139-S1261
1384307
Features
Submersible 5 3-wire DC NPN 10-30 VDC 500 ≤200 -25 to +70 IP68 POM PA 12 N/A N/A 2M/TPE A 1 A4
Submersible 5 3-wire DC PNP 10-30 VDC 500 ≤200 -25 to +70 IP68 POM PA 12 N/A N/A 2M/TPE A 2 A4
Submersible,
Uprox
Submersible 5 2-wire AC
Sensing Range (mm)
8 3-wire DC PNP 10-30 VDC 2000 ≤200 -30 to +85 IP68 POM PA 12 N/A N/A 2M/TPE A 2 A4
Output
Voltage
20-250
VAC
Switching Freq. (Hz)
Operating Current (mA)
20 ≤400 -25 to +70 IP68 POM PA 12 N/A N/A 2M/TPE A 3 A6
Operating Temp. (°C)
Protection
Housing
Face
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
C62
Specialty Sensors | Selective Metal Sensors
Threaded Barrel Sensors Designed to Sense Nonferrous Metals Only
Housing Style Dimension Drawings
B
A
12 mm - Embeddable, M12 Eurofast Quick Disconnect
C
18 mm - Embeddable, M12 Eurofast Quick Disconnect
D
30 mm - Embeddable, Potted-In Cable
1
Mating Cordset: RKV 4T-*
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
Wiring Diagrams/Mating Cordsets
2
Mating Cordset: RKV 4T-*
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox)
≤20 mA (Uprox+, Uprox 3)
30 mm - Embeddable, M12 Eurofast Quick Disconnect
E
30 mm - Embeddable, Potted-In Cable, Partial Threading
3 4
Time Delay Before Availability:
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
We reserve the right to make technical alterations without prior notice.
≤8 ms
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
C63
Turck Inc.
Specialty Sensors | Selective Metal Sensors
Threaded Barrel Sensors Designed to Sense Nonferrous Metals Only
Part Number/
ID Number
Bi3NF-EM12HE-AP6X2-H1141
1615001
Bi5NF-EM18HE-AN6X2-H1141
1615004
Bi5NF-EM18HE-AP6X2-H1141
1615000
Bi10NF-EM30HE-AN6X2-H1141
1615005
Bi10NF-EM30HE-AP6X2-H1141
1615002
Bi10NF-M30-AN6X
16161
Bi10NF-M30-AP6X
16061
Bi10NF-S30-AN6X
16215
Bi10NF-S30-AP6X
16115
Features
Senses nonferrous metals only 3
Senses nonferrous metals only 5
Senses nonferrous metals only 5
Senses nonferrous metals only 10
Senses nonferrous metals only 10
Senses nonferrous metals only 10
Senses nonferrous metals only 10
Senses nonferrous metals only 10
Senses nonferrous metals only 10
Sensing Range (mm)
3-wire
DC PNP
3-wire
DC NPN
3-wire
DC PNP
3-wire
DC NPN
3-wire
DC PNP
3-wire
DC NPN
3-wire
DC PNP
3-wire
DC NPN
3-wire
DC PNP
Output
Voltage
10-30
VDC
10-30
VDC
10-30
VDC
10-30
VDC
10-30
VDC
10-30
VDC
10-30
VDC
10-30
VDC
10-30
VDC
Switching Freq. (Hz)
3000 ≤200
2500 ≤200
2500 ≤200
2000 ≤200
2000 ≤200
500 ≤200
500 ≤200
2000 ≤200
2000 ≤200
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Face
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
0 to
IP67 SS SF GN YE - - A 2 A4
+60
0 to
IP67 SS SF GN YE - - B 1 A4
+60
0 to
IP67 SS SF GN YE - - B 2 A4
+60
0 to
IP67 SS SF GN YE - - C 1 A4
+60
0 to
IP67 SS SF GN YE - - C 2 A4
+60
0 to
+60
0 to
+60
0 to
+60
0 to
+60
IP67 CPB
IP67 CPB
IP67
IP67
PA
12
PA
12
PA 12 PA
12
PA 12 PA
12
N/A YE
N/A YE
N/A YE
N/A YE
2M/
PVC
2M/
PVC
2M/
PVC
2M/
PVC
D 3 A4
D 4 A4
E 3 A4
E 4 A4
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
C64

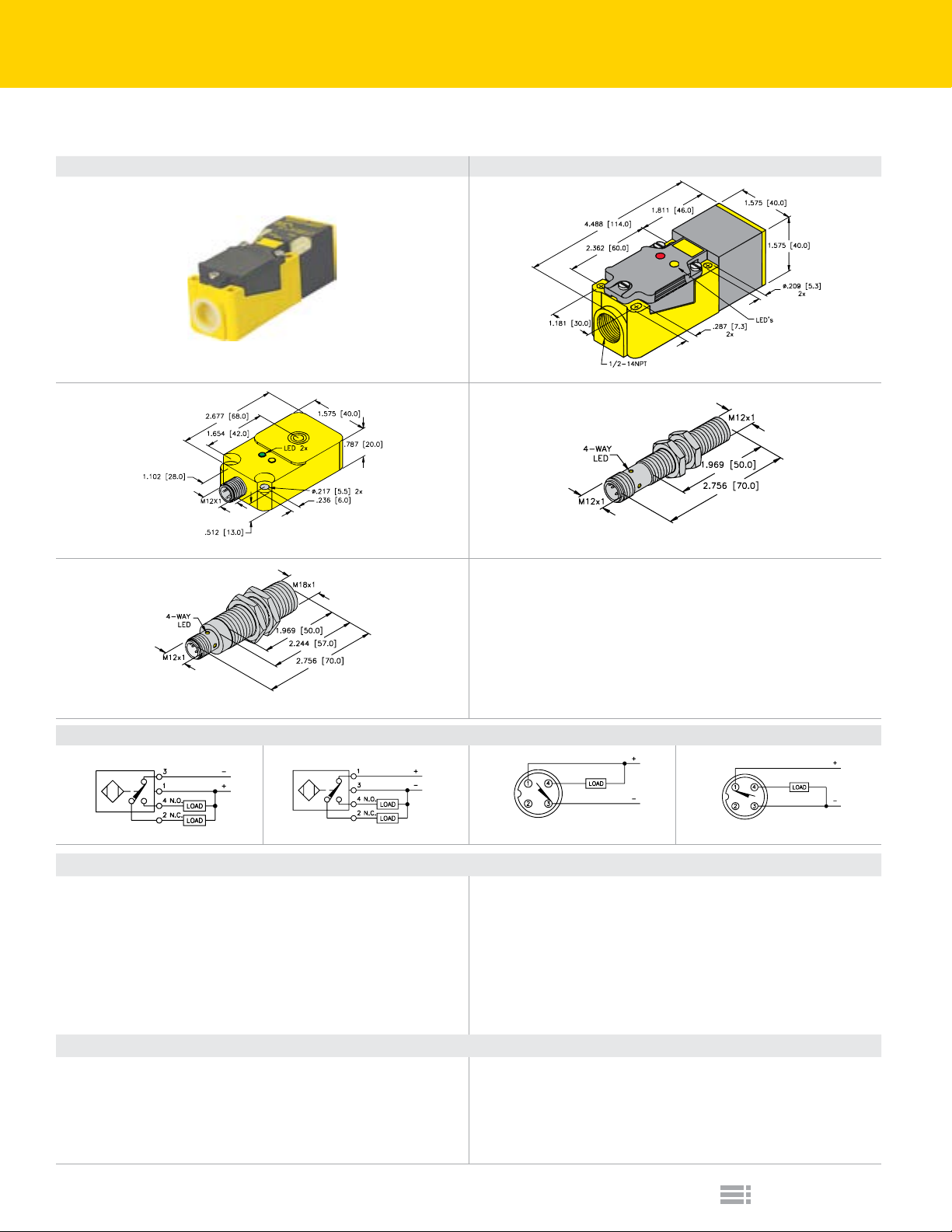

Specialty Sensors | Selective Metal Sensors
Rectangular and Barrel Sensors Designed to Sense Nonferrous or Ferrous Metals Only
Housing Style Dimension Drawings
A
B
C
CP40 - Nonembeddable, Terminal Chamber
We reserve the right to make technical alterations without prior notice.
Q20 - Nomembeddable, M12 Eurofast Quick Disconnect
D
18 mm - Embeddable, M12 Eurofast Quick Disconnect
Wiring Diagrams/Mating Cordsets
1 2 3
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
A28
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
No-Load Current:
Off-State (Leakage) Current:
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox)
≤20 mA (Uprox+, Uprox 3)
≤10%
3-15% (5% typical)
≤2.5 V
≥120 mA on 100 mA Load Current
≤20 mA
≤0.1 mA
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
3-wire DC Ferrous Only Sensing (AP)
12 mm - Embeddable, M12 Eurofast Quick Disconnect
4
Mating Cordset: RK 4T-*
Time Delay Before Availability:
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
Temperature Drift:
Reverse Polarity Protection:
Wire-Break Protection:
Shock:
Vibration:
Repeatability:
≤8 ms
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
≤±10%
Incorporated
Incorporated
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤2% of Rated Operating Distance
Mating Cordset: RK 4T-*
C65
Turck Inc.
Specialty Sensors | Selective Metal Sensors
Rectangular and Barrel Sensors Designed to Sense Nonferrous or Ferrous Metals Only
Part Number/
ID Number
Ni20NF-CP40-VN4X2
15282
Ni20NF-CP40-VP4X2
15082
Ni25NF-Q20-AN6X2-H1141
1602710
Bi2.5FE-EM12FE-AP6X-H1141
1615011
Bi4.5FE-EM18FE-AP6X-H1141
1615012
Features
Senses nonferrous metals only 20
Senses nonferrous metals only 20
Senses nonferrous metals only 25
Senses ferrous metals only 2.5
Senses ferrous metals only 4.5
Sensing Range (mm)
4-wire DC
NPN
4-wire DC
PNP
3-wire DC
NPN
3-wire DC
PNP
3-wire DC
PNP
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
10-65
100 ≤200 0 to +60 IP67 PBT PBT GN YE A 1 A4
VDC
10-65
100 ≤200 0 to +60 IP67 PBT PBT GN YE A 2 A4
VDC
10-30
10-30
10-30
25 ≤200 0 to +60 IP67 PBT PBT GN YE B 3 A4
VDC
1000 ≤100 -25 to +70 IP67 SS SS N/A YE C 4 A28
VDC
1000 ≤100 -25 to +70 IP67 SS SS N/A YE D 4 A28
VDC
Operating Temp. (°C)
Protection
Housing
Face
Power LED
Output LED
Dimension Drawings
Wiring Diagrams
Spec List
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
C66
Specialty Sensors | High Pressure
.394 [10.0]
.394 [10.0]
Partially Threaded Metal Barrel Pressure Resistant Sensors
Housing Style Dimension Drawings
B
M12x1
O-RING
ø
A
.394 [10.0]
M12x1
M12x1
12 mm - Embeddable, M12 Eurofast Connection, Pressure Resistant Barrel Sensor
O-RING
ø.394 [10.0]
1.653 [42.0]
2.362 [60.0]
3.071 [78.0]
C
M12x1
12 mm - Embeddable, M12 Eurofast Connection, Pressure Resistant Barrel Sensor
1.500 [38.1]
2.205 [56.0]
D
18 mm - Embeddable, Potted-In Cable, Pressure Resistant Barrel Sensor
Wiring Diagrams/Mating Cordsets
1
Mating Cordset: RKV 4T-*
2
A1
Differential Travel (Hysteresis):
Nominal Voltage:
Load Resistance:
Non-Activated Current Consumption:
Activated Current Consumption:
Recommended Switching Point for Remote
Amplifier:
1-10% (5% typical)
8.2 VDC (EN60947-5-6)
1000 Ω
≥2.1 mA
≤1.2 mA
>1.2 to <2.1 mA,
typ. 1.55 mA ON/1.75 mA OFF
A29
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
No-Load Current:
Off-State (Leakage) Current:
≤20%
3-15% (5% typical)
≤2 V, ≤1.8 V (Ext. Range)
≥220 mA on 200 mA Load Current
≤10 mA, ≤15 mA (Ext. Range)
≤0.1 mA
18 mm - Embeddable, M12 Eurofast Connection, Pressure Resistant Barrel Sensor
Mating Cordset: RKV 4.21T-*
2-wire DC NAMUR - (Y0 and Y1)
3-wire DC High Pressure (AP)
3
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Shock:
Vibration:
Repeatability:
Temperature Drift:
Reverse Polarity Protection:
Wire-Break Protection:
Shock:
Vibration:
Repeatability:
We reserve the right to make technical alterations without prior notice.
Realized in Amplifier
Incorporated
Realized in Amplifier
Realized in Amplifier
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
≤15%, ≤±10% (Ext. Range)
Incorporated
Incorporated
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤2% of Rated Operating Distance
C67
Turck Inc.
Specialty Sensors | High Pressure
Partially Threaded Metal Barrel Pressure Resistant Sensors
Part Number/
ID Number
BID1.5-G120KK-AP6-H1141
1682001
BID1.5-G120-AP6-H1141
1682000
BID2-G180-AP6-H1141/S212
16885
BID2-G180-Y0-H1141/S212
1088500
BID2-G180-AP6/S212
1688003
Features
500 bar 1.5
500 bar 1.5
500 bar static/350
bar dynamic
500 bar static/350
bar dynamic
500 bar static/350
bar dynamic
Sensing Range (mm)
3-wire
DC PNP
3-wire
DC PNP
3-wire
2
DC PNP
2-wire
2
Namur
3-wire
2
DC PNP
Output
Voltage
10-30 VDC 600 ≤200 -25 to +80 IP68 SS CER N/A N/A - - A 1 A29
10-30 VDC 600 ≤200 -25 to +80 IP68 SS CER N/A N/A - - B 1 A29
10-30 VDC 2000 ≤200 -25 to +85 IP67 SS PA 12 N/A N/A - - C 1 A29
5-30 VDC 2000 ≤200 -25 to +70 IP67 SS PA 12 N/A N/A - - C 2 A1
10-30 VDC 2000 ≤200 -25 to +85 IP67 SS PA 12 N/A N/A 2M/TPU D 3 A29
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Face
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
C68

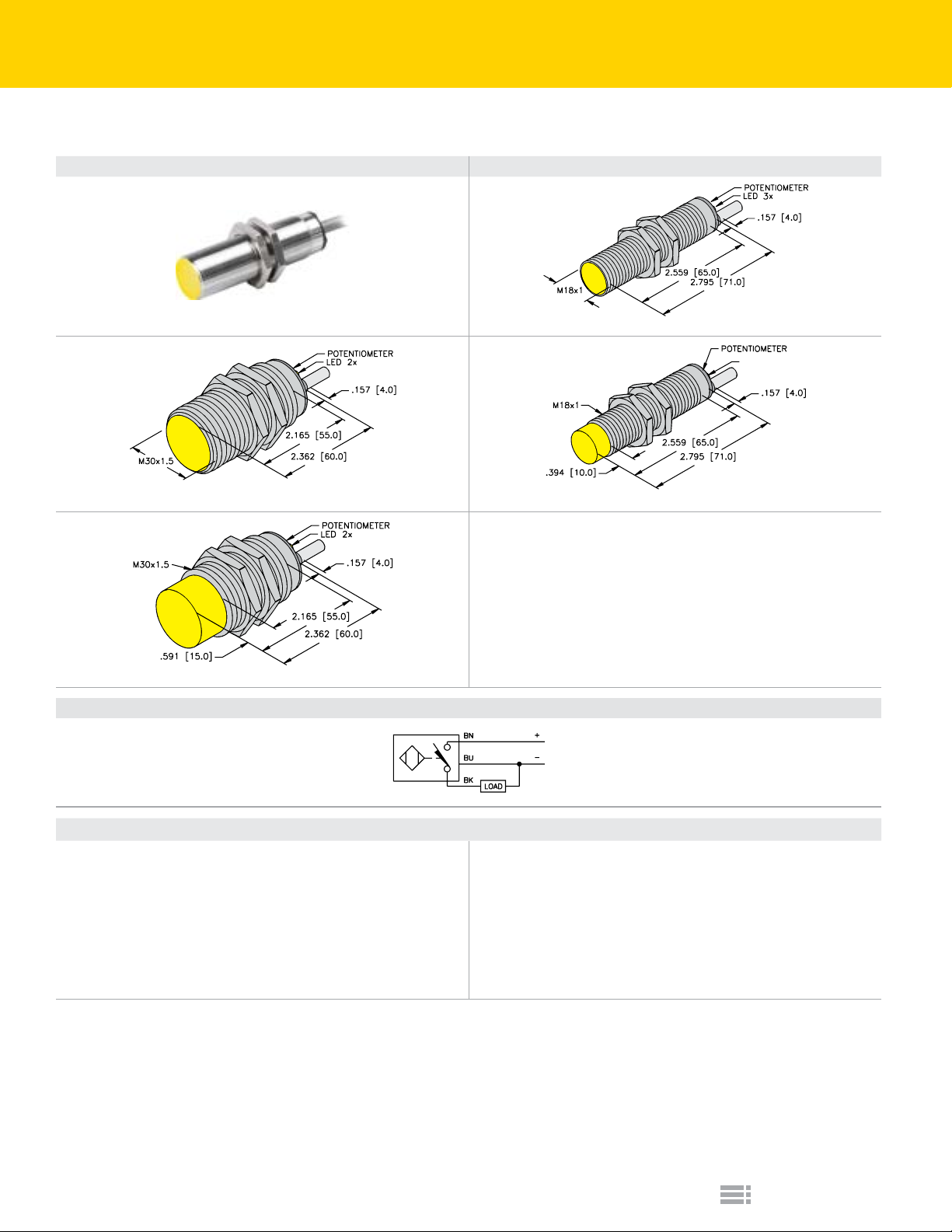

Specialty Sensors | Rotational Speed Monitor
Threaded Metal Barrel for Target Detection on a Spinning Shaft
Housing Style Dimension Drawings
B
A
18 mm - Embeddable Rotational Speed Monitor, Potted-In Cable
C
LED 2x
We reserve the right to make technical alterations without prior notice.
30 mm - Embeddable Rotational Speed Monitor, Potted-In Cable
D
30 mm - Nonembeddable Rotational Speed Monitor, Potted-In Cable
1
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox)
≤20 mA (Uprox+, Uprox 3)
18 mm - Nonembeddable Rotational Speed Monitor, Potted-In Cable
Wiring Diagrams/Mating Cordsets
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
Time Delay Before Availability:
Reverse Polarity Protection:
Power-On Effect:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
≤8 ms
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
C69
Turck Inc.
Specialty Sensors | Rotational Speed Monitor
Threaded Metal Barrel for Target Detection on a Spinning Shaft
Part Number/
ID Number
DBi5U-M18E-AP4X3
1582236
DBi10U-M30-AP4X2
1582231
DNI12U-M18E-AP4X3
1582235
DNI20U-M30-AP4X3
1582233
Features
Rotational Speed
Monitor
Rotational Speed
Monitor
Rotational Speed
Monitor
Rotational Speed
Monitor
Sensing Range (mm)
3-wire DC
5
3-wire DC
10
3-wire DC
12
3-wire DC
20
PNP
PNP
PNP
PNP
Output
Voltage
10-65 VDC 0.05-50 ≤200 -30 to +85 IP67 CPB PBT EPTR GN YE/BU 2M/PVC A 1 A4
10-65 VDC 0.05-50 ≤200 -30 to +85 IP67 CPB PBT EPTR GN YE/BU 2M/PVC B 1 A4
10-65 VDC 0.05-50 ≤200 -30 to +85 IP67 CPB PBT EPTR GN YE/BU 2M/PVC C 1 A4
10-65 VDC 0.05-50 ≤200 -30 to +85 IP67 CPB PBT EPTR GN YE/BU 2M/PVC D 1 A4
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Face
End Cap
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
Specialty Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
C70
Loading...
