Rectangular Inductive Sensor SeIection Guide
Rectangular Style Sensors
Housing 4.7 mm 5.5 mm 6 mm 8 mm 10 mm
Sensing Range 2 mm 2 - 3.5 mm 3 mm 5 - 8 mm 2 - 5 mm
Pages A11 A11 A11 A13 - 16 A17
Features Uprox+ Uprox+
Rectangular Style Sensors
Housing Variable, with pigtail 10 mm 12 mm 14 mm 20 mm
Sensing Range 2 - 7 mm 2 - 4 mm 2 - 5 mm 10 - 20 mm 15 - 25 mm
Pages A19 A21 A23 A25 A27 - 30
Features Uprox+
We reserve the right to make technical alterations without prior notice.
Rectangular Style Sensors
Housing 18 mm 25 mm 30 mm 40 mm 40 mm
Sensing Range 5 - 10 mm 10 mm 15 mm 20 mm 15 - 50 mm
Pages A31 A31 A31 A33 A35 - 40
Features Uprox+ Uprox+
Rectangular Style Sensors
Housing 40 mm 80 mm 80 mm 90 mm Variable
Sensing Range 15 - 50 mm 40 - 75 mm 50 - 75 mm 60 - 100 mm 2 - 50 mm
Pages A41 - 46 A47 - 50 A51 A53 A55 - 58
Features Uprox+ Uprox+ Uprox+ Intrinsically Safe
A1
Turck Inc.
Rectangular Inductive Sensor Part Number Key
B i 15 - Q 20 - A P 6 X2 Wiring Option* Special Option Code**
Mounting
B = embeddable
N = nonembeddable
Principle of Operation
i = inductive
Rated Operating Distance (mm)
Sensing Characteristics
S = side sensing on Q10S sensor
U = Uprox® Sensor
Housing Style
Rectangular
K = smooth
Q = metal or plastic, various rectangular styles
Limit Switch
CA = Stubby®, short aluminum housing, connector
CK = Stubby, short plastic housing, connector
CP = Combiprox®, plastic housing, terminal chamber
base with removable sensor
Housing Height (mm)
NOTE:
Part number keys are to assist in identication only.
Verify new part numbers with factory; some congurations are not possible.
Secondary Housing Modier
SR = straight terminal chamber
Output Function
A = normally open (N.O.)
F = connection programmable (N.O. or N.C.)
V = complementary outputs: one N.O., one N.C.
Y0 = NAMUR output, requires switching amplier
Y1 = NAMUR output, requires switching amplier/ATEX approved
Number of LEDs
(blank) = no LEDs
X = 1 LED
X2 = 2 LEDs
Voltage Range
AC/DC: (No SCP**)
3 = 20-250 VAC, 10-300 VDC
31 = 20-250 VAC, 10-300 VDC, plastic barrel
AC/DC: (Latched SCP)
30 = 20-250 VAC, 10-300 VDC 400 mA
32 = 20-250 VAC, 10-300 VDC 400 mA
DC:
4 = 10-65 VDC, polarity protected, pulsed SCP**
6 = 10-30 VDC, polarity protected, pulsed SCP
**SCP = short-circuit and overload protection
Output
D = 2-wire DC (transistor output)
DZ = 2-wire AC/DC, (power MOSFET output)
N = NPN transistor (current sinking)
P = PNP transistor (current sourcing)
Z = 2-wire AC or 2-wire AC/DC
Rectangular Inductive Sensors
Wiring Options*
A. Connectorized Sensor
We reserve the right to make technical alterations without prior notice.
Connector Family
B1 = Minifast®, Metal, Male
B2 = Minifast, Plastic, Male
B3 = Microfast®, Metal, Male
H1 = Eurofast®, Metal or Plastic, Male
V1 = Picofast®, Metal, Male
V2 = Picofast, Snap and M8x1, Male (Q08 Only)
Connector/Sensor Transition
1 = straight
B. Potted Cable
Special Option Codes**
Option Code
Example:
/S34 = Weld Field Immune
/S97 = -40 °C (-40 °F) Operating Temperature
/S100 = +100 °C (+212 °F) Operating Temperature
Bi15 - Q20 - AN6X2 - H1 1 4 1
Wiring Conguration
Example:
1 = Standard
3 = N.C. DC Output on Pin 4 (for US)
Number of Pins
Bi15 - Q20 - AN6X2 - 7M
Cable Length
Blank = 2 meter cable
7M = 7 meter cable
Bi - 5 - Q08 - AN6XS /S34
/S1590 = CK/CA40 sensors with Weldguard laminate
/S1591 = CA40 sensors with Weldguard and Armorguard
Turck Inc.
A2
Rectangular Inductive Sensors
Mounting
Turck inductive proximity sensors are manufactured with a shielded coil, designated by “Bi” in the part number, and a nonshielded coil,
designated by “Ni” in the part number (see page A2). Embeddable (shielded) units may be safely ush-mounted in metal. Nonembeddable
(nonshielded) units require a metal free area around the sensing face. Because of possible interference of the electromagnetic elds generated
by the oscillators, minimum spacing is required between adjacent or opposing sensors.
It is good engineering practice to mount sensors horizontally or with the sensing face looking down. Avoid sensors that look up wherever
possible, especially if metal lings and chips are present.
Embeddable Mounting Characteristics - Rectangular Housings
We reserve the right to make technical alterations without prior notice.
Flush Mountable - CK40 and CP40
Housing Type Sensor Type A B C D E
CP40/CK40 Bi15U 45.00 80.00 40.00 40.00 90.00
CP40/CK40 Bi15 45.00 80.00 40.00 40.00 90.00
CP40/CK40/CA40 Bi20U 60.00 80.00 40.00 40.00 120.00
CP40 Bi20 60.00 80.00 40.00 40.00 120.00
CP40/CK40 Bi30U 90.00 80.00 40.00 40.00 180.00
Dimensions are in mm.
A3
Turck Inc.
Rectangular Inductive Sensors
Nonembeddable Mounting Characteristics - Rectangular Housings
Non - Flush Mountable - CA25, CK40, and CP40
Housing Type Sensor Type A B C D E F 1-Side 2-Side 3-Side 4-Side
CP/CK40 Ni20 60.00 120.00 60.00 40.00 120.00 20.00
CP/CK40 Ni25U 75.00 240.00 60.00 40.00 150.00 30.00 Sr=22 mm* Sr=20 mm* Sr=17 mm* Sr=13 mm*
CP/CK40 Ni25 75.00 120.00 60.00 40.00 150.00 40.00
CP/CK40 Ni35U 105.00 240.00 60.00 40.00 210.00 30.00 Sr=28 mm* Sr=24 mm* Sr=19 mm*
CP/CK40 Ni35 105.00 180.00 60.00 40.00 210.00 40.00
CP/CK40 Ni40U 120.00 240.00 60.00 40.00 240.00 30.00
CP/CK40 Ni40 120.00 180.00 60.00 40.00 240.00 40.00
CP/CK40 Ni50U 105.00 240.00 60.00 40.00 240.00 30.00 Sr=35 mm* Sr=25 mm* Sr=20 mm* Sr=15 mm*
Dimensions are in mm.
*Uprox Non-embeddable ush mounting guidelines. The above Uprox Ni sensors with DC ouptuts can be ush mounted because the sensor automatically compensates for metal
alongside its sensing face by decreasing the sensing range, preventing the output from locking on.
Rectangular Inductive Sensors
We reserve the right to make technical alterations without prior notice.
1-Side 2-Side 3-Side 4-Side
Turck Inc.
A4
Rectangular Inductive Sensors
Embeddable Mounting Characteristics - Rectangular Housings
Flush Mountable
Housing Type Sensor Type A B C D E
Q4.7 Bi2 6.00 16.00 12.00 8.00 12.00
Q5.5 Bi2 6.00 16.00 8.00 8.00 12.00
Q06 Bi3 9.00 35.00 17.00 17.30 18.00
Q08 Bi5 15.00 40.00 20.00 20.00 30.00
Q08 Bi5U 15.00 40.00 20.00 20.00 30.00
Q08 Bi7 21.00 40.00 20.00 20.00 42.00
Q10 Bi8 24.00 50.00 25.00 25.00 48.00
Q10 Bi8U 24.00 50.00 25.00 25.00 48.00
Q14 Bi10 30.00 45.00 30.00 30.00 60.00
Q14 Bi10U 30.00 45.00 30.00 30.00 60.00
Q20 Bi15 45.00 60.00 40.00 40.00 90.00
Q20 Bi15U 45.00 60.00 40.00 40.00 90.00
CP80 Bi40 120.00 160.00 80.00 80.00 240.00
Q80 Bi50U 150.00 240.00 80.00 80.00 300.00
Dimensions are in mm.
We reserve the right to make technical alterations without prior notice.
A5
Turck Inc.
Rectangular Inductive Sensors
Embeddable Mounting Characteristics - Rectangular Housings
D
G
G
F
F
G
G
A
C
B
E
Non-ush Mountable - Minimum Distances - Q5.5, Q14, Q20, CP80, Q80 and K90
Housing Type Sensor Type A B C D E F G 1-Side 2-Side 3 & 4-Side
Q5.5 Ni3.5 11.00 24.00 12.00 8.00 21.00 4.00 8.00
Q14 Ni20 60.00 90.00 45.00 30.00 120.00 20.00 40.00
Q20 Ni25 75.00 120.00 60.00 40.00 150.00 25.00 50.00
CP80 Ni40 120.00 240.00 120.00 80.00 240.00 80.00 80.00
Q80 Ni75U 225.00 240.00 60.00 80.00 450.00 80.00 80.00 Sr=50 mm* Sr=45 mm* Sr=40 mm*
CP80 Ni75U 225.00 240.00 120.00 80.00 450.00 80.00 80.00
K90 Ni60 180.00 270.00 135.00 90.00 360.00 60.00 90.00
K90SR Ni100U 300.00 270.00 90.00 90.00 600.00 100.00 200.00 Sr=70 mm*
Dimensions are in mm.
*Uprox Non-embeddable ush mounting guidelines. The above Uprox Ni sensors with DC ouptuts can be ush mounted because the sensor automatically compensates for metal
alongside its sensing face by decreasing the sensing range, preventing the output from locking on.
We reserve the right to make technical alterations without prior notice.
1-Side 2-Side
Rectangular Inductive Sensors
Turck Inc.
A6
Rectangular Inductive Sensors
Embeddable Mounting Characteristics
Embeddable, Square Sensors
Part Number A B C D
Bi50U-Q80 240.00 150.00 80.00 300.00
Dimensions are in mm.
We reserve the right to make technical alterations without prior notice.
Nonembeddable Mounting Characteristics
Nonembeddable, Square Sensors
Part Number A B C D E F
Ni75U-Q80 240.00 225.00 60.00 450.00 80.00 80.00
Dimensions are in mm.
A7
Turck Inc.
Rectangular Inductive Sensors
Embeddable Mounting Characteristics - Rectangular Housings
Flush Mountable
Housing Type Sensor Type Housing A C F G
Q6.5 Bi1 6.50 6.00 7.00 13.00 3.00
Q10S Bi2 10.00 12.00 10.00 20.00 6.00
Q12 Bi2 12.00 12.00 12.00 24.00 6.00
Dimensions are in mm.
We reserve the right to make technical alterations without prior notice.
Non-Flush Mountable
Housing Type Sensor Type Housing A B C D E
Q6.5 Ni2 6.50 12.00 6.00 10.00 20.00 4.00
Q9.5 Ni2 9.50 12.00 6.00 14.00 19.00 4.00
Q12 Ni4 12.00 24.00 12.00 18.00 24.00 8.00
Q25 Ni10 25.00 60.00 30.00 38.00 75.00 20.00
Q30 Ni15 30.00 90.00 45.00 45.00 90.00 30.00
Dimensions are in mm.
Rectangular Inductive Sensors
Turck Inc.
A8
Rectangular Inductive Sensors
Embeddable Mounting Characteristics
Nonembeddable, Square Sensors
Part Number D W S G B Width of Active Face
Ni5U-Q10S 31.00 15.00 15.30 30.00 10.20
Dimensions are in mm.
1-side mounting
Sn=3
4-side mounting
Sn=2.3 mm
In many cases sensors have to be
mounted in close proximity to fulll the
monitoring work. In order to avoid
mutual interferences, Turck oers the
Q10S-ZP shield (Q10S only).
2-side mounting
Sn=3 mm
3-side mounting
Sn=2.6 mm
We reserve the right to make technical alterations without prior notice.
Embeddable, Square Sensors
Part Number D W S G B Width of Active Face
Bi5U-Q12 48.00 25.00 12.00 50.00 12.00
Dimensions are in mm.
A9
Turck Inc.
Notes
Rectangular Inductive Sensors | Q4.7, Q5.5, & Q06
Top Sensing Subminiature Qpak Housing
Housing Style Dimension Drawings
B
A
ø.256 [ø6.5]
.315 [8.0]
4.7 mm - Embeddable, Potted-In Cable
.185 [4.7]
.472 [12.0]
.669 [17.0]
C
5.5 mm - Embeddable/Nonembeddable, Potted-In Cable
Wiring Diagrams/Mating Cordsets
6.0 mm - Embeddable, Potted-In Cable
1 2 3
A2
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Minimum Load Current:
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
Time Delay Before Availability:
≤10%
3-15% (5% typical)
Non-polarized (AD) <5.0 V
Polarized (AG) ≤4.2 V
≥120 mA
≥3.0 mA
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox, Rectangular)
≤20 mA (Uprox+, Uprox 3)
≤8 ms
2-wire DC - (AD, RD, AG)
Off-State (Leakage) Current:
Power-On Effect:
Transient Protection:
Repeatability:
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Repeatability:
Shock:
Vibration:
Shock:
Vibration:
We reserve the right to make technical alterations without prior notice.
≤0.8 mA
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
A11
Turck Inc.
Rectangular Inductive Sensors | Q4.7, Q5.5, & Q06
Top Sensing Subminiature Qpak Housing
Part Number/
ID Number
Bi2-Q4.7-AN6X
1614001
Bi2-Q4.7-AP6X
1614000
Bi2-Q5.5-AG6X
1613108
Bi2-Q5.5-AN6X
1613100
Bi2-Q5.5-AN6X/S34
1613101
Ni3.5-Q5.5-AN6X
4613610
Bi2-Q5.5-AP6X
1613000
Bi2-Q5.5-AP6X/S34
1613001
Ni3.5-Q5.5-AP6X
4613601
Bi3-Q06-AN6X2
1620150
Bi3-Q06-AP6X2
1620100
WFI
WFI
Features
Embeddable
Sensing Range (mm)
2 3-wire DC NPN 10-30 VDC 1000 ≤100 0 to +85 IP67 Zinc PA N/A YE 2M/TPU A 2 A4
.
2 3-wire DC NPN 10-30 VDC 1000 ≤100 0 to +85 IP67 Zinc PA N/A YE 2M/TPU A 3 A4
.
2 2-wire DC 10-30 VDC 1000 ≤50 -25 to +70 IP67 PP PP N/A YE 2M/TPU B 1 A2
·
2 3-wire DC NPN 10-30 VDC 2000 ≤150 -25 to +85 IP67 PP PP N/A YE 2M/TPU B 2 A4
·
2 3-wire DC NPN 10-30 VDC 2000 ≤150 -25 to +70 IP67 PP PP N/A YE 2M/TPU B 2 A4
·
3.5 3-wire DC NPN 10-30 VDC 2000 ≤150 -25 to +70 IP67 PP PP N/A YE 2M/TPU B 2 A4
2 3-wire DC PNP 10-30 VDC 2000 ≤150 -25 to +85 IP67 PP PP N/A YE 2M/TPU B 3 A4
·
2 3-wire DC PNP 10-30 VDC 2000 ≤150 -25 to +70 IP67 PP PP N/A YE 2M/TPU B 3 A4
·
3.5 3-wire DC PNP 10-30 VDC 2000 ≤150 -25 to +70 IP67 PP PP N/A YE 2M/TPU B 3 A4
3 3-wire DC NPN 10-30 VDC 1000 ≤200 -25 to +70 IP67 PBT PA GN YE 2M/TPU C 2 A4
·
3 3-wire DC PNP 10-30 VDC 1000 ≤200 -25 to +70 IP67 PBT PA GN YE 2M/TPU C 3 A4
·
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Front Cap/Face
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
Rectangular Inductive Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
A12
Rectangular Inductive Sensors | Q08
Top Sensing Qpak Housing with Potted-in Cable
Housing Style Dimension Drawings
B
A
8.0 mm - Embeddable, Potted-In Cable
8.0 mm - Embeddable, Potted-In Cable
Wiring Diagrams/Mating Cordsets
1 2 3
4 5
A2
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Minimum Load Current:
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
Time Delay Before Availability:
≤10%
3-15% (5% typical)
Non-polarized (AD) <5.0 V
Polarized (AG) ≤4.2 V
≥120 mA
≥3.0 mA
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox, Rectangular)
≤20 mA (Uprox+, Uprox 3)
≤8 ms
2-wire DC - (AD, RD, AG)
Off-State (Leakage) Current:
Power-On Effect:
Transient Protection:
Repeatability:
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Repeatability:
Shock:
Vibration:
Shock:
Vibration:
We reserve the right to make technical alterations without prior notice.
≤0.8 mA
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
A13
Turck Inc.
Rectangular Inductive Sensors | Q08
Top Sensing Qpak Housing with Potted-in Cable
Part Number/
ID Number
Bi5U-Q08-AN6X2
1608911
Bi5U-Q08-AP6X2
1608901
Bi5-Q08-AD4X/S34
4414550
Bi5-Q08-VN6X2
1600200
Bi5-Q08-VP6X2
1600100
Bi7-Q08-AN6X2
1601620
Bi7-Q08-AP6X2
1601600
Bi7-Q08-VN6X2
1600920
Bi7-Q08-VP6X2
1600900
Bi8U-Q08-AN6X2
1662007
Bi8U-Q08-AP6X2
1662006
Features
Uprox
Uprox
WFI
Comp.
Outputs
Comp.
Outputs
Ext.
Range
Ext.
Range
Ext.
Range
Ext.
Range
Uprox+
Uprox+
Embeddable
Sensing Range (mm)
5 3-wire DC NPN 10-30 VDC 250 ≤200 -30 to +85 IP67 Zinc PA 12 GN YE 2M/TPU B 2 A4
·
5 3-wire DC PNP 10-30 VDC 250 ≤200 -30 to +85 IP67 Zinc PA 12 GN YE 2M/TPU B 3 A4
·
5 2-wire DC 10-65 VDC 50 ≤100 -25 to +70 IP67 Zinc PA 12 N/A YE 2M/TPU B 1 A2
·
5 4-wire DC NPN 10-30 VDC 1000 ≤200 -25 to +70 IP67 Zinc PA 12 GN YE 2M/TPU B 4 A4
·
5 4-wire DC PNP 10-30 VDC 1000 ≤200 -25 to +70 IP67 Zinc PA 12 GN YE 2M/TPU B 5 A4
·
7 3-wire DC NPN 10-30 VDC 500 ≤200 -25 to +70 IP67 Zinc PA 12 GN YE 2M/TPU B 2 A4
·
7 3-wire DC PNP 10-30 VDC 500 ≤200 -25 to +70 IP67 Zinc PA 12 GN YE 2M/TPU B 3 A4
·
7 4-wire DC NPN 10-30 VDC 500 ≤200 -25 to +70 IP67 Zinc PA 12 GN YE 2M/TPU B 4 A4
·
7 4-wire DC PNP 10-30 VDC 500 ≤200 -25 to +70 IP67 Zinc PA 12 GN YE 2M/TPU B 5 A4
·
8 3-wire DC NPN 10-30 VDC 1000 ≤200 -30 to +85 IP68 Zinc PA12 GN YE 2M/TPU A 2 A4
·
8 3-wire DC PNP 10-30 VDC 1000 ≤200 -30 to +85 IP68 Zinc PA12 GN YE 2M/TPU A 3 A4
·
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Front Cap/Face
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
Rectangular Inductive Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
A14
Rectangular Inductive Sensors | Q08
Top Sensing Qpak Housing with Integral Connector
Housing Style Dimension Drawings
B
A
8.0 mm - Embeddable, Picofast Connector
C
8.0 mm - Embeddable, M8 snap-on Picofast Connector
1
Mating Cordset: PKG 3Z-*; PKG 3M-*
4
Mating Cordset: PKG 4Z-*
A2
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Minimum Load Current:
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
Time Delay Before Availability:
Wiring Diagrams/Mating Cordsets
2
Mating Cordset: PKG 3Z-*; PKG 3M-*
5
Mating Cordset: PKG 4Z-*
2-wire DC - (AD, RD, AG)
≤10%
3-15% (5% typical)
Non-polarized (AD) <5.0 V
Polarized (AG) ≤4.2 V
≥120 mA
≥3.0 mA
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox, Rectangular)
≤20 mA (Uprox+, Uprox 3)
≤8 ms
8.0 mm - Embeddable, M8 thread-on Picofast Connector
3
Mating Cordset: PKG 3Z-*; PKG 3M-*
Off-State (Leakage) Current:
Power-On Effect:
Transient Protection:
Shock:
Vibration:
Repeatability:
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
≤0.8 mA
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
We reserve the right to make technical alterations without prior notice.
A15
Turck Inc.
Rectangular Inductive Sensors | Q08
Top Sensing Qpak Housing with Integral Connector
Part Number/
ID Number
Bi5U-Q08-AN6X2-V1131
1608910
Bi5U-Q08-AP6X2-V1131
1608900
Bi5U-Q08-AN6X2-V2131
1608904
Bi5U-Q08-AP6X2-V2131
1608905
Bi5-Q08-AD4X-V1130
4414551
Bi5-Q08-AN6X2-V1131
1600600
Bi5-Q08-AP6X2-V1131
1600500
Bi5-Q08-VN6X2-V1141
1600400
Bi5-Q08-VP6X2-V1141
1600300
Bi5-Q08-AD4X-V2130
4414553
Bi5-Q08-AN6X2-V2131
1600602
Bi5-Q08-AP6X2-V2131
1600502
Bi7-Q08-AN6X2-V1131
1601622
Bi7-Q08-AP6X2-V1131
We reserve the right to make technical alterations without prior notice.
1601602
Bi7-Q08-AN6X2-V2131
1601623
Bi7-Q08-AP6X2-V2131
1601603
Bi7-Q08-VN6X2-V1141
1600922
Bi7-Q08-VP6X2-V1141
1600902
Bi8U-Q08-AN6X2-V1131
1662008
Bi8U-Q08-AP6X2-V1131
1662005
Features
Uprox
Uprox
Uprox
Uprox
Comp.
Outputs
Comp.
Outputs
Ext.
Range
Ext.
Range
Ext.
Range
Ext.
Range
Ext.
Range
Ext.
Range
Uprox+
Uprox+
Embeddable
Sensing Range (mm)
5 3-wire DC NPN 10-30 VDC 250 ≤200 -30 to +85 IP67 Zinc PA 12 GN YE PKG 3Z-* B 2 A4
·
5 3-wire DC PNP 10-30 VDC 250 ≤200 -30 to +85 IP67 Zinc PA 12 GN YE PKG 3Z-* B 3 A4
·
5 3-wire DC NPN 10-30 VDC 250 ≤200 -30 to +85 IP67 Zinc PA 12 GN YE PKG 3M-* C 2 A4
·
5 3-wire DC PNP 10-30 VDC 250 ≤200 -30 to +85 IP67 Zinc PA 12 GN YE PKG 3M-* C 3 A4
·
5 2-wire DC 10-65 VDC 1000 ≤100 -25 to +70 IP67 Zinc PA 12 N/A YE PKG 3Z-* B 1 A2
·
5 3-wire DC NPN 10-30 VDC 1000 ≤200 -25 to +70 IP67 Zinc PA 12 GN YE PKG 3Z-* B 2 A4
·
5 3-wire DC PNP 10-30 VDC 1000 ≤200 -25 to +70 IP67 Zinc PA 12 GN YE PKG 3Z-* B 3 A4
·
5 4-wire DC NPN 10-30 VDC 1000 ≤200 -25 to +70 IP67 Zinc PA 12 GN YE PKG 4Z-* B 4 A4
·
5 4-wire DC PNP 10-30 VDC 1000 ≤200 -25 to +70 IP67 Zinc PA 12 GN YE PKG 4Z-* B 5 A4
·
5 2-wire DC 10-65 VDC 1000 ≤100 -25 to +70 IP67 Zinc PA 12 N/A YE PKG 3M-* C 1 A2
·
5 3-wire DC NPN 10-30 VDC 1000 ≤200 -25 to +70 IP67 Zinc PA 12 GN YE PKG 3M-* C 2 A4
·
5 3-wire DC PNP 10-30 VDC 1000 ≤200 -25 to +70 IP67 Zinc PA 12 GN YE PKG 3M-* C 3 A4
·
7 3-wire DC NPN 10-30 VDC 500 ≤200 -25 to +70 IP67 Zinc PA 12 GN YE PKG 3Z-* B 2 A4
·
7 3-wire DC PNP 10-30 VDC 500 ≤200 -25 to +70 IP67 Zinc PA 12 GN YE PKG 3Z-* B 3 A4
·
7 3-wire DC NPN 10-30 VDC 500 ≤200 -25 to +70 IP67 Zinc PA 12 GN YE PKG 3M-* C 2 A4
·
7 3-wire DC PNP 10-30 VDC 500 ≤200 -25 to +70 IP67 Zinc PA 12 GN YE PKG 3M-* C 3 A4
·
7 4-wire DC NPN 10-30 VDC 500 ≤200 -25 to +70 IP67 Zinc PA 12 GN YE PKG 4Z-* B 4 A4
·
7 4-wire DC PNP 10-30 VDC 1000 ≤200 -25 to +70 IP67 Zinc PA 12 GN YE PKG 4Z-* B 5 A4
·
8 3-wire DC NPN 10-30 VDC 1000 ≤200 -30 to +85 IP68 Zinc PA 12 GN YE PKG 3Z-* A 2 A4
·
8 3-wire DC PNP 10-30 VDC 1000 ≤200 -30 to +85 IP68 Zinc PA 12 GN YE PKG 3Z-* A 3 A4
·
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Front Cap/Face
Power LED
Output LED
Mating Cord
Dimension Drawings
Wiring Diagrams
Spec List
Rectangular Inductive Sensors
Turck Inc.
A16

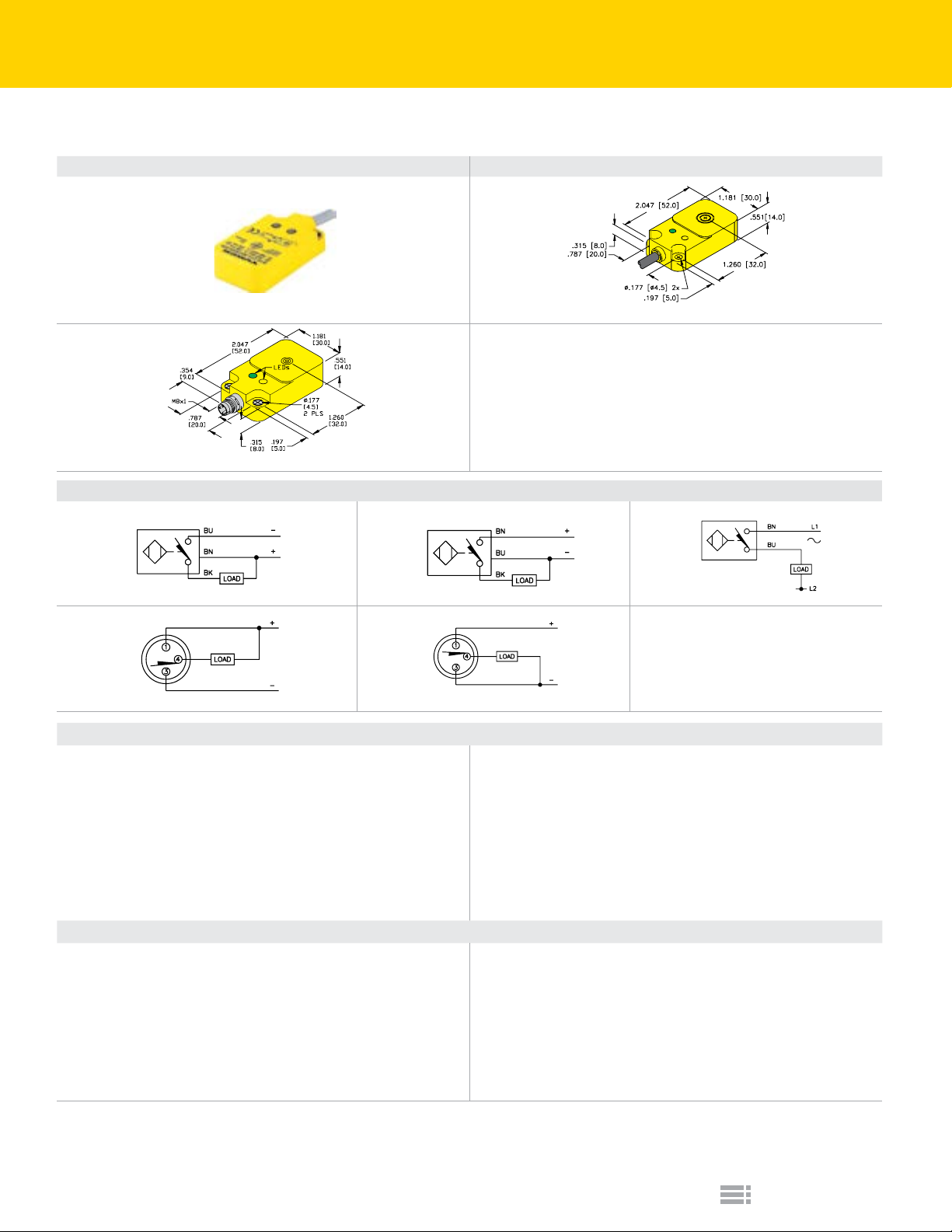

Rectangular Inductive Sensors | Q8SE & Q10S
Side Sensing Qpak Housing
Housing Style Dimension Drawings
B
A
8.0 mm - Nonembeddable, Potted-In Cable
C
8.0 mm - Nonembeddable, M8 Picofast Connector
Wiring Diagrams/Mating Cordsets
1 2 3
5 6 7
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
Time Delay Before Availability:
A6
Line Frequency:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Continuous Load Current:
Off-State (Leakage) Current:
Minimum Load Current:
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox, Rectangular)
≤20 mA (Uprox+, Uprox 3)
≤8 ms
≥50... ≤60 Hz
3-15% (5% typical)
≤6.0 V
AC: ≤400 mA; DC: ≤300 mA
AC: ≤100 mA; DC: ≤100 mA
≤1.7 mA
≥3.0 mA
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
2-wire AC/DC w/o Short-Circuit Protection - (AZ, RZ, FZ)
10 mm - Embeddable/Nonembeddable, Potted-In Cable
4
Mating Cordset: PKG 3Z-*
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
Inrush Current:
Power-On Effect:
Transient Protection:
Shock:
Vibration:
Repeatability:
Mating Cordset: PKG 3Z-*
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
≤8 A (≤10ms max. 5 Hz)
≤1 A (≤10 ms max. 5 Hz) 12 mm
≤0.2 A (≤10 ms max. 0.2 Hz) 8 mm
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤2% of Rated Operating Distance
We reserve the right to make technical alterations without prior notice.
A17
Turck Inc.
Rectangular Inductive Sensors | Q8SE & Q10S
Side Sensing Qpak Housing
Part Number/
ID Number
Ni4U-Q8SE-AN6X
4635809
Ni4U-Q8SE-AP6X
4635807
Ni4U-Q8SE-AN6X-V1131
4635810
Ni4U-Q8SE-AP6X-V1131
4635808
Bi2-Q10S-AN6X
1619310
Bi2-Q10S-AP6X
1609360
Bi2-Q10S-VN6X
1609341
Bi2-Q10S-VP6X
1609340
Bi2-Q10S-AZ31X
1309100
Ni5U-Q10S-AN6X
1609365
Ni5U-Q10S-AP6X
1609364
Features
Embeddable
Uprox+ 4
Uprox+ 4
Uprox+ 4
Uprox+ 4
·
·
Comp.
Outputs
Comp.
Outputs
·
·
·
Uprox+ 5
Uprox+ 5
Sensing Range (mm)
2
2
2
2
2 2-wire AC
Output
3-wire DC
NPN
3-wire DC
PNP
3-wire DC
NPN
3-wire DC
PNP
3-wire DC
NPN
3-wire DC
PNP
4-wire DC
NPN
4-wire DC
PNP
3-wire DC
NPN
3-wire DC
PNP
Voltage
10-30 VDC 1000 ≤150 -30 to +85 IP68 PP PP N/A YE 2M/TPU A 1 A4
10-30 VDC 1000 ≤150 -30 to +85 IP68 PP PP N/A YE 2M/TPU A 2 A4
10-30 VDC 1000 ≤150 -30 to +85 IP68 PP PP N/A YE - - B 3 A4
10-30 VDC 1000 ≤150 -30 to +85 IP68 PP PP N/A YE - - B 4 A4
10-30 VDC 2000 ≤150 -25 to +70 IP67 PP-GF20 PP N/A YE 2M/TPU C 1 A4
10-30 VDC 2000 ≤150 -25 to +70 IP67 PP-GF20 PP N/A YE 2M/TPU C 2 A4
10-30 VDC 2000 ≤150 -25 to +70 IP67 PP-GF20 PP N/A YE 2M/TPU C 5 A4
10-30 VDC 2000 ≤150 -25 to +70 IP67 PP-GF20
20-250
VAC/10-300
VDC
10-30 VDC 1000 ≤150 -30 to +85 IP68 PP-GF20
10-30 VDC 1000 ≤150 -30 to +85 IP68 PP-GF20
Switching Freq. (Hz)
Operating Current (mA)
60 ≤100 -25 to +70 IP67 PP-GF20
Operating Temp. (°C)
Protection
Housing
Front Cap/Face
Power LED
Output LED
PP-
N/A YE 2M/TPU C 6 A4
GF20
PP-
N/A RD 2M/TPU C 7 A6
GF20
PP-
N/A YE 2M/TPU C 1 A4
GF20
PP-
N/A YE 2M/TPU C 2 A4
GF20
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
Rectangular Inductive Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
A18
Rectangular Inductive Sensors | Small Rectangular
.185 [4.7]
.315 [8.0]
.185 [4.7]
.315 [8.0]
M12x1
.315 [8.0]
M8x1
.315 [8.0]
.217 [5.5]
.681 [17.3]
M12x1
.354 [9.0]
.315 [8.0]
.354 [9.0]
.315 [8.0]
M12x1
.354 [9.0]
.315 [8.0]
M12x1
.630 [16.0]
.878 [22.3]
M12x1
Sensor with Molded Connector
Housing Style Dimension Drawings
A
B
C
.315 [8.0]
1.622 [41.2]
5.5 mm - M8 Picofast Quick Disconnect
F
1.260 [32.0]
.118 [3.0]
.512 [13.0]
1.546 [39.3]
8.0 mm - M12 Eurofast Quick Disconnect
I
.413 [10.5]
LED
LED
.217 [5.5]
.630 [16.0]
1.102 [28.0]
.787 [20.0]
LED 2x
ø.134 [3.4] 2x
ø.610 [15.5]
M8x1
1.622 [41.2]
4.7 mm - M8 Picofast Quick Disconnect
D
.315 [8.0]
M12x1
1.546 [39.3]
5.5 mm - M12 Eurofast Quick Disconnect
G
1.260 [32.0]
.118 [3.0]
.512 [13.0]
M8x1
1.488 [37.8]
8.0 mm - M8 Picofast Quick Disconnect
LED
.669 [17.0]
.630 [16.0]
LED 2x
ø.134 [3.4] 2x
1.102 [28.0]
.787 [20.0]
ø.610 [15.5]
.472 [12.0]
1.546 [39.3]
4.7 mm - M12 Eurofast Quick Disconnect
E
1.094 [27.8]
.110 [2.8]
1.546 [39.3]
6.0 mm - M12 Eurofast Quick Disconnect
H
1.260 [32.0]
.118 [3.0]
.512 [13.0]
1.546 [39.3]
8.0 mm - M12 Eurofast Quick Disconnect
.472 [12.0]
.669 [17.0]
.272 [6.9]
LED 2x
ø.126 [3.2] 2x
.787 [20.0]
LED 2x
ø.134 [3.4] 2x
.472 [12.0]
.236 [6.0]
We reserve the right to make technical alterations without prior notice.
ø.610 [15.5]
1.094 [27.8]
ø.118 [3.0]
1.546 [39.3]
MOUNTING HOLE
10 mm - M12 Eurofast Quick Disconnect
1
Mating Cordset: RK 4T-*
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
Time Delay Before Availability:
A19
Turck Inc.
No-Load Current:
Wiring Diagrams/Mating Cordsets
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox, Rectangular)
≤20 mA (Uprox+, Uprox 3)
≤8 ms
2
Mating Cordset: PKG 3M-*
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
Rectangular Inductive Sensors | Small Rectangular
Sensor with Molded Connector
Part Number/
ID Number
Bi2-Q4.7-AP6X-0.3-PSG3M
1614000
Bi2-Q4.7-AP6X-0.3-RS4T
16140024
Bi2-Q5.5-AP6X-0.2-PSG3M
1613099
Bi2-Q5.5-AP6X-0.2-RS4T
1613094
Bi3-Q06-AP6X2-0.2-RS4T
1620193
Bi5U-Q08-AP6X2-0.2-RS4T
1608990
Bi5-Q08-AP6X2-0.2-PSG3F
1600592
Bi7-Q08-AP6X2-0.2-RS4T
1601683
Bi2-Q10S-AP6X-0.2-RS4T
1609390
Uprox
Features
Embeddable
Sensing Range (mm)
2
·
2
·
2
·
2
·
3
·
5
·
5
·
7
·
2
·
Output
3-wire DC
PNP
3-wire DC
PNP
3-wire DC
PNP
3-wire DC
PNP
3-wire DC
PNP
3-wire DC
PNP
3-wire DC
PNP
3-wire DC
PNP
3-wire DC
PNP
10-30
VDC
10-30
VDC
10-30
VDC
10-30
VDC
10-30
VDC
10-30
VDC
10-30
VDC
10-30
VDC
10-30
VDC
Voltage
Switching Freq. (Hz)
Operating Current (mA)
1000 ≤100 0 to +85 IP67 Zinc PA N/A YE 0.3M/TPU A 2 A4
1000 ≤100 0 to +85 IP67 Zinc PA N/A YE 0.3M/TPU B 1 A4
2000 ≤150 -25 to +85 IP67 PP PP N/A YE 0.2M/TPU C 2 A4
2000 ≤150 -25 to +85 IP67 PP PP N/A YE 0.2M/TPU D 1 A4
1000 ≤200 -25 to +70 IP67 PBT PA GN YE 0.2M/TPU E 1 A4
250 ≤200 -30 to +85 IP67 Zinc PA 12 GN YE 0.2M/TPU F 1 A4
250 ≤200 -25 to +70 IP67 Zinc PA 12 GN YE 0.2M/TPU G 2 A4
500 ≤200 -25 to +70 IP67 Zinc PA 12 GN YE 0.2M/TPU H 1 A4
2000 ≤150 -25 to +70 IP67 PP-GF20 PP N/A YE 0.2M/TPU I 1 A4
Operating Temp. (°C)
Protection
Housing
Front Cap/Face
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
Rectangular Inductive Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
A20
Rectangular Inductive Sensors | Q10
Top Sensing Qpak Housing
Housing Style Dimension Drawings
B
A
10 mm - Embeddable, Potted-In Cable
10 mm - Embeddable, M8 Picofast Connector
Wiring Diagrams/Mating Cordsets
1 2 3
4
Mating Cordset: PKG 3Z-*
5
Mating Cordset: PKG 4Z-*
7
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
Time Delay Before Availability:
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox, Rectangular)
≤20 mA (Uprox+, Uprox 3)
≤8 ms
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Vibration:
Repeatability:
6
Shock:
We reserve the right to make technical alterations without prior notice.
Mating Cordset: PKG 3Z-*
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
A21
Turck Inc.
Rectangular Inductive Sensors | Q10
Top Sensing Qpak Housing
Part Number/
ID Number
Bi8U-Q10-AN6X2
1662003
Bi8U-Q10-AP6X2
1662001
Bi8U-Q10-AN6X2-V1131
1662004
Bi8U-Q10-AP6X2-V1131
1662002
Bi8-Q10-VN6X2
4616410
Bi8-Q10-VP6X2
4616401
Bi8-Q10-VP6X2-V1141
4616402
Features
Uprox
Uprox
Uprox
Uprox
Comp.
Outputs
Comp.
Outputs
Comp.
Outputs
Embeddable
Sensing Range (mm)
8 3-wire DC NPN 10-30 VDC 250 ≤200 -30 to +85 IP67 PBT PBT GN YE 2M/TPU A 1 A4
·
8 3-wire DC PNP 10-30 VDC 250 ≤200 -30 to +85 IP67 PBT PBT GN YE 2M/TPU A 2 A4
·
8 3-wire DC NPN 10-30 VDC 250 ≤200 -30 to +85 IP67 PBT PBT GN YE - - B 3 A4
·
8 3-wire DC PNP 10-30 VDC 250 ≤200 -30 to +85 IP67 PBT PBT GN YE - - B 4 A4
·
8 4-wire DC NPN 10-30 VDC 250 ≤200 -25 to +70 IP67 PBT PBT GN YE 2M/TPU A 6 A4
·
8 4-wire DC PNP 10-30 VDC 250 ≤200 -25 to +70 IP67 PBT PBT GN YE 2M/TPU A 7 A4
·
8 4-wire DC PNP 10-30 VDC 500 ≤200 -25 to +70 IP67 PBT PBT GN YE - - B 5 A4
·
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Front Cap/Face
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
Rectangular Inductive Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
A22
Rectangular Inductive Sensors | Q12
Side Sensing Qpak Housing
Housing Style Dimension Drawings
A
B
12 mm - Embeddable/Nonembeddable, Potted-In Cable
C
12 mm - Embeddable, M12 Eurofast Connection
D
12 mm - Embeddable, M8 Picofast Connection
Wiring Diagrams/Mating Cordsets
1 2 3
4
Mating Cordset: RK 4T-*
7
5
Mating Cordset: RK 4T-*
8
12 mm - Embeddable, Potted-In Cable
We reserve the right to make technical alterations without prior notice.
6
Mating Cordset: PKG 3Z-*
Mating Cordset: PKG 3Z-*
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
Time Delay Before Availability:
A6
Line Frequency:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Continuous Load Current:
Off-State (Leakage) Current:
Minimum Load Current:
A23
Turck Inc.
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox, Rectangular)
≤20 mA (Uprox+, Uprox 3)
≤8 ms
2-wire AC/DC w/o Short-Circuit Protection - (AZ, RZ, FZ)
≥50... ≤60 Hz
3-15% (5% typical)
≤6.0 V
AC: ≤400 mA; DC: ≤300 mA
AC: ≤100 mA; DC: ≤100 mA
≤1.7 mA
≥3.0 mA
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
Inrush Current:
Power-On Effect:
Transient Protection:
Shock:
Vibration:
Repeatability:
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
≤8 A (≤10ms max. 5 Hz)
≤1 A (≤10 ms max. 5 Hz) 12 mm
≤0.2 A (≤10 ms max. 0.2 Hz) 8 mm
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤2% of Rated Operating Distance
Rectangular Inductive Sensors | Q12
Side Sensing Qpak Housing
Part Number/
ID Number
Bi2-Q12-AZ31X
13100
Ni4-Q12-AZ31X
13102
Bi5U-Q12-AN6X2
1635523
Bi5U-Q12-AP6X2
1635522
Bi5U-Q12-VP6X2
1635533
Bi5U-Q12-AN6X2-H1141
1635527
Bi5U-Q12-AP6X2-H1141
1635526
Bi5U-Q12-AN6X2-V1131
1635525
Bi5U-Q12-AP6X2-V1131
1635524
Features
Uprox+
Uprox+
Uprox+
Uprox+
Uprox+
Uprox+
Uprox+
Embeddable
Sensing Range (mm)
2 2-wire AC
·
4 2-wire AC
5
·
5
·
5
·
5
·
5
·
5
·
5
·
Output
3-wire DC
NPN
3-wire DC
PNP
4-wire DC
PNP
3-wire DC
NPN
3-wire DC
PNP
3-wire DC
NPN
3-wire DC
PNP
Voltage
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
10-30 VDC 1000 ≤200 -25 to +70 IP68 PA 12-GF30 LC P GN YE
10-30 VDC 1000 ≤200 -25 to +70 IP68 PA 12-GF30 LC P GN YE
10-30 VDC 1000 ≤200 -25 to +70 IP68 PA 12-GF30
10-30 VDC 1000 ≤200 -25 to +70 IP68 PA 12-GF30 LC P GN YE - - C 4 A4
10-30 VDC 1000 ≤200 -25 to +70 IP68 PA 12-GF30 LC P GN YE - - C 5 A4
10-30 VDC 1000 ≤200 -25 to +70 IP68 PA 12-GF30 LC P GN YE - - D 6 A4
10-30 VDC 1000 ≤200 -25 to +70 IP68 PA 12-GF30 LC P GN YE - - D 7 A4
Switching Freq. (Hz)
Operating Current (mA)
20 ≤100 -25 to +70 IP67 PBT PBT N/A YE
20 ≤100 -25 to +70 IP67 PBT PBT N/A YE
Operating Temp. (°C)
Protection
Housing
PA 12-
GF30
Front Cap/Face
Power LED
GN YE
Output LED
2M/
PVC
2M/
PVC
2M/
TPU
2M/
TPU
2M/
TPU
Cable Length/Jacket
Dimension Drawings
A 1 A6
A 1 A6
B 2 A4
B 3 A4
B 8 A4
Wiring Diagrams
Spec List
Rectangular Inductive Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
A24
Rectangular Inductive Sensors | Q14
Top Sensing Qpak Housing
Housing Style Dimension Drawings
B
A
14 mm - Potted-In Cable
14 mm - Embeddable/Nonembeddable, M8 Picofast Connector
Wiring Diagrams/Mating Cordsets
1 2 3
4
Mating Cordset: PKG 3M-*
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
Time Delay Before Availability:
A5
Line Frequency:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Continuous Load Current:
Off-State (Leakage) Current:
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox, Rectangular)
≤20 mA (Uprox+, Uprox 3)
≤8 ms
≥50... ≤60 Hz
3-15% (5% typical)
≤6.0 V
AC: ≥440 mA; DC: ≥330 mA
AC: ≥120 mA; DC: ≥120 mA
AC: ≤400 mA; DC: ≤300 mA
AC: ≤100 mA; DC: ≤100 mA
≤1.7 mA (AC)
≤1.5 mA (DC)
5
Mating Cordset: PKG 3M-*
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Vibration:
Repeatability:
2-wire AC/DC w/ Short-Circuit Protection - (ADZ, RDZ, FDZ, VDZ)
Minimum Load Current:
Inrush Current:
Power-On Effect:
Transient Protection:
Vibration:
Repeatability:
Shock:
Shock:
We reserve the right to make technical alterations without prior notice.
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
≥3.0 mA
≤3.0 A (≤20 ms, max 5 Hz)
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤2% of Rated Operating Distance
A25
Turck Inc.
Rectangular Inductive Sensors | Q14
Top Sensing Qpak Housing
Part Number/
ID Number
Bi10U-Q14-AN6X2
1608710
Bi10U-Q14-AP6X2
1608700
Bi10U-Q14-AN6X2-V1131
1608510
Bi10U-Q14-AP6X2-V1131
1608500
Bi10-Q14-AN6X2
1608320
Bi10-Q14-AP6X2
1608720
Bi10-Q14-ADZ32X2
4256220
Bi10-Q14-ADZ32X2/S34
4256225
Bi10-Q14-AP6X2-V1131
1608530
Ni20-Q14-AP6X2-V1131
4690210
Ni20-Q14-AN6X2
4690220
Ni20-Q14-AP6X2
4690205
Ni20-Q14-ADZ32X2
4205410
Uprox
Uprox
Uprox
Uprox
WFI
Features
Embeddable
Sensing Range (mm)
10 3-wire DC NPN 10-30 VDC 250 ≤200 -30 to +85 IP67 PBT PBT GN YE
·
10 3-wire DC PNP 10-30 VDC 250 ≤200 -30 to +85 IP67 PBT PBT GN YE
·
10 3-wire DC PNP 10-30 VDC 250 ≤200 -30 to +85 IP67 PBT PBT GN YE - - B 4 A4
·
10 3-wire DC PNP 10-30 VDC 250 ≤200 -30 to +85 IP67 PBT PBT GN YE - - B 5 A4
·
10 3-wire DC NPN 10-30 VDC 250 ≤200 -25 to +70 IP67 PBT PBT GN YE
·
10 3-wire DC PNP 10-30 VDC 250 ≤200 -25 to +70 IP67 PBT PBT GN YE
·
10 2-wire AC/DC 20-250 VAC/10-300 VDC 20 ≤100 -25 to +70 IP67 PBT PBT GN RD
·
10 2-wire AC/DC 20-250 VAC/10-300 VDC 20 ≤100 -25 to +70 IP67 PBT PBT GN RD
·
10 3-wire DC PNP 10-30 VDC 250 ≤200 -25 to +70 IP67 PBT PBT GN YE - - B 5 A4
·
20 3-wire DC PNP 10-30 VDC 250 ≤200 -25 to +70 IP67 PBT PBT GN YE - - B 5 A4
20 3-wire DC NPN 10-30 VDC 250 ≤200 -25 to +70 IP67 PBT PBT GN YE
20 3-wire DC PNP 10-30 VDC 250 ≤200 -25 to +70 IP67 PBT PBT GN YE
·
20 2-wire AC/DC 20-250 VAC/10-300 VDC 20 ≤100 -25 to +70 IP67 PBT PBT GN RD
·
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Front Cap/Face
Power LED
Output LED
2M/
TPU
2M/
TPU
2M/
TPU
2M/
TPU
2M/
TPU
2M/
TPU
2M/
TPU
2M/
TPU
2M/
TPU
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
A 1 A4
A 2 A4
A 1 A4
A 2 A4
A 3 A5
A 3 A5
A 1 A4
A 2 A4
A 3 A5
Spec List
Rectangular Inductive Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
A26
Rectangular Inductive Sensors | Q20
Top Sensing Qpak Housing with Potted-in Cable
Housing Style Dimension Drawings
A
20 mm - Embeddable/Nonembeddable, Potted-In Cable
Wiring Diagrams/Mating Cordsets
1 2 3
We reserve the right to make technical alterations without prior notice.
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
Time Delay Before Availability:
A5
Line Frequency:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Continuous Load Current:
Off-State (Leakage) Current:
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox, Rectangular)
≤20 mA (Uprox+, Uprox 3)
≤8 ms
2-wire AC/DC w/ Short-Circuit Protection - (ADZ, RDZ, FDZ, VDZ)
≥50... ≤60 Hz
3-15% (5% typical)
≤6.0 V
AC: ≥440 mA; DC: ≥330 mA
AC: ≥120 mA; DC: ≥120 mA
AC: ≤400 mA; DC: ≤300 mA
AC: ≤100 mA; DC: ≤100 mA
≤1.7 mA (AC)
≤1.5 mA (DC)
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
Minimum Load Current:
Inrush Current:
Power-On Effect:
Transient Protection:
Shock:
Vibration:
Repeatability:
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
≥3.0 mA
≤3.0 A (≤20 ms, max 5 Hz)
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤2% of Rated Operating Distance
A27
Turck Inc.
Rectangular Inductive Sensors | Q20
Top Sensing Qpak Housing with Potted-in Cable
Part Number/
ID Number
Bi15U-Q20-AN6X2
1608810
Bi15U-Q20-AP6X2
1608800
Bi15-Q20-AP6X2
1608300
Bi15-Q20-ADZ32X2
4256250
Ni25-Q20-AN6X2
1602800
Ni25-Q20-AP6X2
1602700
Uprox
Uprox
Features
Embeddable
Sensing Range (mm)
15 3-wire DC NPN 10-30 VDC 250 ≤200 -30 to +85 IP67 PBT PBT GN YE 2M/TPU A 1 A4
·
15 3-wire DC PNP 10-30 VDC 250 ≤200 -30 to +85 IP67 PBT PBT GN YE 2M/TPU A 2 A4
·
15 3-wire DC PNP 10-30 VDC 250 ≤200 -25 to +70 IP67 PBT PBT GN YE 2M/TPU A 2 A4
·
15 2-wire AC/DC 20-250 VAC/10-300 VDC 20 ≤100 -25 to +70 IP67 PBT PBT GN YE 2M/TPU A 3 A5
·
25 3-wire DC NPN 10-30 VDC 250 ≤200 -25 to +70 IP67 PBT PBT GN YE 2M/TPU A 1 A4
25 3-wire DC PNP 10-30 VDC 250 ≤200 -25 to +70 IP67 PBT PBT GN YE 2M/TPU A 2 A4
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Front Cap/Face
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
Rectangular Inductive Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
A28
Rectangular Inductive Sensors | Q20
Top Sensing Qpak Housing with Integral Connector
Housing Style Dimension Drawings
B
20 mm - Embeddable, 1/2-20UNF Microfast Connector
1
2
A
20 mm - Embeddable/Nonembeddable, M12 Eurofast Connector
We reserve the right to make technical alterations without prior notice.
Wiring Diagrams/Mating Cordsets
3
Mating Cordset: RK 4T-*
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
Time Delay Before Availability:
A5
Line Frequency:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Continuous Load Current:
Off-State (leakage) Current:
Mating Cordset:RK 4T-*
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox, Rectangular)
≤20 mA (Uprox+, Uprox 3)
≤8 ms
2-wire AC/DC w/ Short-Circuit Protection - (ADZ, RDZ, FDZ, VDZ)
≥50... ≤60 Hz
3-15% (5% typical)
≤6.0 V
AC: ≥440 mA; DC: ≥330 mA
AC: ≥120 mA; DC: ≥120 mA
AC: ≤400 mA; DC: ≤300 mA
AC: ≤100 mA; DC: ≤100 mA
≤1.7 mA (AC)
≤1.5 mA (DC)
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
Minimum Load Current:
Inrush Current:
Power-On Effect:
Transient Protection:
Shock:
Vibration:
Repeatability:
Mating Cordset: KB 3T-*
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
≥3.0 mA
≤3.0 A (≤20 ms, max 5 Hz)
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤2% of Rated Operating Distance
A29
Turck Inc.
Rectangular Inductive Sensors | Q20
Top Sensing Qpak Housing with Integral Connector
Part Number/
ID Number
Bi15U-Q20-AN6X2-H1141
1608610
Bi15U-Q20-AP6X2-H1141
1608600
Bi15-Q20-AN6X2-H1141
1608315
Bi15-Q20-AP6X2-H1141
1608305
Bi15-Q20-ADZ32X2-B3131
4256251
Ni25-Q20-AN6X2-H1141
1602802
Ni25-Q20-AP6X2-H1141
1602702
Uprox
Uprox
Features
Embeddable
Sensing Range (mm)
15 3-wire DC NPN 10-30 VDC 250 ≤200 -30 to +85 IP67 PBT PBT GN YE A 1 A4
·
15 3-wire DC PNP 10-30 VDC 250 ≤200 -30 to +85 IP67 PBT PBT GN YE A 2 A4
·
15 3-wire DC NPN 10-30 VDC 250 ≤200 -25 to +70 IP67 PBT PBT GN YE A 1 A4
·
15 3-wire DC PNP 10-30 VDC 250 ≤200 -25 to +70 IP67 PBT PBT GN YE A 2 A4
·
15 2-wire AC/DC 20-250 VAC/10-300 VDC 20 ≤100 -25 to +70 IP67 PBT PBT GN YE B 3 A5
·
25 3-wire DC NPN 10-30 VDC 250 ≤200 -25 to +70 IP67 PBT PBT GN YE A 1 A4
25 3-wire DC PNP 10-30 VDC 250 ≤200 -25 to +70 IP67 PBT PBT GN YE A 2 A4
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Front Cap/Face
Power LED
Output LED
Dimension Drawings
Wiring Diagrams
Spec List
Rectangular Inductive Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
A30
Rectangular Inductive Sensors | Q18, Q25, & Q30
1.142 [29.0]
Side Sensing Qpak Housing
Housing Style Dimension Drawings
B
1.516 [38.5]
.709 [18.0]
.169x.228 [4.3x5.8]
1.339 [34.0]
SLOT 2x
.984 [25.0]
1.004 [25.5]
LED
.728 [18.5]
A
18 mm - Nonembeddable, Potted-In Cable
C
We reserve the right to make technical alterations without prior notice.
25 mm - Nonembeddable, Potted-In Cable
Wiring Diagrams/Mating Cordsets
1 2
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
Time Delay Before Availability:
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox, Rectangular)
≤20 mA (Uprox+, Uprox 3)
≤8 ms
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
30 mm - Nonembeddable, Potted-In Cable
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
A31
Turck Inc.
Rectangular Inductive Sensors | Q18, Q25, & Q30
Side Sensing Qpak Housing
Part Number/
ID Number
Ni5-Q18-AN6X
4614607
Ni5-Q18-AP6X
4614606
Ni10-Q25-AN6X
4652330
Ni10-Q25-AP6X
4652225
Ni15-Q30-AN6X
4659330
Ni15-Q30-AP6X
4659325
Sensing Range (mm)
5 3-wire DC NPN 10-30 VDC 500 ≤200 -25 to +70 IP67 PBT PBT N/A YE 2M/PVC A 1 A4
5 3-wire DC PNP 10-30 VDC 500 ≤200 -25 to +70 IP67 PBT PBT N/A YE 2M/PVC A 2 A4
10 3-wire DC NPN 10-30 VDC 500 ≤200 -25 to +70 IP67 PBT PBT N/A YE 2M/PVC B 1 A4
10 3-wire DC PNP 10-30 VDC 500 ≤200 -25 to +70 IP67 PBT PBT N/A YE 2M/PVC B 2 A4
15 3-wire DC NPN 10-30 VDC 500 ≤200 -25 to +70 IP67 PBT PBT N/A YE 2M/PVC C 1 A4
15 3-wire DC PNP 10-30 VDC 500 ≤200 -25 to +70 IP67 PBT PBT N/A YE 2M/PVC C 2 A4
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Front Cap/Face
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
Rectangular Inductive Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
A32
Rectangular Inductive Sensors | CA40
Rotatable Sensing Head with Metal Housing
Housing Style Dimension Drawings
B
A
CA40 - Embeddable, Eurofast Connector
C
We reserve the right to make technical alterations without prior notice.
CA40 - Embeddable, Minifast Connector
Mating Cordset: RK 4T-*
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
Time Delay Before Availability:
A5
Line Frequency:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Continuous Load Current:
Off-State (leakage) Current:
Wiring Diagrams/Mating Cordsets
2
Mating Cordset: RK 4T-*
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox, Rectangular)
≤20 mA (Uprox+, Uprox 3)
≤8 ms
2-wire AC/DC w/ Short-Circuit Protection - (ADZ, RDZ, FDZ, VDZ)
≥50... ≤60 Hz
3-15% (5% typical)
≤6.0 V
AC: ≥440 mA; DC: ≥330 mA
AC: ≥120 mA; DC: ≥120 mA
AC: ≤400 mA; DC: ≤300 mA
AC: ≤100 mA; DC: ≤100 mA
≤1.7 mA (AC)
≤1.5 mA (DC)
3
Mating Cordset: RKM 30-*M
Reverse Polarity Protection:
CA40 - Embeddable, Microfast Connector
4
Power-On Effect:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
Minimum Load Current:
Inrush Current:
Power-On Effect:
Transient Protection:
Shock:
Vibration:
Repeatability:
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
≥3.0 mA
≤3.0 A (≤20 ms, max 5 Hz)
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤2% of Rated Operating Distance
Mating Cordset: KB 3T-*
A33
Turck Inc.
BS 2.1 Mounting Bracket
BS 2.0 Mounting Bracket
Rectangular Inductive Sensors | CA40
Rotatable Sensing Head with Metal Housing
Part Number/
ID Number
Bi20U-CA40-AN6X2-H1141 W/BS2.1
1627390
Bi20U-CA40-AP6X2-H1141 W/BS2.1
1627290
Bi20U-CA40-AP6X2-H1141/S1590 W/BS2.0
1627297
Bi20U-CA40-ADZ30X2-B1131 W/BS2.1
4283290
Bi20U-CA40-ADZ30X2-B3131 W/BS2.1
4283292
Features
Uprox
Uprox
Weldguard®
Uprox
Uprox
Embeddable
Sensing Range (mm)
20 3-wire DC NPN 10-30 VDC 250 ≤200 0 to +70 IP67 AL TP GN YE A 1 A4
·
20 3-wire DC PNP 10-30 VDC 250 ≤200 0 to +70 IP67 AL TP GN YE A 2 A4
·
20 3-wire DC PNP 10-30 VDC 250 ≤200 0 to +70 IP67 AL WG GN YE A 2 A4
·
20 2-wire AC/DC
·
20 2-wire AC/DC
·
Output
Voltage
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
Switching Freq. (Hz)
Operating Current (mA)
10 ≤400/300 -30 to +85 IP67 AL TP GN YE B 3 A5
10 ≤400/300 -30 to +85 IP67 AL TP GN YE C 4 A5
Operating Temp. (°C)
Protection
Housing
Front Cap/Face
Power LED
Output LED
Dimension Drawings
Wiring Diagrams
Spec List
Rectangular Inductive Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
A34
Rectangular Inductive Sensors | CK40
Rotatable Sensing Head with 2 and 3-wire DC Outputs
Housing Style Dimension Drawings
1
2
A
CK40 - Embeddable/Nonembeddable, Eurofast Connector
Wiring Diagrams/Mating Cordsets
3
Mating Cordset: RK 4T-*
A2
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Minimum Load Current:
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
Time Delay Before Availability:
BS 2.1 Mounting Bracket
Mating Cordset: RK 4.2T-*
2-wire DC - (AD, RD, AG)
≤10%
3-15% (5% typical)
Non-polarized (AD) <5.0 V
Polarized (AG) ≤4.2 V
≥120 mA
≥3.0 mA
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox, Rectangular)
≤20 mA (Uprox+, Uprox 3)
≤8 ms
Off-State (Leakage) Current:
Power-On Effect:
Transient Protection:
Shock:
Vibration:
Repeatability:
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
BS 4 Mounting Bracket
Mating Cordset: RK 4T-*
≤0.8 mA
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
We reserve the right to make technical alterations without prior notice.
A35
Turck Inc.
Rectangular Inductive Sensors | CK40
Rotatable Sensing Head with 2 and 3-wire DC Outputs
Part Number/
ID Number
Bi15U-CK40-AN6X2-H1141 W/BS2.1
1625690
Bi15U-CK40-AP6X2-H1141 W/BS2.1
1625689
Bi15-CK40-AN6X2-H1141 W/BS2.1
1625190
Bi15-CK40-AP6X2-H1141 W/BS2.1
1625090
Bi15-CK40-AD4X-H1141 W/BS2.1
4465090
Bi20U-CK40-AN6X2-H1141
1627231
Bi20U-CK40-AP6X2-H1141 W/BS2.1
1627288
Bi30U-CK40-AN6X2-H1141
1625820
Bi30U-CK40-AP6X2-H1141
1625829
Ni20-CK40-AN6X2-H1141 W/BS2.1
1625390
Ni20-CK40-AP6X2-H1141 W/BS2.1
1625290
Ni20-CK40-AD4X-H1141 W/BS2.1
4465290
Ni25U-CK40-AN6X2-H1141 W/BS2.1
1625789
Ni25U-CK40-AP6X2-H1141 W/BS2.1
We reserve the right to make technical alterations without prior notice.
1625790
Ni35U-CK40-AP6X2-H1141
1625800
Ni35U-CK40-AN6X2-H1141
1625810
Ni50U-CK40-AN6X2-H1141
1625823
Ni50U-CK40-AP6X2-H1141
1625868
Features
Embeddable
Sensing Range (mm)
Uprox
Uprox
Uprox+
Uprox+
Uprox+
Uprox+
Uprox 25 3-wire DC NPN 10-30 VDC 250 ≤200 -30 to +85 IP68 PBT PBT GN YE A 3 A4
Uprox 25 3-wire DC PNP 10-30 VDC 250 ≤200 -30 to +85 IP68 PBT PBT GN YE A 1 A4
Uprox 35 3-wire DC PNP 10-30 VDC 250 ≤200 -30 to +85 IP67 PBT PBT GN YE A 1 A4
Uprox 35 3-wire DC NPN 10-30 VDC 250 ≤200 -30 to +85 IP67 PBT PBT GN YE A 3 A4
Uprox+ 50 3-wire DC NPN 10-30 VDC 250 ≤200 -25 to +70 IP68 PBT PBT GN YE A 3 A4
Uprox+ 50 3-wire DC PNP 10-30 VDC 250 ≤200 -25 to +70 IP68 PBT PBT GN YE A 1 A4
15 3-wire DC NPN 10-30 VDC 250 ≤200 -30 to +85 IP68 PBT PBT GN YE A 3 A4
·
15 3-wire DC PNP 10-30 VDC 250 ≤200 -30 to +85 IP68 PBT PBT GN YE A 1 A4
·
15 3-wire DC NPN 10-30 VDC 150 ≤200 -25 to +70 IP67 PBT PBT GN YE A 3 A4
·
15 3-wire DC PNP 10-30 VDC 150 ≤200 -25 to +70 IP67 PBT PBT GN YE A 1 A4
·
15 2-wire DC 10-65 VDC 150 ≤100 -25 to +70 IP67 PBT PBT GN YE A 2 A2
·
20 3-wire DC NPN 10-30 VDC 250 ≤200 -30 to +85 IP68 PBT PBT GN YE A 3 A4
·
20 3-wire DC PNP 10-30 VDC 250 ≤200 -30 to +85 IP68 PBT PBT GN YE A 1 A4
·
30 3-wire DC NPN 10-30 VDC 250 ≤200 -10 to +60 IP68 PBT PBT GN YE A 3 A4
·
30 3-wire DC PNP 10-30 VDC 250 ≤200 -10 to +60 IP68 PBT PBT GN YE A 1 A4
·
20 3-wire DC NPN 10-30 VDC 150 ≤200 -25 to +70 IP67 PBT PBT GN YE A 3 A4
20 3-wire DC PNP 10-30 VDC 150 ≤200 -25 to +70 IP67 PBT PBT GN YE A 1 A4
20 2-wire DC 10-65 VDC 200 ≤100 -25 to +70 IP67 PBT PBT GN YE A 2 A2
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Front Cap/Face
Power LED
Output LED
Dimension Drawings
Wiring Diagrams
Spec List
Rectangular Inductive Sensors
Turck Inc.
A36
Rectangular Inductive Sensors | CK40
Rotatable Sensing Head with Complementary Outputs
Housing Style Dimension Drawings
1
A
CK40 - Embeddable/Nonembeddable, Eurofast Connector
Wiring Diagrams/Mating Cordsets
2
Mating Cordset: RK 4.4T-*
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
Time Delay Before Availability:
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox, Rectangular)
≤20 mA (Uprox+, Uprox 3)
≤8 ms
BS 2.1 Mounting Bracket
Mating Cordset: RK 4.4T-*
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
We reserve the right to make technical alterations without prior notice.
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
A37
Turck Inc.
Rectangular Inductive Sensors | CK40
Rotatable Sensing Head with Complementary Outputs
Part Number/
ID Number
Bi15-CK40-VN4X2-H1141 W/BS2.1
1550190
Bi15-CK40-VP4X2-H1141 W/BS2.1
1550091
Ni20-CK40-VN4X2-H1141 W/BS2.1
1550390
Ni20-CK40-VP4X2-H1141 W/BS2.1
1550290
Ni35U-CK40-VP6X2-H1141
1625815
Ni50U-CK40-VN4X2-H1141
1625806
Ni50U-CK40-VP4X2-H1141
1538302
Features
Comp. Outputs
Comp. Outputs
Comp. Outputs 20 4-wire DC NPN 10-65 VDC 250 ≤200 -25 to +70 IP67 PBT PBT GN YE A 1 A4
Comp. Outputs 20 4-wire DC PNP 10-65 VDC 250 ≤200 -25 to +70 IP67 PBT PBT GN YE A 2 A4
Uprox, Comp.
Outputs
Uprox+, Comp.
Outputs
Uprox+, Comp.
Outputs
Embeddable
Sensing Range (mm)
15 4-wire DC NPN 10-65 VDC 250 ≤200 -25 to +70 IP67 PBT PBT GN YE A 1 A4
·
15 4-wire DC PNP 10-65 VDC 250 ≤200 -25 to +70 IP67 PBT PBT GN YE A 2 A4
·
35 4-wire DC PNP 10-30 VDC 250 ≤200 -25 to +70 IP67 PBT PBT GN YE A 2 A4
50 4-wire DC NPN 10-65 VDC 250 ≤200 -25 to +70 IP68 PBT PBT GN YE A 1 A4
50 4-wire DC PNP 10-65 VDC 250 ≤200 -25 to +70 IP68 PBT PBT GN YE A 2 A4
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Front Cap/Face
Power LED
Output LED
Dimension Drawings
Wiring Diagrams
Spec List
Rectangular Inductive Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
A38
Rectangular Inductive Sensors | CK40
Rotatable Sensing Head with AC/DC Outputs
Housing Style Dimension Drawings
B
CK40 - Embeddable/Nonembeddable, Microfast Connector
1
A
CK40 - Embeddable/Nonembeddable, Minifast Connector
We reserve the right to make technical alterations without prior notice.
Wiring Diagrams/Mating Cordsets
2
Mating Cordset: RKM 30-*M
A5
Line Frequency:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Continuous Load Current:
Off-State (Leakage) Current:
A6
Line Frequency:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Continuous Load Current:
Off-State (Leakage) Current:
Minimum Load Current:
BS 2.1 Mounting Bracket
2-wire AC/DC w/ Short-Circuit Protection - (ADZ, RDZ, FDZ, VDZ)
≥50... ≤60 Hz
3-15% (5% typical)
≤6.0 V
AC: ≥440 mA; DC: ≥330 mA
AC: ≥120 mA; DC: ≥120 mA
AC: ≤400 mA; DC: ≤300 mA
AC: ≤100 mA; DC: ≤100 mA
≤1.7 mA (AC)
≤1.5 mA (DC)
2-wire AC/DC w/o Short-Circuit Protection - (AZ, RZ, FZ)
≥50... ≤60 Hz
3-15% (5% typical)
≤6.0 V
AC: ≤400 mA; DC: ≤300 mA
AC: ≤100 mA; DC: ≤100 mA
≤1.7 mA
≥3.0 mA
Minimum Load Current:
Transient Protection:
Transient Protection:
Mating Cordset: KB 3T-*
Inrush Current:
Power-On Effect:
Shock:
Vibration:
Repeatability:
Inrush Current:
Power-On Effect:
Shock:
Vibration:
Repeatability:
BS 4 Mounting Bracket
≥3.0 mA
≤3.0 A (≤20 ms, max 5 Hz)
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤2% of Rated Operating Distance
≤8 A (≤10ms max. 5 Hz)
≤1 A (≤10 ms max. 5 Hz) 12 mm
≤0.2 A (≤10 ms max. 0.2 Hz) 8 mm
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤2% of Rated Operating Distance
A39
Turck Inc.
Rectangular Inductive Sensors | CK40
Rotatable Sensing Head with AC/DC Outputs
Part Number/
ID Number
Bi15U-CK40-ADZ30X2-B1131 W/BS2.1
4280090
Bi15U-CK40-ADZ30X2-B3131 W/B 2.1
4280091
Bi15-CK40-AZ3X2-B1131 W/BS2.1
1335091
Bi15-CK40-AZ3X2-B3131 W/BS2.1
1335095
Ni20-CK40-AZ3X2-B1131 W/BS2.1
1335291
Ni20-CK40-AZ3X2-B3131 W/BS2.1
1335290
Ni25U-CK40-ADZ30X2-B1131 W/BS2.1
4280290
Ni25U-CK40-ADZ30X2-B3131 W/BS2.1
4280291
Ni35U-CK40-ADZ30X2-B1131
4280410
Features
Embeddable
Sensing Range (mm)
Uprox
Uprox
Uprox 25 2-wire AC/DC
Uprox 25 2-wire AC/DC
Uprox 35 2-wire AC/DC
15 2-wire AC/DC
·
15 2-wire AC/DC
·
15 2-wire AC/DC
·
15 2-wire AC
·
20 2-wire AC
20 2-Wire AC
Output
Voltage
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
Switching Freq. (Hz)
Operating Current (mA)
10 ≤400/300 -30 to +85 IP68 PBT PBT GN YE A 1 A5
10 ≤400/300 -30 to +85 IP68 PBT PBT GN YE B 2 A5
20 ≤400/300 -25 to +70 IP67 PBT PBT GN YE A 1 A5
20 ≤400/300 -25 to +70 IP67 PBT PBT GN YE B 2 A6
20 ≤400/300 -25 to +70 IP67 PBT PBT GN YE A 1 A6
20 ≤400/300 -25 to +70 IP67 PBT PBT GN YE B 2 A6
10 ≤400/300 -30 to +85 IP67 PBT PBT GN YE A 1 A5
10 ≤400/300 -30 to +85 IP67 PBT PBT GN YE B 2 A5
10 ≤400/300 -30 to +85 IP68 PBT PBT GN YE A 1 A5
Operating Temp. (°C)
Protection
Housing
Front Cap/Face
Power LED
Output LED
Dimension Drawings
Wiring Diagrams
Spec List
Rectangular Inductive Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
A40

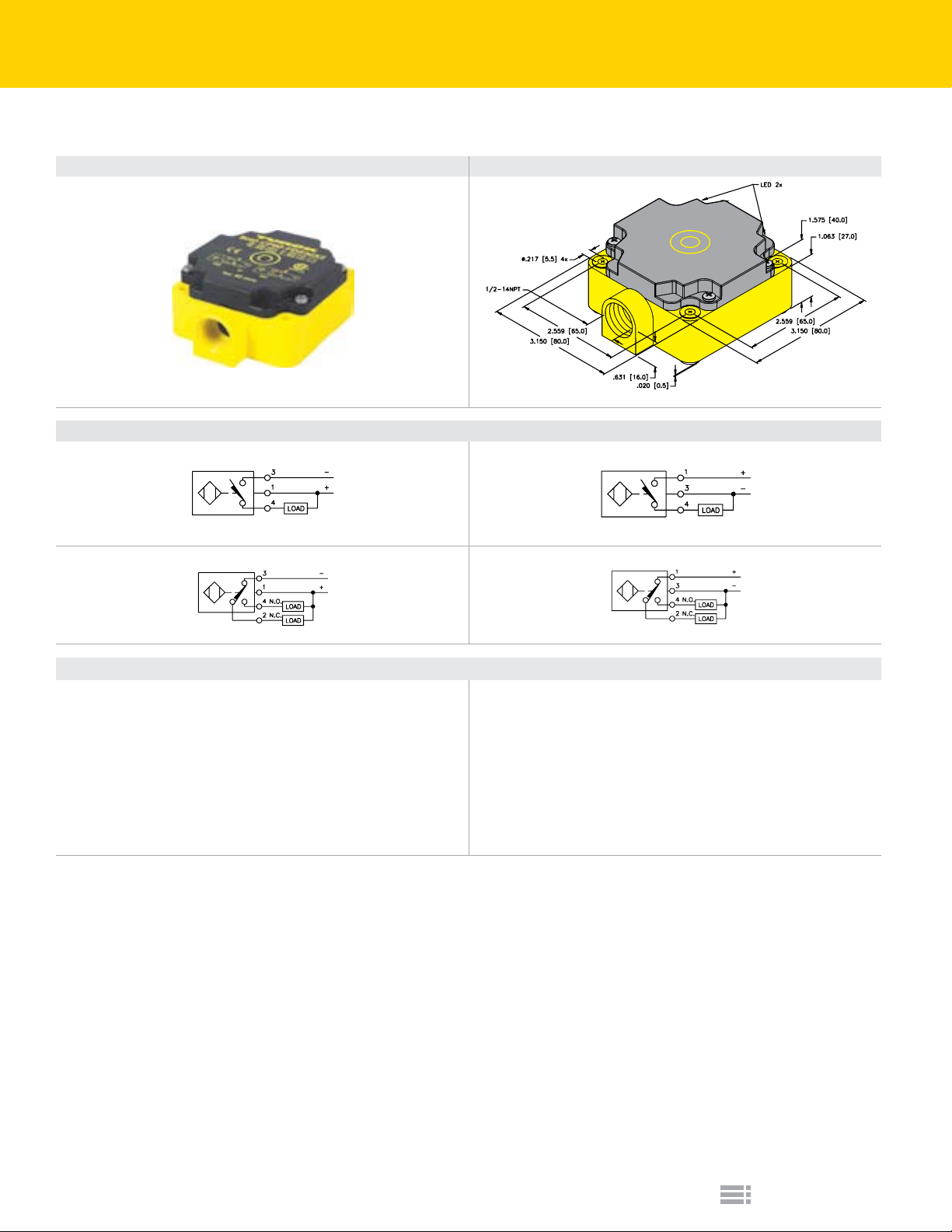

Rectangular Inductive Sensors | CP40
Rotatable Sensing Head with 2 and 3-wire DC Outputs and Terminal Chamber
Housing Style Dimension Drawings
A
CP40 - Embeddable/Nonembeddable, Terminal Chamber
Wiring Diagrams/Mating Cordsets
1 2 3
We reserve the right to make technical alterations without prior notice.
A2
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Minimum Load Current:
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
Time Delay Before Availability:
2-wire DC - (AD, RD, AG)
≤10%
3-15% (5% typical)
Non-polarized (AD) <5.0 V
Polarized (AG) ≤4.2 V
≥120 mA
≥3.0 mA
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox, Rectangular)
≤20 mA (Uprox+, Uprox 3)
≤8 ms
Off-State (Leakage) Current:
Power-On Effect:
Transient Protection:
Shock:
Vibration:
Repeatability:
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
≤0.8 mA
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
A41
Turck Inc.
Rectangular Inductive Sensors | CP40
Rotatable Sensing Head with 2 and 3-wire DC Outputs and Terminal Chamber
Part Number/
ID Number
Bi15U-CP40-AP6X2
1623502
Bi15-CP40-AN6X2
1623000
Bi15-CP40-AN6X2/S10-S97
1623001
Bi15-CP40-AP6X2/S10
16030
Bi15-CP40-AD4X/S10
44770
Bi20U-CP40-AP6X2/S10
1625826
Bi30U-CP40-AP6X2/S10
1625825
Ni20-CP40-AP6X2/S10
16031
Ni20-CP40-AD4X/S10
44771
Ni25U-CP40-AP6X2/S10
1623701
Ni40U-CP40-AP6X2/S10
1623602
Ni50U-CP40-AN6X2/S10
1625824
Ni50U-CP40-AP6X2/S10
1625842
Features
Embeddable
Sensing Range (mm)
Uprox
Low Temp.
-40 °C
Uprox+
Uprox+
Uprox 25 3-wire DC PNP 10-30 VDC 250 ≤200 -30 to +85 IP67 PBT PBT GN YE A 3 A4
Uprox 40 3-wire DC PNP 10-30 VDC 250 ≤200 -30 to +85 IP68 PBT PBT GN YE A 3 A4
Uprox+ 50 3-wire DC NPN 10-30 VDC 250 ≤200 -25 to +70 IP68 PBT PBT GN YE A 2 A4
Uprox+ 50 3-wire DC PNP 10-30 VDC 250 ≤200 -30 to +85 IP68 PBT PBT GN YE A 3 A4
15 3-wire DC PNP 10-30 VDC 250 ≤200 -30 to +85 IP68 PBT PBT GN YE A 3 A4
·
15 3-wire DC NPN 10-30 VDC 150 ≤200 -25 to +70 IP67 PBT PBT GN YE A 2 A4
·
15 3-wire DC NPN 10-30 VDC 250 ≤200 -40 to +70 IP67 PBT PBT GN YE A 2 A4
·
15 3-Wire DC PNP 10-30 VDC 150 ≤200 -25 to +70 IP67 PBT PBT GN YE A 3 A4
·
15 2-wire DC 10-65 VDC 150 ≤100 -25 to +70 IP67 PBT PBT N/A YE A 1 A2
·
20 3-wire DC PNP 10-30 VDC 250 ≤200 -25 to +70 IP68 PBT PBT GN YE A 3 A4
·
30 3-wire DC PNP 10-30 VDC 250 ≤200 -10 to +60 IP68 PBT PBT GN YE A 3 A4
·
20 3-wire DC PNP 10-30 VDC 150 ≤200 -25 to +70 IP67 PBT PBT GN YE A 3 A4
20 2-wire DC 10-65 VDC 150 ≤100 -25 to +70 IP67 PBT PBT N/A YE A 1 A2
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Front Cap/Face
Power LED
Output LED
Dimension Drawings
Wiring Diagrams
Spec List
Rectangular Inductive Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
A42
Rectangular Inductive Sensors | CP40
Rotatable Sensing Head with Complementary Outputs and Terminal Chamber
Housing Style Dimension Drawings
A
Wiring Diagrams/Mating Cordsets
1 2
CP40 - Embeddable/Nonembeddable, Terminal Chamber
We reserve the right to make technical alterations without prior notice.
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
Time Delay Before Availability:
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox, Rectangular)
≤20 mA (Uprox+, Uprox 3)
≤8 ms
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
A43
Turck Inc.
Rectangular Inductive Sensors | CP40
Rotatable Sensing Head with Complementary Outputs and Terminal Chamber
Part Number/
ID Number
Bi15U-CP40-VN4X2/S10
1540511
Bi15U-CP40-VP4X2/S10
1540501
Bi15-CP40-VN4X2/S100
15250
Bi15-CP40-VN4X2/S100-S10
15144
Bi15-CP40-VP4X2/S10
15010
Bi15-CP40-VP4X2/S100-S10
15019
Bi20-CP40-VN4X2/S10
1579221
Bi20-CP40-VP4X2/S10
15012
Ni20-CP40-VN4X2/S10
15251
Ni20-CP40-VP4X2/S10
15011
Ni20-CP40-VP4X2/S100-S10
15020
Ni35-CP40-VN4X2/S10
15254
Ni35-CP40-VP4X2/S10
15014
Ni40U-CP40-VN4X2/S10
We reserve the right to make technical alterations without prior notice.
1540611
Ni40U-CP40-VP4X2/S10
1540601
Ni50U-CP40-VN4X2/S10
1625807
Ni50U-CP40-VP4X2
1538303
Features
Uprox
Uprox
Comp. Outputs
High Temp.
100 °C
Comp. Outputs
High Temp.
100 °C
Ext. Range
Ext. Range
Comp. Outputs 20 4-wire DC NPN 10-65 VDC 150 ≤200 -25 to +70 IP67 PBT PBT GN YE A 1 A4
Comp. Outputs 20 4-wire DC PNP 10-65 VDC 150 ≤200 -25 to +70 IP67 PBT PBT GN YE A 2 A4
High Temp.
100 °C
Comp. Outputs 35 4-wire DC NPN 10-65 VDC 150 ≤200 -25 to +70 IP67 PBT PBT GN YE A 1 A4
Comp. Outputs 35 4-wire DC PNP 10-65 VDC 150 ≤200 -25 to +70 IP67 PBT PBT GN YE A 2 A4
Uprox, Ext. Range 40 4-wire DC NPN 10-65 VDC 250 ≤200 -30 to +85 IP68 PBT PBT GN YE A 1 A4
Uprox, Ext. Range 40 4-wire DC PNP 10-65 VDC 250 ≤200 -30 to +85 IP68 PBT PBT GN YE A 2 A4
Uprox+ 50 4-wire DC NPN 10-65 VDC 250 ≤200 -30 to +85 IP68 PBT PBT GN YE A 1 A4
Uprox+ 50 4-wire DC PNP 10-65 VDC 250 ≤200 -30 to +85 IP68 PBT PBT GN YE A 2 A4
Embeddable
Sensing Range (mm)
15 4-wire DC NPN 10-65 VDC 250 ≤200 -30 to +85 IP68 PBT PBT GN YE A 1 A4
·
15 4-wire DC PNP 10-65 VDC 250 ≤200 -30 to +85 IP67 PBT PBT GN YE A 2 A4
·
15 4-wire DC NPN 10-65 VDC 150 ≤200 -25 to +70 IP67 PBT PBT GN YE A 1 A4
·
15 4-wire DC NPN 10-65 VDC 150 ≤200 -25 to +100 IP67 PBT PBT GN YE A 1 A4
·
15 4-wire DC PNP 10-65 VDC 150 ≤200 -25 to +70 IP67 PBT PBT GN YE A 2 A4
·
15 4-wire DC PNP 10-65 VDC 150 ≤200 -25 to +100 IP67 PBT PBT GN YE A 2 A4
·
20 4-wire DC NPN 10-65 VDC 100 ≤200 -25 to +70 IP67 PBT PBT GN YE A 1 A4
·
20 4-wire DC PNP 10-65 VDC 100 ≤200 -25 to +70 IP67 PBT PBT GN YE A 2 A4
·
20 4-wire DC PNP 10-65 VDC 150 ≤200 -25 to +100 IP67 PBT PBT GN YE A 2 A4
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Front Cap/Face
Power LED
Output LED
Dimension Drawings
Wiring Diagrams
Spec List
Rectangular Inductive Sensors
Turck Inc.
A44
Rectangular Inductive Sensors | CP40
Rotatable Sensing Head with AC/DC Outputs and Terminal Chamber
Housing Style Dimension Drawings
B
A
CP40 - Embeddable/Nonembeddable, Terminal Chamber
We reserve the right to make technical alterations without prior notice.
CP40 - Embeddable/Nonembeddable, Terminal Chamber
1
A5
Line Frequency:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Continuous Load Current:
Off-State (Leakage) Current:
A6
Line Frequency:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Continuous Load Current:
Off-State (Leakage) Current:
Minimum Load Current:
Wiring Diagrams/Mating Cordsets
2-wire AC/DC w/ Short-Circuit Protection - (ADZ, RDZ, FDZ, VDZ)
≥50... ≤60 Hz
3-15% (5% typical)
≤6.0 V
AC: ≥440 mA; DC: ≥330 mA
AC: ≥120 mA; DC: ≥120 mA
AC: ≤400 mA; DC: ≤300 mA
AC: ≤100 mA; DC: ≤100 mA
≤1.7 mA (AC)
≤1.5 mA (DC)
2-wire AC/DC w/o Short-Circuit Protection - (AZ, RZ, FZ)
≥50... ≤60 Hz
3-15% (5% typical)
≤6.0 V
AC: ≤400 mA; DC: ≤300 mA
AC: ≤100 mA; DC: ≤100 mA
≤1.7 mA
≥3.0 mA
Minimum Load Current:
Inrush Current:
Power-On Effect:
Transient Protection:
Shock:
Vibration:
Repeatability:
Inrush Current:
Power-On Effect:
Transient Protection:
Shock:
Vibration:
Repeatability:
≥3.0 mA
≤3.0 A (≤20 ms, max 5 Hz)
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤2% of Rated Operating Distance
≤8 A (≤10ms max. 5 Hz)
≤1 A (≤10 ms max. 5 Hz) 12 mm
≤0.2 A (≤10 ms max. 0.2 Hz) 8 mm
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤2% of Rated Operating Distance
A45
Turck Inc.
Rectangular Inductive Sensors | CP40
Rotatable Sensing Head with AC/DC Outputs and Terminal Chamber
Part Number/
ID Number
Bi15U-CP40-FDZ30X2
4280601
Bi15-CP40-FDZ30X2/S10
42241
Bi15-CP40-FDZ30X2/S10-S97
42266
Bi15-CP40-FZ3X2/S109-S10
13737
Bi15-CP40-FZ3X2/S110-S10
13735
Bi15-CP40-FZ3X2/S10
13410
Bi15-CP40-FZ3X2/S10-S97
1341010
Bi15-CP40-FZ3X2/S100-S10
13776
Ni20-CP40-FDZ30X2/S10
42242
Ni20-CP40-FZ3X2/S100
13411
Ni20-CP40-FZ3X2/S100-S10
13775
Ni20-CP40-FZ3X2/S110-S10
13746
Ni30-CP40-FZ3X2/S109-S10
13747
Ni30-CP40-FZ3X2/S110-S10
We reserve the right to make technical alterations without prior notice.
13744
Ni35-CP40-FDZ30X2/S10
42245
Ni35-CP40-FZ3X2/S10
13413
Ni40U-CP40-FDZ30X2/S10
4280801
Ni40-CP40-FZ3X2/S100-S10
1374802
Features
Uprox
Prog. Outputs
Low Temp.
-40 °C
Time Delay
Time Delay
Prog. Outputs
Low Temp.
-40 °C
High Temp.
100 °C
Prog. Outputs 20 2-wire AC/DC
Prog. Outputs 20 2-wire AC
High Temp.
100 °C
Time Delay 20 2-wire AC
Time Delay 30 2-wire AC
Time Delay 30 2-wire AC
Prog. Outputs 35 2-wire AC/DC
Prog. Outputs 35 2-wire AC
Uprox 40 2-wire AC/DC
High Temp.
100 °C
Embeddable
Sensing Range (mm)
15 2-wire AC/DC
·
15 2-wire AC/DC
·
15 2-wire AC/DC
·
15 2-wire AC
·
15 2-wire AC
·
15 2-wire AC
·
15 2-wire AC
·
15 2-wire AC
·
20 2-wire AC
40 2-wire AC
Output
Voltage
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
Switching Freq. (Hz)
Operating Current (mA)
10 ≤400/300 -30 to +85 IP67 PBT PBT GN YE A 1 A5
60 ≤400/300 -25 to +70 IP67 PBT PBT GN YE A 1 A5
60 ≤400/300 -40 to +70 IP67 PBT PBT GN YE A 1 A5
20 ≤400/300 -25 to +70 IP67 PBT PBT GN YE B 1 A6
20 ≤400/300 -25 to +70 IP67 PBT PBT GN YE B 1 A6
20 ≤400/300 -25 to +70 IP67 PBT PBT GN YE A 1 A6
20 ≤400/300 -40 to +70 IP67 PBT PBT GN YE A 1 A6
20 ≤400/300 -25 to +100 IP67 PBT PBT GN YE A 1 A6
60 ≤400/300 -25 to +70 IP67 PBT PBT GN YE A 1 A5
20 ≤400/300 -25 to +70 IP67 PBT PBT GN YE A 1 A6
20 ≤400/300 -25 to +100 IP67 PBT PBT GN YE A 1 A6
20 ≤400/300 -25 to +70 IP67 PBT PBT GN YE B 1 A6
20 ≤400/300 -25 to +70 IP67 PBT PBT GN YE B 1 A6
20 ≤400/300 -25 to +70 IP67 PBT PBT GN YE B 1 A6
60 ≤400/300 -25 to +70 IP67 PBT PBT GN YE A 1 A5
20 ≤400/300 -25 to +70 IP67 PBT PBT GN YE A 1 A6
10 ≤400/300 -30 to +85 IP68 PBT PBT GN YE A 1 A5
20 ≤400/300 -25 to +100 IP67 PBT PBT GN YE A 1 A6
Operating Temp. (°C)
Protection
Housing
Front Cap/Face
Power LED
Output LED
Dimension Drawings
Wiring Diagrams
Spec List
Rectangular Inductive Sensors
Turck Inc.
A46
Rectangular Inductive Sensors | CP80
Top Sensing with 3 and 4-Wire DC Outputs and Terminal Chamber
Housing Style Dimension Drawings
Wiring Diagrams/Mating Cordsets
1 2
3 4
A
CP80 - Embeddable/Nonembeddable, Terminal Chamber
We reserve the right to make technical alterations without prior notice.
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
Time Delay Before Availability:
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox, Rectangular)
≤20 mA (Uprox+, Uprox 3)
≤8 ms
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
A47
Turck Inc.
Rectangular Inductive Sensors | CP80
Top Sensing with 3 and 4-Wire DC Outputs and Terminal Chamber
Part Number/
ID Number
Bi40-CP80-VN4X2/S10
1579800
Bi40-CP80-VP4X2/S10
15698
Ni40-CP80-VP4X2/S10
15015
Ni50-CP80-VN4X2/S10
15256
Ni50-CP80-VP4X2/S10
15016
Ni75U-CP80-AN6X2/S10
1623811
Ni75U-CP80-AP6X2/S10
1623801
Ni75U-CP80-VN4X2/S10
1540811
Ni75U-CP80-VP4X2/S10
1540801
Features
Comp. Outputs
Comp. Outputs
Comp. Outputs 40 4-wire DC PNP 10-65 VDC 100 ≤200 -25 to +70 IP67 PBT PBT GN YE A 4 A4
Comp. Outputs 50 4-wire DC NPN 10-65 VDC 100 ≤200 -25 to +70 IP67 PBT PBT GN YE A 3 A4
Comp. Outputs 50 4-wire DC PNP 10-65 VDC 100 ≤200 -25 to +70 IP67 PBT PBT GN YE A 4 A4
Uprox 75 3-wire DC NPN 10-30 VDC 250 ≤200 -30 to +85 IP67 PBT PBT GN YE A 1 A4
Uprox 75 3-wire DC PNP 10-30 VDC 250 ≤200 -30 to +85 IP67 PBT PBT GN YE A 2 A4
Uprox 75 4-wire DC NPN 10-65 VDC 250 ≤200 -30 to +85 IP67 PBT PBT GN YE A 3 A4
Uprox 75 4-wire DC PNP 10-65 VDC 250 ≤200 -30 to +85 IP67 PBT PBT GN YE A 4 A4
Embeddable
Sensing Range (mm)
40 4-wire DC NPN 10-65 VDC 100 ≤200 -25 to +70 IP67 PBT PBT GN YE A 3 A4
·
40 4-wire DC PNP 10-65 VDC 100 ≤200 -25 to +70 IP67 PBT PBT GN YE A 4 A4
·
Output
Voltage
Switching Freq. (Hz)
Operating Current (mA)
Operating Temp. (°C)
Protection
Housing
Front Cap/Face
Power LED
Output LED
Dimension Drawings
Wiring Diagrams
Spec List
Rectangular Inductive Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
A48
Rectangular Inductive Sensors | CP80
Top Sensing with AC/DC Outputs and Terminal Chamber
Housing Style Dimension Drawings
1
A
CP80 - Embeddable/Nonembeddable, Terminal Chamber
Wiring Diagrams/Mating Cordsets
We reserve the right to make technical alterations without prior notice.
A5
Line Frequency:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Continuous Load Current:
Off-State (leakage) Current:
A6
Line Frequency:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Continuous Load Current:
Off-State (Leakage) Current:
Minimum Load Current:
2-wire AC/DC w/ Short-Circuit Protection - (ADZ, RDZ, FDZ, VDZ)
≥50... ≤60 Hz
3-15% (5% typical)
≤6.0 V
AC: ≥440 mA; DC: ≥330 mA
AC: ≥120 mA; DC: ≥120 mA
AC: ≤400 mA; DC: ≤300 mA
AC: ≤100 mA; DC: ≤100 mA
≤1.7 mA (AC)
≤1.5 mA (DC)
2-wire AC/DC w/o Short-Circuit Protection - (AZ, RZ, FZ)
≥50... ≤60 Hz
3-15% (5% typical)
≤6.0 V
AC: ≤400 mA; DC: ≤300 mA
AC: ≤100 mA; DC: ≤100 mA
≤1.7 mA
≥3.0 mA
Minimum Load Current:
Inrush Current:
Power-On Effect:
Transient Protection:
Shock:
Vibration:
Repeatability:
Inrush Current:
Power-On Effect:
Transient Protection:
Shock:
Vibration:
Repeatability:
≥3.0 mA
≤3.0 A (≤20 ms, max 5 Hz)
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤2% of Rated Operating Distance
≤8 A (≤10ms max. 5 Hz)
≤1 A (≤10 ms max. 5 Hz) 12 mm
≤0.2 A (≤10 ms max. 0.2 Hz) 8 mm
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤2% of Rated Operating Distance
A49
Turck Inc.
Rectangular Inductive Sensors | CP80
Top Sensing with AC/DC Outputs and Terminal Chamber
Part Number/
ID Number
Bi40-CP80-FDZ30X2/S10
4230901
Bi40-CP80-FZ3X2/S10
1340401
Ni40-CP80-FZ3X2/S100
13415
Ni40-CP80-FZ3X2/S100-S10
13453
Ni50-CP80-FZ3X2/S10
13410
Ni50-CP80-FDZ30X2/S100
42321
Ni50-CP80-FDZ30X2/S100-S10
42290
Ni75U-CP80-FDZ30X2/S10
4280901
Features
Prog. Outputs
Prog. Outputs
Prog. Outputs 40 2-wire AC
High Temp.
100 °C
Prog. Outputs 50 2-wire AC
Prog. Outputs 50 2-wire AC/DC
High Temp.
100 °C
Uprox 75 2-wire AC/DC
Embeddable
Sensing Range (mm)
40 2-wire AC/DC
·
40 2-wire AC
·
40 2-wire AC
50 2-wire AC/DC
Output
Voltage
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
20-250 VAC/10-
300 VDC
Switching Freq. (Hz)
Operating Current (mA)
20 ≤400/300 -25 to +70 IP67 PBT PBT GN YE A 1 A5
20 ≤400/300 -25 to +70 IP67 PBT PBT GN YE A 1 A6
20 ≤400/300 -25 to +70 IP67 PBT PBT GN YE A 1 A6
20 ≤400/300 -25 to +100 IP67 PBT PBT GN YE A 1 A6
20 ≤400/300 -25 to +70 IP67 PBT PBT GN YE A 1 A6
20 ≤400/300 -25 to +70 IP67 PBT PBT GN YE A 1 A5
20 ≤400/300 -25 to +100 IP67 PBT PBT GN YE A 1 A5
10 ≤400/300 -30 to +85 IP67 PBT PBT GN YE A 1 A5
Operating Temp. (°C)
Protection
Housing
Front Cap/Face
Power LED
Output LED
Dimension Drawings
Wiring Diagrams
Spec List
Rectangular Inductive Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
A50
Rectangular Inductive Sensors | Q80
Top Sensing with 3 and 4-Wire DC or AC/DC Outputs
Housing Style Dimension Drawings
B
A
Q80 - Embeddable/Nonembeddable, Eurofast Connector
C
We reserve the right to make technical alterations without prior notice.
Q80 - Embeddable, Minifast Connector
Mating Cordset: RK 4T-*
Mating Cordset: RK 4.4T-*
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
Time Delay Before Availability:
A5
Line Frequency:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Continuous Load Current:
Off-State (Leakage) Current:
Wiring Diagrams/Mating Cordsets
2
Mating Cordset: RK 4T-*
5
Mating Cordset: RKM 30-*M
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox, Rectangular)
≤20 mA (Uprox+, Uprox 3)
≤8 ms
2-wire AC/DC w/ Short-Circuit Protection - (ADZ, RDZ, FDZ, VDZ)
≥50... ≤60 Hz
3-15% (5% typical)
≤6.0 V
AC: ≥440 mA; DC: ≥330 mA
AC: ≥120 mA; DC: ≥120 mA
AC: ≤400 mA; DC: ≤300 mA
AC: ≤100 mA; DC: ≤100 mA
≤1.7 mA (AC)
≤1.5 mA (DC)
Q80 - Embeddable, Microfast Connector
3
6
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Shock:
Vibration:
Repeatability:
Minimum Load Current:
Inrush Current:
Power-On Effect:
Transient Protection:
Shock:
Vibration:
Repeatability:
Mating Cordset: RK 4.4T-*
Mating Cordset: KB 3T-*
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
≥3.0 mA
≤3.0 A (≤20 ms, max 5 Hz)
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤2% of Rated Operating Distance
A51
Turck Inc.
Rectangular Inductive Sensors | Q80
Top Sensing with 3 and 4-Wire DC or AC/DC Outputs
Part Number/
ID Number
Bi50U-Q80-AP6X2-H1141
1608940
Bi50U-Q80-VN4X2-H1141
1562001
Bi50U-Q80-VP4X2-H1141
15620
Bi50-Q80-ADZ30X2-B1131
4200310
Bi50-Q80-ADZ30X2-B3131
4200311
Ni75U-Q80-AN6X2-H1141
1625856
Ni75U-Q80-AP6X2-H1141
1625855
Ni75U-Q80-VP4X2-H1141
1625857
Features
Uprox+
Uprox+, Comp.
Outputs
Uprox+, Comp.
Outputs
Uprox+ 75 3-wire DC NPN 10-30 VDC 250 ≤200 -25 to +70 IP68 PBT PBT GN YE A 1 A4
Uprox+ 75 3-wire DC PNP 10-30 VDC 250 ≤200 -25 to +70 IP68 PBT PBT GN YE A 2 A4
Uprox+, Comp.
Outputs
Embeddable
Sensing Range (mm)
50 3-wire DC PNP 10-30 VDC 250 ≤200 -25 to +70 IP68 PBT PBT GN YE A 2 A4
·
50 4-wire DC NPN 10-65 VDC 250 ≤200 -25 to +70 IP68 PBT PBT GN YE A 3 A4
·
50 4-wire DC PNP 10-65 VDC 250 ≤200 -25 to +70 IP68 PBT PBT GN YE A 4 A4
·
50 2-wire AC/DC
·
50 2-wire AC/DC
·
75 4-wire DC PNP 10-65 VDC 250 ≤200 -25 to +70 IP68 PBT PBT GN YE A 4 A4
Output
Voltage
20-250 VAC/10-300
VDC
20-250 VAC/10-300
VDC
Switching Freq. (Hz)
Operating Current (mA)
20 ≤400/300 -25 to +70 IP67 PBT PBT GN YE B 5 A5
20 ≤400/300 -25 to +70 IP67 PBT PBT GN YE C 6 A5
Operating Temp. (°C)
Protection
Housing
Front Cap/Face
Power LED
Output LED
Dimension Drawings
Wiring Diagrams
Spec List
Rectangular Inductive Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
A52
Rectangular Inductive Sensors | K90 & K90SR
Top Sensing with 4-Wire DC or AC/DC Outputs
Housing Style Dimension Drawings
A
B
K90 - Nonembeddable, Minifast Connector
Wiring Diagrams/Mating Cordsets
Mating Cordset: RK 40-*M
2
Mating Cordset: RK 40-*M
5 6
A4
Ripple:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Trigger Current for Short Circuit Protection:
Off-State (Leakage) Current:
No-Load Current:
Time Delay Before Availability:
A6
Line Frequency:
Differential Travel (Hysteresis):
Voltage Drop Across Conducting Sensor:
Continuous Load Current:
Off-State (Leakage) Current:
Minimum Load Current:
≤10%
3-15% (5% typical)
≤1.8 V
≥220 mA on 200 mA Load Current
≥170 mA on 150 mA Load Current
≥120 mA on 100 mA Load Current
≤0.1 mA
≤15 mA (Ferrite, Uprox, Rectangular)
≤20 mA (Uprox+, Uprox 3)
≤8 ms
≥50... ≤60 Hz
3-15% (5% typical)
≤6.0 V
AC: ≤400 mA; DC: ≤300 mA
AC: ≤100 mA; DC: ≤100 mA
≤1.7 mA
≥3.0 mA
3 and 4-wire DC - (AN, RN, AP, RP, VN, VP)
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Temperature Drift:
Repeatability:
2-wire AC/DC w/o Short-Circuit Protection - (AZ, RZ, FZ)
Inrush Current:
Power-On Effect:
Transient Protection:
Repeatability:
K90SR - Nonembeddable, Terminal Chamber
3
Mating Cordset: RK 30-*M
Per IEC 947-5-2
Incorporated
Incorporated
Per EN 60947-5-2
≤±10%
Shock:
Vibration:
Shock:
Vibration:
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
≤8 A (≤10ms max. 5 Hz)
≤1 A (≤10 ms max. 5 Hz) 12 mm
≤0.2 A (≤10 ms max. 0.2 Hz) 8 mm
Per IEC 947-5-2
Per EN 60947-5-2
30 g, 11 ms
55 Hz, 1 mm Amplitude, in all 3 Planes
≤2% of Rated Operating Distance
We reserve the right to make technical alterations without prior notice.
A53
Turck Inc.
Rectangular Inductive Sensors | K90 & K90SR
Top Sensing with 4-Wire DC or AC/DC Outputs
Part Number/
ID Number
Ni60-K90-VN4X-B2141
15203
Ni60-K90-VP4X-B2141
15103
Ni60-K90-AZ3X-B2131
13542
Ni60-K90SR-VN4X2
15740
Ni60-K90SR-VP4X2
15640
Ni60-K90SR-FZ3X2
13429
Ni100U-K90SR-VP4X2
1625834
Features
Comp. Outputs 60 4-wire DC NPN 10-65 VDC 60 ≤200 -25 to +70 IP67 PUR PUR N/A YE A 1 A4
Comp. Outputs 60 4-wire DC PNP 10-65 VDC 60 ≤200 -25 to +70 IP67 PUR PUR N/A YE A 2 A4
Comp. Outputs 60 4-wire DC NPN 10-65 VDC 60 ≤200 -25 to +70 IP67 PBT PBT GN YE B 4 A4
Comp. Outputs 60 4-wire DC PNP 10-65 VDC 250 ≤200 -30 to +85 IP68 PBT PBT GN YE B 5 A4
Prog. Outputs 60 2-wire AC
Uprox+, Comp.
Outputs
Embeddable
Sensing Range (mm)
60 2-wire AC
100 4-wire DC PNP 10-65 VDC 60 ≤200 -25 to +70 IP67 PBT PBT GN YE B 5 A4
Output
Voltage
20-250 VAC/10-300
VDC
20-250 VAC/10-300
VDC
Switching Freq. (Hz)
Operating Current (mA)
20 ≤500 -25 to +70 IP67 PBT PBT N/A YE A 3 A6
20 ≤400/300 -25 to +70 IP67 PBT PBT GN YE B 6 A6
Operating Temp. (°C)
Protection
Housing
Front Cap/Face
Power LED
Output LED
Dimension Drawings
Wiring Diagrams
Spec List
Rectangular Inductive Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
A54
Rectangular Inductive Sensors | Namur
Intrinsically Safe
A
Dimension Drawings
B
5.5 mm - Embeddable/Nonembeddable, Potted-In Cable
C
10 mm - Embeddable/Nonembeddable, Potted-In Cable
E
20 mm - Embeddable/Nonembeddable, Potted-In Cable
Wiring Diagrams/Mating Cordsets
2
8.0 mm - Embeddable, Potted-In Cable
D
We reserve the right to make technical alterations without prior notice.
14 mm - Potted-In Cable
F
20 mm - Embeddable/Nonembeddable, Eurofast Connector
Mating Cordset: RK 4.21T-*
A1
Differential Travel (Hysteresis):
Nominal Voltage:
Load Resistance:
Non-activated Current Consumption:
Activated Current Consumption:
Recommended Switching Point for
Remote Amplifier:
Amplier Note:
Inductive sensors with Namur outputs are typically used in hazardous locations and the approval agencies require the use of an amplier to regulate the signals in the hazardous
area. Due to the wide variety of approvals, output options, and amplier designs, it is not possible to incorporate all of the choices in this catalog. For the most up to date information,
please either search for these products under our interface technology product category (www.turck.us) or contact us by phone.
A55
Turck Inc.
1-10% (5% typical)
8.2 VDC (EN60947-5-6)
1000 Ω
≥2.1 mA
≤1.2 mA
>1.2 to <2.1 mA,
typ. 1.55 mA ON/1.75 mA OFF
2-wire DC NAMUR - (Y0 and Y1)
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Shock:
Vibration:
Repeatability:
Realized in Amplifier
Incorporated
Realized in Amplifier
Realized in Amplifier
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
Rectangular Inductive Sensors | Namur
Intrinsically Safe
Part Number/
ID Number
Bi2-Q5.5K-Y1X
4055300
Bi5-Q08-Y1X
4054000
Bi2-Q10S-Y1X
4012130
Bi10-Q14-Y1X
1608730
Bi15-Q20-Y1X
1080020
Bi15-Q20-Y1X-H1141
1080025
Features
Embeddable
Sensing Range (mm)
2 2-wire DC NAMUR
·
5 2-wire DC NAMUR
·
2 2-wire DC NAMUR
·
10 2-wire DC NAMUR
·
15 2-wire DC NAMUR
·
15 2-wire DC NAMUR
·
Output
Voltage
8.2 VDC
nominal
8.2 VDC
nominal
8.2 VDC
nominal
8.2 VDC
nominal
8.2 VDC
nominal
8.2 VDC
nominal
Switching Freq. (Hz)
Operating Current (mA)
2000 Remote -25 to +70 IP67 PP PP N/A YE 2M/TPU A 1 A1
1000 Remote -25 to +70 IP67 Zinc PA 12 N/A YE 2M/TPU B 1 A1
1000 Remote -25 to +70 IP67 PP-GF20 PP-GF20 N/A YE 2M/PVC C 1 A1
1000 Remote -25 to +70 IP67 PBT PBT N/A YE 2M/TPU D 1 A1
1000 Remote -25 to +70 IP67 PBT PBT N/A YE 2M/TPU E 1 A1
1000 Remote -25 to +70 IP67 PBT PBT N/A YE - - F 2 A1
Operating Temp. (°C)
Protection
Housing
Front Cap/Face
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
Spec List
Rectangular Inductive Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
A56
Rectangular Inductive Sensors | Namur
Intrinsically Safe
A
Dimension Drawings
B
CK40 - Embeddable/Nonembeddable, Eurofast Connector
C
CP80 - Embeddable/Nonembeddable, Terminal Chamber
D
CP40 - Embeddable/Nonembeddable, Terminal Chamber
We reserve the right to make technical alterations without prior notice.
Q80 - Nonembeddable, Potted-In Cable
E
K90SR - Nonembeddable, Terminal Chamber
Wiring Diagrams/Mating Cordsets
2 3
Mating Cordset: RK 4.21T-*
A1
Differential Travel (Hysteresis):
Nominal Voltage:
Load Resistance:
Non-activated current consumption:
Activated current consumption:
Recommended Switching Point for
Remote Amplifier:
Amplier Note:
Inductive sensors with Namur outputs are typically used in hazardous locations and the approval agencies require the use of an amplier to regulate the signals in the hazardous
area. Due to the wide variety of approvals, output options, and amplier designs, it is not possible to incorporate all of the choices in this catalog. For the most up to date information,
please either search for these products under our interface technology product category (www.turck.us) or contact us by phone.
A57
Turck Inc.
1-10% (5% typical)
8.2 VDC (EN60947-5-6)
1000 Ω
≥2.1 mA
≤1.2 mA
>1.2 to <2.1 mA,
typ. 1.55 mA ON/1.75 mA OFF
2-wire DC NAMUR - (Y0 and Y1)
Power-On Effect:
Reverse Polarity Protection:
Wire-Break Protection:
Transient Protection:
Shock:
Vibration:
Repeatability:
Realized in Amplifier
Incorporated
Realized in Amplifier
Realized in Amplifier
30 g, 11 ms
55 Hz, 1 mm Amplitude in all 3 Planes
≤2% of Rated Operating Distance
Rectangular Inductive Sensors | Namur
Intrinsically Safe
Part Number/
ID Number
Bi15-CK40-Y1X-H1141
4065000
Bi15-CP40-Y1X/S10
10120
Ni20-CP40-Y1X/S10
10121
Ni35-CP40-Y1X/S100-S10
1011126
Ni50-CP80-Y1/S10
10401
Ni60-Q80-Y1X
1008700
Ni50-K90SR-Y1
10074
Features
High Temp.
100 °C
Embeddable
Sensing Range (mm)
15
·
15
·
20
35
50
60
50
Output
2-wire DC
NAMUR
2-wire DC
NAMUR
2-wire DC
NAMUR
2-wire DC
NAMUR
2-wire DC
NAMUR
2-wire DC
NAMUR
2-wire DC
NAMUR
Voltage
8.2 VDC
nominal
8.2 VDC
nominal
8.2 VDC
nominal
8.2 VDC
nominal
8.2 VDC
nominal
8.2 VDC
nominal
8.2 VDC
nominal
Switching Freq. (Hz)
Operating Current (mA)
150 Remote -25 to +70 IP67 PBT PBT N/A YE - - A 1 A1
150 Remote -25 to +70 IP67 PBT PBT N/A YE - - B 3 A1
150 Remote -25 to +70 IP67 PBT PBT N/A YE - - B 3 A1
80 Remote -25 to +100 IP67 PBT PBT N/A YE - - B 3 A1
100 Remote -25 to +70 IP67 PBT PBT N/A N/A - - C 3 A1
100 Remote -25 to +70 IP67 PBT PBT N/A YE
100 Remote -25 to +70 IP67 PBT PBT N/A N/A - - E 3 A1
Operating Temp. (°C)
Protection
Housing
Front Cap/Face
Power LED
Output LED
Cable Length/Jacket
Dimension Drawings
Wiring Diagrams
2M/
D 2 A1
PVC
Spec List
Rectangular Inductive Sensors
We reserve the right to make technical alterations without prior notice.
Turck Inc.
A58
Loading...
