Turck PROFINET Catalog Page

PROFINET Physical Media Connectivity

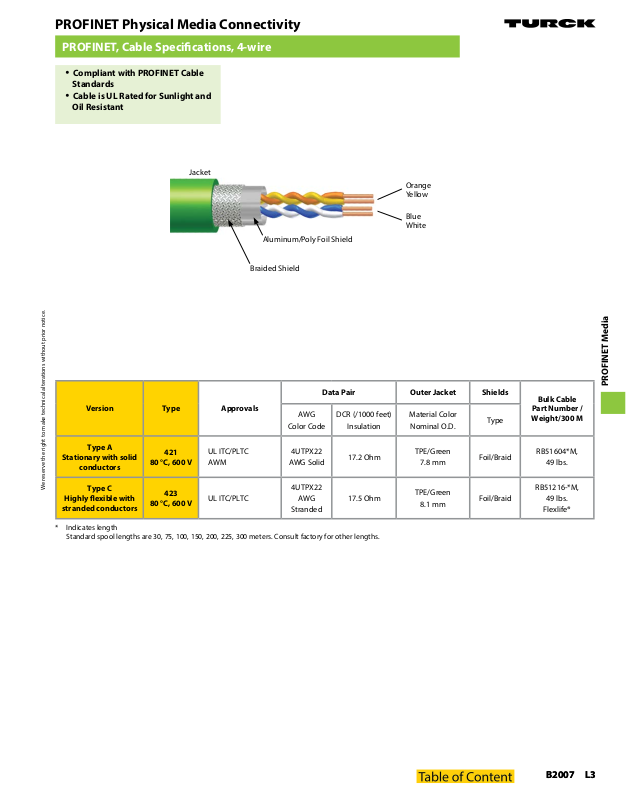

PROFINET, Cable Specications, 4-wire

y Compliant with PROFINET Cable

Standards

y Cable is UL Rated for Sunlight and

Oil Resistant

Jacket

Braided Shield

Orange
Yellow

Blue
White

Aluminum/Poly Foil Shield

Data Pair Outer Jacket Shields

Version Type Approvals

Type A

Stationary with solid

conductors

We reserve the right to make technical alterations without prior notice.

* Indicates length

Type C

Highly exible with

stranded conductors

Standard spool lengths are 30, 75, 100, 150, 200, 225, 300 meters. Consult factory for other lengths.

421

80 °C, 600 V

423

80 °C, 600 V

UL ITC/PLTC
AWM

UL ITC/PLTC

AWG

Color Code

4UTPX22

AWG Solid

4UTPX22

AWG

Stranded

DCR (/1000 feet)

Insulation

17.2 Ohm

17.5 Ohm

Material Color

Nominal O.D.

TPE/Green

7.8 mm

TPE/Green

8.1 mm

Type

Foil/Braid

Foil/Braid

PROFINET Media

Bulk Cable
Part Number /
Weight/300 M

RB51604*M,

49 lbs.

RB51216-*M,

49 lbs.

Flexlife®

B2007 L3 B2007 L3

PROFINET Physical Media Connectivity

PROFINET, (M12x1) Eurofast®, RJ45, Cables and Extensions - Shielded Cable D-coded

Eurofast (Male) Eurofast (Female) Eurofast (Male) Eurofast (Female)

1 2 3 4

RSSD RKSD FSSDED FKSDED

RSSD 42x-*M RKSD 42x-*M FSSDED 42x-*M FKSDED 42x-*M

Bare

1

Eurofast (Male)

2

Eurofast (Female)

5

RJ45 Plug

6

WRJ45 Plug

7

RJ45M IP67 Plug

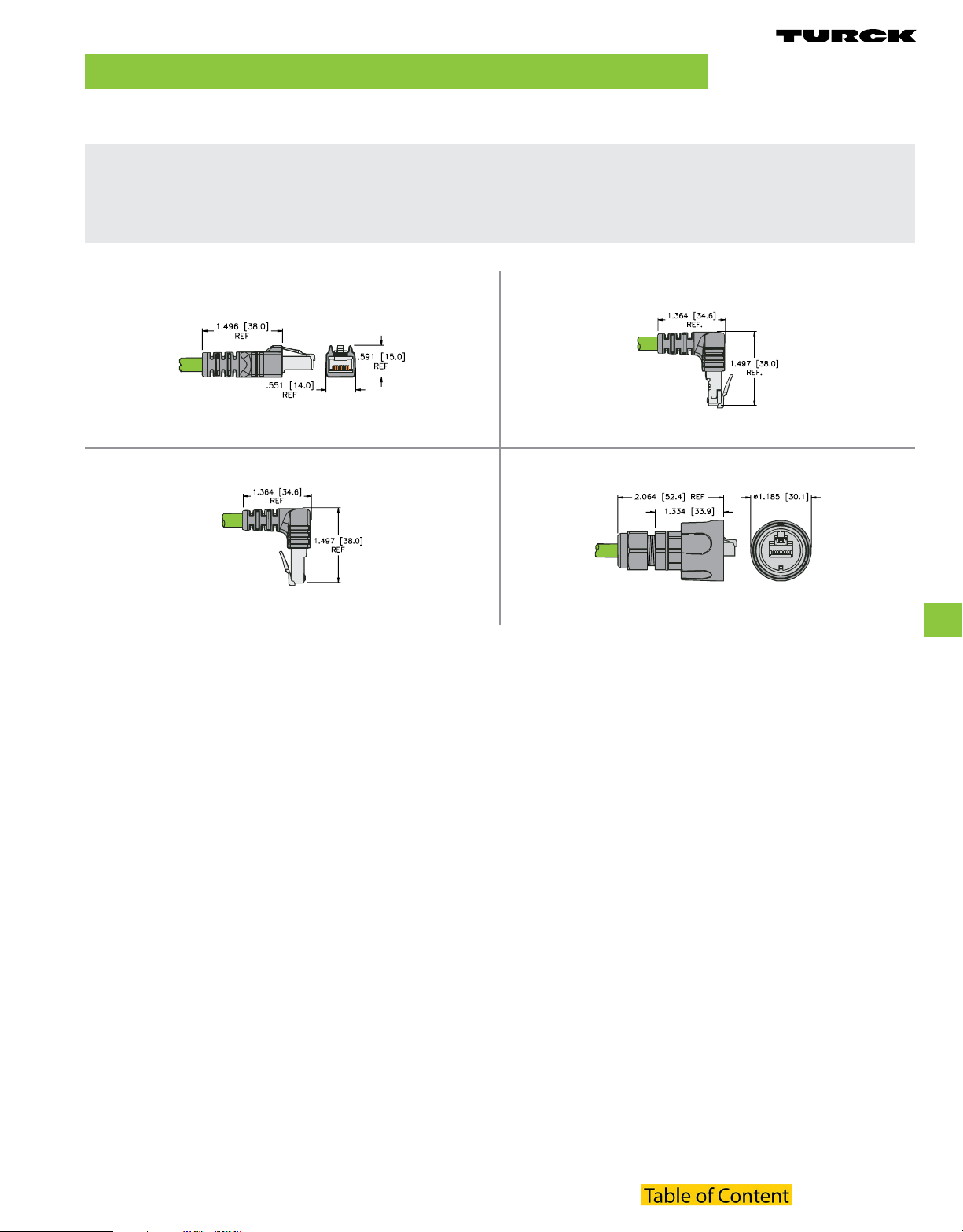

See pages L8 - L9 for dimensional drawings.

*

Indicates length in meters.

x

Indicates cable type.
Standard cable lengths are 1, 2, 4, 6, 8, 10, 15, and in +5 meter increments from there. Consult factory for other lengths.
For stainless steel coupling nuts change part number RSSD … RSSDV, FSSDED … FSSDEDV.
For right angle RJ45, select WRJ45I for internal tab or WRJ45E for external tab.

RSSD

RKSD

RJ45S

WRJ45ES

RJ45SMIP67

RSSD RSSD 42x-*M RSSD RKSD 42x-*M RSSD FSSDED 42x-*M RSSD FKSDED 42x-*M

RKSD RKSD 42x-*M RKSD FSSDED 42x-*M RKSD FKSDED 42x-*M

RJ45S FSSDED 42x-*M RJ45S FKSDED 42x-*M

WRJ45ES FSSDED 42x-*M WRJ45ES FKSDED 42x-*M

RJ45SMIP67 FSSDED 42x-*M RJ45SMIP67 FKSDED 42x-*M

We reserve the right to make technical alterations without prior notice.

Eurofast Pinouts Eurofast RJ45 Pinout RJ45 Plug

Male

1. Yellow (+tx)

2. White (+rx)

3. Orange (-tx)

4. Blue (-rx)

Female

1. Yellow

2. Orange

3. White

4. N/C

5. N/C

6. Blue

7. N/C

8. N/C

Male

L4 B2007 www.turck.com • 1-800-544-7769 • Fax: [phone] • Turck • Minneapolis, MN 55441 B2007 L5

PROFINET Physical Media Connectivity

PROFINET, (M12x1) Eurofast®, RJ45, Cables and Extensions - Shielded Cable D-coded

RJ45 Plug WRJ45 Plug RJ45M IP67 Plug

5 6 7

RJ45S WRJ45ES RJ45SMIP67

RJ45S 42x-*M WRJ45ES 42x-*M RJ45SMIP67 42x-*M

Bare

1

Eurofast (Male)

2

Eurofast (Female)

5

RJ45 Plug

6

WRJ45 Plug

7

We reserve the right to make technical alterations without prior notice.

RJ45M IP67 Plug

See pages L8 - L9 for dimensional drawings.

*

Indicates length in meters.

x

Indicates cable type.
Standard cable lengths are 1, 2, 4, 6, 8, 10, 15, and in +5 meter increments from there. Consult factory for other lengths.
For stainless steel coupling nuts change part number RSSD … RSSDV, FSSDED … FSSDEDV.
For right angle RJ45, select WRJ45I for internal tab or WRJ45E for external tab.

RSSD

RKSD

RJ45S

WRJ45ES

RJ45SMIP67

RSSD RJ45S 42x-*M RSSD WRJ45ES 42x-*M RSSD RJ45SMIP67 42x-*M

RKSD RJ45S 42x-*M RKSD WRJ45ES 42x-*M RKSD RJ45SMIP67 42x-*M

RJ45S RJ45S 42x-*M RJ45S RJ45SMIP67 42x-*M

WRJ45ES RJ45S 42x-*M WRJ45ES WRJ45ES 42x-*M WRJ45ES RJ45SMIP67 42x-*M

RJ45SMIP67 RJ45S 42x-*M RJ45SMIP67 WRJ45ES 42x-*M RJ45SMIP67 RJ45SMIP67 42x-*M

PROFINET Media

Eurofast Pinouts Eurofast RJ45 Pinout RJ45 Plug

Male

1. Yellow (+tx)

2. White (+rx)

3. Orange (-tx)

4. Blue (-rx)

B2007 L5

Female

1. Yellow

2. Orange

3. White

4. N/C

5. N/C

6. Blue

7. N/C

8. N/C

Male

PROFINET Physical Media Connectivity

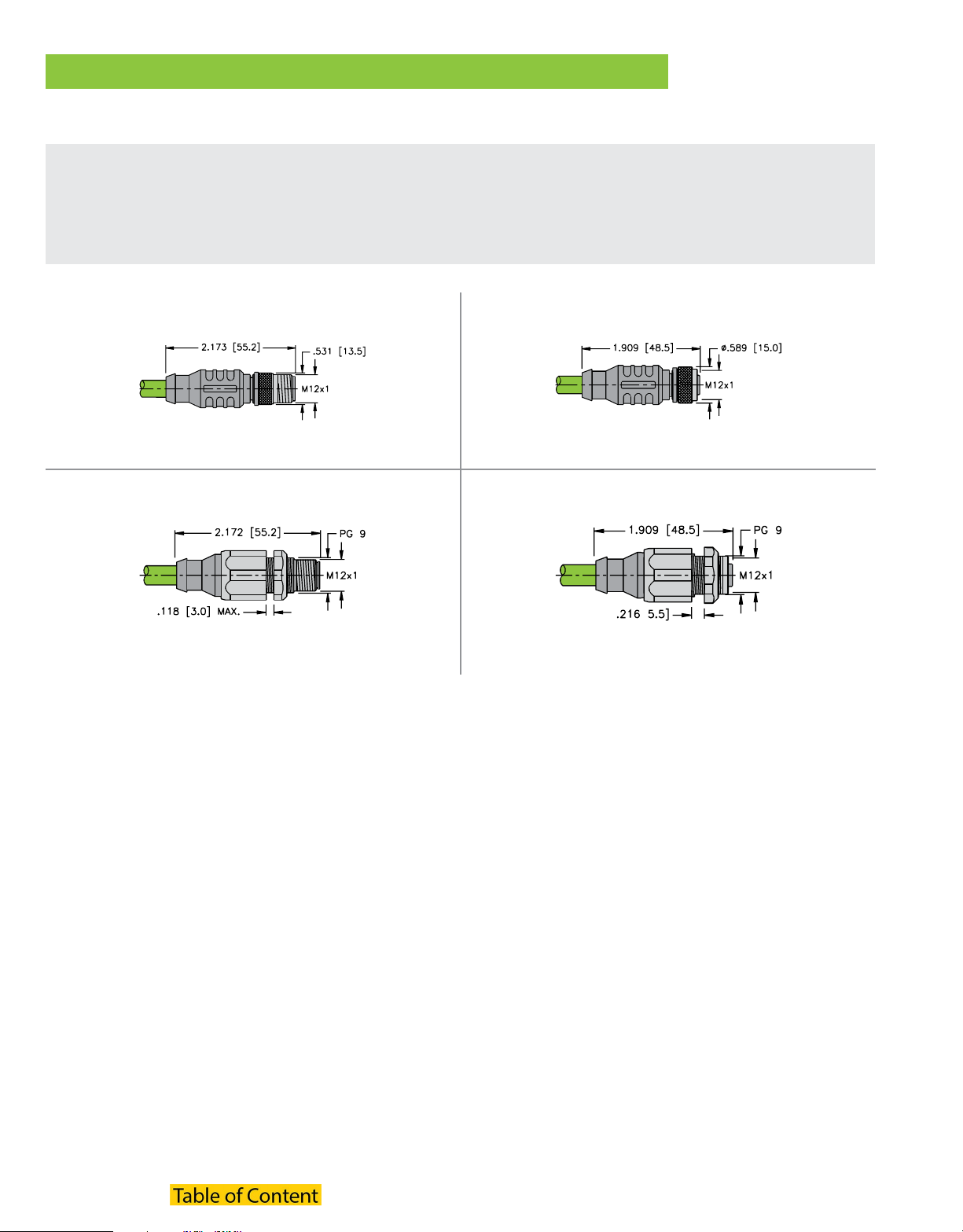

PROFINET, Eurofast® Cordset Connector Dimensions / Conguration

Specications

Overmold: TPU Protection: NEMA 1, 3, 4, 6P and IEC IP 67

Coupling Nut: Nickel Plated CuZn or Stainless Steel Rated Voltage: 250 V

Contact Carrier: TPU (Polyurethane) or POM (Nylon) Rated Current: 4 A

Contacts: Gold Plated CuZn Ambient Temperature: -40 °C to +80 °C (32 °F to +176 °F)

1 2

RSCD/RSSD .. Page L4 RKCD/RKSD .. Page L4

3 4

We reserve the right to make technical alterations without prior notice.

FSSDED .. Page L4 FKSDED .. Page L4

L6 B2007 www.turck.com • 1-800-544-7769 • Fax: [phone] • Turck • Minneapolis, MN 55441 B2007 L7

PROFINET Physical Media Connectivity

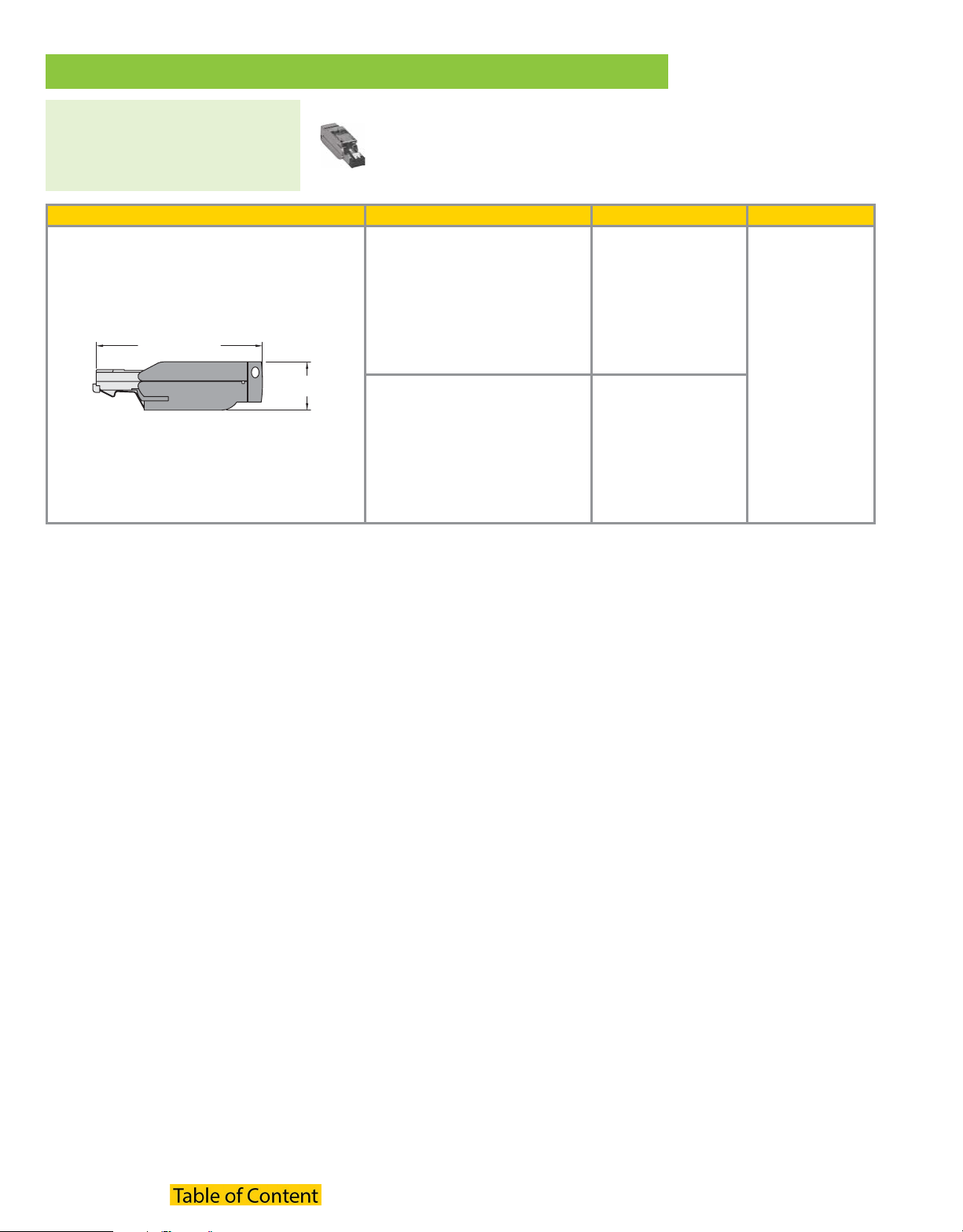

PROFINET, RJ45 Connector Dimensions / Conguration

Specications

Overmold: TPU Rated Voltage: 42 V

Plug Material: Polycarbonate Rated Current: 1.5 A

Protection: NEMA 1 and IEC IP 20 and IP 67 Ambient Temperature: -25 °C to +75 °C (-22 °F to +176 °F)

5 6 - External tab

RJ45/RJ45S .. Page L4 WRJ45E/WRJ45ES .. External tab Page L4

6 - Internal tab 7

WRJ45I/WRJ45IS .. Internal tab Page L4 RJ45MIP67/RJ45SMIP67.. Page L4

We reserve the right to make technical alterations without prior notice.

PROFINET Media

B2007 L7

1.810 [46.0]
5

.945 [24.0]

1.810 [46.0]
5

.945 [24.0]

PROFINET Physical Media Connectivity

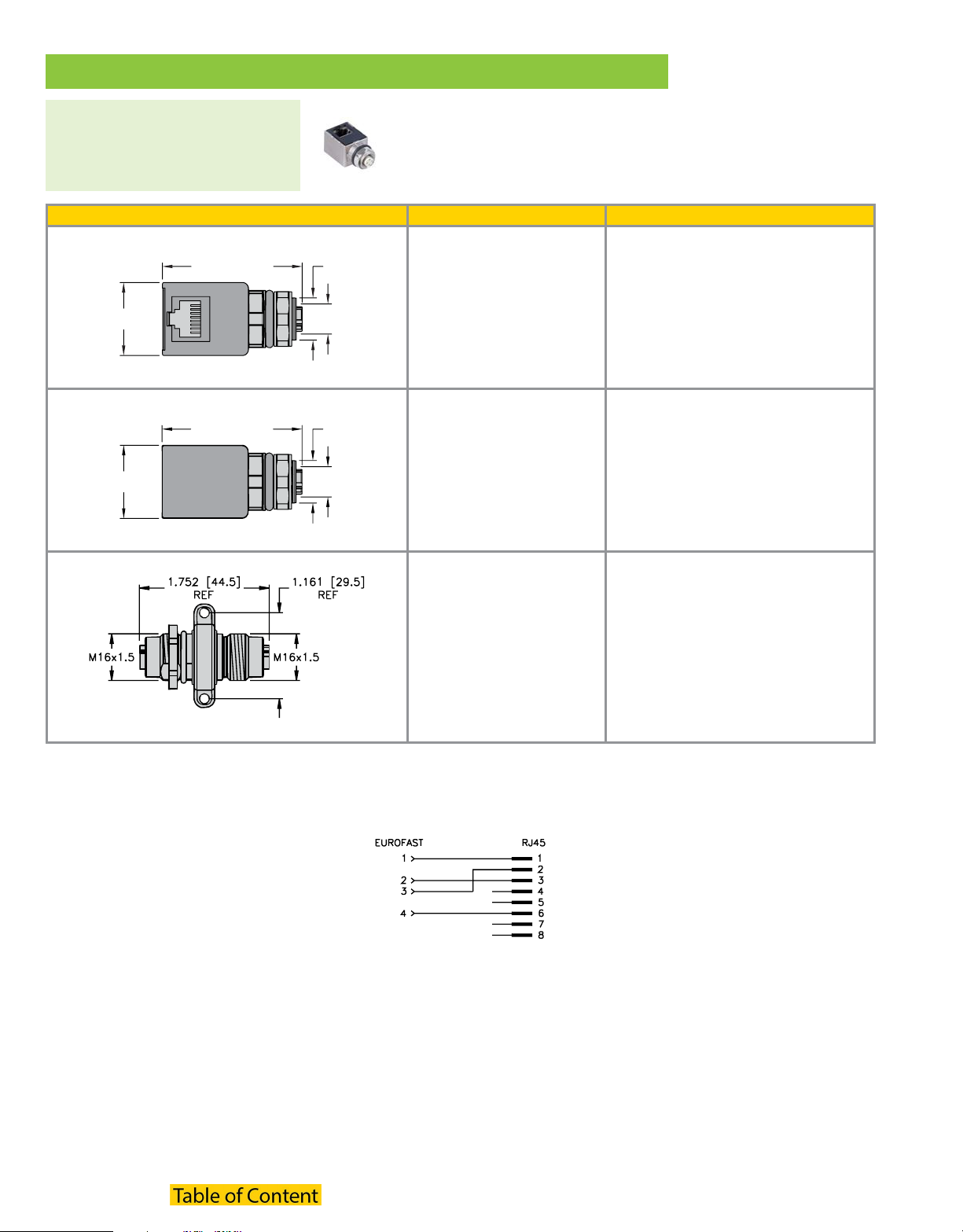

PROFINET, Receptacle

y Transitions from a RJ45 Connector

to a 4-wire Eurofast® Connector

Housing Style Part Number Features

REF

REF

M16x1.

M12x1

M16x1.

M12x1

FKSDD RJ45SF 44

FKSDD RJ45SF 44/ST

FKD FKD 44/M12 4 A, 50 V, -25 °C to +85 °C, wired one-to-one

Polyurethane, TPU Overmold, 42 V,

1.5 A, -40 °C to +75 °C

Polyurethane, TPU Overmold, 42 V,

1.5 A, -40 °C to +75 °C

We reserve the right to make technical alterations without prior notice.

Panel mounting clearance hole 19/32” (15 mm). Panel thickness: .060-.120” (1.5-3 mm)

Wiring Diagrams

L8 B2007 www.turck.com • 1-800-544-7769 • Fax: [phone] • Turck • Minneapolis, MN 55441 B2007 L9

PROFINET Physical Media Connectivity

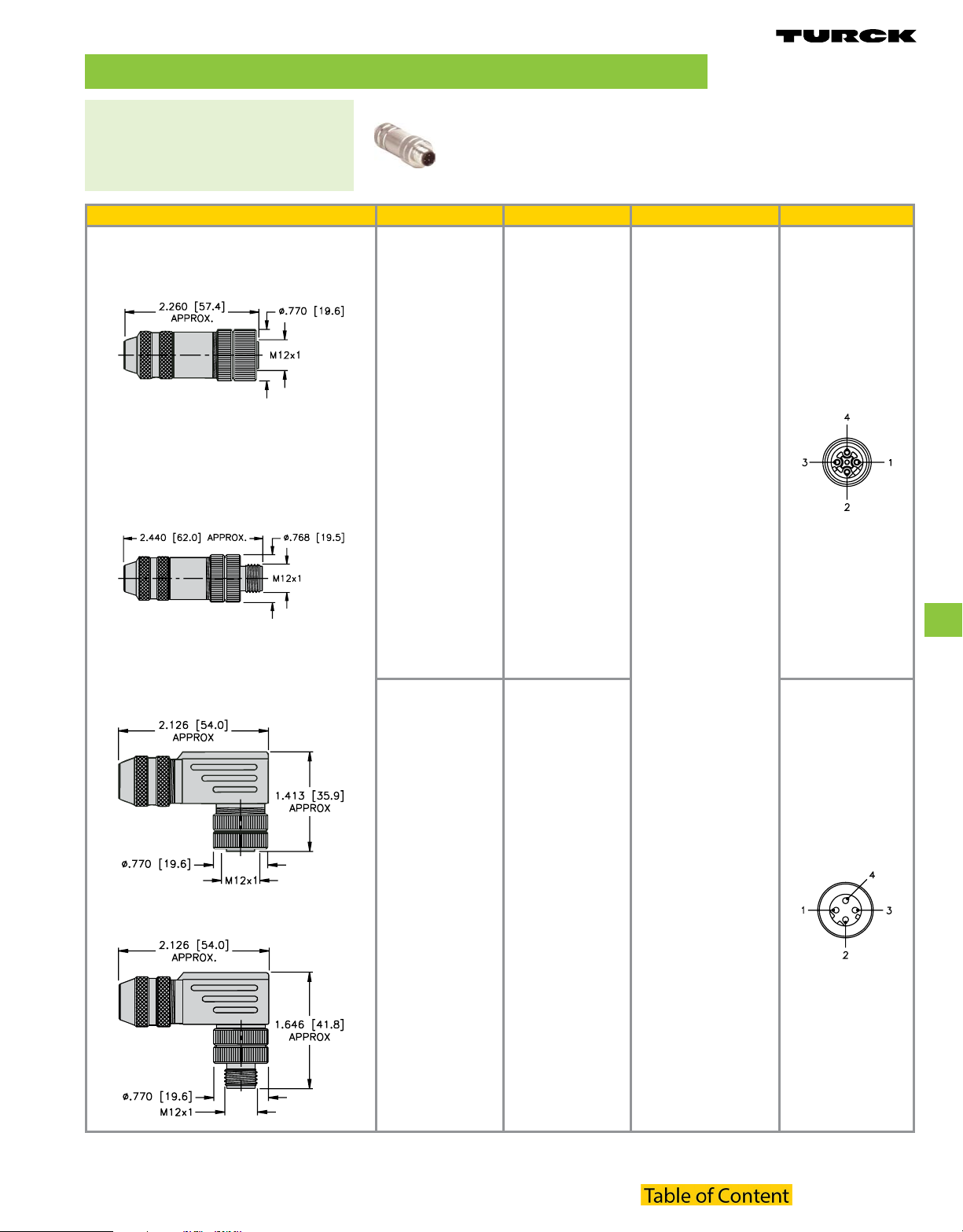

PROFINET, 4-Pin D-coded Field Wireables

y Allows for Quick Connections when

Pre-Molded Cables are not available

y Available in Male, Straight and Right

Angle Connector congurations

Housing Style Female Part Number Male Part Number Features Pinout

CMBD 81..

CMBD 8141-0/PG9 CMBSD 8141-0/PG9

CMBSD 81..

Female

PROFINET Media

4 A, 250 V, -40 °C to
+85 °C, mates with female
4-pin D-coded Eurofast®

CMBD 82..

We reserve the right to make technical alterations without prior notice.

CMBD 8241-0/PG9 CMBSD 8241-0/PG9

CMBSD 82..

cordsets and receptacles

Male

B2007 L9

PROFINET Physical Media Connectivity

2.165 [55.0]

.630 [16.0]

PROFINET, RJ45 Field Wireable

y Allows for Quick Connections

in the eld

y Fully Shielded
y Includes assembly instructions

Housing Part Number Features Pinout

Connector, RJ45S 42 IDC

Connector, RJ45S 84 IDC (7- 8 mm)

22-26 AWG, -20 °C to 70 °C,
6 - 7 mm cable diameter

1. Yellow (+TX)

2. Orange (-TX)

3. White (+RX)

4. N/C

5. N/C

6. Blue (-RX)

7. N/C

8. N/C

22-26 AWG, -20 °C to 70 °C,
7 - 8 mm cable diameter

We reserve the right to make technical alterations without prior notice.

L10 B2007 www.turck.com • 1-800-544-7769 • Fax: [phone] • Turck • Minneapolis, MN 55441 B2007 PB
