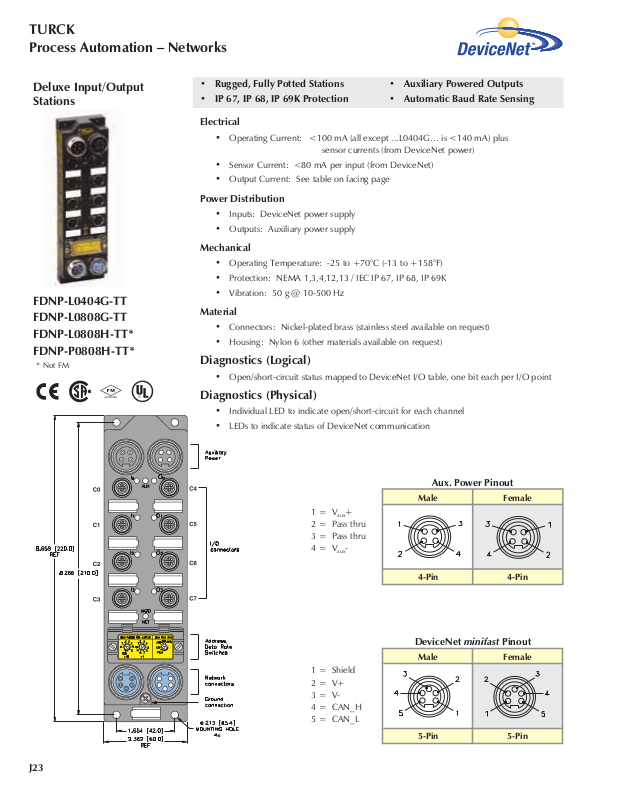

TURCK
Process Automation – Networks
Rugged, Fully Potted Stations
Deluxe Input/Output
Stations
FDNP-L0404G-TT
FDNP-L0808G-TT
FDNP-L0808H-TT*
FDNP-P0808H-TT*
* Not FM
•
IP 67, IP 68, IP 69K Protection
•
Electrical
•
•
•
Power Distribution
•
•
Mechanical
•
•
•
Material
•
•
Diagnostics (Logical)
•
Auxiliary Powered Outputs
•
Automatic Baud Rate Sensing
•
Operating Current: <100 mA (all except ...L0404G… is <140 mA) plus
sensor currents (from DeviceNet power)
Sensor Current: <80 mA per input (from DeviceNet)
Output Current: See table on facing page
Inputs: DeviceNet power supply
Outputs: Auxiliary power supply
Operating Temperature: -25 to +70°C (-13 to +158°F)
Protection: NEMA 1,3,4,12,13 / IEC IP 67, IP 68, IP 69K
Vibration: 50 g @ 10-500 Hz
Connectors: Nickel-plated brass (stainless steel available on request)
Housing: Nylon 6 (other materials available on request)
Open/short-circuit status mapped to DeviceNet I/O table, one bit each per I/O point
Diagnostics (Physical)
•
Individual LED to indicate open/short-circuit for each channel
•
LEDs to indicate status of DeviceNet communication
1 = V
2 = Pass thru
3 = Pass thru
4 = V
1 = Shield
2 = V+
3 = V4 = CAN_H
5 = CAN_L
aux
aux
+
-
Aux. Power Pinout
Male Female
4-Pin 4-Pin
DeviceNet minifast Pinout
Male Female
J23
5-Pin 5-Pin
Process
Automation
Inputs Outputs Data
Part Number
FDNP-L0404G-TT
FDNP-L0808G-TT
FDNP-L0808H-TT
FDNP-P0808H-TT
Mating cordset:
RK 4.4T-*-RS 4.4T
Diagnostics
Input Count
Connectors
4 0-3 L 1 PNP/NPN X X 4 4-7 G 1 0.5 A X X 1
8 0-3 2L 2 PNP/NPN X X 8 4-7 2G 2 0.5 A X X 2
8 0-3 2L 2 PNP/NPN X X 8 4-7 2H 2 2 A X X 2
8 0-3 2P 2 PNP X X 8 4-7 2H 2 2 A X X 2
Pinout
Inputs per
Connector
Sensor Style
Group
Diagnostics
Individual
Detection
Wire-Break
Count
Output
Connectors
Pinout
Connector
Outputs per
Current
Diagnostics
Individual
Detection
Wire-Break
Input/Output Connectors
L
Mating cordset:
Sensor with dual outputs:
RK 4.4T-*-RS 4.4T
Two sensors:
RK 4.5T-*-RS 4.5T
Splitter:
VBRS 4.5-2RK 4T-*/*/S818
2L
Mating cordset:
Sensor with dual outputs:
RK 4.4T-*-RS 4.4T
Two sensors:
RK 4.5T-*-RS 4.5T
Splitter:
VBRS 4.5-2RK 4T-*/*/S818
2P
I/O Map
G
Mating cordset:
RK 4.4T-*-RS 4.4T
I/O Data Map 1
Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
0----I-3I-2I-1I-0
1 IOS-3 IOS-2 IOS-1 IOS-0 ISS-3 ISS-2 ISS-1 ISS-0
In
2 OOS-3 OOS-2 OOS-1 OOS-0 OSS-3 OSS-2 OSS-1 OSS-0
3-APS------
0----O-3O-2O-1O-0
Out
2G
Mating cordset:
RK 4.4T-*-RS 4.4T
Splitter:
VBRS 4.4-2RK 4T-*/*
I/O Data Map 2
2H
Mating cordset:
RK 4.4T-*-RS 4.4T
Splitter:
VBRS 4.4-2RK 4T-*/*
Byte Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
0 I-7 I-6 I-5 I-4 I-3 I-2 I-1 I-0
1 ISS-7 ISS-6 ISS-5 ISS-4 ISS-3 ISS-2 ISS-1 ISS-0
In
2 IOS-7 IOS-6 IOS-5 IOS-4 IOS-3 IOS-2 IOS-1 IOS-0
3 OS-7 OS-6 OS-5 OS-4 OS-3 OS-2 OS-1 OS-0
4-APS------
0 0-7 0-6 0-5 0-4 O-3 O-2 O-1 O-0
Out
J24
