Instructions for Use

PD20-UHF

RFID Handheld

2

Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [e-mail] | www.turck.com

V02.00 | 2018/11

3

Contents

1 About these Instructions 5

1.1 Target groups 5

1.2 Explanation of Symbols Used 5

1.3 Other documents 5

1.4 Naming convention 5

1.5 Feedback about these instructions 5

2 Notes on the Product 6

2.1 Product Identification 6

2.2 Scope of Delivery 6

2.3 Legal Requirements 6

2.4 Manufacturer and Service 7

3 For Your Safety 8

3.1 Intended Use 8

3.2 Obvious Misuse 8

3.3 General Safety Instructions 9

4 Product Description 10

4.1 Device Overview 10

4.2 Properties and Characteristics 10

4.3 Functional Principle 10

4.4 Functions and Operating Modes 11

4.4.1 Transmission Frequency 11

5 Connection 12

5.1 Battery Charging 12

5.2 Connect the handheld to the mobile device 12

6 Commissioning 13

7 Operation 14

7.1 Start the Turck RFID app 14

7.2 Home Screen — Overview 14

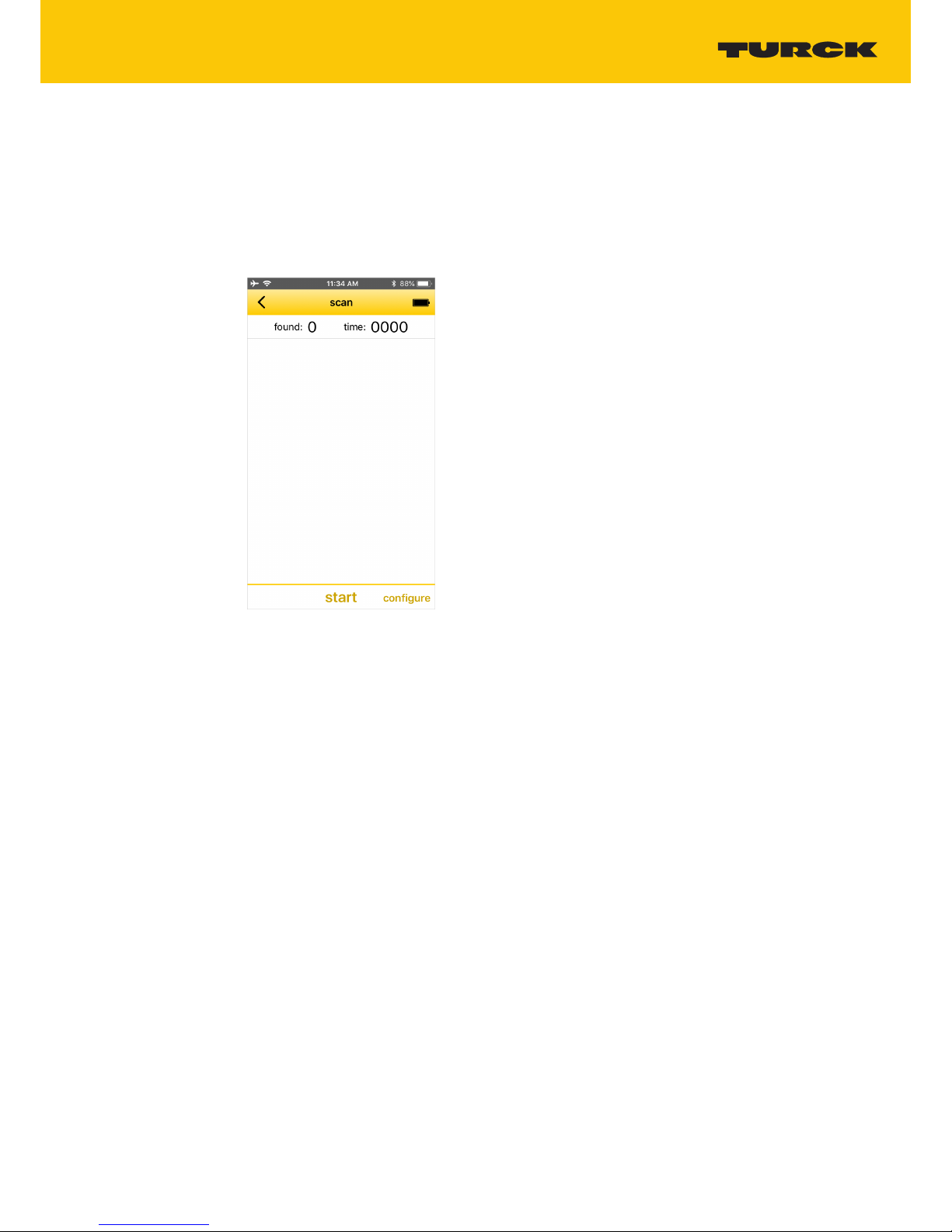

7.3 Perform Scan 15

7.4 Reading and Writing Tags 16

7.4.1 Reading and Writing Tags — Advanced Features 17

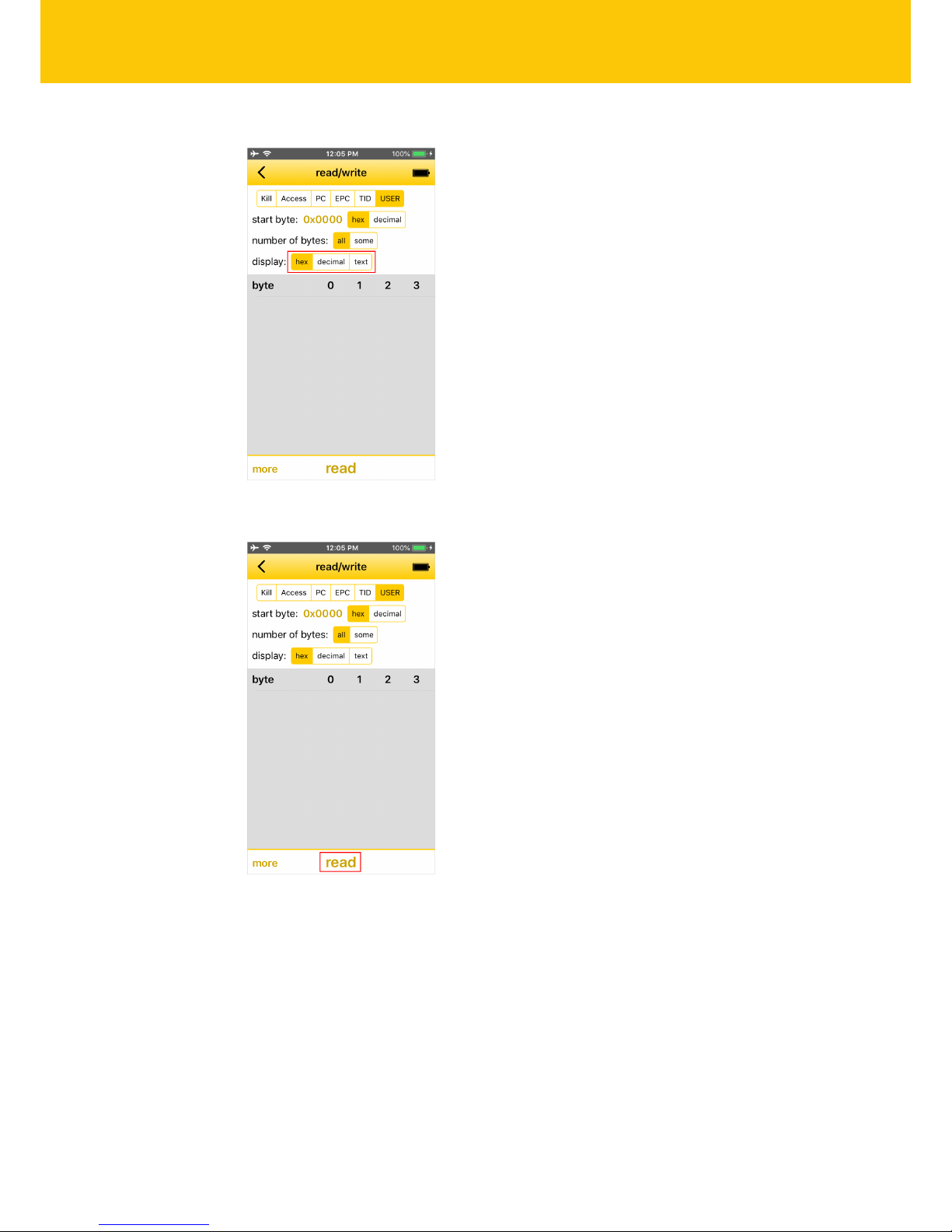

7.4.2 Example: Read Data 18

7.4.3 Example: Write Data 23

7.5 Battery and Connection Display 29

8 Setting 31

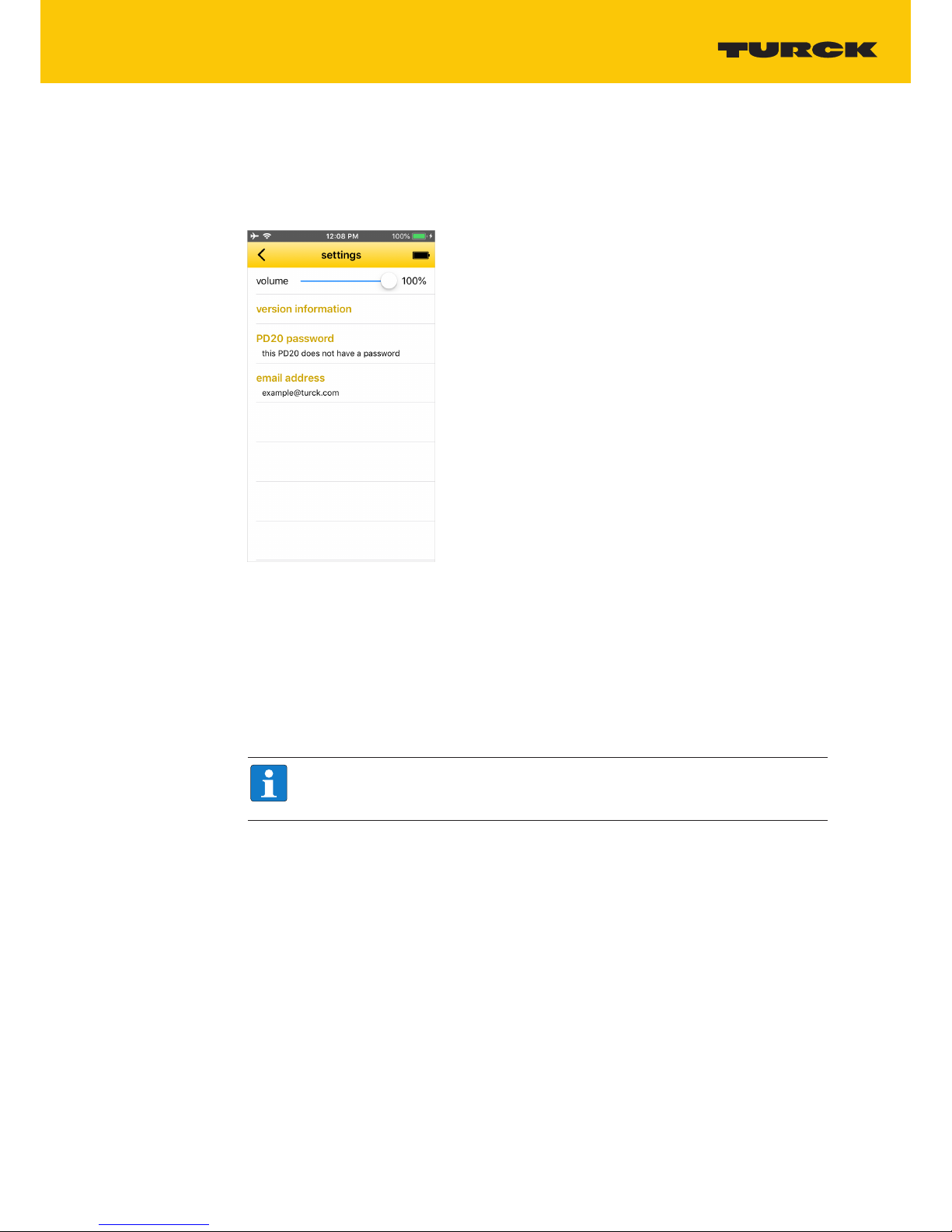

8.1 Assign password 31

8.2 Setting the scan screen 32

8.2.1 Area: Send data – Parameters 33

8.2.2 Area: Scanning – Parameters 38

8.2.3 Area: Display – Parameters 38

8.2.4 Area: Security – Parameters 38

8.3 Integrating the Turck RFID App in the Web Application 39

8.3.1 Transferring configuration parameters – URL format 39

8.3.2 Overview of the configuration parameters 39

Contents

4

Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [e-mail] | www.turck.com

9 Eliminating Interference 42

10 Maintenance 43

10.1 Carrying out a Firmware Update 43

11 Repair 43

11.1 Returning Devices 43

12 Disposal 43

13 Technical Data 44

14 EU declaration of conformity 45

V02.00 | 2018/11

5

1 About these Instructions

These operating instructions describe the structure, functions and the use of the product and
will help you to operate the product as intended. Read these instructions carefully before using
the product. This is to avoid possible damage to persons, property or the device. Retain the in­structions for future use during the service life of the product. If the product is passed on, pass
on these instructions as well.

1.1 Target groups

This document is written for specially trained personnel , and must be read carefully by anyone
who is responsible for the mounting, commissioning, operation, maintenance, disassembly or
disposal of the device.

1.2 Explanation of Symbols Used

The following symbols are used in these instructions:

DANGER

DANGER indicates a dangerous situation with high risk of death or severe injury if
not avoided.

WARNING

WARNING indicates a dangerous situation with medium risk of death or severe in­jury if not avoided.

CAUTION

CAUTION indicates a dangerous situation of medium risk which may result in minor
or moderate injury if not avoided.

NOTICE

NOTICE indicates a situation which may lead to property damage if not avoided.

NOTE

NOTE indicates tips, recommendations and useful information on specific actions
and facts. The notes simplify your work and help you to avoid additional work.

u

CALL TO ACTION

This symbol denotes actions that the user must carry out.

a

RESULTS OF ACTION

This symbol denotes relevant results of actions.

1.3 Other documents

Besides this document the following material can be found on the Internet at www.turck.com:

n Operating instructions
n Data sheet
n Approvals
n Configuration manual

1.4 Naming convention

Common synonyms for "data carriers" include "tag", "transponder", and "mobile storage
device". Read/write heads are also described as "transceivers" or "readers".

1.5 Feedback about these instructions

We make every effort to ensure that these instructions are as informative and as clear as pos­sible. If you have any suggestions for improving the design or if some information is missing in
the document, please send your suggestions to [e-mail].

Notes on the Product

6

Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [e-mail] | www.turck.com

2 Notes on the Product

2.1 Product Identification

These instructions apply to the following UHF handhelds:

R

Interface

Interface
R RFID reader

PD 20

Handheld –

Protection class
20 IP20

Handheld

PD 20–UHF–NA–R

UHF

Frequency Range –

Frequency Range
UHF UHF Frequency Range

NA

Country of Deployment –

Country of Deployment
NA USA, Canada, Mexico
EN EU, Turkey, India
CHN China
AUS Australia
BRA Brazil
KOR Korea
RUS Russia
SGP Singapore
PER Peru

The device versions for Australia, Brazil, Korea, Russia, Singapore, and Peru are available on re­quest.

2.2 Scope of Delivery

The scope of delivery includes:

n Handheld
n USB charging cable
n Power supply unit
n Quick start guide

2.3 Legal Requirements

The devices are subject to the following directives:

Device Region Directives

PD20-UHF-EU-R Europe n 2014/30/EU (electromagnetic compatibility)

n 2014/35/EC (low voltage)
n 2014/53/EU (RED Directive)

PD20-UHF-NA-R USA n FCC Rules Part 15

Canada n Industry Canada RSS-210

PD20-UHF-CHN-R China n SRRC

More information on other variants is available on request.

V02.00 | 2018/11

7

2.4 Manufacturer and Service

Hans Turck GmbH & Co. KG
Witzlebenstraße 7
45472 Muelheim an der Ruhr
Germany

Turck supports you with your projects, from initial analysis to the commissioning of your applic­ation. The Turck product database contains software tools for programming, configuration or
commissioning, data sheets and CAD files in numerous export formats. You can access the
product database at the following address: www.turck.de/products
For further inquiries in Germany contact the Sales and Service Team on:

n Sales: [phone]
n Technology: [phone]

Outside Germany, please contact your local Turck representative.

For Your Safety

8

Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [e-mail] | www.turck.com

3 For Your Safety

The product is designed according to state-of-the-art technology. However, residual risks still
exist. Observe the following warnings and safety notices to prevent damage to persons and
property. Turck accepts no liability for damage caused by failure to observe these warning and
safety notices.

3.1 Intended Use

These devices are designed solely for use in industrial areas.
The PD20 UHF handhelds are used for contactless data exchange with RFID UHF tags. Tags can
be read and written with the handhelds.

The following table shows the operating frequency of the devices:

Type code Operating frequency

PD20-UHF-EU-R 865.7…867.5 MHz

PD20-UHF-NA-R 902.75…927.25 MHz

PD20-UHF-CHN-R 920.25…924.75 MHz

PD20-UHF-AUS-R 920.25…925.75 MHz

PD20-UHF-BRA-R 902…907.5MHz and 915…928MHz

PD20-UHF-KOR-R 917…920.5 MHz

PD20-UHF-RUS-R 916…921 MHz

PD20-UHF-SGP-R 920…925 MHz

PD20-UHF-PER-R 916…928 MHz

The devices must only be operated in countries in which the particular frequency range is per­missible for the use of UHF RFID.
The devices may only be used as described in these instructions. Any other use is not in accord­ance with the intended use; Turck accepts no liability for any resulting damage.

3.2 Obvious Misuse

The device works only in conjunction with the Turck RFID app. It is not possible to connect it to
the audio input of PCs, radios, etc.

V02.00 | 2018/11

9

3.3 General Safety Instructions

n The device only meets the EMC requirements for industrial areas and is not suitable for use

in residential areas.

n The device may only be assembled, installed, operated, parameterized and maintained by

professionally-trained personnel.

n The device may only be used in accordance with applicable national and international regu-

lations, standards and laws.

n Any extended stay within the area of radiation of UHF devices may be harmful to health.

Maintain a minimum distance from the actively radiating surface of the UHF read/write head:

Region Max. permissible

total radiant output power

Safety distance

Europe, Russia, China 2 W ERP (according to ETSI) 0.24m

USA, Canada, Mexico 30 dBm ERP > 0.22 m

The minimum distances for other regions can be obtained from Turck on request.

n The radiation of UHF devices may impair the operation of electrically controlled medical

equipment. Maintain an additional distance from active radiation sources up to the max­imum transmission distance.

Product Description

10

Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [e-mail] | www.turck.com

4 Product Description

The UHF-RFID handhelds in the PD20-UHF series have protection class IP20 and are contained
in a plastic housing. A mobile device with the Turck RFID app is required for operation. The
devices are equipped with a cable with a jack plug to connect to the audio port of mobile
devices.

Handhelds are available for use in the following regions:

n Europe
n North America (USA, Canada, Mexico)
n China

Other country variants are available on request.
The Turck RFID app is free of charge for the iOS (from the App Store) and Android (from the Play
Store) operating systems.

4.1 Device Overview

159

95

39

66

Fig.1: Dimensions

4.2 Properties and Characteristics

n Mobile reading and writing of data of RIFD tags
n Handheld with UHF antenna
n Connection to the host device via audio port
n incl. Turck RFID app (iOS, Android) for reading and writing of tags
n Custom application software on request
n Wifi 802.11a/b/g/n and wireless interface via connected host device
n Degree of protection IP20
n Withstands several drops from a height of 1.5m on smooth concrete
n Permanent lithium ion battery (1800 mAh), approx. 2 hours of active scanning
n Incl. Micro-B USB cable and power supply unit

4.3 Functional Principle

RFID (radio frequency identification) is a contactless process for the automatic identification of
static or moving objects by means of alternating electromagnetic fields. It uses, for example,
the serial number of the object, which is saved on a mobile tag (transponder/TAG) and is read
without contact by a read/write device over a distance of up to several meters. The RFID tech­nology also enables multiple objects to be identified simultaneously. A direct line of sight con­nection between the tag and the read/write head is not necessary.

V02.00 | 2018/11

11

4.4 Functions and Operating Modes

The devices can be used to read and write passive UHF storage media in any location. To do
this, the devices form a transmission zone. The size and expansion of this zone may vary on ac­count of several conditions, for example the tags used and the application conditions. The
devices can only be operated with the Turck RFID app.

4.4.1 Transmission Frequency

The Turck BL ident® UHF system works with country-specific transmission frequencies between
the tags and the read/write heads. These country-specific UHF transmission frequencies are de­rived from the individual allocation of frequency ranges by the respective national regulatory
bodies.

For example, the operating frequencies of the devices in the UHF band are 865…868 MHz for
Europe and 902…928 MHZ for the USA. Before use, make sure that the BL ident® handhelds
comply with the region's specific UHF band. Any application in regions other than the accred­ited ones is not permitted. Since BL ident® UHF tags do not emit their own radio waves, they
may be used worldwide.

In order to achieve the biggest possible communication range, Turck offers tags which are op­timally tuned to country-specific frequency bands. Alternatively, broadband multi-area tags are
also available for international use.

The different Turck handhelds support the following transmission frequencies:

n 865.7…867.5 MHz (Europe)
n 902.75…927.25 MHz (USA, Canada and Mexico)
n 920.25…924.75 MHz (China)
n 920.25…925.75 MHz (Australia)
n 902…907.5 MHz and 915…928 MHz (Brazil)
n 917…920.5 MHz (Korea)
n 916…921 MHz (Russia)
n 920…925 MHz (Singapore)
n 916…928 MHz (Peru)

All the country-specific details concerning UHF, such as frequency band, power supply, and any
national regulations are available at:

http://www.gs1.org/docs/epcglobal/UHF_Regulations.pdf

For more information, please contact the corresponding national authorities of the country in
which you want to deploy the UHF RFID system.

HF RFID systems can be operated in parallel with UHF RFID systems in a single system.

Connection

12

Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [e-mail] | www.turck.com

5 Connection

5.1 Battery Charging

NOTE

The charging time depends on the selected charging method. Turck recommends
that the device should be charged for at least 2 hours before initial commissioning.

 Connect the Micro-USB plug connector to the handheld.
 Connect the USB plug connector to the USB port of a PC or a laptop.

or

 Connect a USB plug connector to the network adapter.
 Connect the network adapter to the power supply.

5.2 Connect the handheld to the mobile device

 Connect the jack plug on the handheld to the audio port of the mobile device.

V02.00 | 2018/11

13

6 Commissioning

The devices can be operated only with the Turck RFID app. The Turck RFID app is available free­of-charge for Android and iOS devices in the Play Store or the App Store. Search for "Turck
RFID".

 Android devices: Download the Turck RFID app from the Play Store and install it on your

mobile device.

 IOS devices: Download the Turck RFID app from the App Store and install it on your mo-

bile device.

Fig.2: Icon for the Turck RFID app in the App Store

Operation

14

Hans Turck GmbH & Co. KG | T [phone] | F [phone] | [e-mail] | www.turck.com

7 Operation

The handheld can be operated only with the Turck RFID app.

 Never leave the audio cable plugged in to the mobile device when not in use as it will de-

plete the battery of the handheld.

 To operate the handheld while charging, you must use a charger that supplies 600 mA or

less.

7.1 Start the Turck RFID app

 Open the Turck RFID app on your mobile device.
 Set the volume of the mobile device to maximum.
a The handheld can be operated via the Turck RFID app.

7.2 Home Screen — Overview

Fig.3: Turck RFID app: Start screen

The start screen provides access to the following elements:

n Battery and power supply indication
n Scan button for starting the scan
n Read/Write button for reading and writing data
n Settings button for setting and configuring the handheld
