Turck M23 powerfast Catalog Page
M23 powerfast Connectivity
M23 Powerfast Single Keyway Cordset Specications
Mechanical Electrical
Mold material/color: PUR/Black Contact material: Brass with gold plating
Contact carrier material: Nylon or PBT Cable jacket material/color: PVC/Yellow
Coupling nut material: Ratings:
Standard: Nickel plated brass Power: 20 Amps, 300 V
Additional options: 316 stainless steel Signal: 8 Amps, 150 V
Environmental protection: IEC IP67
Temperature rating: -40 °C to +105 °C (-40 °F to +221 °F)
M23 Powerfast 3-Key Cordset Specications
Mechanical Electrical
Mold material/color: PUR/Black Contact material: Brass with gold plating
Contact carrier material: Nylon or PBT Cable jacket material/color: TC-ER PVC/Yellow
Coupling nut material: Ratings:
Standard: Nickel plated brass Power: 30 Amps, 600 V
Environmental protection: IEC IP67 Signal: 9 Amps, 300 V
Temperature rating: -40 °C to +90 °C (-40 °F to +194 °F)
M23 Powerfast Single Keyway Receptacle Specications
Mechanical Electrical
Contact carrier material: Nylon or PBT Contact material: Brass with gold plating
We reserve the right to make technical alterations without prior notice.
Housing material/plating: Conductor insulation: PVC
Standard: Nickel plated brass
Additional options: 316 stainless steel Power: 20 Amps, 300 V
Environmental protection: IEC IP67
Temperature rating: -30 to +90 °C (-40 °F to +194 °F)
Ratings:
Signal: 8 Amps, 150 V
M23 Powerfast 3-Key Receptacle Specications
Mechanical Electrical
Contact carrier material: Nylon or PBT Contact material: Brass with gold plating
Housing material/plating: Conductor insulation: PVC
Standard: Nickel plated brass
Environmental protection: IEC IP67
Temperature rating: -30 to +80 °C (-40 °F to +176 °F)
Ratings:
Power: 30 Amps, 600 V
Signal: 9 Amps, 300 V
M23 powerfast
B2007 J45
M23 powerfast Connectivity
M23 Powerfast Single Keyway Cordset Selection Matrix
1 2 3
Straight Female Straight Male Straight Male
Pins AWG Current Rating Single Keyway Single Keyway Single Keyway
6 14 20 Amps CKM 64-078-* CSM 64-078-* CSSM 64-078-*
7 14 20 Amps CKM 74-079-* CSM 74-079-* CSSM 74-079-*
9 3x14; 6x18 8 Amps (1-3,5,7,9), 20 Amps (4,6,8) CKM 94-080-* CSM 94-080-* CSSM 94-080-*
M23 Powerfast 3-Key Cordset Selection Matrix
4 5 6 7
Straight Female Straight Male Right Angle Female Right Angle Male
Pins AWG Current Rating 3-Key 3-Key 3-Key 3-Key
6 12 30 Amps CKM 622-059-* CSSM 622-059-* CKWM 622-059-* CSSWM 622-059-*
8 4x12; 4x18 9 Amps (A-D), 30 Amps (1-4) CKM 822-287-* CSSM 822-287-* CKWM 822-287-* CSSWM 822-287-*
We reserve the right to make technical alterations without prior notice.
Pins AWG Current Rating Shielded 3-Key Shielded 3-Key Shielded 3-Key Shielded 3-Key
6 12 30 Amps CKMS 622-286-* CSSMS 622-286-* CKWMS 622-286-* CSSWMS 622-286-*
8 4x12; 4x18 9 Amps (A-D), 30 Amps (1-4) CKMS 822-288-* CSSMS 822-288-* CKWMS 822-288-* CSSWMS 822-288-*
M23 Powerfast Single Keyway Receptacle Selection Matrix
8
Front Mount
Female Male Female Male
Pins AWG Current Rating
6 14 20 Amps CKF 64-6-* CSF 64-6-* CKFL 64-6-* CSFL 64-6-*
7 14 20 Amps CKF 74-7-* CSF 74-7-* CKFL 74-7-* CSFL 74-7-*
9 3x14; 6x18 8 Amps (1-3,5,7,9), 20 Amps (4,6,8) CKF 94-9-* CSF 94-9-* CKFL 94-9-* CSFL 94-9-*
M20 Mount,
Standard Thread
9 10 11
M20 Mount,
Standard Thread
M20 Mounting,
Long Thread
M20 Mounting,
Long Thread
M23 Powerfast 3-Key Receptacle Selection Matrix
12
Front Mount
13 14
Female Male Male
Pins AWG Current Rating Flange Mount Flange Mount M20 Mounting Thread
6 12 30 Amps CKFMF 622-6-* CSFF 622-6-* CSF 622-6-*
8 4x12; 4x18 9 Amps (A-D), 30 Amps (1-4) CKFMF 822-8-* CSFF 822-8-* CSF 822-8-*

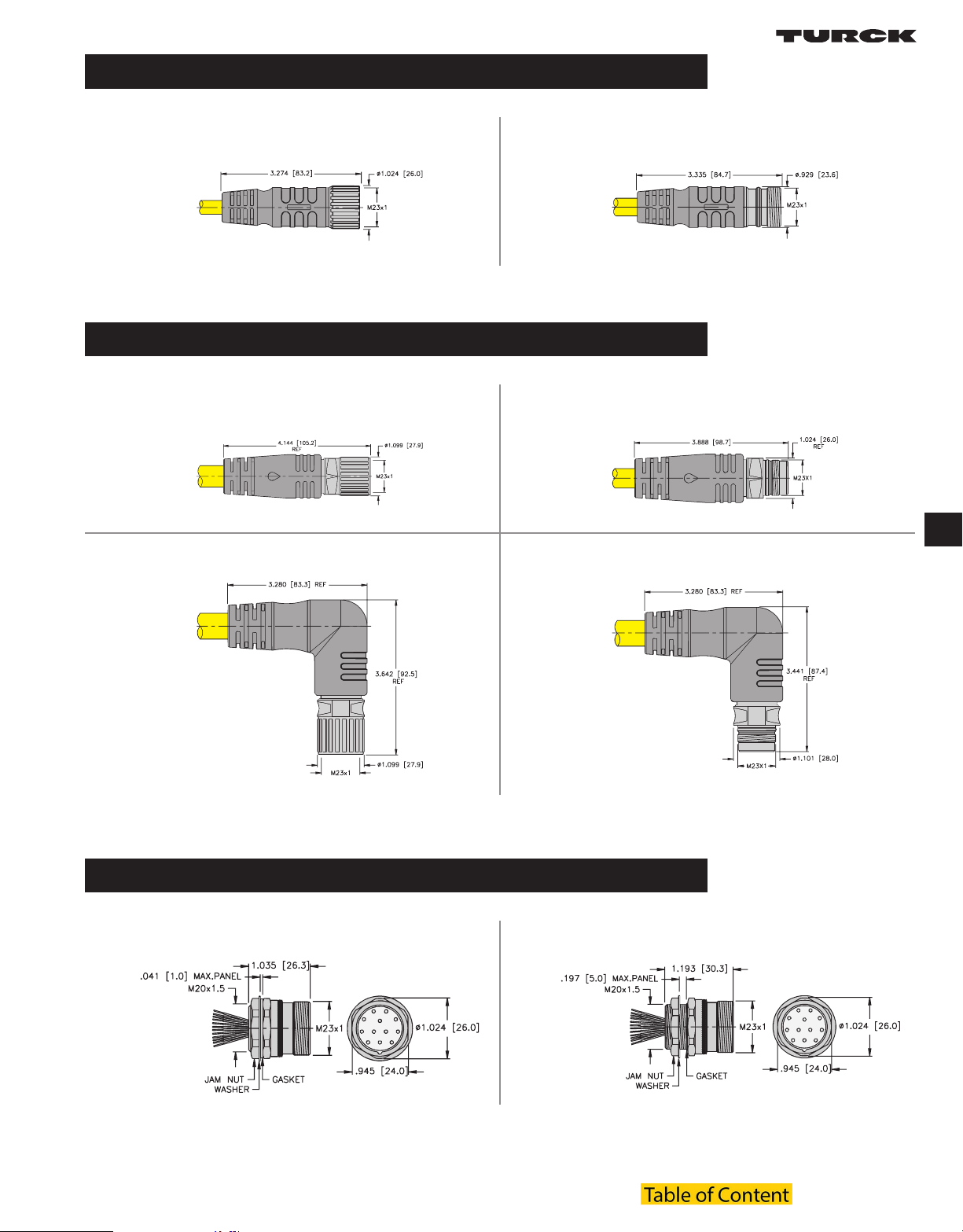

See pages 47-48 for dimensional drawings.
*
Length in meters. Standard cable lengths are 2, 5 and 10 meters. Standard lead length is 0.5 meters. Consult factory for other lengths.
Note: Extension cables are available, please consult Part Number Key (page 42).
Standard coupling nut and housing material is nickel plated brass. Consult Part Number Key (page 42) for 316 stainless steel options.
J46 B2007 www.turck.com • 1-800-544-7769 • Fax: (763) 553-0708 • Turck • Minneapolis, MN 55441 B2007 J47
