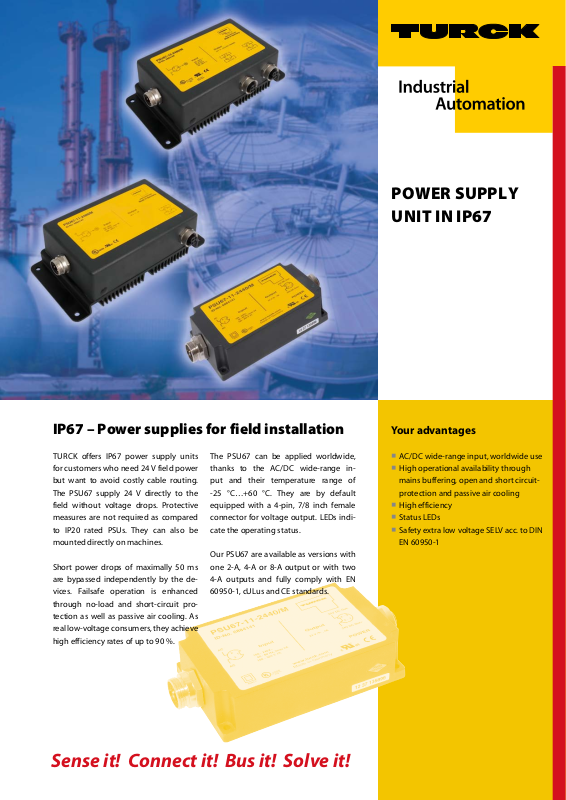

POWER SUPPLY
UNIT IN IP67
IP67 – Power supplies for field installation
TURCK offers IP67 power supply units
for customers who need 24 V field power
but want to avoid costly cable routing.
The PSU67 supply 24 V directly to the
field without voltage drops. Protective
measures are not required as compared
to IP20 rated PSUs. They can also be
mounted directly on machines.
Short power drops of maximally 50 ms
are bypassed independently by the de-
vices. Failsafe operation is enhanced
through no-load and short-circuit pro-
tection as well as passive air cooling. As
real low-voltage consumers, they achieve
high efficiency rates of up to 90 %.
The PSU67 can be applied worldwide,
thanks to the AC/DC wide-range in-
put and their temperature range of
-25 °C…+60 °C. They are by default
equipped with a 4-pin, 7/8 inch female
connector for voltage output. LEDs indi-
cate the operating status.
Our PSU67 are available as versions with
one 2-A, 4-A or 8-A output or with two
4-A outputs and fully comply with EN
60950-1, cULus and CE standards.
Your advantages
■ AC/DC wide-range input, worldwide use
■ High operational availability through
mains buffering, open and short circuit-
protection and passive air cooling
■ High efficiency
■ Status LEDs
■ Safety extra low voltage SELV acc. to DIN
EN60950-1
Sense it! Connect it! Bus it! Solve it!
Technical features
Technical features
Input
Operating voltage 100…240 VAC, 50/60 Hz; 100…300 VDC
Connection 3-pin 7/8“
Mains buffering time ≥ 50 ms
Power Factor Correction (PFC) > 0.98
Output
Nominal voltage 24 VDC
Connection 4-pin 7/8“
Temperature range
Operating temperature -25…+60 °C
Type code PSU67-11-2420/M PSU67-11-2440/M
Ident no. 6884140 6884141
Nominal current 2 A 4 A
Dimensions 85 x 172 x 35 mm 85 x 172 x 35 mm
Weight 765 g 765 g
Protection class II II
Mounting 4 mounting holes 5.0 mm 4 mounting holes 5.0 mm
Housing material Glass fiber reinforced
polyamide (PA66-GF25)
Glass fiber reinforced
polyamide (PA66-GF25)
Type code PSU67-11-2480/M PSU67-12-2480/M
Ident no. 6884147 6884148
Nominal current 8 A 2 x 4 A
Dimensions 122 x 245 x 70 mm 122 x 245 x 70 mm
Weight 3268 g 3250 g
Protection class I I
Mounting 4 mounting holes 6.6 mm 4 mounting holes 6.6 mm
Housing material Aluminium, ADC-12 Aluminium, ADC-12
Hans Turck GmbH & Co. KG
D301299 2013/04
