Magnetic Field Sensor
for radial magnetic fields
BIM-UNT-AP6X/S991
Type designation BIM-UNT-AP6X/S991
Ident-No. 4685728
■ For T-groove cylinders without mount-
ing accessories
■ Optional accessories for mounting on
other cylindrical housings.
■ One-hand mounting possible
■ Fine adjustment tool and stopper direct-
ly mountable on the sensor
■ Stable mounting
■ Magneto-resistive sensor
■ For detection of radial magnetic fields
■ The overtravel distance in linear slide
systems for example, is determined by
the length of the magnet
■ DC 3-wire, 10…30 VDC
■ NO contact, PNP output
■ Cable connection
Pass speed
Repeatability
Temperature drift
Hysteresis
Ambient temperature -25…+70 °C
Operating voltage 10…30 VDC
Residual ripple
DC rated operational current
No-load current I
Residual current
Isolation test voltage
Short-circuit protection yes/ Cyclic
Voltage drop at I
Wire breakage/Reverse polarity protection yes/ Complete
Output function 3-wire, NO contact, PNP
Switching frequency 1 kHz
Design Rectangular,UNT
Dimensions 28 x 5 x 6 mm
Housing material Plastic, PP
Active area material Plastic, PP
Tightening torque fixing screw 0.4 Nm
Electrical connection Cable
Cable quality 3mm, Gray, Lif9Y-11Y, PUR, 2
Cable cross section
Vibration resistance 55 Hz (1 mm)
Shock resistance 30 g (11 ms)
Protection class IP67
MTTF 2283 years acc. to SN 29500 (Ed. 99) 40 °C
Packaging unit 1
Mounting on the following profiles .
Cylindrical design
0
e
ð 10 m/s
ð ± 0.1 mm
ð 0.1 mm
ð 1 mm
ð 10 % U
ss
ð 150 mA
ð 15 mA
ð 0.1 mA
ð 0.5 kV
ð 1.8 V
Suited for E-ChainSystems® acc. to manufacturers
declaration H1063M
3 x 0.14 mm
E N K F
2
Wiring Diagram
Functional principle
Magnetic-field sensors with extended temperature range for the detection of radial magnetic fields are often applied in linear slide and
guide systems and pneumatic grippers.
A great advantage is the implementation of a
flexible overtravel distance in linear slide systems using a magnetic tape.
Based on the fact that magnetic fields can
permeate non-magnetizable metals, it is possible to detect the magnet mounted in the linear slide system via the omnipolar sensor.
Switching state LED,Yellow
Included in delivery cable clip
Edition • 2018-03-21T17:28:35+01:00
1 / 5 TURCK Inc.
Magnetic Field Sensor
for radial magnetic fields
BIM-UNT-AP6X/S991

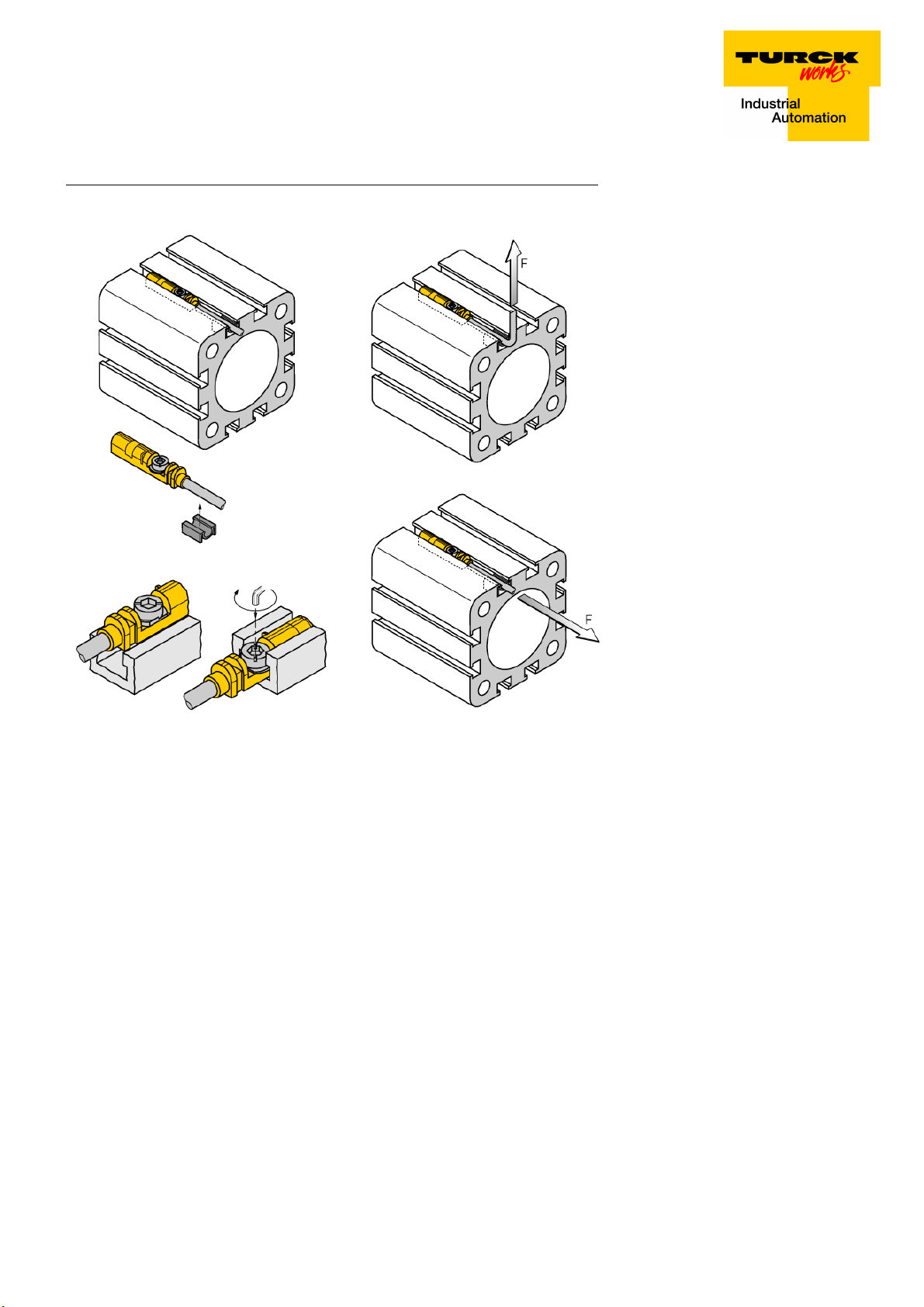

Mounting instructions/Description Mounting instructions
Thanks to the mounting lip, the sensor can be insert-
ed into the groove from above with one hand. Mount
the sensors as follows using the patented wing screw:
The wing screw and the female thread feature a left-
hand thread. Two small plastic lips keep the screw in
position, ready-to-install. Turn the screw clockwise.
The screw moves out of the thread and hits the upper
grooves with the wings. The sensor is thus pressed
down and locked in position. A few degrees up to ap-
proximately 1.5 turns of the screw with a slotted screw-
driver (blade width 0.5 mm) or a 1.5 mm Allen key are
sufficient to ensure vibration-proof fastening, depend-
ing on the shape of the slot. A tightening torque of 0.4
Nm is sufficient for safe mounting without damaging the
cylinder. The sensor can now withstand an axial and ra-
dial tensile load of F=100N applied on the cable. A ca-
ble clip is included in the scope of delivery. It enables
smooth cable routing in the groove and ensures that
the cable is fastened as securely as possible. The cor-
responding accessories for mounting on other cylindri-
cal housings must be ordered separately.
Edition • 2018-03-21T17:28:35+01:00
2 / 5 TURCK Inc.
