Magnetic Field Sensor
for pneumatic cylinders
BIM-NST-RP6X W/O BKT
■ Plastic, PA12-GF30
■ Magnetic-inductive sensor
■ DC 3-wire, 10…30 VDC
■ NC contact, PNP output
■ Cable connection
Wiring Diagram
Type designation BIM-NST-RP6X W/O BKT
Ident-No. 4685510
Pass speed
Repeatability
Temperature drift
Hysteresis
Ambient temperature -25…+70 °C
Operating voltage 10…30 VDC
Residual ripple
DC rated operational current
No-load current I
Residual current
Isolation test voltage
Short-circuit protection yes/ Cyclic
Voltage drop at I
Wire breakage/Reverse polarity protection yes/ Complete
Output function 3-wire, NC contact, PNP
Switching frequency 1 kHz
Design Rectangular,NST
Dimensions 28 x 17 x 14 mm
Housing material Plastic, PA12-GF30
Active area material Plastic, PA12-GF30
Electrical connection Cable
Cable quality 4mm, Gray, LifYY, PVC, 2
Cable cross section
Vibration resistance 55 Hz (1 mm)
Shock resistance 30 g (11 ms)
Protection class IP67
MTTF 2283 years acc. to SN 29500 (Ed. 99) 40 °C
Mounting on the following profiles .
Cylindrical design
0
e
ð 10 m/s
ð ± 0.1 mm
ð 0.1 mm
ð 1 mm
ð 10 % U
ss
ð 200 mA
ð 15 mA
ð 0.1 mA
ð 0.5 kV
ð 1.8 V
3 x 0.25 mm
N K L H I
2
Functional principle
Magnetic field sensors are activated by magnetic fields and are especially suited for piston position detection in pneumatic cylinders.
Based on the fact that magnetic fields can
permeate non-magnetizable metals, it is possible to detect a permanent magnet attached
to the piston through the aluminium wall of the
cylinder.
Switching state LED,Yellow
Included in delivery 1 x screw M3x20, 1 x tension bolt, 1 x spring washer
Edition • 2018-03-28T18:38:39+02:00
1 / 3 TURCK Inc.
Magnetic Field Sensor
for pneumatic cylinders
BIM-NST-RP6X W/O BKT
Edition • 2018-03-28T18:38:39+02:00
2 / 3 TURCK Inc.
Magnetic Field Sensor
for pneumatic cylinders
BIM-NST-RP6X W/O BKT

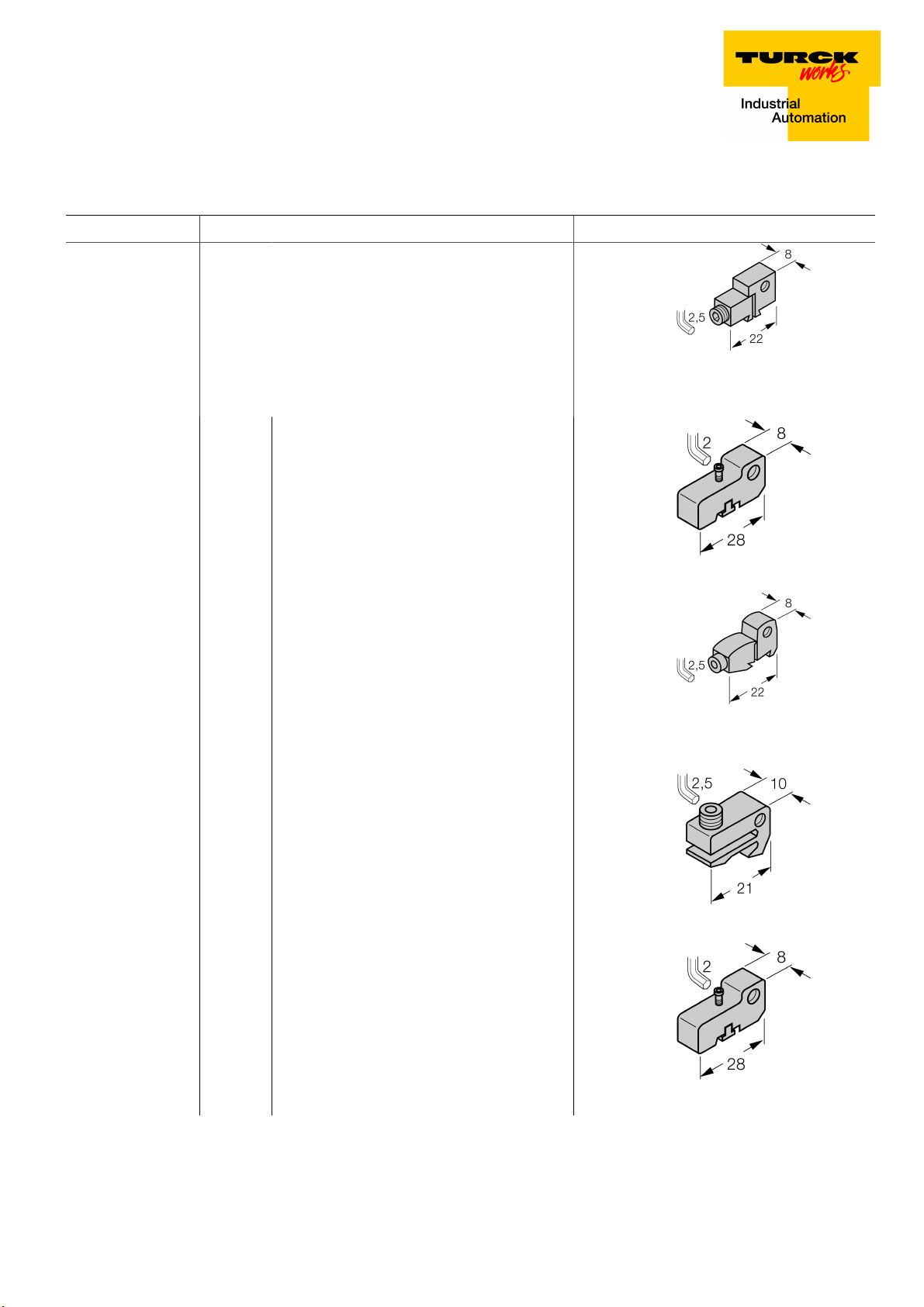

Accessories
Type code Ident-No. Description
KLN-3 CLAMP 6970504
Mounting on K Dovetail groove cylinders or N T-groove
cylinders; clamping width 5.2…13.5 mm; material: Anodized
aluminium
SMC-325 6970503
KLF-1 6970401
KLF-2 6970402
Mounting on K SMC cylinders; clamping width 4 mm; mate-
rial: Anodized aluminium
Mounting on H external dovetail grooves; for all cylinder di-
ameters, material: Anodized aluminium
Mounting on I external dovetail grooves (IMI Norgrem); for
all cylinder diameters, material: Anodized aluminium
SMC-325 A3106
Edition • 2018-03-28T18:38:39+02:00
3 / 3 TURCK Inc.
Mounting on K SMC cylinders; clamping width 4 mm; mate-
rial: Anodized aluminium
