Magnetic Field Sensor
for pneumatic cylinders (magnetic-field immune)
BIM-IKM-AP6X2-H1141/S34
Type designation BIM-IKM-AP6X2-H1141/S34
Ident-No. 46272
■ Rectangular, height 34 mm
■ Metal, GD-Zn
■ Magnetic-inductive sensor
■ Weld resistant to AC fields of 50…60 Hz
■ DC 3-wire, 10…30 VDC
■ NO contact, PNP output
■ Male connector, M12 x 1
Wiring Diagram
Pass speed
Repeatability
Temperature drift
Hysteresis
Ambient temperature -25…+70 °C
Operating voltage 10…30 VDC
Residual ripple
DC rated operational current
No-load current I
Residual current
Isolation test voltage
Short-circuit protection yes/ Cyclic
Voltage drop at I
Wire breakage/Reverse polarity protection yes/ Complete
Output function 3-wire, NO contact, PNP
Switching frequency 0.02 kHz
Design Rectangular,IKM
Dimensions 34 x 17 x 34 mm
Housing material Metal, GD-Zn
Active area material Plastic, PA12-GF30
Electrical connection Connector, M12 × 1
Vibration resistance 55 Hz (1 mm)
Shock resistance 30 g (11 ms)
Protection class IP67
MTTF 2283 years acc. to SN 29500 (Ed. 99) 40 °C
Mounting on the following profiles .
Cylindrical design
0
e
ð 1 m/s
ð ± 0.1 mm
ð 0.1 mm
ð 1 mm
ð 10 % U
ð 200 mA
ð 15 mA
ð 0.1 mA
ð 0.5 kV
ð 1.8 V
F G H
ss
Functional principle
Magnetic field sensors are activated by magnetic fields and are used, in particular, for the
detection of the piston position in pneumatic
cylinders. As magnetic fields can permeate
non-magnetizable metals, they detect a permanent magnet attached to the piston through
the aluminium cylinder wall.
Weld-field immune permaprox sensors
"freeze" the switching status when detecting
a magnetic AC field (50…60 Hz). In this way,
false switching operations are prevented during the welding process. When the AC field
disappears, the sensors resume standard operation.
Power-on indication LED,Green
Switching state LED,Yellow
Edition • 2018-03-27T16:30:33+02:00
1 / 4 TURCK Inc.
Magnetic Field Sensor
for pneumatic cylinders (magnetic-field immune)
BIM-IKM-AP6X2-H1141/S34
Mounting instructions/Description Active face in front
Edition • 2018-03-27T16:30:33+02:00
2 / 4 TURCK Inc.
Magnetic Field Sensor
for pneumatic cylinders (magnetic-field immune)
BIM-IKM-AP6X2-H1141/S34

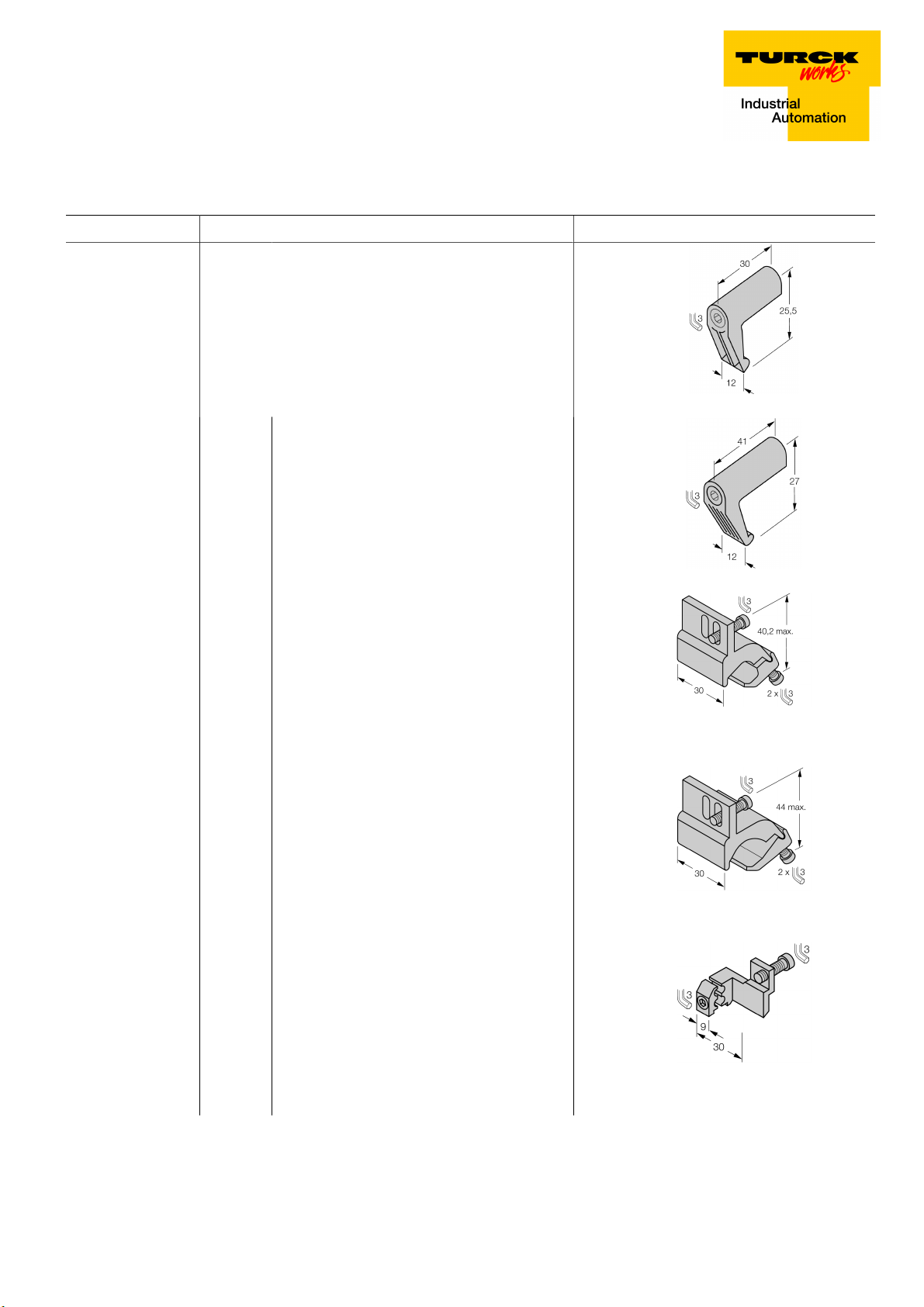

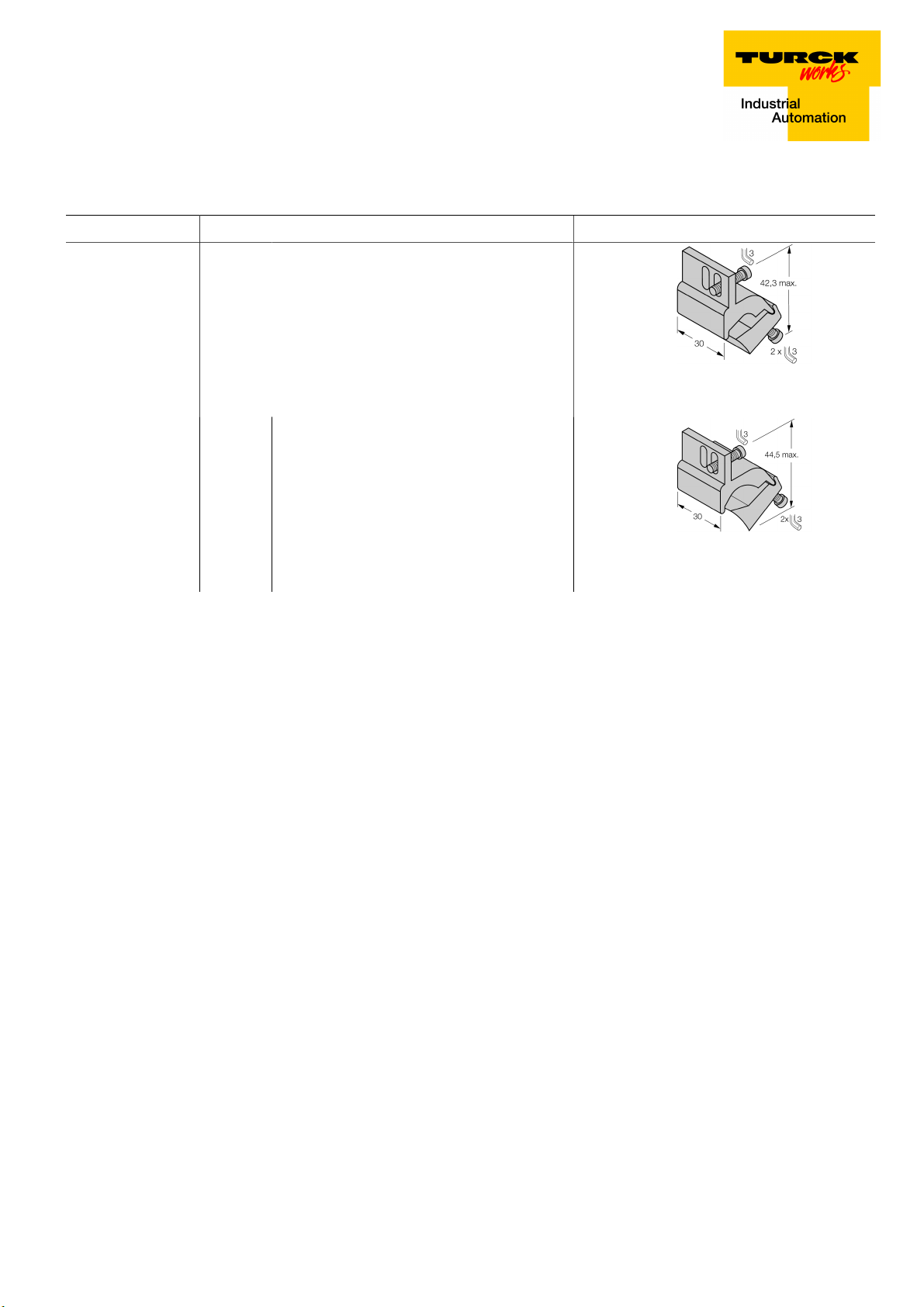

Accessories
Type code Ident-No. Description
KLF-3 69710
Mounting on F tie-rod cylinders; cylinder diameter 32…100
mm; material: Die-cast zinc
KLF-4 69712
KLF-5 6971802
KLI-6 6971805
Mounting on F tie-rod cylinders; cylinder diameter 63…160
mm; material: Die-cast zinc
Mounting on G profile cylinder; cylinder diameter 32…50
mm; material: Aluminium
Mounting on G profile cylinder; cylinder diameter 50…100
mm; material: Aluminium
KLI7 6971810
Edition • 2018-03-27T16:30:33+02:00
3 / 4 TURCK Inc.
Mounting on H profile cylinder with external dovetail
grooves; diameter 32…200 mm; material: Aluminium
Magnetic Field Sensor
for pneumatic cylinders (magnetic-field immune)
BIM-IKM-AP6X2-H1141/S34
Accessories
Type code Ident-No. Description
KLF-5Z 6971803
Mounting on F tie-rod cylinders; cylinder diameter 32…63
mm; material: Aluminum
KLI-6Z 6971806
Mounting on F tie-rod cylinders; cylinder diameter 50…125
mm; material: Aluminum
Edition • 2018-03-27T16:30:33+02:00
4 / 4 TURCK Inc.
