Turck BIM-EM18M-AP4X-H1141 Data Sheet
Magnetic Field Sensor
Magnetic-inductive Proximity Sensor
BIM-EM18M-AP4X-H1141
Type designation BIM-EM18M-AP4X-H1141
Ident-No. 1579933
Rated switching distance Sn 90 mm
In conjunction with magnet DMR31-15-5
Repeat accuracy
Temperature drift
Hysteresis 1…10 %
Ambient temperature -25…+70 °C
Operating voltage 10…65 VDC
Residual ripple
DC rated operational current
No-load current I
Residual current
Isolation test voltage
Short-circuit protection yes/ Cyclic
Voltage drop at I
Wire breakage/Reverse polarity protection yes/ Complete
Output function 3-wire, NO contact, PNP
Switching frequency 1 kHz
0
e
ð 0.3 % of full scale
ð ± 15 %
ð 10 % U
ss
ð 200 mA
ð 15 mA
ð 0.1 mA
ð 0.5 kV
ð 1.8 V
■ Threaded barrel, M18 x 1
■ Stainless steel, 1.4301
■ Rated operating distance 90 mm with
DMR31-15-5 magnet
■ DC 3-wire, 10…65 VDC
■ NO contact, PNP output
■ Male connector, M12 x 1
Wiring Diagram
Functional principle
Magnetic inductive proximity sensors are actuated by magnetic fields and are thus capable of detecting permanent magnets through
non-ferromagnetic materials (e.g. wood, plastic, non-ferrous metals, aluminium, stainless
steel).
Thus it is possible to achieve large switching
distances even with smaller housing styles.
In combination with the actuation magnet
DMR31-15-5 TURCK sensors feature a relatively high switching distance. Thus there are
multiple detection possibilities, particularly if
the mounting space is limited or other difficult
sensing conditions prevail.
Design Threaded barrel,M18 × 1
Dimensions 61.5 mm
Housing material Metal, V2A (1.4301)
Active area material Plastic, PBT
Max. tightening torque housing nut 25 Nm
Electrical connection Connector, M12 × 1
Vibration resistance 55 Hz (1 mm)
Shock resistance 30 g (11 ms)
Protection class IP67
MTTF 2283 years acc. to SN 29500 (Ed. 99) 40 °C
Packaging unit 1
Switching state LED,Yellow
Edition • 2018-03-28T20:27:38+02:00
1 / 3 TURCK Inc.
Magnetic Field Sensor
Magnetic-inductive Proximity Sensor
BIM-EM18M-AP4X-H1141
Diameter active area B Ø 18 mm

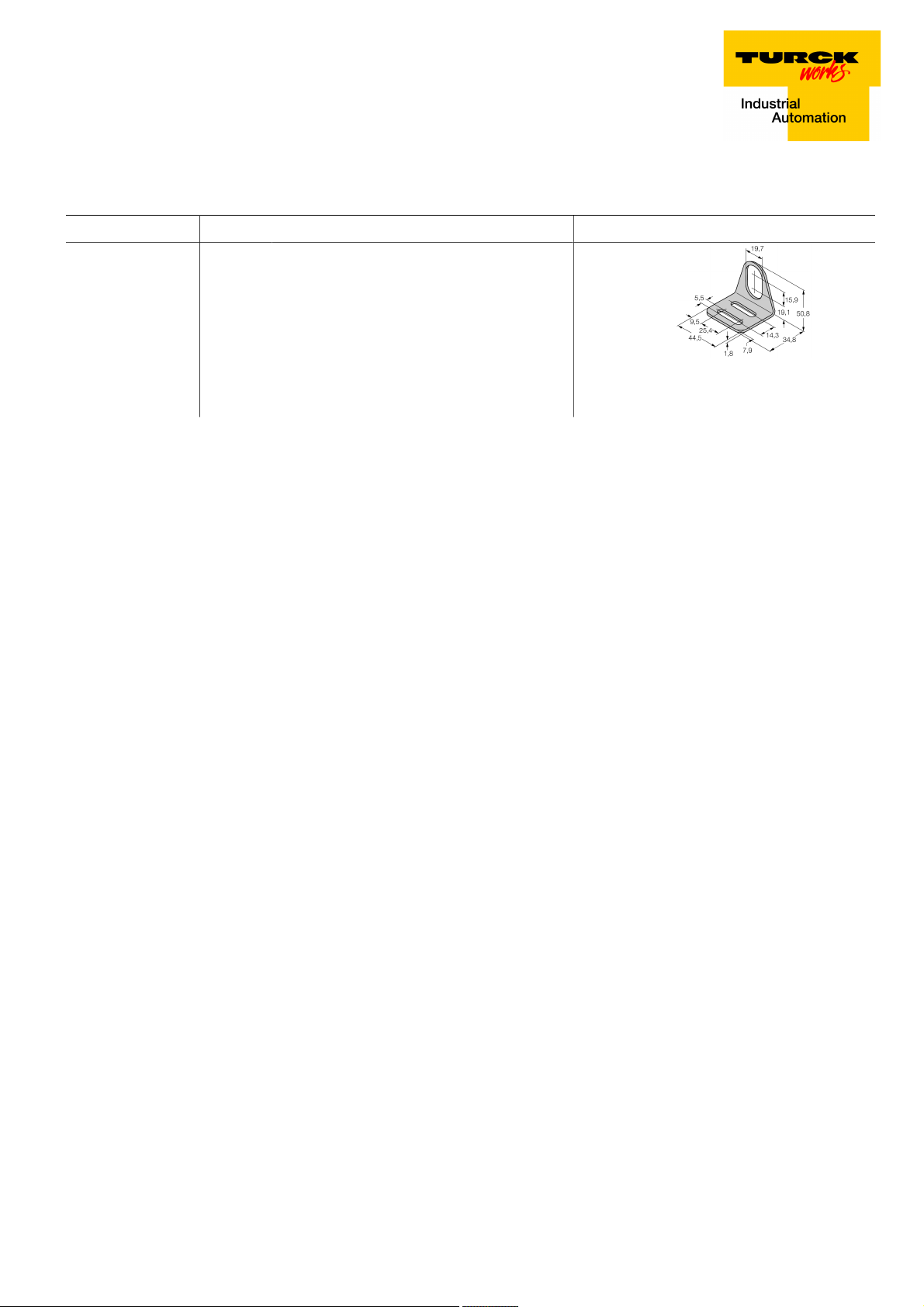

Edition • 2018-03-28T20:27:38+02:00
2 / 3 TURCK Inc.
