Inductive sensor
BI5U-M18-AP6X-H1141/S331
Type designation BI5U-M18-AP6X-H1141/S331
Ident-No. 1635114
Rated switching distance Sn 5 mm
Mounting conditions Flush
Secured operating distance
Repeat accuracy
Temperature drift
Hysteresis 3…15 %
Ambient temperature -30…+85 °C
Operating voltage 10…30 VDC
Residual ripple
DC rated operational current
No-load current I
Residual current
Isolation test voltage
Short-circuit protection yes/ Cyclic
Voltage drop at I
Wire breakage/Reverse polarity protection yes/ Complete
Output function 3-wire, NO contact, PNP
Switching frequency 1.5 kHz
0
e
ð (0,81 x Sn) mm
ð 2 % of full scale
ð ± 10 %
ð ± 15 %, ð -25 °C v ï +70 °C
ð 10 % U
ss
ð 200 mA
ð 20 mA
ð 0.1 mA
ð 0.5 kV
ð 1.8 V
■ Threaded barrel, M18 x 1
■ Chrome-plated brass
■ Factor 1 for all metals
■ Resistant to magnetic fields
■ Extended temperature range
■ increased EMC protection
■ DC 3-wire, 10…30 VDC
■ NO contact, PNP output
■ M12 x 1 male connector
Wiring Diagram
Functional principle
Inductive sensors detect metal objects contactless and wear-free. uprox® Factor 1 sensors have significant advantages due to their
patented ferrite-coreless multicoil system.
They detect all metals at the same large
switching distance and are resistant to magnetic fields.
Design Threaded barrel,M18 × 1
Dimensions 52 mm
Housing material Metal, CuZn, Chrome-plated
Active area material Plastic, PBT
Max. tightening torque housing nut 25 Nm
Electrical connection Connector, M12 × 1
Vibration resistance 55 Hz (1 mm)
Shock resistance 30 g (11 ms)
Protection class IP68
MTTF 874 years acc. to SN 29500 (Ed. 99) 40 °C
Switching state LED,Yellow
Edition • 2018-04-19T18:43:13+02:00
1 / 3 TURCK Inc.
Inductive sensor
BI5U-M18-AP6X-H1141/S331

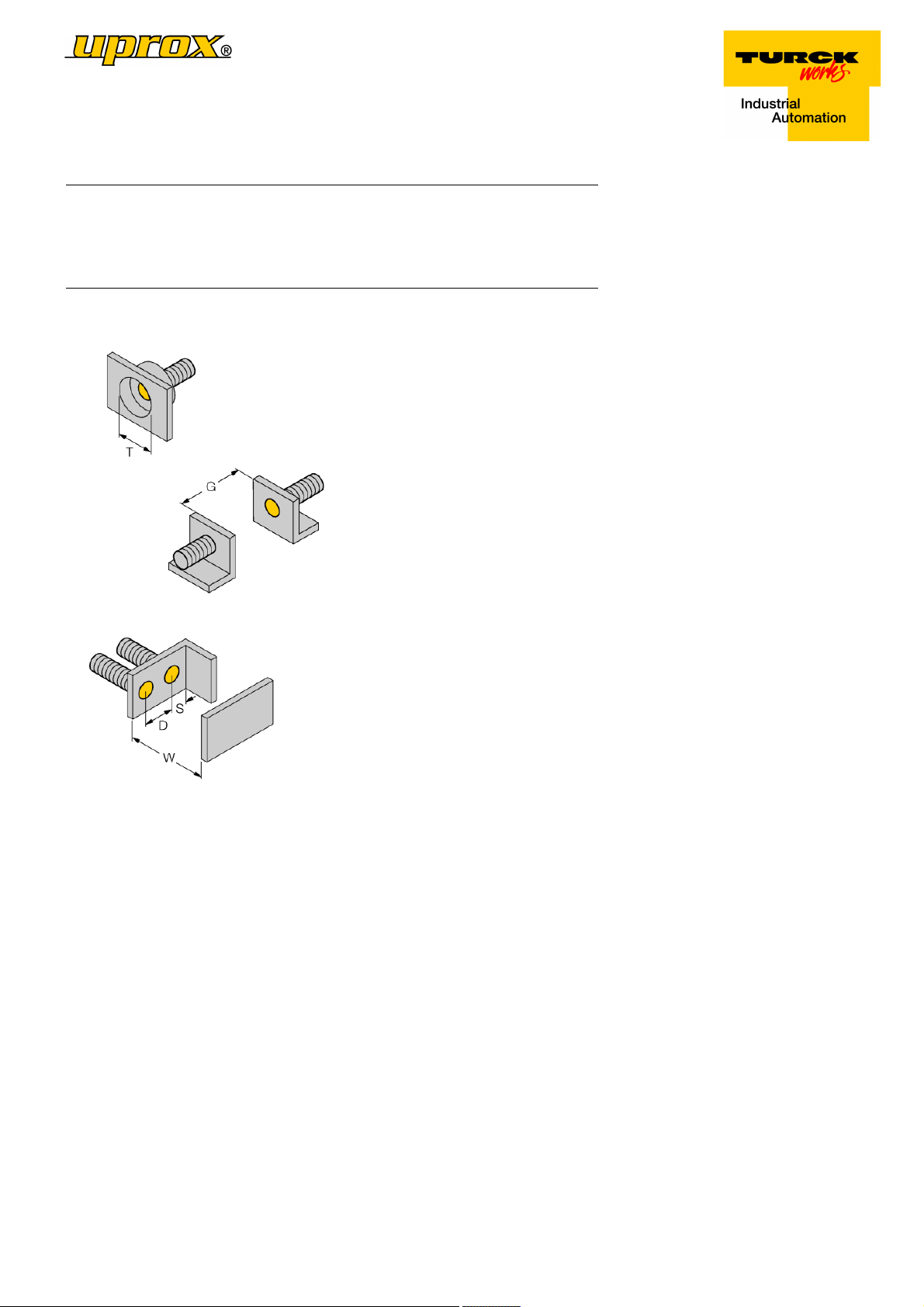

Distance D 2 x B
Distance W 3 x Sn
Distance T 3 x B
Distance S 1.5 x B
Distance G 6 x Sn
Diameter active area B Ø 18 mm
Edition • 2018-04-19T18:43:13+02:00
2 / 3 TURCK Inc.
