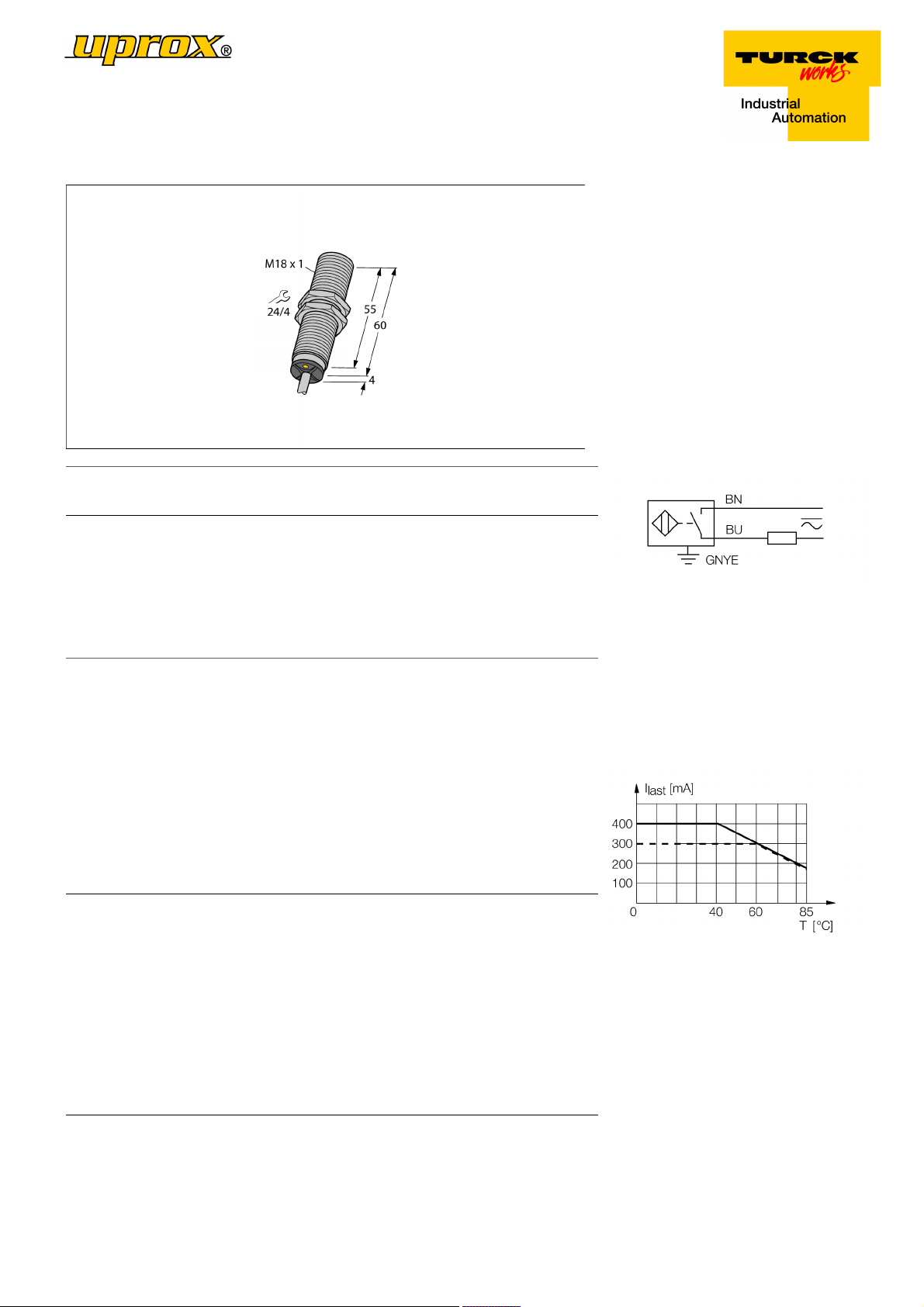

Inductive sensor
BI5U-M18-ADZ30X2
■ Threaded barrel, M18 x 1
■ Chrome-plated brass
■ Factor 1 for all metals
■ Protection class IP68
■ Resistant to magnetic fields
■ Extended temperature range
■ High switching frequency
■ AC 2-wire, 20…250 VDC
■ DC 2-wire, 10…300 VDC
■ NO contact
■ Cable connection
Type designation BI5U-M18-ADZ30X2
Ident-No. 4282210
Rated switching distance Sn 5 mm
Mounting conditions Flush
Secured operating distance
Repeat accuracy
Temperature drift
Hysteresis 1…5 %
Ambient temperature -30…+85 °C
Operating voltage 20…250VAC
Operating voltage 10…300 VDC
AC rated operational current
DC rated operational current
Frequency
Residual current
Isolation test voltage
Surge current
Short-circuit protection yes/ Latching
Voltage drop at I
Wire breakage/Reverse polarity protection yes/ Complete
Output function 2-wire, NO contact
Smallest operating current I
Switching frequency 0.01 kHz
Design Threaded barrel,M18 × 1
Dimensions 64 mm
Housing material Metal, CuZn, Chrome-plated
Active area material Plastic, PBT
End cap Plastic, EPTR
Max. tightening torque housing nut 25 Nm
Electrical connection Cable
Cable quality 5.2mm, LifYY, PVC, 2
Cable cross section
Vibration resistance 55 Hz (1 mm)
Shock resistance 30 g (11 ms)
Protection class IP68
MTTF 874 years acc. to SN 29500 (Ed. 99) 40 °C
e
m
ð (0,81 x Sn) mm
ð 2 % of full scale
ð ± 10 %
ð ± 15 %, ð -25 °C v ï +70 °C
ð 400 mA
ð 300 mA
ï 50…ð 60 Hz
ð 1.7 mA
ð 1.5 kV
ð 3 A (ð 20 ms max. 5 Hz)
ð 6 V
ï 3 mA
3 x 0.5 mm
2
Wiring Diagram
Functional principle
Inductive sensors detect metal objects contactless and wear-free. uprox® Factor 1 sensors have significant advantages due to their
patented ferrite-coreless multicoil system.
They detect all metals at the same large
switching distance and are resistant to magnetic fields.
Power-on indication LED,Green
Switching state LED,Yellow
Edition • Rev. C • 2018-04-20T17:30:36+02:00
1 / 3 TURCK Inc.
Inductive sensor
BI5U-M18-ADZ30X2

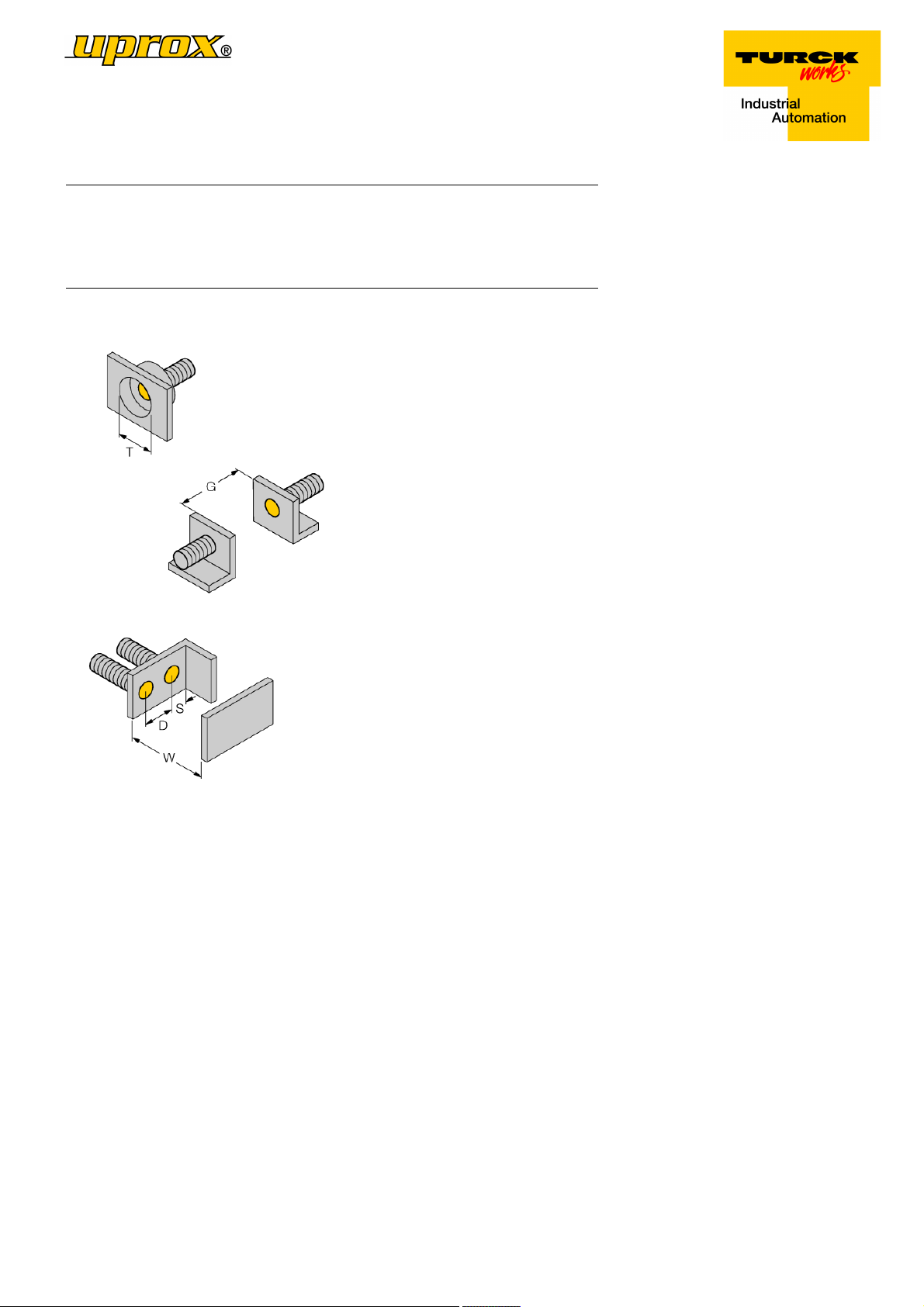

Distance D 2 x B
Distance W 3 x Sn
Distance T 3 x B
Distance S 1.5 x B
Distance G 6 x Sn
Diameter active area B Ø 18 mm
Edition • Rev. C • 2018-04-20T17:30:36+02:00
2 / 3 TURCK Inc.
