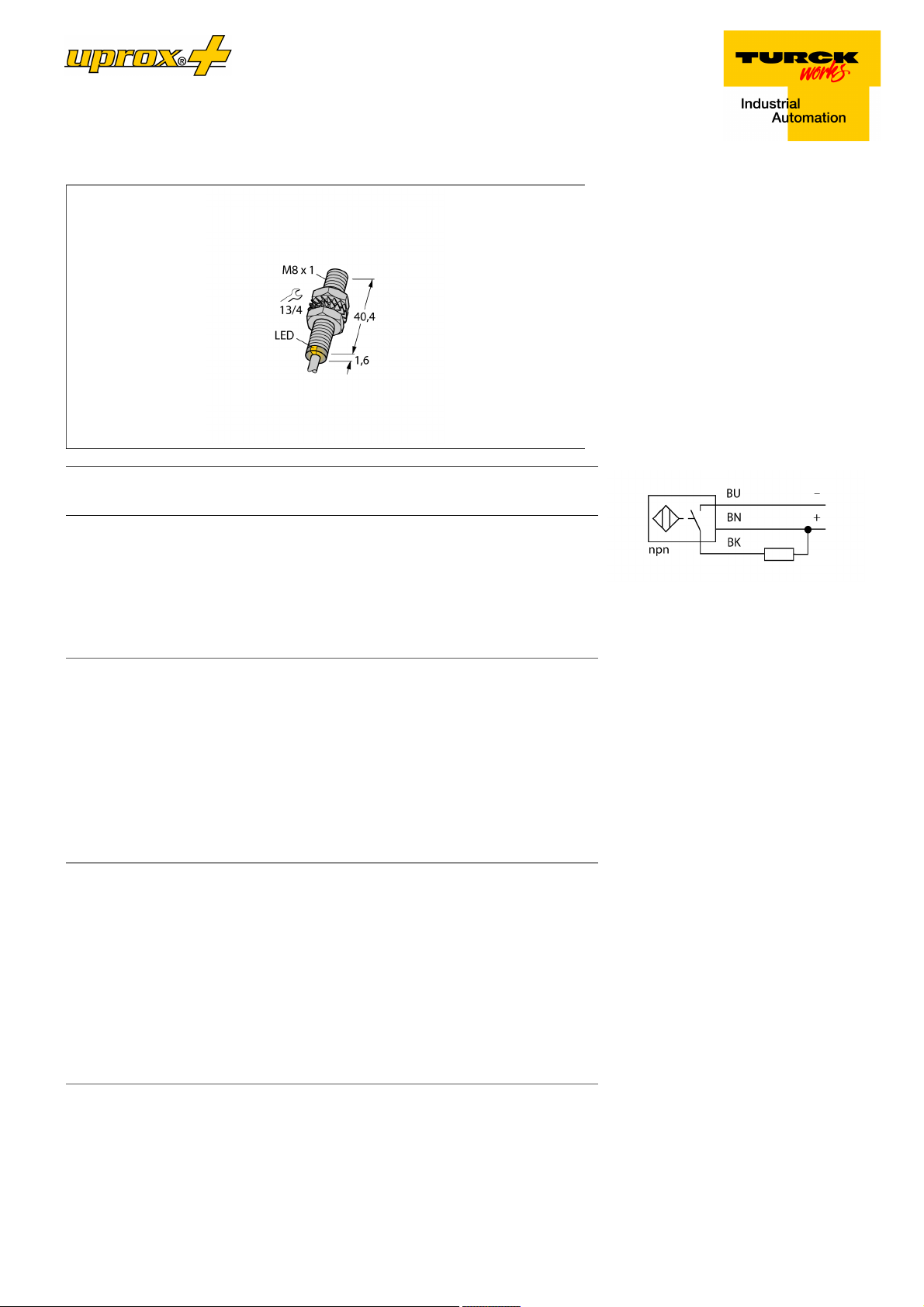

Turck BI2U-EGT08-AN6X Data Sheet

Inductive sensor BI2U-EGT08-AN6X
Threaded barrel, M8 x 1
Stainless steel, PTFE-coated
Factor 1 for all metals
Protection class IP68
Resistant to magnetic fields
Large switching distance
High switching frequency
Recessed mountable
DC 3-wire, 10…30 VDC
NO contact, NPN output
Cable connection
Type designation BI2U-EGT08-AN6X
Ident-No. 4602170
Rated switching distance Sn 2 mm Mounting conditions Flush Secured operating distance Repeat accuracy Temperature drift
Hysteresis 3…15 % Ambient temperature -30…+85 °C
Operating voltage 10…30 VDC Residual ripple DC rated operational current No-load current I Residual current Isolation test voltage Short-circuit protection yes/ Cyclic Voltage drop at I Wire breakage/Reverse polarity protection yes/ Complete Output function 3-wire, NO contact, NPN Protection class Switching frequency 1 kHz
Design Threaded barrel,M8 × 1 Dimensions 41.6 mm Housing material Stainless steel, 1.4427 SO, PTFE-coated Active area material Plastic, PP, PTFE-coated End cap Plastic, PP Max. tightening torque housing nut 5 Nm Electrical connection Cable Cable quality 4mm, LifYY-11Y, PUR, 2 Cable cross section
Vibration resistance 55 Hz (1 mm) Shock resistance 30 g (11 ms) Protection class IP68 MTTF 874 years acc. to SN 29500 (Ed. 99) 40 °C
0
e
ð (0,81 x Sn) mm ð 2 % of full scale ð ± 10 % ð ± 20 %, ð -25 °C v ï +70 °C
ð 10 % U
ss
ð 150 mA ð 15 mA ð 0.1 mA ð 0.5 kV
ð 1.8 V
÷
3 x 0.25 mm
2
Wiring Diagram
Functional principle
Inductive sensors detect metal objects con­tactless and wear-free. Due to the patented multi-coil system, uprox®+ sensors have dis­tinct advantages over conventional sensors. They excel in largest switching distances, maximum flexibility and operational reliability as well as efficient standardization.
Switching state LED,Yellow
Edition • 2018-04-23T22:39:57+02:00
1 / 3 TURCK Inc.
Inductive sensor BI2U-EGT08-AN6X
Distance D 16 mm
Distance W 6 mm
Distance T 24 mm
Distance S 12 mm
Distance G 12 mm
Diameter active area B Ø 8 mm
All flush mountable uprox®+ threaded barrel types are
also recessed mountable. Safe operation is ensured if
the sensor is screwed in by half a turn.
Edition • 2018-04-23T22:39:57+02:00
2 / 3 TURCK Inc.
Inductive sensor BI2U-EGT08-AN6X
Accessories
Type code Ident-No. Description
QM-08 6945100 Quick-mount bracket with dead-stop, chrome-plated brass,
male thread M12 x 1. Note: The switching distance of proxim-
ity switches may be reduced through the use of quick-mount
brackets.
BST-08B 6947210 Fixing clamp for threaded barrel devices, with dead-stop; ma-
terial: PA6
BSS-08 6901322 Mounting bracket for smooth and threaded barrel devices;
material: Polypropylene
MBS80 69479 Mounting bracket for threaded barrel devices; material
mounting block: Anodized aluminium
Edition • 2018-04-23T22:39:57+02:00
3 / 3 TURCK Inc.
