Turck BI15R-W30-AP6X-H1141 Data Sheet

Inductive sensor
Ring sensor
BI15R-W30-AP6X-H1141

Type designation BI15R-W30-AP6X-H1141

Ident-No. 1404030

■ Rectangular, height 30 mm

■ Plastic, PA12-GF30

■ Static output behaviour

■ Output pulse length min. 100 ms

■ DC 3-wire, 10…30 VDC

■ NO contact, PNP output

■ M12 x 1 male connector

Wiring Diagram

Inside ring diameter D 15.1 mm

Steel ball diameter (DIN 5401)
pulse stop
Pulse duration 100 ms ± 20 %
Pulse duration at the ouput 100 ms ± 20 %
Ambient temperature -25…+70 °C

Operating voltage 10…30 VDC
Residual ripple
DC rated operational current
No-load current I
Residual current
Isolation test voltage
Short-circuit protection yes/ Cyclic
Voltage drop at I
Wire breakage/Reverse polarity protection yes/ Complete
Output function 3-wire, NO contact, PNP
Switching frequency 0.008 kHz

Design Ring sensor,W30
Dimensions 60 x 35 x 30 mm
Housing material Plastic, PA12-GF30
Electrical connection Connector, M12 × 1
Coil body plastic, POM
Vibration resistance 55 Hz (1 mm)
Shock resistance 30 g (11 ms)
Protection class IP67
MTTF 2283 years acc. to SN 29500 (Ed. 99) 40 °C

0

e

ï 3 mm
ï 5 ms

ð 10 % U
ð 200 mA
ð 15 mA
ð 0.1 mA
ð 0.5 kV

ð 1.8 V

ss

Functional principle

Inductive sensors detect metal objects con­tactless and wear-free. For this purpose they
use a high-frequency electromagnetic AC field
that interacts with the target. Inductive ring
sensors generate this field through an LC res­onant circuit. The target acts as the coil core.

Output Behaviour

Switching state LED,Yellow

Edition • 2018-04-10T17:22:29+02:00

1 / 2 TURCK Inc.

Inductive sensor
Ring sensor
BI15R-W30-AP6X-H1141

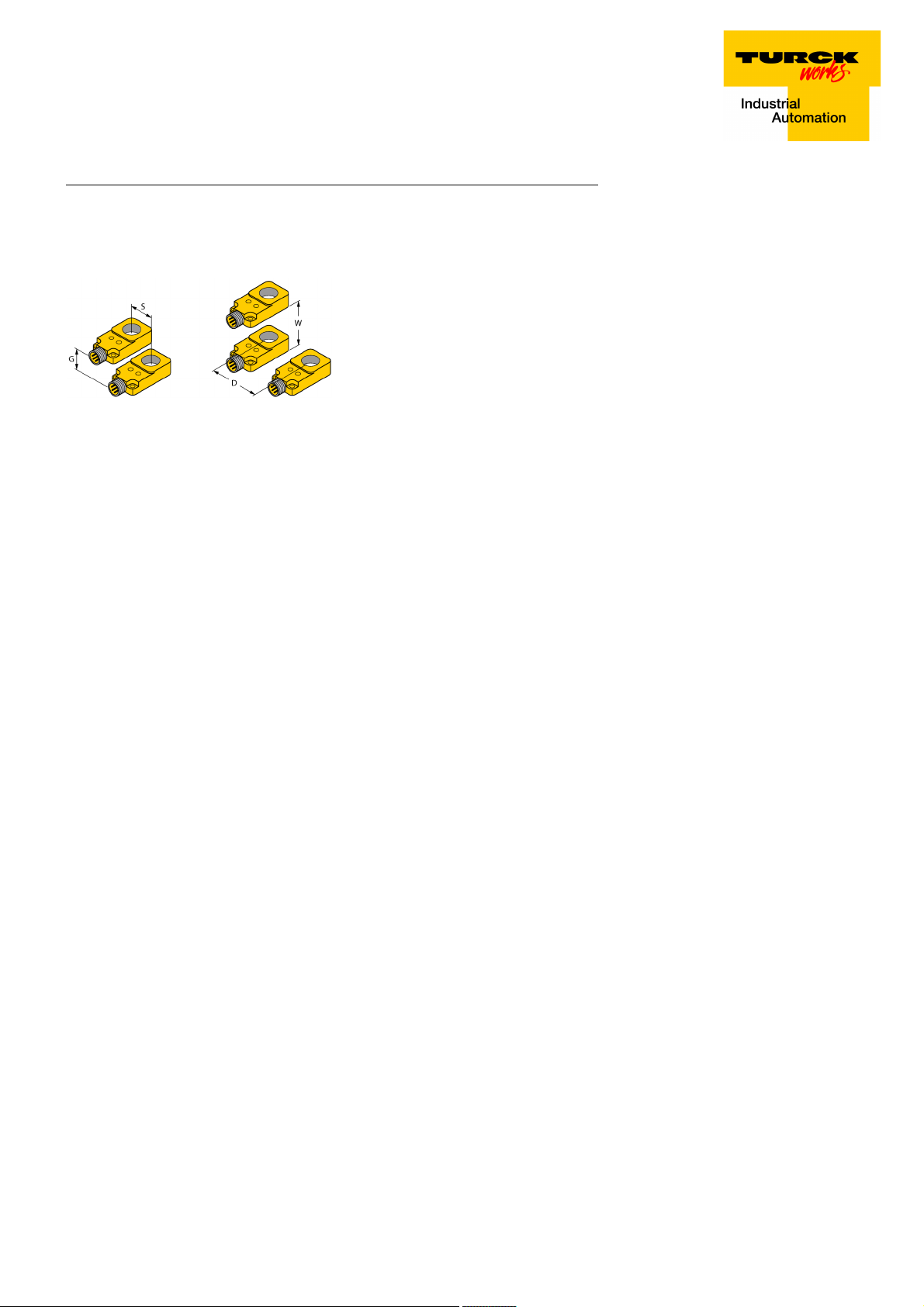

Distance D 30 mm

Distance W 45 mm

Distance S 14 mm

Distance G 30 mm

Edition • 2018-04-10T17:22:29+02:00

2 / 2 TURCK Inc.
