Turck BI10-EM30-RZ3X10M Data Sheet
Inductive sensor
BI10-EM30-RZ3X 10M
Type designation BI10-EM30-RZ3X 10M
Ident-No. 4316601
Rated switching distance Sn 10 mm
Mounting conditions Flush
Secured operating distance
Correction factors St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4
Repeat accuracy
Temperature drift
Hysteresis 3…15 %
Ambient temperature -25…+70 °C
ð (0,81 x Sn) mm
ð 2 % of full scale
ð ± 10 %
■ M30 × 1.5 threaded tube
■ Stainless steel, 1.4301
■ AC 2-wire, 20…250 VDC
■ DC 2-wire, 10…300 VDC
■ NC contact
■ Cable connection
Wiring Diagram
Functional principle
Inductive sensors detect metal objects contactless and wear-free. For this, they use a
high-frequency electromagnetic AC field that
interacts with the target. Inductive sensors
generate this field via an RLC circuit with a
ferrite coil.
Operating voltage 20…250VAC
Operating voltage 10…300 VDC
AC rated operational current
DC rated operational current
Frequency
Residual current
Isolation test voltage
Surge current
Voltage drop at I
Output function 2-wire, NC contact
Smallest operating current I
Switching frequency 0.02 kHz
Design Threaded barrel,M30 × 1.5
Dimensions 64 mm
Housing material Stainless steel, V2A (1.4301)
Active area material Plastic, PA12-GF30
End cap Plastic, EPTR
Max. tightening torque housing nut 75 Nm
Electrical connection Cable
Cable quality 5.2mm, LifYY, PVC, 10
Cable cross section
Vibration resistance 55 Hz (1 mm)
Shock resistance 30 g (11 ms)
Protection class IP67
MTTF 2283 years acc. to SN 29500 (Ed. 99) 40 °C
Switching state LED
e
m
ð 400 mA
ð 300 mA
ï 50…ð 60 Hz
ð 1.7 mA
ð 1.5 kV
ð 8 A (ð 10 ms max. 5 Hz)
ð 6 V
ï 3 mA
3 x 0.5 mm
2
Edition • Rev. A • 2018-04-23T16:01:17+02:00
1 / 3 TURCK Inc.
Inductive sensor
BI10-EM30-RZ3X 10M

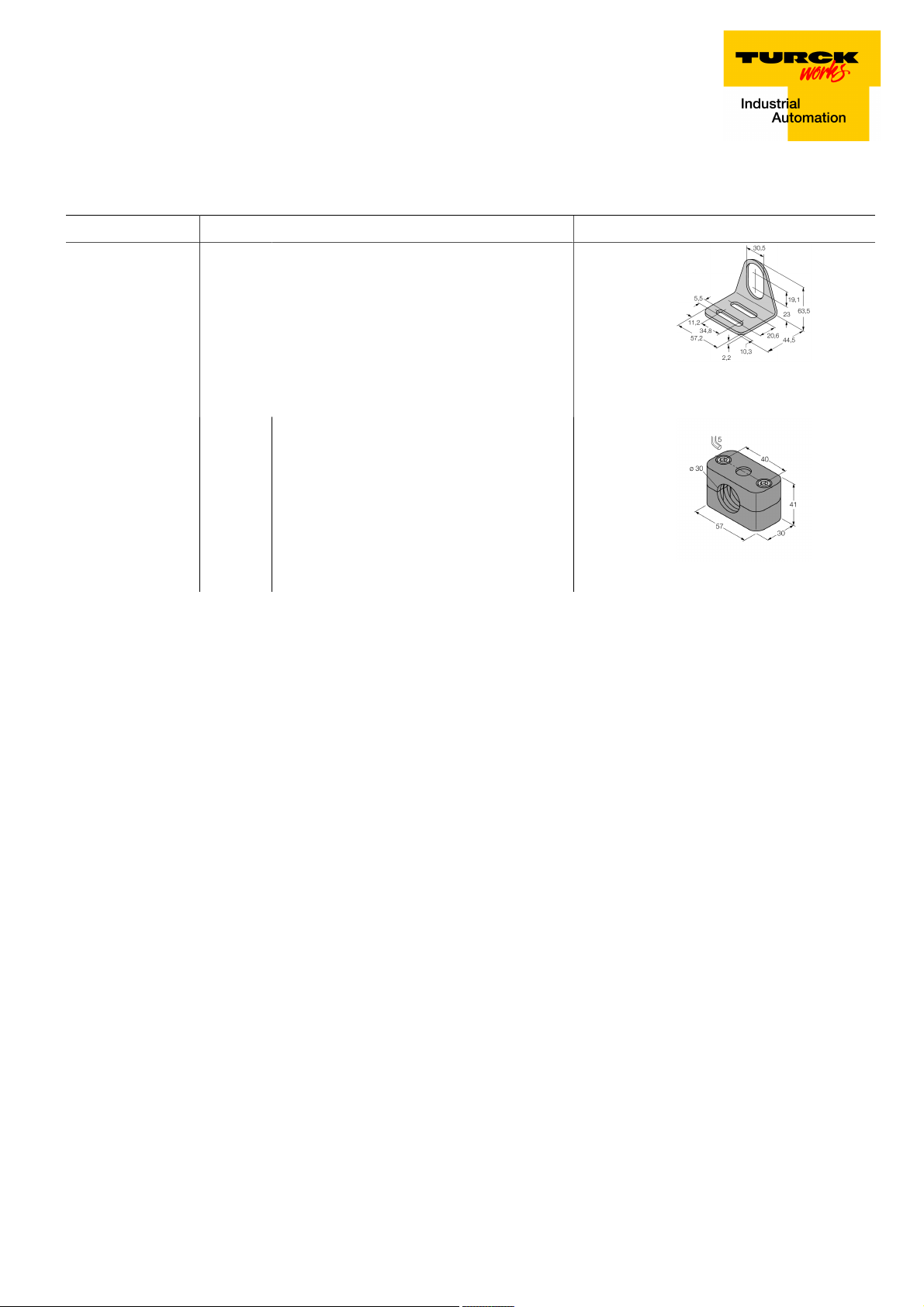

Distance D 2 x B
Distance W 3 x Sn
Distance T 3 x B
Distance S 1.5 x B
Distance G 6 x Sn
Diameter active area B Ø 30 mm
Edition • Rev. A • 2018-04-23T16:01:17+02:00
2 / 3 TURCK Inc.
