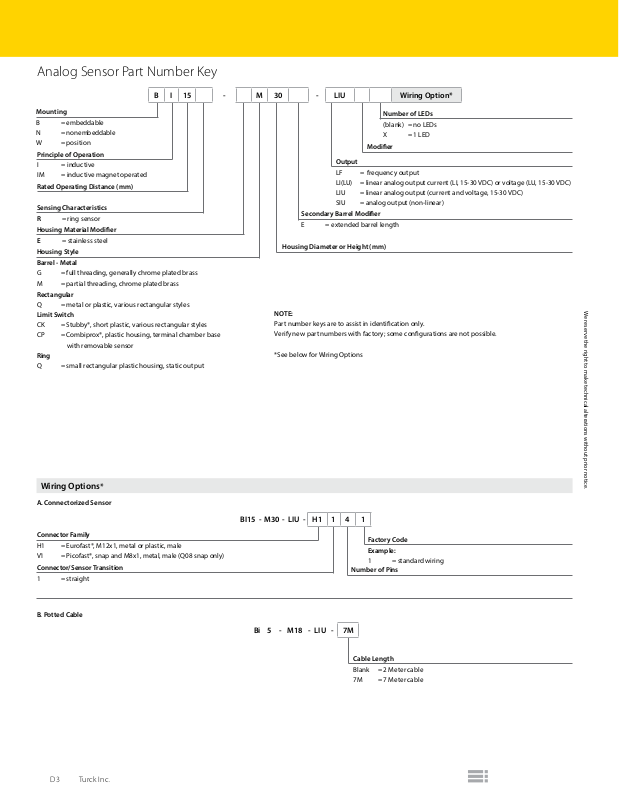

Turck Analog Sensor Part Numbering Designation
Analog Sensor Part Number Key
B I 15 - M 30 - LIU Wiring Option*
Mounting
B = embeddable
N = nonembeddable
W = position
Principle of Operation
I = inductive
IM = inductive magnet operated
Rated Operating Distance (mm)
Sensing Characteristics
R = ring sensor
Housing Material Modier
E = stainless steel
Housing Style
Barrel - Metal
G = full threading, generally chrome plated brass
M = partial threading, chrome plated brass
Rectangular
Q = metal or plastic, various rectangular styles
Limit Switch
CK = Stubby®, short plastic, various rectangular styles
CP = Combiprox®, plastic housing, terminal chamber base
with removable sensor
Ring
Q = small rectangular plastic housing, static output
Number of LEDs
(blank) = no LEDs
X = 1 LED
Modier
Output
LF = frequency output
LI(LU) = linear analog output current (LI, 15-30 VDC) or voltage (LU, 15-30 VDC)
LIU = linear analog output (current and voltage, 15-30 VDC)
SIU = analog output (non-linear)
Secondary Barrel Modier
E = extended barrel length
Housing Diameter or Height (mm)
NOTE:
Part number keys are to assist in identication only.
Verify new part numbers with factory; some congurations are not possible.
*See below for Wiring Options
We reserve the right to make technical alterations without prior notice.
Wiring Options*
A. Connectorized Sensor
Connector Family
H1 = Eurofast®, M12x1, metal or plastic, male
V1 = Picofast®, snap and M8x1, metal, male (Q08 snap only)
Connector/Sensor Transition
1 = straight
B. Potted Cable
D3
Turck Inc.
BI15 - M30 - LIU - H1 1 4 1
Factory Code
Example:
1 = standard wiring
Number of Pins
Bi 5 - M18 - LIU - 7M
Cable Length
Blank = 2 Meter cable
7M = 7 Meter cable
